T410160_4510 Product Data Sheet PFW 4510

: Vogels Product Data Sheet Pfw 4510 Product data sheet PFW 4510 Product data sheet PFW 4510 Black PFW 4000 Series Display Wall & Desk Mounts PROF2 Assets

Open the PDF directly: View PDF .
Page Count: 1

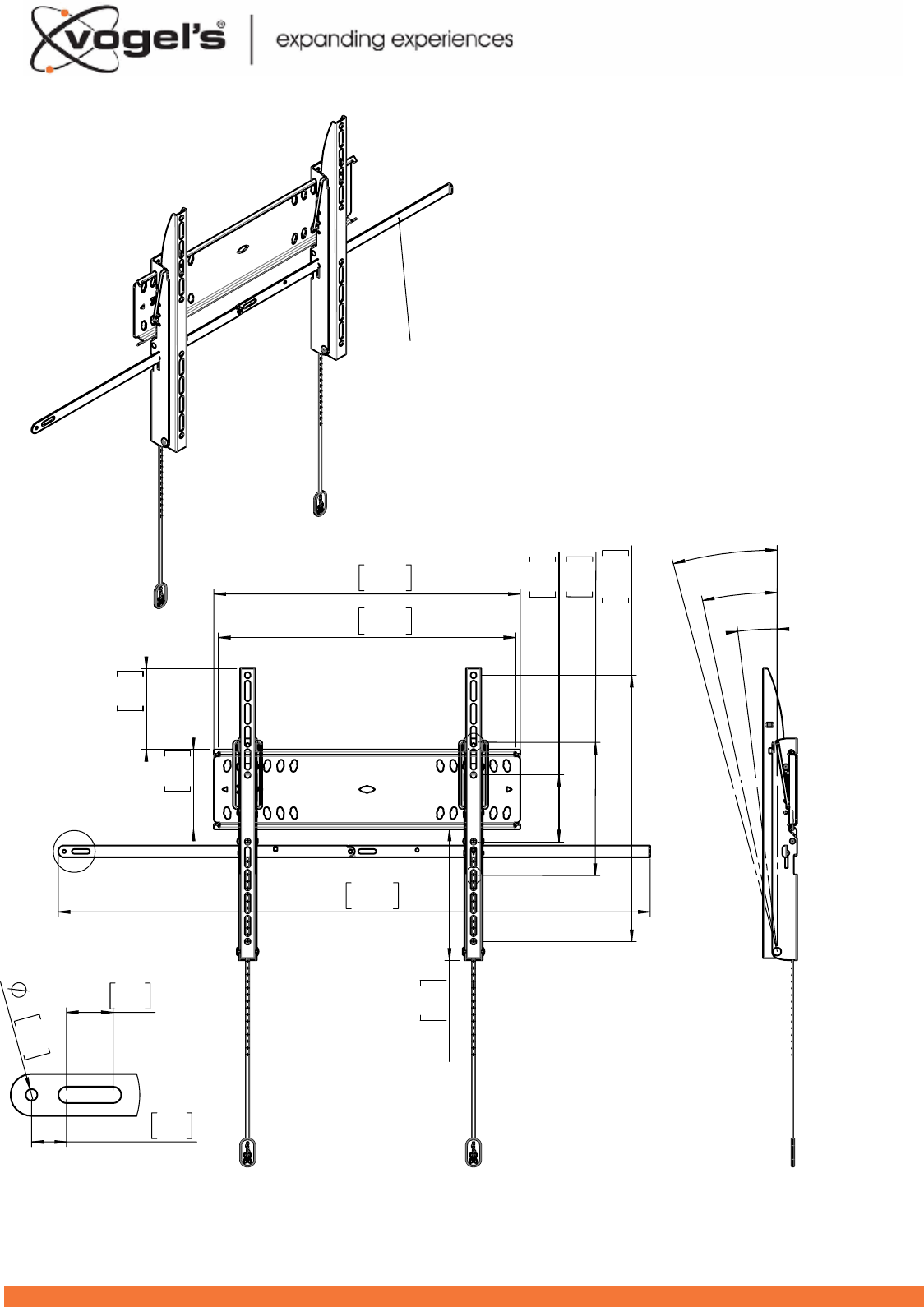

VESA sizes:

Fixed

tilt angles

Removable locking bar

197 7,7

400 15,7

100 3,9

120 4,7

122 4,8

446 17,6

460 18,1

889 35,0

200 7,9

A

7°

12°

15°

5 0,2

20 0,8

15 0,6

A (1 : 2)

SWD-001846

P.RD.F10-rev2

Note

: This document and specifications herein are confidential and the exclusive property of Vogel's Products b.v. Neither this design nor any information

contained in this drawing may be reproduced or disclosed to others without written consent of Vogel's Products b.v. The design and information will not be

reproduced, copied or used, either in part or in its entirety, as the basis for the manufacture or sale of items without written permission.

Warning:

Please study all instructions and illustrations carefully before installation.

Information in this document is subject to change without further notice.

Product data sheet

Dimensions in mm [inch]

Screen sizes: 42" - 55"

Max weight: 50kg

Wall mounting kit:

Screen mounting kit:

PFW4510

Product data sheet

6X SREW/BOLT PROF SW13 7X80

6X FISCHER PLUG UX10

4x M6x16 POZIDRIVE

4x M6x25 POZIDRIVE

4x M8x20 POZIDRIVE

4x M8x40 POZIDRIVE

4x WASHER M8x16x1.6

4x SPACER D12xD8x10

4x SPACER D12xD8x5
