Product Sheet PLW 100x

: Vogels Product Sheet - Plw 100X Product Sheet - PLW 100x PLW 100X Led Video Walls PROF2 Assets

Open the PDF directly: View PDF .
Page Count: 2

These rear service mounting solutions supports multiple

Leyard or Philips LED tiles and provides up to 60 cm of

smooth forward extension. The open frame design allows

complete rear cabinet access with no obstructions. The

frame provides quick installation of the LED tiles within a

single mounting frame. Adjustable wall foot pads enable

fine tune adjustment on uneven surfaces while dual

locking latches keep the mount secure in place when

service is not required.

This make the mounts suitable for use in control rooms,

corporate environments, reception areas, high-end

retail and broadcasting applications.

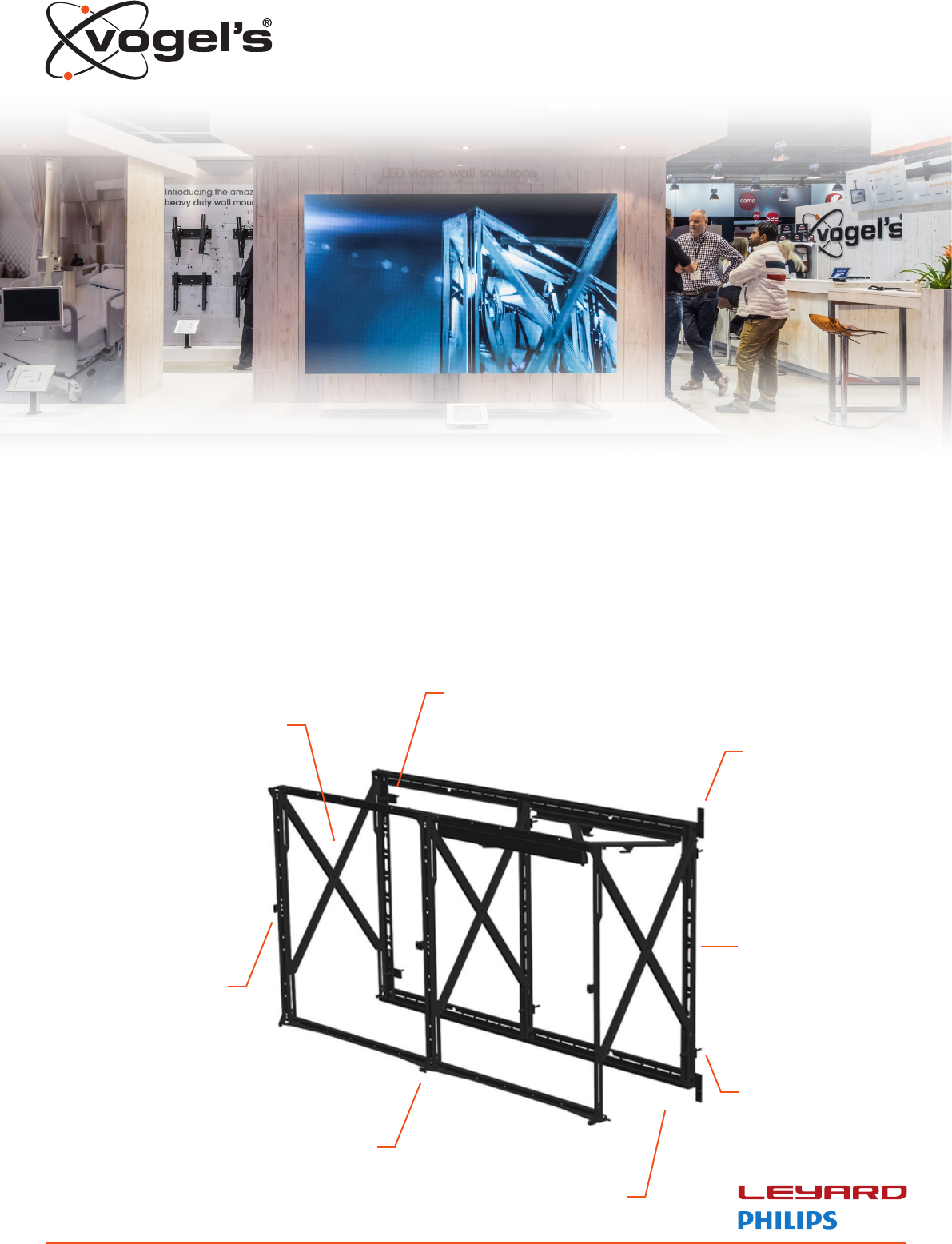

Scissor design allows for smooth

forward extension up to 60 cm

Integrated frame provides quick

installation of multiple LED tiles

Locking latches keep the

mount secure when

service is not required

Adjustable wall foot pad allows for fine

tune adjustment on uneven surfaces

Adjustment pads allow for

alignment of individual LED tiles

Extension alignment tabs

allow for the addition

of multiple expandable

mount units

vogels.com/professional

PLW 100x LED video wall mounts

Open frame design allows

complete rear cabinet access

with no obstructions

Optional actuator arm

allows for motorized in

and out movement

Designed for:

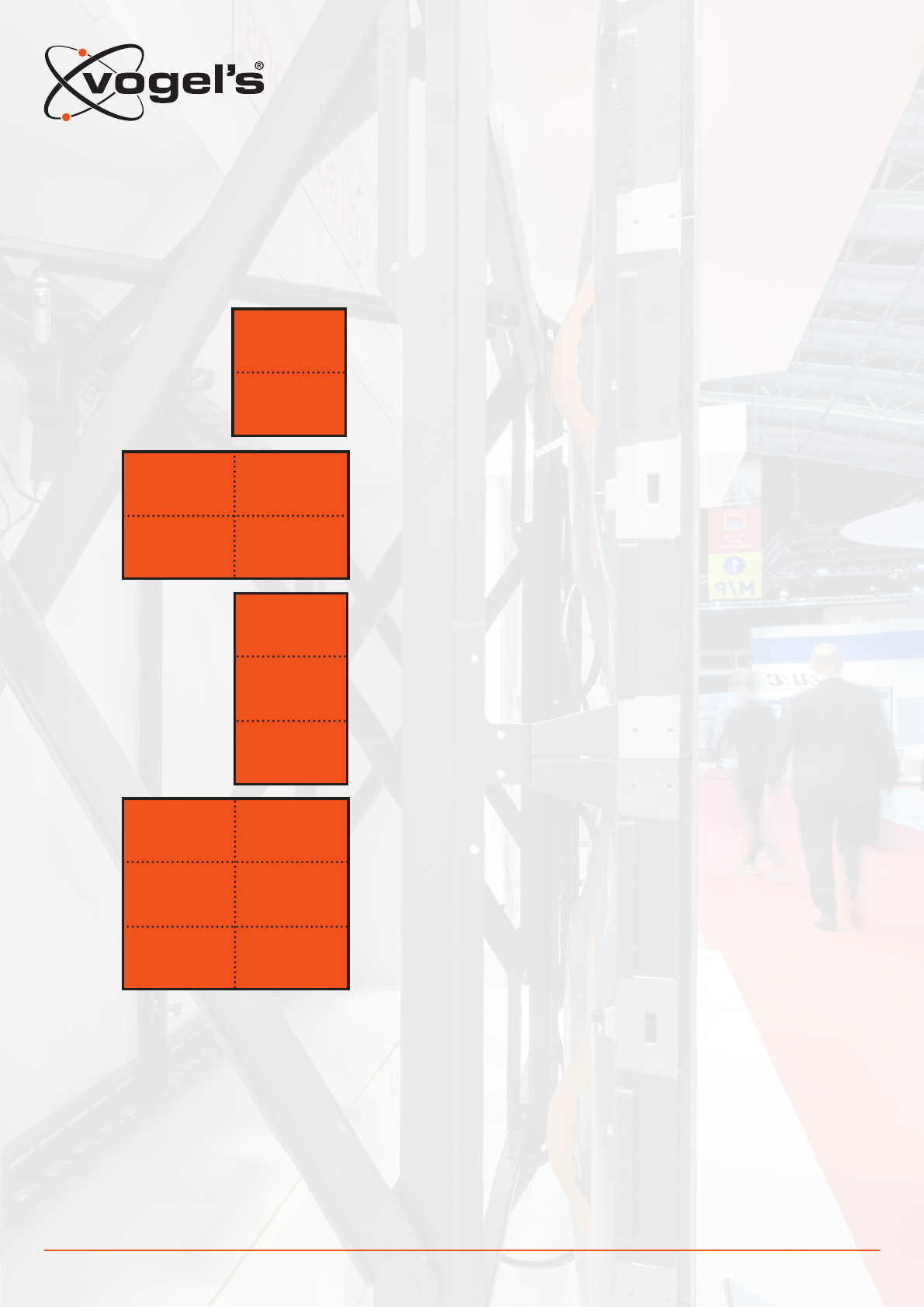

The PLW Series is available in several standard

configurations (1x2, 2x2, 1x3 and 2x3). By coupling these

mounts other video wall dimensions can be created.

They are suitable for Leyard TWA and TW Series and

Philips 55BDL9018L and 55BDL9025L tiles. The actuator to

create a motorized mount is optional.

PLW 1001 - 1x2 LED video wall mount

PLW 1002 - 2x2 LED video wall mount

PLW 1003 - 1x3 LED video wall mount

PLW 1004 - 2x3 LED video wall mount

PLA 1001 - Actuator base set

Interested in our LED products or a custom LED solution? Contact Vogel’s

Optional

PLA 1002 - Actuator extension set

vogels.com/professional

Mount specifications

Depth

Height

Width

Weight

Depth

Height

Width

Weight

Depth

Height

Width

Weight

Depth

Height

Width

Weight

Capacity

169 mm

1350 mm

1200 mm

54,5 kg

169 mm

1350 mm

2400 mm

81,6 kg

169 mm

2025 mm

1200 mm

68,0 kg

169 mm

2025 mm

2400 mm

104,3 kg

Maximum 5 LED tiles

(Actuator, controlbox, push button, remote, cabling C13 -

Schuko plug)

(Actuator, cabling)

Capacity For an additional 5 LED tiles
