Spare parts list

WALL 2325 BLACK

NB Please be aware that only the below listed part numbers are available as spare part.

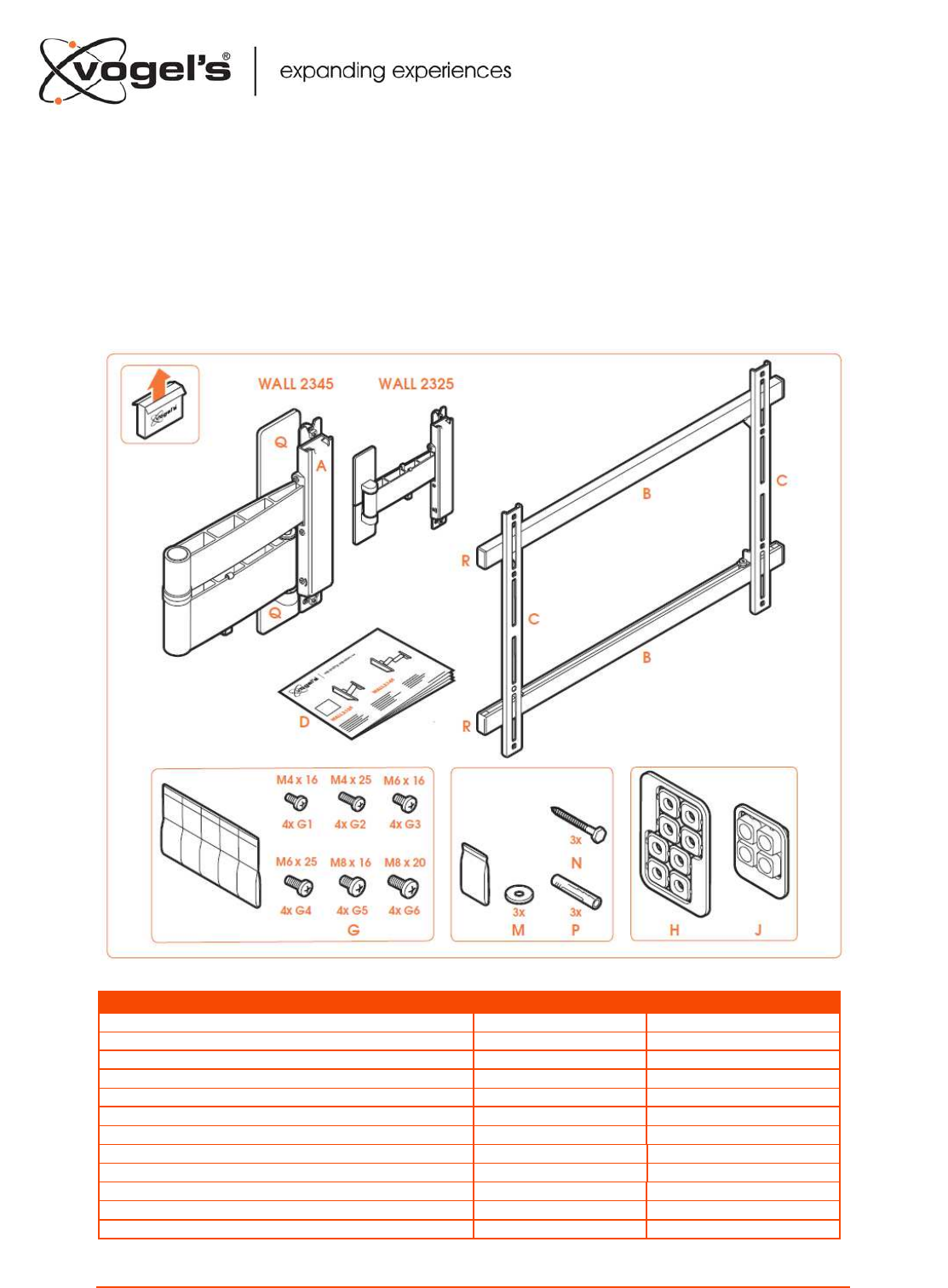

Part name Part nr Letter in exploded view

Screen mounting kit WALL 2225-2245-2325-2345 0391010 Bag with G

Set of spacers 0392015 J

Set of washers 0392014 H

Wall mounting kit WALL 2225-2245-2325-2345 0391009 Bag with M, N and P

Buffer interface bar BLACK 0392016 R

Vogel’s orange logo tag 0800010 -

Bolt and nut to fix strip C on bar B 0994618 & 0994619 -

Cable clip WALL 2225-2325 0392018 -

Thumbnut BLACK (on back of bar B) 0392021 -

Wall plate upper cover WALL 2225-2325 BLACK 0392012 Q

Wall plate lower cover WALL 2225-2245-2325 BLACK 0392004 Q

Single carton WALL 2325 BLACK 0394038 -
