QUICK GUIDE
![](asset-2.png)
Start/Stop*
Pedestrian Detection*
Lane Departure Warning*
02 Driver support systems
03 Your driving environment
Remote key
Keyless drive
Starting and switching off the engine
Parking brake
Wipers
01 Starting and driving
Adjusting the steering wheel
Adjusting the seats
Power tailgate*
WELCOME TO THE GLOBAL FAMILY OF VOLVO OWNERS!
This Quick Guide provides a brief overview of the most common features and functions in your Volvo.
The owner’s manual and the other driver’s information provided contain important warnings and other
information not included in this guide.
The following symbols indicate:
Specific call-outs in a general illustration.
Step-by-step instructions.
Important information that should be read in the owner’s manual.
Important information, warnings and safety-related instructions marked by these symbols can be
found on the last page of this guide.
An asterisk (*) indicates optional equipment.
The owner’s manual is available as a printed supplement, in digital form displayed on the center console screen,
on the Internet and as a mobile app. In addition to containing the entire owner’s manual, the mobile app also
contains instructional films and makes it possible to search for information in several ways. The app can be
downloaded from the App Store or Google Play.
For additional information, contact Customer Service:
U.S.A.: 1-800-458-1552 www.volvocars.com/us
Canada: 1-800-663-8255 www.volvocars.com/ca
Climate controls
Instrument panel
Infotainment system
Lighting controls
Bluetooth® hands-free
External audio devices
Volvo Navigation System*
Menu settings
Setting the clock
Booking service
Infotainment
Refueling
Vehicle care
Storage compartments
AUX/USB and 12-volt sockets
04 Functions in your vehicle
05 Tips
![](asset-3.png)

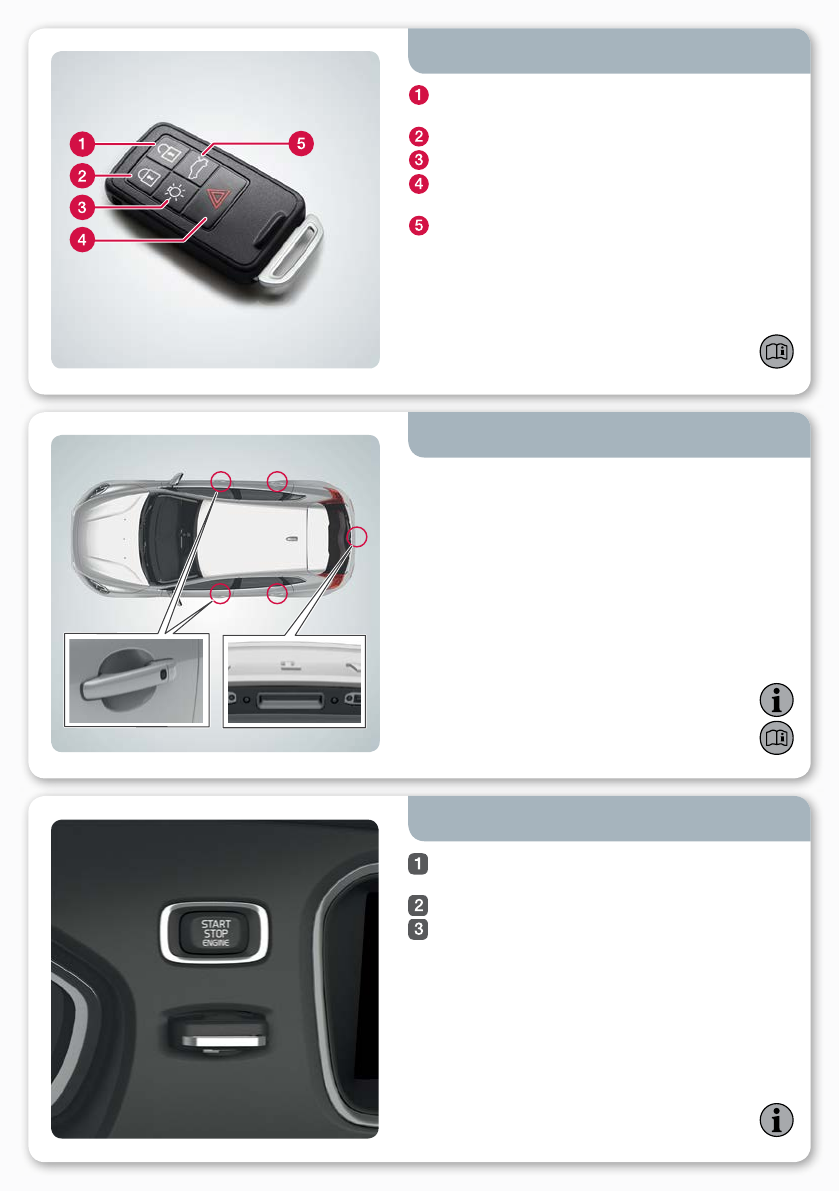

How does the remote key work?
How does keyless drive* work?
01
01
A keyless drive remote key must be in your possession.
Locking and arming the alarm
–Press the pressure-sensitive area on any of the outside
door handles or the rubber-covered button next to the
tailgate opening control.
Unlocking and disarming the alarm
–Pull a door handle to unlock and open the door or
press the tailgate opening control.
Unlocks the doors and the tailgate and disarms the
alarm. This setting can be changed in MY CAR.
Locks the doors and the tailgate and arms the alarm.
Approach lighting.
“Panic” alarm: Press and hold to sound the alarm.
Turn off the alarm with the unlock button.
Press to unlock the tailgate only.
The remote key can also store the positions of the
power seat* and door mirrors.
How do I start the engine?
Press the remote key into the ignition slot (not nec-
essary on vehicles with keyless drive*).
Press the brake pedal.
Press the START/STOP ENGINE button briefly and
release it to start the engine.
01
See the additional information on the last page of
this guide.
See the additional information on the last page of
this guide.
![](asset-4.png)

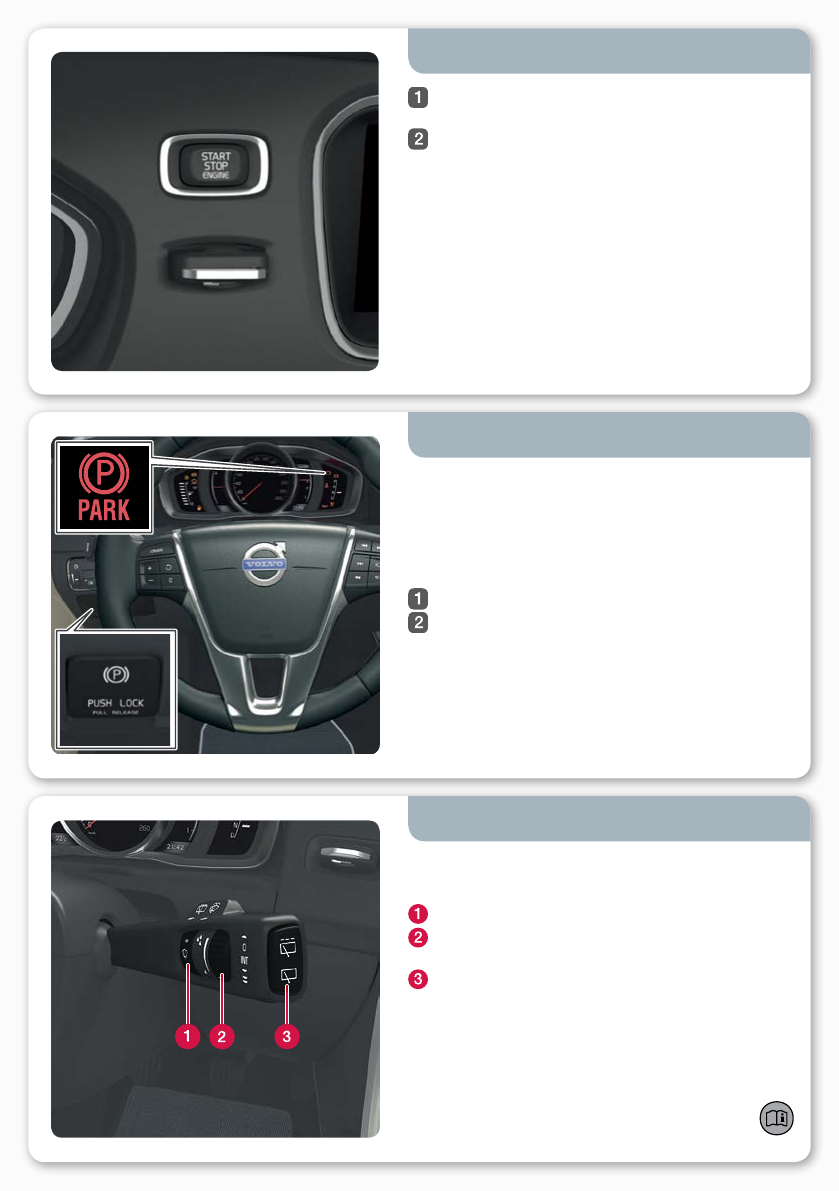

How do I set/release the parking brake?
Setting
Press firmly on the brake pedal and press the PUSH
LOCK/PULL RELEASE control: the symbol in the instru-
ment panel flashes while the parking brake is being
applied and glows steadily when it has been fully applied.
Manual release
Press firmly on the brake pedal.
Pull the PUSH LOCK/PULL RELEASE control.
Automatic release
Begin driving. The parking brake will release automatically
if the driver’s seat belt is fastened.
01
How do I start the windshield wipers and rain
sensor*? 01
Press the lever down to start the windshield wipers or up
for the single-sweep function.
Rain sensor On/Off.
Turn to adjust the rain sensor sensitivity or interval
wiper speed.
Tailgate wiper – interval/normal.
To lift the windshield wipers away from the wind-
shield, they must be in the service position. See your
owner’s manual.
How do I switch off the engine? 01
Park the vehicle and briefly press the START/STOP
ENGINE button to switch off the engine.
Pull the remote key out of the ignition slot (not nec-
essary on vehicles with keyless drive*).
![](asset-5.png)
How do I use the start/stop* feature?
Auto-stop: Apply the brakes until the vehicle stops and
keep the brake pedal depressed.
Auto-start: Release the brake pedal.
The indicator light in the button on the center console
indicates that the function is active.
02
The optional Pedestrian and Cyclist Detection with
Full Auto Brake system has a feature that helps detect
pedestrians and applies the brakes to help slow or stop
the vehicle.
This feature is designed to be a supplementary driving aid
and cannot detect pedestrians or cyclists in all situations.
It is not intended to replace the driver’s attention and
judgement.
How does Pedestrian Detection* work? 02
Understanding this feature is essential, see your
owner’s manual for more information. See also the
warning on the last page of this guide.
If the vehicle crosses a side marker line or the road’s
center dividing line, LDW will alert the driver by providing
an audible signal.
Activate LDW by pressing the button on the center
console.
What does Lane Departure Warning (LDW)*
do?
See the warning on the last page of this guide.
02
![](asset-6.png)

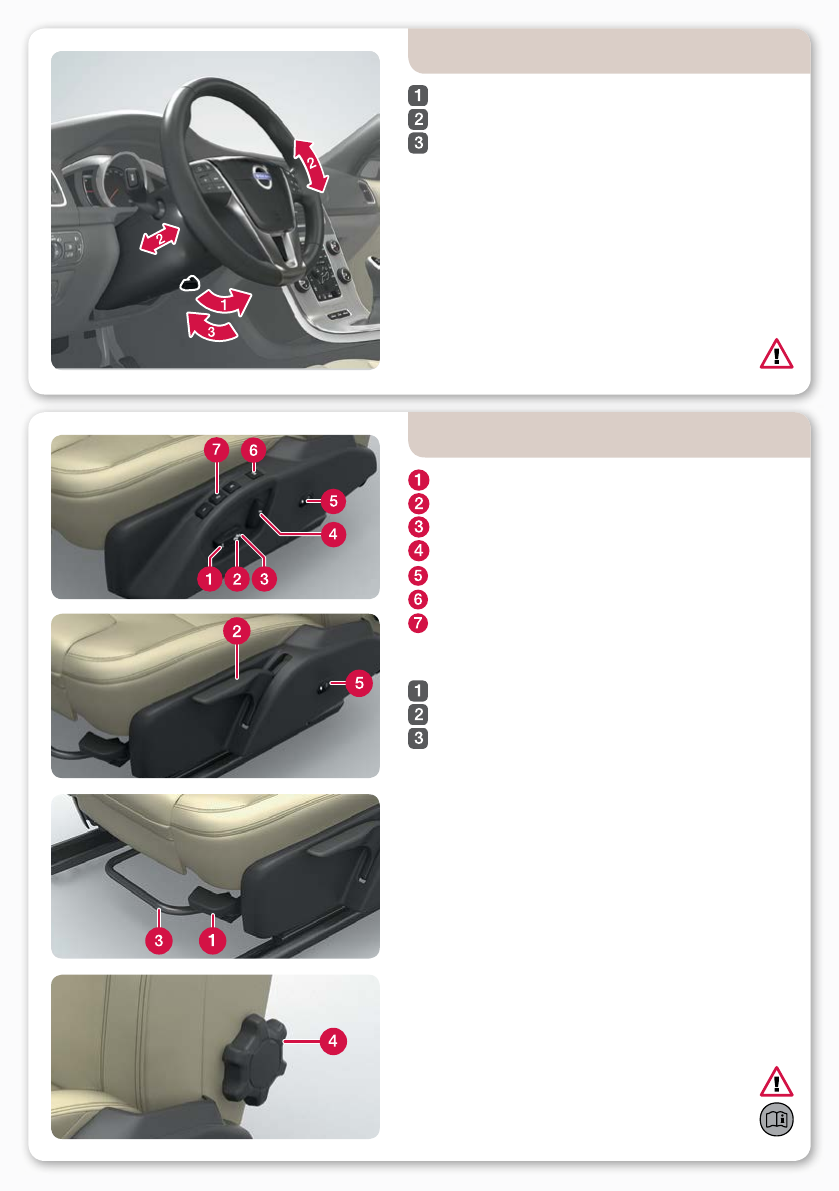

How do I adjust the seat?
Raise/lower the front edge of the seat cushion.
Raise/lower the seat.
Move the seat forward/rearward.
Tilt the backrest.
Electronic lumbar support*.
Memory button (M).
Buttons for storing seat positions.
Programming the power seat’s* memory
Adjust the seat to the desired position.
Press and hold down the M (memory) button (6).
With the M button depressed, briefly press one of the
buttons (7) to store the current seat position.
03
See the warning on the last page of this guide.
How do I adjust the steering wheel?
Release the steering wheel.
Adjust up/down/fore/aft.
Lock the steering wheel in position.
03
See the warning on the last page of this guide.
![](asset-7.png)

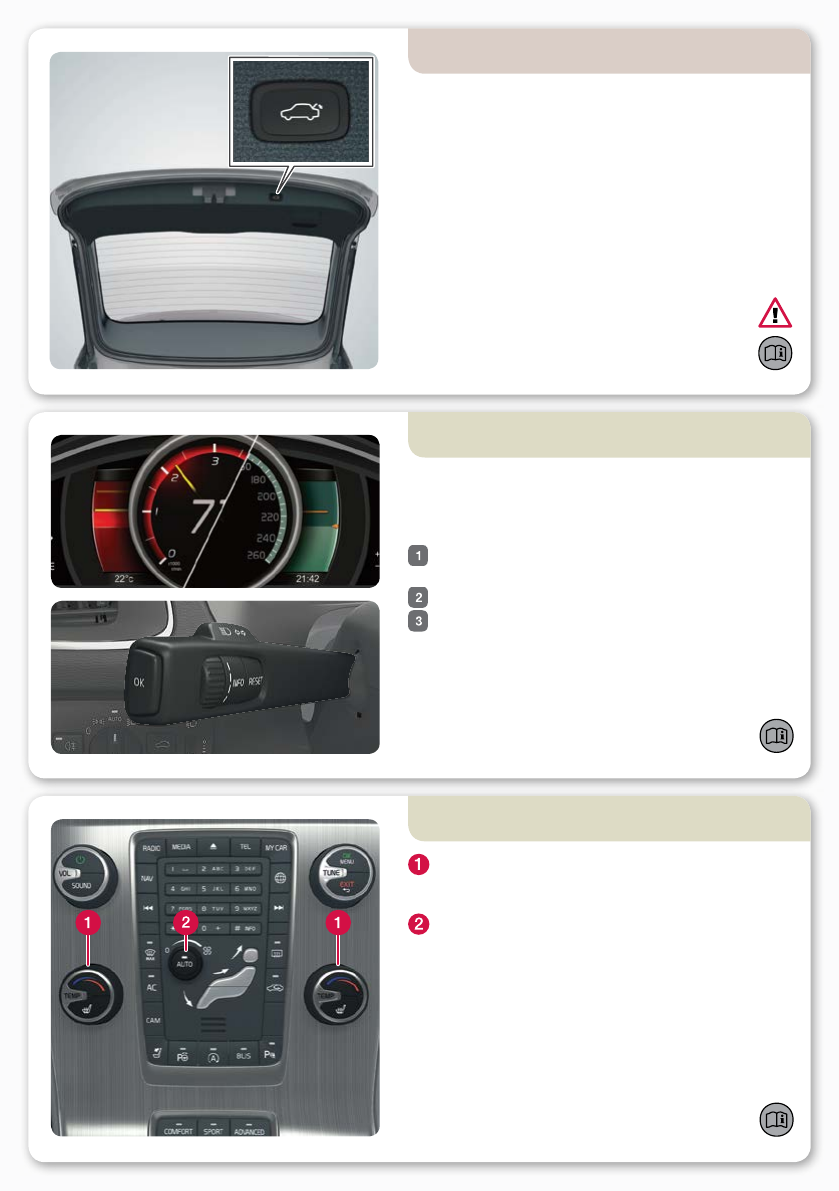

How do I set the temperature? 04
Turn the controls to set the temperatures on the
driver and passenger sides respectively. The selected
temperature is shown in the display.
Press AUTO to automatically regulate cooling, heat-
ing, blower speed, recirculation, and air distribution to
maintain the chosen temperature. AUTO CLIMATE is
displayed.
How do I change the digital instrument
panel’s display alternative (theme)*? 04
The digital instrument panel has three different display
alternatives (themes): Elegance/Eco/Performance. To
switch themes:
With the engine running and the vehicle safely
parked, press OK on the left steering wheel lever.
Use the thumb wheel to scroll to Themes.
In the Themes menu, scroll to the desired theme
and press OK to select and confirm your choice.
Opening
– Press the rubber-covered button under the outer
handle on the tailgate or press and hold the button on
the lighting panel until the tailgate begins to open.
Closing
– Press the button on the tailgate
The tailgate can also be opened/closed manually.
How does the power tailgate* work? 03
See the warning on the last page of this guide.
![](asset-8.png)

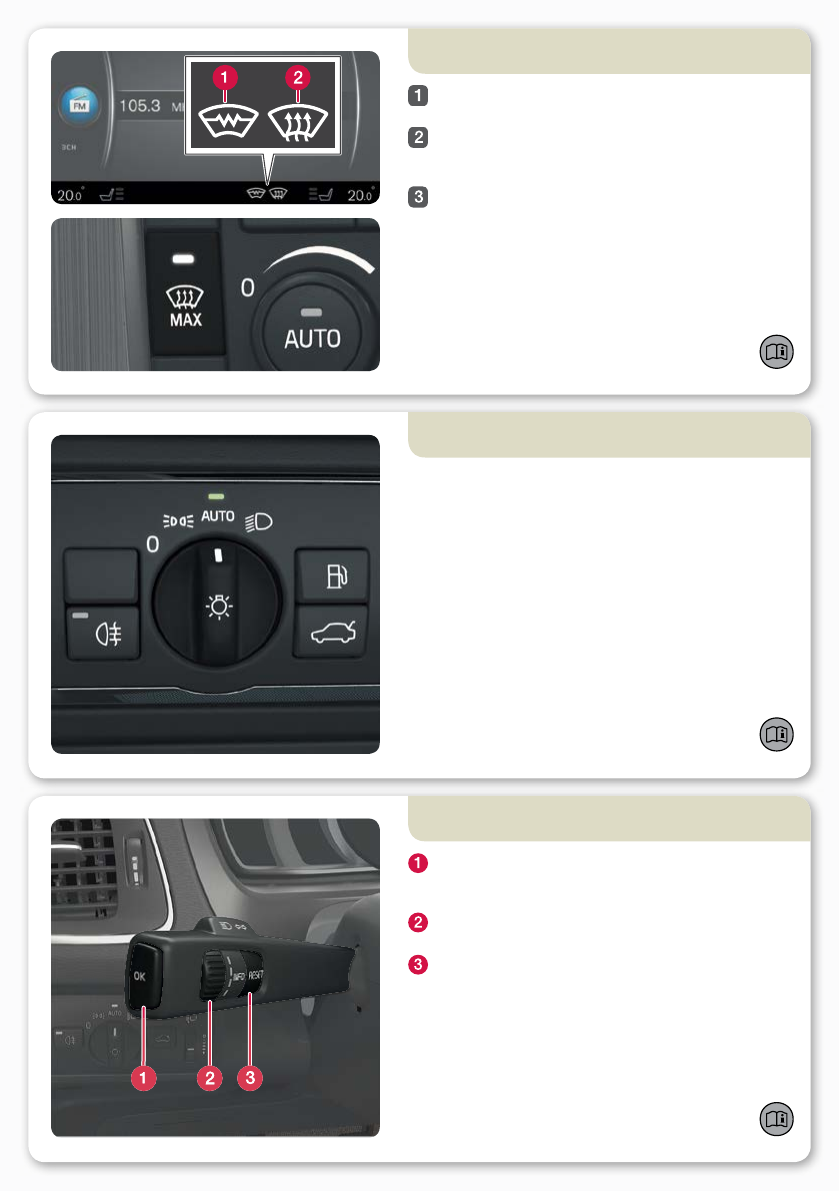

How does the AUTO headlight feature work? 04
With the switch in the AUTO position:
• The headlights will switch automatically between
daytime running lights and low beam headlights,
depending on ambient lighting conditions.
• High beams can be used if the low beams are on.
• Active Bending lights* (ABL) switch between high
and low beams automatically if another vehicle ap-
proaches or is directly ahead.
• Tunnel detection* is also active.
Volvo recommends leaving the headlight switch in the
AUTO position whenever possible.
How do I operate the trip computer?
OK opens the trip computer menus in the instru-
ment panel, confirms a message or activates a menu
selection.
Use the thumb wheel to scroll among the menu
selections or trip computer alternatives.
RESET resets the trip computer functions or exits
the current menu.
04
How do I defrost the windshield? 04
Press to activate electrical heating*; the symbol (1)
illuminates in the display.
Press again to also direct airflow toward the wind-
shield and front side windows; symbols (1) and (2)
will illuminate.
Press again to switch off both functions; no symbols
will be illuminated.
Models without electrical defrosting: Press to direct
airflow toward the windshield and front side windows.
![](asset-9.png)
How do I pair the first Bluetooth® cell phone? 04
See your owner’s manual for alternative pairing
instructions.
Press TEL on the center console. Press OK/MENU
on the center console.
Scroll to Make car discoverable and press
OK/MENU.
Activate the cell phone’s Bluetooth® function. Search
for the vehicle and pair it with the cell phone.
Follow the instructions in the phone and on the
center console screen to complete the procedure.
The phone will then connect automatically when it’s within
range.
How do I make a call?
See your owner’s manual for information about
other ways of making calls.
04
In telephone mode’s normal view, enter the desired
phone number or turn the thumb wheel on the steer-
ing wheel downward to access the list of contacts
(phonebook) or upward for a list of calls.
Press the thumb wheel to start the call.
Reject or end the call by pressing EXIT.
How do I reset the trip odometers? 04
Turn the left side steering wheel thumb wheel to
scroll to the desired trip odometer (T1 or T2).
Press and hold RESET to reset.
![](asset-a.png)
How do I navigate in the infotainment
system?
Press RADIO, MEDIA, MY CAR, NAV*, TEL or on
the center console to select a mode. The selected
mode’s normal view will be displayed.
Press OK/MENU or the thumb wheel on the
steering wheel to display the mode’s main menu.
Turn TUNE or the thumb wheel to navigate in the
menus.
Press OK/MENU or the thumb wheel to make a
selection.
Press EXIT briefly to go back in the menu system,
cancel a function or erase characters.
Press and hold EXIT to return to the mode’s normal
view. From a mode’s normal view, press and hold
EXIT to go to the infotainment system’s main view.
Tip:
To display the shortcut from a mode’s normal view, press
its button on the center console. Press again to return to
the mode’s main view.
04
How do I answer a call?
–Press the thumb wheel on the right steering wheel
keypad to answer an incoming call.
Reject or end the call by pressing EXIT.
See your owner’s manual for information about
other ways of answering calls.
04
![](asset-b.png)
How do I connect to the Internet? 04
See your owner’s manual for additional information.
Pair and connect a cell phone to the vehicle (see
”How do I pair a Bluetooth® cell phone?” above) and
activate tethering/personal hotspot in the phone.
In the MY CAR normal view, press OK/MENU,
select Settings > Internet settings > Connect
through. Select: Car modem, Wi-Fi or Bluetooth.
The system will then automatically connect to the Internet
via the connection type selected.
The web browser should not be used when the
vehicle is moving.
What is a Volvo ID? 04
See your owner’s manual for additional information.
A Volvo ID is your personal ID that can be used to access
a number of services. These services vary and may be
subject to change. Consult your Volvo retailer for up-to-
date information.
Register your Volvo ID as follows:
Press the Internet connect ( ) button on the center
console twice.
Select Apps > Settings and follow the instructions
provided on the screen.
How do I switch the infotainment system on
and off?
Press the power button briefly to switch the system
on.
Press and hold the button (until the screen turns
black) to switch off.
With the system on, press the button briefly to mute/
unmute the sound.
04
Keep in mind that the entire infotainment system, includ-
ing telephone and navigation* functions, are switched on
and off at the same time.
![](asset-c.png)
How do I connect an external audio device?
See your owner’s manual for other alternatives.
04
Connect the device using the AUX or USB sockets
in the tunnel console.
In the media mode’s normal view, press MEDIA.
Turn TUNE to the desired audio source and press
OK/MENU.
How can I set a destination in the navigation*
system?
Press NAV on the center console to start the naviga-
tion system. A map will be displayed.
Press NAV again and select Set address by press-
ing OK/MENU.
Enter an address with the text wheel or the center
console keypad.
Conclude by selecting Set single destination or
Add as waypoint and press OK/MENU.
See your owner’s manual for additional information.
04
How do I use apps when the vehicle is con-
nected to the Internet? 04
Applications (apps) are services that can be used when
the vehicle is connected to the Internet. The apps available
vary and include services related to navigation, social
media, web radio and music.
Press the Internet connect ( ) button on the center
console.
Select Apps and press OK/MENU to display the
available apps.
Select an app and confirm by pressing OK/MENU.
Some apps require you to log in using a separate account
from the app/service provider. Use an existing account or
create a new one. Follow the directions on the screen.
![](asset-d.png)
04

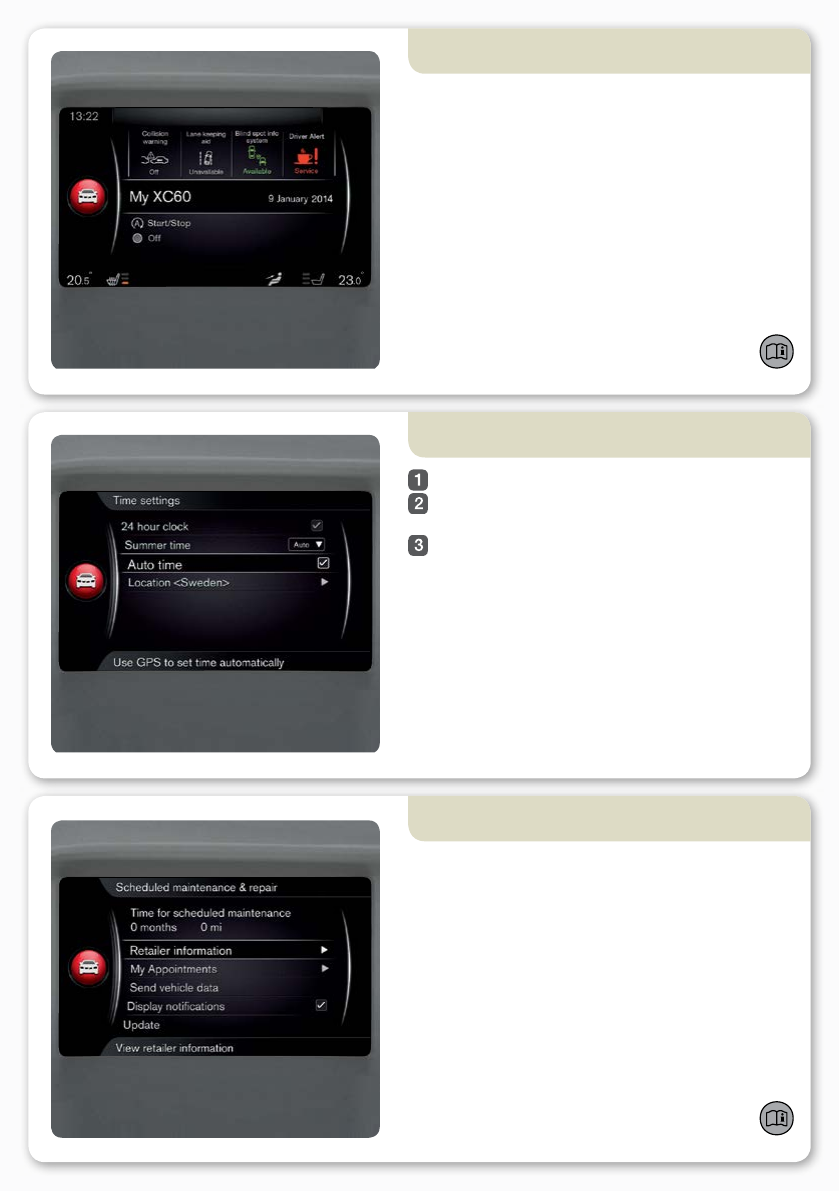

How do I set the clock?
In the MY CAR normal view, press OK/MENU.
Select Settings > System options > Time set-
tings.
Turn TUNE to Auto time and press OK/MENU to
activate the automatic clock setting function.
Select your current time zone under Location for the
correct time.
04
How do I call my preferred retailer or book
service*?
–In the MY CAR source’s normal view, press OK/MENU
and select Maintenance & repair.
Maintenance & repair contains information about the
preferred retailer/workshop that you have registered.
Under Retailer information you can call to book service
or repairs or send a booking request. You can also update
workshop information.
This feature may be introduced at a later date on
certain markets.
04
What settings can be made in the menu
system?
Many of the vehicle’s functions can be controlled in MY
CAR, such as setting the clock, storing the door mirrors’
position, locks, etc.
See the section “How do I navigate in the infotainment
system” in this Quick Guide for more information.
04
![](asset-e.png)
How do I refuel? 05
–Press the button on the lighting panel to open the
fuel filler door. The door will open when the button is
released.
The arrow on the fuel pump symbol in the instrument
panel shows the side of the vehicle that the fuel filler door
is on.
How should I wash the vehicle?
Avoid washing the vehicle in an automatic car wash dur-
ing the first few months (because the paint will not have
hardened sufficiently).
Use a suitable car washing liquid and a clean sponge
when hand-washing the vehicle. Dirt or grit on the sponge
can scratch the paint.
05
How should I care for leather upholstery*? 05
Leather requires regular care to remain smooth and soft.
Volvo leather care products, available from your retailer,
should preferably be used several times a year. Light-
colored leather upholstery should preferably be wiped with
a damp cloth once a week.
See the additional information on the last page of
this guide.
![](asset-f.png)
Where are the storage compartments lo-
cated?
Several of the storage compartments are shown here.
Your owner’s manual shows all of the storage com-
partments.
05
Where are the AUX/USB/12-volt sockets? 05
The ignition must be in mode I or higher for the 12-volt
sockets in the cabin to function. The 12-volt socket in the
cargo compartment* provides current even when the ignition
is switched off.
See the additional information on the last page of
this guide.
![](asset-10.png)
How does keyless drive* work?
Wearing thick gloves may affect the unlocking function. Keyless drive can be affected by electromagnetic fields and metal obstructions.
Never carry the remote key close to a cell phone or metallic objects.
How do I start the engine?
After a cold start, idle speed may be noticeably higher than normal for a short period, regardless of the ambient temperature. This is done
to help bring components in the emission control system to their normal operating temperature as quickly as possible.
What does Lane Departure Warning (LDW)* do?
LDW is only intended to assist the driver and does not function in all driving, weather, traffic or road conditions. As the driver, you have full
responsibility for operating the vehicle in a safe manner.
How does Pedestrian Detection* work?
The system cannot detect all pedestrians in all situations, such as in darkness/at night and cannot detect partially hidden pedestrians,
people who are less than approx. 32 in. (80 cm) tall, or people wearing clothing that obscures the contours of their bodies.
How do I adjust the steering wheel?
After adjusting the seat, always adjust the steering wheel prior to driving.
How does the power tailgate* work?
Be sure that no one is near the tailgate when it is opened or closed automatically. The tailgate should never be obstructed in any way
when it is operated.
How do I adjust the seat?
Do not adjust the seat while driving. The seat should be adjusted so that the brake pedal can be depressed fully. In addition, position the
seat as far rearward as comfort and control allow.
How should I care for leather upholstery?
Clothing that is not colorfast, such as new jeans or suede garments, may stain the upholstery. Gasoline, naphtha or similar cleaning agents
should never be used on the leather since these can cause damage.
Where are the AUX/USB/12-volt sockets?
The maximum current consumption is 10A (120W) if only one of the 12-volt sockets in the passenger compartment is in use. If both the
front and rear sockets are used at the same time, the maximum current consumption per socket is 7.5A (90W).
How do I connect to the Internet?
You can also connect to the Internet using the vehicle’s modem*. Insert your personal SIM card in the holder located in the glove
compartment and select Car modem in MY CAR. Enter the SIM card’s PIN code.
To avoid having to enter the PIN code each time the ignition is switched on, the SIM card can be unlocked in the menu system under
Settings->Internet settings->Car modem. Deselect Lock SIM card.
Wi-Fi connection: certain cell phones deactivate tethering when the phone’s contact with the vehicle is broken. Tethering must be
reactivated in the phone in order to be used again.
Go to volvocars.com/us or volvocars.com/ca to learn more about your vehicle.
TP 21419 (English - USA & Canada) AT 1617. Printed in Sweden, Göteborg 2016 Copyright © 2000-2016 Volvo Car Corporation
