VOLVO

S60 2006

CONTENTS

THE VOLVO S60

Driver’s environment 4

Performance technology 6

AWD with Instant Traction™ 8

Active chassis with Four-C 9

Volvo S60 R 10

Safety 12

Personal security 16

Comfort and versatility 18

Environmental care 20

SELECTING A VOLVO S60

The S60 selection 26

Standard features/ 28

Factory options

Option packages 29

Audio and entertainment 30

Exterior selections 32

Interior selections 34

Factory-installed options 38

Accessories 39

Technical specifications 40

Exterior colours 42

Care by Volvo 43

www.volvocanada.com

“CARS ARE DRIVEN BY PEOPLE. THEREFORE, THE GUIDING

PRINCIPLE BEHIND EVERYTHING WE MAKE AT VOLVO, IS

– AND MUST REMAIN – SAFETY.”

ASSAR GABRIELSSON AND GUSTAF LARSON,

THEFOUNDERSOFVOLVO.

For a lifetime, we have protected and celebrated life: of the occupants

of our cars and of the world around them. Since our life began in 1927,

we’ve learned a great deal about keeping people safe, through extensive

testing and by researching real-life accidents. In fact, while the entire

automobile industry makes use of Volvo safety concepts, we continue

to develop new ones.

One of the things we’ve discovered is that although safety is

enhanced through the interaction of sophisticated systems, it is most

importantly the product of the relationship between car and driver.

This bond is where dynamic driving begins. With this in mind, we have

designed a Volvo that is not only thrilling to drive, but is also safer than

ever before; for people and for the environment in which they live.

Maybe that’s why, even after all these years, we still find safety so

exciting. Welcome to the carmaker that never takes life for granted.

VOLVO. FOR LIFE

Its attraction is both logical and emotional. However you choose to

measure it, the Volvo S60 is a compelling choice. It has a powerful

persona and a seductive sense of style. It’s a charismatic mix of art

and engineering, and a sportsman through and through. If you’re

motivated by the purity of a car that’s built for the love of driving,

this one might be for you.

THE VOLVO S60.

A PERFECT AFFAIR

4

5

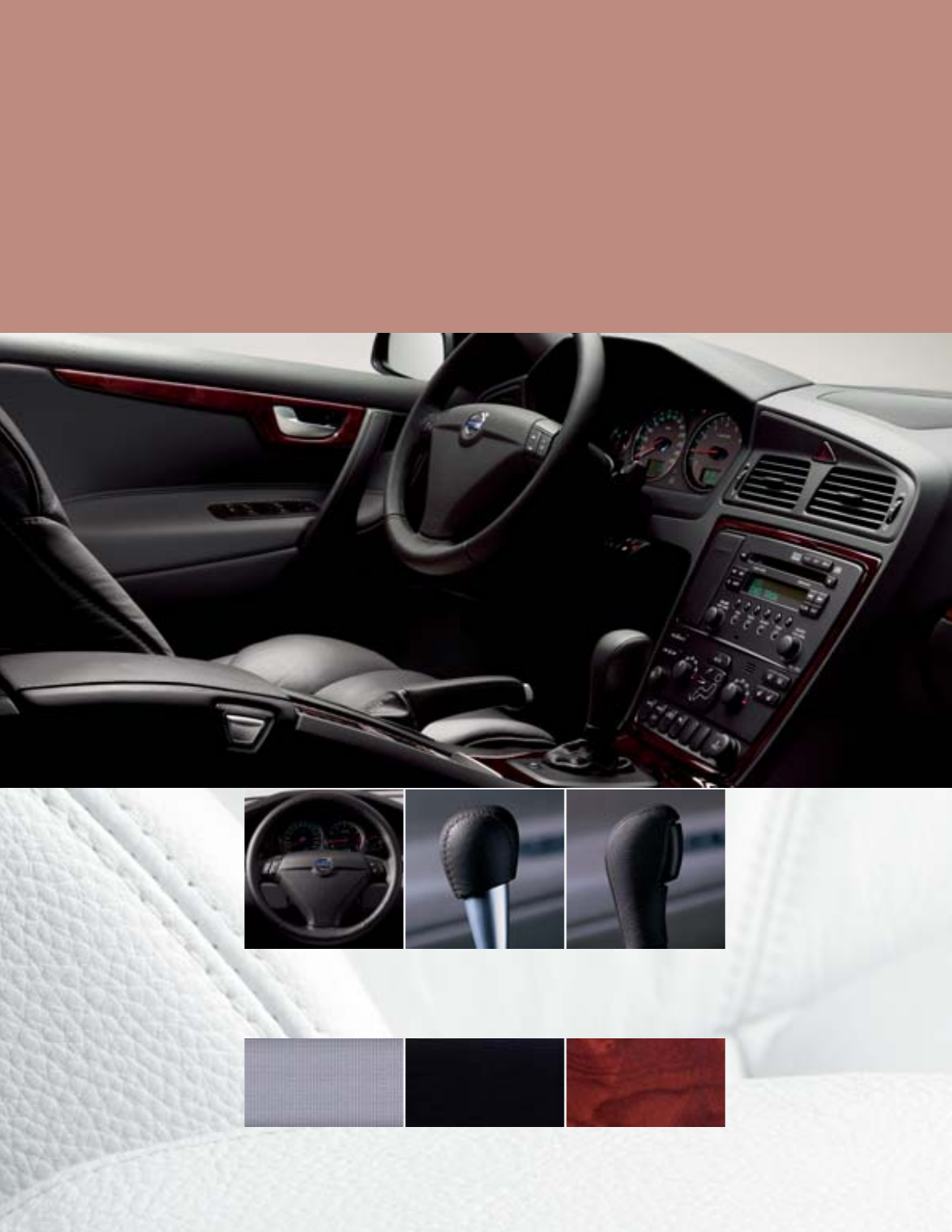

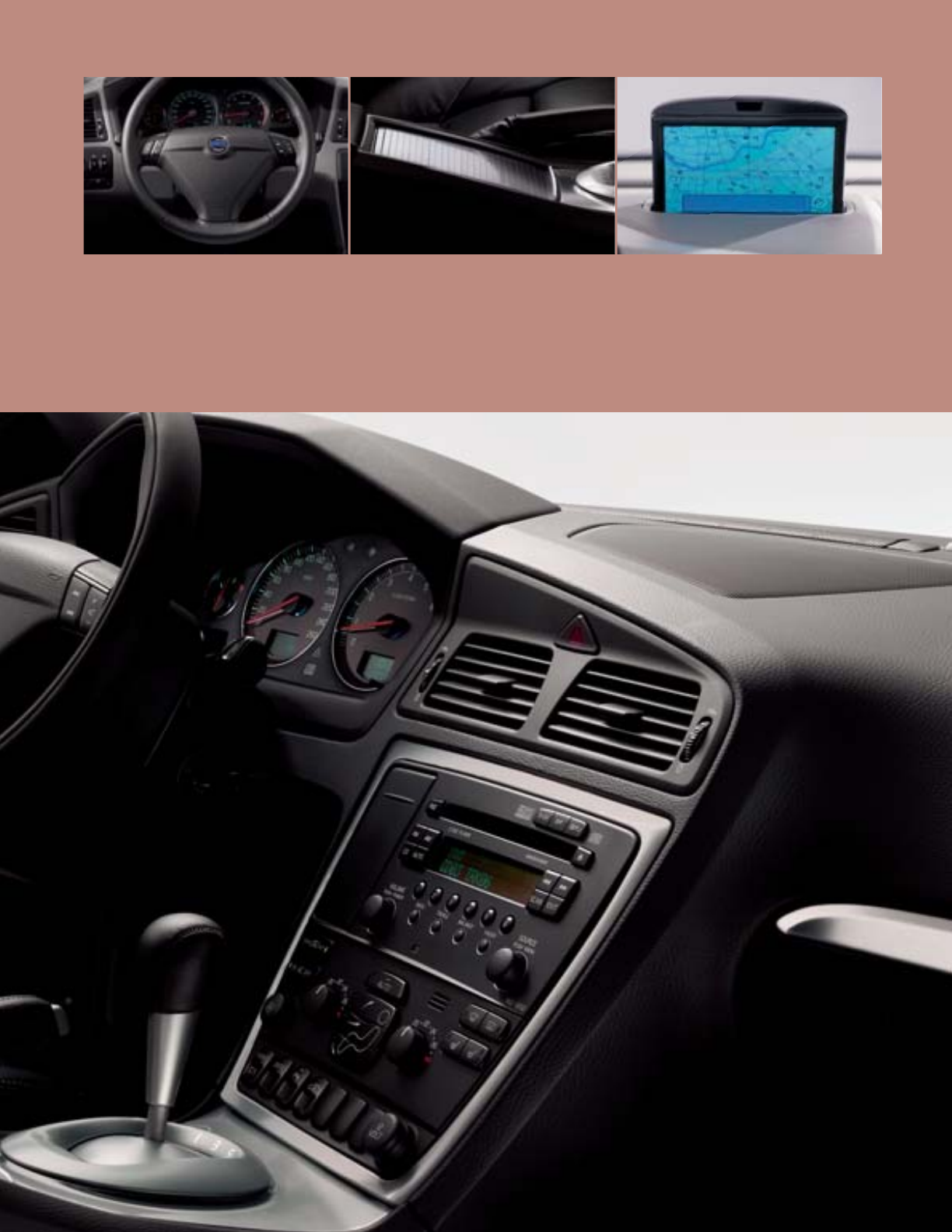

The driving environment is inviting. The seat is snug, the setting serene.

There’s space to stretch your legs, and a feeling of close proximity to

the instruments. The clean lines of the cabin encompass an array of

intuitive controls.

COME CLOSER

INTUITIVE DRIVING

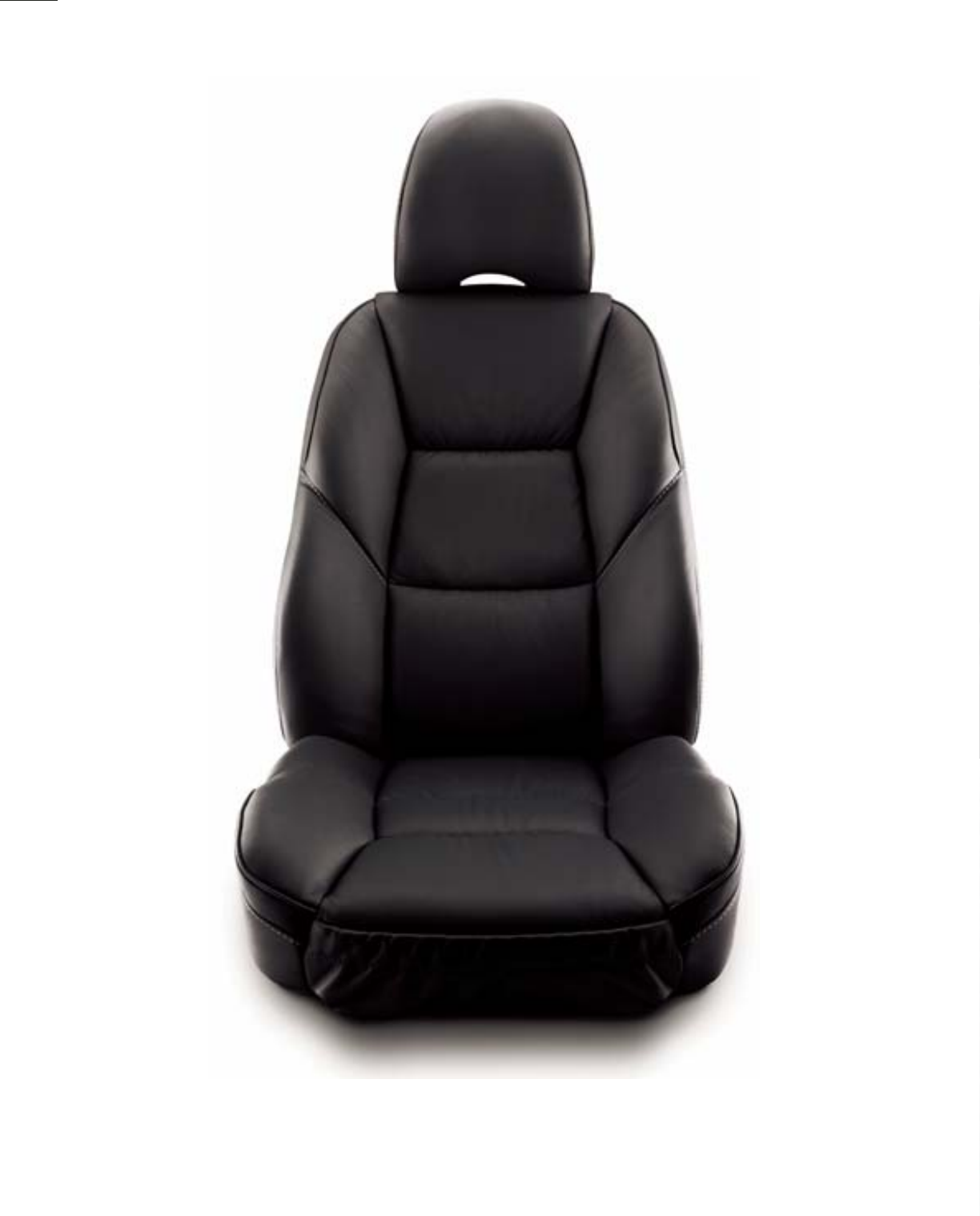

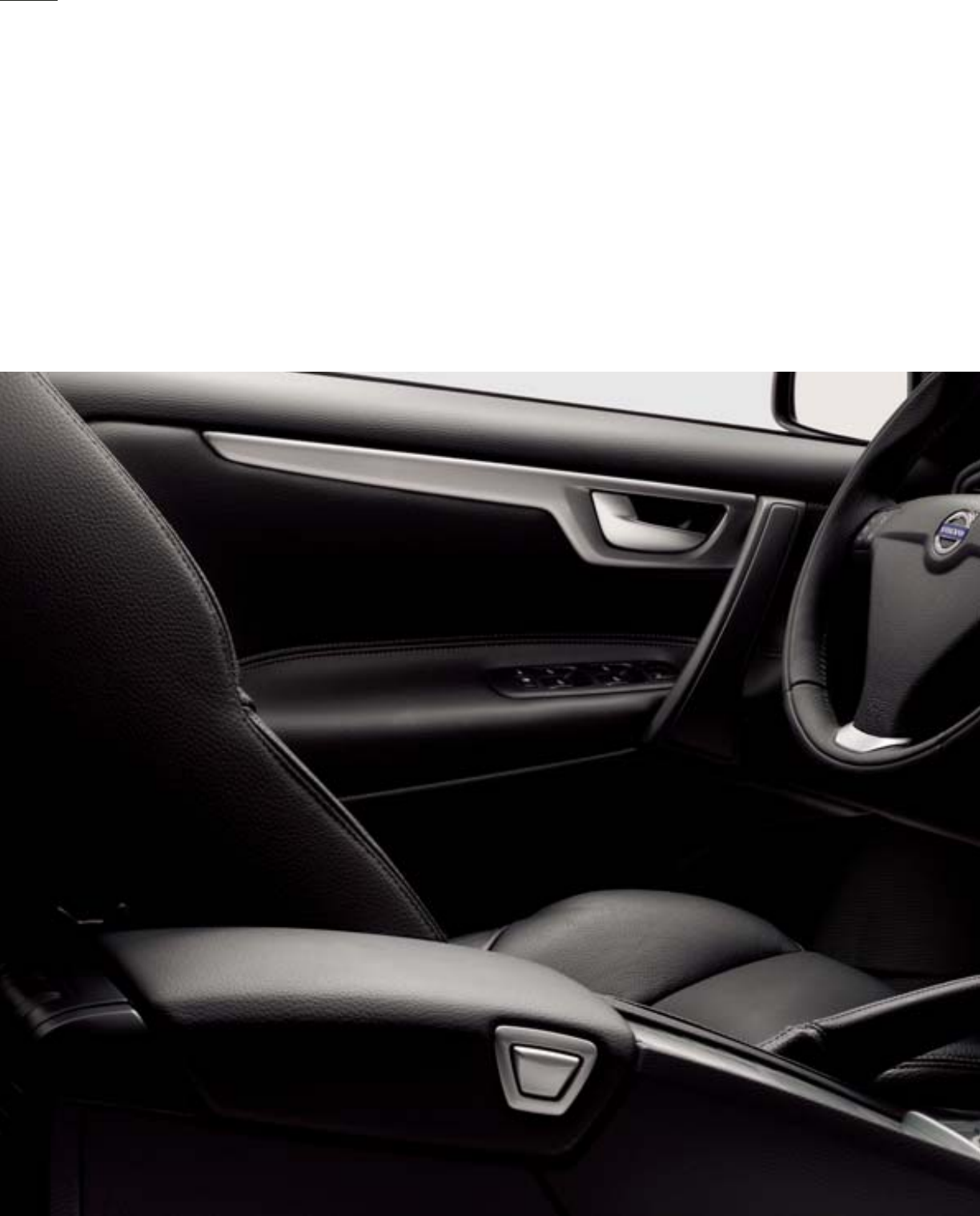

Lean back and let the nearly infinite range of

adjustments in the driver’s seat offer pampering

support. Everything you need is perfectly placed.

With both hands on the wheel, you’re in position

to operate most of the car’s controls – including

the cruise control and the audio system.

RELAX

Yo u’re surrounded by a variety of convenient

details, such as a central armrest that enhances

comfort while adding practical features.

BUILT-IN NAVIGATOR

The optional Volvo Navigation System helps guide

you to your destination, be it to the home of a friend

in an unfamiliar city or to the welcome sight of a

hotel along the way. The system’s voice guidance

and ergonomically designed controls help keep your

attention on the road, secure in the knowledge that

the road is taking you where you want to go.

Shown with optional equipment.

6

7

When it leaps into action you’ll appreciate the sure-footed grip.

The fuel-efficient five-cylinder engine generates an abundant flow

of power. The drivetrain is a synthesis of strength and precision that

provides an invigorating thrust. The Volvo S60 likes to perform for

an audience, so choose your passengers carefully.

HOLD TIGHT

< ENGINE

The 5-cylinder engines form the core of your driving

experience, providing power on demand. Cutting-edge

technology and advanced engineering result in quick

acceleration, but not at the expense of fuel consumption

or emissions. The engine range spans from the 208 hp

2.5T to the exhilarating 257 hp T5 litre powerplant.

TRANSMISSION >

The engine’s power reaches the road through a range of

five or six-speed transmissions. To give you the best of both

worlds, the optional Geartronic automatic transmission

offers you the convenience of a fully automatic ride, or lets

you shift through the gears manually for faster acceleration

or to utilize the engine’s braking capacity.

8

9

AWD WITH INSTANT TRACTION™

The Volvo S60 2.5T AWD employs Volvo’s new pre-charged, electronically controlled all-wheel drive system – AWD with Instant Traction™.

The difference is noticeable from the moment you start off – constant hydraulic pressure ensures that power is instantly divided among the

wheels with the best traction. Wheel spin is minimized to provide immediate acceleration and reassuring stability in slippery conditions.

During normal driving on straight dry roads, the front wheels receive up to 95% of the power for optimum stability and fuel economy. As the

situation dictates, up to 50% of the power is instantly distributed to the rear wheels – depending on what is required to provide maximum

stability and traction. And when cornering, the AWD system channels power where it’s needed most to provide sharp turning and consistent

stability throughout the curve.

How about using all four wheels to their greatest potential? Volvo’s

active chassis with its unique Four-C technology continuously adjusts

the suspension according to your driving style, speed and current road

conditions. And to fully utilize the physics of all four wheels, there’s

Volvo’s pre-charged AWD with Instant Traction™ – providing instant

take-off and superior traction on all surfaces.

THE POWER OF FOUR

COMFORT

For when the road is slippery or bumpy, when driving in town, or when

you just want a relaxed ride. The Comfort chassis mode insulates the

car’s occupants from irregularities in the road surface. The system

prioritizes low damping forces for smooth, gentle body movements

and exceptional ride comfort.

SPORT

For a sports car feel and a lively yet comfortable drive. The system

prioritizes rapid reactions. It results in decisive body movements

– for more precise handling with quicker steering response and

tenacious traction.

THE OPTIONAL ACTIVE CHASSIS WITH FOUR-C (CONTINUOUSLY CONTROLLED CHASSIS CONCEPT) (OPTIONAL ON T5)

The advanced chassis system monitors the car, road and driver 500 times per second and simultaneously adjusts each shock absorber for optimal

handling and comfort. At the heart of the system is Volvo’s semi-active suspension with continuously controlled Monroe-Öhlins shock absorbers

– featuring the two dynamic chassis modes: Comfort and Sport. The shock absorbers, stability system, engine, brakes and steering all interact in

an electronic system controlled by you. The shift from Comfort to Sport is done with the simple press of a button.

DRIVING AHEAD

Four-C continuously analyses

a series of driving parameters,

instantly adjusting each shock

absorber to suit current con-

ditions.

DRIVING ON BUMPY ROADS

The shock absorbers adjust

immediately to provide the most

comfortable ride possible – the

system absorbs anything the

road has to offer.

BRAKING

The moment you brake, the shock

absorbers readjust to level the

car throughout the braking

process – providing enhanced

control and maximum grip.

CORNERING

As the car enters a curve, the

Four-C system restricts the shock

absorbers so the car steers neatly

into the bend, with speed and

balance. When turning further,

Four-C ensures that the car

remains stable yet responsive

throughout the curve.

Imagine truly high performance, poised for action – ready for the

moment you feel the urge to use it. This is the Volvo S60 R, a powerful

yet refined machine to fulfill your every driving desire. To find out more,

see the Volvo R brochure.

A NEW PINNACLE IN

PERFORMANCE TECHNOLOGY

12

13

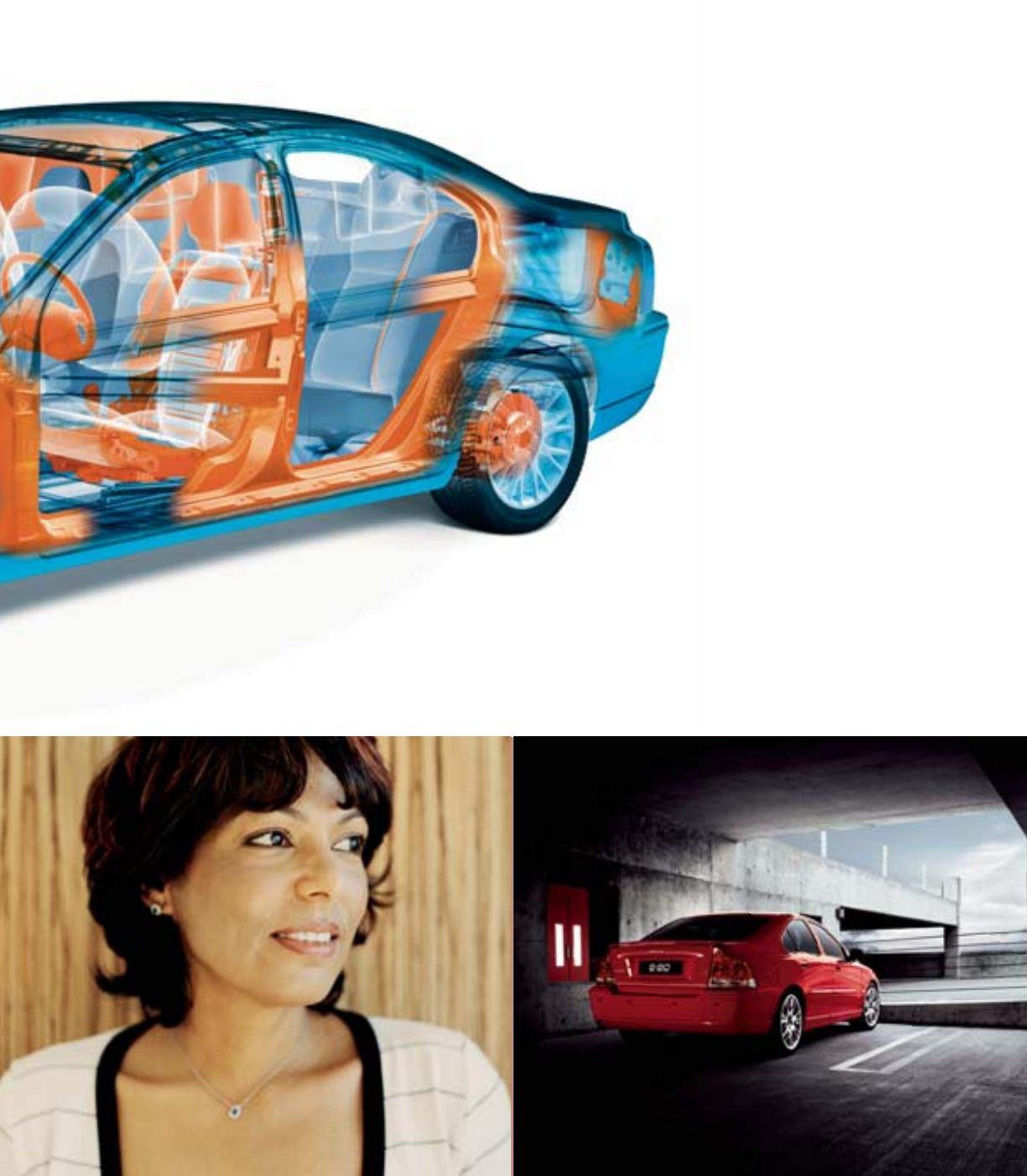

One thing the Volvo S60’s preventive safety won’t prevent is driving

pleasure. Take the solid body for example. Its rigid structure helps

absorb the forces that are the natural result of a spirited drive down

a winding road. At times like this, you’ll also appreciate the attentive

steering, and STC or DSTC, with the advanced technology to help

keep you on track.

STIMULATING SAFETY

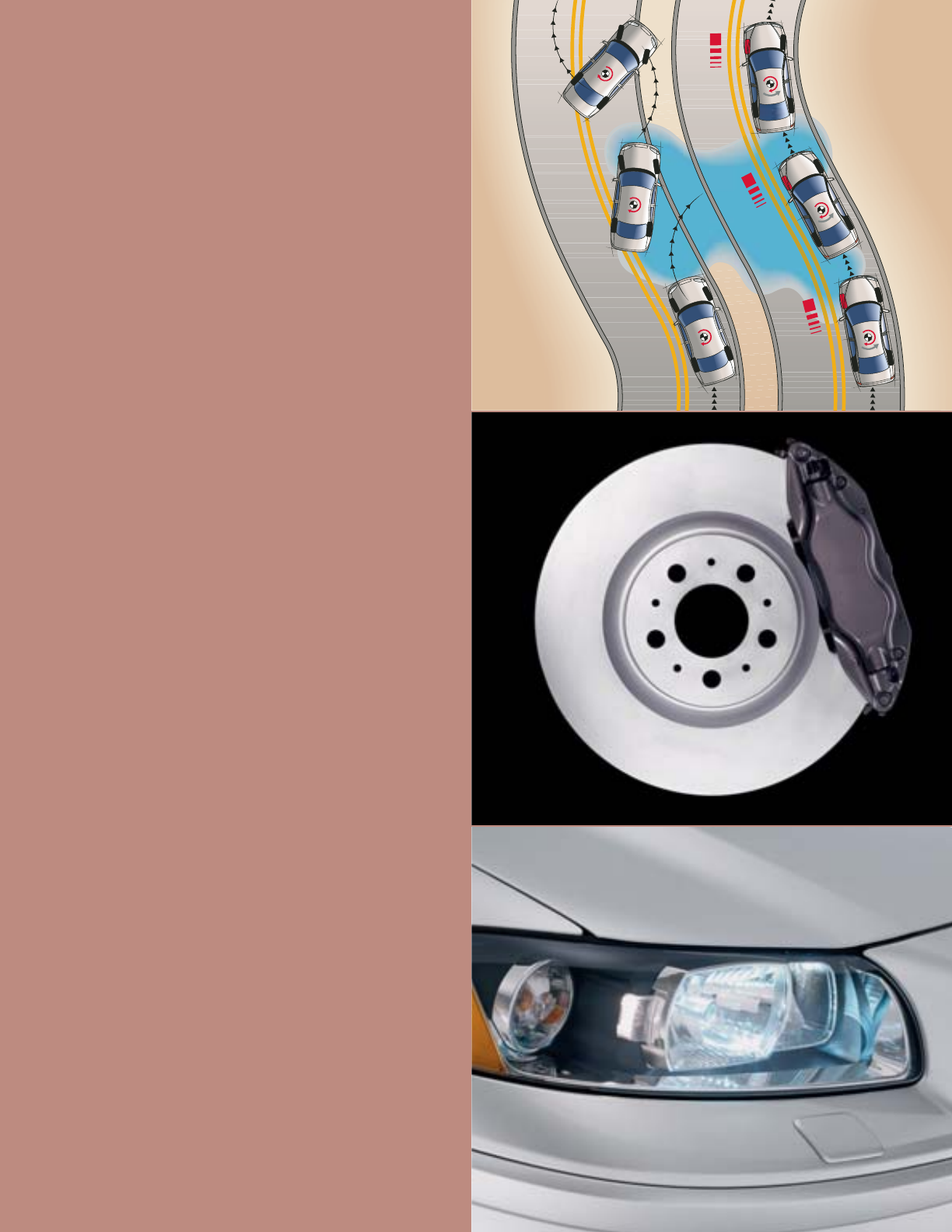

ANTI-LOCKING BRAKES WITH EBA

Designed to handle even the toughest tests, the power of ABS will not

fade away when it’s needed most. So you can put your foot down as you

steer clear of trouble. And if you don’t press the pedal hard enough, EBA

(Emergency Brake Assistance) steps in with a power boost to help bring

the car to a standstill in the shortest possible distance.

ACTIVE STABILITY SYSTEM

STC (Stability and Traction Control) is an anti-spin system that improves

traction in slippery situations by temporarily reducing engine torque.

The enhanced version, DSTC (Dynamic Stability and Traction Control)

also features an anti-skid function that brakes one or more of the wheels

to help keep the car on course. Both systems react smoothly, efficiently,

and instantaneously. For sportier driving or when driving in snow or sand,

the anti-spin function can be reduced by the simple press of a button.

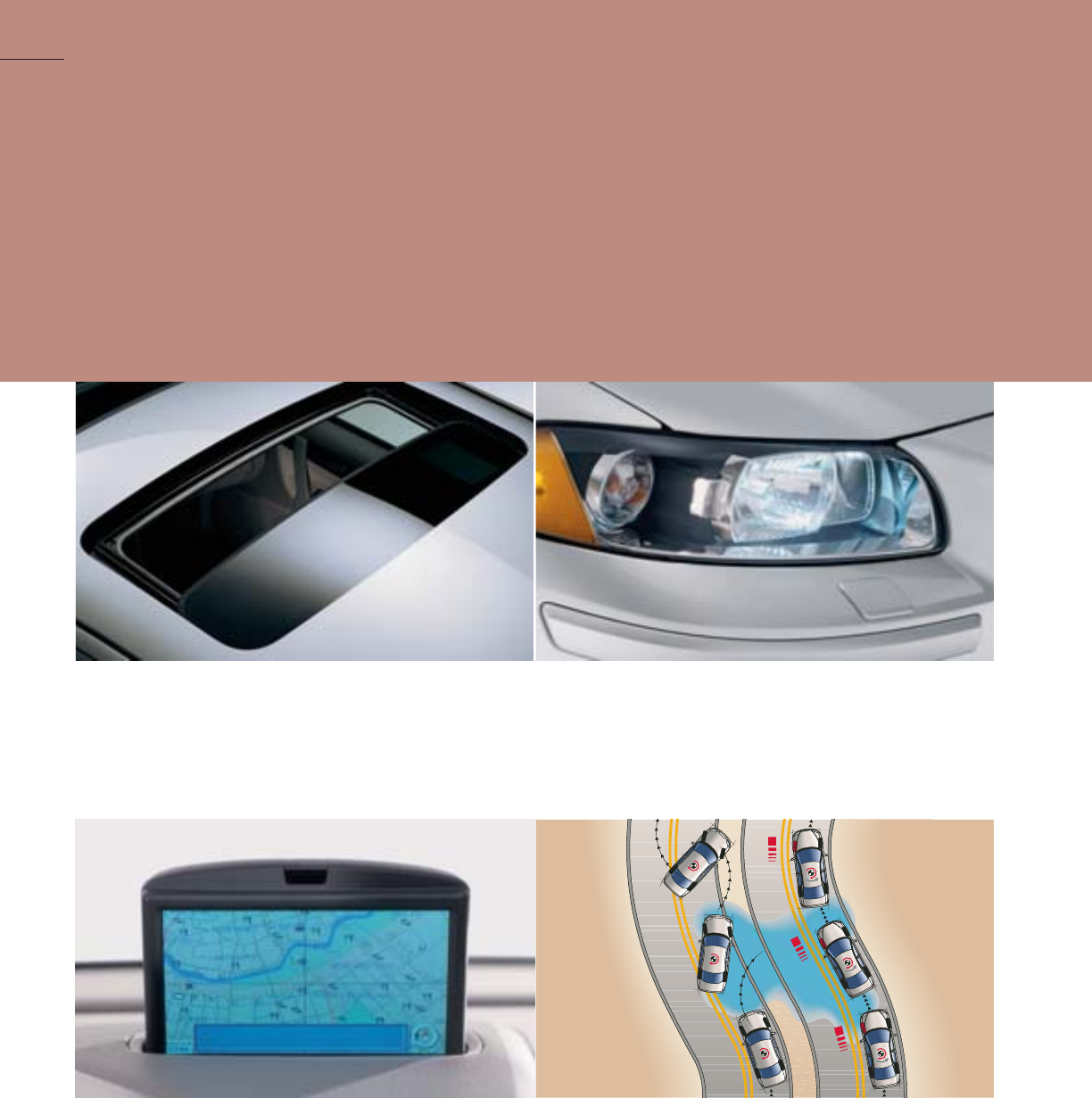

BI-XENON (OPTIONAL)

As darkness descends, you will appreciate the powerful and effective

low and high beam headlights. And for an even broader and longer beam

of light, you can add Bi-Xenon headlights. Integrated front and rear side-

marker lights make it easier for other road-users approaching from the

side to see your car.

14

15

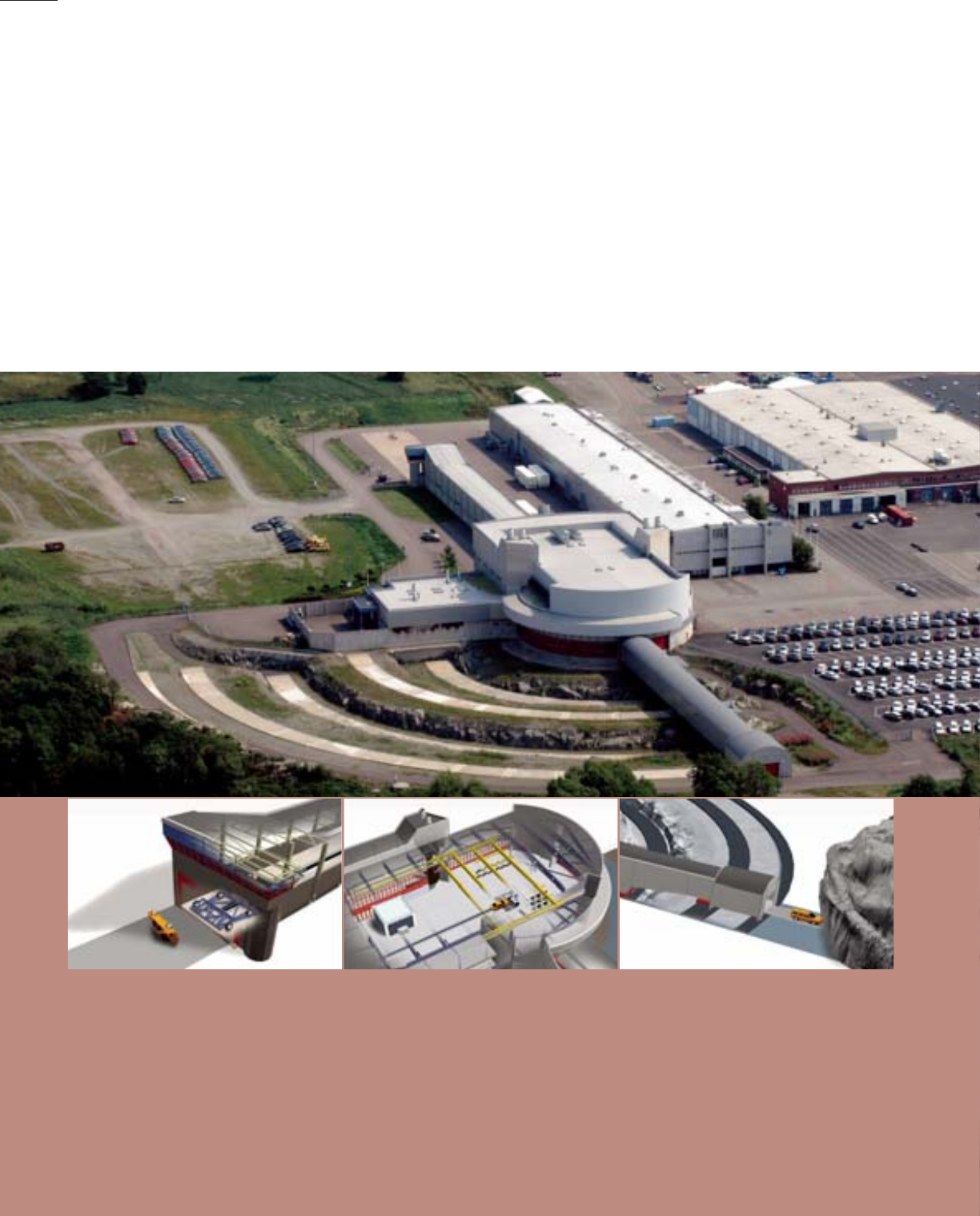

This fixed test tunnel is used for collision

tests inside the centre, and for rollover tests

outdoors.

Within the centre, our 850-ton barrier can be

positioned and configured to replicate the

dangers of countless real-life traffic situations.

What’s more, this is where collisions take place

between a vehicle entering the centre through

the fixed tunnel and another entering from a

pre-defined angle via the movable test track.

The movable test track allows us to test our

vehicles on various outdoor surfaces. As the

illustration shows, it even provides the oppor-

tunity of crashing into solid Swedish bedrock.

Like its siblings, the Volvo S60 was conceived in the Volvo Safety

Centre. One of the most advanced facilities of its kind, this is where

we crash test every model and variant of car we make. Above and

beyond countless computer simulations, we conduct over 400 full-scale

collisions each year. These tests are based on what our researchers

discover on the roads – we’ve investigated over 30,000 actual acci-

dents since 1970. In fact, everything we do to make cars safer begins,

and ends with real-life traffic situations. The Volvo S60 is testimony to

this fundamental philosophy.

REAL-LIFE EXPERIENCE

WHIPS (WHIPLASH PROTECTION SYSTEM)

Whiplash is one of the most common traffic injuries, often resulting from low-speed rear impacts. WHIPS helps reduce the risk of long-term whiplash injuries.

Integrated into the front seat backrests, WHIPS supports the spine and neck in a controlled manner, and is triggered by impacts of sufficient force from behind.

IC AND SIPS

The inflatable curtain (IC), and a laterally mounted

airbag – part of the Side Impact Protection System.

These are further examples of the car’s inherent

safety systems developed at the Volvo Safety

Centre in Sweden.

16

17

ORGANIC SAFETY

The S60 expands the scope of personal protection. Approach and Home Safe light-

ing with ground lighting in the outer side view mirrors illuminates the area around

the car and allow greater safety when approaching or departing the vehicle. An elec-

tronic immobilizer and door locks that withstand most break-in attempts help protect

against theft. A security system with sensors in the doors, hood and trunk activate

an alarm if someone should ever try to break into the vehicle. And in the event of

trouble – press the panic button in the remote control and the alarm is sounded.

The HomeLink remote garage door opener (included in the Convenience Package).

At Volvo, providing for your personal safety is a natural extension

of our devotion to your driving safety. And so, a number of essential

features have been added to the Volvo S60 to help you avoid threat-

ening situations.

PERSONAL SECURITY

INTUITIVE REFLEXES

If a collision is unavoidable, a series of safety systems

interact. Together with the airbag, the front seat belt pre-

tensioners provide a two-phase response to help restrain

the driver and front seat passenger during the course of

a collision. The severity of the impact determines the level

of airbag inflation.

BRIGHT EYES

Effective headlights and integrated high-pressure washers

assure a powerful beam to help improve your night vision.

For an even stronger, more focused beam of light, opt for

Bi-Xenon headlights. And to help improve visibility in bad

weather, options include a rain sensor that automatically

starts the windshield wipers, and water-repellent front side

windows and door mirrors.

MUSCULAR BODY

A web of beams and struts interact to help protect the

occupants without adding unnecessary weight. This solid

safety cage incorporates the Side Impact Protection

System (SIPS), which distributes collision forces over a

large part of the car’s body. The sides are reinforced to

offer added protection.

RESILIENT FRAME

Built with high strength steel, the robust safety cage is an

extremely rigid construction intended to form an enclosure

around the occupants of the car. It is surrounded by the

body’s various deformation zones — resilient areas designed

to absorb the forces generated in a collision.

PROTECTIVE INSTINCT

Emergency Brake Assistance (EBA) will detect emergency

braking and assist the driver in bringing the car to a stop.

And the Whiplash Protection System (WHIPS) cradles the

front seat occupants to help reduce the risk of whiplash injuries.

SENSE OF BALANCE

A broad stance and an advanced chassis promote stability,

as do the AWD and Four-C options. The Stability and

Traction Control system (STC) counteracts wheel spin

by cutting power to a wheel until it regains traction. The

available Dynamic Stability and Traction Control system

(DSTC) also works to prevent skids by applying the brakes

when needed. The steering is communicative yet firm. And

for an enhanced sense of road feedback at highway speed,

there’s the option of a speed-dependent steering system.

18

19

The carefully tailored cabin provides an air of discreet luxury. Beyond its

ample space, the Volvo S60 offers superior seating comfort with some

highly sensual materials. Add to this the contemporary design and func-

tionality of a modern Swede, and you’re driving a car that’s never going

to be left behind.

FRIENDS ARE WELCOME

CONVENIENCE, FRONT . . .

The centre armrest conceals numerous comforts.

Fold back the upper section to access cup holders

and front and rear tables. Fold back both the upper

and lower sections to reveal a storage space for CDs,

etc. that also provides rear seat passengers with a

convenient table. Additionally, the roll-top storage

compartment in front of the armrest contains easy-to-

remove cup holders.

.. . AND BACK

Pampered by detail, rear-seat passengers will be

almost as happy as the driver – even on long trips.

A centre armrest ensures that refreshments are always

easy to reach, and that small items are secure yet

accessible.

COMFORTABLE KIDS

The integrated booster cushion helps to position a

child 15–36 kg at the correct height for the seat belt.

It also offers a high level of comfort and a great view.

And when not in use, it’s concealed in the centre rear

armrest. (Retailer installed option.)

At Volvo the health and well-being of people has always been close

at heart. The ability of our cars to protect occupants in accidents is a

case in point. And in recent decades, this protective attitude has grown

to encompass the air we breathe and the world we share. A Volvo is a

conscientious choice – enjoy yours.

KINDRED SPIRITS

CLEAN INSIDE

The Volvo S60 cabin filter prevents dust, exhaust particles and pollen from enter-

ing the car through its ventilation system. The IAQS (Interior Air Quality System)

monitors incoming air for unhealthy gases. If necessary it will close the vents to

ensure that cabin air does not become hazardous. This also has the added benefit

of shutting out unpleasant odors. To make life more pleasant for people with

allergies or asthma, all the interior fabrics meet the requirements of Oeko-Tex

Standard 100 – an international standard ensuring that textiles and leather are

free from allergy-inducing substances, health-impairing ingredients and harmful

emissions. Additionally, numerous interior components are tested with respect

to contact allergies.

CLEAN OUTSIDE

More efficient engines mean lower fuel consumption and, in turn, less emission

of carbon dioxide – a greenhouse gas. Advanced emission controls eliminate

between 95 and 98% of carbon monoxide, hydrocarbons and nitrogen oxides.

The three-way catalytic converter is positioned to provide full exhaust conversion

sooner after cold starting. All Volvo S60 engines meet stringent exhaust require-

ments and feature a catalytic coating of the radiator – PremAir®*. This converts

up to 75% of the harmful ground-level ozone passing through the radiator into

pure oxygen.

CLEAN FOR LIFE

Each Volvo begins its relationship with the environment at the earliest stage of

design. It’s built in one of the world’s cleanest automobile factories, and 85%

of it can be recycled. What’s more, our environmental product information (EPI),

allows you to choose a Volvo on the basis of its overall lifelong environmental

performance. Find out more at www.volvocars.com/epi

CONTRIBUTING TO OUR TOMORROW

Volvo Cars is an ambitious corporate citizen. We aim to maintain the equilibrium

between the needs of our company – its people, customers and partners – and

the society that has enabled us to build it. Care for the environment is a vital part

of this effort, as are the far-reaching responsibilities towards the people of this

world. Our annual Corporate Citizenship Report is available at

www.volvocars.com/citizenship

*PremAir®is a trademark of Engelhard Corporation.

26

27

In a Volvo S60, the powertrain and chassis interact to provide a

harmonious balance between response and comfort. The smooth,

powerful five-cylinder engine is the very heart of the driving experience.

You have access to the entire power output without pushing the engine,

and response is instantaneous. Low internal friction and the very latest

engine technology featuring electronic engine management and vari-

able valve timing result in both dazzling performance and modest

fuel consumption. At the same time, the engines also meet very strict

emission standards.

THE S60 SELECTION

VOLVO S60 2.5T AWD (208 HP)

Adds yet another dimension to your driving experience. Volvo’s electronically-controlled all-wheel-drive system

is optimized to provide superior roadholding and dependable tractive force whatever the road conditions.

Drive is distributed at lightning speed between the front and rear wheels as conditions change – depending on

what is needed to maintain driving stability and traction, even under difficult conditions. The experience is further

enhanced by the sophisticated 208-hp five-cylinder light-pressure turbo engine, a five-speed Geartronic

automatic transmission is standard.

VOLVO S60 2.5T (208 HP)

Provides a beautifully balanced and spirited driving experience. The five-cylinder 2.5-litre turbocharged engine

gives you access to full engine torque (236 lbs./ft.) from as low as 1500 rpm – so you can start off quickly and will

seldom need to shift down, for example when passing slower moving vehicles. The very latest advances in engine

technology with variable valve timing for both intake and exhaust valves ensures excellent performance and cleaner

exhaust emissions under all driving conditions. With highly efficient combustion and emission control, this engine

meets the very strict ULEV II emission requirements. A five-speed Geartronic automatic transmission is standard.

VOLVO S60 T5 (257 HP)

The most enticing front-wheel drive sport sedan that really inspires sporty driving. The newly developed high-

efficiency 2.4-litre turbocharged engine provides sparkling performance and excellent pulling power throughout

the entire range of engine speeds. The engine develops full torque (258 lbs./ft.) from just 2100 rpm, taking the car

from 0 to 100 km/h in 6.5 seconds with a manual gearbox. High turbo boost pressure means extra power at high

rpm – this is an engine that invites active driving. The turbocharger also has an over-boost feature that provides

additional power when pushed, for instance when passing another vehicle. Continuously variable valve timing for

both intake and exhaust valves (Dual CVVT) contributes to the engine’s alert response and uniform flow of power.

It also helps the engine meet stringent ULEV exhaust emission requirements. This powerful engine is mated to a

distinct six-speed manual transmission with a “sport shifter” gear selector or an optional five-speed Geartronic

automatic transmission. The T5 also features upgraded brakes and 17"alloy wheels.

28

29

STANDARD FEATURES

 = Standard  = Option P = Package

SAFETY: S60 2.5T S60 2.5T AWD S60 T5

Anti-submarine seats  

Daytime running lights (halogen semi-sealed with replaceable bulb)  

Driver and front passenger supplemental restraint system – dual-threshold airbags  

Dynamic stability and traction control (DSTC) N/A P P

Emergency trunk release  

Five padded head restraints  

HomeLink remote garage door opener PP

Immobilizer, encrypted ignition key  

Inflatable side curtain (IC)  

ISOFIX baby/child seat attachment system  

Overhead-mounted seat belt reminder lights  

Rear-door child-safety locks  

Rear fog light with auto-off  

Safe approach and home safe lighting  

Seat belts: five, 3-point inertia-reel belts with automatic pretensioners;  

front belts have height adjustment

Security system  

Side impact airbags for driver and front passenger (SIPS bags II™)  

Side impact protection system (SIPS)  

Stability and traction control (STC) N/A 

Top-tether child seat anchorage capability  

Traction control (TRACS) N/A N/A

Whiplash protection seating system (WHIPS)  

INTERIOR:

Aluminum Mesh inlays  

Auto-dim rearview mirror PP

Cruise control  

Cup holders  

Dual-zone electronic climate control (ECC)  

Electric folding rear head restraints  

Four reading lamps  

Front centre armrest  

Front door-panel storage pockets  

Front seat-back storage pockets  

Heated front seats  

Illuminated lockable glove box  

Illuminated vanity mirrors in driver/front passenger sun visors  

Interior cabin light delay  

Leather-trimmed gearshift knob  

Leather-trimmed parking brake handle PP

Leather-trimmed steering wheel  

Luggage/cargo area lights  

Power-adjustable driver seat, P

8-way with 3-position memory and lumbar support

Power-adjustable passenger seat, 8-way with lumbar support PP

Power windows with driver and passenger auto up/down with anti-trap feature  

Rear cup holders  

Rear seat ventilation outlets on b-pillar  

Rear window defroster with automatic timer  

Split-folding rear seat 60/40  

Tilt/telescopic steering wheel with illuminated cruise and audio controls  

Trip computer  

Two entry lights (in front door foot wells)  

EXTERIOR:

Central power door locks with remote keyless entry, trunk and fuel filler locks  

Entry/exit lights in outer rearview mirrors  

Front fog lights PP

Outside temperature gauge  

Pollen filter for passenger compartment  

Power-adjustable heated exterior rearview mirrors  

PremAir®treated radiator  

Tinted windows  

2-Speed windshield wipers with intermittent cycle  

PREMIUM PACKAGE (2.5T, 2.5T AWD)*

A Volvo offers you long, relaxed drives and more spirit in your daily life. The Premium Package will provide you with

some necessities for that extra ambience and convenience.

• Leather-trimmed handbrake

• Leather seating surfaces

• Memory for driver seat and rearview mirrors (2.5T)

• Power driver and passenger seat (2.5T)

• Power passenger seat (2.5T AWD)

SPORT PACKAGE*

Inspiring dynamics are always at hand, whenever you’re in the mood. And with the Sport Package, you’ll further

enhance your driving experience.

• Bi-Xenon headlights (2.5T AWD, T5)

• Dynamic stability and traction control system, DSTC

(2.5T AWD, T5)

• Four-C active chassis (T5)

• Front fog lights (2.5T, 2.5T AWD)

• Leather-trimmed handbrake (2.5T, 2.5T AWD)

• Memory for driver seat and rearview mirrors (2.5T)

• Power driver and passenger seat (2.5T)

CONVENIENCE PACKAGE

The wide range of considerate and practical features makes life with your Volvo a truly enjoyable experience. And by

adding the Convenience Package, you expand your freedom even more.

• Auto dimming mirror (2.5T, 2.5T AWD)

• Dashboard cup holder

• Grocery bag holder

• HomeLink®(2.5T, 2.5T AWD)

• Power passenger seat (2.5T AWD)

• Speed sensitive steering

• Sport seats with leather seating surfaces (2.5T, 2.5T AWD)

•17

"ORESTES alloy wheels w/235/45/17 (2.5T)

•17"ORPHEUS alloy wheels w/235/45/17 (2.5T AWD)

•18"NEBULA alloy wheels w/235/40/18 (T5)

• Level sensor

• Mass movement sensor

• Rain sensor

• Retractable side view mirrors

* May not be combined with Sport package.

* May not be combined with Premium package.

30

31

Because music is an integral part of your lifestyle, our audio

systems, the HU-650 and the optional HU-850 Premium Sound

system are specifically configured for the acoustics of the Volvo S60’s

interior. The systems make music worth listening to – whether you’ve

got somewhere to drive or not. Like any high-end equipment, there are

several alternatives for expanding and varying sound and function.

WHISPER IN YOUR EAR

Speaker

PREMIUM SOUND (OPTIONAL)

Uncompromising sound of absolute world class for the discerning music

lover. Volvo’s most sophisticated audio system with thirteen Premium

Sound speakers, an advanced Premium Sound amplifier and Dolby

Surround Pro Logic®* II. The speakers’ power durability and excellent

transient reproduction in combination with the amplifier’s high capacity

result in exceptional resolution and perfect dynamics. The Dolby®Surround

system offers a uniquely realistic and three-dimensional audio experience

whether you are sitting in the front or rear seats.

Premium Sound includes:

• HU-850 RDBS radio with built in 6-CD changer

• 13 Premium Sound speakers

• Dolby Surround Pro Logic®II with centre speaker and

digital sound processor

• Premium Sound amplifier, 4x75 W plus 25 W for the centre speaker

• Premium Sound digital sound processor

Can be supplemented with a separate 10-CD changer and CD storage

in the glove compartment.

* The Dolby and Pro Logic trademarks are the property of Dolby Laboratories.

PERFORMANCE (STANDARD 2.5T, 2.5T AWD)

An easy to use and great-sounding standard system with RDBS radio,

built-in single-CD player and four speakers.

The following are included in the standard equipment:

• HU-650 RDBS radio with built in 4x25 W amplifier and single-CD player

• 4 speakers

Can be supplemented with a separate 10-CD changer and CD storage in

the glove compartment.

RDBS features text-messaging via Radio Data Broadcast System.

HIGH PERFORMANCE (STANDARD T5)

Offers an even more powerful sound experience. With up to nine High

Performance loudspeakers and a separate High Performance amplifier.

The loudspeakers have more powerful magnets, larger coils and fibreglass

cones. This promotes excellent transient reproduction, high power dura-

bility and low distortion – translating quite simply into superb sound.

Also available with Dolby Surround Pro Logic®II*. The advanced RDBS

radio has a built-in 6-CD changer or a single-CD player.

High Performance is available in a choice of two variants:

• HU-850 RDBS radio with built in 6-CD changer, Dolby Surround

Pro Logic®II, 9 High Performance loudspeakers, High Performance

digital sound processor and a separate High Performance 4x50 W

amplifier plus 25 W for the centre loudspeaker.

• HU-650 RDBS radio with built-in single-CD player, 8 High Performance

loud-speakers, High Performance digital sound processor and a separate

High Performance 4x50 W amplifier.

Can be supplemented with a separate 10-CD changer and CD storage

in the glove compartment.

MUSIC AT YOUR FINGERTIPS

The advanced RDBS radio with its built-in CD

player or 6-CD changer, is conveniently con-

trolled from the centre console. The steering

wheel keypad enables you to operate the audio

system without taking your eyes off the road.

DOLBY SURROUND PRO LOGIC®* II

The latest generation Dolby®Surround system,

with centre speaker and digital sound proces-

sor, recreates authentic sound and ensures that

everyone in the car hears the music with the

same natural quality. The result is a clear open

sound with a strong sense of presence, only

available in a Volvo.

32

33

FINISHING TOUCHES

Customize the look to suit your taste and temperament. Select a design

from the aluminum wheels beside, then add exterior trim details until

your Volvo S60 is as sporty or as elegant as you’d like it.

ALUMINUM SILL MOULDING, FRONTSPOILER WING

Colour-coordinated.

6.5x16"ECHO alloy wheels

(std. 2.5T)

6.5x16"ELECTRA alloy wheels

(std. 2.5T AWD)

8x18" NEBULA alloy wheels

(Sport Package T5)

7. 5 x 17" ORESTES alloy wheels

(Sport Package 2.5T)

7.5 x17"ORPHEUS alloy wheels

(Sport Package 2.5T AWD, std. T5 )

34

35

Black Mesh aluminum trim

(std. T5)

Mesh aluminum trim

(std. T5, opt. 2.5T, 2.5T AWD)

Spaceball Sports gear-shift lever,

aluminum with leather-trimmed

gear-lever knob (manual, T5)

Leather-trimmed gear-lever knob

(automatic)

Leather-trimmed steering wheel

(std.)

Walnut wood trim

(opt. 2.5T, 2.5T AWD)

Choose from a number of specially designed options to create the

interior that best suits you. Then enjoy your creation every time you

enter your car.

INTERIOR SELECTIONS

36

37

TAUPE INTERIOR

Select leather Light Taupe upholstery, Walnut wood trim, leather-trimmed steering wheel and gear-lever knob.

Nordborg leather/textile

Light Taupe (9G81)

Sport design seats

(T5)

Select leather Sport

Light Taupe (9A81)

Sport design seats

(2.5T, 2.5T AWD,

Sport Package, opt. T5)

Kilen textile

Taupe (9180)

Classic design seats

(2.5T, 2.5T AWD)

Select leather

Light Taupe (9981)

Classic design seats

(available with Premium Package)

GRAPHITE INTERIOR

Kilen textile Graphite upholstery, Mesh aluminum trim, leather-trimmed steering wheel and gear-lever knob.

Nordborg leather/textile

Graphite (9G70)

Sport design seats

(T5)

Select leather Sport

Graphite (9A70)

Sport design seats

(2.5T, 2.5T AWD

Sport Package, opt. T5)

Kilen textile

Graphite (9170)

Classic design seats

(2.5T, 2.5T AWD)

Select leather

Graphite (9970)

Classic design seats

(available with Premium Package)

38

39

VOLVO NAVIGATION SYSTEM

The Volvo Navigation System can guide you anywhere with precise audio

and visual directions. Using the global positioning system, a liquid crystal

6.5-inch display shows your location on a map and plots the best route.

Controls are conveniently located on the steering wheel. When not in use,

the screen retracts into the dashboard. All map-based information is stored

on DVD.

Also available as an accessory.

DSTC ANTI-SKID SYSTEM (DYNAMIC STABILITY AND TRACTION CONTROL)

Enhances driving stability on slippery roads. The system automatically counter-

acts a skid as it starts, well before you even notice. Any skidding tendency is

countered smoothly and effectively by the system braking one or more wheels

or reducing engine power as necessary to retain control. The system also

includes EBA (Emergency Brake Assistance), which helps shorten the stop-

ping distance in emergency braking.

BI-XENON HEADLIGHTS

Give you even more effective low and high beams, with a broader, longer

and more pleasant beam throw under all lighting conditions. Low beam

height is adjusted automatically to provide the best possible light pattern

when the car is heavily loaded.

POWER GLASS SUNROOF

Makes the interior feel extra light and airy. Touch a button – and you open

or close the sunroof. And if the sun is too strong, you can always close the

built-in sun shade.

The sense of quality and care – and knowing that you get the Volvo that

suits your lifestyle. Customize your car with the options that best meet

your demands and desires, and you’ll soon be behind the wheel of your

individually tailored S60.

FACTORY-INSTALLED OPTIONS

Volvo’s accessories help you make your S60 even more suited to your

personal needs. They are the only ones that have been tested to meet

Volvo’s exacting safety, quality and environmental requirements. You can

also rest assured they’re a perfect match to the technology and design

of your Volvo.

ACCESSORIES

FOR DRIVING FREEDOM

Ashtray

Business bag organizer

CD holder glove compartment

Cup holders, tunnel console

Electric cooler box

Front/rear parking assistance

Holder for sunglasses

Navigation system

Rear spoiler

Speaker upgrades

Sport floor mats

Sport gearshift lever

Sport steering wheel

Sport styling kit

10 Disc CD changer

FOR PRECIOUS CARGO

Child activity bag

Child mirror

Jumper cables

Padded neck cushion

Rear centre armrest table

Sun shades rear door

Sun shades rear window

Warning triangle

FOR YOUR LEISURE

Aluminum wheels

Automatic leveling system

(excludes AWD)

Bicycle carrier

Bicycle lift carrier

Canoe/Kayak carrier

Cargo box

Electric engine heater

First aid kit

Fog lights

Hitch-mounted bike holder

Hitch-mounted ski holder

Hitch-mounted load basket

Load basket carrier

Load lashing straps

Mud flaps front and rear

Roof mounted load carrier system

Snow chains

Ski/Snowboard carrier

Trailer mirrors

Windsurfing board carrier

FOR YOUR INTERIOR COMFORT

Bumper protective cover

Car cover

Floor mats rubber

Leather care kit

Load securing net, trunk floor

Luggage compartment mats

Net pocket, side panel trunk

Shopping bag holder

Tunnel mat

See the 2006 Volvo Accessories brochure for

a complete list of Genuine Volvo Accessories.

40

41

TECHNICAL SPECIFICATIONS

쎲= Standard 쑗= Option

ENGINE: S60 2.5T S60 2.5T AWD S60 T5

Horsepower (SAE net) 208 @ 5,000 rpm 208 @ 5,000 rpm 257 @ 5,500 rpm

Torque (lbs./ft. SAE net) 236 @ 1,500 236 @ 1,500 258 @ 2,100

-5,000 rpm -5,000 rpm -5,200 rpm

TRANSMISSION:

5-speed “Geartronic” microprocessor-controlled automatic with “auto-stick” function 쎲쎲 쑗

6-speed manual N/A N/A 쎲

BRAKES:

Anti-lock braking system (ABS) with Electronic brake distribution (EBD) 쎲쎲 쎲

SUSPENSION:

Front suspension: MacPherson strut with asymmetrically mounted coil springs, 쎲쎲 쎲

hydraulic shocks, 23.5 mm stabilizer bar

Rear suspension: Multilink independent rear suspension with coil springs, 쎲쎲 쎲

hydraulic shocks, 21 mm stabilizer bar

STEERING:

Power-assisted rack-and-pinion steering, 2.8 turns lock to lock 쎲쎲 쎲

EXTERIOR DIMENSIONS & WEIGHTS:

Curb weight 1,455 kg 1,531 kg 1,477 kg

Fuel tank capacity 68 L 68 L 68 L

Height 1,428 mm 1,428 mm 1,428 mm

Length 4,603 mm 4,603 mm 4,603 mm

Top speed 210 km/h 210 km/h 210 km/h

Towing capacity 1,500 kg 1,500 kg 1,500 kg

Track, front/rear 1,561/1,542 mm 1,561/1,542 mm 1,561/1,542 mm

Turning circle, curb to curb 11.8 m 11.8 m 11.8 m

Wheelbase 2,715 mm 2,715 mm 2,715 mm

Width 1,813 mm 1,813 mm 1,813 mm

INTERIOR DIMENSIONS:

Headroom with sunroof/without sunroof 987/984 mm 987/984 mm 987/984 mm

Hiproom, front/rear 1,245/1,401 mm 1,245/1,401 mm 1,245/1,401 mm

Legroom, front/rear 1,082/847 mm 1,082/847 mm 1,082/847 mm

Shoulder room, front/rear 1,427/1,409 mm 1,427/1,409 mm 1,427/1,409 mm

Cargo volume 424 L 424 L 424 L

FUEL ECONOMY (L/100 KM):

Manual trans highway/city N/A N/A 7.3/12.7

Automatic trans highway/city 7.3/14.1 7.9/14.5 7.3/14.0

SVXC

Like most, our family has a number of colourful personalities.

Rooted in Volvo’s heritage, the common bond is a passion to protect

and celebrate life. If you’d like to get better acquainted, see them

all at www.volvocanada.com

MEET THE FAMILY

VOLVO S40 The compact and energetic sedan.

VOLVO V70 The genuine family wagon – highly

competitive yet comfortably versatile.

VOLVO S60 The sports sedan worth getting

passionate about.

VOLVO V50 The Sportswagon – flexible, compact

and full of zest.

VOLVO XC70 The rugged yet stylish all-roader.

VOLVO S80 The premier sedan, meticulously

engineered for superior driving comfort.

VOLVO XC90 The versatile SUV that takes you

almost anywhere with grace.

612 Passion Red

426 Silver metallic

452 Black Sapphire metallic

455 Titanium Grey metallic

466 Barents Blue metallic

467 Magic Blue metallic

469 Lunar Gold metallic

019 Black

PLEASE NOTE: It is not possible to reproduce exact original shades in this brochure. Ask your Volvo retailer to show you samples.

As part of our commitment to the environment, the paper used in this brochure is recycled, and colour choices were printed directly

on the page. This eliminates the need for chemically treated colour chips. A small thing perhaps, but then, every little bit helps.

VOLVO CAR FINANCIAL SERVICES CANADA

If you purchase or lease your Volvo through Volvo Car

Financial Services Canada, you can take advantage of

services designed to make financing simple and con-

venient. Quick Debit, for instance, enables you to have

your monthly payment automatically debited from a

designated bank account.

CARE BY VOLVO® ON CALL ROADSIDE ASSISTANCE

Whenever you need us, we’re just a phone call away.

Our nationwide network of retailers and authorized

service providers are ready to assist. Whether you

require roadside assistance or maps and routing in-

formation for your next trip, refer to your On Call Card

and dial 1-800-263-0475 – anytime, day or night.

Your complimentary four-year membership activates

the moment you become a Volvo owner.

VOLVONEWCARWARRANTY

Your new car warranty provides comprehensive cover-

age for four years or 80,000 km’s, whichever occurs

first. Additional warranties cover corrosion, seat belts,

the supplemental restraint system, emission systems,

genuine Volvo replacement parts and genuine Volvo

accessories. Should you encounter any problem with

your Volvo, simply contact the nearest retailer for as-

sistance. Where your warranty ends, Volvo Increased

Protection (VIP) plans begin. To purchase the additional

protection of a VIP plan, contact your local retailer.

VOLVO GENUINE SERVICE

The best way to ensure superior performance year

after year is to bring your Volvo to your authorized

retailer for regular maintenance. Our service advisors

and factory-trained technicians are uniquely qualified

to maintain your automobile. With the aid of advanced

Volvo diagnostics, they follow all prescribed factory

maintenance outlined in your service interval manual.

Genuine Volvo Service is our ongoing commitment

to you: to keep your Volvo performing smoothly long

after other cars have given up.

WELCOME TO OUR FAMILY

Being a Volvo owner is about more than just owning an automobile. It’s about being treated in a caring, responsive and

respectful manner every time you interact with our company. All of us are committed to making every aspect of your

Volvo experience a rewarding one. So after the new car smell begins to fade, you’ll still be excited about owning a Volvo.

VOLVO OVERSEAS DELIVERY

Volvo Overseas Delivery offers a unique way to buy your new custom-built car as well as a unique way to see more of Europe. And when you’re

done traveling, bring the pleasure of driving a Volvo back home. Purchase any new Volvo as part of the Volvo Overseas Delivery Program and

enjoy all this – and more:

• Attractive pricing on Canadian models.

• Two complimentary round-trip tickets with

Scandinavian Airlines.

• One free hotel night in Gothenburg, Sweden,

the home of Volvo.

• An exciting Volvo Factory Tour or a visit to the new

Volvo Cars Safety Centre.

• An exclusive VIP delivery experience at the Volvo

Factory Delivery Centre.

• The opportunity to explore Europe in the comfort

and safety of your own Volvo, either with one of our

spectacular tours or on your own.

• Extensive complimentary home shipment services.

Just leave your car with us. We’ll ship it to you

the convenient way while you relax and enjoy your

complimentary flight back home.

Can you think of a better way of traveling overseas and

making your souvenir part of an unforgettable experience?

If you would like to know more, contact a national customer

service representative in Canada 1 (800) 663-8255 or visit

www.volvocanada.com

WWW.VOLVOCANADA.COM

Specifications, features, and equipment shown in this catalogue are based upon the latest information available

at the time of publication. Volvo Cars of Canada Ltd. reserves the right to make changes at any time, without

notice, to colours, specifications, accessories, materials, and models. For additional information, please contact

your authorized Volvo retailer.

© 2005 Volvo Cars of Canada Ltd. Printed in USA on 100% recyclable paper.

MY06B C
