98/9947,
98/9949,
& 98/9950
Series Exit
Devices
Service manual
98/9947
98/9949
98/9950
2 • Von Duprin • 98/9947, 98/9949, & 98/9950 Series Exit Devices Service Manual
INDEX
98/9947, 98/9949, & 98/9950WDC Devices
Basic Device ................................................................................................................................................
Panic and Fire Metal Door Concealed Vertical Rods and Latches ..............................................................
WDC Wood Door Concealed Vertical Rods and Latches ...........................................................................
Panic and Fire Metal Door Concealed Vertical Cables and Latches ........................................................
WDC Wood Door Concealed Vertical Cables and Latches ......................................................................
Baseplate Assembly ......................................................................................................................................
Center Case Assembly ..................................................................................................................................
LBR (Less Bottom Rod) / LBL (Less Bottom Latch) Fire Latch Kit ................................................................
Variations of the Basic Device
CD (Cylinder Dogging) ..................................................................................................................
HD-EL (Hex Dogging/Electric Latch Retraction) .............................................................................
EL (Electric Latch Retraction) .........................................................................................................
SS (Signal Switch) ..........................................................................................................................
RX (Request to Exit) ..................................................................................................................
LX (Latch Bolt Monitoring) .........................................................................................................
CX (Chexit) .....................................................................................................................................
CX-CD/SD (Chexit/Special Dogging) .............................................................................................
ALK (Exit Alarm Kit) ........................................................................................................................
Service Replacement Items .....................................................................................................................
General Information
Introduction ......................................................................................................................................................
How to Order ...................................................................................................................................................
Part Number Changes .....................................................................................................................................
Finishes ...........................................................................................................................................................
Outside Trim Functions ...................................................................................................................................
Strikes ..............................................................................................................................................................
INTRODUCTION
This manual contains a listing of replaceable parts and assemblies for the 98/9947 Concealed Vertical Rod Exit
Devices and the 98/9949 / 98/9950WDC Concealed Vertical Cable Exit Devices. 98 Series and 99 Series devices are
almost identical. The 99 Series has a grooved case; the 98 series has a smooth case.
4-5
6-7
8-9
10-11
12-15
16
17
17
4-5
18
19
19
20-21
20-21
22
23
24
25-26
2
2
2
3
3
3
HOW TO ORDER
Some parts are sold separately. Other items are available as part of a kit or multiple quantity package. For
the best possible service when ordering replacement parts or assemblies, please provide the following
information:
•Part number or assembly number
•Description
•Quantity needed
•Finish desired (if available finished)
•Date of original purchase (if known)
To find out the name of your local Von Duprin distributor or sales representative, contact:
Von Duprin Division
Allegion
2720 Tobey Drive
Indianapolis, Indiana 46219
Phone: (877) 671-7011
PART NUMBER AND AVAILABILITY CHANGES
This manual was designed to help illustrate the replacement parts and kits that are available for sale. Because of
changes to the product and/or manufacturing process, part numbers and availability can change over time.
Von Duprin • 98/9947, 98/9949, & 98/9950 Series Exit Devices Service Manual • 3
98/99 SERIES FINISHES
US3
US4
US10
US15
US26
US26D
US28
US32D
313AN
315AN
605
606
612
619
625
626
628
630
710
711
Polished Brass
Dull Brass
Dull Bronze
Satin Nickel
Polished Chrome
Dull Chrome
Anodized Alum. (Clear)
Satin Stainless Steel
Anodized Alum. (313)
Dark Bronze
Anodized Alum. (Black)
U.S. Std
Reference
BHMA
ReferenceDescription
990EO
OUTSIDE TRIM FUNCTIONS
990DT***990NL** 990TP990TP-BE*
991K
991K-NL**
991K-BE*
991K-DT***
992L
996L
992L-NL**
996L-NL**
992L-BE*
996L-BE*
992L-DT***
996L-DT***
994L
994L-NL**
994L-BE*
994L-DT***994EO
992EO
996EO
110NL****
376T
"BE" (Blank Escutcheon) no cylinder used - lever always active
"NL" (Night Latch) rigid lever - key retracts latch bolt
*
**
"DT" (Dummy Trim) rigid lever for pull operation
Optional Pull needs to be added
***
****
98/9947 STRIKES
Screw Pkg 900285
338 Strike (Top)
Standard Panic or
Fire Exit Hardware
385A Strike
(Bottom)
Panic or Fire
Exit Hardware
304L Strike
(Bottom)
Panic or Fire
Exit Hardware
283 Strike (Top)
Wood Frame
Screw 964191
98/9949 STRIKES
23945223
249 Top Strike Kit
Standard Panic or
Fire Exit Hardware
Includes top latch
mounting
screws
24007411
349 Bottom Strike Kit
Standard Panic or Fire
Exit Hardware
3FP0116A001-GL
338 Strike Filler Plate
(Top) used for
47 Series retrofit
98/9950 STRIKES
24664997
450 Bottom Strike Kit
Standard Panic or
Fire Exit Hardware
Includes bottom latch mounting
screws
24665002
150 Top Strike Kit
Standard Panic or
Fire Exit Hardware
Includes shims and top latch
mounting screws
47244841
WDC Strike Filler Plate
(Top) used for
47 Series retrofit
4 • Von Duprin • 98/9947, 98/9949, & 98/9950 Series Exit Devices Service Manual
16
15
16
10B
11
13
9
7B
6
17
8
7A
CD Conversion Kit
99 Series - 050115
98 Series - 050132
Hex Dogging Kit
99 Series - 050114
98 Series - 050117
3
5
1
3B
2
4
3C
3A
10A
10
7B
7B
12
18
PANIC ONLY
PANIC ONLY
1
Fire or Less Dogging
Cover Plate Kit
99 Series - 050589
98 Series - 050588
2B
7
14
98/9947 & 98/9949 PANIC DEVICE
98/9947-F & 98/9949-F FIRE DEVICE
Von Duprin • 98/9947, 98/9949, & 98/9950 Series Exit Devices Service Manual • 5
Item No. Quantity Part No. Description Finish
190056398/9947 & 98/9949 Series Mtg. Pkg. (1-3/4)
190056898/9947 & 98/9949 Series Mtg. Pkg. (2-1/4)
1 1 090085227 Dog Key 5/32” Hex (Pkg of 10)
1 1 090005227 Dog Key 5/32” Hex (Pkg of 2)
2 1 090040Hex Dog Shaft (Pkg of 2)
3 1 107813 gkP gnitnuoM rednilyC
3A 1 050525 ralloC rednilyC
3B 1 050490Cylinder Locating Washer - CD/SS
3C 1 050526Cylinder Locknut
4 1 090046CD Dogging Plug (Pkg of 2)
5 1 090045CD Actuator Arm (Pkg of 2)
6 1 *PBKIT98/99 Series Push Bar Retrofit Kit - 3’ Door
6 1 *PBKIT98/99 Series Push Bar Retrofit Kit - 4’ Door
tiK paC dnE seireS 99/8941005017
7A 1 050524 Impact Resistant End Cap Bracket
7B 1 090036Cover Plate Anti-rattle Spring (Pkg of 10)
8 1 900597Device End Cap and C/Case Screw Pkg.
9 1 96814499 Series Mechanism Case - 3’ Door
9 1 96814699 Series Mechanism Case - 4’ Door
9 1 97019198 Series Mechanism Case - 3’ Door
9 1 97019298 Series Mechanism Case - 4’ Door
10 1 05052998/99 Series Control Link Pin & Ret. Ring
10A 1 09003198/99 Series Control Link Pin (Pkg of 10)
10B 1 090107Retaining Ring (Pkg of 10)
11 2 090037#8-32 x 3/8” Baseplate Screw (Pkg of 10)
12 2 090073Mechanism Case Bracket Screw (Pkg of 10)
13*** 1 05002298/9947-F & 98/9949-F C/Case Kit Less Cover
14** 1 05007398/9947-F & 98/9949-F C/Case Cover Kit
15 1 050491 Shock Absorber & Holder Assembly
16 2 090049Push Bar Guide (Pkg of 10)
17 4 900892Center Case Cover Screws (Pkg of 4)
18 1 050564Center Case Cover Bracket
X in “Finish” column designates finished items; finish must be specified when ordering.
* To order, specify device type, size, and finish. Example: PBKIT 98 3’ US28
**Includes parts for three-piece cover conversion.
***Center case assembly parts shown on page 17.
98/9947 & 98/9949 PANIC DEVICE
98/9947-F & 98/9949-F FIRE DEVICE
X
X
X
X
X
X
X
X
X
X
X
X
6 • Von Duprin • 98/9947, 98/9949, & 98/9950 Series Exit Devices Service Manual
98/9947 & 98/9947-F METAL DOOR VERTICAL RODS AND LATCHES
5
7
4
2
6
10
13
8
Rod Extension
Assembly
8’4” - 10’
Door Height
051808
98/9948
Bottom Latch
Assembly
050495
9
10
7
1
6
3
13
4
3
5
98/9948
Top Latch Kit
Std - 050494
EL - 050516
ES98/9948
Top Latch
Assembly
050128
12
11
18
Von Duprin • 98/9947, 98/9949, & 98/9950 Series Exit Devices Service Manual • 7
98/9947 & 98/9947-F METAL DOOR VERTICAL RODS AND LATCHES
Item No. Quantity Part No. hsiniFnoitpircseD
* 1 05004798/9948 Latch Retrofit Kit-(non EL)
* 1 050048 98/9948-F Latch Retrofit Kit-(non EL)
* 1 050522 EL98/9948 Latch Retrofit Kit
* 1 050523 EL98/9948-F Latch Retrofit Kit
1** 1 05049398/9947 Bottom Latch Kit
2** 1 05049298/9947 Top Latch Kit
3** 2 10932498/9947 Latch Mtg Bracket
3** 2 11286898/9948 Latch Mtg Bracket
4 6 090059Latch Bracket Mtg Screw (Latch)
5 6 090061 Latch Bracket Mtg Screw (Metal Door)
5 6 900856 Latch Bracket Mtg Screw (Wood Door)
6 2 090063Retaining Ring (Pkg of 10)
7 2 090064Latch Link Pin (Pkg of 10)
8 1 050574Adjustable Top Rod 6’8” - 8’4” Door
9 1 050575 Adjustable Bottom Rod Kit
10 2 09007198/9947 Rod Connecting Screw (Pkg of 2)
10 2 09007298/9948 Rod Connecting Screw (Pkg of 2)
11 1 106222 XgkP esaeleR tehctaR
12 1 090070 Ratchet Release Screw
13 1 900620 98/9947 Adjusting Screw Package (Pkg of 2)
13 1 900898 98/9947 Adjusting Screw LBR Package
14 1 090065Bolt Return Spring (Pkg of 10)
15 1 090066 Top Latch Compression Spring (Pkg of 10)
16 1 090069Ratchet Lever Spring (Pkg of 2)
17 1 090062 Btm Latch Case Spirol Pin (Pkg of 10)
18 1 97097898/9947 Ratchet Release Spacer
X in “Finish” column designates finished items; finish must be specified when ordering.
*Retrofit kit includes items 1-3 to convert 98/9947 to 98/9948.
**Each latch kit (item 1-2) includes only one latch mtg bracket (item 3). Panic device uses
only 1 mounting bracket per latch while Fire (F) device uses 2 per latch. For service
replacement only. Refer to retrofit kits to convert 98/9947 to 98/9948.
15
16
17
17
98/9947 Top Latch98/9947 Bottom Latch
14
8 • Von Duprin • 98/9947, 98/9949, & 98/9950 Series Exit Devices Service Manual
12
11
5
1
2
13
98/9947 & 98/9947-F WDC (WOOD DOOR CONCEALED)
VERTICAL RODS AND LATCHES
18
3
3
5
67
7
6
10
10
4
4
8
9
19
Von Duprin • 98/9947, 98/9949, & 98/9950 Series Exit Devices Service Manual • 9
98/9947 & 98/9947-F WDC (WOOD DOOR CONCEALED)
VERTICAL RODS AND LATCHES
Item No. Quantity Part No. Description Finish
1* 1 050493 98/9947 Bottom Latch Kit
2* 1 050492 98/9947 Top Latch Kit
3* 2 109324 98/9947 Latch Mtg Bracket
4 6 090059Latch Bracket Mtg Screw (Latch)
5 1 900856WDC Auxiliary Mtg. Package
6 2 090063 Retaining Ring (Pkg of 10)
7 2 090064 Latch Link Pin (Pkg of 10)
8 1 050582WDC Adjustable Top Rod 6’8” - 8’4” Door
9 1 050583WDC Adjustable Bottom Rod Kit
10 2 09007198/9947 Rod Connecting Screw (Pkg of 2)
10 2 09007298/9948 Rod Connecting Screw (Pkg of 2)
11 1 106222 X
X
gkP esaeleR tehctaR
12 1 090070 Ratchet Release Screw (Pkg of 2)
13 1 900620 98/9947/48 Rod Adjust Pkg
13 1 900898LBR Adjusting Screw Pkg
14 1 090065Bolt Return Spring (Pkg of 10)
15 1 090066 Top Latch Compression Spring (Pkg of 10)
16 1 090069Ratchet Lever Spring (Pkg of 2)
17 1 090062Btm Latch Case Spirol Pin (Pkg of 10)
18 1 05008898/9947WDC & 98/9949WDC Scalp Plate
19 1 97097898/9947 Ratchet Release Spacer
X in “Finish” column designates finished items; finish must be specified when ordering.
*Each latch kit (item 1-2) includes only one latch mtg bracket (item 3). All WDC devices
require only 1 mounting bracket per latch.
15
16
17
17
98/9947 Top Latch98/9947 Bottom Latch
14
10 • Von Duprin • 98/9947, 98/9949, & 98/9950 Series Exit Devices Service Manual
3
98/9949 & 98/9949-F METAL DOOR VERTICAL CABLES AND LATCHES
1
2
Cable Removal Tool
Spacer Block Kit
Pkg of
2
Qty 1 Pkg of
10
4 5
6
Von Duprin • 98/9947, 98/9949, & 98/9950 Series Exit Devices Service Manual • 11
98/9949 & 98/9949-F METAL DOOR VERTICAL CABLES AND LATCHES
Item No. Quantity Part No. hsiniFnoitpircseD
*A cable removal tool is included with the assembly.
Each latch assembly includes two latch mounting brackets.
Top Latch Assembly
Bottom Latch Assembly
98/9949 Center Slide Assembly (Metal Door)
Cable Removal Tool
Cable Removal Tool (Pkg of 10)
Spacer Block Kit (Pkg of 2)
24090110
24090128
24090144
24008773
24090706
24231516
1*
2
3
4
5
6
1
1
1
1
10
2
12 • Von Duprin • 98/9947, 98/9949, & 98/9950 Series Exit Devices Service Manual
98/9949 & 98/9949-F WDC (WOOD DOOR CONCEALED)
VERTICAL CABLES AND LATCHES
1
3
3
2
Cable Removal Tool
Qty 1 Pkg of
10
4 5
Von Duprin • 98/9947, 98/9949, & 98/9950 Series Exit Devices Service Manual • 13
98/9949 & 98/9949-F WDC (WOOD DOOR CONCEALED)
VERTICAL CABLES AND LATCHES
Item No. Quantity Part No. hsiniFnoitpircseD
*A cable removal tool is included with the assembly.
Each latch assembly includes two latch mounting brackets.
Top Latch Assembly
Bottom Latch Assembly
98/9949 Center Slide Assembly (WDC)
Cable Removal Tool
Cable Removal Tool (Pkg of 10)
24090110
24090128
24090151
24008773
24090706
1*
2
3
4
5
1
1
1
1
10
14 • Von Duprin • 98/9947, 98/9949, & 98/9950 Series Exit Devices Service Manual
98/9950WDC & 98/9950WDC-F (WOOD DOOR CONCEALED)
VERTICAL CABLES AND LATCHES
6
3
4
1
2
5
7
Von Duprin • 98/9947, 98/9949, & 98/9950 Series Exit Devices Service Manual • 15
98/9950WDC & 98/9950WDC-F (WOOD DOOR CONCEALED)
VERTICAL CABLES AND LATCHES
50WDC Top Latch Kit
50WDC Bottom Latch Kit
98/9950WDC Center Slide Kit
98/9950WDC-F Fire Kit
98/9950WDC Lift Finger Kit
Top Cable 6'8"-7'0" WDC
Top Cable 7'1"-8'0" WDC
Top Cable 8'1"-9'0" WDC
Top Cable 9'1"-10'0" WDC
Bottom Cable WDC
48968820
48968838
48973291
48968861
24685554
24648180
24647273
24647281
24647299
24647265
1
2
3
4
5
6
6
6
6
7
1
1
1
1
1
1
1
1
1
1
Item No. Quantity Part No. hsiniFnoitpircseD
16 • Von Duprin • 98/9947, 98/9949, & 98/9950 Series Exit Devices Service Manual
98/9947, 98/9949, & 98/9950 PANIC DEVICE BASEPLATE ASSEMBLY
7
64
5
1
2
3
Item No. Quantity Part No. Description Finish
1 1 090043Dogging adapter (Pkg of 2)
2 1 090042Dogging adapter spring (Pkg of 2)
3 1 090041 Dogging spring (Pkg of 2)
4 1 090040Hex dogging shaft (Pkg of 2)
5 1 090044Dogging hook (Pkg of 2)
6 1 090039Latch return spring (Pkg of 10)
7 4 090038Rubber bumper (Pkg of 4)
8 1 050491 Shock absorber
8
1
21
98/9947-F, 98/9949-F, & 98/9950-F FIRE DEVICE BASEPLATE ASSEMBLY
Item No. Quantity Part No. Description Finish
1 4 090038Rubber bumper (Pkg of 4)
2 1 090039Latch return spring (Pkg of 10)
3 1 050491 Shock absorber
3
Von Duprin • 98/9947, 98/9949, & 98/9950 Series Exit Devices Service Manual • 17
98/9947, 98/9949, & 98/9950 DEVICE CENTER CASE ASSEMBLY
Item No. Quantity Part No. Description Finish
1 2 090107Retaining Ring (Pkg of 10)
2 2 090079 Latch Bolt Pin (Pkg of 10)
3 1 090074NL Drive Screw (Pkg of 10)
4 1 050565Center Case Reinforcing Bracket
4
2
1
3
98/9947-F LBR (LESS BOTTOM ROD)
98/9949-F LBL (LESS BOTTOM LATCH)
98/9950WDC-F LBL (LESS BOTTOM LATCH)
FIRE LATCH KIT
LBR/LBL Fire Latch/Strike Kit
LBR/LBL Fire Strike Plug
50WDC Fire Pin Kit
050171
050509
48968887
1
2
3
1
1
1
Item No. Quantity Part No. hsiniFnoitpircseD
2
1
Note: 499F Strike
(not shown)
is included with
P/N 050171
3
Note: 98/9950WDC-F LBL
requires P/N 050171
in addition to these
components
18 • Von Duprin • 98/9947, 98/9949, & 98/9950 Series Exit Devices Service Manual
HD-EL9847/HD-EL9947, HD-EL9849/HD-EL9949, & HD-EL9850/HD-EL9950

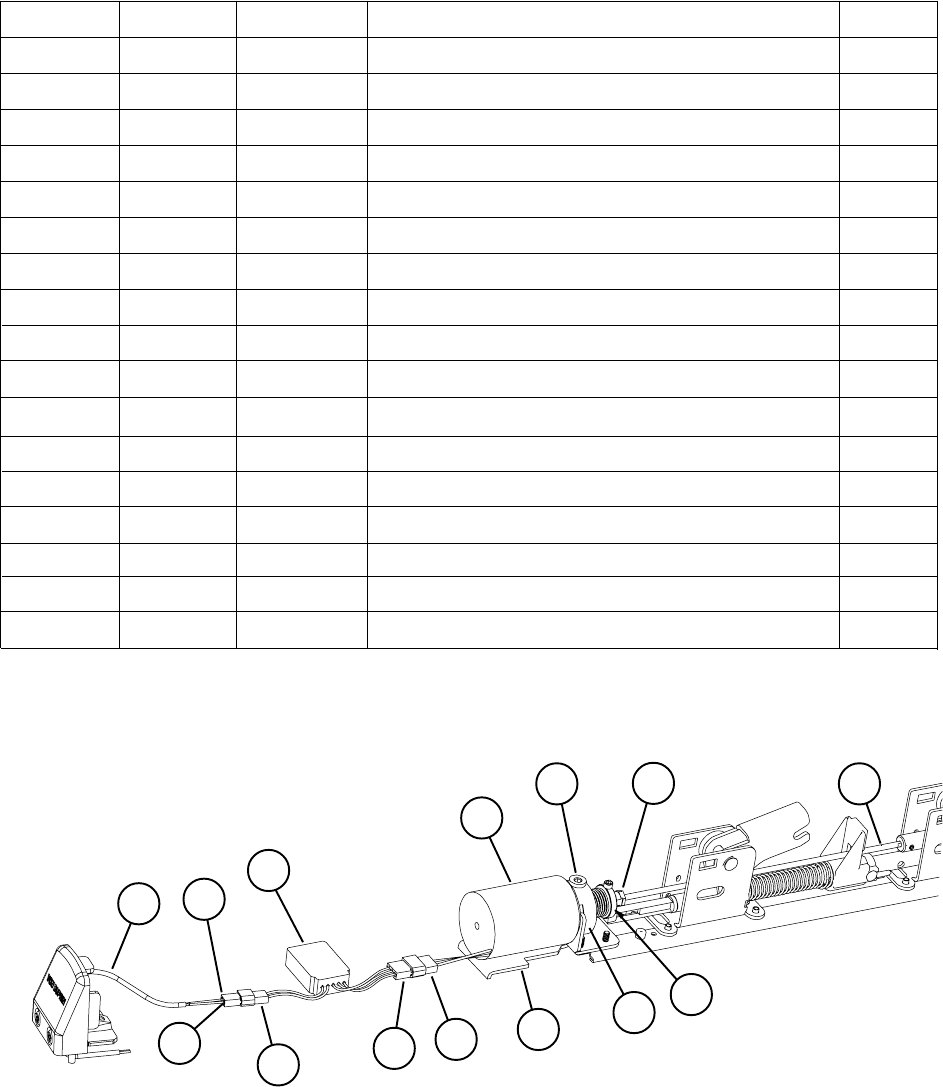

HEX DOGGING/ELECTRIC LATCH
RETRACTION OPTION - PANIC DEVICE ONLY
Item No. Quantity Part No. Description Finish
*Kit includes items 1-11 plus new control link, retaining ring, and baseplate screws.
4
2
1
3
6
9
5
11
10
7
8
12 13 14
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
*
*
1
1
1
1
1
1
1
1
2
1
1
1
1
1
1
1
1
050531
050532
110388
050534
050536
050537
050538
050539
050540
050541
050542
050543
990599
990857
990858
050384
050385
EL Dogging Rod Kit - 3’ device
EL Dogging Rod Kit - 4’ device
EL 6’ Cable and Connector
EL Potted Module
HD-EL Solenoid
HD-EL Solenoid Plunger
EL Dogging Rod Retainer
EL Receptacle Connector - 2 Position
EL Female Terminal
HD-EL Dog Screw
HD-EL Solenoid Bracket
HD-EL Dogging Spring
EL Plug Connector - 2 Position
EL Receptacle Connector - 3 Position
EL Plug Connector - 3 Position
HD-EL Conversion Kit - 3’
HD-EL Conversion Kit - 4’
Von Duprin • 98/9947, 98/9949, & 98/9950 Series Exit Devices Service Manual • 19

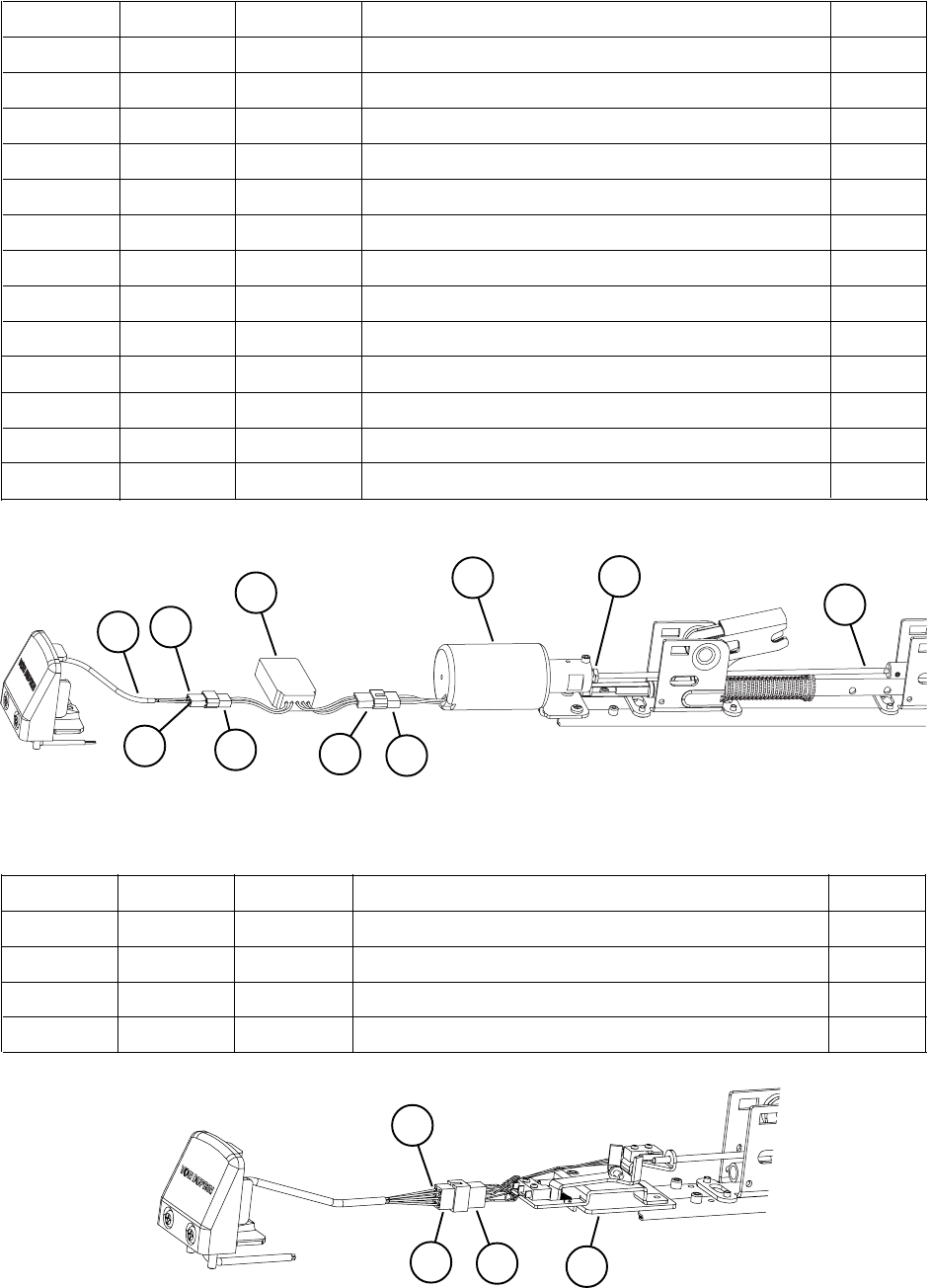

EL9847/EL9947, EL9849/EL9949, & EL9850/EL9950 SERIES
ELECTRIC LATCH RETRACTION OPTION
SS9847/SS9947, SS9849/SS9949, & SS9850/SS9950 SERIES
SIGNAL SWITCH OPTION
Item No. Quantity Part No. Description Finish
*Kit includes items 1-7 plus new control link pin, retaining ring, and baseplate screws.
1
2
Item No. Quantity Part No. Description Finish
1 1 050544SS Cable
2 1 050545SS Housing
3 1 990601SS Plug Connector - 6 Position
4 1 990602SS Receptacle Connector - 6 Position
34
1
45
10
9
3
8
7
6
2
1
1
2
3
4
5
6
7
8
9
10
*
*
1
1
1
1
1
1
1
2
1
1
1
1
1
050531
050532
110388
050534
050535
050538
050539
050540
990599
990857
990858
050070
050078
EL Dogging Rod Kit - 3’ device
EL Dogging Rod Kit - 4’ device
EL 6’ Cable and Connector
EL Potted Module
EL Solenoid Assembly
EL Dogging Rod Retainer
EL Receptacle Connector
EL Female Terminal
EL Plug Connector - 2 Position
EL Receptacle Connector - 3 Position
EL Plug Connector - 3 Position
EL Conversion Kit - 3’
EL Conversion Kit - 4’
20 • Von Duprin • 98/9947, 98/9949, & 98/9950 Series Exit Devices Service Manual
1
2
LX Switch
RX Switch
Wire Colors
Violet, Gray, White
(for Low Current
Violet, Gray, Black)
Wire Colors
Red, Yellow, Blue
(for Low Current
Green, Yellow, Blue)
7
8
7
98/9947, 98/9949, & 98/9950 SERIES LX (LATCH BOLT MONITOR) &
RX (REQUEST TO EXIT) OPTIONS
Von Duprin • 98/9947, 98/9949, & 98/9950 Series Exit Devices Service Manual • 21
Item No. Quantity Part No. hsiniFnoitpircseD
1 1 050254 LX Switch Kit 3’ Device
1 1 050255 LX Switch Kit 4’ Device
1 1 050247 LX-EL Switch Kit
1 1 050283 LX-LC (Low Current) Switch Kit 3’ Device
1 1 050285 LX-LC (Low Current) Switch Kit 4’ Device
1 1 050287 LX-LC-EL (Low Current) Switch Kit
2 1 050251 RX Switch Kit
2 1 050281 RX-LC (Low Current) Switch Kit
3 1 050256LX-RX Switch Kit 3’ Device
3 1 050257LX-RX Switch Kit 4’ Device
3 1 050259LX-RX-EL Switch Kit
3 1 050289 LX-RX-LC (Low Current) Sw. Kit 3’ Device
3 1 050291 LX-RX-LC (Low Current) Sw. Kit 4’ Device
3 1 050293 LX-RX-LC-EL (Low Current) Switch Kit
2 & 4 1 050270RX-2 Switch Kit
4 1 050271RX-AUX Switch Kit
5 1 964558 8-32 x 5/16” PPHMS
6 1 964019#8 Washer
7 1 090099 Pine Tree Clip (Pkg of 10)
8 1 971091LX Actuator
3
4
LX-RX Switch
RX-AUX Switch
Wire Colors
Red, Yellow, Blue
(for Low Current
Green, Yellow, Blue)
Wire Colors
Violet, Gray, White
(for Low Current
Violet, Gray, Black)
Wire Colors
Red, Yellow, Blue
(for Low Current
Green, Yellow, Blue)
7
56
98/9947, 98/9949, & 98/9950 SERIES LX (LATCH BOLT MONITOR) &
RX (REQUEST TO EXIT) OPTIONS
22 • Von Duprin • 98/9947, 98/9949, & 98/9950 Series Exit Devices Service Manual
CX98/9947, CX98/9949, & CX98/9950 SERIES CHEXIT AND CX-RCM OPTION
Item No. Quantity Part No. hsiniFnoitpircseD
1 1 050228 Chexit PCB Kit - 15 Second Release
1* 1 050700 Chexit PCB Kit - 30 Second Release
1 1 050701 Chexit PCB Kit - 0 Second Release
1 1 050702 Chexit PCB Kit - Boca 15 Second Release
1* 1 050703 Chexit PCB Kit - Boca 30 Second Release
2 1 050533CX Solenoid and Plunger
XretpadA dna etalpecaF11131113
4 4 963898 6-32 x 3/8” OPHMS Faceplate Screws X
5 1 991338RCM 2-Wire RX Cable
6 1 991339 RCM 3-Wire Solenoid Cable
7 1 112018 Chexit Wiring Assembly
8 1 991336 CX-RCM Cable Assy - 5 Wire
9 1 090036Cover Plate Anti-rattle Spring (Pkg of 10)
10 1 970513 LED Cover Mask - Chexit
11 1 970519 LED Cover - Chexit
12 1 113781 Sign 15 Second - Chexit
13 1 113782 Sign 30 Second - Chexit
*Over 15 seconds delay requires a letter of approval from authority having local jurisdiction.
Fax letter in with sales order. The order cannot be processed without the letter.
PUSH UNTIL ALARM SOUNDS
DOOR CAN BE OPENED IN 15 SECONDS
PUSH UNTIL ALARM SOUNDS
DOOR CAN BE OPENED IN 30 SECONDS
13
1
7
CX Cover Plate Kit
99 Series - 050572
98 Series - 050573
10
11
9
12
4
6
5
3
8
**RCM Kit Less Module - CX98 - 050376
**RCM Kit Less Module - CX99 - 050375
**Includes items 3-11
2
Von Duprin • 98/9947, 98/9949, & 98/9950 Series Exit Devices Service Manual • 23
CX-CD/SD98/9947, CX-CD/SD98/9949, & CX-CD/SD98/9950 SERIES OPTION
Item No. Quantity Part No. Description Finish
*Parts shown are for the CX-CD/SD option. For other available center case parts refer
to page 17.
1
2
4
RHR Shown
LHR Opposite
5
63
7
SD98/9947/49/50 RHR Center Case Kit Less Cvr
SD98/9947/49/50 LHR Center Case Kit Less Cvr
SD98/9947/49/50 RHR Center Case Cover Kit
SD98/9947/49/50 LHR Center Case Cover Kit
CD-CX/SD Cylinder Dog Housing
CD-CX/SD Cylinder Dog Bracket Kit RHR
CD-CX/SD Cylinder Dog Bracket Kit LHR
Center Case Cover Screws
8-32 x 1/4" UFPHMS (Pkg of 20)
Bracket Set Screw
SD98/9949 Center Slide Mounting Kit
SD98/9950 Center Slide Mounting Kit
050552
050553
050562
050563
112409
112455
112456
900892
PkgServ.1018
964240
24123291
47244842
1*
1*
2
2
3
4
4
5
6
7
8
9
1
1
1
1
1
1
1
4
2
1
1
1
X
X
X
SD98/9949
Center Slide
Mounting Kit
8
SD98/9950
Center Slide
Mounting Kit
9
24 • Von Duprin • 98/9947, 98/9949, & 98/9950 Series Exit Devices Service Manual
3
98/9947, 98/9949, & 98/9950 ALK EXIT ALARM KIT
R
A
M
R
A
M
I
D
S
54
Item No. Quantity Part No. Description Finish
1 1 111795 ALK PCB Assembly
2 1 050525 XralloC rednilyC
3 1 969122ALK Alarm Device Sign
4 1 969349ALK Arming Label
5 1 969350ALK Disarming Label
6 1 969354Retainer Nut
7 1 970594ALK Cylinder Spacer
8 1 090036Cover Plate Anti-rattle spring (Pkg of 10)
9 1 971556ALK Switch Actuator
10 1 971557 ALK Cylinder Bracket
11 1 990637ALK Battery
12 1 05056999 Series ALK Cover Plate Kit X
12 1 05057098 Series ALK Cover Plate Kit X
X in “Finish” column designates finished items; finish must be specified when ordering.
8
1
11
12
2
10
7
6
9
EMERGENCY EXIT ONLY
ALARM WILL SOUND
Von Duprin • 98/9947, 98/9949, & 98/9950 Series Exit Devices Service Manual • 25
98/9947 SERIES SERVICE REPLACEMENT ITEMS
Item No. Quantity Part No. Description Finish
1 1 050153Old Style Hex Dogging Replacement Kit
2 1 963909#22 Hitch Pin - Hex/CD Dogging Old Style
3 1 968112 Old Style Hex Dog Shaft
4 1 969941Old Style Dogging Hook
5 1 968116 Old Style CD Actuator Arm
6 1 900905Old Style End Cap and Bracket Assembly X
7 1 970548Old Style Cover Plate Stop - End Cap
8 1 900901 Old Style End Cap Screw Package X
9 1 971082Old Style 98/99 End Cap - Stainless Steel X
9 1 971083Old Style 98/99 End Cap - Brass X
9 1 971084Old Style 98/99 End Cap - Bronze X
9 1 971085 Old Style 98/99 End Cap - Aluminum X
X in “Finish” column designates finished items; finish must be specified when ordering.
1
23
4
5
OLD STYLE DOGGING PARTS
(FOR DEVICES SHIPPED BEFORE AUGUST 1997)
OLD STYLE END CAP PARTS
(FOR DEVICES SHIPPED
BEFORE JANUARY 2002)
Note: Newer style end cap kit
shown on pages 4-5. Newer style end
cap kit can be used on devices
manufactured before January 2002,
but mechanism case and cover plate
on hinge stile must have a square cut
and a clean edge.
7
9
8
6
26 • Von Duprin • 98/9947, 98/9949, & 98/9950 Series Exit Devices Service Manual
Item No. Quantity Part No. Description Finish
1 1 050218EL Solenoid Replacement Kit
X in “Finish” column designates finished items; finish must be specified when ordering.
98/9947 SERIES SERVICE REPLACEMENT ITEMS
EL SOLENOID REPLACEMENT KIT
(FOR DEVICES SHIPPED BEFORE JANUARY 1987)
Note: This kit replaces the old style EL solenoid parts with the new style.
1
© 2015 Allegion
105675, Rev. 09/15
www.allegion.com/us
Allegion (NYSE: ALLE) is a global pioneer in safety and security, with leading brands
like CISA®, Interflex®, LCN®, Schlage® and Von Duprin ®. Focusing on security
around the door and adjacent areas, Allegion produces a range of solutions for
homes, businesses, schools and other institutions. Allegion is a $2 billion company,
with products sold in almost 130 countries.
For more, visit www.allegion.com.
