2 • Von Duprin • Electric Strikes 5100, 6100, 6200, 6300 Series Service Manual
Electric Strikes
Table of Contents
General Information ............................................2
Introduction ....................................................2
How To Order ..................................................2
Part Number Changes ...................................2
5100 Series Meduim Duty Electric Strikes ........3
Faceplate & Screw Packages ........................4
Solenoid Replacement Kit .............................5
6100 Series Electric Strikes ................................7
Solenoids & Solenoid Parts ..........................8
Solenoids & Box Parts: Type A Box, Type C
Box, Offset Box ..............................................9
6111, 6113 ......................................................10
6114 ...............................................................12
6112, 6121 .....................................................14
6200 Series Electric Strikes ..............................17
Box Parts: Type B Box .................................18
Box Parts: Type B Box Images ...................19
Solenoids & Box Parts: Type A Box, Type C
Box, Offset Box ............................................20
6213 ...............................................................22
6214, 6215, 6222, 6224, 6224Al, 6225, 6226 24
6211, 6211Al, 6212 ........................................26
6211Wf, 6212Wf ............................................28
6221, 6223 .....................................................30
6216 ...............................................................32
6210 ...............................................................34
6300 Series Electric Strikes ..............................37
6300 Strike Shim & Wire Harness ...............38
General Information
INTRODUCTION
This manual lists replaceable parts and assemblies for 5100 Series Medium Duty Electric Strikes, 6100 Series Electric Strikes, 6200
Series Electric Strikes, and 6300 Electric Strikes.
HOW TO ORDER
Some parts are sold separately. Other items are available as part of a kit or multiple quantity package. For the best possible service when
ordering replacement parts or assemblies, please provide the following information:
• Part number or assembly number
• Description
• Quantity needed
• Finish desired (if available nished)
• Date of original purchase (if known)
To nd out the name of your local Von Duprin distributor or sales representative, contact:
Von Duprin Division
Allegion
2720 Tobey Drive
Indianapolis, Indiana 46219
Phone: (877) 671-7011
PART NUMBER AND AVAILABILITY CHANGES
This manual was designed to help illustrate the replacement parts and kits that are available for sale. Because of changes to the product
and/or manufacturing process, part numbers and availability can change over time.
Von Duprin • Electric Strikes 5100, 6100, 6200, 6300 Series Service Manual • 3

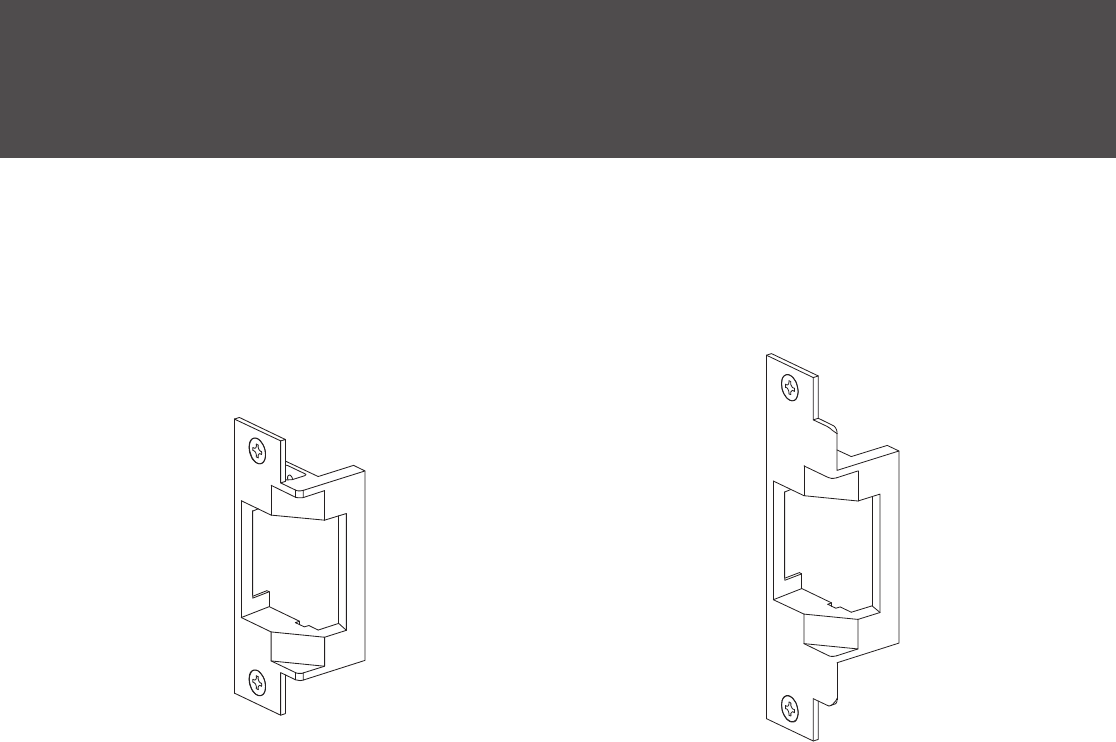

5100 Series
Meduim Duty Electric Strikes
PARTS MANUAL
5100 Series Medium Duty Electric Strikes
4 • Von Duprin • Electric Strikes 5100, 6100, 6200, 6300 Series Service Manual
1
2
4
5
3
22-14 Blue Wire Nut
included in item no. 4

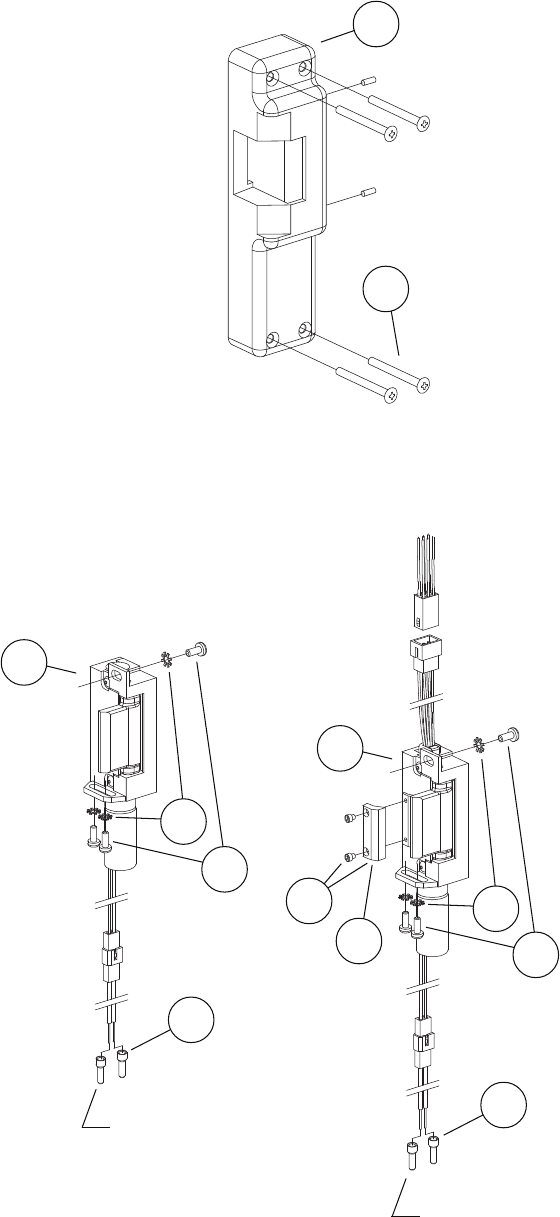

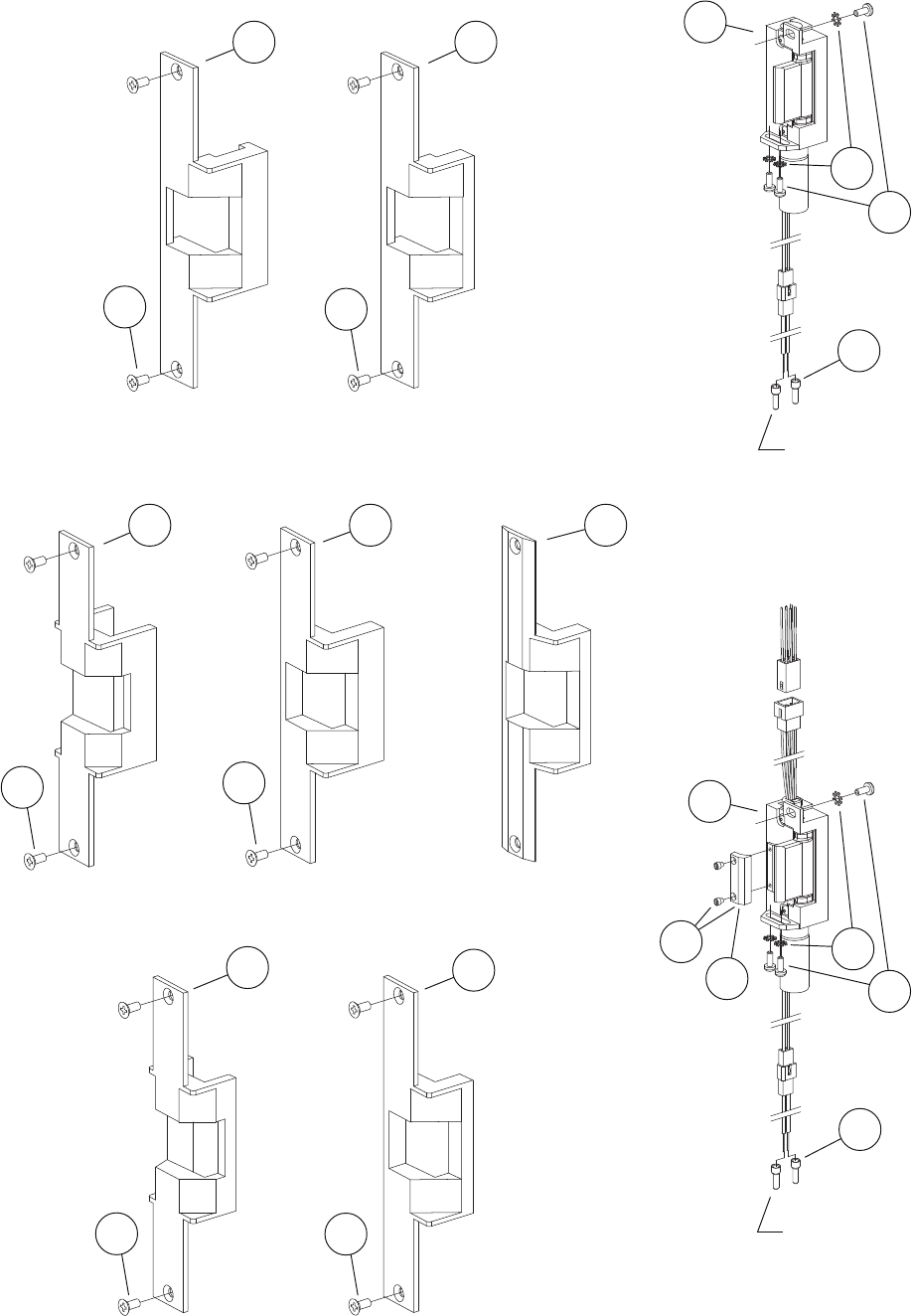

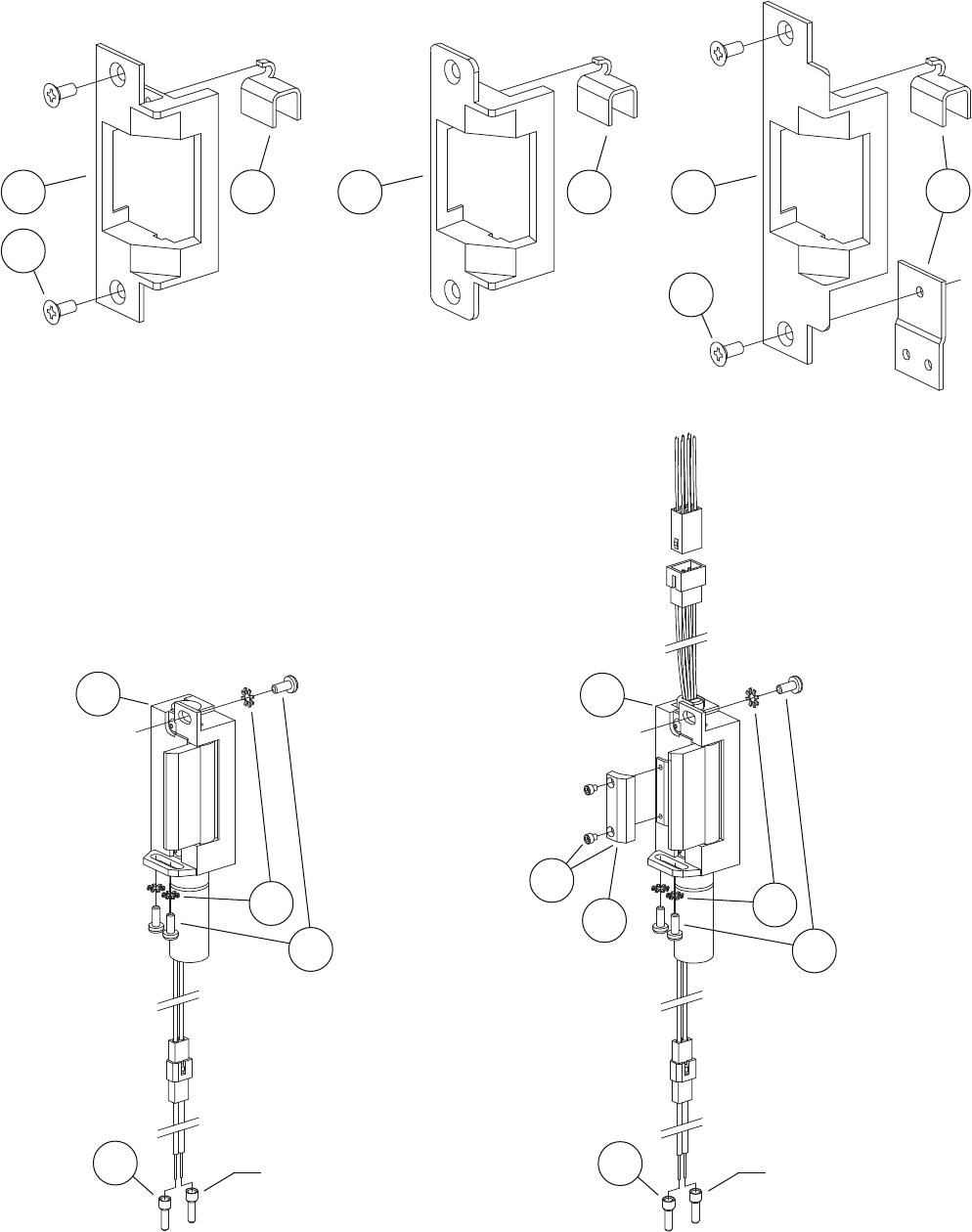

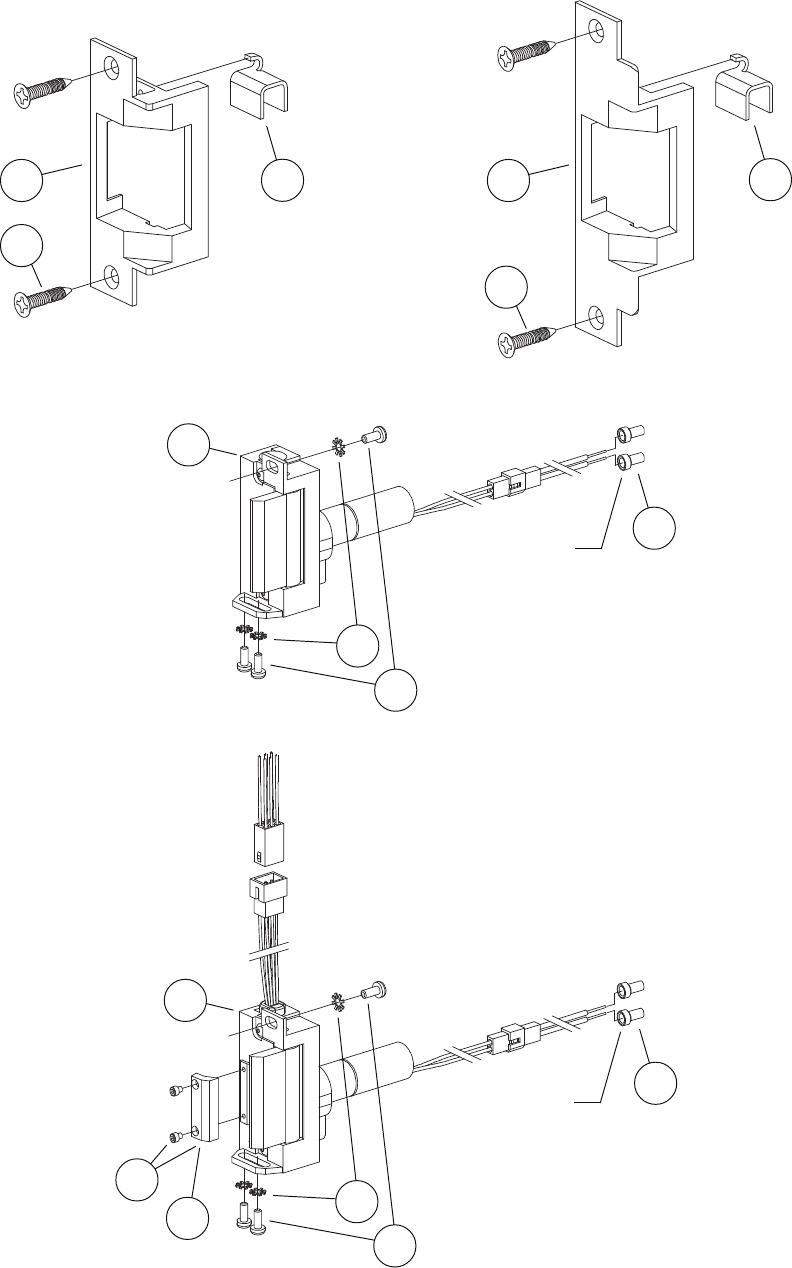

Faceplate & Screw Packages
Item
Number Part Number Description Quantity Finish
1 050031 5100 Faceplate Package - Standard 4-7/8” 1 x
2 050032 5100 Faceplate Package - Round Corner 4-7/8” 1x
3 050033 5100 Faceplate Package - Long 7-11/16” 1 x
4PKGSCR.1003 5000 Series Screw Package US32D
10-24 5/16” UFPHMS 2
12-24 1/2” UFPHMS 2
12-14 1” UFPHWS 2
22-14 Blue Wire Nut 2
4PKGSCR.1004 5000 Series Screw Package Black
Same parts as PKGSCR.1003 in Black Finish
5 PKGMTG.1004
5000 Mounting Package US32D
Mounting Tab Zinc 2
Mounting Tab Shim Nylon 4
10-24 1/2” UFPHMS 4
5 PKGMTG.1005 5000 Mounting Package Black
Same parts as PKGMTG.1004 in Black Finish
X in “Finish” column designates nished item; specify nish when ordering.
5100 Series Medium Duty Electric Strikes
Von Duprin • Electric Strikes 5100, 6100, 6200, 6300 Series Service Manual • 5

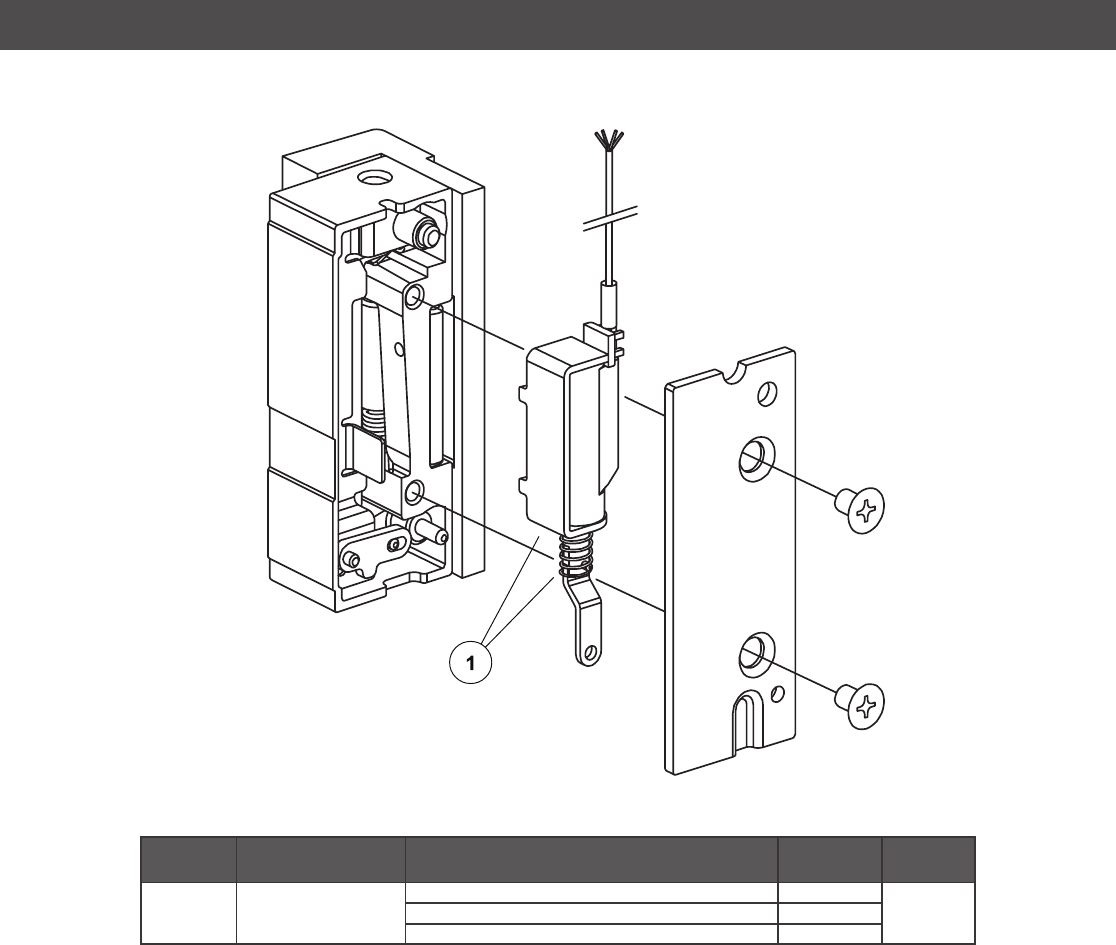

Solenoid Replacement Kit
Item
Number Part Number Description Quantity Finish
1 050034
5100 Solenoid Replacement Kit
5100 Solenoid Assembly 1
5100 Plunger Spring 1
X in “Finish” column designates nished item; specify nish when ordering.
5100 Series Medium Duty Electric Strikes
6 • Von Duprin • Electric Strikes 5100, 6100, 6200, 6300 Series Service Manual
Von Duprin • Electric Strikes 5100, 6100, 6200, 6300 Series Service Manual • 7
PARTS MANUAL
6100 Series
Electric Strikes
6100 Series Electric Strikes
8 • Von Duprin • Electric Strikes 5100, 6100, 6200, 6300 Series Service Manual
1
3
2

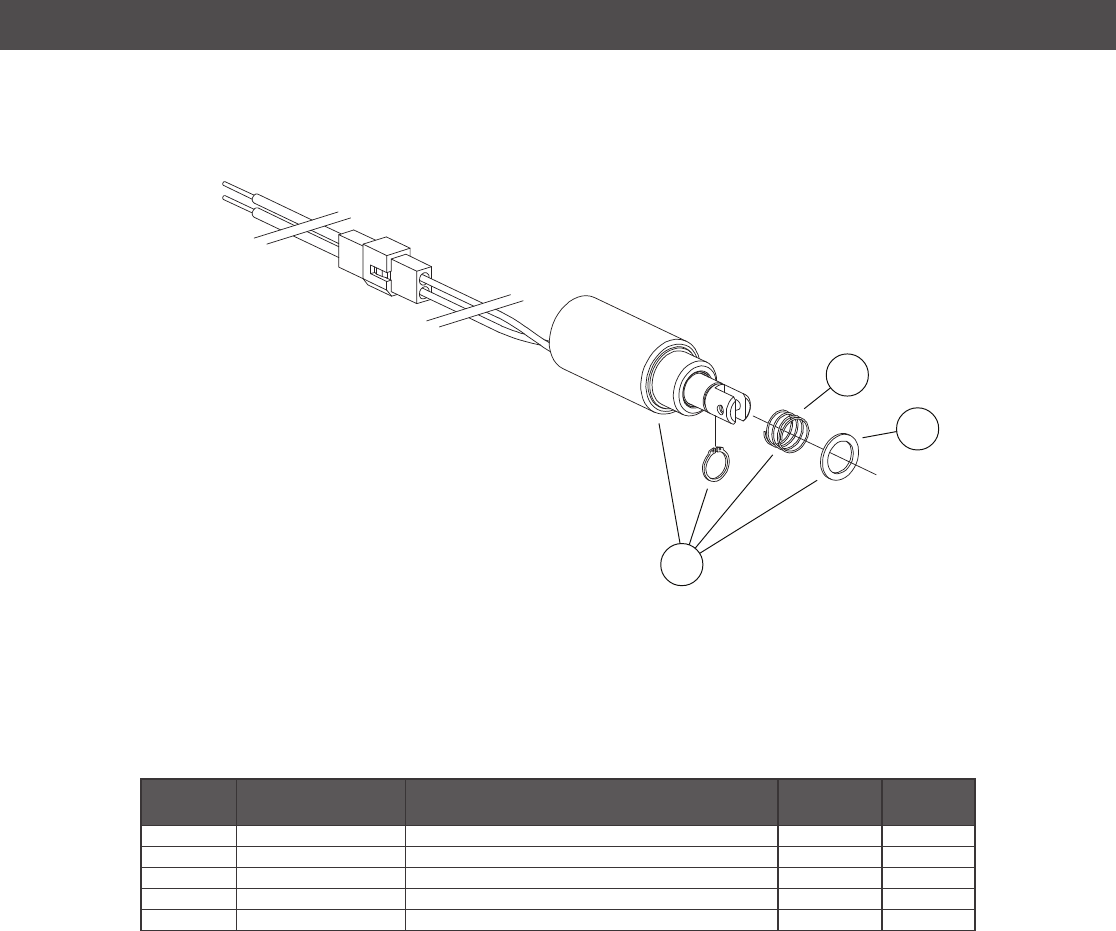

Solenoids & Solenoid Parts
Item
Number Part Number Description Quantity Finish
1 050237 6000 Series Solenoid Kit 12VDC (FS & FSE) 1
1 050239 6000 Series Solenoid Kit 16VDC (FS & FSE) 1
1 050240 6000 Series Solenoid Kit 24VDC (FS & FSE) 1
2 964037 Solenoid Washer 1
3 968713 Solenoid Spring 1
X in “Finish” column designates finished item; specify finish when ordering.
6100 Series Electric Strikes
Von Duprin • Electric Strikes 5100, 6100, 6200, 6300 Series Service Manual • 9

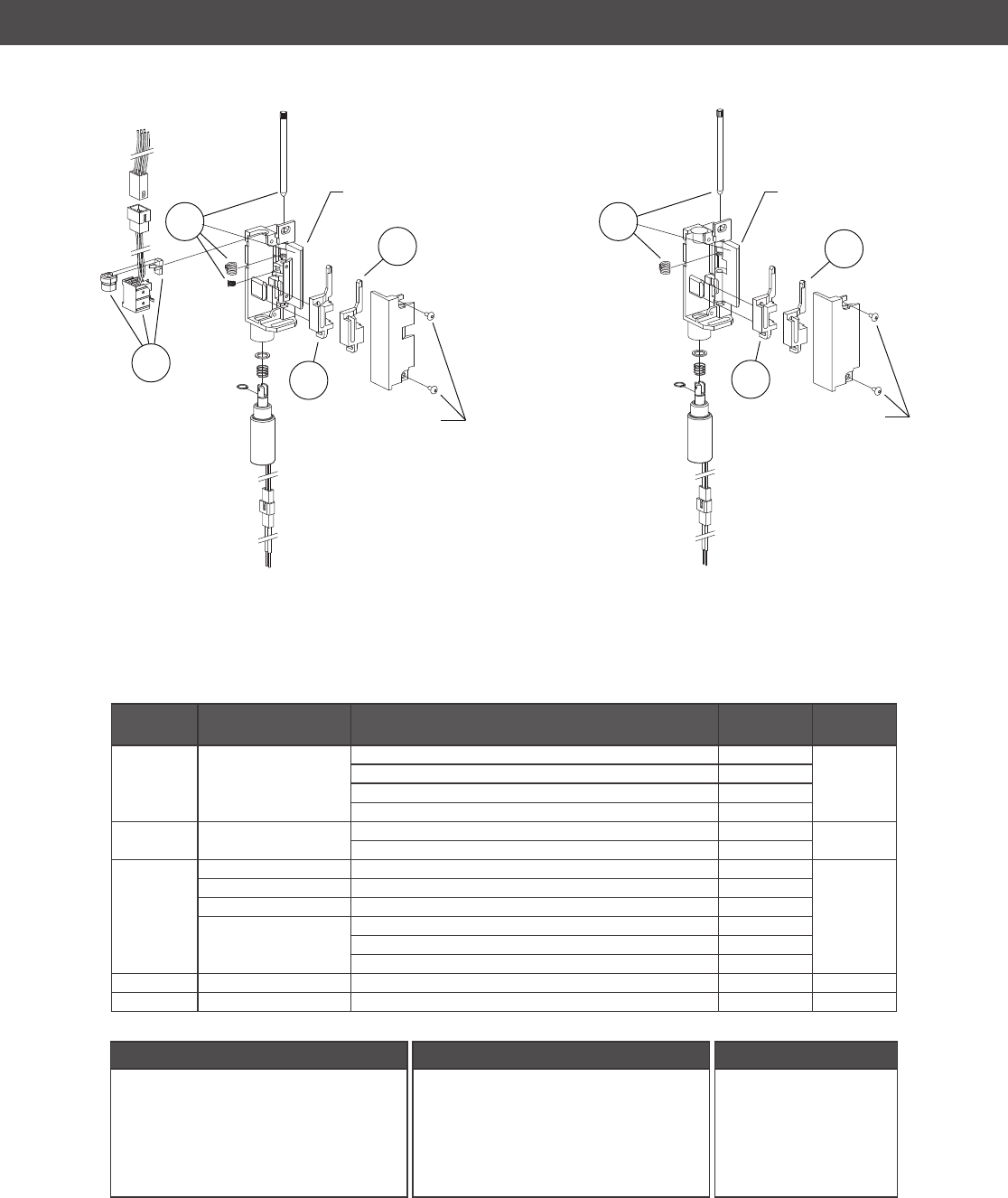

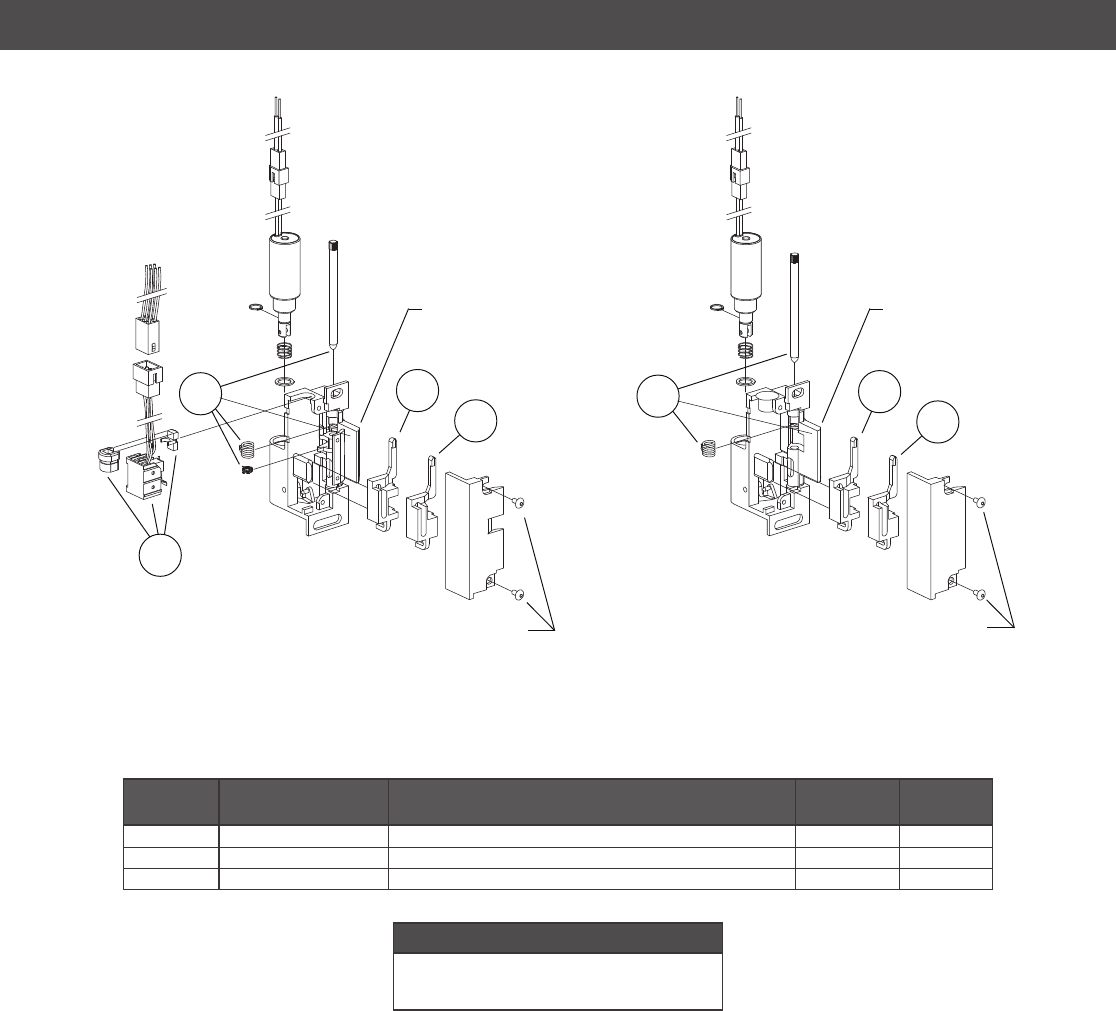

Solenoids & Box Parts: Type A Box, Type C Box, Offset Box
Item
Number Part Number Description Quantity Finish
050941 Type C Box Spring Kit (Includes items listed below) 2
3 970387 FS Slider (Except 6211WF/6212WF/6221/6223) 1
4 970388 FSE Slider (Except 6211WF/6212WF/6221/6223) 1
X in “Finish” column designates finished item; specify finish when ordering.
Type C Box Used For:
6111 6113
6112 6121
Torsion
Spring
Type C Box
Standard
Version
Type C Box
DS and DS-LC
Versions
Offset Box
DS and DS-LC
Versions
Offset Box
Standard
Version
2
1
4
3
6-32 x 1/4” Socket
Head Cap Screw,
in Item No. 1 and
Item No. 2
24
3
6-32 x 1/4” Socket
Head Cap Screw,
in Item No. 1 and
Item No. 2
1
24
3
6-32 x 1/4” Socket
Head Cap Screw,
in Item No. 1 and
Item No. 2
6-32 x 1/4” Socket
Head Cap Screw,
in Item No. 1 and
Item No. 2
2
Torsion
Spring
4
3
Strike lip design
varies with strike (see
pages 9, 19, and 21)
Strike lip design
varies with strike (see
pages 9, 19, and 21)
6100 Series Electric Strikes
10 • Von Duprin • Electric Strikes 5100, 6100, 6200, 6300 Series Service Manual

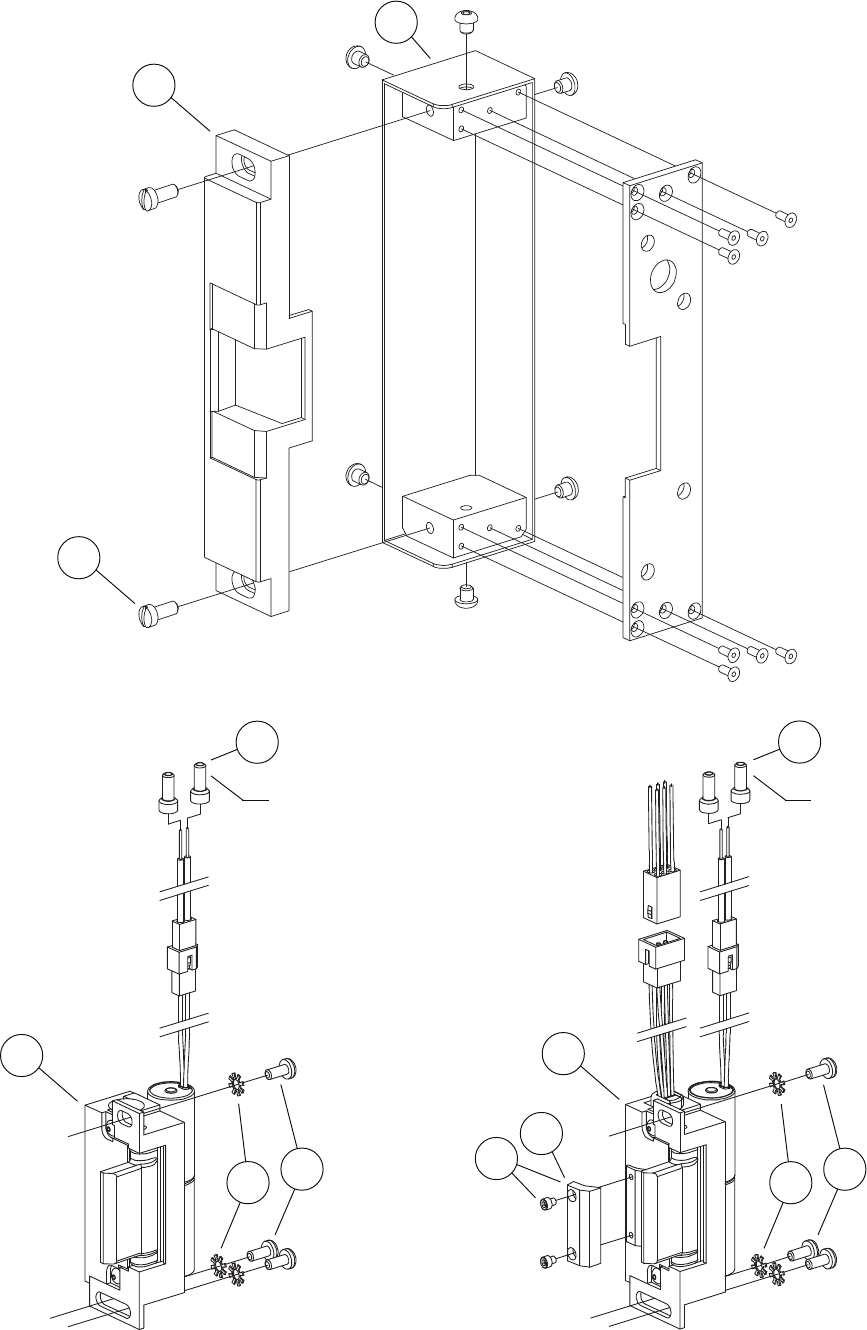

6111, 6113
Item
Number Part Number Description Quantity Finish
1 970271 6111 Faceplate 1 x
2 970280 6113 Faceplate 1 x
4 900870
6111/6113 Screw Pkg.
x12-24 x 1” Slotted Fill. HMS 2
Connector- E98/99/6000 ES 2
6 900347 6113 Frame Insert Pkg. 1
7 111743 6111, 6113, 6213 12VDC FS Box Assy. 1
7 111744 6111, 6113, 6213 12VDC FSE Box Assy. 1
7 111745 6111, 6113, 6231 24VDC FS Box Assy. 1
7 111746 6111, 6113, 6213 24VDC FSE Box Assy. 1
8 111747 6111, 6113, 6213 12VDC FS DS Box Assy. 1
8 111748 6111, 6113, 6213 12VDC FSE DS Box Assy. 1
8 111749 6111, 6113, 6213 24VDC FS DS Box Assy. 1
8 111750 6111, 6113, 6213 24VDC FSE DS Box Assy. 1
8 112772 6111/6113/6213 12VDC FS DS-LC Box Assy. 1
8 112773 6111/6113/6213 12VDC FSE DS-LC Box Assy. 1
8 112774 6111/6113/6213 24VDC FS DS-LC Box Assy. 1
8 112775 6111/6113/6213 24VDC FSE DS-LC Box Assy. 1
9 964019 #8 Ext. Tooth Lock Washer 1
10 964070 8-32 x C\,” PPHMS 1
11 970384 DS Tripper Extension 1
12 900344
DS Tripper Extension & Connector
Tripper Extension 1
4-40 x Z\,” Socket Head Cap Screw 2
Connector- E98/99/6000 ES 6
13 990132 Connector- E98/99/6000 ES 1
X in “Finish” column designates finished item; specify finish when ordering.
6100 Series Electric Strikes
Von Duprin • Electric Strikes 5100, 6100, 6200, 6300 Series Service Manual • 11

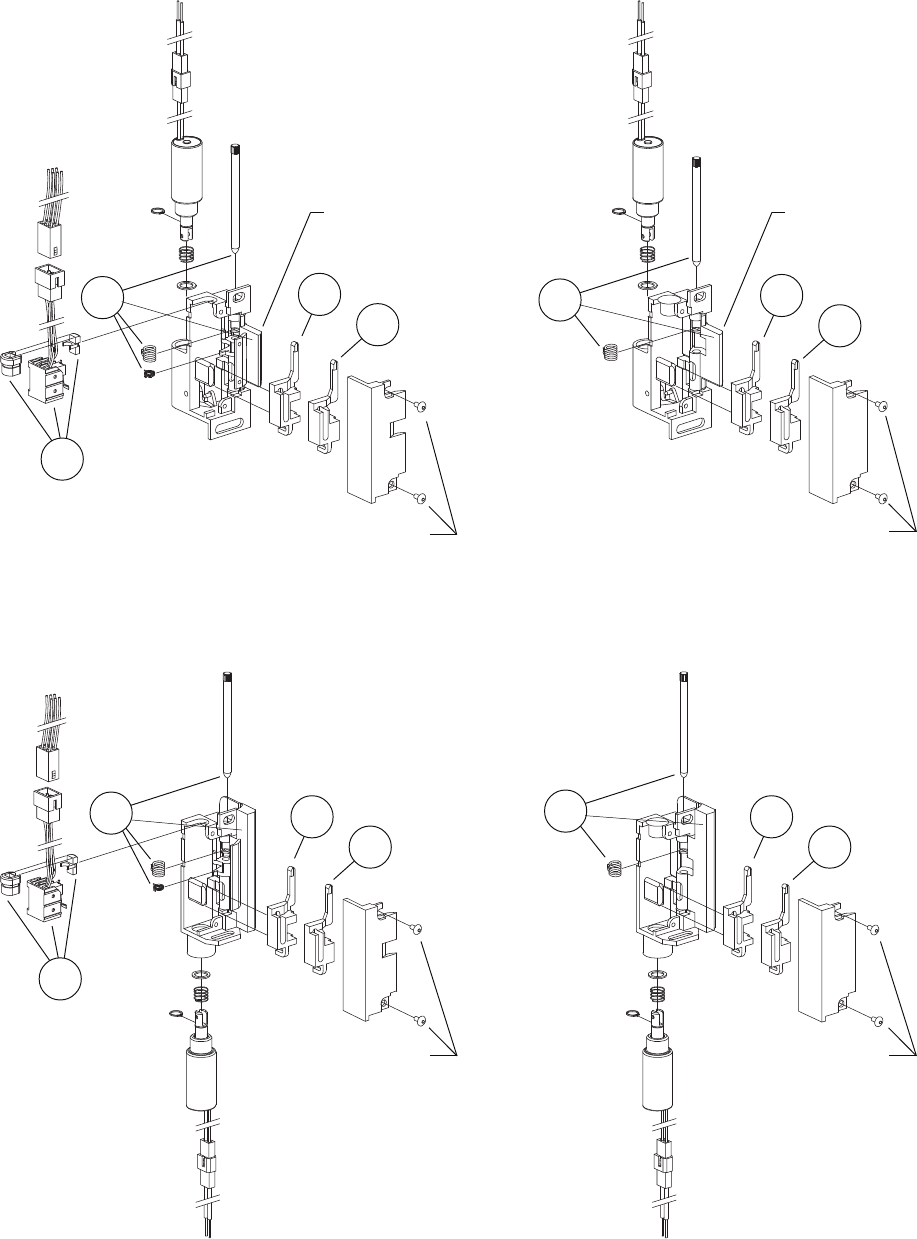

6111
1 2
44
Connector
E98/99/6000 ES
also in Item No. 4,
Item No. 5, and
Item No. 12
6
8
910
11
12
13
3116
Connector
E98/99/6000 ES
also in Item No. 4,
Item No. 5, and
Item No. 12
13
7
910
6100 Series Electric Strikes
12 • Von Duprin • Electric Strikes 5100, 6100, 6200, 6300 Series Service Manual

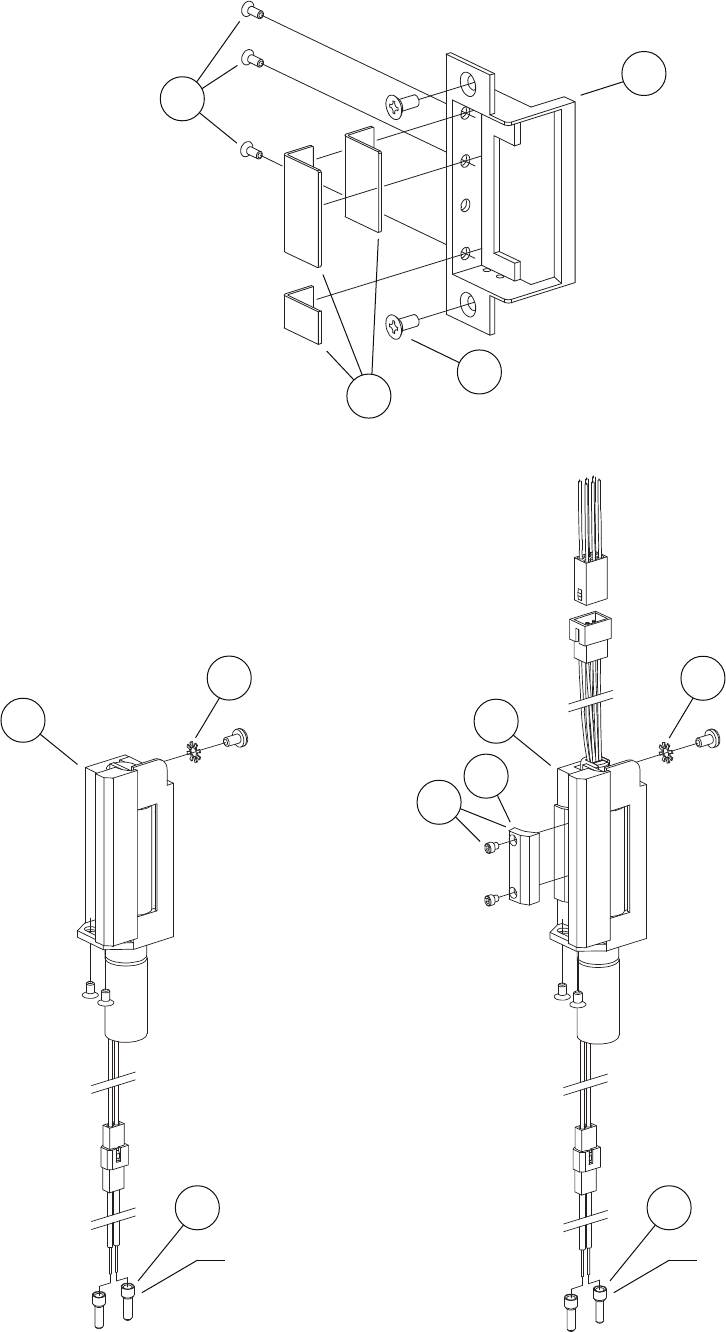

6114
Item
Number Part Number Description Quantity Finish
1 970300 6114 Faceplate 1 x
9 900882
6114 Screw Pkg.
x
10-12 x 10-24 x 2” OPHCS 4
Connector- E98/99/6000 ES 2
11 111719 6114, 6214/5, 6222/4/4AL/5/6 12VDC FS Box Assy. 1
11 111720 6114, 6214/5, 6222/4/4AL/5/6 12VDC FSE Box Assy. 1
11 111721 6114, 6214/5, 6222/4/4AL/5/6 24VDC FS Box Assy. 1
11 111722 6114, 6214/5, 6222/4/4AL/5/6 24VDC FSE Box Assy. 1
12 111723 6114, 6214/5, 6222/4/4AL/5/6 12VDC FS DS Box Assy. 1
12 111724 6114, 6214/5, 6222/4/4AL/5/6 12VDC FSE DS Box Assy. 1
12 111725 6114, 6214/5, 6222/4/4AL/5/6 24VDC FS DS Box Assy. 1
12 111726 6114, 6214/5, 6222/4/4AL/5/6 24VDC FSE DS Box Assy. 1
12 112760 6114/6214/15/24/24AL/26 12VDC FS DS-LC Box Assy.
12 112761 6114/6214/15/24/24AL/26 12VDC FSE DS-LC Box Assy.
12 112762 6114/6214/15/24/24AL/26 24VDC FS DS-LC Box Assy.
12 112763 6114/6214/15/24/24AL/26 24VDC FSE DS-LC Box Assy.
13 964019 #8 Ext. Tooth Lock Washer 1
14 964070 8-32 x C\,” PPHMS 1
15 970384 DS Tripper Extension 1
16 900344
DS Tripper Extension & Connector
Tripper Extension 1
4-40 x Z\,” Socket Head Cap Screw 2
Connector- E98/99/6000 ES 6
17 990132 Connector- E98/99/6000 ES 1
X in “Finish” column designates finished item; specify finish when ordering.
6100 Series Electric Strikes
Von Duprin • Electric Strikes 5100, 6100, 6200, 6300 Series Service Manual • 13
6114
1
9
11
12
13
13
14
14
15
16
Connector
E98/99/6000 ES
also in Item No. 9,
Item No. 10, and
Item No. 16
Connector
E98/99/6000 ES
also in Item No. 9,
Item No. 10, and
Item No. 16
17
17
6100 Series Electric Strikes
14 • Von Duprin • Electric Strikes 5100, 6100, 6200, 6300 Series Service Manual

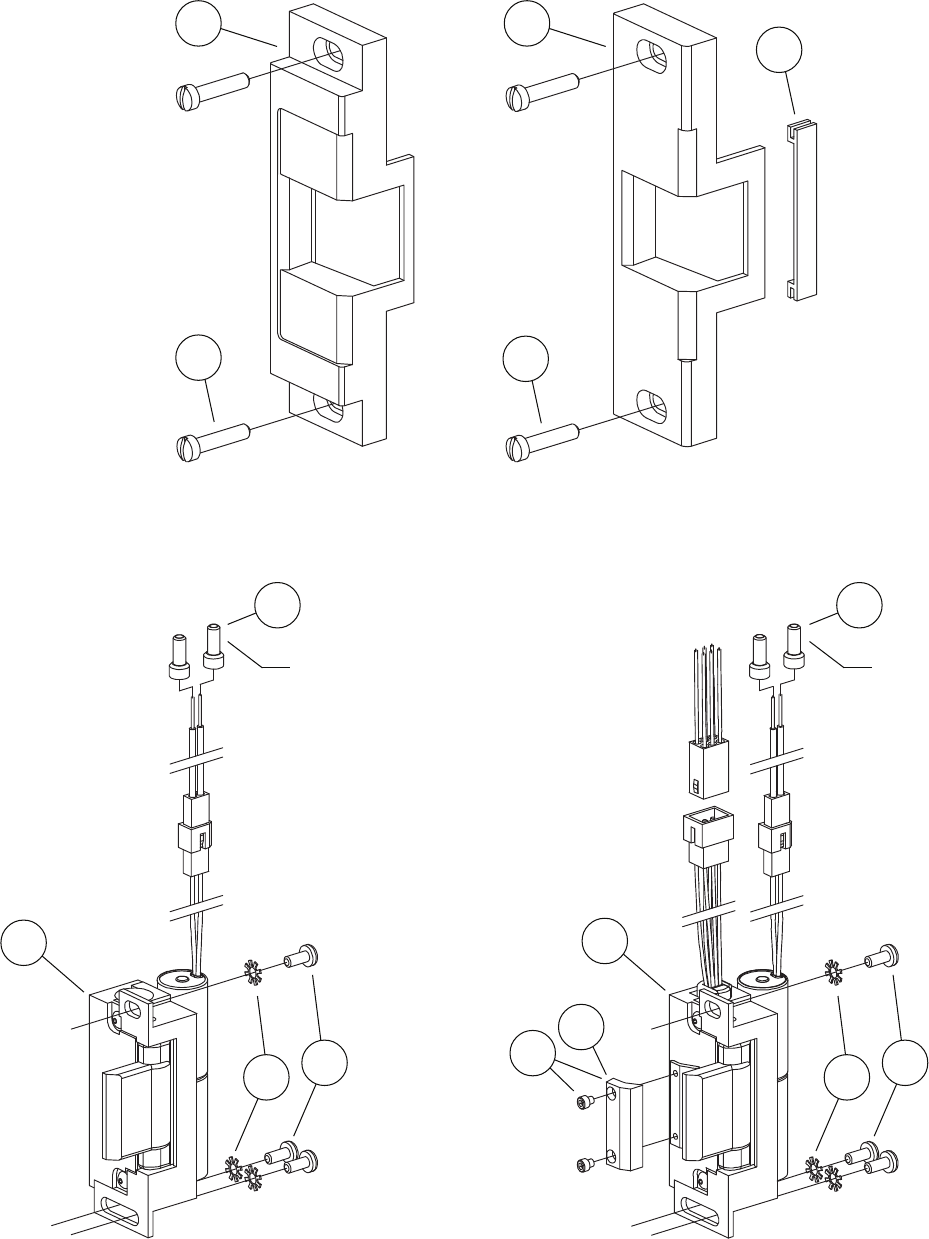

6112, 6121
Item
Number Part Number Description Quantity Finish
1 970303 6112/6121 Faceplate 1 x
2 900881
6112/6121 Screw Pkg.
x
Z\v-20 x B\,” Slot Fill HMS 2
Connector- E98/99/6000 ES 2
3 111751 6112, 6121 12VDC FS Box Assy. 1
3 111752 6112, 6121 12VDC FSE Box Assy. 1
3 111753 6112, 6121 24VDC FS Box Assy. 1
3 111754 6112, 6121 24VDC FSE Box Assy. 1
4 111755 6112, 6121 12VDC FS DS Box Assy. 1
4 111756 6112, 6121 12VDC FSE DS Box Assy. 1
4 111757 6112, 6121 24VDC FS DS Box Assy. 1
4 111758 6112, 6121 24VDC FSE DS Box Assy. 1
4 112776 6112/6121 12VDC FS DS-LC Box Assy. 1
4 112777 6112/6121 12VDC FSE DS-LC Box Assy. 1
4 112778 6112/6121 24VDC FS DS-LC Box Assy. 1
4 112779 6112/6121 24VDC FSE DS-LC Box Assy. 1
5 964019 #8 Ext. Tooth Lock Washer
6 964070 8-32 x C\,” PPHMS 1
7 970412 6121 Housing Cover 1 x
8 970384 DS Tripper Extension 1
9 900344
DS Tripper Extension
Tripper Extension 1
4-40 x Z\,” Socket Head Cap Screw 2
Connector- E98/99/6000 ES 6
10 990132 Connector- E98/99/6000 ES 1
X in “Finish” column designates finished item; specify finish when ordering.
6100 Series Electric Strikes
Von Duprin • Electric Strikes 5100, 6100, 6200, 6300 Series Service Manual • 15
Connector
E98/99/6000 ES
also in Item No. 2
and Item No. 9
4
56
8
9
10
Connector
E98/99/6000 ES
also in Item No. 2
and Item No. 9
10
3
1
2
7
56
16 • Von Duprin • Electric Strikes 5100, 6100, 6200, 6300 Series Service Manual
Von Duprin • Electric Strikes 5100, 6100, 6200, 6300 Series Service Manual • 17
PARTS MANUAL
6200 Series
Electric Strikes
6200 Series Electric Strikes
18 • Von Duprin • Electric Strikes 5100, 6100, 6200, 6300 Series Service Manual
Box Parts: Type B Box
Item
Number Part Number Description Quantity Finish
1 050015
6000 DS Replacement Kit Type B
6000 Switch & Mtg. Assy. 1
6-32 x Z\v” Socket Head Cap Screw 2
Wire Strain Relief 1
1 050018 6000 DS-LC Replacement Kit Type B
Same parts as 050015 for DS-LC Version
2 050939
Type A or B Box Spring Kit
x
6-32 x Z\v” Socket Head Cap Screw 2
Tripper Spring 1
Torsion Spring 1
Strike Lip Pin 1
Strike Lip 1
3 970387 FS Slider (6211WF/6212WF/6221/6223 Only) 1
4 970388 FSE Slider (6211WF/6212WF/6221/6223 Only) 1
X in “Finish” column designates finished item; specify finish when ordering.
Type B Box Used For:
6211WF
6212WF
6221
6223
6200 Series Electric Strikes
Von Duprin • Electric Strikes 5100, 6100, 6200, 6300 Series Service Manual • 19
Type B Box
DS and DS-LC
Versions
1
2
6-32 x 1/4” Socket
Head Cap Screw,
in Item No. 1 and
Item No. 2
Strike Lip Pin,
in Item No. 2
4
3
Type B Box
Standard
Version
2
6-32 x 1/4” Socket
Head Cap Screw,
in Item No. 1 and
Item No. 2
Strike Lip Pin,
in Item No. 2
4
3
Torsion
Spring
Strike lip design varies with
strike (see pages 15 and 17)
Strike lip design varies with
strike (see pages 15 and 17)
Strike Lip in Item No. 2
Strike Lip in Item No. 2
Box Parts: Type B Box Images
6200 Series Electric Strikes
20 • Von Duprin • Electric Strikes 5100, 6100, 6200, 6300 Series Service Manual
Type A Box
Standard
Version
Torsion
Spring
2
3
6-32 x 1/4” Socket
Head Cap Screw,
in Item No. 1 and
Item No. 2
1
Type A Box
DS and DS-LC
Versions
2
4
3
6-32 x 1/4” Socket
Head Cap Screw,
in Item No. 1 and
Item No. 2
4
Strike lip design varies with
strike (see pages 11 and 13)
Strike lip design varies with
strike (see pages 11 and 13)
Solenoids & Box Parts: Type A Box, Type C Box, Offset Box
Item
Number Part Number Description Quantity Finish
1 050011
6000 DS Replacement Kit Type A
6000 Switch & Mtg. Assy. 1
6-32 x Z\v” Socket Head Cap Screw 2
Wire Strain Relief 1
1 050016 6000 DS-LC Replacement Kit Type B 1
Same parts as 050011 for DS-LC Version
2
050939 Type A or B Box Spring Kit (Includes items listed below)
050941 Type C Box Spring Kit (Includes items listed below) 2
050940 Type Offset Box Spring Kit (Includes items listed below) 1
Tripper Spring 1
Torsion Spring 1
Strike Lip 1
3 970387 FS Slider (Except 6211WF/6212WF/6221/6223) 1
4 970388 FSE Slider (Except 6211WF/6212WF/6221/6223) 1
X in “Finish” column designates finished item; specify finish when ordering.
Type A Box Used For: Type C Box Used For: Offset Box Used For:
6211 6222 6213 6210
6211AL 6224 6216
6212 6224AL
6214 6225
6215 6226
6200 Series Electric Strikes
Von Duprin • Electric Strikes 5100, 6100, 6200, 6300 Series Service Manual • 21
Torsion
Spring
Type C Box
Standard
Version
Type C Box
DS and DS-LC
Versions
Offset Box
DS and DS-LC
Versions
Offset Box
Standard
Version
2
1
4
3
6-32 x 1/4” Socket
Head Cap Screw,
in Item No. 1 and
Item No. 2
24
3
6-32 x 1/4” Socket
Head Cap Screw,
in Item No. 1 and
Item No. 2
1
24
3
6-32 x 1/4” Socket
Head Cap Screw,
in Item No. 1 and
Item No. 2
6-32 x 1/4” Socket
Head Cap Screw,
in Item No. 1 and
Item No. 2
2
Torsion
Spring
4
3
Strike lip design
varies with strike (see
pages 9, 19, and 21)
Strike lip design
varies with strike (see
pages 9, 19, and 21)
6200 Series Electric Strikes
22 • Von Duprin • Electric Strikes 5100, 6100, 6200, 6300 Series Service Manual
6213
Item
Number Part Number Description Quantity Finish
3 970278 6213 Faceplate 1 x
5 900288
6210/11/13/14/16/22/24/25/26 Screw Pkg.
x
12-24 x Z\x” UFPHMS 2
Connector- E98/99/6000 ES 2
7 111743 6213 12VDC FS Box Assy. 1
7 111744 6213 12VDC FSE Box Assy. 1
7 111745 6231 24VDC FS Box Assy. 1
7 111746 6213 24VDC FSE Box Assy. 1
8 111747 6213 12VDC FS DS Box Assy. 1
8 111748 6213 12VDC FSE DS Box Assy. 1
8 111749 6213 24VDC FS DS Box Assy. 1
8 111750 6213 24VDC FSE DS Box Assy. 1
8 112772 6213 12VDC FS DS-LC Box Assy. 1
8 112773 6213 12VDC FSE DS-LC Box Assy. 1
8 112774 6213 24VDC FS DS-LC Box Assy. 1
8 112775 6213 24VDC FSE DS-LC Box Assy. 1
9 964019 #8 Ext. Tooth Lock Washer 1
10 964070 8-32 x C\,” PPHMS 1
11 970384 DS Tripper Extension 1
12 900344
DS Tripper Extension & Connector
Tripper Extension 1
4-40 x Z\,” Socket Head Cap Screw 2
Connector- E98/99/6000 ES 6
13 990132 Connector- E98/99/6000 ES 1
X in “Finish” column designates finished item; specify finish when ordering.
6200 Series Electric Strikes
Von Duprin • Electric Strikes 5100, 6100, 6200, 6300 Series Service Manual • 23
3
Connector
E98/99/6000 ES
also in Item No. 4,
Item No. 5, and
Item No. 12
5
8
910
11
12
13
3126
Connector
E98/99/6000 ES
also in Item No. 4,
Item No. 5, and
Item No. 12
13
7
910
6200 Series Electric Strikes
24 • Von Duprin • Electric Strikes 5100, 6100, 6200, 6300 Series Service Manual
6214, 6215, 6222, 6224, 6224AL, 6225, 6226
Item
Number Part Number Description Quantity Finish
2 971417 6214 Faceplate 1 x
3 971415 6215 Faceplate 1 x
4 970305 6222 Faceplate 1 x
5 970302 6224 Faceplate 1 x
6 970310 6224AL Faceplate 1 x
7 970306 6225 Faceplate 1 x
8 970301 6226 Faceplate 1 x
10 900288
6210/11/13/14/16/22/24/25/26 Screw Pkg.
x
12-24 x Z\x” UFPHMS 2
Connector- E98/99/6000 ES 2
11 111719 6214/5, 6222/4/4AL/5/6 12VDC FS Box Assy. 1
11 111720 6214/5, 6222/4/4AL/5/6 12VDC FSE Box Assy. 1
11 111721 6214/5, 6222/4/4AL/5/6 24VDC FS Box Assy. 1
11 111722 6214/5, 6222/4/4AL/5/6 24VDC FSE Box Assy. 1
12 111723 6214/5, 6222/4/4AL/5/6 12VDC FS DS Box Assy. 1
12 111724 6214/5, 6222/4/4AL/5/6 12VDC FSE DS Box Assy. 1
12 111725 6214/5, 6222/4/4AL/5/6 24VDC FS DS Box Assy. 1
12 111726 6214/5, 6222/4/4AL/5/6 24VDC FSE DS Box Assy. 1
12 112760 6214/15/24/24AL/26 12VDC FS DS-LC Box Assy.
12 112761 6214/15/24/24AL/26 12VDC FSE DS-LC Box Assy.
12 112762 6214/15/24/24AL/26 24VDC FS DS-LC Box Assy.
12 112763 6214/15/24/24AL/26 24VDC FSE DS-LC Box Assy.
13 964019 #8 Ext. Tooth Lock Washer 1
14 964070 8-32 x C\,” PPHMS 1
15 970384 DS Tripper Extension 1
16 900344
DS Tripper Extension & Connector
Tripper Extension 1
4-40 x Z\,” Socket Head Cap Screw 2
Connector- E98/99/6000 ES 6
17 990132 Connector- E98/99/6000 ES 1
X in “Finish” column designates finished item; specify finish when ordering.
6200 Series Electric Strikes
Von Duprin • Electric Strikes 5100, 6100, 6200, 6300 Series Service Manual • 25
Page 11 of 24
PM6000_B
6214
622262246224AL
62256226
2 3
4 5 6
78
10 10
10 10
10 10
11
12
13
13
14
14
15
16
Connector
E98/99/6000 ES
also in Item No. 9,
Item No. 10, and
Item No. 16
Connector
E98/99/6000 ES
also in Item No. 9,
Item No. 10, and
Item No. 16
17
17
6215
6200 Series Electric Strikes
26 • Von Duprin • Electric Strikes 5100, 6100, 6200, 6300 Series Service Manual
6211, 6211AL, 6212
Item
Number Part Number Description Quantity Finish
1 968716 6211/6211WF Faceplate 1 x
2 970272 6211AL Faceplate 1 x
3 969584 6212/6212WF Faceplate 1 x
4 900288
6210/11/13/14/16/22/24/25/26 Screw Pkg.
x
12-24 x Z\x” UFPHMS 2
Connector- E98/99/6000 ES 2
5 900290
6212 Screw Package
x
12-24 x Z\x” UFPHMS 4
Connector- E98/99/6000 ES 2
6 900291 6211/6212WF Strike Pocket Insert 1
7 900292 6212 Strike Pocket Insert/Mounting Tab 1
8 111711 6211, 6211AL, 6212 12VDC FS Box Assy. 1
8 111712 6211, 6211AL, 6212 12VDC FSE Box Assy. 1
8 111713 6211, 6211AL, 6212 24VDC FS Box Assy. 1
8 111714 6211, 6211AL, 6212 24VDC FSE Box Assy. 1
9 111715 6211, 6211AL, 6212 12VDC FS DS Box Assy. 1
9 111716 6211, 6211AL, 6212 12VDC FSE DS Box Assy. 1
9 111717 6211, 6211AL, 6212 24VDC FS DS Box Assy. 1
9 111718 6211, 6211AL, 6212 24VDC FSE DS Box Assy. 1
9 112756 6211/6211AL/6212 12VDC FS DS-LC Box Assy. 1
9 112757 6211/6211AL/6212 12VDC FSE DS-LC Box Assy. 1
9 112758 6211/6211AL/6212 24VDC FS DS-LC Box Assy. 1
9 112759 6211/6211AL/6212 24VDC FSE DS-LC Box Assy. 1
10 964019 #8 Ext. Tooth Lock Washer 1
11 964070 8-32 x C\,” PPHMS 1
12 970384 DS Tripper Extension 1
13 900344
DS Tripper Extension & Connector
Tripper Extension 1
4-40 x Z\,” Socket Head Cap Screw 2
Connector- E98/99/6000 ES 6
14 990132 Connector- E98/99/6000 ES 1
X in “Finish” column designates finished item; specify finish when ordering.
6200 Series Electric Strikes
Von Duprin • Electric Strikes 5100, 6100, 6200, 6300 Series Service Manual • 27
6211 6211AL6212
1 2 3
6
4
5
67
9
12
13
14 Connector
E98/99/6000 ES
also in Item No. 4,
Item No. 5, and
Item No. 13
10
11
8
10
11
Connector
E98/99/6000 ES
also in Item No. 4,
Item No. 5, and
Item No. 13
14
6200 Series Electric Strikes
28 • Von Duprin • Electric Strikes 5100, 6100, 6200, 6300 Series Service Manual
6211WF, 6212WF
Item
Number Part Number Description Quantity Finish
1 968716 6211/6211WF Faceplate 1 x
2 970271 6212/6212WF Faceplate 1 x
3 900885
6211WF/6212WF/6221/6223 Screw Pkg.
x12-12 x 12-24 x 1” UFPHCS 2
Connector- E98/99/6000 ES 2
4 900291 6211/6212WF Strike Pocket Insert
5 111727 6211WF, 6212WF 12VDC FS Box Assy. 1
5 111728 6211WF, 6212WF 12VDC FSE Box Assy. 1
5 111729 6211WF, 6212WF 24VDC FS Box Assy. 1
5 111730 6211WF, 6212WF 24VDC FSE Box Assy. 1
6 111731 6211WF, 6212WF 12VDC FS DS Box Assy. 1
6 111732 6211WF, 6212WF 12VDC FSE DS Box Assy. 1
6 111733 6211WF, 6212WF 24VDC FS DS Box Assy. 1
6 111734 6211WF, 6212WF 24VDC FSE DS Box Assy. 1
6 112764 6211WF/6212WF 12VDC FS DS-LC Box Assy. 1
6 112765 6211WF/6212WF 12VDC FSE DS-LC Box Assy. 1
6 112766 6211WF/6212WF 24VDC FS DS-LC Box Assy. 1
6 112767 6211WF/6212WF 24VDC FSE DS-LC Box Assy. 1
7 964019 #8 Ext. Tooth Lock Washer 1
8 964070 8-32 x C\,” PPHMS 1
9 970384 DS Tripper Extension 1
10 900344
DS Tripper Extension & Connector
Tripper Extension 1
4-40 x Z\,” Socket Head Cap Screw 2
Connector- E98/99/6000 ES 6
11 990132 Connector- E98/99/6000 ES 1
X in “Finish” column designates finished item; specify finish when ordering.
6200 Series Electric Strikes
Von Duprin • Electric Strikes 5100, 6100, 6200, 6300 Series Service Manual • 29
FW2126FW1126
1 2
4
3
3
4
6
7
8
9
10
11
Connector
E98/99/6000 ES
also in Item No. 3
and Item No. 10
Connector
E98/99/6000 ES
also in Item No. 3
and Item No. 10
7
8
5
11
6200 Series Electric Strikes
30 • Von Duprin • Electric Strikes 5100, 6100, 6200, 6300 Series Service Manual
6221, 6223
Item
Number Part Number Description Quantity Finish
1 970276 6221 Faceplate 1 x
2 970274 6223 Faceplate 1 x
3 900885
6211WF/6212WF/6221/6223 Screw Pkg.
x12-12 x 12-24 x 1” UFPHCS 2
Connector- E98/99/6000 ES 2
4 111735 6221, 6223 12VDC FS Box Assy. 1
4 111736 6221, 6223 12VDC FSE Box Assy. 1
4 111737 6221, 6223 24VDC FS Box Assy. 1
4 111738 6221, 6223 24VDC FSE Box Assy. 1
4 111739 6223 12VDC FS DS Box Assy. 1
4 111740 6223 12VDC FSE DS Box Assy. 1
4 111741 6223 24VDC FS DS Box Assy. 1
4 111742 6223 24VDC FSE DS Box Assy. 1
5 112768 6223 12VDC FS DS-LC Box Assy. 1
5 112769 6223 12VDC FSE DS-LC Box Assy. 1
5 112770 6223 24VDC FS DS-LC Box Assy. 1
5 112771 6223 24VDC FSE DS-LC Box Assy. 1
6 964019 #8 Ext. Tooth Lock Washer 1
7 964070 8-32 x C\,” PPHMS 1
8 970384 DS Tripper Extension 1
9 900344
DS Tripper Extension & Connector
Tripper Extension 1
4-40 x Z\,” Socket Head Cap Screw 2
Connector- E98/99/6000 ES 6
10 990132 Connector- E98/99/6000 ES 1
X in “Finish” column designates finished item; specify finish when ordering.
6200 Series Electric Strikes
Von Duprin • Electric Strikes 5100, 6100, 6200, 6300 Series Service Manual • 31
32261226
1
3
2
3
5
Connector
E98/99/6000 ES
also in Item No. 3
and Item No. 9
10
6
7
8
9
4
Connector
E98/99/6000 ES
also in Item No. 3
and Item No. 9
10
6
7
6200 Series Electric Strikes
32 • Von Duprin • Electric Strikes 5100, 6100, 6200, 6300 Series Service Manual
6216
Item
Number Part Number Description Quantity Finish
1 971385 6216 Faceplate Less Inserts 1 x
2 970407 6216 Large Faceplate Insert 1 x
3 970415 6216 Small Faceplate Insert 1 x
4 900288
6210/11/13/14/16/22/24/25/26 Screw Pkg.
x
12-24 x Z\x” UFPHMS 2
Connector- E98/99/6000 ES 2
5 900345
6216 Inserts and Screw Pkg.
x
6-32 x C\,” PPHMS 2
6216 Large Faceplate Insert 1
6216 Small Faceplate Insert 1
6 964190 6-32 x C\,” PPHMS 1
7 111759 6216 12VDC FS Box Assy. 1
7 111760 6216 12VDC FSE Box Assy. 1
7 111761 6216 24VDC FS Box Assy. 1
7 111762 6216 24VDC FSE Box Assy. 1
8 111763 6216 12VDC FS DS Box Assy. 1
8 111764 6216 12VDC FSE DS Box Assy. 1
8 111765 6216 24VDC FS DS Box Assy. 1
8 111766 6216 24VDC FSE DS Box Assy. 1
8 112780 6216 12VDC FS DS-LC Box Assy. 1
8 112781 6216 12VDC FSE DS-LC Box Assy. 1
8 112782 6216 24VDC FS DS-LC Box Assy. 1
8 112783 6216 24VDC FSE DS-LC Box Assy. 1
9 964019 #8 Ext. Tooth Lock Washer 1
10 964070 8-32 x C\,” PPHMS 1
11 970384 DS Tripper Extension 1
12 900344
DS Tripper Extension & Connector
Tripper Extension 1
4-40 x Z\,” Socket Head Cap Screw 2
Connector- E98/99/6000 ES 6
13 990132 Connector- E98/99/6000 ES 1
X in “Finish” column designates finished item; specify finish when ordering.
6200 Series Electric Strikes
Von Duprin • Electric Strikes 5100, 6100, 6200, 6300 Series Service Manual • 33
1
3
4
52
8
11
12
910
910
7
Connector
E98/99/6000 ES
also in Item No. 4
and Item No. 11
13
Connector
E98/99/6000 ES
also in Item No. 4
and Item No. 11
13
6
6
6200 Series Electric Strikes
34 • Von Duprin • Electric Strikes 5100, 6100, 6200, 6300 Series Service Manual
6210
Item
Number Part Number Description Quantity Finish
1 971198 6210 Faceplate x
2 900288
6210/11/13/14/16/22/24/25/26 Screw Pkg. x
12-24 x Z\x” UFPHMS
Connector- E98/99/6000 ES
3 900584
6210 Auxiliary Bolt Plate Pkg.
Aux. Bolt Plate - Schlage
Aux. Bolt Plate - Std.
Aux. Bolt Plate - Short
4 900966 6210 Strike Pocket Insert Mounting Pkg.
6-32 x Z\v” FPHMS
5 111244 6210 12VDC FS Box Assy.
5 111246 6210 12VDC FSE Box Assy.
5 111247 6210 24VDC FS Box Assy.
5 111250 6210 24VDC FSE Box Assy.
6 111251 6210 12VDC FS DS Box Assy.
6 111264 6210 12VDC FSE DS Box Assy.
6 111813 6216 24VDC FS DS Box Assy.
6 111814 6216 24VDC FSE DS Box Assy.
6 112754 6210 12 VDC FS DS-LC Box Assy.
6 112755 6210 12 VDC FSE DS-LC Box Assy.
6 112784 6210 24 VDC FS DS-LC Box Assy.
6 112785 6210 24 VDC FSE DS-LC Box Assy.
7 964019 #8 Ext. Tooth Lock Washer
8 970384 DS Tripper Extension
9 900344
DS Tripper Extension & Connector
Tripper Extension
4-40 x Z\,” Socket Head Cap Screw
Connector- E98/99/6000 ES
10 990132 Connector- E98/99/6000 ES
X in “Finish” column designates finished item; specify finish when ordering.
6200 Series Electric Strikes
Von Duprin • Electric Strikes 5100, 6100, 6200, 6300 Series Service Manual • 35
1
2
3
4
56
77
8
9
Connector
E98/99/6000 ES
also in Item No. 2
and Item No. 9
10
Connector
E98/99/6000 ES
also in Item No. 2
and Item No. 9
10
36 • Von Duprin • Electric Strikes 5100, 6100, 6200, 6300 Series Service Manual
Von Duprin • Electric Strikes 5100, 6100, 6200, 6300 Series Service Manual • 37
PARTS MANUAL
6300 Series
Electric Strikes
6300 Series Electric Strikes
38 • Von Duprin • Electric Strikes 5100, 6100, 6200, 6300 Series Service Manual
2
1

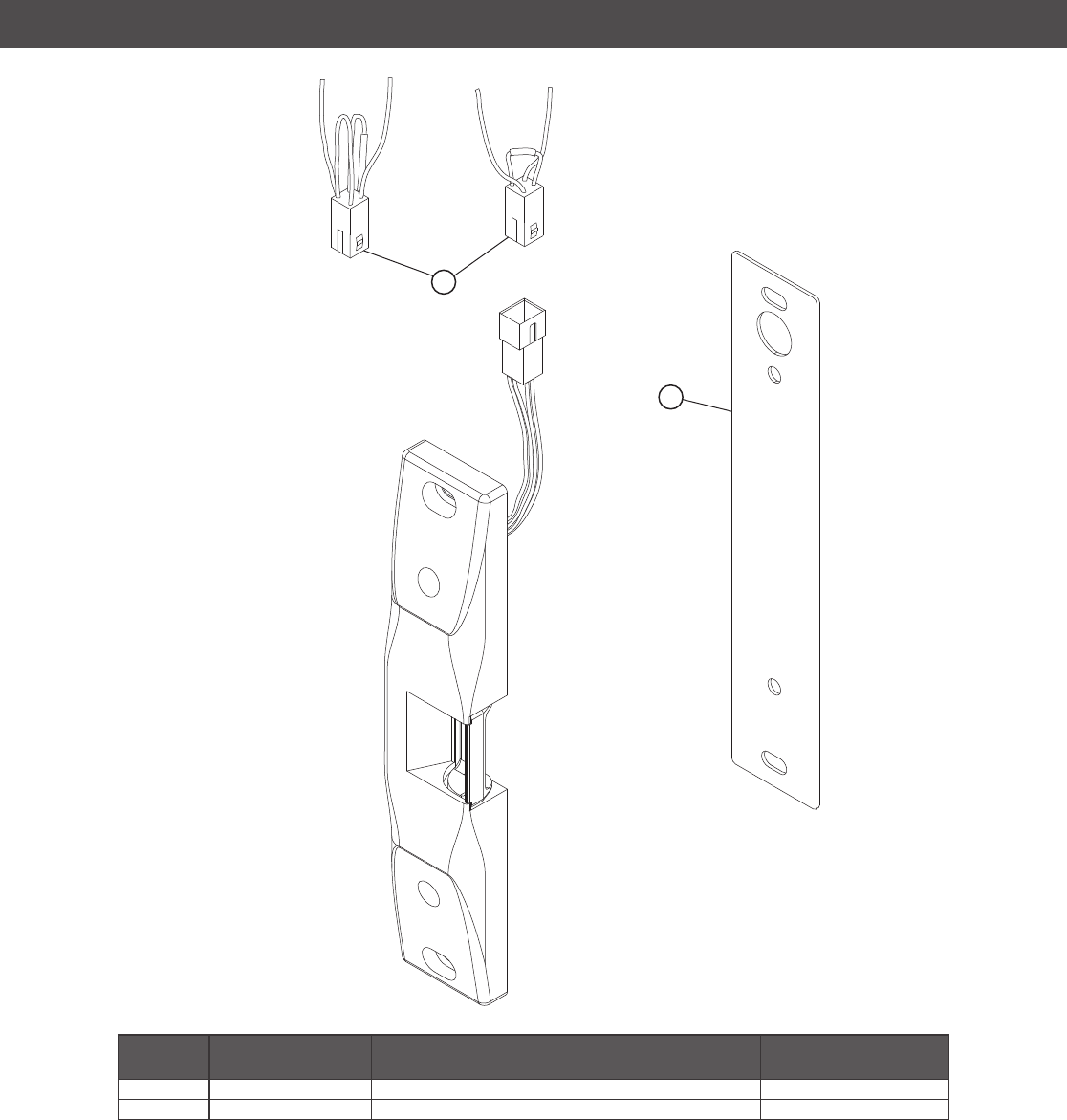

6300 Strike Shim & Wire Harness
Item
Number Part Number Description Quantity Finish
1 050803 6300 Strike Wire Harness Kit*
2 050804 6300 Strike Shim Kit - SS
X in “Finish” column designates finished item; specify finish when ordering.
* Includes 12 VDC and 24 VDC pigtails.
6300 Series Electric Strikes
Von Duprin • Electric Strikes 5100, 6100, 6200, 6300 Series Service Manual • 39
40 • Von Duprin • Electric Strikes 5100, 6100, 6200, 6300 Series Service Manual

Navigation menu
