98/99 Series
Rim Exit
Devices
Service manual
98 RIM
99 RIM
2 • Von Duprin • 98/99 Series Rim Exit Devices Service Manual
INDEX
98/99 Rim Devices
Basic Panic Device....................................................................................................................
Basic Fire Device.......................................................................................................................
Baseplate Assemblies...................................................................................................................
Center Case Assembly...................................................................................................................
Variations of the Basic Device
CD (Cylinder Dogging) ........................................................................................................
98/99-2 (Double Cylinder) ....................................................................................................
E98/99 (Electric Locking)...................................................................................................
HD-EL (Hex Dogging/Electric Latch Retraction) ..................................................................
EL (Electric Latch Retraction) .............................................................................................
SS (Signal Switch) ..............................................................................................................
RX (Request to Exit) ......................................................................................................
LX (Latch Bolt Monitoring)..............................................................................................
CX (Chexit) ..........................................................................................................................
CX-CD/SD (Chexit/Special Dogging) ..................................................................................
ALK (Exit Alarm Kit) ...........................................................................................................
Service Replacement Items.....................................................................................................
General Information
Introduction....................................................................................................................................
How to Order.................................................................................................................................
Part Number Changes ....................................................................................................................
Finishes........................................................................................................................................
Outside Trim Functions.................................................................................................................
Strikes ...........................................................................................................................................
INTRODUCTION
This manual contains a listing of replaceable parts and assemblies for the 98/99 Rim Exit Hardware Devices.
98 Series and 99 Series devices are almost identical. The 99 Series has a grooved case; the 98 Series has
a smooth case.
HOW TO ORDER
Some parts are sold separately. Other items are available as part of a kit or multiple quantity package.
For the best possible service when ordering replacement parts or assemblies, please provide the following
information:
• Part number or assembly number
•Description
• Quantity needed
•Finish desired (if available finished)
•Date of original purchase (if known)
To find out the name of your local Von Duprin distributor or sales representative, contact:
Von Duprin Division
Allegion
2720 Tobey Drive
Indianapolis, IN 46219
Phone: 877-671-7011
PART NUMBER AND AVAILABILITY CHANGES
This manual was designed to help illustrate the replacement parts and kits that are available for sale. Because of
changes to the product and/or manufacturing process, part numbers and availability can change over time.
4-5
6-7
8
9
4-5
10
11
12
13
13
14-15
14-15
16
17
18
19-20
2
2
2
3
3
3
Von Duprin • 98/99 Series Rim Exit Devices Service Manual • 3
990EO
OUTSIDE TRIM FUNCTIONS
* “BE” (Blank Escutcheon) no cylinder used - lever always active
** “NL” (Night Latch) rigid lever - key retracts latch bolt
***”DT” (Dummy Trim) rigid lever for pull operation
**** Optional Pull needs to be added
990DT***990NL**990TP990TP-BE*
991K
991K-NL**
991K-BE*
991K-DT***
992L
996L
992L-NL**
996L-NL**
992L-BE*
996L-BE*
992L-DT***
996L-DT***
994L
994L-NL**
994L-BE*
994L-DT***
299 Strike - Standard
Single or Double Door
Panic Exit Hardware
1606 Strike - Single or
Double Door Panic
Exit Hardware
1408 Strike - Double Door
Used on 5754 Mullions
Panic Exit Hardware
Adjusting Shim
961084
1439 Strike - Single door
Panic Exit Hardware
Adjusting block
971995
Wear plate
971998
1609 Strike -
Double Door
Rim/Vertical Rod
Combination
(Consult Factory)
1410 Strike - Single
Door Integral Stop
Panic Exit Hardware
Wear plate
960012
299F Strike -
Single Door Fire
Exit Hardware
Adjusting Shim
945521
Adjusting Shim 945521
499F Strike - Double
Door w/Mullion Fire
Exit Hardware
Strike Hook 969300
STRIKES
994EO
992EO
996EO
98/99 SERIES FINISHES
US3
US4
US10
US15
US26
US26D
US28
US32D
313AN
315AN
605
606
612
619
625
626
628
630
710
711
Polished Brass
Dull Brass
Dull Bronze
Satin Nickel
Polished Chrome
Dull Chrome
Anodized Alum. (Clear)
Satin Stainless Steel
Anodized Alum. (313)
Dark Bronze
Anodized Alum. (Black)
U.S. Std
Reference
BHMA
ReferenceDescription
1
1
1
1
1
1
Metal Door Screw Package PKGSRV.1023 (Pkg of 10)
Wood Door Screw 964291 (Qty of 1)
Rivets
963074
Screw Pkg
900254
Screw
Pkg
900263
Screw
Pkg
900253
264 Strike - Single
Door Panic Exit
Hardware
Adjusting Shim
945521
1
Adjusting Shim
970321
Strike Plate
970323
110NL****
Drive nuts
4299101022
4 • Von Duprin • 98/99 Series Rim Exit Devices Service Manual
98/99 RIM PANIC DEVICE
16
15
16
10B
11
13
9
7B
6
17
8
7A
CD Conversion Kit
99 Series - 050115
98 Series - 050132
Hex Dogging Kit
99 Series - 050114
98 Series - 050117
3
5
1
3B
2
4
3C
3A
10A
10
7B
7B
12
18
PANIC ONLY
PANIC ONLY
1
Less Dogging
Cover Plate Kit
99 Series - 050589
98 Series - 050588
7B
7
14
Von Duprin • 98/99 Series Rim Exit Devices Service Manual • 5
98/99 RIM PANIC DEVICE
Item No. Quantity Part No. Description Finish
190056198/99 Series Mounting Pkg. (1-3/4 & 2-1/4)
1 1 090085227 Dog Key 5/32” Hex (Pkg of 10)
1 1 090005227 Dog Key 5/32” Hex (Pkg of 2)
2 1 090040Hex Dog Shaft (Pkg of 2)
3 1 107813 XgkP gnitnuoM rednilyC
3A 1 050525 XralloC rednilyC
3B 1 050490Cylinder Locating Washer - CD/SS
3C 1 050526Cylinder Locknut
4 1 090046CD Dogging Plug (Pkg of 2)
5 1 090045CD Actuator Arm (Pkg of 2)
6 1 *PBKIT98/99 Series Push Bar Retrofit Kit - 3’ Door X
6 1 *PBKIT98/99 Series Push Bar Retrofit Kit - 4’ Door X
XtiK paC dnE seireS 99/8941005017
7A 1 050524 Impact Resistant End Cap Bracket
7B 1 090036Cover Plate Anti-rattle Spring (Pkg of 10)
8 1 900597Device End Cap and C/Case Screw Pkg. X
9 1 96814499 Series Mechanism Case - 3’ Door X
9 1 96814699 Series Mechanism Case - 4’ Door X
9 1 97019198 Series Mechanism Case - 3’ Door X
9 1 97019298 Series Mechanism Case - 4’ Door X
10 1 05052998/99 Series Control Link Pin & Ret. Ring
10A 1 09003198/99 Series Control Link Pin (Pkg of 10)
10B 1 090107Retaining Ring (Pkg of 10)
11 2 090037#8-32 x 3/8” Baseplate Screw (Pkg of 10)
12 2 090073Mechanism Case Bracket Screw (Pkg of 10)
13*** 1 05002098/99 Rim Center Case Less Cover
14** 1 05007198/99 Rim Center Case Cover Kit X
15 1 050491Shock Absorber & Holder Assembly
16 2 090049Push Bar Guide (Pkg of 10)
17 4 900892Center Case Cover Screws (Pkg of 4) X
18 1 050564Center Case Cover Bracket
X in “Finish” column designates finished items; finish must be specified when ordering.
* To order, specify device type, size, and finish. Example: PBKIT 98 3’ US28
**Includes parts for three piece cover conversion
***Center case assembly parts shown on page 9.
6 • Von Duprin • 98/99 Series Rim Exit Devices Service Manual
98/99-F FIRE DEVICE
11
10
11
5B
6
8
4
2B
1
12
3
2A
Fire Cover Plate Kit
99 Series - 050589
98 Series - 050588
5A
5
2B
7
13
2
9
Von Duprin • 98/99 Series Rim Exit Devices Service Manual • 7
98/99-F FIRE DEVICE
Item No. Quantity Part No. Description Finish
190056198/99 Series Mounting Pkg. (1-3/4 & 2-1/4)
1 1 *PBKIT98/99 Series Push Bar Retrofit Kit - 3’ Door X
1 1 *PBKIT98/99 Series Push Bar Retrofit Kit - 4’ Door X
XtiK paC dnE seireS 99/8941005012
2A 1 050524 Impact Resistant End Cap Bracket
2B 1 090036Cover Plate Anti-rattle Spring (Pkg of 10)
3 1 900597Device End Cap and C/Case Screw Pkg. X
4 1 96814499 Series Mechanism Case - 3’ Door X
4 1 96814699 Series Mechanism Case - 4’ Door X
4 1 97019198 Series Mechanism Case - 3’ Door X
4 1 97019298 Series Mechanism Case - 4’ Door X
5 1 05052998/99 Series Control Link Pin & Ret. Ring
5A 1 09003198/99 Series Control Link Pin (Pkg of 10)
5B 1 090107Retaining Ring (Pkg of 10)
6 2 090037#8-32 x 3/8” Baseplate Screw (Pkg of 10)
7 2 090073Mechanism Case Bracket Screw (Pkg of 10)
8*** 1 05002698/99-F Rim Center Case Less Cover
9** 1 05007198/99 Rim Center Case Cover Kit X
10 1 050491Shock Absorber & Holder Assembly
11 2 090049Push Bar Guide (Pkg of 10)
12 4 900892Center Case Cover Screws (Pkg of 4) X
13 1 050564Center Case Cover Bracket
X in “Finish” column designates finished items; finish must be specified when ordering.
* To order, specify device type, size, and finish. Example: PBKIT 98 3’ US28
**Includes parts for three piece cover conversion
***Center case assembly parts shown on page 9.
8 • Von Duprin • 98/99 Series Rim Exit Devices Service Manual
98/99 RIM PANIC DEVICE BASEPLATE ASSEMBLY
Item No. Quantity Part No. Description Finish
1 1 090043Dogging adapter (Pkg of 2)
2 1 090042Dogging adapter spring (Pkg of 2)
3 1 090041 Dogging spring (Pkg of 2)
4 1 090040Hex dogging shaft (Pkg of 2)
5 1 090044Dogging hook (Pkg of 2)
6 1 090039Latch return spring (Pkg of 10)
7 4 090038Rubber bumper (Pkg of 4)
8 1 050491Shock absorber
7
64
5
1
2
3
8
1
21
3
Item No. Quantity Part No. Description Finish
1 4 090038Rubber bumper (Pkg of 4)
2 1 090039Latch return spring (Pkg of 10)
3 1 050491Shock absorber
98/99-F FIRE DEVICE BASEPLATE ASSEMBLY
Von Duprin • 98/99 Series Rim Exit Devices Service Manual • 9
Item No. Quantity Part No. Description Finish
1 2 090107Retaining Ring (Pkg of 10)
2 2 090079 Latch Bolt Pin (Pkg of 10)
3 1 090074NL Drive Screw (Pkg of 10)
4 1 050565Center Case Reinforcing Bracket

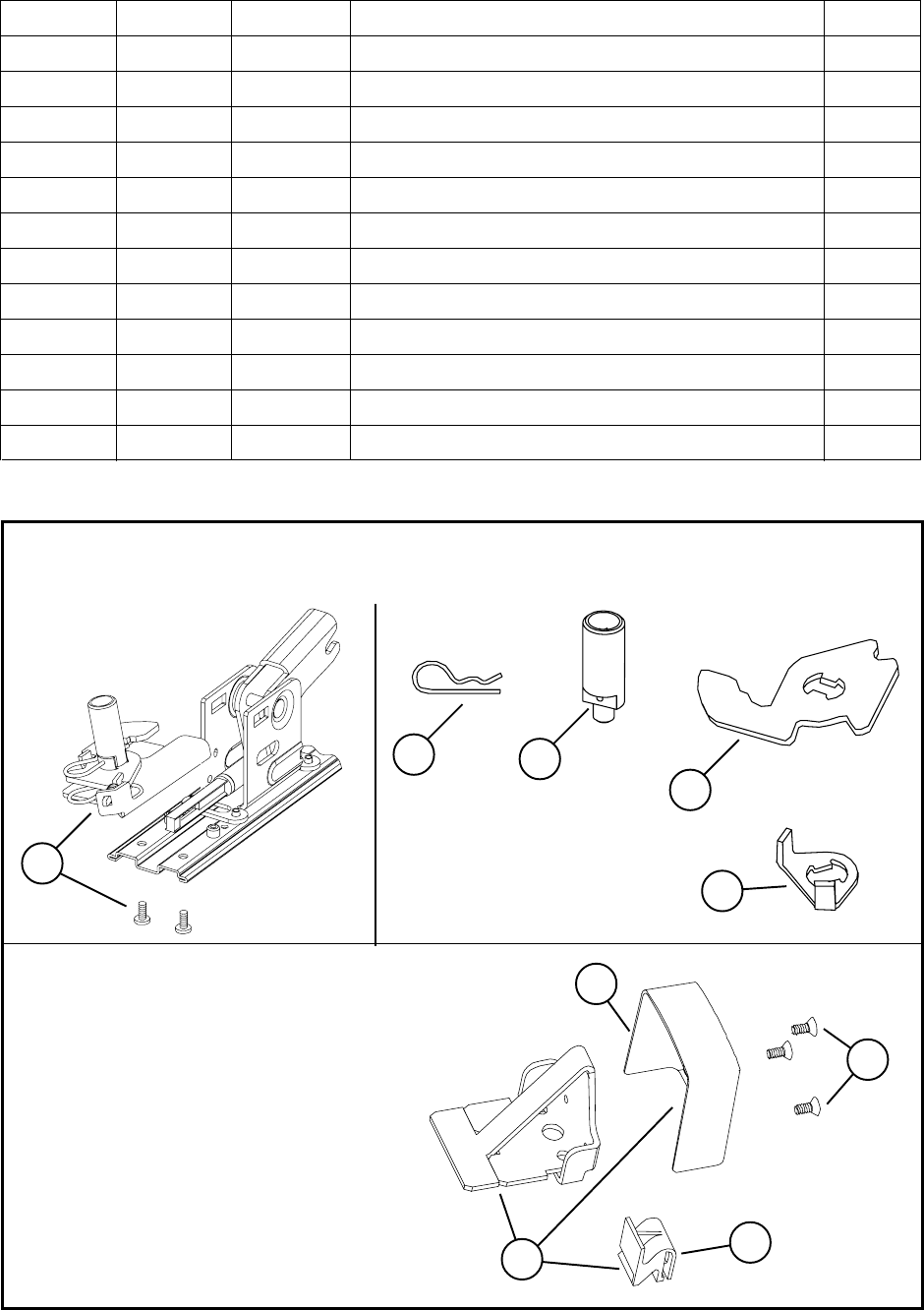

98/99 PANIC & 98/99-F FIRE DEVICE CENTER CASE ASSEMBLY
4
2
1
3
10 • Von Duprin • 98/99 Series Rim Exit Devices Service Manual
2
3

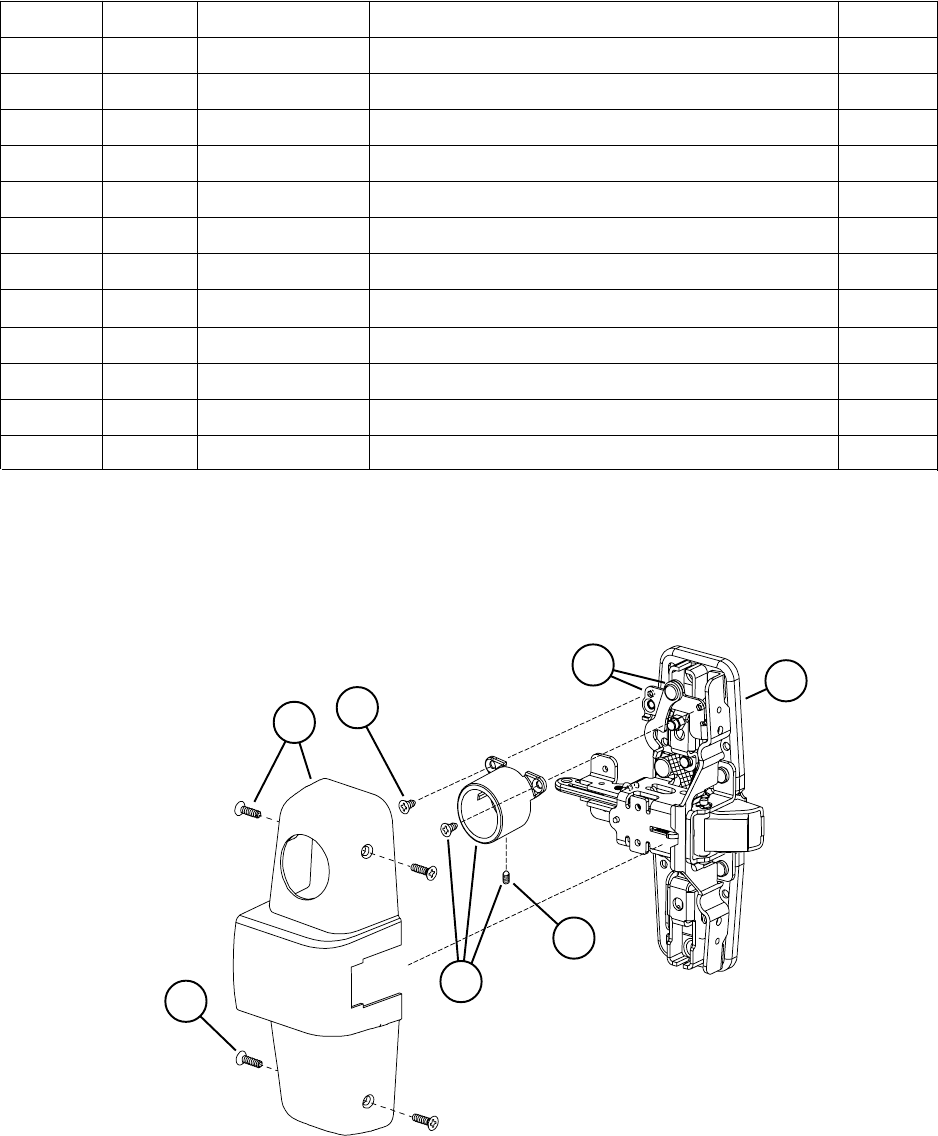

98/99-2 & 98/99-F-2 DOUBLE CYLINDER OPTION
Item No. Quantity Part No. Description Finish
1* 1 050024 98/99-2 RHR Center Case Less Cover
1* 1 05002598/99-2 LHR Center Case Less Cover
1* 1 050027 98/99-F-2 RHR Center Case Less Cover
1* 1 050028 98/99-F-2 LHR Center Case Less Cover
2 1 11309898/99 Rim Double Cyl. Adapter Assembly -LHR
2 1 11309998/99 Rim Double Cyl. Adapter Assembly -RHR
3** 1 050555 98/99-2/SD RHR Center Case Cover Kit X
3** 1 050556 98/99-2/SD LHR Center Case Cover Kit X
4 4 900892Center Case Cover Screws (Pkg of 4) X
*** 1 05038898/99-2 Conversion Kit RHR X
*** 1 05038998/99-2 Conversion Kit LHR X
*Parts shown are for the double cylinder option. For other available center case parts refer
to page 9.
**Includes parts for three piece cover conversion.
***Kit includes items 1-4.
1
4
X
X
Von Duprin • 98/99 Series Rim Exit Devices Service Manual • 11
1

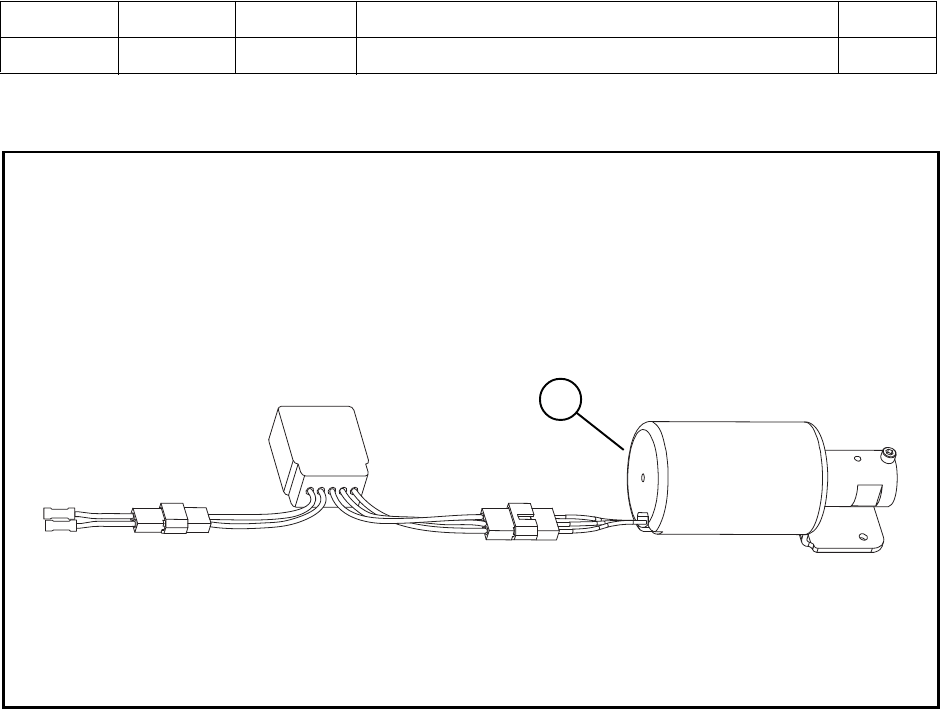

E98/99 & E98/99-F (ELECTRIC LOCKING) OPTION
Item No. Quantity Part No. Description Finish
1 1 106224E98/99 Rim Subminiature Switch Assembly (R,Y,B)
2 1 968938Subminiature Switch
3 1 110389E98/99 Rim Solenoid
4 1 110392 E98/99 Solenoid Plunger - FSE RHR
4 1 110390 E98/99 Solenoid Plunger - FSE LHR
5 1 110393 E98/99 Solenoid Plunger - FS RHR
5 1 110391 E98/99 Solenoid Plunger - FS LHR
6 1 110867E98/99 Rim Signal Cable
XtiK paC dnE seireS 99/8941005017
8 2 9642692-56 x 3/8” PPHMS Subminiature Switch Screws
9 4 9637616-32 x 1/4” Socket Cap Solenoid Cover Screws
10 1 969605 Solenoid Cover
11 2 9640002-56 x 3/4” PPHMS Subminiature Switch Screws
12 1 969606 Solenoid Spring
2
3
4
3
5
6
7
12
9
10
11
8
12 • Von Duprin • 98/99 Series Rim Exit Devices Service Manual

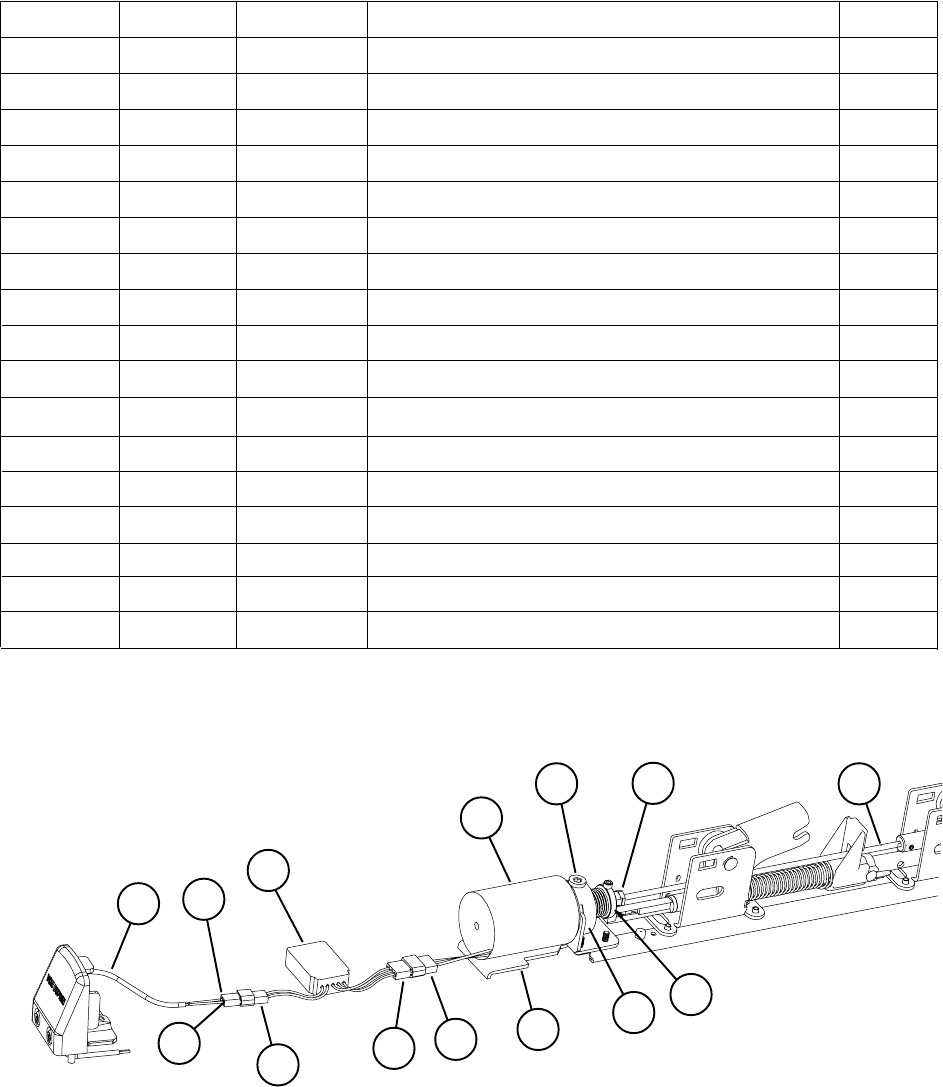

HD-EL98/HD-EL99 HEX DOGGING/ELECTRIC LATCH
RETRACTION OPTION - PANIC DEVICE ONLY
Item No. Quantity Part No. Description Finish
*Kit includes items 1-11 plus new control link, retaining ring, and baseplate screws.
4
2
1
3
6
9
5
11
10
7
8
12 13 14
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
*
*
1
1
1
1
1
1
1
1
2
1
1
1
1
1
1
1
1
050531
050532
110388
050534
050536
050537
050538
050539
050540
050541
050542
050543
990599
990857
990858
050384
050385
EL Dogging Rod Kit - 3’ device
EL Dogging Rod Kit - 4’ device
EL 6’ Cable and Connector
EL Potted Module
HD-EL Solenoid
HD-EL Solenoid Plunger
EL Dogging Rod Retainer
EL Receptacle Connector - 2 Position
EL Female Terminal
HD-EL Dog Screw
HD-EL Solenoid Bracket
HD-EL Dogging Spring
EL Plug Connector - 2 Position
EL Receptacle Connector - 3 Position
EL Plug Connector - 3 Position
HD-EL Conversion Kit - 3’
HD-EL Conversion Kit - 4’
Von Duprin • 98/99 Series Rim Exit Devices Service Manual • 13

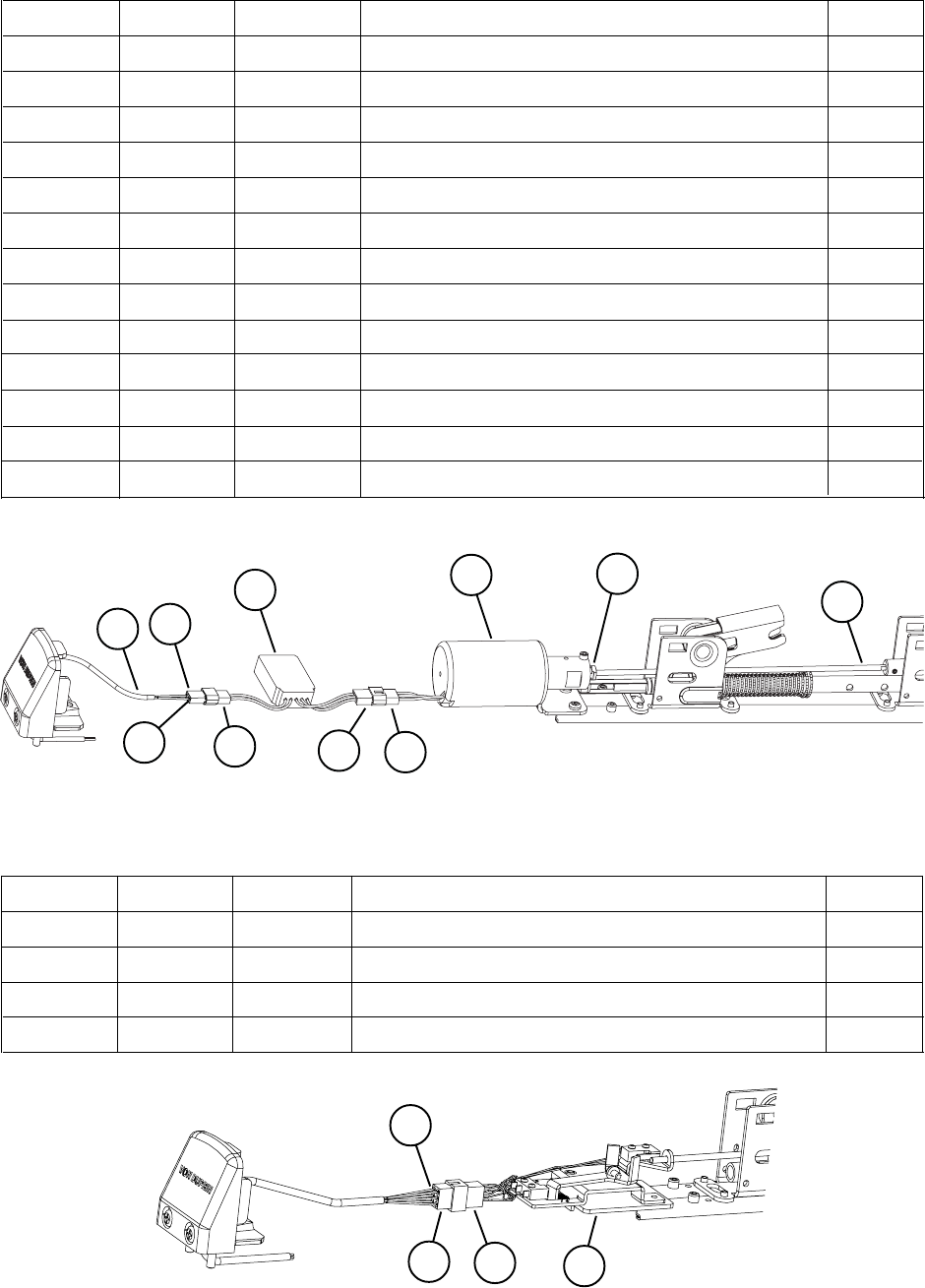

EL98/EL99 SERIES ELECTRIC LATCH RETRACTION OPTION
SS98/SS99 SERIES (SIGNAL SWITCH) OPTION
1
2
Item No. Quantity Part No. Description Finish
1 1 050544SS Cable
2 1 050545SS Housing
3 1 990601SS Plug Connector - 6 Position
4 1 990602SS Receptacle Connector - 6 Position
34
Item No. Quantity Part No. Description Finish
*Kit includes items 1-7 plus new control link pin, retaining ring, and baseplate screws.
1
45
10
9
3
8
7
6
2
1
1
2
3
4
5
6
7
8
9
10
*
*
1
1
1
1
1
1
1
2
1
1
1
1
1
050531
050532
110388
050534
050535
050538
050539
050540
990599
990857
990858
050070
050078
EL Dogging Rod Kit - 3’ device
EL Dogging Rod Kit - 4’ device
EL 6’ Cable and Connector
EL Potted Module
EL Solenoid Assembly
EL Dogging Rod Retainer
EL Receptacle Connector
EL Female Terminal
EL Plug Connector - 2 Position
EL Receptacle Connector - 3 Position
EL Plug Connector - 3 Position
EL Conversion Kit - 3’
EL Conversion Kit - 4’
14 • Von Duprin • 98/99 Series Rim Exit Devices Service Manual
1
2
LX Switch
RX Switch
Wire Colors
Violet, Gray, White
(for Low Current
Violet, Gray, Black)
Wire Colors
Red, Yellow, Blue
(for Low Current
Green, Yellow, Blue)
7
8
7

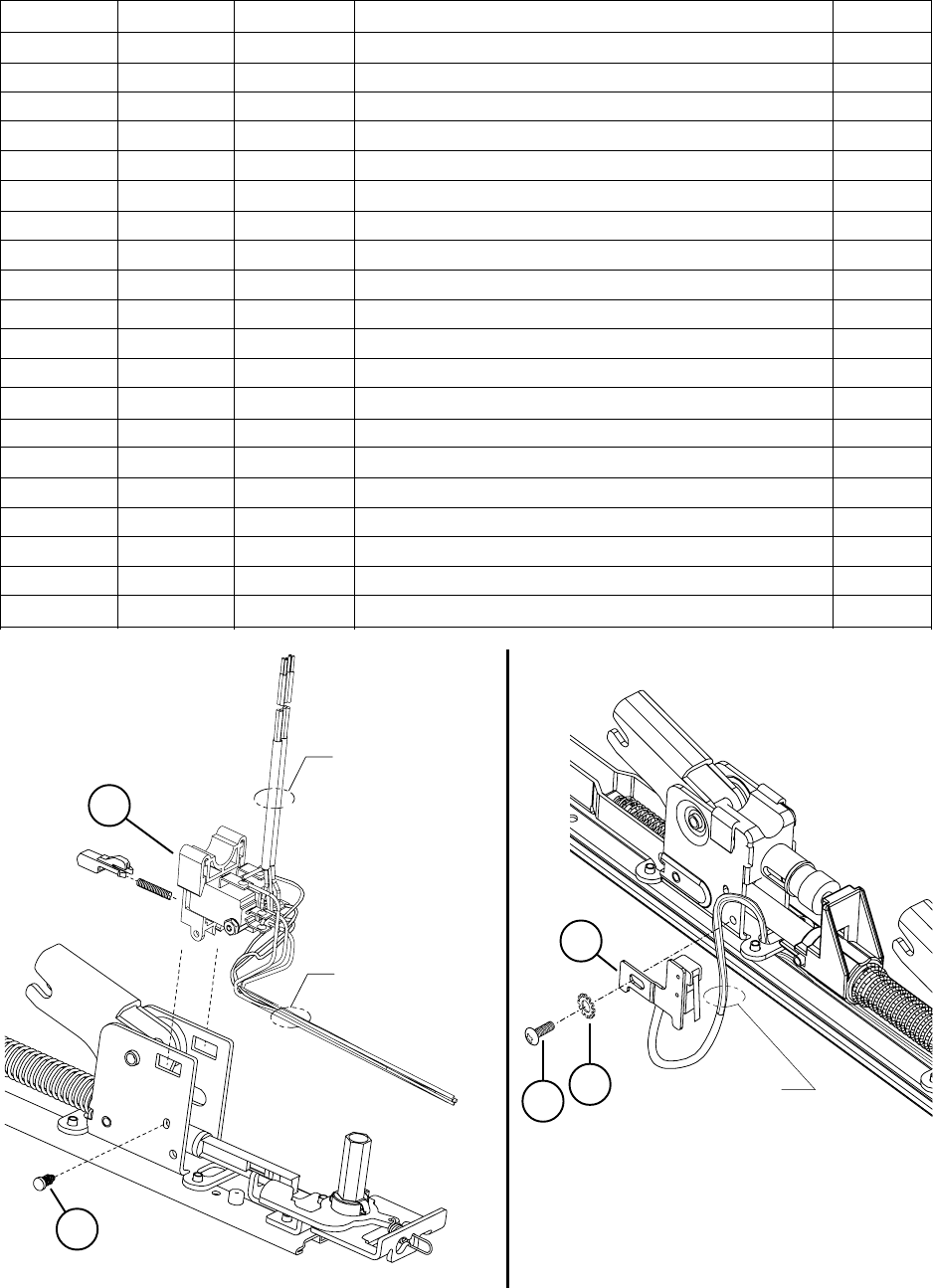

98/99 SERIES LX (LATCH BOLT MONITOR) &
RX (REQUEST TO EXIT) OPTIONS
Von Duprin • 98/99 Series Rim Exit Devices Service Manual • 15
98/99 SERIES LX (LATCH BOLT MONITOR) &
RX (REQUEST TO EXIT) OPTIONS
Item No. Quantity Part No. hsiniFnoitpircseD
1 1 050254 LX Switch Kit 3’ Device
1 1 050255 LX Switch Kit 4’ Device
1 1 050247 LX-EL Switch Kit
1 1 050283 LX-LC (Low Current) Switch Kit 3’ Device
1 1 050285 LX-LC (Low Current) Switch Kit 4’ Device
1 1 050287 LX-LC-EL (Low Current) Switch Kit
2 1 050251 RX Switch Kit
2 1 050281 RX-LC (Low Current) Switch Kit
3 1 050256LX-RX Switch Kit 3’ Device
3 1 050257LX-RX Switch Kit 4’ Device
3 1 050259LX-RX-EL Switch Kit
3 1 050289 LX-RX-LC (Low Current) Sw. Kit 3’ Device
3 1 050291 LX-RX-LC (Low Current) Sw. Kit 4’ Device
3 1 050293 LX-RX-LC-EL (Low Current) Switch Kit
2 & 4 1 050270RX-2 Switch Kit
4 1 050271RX-AUX Switch Kit
5 1 964558 8-32 x 5/16” PPHMS
6 1 964019#8 Washer
7 1 090099 Pine Tree Clip (Pkg of 10)
8 1 971091LX Actuator
3
4
LX-RX Switch
RX-AUX Switch
Wire Colors
Red, Yellow, Blue
(for Low Current
Green, Yellow, Blue)
Wire Colors
Violet, Gray, White
(for Low Current
Violet, Gray, Black)
Wire Colors
Red, Yellow, Blue
(for Low Current
Green, Yellow, Blue)
7
56
16 • Von Duprin • 98/99 Series Rim Exit Devices Service Manual

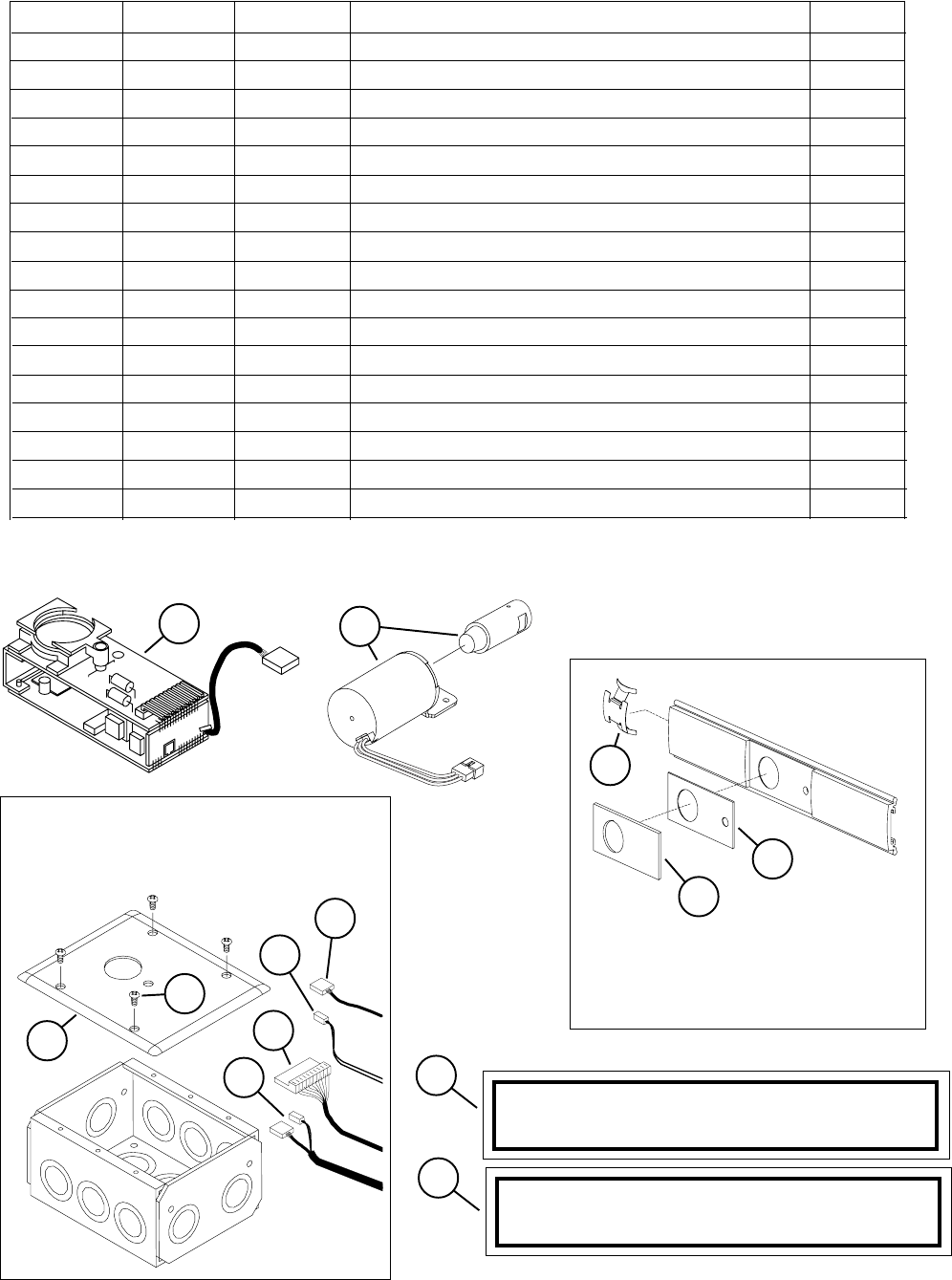

CX98/99 SERIES CHEXIT AND CX-RCM OPTION
Item No. Quantity Part No. hsiniFnoitpircseD
1 1 050228 Chexit PCB Kit - 15 Second Release
1* 1 050700 Chexit PCB Kit - 30 Second Release
1 1 050701 Chexit PCB Kit - 0 Second Release
1 1 050702 Chexit PCB Kit - Boca 15 Second Release
1* 1 050703 Chexit PCB Kit - Boca 30 Second Release
2 1 050533CX Solenoid and Plunger
XretpadA dna etalpecaF11131113
4 4 963898 6-32 x 3/8” OPHMS Faceplate Screws X
5 1 991338RCM 2-Wire RX Cable
6 1 991339 RCM 3-Wire Solenoid Cable
7 1 112018 Chexit Wiring Assembly
8 1 991336 CX-RCM Cable Assy - 5 Wire
9 1 090036Cover Plate Anti-rattle Spring (Pkg of 10)
10 1 970513 LED Cover Mask - Chexit
11 1 970519 LED Cover - Chexit
12 1 113781 Sign 15 Second - Chexit
13 1 113782 Sign 30 Second - Chexit
*Over 15 seconds delay requires a letter of approval from authority having local jurisdiction.
Fax letter in with sales order. The order cannot be processed without the letter.
PUSH UNTIL ALARM SOUNDS
DOOR CAN BE OPENED IN 15 SECONDS
PUSH UNTIL ALARM SOUNDS
DOOR CAN BE OPENED IN 30 SECONDS
13
1
7
CX Cover Plate Kit
33A Series - 050669
35A Series - 050670
10
11
9
12
4
6
5
3
8
**RCM Kit Less Module - CX98 - 050376
**RCM Kit Less Module - CX99 - 050375
**Includes items 3-11
2
Von Duprin • 98/99 Series Rim Exit Devices Service Manual • 17
CX-CD/SD98/99 SERIES OPTION
1
2
4
RHR Shown
LHR Opposite
5
6
Item No. Quantity Part No. Description Finish
1* 1 050548 SD98/99 RHR Center Case Kit Less Cover
1* 1 050549 SD98/99 LHR Center Case Kit Less Cover
2 1 050555 SD98/99 RHR Center Case Cover Kit X
2 1 050556 SD98/99 LHR Center Case Cover Kit X
3 1 112409 CD-CX/SD Cylinder Dog Housing
4 1 112455 CX-CD/SD Cylinder Dog Bracket Kit RHR
4 1 112456 CX-CD/SD Cylinder Dog Bracket Kit LHR
5 4 900892 Center Case Cover Screws X
6 2 PkgServ.1018 8-32 x 1/4” UFPHMS (Pkg of 20)
7 1 964240 Bracket Set Screw
* 1 050386 SD98/99 Rim Conversion Kit RHR X
* 1 050387 SD98/99 Rim Conversion Kit LHR X
*Parts shown are for the CX-CD/SD option. For other available center case parts refer
to page 9.
7
3
18 • Von Duprin • 98/99 Series Rim Exit Devices Service Manual
3
98/99 ALK EXIT ALARM KIT
R
A
M
R
A
M
I
D
S
54
Item No. Quantity Part No. Description Finish
1 1 111795 ALK PCB Assembly
2 1 050525 XralloC rednilyC
3 1 969122ALK Alarm Device Sign
4 1 969349ALK Arming Label
5 1 969350ALK Disarming Label
6 1 969354Retainer Nut
7 1 970594ALK Cylinder Spacer
8 1 090036Cover Plate Anti-rattle spring (Pkg of 10)
9 1 971556ALK Switch Actuator
10 1 971557 ALK Cylinder Bracket
11 1 990637ALK Battery
12 1 05056999 Series ALK Cover Plate Kit X
12 1 05057098 Series ALK Cover Plate Kit X
X in “Finish” column designates finished items; finish must be specified when ordering.
8
1
11
12
2
10
7
6
9
EMERGENCY EXIT ONLY
ALARM WILL SOUND
Von Duprin • 98/99 Series Rim Exit Devices Service Manual • 19
98/99 SERIES SERVICE REPLACEMENT ITEMS
1
23
4
5
OLD STYLE DOGGING PARTS
(FOR DEVICES SHIPPED BEFORE AUGUST 1997)
OLD STYLE END CAP PARTS
(FOR DEVICES SHIPPED
BEFORE JANUARY 2002)
Note: Newer style end cap kit
shown on pages 4-5. Newer style end
cap kit can be used on devices
manufactured before January 2002,
but mechanism case and cover plate
on hinge stile must have a square cut
and a clean edge.
Item No. Quantity Part No. Description Finish
1 1 050153Old Style Hex Dogging Replacement Kit
2 1 963909#22 Hitch Pin - Hex/CD Dogging Old Style
3 1 968112 Old Style Hex Dog Shaft
4 1 969941Old Style Dogging Hook
5 1 968116 Old Style CD Actuator Arm
6 1 900905Old Style End Cap and Bracket Assembly X
7 1 970548Old Style Cover Plate Stop - End Cap
8 1 900901 Old Style End Cap Screw Package X
9 1 971082Old Style 98/99 End Cap - Stainless Steel X
9 1 971083Old Style 98/99 End Cap - Brass X
9 1 971084Old Style 98/99 End Cap - Bronze X
9 1 971085 Old Style 98/99 End Cap - Aluminum X
X in “Finish” column designates finished items; finish must be specified when ordering.
7
9
8
6
20 • Von Duprin • 98/99 Series Rim Exit Devices Service Manual
Item No. Quantity Part No. Description Finish
1 1 050218EL Solenoid Replacement Kit
X in “Finish” column designates finished items; finish must be specified when ordering.
98/99 SERIES SERVICE REPLACEMENT ITEMS
EL SOLENOID REPLACEMENT KIT
(FOR DEVICES SHIPPED BEFORE JANUARY 1987)
Note: This kit replaces the old style EL solenoid parts with the new style.
1
Von Duprin • 98/99 Series Rim Exit Devices Service Manual • 21
Allegion (NYSE: ALLE) creates peace of mind by pioneering safety and security.
As a $2 billion provider of security solutions for homes and businesses, Allegion
employs more than 7,800 people and sells products in more than 120 countries
across the world. Allegion comprises 23 global brands, including strategic
brands CISA®
, Interflex®
, LCN®
, Schlage® and Von Duprin®
.
For more, visit www.allegion.com.
About Allegion
© 2015 Allegion
108730, Rev. 09/15
www.allegion.com/us
