98/9927

Surface Vertical

Rod Series Exit

Devices

Service manual

2 • Von Duprin • 98/9927 Surface Vertical Rod Series Exit Devices Service Manual

INDEX

98/9927 Devices

Basic Panic Device .....................................................................................................................

Basic Fire Device .......................................................................................................................

Vertical Rods and Latches ..........................................................................................................

Baseplate Assemblies ..................................................................................................................

Center Case Assembly .................................................................................................................

LBR (Less Bottom Rod) Fire Latch Kit..........................................................................................

Variations of the Basic Device

CD (Cylinder Dogging) ........................................................................................................

HD-EL (Hex Dogging/Electric Latch Retraction) ..................................................................

EL (Electric Latch Retraction) .............................................................................................

SS (Signal Switch) ..............................................................................................................

RX (Request to Exit) ......................................................................................................

LX (Latch Bolt Monitoring) ..............................................................................................

CX (Chexit) ..........................................................................................................................

CX-CD/SD (Chexit/Special Dogging) ..................................................................................

ALK (Exit Alarm Kit) ............................................................................................................

Service Replacement Items ......................................................................................................

General Information

Introduction.....................................................................................................................................

How to Order ..................................................................................................................................

Part Number Changes ....................................................................................................................

Finishes ........................................................................................................................................

Outside Trim Functions .................................................................................................................

Strikes............................................................................................................................................

INTRODUCTION

This manual contains a listing of replaceable parts and assemblies for the 98/9927 Exit Hardware Devices. 98

Series and 99 Series devices are almost identical. The 99 Series has a grooved case; the 98 Series has a

smooth case.

HOW TO ORDER

Some parts are sold separately. Other items are available as part of a kit or multiple quantity package.

For the best possible service when ordering replacement parts or assemblies, please provide the following

information:

•Part number or assembly number

•Description

•Quantity needed

•Finish desired (if available finished)

•Date of original purchase (if known)

To find out the name of your local Von Duprin distributor or sales representative, contact:

Von Duprin Division

Allegion

2720 Tobey Drive

Indianapolis, IN 46219

Phone: 877-671-7011

PART NUMBER AND AVAILABILITY CHANGES

This manual was designed to help illustrate the replacement parts and kits that are available for sale. Because of

changes to the product and/or manufacturing process, part numbers and availability can change over time.

4-5

6-7

8-9

10

11

11

4-5

12

13

13

14-15

14-15

16

17

18

19-20

2

2

2

3

3

3

Von Duprin • 98/9927 Surface Vertical Rod Series Exit Devices Service Manual • 3

299 (Top) Strike - Standard

Single or Double Door

Panic Exit Hardware

Adjusting Shim 945521

499F (Top) Strike - Supplied

with LBR Fire Latch/Strike Kit

Strike Hook 969300

299F (Top) Strike -

Single or Double Door

Fire Exit Hardware

Adjusting Shim

945521

260U (Top) Strike -

For Flush Transom

Applications Only

Panic or Fire

Exit Hardware

304L

(Bottom) Strike

Panic or Fire

Exit Hardware

STANDARD STRIKES

OPTIONAL STRIKES

248L-4

(Bottom) Strike

Panic Exit Hardware

385A

(Bottom) Strike

Panic or Fire

Exit Hardware

98/99 SERIES FINISHES

US3

US4

US10

US15

US26

US26D

US28

US32D

313AN

315AN

605

606

612

619

625

626

628

630

710

711

Polished Brass

Dull Brass

Dull Bronze

Satin Nickel

Polished Chrome

Dull Chrome

Anodized Alum. (Clear)

Satin Stainless Steel

Anodized Alum. (313)

Dark Bronze

Anodized Alum. (Black)

U.S. Std

Reference

BHMA

ReferenceDescription

1Metal Door Screw Package PKGSRV.1023 (Pkg of 10)

Wood Door Screw 964291 (Qty of 1)

Adjusting Shim 970321

Strike Plate

970323

Screw Pkg

900252

Screw Pkg

900263

Adjusting Shim

945521

1

264 (Top) Strike - Single

Door Panic Exit Hardware

1

1

1

990EO

OUTSIDE TRIM FUNCTIONS

* “BE” (Blank Escutcheon) no cylinder used - lever always active

** “NL” (Night Latch) rigid lever - key retracts latch bolt

***”DT” (Dummy Trim) rigid lever for pull operation

**** Optional Pull needs to be added

990DT***990NL**990TP990TP-BE*

991K

991K-NL**

991K-BE*

991K-DT***

992L

996L

992L-NL**

996L-NL**

992L-BE*

996L-BE*

992L-DT***

996L-DT***

994L

994L-NL**

994L-BE*

994L-DT***994EO

992EO

996EO

110NL****

374T

Shim 969280

4 • Von Duprin • 98/9927 Surface Vertical Rod Series Exit Devices Service Manual

98/9927 PANIC DEVICE

16

15

16

10B

11

13

9

7B

6

17

8

7A

CD Conversion Kit

99 Series - 050115

98 Series - 050132

Hex Dogging Kit

99 Series - 050114

98 Series - 050117

3

5

1

3B

2

4

3C

3A

10A

10

7B

7B

12

18

PANIC ONLY

PANIC ONLY

1

Less Dogging

Cover Plate Kit

99 Series - 050589

98 Series - 050588

7B

7

14

Von Duprin • 98/9927 Surface Vertical Rod Series Exit Devices Service Manual • 5

98/9927 PANIC DEVICE

Item No.Quantity Part No. Description Finish

190056398/9927 Series Mounting Pkg. (1-3/4)

190056898/9927 Series Mounting Pkg. (2-1/4)

1 1 090085227 Dog Key 5/32” Hex (Pkg of 10)

1 1 090005227 Dog Key 5/32” Hex (Pkg of 2)

2 1 090040Hex Dog Shaft (Pkg of 2)

3 1 107813 XgkP gnitnuoM rednilyC

3A 1 050525 XralloC rednilyC

3B 1 050490Cylinder Locating Washer - CD/SS

3C 1 050526Cylinder Locknut

4 1 090046CD Dogging Plug (Pkg of 2)

5 1 090045CD Actuator Arm (Pkg of 2)

6 1 *PBKIT98/99 Series Push Bar Retrofit Kit - 3’ Door X

6 1 *PBKIT98/99 Series Push Bar Retrofit Kit - 4’ Door X

XtiK paC dnE seireS 99/8941005017

7A 1 050524Impact Resistant End Cap Bracket

7B 1 090036Cover Plate Anti-rattle Spring (Pkg of 10)

8 1 900597Device End Cap and C/Case Screw Pkg. X

9 1 96814499 Series Mechanism Case - 3’ Door X

9 1 96814699 Series Mechanism Case - 4’ Door X

9 2 97019198 Series Mechanism Case - 3’ Door X

9 1 97019298 Series Mechanism Case - 4’ Door X

10 1 05052998/99 Series Control Link Pin & Ret. Ring

10A 1 09003198/99 Series Control Link Pin (Pkg of 10)

10B 1 090107Retaining Ring (Pkg of 10)

11 2 090037 #8-32 x 3/8” Baseplate Screw (Pkg of 10)

12 2 090073Mechanism Case Bracket Screw (Pkg of 10)

13*** 1 05002198/9927/-F Center Case Kit Less Cover

14** 1 05007298/9927/-F Center Case Cover Kit X

15 1 050491Shock Absorber & Holder Assembly

16 2 090049Push Bar Guide (Pkg of 10)

17 4 900892Center Case Cover Screws (Pkg of 4) X

18 1 050564Center Case Cover Bracket

X in “Finish” column designates finished items; finish must be specified when ordering.

* To order, specify device type, size, and finish. Example: PBKIT 98 3’ US28.

**Includes parts for three piece cover conversion.

***Center case assembly parts shown on page 11.

6 • Von Duprin • 98/9927 Surface Vertical Rod Series Exit Devices Service Manual

98/9927-F FIRE DEVICE

11

10

11

5B

6

8

4

2B

1

12

3

2A

Fire Cover Plate Kit

99 Series - 050589

98 Series - 050588

5A

5

2B

7

13

2

9

Von Duprin • 98/9927 Surface Vertical Rod Series Exit Devices Service Manual • 7

98/9927-F FIRE DEVICE

Item No.Quantity Part No. Description Finish

190056398/9927 Series Mounting Pkg. (1-3/4)

190056898/9927 Series Mounting Pkg. (2-1/4)

1 1 *PBKIT98/99 Series Push Bar Retrofit Kit - 3’ Door X

1 1 *PBKIT98/99 Series Push Bar Retrofit Kit - 4’ Door X

XtiK paC dnE seireS 99/8941005012

2A 1 050524Impact Resistant End Cap Bracket

2B 1 090036Cover Plate Anti-rattle Spring (Pkg of 10)

3 1 900597Device End Cap and C/Case Screw Pkg. X

4 1 968144 99 Series Mechanism Case - 3’ Door X

4 1 968146 99 Series Mechanism Case - 4’ Door X

4 1 970191 98 Series Mechanism Case - 3’ Door X

4 1 970192 98 Series Mechanism Case - 4’ Door X

5 1 05052998/99 Series Control Link Pin & Ret. Ring

5A 1 09003198/99 Series Control Link Pin (Pkg of 10)

5B 1 090107 Retaining Ring (Pkg of 10)

6 2 090037 #8-32 x 3/8” Baseplate Screw (Pkg of 10)

7 2 090073 Mechanism Case Bracket Screw (Pkg of 10)

8*** 1 05002198/9927/-F Center Case Kit Less Cover

9** 1 05007298/9927/-F Center Case Cover Kit X

10 1 050491Shock Absorber & Holder Assembly

11 2 090049Push Bar Guide (Pkg of 10)

12 4 900892Center Case Cover Screws (Pkg of 4) X

13 1 050564Center Case Cover Bracket

X in “Finish” column designates finished items; finish must be specified when ordering.

* To order, specify device type, size, and finish. Example: PBKIT 98 3’ US28.

**Includes parts for three piece cover conversion.

***Center case assembly parts shown on page 11.

8 • Von Duprin • 98/9927 Surface Vertical Rod Series Exit Devices Service Manual

98/9927 VERTICAL RODS AND LATCHES

813

12

15

11

1

7

9

16

6

18

19

1

19

7

11

8

14

12

10

10

4

10

5

9

6

15

16

17

17

20

3

Pullman Latch

Kit Less Cover

050402

Panic Device Only -

Includes Mtg Screws

Extension Rod Kits

9927 12” 051801

9827 12” 051809

9927 36” 051802

9827 36” 051810

(36” extension rod kits

include items 6 & 9)

2

Von Duprin • 98/9927 Surface Vertical Rod Series Exit Devices Service Manual • 9

98/9927 VERTICAL RODS AND LATCHES

Item No.Quantity Part No. Description Finish

1 2 034902325 Sex Bolt Package (Pkg of 2) X

2 1 050401 98/9927 Bottom Latch Kit Less Cover

3 1 050400 98/9927 Top Latch Kit Less Cover

4 1 050512 XtiK doR poT 7299

4 1 050513 XtiK doR poT 7289

5 1 0505149927 XtiK doR mottoB

5 1 0505159827 XtiK doR mottoB

6 2 112063 XgkP ediuG doR 7299/89

7 1 900589 Latch Mounting Package (Pkg of 4)

8 2 900850 Latch Case Cover Screw (Pkg of 2) X

9 2 900919 98/9927 Rod Guide Mounting Package

10 4 090054 Rod Roll Pin (Pkg of 10)

11 6 090055 Housing Guide Pin (Pkg of 10)

12 2 090065 Bolt Return Spring (Pkg of 10)

13 1 090056 Top Latch Compression Spring (Pkg of 10)

13 1 090057 PL Top Latch Spring (Pkg of 10)

14 1 090058 Bottom Latch Case Spring (Pkg of 10)

15 2 090067 Rod Connector - Latch (Pkg of 2)

16 2 090068Rod Connector - Center Case (Pkg of 2)

17 1 050566 98/9927/27-F Latch Case Cover Kit X

18 1 090076Aux. Bolt Spring (Pkg of 10)

19 2 050546Latch Case Mtg. Bracket Kit

20 1 090075 98/9927 Rod Extension Connector (Pkg of 4)

* 1 05009098/9927 Bottom Latch Retrofit Kit X

* 1 050091 98/9927 Top Latch Retrofit Kit X

X in “Finish” column designates finished items; finish must be specified when ordering.

* For devices shipped before October 1998.

10 • Von Duprin • 98/9927 Surface Vertical Rod Series Exit Devices Service Manual

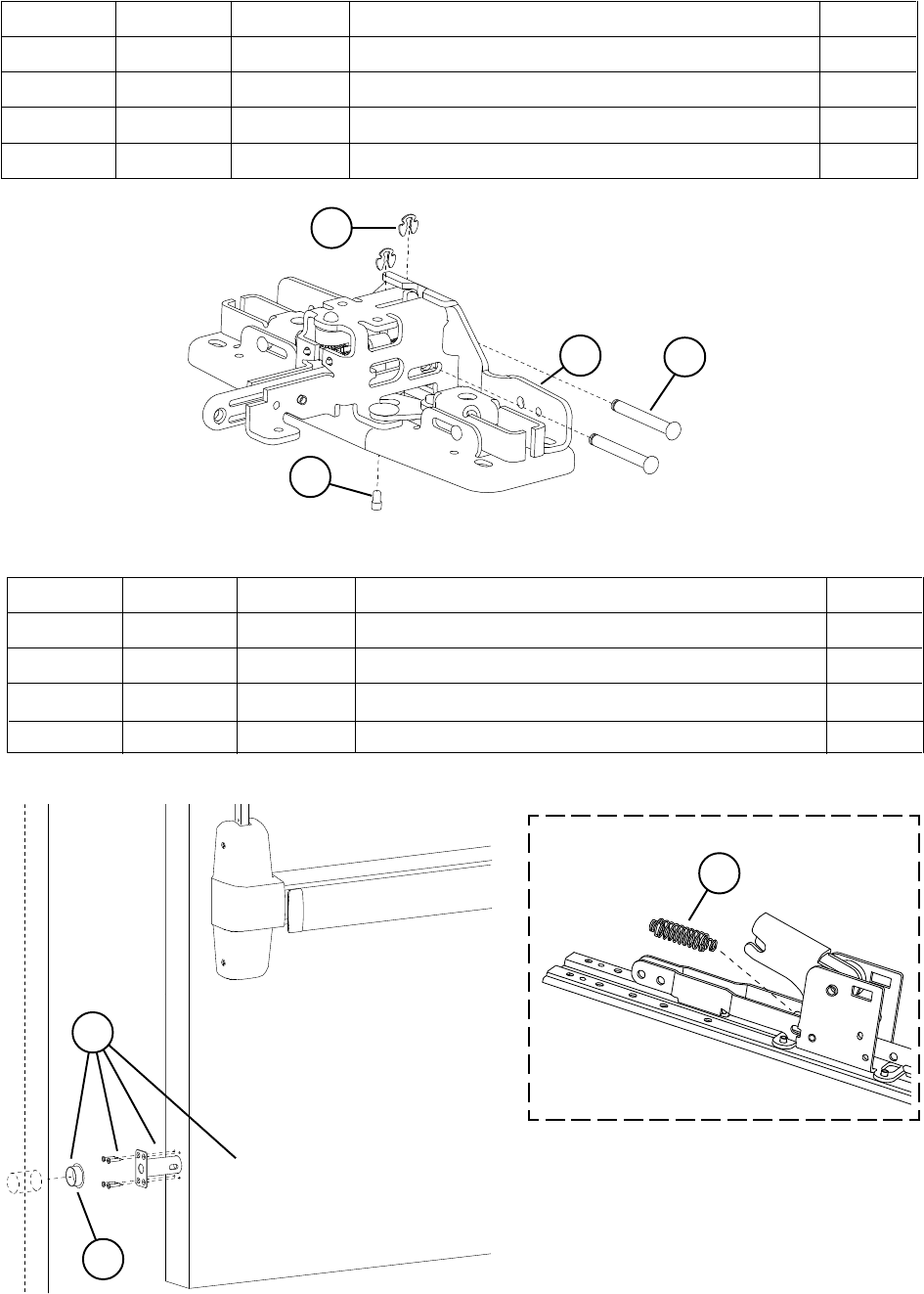

98/9927-F FIRE DEVICE BASEPLATE ASSEMBLY

1

21

3

Item No.Quantity Part No. Description Finish

1 4 090038Rubber bumper (Pkg of 4)

2 1 090039Latch return spring (Pkg of 10)

3 1 050491 Shock absorber

98/9927 PANIC DEVICE BASEPLATE ASSEMBLY

Item No.Quantity Part No. Description Finish

1 1 090043 Dogging adapter (Pkg of 2)

2 1 090042 Dogging adapter spring (Pkg of 2)

3 1 090041 Dogging spring (Pkg of 2)

4 1 090040Hex dogging shaft (Pkg of 2)

5 1 090044 Dogging hook (Pkg of 2)

6 1 090039Latch return spring (Pkg of 10)

7 4 090038Rubber bumper (Pkg of 4)

8 1 050491 Shock absorber

7

64

5

1

2

3

8

Von Duprin • 98/9927 Surface Vertical Rod Series Exit Devices Service Manual • 11

98/9927-F LBR (LESS BOTTOM ROD) FIRE LATCH KIT

Item No.Quantity Part No. Description Finish

1 1 050171 LBR Fire Latch/Strike kit

2 1 050509LBR Fire Strike Plug

3 1 090088 98/9927-F LBR Latch Spring Pkg of 10

4 1 900980 98/9927-F LBR Latch Mounting Package

1

Note:499F Strike (not shown)

is included with P/N 050171

2

Item No.Quantity Part No. Description Finish

1 2 090107 Retaining Ring (Pkg of 10)

2 2 090079 Latch Bolt Pin (Pkg of 10)

3 1 090074NL Drive Screw (Pkg of 10)

4 1 050565 Center Case Reinforcing Bracket

98/9927 DEVICE CENTER CASE ASSEMBLY

1

42

3

3

12 • Von Duprin • 98/9927 Surface Vertical Rod Series Exit Devices Service Manual

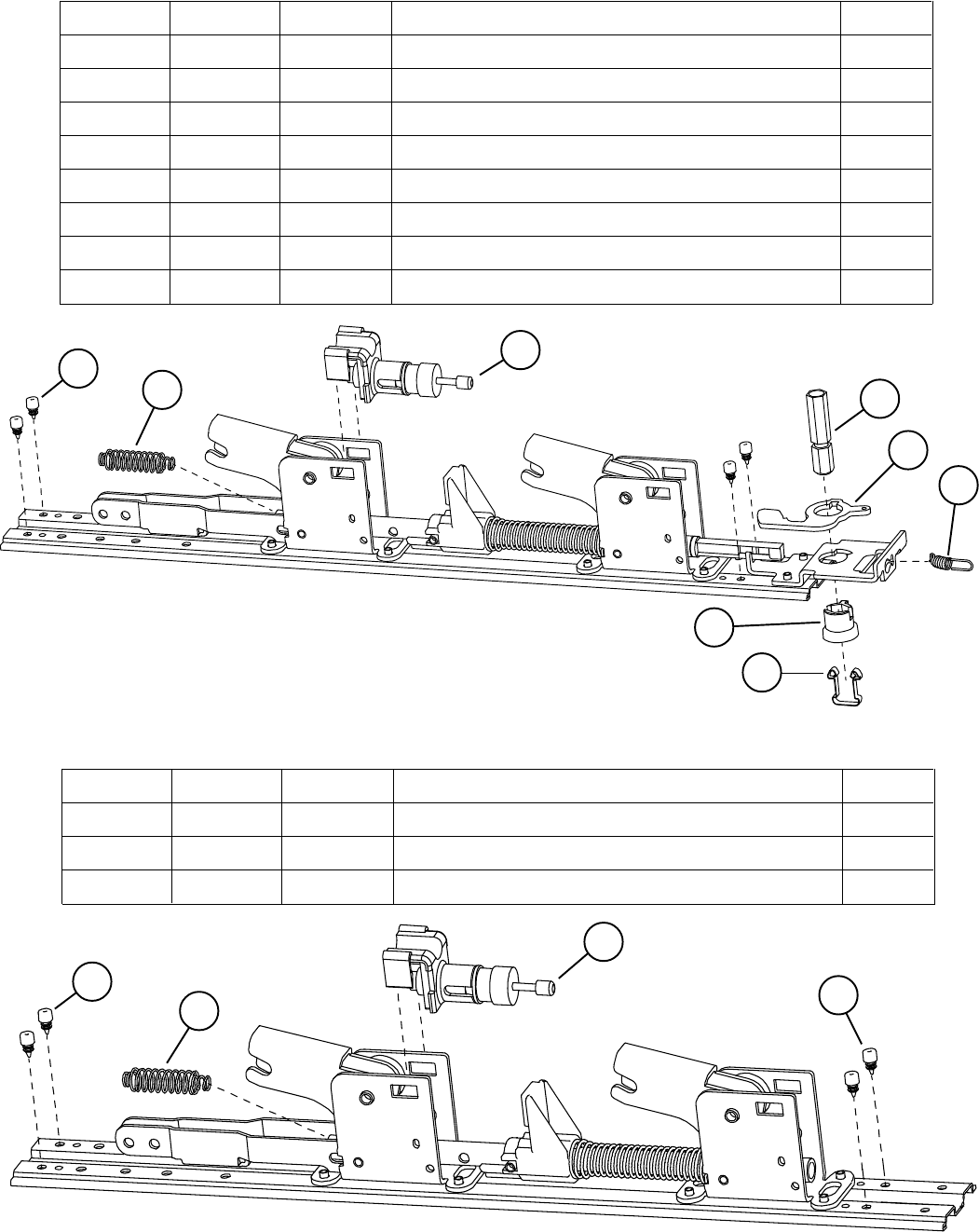

HD-EL9827/HD-EL9927 HEX DOGGING/ELECTRIC LATCH

RETRACTION OPTION - PANIC DEVICE ONLY

Item No. Quantity Part No. Description Finish

*Kit includes items 1-11 plus new control link, retaining ring, and baseplate screws.

4

2

1

3

6

9

5

11

10

7

8

12

13 14

1

1

2

3

4

5

6

7

8

9

10

11

12

13

14

*

*

1

1

1

1

1

1

1

1

2

1

1

1

1

1

1

1

1

050531

050532

110388

050534

050536

050537

050538

050539

050540

050541

050542

050543

990599

990857

990858

050384

050385

EL Dogging Rod Kit - 3’ device

EL Dogging Rod Kit - 4’ device

EL 6’ Cable and Connector

EL Potted Module

HD-EL Solenoid

HD-EL Solenoid Plunger

EL Dogging Rod Retainer

EL Receptacle Connector - 2 Position

EL Female Terminal

HD-EL Dog Screw

HD-EL Solenoid Bracket

HD-EL Dogging Spring

EL Plug Connector - 2 Position

EL Receptacle Connector - 3 Position

EL Plug Connector - 3 Position

HD-EL Conversion Kit - 3’

HD-EL Conversion Kit - 4’

Von Duprin • 98/9927 Surface Vertical Rod Series Exit Devices Service Manual • 13

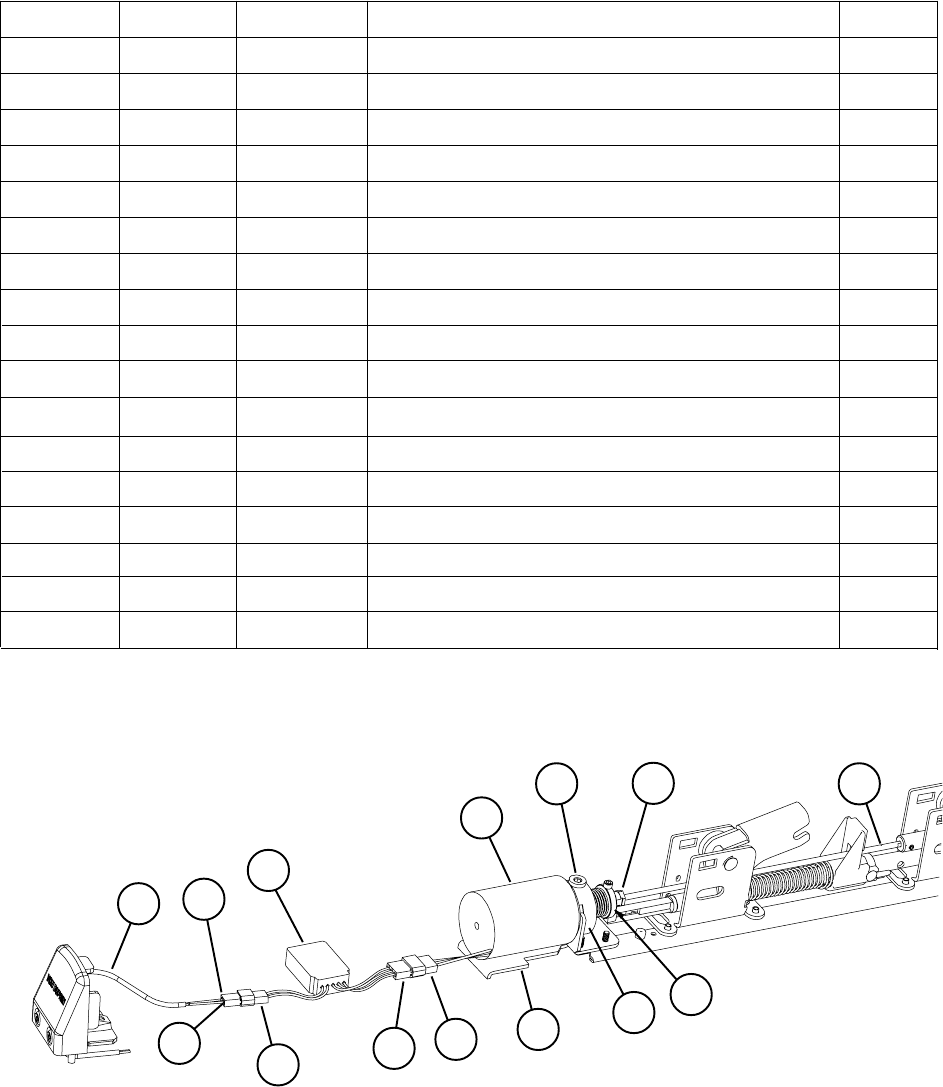

EL9827/EL9927 SERIES ELECTRIC LATCH RETRACTION OPTION

SS9827/SS9927 SERIES (SIGNAL SWITCH) OPTION

1

2

Item No.Quantity Part No. Description Finish

1 1 050544 SS Cable

2 1 050545SS Housing

3 1 990601SS Plug Connector - 6 Position

4 1 990602SS Receptacle Connector - 6 Position

34

Item No. Quantity Part No. Description Finish

*Kit includes items 1-7 plus new control link pin, retaining ring, and baseplate screws.

1

45

10

9

3

8

7

6

2

1

1

2

3

4

5

6

7

8

9

10

*

*

1

1

1

1

1

1

1

2

1

1

1

1

1

050531

050532

110388

050534

050535

050538

050539

050540

990599

990857

990858

050070

050078

EL Dogging Rod Kit - 3’ device

EL Dogging Rod Kit - 4’ device

EL 6’ Cable and Connector

EL Potted Module

EL Solenoid Assembly

EL Dogging Rod Retainer

EL Receptacle Connector

EL Female Terminal

EL Plug Connector - 2 Position

EL Receptacle Connector - 3 Position

EL Plug Connector - 3 Position

EL Conversion Kit - 3’

EL Conversion Kit - 4’

14 • Von Duprin • 98/9927 Surface Vertical Rod Series Exit Devices Service Manual

1

2

LX Switch

RX Switch

Wire Colors

Violet, Gray, White

(for Low Current

Violet, Gray, Black)

Wire Colors

Red, Yellow, Blue

(for Low Current

Green, Yellow, Blue)

7

8

7

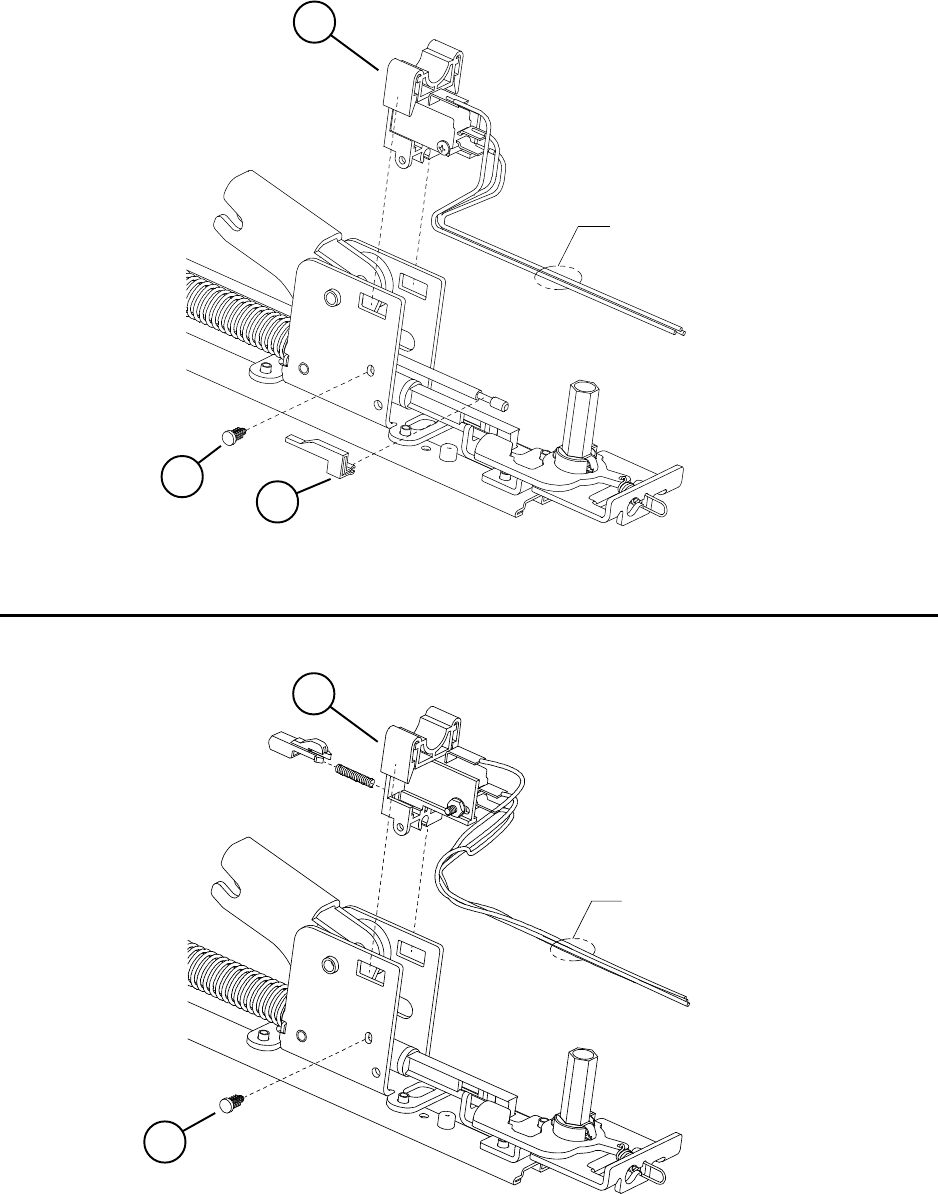

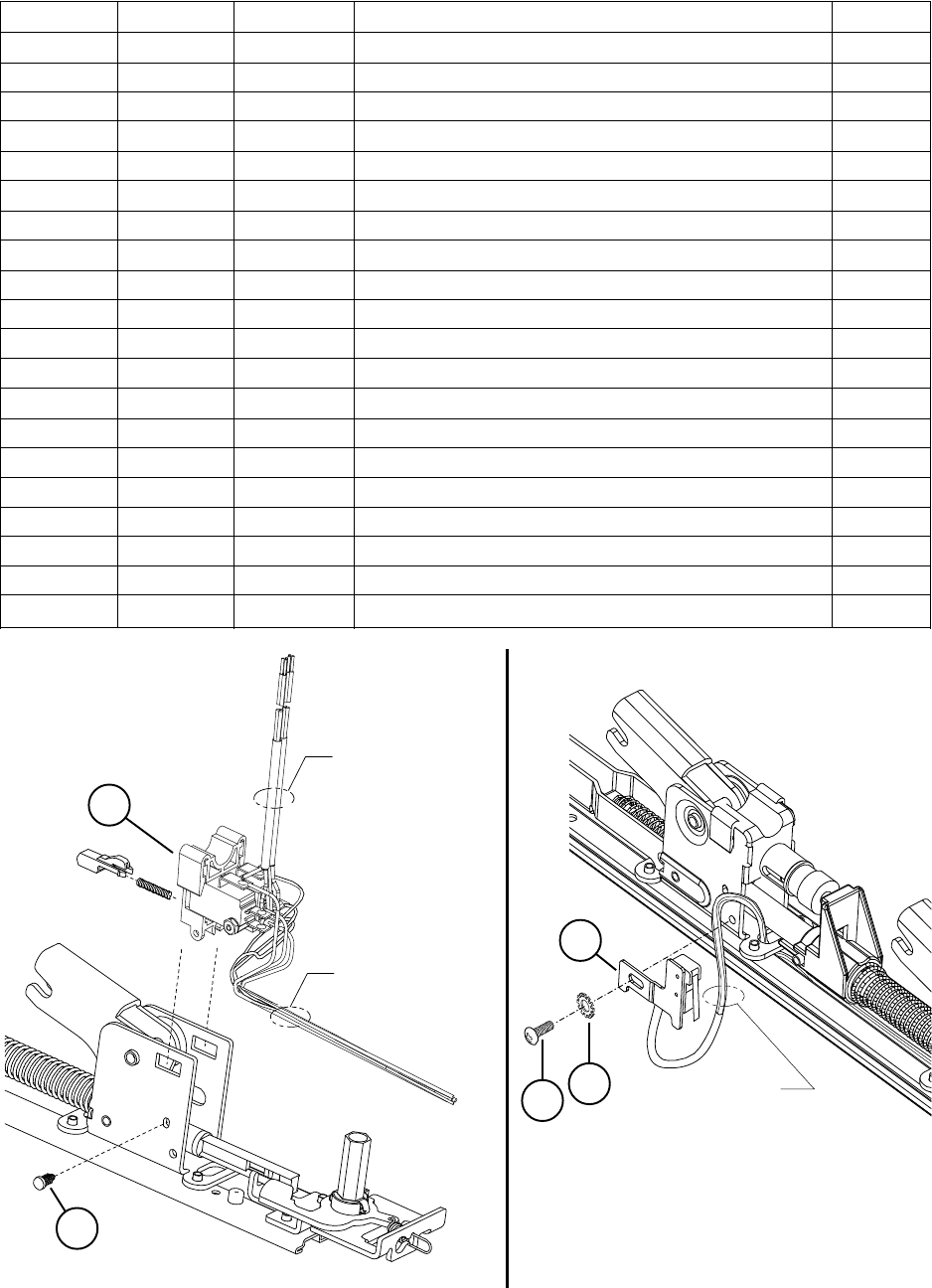

98/9927 SERIES LX (LATCH BOLT MONITOR) &

RX (REQUEST TO EXIT) OPTIONS

Von Duprin • 98/9927 Surface Vertical Rod Series Exit Devices Service Manual • 15

98/9927 SERIES LX (LATCH BOLT MONITOR) &

RX (REQUEST TO EXIT) OPTIONS

Item No.Quantity Part No. hsiniFnoitpircseD

1 1 050254 LX Switch Kit 3’ Device

1 1 050255 LX Switch Kit 4’ Device

1 1 050247 LX-EL Switch Kit

1 1 050283 LX-LC (Low Current) Switch Kit 3’ Device

1 1 050285 LX-LC (Low Current) Switch Kit 4’ Device

1 1 050287 LX-LC-EL (Low Current) Switch Kit

2 1 050251 RX Switch Kit

2 1 050281 RX-LC (Low Current) Switch Kit

3 1 050256LX-RX Switch Kit 3’ Device

3 1 050257LX-RX Switch Kit 4’ Device

3 1 050259LX-RX-EL Switch Kit

3 1 050289 LX-RX-LC (Low Current) Sw. Kit 3’ Device

3 1 050291 LX-RX-LC (Low Current) Sw. Kit 4’ Device

3 1 050293 LX-RX-LC-EL (Low Current) Switch Kit

2 & 4 1 050270RX-2 Switch Kit

4 1 050271RX-AUX Switch Kit

5 1 964558 8-32 x 5/16” PPHMS

6 1 964019#8 Washer

7 1 090099 Pine Tree Clip (Pkg of 10)

8 1 971091LX Actuator

3

4

LX-RX Switch

RX-AUX Switch

Wire Colors

Red, Yellow, Blue

(for Low Current

Green, Yellow, Blue)

Wire Colors

Violet, Gray, White

(for Low Current

Violet, Gray, Black)

Wire Colors

Red, Yellow, Blue

(for Low Current

Green, Yellow, Blue)

7

56

16 • Von Duprin • 98/9927 Surface Vertical Rod Series Exit Devices Service Manual

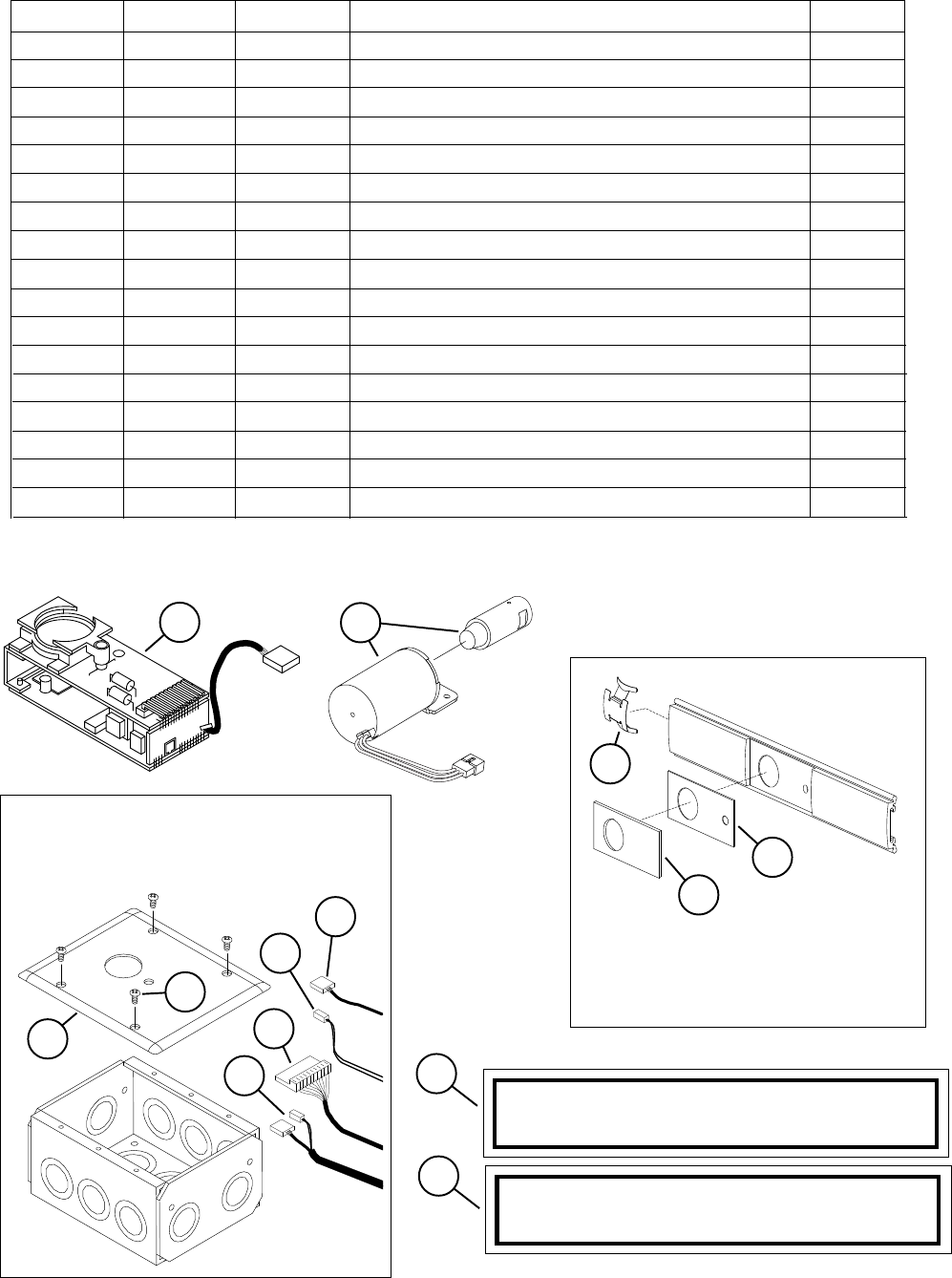

CX98/9927 SERIES CHEXIT AND CX-RCM OPTION

Item No.Quantity Part No. hsiniFnoitpircseD

1 1 050228 Chexit PCB Kit - 15 Second Release

1* 1 050700 Chexit PCB Kit - 30 Second Release

1 1 050701 Chexit PCB Kit - 0 Second Release

1 1 050702 Chexit PCB Kit - Boca 15 Second Release

1* 1 050703 Chexit PCB Kit - Boca 30 Second Release

2 1 050533CX Solenoid and Plunger

XretpadA dna etalpecaF11131113

4 4 963898 6-32 x 3/8” OPHMS Faceplate Screws X

5 1 991338RCM 2-Wire RX Cable

6 1 991339 RCM 3-Wire Solenoid Cable

7 1 112018 Chexit Wiring Assembly

8 1 991336 CX-RCM Cable Assy - 5 Wire

9 1 090036 Cover Plate Anti-rattle Spring (Pkg of 10)

10 1 970513 LED Cover Mask - Chexit

11 1 970519 LED Cover - Chexit

12 1 113781 Sign 15 Second - Chexit

13 1 113782 Sign 30 Second - Chexit

*Over 15 seconds delay requires a letter of approval from authority having local jurisdiction.

Fax letter in with sales order. The order cannot be processed without the letter.

PUSH UNTIL ALARM SOUNDS

DOOR CAN BE OPENED IN 15 SECONDS

PUSH UNTIL ALARM SOUNDS

DOOR CAN BE OPENED IN 30 SECONDS

13

1

7

CX Cover Plate Kit

33A Series - 050669

35A Series - 050670

10

11

9

12

4

6

5

3

8

**RCM Kit Less Module - CX98 - 050376

**RCM Kit Less Module - CX99 - 050375

**Includes items 3-11

2

Von Duprin • 98/9927 Surface Vertical Rod Series Exit Devices Service Manual • 17

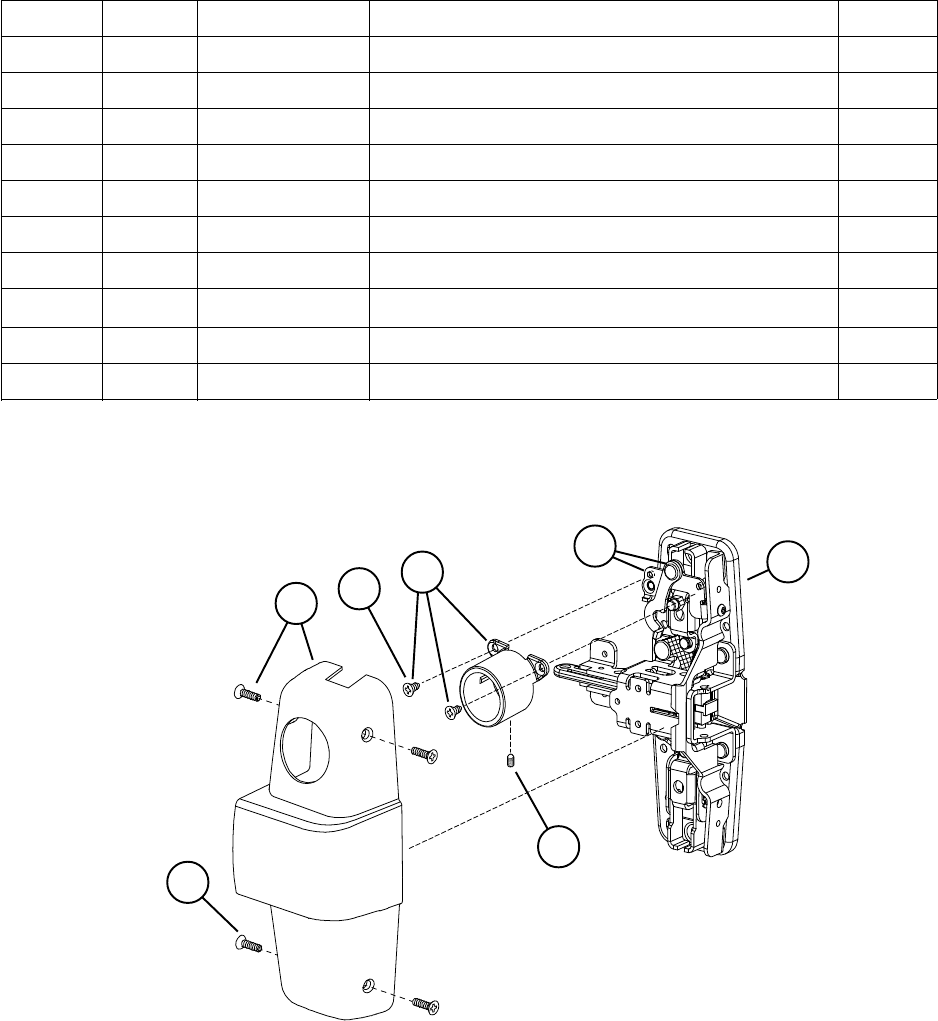

CX-CD/SD98/9927 SERIES OPTION

1

2

4

RHR Shown

LHR Opposite

5

6

Item No.Quantity Part No. Description Finish

1* 1 050550 SD98/9927 RHR Center Case Kit Less Cvr

1* 1 050551 SD98/9927 LHR Center Case Kit Less Cvr

2 1 050559 SD98/9927 RHR Center Case Cover Kit X

2 1 050560 SD98/9927 LHR Center Case Cover Kit X

3 1 112409 CD-CX/SD Cylinder Dog Housing

4 1 112455 CX-CD/SD Cylinder Dog Bracket Kit RHR

4 1 112456 CX-CD/SD Cylinder Dog Bracket Kit LHR

5 4 900892 Center Case Cover Screws X

6 2 PkgServ.1018 8-32 x 1/4” UFPHMS (Pkg of 20)

7 1 964240 Bracket Set Screw

*Parts shown are for the CX-CD/SD option. For other available center case parts refer

to page 11.

7

3

18 • Von Duprin • 98/9927 Surface Vertical Rod Series Exit Devices Service Manual

3

98/9927 ALK EXIT ALARM KIT

R

A

M

R

A

M

I

D

S

54

Item No.Quantity Part No. Description Finish

1 1 111795 ALK PCB Assembly

2 1 050525 XralloC rednilyC

3 1 969122ALK Alarm Device Sign

4 1 969349 ALK Arming Label

5 1 969350ALK Disarming Label

6 1 969354Retainer Nut

7 1 970594ALK Cylinder Spacer

8 1 090036Cover Plate Anti-rattle spring (Pkg of 10)

9 1 971556ALK Switch Actuator

10 1 971557ALK Cylinder Bracket

11 1 990637ALK Battery

12 1 05056999A Series ALK Cover Plate Kit X

12 1 05057098A Series ALK Cover Plate Kit X

X in “Finish” column designates finished items; finish must be specified when ordering.

8

1

11

12

2

10

7

6

9

EMERGENCY EXIT ONLY

ALARM WILL SOUND

Von Duprin • 98/9927 Surface Vertical Rod Series Exit Devices Service Manual • 19

98/9927 SERIES SERVICE REPLACEMENT ITEMS

1

23

4

5

OLD STYLE DOGGING PARTS

(FOR DEVICES SHIPPED BEFORE AUGUST 1997)

OLD STYLE END CAP PARTS

(FOR DEVICES SHIPPED

BEFORE JANUARY 2002)

Note: Newer style end cap kit

shown on pages 4-5. Newer style end

cap kit can be used on devices

manufactured before January 2002,

but mechanism case and cover plate

on hinge stile must have a square cut

and a clean edge.

Item No.Quantity Part No. Description Finish

1 1 050153Old Style Hex Dogging Replacement Kit

2 1 963909#22 Hitch Pin - Hex/CD Dogging Old Style

3 1 968112 Old Style Hex Dog Shaft

4 1 969941Old Style Dogging Hook

5 1 968116 Old Style CD Actuator Arm

6 1 900905 Old Style End Cap and Bracket Assembly X

7 1 970548Old Style Cover Plate Stop - End Cap

8 1 900901Old Style End Cap Screw Package X

9 1 971082Old Style 98/99 End Cap - Stainless Steel X

9 1 971083Old Style 98/99 End Cap - Brass X

9 1 971084Old Style 98/99 End Cap - Bronze X

9 1 971085Old Style 98/99 End Cap - Aluminum X

X in “Finish” column designates finished items; finish must be specified when ordering.

7

9

8

6

20 • Von Duprin • 98/9927 Surface Vertical Rod Series Exit Devices Service Manual

Item No.Quantity Part No. Description Finish

1 1 050218EL Solenoid Replacement Kit

X in “Finish” column designates finished items; finish must be specified when ordering.

98/9927 SERIES SERVICE REPLACEMENT ITEMS

EL SOLENOID REPLACEMENT KIT

(FOR DEVICES SHIPPED BEFORE JANUARY 1987)

Note: This kit replaces the old style EL solenoid parts with the new style.

1

Von Duprin • 98/9927 Surface Vertical Rod Series Exit Devices Service Manual • 21

Allegion (NYSE: ALLE) creates peace of mind by pioneering safety and security.

As a $2 billion provider of security solutions for homes and businesses, Allegion

employs more than 7,800 people and sells products in more than 120 countries

across the world. Allegion comprises 23 global brands, including strategic

brands CISA®

, Interflex®

, LCN®

, Schlage® and Von Duprin®

.

For more, visit www.allegion.com.

About Allegion

© 2015 Allegion

108731, Rev. 09/15

www.allegion.com/us
