360/370
Series
Controls
Service manual
2 • Von Duprin • 360/370 Series Controls Service Manual
INDEX
360/370 Series Controls
370-T & 370-T-BE Control ............................................................................................................... 4
370-L & 370-L-BE Control ............................................................................................................... 5
370-L-DT & 372-L-DT Control .......................................................................................................... 6
371-L & 371-L-BE Control ............................................................................................................... 7
372-T & 372-T-BE Control ............................................................................................................... 8
373-L & 373-L-BE Control ............................................................................................................... 9
374-T, 374-T-BE, 376-T, 376-T-BE, 376-T-WDC & 376-T-WDC-BE CONTROL ................................... 10
374-T, 374-T-BE Rod Member Kits .................................................................................................. 11
376-T, 376-T-BE Rod Member Kits .................................................................................................. 11
374-T-WDC, 374-T-WDC-BE Rod Member Kits ................................................................................ 11
377-T & 377-T-BE Control ............................................................................................................. 12
360-L & 360-L-BE Control ............................................................................................................. 13
360-T & 360-T-BE Control ............................................................................................................. 14
360-L-DT Control ........................................................................................................................... 15
E360-L-BE Control........................................................................................................................ 16
General Information
Introduction ..................................................................................................................................... 2
How to Order ..................................................................................................................................2
Part Number Changes .................................................................................................................... 2
Mounting Scew Packages .............................................................................................................. 2
Control Levers ................................................................................................................................. 3
Kits Required to Change Handing on Lever Controls ....................................................................... 3
Cylinder Mount Accessories ........................................................................................................... 3
INTRODUCTION
This manual contains a listing of replaceable parts and assemblies for the 360/370 Series Controls.
HOW TO ORDER
Some parts are sold separately. Other items are available as part of a kit or multiple quantity package.
For the best possible service when ordering replacement parts or assemblies, please provide the following
information:
sPart number or assembly number
sDescription
sQuantity needed
sFinish desired (if available finished)
sDate of original purchase (if known)
To find out the name of your local Von Duprin distributor or sales representative, contact:
Von Duprin Division
Allegion
2720 Tobey Drive
Indianapolis, IN 46219
Phone: (877) 671-7011
PART NUMBER AND AVAILABILITY CHANGES
MOUNTING SCREW PACKAGES
Description 371/373/378 374/376/377 375
Part number Part number Part number
Screw Package 1 3/4" Dr 900807 900809 900883
Screw Package 2 1/4" Dr 900808 900810 900884
This manual was designed to help illustrate the replacement parts and kits that are available for sale.
Because of changes to the product and/or manufacturing process, part numbers and availability can
change over time.
Von Duprin • 360/370 Series Controls Service Manual • 3

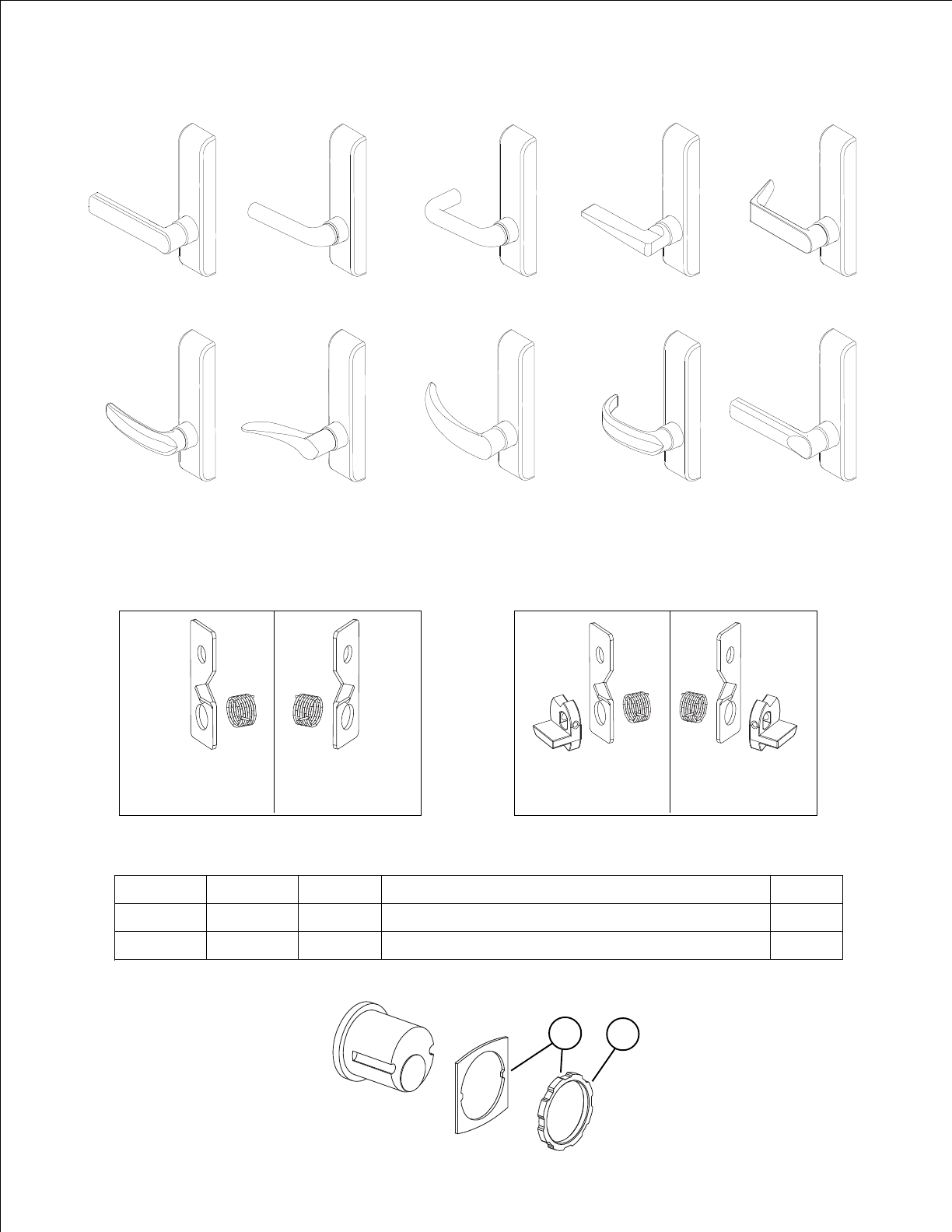

CONTROL LEVERS
#01 #02 #03 #05 #06
#07 #12 #16 #17 #18
KITS REQUIRED TO CHANGE HANDING ON LEVER CONTROLS
372-L
370-L/371-L/373-L
111274-00 RHR
Parts Kit
111275-00 LHR
Parts Kit
111276-00 RHR
Parts Kit
111277-00 LHR
Parts Kit
CYLINDER MOUNT ACCESSORIES
Item No. Quantity Part No. Description Finish
1 1 050526 Cylinder Locknut
2 1 109111 Cylinder Locknut & Washer
Note: 360 series trims require locknut only, 370 series require washer & locknut
1
2
4 • Von Duprin • 360/370 Series Controls Service Manual

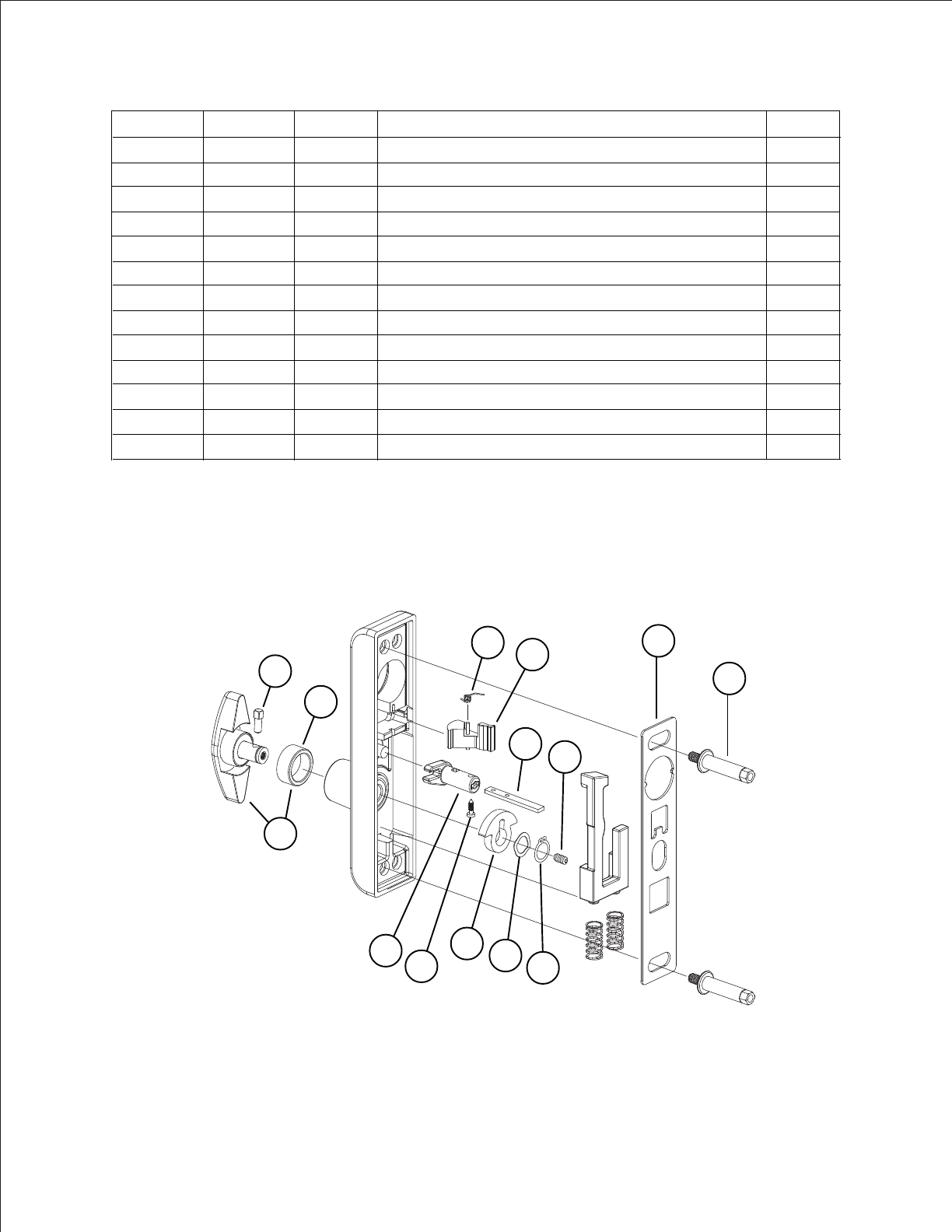

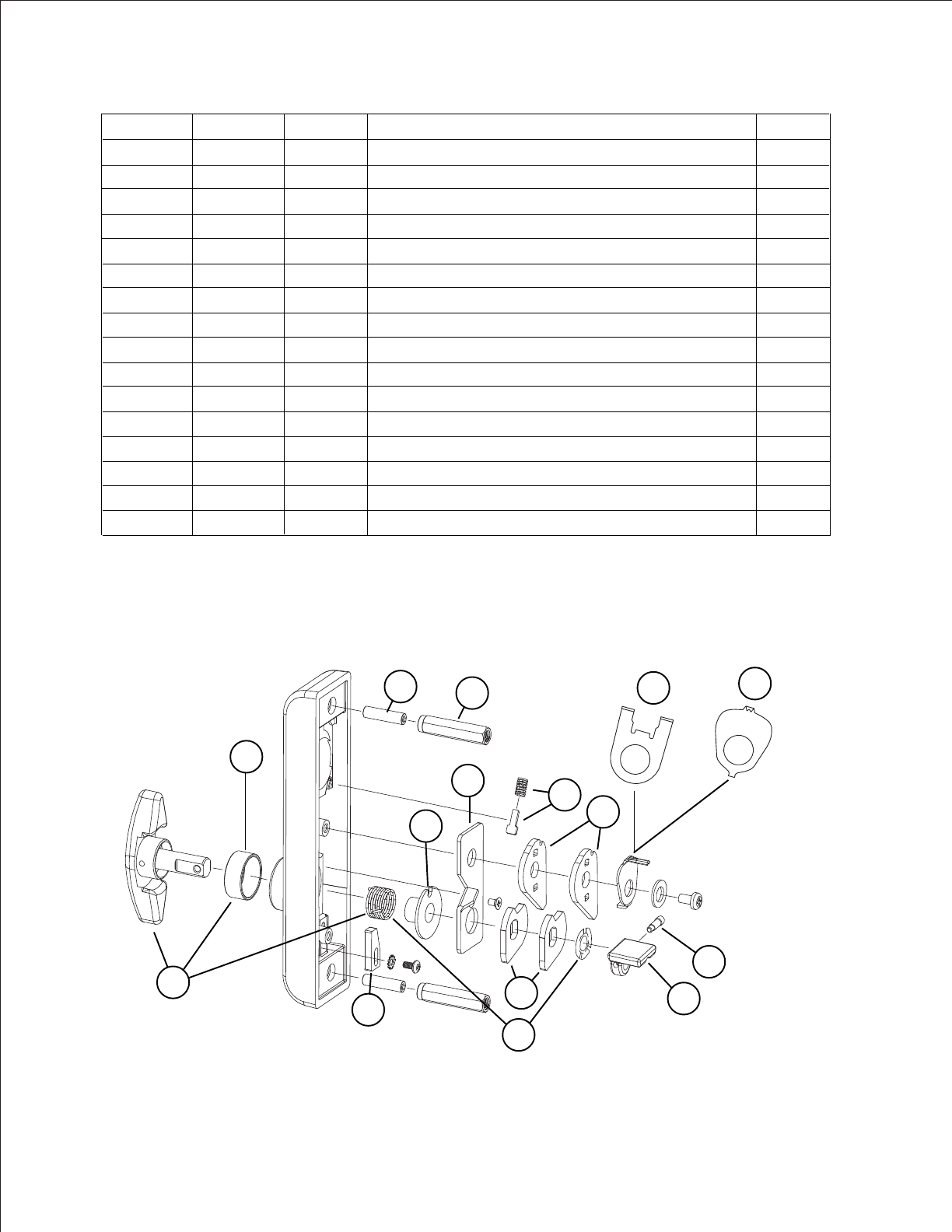

370-T & 370-T-BE CONTROL
Item No. Quantity Part No. Description Finish
1 1 050592 XtiK nrutbmuhT
2 1 050619 Thumbturn Sleeve
3 2 090096 Mounting Stud Pkg/2
4 1 050621 Washer - Bearing
5 1 050597 Backplate RHR
6 2 090090 Cylinder Lock Pkg/2 (Not used on BE)
7 1 050616 Thumbturn Control Spring & Washer Kit
8 2 050602 Lever Shaft Lock
1 090097 Cam Retaining Screw Pkg/4
10 1 050576 Lever Adjustment Block
11 1 050607 Dogging Spring and Guide Kit (Not used on BE)
12 1 050599 NL Cylinder Plate (Not used on BE)
13 1 050600 TL Cylinder Plate (Not used on BE)
X in “Finish” column designates finished items; finish must be specified when ordering.
9
5
10
3
4
8
6
11
12
1
2
13
7
9
Von Duprin • 360/370 Series Controls Service Manual • 5

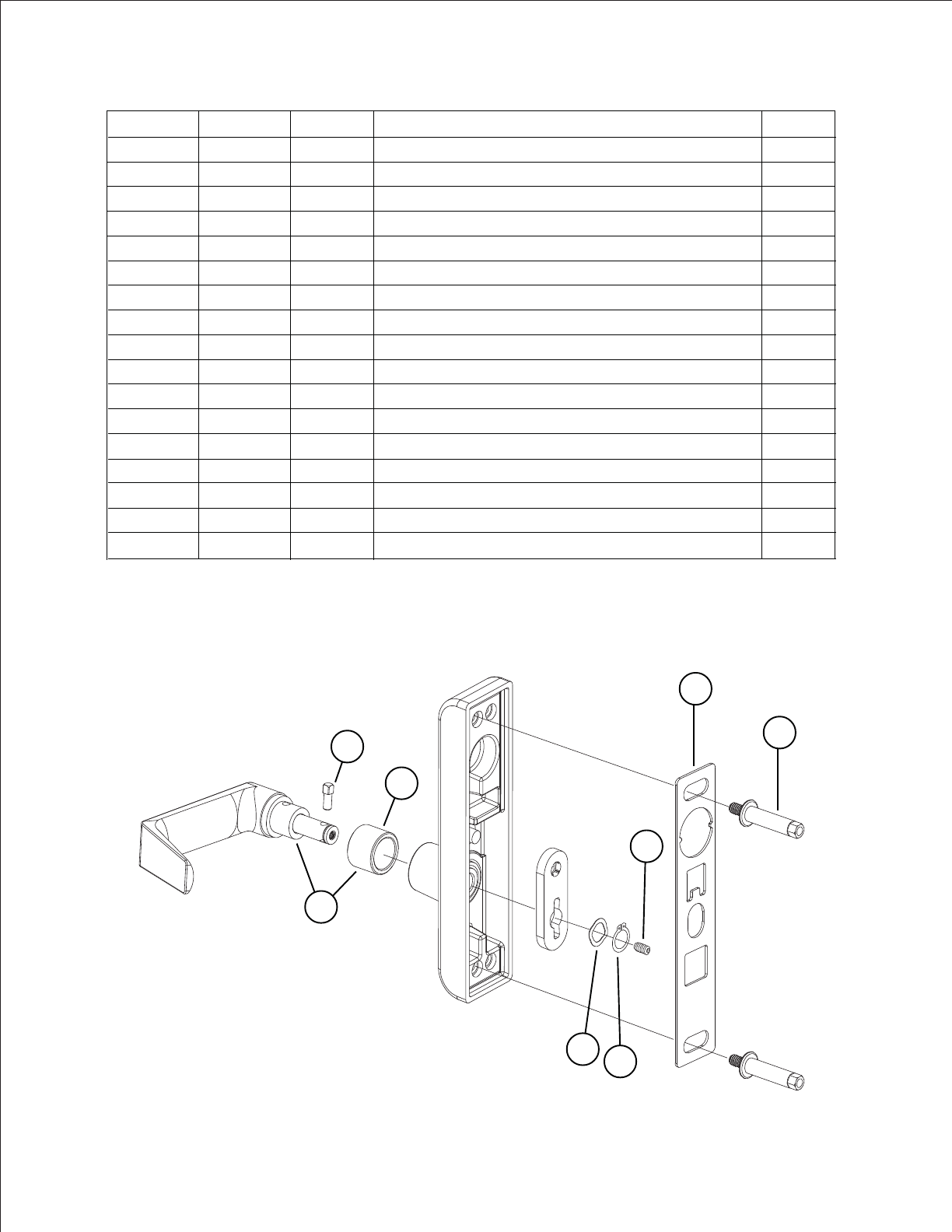

370-L & 370-L-BE CONTROL
Item No. Quantity Part No. Description Finish
XtiK reveL 10#05705011
XtiK reveL 20#25705011
XtiK reveL 30#45705011
XtiK reveL 60#65705011
XtiK reve
L 70#85705011
XtiK reveL 71#06705011
XtiK RHR reveL 21#26705011
XtiK RHL reveL 21#46705011
2 1 050601 Lever Bushing
3 1 090092 Lever Control Spring RHR Pkg/4
3 1 090091 Lever Control Spring LHR Pkg/4
4 2 090096 Mounting Stud Pkg/2
5 1 050621 Washer - Bearing
6 1 050597 Backplate RHR
6 1 050596 Backplate LHR
7 2 090090 Cylinder Lock Pkg/2 (Not used on BE)
8 3 090103 Washer - Wave Spring Pkg/10
9 2 050602 Lever Shaft Lock
10 1 090097 Cam Retaining Screw Pkg/4
11 1 050576 Lever Adjustment Block
12 1 050607 Dogging Spring and Guide Kit (Not used on BE)
13 1 050599 NL Cylinder Plate (Not used on BE)
14 1 050600 TL Cylinder Plate (Not used on BE)
X in “Finish” column designates finished items; finish must be specified when ordering.
10
6
11
4
5
7
12
1
2
3
9
8
13 14
6 • Von Duprin • 360/370 Series Controls Service Manual

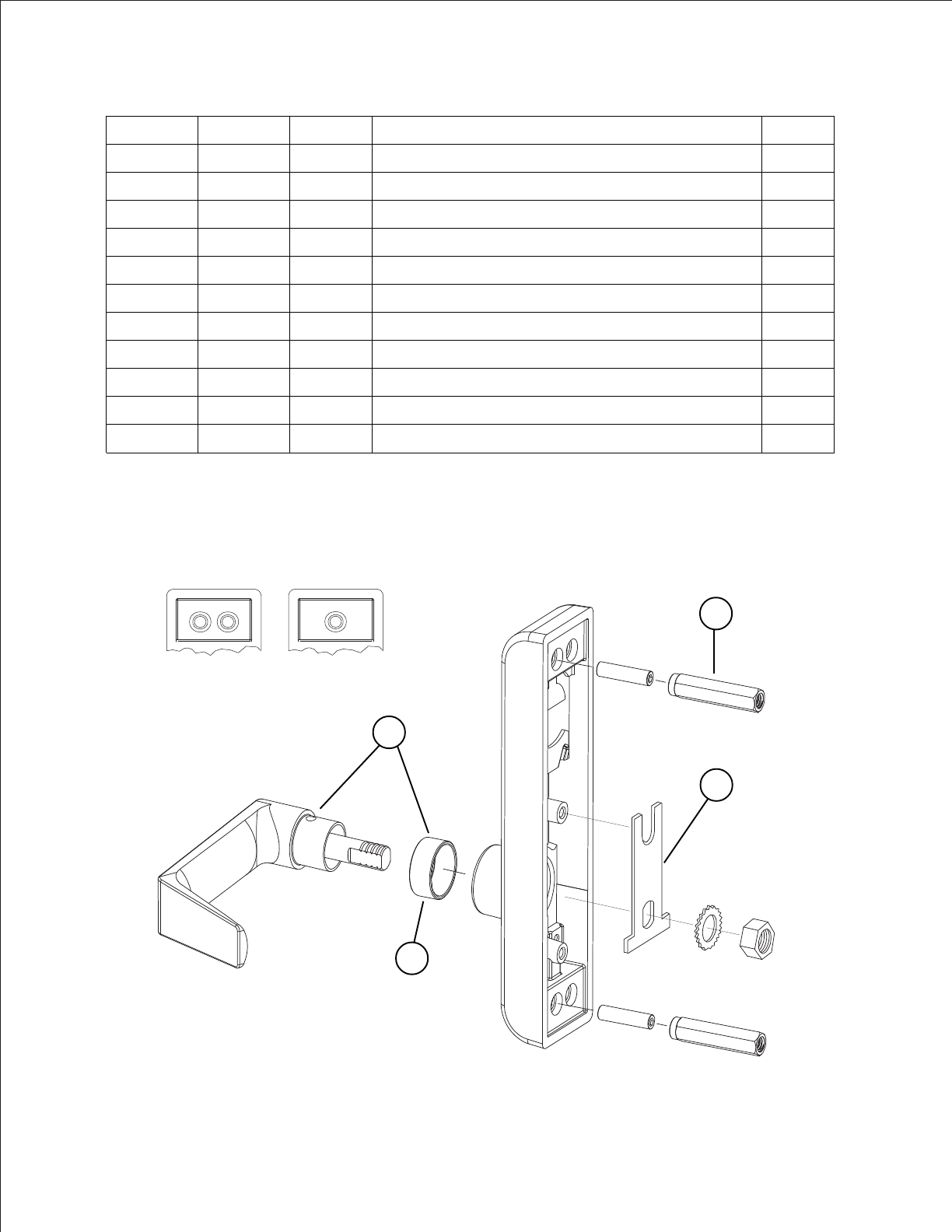

370-L-DT & 372-L-DT CONTROL
Item No. Quantity Part No. Description Finish
XtiK reveL TD 10#15705011
XtiK reveL TD 20#35705011
XtiK reveL TD 30#55705011
XtiK reveL TD 60#7570
5011
XtiK reveL TD 70#95705011
XtiK reveL TD 71#16705011
XtiK RHR reveL TD 21#36705011
XtiK RHL reveL TD 21#56705011
2 1 050601 Lever Bushing
3 2 090096 Mounting Stud Pkg/2
4 1 050598 Backplate - L-DT
X in “Finish” column designates finished items; finish must be specified when ordering.
3
1
2
372-L-DT
372-L-DT 370-L-DT
4
Von Duprin • 360/370 Series Controls Service Manual • 7

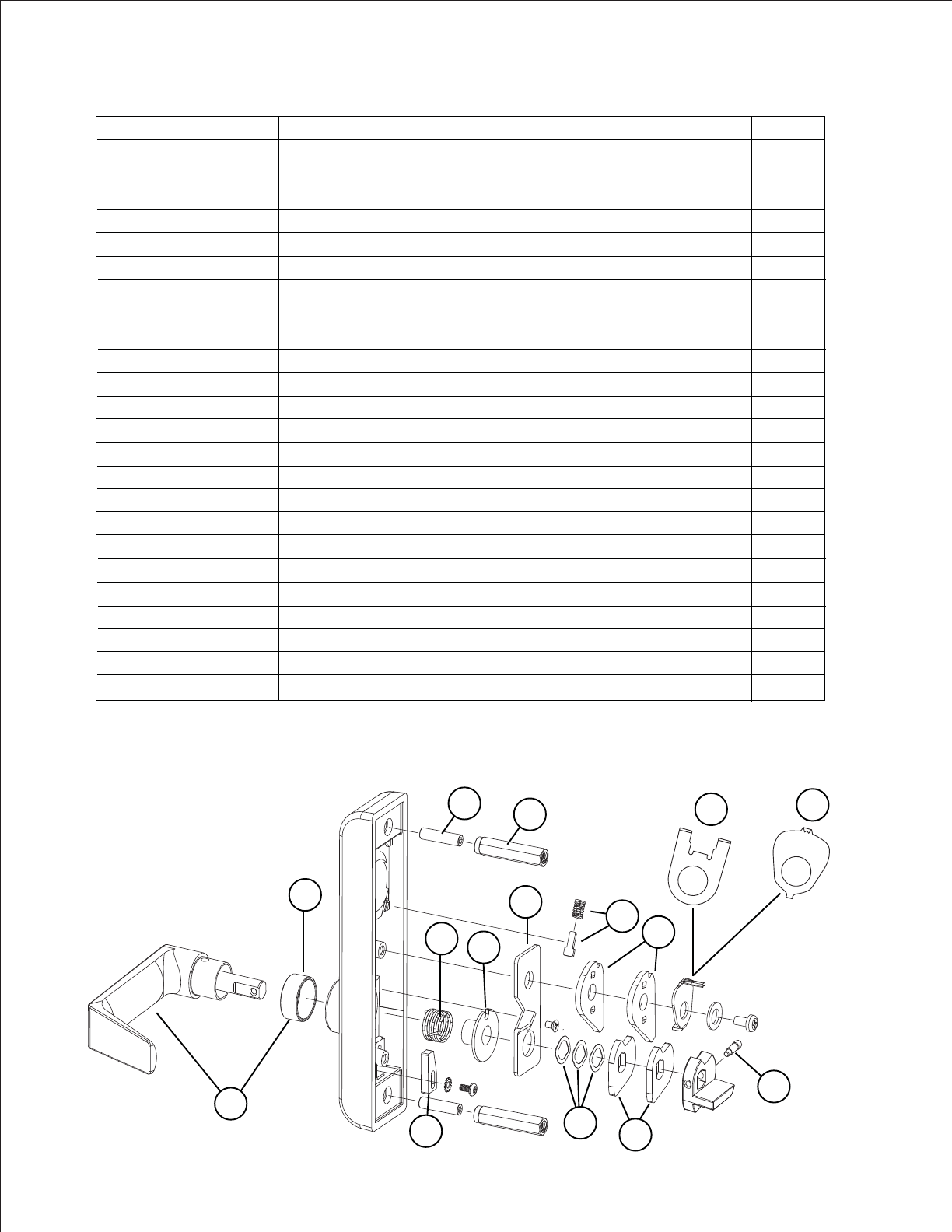

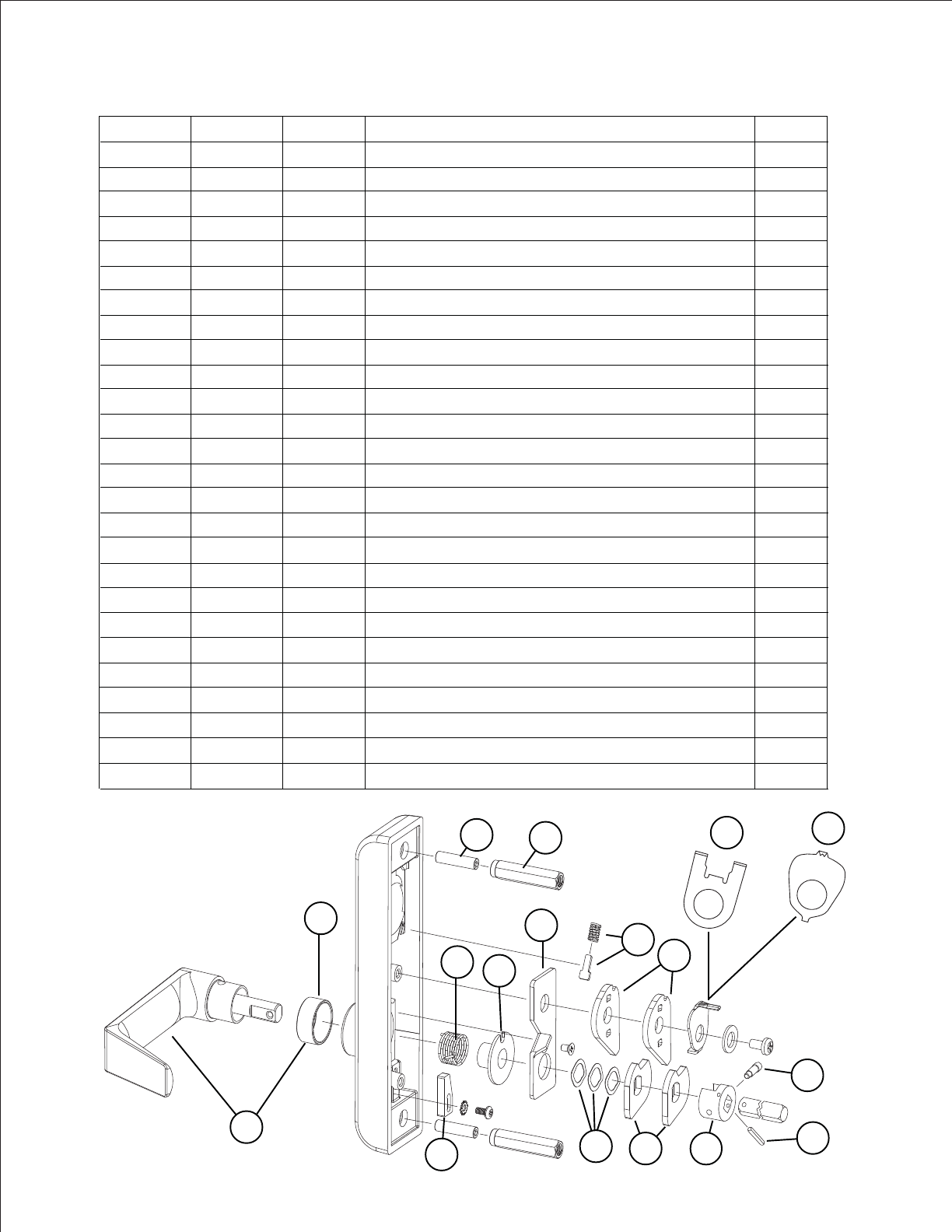

371-L & 371-L-BE CONTROL
Item No. Quantity Part No. Description Finish
XtiK reveL 10#05705011
XtiK reveL 20#25705011
XtiK reveL 30#45705011
XtiK reveL 60#65705011
XtiK reve
L 70#85705011
XtiK reveL 71#06705011
XtiK RHR reveL 21#26705011
XtiK RHL reveL 21#46705011
2 1 050601 Lever Bushing
3 1 090092 Lever Control Spring RHR Pkg/4
3 1 090091 Lever Control Spring LHR Pkg/4
4 2 090095 Mounting Stud Pkg/2
5 1 050621 Washer - Bearing
6 1 050597 Backplate RHR
6 1 050596 Backplate LHR
7 2 090090 Cylinder Lock Pkg/2 (Not used on BE)
8 3 090103 Washer - Wave Spring Pkg/10
9 2 050602 Lever Shaft Lock
10 1 090097 Cam Retaining Screw Pkg/4
11 1 050576 Lever Adjustment Block
12 1 050607 Dogging Spring and Guide Kit (Not used on BE)
13 1 050599 NL Cylinder Plate (Not used on BE)
14 1 050600 TL Cylinder Plate (Not used on BE)
15 1 050606 Cam - Vertical Rod
16 1 109126 371-L Rod Member Kit 1-3/4” Dr
16 1 109127 371-L Rod Member Kit 2-1/4” Dr
17 2 963584 Threaded Studs
X in “Finish” column designates finished items; finish must be specified when ordering.
10
6
11
4
5
7
12
1
2
3
9
8
13
15
14
16
17
8 • Von Duprin • 360/370 Series Controls Service Manual

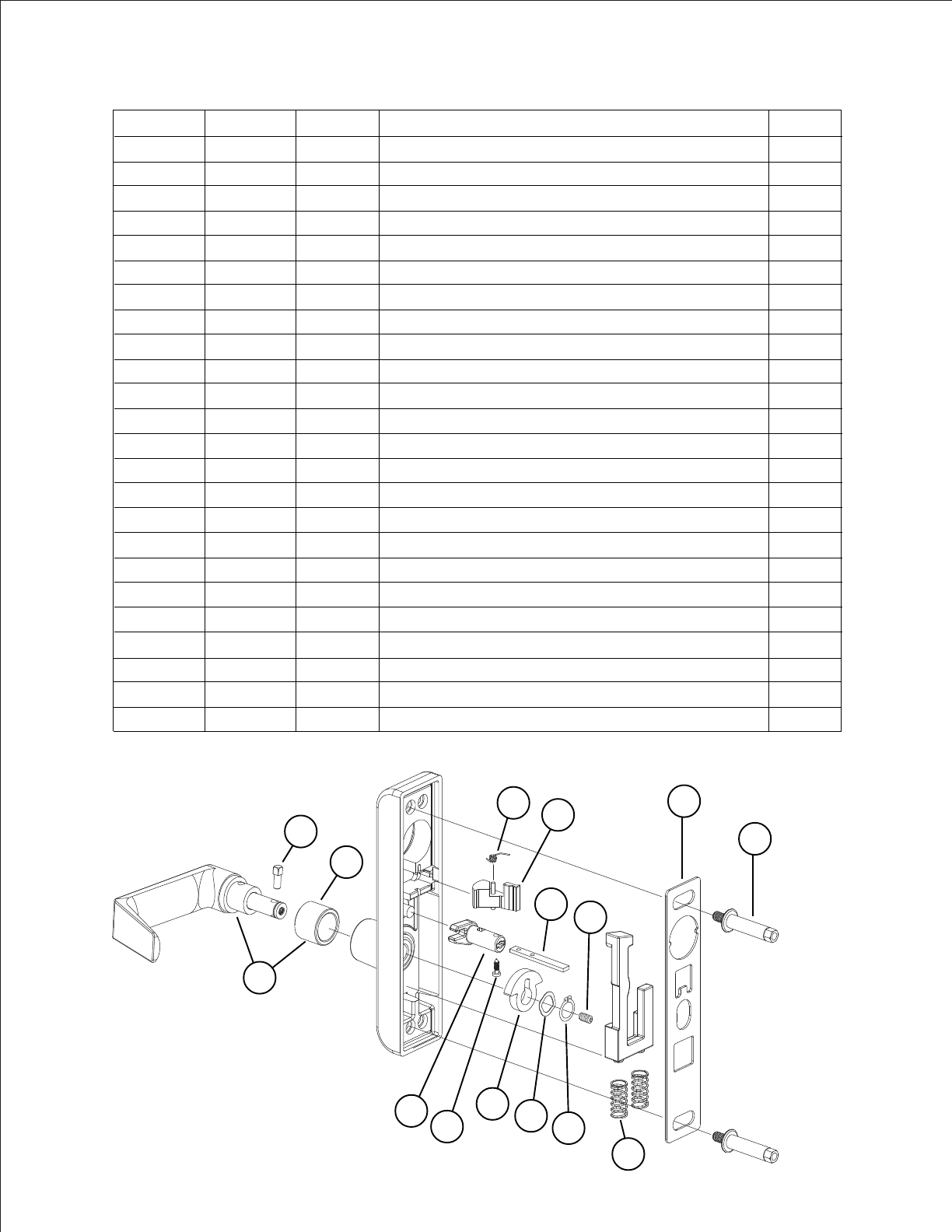

372-L & 372-L-BE CONTROL
Item No. Quantity Part No. Description Finish
XtiK reveL 10#05705011
XtiK reveL 20#25705011
XtiK reveL 30#45705011
XtiK reveL 60#65705011
XtiK rev
eL 70#85705011
XtiK reveL 71#06705011
XtiK RHR reveL 21#26705011
XtiK RHL reveL 21#46705011
2 1 050601 Lever Bushing
3 1 090092 Lever Control Spring RHR Pkg/4
3 1 090091 Lever Control Spring LHR Pkg/4
4 2 090096 Mounting Stud Pkg/2
5 1 050621 Washer - Bearing
6 1 050597 Backplate RHR
6 1 050596 Backplate LHR
7 2 090090 Cylinder Lock Pkg/2 (Not used on BE)
8 3 090103 Washer - Wave Spring Pkg/10
9 2 050602 Lever Shaft Lock
10 1 090097 Cam Retaining Screw Pkg/4
11 1 050576 Lever Adjustment Block
12 1 050607 Dogging Spring and Guide Kit (Not used on BE)
13 1 050599 NL Cylinder Plate (Not used on BE)
14 1 050600 TL Cylinder Plate (Not used on BE)
15 2 963584 Threaded Studs
X in “Finish” column designates finished items; finish must be specified when ordering.
10
6
11
4
5
7
12
1
2
3
9
8
13 14
15
Von Duprin • 360/370 Series Controls Service Manual • 9

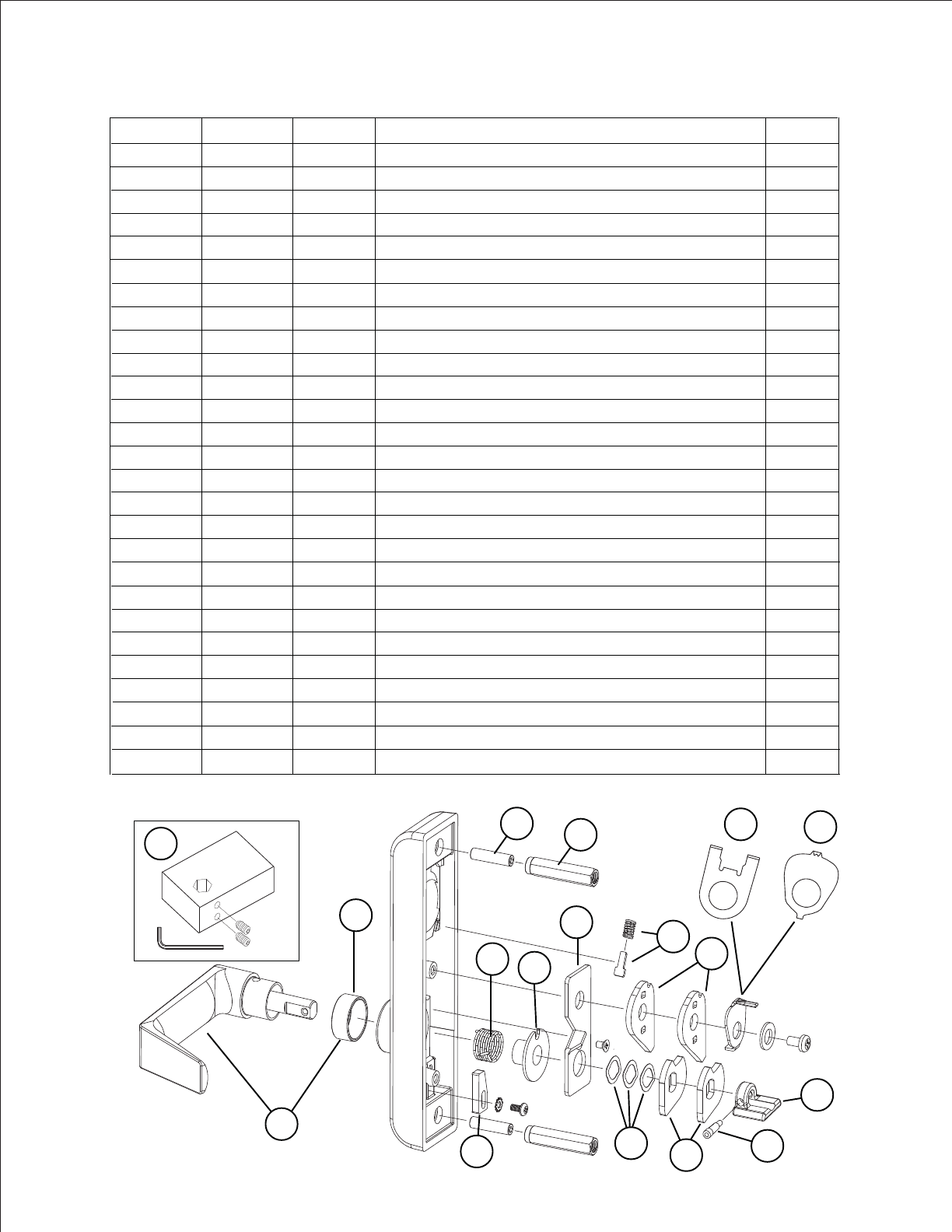

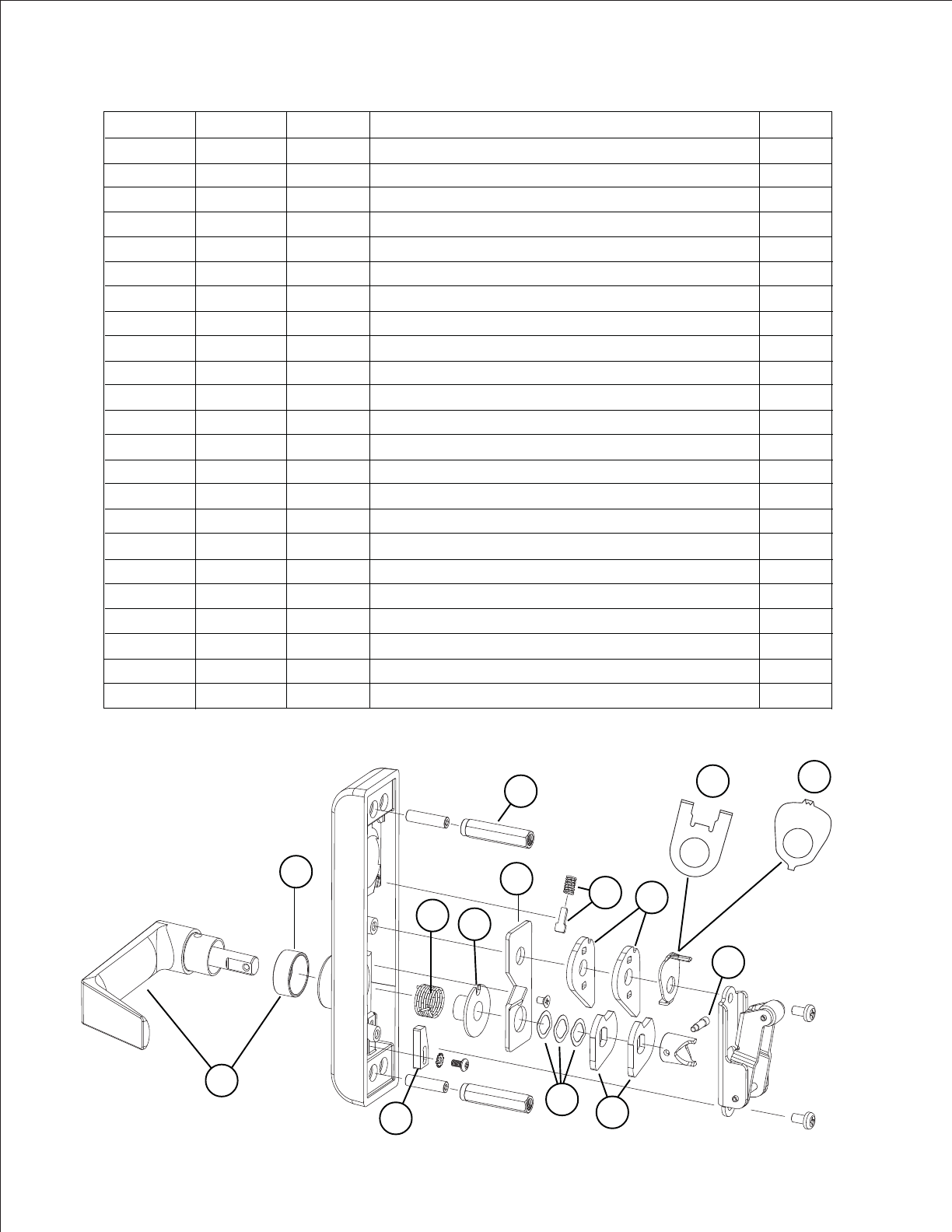

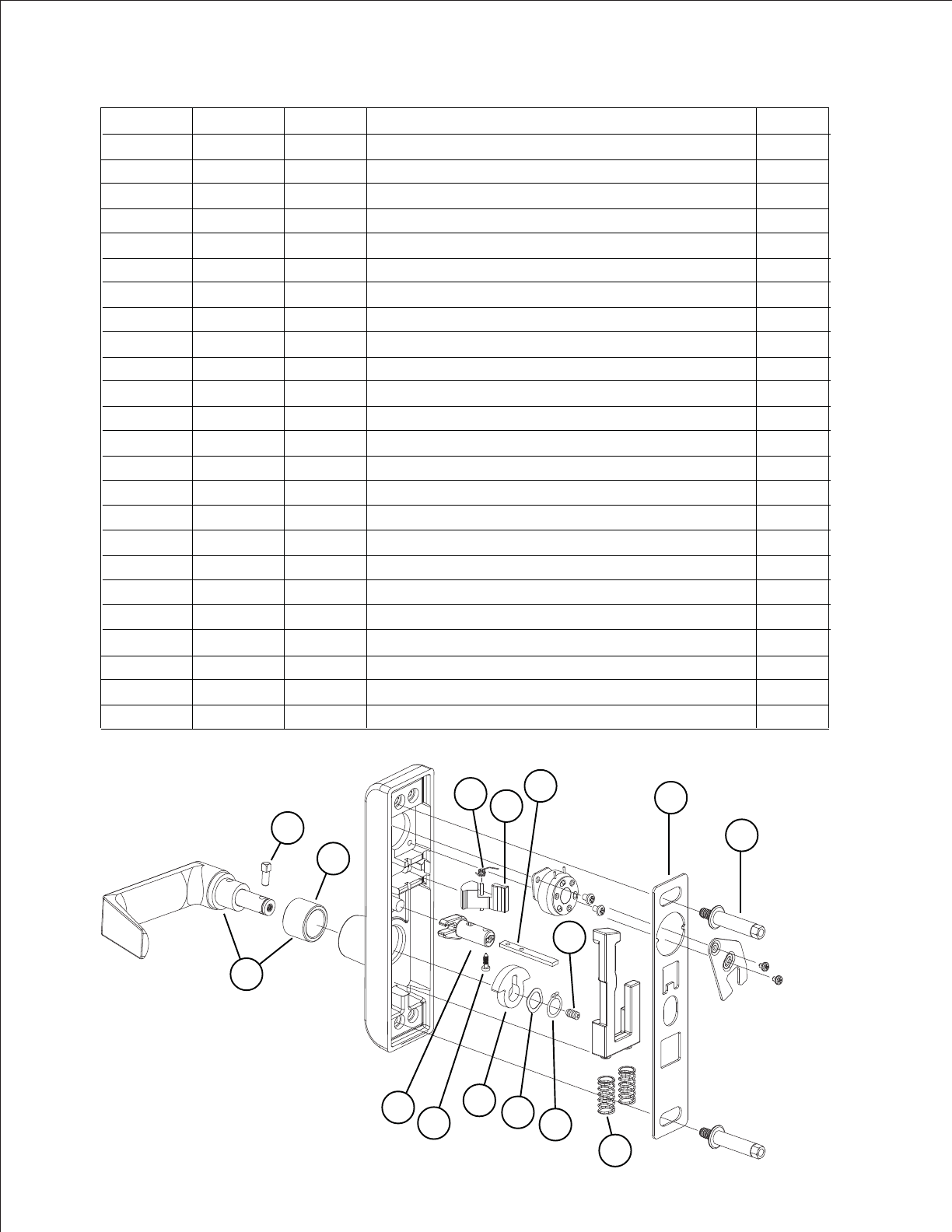

373-L & 373-L-BE CONTROL
Item No. Quantity Part No. Description Finish
XtiK reveL 10#05705011
XtiK reveL 20#25705011
XtiK reveL 30#45705011
XtiK reveL 60#65705011
XtiK reveL 70#85705011
XtiK reveL 71#06705011
XtiK RHR reveL 21#26705011
XtiK RHL reveL 21#46705011
2 1 050601 Lever Bushing
3 1 090092 Lever Control Spring RHR Pkg/4
3 1 090091 Lever Control Spring LHR Pkg/4
4 2 090095 Mounting Stud Pkg/2
5 1 050621 Washer - Bearing
6 1 050597 Backplate RHR
6 1 050596 Backplate LHR
7 2 090090 Cylinder Lock Pkg/2 (Not used on BE)
8 3 090103 Washer - Wave Spring Pkg/10
9 2 050602 Lever Shaft Lock
10 1 090097 Cam Retaining Screw Pkg/4
11 1 050576 Lever Adjustment Block
12 1 050607 Dogging Spring and Guide Kit (Not used on BE)
13 1 050599 NL Cylinder Plate (Not used on BE)
14 1 050600 TL Cylinder Plate (Not used on BE)
15 1 050609 Mortise Adaptor
16 1 090098 Pin - Spiral 3/32 x 19/32 Pkg/4
17 2 963584 Threaded Studs
X in “Finish” column designates finished items; finish must be specified when ordering.
10
6
11
4
5
7
12
1
2
3
9
8
13 14
16
15
17
10 • Von Duprin • 360/370 Series Controls Service Manual

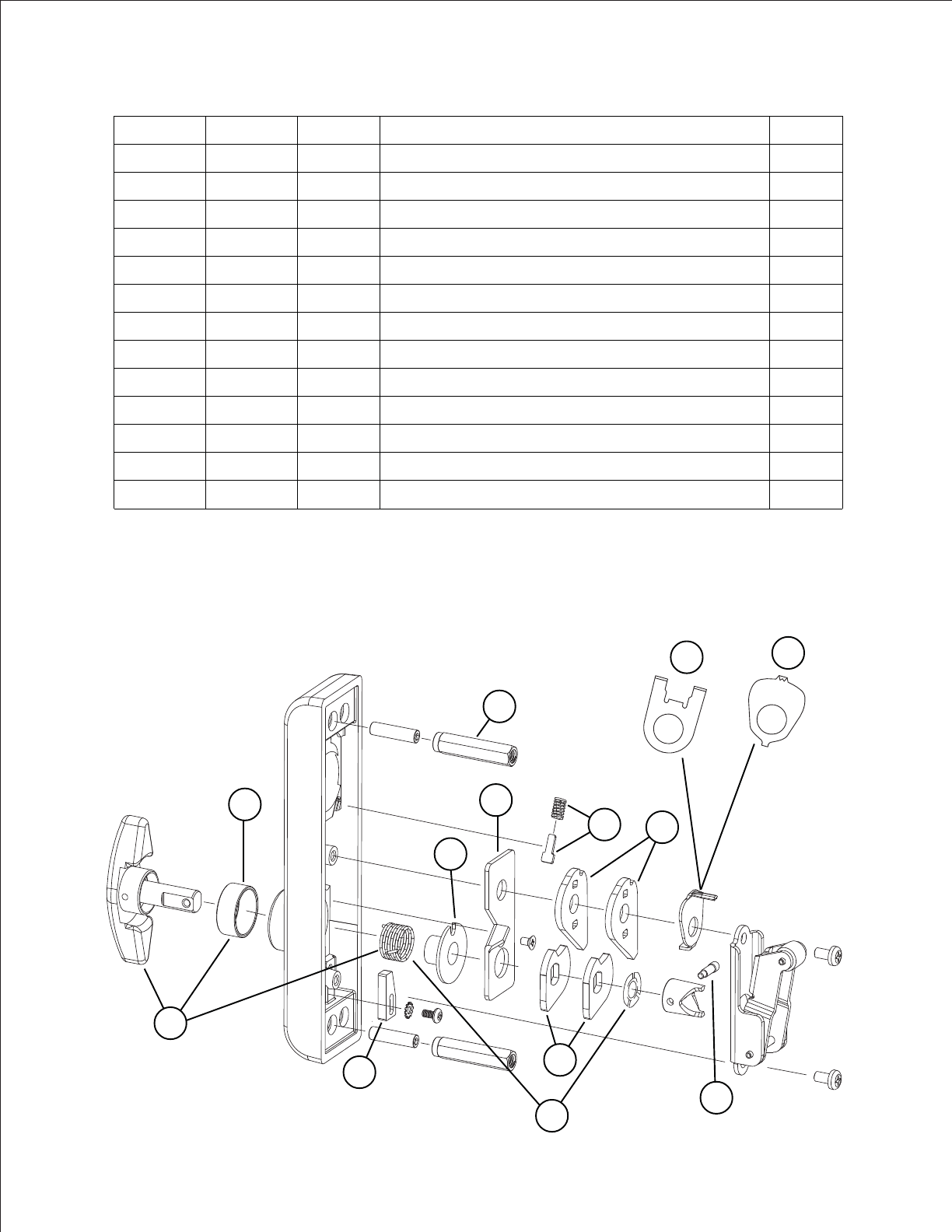

374-T, 374-T-BE, 376-T, 376-T-BE, 376-T-WDC & 376-T-WDC-BE CONTROL
9
5
10
3
4
6
11
1
12 13
14
8
7
Item No. Quantity Part No. Description Finish
1 1 050592 XtiK nrutbmuhT
2 1 050619 Thumbturn Sleeve
3 2 090096 Mounting Stud Pkg/2
4 1 050621 Washer - Bearing
5 1 050597 Backplate RHR
5 1 050596 Backplate LHR
6 2 090090 Cylinder Lock Pkg/2 (Not used on BE)
7 1 050616 Thumbturn Control Spring & Washer Kit
8 2 050602 Lever Shaft Lock
9 1 090097 Cam Retaining Screw Pkg/4
10 1 050576 Lever Adjustment Block
11 1 050607 Dogging Spring and Guide Kit (Not used on BE)
12 1 050599 NL Cylinder Plate (Not used on BE)
13 1 050600 TL Cylinder Plate (Not used on BE)
14 1 050606 Cam - Vertical Rod
15 2 963584 Threaded Studs
X in “Finish” column designates finished items; finish must be specified when ordering.
15
2
Von Duprin • 360/370 Series Controls Service Manual • 11

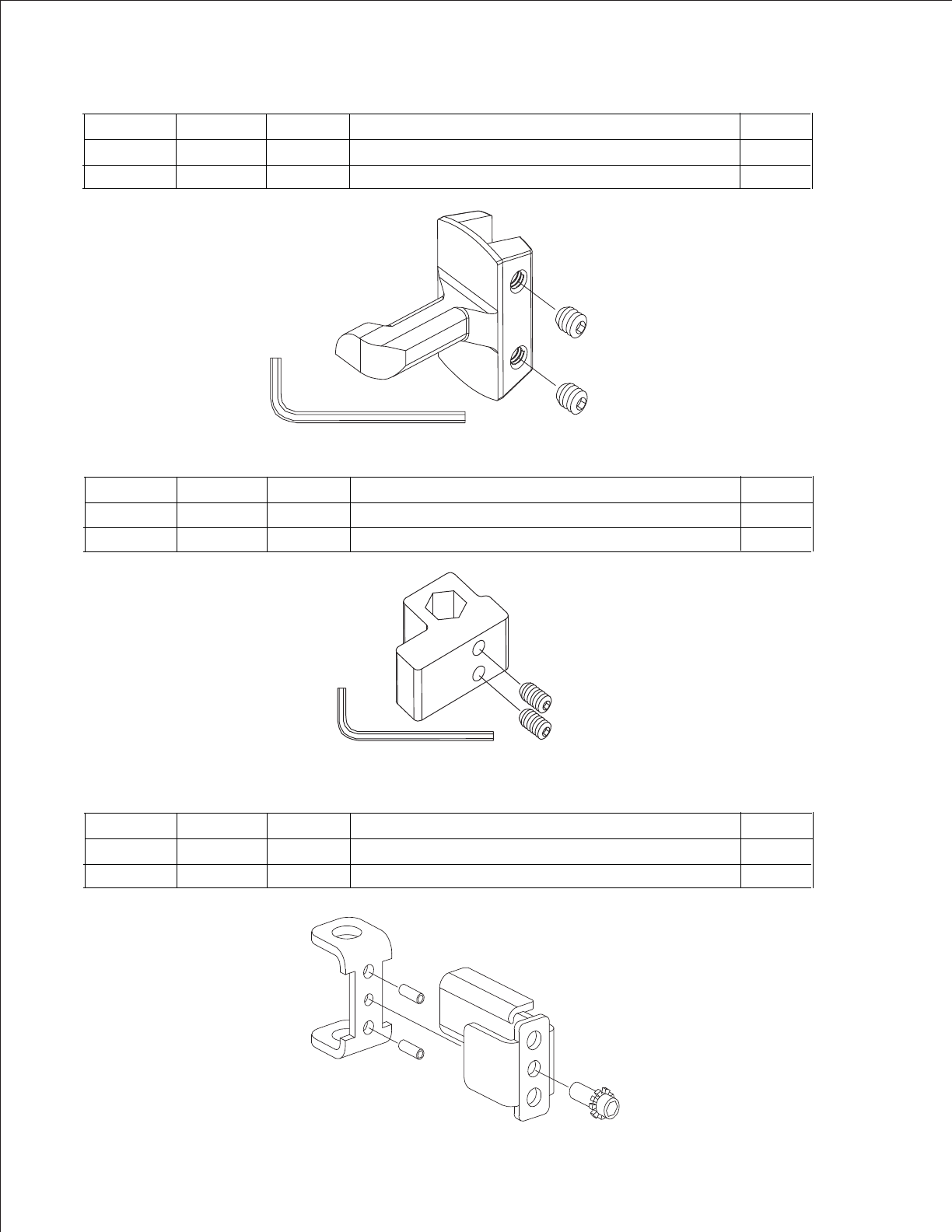

374-T & 374-T-BE ROD MEMBER KITS
376-T & 376-T-BE ROD MEMBER KITS
376-T-WDC & 376-T-WDC-BE ROD MEMBER KITS
Item No. Quantity Part No. Description Finish
16 1 109366 374-T Rod Member Kit 1-3/4” Dr. X
16 1 109367 374-T Rod Member Kit 2-1/4” Dr. X
Item No. Quantity Part No. Description Finish
17 1 109112 376-T Rod Member Kit 1-3/4” Dr. X
17 1 109115 376-T Rod Member Kit 2-1/4” Dr. X
Item No. Quantity Part No. Description Finish
18 1 900558 376-T-WDC Rod Member Kit 1-3/4” Dr.
18 1 900559 376-T -WDC Rod Member Kit 2-1/4” Dr.
12 • Von Duprin • 360/370 Series Controls Service Manual

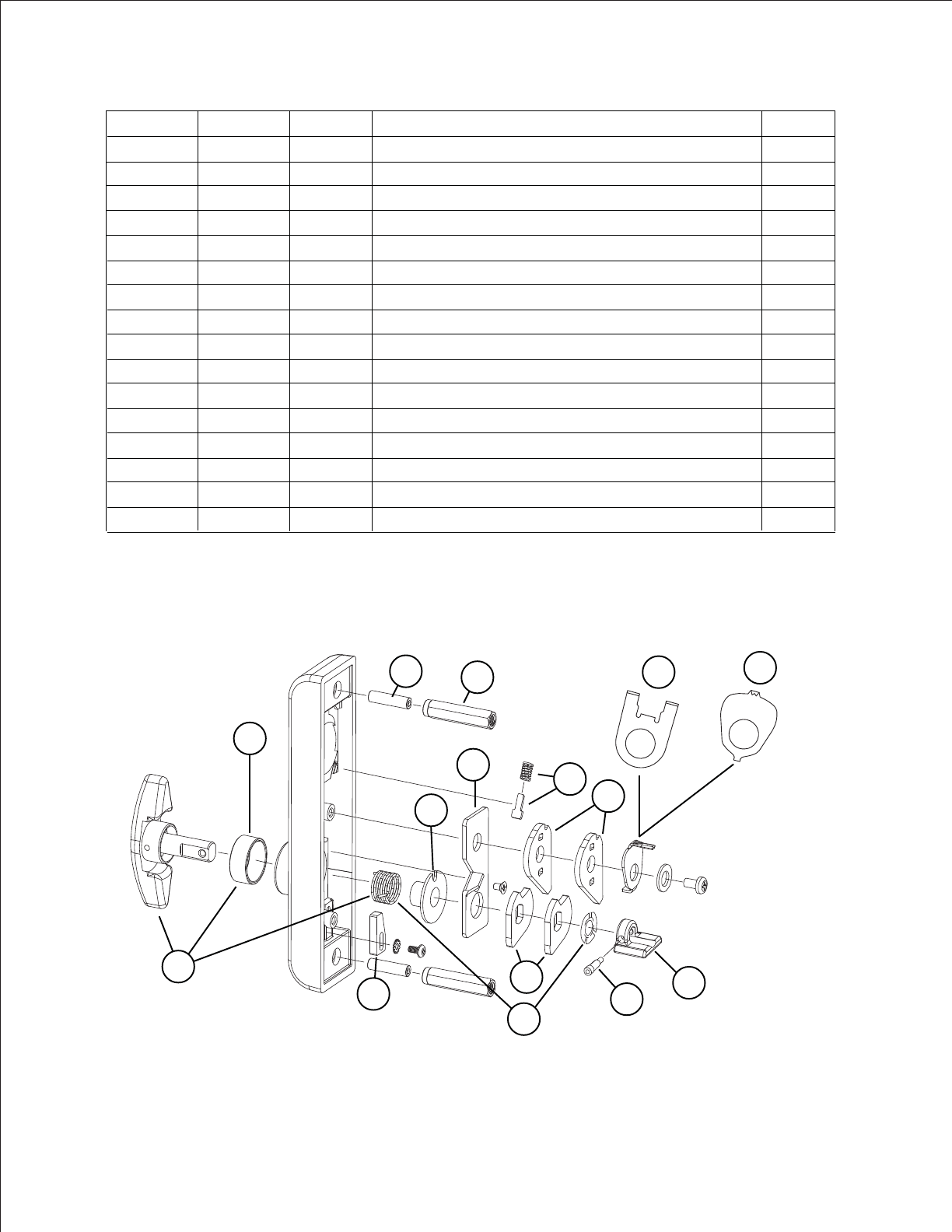

377-T & 377-T-BE CONTROL
9
5
10
3
4
6
11
1
2
12 13
14
8
7
Item No. Quantity Part No. Description Finish
1 1 050592 XtiK nrutbmuhT
2 1 050619 Thumbturn Sleeve
3 2 090096 Mounting Stud Pkg/2
4 1 050621 Washer - Bearing
5 1 050597 Backplate RHR
5 1 050596 Backplate LHR
6 2 090090 Cylinder Lock Pkg/2 (Not used on BE)
7 1 050616 Thumbturn Control Spring & Washer Kit
8 2 050602 Lever Shaft Lock
9 1 090097 Cam Retaining Screw Pkg/4
10 1 050576 Lever Adjustment Block
11 1 050607 Dogging Spring and Guide Kit (Not used on BE)
12 1 050599 NL Cylinder Plate (Not used on BE)
13 1 050600 TL Cylinder Plate (Not used on BE)
14 1 050606 Cam - Vertical Rod
15 2 963584 Threaded Studs
X in “Finish” column designates finished items; finish must be specified when ordering.
15
Von Duprin • 360/370 Series Controls Service Manual • 13
360-L & 360-L-BE CONTROL
Item No. Quantity Part No. Description Finish
XtiK reveL 10#10005011
XtiK reveL 20#20005011
XtiK reveL 30#30005011
XtiK reveL 50#80005011
XtiK reveL 60#60005011
XtiK reveL 70#70005011
XtiK RHR reveL 21#21005011
XtiK RHL reveL 21#31005011
XtiK reveL 61#90005011
XtiK reveL 71#71005011
XtiK reveL 81#01005011
2 2 090094 Mounting Stud Pkg/2
3 1 050595 Backplate
4 1 050579 Lever Bushing
5 2 090093 Lever Return Spring Pkg/2
6 1 050605 Cam - Output
7 1 050608 Locking Member (Not used on BE)
8 1 050611 Shear Pin Kit
9 1 050615 Spring - Locking Torsion (Not used on BE)
10 1 050587 Tailpiece
11 1 090103 Washer - Wave Spring Pkg/10
12 1 050604 Cam - Input
13 1 090099 Pine Tree Clip Pkg/10
14 1 090101 Socket Set Screw 10-32 x 1/4 Pkg/10
X in “Finish” column designates finished items; finish must be specified when ordering.
10
611
3
4
5
9
14
1
2
7
8
8
12
13
14 • Von Duprin • 360/370 Series Controls Service Manual
360-T & 360-T-BE CONTROL
Item No. Quantity Part No. Description Finish
1 1 050593 XtiK nrutbmuhT
2 2 090094 Mounting Stud Pkg/2
3 1 050595 Backplate
4 1 050579 Lever Bushing
5 1 050605 Cam - Output
6 1 050608 Locking Member (Not used on BE)
7 1 050611 Shear Pin Kit
8 1 050615 Spring - Locking Torsion (Not used on BE)
9 1 050587 Tailpiece
10 1 090103 Washer - Wave Spring Pkg/10
11 1 050604 Cam - Input
12 1 090099 Pine Tree Clip Pkg/10
13 1 090101 Socket Set Screw 10-32 x 1/4 Pkg/10
X in “Finish” column designates finished items; finish must be specified when ordering.
9
510
3
4
8
13
1
2
6
7
7
11
12
Von Duprin • 360/370 Series Controls Service Manual • 15
2
3
65
7
1
5
4
360-L-DT CONTROL
Item No. Quantity Part No. Description Finish
XtiK reveL 10#10005011
XtiK reveL 20#20005011
XtiK reveL 30#30005011
XtiK reveL 50#80005011
XtiK rev
eL 60#60005011
XtiK reveL 70#70005011
XtiK RHR reveL 21#21005011
XtiK RHL reveL 21#31005011
XtiK reveL 61#90005011
XtiK reveL 71#71005011
XtiK reveL 81#01005011
2 2 090094 Mounting Stud Pkg/2
3 1 050595 Backplate
4 1 050579 Lever Bushing
5 1 050611 Shear Pin Kit
6 1 090103 Washer - Wave Spring Pkg/10
7 1 090101 Socket Set Screw 10-32 x 1/4 Pkg/10
X in “Finish” column designates finished items; finish must be specified when ordering.
16 • Von Duprin • 360/370 Series Controls Service Manual
E360-L-BE CONTROL
Item No. Quantity Part No. Description Finish
XtiK reveL 10#10005011
XtiK reveL 20#20005011
XtiK reveL 30#30005011
XtiK reveL 50#80005011
XtiK reve
L 60#60005011
XtiK reveL 70#70005011
XtiK RHR reveL 21#21005011
XtiK RHL reveL 21#31005011
XtiK reveL 61#90005011
XtiK reveL 71#71005011
XtiK reveL 81#01005011
2 2 090094 Mounting Stud Pkg/2
3 1 050595 Backplate
4 1 050579 Lever Bushing
5 2 090093 Lever Return Spring Pkg/2
6 1 050605 Cam - Output
7 1 050608 Locking Member (Not used on BE)
8 1 050611 Shear Pin Kit
9 1 050615 Spring - Locking Torsion (Not used on BE)
10 1 050587 Tailpiece
11 1 090103 Washer - Wave Spring Pkg/10
12 1 050604 Cam - Input
13 1 090099 Pine Tree Clip Pkg/10
14 1 090101 Socket Set Screw 10-32 x 1/4 Pkg/10
X in “Finish” column designates finished items; finish must be specified when ordering.
611
3
4
5
9
14
1
2
7
8
8
12
13
10
Von Duprin • 360/370 Series Controls Service Manual • 17
Allegion (NYSE: ALLE) creates peace of mind by pioneering safety and security.
As a $2 billion provider of security solutions for homes and businesses, Allegion
employs more than 7,800 people and sells products in more than 120 countries
across the world. Allegion comprises 23 global brands, including strategic
brands CISA®
, Interfl ex®
, LCN®
, Schlage® and Von Duprin®
.
For more, visit www.allegion.com.
About Allegion
© 2014 Allegion
106793, Rev. 11/14
www.allegion.com/us
