Voxx Electronics AEKTF03 REMOTE CONTROL ENGINE STARTER User Manual G412V 01 05

DEI Headquarters, Inc. REMOTE CONTROL ENGINE STARTER G412V 01 05

USERS MANUAL

AstroLock
Model VKE-103
Owner’s Guide
lliimmiitteedd lliiffeettiimmee ccoonnssuummeerr wwaarrrraannttyy
Directed Electronics, Inc. ("Directed") promises to the original purchaser to repair or
replace with a comparable reconditioned model any Directed unit (hereafter the "unit"),
excluding without limitation the siren, the remote transmitters, the associated sensors and
accessories, which proves to be defective in workmanship or material under reasonable use
during the lifetime of the vehicle provided the following conditions are met: the unit was
professionally installed and serviced by an authorized Directed dealer; the unit will be pro-
fessionally reinstalled in the vehicle in which it was originally installed by an authorized
Directed dealer; and the unit is returned to Directed, shipping prepaid with a legible copy
of the bill of sale or other dated proof of purchase bearing the following information: con-
sumer's name, telephone number and address; the authorized dealers name, telephone
number and address; complete product description, including accessories; the year, make
and model of the vehicle; vehicle license number and vehicle identification number. All
components other than the unit, including without limitation the siren, the remote trans-
mitters and the associated sensors and accessories, carry a one-year warranty from the date
of purchase of the same. This warranty is non-transferable and is automatically void if: the
original purchaser has not completed the warranty card and mailed it within ten (10) days
of the date of purchase to the address listed on the card; the unit's date code or serial num-
ber is defaced, missing or altered; the unit has been modified or used in a manner con-
trary to its intended purpose; the unit has been damaged by accident, unreasonable use,
neglect, improper service, installation or other causes not arising out of defects in materi-
als or construction. The warranty does not cover damage to the unit caused by installa-
tion or removal of the unit. Directed, in its sole discretion, will determine what consti-
tutes excessive damage and may refuse the return of any unit with excessive damage. TO
THE MAXIMUM EXTENT ALLOWED BY LAW, ALL WARRANTIES, INCLUD-
ING BUT NOT LIMITED TO EXPRESS WARRANTY, IMPLIED WARRANTY,
WARRANTY OF MERCHANTABILITY, FITNESS FOR PARTICULAR PURPOSE
AND WARRANTY OF NON-INFRINGEMENT OF INTELLECTUAL PROPERTY,
ARE EXPRESSLY EXCLUDED; AND DIRECTED NEITHER ASSUMES NOR
AUTHORIZES ANY PERSON OR ENTITY TO ASSUME FOR IT ANY DUTY,
OBLIGATION OR LIABILITY IN CONNECTION WITH ITS PRODUCTS.
DIRECTED DISCLAIMS AND HAS ABSOLUTELY NO LIABILITY FOR ANY
AND ALL ACTS OF THIRD PARTIES INCLUDING ITS AUTHORIZED DEAL-
ERS OR INSTALLERS. DIRECTED SECURITY SYSTEMS, INCLUDING THIS
UNIT, ARE DETERRENTS AGAINST POSSIBLE THEFT. DIRECTED IS NOT
OFFERING A GUARANTEE OR INSURANCE AGAINST VANDALISM, DAM-
AGE OR THEFT OF THE AUTOMOBILE, ITS PARTS OR CONTENTS; AND
HEREBY EXPRESSLY DISCLAIMS ANY LIABILITY WHATSOEVER, INCLUD-
ING WITHOUT LIMITATION, LIABILITY FOR THEFT, DAMAGE AND/OR
VANDALISM. THIS WARRANTY DOES NOT COVER LABOR COSTS FOR
MAINTENANCE, REMOVAL OR REINSTALLATION OF THE UNIT OR ANY
i
© 2005 directed electronics, inc.
ii © 2005 directed electronics, inc.
CONSEQUENTIAL DAMAGES OF ANY KIND. IN THE EVENT OF A CLAIM
OR A DISPUTE INVOLVING DIRECTED OR ITS SUBSIDIARY, THE PROPER
VENUE SHALL BE SAN DIEGO COUNTY IN THE STATE OF CALIFORNIA.
CALIFORNIA STATE LAWS AND APPLICABLE FEDERAL LAWS SHALL APPLY
AND GOVERN THE DISPUTE. THE MAXIMUM RECOVERY UNDER ANY
CLAIM AGAINST DIRECTED SHALL BE STRICTLY LIMITED TO THE
AUTHORIZED DIRECTED DEALER'S PURCHASE PRICE OF THE UNIT.
DIRECTED SHALL NOT BE RESPONSIBLE FOR ANY DAMAGES WHATSOEV-
ER, INCLUDING BUT NOT LIMITED TO, ANY CONSEQUENTIAL DAMAGES,
INCIDENTAL DAMAGES, DAMAGES FOR THE LOSS OF TIME, LOSS OF
EARNINGS, COMMERCIAL LOSS, LOSS OF ECONOMIC OPPORTUNITY
AND THE LIKE. NOTWITHSTANDING THE ABOVE, THE MANUFACTURER
DOES OFFER A LIMITED WARRANTY TO REPLACE OR REPAIR THE CON-
TROL MODULE AS DESCRIBED ABOVE. Some states do not allow limitations on
how long an implied warranty will last or the exclusion or limitation of incidental or con-
sequential damages. This warranty gives you specific legal rights and you may also have
other rights that vary from State to State.
This product may be covered by a Guaranteed Protection Plan ("GPP"). See your autho-
rized Directed dealer for details of the plan or call Directed Customer Service at 1-800-
876-0800. Directed security systems, including this unit, are deterrents against possible
theft. Directed is not offering a guarantee or insurance against vandalism, damage or theft
of the automobile, its parts or contents; and hereby expressly disclaims any liability what-
soever, including without limitation, liability for theft, damage and/or vandalism.
Directed does not and has not authorized any person or entity to create for it any other
obligation, promise, duty or obligation in connection with this security system.
Make sure you have all of the following information from your dealer:
A clear copy of the sales receipt, showing the following:
Date of purchase
Your full name and address
Authorized dealer's company name and address
Type of alarm installed
Year, make, model and color of the automobile
Automobile license number
Vehicle identification number
All security options installed on automobile
Installation receipts
3
© 2005 directed electronics, inc.
ttaabbllee ooff ccoonntteennttss
sslliimmiitteedd lliiffeettiimmee ccoonnssuummeerr wwaarrrraannttyy.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ii
ssttaannddaarrdd ttrraannssmmiitttteerr ccoonnffiigguurraattiioonn.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..
.. .. .. .. .. .. .. .. .. .. .. .. .. .. 44
wwhhaatt iiss iinncclluuddeedd.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..
.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 44
iimmppoorrttaanntt iinnffoorrmmaattiioonn.. .. .. .. .. .. .. .. .. .. .. .
. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 55
system maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
your warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
fcc/id notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
ttrraannssmmiitttteerr ffuunnccttiioonns
s.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 66
standard configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
uussiinngg yyoouurr ssyysstteemm .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .
. .. .. .. .. .. .. .. .. .. .. .. .. 88
locking/arming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
unlocking/disarming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
disabling the system without a transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
audible mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
valet mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
panic mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
rraappiidd rreessuummee llooggiicc.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .
. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 1111
pprrooggrraammmmiinngg ooppttiioonnss.. .. .. .. .. .. .. .. .. .. .. .. .. .. .
. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 1122
gglloossssaarryy ooff tteerrmmss.. .. .. .. .. .. .
. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 1133
sseeccuurri
ittyy && ccoonnvveenniieennccee eexxppaannssiioonnss.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 1144
4© 2005 directed electronics, inc.
ssttaannddaarrdd ttrraannssmmiitttteerr ccoonnffiigguurraattiioonn
controls the AArrmmfunction.
controls the DDiissaarrmmfunction.
controls AAuuddiibbllee MMooddeeand an AAuuxxiilliiaarryy OOuuttppuutt.
controls the PPaanniiccfunction.
and pressed together control an AAuuxxiilliiaarryy OOuuttppuutt.
wwhhaatt iiss iinncclluuddeedd
The control module
Super het receiver
A pair of four-button transmitters
A status LED indicator light
A push-button Valet®switch
Your warranty registration
5
© 2005 directed electronics, inc.
iimmppoorrttaanntt iinnffoorrmmaattiioonn
Congratulations on the purchase of your keyless entry system.
Due to the complexity of this system, it must be installed by an
authorized dealer only. Installation of this product by anyone
other than an authorized dealer voids the warranty. All dealers
are provided with a preprinted dealer certificate to verify that
they are authorized.
By carefully reading this Owner's Guide prior to using your
system, you will maximize the use of this system and its features.
You can print additional or replacement copies of this manual by
accessing the Directed web site at www.directed.com.
system maintenance
The system requires no specific maintenance. Your remote is
powered by a small, lightweight 3-volt lithium battery that will
last approximately one year under normal use. When the battery
begins to weaken, operating range will be reduced and the LED
on the remote will dim.
your warranty
Your warranty registration must be completely filled out and
returned within 10 days of purchase. Your product warranty
will not be validated if your warranty registration is not returned.
Make sure you receive the warranty registration from your dealer.
It is also necessary to keep your proof of purchase, which reflects
that the product was installed by an authorized dealer.
6© 2005 directed electronics, inc.
fcc/id notice
This device complies with Part 15 of FCC rules. Operation is
subject to the following conditions: (1) This device may not
cause harmful interference, and (2) This device must accept any
interference received, including interference that may cause
undesirable operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate this device.
ttrraannssmmiitttteerr ffuunnccttiioonnss
The receiver uses a computer-based learn routine to learn the
transmitter buttons. This makes it possible to assign any specific
transmitter button, or combination of buttons, to any receiver
function. The transmitter initially comes programmed with the
Standard Configuration, but may also be customized by an
authorized dealer. The transmitter buttons indicated in all of the
instructions in this manual correspond to a Standard
Configuration transmitter.
412 Series
7
© 2005 directed electronics, inc.
standard configuration
Button
The locking/arming function is controlled by pressing this
button for one second. Pressing a 2nd time (within 5
seconds) after arming will honk the horn.
Button
The unlocking/disarming function is controlled by pressing this
button for one second. Pressing a 2nd time (within 5
seconds) after disarming will honk the horn.
Button
An optional auxiliary function are controlled by this button. (An
optional auxiliary function, such as trunk release, can be
controlled by pressing this button for 1.5 seconds.)
The auxiliary output controls __________________________.
Button
The panic feature is controlled by pressing this button for one
second.
and Buttons
An optional auxiliary convenience or expansion function that
you have added to your system can be activated by pressing these
buttons simultaneously.
The auxiliary output controls_________________________.
8© 2005 directed electronics, inc.
uussiinngg yyoouurr ssyysstteemm
locking/arming
Pressing for one second arms the system by activating the
starter kill (optional) and locking the doors (if connected). The
horn will honk (if connected and in audible mode) and the
parking lights will flash once to confirm arming of the system.
While the system is armed, the status LED will flash once per
second. The Failsafe®Starter Kill (if installed) will also prevent the
vehicles starter from cranking.
The system can also be programmed to arm the optional Failsafe®
Starter Kill automatically (called Passive Mode). If the system has
been programmed for Passive Mode, the Failsafe®Starter Kill will
automatically activate 30 seconds after the ignition has been
turned off. After the ignition has been turned off, the status LED
will flash rapidly to indicate that the system is in Passive Mode.
If Passive Mode has been programmed on, then it is also possible
to program the system for Passive Locking. With Passive Locking,
the vehicle doors lock automatically at the same time that the Failsafe®
Starter Kill is activated. If Passive Locking is programmed on, care
must be taken to prevent the keys from being locked in the vehicle.
note: For Passive Mode to be effective, the Failsafe®
Starter Kill relay must be installed.
note: Manually locking the vehicle does not arm the sys-
tem; it will only lock the doors.
9
© 2005 directed electronics, inc.
unlocking/disarming
Pressing for one second disarms the system and unlocks the
doors (if connected). The horn will honk twice (if connected and
in audible mode) and the parking lights will flash twice to confirm
disarming of the system. The optional Failsafe®Starter Kill will be
deactivated. The status LED will turn off, unless the system is pro-
grammed for Passive Mode. In Passive Mode, the status LED will
flash rapidly when the system is disarmed. This indicates that the
system will re-engage the starter kill and re-lock the doors (if
Passive Locking has been programmed) in 30 seconds unless the
ignition is turned on.
disabling the system without a transmitter
If your remote transmitter is lost or damaged, you can manually
override the system. To do this, you must have the vehicle's igni-
tion key and know where the Valet®switch is located. Be sure to
check with the installer for the location of the Valet®switch.
note: If the system has been armed with the remote trans-
mitter, you must use the transmitter or the Valet switch
to disarm the system and deactivate the starter kill.
Manually unlocking the vehicle does not disarm the sys-
tem; it will only unlock the doors.
10 © 2005 directed electronics, inc.

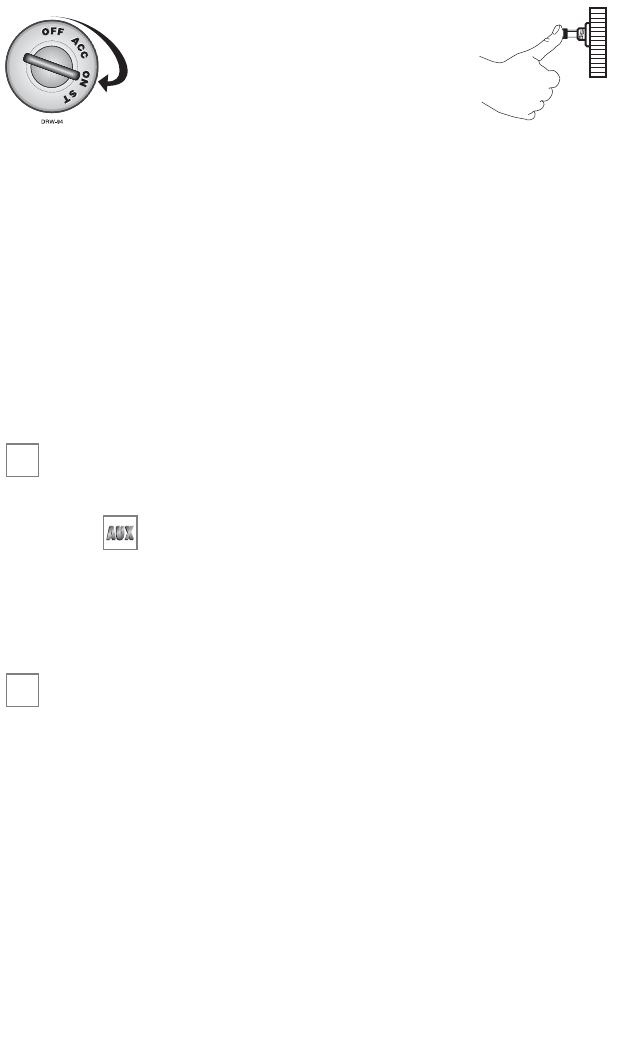

To disarm the security system,
turn the ignition to the ON posi-
tion. Press and release the Valet
switch within 10 seconds. The
status LED will stop flashing and
the vehicle should start. If the
vehicle does not start, you may
have waited too long; turn the
ignition off and repeat the
process.
Location of Valet Button_________________________________
audible mode
To temporarily turn on the arm or disarm horn honk(s), simply
press for less than one second before arming or disarming,
and the confirmation honk(s) will be present for that one oper-
ation only.
valet mode
You can prevent your system from automatically activating the
Failsafe®Starter Kill (optional, not included) and locking the
doors by using Valet®Mode. This is very useful when washing
the vehicle or having it serviced. In Valet®Mode, the starter kill
cannot be activated, even with the transmitter, but all conve-
nience functions (door locks, trunk release, etc.) will continue to
work normally.
DRW-35
11
© 2005 directed electronics, inc.

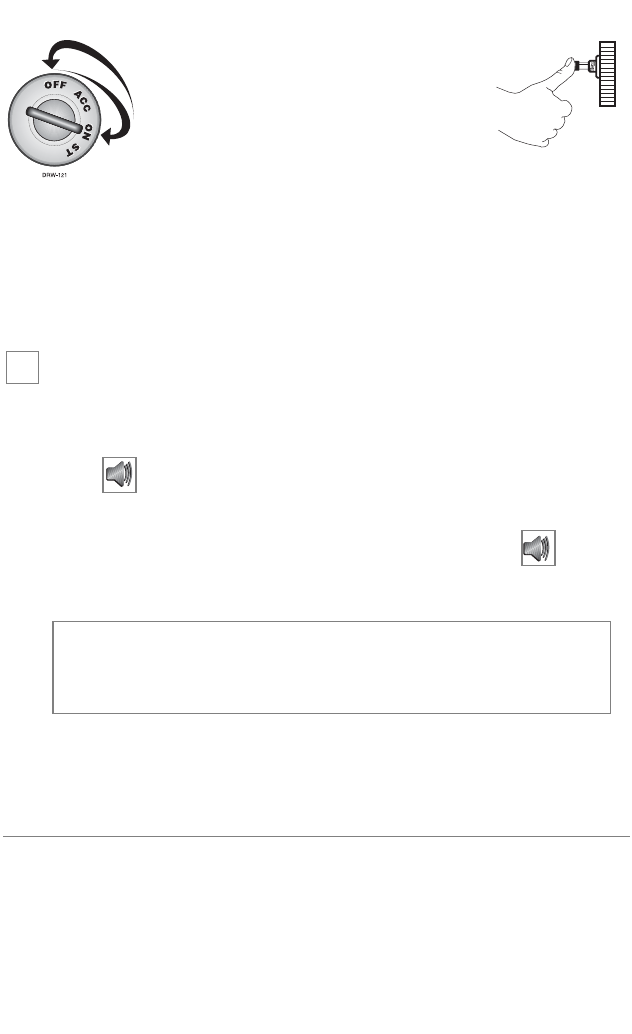

To enter or exit Valet®Mode:
1. Turn the ignition on.
2. Turn the ignition off.
3. Press and release the Valet®
switch within 10 seconds.
The status LED will light steadily if you are entering Valet®
Mode and will turn off if you are exiting Valet®Mode.
panic mode
If you are threatened in or near your vehicle, you can attract
attention by triggering the system with your transmitter. Just
press for two seconds to enter Panic Mode. In Panic Mode,
the horn will honk and the parking lights will flash for 30
seconds. To stop Panic Mode at any time, press on the
transmitter again.
rraappiidd rreessuummee llooggiicc
This Directed system will store its current state to non-volatile
memory. If power is lost and then reconnected, the system will
recall the stored state from memory. This means if the unit is in
note: In order for Panic Mode to be effective, the vehicles
horn (or optional siren) as well as the vehicle's parking
lights must be connected.
DRW-35
12 © 2005 directed electronics, inc.
Valet Mode and the battery is disconnected for any reason, such
as servicing the car, when the battery is reconnected the unit will
still be in Valet Mode. This applies to all states of the system
including arm, disarm, and panic mode.
pprrooggrraammmmiinngg ooppttiioonnss
Programming options control your system's normal, operational
set-up. Most options do not require additional parts, but some may
require additional installation labor. This system's programming
options are listed below, with the factory default settings in bboolldd:
Ignition switch-controlled door-locking oonnor off. With this
feature on, the doors will lock 3 seconds after the ignition
key is turned on, and unlock when the ignition key is turned
off.
Comfort Closure ooffffor on. This option is not available for
all vehicles. When programmed on, and pressing on the
remote, the vehicle will lock and close the windows/sunroof.
See your dealer to see if this is available for your vehicle.
13
© 2005 directed electronics, inc.
gglloossssaarryy ooff tteerrmmss
Control Unit:
The “brain” of your system. Usually hidden under
the dash area of the vehicle. It houses the microprocessor that
monitors your vehicle and controls all system functions.
LED:
A light mounted at a discretionary location inside the
vehicle. It is used to indicate the status of your system.
Starter Interrupt:
An automatic switch controlled by your system
which prevents the vehicles starter from cranking whenever the
system is armed. The vehicle is never prevented from cranking
when the system is disarmed, in Valet Mode, or if the starter
interrupt switch itself fails. Your system has feature-ready
circuitry for the starter interrupt, however installation may
require additional labor.
Transmitter:
A hand-held, remote control which operates the
various functions of your system.
Valet Switch:
A small button mounted at a discretionary location
inside the vehicle. It is used to override the system when a trans-
mitter is lost or damaged, or to enter or exit Valet Mode.
14 © 2005 directed electronics, inc.
sseeccuurriittyy && ccoonnvveenniieennccee eexxppaannssiioonnss
Listed below are some of the many expansion options available
for use with your system. Some options may require additional
parts and/or labor. Please consult with your dealer for a complete
list of options available for use with this system.
Domelight Supervision:
The domelight will illuminate for 30
seconds each time the system is disarmed using the remote. This
is useful for seeing inside the vehicle at night prior to entering it.
Power Door Lock Control:
Your system is capable of controlling
many types of power door lock systems; however, some door lock
systems may require extra parts. Consult with your dealer to
determine which type of locks your vehicle uses. If power locks
are connected, the system can be programmed to lock the doors
automatically 30 seconds after the ignition has been turned off.
The system can also be programmed to lock the doors when the
ignition is turned on and to unlock them when the ignition is
turned off.
Power Trunk Release:
The systems auxiliary output can be
programmed to operate a factory power release for the vehicle's
trunk or hatch. If the factory release is not power-activated,
Directed®'s 522T trunk-release solenoid can often be added.
15
© 2005 directed electronics, inc.
Power Window Control:
Power window control is provided with
Directed®'s 529T or 530T systems. The 529T system will roll up
two windows automatically when the system is armed, or roll
two windows down by using the transmitter. The 530T will roll
two windows both up and down. The 530T also provides one
touch switch operation.
Progressive Door Unlocking:
For added security, your system can
be configured to unlock the drivers door only, leaving the
passenger doors locked. Pressing the unlock button an additional
time will unlock the passenger doors. This option requires addi-
tional parts and labor.
16 © 2005 directed electronics, inc.
17
© 2005 directed electronics, inc.
QQUUIICCKK RREEFFEERREENNCCEE GGUUIIDDEE
To lock/arm using your remote
To arm the system press for one second. The doors will lock (if
connected). The LED will begin to flash. The Failsafe® Starter Kill will
prevent the vehicles starter from cranking if it has been installed. The vehi-
cles horn (if connected) will honk and the parking lights will flash once to
confirm arming of the system.
To unlock/disarm using your remote
To disarm the system press for one second. The doors will unlock (if
connected). The Failsafe®Starter Kill will be deactivated and the vehicles
horn (if connected) will honk twice and the parking lights will flash twice.
To enter or exit Valet
®
Mode
Turn the ignition to the ON position. Turn the ignition back off. Press and
release the Valet®switch within 10 seconds. The status LED will light steadily
if you have entered Valet®Mode. To exit Valet®Mode, repeat the steps above.
The LED will turn off when exiting Valet®Mode.
To activate Panic Mode
Press and hold for 2 seconds.
To exit Panic Mode
Press on the transmitter.
Location of Valet Switch___________________________________
CCuutt aalloonngg ddootttteedd lliinnee aanndd ffoolldd ffoorr aa qquuiicckk aanndd eeaassyy rreeffeerreennccee ttoo kkeeeepp iinn yyoouurr ppuurrssee oorr wwaalllleett..
The company behind this system is Directed Electronics, Inc.
Since its inception, Directed Electronics has had one purpose, to provide consumers with
the finest vehicle security and car stereo products and accessories available. The recipient of
nearly 100 patents and Innovations Awards in the field of advanced electronic
technology, DIRECTED is ISO 9001 registered.
Quality Directed Electronics products are sold and serviced throughout North America
and around the world.
Call ((880000)) 227744--00220000for more information about our products and services.
Directed Electronics, Inc.
Vista, CA 92081
www.directed.com
© 2005 Directed Electronics, Inc. - All rights reserved
G412V 01-05
Directed Electronics is committed to delivering world class quality products
and services that excite and delight our customers.

Navigation menu
