Voxx Electronics AESVG10 CAR TRANSCEIVER User Manual PUB2007018V00R00
DEI Headquarters, Inc. CAR TRANSCEIVER PUB2007018V00R00
USERS MANUAL
All rights reserved © Astroflex Electronics 2007 September 2007 UBRSS2524
PATENT NOS
CAN 1.130.426
USA 4.345.554 - 5.614.883
- 5.617.819 - 5.673.017
AND OTHER PATENTS PENDING
USER MANUAL
MODEL RSS-2524
For all hybrid, gas-
and diesel-powered
vehicles.
This model may
be equipped with an
optional security system.
(FRANÇAIS AU VERSO)
CONSULT SAFETY PRECAUTION SECTION
BEFORE USING THIS PRODUCT.
SOME FEATURES MAY REQUIRE
ADDITIONAL MATERIAL (NOT INCLUDED).
®
REMOTE CONTROL
ENGINE STARTER
GOVERNMENT REGULATIONS
This device complies with the Industry Canada Radio Standards Specification RSS 210. Its use is
authorized only on a no-interference, no-protection basis; in other words, this device must not be used if it
is determined that it causes harmful interference to services authorized by IC. In addition, the user of this
device must accept any radio interference that may be received, even if this interference could affect the operation of the
device.
This device complies with Part 15 of the FCC rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference and
(2) this device must accept interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television, which can be determined by turning the equipment OFF and ON, the user is encouraged to try to correct
the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio / TV technician for help.
Warning:
Changes or modifications not expressly approved by <manufacturer> could void the user's authority to operate the
equipment.
ELECTRONICS
188 St-François-Xavier
Delson, Qc
Canada
J5B 1X9
www.astroflex.com
1
THANK YOU FOR CHOOSING AN ASTROSTART REMOTE CAR STARTER!
Just like you are, Astroflex Electronics is concerned with the environment.
This is why we are suggesting you to use the two-minute runtime
when you remote-start your vehicle to warm up engine fluids.
You can set the runtime yourself using your transmitter.
We take this opportunity to remind you to properly defrost your windows
and remove all the snow on your vehicle before driving on public roads.
Rolling igloos are extremely dangerous!
We wish you an excellent journey with your remote engine starter!
USER GUIDE FOR RSS-2524 REMOTE ENGINE STARTER
The RSS-2524 is a remote engine starter system that provides unlocks features allowing remote control of door locks and
trunk. These features are optional and may require additional material and/or wiring during installation.
When it is interfaced with an optional safety system, not only does it allow starting the vehicle at a distance, it can sound an
alarm and prevent engine from starting should someone try to steal your vehicle or its contents.
Table of contents
SAFETY PRECAUTIONS ____________________________________________________________________________2
SAFETY SEQUENCE FOR MANUAL TRANSMISSION VEHICLES ----------------------------------------------------------------------------------------------------------------- 3
PREPARING SYSTEM---------------------------------------------------------------------------------------------------------------------------------------------------------------- 3
THE REMOTE CONTROL____________________________________________________________________________4
SELECTING TRANSMISSION CHANNEL -------------------------------------------------------------------------------------------------------------------------------------------- 4
BATTERY REPLACEMENT----------------------------------------------------------------------------------------------------------------------------------------------------------- 4
PAGER -------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 4
TABLE OF COMMANDS_____________________________________________________________________________5
START COMMANDS------------------------------------------------------------------------------------------------------------------------------------------------------------------ 6
SECURITY SYSTEM (OPTIONAL) --------------------------------------------------------------------------------------------------------------------------------------------------- 9
LOCK/UNLOCK COMMANDS AND ALARM SYSTEM ARMING/DISARMING -------------------------------------------------------------------------------------------------- 13
OTHER COMMANDS --------------------------------------------------------------------------------------------------------------------------------------------------------------- 15
CODE LEARNING OF ADDITIONAL TRANSMITTER(S)___________________________________________________17
SAFETY CHECKS_________________________________________________________________________________17
HOOD SWITCH---------------------------------------------------------------------------------------------------------------------------------------------------------------------- 17
GEARSHIFT CHECK APPLICABLE TO AUTOMATIC TRANSMISSION VEHICLES---------------------------------------------------------------------------------------------- 18
GEARSHIFT CHECK APPLICABLE TO MANUAL TRANSMISSION VEHICLES-------------------------------------------------------------------------------------------------- 18
REPLACING OR BOOSTING VEHICLE BATTERY_______________________________________________________18
2
SAFETY PRECAUTIONS
Before using this product, carefully read the following safety precautions.
GENERAL RULES
• Never perform a remote start when a person or animal is inside the vehicle.
• Do not allow any person or animal to remain inside the vehicle when the engine is running under remote starter
control (continuous mode).
• Immediately report any malfunction to the AstroStart dealer that performed the installation.
• Under no circumstance can this product or its use be modified.
• Always turn off the main switch when vehicle is parked in an enclosed, unventilated area or is in for servicing.
• Always turn off the main switch when not using your remote starter for extended periods.
• Keep remote controls away from children.
• Have your engine tuned regularly to ensure optimum performance of your remote starter.
• Make sure that the windshield wipers and the headlights are turned off before leaving vehicle.
• Regularly check safety features that stop engine (see "Safety Checks" on page 17.)
• Make sure you comply with all local regulations, which may prohibit leaving your engine running when vehicle is
unattended in a public place.
• To ensure continued safe operation of your remote starter, ask your AstroStart dealer to periodically check
and/or tune the remote starting system.
• Always advise service personnel that your vehicle is equipped with a remote starter.
• We strongly recommend that you have your remote starter checked annually. Contact a dealer in your area.
• All users of the vehicle should be aware of the safety precautions and operation procedures.
• Make sure that the warning sticker is present on the driver's window.
SPECIFIC RULES FOR MANUAL TRANSMISSION VEHICLES
• Make sure that the parking brake is operational, i.e. it can prevent the vehicle from moving.
• If the shift lever is accessible without having to open a door of the vehicle (for example, by entering via the lift
gate or rear hatch) or in the case of a convertible vehicle, it is strongly recommended to have a motion detector
(microwave) installed with the system. This device prevents the engine from starting should any activity be
detected near the gearshift.
3
SAFETY SEQUENCE FOR MANUAL TRANSMISSION VEHICLES
Your remote starter was designed to force you to perform a series of actions that will ensure that the gearshift lever is in
neutral position when you exit the vehicle.
This series of actions is called a "safety sequence" and is aimed at preventing any remote start in situations where remote
starting the engine would not be safe.
Should the hatchback or any door be opened at any time, the intrusion will be detected and the safety sequence will be
cancelled by the system, thus preventing a remote start. In such cases, the sequence must be repeated to allow for an
eventual remote start.
The system offers two execution modes for the sequence. These options must be set at time of installation. The first mode is
initiated by the parking brake and the other by the remote control.
The safety sequence must be performed as follows.
Sequence activated by the parking brake .
1. While engine is running (key in ignition switch), apply the brakes and hold the pedal down.
2. Move gearshift lever to neutral.
3. Apply the parking brake Once Twice
Note: The system can be set - at time of installation - to require that the parking brake be applied once or twice.
If set for two actuations, pause one second between the two.
4. Remove key from ignition (the system keeps the engine running).
5. Exit the vehicle.
6. Within 60 seconds, close all doors.
7. The system will stop the engine except if Turbo Mode or Continuous Mode is active and blink the parking brakes
once to confirm the sequence is valid (vehicle is ready for a remote start command).
Sequence activated by the remote control
1. While engine is running (key in ignition switch), apply the brakes and hold the pedal down.
2. Move gearshift lever to neutral.
3. Apply parking brake.
4. Press button on your remote control.
5. Remove key from ignition (the system keeps the engine running).
6. Depending on programmed option:
Within 60 seconds exit the vehicle,
close back all the doors then, using
the remote, send the STOP command.
Note that the Turbo mode is
not available with this option.
Within 60 seconds exit the vehicle
then close back all the doors.
The system will stop the engine
except if either the Turbo mode
or the continuous mode is activated
Parking lights will blink once to confirm that the sequence is valid (vehicle is ready for a remote start
command).
If the engine stops when the key is removed from the ignition, the safety sequence is invalid.
Perform a new safety sequence. If problem persists, consult your installer.
PREPARING SYSTEM
When you exit the vehicle, you need to prepare the remote starter for its next use.
• If the vehicle is equipped with a manual transmission, make sure that the remote starter system has detected a
valid safety sequence.
• If the vehicle is equipped with an automatic transmission, make sure that the transmission lever is in the "P"
position.
• Set heating/air conditioning controls to desired position (when the remote starter starts your engine, it will also
turn on your climate control system).
• Turn your windshield wipers to the OFF position to avoid strain on the mechanism should a start command be
sent to the vehicle, i.e. when heavy snow immobilizes the wipers.
• Make sure that the headlights are turned off.
• Be sure not to leave your keys inside the vehicle. Certain rearming functions can cause the doors to lock
automatically.
4
(2) CR-2016

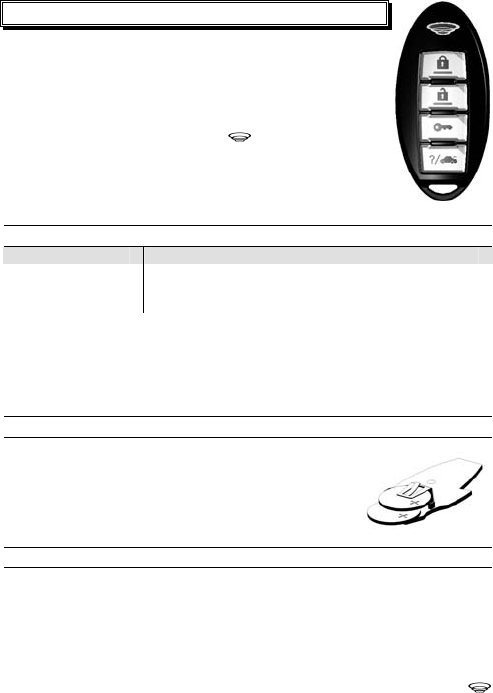

THE REMOTE CONTROL
Your remote control can transmit on two different channels, allowing control of two separate
vehicles.
Up to four remote controls can be assigned to your vehicle.
NOTE: The range of your remote control can be affected by a weak battery, interference from
nearby metal structures, hydro poles, or crowded parking lots.
Only the "Panic" command is transmitted on both channels when a single command is sent
(alternating transmission channels).
The transmitter provides audible (piezo) and visual (LED ) confirmation.
The LED lights-up green when it transmits on channel one or red when it transmits on channel
two.
The remote shown may differ from the one included in the kits.
SELECTING TRANSMISSION CHANNEL
CHANNEL 1 CHANNEL 2
Press desired button for two
seconds.
Momentarily press the «?» button, then as soon as a
tone is heard or that the red LED lights-up, press the
desired button and hold it down for two seconds.
A command will not be executed if you do not press button long enough except for the RSS-5224 remote that immediately
transmit when either the lock or unlock button is pressed. In that case, the command is sent at reduced power.
Only one command is transmitted even when a button is pressed for more than two seconds, except for the "Panic"
command, which is repeated as long as button is pressed.
Your system may be programmed in such a way that it can distinguish between two groups of remote controls (maximum:
two remotes per group). These groups let you activate predefined settings (seat, mirror and other) when unlocking certain
vehicles (additional optional equipment required).
BATTERY REPLACEMENT
Your remote works off two 3-volt lithium CR-2016 batteries or equivalent.
To replace the batteries, use a coin to snap open the remote casing via the slot on the
side of the remote, remove old batteries and replace them with new ones. Make sure to
properly orient the batteries; see illustration opposite.
Close the casing by applying a pressure on both parts while these are properly aligned.
PAGER
The system is equipped with a function called ‘Pager’. You can use this feature to send a general call to all remote controls
related to the system asking those who carry them to get to the vehicle or to perform a task previously established. The
other function is to locate a misplaced remote control.
Paging from the vehicle

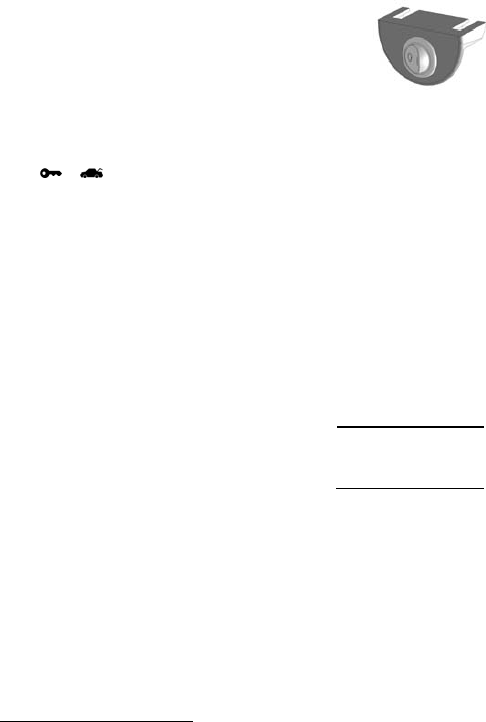

To send a general call, the user must press the ‘Valet’ switch and hold it for 3 seconds while engine is stopped and key
is not in the ignition, or while engine is remote started (see ‘Valet Mode’ on page 15)(The valet switch is a small push
button hidden under the dash board).
Parking lights on the vehicle blink once to confirm the call was sent.
All remote controls (maximum: 4) located within the radio frequency range of the vehicle will begin to chirp and the
LED will flash green. To silence the remote control, press any button.
5

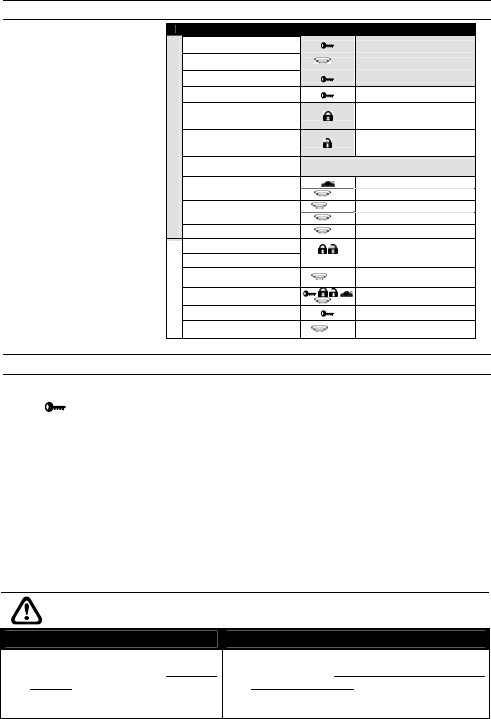

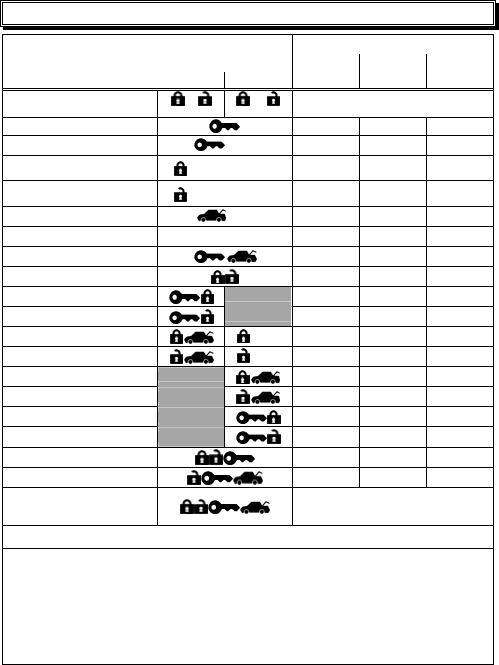

TABLE OF COMMANDS
CONFIRMATIONS
BUTTONS
COMMAND
GROUPE 1 GROUPE 2 HORN PARKING LIGHTS SIREN*
PANIC OR
(> 4 SEC.) AND
(> 4 SEC.) 30 / 60 SEC.
START / CONTINUOUS MODE 1 1 -
STOP (> 4 SEC.) 1 1 -
LOCK / ARMING* (REDUCED RANGE IF < 2 SEC.) 1 1 / 3 1 / 3 / X
UNLOCK / DISARMING* (REDUCED RANGE IF < 2 SEC.) - 2 / 4 ¡ 2 / 4 / X
¡
TRUNK 1 (>4 sec.) - 1 / 3 3
STATUS ? - - -
ACTIVATE / DEACTIVATE SENTINEL MODE - 4 / 2 / 3 ¢ -
CAR FINDER 7 3 -
RUNTIME SETTING - 1 – 4 -
DISPLAY REMOTE START FAIL CODES - 1 - 20 -
ACTIVATE / DEACTIVATE UTILITY 1 (> 4 SEC.) - 1 -
ACTIVATE / DEACTIVATE UTILITY 2 (> 4 SEC.) - 1 -
ACTIVATE / DEACTIVATE UTILITY 3 - 1 -
ACTIVATE / DEACTIVATE UTILITY 4 - 1 -
VALET MODE ACTIVATE / DEACTIVATE - 4 / 2 ¢ -
DISPLAY ALARM CONDITION CODES - 1 – 8 -
KEYPAD LOCK - - -
MUTE MODE (REMOTE TRANSMITTER) - - -
COMMAND GROUPE (TOGGLE)
COMMAND GROUP SELECTING UPON INSTALLING.
GROUP 2 USAGE IS PREFERABLE WHEN REMOTE
STARTER IS EQUIPPED WITH A SECURITY SYSTEM.
* COMMAND RELATED TO ARMING AND DISARMING ONLY APPLIES TO SYSTEM THAT IS
INTERFACED WITH AN OPTIONAL ASTROSTART SECURITY SYSTEM.
THIS CONFIRMATION IS SENT ONLY WHEN COMMAND IS REPEATED WHILE ENGINE IS ALREADY RUNNING (HORN: PROGRAMMABLE
DURING INSTALLATION). THIS COMMAND ENDS: RUNTIME, ALARM CONDITION AND PANIC MODE CONFIRMATION BY CHIRP OR
HORN ON 2ND LOCK (WHEN PROGRAMMED "ON"). ONLY IF SYSTEM IS EQUIPPED WITH A SENSOR, WHICH DETECTS WHEN TRUNK
IS OPEN (OPTIONAL). THESE CONFIRMATIONS ARE PROGRAMMABLE ENABLE/DISABLE DURING INSTALLATION. 1 = NO ZONE IS
IN VIOLATION AT ARMING. 3 = AT LEAST ONE ZONE IS IN VIOLATION AT ARMING. X = NO CHIRP WHEN VALET MODE IS ACTIVE OR
WHEN ALARM IS PROGRAMMED "OFF". TEMPORARY VALET MODE IS DISABLED IF COMMAND IS REPEATED DURING REARMING
CYCLE. ¡ 2 = NO ZONE WAS IN VIOLATION WHEN ALARM WAS ARMED. 4 = AT LEAST ONE ZONE WAS IN INFRACTION WHEN ALARM
WAS ARMED. ¢ 4 = ACTIVATED / 2 = DEACTIVATED / 3 = SYSTEM NOT READY. 1 PARKING LIGHTS FLASHES ONCE IF THE
COMMAND CANNOT BE EXECUTED.
6
CONFIRMATION
Vehicle’s confirmations:
In all cases, your Remote Starter will
confirm that command has been
received properly.
This will be done by either sounding
horn or flashing parking lights.
Parking light confirmations are
mandatory. Horn confirmations are
optional (programmable) and require
an additional connection and/or
equipment during installation.
Confirmations are explained in more
detail under each command.
Remote control’s confirmations:
The remote transmitter provides two
types of confirmations, those
immediately preceding a command
transmission, named instantaneous
confirmations, and those that are sent
when the status of a monitored
feature changes, named status
confirmations.
START COMMANDS
STARTING THE ENGINE
Press the button for 2 seconds.
The system automatically adjusts ignition duration for your type of vehicle; parking lights flash once (duration: four seconds)
then stay on all the time engine is running.
If more than one command is emitted, each successive start command resets runtime to the beginning, parking lights flash
once to confirm command has been received and horn sounds once (programmable during installation) to let you know
engine is already running.
Repeating this command will produce an audible confirmation that engine has started, which can be useful if vehicle is not in
sight (configurable during installation).
IF ENGINE FAILS TO START
If your system cannot start your engine at first attempt, it will wait for a few seconds and then try again (it could try again
twice depending on reason for failure to start).
After three attempts, it will shut down automatically and wait for new command (see "Start fail codes" on page 16).
UPON ENTERING YOUR VEHICLE...
DO NOT TURN IGNITION KEY TO START POSITION.
Automatic transmission vehicles Manual transmission vehicles
To avoid turning the engine off when taking
place behind the steering wheel, do not apply
the brakes until you have placed the key in the
ignition and turned it to the RUN position.
Drive as usual.
To avoid turning the engine off when taking place behind
the steering wheel, do not apply the brakes and do not
remove the parking brake until you have placed the key in
the ignition and turned it to the RUN position.
Drive as usual.
COMMAND LED TONE
SYSTEM IS READY FOR STARTING HIGH
SYSTEM IS NOT READY FOR STARTING RED LOW
REMOTE START ACCOMPLISHED ASCENDING MELODIE
STOP DESCENDING MELODIE
HIGH, LOW
LOCKING ARMING 3X (HIGH, LOW )
WITH VALET MODE ENABLED OR BYPASSED ZONE
LOW , HIGH
UNLOCKING DISARMING 3X ( LOW , HIGH ) WITH ALARM CONDITION
STATUS COMBINATION OF ONE STARTING STATUS AND
ONE DOOR LOCKING STATUS, SEE GREY ZONES ABOVE.
HIGH
TRUNK RED 3 LOW
GREEN HIGH
OTHER COMMANDS RED 3 LOW
INSTANTANEOUS CONFIRMATIONS
OUT OF RANGE RED 3 LOW
PARKING LIGHTS
DOOR OPENNED
ALTERNING HIGH, HIGH, LOW
PAGER GREEN TELEPHONE RINGING
ALARM / ALARM LINK
RED SIREN
ENGINE IS RUNNING ASCENDING MELODIE
STATUS CONFIRMATIONS
BACK TO NORMAL STATE GREEN HIGH
7
ENGINE RUNTIME
Your engine will stop automatically after a preset time (See "Setting the runtime" on page 8).
Parking lights will stay on as long as engine is running.
TRIGGER INPUT
Your remote starter is equipped with a negative trigger (pulse) input.
This input can be connected to another remote control device or to an AstroStart RST-2 timer
output (optional), part number 310-903-502.
If this input is connected, consult this device's manual or ask your technician which command
controls the start/stop function.
The start/stop commands received on this input are ignored while the engine is running on a remote
start.
All Start/Stop functions controlled by this input behave in the same way as functions controlled by remote.

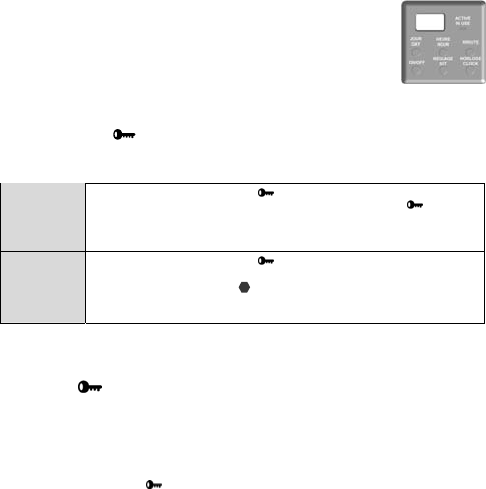

CONTINUOUS MODE
Continuous Mode function lets you remove the key from the ignition while leaving the engine running. This convenient
feature allows you to leave your vehicle for short periods while climate controls remain on.
AUTOMATIC
TRANSMISSION
VEHICLES
To access Continuous Mode, press on the button while engine is idling (see STARTING THE
ENGINE on page 6). If Turbo Mode is active, you must press a second time on the button of the
remote to set the runtime according to the preset settings.
Parking lights, engine and climate controls will remain on for the duration of the programmed
runtime.
MANUAL
TRANSMISSION
VEHICLES
To access Continuous Mode, press on the button before removing the key from ignition when
performing the safety sequence described on page 3. See “STARTING the ENGINE“ on page 6.
Note: Do not send the stop command if you perform sequence activated by the remote control
(Step 7) on page 3.
If Turbo Mode is on, it will be activated when the safety sequence is executed.
Remove the key, exit vehicle and lock all doors. All safety devices will remain active.
If you return to your vehicle before runtime has elapsed, just turn the key to RUN position and press the brake pedal.
TURBO MODE
(Activated at time of installation)
This mode allows the engine to be left running at idle speed for a short period of time so that the turbocharger can cool down
as recommended by certain car manufacturers.
This mode activates the continuous mode at a reduced runtime (one or two minutes according to the programming).
To activate the Turbo Mode:
• Automatic: Press on the (2 sec.) button (refer to ‘Continuous Mode’).
• Manual: Perform the security sequence.
WHAT STOPS THE ENGINE
For your safety, engine will not start or will stop if:
Your key is in the RUN position (prevents Start cycle).
Remote control sends a Stop message.
Hood is open.
Brakes are applied.
Engine is over-revving (if programmed Enable at installation).
Alarm detects intrusion.
Main switch is OFF.
Safety sequence not valid (manual transmission vehicle only - parking brake not applied, opening of door detected
while remote starter was not keeping engine running).
8
MAIN SWITCH
Main switch is usually mounted under dashboard. It is a toggle ON/OFF switch that is used
to cancel start functions.
It does not disable other commands which remain active (alarm, lock/unlock commands,
etc.).
STOP
Refer to the table of command on page 5 to know which button to press.
This command only applies when engine is kept running by Remote Starter.
It is used to stop the run time, the panic mode as well as the alarm condition without disarming the security system.
LOW TEMPERATURE MODE
Press the and buttons simultaneously for 2 seconds.
The command alternatively activates/deactivate Low Temperature mode.
In Low Temperature (Sentinel) mode, system starts your engine automatically when temperature falls below a preset level.
Engine will run for programmed runtime, after which system will wait 2½ hours and then start engine again if temperature is
still below preset level.
When mode is activated:
Parking lights will flash 4 times, then, if temperature is below preset level, engine will start.
If temperature is above preset level, system waits until it goes below preset level before starting.
In the case of a manual transmission vehicle, the system must have detected a valid security sequence to allow the
activation of Low Temperature mode. (See "Safety sequence for manual transmission vehicles" on page 3).
If system cannot execute command (for example, hood is open), confirmation will be different (lights: 3).
When mode is deactivated:
Parking lights will flash twice to confirm that mode is deactivated. Applying brakes deactivates Low Temperature mode.
SETTING THE RUNTIME
Refer to the table of command on page 5 to know which button to press.
Parking lights flash one to four times to indicate selected runtime (see table
opposite).
If you send this command while the ignition circuits are activated (by remote or
key), runtime does not change but confirmation is sent to indicate last selection.
If Low Temperature (Sentinel) mode is already activated when this command is
sent, the command sets or indicates Low Temperature mode runtime.
Note: Runtime is doubled for a diesel engine.
1 A runtime of 2 minutes (4 min. for a diesel engine) is not recommended for most vehicles unless you intend to drive off immediately after the remote start. This
selection is not available in Low Temperature mode.
Number of
flashes Runtime
1 2 minutes
1
2 4 minutes
3 8 minutes
4 18 minutes
9
SECURITY SYSTEM (OPTIONAL)
The current section only applies to an AstroStart security system (added as an option) which must not be confused with the
vehicle’s OEM system.
PROTECTION ZONES
Your security system can use up to six different monitoring devices simultaneously to protect your vehicle.
These devices are connected to the system on different inputs called protection zones.
One of these zones can send an audible warning (7 chirps), while the other five generate an alarm condition if system is
armed.
PROTECTION ZONES FUNCTIONS
Pre-shock (Warning) Siren chirps (7 times)
Pre-shock (more than 3 times in 3
min.)
Doors
Hood
Additional sensor (Trunk)
Shock sensor
Ignition (key)
Siren on for 30 or 60 second period, which can be repeated up to 4 times
depending on initial programming and whether violated zone is corrected or
not.
Each period is separated by a 5 second pause. (45 seconds for "Door"
zone).
DETERRENTS
ACTIVE
When one of the monitoring devices detects a violation, system reacts by activating the following deterrents, depending on
which is connected.
System can activate up to four deterrents simultaneously: siren, parking lights, dome light and/or horn.
PREVENTIVE
Depending on system’s configuration, the indicator light shows different alarm conditions (see "Zone Codes" on
page 12).
It can also act as a deterrent if installed in a place visible from outside vehicle.
ALARM MODES
WARNING
Warning signal is 7 siren chirps.
If a two-level shock sensor is connected to system, warning sounds every time vehicle is subjected to a light shock when the
alarm is armed.
PRE-ALARM
If you set off the alarm by accident and do not want to alarm or disturb the whole neighbourhood, "pre-alarm" mode cuts in
three seconds before the alarm condition to give you time to disarm the system.
In this mode, parking lights, siren and dome light go on and off intermittently for three seconds.
ALARM CONDITION
When system is in alarm condition, it activates the various deterrents connected to the alarm module.
Alarm condition remains active for 30 or 60 seconds depending on initial programming, and then system pauses for five
seconds (45 seconds for "Door" zone). During this pause, it checks the protection zones again and restarts alarm cycle if a
zone is still in violation.
This cycle can be repeated up to four times. If situation that caused the violation is corrected in mid-cycle, alarm stops at
end of current cycle.
10
OPERATION
Your alarm system has three different operating modes, active, semi-passive rearming and passive rearming depending
on initial programming. See the relevant paragraph for the mode your system was configured in during installation.
ACTIVE
In active mode, the alarm must be armed and disarmed using the remote. See Table of Commands on page 5.
Alarm is armed as soon as command is received, even if a zone is in violation when command is received.
However, a violated zone cannot trigger the alarm unless it returned to a normal condition beforehand.
This mode is always available even if, during installation, your system was not configured for it.
SEMI-PASSIVE REARMING
In semi-passive mode, alarm must be armed and disarmed using the remote (see Table of Commands on page 5).
In this mode, alarm rearms automatically 30 seconds after disarming (rearming cycle) if no doors have been opened.
Indicator light flashes rapidly to indicate that system is in rearming cycle.
Note: If vehicle is equipped with power locks interfaced with the system, a device can be added to prevent doors from
locking during rearming if key is still in ignition. If applicable, this device allows system to be armed but cancels locking.
Key detection device is , is not installed on this vehicle.
Following table shows effect of each zone on rearming cycle.
Protection zone Effect on rearming cycle
Hood
Additional sensor (trunk)
Shock sensor These three zones prolong rearming cycle as long as they remain in violation.
Ignition Activated by ignition key: Cancels rearming
Activated by remote starter: No effect
Doors 2 This zone cancels rearming completely.
Warning No effect
Applying brakes or activating Temporary Valet Mode (see page 12) cancels rearming.
PASSIVE REARMING
In passive rearming mode, opening a door triggers rearming cycle.
Alarm will be armed 30 seconds after checking that all protection zones are in normal condition.
This 30-second period is called "rearming cycle".
If a zone detects a violation during rearming cycle, countdown stops and restarts at 30 seconds when all zones are back in
normal condition.
During rearming cycle, indicator light flashes rapidly.
After five seconds, system sends an audible confirmation (siren chirps once), indicating that system will arm after 25
seconds.
After this delay, alarm is armed and sends a second confirmation (siren chirps once and parking lights flash once) to indicate
that system is armed.
If you wish to remain in the vehicle without driving off, you can cancel rearming cycle by applying brakes.
When you exit the vehicle, cycle resumes and system arms automatically (see also "Temporary Valet Mode” on page 12).
If you disarm the system and do not open the door before the rearming delay expires, it rearms itself automatically.
2 If vehicle is equipped with a factory security system and runtime expires during rearming cycle, factory security system is reactivated but not AstroStart security
system because opening a door is simulated for factory system rearming.
11
The following table shows the effect that each zone has on the rearming cycle.
Protection zone Effect on rearming cycle
Hood
Doors
Additional sensor (trunk)
Shock sensor
These four zones prolong rearming cycle as long as they remain in violation.
Ignition Activated by ignition key: Cancels rearming
Activated by remote starter: No effect
Warning No effect
Applying brakes or ignition key in RUN position cancels rearming (until a door is opened, which causes rearming cycle to
restart from the beginning).
See also "TEMPORARY VALET MODE" (page 12) and "DOME LIGHT DURATION" (page 13).
You can disarm only with the remote control by sending the lock command (see Table of Commands on page 5).
System is disarmed immediately and restarts rearming cycle from the beginning.
TO TERMINATE ALARM CONDITION
You can send the unlock command which also terminates the alarm condition and disarms the system or send either of the
lock or stop command which terminates the alarm condition without disarming the system.
CONFIRMATION
When the alarm is armed, one chirp of the siren and/or flash of the parking lights means that all protection zones are in
normal condition and system is ready.
Three chirps or flashes means that one or more zones are in violation (i.e. at least one door is opened).
Once the zone is corrected (i.e. door closed), the system sends another confirmation (one chirp or flash if all zones are in
normal condition, three chirps or flashes if another zone is in violation).
If a zone is in violation when system is armed manually (using remote) and the cause of the violation is not corrected, the
alarm will still arm but this zone will not be able to generate an alarm condition. See also "DOME LIGHT DURATION" on
page 13.
When you disarm the alarm, two chirps or flashes indicate that no one tried to break into your vehicle, and four chirps or
flashes indicate that an alarm condition occurred during your absence.
The following table summarizes this section.
CONFIRMATION MEANING
1 chirp or flash System armed, no zone in violation.
2 chirps or flashes System disarmed, no violation detected.
3 chirps or flashes System armed with zone in violation. Indicator light indicates which zone.
4 chirps or flashes System disarmed with violation detected. Indicator light indicates cause of alarm condition.
INDICATOR LIGHT
Indicator light flashes a specific number of times to indicate different conditions of the security system when arming and
disarming the system (depends on programming).
It can also act as a deterrent if installed in a place visible from outside the vehicle.
DURING ARMING Indicator flashes codes for zones in violation (i.e. at least one door is opened).
Only one code is shown at a time. If more than one zone is in violation during arming, code changes when zone shown is
corrected (example: door closed).
DURING DISARMING Indicator flashes code for last zone that generated the alarm condition.
Code is shown when you send an unlock command.
This code is repeated until you apply the brakes.
12
The following table shows the meaning of zone codes (number of flashes).
ZONE CODES
FLASHES ZONE INDICATED
1 System is armed.
2 A door is/was open.
3 Hood is/was open.
4 Alarm condition is/was detected on shock sensor input.
5 Key is/was in the run position.
6 Alarm condition is/was detected on additional sensor input.
Additional sensor monitors status of_____________________________________________________
7 Loss of power (+12V battery supply was removed).
8 Alarm status is/has been detected on pre-shock sensor input.
Indicator can show two other conditions:
CONSTANT DIM LIGHT Indicates that alarm is permanently disarmed. See "VALET MODE" on page 15.
RAPID FLASHES Indicates that system is in rearming cycle.
See " SEMI-PASSIVE REARMING" and "PASSIVE REARMING" on page 10.
SECONDARY FUNCTIONS
ANTI-LOCK
When connected, this function prevents system from locking the doors during automatic rearming if key is in the ignition.
It can also be connected to a switch to select automatic locking as ACTIVE or INACTIVE.
TEMPORARY VALET MODE (ALARM)
This mode is used to cancel automatic rearming for an indefinite period of time.
You will find this mode useful when fuelling up or working on your vehicle.
To activate Temporary Valet Mode, send an unlock command during the rearming cycle (the indicator light flashes rapidly).
When light stops flashing, it confirms that Temporary Valet Mode has been activated.
To cancel this mode, place ignition key in RUN position then remove it; passive rearming is reactivated when you open a
door.
You can also arm the system using the remote, which cancels Temporary Valet Mode.
VALET MODE
This mode is used to deactivate alarm permanently when you take your vehicle in for servicing for
example. It can be de/activate by the remote (see table of commands, page 5) or by the Valet switch.
Valet switch activates Valet Mode or terminates alarm condition when your remote control is not
available (lost, batteries dead, etc.).
This switch must be installed in a hidden place known only to regular users of the vehicle.
Ask your installer to tell you where it is.
TO ACTIVATE VALET MODE, place ignition key in RUN position (do not start engine) then press Valet switch (for about 3
seconds) until indicator light comes on at half-brightness for 15 seconds or less, parking lights flash four times to confirm
that mode was enabled. The indicator light comes on again when engine is stopped or when certain commands are received
to remind you that Valet Mode is active.
TO DEACTIVATE VALET MODE, place ignition key in RUN position (do not start engine) then press Valet switch (for about 3
seconds) until indicator light goes out, parking lights flash twice to confirm that mode was disabled.
Notes
If you perform both sequences one after the other, you need to pause for 3 seconds between the two sequences.
Valet Mode is automatically deactivated when key is turned to the RUN position for the tenth time. This is to prevent Valet
Mode from being left on for long periods of time.
13
GLOSSARY
SIREN
Siren has six different sounds, i.e., it chirps repeatedly and has six different melodies (supplied only with optional alarm kit).
It chirps intermittently (short repeated chirps) during a pre-alarm and continuously during an alarm condition.
It can confirm arm and disarm commands with short chirps; see table in CONFIRMATION section.
This function is programmable as active or inactive during installation.
HORN
Horn beeps intermittently (short repeated beeps) during an alarm condition.
This function is optional and may require the installation of additional material.
Ask your installer for more details.
PARKING LIGHTS
Parking lights flash intermittently (repeated flashes) during a pre-alarm and alarm condition.
Parking lights also confirm that commands have been received.
See table in CONFIRMATION section.
VIOLATION
Violation means a situation that causes a protection zone to generate an alarm condition; example: a door was opened, etc.
DOME LIGHT DURATION
The system may turn the vehicle dome light on for 30 seconds upon unlocking command or when stopping the engine with
the ignition key (depends on programming) (optional connection - not applicable in "semi-passive rearming" mode).
On some vehicles, dome light may remain on after all doors have been closed.
If this option applies to your vehicle, rearming cycle is prolonged by the number of seconds during which dome light is kept
on by vehicle's factory system.
Special condition
If during dome light duration, a "Lock" command is sent while a door is opened, system arms and ignores door
violation; if door is still open 45 seconds after dome light duration ends, system recognizes door violation and
changes to alarm condition.
LOCK/UNLOCK COMMANDS AND ALARM SYSTEM ARMING/DISARMING
If your vehicle is equipped with electric door locks, several functions can be operated by remote control.
These features are optional and may require purchasing additional equipment. Consult your dealer for advice.
Arming and disarming the security system also controls Lock/Unlock functions. The arming/disarming functions only apply to
system that is equipped with a security system.
The following systems can be controlled:
• Door locks
• Trunk or hatchback release
• Interior lights
LOCK / ARM
Press the button for 2 seconds.
Doors are locked and alarm system is armed, parking lights flash once and siren chirps once to confirm command has been
received and that none of the protected zones are in violation.
Parking light confirmation is sent as many times as command is repeated so you are sure that system has received the
command. Audible confirmation is also repeated (siren or horn depending on programming) if option "Confirmation on 2nd
lock" is activated (during installation).
If a zone is in violation during arming, confirmation is different (3 flashes or chirps) to warn you. See table of alarm codes to
know which zone is in violation.
14
UNLOCK / DISARM
Press the button for 2 seconds.
Doors are unlocked and alarm is disarmed, parking lights flash and siren chirps twice to confirm command has been
received and that no alarm condition was generated during your absence.
If there was a violation, confirmation is different (4 flashes or chirps) to warn you. See table of alarm codes to know which
zone generated alarm condition.
The “Unlock“ function can be programmed and connected in such a way that the first Unlock command only unlocks the
driver's door, while a following Unlock command unlocks the other door(s).
Dome light will turn on for 30 seconds every time Unlock command is sent (not applicable in semi-passive mode) (optional
connection during installation). This 30-second duration is cancelled when Lock command is sent, brakes are applied or key
is inserted in ignition and turned to RUN position.
TRUNK RELEASE
This feature must be activated during the installation.
Press the button for 4 seconds.
The trunk is released and parking lights flash three times to confirm command has been executed.
Trunk cannot be released if ignition key is in RUN position.
Furthermore, if alarm is armed and system is not equipped with an additional sensor capable of detecting trunk opening
(optional equipment not included), release of trunk with remote control will not be possible.
In this case, parking lights flash once to confirm that command has been received but trunk could not be released.
If you are not sure you have received confirmation, repeat command. System will repeat confirmation as often as you wish.
If your vehicle is equipped with a factory installed security system and that this system is neutralized by the trunk release
command, remember to rearm it after trunk is closed ("Lock" command).
SYSTEM EQUIPPED WITH AN ADDITIONAL SENSOR .
If your system is equipped with a sensor designed to monitor status of trunk (added at time of installation), parking lights will
flash three times to confirm command was received. When trunk is released, 3 chirps are emitted to warn that alarm will not
take into account the status of this zone or the shock sensor's zone for the next 5 minutes. If you do not release trunk within
10 seconds, the system will rearm trunk automatically.
The timer is reset each time the command is repeated, which allows for a new 5-minute period to close the trunk lid.
The system will sound a chirp when trunk is closed to confirm it has been rearmed. If trunk is open for more than 5 minutes,
the system switches to alarm status.
AUTOMATIC LOCK/UNLOCK
Programmable as Active or Inactive during installation.
This function locks doors when ignition key is in RUN position, engine is running and brakes are applied.
Doors are unlocked when key is turned from ‘RUN’ to ‘OFF’, when Continuous Mode (Including Turbo Mode) is activated or
when a safety sequence is detected.
If “Unlock“ function is set to unlock only driver's door on the first command, the “Automatic Unlock“ function will unlock
driver's door only. If dome light is connected to system, it is activated when an automatic unlock occurs.
This function is: Active Inactive .
15
OTHER COMMANDS
ANTITHEFT (CIRCUIT DISABLER)
Programmable as Active or Inactive during installation.
Your Remote Starter is equipped with an antitheft system. This system consists of an output that controls a relay that cuts all
circuits required to operate your vehicle (optional connection).
“PASSIVE ARMING» TYPE ANTITHEFT
This type of antitheft system arms automatically when ignition key is turned from RUN to OFF and remains OFF for one
minute. It can also be armed manually by sending a “Lock” command (unless ignition key is in RUN position).
DISARMING: Antitheft system is disarmed for one minute when you send “Unlock” command.
If ignition key is not turned to ‘RUN’ position within one minute, system automatically rearms, thus preventing an intruder
from starting your vehicle, even with ignition key. The indicator light (optional) blinks rapidly during rearming, and then
continuously when antitheft system is armed.
It can be connected so that horn sounds if an intruder tries to start your vehicle when it is in the active state.
“ACTIVE» TYPE ANTITHEFT
This type of antitheft system is armed by sending a ‘Lock’ command (unless ignition key is in ‘RUN’ position) and is
disarmed by sending an ‘Unlock’ command. The indicator light (optional) blinks continuously when antitheft system is armed
VALET MODE (ANTITHEFT)
The antitheft function can be deactivated for the same reasons and in the same way as the antitheft system. See "Valet
mode" details on page 15.
INDICATOR LIGHT
An optional indicator light (LED) can be added to the system to show the status of the safety sequence (on vehicles
equipped with a manual transmission), and the status of the safety system, the antitheft system or the Valet Mode.
See ‘Indicator Light’ in the ‘Safety System’ Section.
The following table shows the codes displayed by the indicator light when performing the safety sequence.
Repeated flashes Phase or Status
3 double flashes Start of sequence.
2 double flashes Door open.
1 double flash Door closed (waiting for engine to stop).
1 single flash Valid safety sequence (system is ready to receive a start command).
Fast (10 sec.) Invalid sequence (sequence must be started over from beginning).
UTILITY COMMANDS
These commands allow you to control most of the vehicle accessories depending on what was connected during installation
(headlights, defroster, etc.). For more information, check with your technician.
Refer to the table of command on page 5 to know which button to
The accessory associated to each of these commands is activated for the duration set at the installation.
The delay can be cancelled by repeating the command.
* Programmable during installation: The “trunk” command can access the “utility 1” function.
Commands Corresponding accessories Duration
UTILITY 1 *
UTILITY 2
UTILITY 3
UTILITY 4
16
CAR FINDER
Press the and buttons for 2 seconds.
This function sounds horn (short tune) and flashes parking lights to help you locate your vehicle in a large parking lot.
REMOTE SILENT MODE
The remote can be programmed to be used in silent mode.
Refer to the table of command on page 5 to know which button to press.
The audible confirmations from the remote control are Deactivated/Reactivated.
KEYPAD LOCK
The keypad of your remote can be locked to prevent any unwanted commands to be sent to your vehicle.
The keypad is locked or unlocked depending on its previous status.
Press the , and buttons simultaneously for 2 seconds.
PANIC
Refer to the table of command on page 5 to know which button to press.
This command activates parking lights, siren, horn, and dome light intermittently, depending on which is connected to
system, for 30 seconds or 60 seconds depending on programming during installation.
Panic mode is used to attract attention if you are in difficulties.
If you are inside the vehicle when Panic Mode is activated, press on the brake pedal to lock doors (optional connections
required) and neutralize antitheft (60 sec. if doors were already locked). As long as the cycle is not over, applying the brakes
resets the sequence from the beginning every time.
This command will not be executed if engine is kept running by ignition key. In this case, parking lights will flash once to
confirm that command has been received. Use the stop command to abort panic mode.
START FAIL CODES
When a remote start attempt fails, it is possible to determine what caused the failure to start.
Refer to the table of command on page 5 to know which button to press depending on remote transmitter model being used.
The number of times the parking lights flash corresponds to the start fail code.
The table below lists the various start fail codes.
Code Failure to start details
1 Module has received a Stop command (remote or timer).
2 Brakes were applied during or after start sequence or module overload occurred.
3 Stopped by alarm.
4 Engine does not crank when starting sequence is initiated.
5 Start command ignored because hood is open.
6 Safety sequence not valid during start sequence.
7 Start command ignored because key is in the run position.
8 Remote starter main switch is "OFF" or output overload.
9 Runtime has elapsed.
10 Remote starter attempted to start engine three times unsuccessfully.
11 Remote starter sensed engine was already running.
12 Engine is over-revving (RPM > 3000) (programmable at time of installation).
13 Engine not cranking fast enough during start sequence.
14 Security sequence has been invalidated by status of parking brake.
15 Security sequence has been invalidated by opening of one or more doors.
16 Internal failure of module.
19 Module does not detect manual interface.
20 Consult your dealer.
If any of these start fail codes persist, consult your dealer.
17
ALARM CONDITION CODES
Use this command to identify which zone is in violation during arming or which generated alarm condition.
Refer to the table of command on page 5 to know which button to press.
Parking lights will flash number of times corresponding to code for protection zone in violation.
If more than one zone is in violation, code for the zone with highest priority is shown (1 = highest priority).
See table of codes below.
Code Protection Zone Priority
1 System is armed. 8
2 A door is/was open. 1
3 Hood is/was open. 3
4 Alarm condition is/was detected on shock sensor input. 5
5 Key is/was in the RUN position. 2
6 Alarm condition is/was detected on additional sensor input.
Additional sensor monitors status of __________________________________________________ 4
7 Loss of power (+12V battery supply was removed). 7
8 More than 3 warnings were given within 3 minutes by pre-shock input. 6
CODE LEARNING OF ADDITIONAL TRANSMITTER(S)
Four different remote controls can be programmed for a given vehicle. If a fifth remote is added, the first remote is deleted.
Note: When the first code learning command is sent, all the old codes are cleared out. Therefore if you want to add a new
remote, all the old ones must be reprogrammed as well.
One or more remote transmitters can be added. To do this, the programming is accessed as follows:
Open hood. (Hood switch must be present and operational. – See “Safety checks” on page 17.)
Place key in the ignition and turn to the RUN position
Apply the brakes once
You now have 10 seconds to turn the key from the RUN to the OFF position 3 times.
If this sequence is correctly carried out, the control module flashes parking lights (4 flashes). You may then
proceed to the next step.
Press the button on the new remote control. When access code of new remote control is memorized,
the control module will confirm with flashing parking lights (1 flash).
Repeat the above procedures for each remote control that has to be programmed (up to 4 remotes).
Apply the brakes.
New remote(s) is (are) now added to the system.
If your vehicle is equipped with a function that automatically sets driver preferences (seat, mirrors, etc.) and the system is
configured to control it, the remote controls programmed in positions 1 and 2 will control the settings for the first driver and
the remote controls programmed in positions 3 and 4 will control the settings for the second driver. If you only have two
remote controls, program the first one twice and the second one twice to occupy the four memory locations of the system.
SAFETY CHECKS
In order to maintain a high safety standard, proceed with the following checks every month.
HOOD SWITCH
• Remote start your vehicle.
• Open hood.
Engine should stop as soon as hood is opened.
If engine does not stop immediately, turn main switch to OFF position and leave it off until situation is rectified. Contact
your service center.
18
GEARSHIFT CHECK APPLICABLE TO AUTOMATIC TRANSMISSION VEHICLES
If key must be in ignition for gearshift to be moved out of P, your vehicle is safe as long as keys are kept away from children.
If, on the other hand, gearshift can be put in gear without key being in ignition, proceed with this simple check.
• Make sure that the parking brake is applied.
• Put gearshift in gear (D).
• Remain in the vehicle and be ready to apply brakes.
• Start vehicle with remote starter.
• Repeat these steps with gearshift in every position other than Park and Neutral.
If starter reacts within 90 seconds (which is not safe), turn main switch to OFF position and leave it off until situation is
rectified. Contact your service center.
• Make sure that the parking brake is applied.
• With gearshift in P, start vehicle with remote starter.
• Remain in vehicle and be ready to apply brakes.
• Without applying brakes, move gearshift out of P.
If, without applying brakes, engine does not stop immediately (which is not safe), turn main switch to OFF position and
leave it off until situation is rectified. Contact your service center.
GEARSHIFT CHECK APPLICABLE TO MANUAL TRANSMISSION VEHICLES
Make sure the parking brake is operational, i.e. it has the capability of immobilizing the vehicle.
If the parking brake cannot stop the wheels from turning, which is not safe, place the main switch in OFF position until the
situation is rectified.
DETECTION OF PARKING BRAKE STATUS
1. Carry out the safety sequence, then remote start the engine to confirm the safety sequence is valid.
Make sure not to apply the brakes.
2. Release the parking brake.
The engine must stop immediately upon releasing the parking brake. If the engine does not stop, which is not safe, place the
main switch in OFF position until the situation is rectified. Consult your service center.
DETECTION OF DOOR OPENING
Make sure that the opening of each door (open one by one) will break safety sequence.
1. Carry out the safety sequence, then remote start the engine to confirm the safety sequence is valid.
2. Stop the engine using the remote control. Make sure you do not apply the brakes and that the parking brake
remains applied until step 4.
3. Open then close only one door once the engine has stopped.
4. Try to start the engine using the remote control.
The engine should not be able to be remote started and the system should generate error code #15.
Repeat this test for every door of the vehicle (including hatchback if applicable).
If the vehicle is equipped with fold-down rear seat backrests, the trunk has to be considered as a door since it is an opening
that can give access to the passenger compartment. It must therefore be included in the safety sequence.
If the engine starts, which is not safe, place the main switch in OFF position until the situation is rectified. Consult your
service centre.
REPLACING OR BOOSTING VEHICLE BATTERY
If you have to replace or boost your battery for any reason, turn main switch to OFF position and leave it OFF until battery
is replaced or fully charged.
Reversing polarity when boosting your battery
could permanently damage your remote starter.
Note: If alarm is armed when battery is disconnected, siren will sound when battery is reconnected if a zone is in violation.
To avoid this, put system in Valet Mode before disconnecting battery.
