T W O - W A Y F M L E D
A U T O M A T I C / M A N U A L T R A N S M I S S ION
R E M O T E S T A RTE R
Doc#: 120710 Rev:1.5 © 2012 Directed. All Rights Reserved
User Guide
Designed & Engineered in Canada
Model: ASRF-3510
![](/img.php?id=1811907&img=bg2.png)
P.2 User Guide
WARNING!
It is the responsibility of the vehicle operator to ensure
that their vehicle is parked in a safe and responsible
manner.
1. a) Manual Transmission: When leaving the vehicle, it
is the user’s responsibility to ensure that the
gearshift lever is in the NEUTRAL position and the
parking brake is engaged in order to avoid
accidents upon remote starting.
b) Automatic Transmission: When leaving the vehicle,
it is the user’s responsibility to ensure that the
gearshift lever is in “Park” in order to avoid
accidents upon remote starting.
Note: Make sure that the automatic vehicle cannot
start in "Drive".
2. It is the user's responsibility to ensure that the
remote starter is disabled or put into valet mode
before servicing.
INDUSTRY CANADA USER NOTICE
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference that
may cause undesired operation of the device.
To reduce potential radio interference to other users, the antenna type and its gain should
be so chosen that the equivalent isotropically radiated power (EIRP) is not more than that
required for successful communication.
NOTE: The manufacturer is not responsible for any radio or TV interference caused by
unauthorized modifications to this equipment. Such modifications could void the user's
authority to operate the equipment.
![](/img.php?id=1811907&img=bg3.png)
User Guide P.3
Table of Contents
Government regulations .................................................................................... 4
Introduction with SmartStart™ ......................................................................... 5
Using the Remote Control ................................................................................. 6
Vehicle Presets ................................................................................................... 7
Heater ............................................................................................................... 7
Windshield Wipers & Radio & Headlights ......................................................... 7
Arming and disarming the starter kill (if installed) .......................................... 8
Remote-Starting Your Vehicle ........................................................................... 9
Setting Your Vehicle into Ready Mode ............................................................. 9
Remote-starting .............................................................................................. 11
Driving Off ...................................................................................................... 11
Remote Starter Features .................................................................................. 11
Remote Door Locks ........................................................................................ 11
Remote Trunk Release ................................................................................... 12
Idle Mode ........................................................................................................ 12
Valet Mode ..................................................................................................... 13
Panic Mode .................................................................................................... 15
Quick LockoutTM ............................................................................................. 15
Cold Weather Mode........................................................................................ 15
Extended Run Time ........................................................................................ 16
Disable/Enable LED flashing .......................................................................... 17
Constant output .............................................................................................. 17
Feature Confirmation Chart ............................................................................. 18
Advanced Features: Installation-programmable Options ............................. 19
Ignition-controlled Door Locks ........................................................................ 19
Secure Lock ................................................................................................... 19
Safe Start ....................................................................................................... 19
Engine Run Time ............................................................................................ 20
Turbo Mode .................................................................................................... 20
Home ValetTM Mode ....................................................................................... 21
AUX 1 ............................................................................................................. 22
AUX 2 ............................................................................................................. 22
Horn Timing Adjustment ................................................................................. 22
Multi-car Operation ......................................................................................... 23
OEM-Style Alarm ............................................................................................ 23
Intrusion Codes via horn ................................................................................. 24
Vehicle Status Request .................................................................................... 24
Status Request When the Engine IS NOT Running ....................................... 25
Status Request When the Engine is Running ................................................. 26
Ready Mode Status Request .......................................................................... 26
Troubleshooting Poor Transmitting Range ................................................... 27
Diagnostics – Parking Light Flash Table........................................................ 28
Battery Replacement ........................................................................................ 29
![](/img.php?id=1811907&img=bg4.png)
P.4 User Guide
Government regulations
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no guarantee
that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This device complies with the Industry Canada Radio Standards Specification
RSS 210. Its use is authorized only on a no-interference, no-protection basis; in
other words, this device must not be used if it is determined that it causes
harmful interferences to services authorized by IC. In addition, the user of this
device must accept any radio interface that may be received, even if this
interference could affect the operation of the device.
Warning! Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate this device.
![](/img.php?id=1811907&img=bg5.png)
User Guide P.5
Introduction with SmartStart™
This is a state-of-the-art remote car starter system. The system is packed with
advanced features such as priority access to the driver’s door (commodity
features), the Safe Start children safety feature and SmartStart™.
SmartStart™ is a groundbreaking technology that enables your remote starter
features to be accessed by your smartphone. Features include keyless entry,
trunk release, panic, remote start/stop toggle and alarm notifications
1
. Note:
SmartStart™ must be professionally installed. For more information, see your
nearest authorised Directed Canada dealer.
With many advanced functions, this product will satisfy any one of your
expectations from high-end commodity and security systems, without neglecting
any standard feature commonly offered by entry-level starters.
1
Certain conditions apply. See your authorised Directed Canada dealer.
![](/img.php?id=1811907&img=bg6.png)
P.6 User Guide
Using the Remote Control
Your remote starter is equipped with a 5-button multi-channel remote control. It
can operate two independent vehicles equipped with a remote starter (see Multi-
car operation section on page-23). The functions of the transmitter are as
follows:

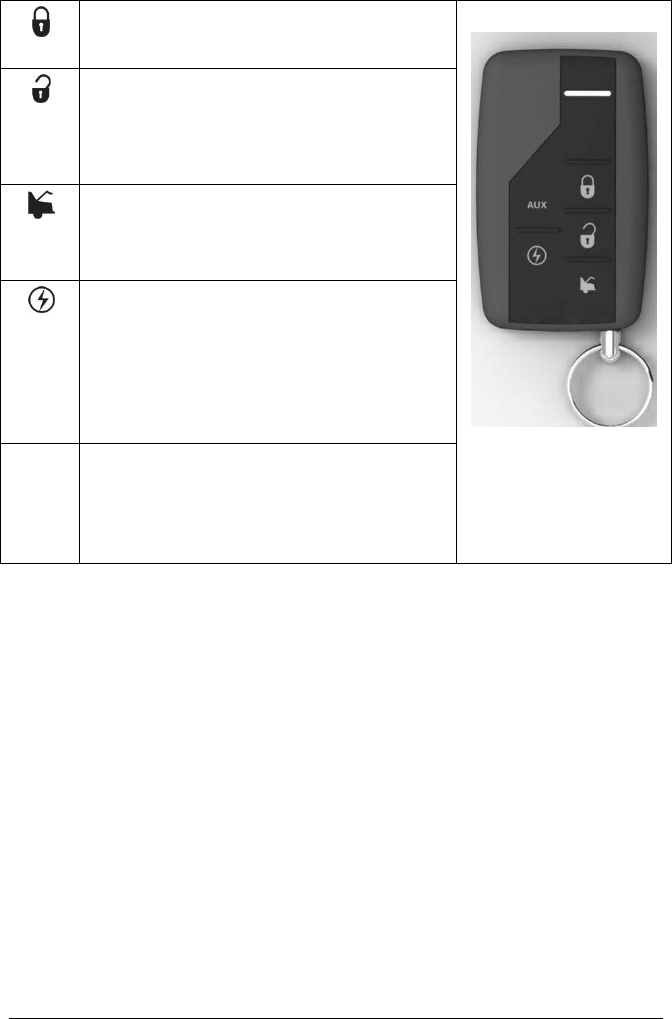

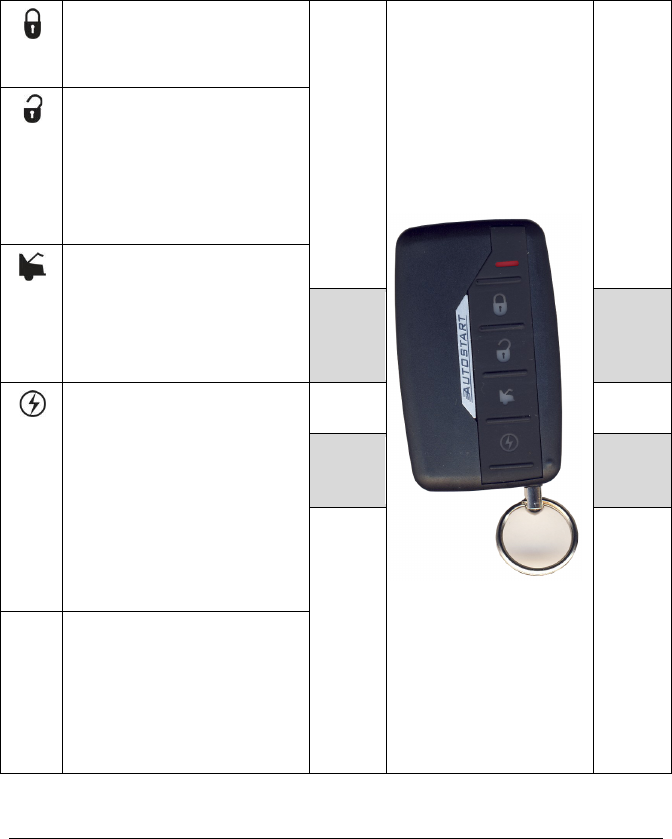

2-way LED remote
LOCK: Locks the doors
and arms the STARTER
KILL (if installed).
UNLOCK: Unlocks the
doors and disarms the
STARTER KILL (if
installed). Activates the
AUX 1 output if Priority
Door Access is configured.
TRUNK: Opens the
TRUNK or activates the
AUX 3 output.
Note: Trunk option must be
installed.
LED
#1
LED
#2
START/STOP: Remote
starts or stops the engine.
Gets the system into Cold
Weather mode by pressing
the SHIFT button and then
pressing and holding the
START/STOP button for
3 seconds. Note: Icon may
vary.
LED
#3
LED
#4
AUX AUX: This button serves as
a second function button.
This button allows
assigning different functions
to any of the other four
buttons.
![](/img.php?id=1811907&img=bg7.png)
User Guide P.7
1-way companion remote (where available)
LOCK: Locks the doors and arms the
STARTER KILL (if installed).
(remote may vary from picture)
UNLOCK: Unlocks the doors and disarms
the STARTER KILL (if installed). Activates
the AUX 1 output if Priority Door Access is
configured.
TRUNK: Opens the TRUNK or activates the
AUX 3 output.
Note: Trunk option must be installed.
START/STOP: Remote starts or stops the
engine. Gets the system into Cold Weather
mode by pressing the SHIFT button and
then pressing and holding the
START/STOP button for 3 seconds. Note:
Icon may vary.
AUX
AUX: This button serves as a second
function button.
This button allows assigning different
functions to any of the other four buttons.
Vehicle Presets
Heater
When leaving the vehicle it is recommended to preset the accessory controls in
preparation for the next remote start. Settings for the blower motor (fan), front
and rear, should not be left on HIGH. It is recommended to leave the settings on
LOW or MEDIUM instead.
Windshield Wipers & Radio & Headlights
Certain vehicles require the radio and / or windshield wiper and / or headlight
circuits to become energized while running under remote start. When leaving the
vehicle you must ensure that the windshield wiper and headlight switches are
OFF. Leaving the headlight switch ON on certain types of vehicles could cause
![](/img.php?id=1811907&img=bg8.png)
P.8 User Guide
them to remain ON even after remote starter shut down, resulting in a dead
battery.
Arming and disarming the starter kill (if
installed)
This added security feature will prevent the vehicle from starting with the Ignition
key when the starter kill is armed. If the system was installed with the starter kill
option, the vehicle will not be able to start with the key unless the system has
been unlocked first or put into Valet Mode (page 13).
Note: If the Starter Kill is installed, the vehicle will benefit from a protection
against starter motor damage that could occur after remote-starting the engine
should the user, by force of habit, turn the ignition key to the CRANK position.
The Starter Kill (if installed) can be configured by the installer either to Passive
Mode (so as to arm automatically) or Active Mode (so as to require the user’s
intervention for arming). By default, the Remote Car Starter is configured to
Passive Mode.
Passive Mode:
To arm the Starter Kill:
Press the button on the transmitter.
OR
Let the Starter Kill arm automatically 1 minute (by default) or 3 minutes
(if configured this way) after the ignition is turned OFF or once the last
door is closed (if the doors are monitored). The parking lights will flash
once.
The LED on the antenna will flash quickly during the countdown
preceding the activation of the Starter Kill.
Once the activation countdown expires, the LED will send a series of
quick double flashes to indicate that the Starter Kill is now armed.
To disarm the Starter Kill:
Press the button on the transmitter.
The Starter Kill will automatically rearm itself after 1 minute (by default)
or 3 minutes (if configured this way) if no door is left opened (if the
doors are monitored) and the ignition is not turned ON.
![](/img.php?id=1811907&img=bg9.png)
User Guide P.9
Active Mode:
To arm the Starter Kill:
Press the button on the transmitter.
The parking lights will flash once.
The LED on the antenna will flash slowly.
If remote door locks are installed, this will also lock the doors and arm
the OEM-style alarm (if configured).
To disarm the Starter Kill:
Press the button on the transmitter.
The parking lights will flash twice.
The LED on the antenna will remain OFF.
If remote door locks are installed, this will also unlock the doors and
disarm the OEM-style alarm (if configured).
Remote-Starting Your Vehicle
Setting Your Vehicle into Ready Mode
If your vehicle has a manual transmission you must read the following
indications. In order to start the vehicle by remote, the unit must first be set to
Ready Mode. If the unit is not set to Ready Mode, it cannot remote start the
vehicle.
Please note that Ready Mode can be enabled by the remote or the handbrake,
depending on the option that was selected by your installer. Therefore, you must
follow the appropriate procedure between the two described below in order to set
your vehicle into Ready Mode.
Once the system is set to Ready Mode, the vehicle can be remote started and
stopped at any time. The system will exit Ready Mode if a door, the hood or the
trunk is opened, if the brake pedal is pressed, if the parking brake is disengaged
or if the ignition key is turned to the IGNITION ON (RUN) position.
![](/img.php?id=1811907&img=bga.png)
P.10 User Guide
To set the system to Ready Mode:
If Ready Mode is enabled by remote
If Ready Mode is enabled by
handbrake
1. Ensure that all the doors, hood and trunk are closed. Make sure that the gear
selector is in the neutral position.
2. With the engine running, apply the
parking brake once and release the
brake pedal.
3. Within 20 sec. of engaging the
parking brake, press and hold ,
or on the transmitter
(SmartStart™ uses only the
SmartStart™ icon).
The parking lights will flash 3 times
quickly and remain lit. Release the
button.
2. With the engine running, apply the
parking brake twice within 10 sec.
3. Make sure to release the brake
pedal.
The parking lights will flash 3 times
quickly and remain lit.
4. Remove the key: the engine will keep on running.
5. Exit the vehicle. All doors should be closed, including the hood and trunk.
6. THERE ARE THREE POSSIBLE OPTIONS TO COMPLETE READY MODE
(programmable by installer)
OPTION 1:
No Lock
OPTION 2:
Manual Shutdown
(default)
OPTION 3:
Automatic
Shutdown
The engine stops.
The engine keeps going until
you press either;
a. to lock the doors and
shut down the engine;
b. to unlock the doors and
shut down the engine;
c. to shut down the engine
without affecting the doors.
The engine runs for
8 sec. then locks the
doors before finally
shutting down the
engine, without user
interaction.
WARNING: The
vehicle is not armed
or locked down.
WARNING: Engine runs until
the pre-programmed run time
expires.
WARNING: Do not
leave your keys in the
vehicle!
7. The Parking lights will flash twice to indicate Ready mode is set.
![](/img.php?id=1811907&img=bgb.png)
User Guide P.11
Remote-starting
1. Press the button for approximately 1 second and release.
2. The remote will beep once.
3. The remote will confirm the remote starter’s activation by beeping
3 times.
If your vehicle does not start at the first attempt, the system will shut down, wait a
few seconds and try to start the engine again. There will be 3 start attempts
before the system gives up.
Driving Off
With the vehicle running remotely, press the button to disarm the starter kill (if
installed) and unlock the doors. Enter the vehicle and do the following:
1. Turn the ignition key to the IGNITION ON (RUN) position. (Do not turn the
key to the CRANK position while the engine is running. This would
cause the starter motor to re-engage.)
2. Press the brake pedal to disengage the remote starter unit.
You are now ready to drive off.
Note: On some Push-To-Start (PTS) vehicles, no takeover is possible as
pressing the brakes will shut the engine down. Please talk to your technician to
determine if the “Takeover mode” can be set for your vehicle.
Remote Starter Features
Remote Door Locks
If your Remote Car Starter was installed with the Remote Door Locks option, you
will have the convenience of remote keyless entry.
To LOCK your doors and ARM the system:
1. Press and hold the button for approx. 1 sec.
2. The remote will beep once to confirm locking of the doors.
![](/img.php?id=1811907&img=bgc.png)
P.12 User Guide
To UNLOCK your doors and DISARM the system:
1. Press and hold the button for approx. 1 sec.
2. The remote will beep twice to confirm unlocking of the doors.
Remote Trunk Release
If your system was installed with the Remote Trunk Release option, you can
open your trunk by pressing the button until the remote beeps once. In
addition, this will also disarm the OEM-style alarm (if installed).
Idle Mode
Convenience feature: Idle Mode allows you to keep the engine running and the
doors locked while you stop, for example, at a convenience store or for a short
delivery.
This feature allows you to let the remote starter take over control of the vehicle
(i.e. no Key in the Ignition Switch) while the engine is running.
Activating Idle mode (Automatic transmission):
1. With the engine running, make sure to release the brake pedal and
press the , or button on the transmitter until the parking lights
come ON.
Note: SmartStart™ can be setup to use the SmartStart™ icon to
activate Idle mode.
2. Remove the ignition key from the ignition switch.
3. The engine will continue running.
4. Exit the vehicle. All doors, the hood and trunk should be closed
5. Press the button to lock the doors, to arm the starter kill and to
arm the alarm (if available). The engine will continue running.
a. When re-entering the vehicle, the user must reinsert the key
into the ignition and turn it to the ON position (not Crank)
without pressing on the brake.
b. Once the key is in the ON position, press on the brake pedal
to put the transmission in gear. Pressing the brake pedal at
this step will cancel the remote starter takeover.
c. Drive off.
![](/img.php?id=1811907&img=bgd.png)
User Guide P.13
If your vehicle has a manual transmission, Idle Mode can be activated through
the same routine as that used for Ready Mode (page 9); at the last step, press
the button to lock the doors, arm the system and leave the engine running.
NEW FEATURE – Push-To-Start Idle Mode
This feature is a variation of “Idle mode”, but made specifically for Push-To-Start
vehicles, with automatic or manual transmissions. (Consult your installer for
availability of this feature.) Follow the same steps as the normal Idle Mode
procedure, except for when re-entering the vehicle while the engine is running;
1. Press unlock
2. Open then close all doors.
3. You have 1.5 minutes (or 3 minutes) to press on the brake pedal, to
get in gear and drive off.
Note 1: Pressing on the brake pedal after the allocated (1.5 or 3-min.) period will
shut the engine down.
Note 2: The engine will continue running until the user re-enters the vehicle or
until the expiration of the run time.
Note 3: If the pre-programmed run-time expires or if the user shuts down the
engine remotely, the vehicle will enter Ready Mode automatically (manual
transmissions only).
Caution!! Do not leave children or pets unattended in a vehicle standing in Idle
Mode.
Valet Mode
When the vehicle is in Valet Mode, the remote starter and alarm functionalities
are disabled. If the vehicle needs to be serviced, or if you park it indoors, Valet
Mode will prevent the engine from being remote-started accidentally.
Any of the following features will put the remote car starter into Valet
Mode:
Ignition Valet: This feature allows you to set Valet Mode using the ignition key.
Remote valet: This feature allows you to set Valet Mode using the transmitter.
![](/img.php?id=1811907&img=bge.png)
P.14 User Guide
To put the system into Valet Mode
Using the KEY (Ignition Valet Mode):
1. Insert the ignition key into the ignition switch. Within 10 sec., cycle the
ignition key to the IGNITION/RUN and OFF positions 5 times until the
parking lights flash 3 times.
2. Turn the ignition OFF.
3. The LED on the antenna will stay ON indicating that the vehicle has
successfully entered Valet mode.
Using the TRANSMITTER (Remote Valet Mode):
1. Press and hold the and buttons simultaneously until the
remote beeps once, pauses, then beeps once again. Release the
buttons.
2. The and buttons will flash 3 times.
3. The LED on the antenna will stay ON indicating that the vehicle has
successfully entered Valet mode.
To take the system out of Valet Mode
Using the KEY (Ignition Valet Mode):
1. Insert the ignition key into the ignition switch. Within 10 sec., cycle the
ignition key to the IGNITION/RUN and OFF positions 5 times until the
parking lights flash twice.
2. Turn the ignition OFF.
3. The LED on the antenna will flash rapidly, indicating that the vehicle
is now out of Valet mode.
Using the TRANSMITTER (Remote Valet Mode):
1. Press and hold the and buttons simultaneously until the
remote beeps once, pauses, then beeps once again. Release the
buttons.
2. The and button will flash 3 times.
3. The LED on the antenna will flash rapidly, indicating that the vehicle
is now out of Valet mode.
![](/img.php?id=1811907&img=bgf.png)
User Guide P.15
If someone has attempted to remote-start the vehicle while in Valet Mode; the
parking lights will turn ON, then OFF, then flash twice.
Panic Mode
Note: Panic mode can only be activated if the horn has been adequately
configured by the installer.
In an emergency situation, you can activate panic mode by pressing and holding
the AUX button until the horn starts honking. If the vehicle is under a remote
start, the engine will shutdown automatically before setting off the horn. You can
stop the horn by pressing:
(this will lock your doors and deactivate panic mode), or
(this will unlock your doors and deactivate panic mode).
Furthermore, the panic mode can be stopped by activating Valet Mode (page
13)
* Panic Mode will automatically shut down after 30 sec.
Quick LockoutTM
(Also called Secure Panic.) For fast protection in emergency situations, the
system will LOCK all doors when you press the brake pedal while you hear the
Horn sounding. (Quick Lockout is only available when Panic mode has been
triggered.)
Cold Weather Mode
If the vehicle has a manual transmission, Ready mode (page 9) should be set
before entering Cold Weather Mode. When Cold Weather Mode is active, the
engine starts every 2 hours and runs for 3 minutes (or for 8 or 20 minutes with
diesel engines). Cold Weather Mode automatically ends after 24 hours (or 12
starts).
1. To enter Cold Weather Mode (2-way remote):
2. Press and release the AUX button.
3. The button on the transmitter will light up.
![](/img.php?id=1811907&img=bg10.png)
P.16 User Guide
4. While the button is still lit, press and hold the button until the
remote beeps once, pause, then beeps twice.
5. Release the button. Its LED will flash quickly.
To enter Cold Weather Mode (1-way remote):
1. Rapidly press AUX twice. The remote’s LED will start flashing.
2. Press and hold until the parking lights will flash for 2 seconds,
pause, and then flash 3 times.
To exit Cold Weather Mode, do any one of the following actions:
1. Open the hood.
2. Start the engine remotely.
3. Turn the ignition key to the IGNITION ON (RUN) position.
4. Press and release the AUX button.
5. The button on the transmitter will light up.
6. While the button is still lit, press and hold the button until the
remote beeps once, pause, then beeps once again.
7. Release the button. Its LED will flash quickly.
8. (1-way remote) Rapidly press AUX twice. The re mote’s LED will start
flashing. Press and hold until the parking lights flash for 2 seconds,
pause, and then flash twice.
To verify whether the system is in Cold Weather Mode:
1. (Automatic transmissions only) Press the brake pedal: If the
vehicle is in Cold Weather mode, the parking lights will remain ON
while the brake pedal is pressed.
2. Do the vehicle status request feature (page 24).
Extended Run Time
While the vehicle is running under a remote start, press and hold the button
until the remote beeps. This will reset the run time counter to zero and restart the
run time cycle from the beginning.
![](/img.php?id=1811907&img=bg11.png)
User Guide P.17
Note: The extended run time procedure can only be carried out once per remote
start.
To stop the vehicle, at any moment, simply press and release the button.
Example: If your remote car starter is programmed for a run time of 3 minutes
and your vehicle has been running for 2 minutes already, pressing the button
will reset the counter to zero and allow the engine to run for another cycle (in this
case, 3 minutes).
Disable/Enable LED flashing
To disable the LED: Press and simultaneously until the remote beeps
once, pauses for 2 seconds, then beeps once again. Release the buttons. The
parking lights will flash 3 times.
To Enable the LED: Press and simultaneously until the remote beeps
once, pauses for 2 seconds, then beeps once more. Release the buttons. The
parking lights flash once.
Constant output
Pressing and holding the button for more than 3 seconds will lock all doors
and will send a constant pulse as long as the button is held down (maximum
of 15 seconds). This constant pulse can be configured to activate certain
functionalities such as rolling up the windows – Please refer to your installer to
see if your vehicle is compatible with this option.
Pressing and holding the button for more than 3 seconds will unlock all doors
and will send a constant pulse as long as the button is held down (maximum
of 15 seconds). This constant pulse can be configured to activate certain
functionalities such as rolling down the windows – Please refer to your installer to
see if your vehicle is compatible with this option.
![](/img.php?id=1811907&img=bg12.png)
P.18 User Guide
Feature Confirmation Chart
Feature
LOCK
UNLOCK
TRUNK
START/STOP
Beep(s)
Lock
3 flashes
1
Unlock
3 flashes
2
Trunk
3 flashes
1
LED ON/OFF
3 flashes
3 flashes
1
Start
3 flashes
1
Running
3 flashes
3
Stop
3 flashes
2
Entering Cold
Weather Mode
3 flashes
2
Exiting Cold
Weather Mode
3 flashes
1
Home Valet
3 flashes
3 flashes
2
Valet Mode
3 flashes
3 flashes
1
Exit Valet Mode
3 flashes
3 flashes
1
Fail Start Attempt
4 flashes
4
![](/img.php?id=1811907&img=bg13.png)
User Guide P.19
Advanced Features: Installation-
programmable Options
The remote car starter was designed with flexibility and OEM integration in mind.
With its programmable options, this unit can single-handedly control nearly any
electrical system in your vehicle.
Caution: The programming of your system should be left to a professional.
Changing any one of the settings may affect the operation of your Remote Car
Starter.
Ignition-controlled Door Locks
This is an added security feature. If your Remote Car Starter was installed with
the Ignition-Controlled Door Locks option, the doors will automatically lock as
soon as the ignition key is turned to the IGNITION ON (RUN) position while the
brakes are pressed. The remote car starter will also lock any door that was
unlocked and opened (then closed) the next time the brake pedal is pressed
(only when doors are monitored). When the key is turned to the OFF position, the
doors will automatically be unlocked.
Secure Lock
(Disabled by default.) Before your vehicle can be remote-started, the factory
security system must first be disarmed. The Secure Lock feature may be
required on certain vehicle models with factory security systems that
automatically unlock the doors when the security system is disarmed.
To keep your vehicle protected when the factory security system is disarmed for
a remote start, Secure Lock will relock your doors as soon as the vehicle is
started. Once the engine is shut down by remote or after its runtime has expired,
Secure Lock will also rearm your factory security system and relock the doors.
Safe Start
This feature will eliminate accidental remote starts, e.g. when children are playing
with the transmitter.
Safe start enabled: If this feature is enabled, the user must press the button
twice within 3 seconds to remote-start the vehicle.
![](/img.php?id=1811907&img=bg14.png)
P.20 User Guide
Swap start (2-way remote): If this feature is enabled;
1. Press and release the AUX button.
2. The button on the transmitter will light up.
3. While it is lit, press to remote start the car.
4. The AUX 2 output can be activated by pressing the button.
Swap start (1-way remote): If this feature is enabled;
1. Rapidly press AUX twice. The remote’s LED will start flashing.
2. While the LED is flashing, press to remote start the car.
3. The AUX 2 output can be activated by pressing the button.
Engine Run Time
If you have a gas engine, your Remote Car Starter can be programmed to run
the engine for 3, 15, or 25 minutes (15 minutes by default). If you have a diesel
engine, the Remote Car Starter can be programmed to run the engine for 8, 20,
or 30 minutes (20 minutes default).
Turbo Mode
If Turbo Mode is configured at installation, it will allow a turbocharger to idle down
after the user leaves the vehicle: the unit will take over the vehicle and keep it
running for 60 seconds (or until it is shut down by remote control), then shut
down the engine.
If your vehicle has an automatic transmission, proceed as follows to set the
system to Turbo Mode:
1. With the engine running, make sure to release the brake pedal and
press the , or button on the transmitter until the parking
lights come ON.
2. Note: SmartStart™ can be setup to use the SmartStart™ icon to
activate Turbo mode.
3. Remove the ignition key from the ignition switch. The engine will
continue running.
4. Exit the vehicle and close all doors, hood and trunk.
![](/img.php?id=1811907&img=bg15.png)
User Guide P.21
5. Press the button; this will lock the doors, arm the OEM-style alarm
(if configured) and confirm that the vehicle is in Turbo Mode.
6. The engine will shut down after 60 seconds.
If your vehicle has a manual transmission, follow all steps of the Ready Mode
routine (page 9) to activate Turbo Mode. At the last step, press either:
to lock the doors and have the engine shut down after 60 seconds;
The parking lights will flash 3 times and remain lit.
The OEM-style alarm and starter kill (if configured) will be armed.
to unlock the doors and have the engine shut down after
60 seconds;
The parking lights will flash 3 times and remain lit.
to shut down the engine without affecting the doors.
Note: The vehicle will enter Ready Mode once the engine run time
expires.
Home ValetTM Mode
If configured at installation, this feature will remotely set the vehicle to a no-
remote-start mode: if the vehicle is parked indoors there is no danger of it starting
accidentally by remote control. If the vehicle has a manual transmission, it should
be set into ready mode before activating the Home Valet™.
Note: Once the Home Valet Mode is activated, the vehicle will not start by
remote, but the OEM alarm functions will remain active.
To take the system into home valet mode:
Press the or button.
Within 3 seconds, press the and buttons simultaneously until the
remote beeps twice.
To take the system out of home valet mode:
Turn the ignition key to the IGNITION ON (RUN) position.
The system will warn you if someone attempts to start your vehicle while it stands
in home valet mode. The parking lights will:
![](/img.php?id=1811907&img=bg16.png)
P.22 User Guide
Turn ON then OFF; then
Flash twice, pause; then
Flash twice again.
AUX 1
Note: This 500 mA negative Aux 1 output can be used for many different
applications
Priority door:
This great feature allows the user to unlock solely the driver’s door with
a single press of the button on the transmitter, and to unlock the
other doors, if desired, by pressing the button for a second time.
The output will provide a 1-second negative output when the button
is pressed a second time on the transmitter.
Horn Confirmation:
AUX 1 can be programmed to trigger the horn every time the button is
pressed, or when the button is pressed twice within 3 seconds. When horn
confirmation is activated, panic mode is enabled. If horn confirmation is disabled,
panic mode will not be available.
AUX 2
If configured at installation, this feature can be activated by pressing the AUX (or
Shift) button, followed by pressing and holding the lit up button to activate
AUX 2.
Horn Timing Adjustment
The pulse duration can be configured by your installer (from 5 ms to 200 ms).
![](/img.php?id=1811907&img=bg17.png)
User Guide P.23
Multi-car Operation
This option allows the owner of two vehicles, both equipped with the same
Remote Car Starter model, to control both systems with a single remote control.
To control the second vehicle:
Press TRUNK + LOCK buttons simultaneously: --------------------LOCK
Press TRUNK + UNLOCK simultaneously: ---------------------------UNLOCK
Press TRUNK + START/STOP simultaneously: ---------------------START
Press TRUNK + START/STOP simultaneously: ---------------------STOP
Press AUX AUX TRUNK: -------------------------------------------TRUNK
OR
Press AUX AUX LOCK: ---------------------------------------------LOCK
Press AUX AUX UNLOCK: -----------------------------------------UNLOCK
Press AUX AUX START/STOP: ----------------------------------START
Press AUX AUX START/STOP: ----------------------------------STOP
Press AUX AUX TRUNK: -------------------------------------------TRUNK
Note: If the multi-level features have been modified from their default state by
your installer, the AUX button may have to be pressed once, twice or three times,
according to the option you chose.
OEM-Style Alarm
The OEM-style alarm (if configured by your installer) monitors the doors, hood
and ignition switch of your vehicle. It will sound the horn if a door or the hood is
opened, or if the key is turned into the IGNITION ON position.
To arm the OEM-style alarm, press the button on the transmitter.
The OEM-style alarm will ONLY arm if the button on the transmitter
is pressed.
The LED on the antenna will flash slowly to indicate that the OEM-style
alarm is now armed.
To disarm the OEM-style alarm, press the button on the transmitter.
To stop the horn from sounding if the OEM-style alarm is triggered,
press the or button, or put the system in and out of Valet Mode
(See page 13).
![](/img.php?id=1811907&img=bg18.png)
P.24 User Guide
Intrusion Codes via horn
The system monitors the following:
Doors
Hood
Ignition
Note: If an intrusion has occurred the HORN will sound for a maximum of
1 minute.
If an intrusion has occurred and pressed, the horn provides an intrusion code
corresponding to the type of intrusion that occurred.
1x = power interruption
4x = Doors intrusion
3x = Hood
6x = Ignition
Vehicle Status Request
The status request feature allows the user to see the status of the vehicle i.e.:
if the doors are locked or unlocked or if the vehicle is in cold weather mode,
home valet mode, in valet mode or how much time is left in the run time cycle.
The following charts (Tables 1, 2 and 3) indicate the confirmation sequences.
To retrieve the vehicle status:
Press and release the AUX button then press and release the button (there
will be a beep). The transmitter will then flash the corresponding sequence of
LED’s depending on the vehicle’s status.
If the engine is NOT running
If the vehicle is in or out of ready mode
If the engine IS running under a remote start (if the doors are locked)
or (if the doors are unlocked).
The status request feature is a two-step procedure:
The first sequence of flashes denotes if the vehicle’s doors are locked
or unlocked.
![](/img.php?id=1811907&img=bg19.png)
User Guide P.25
The second sequence of flashes (if applicable) denotes if the vehicle is
Cold Weather mode, Home valet mode, or, Valet mode.
If there is no second sequence transmission, then the vehicle is none of
the 3 mentioned features (Cold weather mode, Home valet mode or
Valet mode).
Status Request When the Engine IS NOT Running
STATUS
SEQUENCE
LOCK
UNLOCK
TRUNK
START/STOP
Beep(s)
Lock
3 flashes
1
Unlock
3 flashes
2
Cold
Weather
1st sequence
if locked
3 flashes
2
1st sequence
if unlocked
3 flashes
2
2nd
sequence
1 second
Home
Valet
1st sequence
if locked
3 flashes
2
1st sequence
if unlocked
3 flashes
2
2nd
sequence
1 second
1 second
Valet
Mode
1st sequence
if locked
3 flashes
1
1st sequence
if unlocked
3 flashes
1
2nd
sequence
1 second
1 second
![](/img.php?id=1811907&img=bg1a.png)
P.26 User Guide
Status Request When the Engine is Running
When the vehicle doors are locked:
The LED # 1 will flash 3 times to denote that the vehicle’s doors are locked.
When the vehicle doors are unlocked:
The LED # 2 will flash 3 times to denote that the vehicle’s doors are unlocked.
And:
RUN TIME
Beep(s
LED #1
LED #2
LED #3
LED #4
If there is more than
3/4 of
Run time cycle
3
ON for 1-
sec
ON for 1-
sec
ON for 1-
sec
ON for 1-sec
If there is more than
half of
run time cycle
3
ON for 1-
sec
ON for 1-
sec
ON for 1-
sec
If there is more than
1/4 of
run time cycle
3
ON for 1-
sec
ON for 1-
sec
If there is less than 1/4
of
run time cycle
3
ON for 1-
sec
Ready Mode Status Request
STATUS
SEQUENCE
LED #1
LED #2
LED #3
LED #4
Beep(s)
In Ready
Mode
if locked
3 flashes
1
if unlocked
3 flashes
2
Out of
Ready
Mode
1st
sequence
if locked
3 flashes
1
1st
sequence
if unlocked
3 flashes
2
2nd
sequence
4
4
![](/img.php?id=1811907&img=bg1b.png)
User Guide P.27
Troubleshooting Poor Transmitting Range
Many factors may affect the operating range of the transmitter. Some of these
are:
The condition of the battery in the transmitter.
The operating environment (for example: downtown radio-frequency
noise, airports, cellular phone towers…).
Metal: any type of metal will affect operating range. This includes the
metal in the car.
The shape of the vehicle can affect range as well; vans in general have
an especially poor range.
The shape of the roof and A-pillars brings about considerable radio-
frequency deflection (in this case the signal from the remote control). As
a result, the direction in which the vehicle is facing in relation to the
remote control can affect the range. Straight on – standing in front of the
vehicle – generally gives you the greatest range; the second best
performance is from the back. Using the remote control from either side
of the vehicle will usually give the lowest range.
The range will be significantly lower in a crowded parking lot than in
open space.
Always hold the transmitter high, approximately at shoulder height.
Holding the transmitter against your chin will also increase your range:
your head acts as an antenna.
The operating range will be somewhat lower on vehicles equipped with
an aftermarket or factory alarm.
![](/img.php?id=1811907&img=bg1c.png)
P.28 User Guide
Diagnostics – Parking Light Flash Table
Parking lights
flashes
Description
1
Doors locked.
Trunk released.
Start signal received from the remote.
Runtime has expired.
2 fast
Doors unlocked.
Valet mode is deactivated.
2 slow
Shutdown by remote.
3 slow
Runtime is extended.
1 slow 2 fast
Valet mode activated.
4 fast
Shutdown by brake.
A remote start was attempted while the brake pedal is
engaged.
10 fast
Shutdown by hood.
A remote start was attempted while the hood is open.
ON twice
Cold weather mode deactivated.
ON 3 times
Cold weather mode activated.
Solid ON
Engine is running under remote start.
Flash for 30 sec.
Panic mode is triggered.
Flash for 60 sec.
Alarm is triggered.
ON twice
twice
A remote start was attempted while the system is in
home valet.
![](/img.php?id=1811907&img=bg1d.png)
User Guide P.29
Battery Replacement
The transmitter is powered by two lithium cells (CRXXXX). When the transmitter
stops functioning, replace the batteries.
1. Release the lock on the battery cover.
2. Remove the battery cover.
3. Remove the old batteries.
4. Install two new lithium batteries (CRXXXX) into the transmitter with
the positive (+) mark toward the battery cover.
5. Install the battery cover and lock it.
6. Push the lock button on the transmitter. The buzzer should sound
indicating that the batteries are installed properly.
NOTE: do not install old and new batteries together.
