555544 SSeerriieess
➤
OOwwnneerr’’ss GGuuiiddee
i
© 2002 directed electronics, inc.
lliimmiitteedd lliiffeettiimmee ccoonnssuummeerr wwaarrrraannttyy
Directed Electronics, Inc. ("Directed") promises to the original purchaser to repair or
replace with a comparable reconditioned model any Directed unit (hereafter the "unit"),
excluding without limitation the siren, the remote transmitters, the associated sensors and
accessories, which proves to be defective in workmanship or material under reasonable use
during the lifetime of the vehicle provided the following conditions are met: the unit was
professionally installed and serviced by an authorized Directed dealer; the unit will be pro-
fessionally reinstalled in the vehicle in which it was originally installed by an authorized
Directed dealer; and the unit is returned to Directed, shipping prepaid with a legible copy
of the bill of sale or other dated proof of purchase bearing the following information: con-
sumer's name, telephone number and address; the authorized dealers name, telephone
number and address; complete product description, including accessories; the year, make
and model of the vehicle; vehicle license number and vehicle identification number. All
components other than the unit, including without limitation the siren, the remote trans-
mitters and the associated sensors and accessories, carry a one-year warranty from the date
of purchase of the same. This warranty is non-transferable and is automatically void if: the
original purchaser has not completed the warranty card and mailed it within ten (10) days
of the date of purchase to the address listed on the card; the unit's date code or serial num-
ber is defaced, missing or altered; the unit has been modified or used in a manner con-
trary to its intended purpose; the unit has been damaged by accident, unreasonable use,
neglect, improper service, installation or other causes not arising out of defects in materi-
als or construction. The warranty does not cover damage to the unit caused by installa-
tion or removal of the unit. Directed, in its sole discretion, will determine what consti-
tutes excessive damage and may refuse the return of any unit with excessive damage. TO
THE MAXIMUM EXTENT ALLOWED BY LAW, ALL WARRANTIES, INCLUD-
ING BUT NOT LIMITED TO EXPRESS WARRANTY, IMPLIED WARRANTY,
WARRANTY OF MERCHANTABILITY, FITNESS FOR PARTICULAR PURPOSE
AND WARRANTY OF NON-INFRINGEMENT OF INTELLECTUAL PROPERTY,
ARE EXPRESSLY EXCLUDED; AND DIRECTED NEITHER ASSUMES NOR
AUTHORIZES ANY PERSON OR ENTITY TO ASSUME FOR IT ANY DUTY,
OBLIGATION OR LIABILITY IN CONNECTION WITH ITS PRODUCTS.
DIRECTED DISCLAIMS AND HAS ABSOLUTELY NO LIABILITY FOR ANY
AND ALL ACTS OF THIRD PARTIES INCLUDING ITS AUTHORIZED DEAL-
ERS OR INSTALLERS. DIRECTED SECURITY SYSTEMS, INCLUDING THIS
UNIT, ARE DETERRENTS AGAINST POSSIBLE THEFT. DIRECTED IS NOT
OFFERING A GUARANTEE OR INSURANCE AGAINST VANDALISM, DAM-
AGE OR THEFT OF THE AUTOMOBILE, ITS PARTS OR CONTENTS; AND
HEREBY EXPRESSLY DISCLAIMS ANY LIABILITY WHATSOEVER, INCLUD-
ING WITHOUT LIMITATION, LIABILITY FOR THEFT, DAMAGE AND/OR
VANDALISM. THIS WARRANTY DOES NOT COVER LABOR COSTS FOR
MAINTENANCE, REMOVAL OR REINSTALLATION OF THE UNIT OR ANY
ii © 2002 directed electronics, inc.
CONSEQUENTIAL DAMAGES OF ANY KIND. IN THE EVENT OF A CLAIM
OR A DISPUTE INVOLVING DIRECTED OR ITS SUBSIDIARY, THE PROPER
VENUE SHALL BE SAN DIEGO COUNTY IN THE STATE OF CALIFORNIA.
CALIFORNIA STATE LAWS AND APPLICABLE FEDERAL LAWS SHALL APPLY
AND GOVERN THE DISPUTE. THE MAXIMUM RECOVERY UNDER ANY
CLAIM AGAINST DIRECTED SHALL BE STRICTLY LIMITED TO THE
AUTHORIZED DIRECTED DEALER'S PURCHASE PRICE OF THE UNIT.
DIRECTED SHALL NOT BE RESPONSIBLE FOR ANY DAMAGES WHATSOEV-
ER, INCLUDING BUT NOT LIMITED TO, ANY CONSEQUENTIAL DAMAGES,
INCIDENTAL DAMAGES, DAMAGES FOR THE LOSS OF TIME, LOSS OF
EARNINGS, COMMERCIAL LOSS, LOSS OF ECONOMIC OPPORTUNITY
AND THE LIKE. NOTWITHSTANDING THE ABOVE, THE MANUFACTURER
DOES OFFER A LIMITED WARRANTY TO REPLACE OR REPAIR THE CON-
TROL MODULE AS DESCRIBED ABOVE. Some states do not allow limitations on
how long an implied warranty will last or the exclusion or limitation of incidental or con-
sequential damages. This warranty gives you specific legal rights and you may also have
other rights that vary from State to State.
This product may be covered by a Guaranteed Protection Plan ("GPP"). See your autho-
rized Directed dealer for details of the plan or call Directed Customer Service at 1-800-
876-0800. Directed security systems, including this unit, are deterrents against possible
theft. Directed is not offering a guarantee or insurance against vandalism, damage or theft
of the automobile, its parts or contents; and hereby expressly disclaims any liability what-
soever, including without limitation, liability for theft, damage and/or vandalism.
Directed does not and has not authorized any person or entity to create for it any other
obligation, promise, duty or obligation in connection with this security system.
Make sure you have all of the following information from your dealer:
A clear copy of the sales receipt, showing the following:
➤Date of purchase
➤Your full name and address
➤Authorized dealer's company name and address
➤Type of alarm installed
➤Year, make, model, and color of the automobile
➤Automobile license number
➤Vehicle identification number
➤All security options installed on automobile
➤Installation receipts
1
© 2002 directed electronics, inc.
rreemmoottee ccoonnttrrooll ddiiaaggrraamm.. .. .. .. .. .. .. .. .. .. .. .. 22
ssttaannddaarrdd rreemmoottee ccoonnffiigguurraattiioonnss.. .. .. .. .. .. .. 33
wwhhaatt iiss iinncclluuddeedd.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 44
iimmppoorrttaanntt iinnffoorrmmaattiioonn.. .. .. .. .. .. .. .. .. .. .. .. .. 44
warning! safety first . . . . . . . . . . . .5
system maintenance . . . . . . . . . . .7
your warranty . . . . . . . . . . . . . . . .8
fcc/id notice . . . . . . . . . . . . . . . . .8
caution . . . . . . . . . . . . . . . . . . . . .8
rreemmoottee ccoonnttrrooll ffuunnccttiioonnss.. .. .. .. .. .. .. .. .. .. .. 99
standard button configurations . . .9
standard icon configurations . . . .10
rreemmoottee ooppeerraattiioonn aanndd pprrooggrraammmmiinngg
iinnssttrruuccttiioonnss.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 1133
system signal paging features . . . .13
programmable remote control
features . . . . . . . . . . . . . . . . . . . .15
uussiinngg yyoouurr ssyysstteemm.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 1166
active arming . . . . . . . . . . . . . . .16
passive arming . . . . . . . . . . . . . .17
vehicle protection . . . . . . . . . . . .18
warn away®response description .19
triggered response description . . .20
arming/disarming while driving . .21
multi-level security arming . . . . .22
disarming . . . . . . . . . . . . . . . . . .23
high security disarm . . . . . . . . . .24
disarming without a transmitter
(emergency override) . . . . . . . . . .24
silent mode . . . . . . . . . . . . . . . . .25
panic mode . . . . . . . . . . . . . . . . .26
valet mode . . . . . . . . . . . . . . . . .26
remote start . . . . . . . . . . . . . . . .28
valet take-over . . . . . . . . . . . . . . .30
timer mode . . . . . . . . . . . . . . . . .31
ssaaffeettyy ffeeaattuurreess.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 3333
starter anti-grind circuitry . . . . . .33
disabling the remote start system .33
over and under rev protection . . .34
shut down inputs . . . . . . . . . . . .34
nuisance prevention circuitry . . . .34
ddiiaaggnnoossttiiccss.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 3366
arming diagnostics . . . . . . . . . . .36
disarming diagnostics . . . . . . . . .37
system status chirps . . . . . . . . . . .37
table of zones . . . . . . . . . . . . . . .38
interpreting zone diagnostics . . . .38
ccooddee hhooppppiinngg.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 4400
oowwnneerr rreeccooggnniittiioonn.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 4400
rraappiidd rreessuummee llooggiicc.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 4411
ppoowweerr ssaavveerr mmooddee.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 4411
pprrooggrraammmmiinngg ooppttiioonnss.. .. .. .. .. .. .. .. .. .. .. .. .. 4422
sseeccuurriittyy && ccoonnvveenniieennccee eexxppaannssiioonnss.. .. .. 4455
gglloossssaarryy ooff tteerrmmss.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 4477
ttaabbllee ooff ccoonntteennttss
2© 2002 directed electronics, inc.

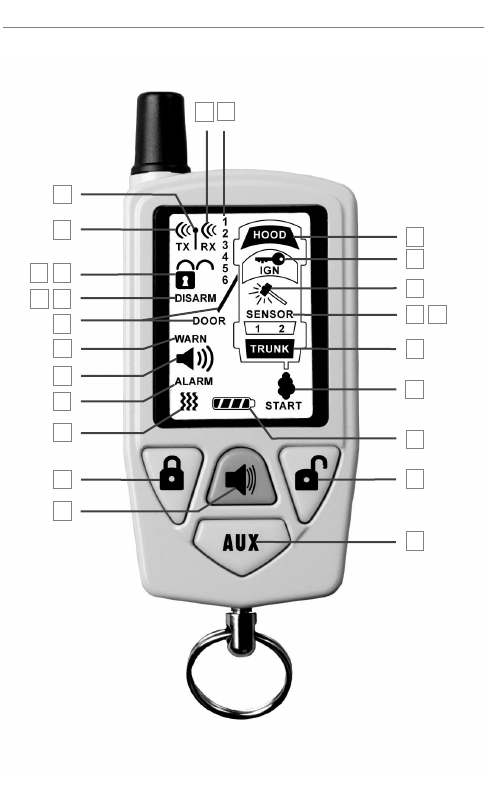

rreemmoottee ccoonnttrrooll ddiiaaggrraamm
4
9
13
11
12
16
14
17
19
20
21
22
18
15
3
21
56
78
25
10
24
23
3
© 2002 directed electronics, inc.
ssttaannddaarrdd rreemmoottee ccoonnffiigguurraattiioonnss

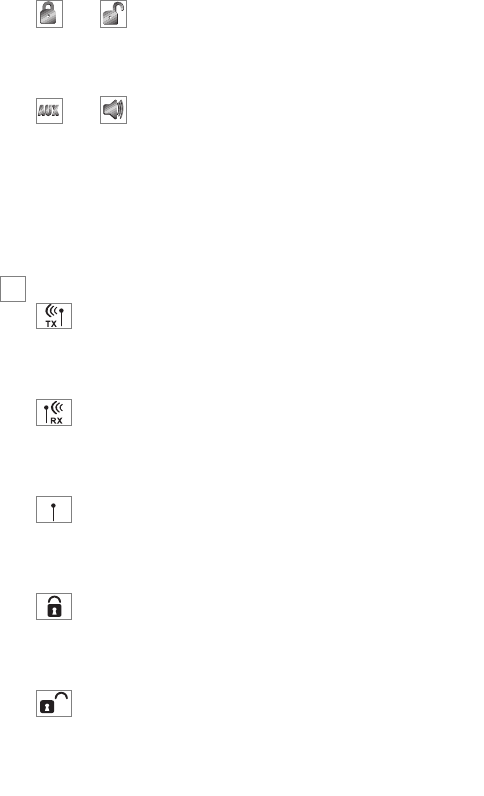

1 Auxiliary Channel Out
2 Receive Indicator
3 Signal Indicator
4 Transmit Indicator
5 Lock Status Indicator
6 Unlock Status Indicator
7 Arming Status Indicator
8 Disarming Status Indicator
9 Door Switch Input Indicator
10 Warn Away®Response Indicator
11 Siren Status Indicator
12 Trigger Response Indicator
13 Vibrate Mode Indicator
14 Hood Switch Input Indicator
15 Ignition Switch Input Indicator
16 Sensor Response Indicator
17 Sensor 1 Indicator - Full Trigger and Warn Away®
18 Sensor 2 Indicator - Full Trigger and Warn Away®
19 Trunk Switch Input Indicator
20 Remote Start Indicator

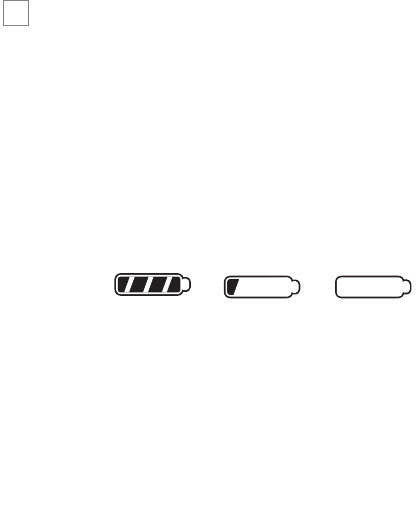

21 Battery Level Indicator
22 Disarm Button
23 Auxiliary Button
24 Panic Button
25 Arm Button
4© 2002 directed electronics, inc.
wwhhaatt iiss iinncclluuddeedd
➤Control module
➤Receiver/antenna
➤One four-button Responder Technology remote control
➤Stinger™ DoubleGuard® two-stage shock sensor
➤Revenger™ Soft Chirp™ six-tone programmable siren
➤Red status LED indicator light
➤Push-button Valet® switch
➤Your warranty registration
➤FailSafe® Starter Kill
➤Shut-down toggle switch
iimmppoorrttaanntt iinnffoorrmmaattiioonn
Congratulations on the purchase of your combination remote
start Responder Technology alarm system. Due to the complexity
of this system, it must only be installed by an authorized dealer.
Installation of this product by anyone other than an authorized
dealer voids the warranty. All dealers are provided with a
preprinted dealer certificate to verify authorization.
By carefully reading this Owner's Guide prior to using your
system, you will maximize the use of this system and its features.
You can print additional or replacement copies of this manual by
accessing our web site at www.directed.com.
5
© 2002 directed electronics, inc.
warning! safety first
The following safety warnings must be observed at all times:
➤Due to the complexity of this system, installation of this
product must only be performed by an authorized Directed
dealer.
➤When properly installed, this system can start the vehicle via
a command signal from the remote control transmitter.
Therefore, never operate the system in an enclosed area or
partially enclosed area without ventilation (such as a garage).
When parking in an enclosed or partially enclosed area or
when having the vehicle serviced, the remote start system
must be disabled using the installed toggle switch. It is the
user's sole responsibility to properly handle and keep out of
reach from children all remote control transmitters to assure
that the system does not unintentionally remote start the
vehicle. TTHHEE UUSSEERR MMUUSSTT IINNSSTTAALLLL AA CCAARRBBOONN
MMOONNOOXXIIDDEE DDEETTEECCTTOORR IINN OORR AABBOOUUTT TTHHEE
LLIIVVIINNGG AARREEAA AADDJJAACCEENNTT TTOO TTHHEE VVEEHHIICCLLEE.. AALLLL
DDOOOORRSS LLEEAADDIINNGG FFRROOMM AADDJJAACCEENNTT LLIIVVIINNGG
AARREEAASS TTOO TTHHEE EENNCCLLOOSSEEDD OORR PPAARRTTIIAALLLLYY
EENNCCLLOOSSEEDD VVEEHHIICCLLEE SSTTOORRAAGGEE AARREEAA MMUUSSTT AATT
AALLLL TTIIMMEESS RREEMMAAIINN CCLLOOSSEEDD..These precautions are
warning! THIS SYSTEM PROVIDES REMOTE NOTI-
FICATION OF SECURITY SYSTEM TRIGGER
EVENTS. CONTACT POLICE OR SECURITY PER-
SONNEL IMMEDIATELY. NEVER CONFRONT A
CAR THIEF OR VANDAL.
➜
6© 2002 directed electronics, inc.
the sole responsibility of the user.
➤Use of this product in a manner contrary to its intended
mode of operation may result in property damage, personal
injury, or death. (1) Never remotely start the vehicle with the
vehicle in gear, and (2) Never remotely start the vehicle with
the keys in the ignition. The user must also have the neutral
safety feature of the vehicle periodically checked, wherein
the vehicle must not remotely start while the car is in gear.
This testing should be performed by an authorized Directed
dealer in accordance with the Safety Check outlined in the
product installation guide. If the vehicle starts in gear, cease
remote start operation immediately and consult with the
authorized Directed dealer to fix the problem.
➤After the remote start module has been installed, contact
your authorized dealer to have him or her test the remote
start module by performing the Safety Check outlined in the
product installation guide. If the vehicle starts when
performing the Neutral Safety Shutdown Circuit test, the
remote start unit has not been properly installed. The
remote start module must be removed or the installer must
properly reinstall the remote start system so that the vehicle
does not start in gear. All installations must be performed by
an authorized Directed dealer. OOPPEERRAATTIIOONN OOFF TTHHEE
RREEMMOOTTEE SSTTAARRTT MMOODDUULLEE IIFF TTHHEE VVEEHHIICCLLEE
SSTTAARRTTSS IINN GGEEAARR IISS CCOONNTTRRAARRYY TTOO IITTSS
IINNTTEENNDDEEDD MMOODDEE OOFF OOPPEERRAATTIIOONN.. OOPPEERRAATTIINNGG
TTHHEE RREEMMOOTTEE SSTTAARRTT SSYYSSTTEEMM UUNNDDEERR TTHHEESSEE
7
© 2002 directed electronics, inc.
CCOONNDDIITTIIOONNSS MMAAYY RREESSUULLTT IINN PPRROOPPEERRTTYY
DDAAMMAAGGEE OORR PPEERRSSOONNAALL IINNJJUURRYY.. YYOOUU MMUUSSTT
IIMMMMEEDDIIAATTEELLYY CCEEAASSEE TTHHEE UUSSEE OOFF TTHHEE UUNNIITT AANNDD
SSEEEEKK TTHHEE AASSSSIISSTTAANNCCEE OOFF AANN AAUUTTHHOORRIIZZEEDD
DDIIRREECCTTEEDDDDEEAALLEERR TTOO RREEPPAAIIRR OORR DDIISSCCOONNNNEECCTT
TTHHEE IINNSSTTAALLLLEEDD RREEMMOOTTEE SSTTAARRTT MMOODDUULLEE..
DDIIRREECCTTEEDD WWIILLLL NNOOTT BBEE HHEELLDD RREESSPPOONNSSIIBBLLEE OORR
PPAAYY FFOORR IINNSSTTAALLLLAATTIIOONN OORR RREEIINNSSTTAALLLLAATTIIOONN
CCOOSSTTSS..
system maintenance
This system needs no specific maintenance beyond remote
control battery replacement. The remote is powered by a 1.5V
AAA battery.
The Battery Level indicator has four level indicators that serve as
a visual indication of battery charge. When the battery reaches a
low charge level that requires replacement, the remote control
will generate a single notification chirp, and the Battery Level
indicator will flash continuously.
Battery Replacement
Gently pull the end of the battery door away from the top of the
remote control then slide the door up to expose the battery and
remove the expired battery. Place the new battery into the remote
control observing the correct polarity. When power is returned
EMPTY
REPLACE
FULL
➜
8© 2002 directed electronics, inc.
the remote control will light all icons in the LCD and generate
all beeper tones once.
your warranty
Your warranty registration must be completely filled out and
returned within 10 days of purchase. Your product warranty
will not be validated if your warranty registration is not returned.
Make sure you receive the warranty registration from your dealer.
It is also necessary to keep your proof of purchase, which reflects
that the product was installed by an authorized dealer.
fcc/id notice
This device complies with Part 15 of FCC rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) This device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate this device.
caution
This product is designed for fuel-injected, automatic transmis-
sion vehicles only. Use of this product in a standard transmission
vehicle is dangerous and contrary the product's intended use.
➜
➜
➜
9
© 2002 directed electronics, inc.
rreemmoottee ccoonnttrrooll ffuunnccttiioonnss
The remote control buttons are used to send commands to the
system. The descriptions below reflect the standard configuration
for this system. The buttons can be custom configured for the
user’s specific needs by the installer.

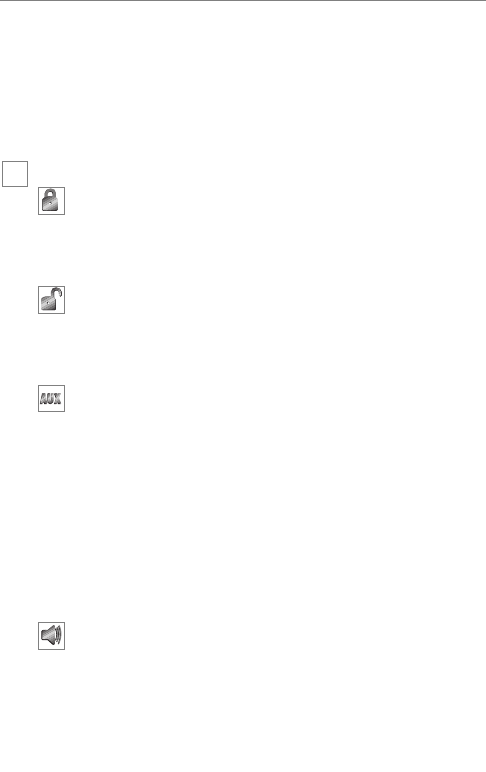

standard button configurations
Button
The System Arm and Multi-Level Security Arming functions are
controlled by pressing this button for one second.
Button
The System Disarm and High Security Disarm functions are
controlled by pressing this button for one second.
Button
Silent Mode™ and an optional auxiliary function are controlled
by this button. Silent Mode works by pressing this button for less
than one second before arming or disarming. An optional auxil-
iary function, such as trunk release, can be controlled by pressing
this button for 1.5 seconds.
The auxiliary output controls __________________________.
Button
The panic feature is controlled by pressing this button for two
seconds.
➜
10 © 2002 directed electronics, inc.
and Buttons
The remote start function of your system is controlled by
pressing these buttons simultaneously for one second.
and Buttons
An optional auxiliary channel output for controlling additional
convenience or expansion functions that you have added to your
system can be operated by pressing these buttons simultaneously.
The auxiliary output controls __________________________.
standard icon configurations
Icon
The transmit icon will be displayed while the remote control is
transmitting a command to the vehicle.
Icon
The receive icon will be displayed while the remote control is
receiving a page from the vehicle.
Icon
The signal icon will be displayed if a command is transmitted to
the vehicle but a command page is not received.
Icon
The armed status icon will be displayed when the system is locked
and armed.
Icon
The disarmed status icon will be displayed when the system is
unlocked and disarmed.
➜
11
© 2002 directed electronics, inc.
Icon
The disarm icon will flash while the system is disarming
Icon
The arm icon will flash while the system is arming.
Icon
The door icon will be displayed to indicate that a door is open
when arming the system (Bypass Notification) or opened when
the system is armed (Tamper Alert).
Icon
The warn icon will be displayed if the Warn Away®response has
been triggered while the system is armed.
Icon
The siren icon will be displayed as an indicator that the siren is
sounding.
Icon
The alarm icon will be displayed if the system has been violated,
and will continue to be displayed until the 60-second siren cycle
is complete.
Icon
The vibrate icon will be displayed when the Vibrate Mode is on.
Icon
The battery level icon is always displayed as an indicator of
Battery charge.
12 © 2002 directed electronics, inc.

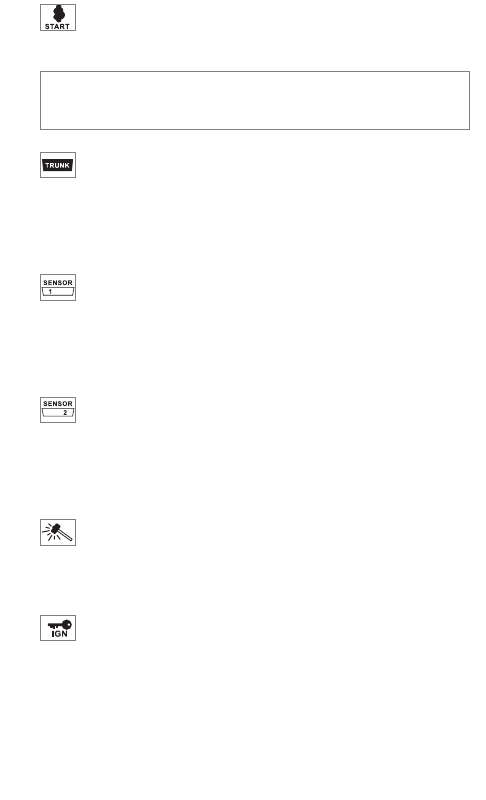

Icon
The start icon will be displayed while the vehicle is remote started.
Icon
The trunk icon will be displayed to indicate that the trunk is
open when arming the system (Bypass Notification) or opened
when the system is armed (Tamper Alert).
Icon
The Sensor 1 icon will be displayed if the Dual-Stage shock
sensor has been triggered as a full-triggered or Warn Away®
sequence.
Icon
The Sensor 2 icon will be displayed if an additional Dual-Stage
sensor has been triggered as a full-triggered or Warn Away®
sequence.
Icon
The hammer icon will flash when either Sensor 1 or 2 has been
triggered as either a Warn Away®response or triggered sequence.
Icon
The ignition icon will be displayed to indicate that the ignition
is on when arming the system (Bypass Notification) or turned on
when the system is armed (Tamper Alert).
note: If Page Mode has been turned off, the start icon will
remain when performing key take over until a button on
the transmitter has been pressed.
13
© 2002 directed electronics, inc.

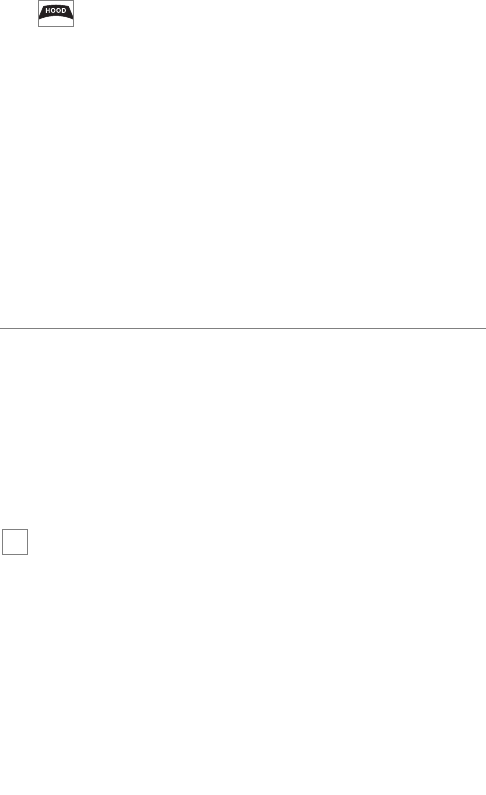

Icon
The hood icon will be displayed to indicate that the hood is open
when arming the system or (Bypass Notification) opened when
the system is armed (Tamper Alert).
Number Icons
When either of the channel 2 or 4 outputs is activated the appro-
priate icon will be displayed for five seconds.
rreemmoottee ooppeerraattiioonn aanndd pprrooggrraammmmiinngg
iinnssttrruuccttiioonnss
The 554 remote start system operates at 434 MHz and incorpo-
rates Directed’s proprietary XHF2 out-board Responder
Technology remote control. The high frequency combined with
Binary Data communication achieves superior range with two-
way communication.
system signal paging features
A page is the signal the 554 control module sends to the remote
control as confirmation of receipt of a command or alarm system
status.
When the remote control receives a page it will generate a page
notification to the user (notifications are audible beeps or remote
vibration) and the LCD Icons will display the current system
status.
➜
14 © 2002 directed electronics, inc.
Command Page
When a command (arm/disarm, remote start, or auxiliary
channel) from the remote control is sent and received, the system
will send a command page back to confirm receipt.
Alarm Page
If the alarm system is triggered while armed, an Alarm Page will
be sent to the remote control. After receipt of an Alarm Page, the
LCD icons will display the alarm system status information and
the remote control will generate Alarm Page alerts.
An Alarm Page alert is a single beep or vibration from the remote
control every 60 seconds to alert the user that the alarm system
was triggered and will continue until the alarm page is cleared.
Page Recognition Mode
The remote control will leave a zone icon illuminated when it has
received a triggered response and will wait for you to recognize
the violation. Press any button on the remote control, the LCD
information and Alarm Page alerts will be cleared.
note: The remote control buttons will not send a com-
mand to the system until the alarm page is cleared.
note: If the transmiter is paged with an Alarm Page and
the WarnAway®is triggered before the Alarm Page is
recieved the transmitter will report the WarnAway®only
until the system is disarmed.
note: When the system is in Valet mode, the remote con-
trol will show the lock (5) and unlock (6) icons, but will
not generate a command page.
15
© 2002 directed electronics, inc.
programmable remote control features
To enter programming mode
Press and hold all four remote control buttons simultaneously
until one long beep is heard. Programming Mode has now been
entered.
Page Notification
The remote control can be programmed to notify the user of a
page by audibly beeping or remote vibration.
Beep Mode
Beep Mode includes alarm arm/disarm diagnostic beeps and
distinctive two-tone remote start beeps.
Vibrate Mode
Vibrate Mode makes page notification silent but does not include
diagnostic information or distinctive remote start notification.
Illumination
Illumination for the LCD display can be programmed on or off.
When programmed on the LCD will illuminate every time the
remote control receives a page or transmits a command.
Programming illumination on will decrease the life expectancy of
the battery.
Beep/Vibrate Mode
Within five seconds of entering Programming Mode, press .
The remote control will beep once for on, twice for off. The
vibrate icon (12) will also turn on/off with each press.
➜
16 © 2002 directed electronics, inc.
Illumination On/Off
Within five seconds of entering Programming Mode, press .
The remote will beep once for on, twice for off and the light will
turn on/off with each press.
Page Mode On/Off
After entering Programming Mode, press within five
seconds to toggle on and off. When the Page Mode is on, the
remote control will wake up periodically to check for messages
from the security module. It will also wake up when any button
is pushed. When Page Mode is off, the remote control “sleeps”
until a button is pushed, extending the life of the battery.
To Exit Programming Mode
To exit Programming Mode, take no action for five seconds. The
remote control will generate two beeps to indicate programming
mode has been exited.
uussiinngg yyoouurr ssyysstteemm
active arming
Press for one second to arm the system. The vehicle’s lights
will flash once, the doors will lock, the siren will chirp once, and
while the system is armed, the status LED will blink approxi-
mately once per second to indicate the system is actively
protecting the vehicle.
➜
17
© 2002 directed electronics, inc.
The remote control will beep once (or vibrate). The arm icon (7)
will flash for five seconds and the armed status icon (4) will be
displayed on the LCD.
Bypass Notification
If the siren chirps again, the remote control beeps again, and the
status LED blinks in a pattern, a protected entry or sensor input
is active and its icon will be displayed on the remote control LCD.
This is called Bypass Notification. Refer to the diagnostic section
of this manual for information about Bypass Notification.
passive arming
The system can be programmed to arm automatically. This is
called passive arming. In Passive Arming Mode the system will
arm itself 30 seconds after the user exits the vehicle and closes all
protected entry points.
Passive arming sequence
1. Turn the ignition off and exit the vehicle.
2. Close all protected entry points. (doors, hood, trunk)
3. The status LED will blink at twice its normal rate indicating
the system has begun the 30 second countdown.
4. After 20 seconds the siren will chirp once (unless
programmed off) as an audible indication that the system is
about to arm.
5. At 30 seconds the system will fully arm itself. At this time the
lights will flash and the doors will lock (if programmed for
passive locking).
➜
18 © 2002 directed electronics, inc.
The remote control will beep once (or vibrate). The arm icon (7)
will flash for five seconds and the armed status icon (4) will be
displayed on the LCD.
vehicle protection
Following are descriptions of the many ways this system protects
the vehicle. Included are descriptions of the types of alarm pages
and how to interpret them.
➤DDoooorr LLoocckkss- The system will automatically lock the vehicle
doors when armed.
➤FFaaiill-ssaaffee SSttaarrtteerr KKiillll- The Fail-Safe Starter Kill will prevent
the vehicles starter motor from cranking.
➤SSttaattuuss LLEEDD - The status LED blinks approximately once per
second as a visual deterrent to potential vehicle theft.
➤WWaarrnn AAwwaayy®®- Light impacts trigger the Warn Away®signal.
When triggered, the siren chirps and the parking lights flash
for a few seconds.
➤TTrriiggggeerreedd SSeeqquueennccee- Heavy impacts trip a Triggered
Sequence. The sequence consists of the siren sounding
continuously and the parking lights flashing for the
programmed duration.
➤PPrrooggrreessssiivveeRReessppoonnssee- If a door is opened, the system will
immediately start chirping the siren and flashing the parking
lights. Three seconds later, the siren output changes to a
➜
note: The system will not passively arm if a protected entry
or sensor is active; unless forced passive arming has been
programmed on. Refer to the Programming Options section
for information about forced passive arming).
19
© 2002 directed electronics, inc.
continuous blast. This progressive response gives you time to
disarm the system with your transmitter if you inadvertently
open the door while the system is armed, while still providing
instant response (even if the door is immediately closed).
➤IIggnniittiioonn TTrriiggggeerr- Turning on the ignition key will trip the
same progressive response as opening a door.
warn away®response description
A Warn Away®Response consists of an alarm page along with the
responses described below.
➤SShhoocckk SSeennssoorr- Light impacts to the vehicle will flash the
vehicle lights and chirp the siren for a few seconds.
➤RReemmoottee CCoonnttrrooll NNoottiiffiiccaattiioonn- Ten quick beeps (or vibrate
once).
➤RReemmoottee CCoonnttrrooll LLCCDD- The siren icon (11) will turn on for
two seconds
➤The warn (10) and triggered zone input icons will turn on
and remain on the remote control.
➤The hammer icon (18) will flash and remain on the remote
control.
➤The remote control will enter Page Recognition Mode and
operate alarm page alerts.
note: Icons 16, 17, and 18 represent alarm system zone
inputs. For more information about icons and the zones
they represent refer to the Standard Remote Configurations
section.
➜
20 © 2002 directed electronics, inc.
triggered response description
A Triggered Response can be activated by any of the triggers listed
below and consists of an alarm page along with the response
described for each trigger. The default Triggered Response dura-
tion is 30 seconds but can be programmed from 1-180 seconds
by your installer with the Directed Bitwriter.
➤SSeennssoorr TTrriiggggeerr- Heavy impacts to the vehicle will instantly
sound the siren and flash the lights for the programmed
duration and report Zone 2.
➤DDoooorr TTrriiggggeerr- If a door is opened the siren will chirp for three
seconds, then the siren will sound and the lights will flash for
the programmed duration and report Zone 3. The three
seconds allow the user time to disarm the system with a
minimum of noise should a door be opened inadvertently
while the system is armed.
➤HHoooodd TTrriiggggeerr- Opening the hood will sound the siren, flash
the lights for the programmed duration, and report Zone 6.
➤TTrruunnkk TTrriiggggeerr- Opening the trunk (if connected) will
instantly sound the siren and flash the lights for the
programmed duration and report Zone 1.
➤IIggnniittiioonn TTrriiggggeerr- If the ignition is turned on the siren will
chirp for three seconds, then the siren will sound and the lights
will flash for the programmed duration and report Zone 5.
When a Triggered Response is activated the remote control will:
➤Repeat four quick beeps (or vibrate) for 15 seconds.
➤The siren icon (11) will turn on for 15 seconds
➤The alarm (12) and zone icons will turn on and remain on
➜
21
© 2002 directed electronics, inc.
until a remote control button is pressed, clearing the page alert.
➤The remote control will enter Page Recognition Mode and
generate alarm page alerts.
arming/disarming while driving
The alarm system can operate while the vehicle is being driven for
added safety when driving through areas of questionable security.
The alarm will only respond to the door trigger inputs and the
Fail-Safe starter kill will not be activated.
Arming while driving
Press for two seconds while the vehicle is running. The
vehicle’s siren will chirp, the lights will flash, and the doors will
lock (if unlocked). Then a Bypass Notification chirp will be heard
and the status LED will blink in a pattern of five indicating the
ignition is on.
The remote control will beep once (or vibrate). The arm icon (7) will
flash for three seconds and the armed status icon will be displayed on
the LCD. It will then generate a Bypass Notification beep and flash
the ignition input indicator icon (15) five times.
➜
note: Icons 14, 15, 16, 17, 18, and 19 represent alarm
system triggered sequence zone inputs. For more infor-
mation about icons and the zones they represent refer to
the Standard Remote Configurations section.
22 © 2002 directed electronics, inc.
Disarming while driving
Press on the remote control or simply turn off the ignition
to disarm the system. The lights will flash twice, the doors will
unlock, the siren will chirp twice, and the status LED will turn
off. The remote control will beep twice (or vibrate). The disarm
(8) icon will flash for three seconds and the disarm status icon (6)
will be displayed on the LCD.
multi-level security arming
Multi-Level Security Arming allows you to select which of the
system's inputs or sensors will be active and which will be bypassed
when the system is armed. (See Table of Zones section of this
guide.) Pressing (only in Standard Configuration) again
within five seconds of arming the system will activate the Multi-
Level Security feature. Each press of will select a different
security level, and the remote will beep or vibrate once and the arm
icon (7) will flash on the LCD. The system will respond as follows.
➤Press once: The siren chirps once and the system is
armed.
➤Press a second time within five seconds: The siren chirps
twice followed by a long chirp. Zone 2 is now bypassed.
➤Press a third time within five seconds: The siren chirps
three times followed by a long chirp. Zone 4 is now bypassed.
➜
note: If the remote control received a Warn Away®or
Triggered Response Page while armed, the first press of the
unlock button will clear the page alert. A second press will
turn the siren off, and a third press will disarm the system.
23
© 2002 directed electronics, inc.
➤Press a fourth time within five seconds: The siren chirps
four times followed by a long chirp. Zones 2 and 4 are now
bypassed.
➤Press a fifth time within five seconds: The siren chirps
five times followed by a long chirp. All input zones, except
the ignition, are now bypassed.
➤Continued pressing of will begin the Multi-Level
Security Arming cycle over again.
disarming
Press to disarm the system. The vehicle’s lights will flash
twice, the doors will unlock, the siren will chirp twice and the
status LED will turn off. The remote control will beep twice (or
vibrate). The disarm icon (6) will flash for three seconds and the
disarm status icon (8) will be displayed on the LCD.
If the siren chirps and the remote control beeps four or five times
when disarming, the system is reporting a Triggered Response or
NPC was activated while armed. Refer to the Diagnostic section
of this manual for information about disarm diagnostics and how
to interpret them.
note: If the remote control received a Warn Away®or
Triggered Response Page while armed, the first press of the
unlock button will clear the page alert. A second press will
turn the siren off, and a third press will disarm the system.
➜
note: Multi-Level Security Arming only applies to a sin-
gle arming cycle. Once the system is disarmed and then
re-armed, all the zones will be active again.
24 © 2002 directed electronics, inc.
high security disarm
This security system offers High Security Disarm. High Security
Disarm is a feature that makes it possible to silence and reset the
system while it is triggered, without disarming the system. If the
system is triggered and the siren has been sounding for longer
than six seconds, press any button on the remote control to stop
the page, then press on the remote control to stop the trigger
and return the unit to the armed state. The system will not
disarm, but rather reset. This prevents you from disabling the
system should you wish to disarm it without visually checking the
vehicle. Pressing after resetting the system will disarm the
system. Pressing any button to clear the remote control page and
within the first six seconds will stop the Trigger response and
disarm the system. The six second timer is there for your conve-
nience in case the system was accidentally triggered.
disarming without a transmitter (emergency override)
If your remote control transmitter is lost or damaged, you can
manually disarm your vehicle security system. To disarm the
system without a transmitter, you must have the vehicle's ignition
key and know where the Valet®switch is located. Be sure to check
with your installer at the time of installation for both the location
and the preset response (1-5 presses) of the Valet®switch.
➜
➜
25
© 2002 directed electronics, inc.

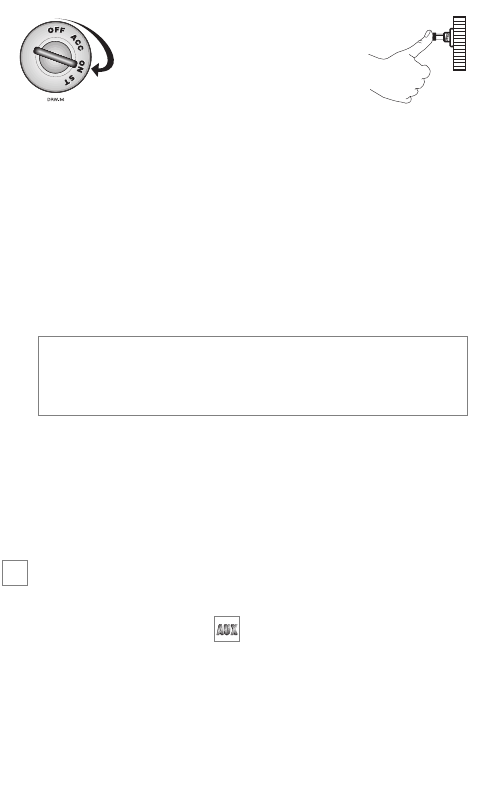

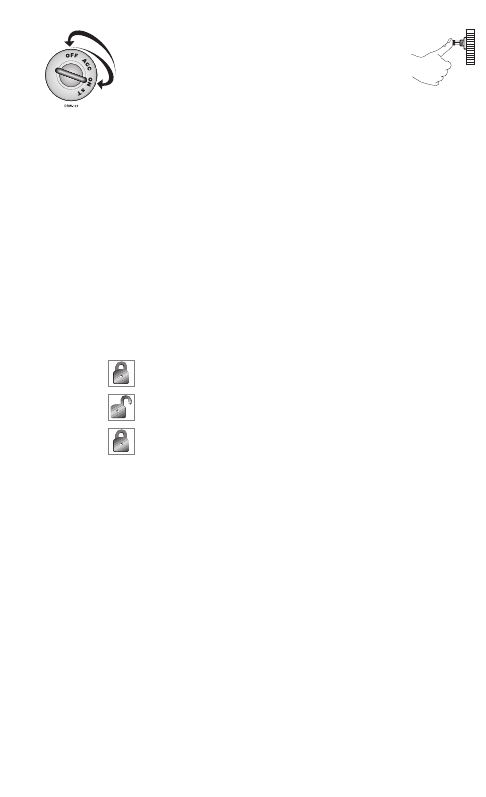

To disarm the security system,
turn the ignition to the ON posi-
tion. Press the Valet button the
preset number of times (one to five
times) within 5 seconds. The
factory preset is one. After five
seconds, the system will disarm. If
the system does not disarm, you
may have waited too long; turn the
ignition off and on and try again.
Location of Valet Button_________________________________
Number of Presses_____________________________________
The remote control will beep twice (or vibrate). The disarm icon
(8) will flash for five seconds and the Disarmed Status Icon (6)
will be displayed on the LCD.
silent mode
To temporarily turn off the arm or disarm chirps, use Silent
Mode™. Simply press for less than one second before
arming or disarming, and the confirmation chirp(s) will be elim-
inated for that one operation only. If you want the arm/disarm
chirps turned off permanently, your dealer can do this for you.
➜
important! The Valet®switch can be programmed to
respond to 1-5 presses for the disarm function. You must
check with the installer to verify the programming for
your individual unit.
DRW-35
26 © 2002 directed electronics, inc.
All arm/disarm page notifications will still be generated by the
remote control in silent mode.
panic mode
If you are threatened in or near your vehicle, you can attract
attention by triggering the system with your remote control. Just
press for two seconds, and you will enter Panic Mode. The
siren will sound and the parking lights will flash. To stop Panic
Mode press on the remote control again.
The remote control will beep twice (or vibrate) when the system
enters panic mode. The remote control will not generate a Page
Notification when panic mode is exited.
valet mode
You can prevent your security system from passive arming by
using Valet Mode. This is very useful when washing the vehicle
or having it serviced. In Valet Mode, the security system will not
arm, even with the remote control, but all convenience functions
(door locks, trunk release, remote starting, etc.) will continue to
work normally.
➜
note: Once Panic Mode has been entered, the siren will
sound for 30 seconds.
➜
note: The Warn Away®response to lighter impacts is
bypassed if the system is armed using Silent Mode. This
ensures that no chirps will be emitted by the siren in an
area you want chirp-free. The system is still fully capable
of triggering. Only the Warn Away®response is bypassed.
27
© 2002 directed electronics, inc.
To enter or exit Valet Mode:
1. Turn the ignition on.
2. Turn the ignition off.
3. Press and release the Valet
switch within 10 seconds.
The status LED will light solidly if you are entering Valet Mode,
and it will go out if you are exiting Valet Mode.
The remote will not generate a Page Notification when entering
or exiting Valet mode using the Valet switch.
To enter or exit Valet Mode using the transmitter:
1. Open any vehicle door.
2. Press .
3. Press .
4. Press again.
The status LED will light solidly if you are entering Valet Mode,
and it will go out if you are exiting Valet Mode. The remote
control will generate alarm/disarm Page Notifications since the
observing buttons are used when entering and exiting valet
mode. The status LED is the only way to ensure the system has
entered/exited valet mode.
DRW-35
28 © 2002 directed electronics, inc.
remote start
This feature allows you to remotely start and run your vehicle for
a programmable period of time. This makes it possible to warm up
the engine, as well as adjust the interior temperature of the vehicle
with the climate control system. If interior heating or cooling is
desired, the climate controls must be preset, and the fan blower
must be set to the desired level prior to remote starting the vehicle.
To remote start the vehicle:
1. Simultaneously press and on the remote control
for one second.
2. The parking lights will flash to confirm that the vehicle will
attempt to start.
3. A remote start Page Notification with a unique two-tone
beep (or vibration) will be generated and the LCD will
display the Start (20) icon as long as the vehicle is running.
4. In gasoline vehicles, the engine will start 4 seconds after the
parking lights flash. In diesel vehicles, the engine will start
when the WAIT-TO-START indicator on the vehicle's dash
goes out.
note: the remote will generate a Page Notification with a
different unique two-tone beep (or vibrate) and the Start
(20) icon will turn off when the remote start shuts down
iimmppoorrttaanntt!! (1) Never remote start your vehicle when the
keys are in the ignition, except when performing Valet®
Take-Over, and (2) Never start the vehicle if it is not in
either PARK or NEUTRAL.
➜
29
© 2002 directed electronics, inc.
5. Once the vehicle has started, it will run for the pre-program-
med period of time (either 12, 24, or 60 minutes - see
Programming Options section of this guide) or until a shut-
down input is triggered. When using the Directed Bitwriter,
the run time can be programmed from 1-60 minutes.
When you are ready to drive the vehicle:

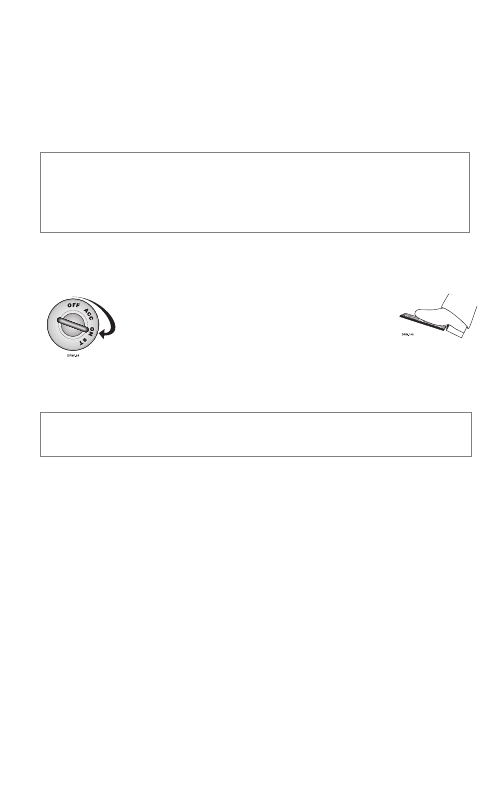

1. Insert the ignition key and turn
it to the ON (not the START)
position.
2. Press the brake pedal.
To shut down the remote start and turn off the engine:
While the vehicle is running during remote start operation, the
system will monitor the vehicle and will automatically shut
down the engine if the system receives any of the following shut-
down inputs:
➤The brake pedal is pressed.
➤The hood is opened.
➤The shutdown toggle switch is put into the OFF position.
➤The pre-programmed run time (12, 24, or 60 minutes) has
elapsed.
note: If the brake pedal is pressed before the key is in the
ON position, the engine will shut down.
iimmppoorrttaanntt!! It is unsafe to operate a vehicle’s motor in a
garage or other closed off area. Breathing the exhaust
from the vehicle is hazardous to your health. Never acti-
vate the remote start in an enclosed space.
30 © 2002 directed electronics, inc.
➤Remote control buttons and are pressed again to
start the vehicle.
The remote control will generate a Page Notification with a
unique two-tone beep (or vibrate) and the start icon (20) will
turn off when the remote start shuts down.
valet take-over
The Valet®Take-Over feature allows the vehicle to remain
running after the key has been removed from the ignition. This
feature is useful for occasions when you wish to exit and lock the
vehicle for short periods of time, but would like to leave the
motor running and the climate controls on.
To perform Valet
®
Take-Over:
1. Before turning off the engine, simultaneously press and
release and on the remote control. A remote start
Page Notification with a unique two-tone beep (or vibra-
tion) will be generated and the LCD will display the start
icon (20) as long as the vehicle is running. Then wait three
seconds.
2. Turn the ignition key to the OFF position. (The engine will
stay running.)
3. The engine will run until the pre-programmed time elapses
or a shut-down input is received. (See the previous Remote
Start section for a complete list of shut-down inputs.)
note: This feature will not work if the brake pedal is
being pressed or if any shut down input is active.
➜
31
© 2002 directed electronics, inc.

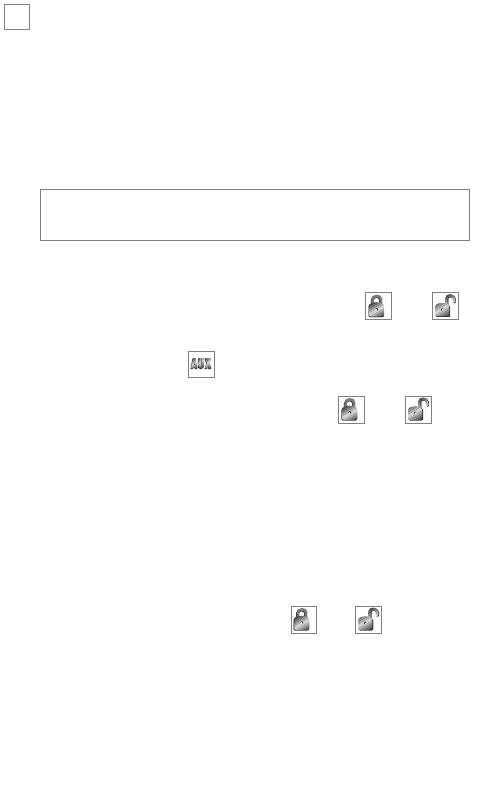

timer mode
Timer Mode automatically starts your vehicle engine and runs it
for a pre-programmed time period, every three hours for a total
of six operation cycles. Timer Mode helps to ensure that your
engine will start in the morning after being parked outside
during a night of extremely cold temperatures.
To enter Timer Mode:
1. Start the vehicle by pressing and releasing and on
the remote control.
2. Press and release on the remote control.
3. Within two seconds, press and release and on the
remote control again.
4. The engine will shut down and the parking lights will flash
four times. The engine will then restart to confirm that
Timer Mode has been entered.
The vehicle engine may be allowed to run for its pre-programmed
time period, or it can be shut down while running during Timer
Mode operation by pressing buttons and on the remote
control again. In either case, the vehicle will restart every three
hours for a total of six operation cycles. If the system receives a
shut-down input while the engine is running in Timer Mode, the
engine will stop, but will restart, on schedule, again in three hours!
important!!This feature must only be used in open areas,
never in an enclosed area such as a garage.
➜
32 © 2002 directed electronics, inc.
To exit Timer Mode:
Timer Mode can be exited by turning the ignition on with the
key any time that the vehicle engine is not running. You can also
exit Timer Mode using the transmitter by following these steps:
1. Start the engine by pressing and on the remote
control simultaneously.
2. Press and release on the remote control.
3. Within two seconds, press and release and on the
remote control again.
4. The vehicle engine will shut down and the parking lights
will flash four times to confirm that Timer Mode has been
exited. If the vehicle has already been remote started, you
may skip Step One.
5. The remote control will generate normal remote start and
shutdown Page Notifications when entering/exiting timer
mode and during programmed start times only when
remotely activated. When exiting timer mode with the igni-
tion, no page notification will be generated.
33
© 2002 directed electronics, inc.
ssaaffeettyy ffeeaattuurreess
This system has several important safety features to ensure
proper operation of the motor and prevent accidental damage to
the engine or its components.
starter anti-grind circuitry
Whenever the vehicle is remote started, advanced anti-grind
circuitry prevents the starter from engaging, even if the key is
turned to the start position. This prevents damage to the starter
motor if the key is turned to the start position during remote start
operation.
disabling the remote start system
This feature allows your system's remote start unit to be
temporarily disabled to prevent the vehicle from being remote
started accidentally. This feature is useful if the vehicle is being
serviced or stored in an enclosed area. To disable the remote
start, move the shutdown toggle switch to the OFF position.
The switch can be installed in a location of your choice. Check
with your installer for recommended locations.
Location of Shutdown Switch____________________________
➜
note: Anti-grind circuitry only works when the remote
start system is operating the motor and the Failsafe®
Starter Kill relay is installed.
➜
34 © 2002 directed electronics, inc.
over and under rev protection
The system monitors the engine speed and will automatically
shut the engine off if the RPMs rise above or fall below the
programmed levels. This feature prevents damage to the motor
due to fuel delivery system failures or other problems which may
cause the engine to race.
shut down inputs
This security system uses several inputs to shut down the remote
start operation of the motor or prevent remote start if certain
inputs are active. The two most important are hood and brake
inputs. The hood input will prevent the motor from starting, as
well as shut it down, any time the hood is opened. The brake
pedal will shut down the motor at any time during remote start
operation, as well as preventing the remote start from activating
while it is being pressed.
nuisance prevention circuitry
Your system has Directed’s Nuisance Prevention Circuitry™
(NPC™). It prevents annoying repetitive trigger sequences due to
faulty door pin switches or environmental conditions such as
thunder, jackhammers, airport noise, etc.
➜
➜
note: The system uses a wire connected to the vehicle to
sense engine speed. This wire must be connected in order
for over and under rev protection to work.
➜
35
© 2002 directed electronics, inc.
Example
If the alarm triggers three times within a 60-minute period and
each time the same sensor or switch triggers the alarm, NPC™
will interpret those triggers as false alarms. After the third trigger,
NPC™ignores, or bypasses, that sensor or switch (along with any
other sensors or switches sharing the same zone) for 60 minutes.
If the bypassed sensor tries to trigger the security system while it
is being bypassed, the 60-minute bypass period will start over.
This ensures that a sensor that is continually being triggered will
remain bypassed.
The vehicle doors are protected by NPC™differently. If your
security system is triggered by an open door for three full cycles,
the system will bypass the doors until the trigger ceases.
note: Arming and disarming the system does not reset
this function! The only ways to reset a bypassed zone are
for it to not trigger for 60 minutes, or to turn on the igni-
tion. If testing your system, it is important to remember
that the NPC™programming can cause zones to be
bypassed and appear to stop working.
36 © 2002 directed electronics, inc.
ddiiaaggnnoossttiiccss
The microprocessor at the heart of your system is constantly
monitoring all of the switches and sensors connected to it. It is
designed to detect any faulty switches and sensors and prevents
them from disabling the entire system. The microprocessor will
also record and report any triggers that occurred during your
absence. Refer to the System Status Chirps and Table of Zones
sections of this guide for diagnostic information.
arming diagnostics
If the security system is armed at the same time that an input is
active (such as a door opening or sensor triggering), the system
will generate a Bypass Notification. This means that the security
system ignores the input that was active when the system was
armed, until that input ceases. Three seconds after that input
ceases, the security system will resume normal monitoring. For
example, if your vehicle has an interior light exit delay and you
arm your security system before the interior light turns off, you
may hear a Bypass Notification. Once the light turns off,
however, the security system resumes normal monitoring.
➜
37
© 2002 directed electronics, inc.
disarming diagnostics
Extra chirps that are heard when disarming the system are indi-
cating a Tamper Alert. If four chirps are heard when disarming
the system, a triggered response was generated in your absence.
If five chirps are heard when disarming the system, a zone was
triggered so many times that the Nuisance Protection Circuitry™
has bypassed that zone. In either case, the status LED and
remote control LCD will indicate which zone was triggered (see
Table of Zones section). The security system will retain this infor-
mation in its memory and chirp four or five times each time it
is disarmed, until the next time that the ignition is turned on.
system status chirps
The siren will chirp when arming/disarming the system. The
pattern of chirps will audibly report the system’s status as
described below.
Action Number of Chirps/ Description
Remote Beeps
Arm 1 System armed
Arm 1 (3-second delay), 1 System armed with
Bypass Notification
Disarm 2 System disarmed
Disarm 4 System disarmed with
Tamper Alert
Disarm 5 System disarmed NPC
active
➜
➜
38 © 2002 directed electronics, inc.
table of zones
A zone is represented by the LED flashes and remote control LCD
icons used by the system to identify a particular type of input.
Standard input assignments are listed in the following table.
ZONE
(Number of
LED Flashes) DESCRIPTION LCD Icon
1Instant trigger - trunk pinswitch 19
2Shock trigger (-) - Full trigger and 17
Warn Away® of Sensor 1
3Door switch trigger 9
4Optional Sensor (-) - Full trigger and 18
Warn Away®
5Ignition trigger 15
6hood pinswitch 14
interpreting zone diagnostics
Warn Away responses are not reported by the arming or
disarming diagnostics. If you receive a Bypass notification when
arming or a Tamper Alert notification when disarming, look at
the LED or remote control LCD. Active or triggered zones will
be indicated by a pattern of blinks by the LED or the remote
control icon will indicate the triggered zone.
Example
If Zone 3 was active or triggered, the LED will blink three times
with a two-second pause. Then it will blink three times again,
➜
➜
39
© 2002 directed electronics, inc.
and repeat until the ignition is turned on and the door icon (9)
will be displayed on the remote control.
➤Arming and disarming diagnostics (including Warn Away®
responses) are reported by the remote control on the LCD.
➤When a Bypass Notification is generated during arming the
remote control LCD will flash the triggered zones five times
then turn off.
➤To review zones that have been bypassed press 10
seconds after arming the system. The bypassed zones will
again flash five times and turn off.
➤When a Tamper Alert notification is generated upon
disarming, the triggered zones will flash on the remote
control LCD five times then turn off.
➤To review the zones that have been triggered press the
button. They flash five times again, then turn off.
note: Your system stores the last two triggered zones in
memory. If your system has been triggered but the LED
has been reset by turning on the ignition, your dealer can
still recall the last two zones that were triggered. Contact
your dealer for details.
40 © 2002 directed electronics, inc.
ccooddee hhooppppiinngg
The receiver and transmitters use a mathematical formula called
an algorithm to change their code each time the transmitter is
used. This technology has been developed to increase the secu-
rity of the unit. The control unit knows what the next codes should
be. This helps to keep the transmitter “in sync” with the control
unit even if you use the remote control out of range of the
vehicle. However, if the remote has been pressed many times out
of range of the vehicle, or the battery has been removed, it may fall
out of sync with the control unit and fail to operate the system.
To re-sync the remote simply press several times within
range of the vehicle. The alarm will automatically re-sync and
respond to the transmitters normally.
oowwnneerr rreeccooggnniittiioonn
Owner Recognition is a revolutionary new feature available only
from Directed. Using a Directed Bitwriter, hand-held program-
ming tool, your dealer can program many of the system settings.
The programmer makes it possible to program different settings
for each transmitter that is used with the system. Then, whenev-
er a specific transmitter is used, the system will recall the settings
assigned to that transmitter. Owner Recognition lets up to four
users of the system have different settings that meet their specific
needs. It is almost like having four separate alarms in your
vehicle, one for each user.
41
© 2002 directed electronics, inc.
rraappiidd rreessuummee llooggiicc
This Directed system will store its current state to non-volatile
memory. If power is lost and then reconnected the system will
recall the stored state from memory. This means if the unit is in
Valet®Mode and the battery is disconnected for any reason, such
as servicing the car, when the battery is reconnected the unit will
still be in Valet®Mode. This applies to all states of the system
including arm, disarm, and Valet®Mode.
ppoowweerr ssaavveerr mmooddee
Your system will automatically enter Power Saver Mode while
armed or in Valet®Mode, after a period of time in which no
operation has been performed. This lowers the current draw on
the vehicle's battery. Power Saver Mode takes over under the
following conditions:
➤Power Saver when the system is armed: After the system has
been armed for 24 hours the LED will flash at half its
normal rate, decreasing the system's current draw.
note: Owner Recognition cannot be programmed with-
out a Bitwriter and the necessary software. Check with
your dealer for more information.
42 © 2002 directed electronics, inc.
➤Power Saver in Valet®Mode: When the system enters Valet®
Mode the LED illuminates steadily. If the vehicle is not used
(ignition is not turned on) for a one hour period while the
system is in Valet®Mode, the LED will shut off. If the
system remains in Valet®Mode, the LED will come back on
the next time the ignition is turned on and then back off.
pprrooggrraammmmiinngg ooppttiioonnss
Programming options control your system's normal, operational
set-up. Most options do not require additional parts, but some
may require installation labor.
The following is a list of the programmable options, with the
factory settings in Bold.
➤AAccttiivveearming (remote control only) or passive arming
(automatic arming 30 seconds after the last door has been
closed).
➤Arming/disarming siren chirps oonnor off.
➤The ignition controlled door lock feature oonnor off: When
this feature is programmed on, the doors will lock three
seconds after the ignition is turned on, and unlock when the
ignition is turned off. If your installer is programming the
security system with the Directed Bitwriter, ignition lock
and unlock are independent features that can be
programmed separately.
43
© 2002 directed electronics, inc.
➤Passive door locking (with passive arming) or aaccttiivvee ddoooorr
lloocckkiinngg(only when arming with the remote control). Passive
locking allows the vehicle's doors to lock when the security
system passively arms (after the 30-second countdown). This
feature only works if passive arming has been programmed.
➤Panic mode eennaabblleedd/disabled when the ignition is turned
on. (Some states have laws against sirens sounding in moving
cars.)
➤Forced passive arming oonnor off. If your security system is
programmed for passive arming and the forced passive
arming feature has been programmed on, the system will
passively arm after one hour, even if a protected entry has
been left open. Forced passive arming ensures that the
system will be armed if a door has accidentally been left ajar
when leaving the vehicle.
➤Full trigger response 3300or 60 seconds: This determines how
long the full triggered sequence lasts. Some states have laws
regulating how long a security system can sound before it is
considered a nuisance. If your installer is programming the
security system with the Directed Bitwriter, the full triggered
response can be programmed for any duration ranging from
1 to 180 seconds.
note: When the system passively arms after one hour, the
entry point that has been left open, and anything con-
nected to the same zone, is bypassed and cannot trigger
the system. However, the remaining inputs to the system
are fully operational.
44 © 2002 directed electronics, inc.
➤Automatic Engine Disable (AED) on or ooffff. The purpose of
this feature is to protect the vehicle from being stolen at all
times, regardless of whether or not the alarm is armed. If
AED is programmed on, the starter of the vehicle will be
disabled 30 seconds after the ignition is turned off. Once the
key is turned off, the LED will flash slowly (one-half its
normal armed rate) to indicate the AED arming cycle.
Thirty seconds later, the starter will be disabled. To start the
car, it will be necessary to disarm the system with the trans-
mitter. It is also possible to disarm the AED feature by
turning the ignition key to the RUN position and pressing
the Valet®button the programmed number of times. AED
is also disabled when the system is in Valet®mode.
➤Siren tones and arm/disarm chirp volume. The output of the
Revenger™Soft Chirp™siren consists of six different tones in
sequence. Any of these tones can be eliminated by a dealer,
resulting in a unique, easily identifiable siren sound. The
arm/disarm chirps can be either full volume or 66 ddeecciibbeellss
qquuiieetteerr than the full alarm blast.
➤Using the 998T Bitwriter, the engine can be programmed to
run for any duration ranging from 1 to 60 minutes. 1122
mmiinnuutteessis the default. After the programmed run time, the
engine will shut down and will not restart, unless in Timer
Mode.
note: This feature will only function if the FailSafe®
Starter Kill relay has been installed.
45
© 2002 directed electronics, inc.
➤While the remote start system is running the engine, the
parking lights of the vehicle can ffllaasshh oonn aanndd ooffffor come on
and light steadily.
sseeccuurriittyy && ccoonnvveenniieennccee eexxppaannssiioonnss
Listed below are some of the many expansion options available.
Please consult your dealer for a complete explanation of all the
options available to you.
Audio Sensor:
Metal on glass, glass cracking, and breaking
glass produce distinctive acoustic signatures. The 506T audio
sensor uses a microphone to pick up sounds, then analyzes them
with proprietary acoustic software to determine if the glass has
been struck.
Backup Battery:
The 520T keeps the system armed, triggers the
alarm and keeps the starter interrupt active if main battery is dis-
connected.
Hood Lock:
Prevents the vehicle’s hood from being opened
without a key, keeping thieves away from the system’s siren, the
battery connections, and other components under the hood.
Field Disturbance Sensor:
An invisible dome of coverage is estab-
lished by installing the 508D “radar” sensor. Your system can
react to any intrusions into this field with the full triggered
sequence.
46 © 2002 directed electronics, inc.
Power Locks:
This system offers lock outputs that can control
some manufacturers' power door lock systems. For other
systems, additional parts may be required.
Power Trunk Release:
The accessory output of the system can op-
erate a factory power release for the vehicle’s trunk or hatch.
Although the on-board relay can control most power trunk re-
leases, sometimes an optional relay is required. If the factory
release is not power-activated, Directed®'s 522T trunk release
solenoid can often be added.
Power Window Control:
Automatic power window control is pro-
vided with the 529T and 530T systems. These can operate
power windows, and can roll them up automatically when the
system is armed, roll them down, or both up and down.
Mobile Video:
This system is compatible with Directed Video’s
MCB1000 Multi-Channel Controller, featuring on-screen secu-
rity system programming and zone trigger information.
gglloossssaarryy ooff tteerrmmss
Control Unit:
The “brain” of your system. Usually hidden under-
neath the dash area of the vehicle. The control unit houses the
microprocessor which monitors your vehicle and controls all
system functions.
Fail-Safe Starter Kill:
An automatic switch controlled by your
system that prevents the vehicle’s starter from cranking whenever
the system is armed. The vehicle is never prevented from
cranking when the system is disarmed, in Valet Mode, or if the
starter interrupt switch itself fails. Your system has feature-ready
circuitry for the starter interrupt, however installation may
require additional labor.
Input:
A physical connection to the system. An input can be
provided by a sensor, pinswitch or by existing systems in the
vehicle, such as ignition or courtesy lights.
LED:
A red light mounted at a discretionary location inside the
vehicle. It is used to indicate the status of your system and as a
visual deterrent.
Protected Entry:
A protected entry is a door, hood, trunk, sliding
window, camper door or any other opening into the vehicle that
can be connected to the alarm with a switch.
Shock Sensor:
This system has a dual zone shock sensor. This
sensor is mounted in the vehicle and designed to pick up impacts
to the vehicle or glass. Lighter impacts will generate a Warn Away
© 2002 directed electronics, inc. 47
48 © 2002 directed electronics, inc.
response while harder impacts will generate a full-trigger response.
Remote Control:
A hand-held device that operates the various
functions of your system and communicates system status.
Triggered Sequence:
This is what happens when the alarm “goes
off” or “trips.” The triggered response of your system consists of
the siren sounding and parking lights flashing for the
programmed duration.
Valet Switch:
A small push button mounted at a discretionary
location inside the vehicle. It is used to override the starter inter-
rupt when a transmitter is lost or damaged, or to enter or exit
Valet Mode and for programming when the 998T Bitwriter is
not available.
Warn Away Response:
Lighter impacts to the vehicle will
generate the Warn Away response. It consists of several seconds
of siren chirps and parking light flashes.
Zone:
A zone is a separate input that the alarm can recognize as
unique. Each input to the system is connected to a particular
zone. Often two or more inputs may share the same zone.
49
© 2002 directed electronics, inc.
50 © 2002 directed electronics, inc.
