Wednesday, May 12, 2004

TUV Product Services

10040 Mesa Rim Road

San Diego, CA 92121

RE: FCC ID EZSDEI487

Dear Sir or Madam,

This letter is to address the following for the 547T Transceiver:

1. System transmission frequency range

2. Data transmission duty cycle description

3. Manuals

1. This transmitter is a single frequency device. It has a crystal controlled PLL oscillator which

generates the RF carrier. The crystal based oscillator can maintain a center frequency of

433.92MHz within a +/-35KHz tolerance. The receiver operated by this transmitter is a single

band receiver tuned to 433.92MHz and only capable of receiving this frequency.

2. The 547T is a data transmission device. Its protocol consists of the following worst case condition

for duty cycle credit calculation:

a) 17 preamble bits: 9 x 300us HI bits and 8 x 300us LO bits = 2.7ms ON time out of 5.1ms total time.

b) There’s a 3ms gap between the preamble bits and the data bits.

c) 57 data bits of 300us or 600us each, they are random. Worst case of 600us HI bits and 300us LO

will be used. So, 29 x 600us and 28 x 300us LO = 17.4ms HI out of 25.8ms total time.

c) There’s a 60ms gap between the end of the data bits and the beginning of the next frame.

d) Total worst case word = 2.7ms + 17.4ms = 20.1ms ON time out of 93.9ms

(5.1ms+3ms+25.8ms+60ms)

So for a worst case 100ms frame we have:

20.1ms ON out of 93.9ms + 3.3ms ON out of 6.1ms = 23.4ms out of 100ms = 23.4% ON time

OR a -12.62dB FCC duty cycle credit.

3. There are no dedicated manuals for this device. The 547T transceiver is part of several car alarm

and remote start systems. Included are the installation and owner’s guides for the system with

the most features which is representative of other, less feature rich systems. The installation

guide of all systems have a section covering the wiring of the transceiver. There are no user

features associated with this device. Once installed in the vehicle by certified car alarm installers

(Just connection) no interfacing to the device is necessary. No user or installer settings are

available, the device is purely to do RF communication. Please refer to the wiring diagram on

page 53 in the installation guide.

Sincerely,

Minas Minassian

RF Engineer

MMooddeell 777711XXVV

➤

OOwwnneerr’’ss GGuuiiddee

VViippeerr

lliimmiitteedd lliiffeettiimmee ccoonnssuummeerr wwaarrrraannttyy

Directed Electronics, Inc. ("Directed") promises to the original purchaser to repair or

replace with a comparable reconditioned model any Directed unit (hereafter the "unit"),

excluding without limitation the siren, the remote transmitters, the associated sensors and

accessories, which proves to be defective in workmanship or material under reasonable use

during the lifetime of the vehicle provided the following conditions are met: the unit was

professionally installed and serviced by an authorized Directed dealer; the unit will be pro-

fessionally reinstalled in the vehicle in which it was originally installed by an authorized

Directed dealer; and the unit is returned to Directed, shipping prepaid with a legible copy

of the bill of sale or other dated proof of purchase bearing the following information: con-

sumer's name, telephone number and address; the authorized dealers name, telephone

number and address; complete product description, including accessories; the year, make

and model of the vehicle; vehicle license number and vehicle identification number. All

components other than the unit, including without limitation the siren, the remote trans-

mitters and the associated sensors and accessories, carry a one-year warranty from the date

of purchase of the same. This warranty is non-transferable and is automatically void if: the

original purchaser has not completed the warranty card and mailed it within ten (10) days

of the date of purchase to the address listed on the card; the unit's date code or serial num-

ber is defaced, missing or altered; the unit has been modified or used in a manner con-

trary to its intended purpose; the unit has been damaged by accident, unreasonable use,

neglect, improper service, installation or other causes not arising out of defects in materi-

als or construction. The warranty does not cover damage to the unit caused by installa-

tion or removal of the unit. Directed, in its sole discretion, will determine what consti-

tutes excessive damage and may refuse the return of any unit with excessive damage. TO

THE MAXIMUM EXTENT ALLOWED BY LAW, ALL WARRANTIES, INCLUD-

ING BUT NOT LIMITED TO EXPRESS WARRANTY, IMPLIED WARRANTY,

WARRANTY OF MERCHANTABILITY, FITNESS FOR PARTICULAR PURPOSE

AND WARRANTY OF NON-INFRINGEMENT OF INTELLECTUAL PROPERTY,

ARE EXPRESSLY EXCLUDED; AND DIRECTED NEITHER ASSUMES NOR

AUTHORIZES ANY PERSON OR ENTITY TO ASSUME FOR IT ANY DUTY,

OBLIGATION OR LIABILITY IN CONNECTION WITH ITS PRODUCTS.

DIRECTED DISCLAIMS AND HAS ABSOLUTELY NO LIABILITY FOR ANY

AND ALL ACTS OF THIRD PARTIES INCLUDING ITS AUTHORIZED DEAL-

ERS OR INSTALLERS. DIRECTED SECURITY SYSTEMS, INCLUDING THIS

UNIT, ARE DETERRENTS AGAINST POSSIBLE THEFT. DIRECTED IS NOT

OFFERING A GUARANTEE OR INSURANCE AGAINST VANDALISM, DAM-

AGE OR THEFT OF THE AUTOMOBILE, ITS PARTS OR CONTENTS; AND

HEREBY EXPRESSLY DISCLAIMS ANY LIABILITY WHATSOEVER, INCLUD-

ING WITHOUT LIMITATION, LIABILITY FOR THEFT, DAMAGE AND/OR

VANDALISM. THIS WARRANTY DOES NOT COVER LABOR COSTS FOR

MAINTENANCE, REMOVAL OR REINSTALLATION OF THE UNIT OR ANY

CONSEQUENTIAL DAMAGES OF ANY KIND. IN THE EVENT OF A CLAIM

OR A DISPUTE INVOLVING DIRECTED OR ITS SUBSIDIARY, THE PROPER

VENUE SHALL BE SAN DIEGO COUNTY IN THE STATE OF CALIFORNIA.

CALIFORNIA STATE LAWS AND APPLICABLE FEDERAL LAWS SHALL APPLY

AND GOVERN THE DISPUTE. THE MAXIMUM RECOVERY UNDER ANY

CLAIM AGAINST DIRECTED SHALL BE STRICTLY LIMITED TO THE

AUTHORIZED DIRECTED DEALER'S PURCHASE PRICE OF THE UNIT.

DIRECTED SHALL NOT BE RESPONSIBLE FOR ANY DAMAGES WHATSOEV-

ER, INCLUDING BUT NOT LIMITED TO, ANY CONSEQUENTIAL DAMAGES,

INCIDENTAL DAMAGES, DAMAGES FOR THE LOSS OF TIME, LOSS OF

EARNINGS, COMMERCIAL LOSS, LOSS OF ECONOMIC OPPORTUNITY

AND THE LIKE. NOTWITHSTANDING THE ABOVE, THE MANUFACTURER

DOES OFFER A LIMITED WARRANTY TO REPLACE OR REPAIR THE CON-

TROL MODULE AS DESCRIBED ABOVE. Some states do not allow limitations on

how long an implied warranty will last or the exclusion or limitation of incidental or con-

sequential damages. This warranty gives you specific legal rights and you may also have

other rights that vary from State to State.

This product may be covered by a Guaranteed Protection Plan ("GPP"). See your autho-

rized Directed dealer for details of the plan or call Directed Customer Service at 1-800-

876-0800. Directed security systems, including this unit, are deterrents against possible

theft. Directed is not offering a guarantee or insurance against vandalism, damage or theft

of the automobile, its parts or contents; and hereby expressly disclaims any liability what-

soever, including without limitation, liability for theft, damage and/or vandalism.

Directed does not and has not authorized any person or entity to create for it any other

obligation, promise, duty or obligation in connection with this security system.

Make sure you have all of the following information from your dealer:

A clear copy of the sales receipt, showing the following:

➤Date of purchase

➤Your full name and address

➤Authorized dealer's company name and address

➤Type of alarm installed

➤Year, make, model and color of the automobile

➤Automobile license number

➤Vehicle identification number

➤All security options installed on automobile

➤Installation receipts

lliimmiitteedd lliiffeettiimmee ccoonnssuummeerr wwaarrrraannttyy.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ii

wwhhaatt iiss iinncclluuddeedd.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 33

iimmppoorrttaanntt iinnffoorrmmaattiioonn.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 33

your warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

fcc/id notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

caution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

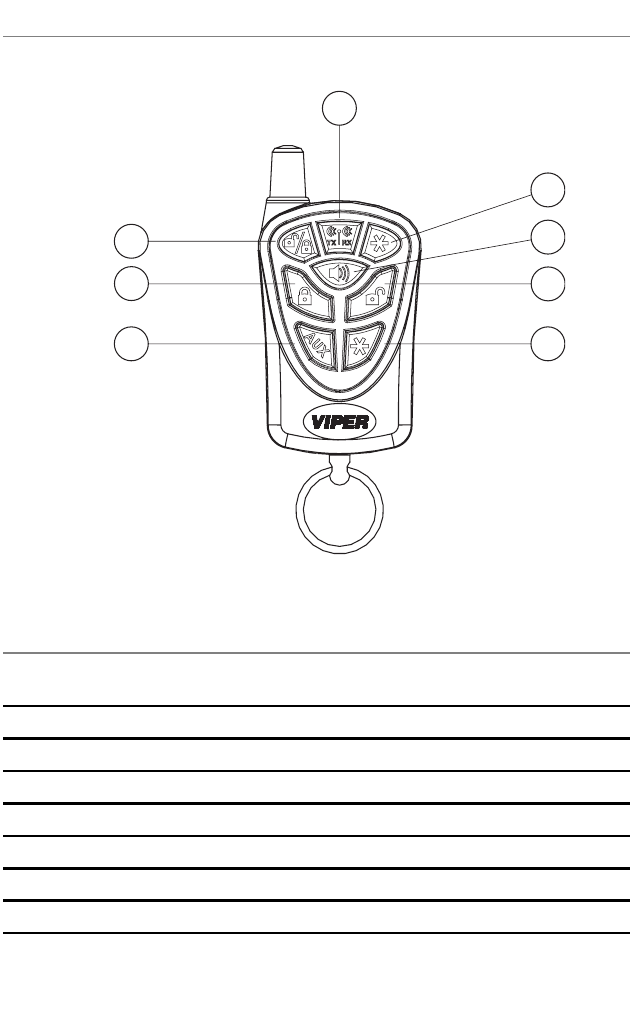

22--wwaayy rreemmoottee ddiiaaggrraamm.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 55

ssttaannddaarrdd rreemmoottee ccoonnffiigguurraattiioonn.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 55

ssttaannddaarrdd rreemmoottee bbuuttttoonn ccoonnffiigguurraattiioonn.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 66

22--wwaayy rreemmoottee ffuunnccttiioonnss.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 88

standard configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

rreemmoottee ooppeerraattiioonn .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 1100

system signal paging features. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Out of Range Notification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

pprrooggrraammmmiinngg rreemmoottee.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 1122

uussiinngg yyoouurr ssyysstteemm .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 1133

warning! safety first . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

active arming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

passive arming. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

multi-level security arming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

arming while driving. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

disarming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

high security disarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

disarming without a 2-way remote . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

silent mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

panic mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

valet®mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

remote start. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

valet®take-over . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

short-run/turbo. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

timer mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

AAuuxxiilliiaarryy OOuuttppuuttss ((OOppttiioonnss)).. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 2288

ssaaffeettyy ffeeaattuurreess.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 2299

starter anti-grind circuitry. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

disabling the remote start system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

over and under rev protection. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

shut down inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

nuisance prevention circuitry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

ttaabbllee ooff ccoonntteennttss

ddiiaaggnnoossttiiccss.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 3322

arming diagnostics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

disarming diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

system status chirps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

table of zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

interpreting zone diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

ccooddee hhooppppiinngg.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 3355

hhiigghh ffrreeqquueennccyy.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 3366

oowwnneerr rreeccooggnniittiioonn.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 3366

rraappiidd rreessuummee llooggiicc.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 3377

ppoowweerr ssaavveerr mmooddee.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 3377

pprrooggrraammmmiinngg ooppttiioonnss.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 3388

sseeccuurriittyy && ccoonnvveenniieennccee eexxppaannssiioonnss.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 4411

gglloossssaarryy ooff tteerrmmss.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 4422

wwhhaatt iiss iinncclluuddeedd

➤A control module

➤An XHF2 transceiver/antenna

➤One 4-button 2-way remote

➤A Stinger™ DoubleGuard®two-stage shock sensor

➤A Revenger™ Soft Chirp™ six-tone programmable siren

➤A status LED indicator light

➤A push-button Valet®switch

➤Your warranty registration

➤A shut-down toggle switch

iimmppoorrttaanntt iinnffoorrmmaattiioonn

Congratulations on the purchase of your combination remote

start alarm system. Due to the complexity of this system, it must

be installed by an authorized dealer only. Installation of this

product by anyone other than an authorized dealer voids the

warranty. All dealers are provided with a preprinted dealer certif-

icate to verify authorization.

By carefully reading this Owner's Guide prior to using your

system, you will maximize the use of this system and its features.

You can print additional or replacement copies of this manual by

accessing our web site at www.directed.com.

your warranty

Your warranty registration must be completely filled out and

returned within 10 days of purchase. Your product warranty

will not be validated if your warranty registration is not returned.

Make sure you receive the warranty registration from your dealer.

It is also necessary to keep your proof of purchase, which reflects

that the product was installed by an authorized dealer.

fcc/id notice

This device complies with Part 15 of FCC rules. Operation is

subject to the following two conditions: (1) This device may not

cause harmful interference, and (2) This device must accept any

interference received, including interference that may cause

undesirable operation.

Changes or modifications not expressly approved by the party

responsible for compliance could void the user's authority to

operate this device.

caution

This product is designed for fuel injected, automatic transmission

vehicles only. Use of this product in a standard transmission

vehicle is dangerous and contrary the product's intended use.

➜

22--wwaayy rreemmoottee ddiiaaggrraamm

ssttaannddaarrdd rreemmoottee ccoonnffiigguurraattiioonn

1. Unlock/Lock Indicator (Orange)

2. Receive/Transmit Indicator (Green)

3. Remote Start/Auxiliary Indicator (Yellow)

4. Panic Indicator (Red)

5. Lock Button

6. Unlock Button

7. Remote Start Button

8. Auxiliary Channel Button

ssttaannddaarrdd rreemmoottee bbuuttttoonn ccoonnffiigguurraattiioonn

controls the AArrmmand PPaanniiccOn/Off function.

controls the DDiissaarrmmand PPaanniiccOff function.

controls SSiilleenntt MMooddee™™ and AAuuxxiilliiaarryy channel 22output.

controls the RReemmoottee SSttaarrttfunction.

and pressed together control the TTiimmeerr mode.

and pressed together control TTuurrbboo//SShhoorrtt RRuunn.

and pressed together control channel 44output.

and pressed together control channel 55output

ssyysstteemm mmaaiinntteennaannccee

This system needs no specific maintenance beyond remote

control battery replacement. The remote is powered by a 1.5V

AAA battery.

Low Battery Notification

If the battery is low (and this feature is programmed On) the 2-

way remote will emit 2 long beeps 5-seconds after a transmission

is completed. The 2 long beeps will repeat every 25 seconds up to

3 times (or until a 2-way remote button is pressed).

Battery Replacement

Gently pull the end of the battery door away from the top of the

remote control then slide the door up to expose the battery and

remove the expired battery. Place the new battery into the remote

control observing the correct polarity. When power is returned

the remote control will light all icons and generate melodies

(representing all beeper tones).

22--wwaayy rreemmoottee ffuunnccttiioonnss

The receiver uses a computer-based Learn Routine to learn the 2-

way remote buttons. This makes it possible to assign any 2-way

remote button to any receiver function. The 2-way remote

initially comes programmed with Standard Configuration, but

may also be customized by an authorized dealer. The buttons in

all of the instructions in this manual correspond to a Standard

Configuration 2-way remote.

standard configuration

Button

The arming function is controlled by pressing this button for

one second. Pressing and holding this button for more than

3-seconds will trigger the panic mode.

Button

The disarming function is controlled by pressing this button for

one second. Pressing this button during panic mode will turn off

the panic mode.

Button

Silent Mode™ and an optional auxiliary function are controlled

by this button. (Silent Mode works by pressing this button for

less than one second before arming or disarming. An optional

auxiliary function, such as trunk release, can be controlled by

pressing this button for 1.5 seconds.)

The auxiliary output controls __________________________.

➜

Button

The remote start feature is turned On/Off by pressing this button twice.

and Buttons

The remote start timer mode function of the system is controlled

by pressing these buttons simultaneously.

and Buttons

The Turbo/Short Run feature is controlled by these buttons (refer

to the Turbo/Short Run section for additional details).

and Buttons

An optional auxiliary convenience or expansion function that

you have added to your system can be activated by pressing these

buttons simultaneously.

The auxiliary output controls __________________________.

and Buttons

An optional auxiliary convenience or expansion function that

you have added to your system can be activated by pressing these

buttons simultaneously.

The auxiliary output controls __________________________.

Button

Press and hold this button for 3-seconds to enter Panic Mode.

rreemmoottee ooppeerraattiioonn

The remote start system operates at 434 MHz and incorporates

Directed’s proprietary XHF2 out-board technology transceiver. The

high frequency combined with Binary Data communication achieves

superior range with two-way communication.

system signal paging features

A page is the signal the control module sends to the remote control

as confirmation of receipt of a command or alarm system status.

When the remote control receives a page it will generate a page noti-

fication to the user (notifications are audible beeps) and the LED

Icons will display the current system status.

Command Page

When a command (arm/disarm, remote start, or auxiliary

channel) from the remote control is sent and received, the system

will send a command page back to confirm receipt.

Alarm Page

If the alarm system is triggered while armed, an Alarm Page will

be sent to the remote control. When the remote receives an

Alarm Page, the LED icons will display the alarm system status

information and the remote control will generate beeps.

An Alarm Page alert is a series of 10 or 4 rapid beeps and the Red

LED will illuminate. This will repeat every 100 seconds to alert

the user that the alarm system was triggered and will continue

until the alarm page is cleared.

➜

If the shock sensor or optional sensor has triggered the alarm the

remote will display the alarm page with 6 Red LED flashes and

10 rapid beeps.

If the trunk, door, ignition, or hood triggered the alarm the

remote will display the alarm page with the Red LED illumi-

nating for 3-seconds and 4 rapid beeps (repeated 5 times).

Page Recognition (Acknowledgement)

To clear a page alert/notification, quickly press any button on the

remote control. This can be performed at any time during or after

the page notification has occurred.

The remote control will not send a command to the system at

this time; it will only clear future repeats of the page notification.

The next time a button is pressed on the remote control it will

send a command to the system.

Out of Range Notification

If a command is issued from the remote, but the remote is

beyond the range of the vehicle to receive the command, the

remote responds with 2 sets of 3 quick beeps and the Green LED

will flash 6-times.

➜

pprrooggrraammmmiinngg rreemmoottee

To enter programming mode

Press and hold all four remote control buttons simultaneously

until one long beep is heard. Programming mode is now entered.

Beeps On/Off

Press to select beeps On/Off. One beep is notification beeps

On, Two beeps is notification beeps Off. The notification beeps

are programmed On from the factory and can be programmed

Off if they are not desired. When programmed Off the remote

will only flash the LEDs as notification of a command page or

an alarm page.

Remote battery low notification

Press to select low battery notification On/Off. One beep is

low battery notification On. Two beeps is low battery notifica-

tion Off. The Low battery Beeps are programmed On from the

factory and can be programmed Off if they are not desired.

When programmed Off the remote will not give any notification

that the battery charge level in the remote is low.

Page notification

The remote control can be programmed to notify the user of a

page (audibly beeping if the vehicle’s status changes, e.g. door

unlocked, engine started, vehicle violation, etc.). Press to

select page On/Off. One beep is page On, Two beeps is page Off.

When programmed off the remote will not give any notification

that a page was received from the vehicle.

To exit programming mode

The remote control will exit programming mode after 2-seconds

of inactivity and will emit 2 long beeps.

uussiinngg yyoouurr ssyysstteemm

warning! safety first

The following safety warnings must be observed at all times:

➤Due to the complexity of this system, installation of this

product must only be performed by an authorized Directed

dealer.

➤When properly installed, this system can start the vehicle via

a command signal from the 2-way remote control. Therefore,

never operate the system in an enclosed area or partially

enclosed area without ventilation (such as a garage). When

parking in an enclosed or partially enclosed area or when

having the vehicle serviced, the remote start system must be

disabled using the installed toggle switch. It is the user's sole

responsibility to properly handle and keep out of reach from

children all 2-way remotes to assure that the system does not

unintentionally remote start the vehicle. TTHHEE UUSSEERR MMUUSSTT

IINNSSTTAALLLL AA CCAARRBBOONN MMOONNOOXXIIDDEE DDEETTEECCTTOORR IINN

OORR AABBOOUUTT TTHHEE LLIIVVIINNGG AARREEAA AADDJJAACCEENNTT TTOO TTHHEE

VVEEHHIICCLLEE.. AALLLL DDOOOORRSS LLEEAADDIINNGG FFRROOMM AADDJJAACCEENNTT

LLIIVVIINNGG AARREEAASS TTOO TTHHEE EENNCCLLOOSSEEDD OORR PPAARRTTIIAALLLLYY

EENNCCLLOOSSEEDD VVEEHHIICCLLEE SSTTOORRAAGGEE AARREEAA MMUUSSTT AATT

AALLLL TTIIMMEESS RREEMMAAIINN CCLLOOSSEEDD..These precautions are the

sole responsibility of the user.

➤Use of this product in a manner contrary to its intended

mode of operation may result in property damage, personal

➜

injury, or death. (1) Never remotely start the vehicle with the

vehicle in gear, and (2) Never remotely start the vehicle with

the keys in the ignition. The user must also have the neutral

safety feature of the vehicle periodically checked, wherein the

vehicle must not remotely start while the car is in gear. This

testing should be performed by an authorized Directed dealer

in accordance with the Safety Check outlined in the product

installation guide. If the vehicle starts in gear, cease remote

start operation immediately and consult with the authorized

Directed dealer to fix the problem.

➤After the remote start module has been installed, contact

your authorized dealer to have him or her test the remote

start module by performing the Safety Check outlined in the

product installation guide. If the vehicle starts when

performing the Neutral Safety Shutdown Circuit test, the

remote start unit has not been properly installed. The remote

start module must be removed or the installer must properly

reinstall the remote start system so that the vehicle does not

start in gear. All installations must be performed by an autho-

rized Directed dealer. OOPPEERRAATTIIOONN OOFF TTHHEE RREEMMOOTTEE

SSTTAARRTT MMOODDUULLEE IIFF TTHHEE VVEEHHIICCLLEE SSTTAARRTTSS IINN GGEEAARR

IISS CCOONNTTRRAARRYY TTOO IITTSS IINNTTEENNDDEEDD MMOODDEE OOFF OOPPEERR--

AATTIIOONN.. OOPPEERRAATTIINNGG TTHHEE RREEMMOOTTEE SSTTAARRTT SSYYSSTTEEMM

UUNNDDEERR TTHHEESSEE CCOONNDDIITTIIOONNSS MMAAYY RREESSUULLTT IINN

PPRROOPPEERRTTYY DDAAMMAAGGEE OORR PPEERRSSOONNAALL IINNJJUURRYY.. YYOOUU

MMUUSSTT IIMMMMEEDDIIAATTEELLYY CCEEAASSEE TTHHEE UUSSEE OOFF TTHHEE

UUNNIITT AANNDD SSEEEEKK TTHHEE AASSSSIISSTTAANNCCEE OOFF AANN AAUUTTHHOO--

RRIIZZEEDD DDIIRREECCTTEEDDDDEEAALLEERR TTOO RREEPPAAIIRR OORR

DDIISSCCOONNNNEECCTT TTHHEE IINNSSTTAALLLLEEDD RREEMMOOTTEE SSTTAARRTT

MMOODDUULLEE.. DDIIRREECCTTEEDD WWIILLLL NNOOTT BBEE HHEELLDD

RREESSPPOONNSSIIBBLLEE OORR PPAAYY FFOORR IINNSSTTAALLLLAATTIIOONN OORR

RREEIINNSSTTAALLLLAATTIIOONN CCOOSSTTSS..

active arming

You can arm the system by pressing of your 2-way remote

for one second. When the system arms, from the vehicle you will

hear a short siren sound, or chirp, and see the parking lights flash

once. If the power door locks are controlled by the system, the

doors will also lock. While the system is armed, the in-vehicle

status LED will flash approximately once per second, indicating

that the system is actively protecting your vehicle. If you hear a

second chirp after arming and note that the in-vehicle’s status

LED is flashing in groups, see the Diagnostics Section of this

guide. This extra chirp is called Bypass Notification.

The remote responds to active arming with one beep and the

Orange LED will flash 3-times to indicate successful arming of

the system.

If after 2-seconds the remote beeps once and the Orange and

Red LEDs flash 3-times, the system has detected an active sensor

that should be checked.

If after 2-seconds the remote beeps once, the Orange LED flashes

6-times and the Red LED lights for 3-seconds, the system has

detected an open door, hood or trunk and has been bypassed.

passive arming

The system can be programmed to arm itself automatically (called

passive arming). If the system is programmed for passive arming, it

will automatically arm 30 seconds after the ignition is turned off

➜

and the system detects that you have left the vehicle by opening and

closing a door. Whenever the system is in its 30-second passive

arming countdown, the in-vehicle status LED will flash twice as

fast as it does when the system is armed. At the 20-second point of

the countdown, the siren will chirp to indicate that the system is

about to arm. At the 30-second point, the parking lights will flash

to indicate that the system is armed.

The remote responds to passive arming with one beep and the

Orange LED will flash 3-times to indicate successful arming of

the system.

When armed your vehicle is protected as follows:

➤Light impacts trigger the Warn Away®signal. When triggered,

the siren chirps and the parking lights flash for a few seconds.

➤Heavy impacts trip a Triggered Sequence. The sequence

consists of the siren sounding continuously and the parking

lights flashing for a pre-programmed period, which can range

in duration from 1 to 180 seconds.

➤If a door is opened, the system will immediately start

chirping the siren and flashing the parking lights. Three

seconds later, the siren output changes to a continuous blast.

This progressive response gives you time to disarm the system

with your 2-way remote if you inadvertently open the door

note: If any protected entry point (such as a door or a

switch-protected trunk or hood) is open, the system will

not passively arm (unless forced passive arming is pro-

grammed on. See Programming Options section.) Addi-

tionally, each time a sensor is triggered during the arming

countdown, the 30-second countdown starts over.

while the system is armed, while still providing instant re-

sponse (even if the door is immediately closed).

➤Turning on the ignition key will trip the same progressive re-

sponse as opening a door.

➤The optional starter kill prevents the vehicle’s starter from cranking.

➤Any full trigger of the alarm system will immediately send an

alarm page to your remote informing you that your vehicle

should be checked.

multi-level security arming

Multi-Level Security Arming allows you to select which of the

system's inputs or sensors will be active and which will be

bypassed when the system is armed. (See

Table of Zones

section

of this guide.) Pressing (only in Standard Configuration)

again within five seconds of arming the system will activate the

Multi-Level Security feature. Each time is pressed again, a

different security level is selected. The different security levels are

selected as follows:

➤Press once: The siren chirps once. The system is armed.

➤Press a second time within five seconds: The siren chirps

twice followed by a long chirp. Zone 2 is now bypassed.

➤Press a third time within five seconds: The siren chirps

three times followed by a long chirp. Zone 4 is now bypassed.

➤Press a fourth time within five seconds: The siren chirps four

times followed by a long chirp. Zones 2 and 4 are now bypassed.

➜

➤Press a fifth time within five seconds: The siren chirps

five times followed by a long chirp. All input zones, except

the ignition, are now bypassed.

After each press of the to reach the next level of security, the

remote will emit normal arm notification (1 beep and 3 flashes of

the Orange LED). For easiest operation in reaching each level of

security, press immediately aafftteerreach notification.

arming while driving

Your security system can be armed while driving the vehicle!

Simply press on the 2-way remote for two seconds while the

vehicle is running. The siren will chirp once to indicate that the

security system is armed, and then once more to indicate that the

ignition is on. The system will not respond to any input except the

door triggers, and the starter kill relay (if installed) will not be acti-

vated. Once you have arrived at your destination, the system can

be disarmed by pressing the or by turning the ignition Off.

The siren will chirp twice and the in-vehicle status LED will then

stop flashing. The system can also be disarmed at any time by

pressing ..

The remote will respond with the normal arming response plus a

diagnostic notification because the ignition is On. When disarmed

the remote will respond with the normal disarming response.

➜

note: Multi-Level Security Arming only applies to a sin-

gle arming cycle. Once the system is disarmed and then

re-armed, all the zones will be active again.

disarming

To disarm the security system, press . You will hear two

chirps, and the parking lights will flash twice. If the power locks

are controlled by the system, the doors will also unlock. The siren

chirping either four or five times when disarming indicates

Tamper Alert, which is described in the Diagnostics Section of

this guide.

The remote will indicate disarm notification with 2 beeps and 3

flashes of the Orange LED. If disarming after the system has been

triggered, the remote control will send a diagnostic notification as

a reminder. These diagnostic notifications are:

1. If a sensor triggered the system, the remote will beep 4-times

and the Orange and Red LEDs flash 3 times.

2. If a switch (Zone 1, 3, 5, or 6) triggered the system, the

remote will beep 4-times, the Orange LED will flash 6-times

and Red LED will illuminate for 3 seconds.

3. If the system was triggered so many times that NPC is active

the remote will emit the above notifications with 5 beeps

instead of 4.

high security disarm

This system includes High Security Disarm feature. If the system

is triggered this feature allows the user to silence the siren and

reset the system to the armed state without having to visually

checking the system status.

After receiving an alarm page:

➜

1. First press any button on the remote to clear the alarm page.

2. Press either the or button again and the High

Security disarm feature will be activated. The siren will be

silenced and the system will reset to the armed state.

3. Pressing the button once more will fully disarm the

system and allow the vehicle to be accessed.

disarming without a 2-way remote

If your 2-way remote is lost or damaged, you can manually

disarm your vehicle security system. To disarm the system

without a 2-way remote, you must have the vehicle's ignition key

and know where the Valet®button is located. Be sure to check

with your installer at the time of installation for both the location

and the preset response (1-5 presses) of the Valet®button.

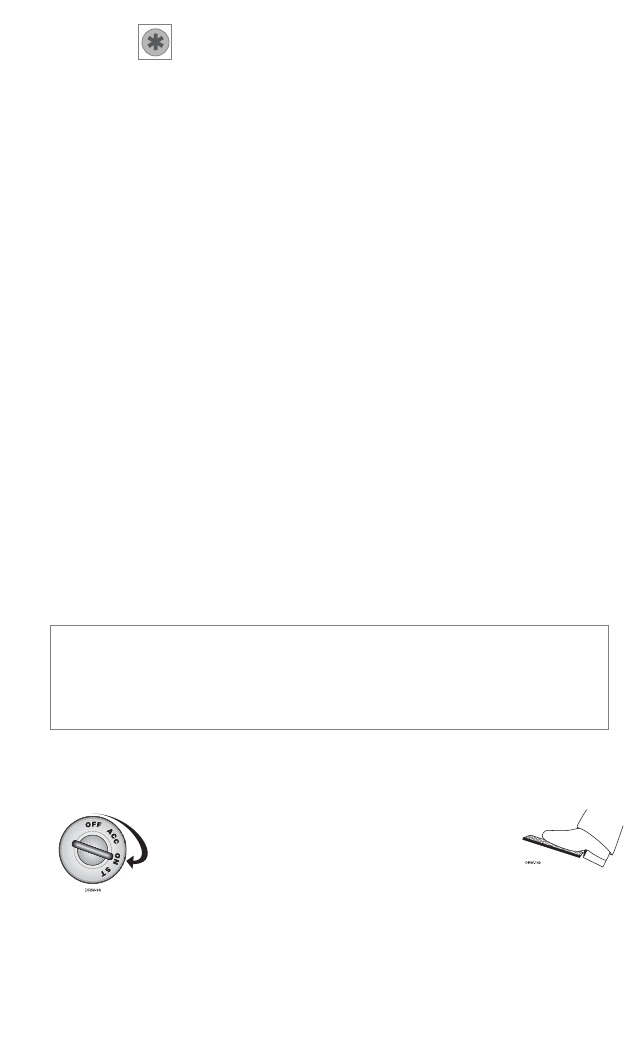

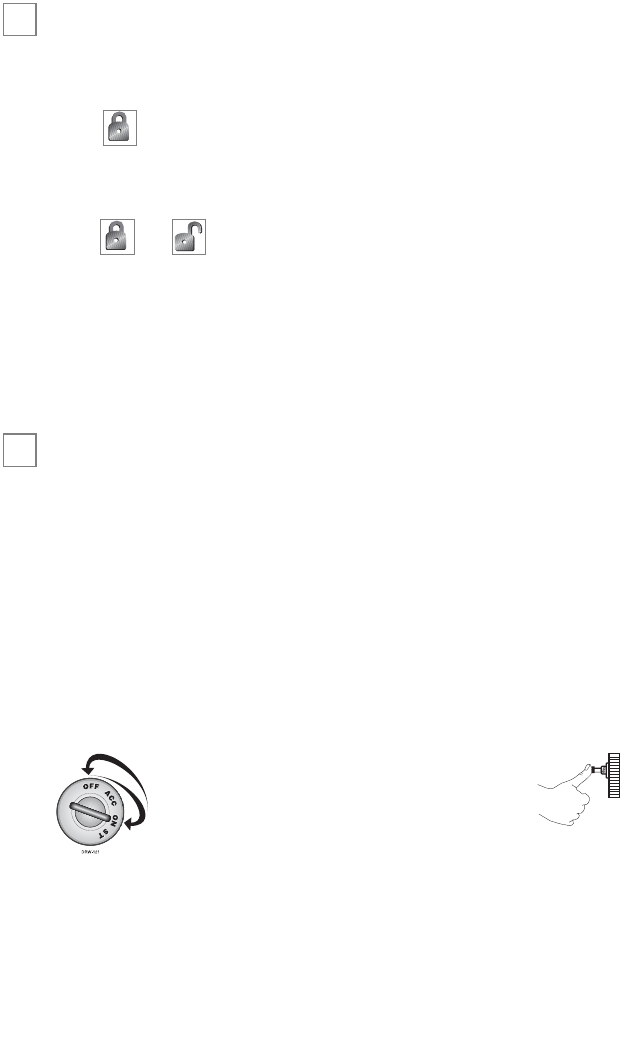

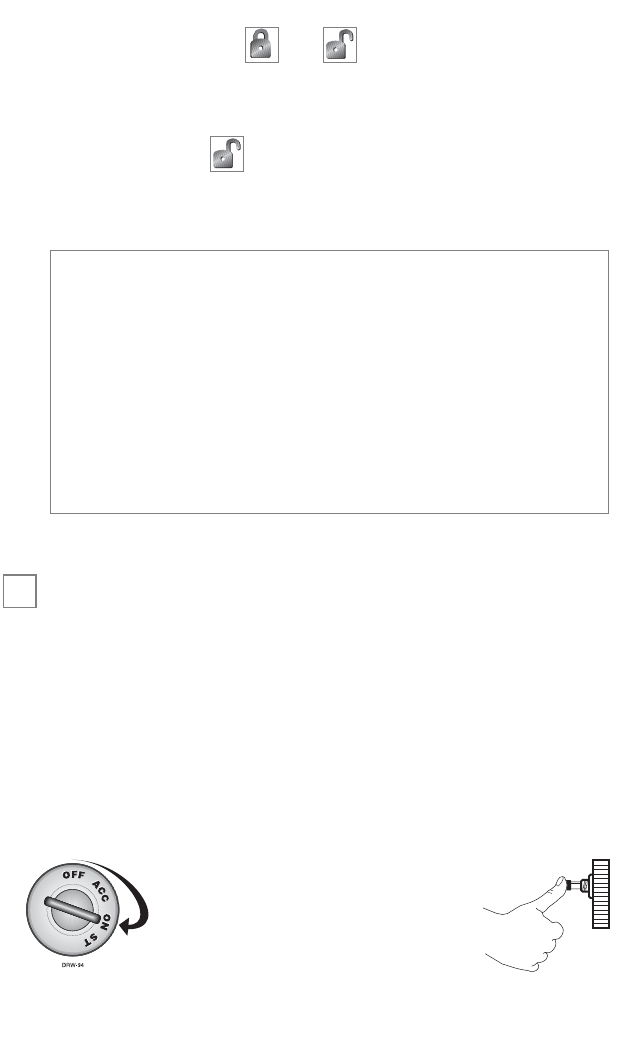

To disarm the security system,

turn the ignition to the ON posi-

tion. Press and release the Valet®

button the preset number of times

DRW-35

➜

notes: The first press of the remote button, while the

remote is beeping, only clears the alarm page (no com-

mand is sent to the vehicle).

The transceiver transmits immediately upon system trig-

ger and does not allow disarm during the first 6 seconds

after trigger.

The 2-way remote will respond with a number of beeps

and LED flashes according to whether a pinswitch, sen-

sor, activated the alarm (and also if NPC is active).

(one to five times) within 15 seconds. After five seconds, the system

will disarm. If the system does not disarm, you may have waited too

long; turn the ignition Off and On and try again.

Location of Valet®Button_________________________________

Number of Presses_____________________________________

The remote will indicate disarm notification with 2 beeps and 3

flashes of the Orange LED.

silent mode

To temporarily turn off the vehicle’s arm or disarm chirps, use

Silent Mode™. Simply press for less than 1-second before

arming or disarming, and the confirmation chirp(s) will be elim-

inated for that one operation only. If you want the arm/disarm

chirps turned off permanently, your dealer can do this for you.

The remote responds with the normal arm/disarm notifications

in silent mode. (If the remote has beeps programmed On, the

remote will beep.)

note: The Warn Away®response to lighter impacts is

bypassed if the system is armed using Silent Mode. This

ensures that no chirps will be emitted by the siren in an

area you want chirp-free. The system is still fully capable

of triggering. Only the Warn Away®response is bypassed.

➜

important! The Valet®button can be programmed to

respond to 1-5 presses for the disarm function. You must

check with the installer to verify the programming for

your individual unit.

panic mode

If you are threatened in or near your vehicle, you can attract

attention by triggering the system with your 2-way remote. Just

press for 3-seconds, and you will enter Panic Mode. The

siren will sound and the parking lights will flash for the

programmed siren duration. To stop Panic Mode at any time,

press or on the 2-way remote.

The remote responds with one flash of the Red LED upon

entering Panic Mode and two flashes of the Red LED upon

exiting Panic Mode.

valet®mode

You can prevent your security system from automatically arming

and triggering by using Valet®Mode. This is very useful when

washing the vehicle or having it serviced. In Valet®Mode, the

security system will not arm, even with the 2-way remote, but all

convenience functions (door locks, trunk release, etc.) will

continue to work normally.

To enter or exit Valet®Mode:

1. Turn the ignition on.

2. Turn the ignition off.

3. Press and release the Valet®

button once within 10 seconds.

The in-vehicle status LED will light solidly if you are entering

Valet®Mode, and it will go out if you are exiting Valet®Mode.

DRW-35

➜

The remote will respond with 3 Orange LED flashes on entering

and 2 beeps and 3 Orange LED flashes on exiting Valet®Mode.

To enter or exit Valet®Mode using the 2-way remote:

1. Open any vehicle door.

2. Press .

3. Press .

4. Press again.

The in-vehicle status LED will light solidly if you are entering

Valet®Mode, and it will go out if you are exiting Valet®Mode.

The remote responds with the normal arm/disarm notifications

with each remote button press.

remote start

This feature allows you to remotely start and run your vehicle for

a programmable period of time. This makes it possible to warm

up the engine, as well as adjust the interior temperature of the ve-

hicle with the climate control system. If interior heating or

cooling is desired, the climate controls must be preset, and the

fan blower must be set to the desired level prior to remote starting

the vehicle.

iimmppoorrttaanntt!! (1) Never remote start your vehicle when the

keys are in the ignition, except when performing Valet®

Take-Over, and (2) Never start the vehicle if it is not in

either PARK or NEUTRAL.

➜

To remote start the vehicle:

1. Press on the 2-way remote twice within 3 seconds.

2. The parking lights will flash to confirm that the vehicle will

attempt to start.

3. In gasoline vehicles, the engine will start 4 seconds after the

parking lights flash. In diesel vehicles, the engine will start

when the WAIT-TO-START indicator on the vehicle's dash

goes out.

4. Once the vehicle has started, it will run for the pre-program-

med period of time (either 12, 24, or 60 minutes - see

Programming Options section of this guide) or until a shut-

down input is triggered.

For a remote start, the remote responds with remote start tones

and the Yellow LED illuminates for 3-seconds.

For a remote start Off, the remote responds with remote start off

tones and the Yellow LED flashes 3-times.

When you are ready to drive the vehicle:

1. Insert the ignition key and turn

it to the ON (not the START)

position.

2. Press the brake pedal.

iimmppoorrttaanntt!! It is unsafe to operate a vehicle’s motor in a

garage or other closed off area. Breathing the exhaust

from the vehicle is hazardous to your health. Never acti-

vate the remote start in an enclosed space.

While the vehicle is running during remote start operation, the

system will monitor the vehicle and will automatically shut down the

engine if the system receives any of the following shut-down inputs:

➤The brake pedal is pressed.

➤The hood is opened.

➤The shutdown toggle button is put into the OFF position.

➤The pre-programmed run time (12, 24, or 60 minutes) has

elapsed.

➤2-way remote button is pressed twice again to stop the

vehicle.

➤The remote responds with remote start off tones and the

Yellow LED flashes 3-times.

note: If the brake pedal is pressed before the key is in the

ON position, the engine will shut down.

valet®take-over

The Valet®Take-Over feature allows the vehicle to remain

running after the key has been removed from the ignition. This

feature is useful for occasions when you wish to exit and lock the

vehicle for short periods of time, but would like to leave the

motor running and the climate controls on.

To perform Valet

Take-Over:

1. Before turning off the engine, press and release on the 2-

way remote twice within 3 seconds. Then wait five seconds.

2. Turn the ignition key to the OFF position. (The engine will

stay running.)

3. The engine will run until the pre-programmed time elapses

or a shut-down input is received. (See the previous

Remote

Start

section for a complete list of shut-down inputs.)

4. The remote start responds with remote start tones and the

Yellow LED illuminates for 3-seconds.

short-run/turbo

Short run turbo mode keeps the engine running after arriving at

your destination for a programmable period of 1, 3, 5 or 10

minutes. This allows the system’s timer to conveniently cool

down the turbo after you have left the vehicle.

➜

note: This feature will not work if the brake pedal is

being pressed.

➜

TToo aaccttiivvaattee sshhoorrtt--rruunn//ttuurrbboo::

1. Park the vehicle and set parking

2. Remove your foot from the brake pedal and leave the engine

running.

3. Press and release the and buttons at the same time.

4. The remote start responds with remote start tones and the

Yellow LED is illuminated for 3-seconds.

5. The lights will flash to indicate the remote start has entered

short run turbo mode.

5. Turn off the key, the engine will keep running.

6. Exit and secure the vehicle.

7. The engine will turn off after the programmed run time.

The remote responds with remote start tones and the Yellow

LED illuminates for 3-seconds.

timer mode

By pressing the remote and buttons the parking

lights will flash 4 times and then start the vehicle and run for the

set duration. The remote start can be shut off by the 2-way

remote by pressing the remote start button twice and

remain in timer mode, but if any other shut down zones or the

ignition become active the timer mode will cancel.

1. Press Timer mode buttons.

2. The vehicle will confirm with 4 parking light flashes.

3. After a 1-second delay the vehicle will start.

➜

4. The system will start the car and will run for the specified dura-

tion, unless shut down by the remote start button .

5. The system will start every 3 hours until canceled by the

brake, hood, or neutral safety shut-down wires.

On entering Timer Mode the remote will respond with the Start

On notification. The remote will respond with the Start and

Stop notification during each Start and Stop of the Vehicle while

in Timer mode.

To exit timer mode, turn the ignition switch on any time the

engine is running. The parking lights will flash 4 times, indicat-

ing timer mode has been exited.

AAuuxxiilliiaarryy OOuuttppuuttss ((OOppttiioonnss))

This system also supplies outputs that can control convenience

options such as remote control trunk release and window automa-

tion. Consult your dealer for available options for your system.

Channel 2 Trunk release: When connected, pressing for 1.5

seconds will remotely release the vehicle trunk lid.

important!!Timer Mode should be used only in

open areas. Never start and run the vehicle in an

enclosed space such as a garage or carport.

Channel 4 auxiliary output: When connected, pressing and

will immediately activate this output to control an

additional convenience option.

Channel 5 auxiliary output: When connected, pressing and

will immediately activate this output to control an

additional convenience option.

The remote will respond with a page notification consisting of

an output tone (once) and the Yellow LED will flash 3-times.

This occurs at the remote after the system has received the com-

mand to activate any of the Auxiliary outputs.

ssaaffeettyy ffeeaattuurreess

This system has several important safety features to ensure

proper operation of the motor and prevent accidental damage to

the engine or its components.

starter anti-grind circuitry

Whenever the vehicle is remote started, advanced anti-grind

circuitry prevents the starter from engaging, even if the key is

turned to the start position. This prevents damage to the starter

motor if the key is turned to the start position during remote

start operation.

➜

disabling the remote start system

This feature allows your system's remote start unit to be

temporarily disabled to prevent the vehicle from being remote

started accidentally. This feature is useful if the vehicle is being

serviced or stored in an enclosed area. To disable the remote

start, move the shutdown toggle switch to the OFF position.

The switch can be installed in a location of your choice. Check

with your installer for recommended locations.

Location of Shutdown Switch____________________________

over and under rev protection

The system monitors the engine speed and will automatically

shut the engine off if the RPMs rise above or fall below the

programmed levels. This feature prevents damage to the motor

due to fuel delivery system failures or other problems which may

cause the engine to race.

note: The system uses a wire connected to the vehicle to

sense engine speed. This wire must be connected in order

for over and under rev protection to work.

➜

note: Anti-grind circuitry only works when the remote

start system is operating the motor and the Failsafe®

Starter Kill relay is installed.

shut down inputs

This security system uses several inputs to shut down the remote

start operation of the motor or prevent remote start if certain

inputs are active. The two most important are hood and brake

inputs. The hood input will prevent the motor from starting, as

well as shut it down, any time the hood is opened. The brake

pedal will shut down the motor at any time during remote start

operation, as well as preventing the remote start from activating

while it is being pressed.

nuisance prevention circuitry

Your system has Directed’s Nuisance Prevention Circuitry™

(NPC™). It prevents annoying repetitive trigger sequences due to

faulty door pin switches or environmental conditions such as

thunder, jackhammers, airport noise, etc.

Example

If the alarm triggers three times within a 60-minute period and

each time the same sensor or switch triggers the alarm, NPC™

will interpret those triggers as false alarms. After the third trigger,

NPC™ignores, or bypasses, that sensor or switch (along with any

other sensors or switches sharing the same zone) for 60 minutes.

If the bypassed sensor tries to trigger the security system while it

is being bypassed, the 60-minute bypass period will start over.

This ensures that a sensor that is continually being triggered will

remain bypassed.

➜

The vehicle doors are protected by NPC™differently. If your

security system is triggered by an open door for three full cycles,

the system will bypass the doors until the trigger ceases.

ddiiaaggnnoossttiiccss

The microprocessor at the heart of your system is constantly

monitoring all of the switches and sensors connected to it. It is

designed to detect any faulty switches and sensors and prevents

them from disabling the entire system. The microprocessor will

also record and report any triggers that occurred during your

absence. Refer to the System Status Chirps and Table of Zones

sections of this guide for diagnostic information.

arming diagnostics

If the security system is armed at the same time that an input is

active (such as a door opening or sensor triggering), you will hear

one siren chirp to indicate arming and a second siren chirp to

indicate Bypass Notification. A Bypass Notification chirp means

that the security system ignores the input that was active when

➜

note: Arming and disarming the system does not reset

this function! The only ways to reset a bypassed zone are

for it to not trigger for 60 minutes, or to turn on the igni-

tion. If testing your system, it is important to remember

that the NPC™programming can cause zones to be

bypassed and appear to stop working. If five chirps are

heard when disarming, NPC™has been engaged. If you

wish to clear the NPC™memory, turn the ignition on.

the system was armed, until that input ceases. Three seconds

after that input ceases, the security system will resume normal

monitoring. For example, if your vehicle has an interior light exit

delay and you arm your security system before the interior light

turns off, you may hear a second Bypass Notification chirp.

Once the light turns off, however, the security system resumes

normal monitoring.

disarming diagnostics

Extra chirps that are heard when disarming the system are the

Tamper Alert. If four chirps are heard when disarming the

system, then the security system was triggered in your absence. If

five chirps are heard when disarming the system, a zone was trig-

gered so many times that the Nuisance Protection Circuitry™

has bypassed that zone. In either case, the in-vehicle status LED

will indicate which zone was involved (see Table of Zones

section). The security system will retain this information in its

memory and chirp four or five times each time it is disarmed,

until the next time that the ignition is turned on.

system status chirps

The siren will chirp when arming/disarming the system. The

pattern of chirps will audibly report the system’s status as

described below.

➜

table of zones

A zone is represented by the number of in-vehicle status LED

flashes used by the system to identify a particular type of input.

Standard input assignments are listed in the following table,

along with spaces to write in any optional sensors or switches

that have been installed.

ZZOONNEE

(Number of DDEEAALLEERR--IINNSSTTAALLLLEEDD

LED Flashes) DDEESSCCRRIIPPTTIIOONNOOPPTTIIOONNSS

11Instant trigger - trunk pinswitch

22A heavier impact

detected by the shock sensor

33Door switch trigger

44For optional sensors

55Ignition trigger

66Instant trigger - hood pinswitch

➜

Action Number of Chirps Description

Arm 1 System armed

Arm 1 (3-second delay), 1 System armed with

Bypass Notification

Disarm 2 System disarmed

Disarm 4 System disarmed with

Tamper Alert

Disarm 5 System disarmed NPC

active

interpreting zone diagnostics

Warn Away responses are not reported by arming or disarming

diagnostics. If you receive a Bypass notification when arming or

a Tamper Alert notification when disarming, look at the LED in

the car. Active or triggered zones will be indicated by a pattern

of blinks by the LED.

Example

If zone 3 was active or triggered, the in-vehicle status LED will

blink three times with a two-second pause. Then it will blink

three times again, and repeat until the ignition is turned on.

ccooddee hhooppppiinngg

The receiver and 2-way remotes use a mathematical formula

called an algorithm to change their code each time the 2-way

remote is used. This technology has been developed to increase

the security of the unit. The control unit knows what the next

codes should be. This helps to keep the 2-way remote “in sync”

with the control unit even if you use the remote control out of

range of the vehicle. However, if the remote has been pressed

many times out of range of the vehicle, or the battery has been

note: Your system stores the last two triggered zones in

memory. If your system has been triggered but the in-

vehicle status LED has been reset by turning on the igni-

tion, your dealer can still recall the last two zones that

were triggered. Contact your dealer for details.

➜

removed, it may fall out of sync with the control unit and fail to

operate the system. To re-sync the remote simply press

several times within range of the vehicle. The alarm will auto-

matically re-sync and respond to the 2-way remotes normally.

hhiigghh ffrreeqquueennccyy

Your system transmits and receives at 434 MHz. This provides a

cleaner spectrum with less interference and a more stable signal.

Enjoy a phenomenal increase in range, even in areas with high

radio interference.

oowwnneerr rreeccooggnniittiioonn

Owner Recognition is a revolutionary new feature available only

from Directed. Using a Directed Bitwriter, hand-held program-

ming tool, your dealer can program many of the system settings.

The programmer makes it possible to program different settings

for each 2-way remote that is used with the system. Then, when-

ever a specific 2-way remote is used, the system will recall the

settings assigned to that 2-way remote. Owner Recognition lets

up to four users of the system have different settings that meet

their specific needs. It is almost like having four separate alarms

in your vehicle, one for each user.

note: Owner Recognition cannot be programmed with-

out a Bitwriter and the necessary software. Check with

your dealer for more information.

rraappiidd rreessuummee llooggiicc

This Directed system will store its current state to non-volatile

memory. If power is lost and then reconnected the system will

recall the stored state from memory. This means if the unit is in

Valet®Mode and the battery is disconnected for any reason, such

as servicing the car, when the battery is reconnected the unit will

still be in Valet®Mode. This applies to all states of the system

including arm, disarm, and Valet®Mode.

ppoowweerr ssaavveerr mmooddee

Your system will automatically enter Power Saver Mode while

armed or in Valet®Mode, after a period of time in which no

operation has been performed. This lowers the current draw on

the vehicle's battery. Power Saver Mode takes over under the

following conditions:

➤Power Saver when the system is armed: After the system has

been armed for 24 hours the in-vehicle status LED will flash

at half its normal rate, decreasing the system's current draw.

➤Power Saver in Valet®Mode: When the system enters Valet®

Mode the in-vehicle status LED illuminates steadily. If the

vehicle is not used (ignition is not turned on) for a one hour

period while the system is in Valet®Mode, the in-vehicle status

LED will shut off. If the system remains in Valet®Mode, the in-

vehicle status LED will come back on the next time the ignition

is turned on and then back off.

pprrooggrraammmmiinngg ooppttiioonnss

Programming options control your system's normal, operational

set-up. Most options do not require additional parts, but some

may require installation labor.

The following is a list of the programmable options, with the

factory settings in Bold.

➤AAccttiivveearming (2-way remote only) or passive arming (auto-

matic arming 30 seconds after the last door has been closed).

➤Arming/disarming siren chirps oonnor off.

➤The ignition controlled door lock feature oonnor off: When

this feature is programmed on, the doors will lock three

seconds after the ignition is turned on, and unlock when the

ignition is turned off. If your installer is programming the

security system with the Directed Bitwriter, ignition lock

and unlock are independent features that can be

programmed separately.

➤Passive door locking (with passive arming) or aaccttiivvee ddoooorr

lloocckkiinngg(only when arming with the 2-way remote). Passive

locking allows the vehicle's doors to lock when the security

system passively arms (after the 30-second countdown). This

feature only works if passive arming has been programmed.

➤Panic mode eennaabblleedd/disabled when the ignition is turned on.

(Some states have laws against sirens sounding in moving cars.)

➤Forced passive arming oonnor off. If your security system is

programmed for passive arming and the forced passive

arming feature has been programmed on, the system will

passively arm after one hour, even if a protected entry has

been left open. Forced passive arming ensures that the

system will be armed if a door has accidentally been left ajar

when leaving the vehicle.

➤Full trigger response 3300or 60 seconds: This determines how

long the full triggered sequence lasts. Some states have laws

regulating how long a security system can sound before it is

considered a nuisance. If your installer is programming the

security system with the Directed Bitwriter, the full triggered

response can be programmed for any duration ranging from

1 to 180 seconds.

note: When the system passively arms after one hour, the

entry point that has been left open, and anything con-

nected to the same zone, is bypassed and cannot trigger

the system. However, the remaining inputs to the system

are fully operational.

➤Automatic Engine Disable (AED) on or ooffff. The purpose of

this feature is to protect the vehicle from being stolen at all

times, regardless of whether or not the alarm is armed. If

AED is programmed on, the starter of the vehicle will be

disabled 30 seconds after the ignition is turned off. Once the

key is turned off, the in-vehicle status LED will flash slowly

(one-half its normal armed rate) to indicate the AED arming

cycle. Thirty seconds later, the starter will be disabled. To

start the car, it will be necessary to disarm the system with the

2-way remote. It is also possible to disarm the AED feature

by turning the ignition key to the RUN position and pressing

the Valet®button the programmed number of times. AED is

also disabled when the system is in Valet®mode.

➤Siren tones and chirp volume. The output of the Revenger™

Soft Chirp™siren consists of six different tones in sequence.

Any of these tones can be eliminated by a dealer, resulting in a

unique, easily identifiable siren sound. The chirps can be either

full volume or 66 ddeecciibbeellss qquuiieetteerr than the full alarm blast.

➤The engine can be programmed to run for any duration

ranging from 1 to 60 minutes. 1122 mmiinnuutteessis the default.

After the programmed run time, the engine will shut down

and will not restart, unless in Timer Mode.

➤While the remote start system is running the engine, the

parking lights of the vehicle can ffllaasshh oonn aanndd ooffffor come on

and light steadily.

note: This feature will only function if the FailSafe®

Starter Kill relay has been installed.

sseeccuurriittyy && ccoonnvveenniieennccee eexxppaannssiioonnss

Listed below are some of the many expansion options available.

Please consult your dealer for a complete explanation of all the

options available to you.

Audio Sensor:

Metal on glass, glass cracking, and breaking

glass produce distinctive acoustic signatures. The 506T audio

sensor uses a microphone to pick up sounds, then analyzes them

with proprietary acoustic software to determine if the glass has

been struck.

Backup Battery:

The 520T keeps the system armed, triggers the

alarm and keeps the starter interrupt active if main battery is dis-

connected.

Hood Lock:

Prevents the vehicle’s hood from being opened

without a key, keeping thieves away from the system’s siren, the

battery connections, and other components under the hood.

Field Disturbance Sensor:

An invisible dome of coverage is estab-

lished by installing the 508D “radar” sensor. Your system can react

to any intrusions into this field with the full triggered sequence.

Power Locks:

This system offers lock outputs that can control

some manufacturers' power door lock systems. For other

systems, additional parts may be required.

Power Trunk Release:

The accessory output of the system can op-

erate a factory power release for the vehicle’s trunk or hatch.

Although the on-board relay can control most power trunk re-

leases, sometimes an optional relay is required. If the factory

release is not power-activated, Directed®'s 522T trunk release

solenoid can often be added.

Power Window Control:

Automatic power window control is pro-

vided with the 529T and 530T systems. These can operate

power windows, and can roll them up automatically when the

system is armed, roll them down, or both up and down.

Mobile Video:

This system is compatible with Directed Video’s

MCB1000 Multi-Channel Controller, featuring on-screen secu-

rity system programming and zone trigger information.

gglloossssaarryy ooff tteerrmmss

2-Way Remote

: Hand-held, 2-way transceiver which operates the

various functions of your system.

Control Unit:

The “brain” of your system. Usually hidden under-

neath the dash area of the vehicle. The control unit houses the

microprocessor which monitors your vehicle and controls all

system functions.

Fault-Proof Starter Interrupt:

An automatic switch controlled by

your system that prevents the vehicle’s starter from cranking

whenever the system is armed. The vehicle is never prevented

from cranking when the system is disarmed, in Valet®Mode, or

if the starter interrupt switch itself fails. Your system has feature-

ready circuitry for the starter interrupt, however installation may

require additional labor.

Input:

A physical connection to the system. An input can be

provided by a sensor, pinswitch or by existing systems in the

vehicle, such as ignition or courtesy lights.

In-vehicle status LED:

A light mounted at a discretionary location

inside the vehicle. It is used to indicate the status of your system.

Shock Sensor:

This system has a dual zone shock sensor. This

sensor is mounted in the vehicle and designed to pick up impacts

to the vehicle or glass.

2-Way Remote:

A hand-held, remote control which operates the

various functions of your system.

Trigger or Triggered Sequence:

This is what happens when the

alarm “goes off” or “trips.” The triggered sequence of your

system consists of the siren sounding and parking lights flashing

for the programmed duration.

Valet®Button:

A small push button switch mounted at a discre-

tionary location inside the vehicle. It is used to override the

starter interrupt when a 2-way remote is lost or damaged, or to

enter or exit Valet®Mode.

Warning Zone Response:

Lighter impacts to the vehicle will

generate the Warning Zone response. It consists of several

seconds of siren chirps and parking light flashes.

Zone:

A zone is a separate input that the alarm can recognize as

unique. Each input to the system is connected to a particular

zone. Often two or more inputs may share the same zone.

QUICK REFERENCE GUIDE

Arming

■To arm, press . When the system arms, you will hear a short chirp, and

the parking lights will flash once.

Arming while driving

■To arm the system while driving, press on your 2-way remote while the

vehicle is running. The system will chirp once and then once more to indi-

cate that the ignition is on.

Disarming

■To disarm, press . You will hear two chirps, and the parking lights will

flash twice.

High security disarm

■For high security disarm, press on your 2-way remote and the siren will

stop sounding. To completely disarm the security system, press again and the

system will chirp 4 or 5 times (reporting the trigger).

Disarming without a 2-way remote

■Turn on the ignition. Press the Valet®button within 15 seconds. The system

should now disarm. If it does not, you may have waited too long, so turn the

ignition off and on and try again.

Silent Mode

™

■Pressing briefly before arming or disarming will eliminate the confirma-

tion chirp(s) for that one operation only.

Panic Mode

■Press for 2 seconds, and you will enter Panic Mode. The siren will sound

and the parking lights will flash for 30 seconds. To stop Panic Mode at any

time, press on the 2-way remote again.

To remote start the vehicle

■Press and simultaneously. The parking lights will turn on (if

connected) and the vehicle will start and run for the programmed period of

time.

To disable the remote start system

■To disable the remote start, move the shutdown toggle switch to the OFF

position.

Location of Valet®button_________________________________

Number of Valet®button pulses for disarming_______________

CCuutt aalloonngg ddootttteedd lliinnee aanndd ffoolldd ffoorr aa qquuiicckk aanndd eeaassyy rreeffeerreennccee ttoo kkeeeepp iinn yyoouurr ppuurrssee oorr wwaalllleett..

✂

The company behind this system is Directed Electronics, Inc.

Since its inception, Directed Electronics has had one purpose, to provide consumers with

the finest vehicle security and car stereo products and accessories available. The recipient of

nearly 100 patents and Innovations Awards in the field of advanced electronic

technology, Directed is ISO 9001 registered.

Quality Directed Electronics products are sold and serviced throughout North America

and around the world.

Call ((880000)) 227744--00220000for more information about our products and services.

Vista, CA 92081

www.directed.com

G567V 05-04

Directed Electronics is committed to delivering world class quality products

and services that excite and delight our customers.

Voxx Electronics DEI547 2 Way LED User Manual G567V 05 04

DEI Headquarters, Inc. 2 Way LED G567V 05 04

Contents

user

Navigation menu

Namespaces

Views

Navigation
