Voxx Electronics DEI6211 Car Transceiver User Manual

DEI Headquarters, Inc. Car Transceiver

User Manual

© 2008 Directed Electronics, Vista, CA
Responder LE Model 5701
Security and Remote Start
Owner’s Guide
Limited lifetime consumer warranty
Directed Electronics. (“Directed”) promises to the original purchaser to repair or replace (at Directed’s
election) with a comparable reconditioned model any Directed unit (hereafter the “unit”), excluding with-
out limitation the siren, the remote transmitters, the associated sensors and accessories, which proves to
be defective in workmanship or material under reasonable use during the lifetime of the vehicle provided
the following conditions are met: the unit was purchased from an authorized Directed dealer, the unit
was professionally installed and serviced by an authorized Directed dealer; the unit will be professionally
reinstalled in the vehicle in which it was originally installed by an authorized Directed dealer; and the
unit is returned to Directed, shipping prepaid with a legible copy of the bill of sale or other dated proof of
purchase bearing the following information: consumer’s name, telephone number and address; the autho-
rized dealers name, telephone number and address; complete product description, including accessories;
the year, make and model of the vehicle; vehicle license number and vehicle identification number. All
components other than the unit, including without limitation the siren, the remote transmitters and the
associated sensors and accessories, carry a one-year warranty from the date of purchase of the same. ALL
PRODUCTS RECEIVED BY DIRECTED FOR WARRANTY REPAIR WITHOUT PROOF OF PURCHASE WILL BE DENIED.
This warranty is non-transferable and is automatically void if: the original purchaser has not completed the
warranty card and mailed it within ten (10) days from the date of purchase to the address listed on the
card; the unit’s date code or serial number is defaced, missing or altered; the unit has been modified or
used in a manner contrary to its intended purpose; the unit has been damaged by accident, unreason-
able use, neglect, improper service, installation or other causes not arising out of defects in materials or
construction. The warranty does not cover damage to the unit caused by installation or removal of the
unit. Directed, in its sole discretion, will determine what constitutes excessive damage and may refuse the
return of any unit with excessive damage.
TO THE MAXIMUM EXTENT ALLOWED BY LAW, ALL WARRANTIES, INCLUDING BUT NOT LIMITED TO EXPRESS
WARRANTY, IMPLIED WARRANTY, WARRANTY OF MERCHANTABILITY, FITNESS FOR PARTICULAR PURPOSE AND
WARRANTY OF NON-INFRINGEMENT OF INTELLECTUAL PROPERTY, ARE EXPRESSLY EXCLUDED; AND DIRECTED
NEITHER ASSUMES NOR AUTHORIZES ANY PERSON OR ENTITY TO ASSUME FOR IT ANY DUTY, OBLIGATION OR
LIABILITY IN CONNECTION WITH ITS PRODUCTS. DIRECTED DISCLAIMS AND HAS ABSOLUTELY NO LIABILITY
FOR ANY AND ALL ACTS OF THIRD PARTIES INCLUDING ITS AUTHORIZED DEALERS OR INSTALLERS. DIRECTED
SECURITY SYSTEMS, INCLUDING THIS UNIT, ARE DETERRENTS AGAINST POSSIBLE THEFT. DIRECTED IS NOT
OFFERING A GUARANTEE OR INSURANCE AGAINST VANDALISM, DAMAGE OR THEFT OF THE AUTOMOBILE, ITS
PARTS OR CONTENTS; AND HEREBY EXPRESSLY DISCLAIMS ANY LIABILITY WHATSOEVER, INCLUDING WITH-
OUT LIMITATION, LIABILITY FOR THEFT, DAMAGE AND/OR VANDALISM. THIS WARRANTY DOES NOT COVER
LABOR COSTS FOR MAINTENANCE, REMOVAL OR REINSTALLATION OF THE UNIT OR ANY CONSEQUENTIAL DAM-
AGES OF ANY KIND. IN THE EVENT OF A CLAIM OR A DISPUTE INVOLVING DIRECTED OR ITS SUBSIDIARY, THE
VENUE SHALL BE SAN DIEGO COUNTY IN THE STATE OF CALIFORNIA. CALIFORNIA STATE LAWS AND APPLI-
© 2008 Directed Electronics—all rights reserved iii
CABLE FEDERAL LAWS SHALL APPLY AND GOVERN THE DISPUTE. THE MAXIMUM RECOVERY UNDER ANY CLAIM
AGAINST DIRECTED SHALL BE STRICTLY LIMITED TO THE AUTHORIZED DIRECTED DEALER’S PURCHASE PRICE
OF THE UNIT. DIRECTED SHALL NOT BE RESPONSIBLE FOR ANY DAMAGES WHATSOEVER, INCLUDING BUT
NOT LIMITED TO, ANY CONSEQUENTIAL DAMAGES, INCIDENTAL DAMAGES, DAMAGE TO VEHICLE, DAMAGES
FOR THE LOSS OF TIME, LOSS OF EARNINGS, COMMERCIAL LOSS, LOSS OF ECONOMIC OPPORTUNITY AND THE
LIKE. NOTWITHSTANDING THE ABOVE, THE MANUFACTURER DOES OFFER A LIMITED WARRANTY TO REPLACE
OR REPAIR THE CONTROL MODULE SUBJECT TO THE CONDITIONS AS DESCRIBED HEREIN. THIS WARRANTY IS
VOID IF THE UNIT HAS NOT BEEN PURCHASED FROM DIRECTED, OR AN AUTHORIZED DIRECTED DEALER, OR
IF THE UNIT HAS BEEN DAMAGED BY ACCIDENT, UNREASONABLE USE, NEGLIGENCE, ACTS OF GOD, NEGLECT,
IMPROPER SERVICE, OR OTHER CAUSES NOT ARISING OUT OF DEFECT IN MATERIALS OR CONSTRUCTION.
Some states do not allow limitations on how long an implied warranty will last or the exclusion or limita-
tion of incidental or consequential damages. This warranty gives you specific legal rights and you may also
have other rights that vary from State to State.
This warranty is only valid for sale of product(s) within the United States of America. Product(s) sold
outside of the United States of America are sold “AS-IS” and shall have NO WARRANTY, express or implied.
This product may be covered by a Guaranteed Protection Plan (“GPP”). See your authorized Directed dealer
for details of the plan or call Directed Customer Service at 1-800-876-0800.
Make sure you have all of the following information from your authorized Directed dealer:
A clear copy of the sales receipt, showing the following:
o Date of purchase
o Your full name and address
o Authorized dealer’s company name and address
o Type of alarm installed
o Year, make, model and color of the automobile
o Automobile license number
o Vehicle identification number
o All security options installed on automobile
o Installation receipts
920-0003 06-06
© 2008 Directed Electronics—all rights reserved
iv
Government Regulations
This device complies with Part 15 of FCC rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interfer-
ence, and (2) This device must accept any interference received, including
interference that may cause undesirable operation.
This equipment has been tested and found to comply with the limits for
a class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates uses and can radiate
radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communica-
tions. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to
radio or television, which can be determined by turning the equipment OFF
and ON, the user is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
• Consult the dealer or an experienced radio / TV technician for help.
This device complies with the Industry Canada Radio Standards Specifica-
tion RSS 210. Its use is authorized only on a no-interference, no-protection
basis; in other words, this device must not be used if it is determined that
it causes harmful interference to services authorized by IC. In addition, the
user of this device must accept any radio interference that may be received,
even if this interference could affect the operation of the device.
Warning:
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate this device.
© 2008 Directed Electronics—all rights reserved v
Table of contents
Limited lifetime consumer warranty . . . . . . . . . . . . . . . . . . . . . ii
Government Regulations ..............................iv
What is included ...................................1
Important information ...............................1
Your warranty ..................................2
Replacement remotes .............................2
Caution .......................................2

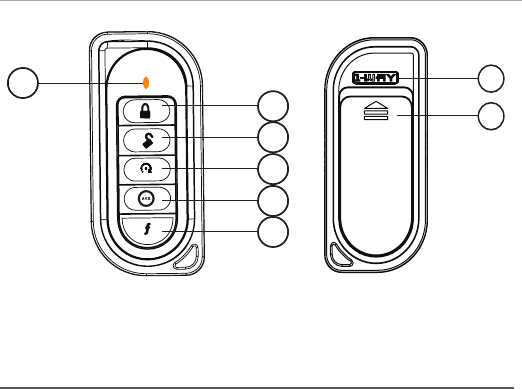

Responder LE 2-Way .................................3
Responder LE 1-way .................................4

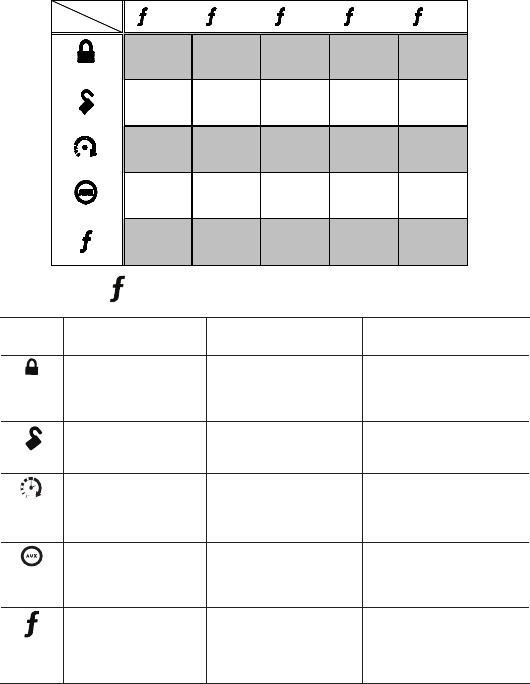

Transmitter configuration . . . . . . . . . . . . . . . . . . . . . . . . . . 5
System maintenance ............................ 10
Low battery indicator ............................ 10
Battery Replacement ............................. 10
Remote control programming . . . . . . . . . . . . . . . . . . . . . . . 11
Multi-car control capability . . . . . . . . . . . . . . . . . . . . . . . . 13
Adjusting the onboard shock sensor . . . . . . . . . . . . . . . . . . 13
Whats New ......................................16
Using the system ..................................19
Warning! Safety first ............................. 19
Arming the system .............................. 21
While the system is armed . . . . . . . . . . . . . . . . . . . . . . . . . 22
Modified Arming Modes ........................... 24
Disarming the System ............................ 25
System override ................................ 26
Using the remote start ..............................27
Before using your Remote Start . . . . . . . . . . . . . . . . . . . . . 27
Remote starting your vehicle . . . . . . . . . . . . . . . . . . . . . . . 27
© 2008 Directed Electronics—all rights reserved
vi
Points to remember ............................. 28
Runtime Check ................................. 28
Manual transmission ............................. 29
Timer mode ................................... 30
Turbo timer mode ............................... 30
Cabin temperature .............................. 31
Safety features ...................................33
Starter anti-grind circuitry . . . . . . . . . . . . . . . . . . . . . . . . . 33
Disabling the remote start system . . . . . . . . . . . . . . . . . . . . 33
Diagnostics ......................................34
Arming ..................................... 34
Disarming ................................... 35
System status chirps ............................ 35
Table of zones ................................. 36
Interpreting zone diagnostics . . . . . . . . . . . . . . . . . . . . . . . 36
Nuisance prevention® circuitry . . . . . . . . . . . . . . . . . . . . . . 37
Owner recognition .................................38
Rapid resume logic .................................38
Power saver mode ..................................38
System ...................................... 38
2-way remote .................................. 39
Programming options ...............................40
Security & convenience expansions . . . . . . . . . . . . . . . . . . . . . 42
Glossary of Terms ..................................44
Quick Reference Guide ..............................47
© 2008 Directed Electronics—all rights reserved 1
What is included
■ The control module with Stinger™DoubleGuard®two-stage shock
sensor
Control center (installed out of sight on your vehicle) with
integrated status LED and Valet override switch

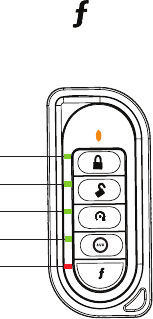

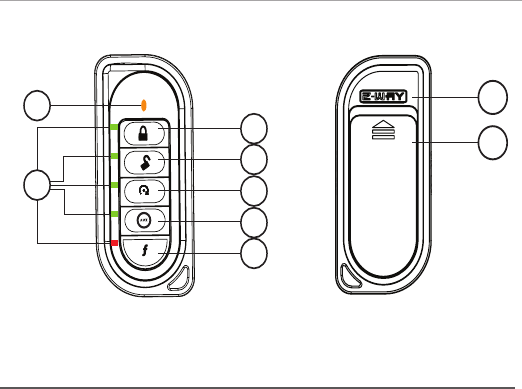

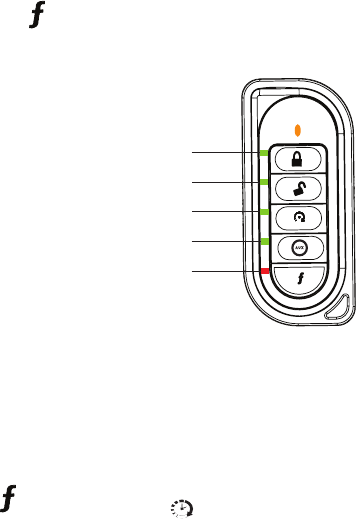

■ One five-button/2-way Supercode Responder LE Remote Control
One five-button/ 1-way Supercode remote
■ Revenger™Soft Chirp™six-tone siren
■ A shut-down toggle switch
Window decals
■ Your warranty registration
Important information
Congratulations on the purchase of your state-of-the-art remote
start and alarm system. Due to the complexity of this system, it
must be installed by an authorized dealer only. Installation of this
product by anyone other than an authorized dealer voids the war-
ranty. All dealers are provided with a preprinted dealer certificate
to verify authorization.
By carefully reading this Owner’s Guide prior to using your system,
you will maximize the use of this system and its features. You can
print additional or replacement copies of this manual by accessing
our web site at www.directed.com.
��
© 2008 Directed Electronics—all rights reserved
2
Your warranty
Your warranty registration must be completely filled out and re-
turned within 10 days of purchase. Your product warranty will not
be validated if your warranty registration is not returned. Make sure
you receive the warranty registration from your dealer. It is also
necessary to keep your proof of purchase, which reflects that the
product was installed by an authorized dealer.
Replacement remotes
Your system comes with one Responder LE remote control (P/N
7251V) and one companion remote control (P/N 7152V). If ad-
ditional remotes are desired, please see your authorized dealer or
visit www.directedstore.com to order.
Caution
This product is designed for fuel injected vehicles only. Use of this
product in a standard transmission vehicle must be in strict
accordance with this guide.
© 2008 Directed Electronics—all rights reserved 3
Responder LE 2-Way
1
3
4
5
6
7
2
A U
X
Feature Description
1Transmit indicator
2LED indicators Blinks indicate function confirmation
3Lock button Press for one second to arm.
4Unlock button Press for one second to disarm.
5Remote start
button
Press for one second to activate remote
start.
6Auxiliary
button
Press and hold for 1.5 second to activate
optional trunk release.
7Function
button
Allows access to programming and modi-
fies operation of the other buttons.
82 WAY Label Back of remote has label to identify the
remote as 2-way or 1-way.
9Battery Door Remove to access batteries when neces-
sary. For more details, see p.10
8
9
© 2008 Directed Electronics—all rights reserved
4
Responder LE 1-way
Feature Description
1Transmit indicator
2Lock button Press for one second to arm.
3Unlock button Press for one second to disarm.
4Remote start
button
Press for one second to activate remote
start.
5Auxiliary
button
Press and hold for 1.5 second to activate
trunk release.
6Function
button
Allows access to programming and
modifies operation of the other buttons.
71 WAY Label Back of remote has label to identify the
remote as 2-way or 1-way
8Battery Door Remove to access batteries when neces-
sary. For more details, see p.10
1
3
4
5
6
2
A U X
8
7
© 2008 Directed Electronics—all rights reserved 5
Transmitter configuration
Level
Button
x 0 x 1 x 2 x 3 x 4
LOCK
ARM SILENT
ARM
SENSOR
BYPASS
ARMED
(SILENT
SENSOR)
ARMED
(SILENT
TRIGGER)
UNLOCK
DISARM SILENT
DISARM VALET MODE CAR FINDER
REMOTE START
REMOTE
START
RUNTIME
RESET TIMER MODE SMART START REAR
DEFOGGER
AUX
TRUNK
RELEASE AUX 1 AUX 2 AUX 3
FUNCTION
FUNCTION
SHIFT
CABIN
TEMPERATURE
REQUEST
(2-way Only)
ARM STATUS
(2-way Only)
RUNTIME
CHECK
(2-way Only)
LAST
TRIGGER
REQUEST
(2-way Only)
REMOTE CONTROL FUNCTIONS TABLE
Note: button must be pressed and finally held to access state.
Button Command Confirmation Feedback
(2-way remote only)
Notes
Arm
Press one time to Arm Lock LED blink for one
second with 1 Beep and
siren tone
Press/hold for 1.5 seconds
to Arm the system and then
activate the Panic output
1
3
4
5
6
2
A U
X
Disarm
Press one time to
Disarm
Unlock LED blink for one
second with 2 Beeps
Remote
Start
Press one time to acti-
vate Remote Start
Remote start LED blinks
for 3 seconds,
Remote
Start tones.
A U
X
AUX
Press and hold for 1.5
seconds to activate the
Trunk Release.
The AUX LED comes on
for 3 seconds, and AUX
activation tone sounds.
This is an optional
feature. See your sales
rep/installer for details.
Function
Shift
Press 1 to 4 times.
( See Function shift
table.)
LED indicators turn on
(according to the feature
command.)
Each Press then release,
shifts the function of the
command button.
Pressing more than one button simultaneously generates an Error tone and the F-Shift
LED turns ON.
© 2008 Directed Electronics—all rights reserved
6

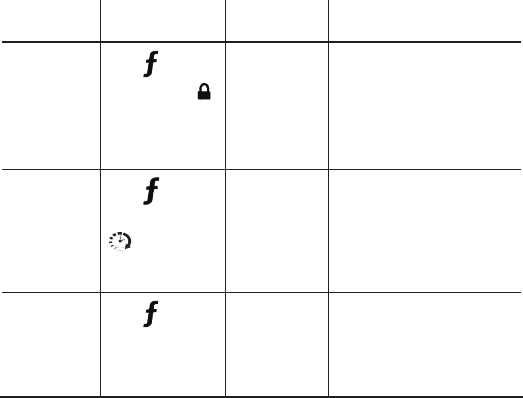

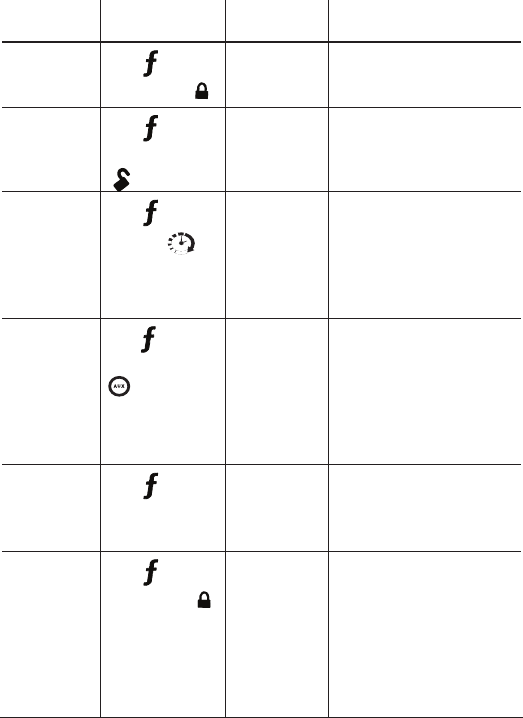

Feature Command Confirmation
Feedback
Notes
Silent Arm
Press one- time
and then press .
Arm/Lock LED
on, no audio
Arms the system without
chirps
Silent Disarm
Press one- time
and then press
1
3
4
5
6
2
A U
X
.
Disarm/Lock
LED on, no
audio
Disarms the system without
chirps
Runtime
reset Press one-time
and then .
Remote start
ON tones.
Re-starts the remote start
runtime counter if remote start
is active. Note: If remote
start is not active, the 2-WAY
remote will respond with error
tone.
Aux 1
Press one time
and then press
A U
X
.
The AUX LED
comes on
for 3 seconds,
and AUX
activation tone
sounds.
This is an optional
feature. See your sales rep/in-
staller for details.
Cabin
temperature
Press one time,
then Hold for 1.5
seconds.
Multiple LEDs
blink, and 1
beep
Cabin temperature is displayed
on the remote. LED lights
up to indicate a range. (See
page 30.)
Sensor
Bypass Press two-
times and then .
Arm/Lock LED
on, 1 beep
Available when armed only:
bypasses warn triggers. Send
again to bypass Warn & Full
Trigger; Send again to turn
bypass off and monitor sensors
normally. For more informa-
tion, see Modified Arming
Modes on page 24
© 2008 Directed Electronics—all rights reserved 7
Feature Command Confirmation
Feedback
Notes
Valet Mode
Press two-
times and then
1
3
4
5
6
2
A U
X
.
UnLock LED on
and beeps 1 or
2 times
To enter or exit Valet mode,
even if Armed.
When entering Valet Mode the
unlock LED blinks, and the
remote beeps one time. When
exiting Valet Mode the unlock
LED blinks and the remote
beeps two-times.
Timer mode
Press two-
times and then
.
Remote start
LED on.
Enables or disables the remote
start timer mode.
Aux 2
Press two times
and then press
A U
X
.
The AUX LED
comes on
for 3 seconds,
and AUX
activation tone
sounds.
This is an optional
feature. See your sales rep/in-
staller for details.
Armed status
Press two-
times and then
Hold for 1.5
seconds.
If system is
Armed:
Lock LED blink
for one
second with 1
Beep
If system is
Disarmed:
Unlock LED
blink for one
second with 2
beeps
Replays last Arm /Disarm
status message received.
© 2008 Directed Electronics—all rights reserved
8
Feature Command Confirmation
Feedback
Notes
Armed
(Silent
Sensor mode)
Press three-
times and then .
LED on, 1 beep
& 3 error tone
Arms the system; sensor Full
Trigger will ONLY page the
remote and will not activate
the siren/lights. Wired inputs
will page and activate the
siren/lights.
Car Finder
Press three-
times and then
1
3
4
5
6
2
A U
X
.
On Remote
Control:
Unlock LED on
with 1 short
beep
On Vehicle:
1 long siren
chirp and park-
ing lights flash
10 times.
Arm/Disarm cancels the light
flashes.
Smart Start
Press three-
times and then
press .
Remote Start
LED on, with 1
(for enable) or
2 (For disable)
beeps
Enables or disables the Smart-
Start feature.
Aux 3
Press three
times and then
press
A U
X
.
The AUX LED
comes on
for 3 seconds,
and AUX
activation tone
sounds.
This is an optional
feature. See your sales rep/in-
staller for details
Runtime
check Press three-
times, and then
Hold for 1.5
seconds.
Remote Start
ON tones.
Runtime remaining is displayed
on the remote. (See page 28).
© 2008 Directed Electronics—all rights reserved 9
Feature Command Confirmation
Feedback
Notes
Armed
(Silent
Trigger
mode)
Press four-
times and then .
Lock LED on, 1
beep & 4 error
tone
Arms the system; sensor and
hardwire Full Triggers will ONLY
page the remote and will not
activate the siren/lights. For
more details see Silent Mode 2
section on page 25.
Rear
Defogger Press four
times, and then
. (Only after
remote start is
on.)
Remote start
LED ON, 1
beep.
Automatically turns on during
remote start.
Last Trigger
Press four-
times and then
hold for 1.5
seconds.
Replays the
last trigger
message
received.
Trigger refers to the remote
tones and LED pattern gener-
ated by the last alarm trigger
event.
Out of Range Notification
If a command is issued from the remote, but the remote is beyond the
range of the vehicle to receive the command, the remote will respond
with an Out of Range notification. If this occurs, the remote will Blink
rapidly the transmit indicator, turn on the F indicator and play the
error tone.
Since conditions will vary in different areas (ie: Weather, RF interfer-
ence, etc) range may be affected and require you to be closer to the
vehicle for successful transmission.
© 2008 Directed Electronics—all rights reserved
10
System maintenance
The system requires no specific maintenance. Your remotes are pow-
ered by small coin cell lightweight 3-volt lithium batteries that will
last approximately one year under normal use. The 2-way remote
uses two CR2016 cell batteries and the 1-way remote uses one
CR2032 cell battery. When the battery begins to weaken, the oper-
ating range will be reduced.
Low battery indicator
When the batteries are low on the 2-way remote it will emit two
groups of beeps, the LED will flash, and the alarm will emit an
additional chirp to let you know its time to change the battery.
When the battery is low on the 1-way remote, the remote responds
the same, but without the LED flash.
Note: The Arm/Disarm chirps should be programmed ON for the
alarm to emit any additional chirps during disarm. Ask your
authorized dealer if you have any questions.
Battery Replacement
Slide the door up to expose the battery beneath the holder. Remove
the expired battery. Place the new battery into the remote control.
When power is returned the remote control is ready for use.
© 2008 Directed Electronics—all rights reserved 11
Remote control programming
The Responder LE 2 way remote control has menus for programming the
remote to the system control module including adjusting the control
module onboard shock sensor, and for configuring the remote control
user features.
To program the remote user features:
Press and hold the button for 12 seconds: (at 3 seconds ignore
the Car number indicator.)
The remote emits one long beep, and the Transmit LED turns on.
This indicates the Main menu.
Press and hold the
1
3
4
5
6
2
A U
X
button for 1.5 seconds:
The remote beeps two-times, and the Transmit LED blinks
two-times and stays on. You are now in the Remote Configuration
menu.
The Arm, Disarm, Remote Start & Aux LEDs will turn ON, and/or
blink to indicate the current remote feature configuration. When
the LED is ON, the feature is ON.
To configure the remote control features press and release the
command button. The LED next to the button will turn On then OFF.
The remote beeps to indicate the feature configuration.
Button: Auto-Button Lock.
When Arm LED is OFF, buttons will not lock.
LED ON: The buttons automatically lock 60 seconds after the last
button operation to avoid accidental Command operations. When
locked, if any command button is pressed the remote will emit an error
output.
If button lock is ON, press , and then
1
3
4
5
6
2
A U
X
buttons.
1.
2.
3.
© 2008 Directed Electronics—all rights reserved
12
1
3
4
5
6
2
A U
X
button: Remote Beeps
Disarm LED OFF: The remote will not emit beeps except when pro-
gramming.
Disarm LED ON: The remote will emit beeps normally.
Disarm LED blinking: The remote will emit beeps only for alarm
trigger messages from the alarm system.
button: Runtime Low Alert feature
Note: This feature is not available on the 1-way remote.
Remote Start LED OFF: The remote will ignore Runtime Low Alert
messages.
Remote Start LED ON: The remote will emit feedback output for
Runtime Low Alert messages.
These messages will be automatically sent while Remote Start is ON to
alert you when the runtime remaining is at 3 minutes, and again at 1
minute before shut down.
Note: This feature is not available on the 1-way remote
A U
X
button: Page mode/Power saver
Note: This feature is not available on the 1-way remote.
Aux LED OFF: The remote will not wake up and listen for messages
from the system to extend battery life. Note: This means the remote
will not receive alarm trigger pages.
Aux LED ON: the remote will wake up to listen for messages from the
system
Aux LED blinking: Power saver mode (see note below)
Note: Power saver automatically turns off the remote pager if a but-
ton on the remote has not been pressed for more than 72 hours and
will be restored after any button on the remote is pressed.
© 2008 Directed Electronics—all rights reserved 13
Multi-car control capability
You can operate the Responder LE 2-way remote control system for two
cars, with full command capability for both vehicles.
While holding a command button and transmitting, the Amber LED at
the top of the remote control will blink in groups to indicate which Car
is being controlled.
Car 1: 1 blink
Car 2: 2 blinks
To change the Car to be operated:
Press/hold the button for 3 seconds or until the remote beeps and
the and/or
1
3
4
5
6
2
A U
X
LEDs turn on. This will indicate which car the remote
currently operates.
Car 1: 1 beep and Arm LED on
Car 2: 2 beeps and Arm & Disarm LEDs on
Change Car: While the LEDs are on Press and release the button. The
LEDs will change to indicate the car that can be operated. Once the car
number is selected you can press any command button to operate the
system. The selected car remains selected until the setting is changed.
Adjusting the onboard shock sensor
The new Responder LE system has an onboard shock sensor that is
remote adjustable. Adjusting the onboard sensor can be performed
by an authorized dealer (recommended) or by a programmed remote
transmitter.
Transmitter adjustment:
Disarm the unit and exit Valet Mode if ON. Turn the ignition off and
close all entry points (door, hood, trunk).
Use the following steps to put the control module into sensor
© 2008 Directed Electronics—all rights reserved
14
adjust mode:
Press/hold the button of the remote control for 8 seconds or
until the Amber LED turns on and you hear one long beep.
Press/hold the button 1.5 seconds or until the amber led flashes
once:
The control module will emit one long chirp, enter adjust mode, and
send the current level of information back to the transmitter. The
remote will beep once and the button LEDs will turn on to indicate the
current level.
Press the Arm, Disarm, or Remote Start buttons to adjust the sensor
level.
Arm button: Pressing the button will increase the sensitivity one
level. The siren chirps twice, the remote beeps twice and the LEDs
increase in level.
Disarm button: Pressing the
1
3
4
5
6
2
A U
X
button will decrease the sensitivity
one level. The siren chirps once, the remote beeps once and the LEDs
decrease in level.
Remote Start button: Pressing the button will reset to default
level 7. The siren chirp three times, the remote beeps three times and
the LEDs reset.
To exit the adjust shock sensor mode from the remote control:
Press the button. The control module is exited.
To exit the adjust shock sensor mode from the control module:
Open an entry point or turn on the ignition, the control module will
emit one long chirp and tell the remote to exit adjust mode.
To exit programming:
© 2008 Directed Electronics—all rights reserved 15
Press and release the button any time during programming to go
back to the main menu. Press and hold for 1.5 seconds in the main
menu to exit programming.
© 2008 Directed Electronics—all rights reserved
16
What’s New
Responder LE is an advanced vehicle security and convenience system
with two remote controls - a traditional one-way transmitter, and a
2-way Responder LE remote.
Some main features of the Responder LE system
Vehicle Security
Fail-Safe Starter Kill
Double-Guard Shock Sensing
Door, hood, and trunk* monitoring
Revenger multi-tone siren
Status LED indicator and valet/override switch
Keyless Entry
Door locking/unlocking via remote control *
Driver’s door priority unlocking
Trunk or hatch release *
Power sliding door control *
Remote Start
Long-range operation
Hood, brake, and other shutdown inputs
Timer Starting
SmartStart time/temperature/voltage mode
Temperature-dependent defroster control*
*may require optional parts or installation labor
© 2008 Directed Electronics—all rights reserved 17
Long-time Viper system users will notice the following differences:
Responder LE uses a new rolling-code format we call SuperCode
SuperCode assigns most functions to dedicated buttons, so many fea-
tures work slightly different. The icons on the buttons are also differ-
ent. Current Directed remotes won’t work with Responder LE systems.
No more simultaneous multiple button presses
Instead, there is now a Function button. Pressing before pressing
another button temporarily changes what that button does. For exam-
ple, pressing and releasing the button will usually arm the system.
Pressing and releasing the button once before pressing will
silently arm the system.
Pressing more than one button at the same time now generates an
error tone.
Remote Valet has changed
Now, to enter or exit Valet Mode with the remote:
Press and release the button twice, and then press the
1
3
4
5
6
2
A U
X
but-
ton.
If the system was Armed or Disarmed, it is now in Valet Mode, with the
doors unlocked.
If the system was in Valet Mode, it will return to a disarmed state with
the doors unlocked.
© 2008 Directed Electronics—all rights reserved
18
The AUX output numbering has changed
Trunk Release
To activate Trunk Release, press the
A U
X
button for 1.5 seconds.
The Transmit LED will turn on immediately. When the Trunk Release
output activates, the remote will play the ascending AUX multi-tone,
and the AUX LED indicator will turn on.
Important Note:
The main function of the AUX button is to control the vehicle’s
trunk or hatch release. Integrating this function is optional and
may require additional installation parts and labor. Ask your
authorized dealer for details.
There is now a Trunk /Hatch Release output and 3 more AUX outputs:
Aux 1, 2, and 3.
To access AUX 1, press button once, and then press
A U
X
.
To access AUX 2, press the button twice, and then press
A U
X
.
To access AUX 3, press the button three times, and then press
A U
X
There is now a two-car mode with all features available from either
car.
When transmitting, the amber transmitter LED at the top of the remote
blinks. If the remote is in Car 2 mode, it will blink in groups of two.
To check which Car is selected: See MULTI-CAR CONTROL CAPABILITY
section on page 13
© 2008 Directed Electronics—all rights reserved 19
Using the system
Warning! Safety first
The following safety warnings must be observed at all times:
Due to the complexity of this system, installation of this product must
only be performed by an authorized Directed dealer.
When properly installed, this system can start the vehicle via a com-
mand signal from the remote control transmitter. Therefore, never
operate the system in an enclosed area or partially enclosed area
without ventilation (such as a garage). When parking in an enclosed or
partially enclosed area or when having the vehicle serviced, the remote
start system must be disabled using the installed toggle switch. It is
the user’s sole responsibility to properly handle and keep out of reach
from children all remote control transmitters to assure that the system
does not unintentionally remote start the vehicle. THE USER MUST
INSTALL A CARBON MONOXIDE DETECTOR IN OR ABOUT THE LIVING
AREA ADJACENT TO THE VEHICLE. ALL DOORS LEADING FROM ADJACENT
LIVING AREAS TO THE ENCLOSED OR PARTIALLY ENCLOSED VEHICLE
STORAGE AREA MUST AT ALL TIMES REMAIN CLOSED. These precautions
are the sole responsibility of the user.
Remote starters on manual transmission vehicles operate differ-
ently than those with automatic transmission because you must
leave your car in neutral. You must read this Owner’s Guide to familiar-
ize yourself with the proper procedures regarding manual transmis-
sion remote starters. If you have any questions, ask your installer or
contact Directed at 1-800-753-0600.
Before remote starting a manual transmission vehicle, be sure to:
Leave the vehicle in neutral and be sure no one is standing in front
or behind the vehicle.
Only remote start on a flat surface
Have the parking brake fully engaged
© 2008 Directed Electronics—all rights reserved
20
Use of this product in a manner contrary to its intended mode of
operation may result in property damage, personal injury, or death. (1)
Never remotely start the vehicle with the vehicle in gear, and (2) Never
remotely start the vehicle with the keys in the ignition. The user must
also have the neutral safety feature of the vehicle periodically checked,
wherein the vehicle must not remotely start while the car is in gear.
This testing should be performed by an authorized Directed dealer in
accordance with the Safety Check outlined in the product installa-
tion guide. If the vehicle starts in gear, cease remote start operation
immediately and consult with the authorized Directed dealer to fix the
problem.
After the remote start module has been installed, contact your autho-
rized dealer to have him or her test the remote start module by per-
forming the Safety Check outlined in the product installation guide. If
the vehicle starts when performing the Neutral Safety Shutdown Circuit
test, the remote start unit has not been properly installed. The remote
start module must be removed or the installer must properly reinstall
the remote start system so that the vehicle does not start in gear. All
installations must be performed by an authorized Directed dealer.
OPERATION OF THE REMOTE START MODULE IF THE VEHICLE STARTS IN
GEAR IS CONTRARY TO ITS INTENDED MODE OF OPERATION. OPERATING
THE REMOTE START SYSTEM UNDER THESE CONDITIONS MAY RESULT
IN PROPERTY DAMAGE OR PERSONAL INJURY. YOU MUST IMMEDIATELY
CEASE THE USE OF THE UNIT AND SEEK THE ASSISTANCE OF AN AU-
THORIZED Directed DEALER TO REPAIR OR DISCONNECT THE INSTALLED
REMOTE START MODULE. DIRECTED WILL NOT BE HELD RESPONSIBLE OR
PAY FOR INSTALLATION OR REINSTALLATION COSTS.
© 2008 Directed Electronics—all rights reserved 21

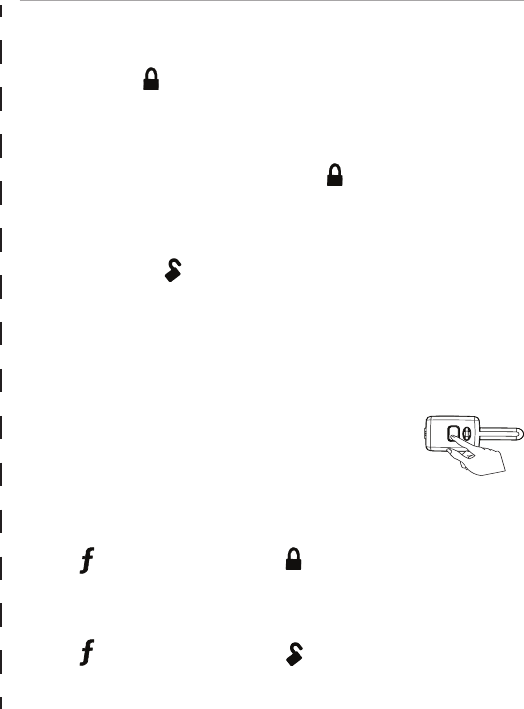

Arming the system
To arm the system, press the button on the remote control.
The siren in the vehicle will “chirp” once and the parking lights will
flash once. If the power door locks have been connected, the doors
will lock. The system will automatically check for errors when it arms.
The 2-way remote will “chirp” once and blink the LOCK indicator to
confirm arming. If no arm confirmation is received, the remote will
give the Out-Of-Range signal.
If errors are found when arming:
If an alarm trigger zone – such as a door, the trunk, the hood, or a
sensor, was active at the time of arming, the system will “bypass”, or
ignore, this trigger zone. This allows the system to continue to protect
your vehicle using the remaining trigger zones.
You are notified of this active zone immediately after arming the sys-
tem. The siren in the vehicle will “chirp” again and the parking lights
will flash again. The Status LED indicator in the vehicle will blink in a
pattern to indicate the active zone number error which was found (See
Table of Zones on page 36). The 2-way remote control will sound a
short “error” tone, and blink the LOCK and Function indicators.
Arming without the chirp (Silent Arm)
Press the button at the bottom of the remote once, and then press
the button. The system will arm without the confirmation chirp. The
parking lights will flash once. The 2-way remote will blink the LOCK
indicator to confirm arming. If no arm confirmation is received, the
2-way remote will give the Out Of Range signal.
© 2008 Directed Electronics—all rights reserved
22
While the system is armed
Fail-Safe Starter Kill
The starter is disabled by the system’s Fail-Safe starter kill.
Alarm Responses
The security system can generate two levels of alarm: Warn Away - Soft
siren chirps and flashing parking lights.
The purpose of Warn-Away is to warn a would-be thief next to your
vehicle that the vehicle is protected, but in a manner that does not call
attention to it from more than a few feet away.
Full Alarm Trigger
Sounds the siren at maximum volume and flashes the parking lights.
The default duration of the Full Alarm is 30 seconds. This can be
programmed to any duration from 30 to 60 seconds manually. Ask your
authorized dealer for details.
Pages the 2-way remote control. If in range, the 2-way remote will blink
its indicator lights and sound the Revenger siren tones.
Warn-Away response is triggered by:
Lesser or lighter vibrations or impacts (detected by the Stinger
Doubleguard shock sensor)
Opening a door: the Progressive Door Trigger feature will sound the
Warn Away response, followed immediately by Full Alarm
Any attempt to start the car: the Progressive Ignition Trigger will
first sound the Warn Away response, followed immediately by Full
Alarm.
An optional Proximity Sensor (508D) triggered in the outer zone.
© 2008 Directed Electronics—all rights reserved 23
Full Alarm response is triggered by:
Heavier impact to the vehicle (detected by the Stinger Double-Guard
shock sensor).
Opening the trunk or hood.
Opening a door: the Progressive Door Trigger feature will first sound
the Warn-Away response, followed immediately by Full Alarm.
An optional sensor, such as an optional Proximity Sensor triggered
in the inner zone.
Paging Signals
If the Full Alarm response is triggered, the 2-way remote control will
be sent a paging signal by the in-car system.
Note: Call the police immediately if you witness a crime in prog-
ress. Paging range varies with terrain and environmental condi-
tions.
When the 2-way remote receives a Full Alarm paging signal, the remote
will play Revenger siren tones and the indicator lights will flash.
Sensor Page Signal
Transmit LED: solid for Car 1, flashes for Car 2
Green LEDs alternately
Red Function LED flashes for Sensor triggers
Point of Entry Page Signal
Transmit LED: solid for Car 1, flashes for Car 2
Green LEDs flash alternately Red Function LED lights solid for door,
hood, or trunk triggers
© 2008 Directed Electronics—all rights reserved
24
Modified Arming Modes
The Responder LE gives you an unprecedented level of control over how
it will protect your car. “Normal arming” means that all the Responder
LE security features are active automatically. You can turn some secu-
rity features off on a one-time basis.
Turning off the Warn Away response
After arming, you can turn off the Warn-Away response on a one-time
basis.
1. Press the button twice.
2. Press the button.
The LED flashes and the remote sounds an error tone.
Now, slight impacts or vibrations will not trigger Warn-Away. Heavy
impacts will still trigger Full Alarm.
Note: The next time you arm the system, Warn-Away will work
normally.
Turning off the Sensor Full Trigger response
You can completely disable the Stinger Doubleguard Shock Sensor
and any added optional sensors on a one-time basis. The entry points
(doors, hood, etc.) will still be monitored. All sensors will not be able
to trigger the Warn-Away response or the Full Alarm response.
1. After disabling Warn-away response, press the the button twice.
2. Press the button.
Note: The next time you arm the system, the shock sensor will work
normally.
© 2008 Directed Electronics—all rights reserved 25
Silent Mode 2 - Turning off the siren
You can turn off the vehicle siren and flashing lights on a one-time
basis, leaving the system’s paging feature as the only alarm response.
Note: Call the police immediately if you witness a crime in prog-
ress. Paging range varies with terrain and environmental condi-
tions.
Full Silent Mode.
In this mode, the siren cannot be triggered, but any trigger will cause
the 2-way remote to be paged.
Press the button four times, and then press the within five
seconds.
Sensor Silent Mode
In this mode, a sensor cannot trigger the siren, but will cause the
2- way remote to be paged. All entry points (doors, hood, etc.) will
still trigger the siren.
Press the button three times, and then press the button.
Note: The next time you arm the system, it will function normally.
Disarming the System
While the system is armed normally:
Press the
1
3
4
5
6
2
A U
X
button once.
The siren in the vehicle will “chirp” twice, and the parking lights will
flash. The 2-way remote will “chirp” twice and the
1
3
4
5
6
2
A U
X
LED indicator
will blink.
If you hear four chirps on disarming, the system was triggered in your
absence. Immediately look at the Status LED in the vehicle and count
the number of flashes between pauses. This number is important, it
tells what triggered your alarm. See Disarming section under Diagnos-
tics on page 34 for more details.
© 2008 Directed Electronics—all rights reserved
26
If you hear five chirps on disarming, the system was repeatedly
triggered in your absence. Immediately look at the Status LED in the
vehicle and count the number of flashes between pauses. This number
is important, it tells what triggered your alarm.
The door locks (if connected) will unlock, and the parking lights will
flash.
While the alarm is triggering:
Press the
1
3
4
5
6
2
A U
X
button on the remote. The siren will stop sounding
and disarm the alarm system.
High-Security Disarming
If you want the Full Alarm response to stop without unlocking the
doors, press the button. The system will re-arm and the current
alarm response will reset.
System override
To disarm the system without a remote control:
You will need to use your Override Switch located on your systems
control center (see diagram below) to disarm the system. The Override
Switch disarms the system only if you have the vehicle key.
To check proper operation:
Open the door. The alarm will sound.
Immediately insert the key into the ignition and turn it to the RUN or
ON position. (all the indicators in the dash will turn on).
Press the Override Switch once.
Note: The Override Switch feature allows you to select a specific
number of presses needed to disarm the alarm. If the Override
© 2008 Directed Electronics—all rights reserved 27
Switch has been programmed to a new number of presses by your
authorized dealer, that number should be indicated below.
Add here:
Override Switch Number ___________
Using the remote start
Before using your Remote Start
Read this user guide, including the warnings on page 24.
Ensure that the vehicle is parked in the open air and not in a garage.
To use your remote start to pre-warm or pre-cool your vehicle, remem-
ber to set the climate controls to the desired settings before shutting
off the engine.
Remote starting your vehicle
Press the button on the remote control. The vehicle parking
lights flash.
On the 2-way remote, the Remote Start indicator blinks and ascend-
ing
Remote Start tone plays.
The preset remote start run time is 12 minutes. This can be changed to
between 12 and 60 minutes (see your authorized dealer for program-
ming changes).
Your system has a feature (if programmed on) that will automatically
notify you when the run time is running low. When 9 minutes (of the
12 minute default) runtime has elapsed, the system sends the 2-way
remote control a paging signal. The 2-way remote beep once, plays
© 2008 Directed Electronics—all rights reserved
28
the error beep once, and then the Remote Start and Function indicator
lights will blink.
Points to remember
If the hood is open or is the brake pedal is pressed, the vehicle will
not start using remote start. The remote starter shuts down:
When the brake pedal is pressed
The hood is opened
If the alarm is triggered when armed.
When the Remote Start command is sent again from a remote
control
Runtime Check
To check the amount of runtime remaining:
After the vehicle is remote started, press the button three-times
and then hold until the remote beeps, and then release. The LEDs light
up to indicate how much time is remaining.
25% runtime remaining
100% runtime remaining
75% runtime remaining
50% runtime remaining
When the remote
start and Function
LEDs are blinking,
there is less than
three minutes of
runtime left.
A U
X
© 2008 Directed Electronics—all rights reserved 29
Manual transmission
If the vehicle has manual transmission the proper steps must be fol-
lowed before leaving the parked vehicle or the remote start feature is
disabled.
1. Put the transmission in neutral.
2. Press on the vehicle’s foot brake.
3. Apply the emergency brake.
4. Release the vehicle’s foot brake.
Note: Pressing the brake again after this step will disable the
remote start feature.
5. Within 15 seconds activate the remote start from the remote.
6. The parking lights will flash confirming that the remote start is
active.
7. Turn off the ignition (the car should stay running when key is
turned off).
8. Exit the vehicle.
9. Arm the alarm (the vehicle should shut off when arming the
system).
You can now remote start the vehicle. If a door is opened or if the
alarm is triggered before the next remote start activation the system
will not remote start.
To drive your vehicle after it has been remote started:
1. Get in without stepping on the brake.
2. Insert the ignition key and turn it to the ON position.
3. Now, step on the brake.
The remote control will play the remote start shutdown tone. You have
now taken direct control from the remote start system.
© 2008 Directed Electronics—all rights reserved
30
Timer mode
To activate the runtime of the vehicles engine during remote start:
1. Press the button two-times and then .
2. The vehicle will confirm with 4 fast parking light flashes.
3. The system will start every 3 hours until canceled by the brake,
hood, or neutral safety shut-down wires. The remote will respond
with the Start and Stop remote start notification during each Start
and Stop of the Vehicle while in Timer mode.
Important! Timer Mode should be used only in open areas. Never
start and run the vehicle in an enclosed space such as a garage or
carport.
To exit timer mode, Press the button two-times and then again.
Turbo timer mode
Turbo timer mode keeps the engine running after arriving at your
destination for a programmable period of 1, 3, 5 or 10 minutes. This
allows the system’s timer to conveniently cool down the turbo after
you have left the vehicle.
Transmit the timer mode feature with the remote while the engine is
running, press two-times and then . After exiting the vehicle,
arm the alarm and the vehicle will remain running for the programmed
runtime. (The remote start feature is still enabled).
The system monitors the engine speed and will automatically shut the
engine off if the RPMs rise above or fall below the programmed levels.
This feature prevents damage to the motor due to fuel delivery system
failures or other problems which may cause the engine to race.
Note: To enter turbo timer mode with a manual transmission, perform
the manual transmission procedure (See p.29), with the door open.
© 2008 Directed Electronics—all rights reserved 31
Cabin temperature
Using the Responder LE system, you have the ability to check the
temperature inside the vehicle.
Press the button once and then hold until the remote beeps, and
then release. The LEDs on the remote will light up indicating what the
temperature range of the vehicle is.
95˚F and above
76˚F to 95˚F
76˚F to 95˚F
32˚F to 55˚F
32˚F and below
A U
X
Rear defogger
The rear defogger (if connected) is programmed to automatically acti-
vate when remote start is turned on. If the interior cabin temperature
is above 55˚ F the defogger will not activate.
To manually activate the rear defogger after remote start is on:
Press four times, and then .
Valet take-over
The Valet take-over feature allows the vehicle to remain running after
the key has been removed from the ignition. This feature is useful for
occasions when you wish to exit and lock the vehicle for short periods
© 2008 Directed Electronics—all rights reserved
32
of time, but would like to leave the motor running and the climate
controls on.
To perform Valet take-over:
Before turning off the engine, press and release within 3 sec-
onds on the transmitter. Then wait a few seconds.
Turn the ignition key to the OFF position (The engine will stay
running).
The engine will run until the pre-programmed time elapses or a
shut-down input is received.
Note: To enable Valet take-over with a manual transmission, open the
door when going into a manual transmission mode. After you exit the
vehicle you can arm the alarm and the car will remain running. If the
vehicle shuts down when arming, then the unit did not enter the valet
take-over mode.
1.
2.
3.
© 2008 Directed Electronics—all rights reserved 33
Safety features
This system has several important safety features to ensure proper
operation of the motor and prevent accidental damage to the engine or
its components.
Starter anti-grind circuitry
Whenever the vehicle is remote started, advanced anti-grind circuitry
prevents the starter from engaging, even if the key is turned to the
start position. This prevents damage to the starter motor if the key is
turned to the start position during remote start operation.
Note: Anti-grind circuitry only works when the remote start
system is operating the motor and the Failsafe® Starter Kill relay
is installed.
Disabling the remote start system
This feature allows the remote start unit to be temporarily disabled
to prevent the vehicle from being remote started accidentally. This
feature is useful when the vehicle is being serviced or stored in an
enclosed area.
To disable the remote start, move the shutdown toggle switch to the
OFF position. Check with your installer for the location.
Location of Shutdown Switch____________________________
© 2008 Directed Electronics—all rights reserved
34
Diagnostics
The microprocessor at the heart of your system is constantly monitor-
ing all of the switches and sensors connected to it. It is designed to
detect any faulty switches and sensors and prevent them from dis-
abling the entire system. The microprocessor will also record and report
any triggers that occurred during your absence.
Refer to System Status Chirps and Table of Zones sections of this guide
for diagnostic information.
Arming
If the security system is armed at the same time that an input is ac-
tive (such as a door opening or sensor triggering), you will hear one
siren chirp to indicate arming and a second siren chirp to indicate
Bypass Notification.
A Bypass Notification chirp means that the security system ignores
the input that was active when the system was armed, until that input
ceases. Three seconds after that input ceases, the security system will
resume normal monitoring.
For example, if your vehicle has an interior light exit delay and you
arm your security system before the interior light turns off, you may
hear a second Bypass Notification chirp.
Once the light turns off, however, the security system resumes normal
monitoring.
Note: Bypass Notification does not occur when the system is in
Silent Mode or if the notification chirps have been programmed
off by the installer.
© 2008 Directed Electronics—all rights reserved 35
Disarming
Extra chirps heard when disarming the system are the Tamper Alert.
If four chirps are heard when disarming the system, then the security
system was triggered in your absence.
If five chirps are heard when disarming the system, the system was
triggered so many times that the Nuisance Protection® Circuitry has
bypassed the intended zone. In either case, the status LED will indi-
cate which zone was involved (see Table of Zones).
The security system will retain this information in its memory, and
chirp four or five times each time it is disarmed, until the next time
that the ignition is turned on.
System status chirps
The siren will chirp when arming/disarming the system. The pattern of
chirps will audibly report the system’s status as described below.
Action Number of Chirps Description
Arm 1 System armed
Arm 1 (3-second delay) System armed with bypass notification
Disarm 2 System armed
Disarm 4 System disarmed with Tamper Alert
Disarm 5 System disarmed
© 2008 Directed Electronics—all rights reserved
36
Table of zones
A zone is represented by the number of LED flashes used by the system
to identify a particular type of input. Standard input assignments are
listed in the following table, along with spaces to write in any optional
sensors or switches that have been installed.
Zone Description Dealer installed options
1 Trunk Pin
2 Instant trigger: a heavier
impact detected by the
shock sensor
3 Door switch trigger
4 Instant trigger: For
optional sensors
5 Ignition trigger
6 Hood Pin
Interpreting zone diagnostics
Warn Away responses are not reported by arming or disarming diag-
nostics. If you receive a Bypass notification when arming or a Tamper
Alert notification when disarming, look at the LED.
Active or triggered zones will be indicated by a pattern of blinks by the
LED.
For example: If zone 3 was active or triggered, the LED will blink three
times with a two-second pause. Then it will blink three times again,
and repeat until the ignition is turned on.
© 2008 Directed Electronics—all rights reserved 37
Nuisance prevention® circuitry
Your system has Directed’s Nuisance Prevention® Circuitry (NPC). It
prevents annoying repetitive trigger sequences due to faulty door pin
switches or environmental conditions such as thunder, jackhammers,
airport noise, etc.
For example: If the alarm triggers three times within a 60-minute
period and each time the same sensor or switch triggers the alarm, NPC
will interpret those triggers as false alarms. After the third trigger, NPC
ignores, or bypasses, that sensor or switch (along with any other sen-
sors or switches sharing the same zone) for 60 minutes.
If the bypassed sensor tries to trigger the security system while it
is being bypassed, the 60-minute bypass period will start over. This
ensures that a sensor that is continually being triggered will remain
bypassed.
The vehicle doors are protected by NPC differently. If your security
system is triggered by an open door for three full cycles, the system
will bypass the doors until the trigger ceases.
© 2008 Directed Electronics—all rights reserved
38
Owner recognition
Owner Recognition lets up to four users of the system have unique
settings that meet their specific needs. It is almost like having four
separate alarms in your vehicle, one for each user. This feature is
only available to authorized dealers using the Bitwriter or Bitwriter 2
program tool.
Rapid resume logic
This Directed system will store its current state to non-volatile
memory. If power is lost and then reconnected the system will recall
the stored state from memory.
For example, if the unit is in Valet Mode and the battery is discon-
nected for any reason, such as servicing the car, when the battery is
reconnected the unit will still be in Valet Mode. This applies to all
states of the system including arm, disarm, and Valet Mode.
Power saver mode
System
Your system will automatically enter Power Saver Mode while armed or
in Valet Mode, after a period of time in which no operation has been
performed. This lowers the current draw on the vehicle’s battery. Power
Saver Mode takes over under the following conditions:
Power Saver when the system is armed: After the system has been
armed for 24 hours the LED will flash at half its normal rate, decreasing
the system’s current draw.
© 2008 Directed Electronics—all rights reserved 39
Power Saver in Valet Mode: When the system enters Valet Mode the
Status LED on the Responder LE control center illuminates steadily. If
the vehicle is not used (ignition is not turned on) for a one hour pe-
riod while the system is in Valet Mode, the status LED will shut off. If
the system remains in Valet Mode, the LED will come back on the next
time the ignition is turned on and then back off.
2-way remote
Your Responder LE 2way remote control has a feature called remote
power save mode. When programmed ON under remote options, the
remote will conserve power by disabling the paging function if unused
for more than 72 hours. Pressing any button on the remote will restore
the paging function.
The default setting is ON. See Remote control programming section of
this guide or ask your dealer for details on how to program.
© 2008 Directed Electronics—all rights reserved
40
Programming options
Your system has many custom programmable options. Some may require
installation labor. Ask your authorized dealer for details.
The following is a list of the programmable options, with the factory
settings in Bold.
Active arming (remote only) passive arming with or without locking
the doors (automatic arming without locking the doors 30 seconds
after the last door has been closed), or Auto Re-arm with or without
locking the doors (Automatically arms 60 seconds after disarm if no
door is opened).
Arming/disarming siren chirps ON with or without Warn-away chirps,
Or OFF with or without Warn-away chirps.
Ignition controlled door lock feature ON or OFF: When this feature
is programmed on, the doors will lock three seconds after the ignition
is turned on, and unlock when the ignition is turned off.
If your installer is programming the security system with the Directed
Bitwriter®, ignition lock and unlock are independent features that can
be programmed separately.
Panic mode enabled/disabled when the ignition is turned on or
completely turned OFF. (Some states have laws against sirens sounding
in moving cars.)
Full trigger response 30 or 60 seconds: This determines how
long the full triggered sequence lasts. Some states have laws regulat-
ing how long a security system can sound before it is considered a
nuisance.
© 2008 Directed Electronics—all rights reserved 41
If your installer is programming the security system with the Directed
Bitwriter®, the full triggered response can be programmed for any
duration ranging from 1 to 180 seconds.
Siren tones and chirp volume: The output of the Revenger™Soft
Chirp™ siren consists of six different tones in sequence. Any of these
tones can be eliminated by a dealer, resulting in a unique, easily iden-
tifiable siren sound. The chirps can be either full volume or 6 decibels
quieter than the full alarm blast.
Comfort closure is a programming option which closes the vehicle’s
windows after remote locking.
© 2008 Directed Electronics—all rights reserved
42
Security & convenience expansions
Listed below are some of the many expansion options available. Please
consult your dealer for a complete explanation of all the options avail-
able to you.
Audio Sensor: Metal on glass, glass cracking, and breaking
glass produce distinctive acoustic signatures. The 506T audio sensor
uses a microphone to pick up sounds, then analyzes them with propri-
etary acoustic software to determine if the glass has been struck.
Backup Battery: The 520T keeps the system armed, triggers the alarm
and keeps the starter interrupt active if main battery is disconnected.
Digital Tilt Sensor: The 507M tilt sensor can be added to your system
to protect your car when its parked. It can protect your vehicle from
being lifted and provide protection for your expensive rims.
Field Disturbance Sensor: An invisible dome of coverage is estab-
lished by installing the 508D “radar” sensor. Your system can react to
any intrusions into this field with the full triggered sequence.
Power Locks: This system offers lock outputs that can control some
manufacturers’ power door lock systems. For other systems, additional
parts may be required.
Hood Lock: Prevents the vehicle’s hood from being opened without a
key, keeping thieves away from the system’s siren, the battery connec-
tions, and other components under the hood.
Power Trunk Release: The accessory output of the system can operate
a factory power release for the vehicle’s trunk or hatch. Although the
on-board relay can control most power trunk releases, sometimes an
optional relay is required. If the factory release is not power-activated,
Directed®’s 522T trunk release solenoid can often be added.
Power Window Control: Automatic power window control is provided
with the 529T and 530T systems. These can operate power windows,
© 2008 Directed Electronics—all rights reserved 43
and can roll them up automatically when the system is armed, roll them
down, or both up and down.
Ultrasonic Cabin Sensor: Using the 509U Ultrasonic cabin sensor pro-
vides a field of protection inside the car to protect your belongings.
© 2008 Directed Electronics—all rights reserved
44
Glossary of Terms
2-Way Remote: A hand-held, remote control which operates the
various functions of your system and receives feedback and pages from
the alarm system.
Control Center: The control center contains the system’s radio-fre-
quency antenna, the valet and override switch, and the Status LED.
For maximum remote-control range, the Control Center is usually lo-
cated at the top of the windshield, centered near the rear-view mirror.
Control Module: The “brain” of your system. Usually hidden under-
neath the dash area of the vehicle. It houses the microprocessor which
monitors your vehicle and controls all of the alarm’s Functions.
Failsafe® Starter Kill (if equipped): An automatic switch controlled by
the security system which prevents the vehicle’s starter from cranking
whenever the system is armed. The vehicle is never prevented from
cranking when the system is disarmed, in Valet® Mode, or should the
starter kill switch itself fail. Your system is ready for this feature, how-
ever installation of this feature may require additional labor.
Input: Any physical connection to the security system. An input can
be provided through a sensor, pin-switch or by existing systems in the
vehicle, such as ignition or courtesy lights.
In-vehicle status LED: A light used to indicate the status of your
system. It is located on your systems control center.
Shock Sensor: This system has a dual zone shock sensor. This
sensor is mounted in the vehicle and designed to pick up impacts
to the vehicle or glass.
Trigger or Triggered Sequence: This is what happens when the
alarm “goes off ” or “trips.” The triggered sequence of your
system consists of the siren sounding and parking lights flashing
for the programmed duration.
© 2008 Directed Electronics—all rights reserved 45
Valet Button: A small push button switch located on your systems
control center. It is used to override the starter interrupt when a 2-way
remote is lost or damaged, or to
enter or exit Valet Mode.
Warn Away® Response: Light impacts to the vehicle generate the
Warn Away® Response, which consists of several seconds of horn honks
and flashing parking lights.
Zone: A zone is a separate input that the alarm can recognize as
unique. Each input to the system is connected to a particular zone.
Often, two or more inputs may share the same zone.
© 2008 Directed Electronics—all rights reserved 47
Quick Reference Guide
Arming
To arm, press
1
3
4
5
6
2
A U
X
. When the system arms, the LOCK LED blinks for
one second, with 1 beep and siren tone.
Arming while driving
To arm the system while driving, press
1
3
4
5
6
2
A U
X
on your remote while
the vehicle is running. The LOCK LED blinks for one second.
Disarming
To disarm, press
1
3
4
5
6
2
A U
X
. The UNLOCK LED blinks for one second, and
you will hear 2 beeps.
Disarming without a remote
Turn on the ignition. Press the Valet button within 15 seconds.
The system should now disarm. If it does not, you may have
waited too long or pressed the button incorrect number of times.
Refer to reverse side for Valet pushes and try again.
Number of Valet button pulses for disarming_______________
Silent Arm
Press one time and then press
1
3
4
5
6
2
A U
X
. Arm LED will blink for one
second with no sound.
Silent Disarm
Press one time and then press
1
3
4
5
6
2
A U
X
. Disarm LED will blink for 1
second with no sound.
Cut along dotted line and fold for a quick and easy reference to keep in purse or wallet.
Remote Start
Press . Remote start LED blinks for 3 seconds and remote start
tone sounds.
Rear Defogger
Press four times, and then press (only after remote start is
ON.) Remote start LED turns ON, and you will hear 1 beep.
To disable the remote start system
Move the shutdown toggle switch to the OFF position.
Location of Shutdown Toggle Switch___________________
Valet Mode
Press two times and then
1
3
4
5
6
2
A U
X
. The UNLOCK LED and Function
LED blink and remote beeps one time. When valet Mode OFF, the
remote beeps two-times.
Valet take over
Before turning off the engine, press and release . within 3
seconds. Then wait a few seconds.
Turn the ignition key to the OFF position.
The engine will remain running until the programmed time elapses
or a shut-down input is received.
Location of Valet button_________________________________
Cut along dotted line and fold for a quick and easy reference to keep in purse or wallet.
G5202V 2008-02
Vista, CA 92081
www.directed.com
© 2008 Directed Electronics—All rights reserved
The company behind this system is Directed Electronics
Since its inception, Directed Electronics has had one purpose, to provide con-
sumers with the finest vehicle security and car stereo products and accessories
available. The recipient of nearly 100 patents and Innovations Awards in the
field of advanced electronic technology.
Directed is ISO 9001 registered.
Quality Directed Electronics products are sold and serviced throughout North
America and around the world.
Call (800) 274-0200 for more information about our products and services.
