Voxx Electronics DEI6511 Security/Remote Control Transmitter User Manual N5501V 10 06e indd

DEI Headquarters, Inc. Security/Remote Control Transmitter N5501V 10 06e indd

manual

DRAFT
© 2006 Directed Electronics, Vista, CA
N5501V 10-06
NOTE: This product is intended for installation by a professional installer only!
Any attempt to install this product by any person other than a trained professional
may result in severe damage to a vehicle’s electrical system and components.
Model 7900
Installation Guide
DRAFT
DRAFT
2 © 2005 Directed Electronics—all rights reserved
Bitwriter®, Code Hopping™, Doubleguard®, ESP™, FailSafe®, Ghost Switch™, Learn Routine™, Nite-
Lite®, Nuisance Prevention® Circuitry, Revenger®, Silent Mode™, Soft Chirp®, Stinger®, Valet®,
Vehicle Recovery System®, VRS®, and Warn Away® are all Trademarks or Registered Trademarks of
Directed Electronics.
New Software Compatibility for
103T Keypad
This unit now has software that
allows arming with entry delay when
used in conjunction with the optional
103T Keypad. Refer to the 103T
Owner’s Guide for details.
The Bitwriter® (p/n 998T)
requires chip version 2.2 or
newer to program this unit.
DRAFT
DRAFT
© 2005 Directed Electronics—all rights reserved 3
table of contents
what is included . . . . . . . . . . . . . . . . . . . . . . . . . . .4
warning! safety first . . . . . . . . . . . . . . . . . . . . . . . .4
installation points to remember . . . . . . . . . . . . . . .5
before beginning the installation . . . . . . . . . . . . .5
after the installation . . . . . . . . . . . . . . . . . . . . . 5
deciding on component locations . . . . . . . . . . . . . .6
locations for the siren . . . . . . . . . . . . . . . . . . . .6

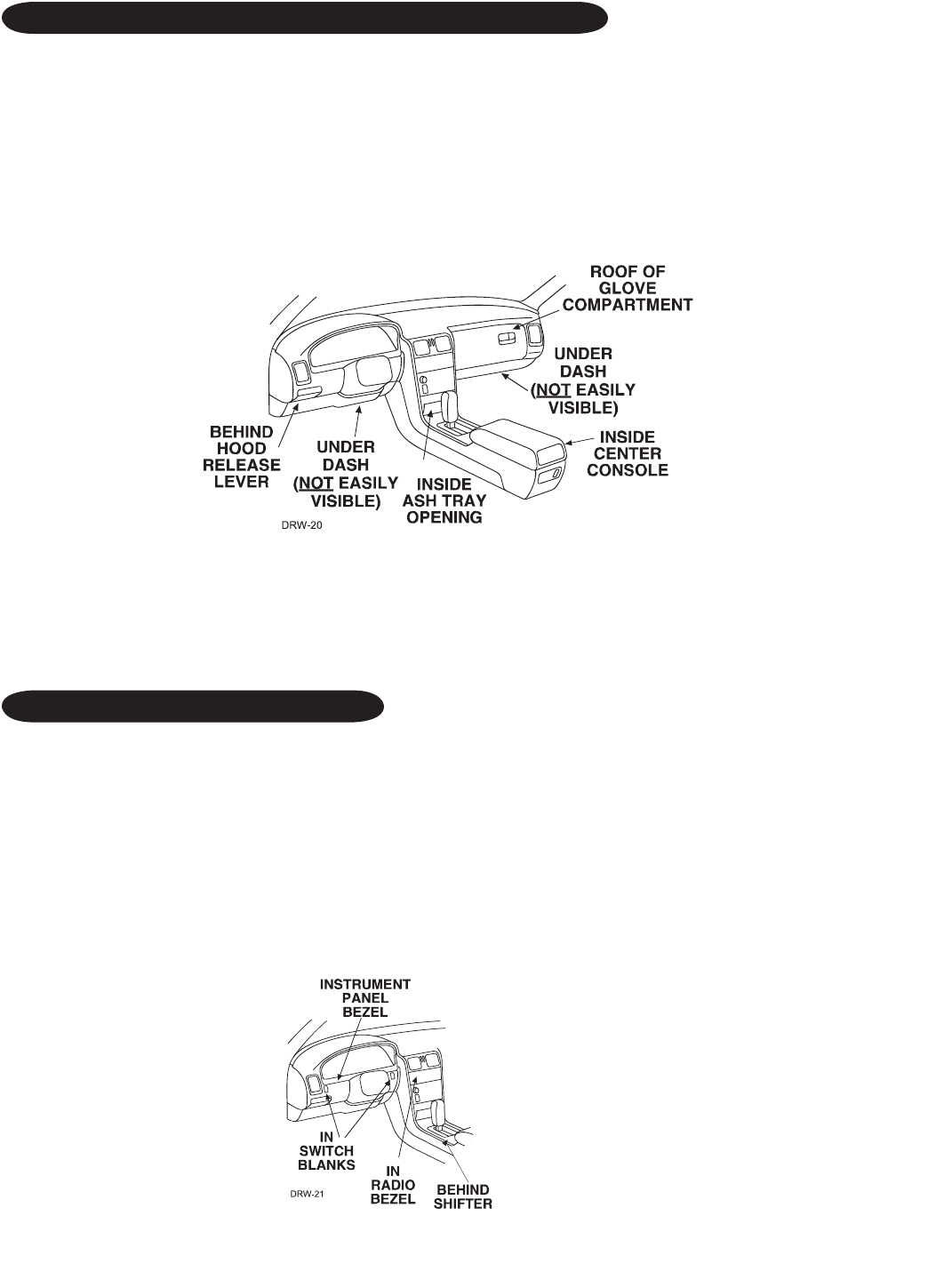

locations for the control module . . . . . . . . . . . . .6
locations for stinger doubleguard shock sensor . . .7
mounting the antenna . . . . . . . . . . . . . . . . . . . . 7
locations for valet/program switch . . . . . . . . . . . .8
locations for the status LED . . . . . . . . . . . . . . . . 8
finding the wires you need . . . . . . . . . . . . . . . . . . .9
locations for the optional starter kill relay . . . . . .9
locations for the relay satellite . . . . . . . . . . . . . .9

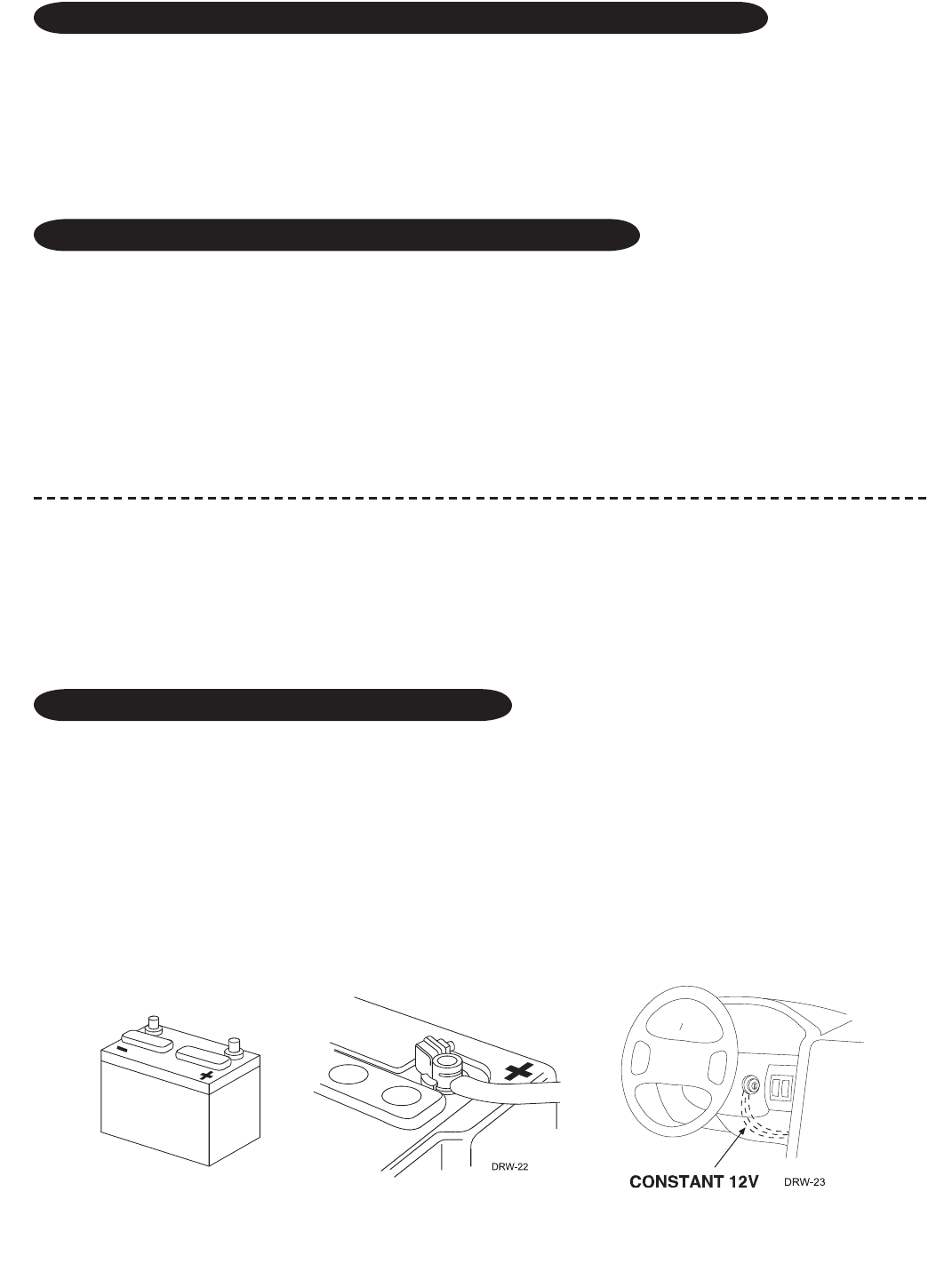

obtaining constant 12V . . . . . . . . . . . . . . . . . . .9

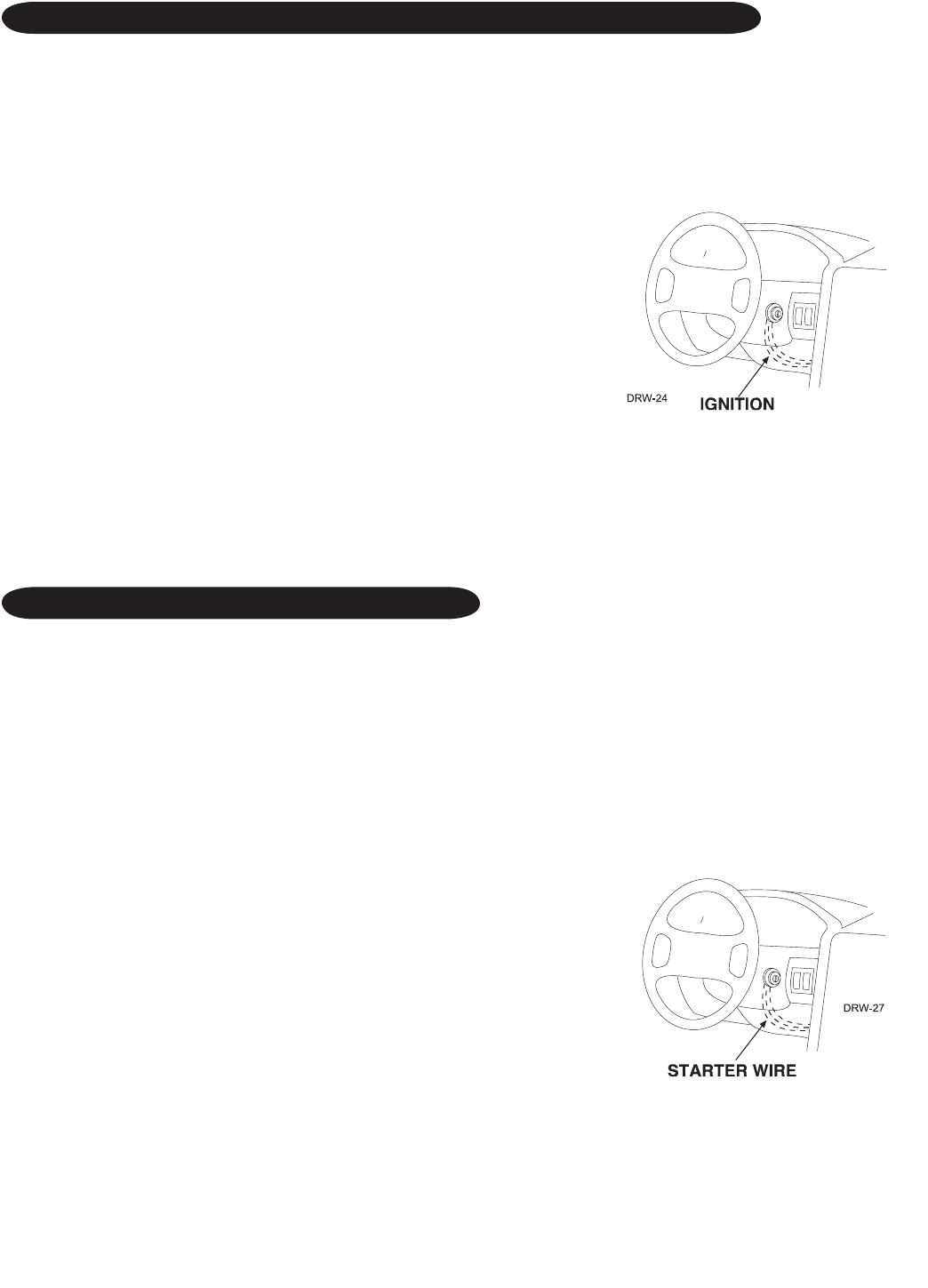

finding the 12V switched ignition wire . . . . . . . . 10
finding the starter wire . . . . . . . . . . . . . . . . . . 10
finding the tachometer wire . . . . . . . . . . . . . . . 11
finding the accessory wire . . . . . . . . . . . . . . . . 11
finding the wait-to-start bulb wire for diesels . . . 11

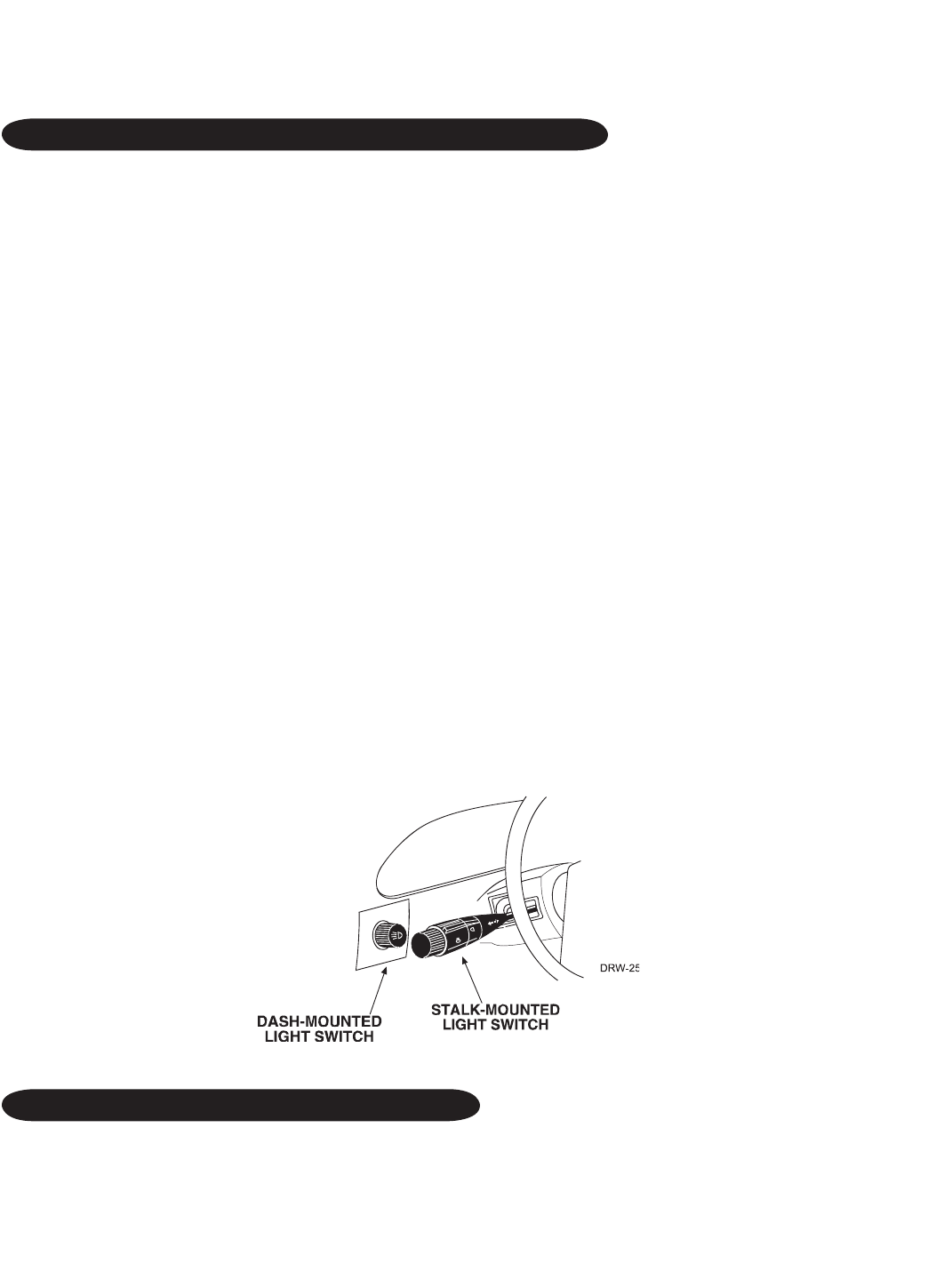

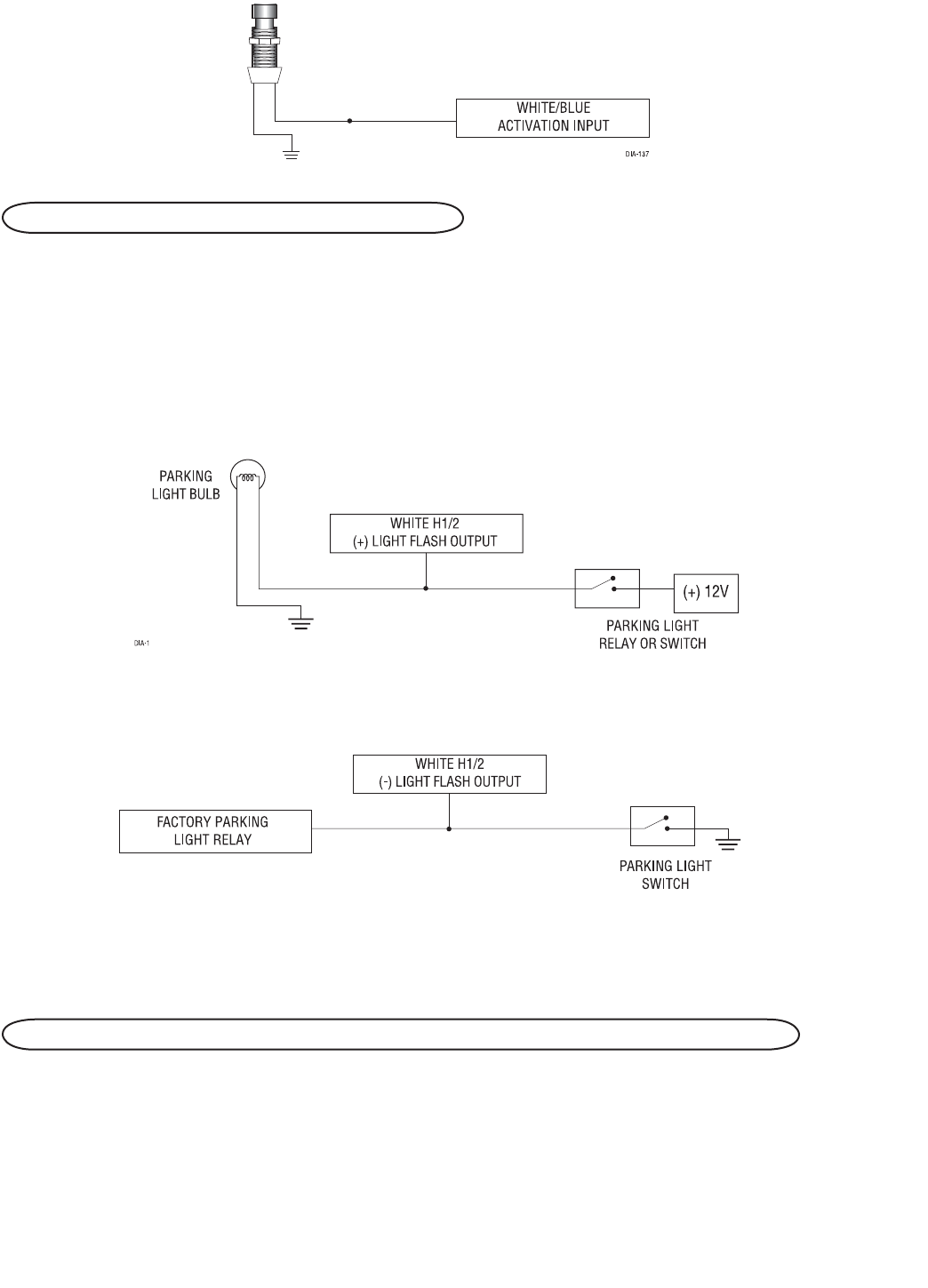

finding a (+) parking light wire . . . . . . . . . . . . . 12

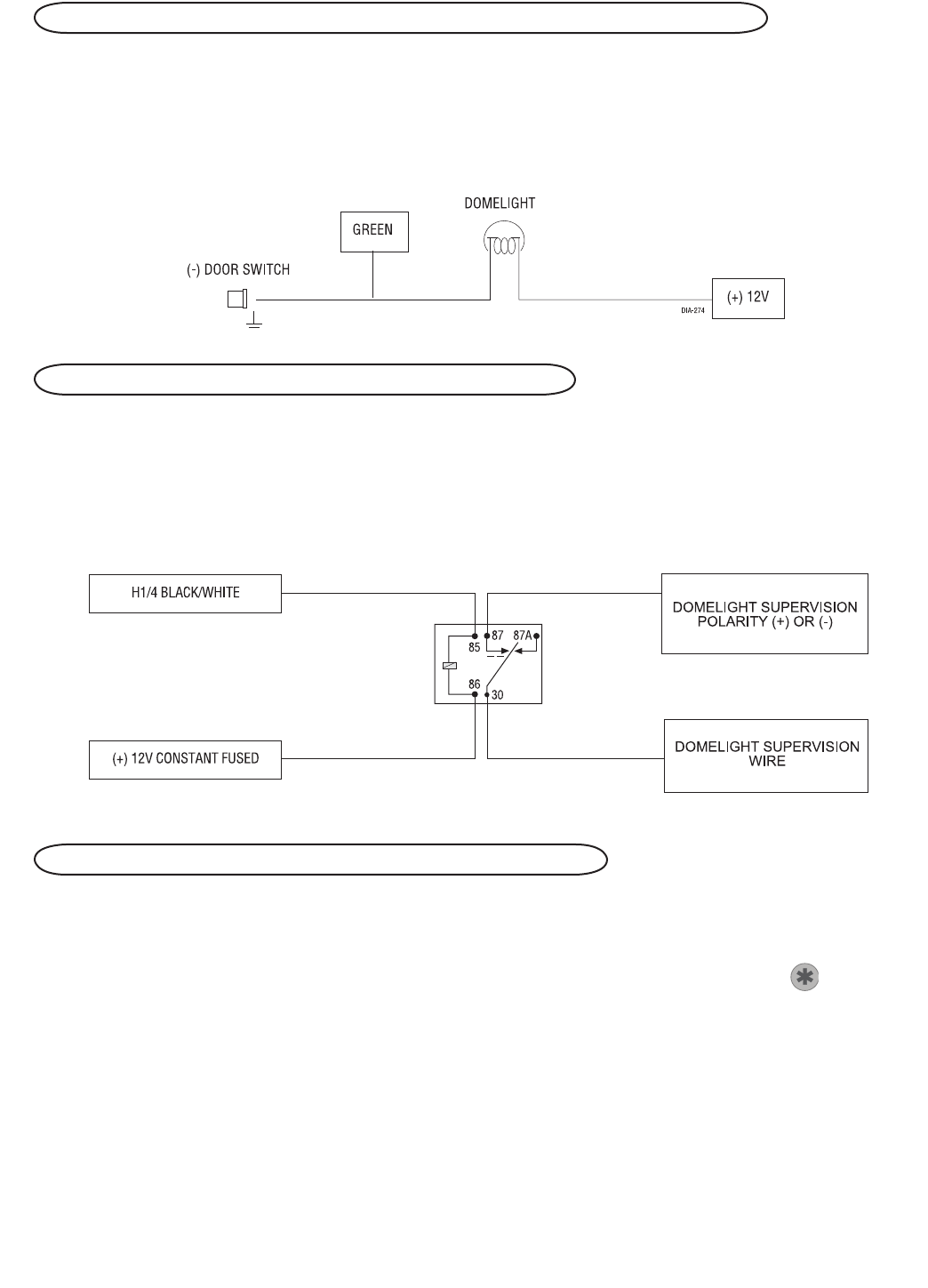

finding the door pin switch circuit . . . . . . . . . . . 12
making your wiring connections . . . . . . . . . . . . . .13
primary harness (H1), 12-pin connector . . . . . . . .14
auxiliary harness (H2), 6-pin connector . . . . . . . . .14
door lock harness, 3-pin connector . . . . . . . . . . . .15
remote start ribbon harness, wiring diagram . . . . .15
heavy gauge inline connector key switch interface .16
remote start harness (H3), 5-pin connector . . . . . .16
horn, channel 6 (H4), 2-pin connector . . . . . . . . .16
relay satellite wire connection guide . . . . . . . . . . .23
remote start secondary harness (H3) wire . . . . . . . . .
connection guide . . . . . . . . . . . . . . . . . . . . . . . . .24
horn, channel 6 harness (H4) wire connection guide 26

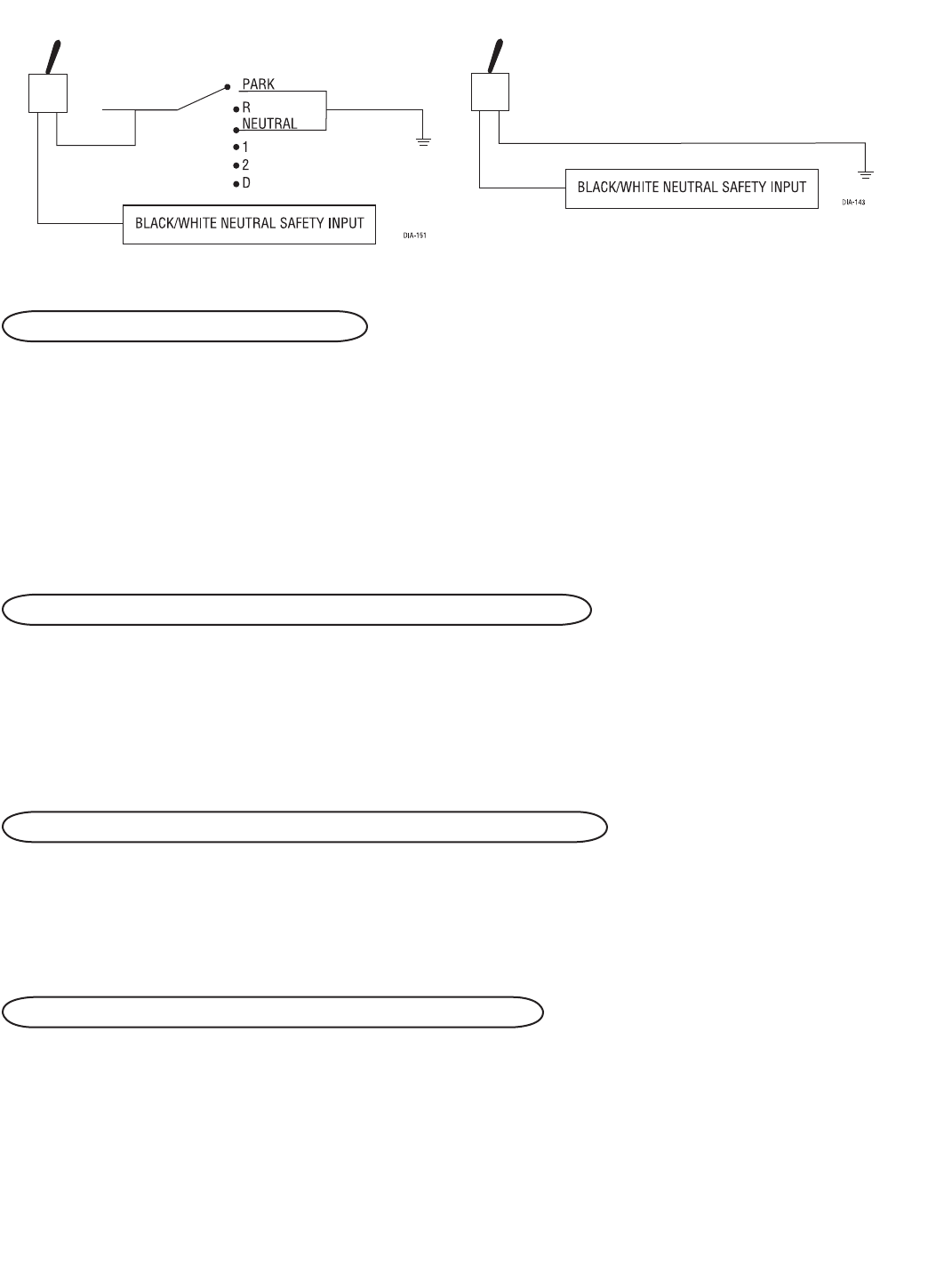

neutral safety switch interface . . . . . . . . . . . . . . .26
testing the neutral safety switch . . . . . . . . . . . . 27
bypassing GM vehicle anti-theft systems (VATS) . . .29
1995 and newer vehicle anti-theft systems . . . . . . . .
(immobilizers) . . . . . . . . . . . . . . . . . . . . . . . . . . .30
passlock I and passlock II (PL-1 and PL-2) . . . . . 30
passkey III (PK-3), transponder-based systems . . 30

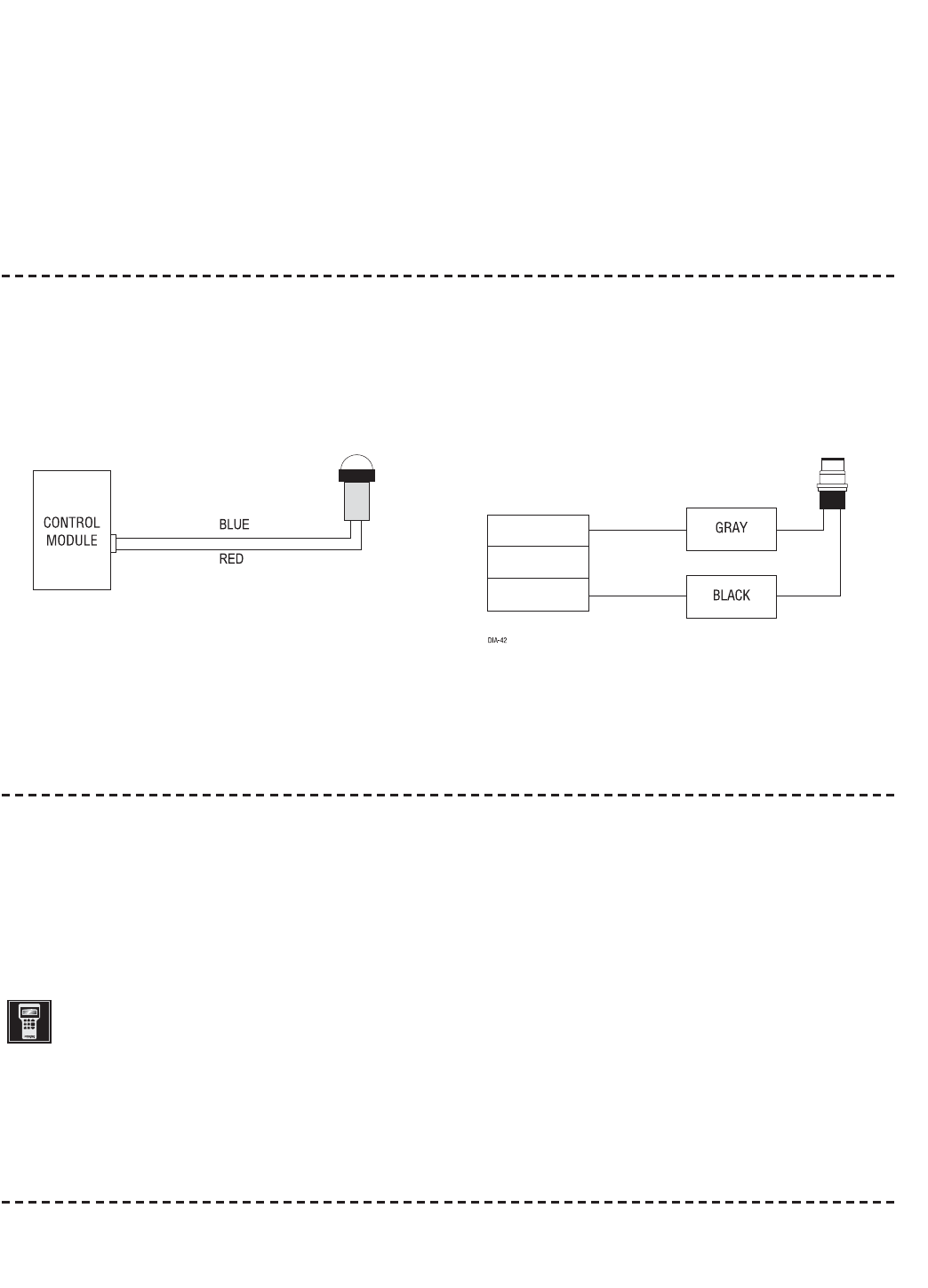

plug-in LED and valet/program switch . . . . . . . . . .31
programmer interface, 3-pin black plug . . . . . . . . .31

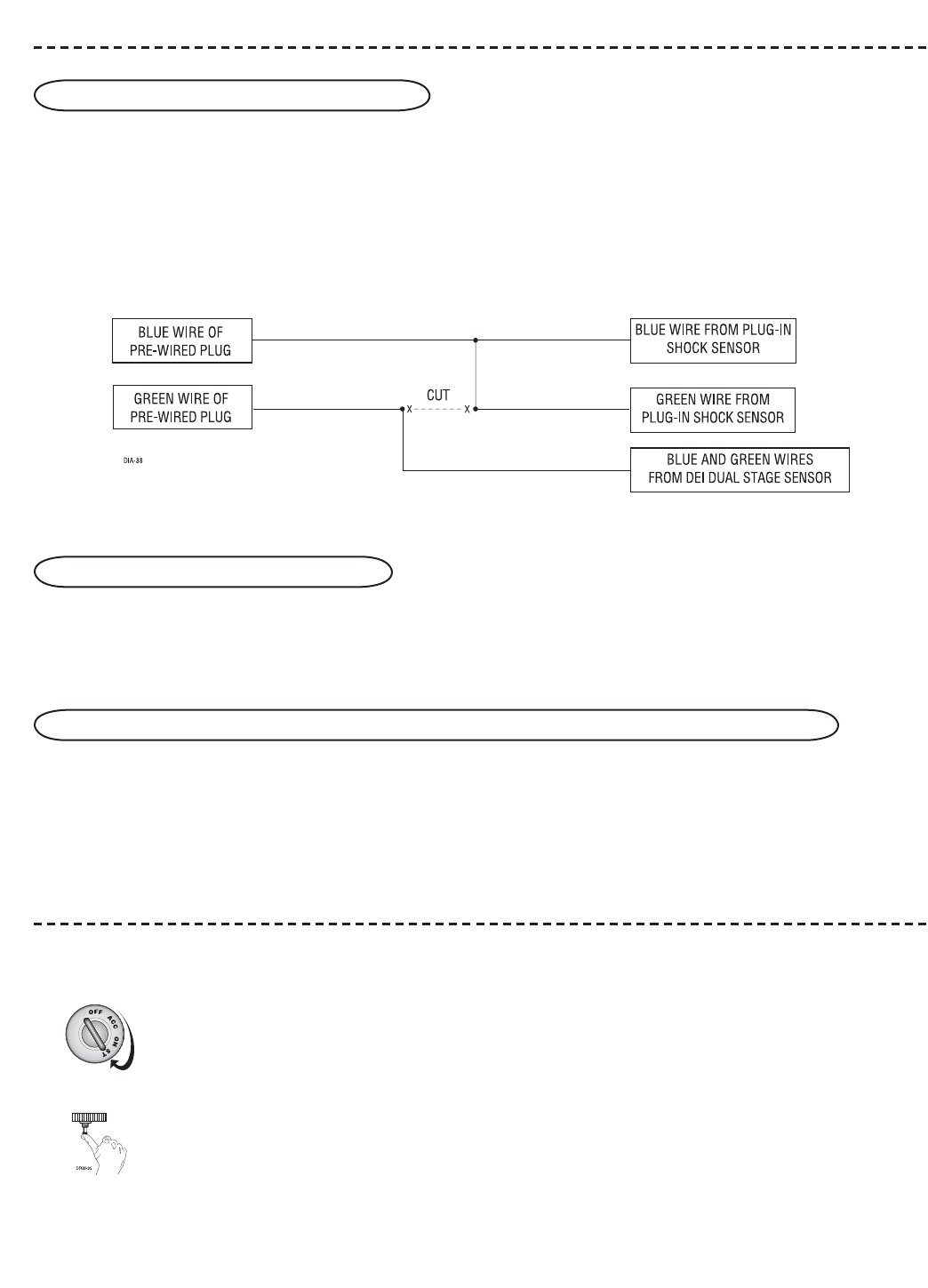

shock sensor harness, 4-pin connector . . . . . . . . . .32
tach learning . . . . . . . . . . . . . . . . . . . . . . . . . . . .32
programming jumpers . . . . . . . . . . . . . . . . . . . . . .33
tach threshold on/off . . . . . . . . . . . . . . . . . . . . 33
light flash (+)/(-) . . . . . . . . . . . . . . . . . . . . . . 33
transmitter/receiver learn routine™ . . . . . . . . . . . .34
standard configuration . . . . . . . . . . . . . . . . . . . 36

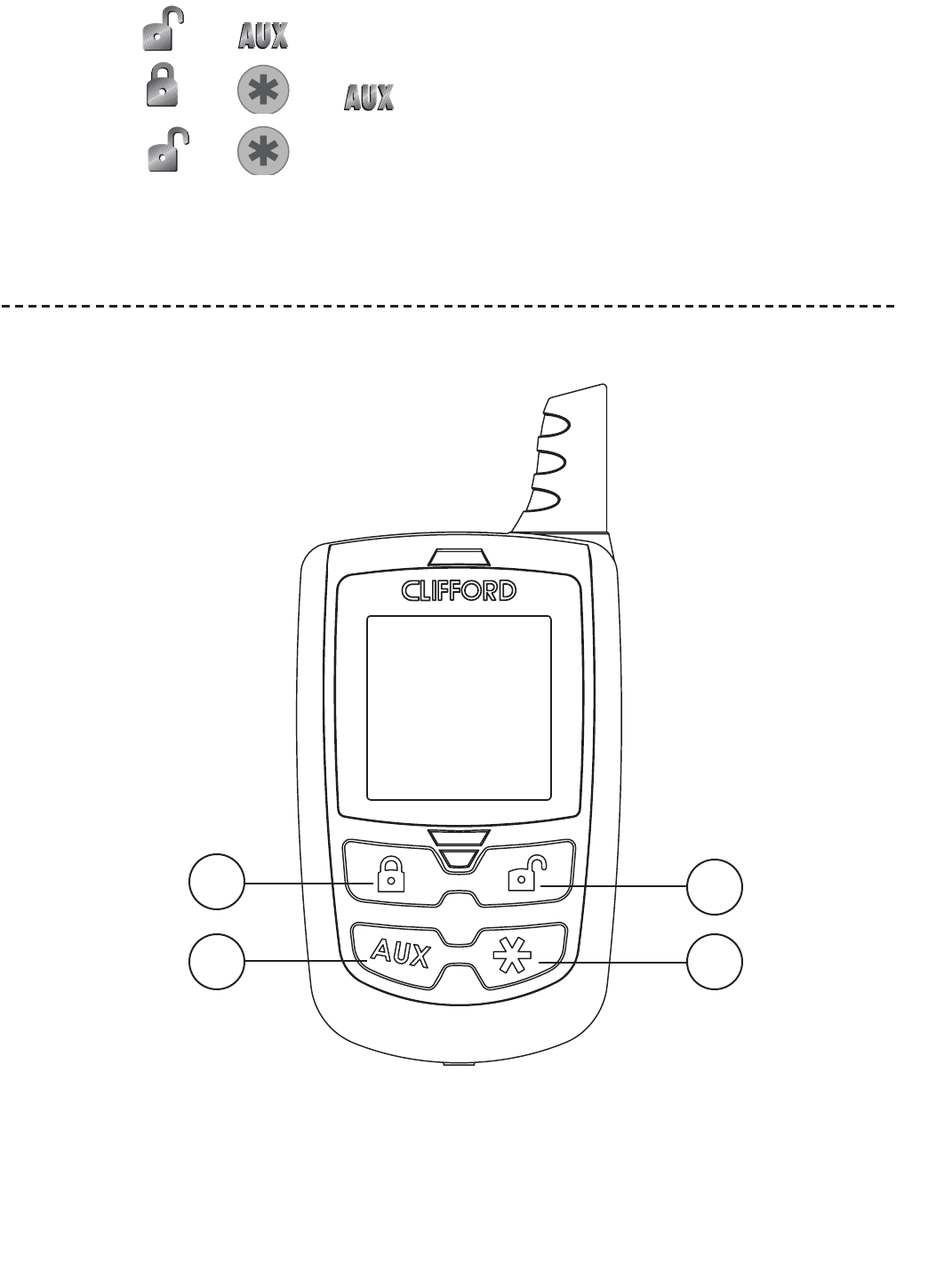

remote control diagram . . . . . . . . . . . . . . . . . . . . .37
standard mode configuration . . . . . . . . . . . . . . . . .38
multi-level security arming . . . . . . . . . . . . . . . . . .39
system features learn routine . . . . . . . . . . . . . . . .40
feature menus . . . . . . . . . . . . . . . . . . . . . . . . . . .42
menu #1 - basic features . . . . . . . . . . . . . . . . . 42
menu #2 - advanced features. . . . . . . . . . . . . . . 43
menu #3 - remote start options . . . . . . . . . . . . . 44
feature descriptions . . . . . . . . . . . . . . . . . . . . . . .45
menu #1 - basic features . . . . . . . . . . . . . . . . . 45
menu #2 - advanced features. . . . . . . . . . . . . . . 46
menu #3 - remote start options . . . . . . . . . . . . . 49
valet mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
rear defogger control . . . . . . . . . . . . . . . . . . . . . .51
timer mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52
table of zones . . . . . . . . . . . . . . . . . . . . . . . . . . .53
shutdown diagnostics . . . . . . . . . . . . . . . . . . . . . .53
to perform shutdown diagnostics . . . . . . . . . . . . 53
long term event history . . . . . . . . . . . . . . . . . . . .54
safety check . . . . . . . . . . . . . . . . . . . . . . . . . . . .54
troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . .55
alarm troubleshooting . . . . . . . . . . . . . . . . . . . 55
remote start troubleshooting . . . . . . . . . . . . . . . 56
wiring quick reference guide . . . . . . . . . . . . . . . . .58
relay satellite wiring quick reference guide . . . . . .59
DRAFT
DRAFT
4 © 2005 Directed Electronics—all rights reserved
what is included
The control module The plug-in status LED
A Responder receiver/antenna The plug-in Valet/Program switch
One 2-way Color Remote Control P/N 7541VA hood pinswitch
A Stinger Doubleguard shock sensor A toggle (override) switch
A 514N Neosiren One Remote Control car charger
warning! safety first
The following safety warnings must be observed at all times:
Due to the complexity of this system, installation of this product must only be performed by an authorized
Directed Electronics dealer.
When properly installed, this system can start the vehicle via a command signal from the remote control
transmitter. Therefore, never operate the system in an area that does not have adequate ventilation. The
following precautions are the sole responsibility of the user; however, authorized Directed Electronics dealers
should make the following recommendations to all users of this system:
1. Never operate the system in an enclosed or partially enclosed area without ventilation (such as a
garage).
2. When parking in an enclosed or partially enclosed area or when having the vehicle serviced, the remote
start system must be disabled using the installed toggle switch.
3. It is the user's sole responsibility to properly handle and keep out of reach from children all remote
control transmitters to assure that the system does not unintentionally remote start the vehicle.
4. THE USER MUST INSTALL A CARBON MONOXIDE DETECTOR IN OR ABOUT THE LIVING AREA ADJACENT
TO THE VEHICLE. ALL DOORS LEADING FROM ADJACENT LIVING AREAS TO THE ENCLOSED OR PARTIALLY
ENCLOSED VEHICLE STORAGE AREA MUST AT ALL TIMES REMAIN CLOSED.
Use of this product in a manner contrary to its intended mode of operation may result in property damage,
personal injury, or death. Except when performing the Safety Check outlined in this installation guide, (1)
Never remotely start the vehicle with the vehicle in gear, and (2) Never remotely start the vehicle with the
keys in the ignition. The user will be responsible for having the neutral safety feature of the vehicle periodi-
cally checked, wherein the vehicle must not remotely start while the car is in gear. This testing should be
performed by an authorized Directed Electronics dealer in accordance with the Safety Check outlined in this
product installation guide. If the vehicle starts in gear, cease remote start operation immediately and consult
with the user to fix the problem immediately.
DRAFT
DRAFT
© 2005 Directed Electronics—all rights reserved 5
fcc/id notice
This device complies with Part 15 of FCC rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) This device must accept any interference received,
including interference that may cause undesirable operation.
Changes or modifications not expressly approved by the party responsible for compliance could void the user's
authority to operate this device.
caution
This product is designed for fuel injected, automatic transmission vehicles only. Use of this product in a standard
transmission vehicle is dangerous and contrary the product's intended use.
DRAFT
DRAFT
6 © 2005 Directed Electronics—all rights reserved
After the remote start module has been installed, test the remote start module in accordance with the
Safety Check outlined in this installation guide. If the vehicle starts when performing the Neutral Safety
Shutdown Circuit test, the remote start unit has not been properly installed. The remote start module must
be removed or properly reinstalled so that the vehicle does not start in gear. All installations must be per-
formed by an authorized Directed Electronics dealer. OPERATION OF THE REMOTE START MODULE IF THE
VEHICLE STARTS IN GEAR IS CONTRARY TO ITS INTENDED MODE OF OPERATION. OPERATING THE REMOTE
START SYSTEM UNDER THESE CONDITIONS MAY RESULT IN PROPERTY DAMAGE OR PERSONAL INJURY.
IMMEDIATELY CEASE THE USE OF THE UNIT AND REPAIR OR DISCONNECT THE INSTALLED REMOTE START
MODULE. DIRECTED ELECTRONICS, INC. WILL NOT BE HELD RESPONSIBLE OR PAY FOR INSTALLATION OR
REINSTALLATION COSTS.
installation points to remember
IMPORTANT! This product is designed for fuel-injected, automatic transmission vehicles only.
Installing it in a standard transmission vehicle is dangerous and is contrary to its intended use.
before beginning the installation
Please read this entire installation guide before beginning the installation. The installation of this remote
start system requires interfacing with many of the vehicle’s systems. Many new vehicles use low-voltage or
multiplexed systems that can be damaged by low resistance testing devices, such as test lights and logic
probes (computer safe test lights). Test all circuits with a high quality digital multi-meter before making con-
nections.
Do not disconnect the battery if the vehicle has an anti-theft-coded radio. If equipped with an air bag,
avoid disconnecting the battery if possible. Many airbag systems will display a diagnostic code through their
warning lights after they lose power. Disconnecting the battery requires this code to be erased, which can
require a trip to the dealer.
Check with the customer on status LED location.
Remove the domelight fuse. This prevents accidentally draining the battery.
Roll down a window to avoid being locked out of the car.
after the installation
Test all functions. The “Using Your System” section of the Owner's Guide is very helpful when testing.
When testing, don’t forget that this system is equipped with Nuisance Prevention® Circuitry (NPC). NPC can
bypass trigger zones, making them appear to stop working. See the Nuisance Prevention® Circuitry section.
Review and complete the Safety Check section of this guide prior to the vehicle reassembly.
DRAFT
DRAFT
© 2005 Directed Electronics—all rights reserved 7
deciding on component locations

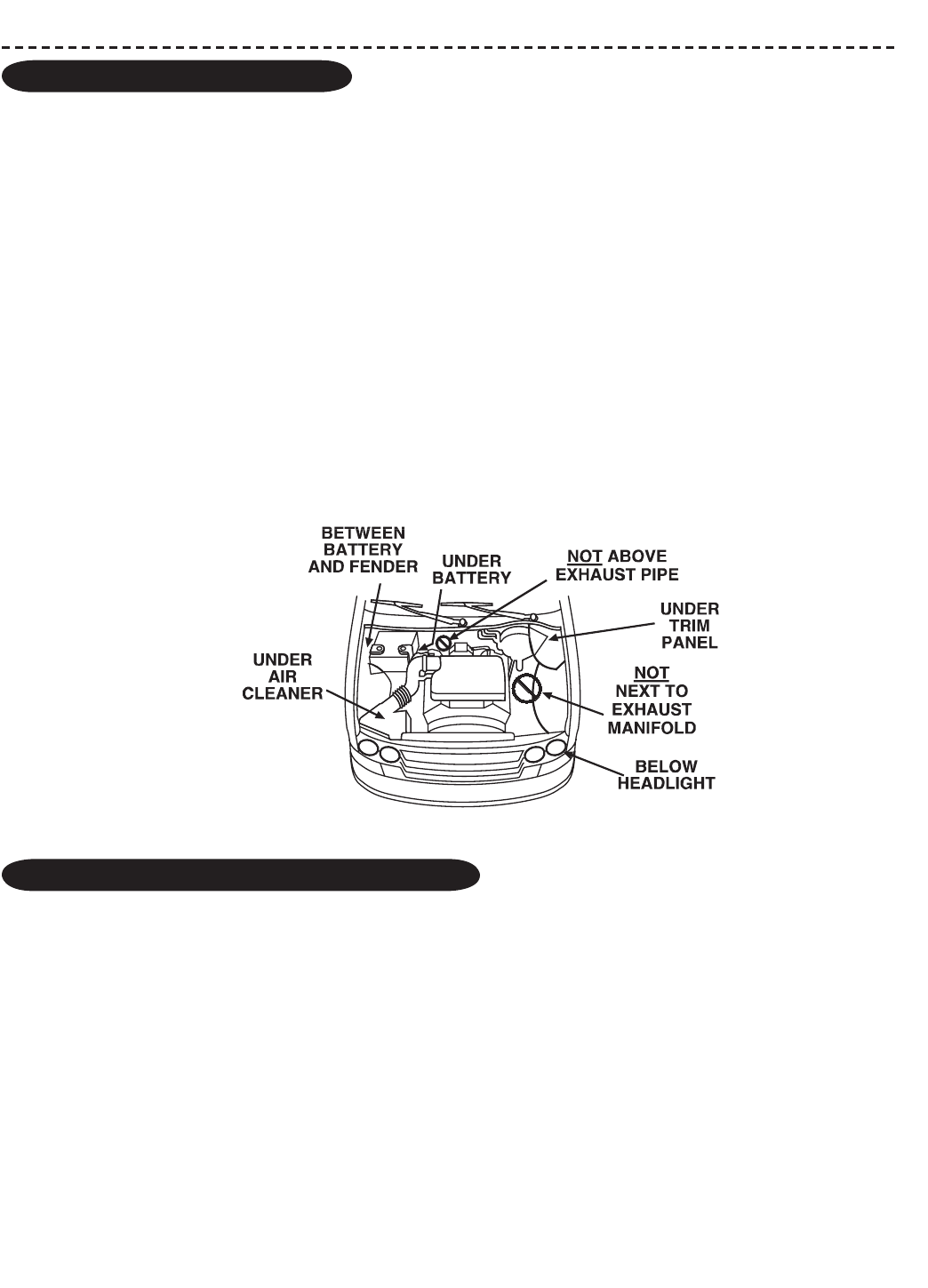

locations for the siren
Some things to remember about mounting the siren:
Keep it away from heat sources, such as radiators, exhaust manifolds, turbochargers, and heat shields.
Mount it where a thief cannot easily disconnect it, whether the hood is open or shut. Both the siren and its
wires should be difficult to find. This usually in volves disguising the wire to look like a factory harness.

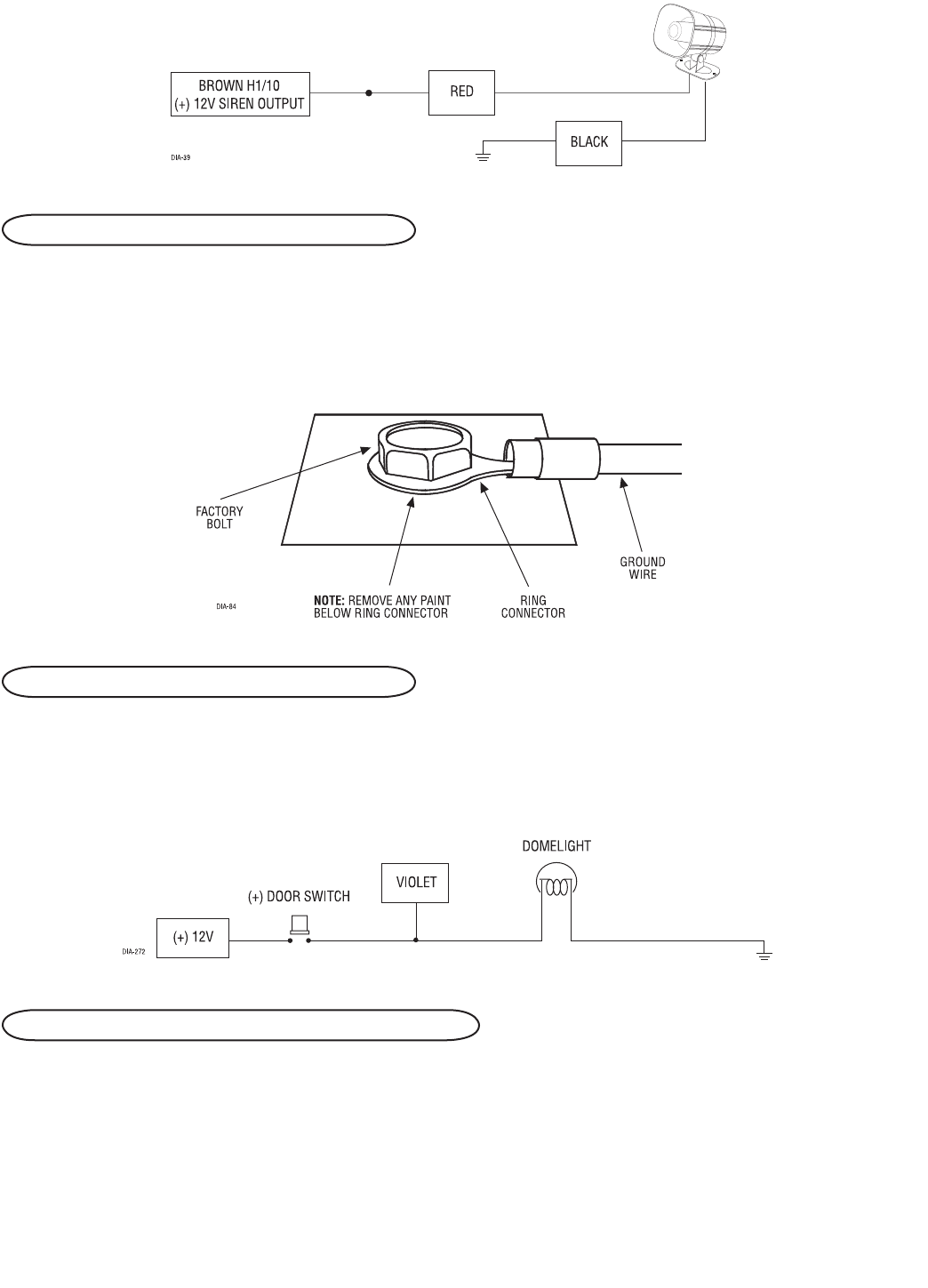

We recommend against grounding the siren to its mounting screws. Instead, we recommend running both
the red and black wires into the passenger compartment and grounding to one common point for all devices.
After all, both wires are the same length and come already bonded together. Whenever possible, conceal your
wires in the factory har ness es or in the same style loom as the factory.
When possible, place the siren on the same side of the vehicle as the control module, where its wires will
reach the control module’s wires without extending them. Always run the wires through the center of a
grommet, never through bare metal!
Point the siren down so water does not collect in it.
locations for the control module
Some things to remember about where to mount the control module:
Never put the control module in the engine compartment!
The first step in hot-wiring a vehicle is removing the driver's side under-dash panel to access the starter
and ignition wires. If the control module is placed just behind the driver's side dash it can easily be discon-
nected.
When mounting the control module, try to find a secure location that will not require you to extend the har-
nesses’ wires (they are 1.5 meters long). Keep it away from the heater core (or any other heat sources) and
any obvious leaks.
Some good control module locations are: Above the glove box, inside the center console, above the under-
DRAFT
DRAFT
8 © 2005 Directed Electronics—all rights reserved
dash fuse box, or above the radio.
mounting the antenna
The antenna position should be discussed with the vehicle’s owner prior to installation, since the antenna may
be visible to the vehicle’s operator. The best location for the antenna is centered high on either the front or
rear windshield. For optimal range, the antenna should be mounted horizontally. It can be mounted vertically
but range will be diminished. Metallic window tint can also affect range, so this should be a consideration when
determining the mounting location.
After determining the best mounting location, follow these steps:
1. Clean the mounting area with a quality glass cleaner or alcohol to remove any dirt or residue.
3. Mount the antenna using the supplied double-sided tape.
4. Route the antenna cable to the control module and plug it into the antenna connector.
IMPORTANT! To achieve the best possible range, DO NOT leave the antenna cable bundled under the
dash. Always extend the cable full length during installation, regardless of the antenna mounting
location.
locations for stinger doubleguard shock sensor
Some things to remember about where to mount the shock sensor:
Never put the Stinger® in the engine compartment!
Find a spot close to the control module so that the wires do not need to be extended. Keep it away from the
heater core (or any other heat sources) and any obvious leaks.
How the Stinger® is mounted is the most important factor in its performance. We recommend two meth-
ods:
Using double-sided tape or hook-and-loop fastener to mount to a trim panel or an air duct,
or
Wire-tying to a wire harness.
If mounting the sensor where it cannot be easily reached for adjustment, hook-and-loop fastening tape (such as
Velcro) is recommended for ease of removal for future adjustments.
NOTE: In many vehicles, tying the sensor to a steering column or screwing it to metal will result in
poor sensitivity, especially at the rear of the vehicle.
DRAFT
DRAFT
© 2005 Directed Electronics—all rights reserved 9
locations for valet/program switch
IMPORTANT! When the vehicle is delivered, please show the user where this switch is lo cat ed and
how to disarm the system with it.
Ensure that the location you pick for the switch has sufficient clearance to the rear. The switch should be well
hidden. It should be placed so pas sen gers or stored items (such as in a glove box or center console) cannot
accidentally hit it. The switch fits into a 9/32-inch hole.
This system has Remote Valet. The user can enter and exit Valet Mode without having to reach the Valet/Program
switch. This feature was introduced so that switch location was less critical in day-to-day use. As long as the
Valet/Program switch can be reached to disarm without a transmitter, easy access is not important.
locations for the status LED
Things to remember when po si tion ing the Status LED:
It should be visible from both sides and the rear of the vehicle, if possible.
It needs at least 1/2-inch clearance to the rear.
It is easiest to remove a small panel, such as a switch blank or a dash bezel, before drilling a 9/32-inch
hole.
Use quick-disconnects near the LED wires if the panel is re mov able. This lets me chan ics or other installers
remove the pan el with out cut ting the wires.
DRAFT
DRAFT
10 © 2005 Directed Electronics—all rights reserved
locations for the optional starter kill relay
If optional starter kill relay or its connections are immediately visible upon removal of the under-dash panel, they
can easily be bypassed. Always make the relay and its con nec tions difficult to discern from the factory wiring!
Exposed yellow butt connectors do not look like factory parts, and will not fool anyone! For this reason, routing
the optional starter kill wires away from the steering column is recommended.
locations for the relay satellite
The relay satellite wiring carries large amounts of current. The wires should not be extended and should be cut
to the minimum length necessary. Since the relay satellite is functioning as the ignition switch in the vehicle, it
is often convenient to mount the relay satellite close to the main ignition switch harness.
finding the wires you need
Now that you have decided where each component will be located, you’re going to find the wires in the car that
the security system will be connected to.
IMPORTANT! Do not use a 12V test light or logic probe (computer safe test light) to find these
wires! Use a digital multimeter for all testing.
obtaining constant 12V
We recommend two possible sources for 12V constant: the (+) terminal of the battery, or the constant supply to
the ignition switch. Always install a fuse within 12 inches of this connection. If the fuse also will be powering
other circuits such as door locks, fuse accordingly.
IMPORTANT! Do not remove the fuse holder on the red wire. It ensures that the control module
has its own fuse, of the proper value, regardless of how many accessories are added to the main power
feed.
DRAFT
DRAFT
© 2005 Directed Electronics—all rights reserved 11
finding the 12V switched ignition wire
The ignition wire is powered when the key is in the run or start position. This is because the ignition wire powers
the ignition system (spark plugs, coil) as well as the fuel delivery system (fuel pump, fuel injection computer).
Accessory wires lose power when the key is in the start position to make more current avail able to the starter
motor.
How to find (+)12V ignition with your multimeter:
1. Set to DCV or DC voltage (12V or 20V is fine).
2. Attach the (-) probe of the meter to chassis ground.
3. Probe the wire you suspect of being the ignition wire. The steering
column harness or ig ni tion switch harness is an excellent place to find
this wire.
4. Turn the ignition key switch to the run position. If your meter reads (+)12V,
go to the next step. If it doesn’t, probe another wire.
5. Now turn the key to the start po si tion. The meter display should stay
steady, not drop ping by more than a few tenths of a volt. If it drops close to or all the way to zero, go back
to Step 3. If it stays steady at (+)12V, you have found an ig ni tion wire.
finding the starter wire
The starter wire provides 12V directly to the starter or to a relay controlling the starter. In some vehicles, it is
necessary to power a cold start circuit. A cold start circuit will test exactly like a starter circuit, but it does not
control the starter. Instead, the cold start circuit is used to prime the fuel injection system for starting when
the vehicle is cold.
How to find the starter wire with your multimeter:
1. Set to DCV or DC voltage (12V or 20V is fine).
2. Attach the (-) probe of the meter to chassis ground.
3. Probe the wire you suspect of being the starter wire. The steering
column is an ex cel lent place to find this wire. Re mem ber you do not
need to interrupt the starter at the same point you test it. Hiding your
optional starter kill relay and con nec tions is always rec om mend ed.
4. Turn the ignition key switch to the start position. Make sure the car
is not in gear! If your meter reads (+)12V, go to the next step. If it
doesn’t, probe another wire.
5. Cut the wire you suspect of being the starter wire.
6. Attempt to start the car. If the starter engages, reconnect it and go back to Step 3. If the starter does not
DRAFT
DRAFT
12 © 2005 Directed Electronics—all rights reserved
turn over, you have the right wire.
finding the accessory wire
An accessory wire will show +12V when the key is in the accessory and run positions. It will not show +12V
during the cranking cycle. There will often be more than one accessory wire in the ignition harness. The correct
accessory wire will power the vehicle's climate control system. Some vehicles may have separate wires for the blower
motor and the air conditioning compressor. In such cases, it will be necessary to add a relay to power the second
accessory wire.
finding the tachometer wire
To test for a tachometer wire, a multimeter capable of testing AC voltage must be used. The tachometer wire will
show between 1V and 6V AC. In multi-coil ignition systems, the system can learn individual coil wires. Individual
coil wires in a multi-coil ignition system will register lower amounts of AC voltage. Also, if necessary, the system
can use a fuel injector control wire for engine speed sensing. Common locations for a tachometer wire are the
ignition coil itself, the back of the gauges, engine computers, and automatic transmission computers.
IMPORTANT! Do not test tachometer wires using a test light or logic probe (computer safe test light)!
This will damage the vehicle.
How to find a tachometer wire with your multimeter:
1. Set to ACV or AC voltage (12V or 20V is fine).
2. Attach the (-) probe of the meter to chassis ground.
3. Start and run the vehicle.
4. Probe the wire you suspect of being the tachometer wire with the red probe of the meter.
5. If this is the correct wire the meter will read between 1V and 6V.
finding the wait-to-start bulb wire for diesels
In diesel vehicles it is necessary to interface with the wire that turns on the WAIT TO START light in the dash-
board. This wire illuminates the bulb until the vehicle’s glow plugs are properly heated. When the light goes out
the vehicle can be started. This wire is always available at the connector leading to the bulb in the dashboard.
It can also be found at the Engine Control Module (ECM) in many vehicles.
To test and determine the polarity of this wire:
1. Set your multimeter to DCV or DC voltage (12 or 20V is fine).
2. Attach the (+) probe of the meter to (+)12V.
3. Probe the wire that you suspect leads to the bulb with the (-) probe of the meter.
4. Turn the ignition switch to the ON position.
5. If the meter indicates 12 volts until the light goes out you have isolated the correct wire and the wire's
DRAFT
DRAFT
© 2005 Directed Electronics—all rights reserved 13
polarity is negative (ground while the bulb is on).
6. If the meter reads zero volts until the light goes out and then reads 12 volts, you have isolated the correct
wire and the wire's polarity is positive.
finding a (+) parking light wire
The (+) parking light wire is often found near the switch. Many cars have the switch built into the turn signal
lever, and in these cars the parking light wire can be found in the steering column. The same wire is often avail-
able in the kick panel or running board.
NOTE: Many Toyotas, as well as many other Asian vehicles, send a (-) signal from the switch to a
relay. The relay then sends (+)12V to the bulbs. Whenever you have difficulty finding a (+) parking
light wire near the switch, simply test the wires at any switch or control panel which is lit by the
instrument panel lighting. Remember, you need a (+) parking light wire that does not vary with
the dimmer setting.
How to find a (+) parking light flash wire with your multimeter:
1. Set to DCV or DC voltage (12V or 20V is fine).
2. Attach the (-) probe of the meter to chassis ground.
3. Probe the wire you suspect of being the parking light wire. Usually, the area near the headlight/park ing light
switch is an excellent area to start, as is the kick panel.
4. Turn on the parking lights. If your meter shows (+)12V, turn off the parking lights and make sure it goes back
to zero.
5. If it does return to zero, turn the parking lights back on and, using the dash light dim mer con trol, turn the
brightness of the dash lights up and down. If the meter changes more than a volt when using the dimmer,
look for an oth er wire. If it stays relatively close to (+)12V, you have found your parking light wire.
finding the door pin switch circuit
The best places to find the door switch wire are:
At the pin switch: When testing at the pin switch, check the wire to ensure that it “sees” all the doors. Often,
the passenger switch will cover all the doors even if the driver’s switch will not.
DRAFT
DRAFT
14 © 2005 Directed Electronics—all rights reserved
At the dome light: This may not be your best choice if the vehicle has delayed domelight supervision, but it
will work in many Hondas, or any vehicle with completely diode-isolated pin switches.
Once you have determined the wire color, the easiest place to connect to the wire is often at the kick panel,
at the windshield pillar, or in the running board. When an easy location is not available, running a wire to the
domelight itself is often the best solution.
How to find a door pin switch trigger wire with your multimeter:
1. Set to DCV or DC voltage (12V or 20V is fine).
2. In most Fords, fasten the (-) probe of the meter to chassis ground. In most other cars, fasten the (+) probe
of your meter to (+)12V con stant.
3. Probe the wire you suspect of being the door trigger wire. If the meter reads (+)12V when any door
is opened, you have found a trigger wire.
NOTE: Make sure the wire you use “sees” all the doors! Some newer GM vehicles lack standard-
type pin switches. The dome light in these vehicles is turned on when the door handle is lifted.
These usually have a blue/white or white wire coming out of the door into the kick panel which
will provide a (-) trigger for all doors. Some GM vehicles (some Cavaliers, Grand Ams, etc.) have a
yellow wire coming out of the door which provides a (+) door trigger.
making your wiring connections
Before making your connections, plan how your wires will be routed through the vehicle. For instance, the red
12V constant input and the orange ground-when-armed output (for the optional starter kill relay) will often be
routed together to the ignition switch harness. In order to keep the wiring neat and make it harder to find, you
may wish to wrap these wires together in electrical tape or conceal them in tubing similar to what the manu-
facturer used.
There are two acceptable ways of making a wire connection - solder con nec tions and crimp connectors. When
properly performed, either type of connection is reliable and trouble-free. Regardless of whether you solder your
connections or you use mechanical-type crimp-on connections, ensure that all connections are mechanically
sound and that they are insulated.
Cheap electrical tape, especially when poorly applied, is not a reliable insulator. It often falls off in hot weather.
Use good-quality electrical tape or heat shrink.
Never twist-and-tape the wires together without soldering.
Never use “fuse taps”, as they can damage fuse box terminals.
If you use tapping connectors such as 3M T-Taps (not to be confused with Scotch-Locks), avoid using them in
higher-current applications (constant 12V, ground, etc.). Some tapping connectors are inferior in quality and
DRAFT
DRAFT
© 2005 Directed Electronics—all rights reserved 15
should be avoided.
primary harness (H1), 12-pin connector
H1/1
H1/2
H1/3
H1/4
H1/5
H1/6
H1/7
H1/8
H1/9
H1/10
H1/11
H1/12
______ RED/WHITE (-) 200 mA CHANNEL 2 VALIDITY OUTPUT
______ RED (+) CONSTANT POWER INPUT
______ BROWN (+) SIREN OUTPUT
______ EMPTY NOT USED
______ BLACK (-) CHASSIS GROUND INPUT
______ VIOLET (+) DOOR TRIGGER INPUT, ZONE 3
______ BLUE (-) MULTIPLEXED INPUT, ZONE 4
______ GREEN (-) DOOR TRIGGER INPUT, ZONE 3
______ BLACK/WHITE (-) 200 mA DOMELIGHT SUPERVISION OUTPUT
______ WHITE/BLUE (-) REMOTE START ACTIVATION INPUT
______ WHITE (+)/(-) SELECTABLE LIGHT FLASH OUTPUT
______ ORANGE (-) 500 mA ARMED OUTPUT
auxiliary harness (H2), 6-pin connector
H2/1
H2/2
H2/3
H2/4
H2/5
H2/6
______ LIGHT BLUE (-) SECOND UNLOCK OUTPUT
______ WHITE/BLACK (-) CHANNEL 5 OUTPUT
______ VIOLET/BLACK (-) CHANNEL 4 OUTPUT
______ GREEN/WHITE (-) FACTORY ALARM REARM
______ GRAY/BLACK (-) WAIT TO START INPUT
______ LIGHT GREEN/BLACK (-) FACTORY ALARM DISARM
DRAFT
DRAFT
16 © 2005 Directed Electronics—all rights reserved
door lock harness, 3-pin connector
1
2
3
______ LIGHT BLUE (+) LOCK (-) UNLOCK OUTPUT
______ EMPTY NOT USED
______ GREEN (-) LOCK (+) UNLOCK OUTPUT
Note: Refer to TechTip 1041 for wiring information.
remote start ribbon harness, wiring diagram
1
2
3
4
5
6
7
______ PINK/WHITE 200 mA (-) PROGRAMMABLE IGN2/ACC2 RELAY TURN ON
______ YELLOW (+) IGNITION INPUT TO ALARM
______ PINK (-) 200 mA IGNITION RELAY TURN-ON
______ ORANGE (-) 200 mA ACCESSORY RELAY TURN-ON
______ PURPLE (-) 200 mA STARTER RELAY TURN-ON
______ ORANGE/BLACK (-) ANTIGRIND/GROUND WHEN ARMED OUTPUT
______ BLUE (-) 200 mA STATUS OUTPUT
This ribbon harness connects to the relay satellite.
DRAFT
DRAFT
© 2005 Directed Electronics—all rights reserved 17
heavy gauge inline connector
key switch interface
1
2
3
4
5
6
7
8
______ PURPLE (+) STARTER OUTPUT TO STARTER (STARTER SIDE)
______ GREEN STARTER INPUT FROM IGNITION (KEY SIDE)
______ RED (+) HIGH CURRENT 12V INPUT
______ ORANGE (+) OUTPUT TO ACCESSORY CIRCUIT
______ PINK (+) OUTPUT TO PRIMARY IGNITION CIRCUIT
______ RED (+) (30A) HIGH CURRENT 12V INPUT
______ PINK/WHITE (+) OUTPUT TO SECOND IGNITION CIRCUIT
______ RED/WHITE (+) (30A) HIGH CURRENT 12V INPUT
remote start harness (H3), 5-pin connector
H3/1
H3/2
H3/3
H3/4
H3/5
______ BLACK/WHITE (-) NEUTRAL SAFETY SWITCH INPUT
______ VIOLET/WHITE TACHOMETER INPUT WIRE
______ BROWN (+) BRAKE SHUTDOWN WIRE
______ GRAY (-) HOOD PINSWITCH INPUT, ZONE 1
______ BLUE/WHITE (-) 200 mA 2ND STATUS/REAR DEFOGGER- LATCHED/PULSED
horn, channel 6 (H4), 2-pin connector
H4/1
H4/2
______ ORANGE/BLACK CHANNEL 6 OUTPUT
______ BROWN (-) 200mA HORN
DRAFT
DRAFT
18 © 2005 Directed Electronics—all rights reserved
primary harness (H1) wire connection guide

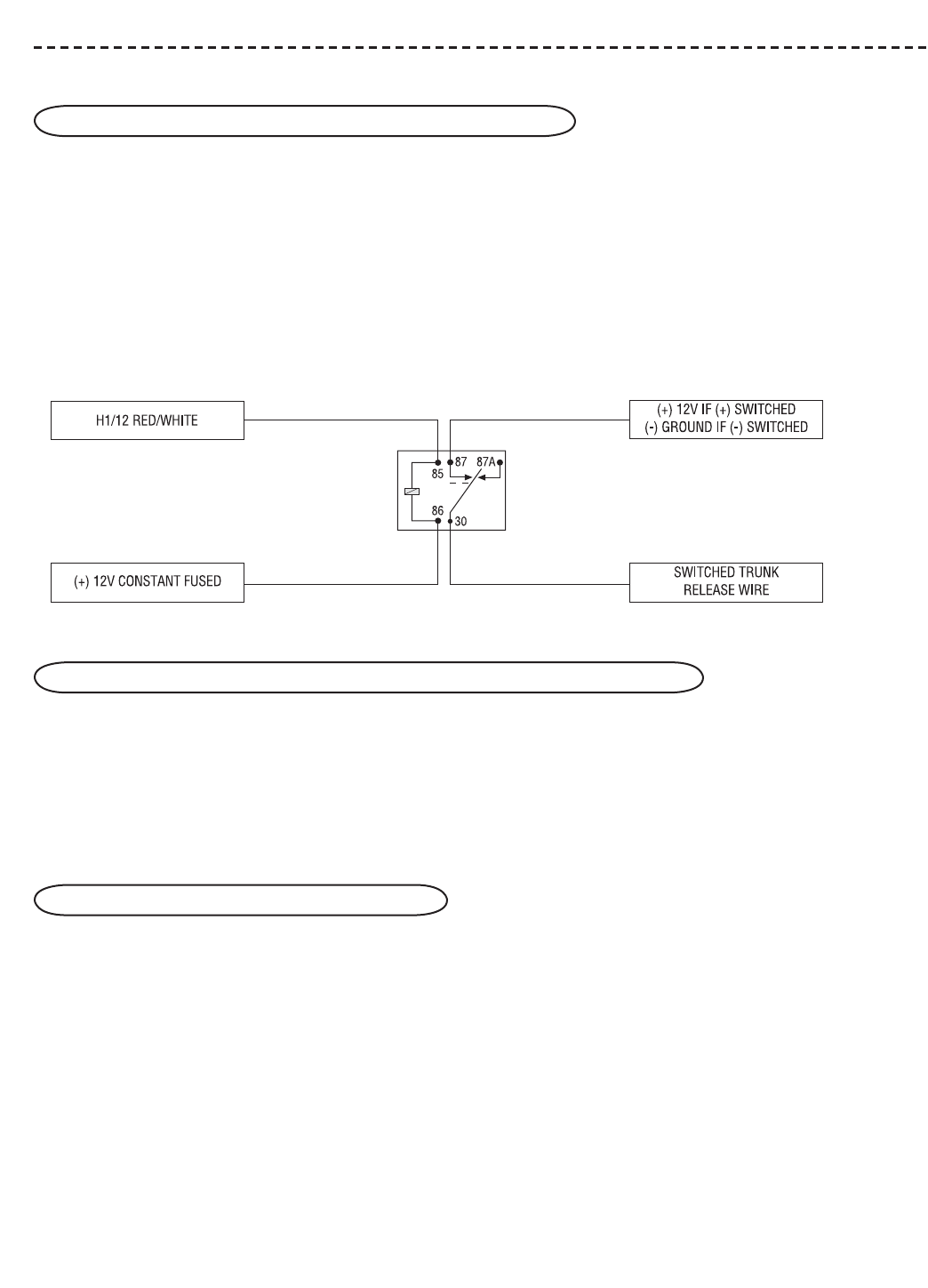

H1/1 RED/WHITE channel 2, 200mA (-) output
When the system receives the code controlling Channel 2, for longer than 1.5 seconds, the red/white wire will
supply an output as long as the transmission continues. This is often used to operate a trunk/hatch release or
other relay-driven function.
IMPORTANT! Never use this wire to drive anything but a relay or a low-current input! The transistor-
ized output can only supply 200 mA of current. Connecting directly to a solenoid, motor, or other
high-current device will cause it to fail.
H1/2 RED (+)12V constant power input
Before connecting this wire, remove the supplied fuse. Connect to the battery positive terminal or the constant
12V supply to the ignition switch.
NOTE: Always use a fuse within 12 inches of the point you obtain (+)12V. Do not use the 15A fuse
in the harness for this purpose. This fuse protects the module itself.
H1/3 BROWN (+) siren output
Connect this to the red wire of the siren. Connect the black wire of the siren to (-) chassis ground, preferably at
the same point you connected the control module’s black ground wire. See Features Description section for horn
output.
DRAFT
DRAFT
© 2005 Directed Electronics—all rights reserved 19
H1/5 BLACK (-) chassis ground connection
Remove any paint and connect this wire to bare metal, preferably with a factory bolt rather than your own screw.
(Screws tend to either strip or loosen with time.) We recommend grounding all your components, including the
siren, to the same point in the vehicle.
H1/6 VIOLET (+) door trigger input, zone 3
This wire is used in vehicles that have a positive (+) switched dome light circuit. Connect the violet wire to a wire
that shows (+)12V when any door is opened, and ground when the door is closed. This wire will report Zone 3.
H1/7 BLUE (-) multiplex input, zone 4
Inputs shorter than 0.8 seconds will trigger the Warn Away response, while inputs longer than 0.8 seconds will
trigger the full alarm sequence. If installing an optional Directed Electronics dual stage sensor, connect both the
blue and the green wires of the optional sensor to this input. This wire will report Zone 4.
DRAFT
DRAFT
20 © 2005 Directed Electronics—all rights reserved
H1/8 GREEN (-) door trigger input, zone 3
Most vehicles use negative door trigger circuits. Connect the green wire to a wire which shows ground when any
door is opened. In vehicles with factory delays on the domelight circuit, there is usually a wire that is unaffected
by the delay circuitry. This wire will report Zone 3.
H1/9 BLACK/WHITE (-) 200 mA domelight supervision output
Connect this wire to the optional domelight supervision relay as shown below:
IMPORTANT! This output is only intended to drive a relay. It cannot be connected directly to the
domelight circuit, as the output cannot support the current draw of one or more light bulbs.
H1/10 WHITE/BLUE remote start (-) activation input
This input comes from the factory set to 2 activation pulses. This means that it is necessary to have 2 consecu-
tive ground pulses on the white/blue wire for the remote start to activate or to deactivate. The same holds true
for the remote control activation when set to a two pulse setting it is necessary to press the button twice
for the remote start to activate or deactivate.
NOTE: The number of activation inputs can be programmed to 1 or 2 pulses. This setting affects
both the input wire and the remote control when operating the remote starter.
DRAFT
DRAFT
© 2005 Directed Electronics—all rights reserved 21
H1/11 WHITE (+/-) selectable light flash output
As shipped, this wire should be connected to the (+) parking light wire. If the light flash polarity jumper under
the sliding door is moved to the opposite position (see Internal Programming Jumper section of this guide), this
wire supplies a (-) 200 mA output. This is suitable for driving (-) light control wires in Toyota, Lexus, BMW, some
Mitsubishi, some Mazda, and other model cars.
(+) Positive Light Flash Output
(-) Light Flash Output
NOTE: For parking light circuits that draw 10 amps or more, the internal jumper must be switched
to a (-) light flash output. (See the Internal Programming Jumper section of this guide.) P/N 8617
or a standard automotive SPDT relay must be used on the H1/2 light flash output harness wire.
H1/12 ORANGE (-) ground-when-armed output
This wire supplies a (-)500 mA ground as long as the system is armed. This output ceases as soon as the system
is disarmed. The orange wire may be wired to an optional Directed Electronics 8618 starter kill relay.
DRAFT
DRAFT
22 © 2005 Directed Electronics—all rights reserved
secondary harness (H2) wire connection guide
H2/1 LIGHT BLUE (-) 200mA 2nd unlock output
This wire provides a second unlock output for progressive locks. Refer to document 1041—Door Locking System
Wiring Guide for specific applications.
H2/2 WHITE/BLACK 200 mA (-) programmable channel 5 output
This wire provides 200 mA programmable output. (See Feature Descriptions section of this guide.)
IMPORTANT! Never use this wire to drive anything but a relay or a low-current input! This tran-
sistorized output can only supply 200 mA, and connecting directly to a solenoid, motor, or other
high-current device will cause the module to fail.
H2/3 VIOLET/BLACK 200 mA (-) programmable channel 4 output
This wire provides 200 mA programmable output. (See Feature Descriptions section of this guide.)
IMPORTANT! Never use this wire to drive anything but a relay or a low-current input! This tran-
sistorized output can only supply 200 mA, and connecting directly to a solenoid, motor, or other
high-current device will cause the module to fail.
H2/4 GREEN/WHITE (-) factory alarm rearm
This wire sends a negative pulse every time the remote start shuts down or the doors are locked. This can be used to
pulse the arm wire of the vehicle's factory anti-theft device. Use a relay to send a (-) or (+) pulse to the arm wire.
H2/5 GRAY/BLACK (-) diesel wait-to-start bulb input
Connect this wire to the wire in the vehicle that sends the signal to turn on the WAIT-TO-START bulb in the dash-
board. In most diesels the wire is negative (ground turns on the bulb) and the GRAY/BLACK wire can be directly
connected to the wire in the vehicle. If the vehicle uses a positive wire (12V to turn on the bulb) a relay must
be used to change the polarity. (See Finding the Wires You Need section of this guide.) Here are some common
colors of this wire:
Chevrolet and GMC trucks - Light blue or dark blue
Ford Trucks - Black/pink
Dodge Ram Trucks - Orange/black or black/orange
DRAFT
DRAFT
© 2005 Directed Electronics—all rights reserved 23

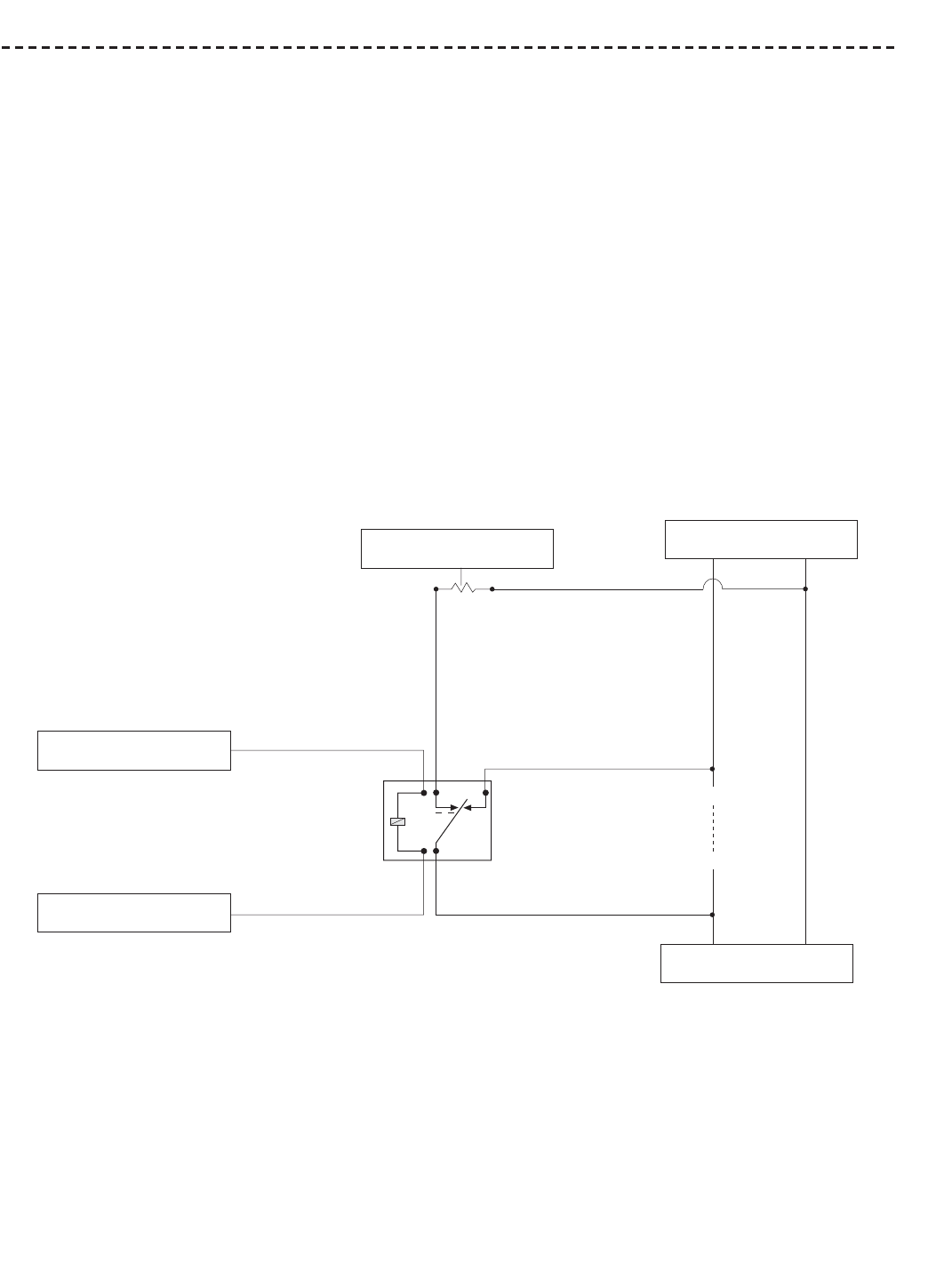

NOTE! A 1-amp diode must be installed in line on the factory wire between the wait-to-start indica-
tor and the ECM. (See the following diagram for details.)
DRAFT
DRAFT
24 © 2005 Directed Electronics—all rights reserved
H2/6 LIGHT GREEN/BLACK (-) factory disarm
This wire sends a negative pulse every time the remote start is activated or the doors are unlocked. This can be
used to pulse the disarm wire of the vehicle's factory anti-theft device. Use a relay to send a (-) or (+) pulse to
the disarm wire as shown in the following diagrams.

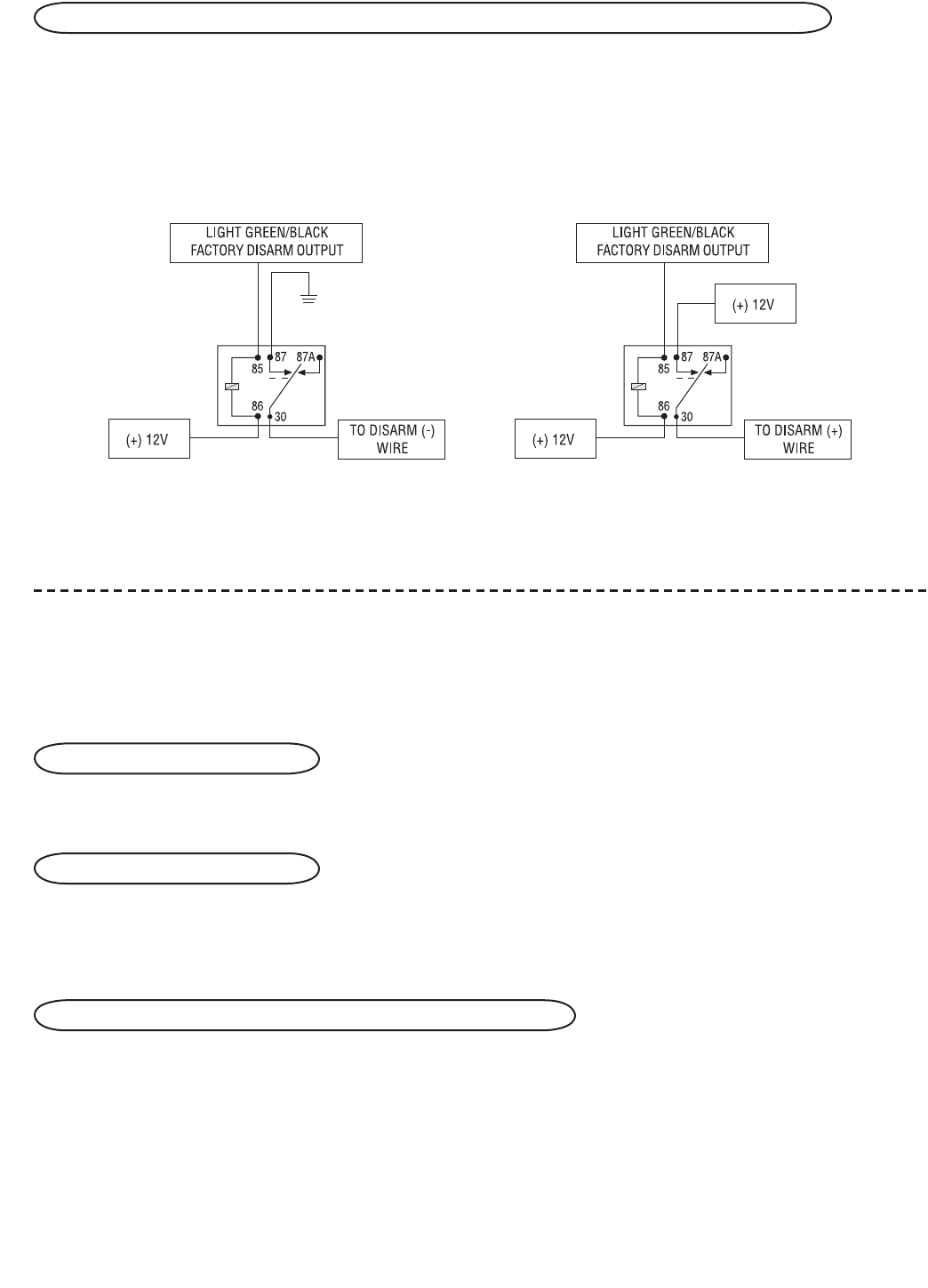

Relay for Negative (-) Disarm Wire Relay for Positive (+) Disarm Wire
relay satellite wire connection guide
The 8 heavy gauge wires coming from the large connector are used to energize high current circuits in the vehicle.
It is crucial that these connections are well-made and capable of handling the current demands. For this reason,
Scotch-Locks, T-taps and other such connectors are strongly discouraged.
PURPLE (+) starter output
Connect this wire to the starter wire in the vehicle. (See Finding the Wires You Need section.)
GREEN starter input
For anti grind or starter kill attach this wire to the key side of the starter wire for anti grind and for the starter
kill to be active.
RED (2) (+)12V input for high current outputs
Remove the two 30-amp fuses prior to connecting these wires and do not replace them until the satellite has
been plugged into the control module. These wires are the source of current for all the circuits the relay satel-
lite will energize. They must be connected to a high current source. Since the factory supplies (+)12V to the key
switch that is used to operate the motor, it is recommended that these wires be connected there.
DRAFT
DRAFT
© 2005 Directed Electronics—all rights reserved 25
NOTE: If the factory supplies two separate (+) 12V feeds to the ignition switch, connect one RED
wire of the satellite to each feed at the switch.
ORANGE (+) accessory output
Connect this wire to the accessory wire in the vehicle which powers the climate control system.
PINK (+) ignition output
Connect this wire to the ignition wire in the vehicle.
PINK/WHITE (+) second ignition output
Connect this wire to the second ignition wire in the vehicle. (See Finding the Wires You Need section.)
NOTE: For vehicles that do not have a second ignition wire, this connection is not required.
RED/WHITE (+) 12V input
Connection for high current outputs.
remote start secondary harness (H3) wire
connection guide
H3/1 BLACK/WHITE neutral safety switch input
Connect this wire to the provided toggle (override) switch as shown in figure A. Connect the other wire from the
toggle switch to the PARK/NEUTRAL switch in the vehicle. This wire will test with ground with the gear selector
either in PARK or NEUTRAL. This will prevent the vehicle from accidentally being started while in a drive gear.
This input MUST rest at ground in order for the remote start system to operate. Connected properly the vehicle
will only start while in PARK or NEUTRAL.
In some vehicles, the PARK/NEUTRAL position switch activates a factory starter lock out that will not allow the
starter to operate in a drive gear. In these vehicles, connect this wire to the toggle switch as shown in figure B.
Connect the other wire from the toggle switch to chassis ground.
DRAFT
DRAFT
26 © 2005 Directed Electronics—all rights reserved
IMPORTANT! Always perform the Safety Check section of this installation guide to verify that the
vehicle cannot be started in ANY drive gear and that the override switch is functioning properly.
DRAFT
DRAFT
© 2005 Directed Electronics—all rights reserved 27
Figure A Figure B
H3/2 VIOLET/WHITE tachometer input
This input provides the module with information about the engine's revolutions per minute (RPMs). It can be
connected to the negative side of the coil in vehicles with conventional coils. In multi-coil and high energy
ignition systems locating a proper signal may be more difficult. (See Finding the Wires You Need section of this
guide.) Once connected, you must teach the system the tach signal. (See the Internal Programming Jumpers
section of this guide.)
H3/3 BROWN (+) brake switch input, zone 1
This wire MUST be connected to the vehicle's brake light wire. This is the wire that shows (+) 12V when the
brake pedal is depressed. The remote start will be disabled or shut down any time the brake pedal is depressed.
This wire will also trigger the security system if the brake pedal is pressed while the system is armed and will
report Zone 1.
H3/4 GRAY (-) hood pinswitch input, zone 1
This wire MUST be connected to hood pinswitch. This input will disable or shut down the remote start when the
hood is opened. It will also trigger the security system if the hood is opened while the system is armed and report
Zone 1.
H3/5 BLUE/WHITE (-) status output
This wire supplies a 200mA output as soon as the module begins the remote start process. The H3/1 BLUE wire
can also be used to activate the defogger trigger (latched/pulsed) 10-seconds after the remote start engages.
(See the Feature Descriptions section in this guide for details about programming this output.)
DRAFT
DRAFT
28 © 2005 Directed Electronics—all rights reserved
horn, channel 6 harness (H4) wire
connection guide
H4/1 ORANGE/BLACK 200 mA programmable (-) channel 6 output
This wire provides a (-) 200mA output whenever the transmitter button(s) controlling Channel 6 is pressed. (see
also the Feature Descriptions section and previous channel 5 description):
IMPORTANT! Never use this wire to drive anything but a relay or a low-current input! This tran-
sistorized output can only supply 200 mA, and connecting directly to a solenoid, motor, or other
high-current device will cause the module to fail.
H4/1 BROWN 200 mA (-) horn output
This wire provides a (-) 200mA output to the horn when programmed.
IMPORTANT! Never use this wire to drive anything but a relay or a low-current input! This tran-
sistorized output can only supply 200 mA, and connecting directly to a solenoid, motor, or other
high-current device will cause the module to fail.
neutral safety switch interface
Some vehicles do not have an electrical neutral safety switch. Instead, a mechanical neutral safety switch that
physically interrupts the starter wire is used when the vehicle is in any drive gear. If the remote start is inter-
faced before this switch, it will provide protection from starting in gear. However, some vehicles combine the
column shift mechanism and the mechanical neutral safety switch into one mechanical part. In these vehicles,
it is impossible to interface the remote start system before the neutral safety switch. With this type of vehicle,
if the car is left in a drive gear and the remote start system is activated, the vehicle will move and may cause
damage to persons or property.
According to available information, the only vehicles currently manufactured this way are most General Motors
trucks, sport utility vehicles and column shifting passenger cars. Available information also indicates that pre-
1996 Dodge Dakota pickups with 2.5 liter motors are manufactured this way as well.
GM vehicles that have the neutral safety switch built into the column shifter can usually be identified by a purple
starter wire. Typically, vehicles that use an outboard mechanical switch use a yellow wire from the ignition switch
DRAFT
DRAFT
© 2005 Directed Electronics—all rights reserved 29
to the mechanical switch and a purple wire from the mechanical switch to the starter itself. Remember, this is
only a rule of thumb and is not intended as a substitute for proper testing.
We suggest the following procedure to test for vehicles manufactured in this way.
NOTE: You must complete the remote start system installation before doing the following test.
Ensure that the remote start system is functioning normally. This includes connecting to the brake
as a shut-down.
testing the neutral safety switch
1. Make sure there is adequate clearance to the front and rear of the vehicle because it may move slightly.
2. Make sure the hood is closed and there are no remote start shut-downs active.
3. Set the emergency brake.
4. Turn the key to the "run" position, this will release the shifter.
5. Place the car in drive (D).
6. Place your foot directly over the brake pedal, but do not depress it. Be ready to step on the brake if the
starter engages.
7. Activate the remote start system.
8. If the starter engages, immediately depress the brake to shut the remote start system down. If the starter
does not engage, no additional safety system is required.
If the starter engages and the vehicle is a General Motors product or Dodge Dakota pickup, refer to the follow-
ing text and diagrams for an alternative shut-down method which will prevent the starter from engaging. If
the vehicle is not a General Motors product or a Dodge Dakota pickup, please call Directed Electronics Technical
Support for an alternative shut-down method. Do not return the vehicle to the customer until this feature is
properly installed!
Every vehicle built in this fashion requires that the shifter be placed in park to remove the keys from the igni-
tion. As a result, it is possible to use the key-in-ignition sense switch to prevent remote starting if the keys are
in the ignition. The following diagrams illustrate how to accomplish this. The first diagram applies to all General
Motors vehicles at the present time. The second diagram applies to all pre-1996 Dodge Dakota pickup trucks
with 2.5 liter motors. This solution has one side effect - if the customer inserts the key in the ignition with the
driver's door open, the remote start system will shut down. If this interface is used it is important to inform the
customer to close the driver’s door before inserting the key into the ignition when the remote start is active.
This will allow the customer to turn the key on and shut the remote start down by pressing the brake without
the key sense wire shutting down the unit prematurely.
In addition, you must connect a tan (+) shut-down input to the yellow wire on the relay satellite ribbon cable.
This prevents the remote start system from activating if the key is left in the "run" position. If your remote start
system only has one tan input, you must use diodes to isolate the ignition circuit from the brake switch input.
DRAFT
DRAFT
30 © 2005 Directed Electronics—all rights reserved
However, due to future manufacturer changes in vehicles, it is possible that this may not apply to all vehicles.
In addition, color variations are possible from model to model; make sure to test the circuit carefully. Please call
Directed Electronics Technical Support if you need assistance in making this interface.
IMPORTANT! Once the interface is complete, attempt to remote start the vehicle with the door closed
and the key in the ignition. The vehicle should not start. If it does, recheck the connections.

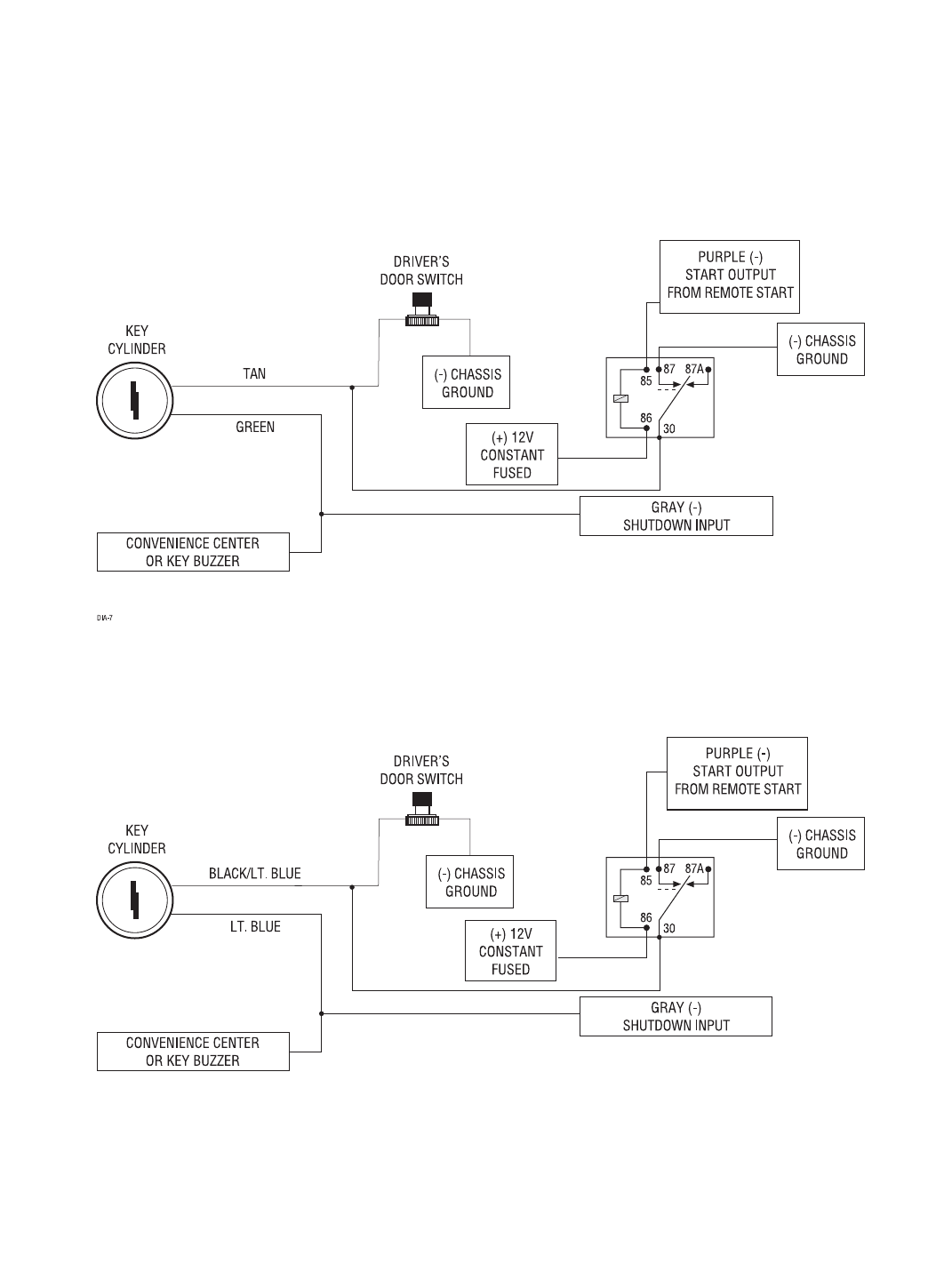

General Motors trucks, sport utility vehicles and column shifting passenger vehicles:
Pre-1996 Dodge Dakota pickups with 2.5 liter motors:
DRAFT
DRAFT
© 2005 Directed Electronics—all rights reserved 31
bypassing GM vehicle anti-theft systems (VATS)
Vehicles with the GM VATS (Pass Key) systems have a resistor embedded in the ignition key. If the VATS decoder
module does not measure the proper resistance when the vehicle is started, the starter and fuel pump may be
disabled for up to ten minutes. An optional "VATS pack" of resistors is available (p/n 652T). One of the resistors in
the pack will match the resistor in the key.
The VATS wires will be two very light-gauge wires coming out of the steering column. The colors of the wires
vary, but they are often contained in orange tubing - either both will be white wires, or one wire will be purple/
white and the other white/black. Determine the value of the resistor in the key. Then follow the diagram below
to bypass VATS during remote start operation. If the BLUE status output from the relay satellite has been pro-
grammed for factory security re-arm, then use the (H3/5) BLUE/WHITE 2nd status output from the control module
to control the relay.
NOTE: When connecting to the VATS wires, it is not important which wire is cut.
BLUE OR
BLUE/WHITE
(+) 12V CONSTANT FUSED
85
86 30
87 87A
TO IGNITION KEY SWITCH
X
X
CUT
PROPER RESISTOR VALUE
TO VATS DECODER MODULE
WHITE OR WHITE/BLACK
WHITE OR PURPLE/WHITE
DRAFT
DRAFT
32 © 2005 Directed Electronics—all rights reserved
1995 and newer vehicle anti-theft systems
(immobilizers)
1995 and newer vehicle anti-theft systems (immobilizers) require a bypass module. The bypass module allows for
easy interfacing, while still maintaining the OEM system’s integrity.
passlock I and passlock II (PL-1 and PL-2)
The Passlock I and Passlock II systems can be found in the following General Motors vehicles:
‘95 and newer Cavalier and Sunfire
‘96 and newer Achieva, Grand Am, and Skylark
‘97 and newer Intrigue, Malibu, and Cutlass
‘98 and newer trucks, vans, SUVs
‘99 and newer Alero
2000 and newer Impala and Saturn
Passlock I and II systems are VATS-evolved. Passlock systems still rely on the R-code to start, but the pellet is
no longer placed in the key. The resistor can now be found in the key switch. This allows for a greater number
of possible R-codes. In addition, Passlock systems require “seeing” the correct R-code at the correct time. To
bypass Passlock I and II, p/n 555L or p/n 555T is required.
passkey III (PK-3), transponder-based systems
The Passkey III system can be found in the following vehicles:
‘97 and newer Park Avenue
‘98 and newer Cadillac
‘99 and newer U vans, Transport, Montana, and Silhouette
2000 and newer Grand Prix, Lesabre, Monte Carlo, Lumina, Bonneville
2001 and newer Aurora, Aztek and Rendezvous
Other transponder-based systems include: Acura, BMW, Dodge/Chrysler/Jeep, Ford, Honda, Infinity, Mazda,
Mercedes, Mitsubishi, Nissan, Toyota, Volkswagon, and Volvo.
PK-3 and the transponder-based systems use a transponder system that locks out the ignition and fuel system.
This transponder system is comprised of two parts. The first part, the transceiver, circles the key switch and is
activated when the key is placed in the key switch or turned to the run position. Upon activation, the transceiver
will excite the transponder, which is located (but not visible) in the head of the ignition key. The key transpon-
DRAFT
DRAFT
© 2005 Directed Electronics—all rights reserved 33
der will then send a unique code back to the transceiver for evaluation. If the code matches a valid code of the
system, the vehicle will be allowed to start. Most of these transponder-based systems can be bypassed using p/n
555U. Some may require additional parts from the vehicle manufacturer. Consult you dealer for the applications.
For most Ford PATS transponders, p/n 555F can be used, except for the following vehicles, which will require p/n
555U: ‘97 and newer Mark VII, and 2000 and newer Taurus/Sable, Contour/Mystique and Focus.
plug-in LED and valet/program switch
These plug into the module. The Status LED plugs into the small two-pin socket, while the Valet/Program Switch
should be plugged into the larger blue two-pin connector. The Status LED fits into a 9/32-inch hole.
Status LED Valet/Program Switch
DIA-41
programmer interface, 3-pin black plug
The black 3-pin port is provided for personal computer programming of the unit. The unit can also be pro-
grammed using the Bitwriter® (p/n 998T). When using the Bitwriter, it is possible to configure any and all of
the programmable functions as well as lock the Transmitter/Receiver and System Features Learn Routines so that
unauthorized users cannot change the configuration or program transmitters to the unit.
When the learn routines have previously been programmed using the Bitwriter, they may have been locked.
Before proceeding with reprogramming the learn routines, they must be unlocked with the Bitwriter - this
cannot be done manually with the Valet switch.
DRAFT
DRAFT
34 © 2005 Directed Electronics—all rights reserved
shock sensor harness, 4-pin connector
GREEN (-) multiplex input, zone 4
Inputs shorter than 0.8 seconds will trigger the Warn Away response, while inputs longer than 0.8 seconds will trigger
full alarm sequence and report Zone Four. If installing an optional Directed Electronics dual stage sensor, connect to
the green wire as shown below. The diagram below eliminates the need for diodes to isolate the sensors.
Diagram for adding optional Directed Electronics dual stage sensor to green wire (Zone 4):
BLUE (-) multiplex input, zone 2
Inputs shorter than 0.8 seconds will trigger the Warn Away® response, while inputs longer than 0.8 seconds will
trigger full alarm sequence and will also report Zone Two.
RED and BLACK: RED is (+)12V constant, BLACK is (-) ground
Do not use these for anything besides the plug-in shock sensor.

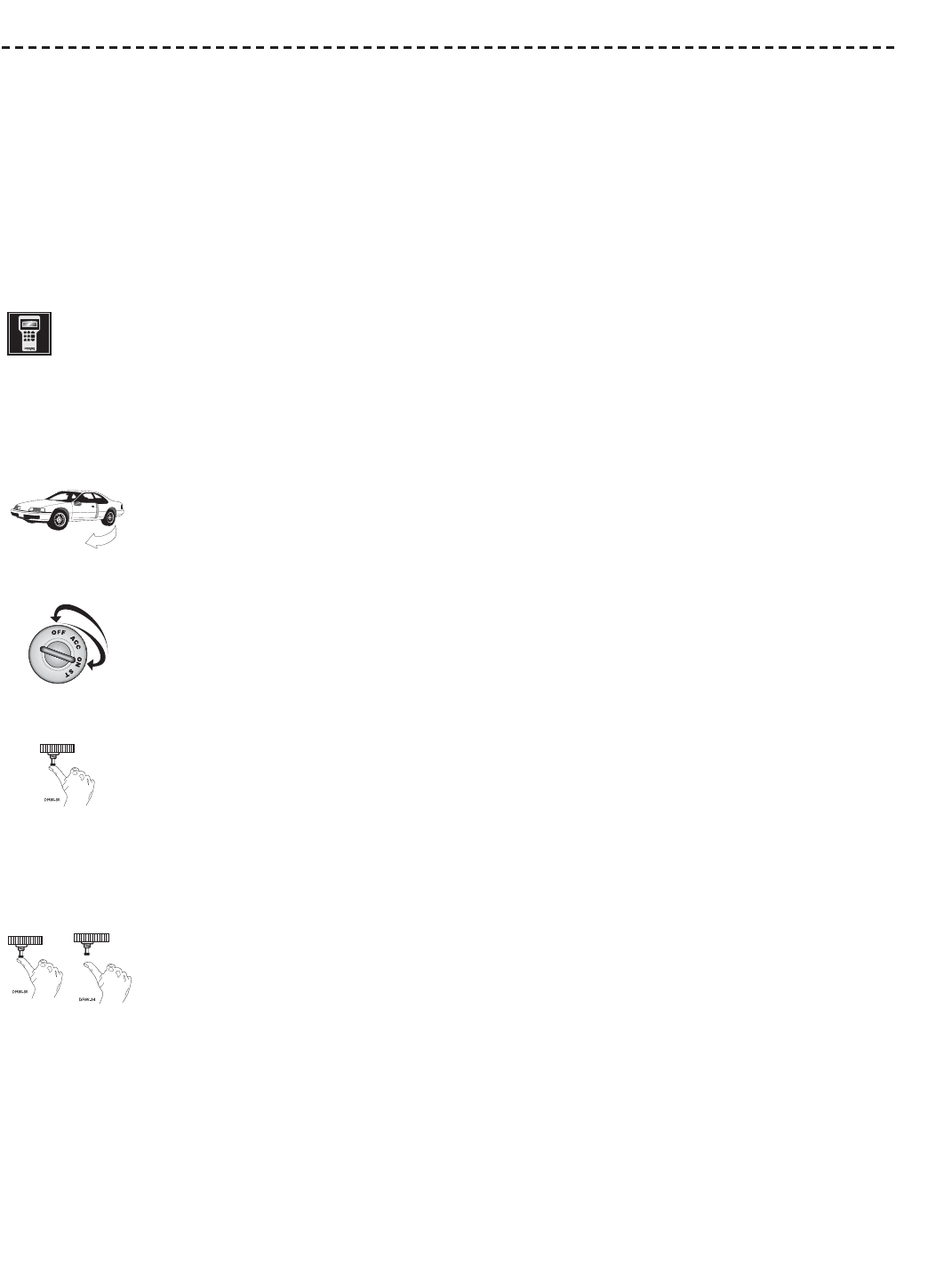

tach learning

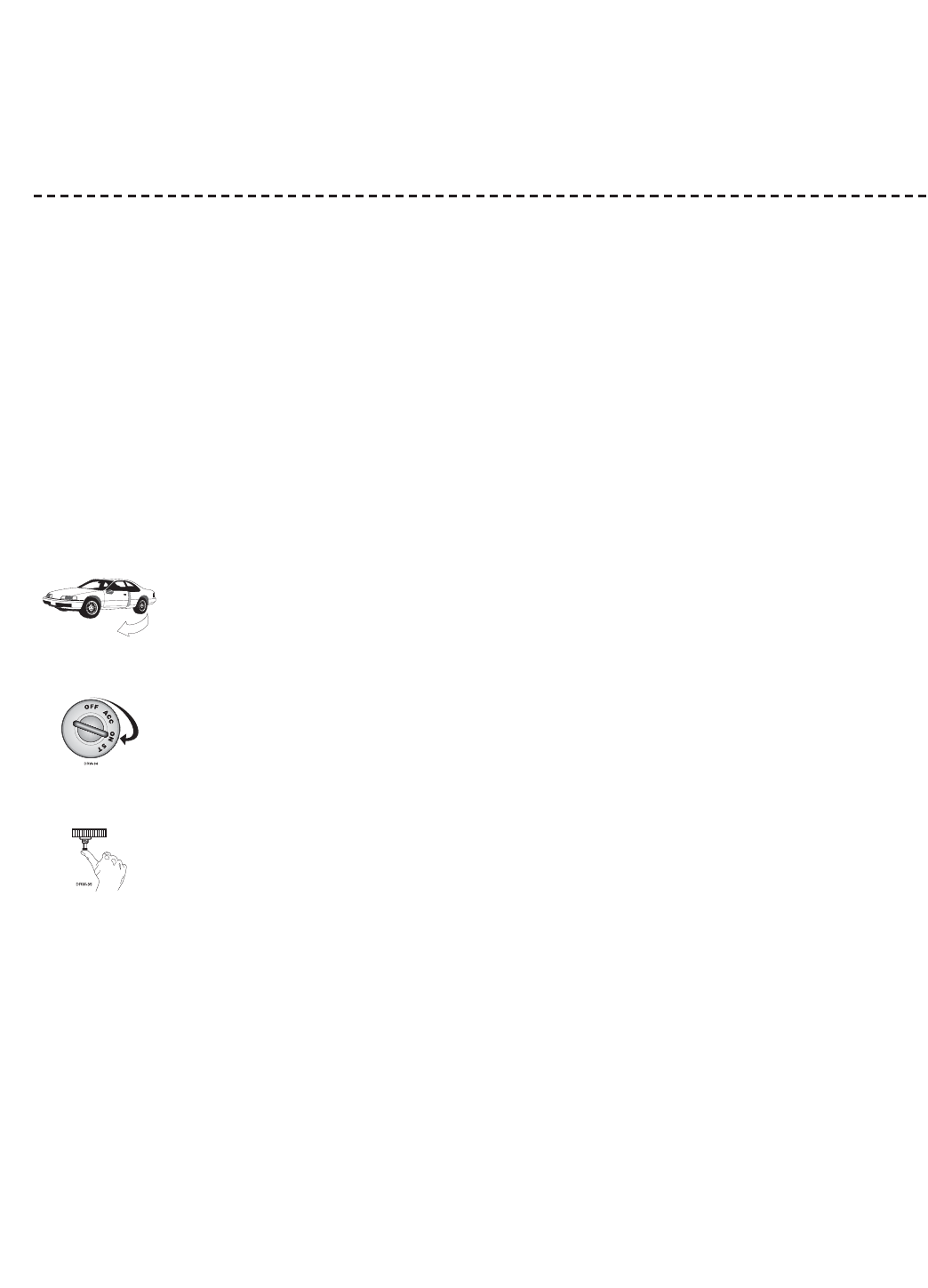

To learn the tach signal:
DRW-96
1. Start the vehicle with the key.
2. Within 5 seconds, press and HOLD the Valet/Program switch.
DRAFT
DRAFT
© 2005 Directed Electronics—all rights reserved 35
3. The LED will light constant when the tach signal is learned.
4. Release the Valet/Program switch.
programming jumpers
tach threshold on/off
In most cases, this jumper can be left in the OFF position. Some new vehicles use less than 12 volts in their
ignition systems. The unit may have trouble learning the tach signal in these vehicles. Changing the jumper
to the ON setting changes the trigger threshold of the digital tach circuit so it will work properly with these
vehicles. These vehicles include many newer Dodge/Chrysler/Plymouths, such as the Neon Cirrus/Stratus/Breeze
and LH-based cars.
light flash (+)/(-)
This jumper is used to determine the light flash output. In the (+) position, the on-board relay is enabled and
the unit will output (+)12V on the WHITE wire, H1/11. In the (-) position, the on-board relay is disabled. The
WHITE wire, H1/2, will supply a 200 mA (-) output suitable for driving factory parking light relays.K
DRAFT
DRAFT
36 © 2005 Directed Electronics—all rights reserved
NOTE: For parking light circuits that draw 10 amps or more, the internal jumper must be switched
to a (-) light flash output. P/N 8617 or a standard automotive SPDT relay must be used on the
H1/11 light flash output harness wire.
transmitter/receiver learn routine
The system comes with one transmitter that is programmed to the antenna. The system can store up to 4 differ-
ent transmitter codes in memory. Use the following learn routine to add transmitters to the system or to change
button assignments if desired.
The learn routine may be locked if previously programmed using the Bitwriter®. If the siren generates one long
chirp when attempting to program the unit, the learn routine is locked and must be unlocked using the Bitwriter®
before proceeding.
The Valet/Program switch, plugged into the blue port, is used for programming. There is a basic sequence of steps
to remember whenever programming this unit: Door, Key, Choose, Transmit and Release.
1. Open a door. (The GREEN wire, H1/8, or the VIOLET, H1/6 must be connected.)
2. Key. Turn the ignition to the ON position.
3. Choose. Within 10 seconds, press and release the Program switch the number of times
corresponding to the desired channel listed below. Once you have selected the channel,
press the switch once more and HOLD it. The LED will flash and the horn will honk (if
connected) to confirm the selected channel. Do not release the Program switch.
DRAFT
DRAFT
© 2005 Directed Electronics—all rights reserved 37
CHANNEL NUMBER FUNCTION WIRE COLOR
1 Auto Learn Standard Configuration* (default)
2 Arm only
3 Disarm only
4 Silent Mode™/Remote Valet/Trunk Release RED/WHITE
5 Remote Start
6 Channel 4 VIOLET/BLACK
7 Channel 5 WHITE/BLACK
8 Channel 6
9 Short Run/Turbo
10 Timer Mode
11 Arm/Disarm/Panic
12 Panic only
13
Defogger Control
14 Delete all transmitters**
*NOTE: For Auto Learn Configurations, see Transmitter Configurations section of this guide.
**NOTE: If any button from a known transmitter is programmed to Channel 14, all trans-
mitters will be erased from memory and will revert to the default feature settings. This is
useful in cases where the customer's transmitters are lost or stolen.
4. Transmit. While HOLDING the Valet/Program switch, press the button on the transmitter
that you would like to control the selected receiver channel. The unit will chirp to confirm
that the code has been successfully programmed. It is not possible to teach a transmitter
button to the system more than once.
5. Release. Once the code is learned, the Valet/Program switch can be released.
You can advance from programming one channel to another by releasing the Valet/Program switch and tapping
it to advance channels and then HOLDING it. For instance: You have programmed Channel 1 and you want to
program Channel 2. Release the Valet/Program switch. Press it one time and release it to advance from Channel
1 to Channel 2. Now, press and HOLD the Valet/Program switch. The LED will flash two times and the horn will
honk twice (if connected). As before, do not release it.
If you want to program Channel 3 after programming Channel 1, release the Valet/Program switch, press it twice
and release it to advance to Channel 3. Then press it once more and HOLD it. The horn will honk three times (if
connected) and the LED will flash three times to confirm it is ready to receive the code from the transmitter.
DRAFT
DRAFT
38 © 2005 Directed Electronics—all rights reserved
Learn Routine will be exited if:
Door is closed.
Ignition is turned off.
Program switch is pressed too many times.
More than 15 seconds between steps.
transmitter configurations
The transmitter can be programmed to standard or custom button configurations by using the Auto Learn func-
tions in the Transmitter/Receiver Learn Routine.
standard configuration
A remote that uses the standard configuration operates similarly to many factory keyless entry remotes. A stan-
dard configuration transmitter allows arming, disarming, and Panic Mode activation with separate buttons. When
programmed for standard configuration, the transmitter buttons are assigned to the following functions:
.................................operates ...........................Arm/Lock,
Panic ON/Panic
OFF
.................................operates ...........................Disarm/Panic OFF
.................................operates ...........................Remote Start
.................................operates ...........................Channel 2—trunk
release
and ............... operate............................Timer Mode
and ............... operate ..........................Short Run/Turbo
timer
and ............... operate............................Channel 4
DRAFT
DRAFT
© 2005 Directed Electronics—all rights reserved 39
and ............... operate............................Channel 5
and and operate .........................rear defogger
and ............... operate............................Channel 6
remote control button/animation locations
1
2 3
4
DRAFT
DRAFT
40 © 2005 Directed Electronics—all rights reserved
standard mode configuration
1. Arm Button
2. Auxiliary Button
3. Remote Start Button
4. Disarm Button
5. Programming button
DRAFT
DRAFT
© 2005 Directed Electronics—all rights reserved 41
remote control programming
The remote control has programmable features that can be changed to fit the users preferences. Programming
can be performed anytime using the programming and function buttons to select the feature menus and
change feature settings.
Function button operations during programming:
• Press the or button to scroll and highlight menu and feature items.
• Press the button to choose the highlighted item
• Press the button to exit programming anytime
Enter programming:
Press and hold for 3 seconds the round programming button on the rear of the remote control. The program-
ming main menu will appear. Use the function buttons as described above to navigate and change the
features.
Exit Programming:
Press the button anytime to save the settings and exit programming, or, if more than 10 seconds lapses
between button presses, the remote control will automatically save the settings and exit programming
mode.
Power off sleep mode:
This setting will make the remote control go to sleep. It will not respond to any RF signals or function button
presses.
1. Enter programming mode
2. Scroll to highlight the Clock icon
3. Press the button to choose the Clock and access Clock set screen
4. Scroll and highlight a digit or A/P and then press the button to change the digit.
5. Press the button anytime to save the new setting and exit.
Wake Up the remote control:
To wake up the remote control press and hold the program button for 3 seconds. The display will cycle
through all available animations and icons before becoming active.
Set the 12 hour Clock:
1. Enter programming mode
DRAFT
DRAFT
42 © 2005 Directed Electronics—all rights reserved
2. Scroll to highlight the Clock icon
3. Press to choose the Clock and access Clock set screen
4. Scroll and highlight a digit or A/P and press to change the digit.
5. Press anytime to save the new setting and exit.
Page mode on/off:
When Page is off, the remote control will not receive Pages or output Page Notifications or Alerts. It will
only receive Command Reponses.
1. Enter programming mode
2. Scroll to highlight OPERATION
3. Press to choose the operation menu screen
4. Scroll to highlight PAGE and press to choose.
5. Scroll to highlight the desired setting.
6. Press to save and return to the Operation menu or to save the setting and exit.
Beeps on/off:
When Beep is off, the remote control will only show animations or icons for Page Notifications. Alarm Page
Alerts will be eliminated.
1. Enter programming mode
2. Scroll to highlight OPERATION
3. Press the button to choose the operation menu screen
4. Scroll to highlight BEEP and press to choose.
5. Scroll to highlight the desired setting.
6. Press to save and return to the Operation menu or to save the setting and exit.
Custom zone ID:
Use this menu item to select which sensor or input information will be displayed when a particular zone is
triggered.
1. Enter programming mode
2. Scroll to highlight OPERATION
3. Press to choose the operation menu
4. Scroll to highlight ZONE and press to choose the zone menu.
5. Scroll to highlight the desired zone and press to choose.
6. Scroll to highlight the icon to be displayed for that zone and press to choose.
7. Press to save and return to the zone menu or to save the setting and exit.
DRAFT
DRAFT
© 2005 Directed Electronics—all rights reserved 43
Status Icon Descriptions:
Each time the remote control plays any animation due to an Alarm Page or Command Response, icons will be
displayed to indicate the current system status. Below is a list of icons and the system characteristics they
represent.
This icon indicates the DOOR is open or has triggered the alarm
This icon indicates the TRUNK is open or has triggered the alarm
This icon indicates the system status is ARMED or LOCKED
This icon indicates the system status is DISARMED or UNLOCKED
This icon indicates the BATTERY charge level
This icon indicates the REMOTE START is on and the engine is running
This icon indicates the GARAGE DOOR is open
This icon indicates the GARAGE DOOR is closed
This icon indicates the HOOD is open or has triggered the alarm
This icon indicates the IGNITION is on or has triggered the alarm
This icon indicates the SIREN is active
This icon indicates a SENSOR is active or has triggered the alarm
This icon indicates an alarm FULL TRIGGER event has occurred
This icon indicates an alarm WARN TRIGGER event has occurred
This icon indicates a CALL PAGE from a vehicle occupant was received
This icon displays the current TIME
DRAFT
DRAFT
44 © 2005 Directed Electronics—all rights reserved
multi-level security arming
Multi-Level Security Arming is a feature that allows the user to select which of the system's inputs or sensors
will be active and which will be bypassed when the system is armed. (See Table of Zones section of this guide.)
Multi-Level Security Arming can only be accessed from a standard configuration transmitter. Pressing the arm
button of the standard configuration transmitter again within five seconds of arming the system will activate
the Multi-Level Security feature. Each time the arm button is pressed again, a different security level is selected.
The different levels of security are selected as follows:
Pressing one time: The siren chirps once. The system is armed.
Pressing a second time within five seconds: The siren chirps twice followed by a long chirp. Zone
Two is now bypassed.
Pressing a third time within five seconds: The siren chirps three times followed by a long chirp. Zone
Four is now bypassed.
Pressing a fourth time within five seconds: The siren chirps four times followed by a long chirp.
Zones Two and Four are now bypassed.
Pressing a fifth time within five seconds: The siren chirps five times followed by a long chirp. All
input zones, except the ignition, are now bypassed.
DRAFT
DRAFT
© 2005 Directed Electronics—all rights reserved 45
system features learn routine
The System Features Learn Routine dictates how the unit operates. It is possible to access and change any of
the feature settings using the Valet/program switch. However, this process can be greatly simplified by using
the Bitwriter®. Any of the settings can be changed and then assigned to one of up to four transmitters. This
feature is called Owner Recognition. Each time that particular transmitter is used to disarm the system, the
assigned feature settings will be recalled. Owner Recognition is only possible when programming the unit via
the Bitwriter®.
If programming with the Bitwriter®, the learn routine can be locked or unlocked. If the learn routine has
previously been locked, it must be unlocked with Bitwriter® - this cannot be done manually with the Valet
switch.
To enter the System Features Learn Routine™:
1. Open a door. (The GREEN wire, H1/8, or the VIOLET, H1/6 must be connected.)
2. Ignition. Turn the ignition on, then back off. (The heavy gauge PINK wire of the relay
satellite must be connected.)
3. Select a Menu. Press and HOLD the Valet/Program switch. (The Valet/Program switch must
be plugged into the blue port.) After three seconds the siren will chirp once indicating
entry to the Basic Features Menu. If this is the menu you wish to access, release the button
and go on to Step 4. If the button is not released, you will jump to the next menu and the
siren will chirp twice. There are three possible menus. Once you have selected the desired
menu, release the Valet/Program switch.
4. Select a Feature. Press and release the Valet/Program switch the number of times corre-
sponding to the feature you wish to change. For example, to access the third feature, press
and release 3 times. Then press the button once more and HOLD it. The siren will chirp
the number of times equal to the feature you have accessed.
DRAFT
DRAFT
46 © 2005 Directed Electronics—all rights reserved
5. Program the Feature. While holding the Valet/Program switch, you can toggle the feature
on and off using the remote transmitter. Pressing the button that arms the system will
select the one chirp or default setting. Pressing the button that disarms the system (or
the Channel Two button when in the single button arm/disarm configuration) will select
the two chirp setting.
Note: Some features have more than two possible settings. Pressing will select the one chirp
setting, pressing will toggle through the two-chirp and higher settings.)
6. Release. Release the Valet/Program switch.
Once a feature is programmed:
Other features can be programmed within the same menu.
Another menu can be selected.
The learn routine can be exited if programming is complete.
To access another feature in the same menu:
1. Press and release the Valet/Program switch the number of times necessary to advance from the feature you
just programmed to the next one you want to program.
2. Then press the Valet/Program switch once more and HOLD it.
For example, if you just programmed the third feature in the menu and you would like to program the seventh
feature in the menu, you would press and release the Valet/Program switch four times and then press it once
more and HOLD it. The siren would chirp seven times to confirm access to the seventh feature.
To select another menu:
1. Press and hold the Valet/Program switch.
2. After three seconds, the unit will advance to the next menu and the siren will chirp, indicating which menu
has been accessed.
For example, if you just programmed some features in the first menu and you want to program a feature in the
third menu, press and HOLD the Valet/Program switch. After three seconds, the siren chirps twice indicating
access to the second menu. Continue to HOLD the button and three seconds later the siren will chirp three times
indicating access to the third menu. Features in the third menu are then programmable following steps 4 through
6 of the System Features Learn Routine procedure.
DRAFT
DRAFT
© 2005 Directed Electronics—all rights reserved 47
To exit the learn routine:
The learn routine will be exited if any of the following occurs:
1. Close the open door.
2. Turn the ignition on.
3. There is no activity for longer than 15 seconds.
4. The Valet/Program switch is pressed too many times.
feature menus
The default settings are indicated in bold type. Features that have additional settings that can be programmed
using the Bitwriter® are indicated with an asterisk (*).
menu #1 - basic features
FEATURE NUMBER ONE-CHIRP SETTING (DEFAULT) TWO-CHIRP SETTING
1-1 Active arming Passive arming
1-2 Arm/disarm chirps on Arm/disarm chirps off
1-3 Ignition lock ON Ignition lock OFF
1-4 Ignition unlock ON Ignition unlock OFF
1-5 Active locking only Passive locking
1-6 Panic with ignition on No panic with ignition on
1-7 0.8 second door lock pulses (1) 3.5 (2), 0.4 (3) seconds
1-8 Forced passive arming on Forced passive arming off
1-9 Automatic engine disable on Automatic engine disable off
1-10 Armed When Driving (AWD) on AWD off
1-11 Code Hopping on Code Hopping off
1-12 Horn Output Pulsed Constant
1-13 Horn function Full Alarm Only (1) Siren function - chirp length
20mS (2)/30mS (3)/40mS (4)/50mS (5)
1-14 Comfort Closure ON Comfort Closure OFF
NOTE: The numbers in parentheses indicate the number of times the siren will chirp and the
LED will flash.
DRAFT
DRAFT
48 © 2005 Directed Electronics—all rights reserved
menu #2 - advanced features
FEATURE NUMBER ONE-CHIRP SETTING (DEFAULT) TWO-CHIRP SETTING
2-1 30 second siren duration* 60 second siren duration*
2-2 Nuisance Prevention Circuitry ON Nuisance Prevention Circuitry OFF
2-3 Progressive door trigger Instant door trigger
2-4 Disarm from Valet, 1 pulse Disarm from Valet, 2-5 pulses
2-5 Door sensor bypass chirp ON Door sensor bypass chirp OFF
2-6 Ignition controlled domelight ON Ignition controlled domelight OFF
2-7 Unlock output 1 pulse Unlock output 2 pulses
2-8 Lock output 1 pulse Lock output 2 pulses
2-9 Factory disarm with Channel Two ON Factory disarm with Channel Two OFF
2-10 FAD function with Unlock (1) Before Unlock (2), Remote Start only
(3)
2-11 FAD 1 pulse 2 pulses
2-12 Channel 4 validity (1) Latched (2), Latch reset with ignition
(3), 30-sec. timed (4)
2-13 Channel 4 linking None (1) Arm (2), Disarm (3), Remote Start (4)
2-14 Channel 5 validity (1) Latched (2), Latch reset with ignition
(3), 30-sec. timed (4)
2-15 Channel 5 linking None (1) Arm (2), Disarm (3), Remote Start (4)
2-16 Channel 6 validity (1) Latched (2), Latch reset with ignition
(3), 30-sec. timed (4)
2-17 Channel 6 linking None (1) Arm (2), Disarm (3), Remote Start (4)
DRAFT
DRAFT
© 2005 Directed Electronics—all rights reserved 49
menu #3 - remote start options
FEATURE ONE-CHIRP SETTING (DEFAULT) TWO-CHIRP SETTING
3-1 Engine checking ON Engine checking OFF
3-2 Engine checking TACH Engine checking VOLTAGE
3-3 Run time: 12 minutes (1) Run time: 24 (2) or 60 (3) minutes
3-4 Parking lights flashing Parking lights constant
3-5 Crank time: 0.6 seconds (1) 0.8 (2), 1.0 (3), 1.2 (4), 1.4 (5),
1.6 (6), 1.8 (7), 2.0 (8), 4.0 (9) sec.
3-6 Voltage check - high Voltage check - low
3-7 Short Run/Turbo–1 min. (1) 3 (2), 5 (3), 10 (4) min.
3-8 Activation pulse count–1 Activation pulse count: 2
3-9 2nd Ignition/Acc output: ignition Accessory
3-10 Acc state during wait to start: OFF ON
3-11 2nd status output: Normal (1) Rear defogger: latch 10 min. (2)/
pulse (3)
3-12 Anti grind: ON Anti grind: OFF
3-13 Diesel timer Wait-to-Start input (1) Timed 15 (2), 30 (3),
45 (4) seconds*
3-14 Timer mode—Timed Starts Temperature Starts
3-15 Run Time (Timer Mode) 12 minutes (1) 3 (2), 6 (3), 9 (4) minutes**
*NOTE: The Bitwriter® can set 1-90 seconds.
**NOTE: The Bitwriter® can set 1-16 minutes.
DRAFT
DRAFT
50 © 2005 Directed Electronics—all rights reserved
feature descriptions
The features of the system are described below. Features that have additional settings that can be selected only
when programming with the Bitwriter® are indicated by the following icon:
menu #1 - basic features
1-1 ACTIVE/PASSIVE ARMING: When active arming is selected, the system will only arm when the transmitter is
used. When set to passive, the system will arm automatically 30 seconds after the last door is closed. To alert the
consumer of passive arming, the siren will chirp 20 seconds after the door is closed. This provides the consumer
with an audible warning prior to the system actually arming. At the 30 second mark, the system will arm, but
the siren will not chirp.
1-2 CHIRPS ON/OFF: This feature controls the chirps that confirm the arming and disarming of the system.
1-3 IGNITION LOCK ON/OFF: When turned on, the doors will lock three seconds after the ignition is turned on
and unlock when the ignition is turned off.
1-4 IGNITION UNLOCK ON/OFF: When ON this feature will unlock the doors when the ignition is turned off.
1-5 ACTIVE/PASSIVE LOCKING: If passive arming is selected in Feature 1-1, then the system can be programmed
to either lock the doors when passive arming occurs, or only lock the doors when the system is armed via the
transmitter. Active locking means the system will not lock the doors when it passively arms. Passive locking
means that the system will lock the doors when it passively arms.
NOTE: Remember, when passive arming is selected, the unit will chirp 20 seconds after the last
door is closed. The system does not actually arm or lock the doors until 30 seconds after the door
has been closed.
1-6 PANIC WITH IGNITION ON: This feature controls whether or not the panic mode is available with the igni-
tion ON. In some states, there are laws prohibiting a siren sounding in a moving vehicle. This feature makes the
system compliant with these regulations.
1-7 DOOR LOCK PULSE DURATION: Some European vehicles, such as Mercedes-Benz and Audi, require longer
lock and unlock pulses to operate the vacuum pump. Programming the system to provide 3.5 second pulses,
will accommodate the door lock interface in these vehicles. The default setting is 0.8 second door lock pulses.
Some modification to the door lock harness (H2) is also necessary. (Refer to TechTip 1041 for wiring informa-
tion regarding (+/-) Door Lock Outputs Harness (H4)section, Type E - Mercedes-Benz and Audi -1985 and Newer"
diagram.) The 0.4 second pulse is required on some of the newer Chrysler and Ford vehicles.
1-8 FORCED PASSIVE ARMING ON/OFF: To use this feature, passive arming must be selected in Feature 1-1. When
DRAFT
DRAFT
© 2005 Directed Electronics—all rights reserved 51
turned on, forced passive arming will ensure that the system will passively arm, even if a zone is left open or
invalid. Forced passive arming occurs one hour after the ignition is turned off.
1-9 AUTOMATIC ENGINE DISABLE (AED) ON/OFF: AED is a full-time, passive starter disable that works indepen-
dently of the security system. When turned on, the orange, ground-when-armed output (H1/1) will activate 30
seconds after the ignition is turned off. The LED will flash at half its normal rate when the ignition is turned off
to indicate that AED is active and will interrupt the starter in 30 seconds. AED does not occur in Valet mode and
can be bypassed using the emergency override procedure. The transmitter can be used to disarm AED, however,
the system must be armed and then disarmed, using the transmitter, to disarm AED.
1-10 ARMED WHILE DRIVING (AWD) ON/OFF: In the default setting (Armed While Driving), the system can be
armed with the ignition on. When armed, the ground-when-armed is not active and the sensors are bypassed.
The door triggers will remain active.
1-11 CODE HOPPING® ON/OFF: The system uses a mathematical formula to change its code each time the trans-
mitter and receiver communicate. This makes the group of bits or "word" from the transmitter very long. The
longer the word is, the easier it is to block its transmission to the unit. Disabling the Code Hopping® feature
lets the receiver ignore the Code Hopping® part of the transmitted word. As a result, the unit may have better
range with Code Hopping® off.
1-12 HORN OUTPUT PULSED/CONSTANT: Program for either a pulsed output or a continuous output when trig-
gered.
1-13 HORN FUNCTION (FULL ALARM ONLY)/SIREN FUNCTION (20mS, 30mS, 40mS, 50mS): Program for output
when the alarm is fully triggered or as the siren (arming/disarming and warnaway and full trigger with timing
options).
1-14 COMFORT CLOSURE—ON, OFF: The system can be programmed to close the windows when the system is armed.
A 20-second output starts 200mS after the last lock pulse. The Comfort Closure output will be canceled if the unlock
button is pressed. If programmed ON, the lock output wire provides this function.
menu #2 - advanced features
2-1 SIREN DURATION 30/60 SECONDS: It is possible to program the unit to sound for 30 or 60 seconds
during the triggered sequence. Some states have laws regulating how long a security system can sound.
When using the Bitwriter®, the siren can be programmed to sound for any length of time from 1 second to 180
seconds.
DRAFT
DRAFT
52 © 2005 Directed Electronics—all rights reserved
2-2 NUISANCE PREVENTION® CIRCUITRY (NPC) ON/OFF: NPC stops repeated triggering of the same zone. If one
zone is triggered three times in one hour, that zone is bypassed for one hour, starting from the time of the third
trigger. During that hour, if the system sees a trigger on that zone again, the system resets the one hour timer.
If one hour passes and the zone has not triggered again, the zone is activated and can trigger the system again.
NPC only monitors sensor inputs, and does not bypass the door trigger or the ignition trigger at any time. If NPC
is turned off, the system will respond to repeated triggers on the sensor inputs and will do so indefinitely. Some
states have laws regulating how many times a security system can trigger before it is considered a nuisance and
the vehicle is towed away.
2-3 PROGRESSIVE DOOR TRIGGER ON/OFF: The system responds to a door trigger input with a progressive
response. When the door is opened with the system armed, the siren will chirp 10 times prior to the full triggered
sequence. The door trigger is still treated as an instant trigger and closing the door quickly will not prevent full
triggered sequence from occurring. If the progressive door trigger is programmed off, the full siren output will
occur the moment the door is opened.
2-4 VALET DISARM PULSE COUNT 1 TO 5 PULSES: The system can be programmed to count the number of presses
of the valet switch before disarming the security system. The factory default setting is one pulse. The unit can
also be set for two to five pulses.
Ghost Switch option: For added security, the GRAY wire on the two-pin Valet/Program plug can be connected to
any switch in the vehicle that provides a positive (+) momentary pulse.
2-5 DOOR SENSOR BYPASS CHIRP ON/OFF: This feature controls the error chirp that is generated if the system
is armed with the door trigger active. This is useful in vehicles that have a long dome light delay after the door
has been closed. If the system is armed before the dome light has turned off, the security system will generate
the door trigger error chirp. If this error chirp is not desired, use this feature to disable the door open error chirp.
If the bypass chirp is turned off, no bypass chirp will be generated, even if a door is accidentally left open.
2-6 IGNITION CONTROLLED DOME LIGHT SUPERVISION ON/OFF: If turned on, the system will turn on the dome
light for 60 seconds when the ignition is turned off. The optional dome light supervision feature must be installed
as described in the Wire Connection Guide.
2-7 UNLOCK OUTPUT—1, 2 PULSES: This will program the unlock output to one or two pulses. When the double
pulse unlock feature is turned on, the BLUE door lock harness wire will supply two negative pulses instead of
a single pulse. At the same time, the GREEN door lock harness wire will supply two positive pulses instead of a
single pulse. This makes it possible to directly interface with double pulse vehicles without any extra parts for
unlock and lock outputs (see below).
2-8 LOCK OUTPUT—1, 2 PULSES: This will program the lock output to one or two pulses. When the double pulse
lock feature is turned on, the BLUE door lock harness wire will supply two positive pulses instead of a single
pulse. At the same time, the GREEN door lock harness wire will supply two negative pulses instead of a single
DRAFT
DRAFT
© 2005 Directed Electronics—all rights reserved 53
pulse.
2-9 FACTORY ALARM DISARM WITH CHANNEL 2: In the default setting the factory alarm disarm output will
disarm the factory alarm system any time the button(s) controlling Channel Two is pressed.
2-10 FACTORY ALARM DISARM—WITH UNLOCK, BEFORE UNLOCK, REMOTE START ONLY: In the default setting the
factory alarm disarm output will disarm the factory alarm system any time the button(s) controlling Unlock is pressed.
The “Before Unlock” output to disarms the factory alarm before the unlock output activates and before remote start
is activated. The “Remote Start Only” output disarms the factory alarm only before the remote start is activated.
2-11 FACTORY ALARM DISARM PULSES—SINGLE, DOUBLE: Selectable for a single or double-pulse for the vehicle’s
factory alarm disarm input requirements.
2-12 CHANNEL 4 VALIDITY/LATCHED/LATCHED RESET WITH IGNITION/30 SECOND TIMED OUTPUT: This wire pro-
vides a (-) 200mA output whenever the transmitter button(s) controlling Channel 4 is pressed. This output can
be programmed to provide the following types of outputs (see also the Feature Menus section):
Validity: Output that will send a signal as long as the transmission is received.
Latched: Output that will send a signal when the Channel 4 button(s) is pressed and will continue until the
same button(s) is pressed again.
Latched, reset with ignition: Similar to the latched output, this type of output turns on the first time the
Channel 4 button(s) is pressed and turns off the next time the same button is pressed. This type of output
additionally stops and resets whenever the ignition is turned on and then off.
30-second timed: Output that will send a continuous signal for 30 seconds.
Note: All auxilary channel timed outputs can be programmed using the Bitwriter® (1-90
seconds).
2-13 CHANNEL 4 LINKING (NONE)/ARM, DISARM, REMOTE START: When programming to validity or timed
output this can be programmed to activate when arming or disarming (or remote start) with the transmitter.
2-14 CHANNEL 5 VALIDITY/LATCHED/LATCHED RESET WITH IGNITION/30 SECOND TIMED OUTPUT: Channel Five
can be programmed for these output configurations. The unit is set to the default validity output. To change the
configuration, use the two-chirp setting to toggle through the different configurations. Refer to feature 2-10
for additional detail.
2-15 CHANNEL 5 LINKING (NONE)/ARM, DISARM, REMOTE START: Refer to feature 2-13 for additional detail.
2-16 CHANNEL 6 VALIDITY/LATCHED/LATCHED RESET WITH IGNITION/30 SECOND TIMED OUTPUT: Channel Five
can be programmed for these output configurations. The unit is set to the default validity output. To change the
configuration, use the two-chirp setting to toggle through the different configurations. Refer to feature 2-10
for additional detail.
DRAFT
DRAFT
54 © 2005 Directed Electronics—all rights reserved
2-17 CHANNEL 6 LINKING (NONE)/ARM, DISARM, REMOTE START: Refer to feature 2-13 for additional detail.
menu #3 - remote start
3-1 ENGINE CHECKING ON/OFF: In the default setting the remote start will monitor either the vehicle's tach
wire or voltage depending on the programming of feature 3-2. If programmed OFF the vehicle will crank for the
programmed crank time (feature 3-5) and will not verify with tach or voltage that the car is running. In the OFF
setting, if the vehicle fails to start, the ignition can stay on for the entire run duration. Using tach or voltage
check is always recommended if possible.
3-2 CHECKING TYPE TACH/VOLTAGE: Selects the method of engine monitoring. If set to TACHOMETER the unit will
reference the learned tach signal to disengage the starter. In addition it will monitor the RPM and shut down if
the engine RPM is too high or too low. When set to VOLTAGE, the unit will crank the starter for the programmed
time and then attempt to sense that the engine is running by detecting an increase in voltage. The threshold
for the voltage check is selectable in feature 3-6.
3-3 RUN TIME 12, 24, 60 MINUTES: Selects the time in minutes that the system will operate the engine
until the system "times out". This is the maximum operation period and the system may be shut down
using a shutdown at any time. Using the Bitwriter®, the run time can be programmed for any duration from 1-60
minutes.
3-4 PARKING LIGHTS FLASHING/CONSTANT: In the default setting, the unit will flash the vehicle's parking lights
(if connected) while remote started. The constant setting will turn the parking lights on solid for the entire run
duration.
3-5 CRANK TIME 0.6/0.8/1.0/1.2/1.4/1.6/1.8/2.0/4.0 SECONDS: If the unit is programmed for no engine
checking or voltage sense, the crank time must be set to the appropriate duration. The default setting is 0.6
second. If a different crank time is desired, select feature 3-5 and select either 0.6 second by using the one-chirp
setting or toggle through the higher settings by using the two-chirp settings.
3-6 VOLTAGE CHECK HI/LOW: This feature only functions when programmed for voltage sense. Some vehicles
have many accessories, which are turned on when remote started. In these vehicles, the variation of voltage
between the engine off and the car running is very small and the remote start unit may "think" the vehicle has
not started. This can cause the remote start to shut-down after the car has been started. If this happens program
this feature to the LOW position.
3-7 SHORT RUN/TURBO 1/3/5/10 MINUTES: When the and buttons on the transmitter are pressed
simultaneously, the vehicle will start for the programmed short run time. The factory default is 1 minute.
3-8 ACTIVATION PULSE COUNT 1/2: This allows the system to use 1 or 2 pulses to activate the remote start
sequence. The default setting is 2-pulses.
DRAFT
DRAFT
© 2005 Directed Electronics—all rights reserved 55
Note: 1 or 2 pulses on the WHITE/BLUE remote start activation input wire as well as the
button of the remote control.
3-9 2nd IGNITION/ACCESSORY OUTPUT: This will allow the PINK/WHITE to be used as a 2nd ignition or an acces-
sory. The default is 2nd ignition.
3-10 ACCESSORY STATE DURING WAIT-TO-START OFF/ON: This feature will allow the selection of the accessory
output to be ON or OFF during wait-to-start.
3-11 2nd STATUS OUTPUT NORMAL/REAR DEFOGGER LATCHED 10-MIN/PULSE: This feature will allow selection
of status output or a rear defogger mode that turns on ten seconds after the vehicle has started if the vehicle
interior temperature is below 55 degrees F. The defogger mode has two selections, latched or pulsed. Latched
mode will only stay on for 10 minutes.
3-12 ANTI-GRIND ON/OFF: With the anti-grind On (default) the ground-when-armed output will be active during
remote start operation. If accessories such as a voice module or window module are added to the unit, it may
be necessary to program this feature off.
3-13 DIESEL TIMER—WAIT-TO-START/15, 30, 45 SECONDS: Default is the “Wait-to-Start” input control
wire, or programmable to ignore the input control wire by a delay of 15, 30, or 45 seconds. This feature
can be also programmed with the Bitwriter® and with a delay from 1 to 90 seconds.
3-14 TIMER MODE—TIMED STARTS/TEMPERATURE STARTS: The system will start every 3-hours until can-
celed by the brake, hood, or neutral safety shut-down wires (a maximum of 6 times). The temperature start
mode will not start the vehicle unless the interior temperature of the vehicle is less than 0 degrees F. The tem-
perature start mode will exit after 18 hours.
3-15 RUN TIME (TIMER MODE)—12, 3, 6, 9 MINUTES: Selects the time in minutes that the system will
operate the engine until the system "times out". This is the maximum operation period and the system
may be shut down using a shutdown at any time. Using the Bitwriter®, the run time can be programmed for any
duration from 1-16 minutes.
nuisance prevention® circuitry
NPC requires that you change the way you test the system as NPC will bypass an input zone for 60 minutes. If
the system “sees” the same zone trigger three times AND the triggers are spaced less than an hour apart, the
system will bypass that input zone for 60 minutes. If that zone does not attempt to trigger the system during
the 60-minute bypass period, the zone’s monitoring will begin again at the end of the hour. If it does attempt
to trigger while bypassed, the 60-minute bypass starts over again.
DRAFT
DRAFT
56 © 2005 Directed Electronics—all rights reserved
Disarming and rearming the system does not reset NPC. The only way to reset NPC is for the 60 minutes to pass,
without a trigger, or for the ignition to be turned on. This allows the system to be repeatedly triggered, disarmed
and rearmed, and still allow NPC to bypass a faulty zone.
When disarming the system, 5 chirps indicate NPC is activated. The LED will report the zone that has been
bypassed. (See Diagnostics section of this guide.)
valet mode
To enter or exit valet mode with the valet/program switch:
1. Turn the ignition key on and then off.
2. At anytime during the next 10 seconds, press and release the Valet switch. Now the Status
LED will light constantly if you have entered Valet® Mode, and go out if you have exited
Valet Mode.
To enter or exit Valet mode with the transmitter:
To enter or exit Valet Mode with a transmitter:
1. Open any door.
2. Press on the transmitter.
3. Press .
4. Press again. You have now entered or exited Valet Mode (verify by checking your status LED).
rear defogger control
The rear defogger output can be remotely turned on/off any time using the remote control. The default setting
is ON.
To turn the rear defogger output OFF:
1. Press & release the and and buttons of the remote control.
2. The parking lights will flash 2-times.
DRAFT
DRAFT
© 2005 Directed Electronics—all rights reserved 57
3. The rear defogger output will no longer activate when the vehicle is remote started.
NOTE: If the remote start is On the lights will turn off then flash 2-times before returning to their
normal output and the defogger output, if active, will cease.
To turn the rear defogger output ON:
1. Press & release the and and buttons of the remote control.
2. The parking lights will flash 3-times.
3. The rear defogger output will once again activate when the vehicle is remote started.
NOTE: If the remote start is On the lights will turn off then flash 3-times before returning to their
normal output and the defogger output will activate as programmed.
timer mode
This unit can be programmed to start and run the engine every three hours, for a maximum of six cycles. The
engine will run for the programmed run time and then shut down. After three hours, the system will restart the
engine.
IMPORTANT! Timer Mode should be used only in open areas. Never start and run the vehicle in an
enclosed space such as a garage or carport.
To enter or exit timer mode with the transmitter:
The same procedure may be used to enter or exit Timer Mode using the remote transmitter:
1. Remote start the vehicle by pressing and simultaneously.
2. The lights will flash 4-times.
3. After 1-second the car will start and the timer mode will run for the specified time period.
The system is in Timer Mode. The engine may be allowed to run for its programmed run time, or the transmitter
can be used to shut down the engine. Either way, the remote start system will restart the engine again in three
hours. Timer Mode is exited automatically after the sixth run cycle.
To enter or exit timer mode manually:
1. Make sure the remote start system is not operating the engine.
2. Turn the ignition on.
Timer Mode will be exited and the parking lights will flash four times.
DRAFT
DRAFT
58 © 2005 Directed Electronics—all rights reserved
table of zones
When using the Diagnostic functions, use the Table of Zones to see which input has triggered the system. It is
also helpful in deciding which input to use when connecting optional sensors and switches.
ZONE NO. TRIGGER TYPE INPUT DESCRIPTION
1 Trunk Input BLUE (H1/7)
2 Multiplexed Shock Sensor Input Mux BLUE wire.
3 Door Trigger GREEN (H1/8) and VIOLET (H1/6).
4 Multiplexed Shock Sensor Input Mux GREEN wire
5 Ignition Yellow ribbon harness wire
6 Hood Brake Trigger GRAY on the 6-pin shutdown harness.
NOTE: The Warn Away® response does not report on the LED.
shutdown diagnostics
to perform shutdown diagnostics
1. With the ignition OFF, press and HOLD the Valet/Program switch.
2. Turn the ignition ON and then back OFF while HOLDING the Valet/Program switch.
3. Release the Valet/Program switch.
4. Press and release the Valet/Program switch. The LED will report the last shutdown for one minute or until
the ignition is turned on.
LED FLASHES SHUTDOWN MODE
One Timed out
Two Over-rev shutdown
Three Low or no RPM
Four Transmitter shutdown (or optional push-button)
Six (-) Shutdown (H3/4 GRAY) or (+) Shutdown (H3/3 BROWN)
Seven (-) Neutral safety shutdown (H3/1 BLACK/WHITE)
Eight Wait-to-start timed out
DRAFT
DRAFT
© 2005 Directed Electronics—all rights reserved 59
long term event history
The system stores the last two full triggers in memory. These are not erasable. Each time the unit sees a full trigger,
the older of the two triggers in memory will be replaced by the new trigger. To access long term event history:
1. With the ignition off, press and HOLD the Valet/Program switch.
2. Turn on the ignition.
3. Release the Valet/Program switch.
4. Press and release the Valet/Program switch within 5 seconds. The LED will flash in groups
indicating the last two zones that triggered the unit for one minute or until the ignition
is turned off.
NOTE: The Warn Away triggers are not stored to memory and will not be reported.
safety check
Before vehicle reassembly, the remote system must be checked to ensure safe and trouble-free operation. The
following test procedure must be used to verify proper installation and operation of the system. The installation
must be completed before testing, including connection to the brake switch and hood switch.
1. Test the BRAKE shutdown circuit: With the vehicle in Park (P), activate the remote start system. Once the
engine is running, press the brake pedal. The engine should shut down immediately. If the engine continues
to run, check the brake circuit connection.
2. Test the HOOD PIN shutdown circuit: With the vehicle in Park (P), open the hood. Activate the remote start
system. The vehicle should not start. If the starter engages, check your hood pin and connections.
3. Test the NEUTRAL SAFETY shutdown circuit:
IMPORTANT! Make sure there is adequate clearance to the front and rear of the vehicle before
attempting this test.
DRAFT
DRAFT
60 © 2005 Directed Electronics—all rights reserved
a. Make sure the hood is closed and no other shutdown circuits are active.
b. Set the emergency brake.
c. Turn the ignition key to the run position but do not start the engine.
d. Put the vehicle in Drive (D).
e. Put your foot over the brake pedal but do not press down on it. Be ready to step on the brake to shut-
down the remote start system.
f. Activate the remote start system.
If the starter engages, immediately step on the brake to shut down the system. If it does engage,
recheck the neutral safety input connection. The vehicle may use a mechanical neutral safety switch.
(See H3/1 BLACK/WHITE neutral safety switch input in Remote Start Harness Wire Connection Guide
section of this guide.)
If the starter does not engage, the test is complete.
Once the system passes the three tests, the vehicle can be re-assembled and delivered. Do not the use the remote
start system or finalize the installation if it fails any of the safety check tests.
troubleshooting
alarm troubleshooting
Shock sensor doesn't trigger the alarm:
Has the NPC® system been triggered? If so, you will hear 5 chirps when disarming. To check this, turn the igni-
tion key on and off to clear the NPC®'s memory, and then retest the shock sensor. For a detailed description of
NPC®, see Nuisance Prevention Circuitry section of this guide.
Door input does not immediately trigger full alarm. Instead, chirps are heard for the first 3 seconds:
That's how the progressive two-stage door input works! This is a feature of this system. This is an instant
trigger, remember, since even if the door is instantly closed again, the progression from chirps to constant siren will
continue.
Closing the door triggers the system, but opening the door does not:
Have you correctly identified the type of door switch system? This happens often when the wrong door input has
been used. (See Door Lock Harness Wire Connection Guide section of this guide.)
System will not passively arm until it is remotely armed and then disarmed:
Are the door inputs connected? Is the H1/6 blue wire connected to the door trigger wire in the vehicle? Either
the H1/5 green or the H1/7 violet should be used instead. (See wiring diagrams.)
Door input does not respond with the progressive trigger, but with immediate full alarm:
DRAFT
DRAFT
61 © 2006 Directed Electronics—all rights reserved
Does the Status LED indicate that the trigger was caused by the shock sensor? (See Di ag nos tics section of this
guide.) The shock sensor, if set to extreme sensitivity, may be detecting the door unlatching before the door
switch sends its signal. Reducing the sensitivity can solve this problem.
The Valet/Program switch doesn't work.
Is it plugged into the correct socket? See Plug-In LED and Valet/Program Switch section of this guide.
Status LED doesn't work.
You've probably guessed already, but here goes: Is it plugged in? (See Plug-In LED and Valet/Program Switch
section of this guide.) Is the LED plugged into the correct socket?
Door locks operate backwards.
This unit has easily-reversed lock/unlock outputs. Recheck wire connections to see if you have reversed these.
remote start troubleshooting
The remote start will not activate.
1. Check the harnesses and their connections. Make sure that the harnesses are completely plugged into the
remote start module. Make sure there are good connections to the vehicle wiring.
2. Check voltage and fuses. Use a meter to check for voltage between the red wire in the 5-pin ribbon harness
and the black ground wire. If you have less than battery voltage, check the 3A and both 30A fuses on the
relay satellite. Also make sure that the ground wire connects to a good chassis ground point.
3. Check diagnostics. The diagnostics will tell you which shutdown is active or not connected.
The remote start will activate, but the starter never engages.
1. Check for voltage on the purple starter wire two seconds after the remote start becomes active. If there is
voltage present, skip to Step 4. If there is not voltage present, advance to Step 2.
2. Check the 30A fuses.
3. Check diagnostics. If the gray/black wire is detecting ground upon activation, the starter will not crank.
4. Make sure the purple starter wire is connected on the starter side of the optional starter kill/anti-grind
relay.
5. Does the vehicle have an immobilizer? Some immobilizer systems will not allow the vehicle to crank if
active.
6. Check connections. The two red heavy gauge input wires on the relay satellite should have solid connections.
"T-taps" or "scotch locks" are not recommended for any high current heavy gauge wiring. Also, if the vehicle
has more than one 12-volt input wire, then connect one red wire to each.
The vehicle starts, but immediately dies.
1. Does the vehicle have an immobilizer? The vehicle’s immobilizer will cut the fuel and/or spark during unau-
thorized starting attempts.
2. Is the remote start programmed for voltage sense? If so, the start time may not be set high enough, or you
DRAFT
DRAFT
© 2006 Directed Electronics—all rights reserved 62
may have to adjust the voltage threshold in programming. Voltage sense will not work on some vehicles.
3. Check diagnostics. Sometimes a shutdown will become active during cranking or just after cranking.
The vehicle starts, but the starter keeps running.
1. Is the system programmed for engine checking off or voltage sense? When programmed for either of these
features, the engine cranks for the preprogrammed crank time regardless of how long it takes for the vehicle
to actually start. Adjust to a lower cranking time.
2. Was the Tach Learn successful? The LED must light solid and bright to indicate a successful learn.
3. Make sure that there is a tach signal at the purple/white tach input wire of the remote start. If there is
not a tach signal, recheck the connection to the vehicle’s tach wire and make sure the wire is not broken or
shorted to ground leading to the remote start.
The vehicle will start, but will only run for 10 seconds.
1. Is the remote start programmed for voltage sense? Try programming the unit for low voltage reference. If
this does not work, a tach wire should be used.
2. Check diagnostics.
The climate control system does not work while the unit is operating the vehicle.
Either the wrong accessory wire is being energized or more than one ignition or accessory wire must be energized
in order to operate the climate control system.
DRAFT
DRAFT
63 © 2006 Directed Electronics—all rights reserved
wiring quick reference guide
Jumper
tachometer
threshold
ORANGE ground when armed output
WHITE (+/-) parking light output
WHITE/BLUE (-) activation input
GRAY (-) hoodpin shutdown input
BROWN (+) brake shutdown input
BLUE/WHITE (-) 200mA 2nd status/defogger
Antenna/Receiver
LIGHT-GREEN/BLACK (-) factory alarm disarm
GRAY/BLACK (-) wait to start input
GREEN/WHITE (-) factory alarm rearm
VIOLET/BLACK (-) 200mA channel 4 output
GREEN (-) lock (+) unlock
BLUE (+) unlock (-) lock
Valet/Program
button
VIOLET/WHITE tachometer input
BLACK/WHITE neutral safety input
BitWriter
data port
563/564
Jumper
light flash
polarity
WHITE/BLACK (-) 200mA channel 5 output
LIGHT BLUE (-) 2nd unlock output
LED
Shock sensor port
BLACK/WHITE (-) 200mA domelight output
GREEN (-) door trigger input
BLUE (-) trunk trigger input
VIOLET (+) door trigger input
BLACK (-) ground input
Empty
BROWN (+) siren output
RED 12V constant input
RED/WHITE (-) 200mA channel 2 validity output BLUE 200mA (-) status output
ORANGE/BLACK 200mA anti-grind/ground when armed output
VIOLET (-) 200mA starter trigger
ORANGE (-) 200mA accessory trigger
PINK (-) 200mA ignition trigger
YELLOW (+) ignition input to remote start
PINK/WHITE 200mA programmable ignition/accessory trigger
+-LoHi
Remote
Start
H1
H2
Door
Lock
H3
BROWN Horn (-) 200mA output
ORANGE/BLACK (-) 200mA channel 6 output
H4
DRAFT
DRAFT
© 2006 Directed Electronics—all rights reserved 64
relay satellite wiring quick reference guide
PINK (-) 200mA 3rd ignition output
VIOLET (-) 200mA starter output
ORANGE (-) 200mA 2nd accessory output
BLUE (-) status output
Relay Satellite
ribbon harness
RED 12V constant input
PINK ignition output
RED/WHITE 12V constant input
PINK/WHITE 2nd ignition output
ORANGE accessory output
RED 12V constant input
GREEN key side starter wire
PURPLE starter side starter wire
These signals are from the
Relay Satellite ribbon harness
and are provided to drive
additional optional relays.
Heavy guage wires
DRAFT
DRAFT
65 © 2006 Directed Electronics—all rights reserved
DRAFT

Navigation menu
