Voxx Electronics DEI6701 Security/Remote Control Transmitter User Manual G5301V 03 06

DEI Headquarters, Inc. Security/Remote Control Transmitter G5301V 03 06

manual

MMooddeell 55990000
OOwwnneerrss GGuuiiddee
i
© 2006 directed electronics
lliimmiitteedd lliiffeettiimmee ccoonnssuummeerr wwaarrrraannttyy
Directed Electronics ("Directed") promises to the original purchaser to repair or replace
with a comparable reconditioned model any Directed unit (hereafter the "unit"), exclud-
ing without limitation the siren, the remote transmitters, the associated sensors and acces-
sories, which proves to be defective in workmanship or material under reasonable use dur-
ing the lifetime of the vehicle provided the following conditions are met: the unit was pro-
fessionally installed and serviced by an authorized Directed dealer; the unit will be pro-
fessionally reinstalled in the vehicle in which it was originally installed by an authorized
Directed dealer; and the unit is returned to Directed, shipping prepaid with a legible copy
of the bill of sale or other dated proof of purchase bearing the following information: con-
sumer's name, telephone number and address; the authorized dealers name, telephone
number and address; complete product description, including accessories; the year, make
and model of the vehicle; vehicle license number and vehicle identification number. All
components other than the unit, including without limitation the siren, the remote trans-
mitters and the associated sensors and accessories, carry a one-year warranty from the date
of purchase of the same. This warranty is non-transferable and is automatically void if: the
original purchaser has not completed the warranty card and mailed it within ten (10) days
of the date of purchase to the address listed on the card; the unit's date code or serial num-
ber is defaced, missing or altered; the unit has been modified or used in a manner con-
trary to its intended purpose; the unit has been damaged by accident, unreasonable use,
neglect, improper service, installation or other causes not arising out of defects in materi-
als or construction. The warranty does not cover damage to the unit caused by installa-
tion or removal of the unit. Directed, in its sole discretion, will determine what consti-
tutes excessive damage and may refuse the return of any unit with excessive damage. TO
THE MAXIMUM EXTENT ALLOWED BY LAW, ALL WARRANTIES, INCLUD-
ING BUT NOT LIMITED TO EXPRESS WARRANTY, IMPLIED WARRANTY,
WARRANTY OF MERCHANTABILITY, FITNESS FOR PARTICULAR PURPOSE
AND WARRANTY OF NON-INFRINGEMENT OF INTELLECTUAL PROPERTY,
ARE EXPRESSLY EXCLUDED; AND DIRECTED NEITHER ASSUMES NOR
AUTHORIZES ANY PERSON OR ENTITY TO ASSUME FOR IT ANY DUTY,
OBLIGATION OR LIABILITY IN CONNECTION WITH ITS PRODUCTS.
DIRECTED DISCLAIMS AND HAS ABSOLUTELY NO LIABILITY FOR ANY
AND ALL ACTS OF THIRD PARTIES INCLUDING ITS AUTHORIZED DEAL-
ERS OR INSTALLERS. DIRECTED SECURITY SYSTEMS, INCLUDING THIS
UNIT, ARE DETERRENTS AGAINST POSSIBLE THEFT. DIRECTED IS NOT
OFFERING A GUARANTEE OR INSURANCE AGAINST VANDALISM, DAM-
AGE OR THEFT OF THE AUTOMOBILE, ITS PARTS OR CONTENTS; AND
HEREBY EXPRESSLY DISCLAIMS ANY LIABILITY WHATSOEVER, INCLUD-
ING WITHOUT LIMITATION, LIABILITY FOR THEFT, DAMAGE AND/OR
VANDALISM. THIS WARRANTY DOES NOT COVER LABOR COSTS FOR
MAINTENANCE, REMOVAL OR REINSTALLATION OF THE UNIT OR ANY
ii © 2006 directed electronics
CONSEQUENTIAL DAMAGES OF ANY KIND. IN THE EVENT OF A CLAIM
OR A DISPUTE INVOLVING DIRECTED OR ITS SUBSIDIARY, THE PROPER
VENUE SHALL BE SAN DIEGO COUNTY IN THE STATE OF CALIFORNIA.
CALIFORNIA STATE LAWS AND APPLICABLE FEDERAL LAWS SHALL APPLY
AND GOVERN THE DISPUTE. THE MAXIMUM RECOVERY UNDER ANY
CLAIM AGAINST DIRECTED SHALL BE STRICTLY LIMITED TO THE
AUTHORIZED DIRECTED DEALER'S PURCHASE PRICE OF THE UNIT.
DIRECTED SHALL NOT BE RESPONSIBLE FOR ANY DAMAGES WHATSOEV-
ER, INCLUDING BUT NOT LIMITED TO, ANY CONSEQUENTIAL DAMAGES,
INCIDENTAL DAMAGES, DAMAGES FOR THE LOSS OF TIME, LOSS OF
EARNINGS, COMMERCIAL LOSS, LOSS OF ECONOMIC OPPORTUNITY
AND THE LIKE. NOTWITHSTANDING THE ABOVE, THE MANUFACTURER
DOES OFFER A LIMITED WARRANTY TO REPLACE OR REPAIR THE CON-
TROL MODULE AS DESCRIBED ABOVE. Some states do not allow limitations on
how long an implied warranty will last or the exclusion or limitation of incidental or con-
sequential damages. This warranty gives you specific legal rights and you may also have
other rights that vary from State to State.
This product may be covered by a Guaranteed Protection Plan ("GPP"). See your autho-
rized Directed dealer for details of the plan or call Directed Customer Service at 1-800-
876-0800. Directed security systems, including this unit, are deterrents against possible
theft. Directed is not offering a guarantee or insurance against vandalism, damage or theft
of the automobile, its parts or contents; and hereby expressly disclaims any liability what-
soever, including without limitation, liability for theft, damage and/or vandalism.
Directed does not and has not authorized any person or entity to create for it any other
obligation, promise, duty or obligation in connection with this security system.
Make sure you have all of the following information from your dealer:
A clear copy of the sales receipt, showing the following:
Date of purchase
Your full name and address
Authorized dealer's company name and address
Type of alarm installed
Year, make, model and color of the automobile
Automobile license number
Vehicle identification number
All security options installed on automobile
Installation receipts
1
© 2006 directed electronics
lliimmiitteedd lliiffeettiimmee ccoonnssuummeerr wwaarrrraannttyy.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ii
ssttaannddaarrdd ttrraannssmmiitttteerr ccoonnffiigguurraattiioonn.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..
.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 33
wwhhaatt iiss iinncclluuddeedd.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..
.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 44
iimmppoorrttaanntt iinnffoorrmmaattiioonn.. .. .. .. .. .. .. .
. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 44
your warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
fcc/id notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
caution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
rreemmoottee ccoonnt
trrooll ddiiaaggrraamm.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 77
ssttaannddaarrdd rreemmoottee ccoonnffiigguurraattiioonn.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..
.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 88
ssyysstteemm mmaaiinntteennaannccee.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..
.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 99
ttrraannssmmiitttteerr ffuunnccttiioonnss.. .. .. .. .. .. .. .. .. .. .. .
. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 1100
standard configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
standard icon configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
rreemmoottee ooppeerraattiioon
n aanndd pprrooggrraammmmiinngg iinnssttrruuccttiioonnss.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 1155
system signal paging features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
programmable remote control features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
uussiinngg yyo
ouurr ssyysstteemm .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 1188
warning! safety first . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
active arming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
passive arming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
multi-level security arming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
arming while driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
disarming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
high security disarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
disarming without a transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
silent mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
panic mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
valet mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
remote start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
valet take-over . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
short-run/turbo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
timer mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
ssaaffeettyy ffeeaattuurreess.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..
.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 3322
starter anti-grind circuitry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
disabling the remote start system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
over and under rev protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
shut down inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
nuisance prevention circuitry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
ttaabbllee ooff ccoonntteennttss
2© 2006 directed electronics
ddiiaaggnnoossttiiccss.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 3355
arming diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
disarming diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
system status chirps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
table of zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
interpreting zone diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
ccooddee hhooppppiinngg.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..
.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 3399
hhiigghh ffrreeqquueennccyy.. .. .. .. .. .. .. .. .. .. .. .. .. .. .
. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 4400
oowwnneerr rreeccooggnniittiioonn.
. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 4400
rraappiidd rreessuummee llooggiicc.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..
.. .. .. .. .. .. .. .. .. .. .. .. .. .. 4411
ppoowweerr ssaavveerr mmooddee .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..
.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 4411
pprrooggrraammmmiinngg rreemmoottee ccoonnttrrooll ffeeaattuurreess.. .. .. .. ..
.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 4422
To enter programming mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
To exit programming mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Page notification (Beep or Vibrate). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Illumination (On or Off) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Sensor icon selection (hood/trunk). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Page mode (On/Off) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
pprrooggrraammmmiinngg ooppttiioonnss.. .. .. .. .. .
. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 4433
sseeccuurriittyy &
& ccoonnvveenniieennccee eexxppaannssiioonnss.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 4466
gglloossssaarryy ooff tteerrmmss.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .
. .. .. .. .. .. .. .. .. .. .. .. .. .. 4488
qquuiicckk rreeffeerreennccee gguuiiddee.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .
. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 4499
3
© 2006 directed electronics
ssttaannddaarrdd ttrraannssmmiitttteerr ccoonnffiigguurraattiioonn

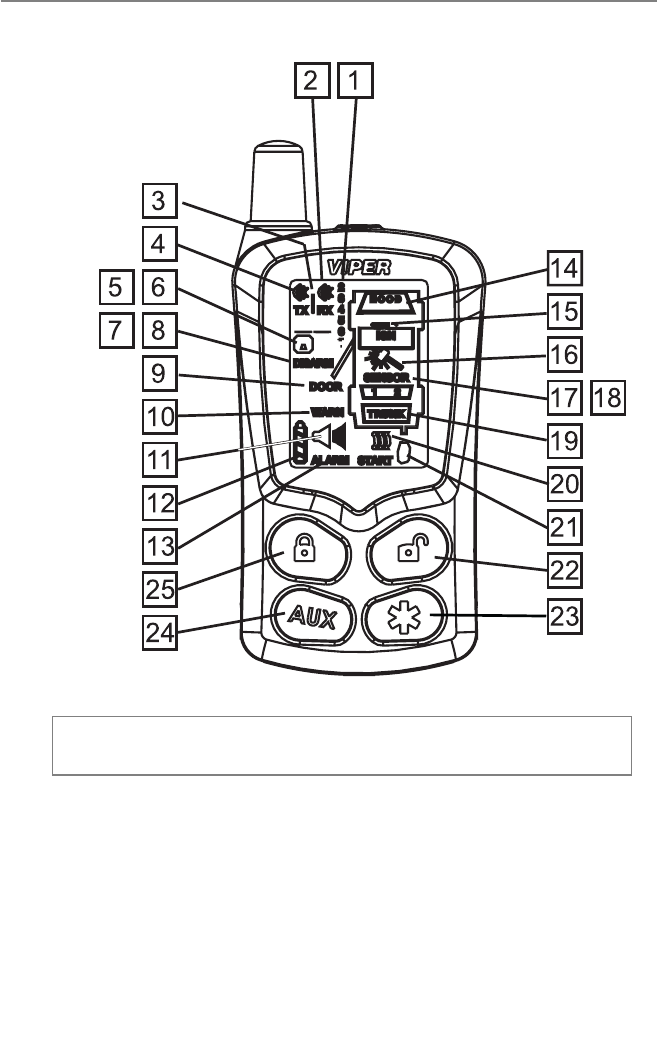

controls the AArrmmand PPaanniiccOn/Off function.
controls the DDiissaarrmmand PPaanniiccOff function.
controls SSiilleenntt MMooddee and AAuuxxiilliiaarryy channel 22output.
controls the RReemmoottee SSttaarrttfunction.
and pressed together control the TTiimmeerr mode.
and pressed together control TTuurrbboo//SShhoorrtt RRuun
n.
and pressed together control channel 44output.
and pressed together control channel 55output.
4© 2006 directed electronics
wwhhaatt iiss iinncclluuddeedd
A control module
An XHF2 receiver/antenna
One four-button transmitter
A Stinger™ DoubleGuard®two-stage shock sensor
A Revenger™ Soft Chirp™ six-tone programmable siren
A red status LED indicator light
A push-button Valet®switch
Your warranty registration
A shut-down toggle switch
iimmppoorrttaanntt iinnffoorrmmaattiioonn
Congratulations on the purchase of your combination remote
start alarm system. Due to the complexity of this system, it must
be installed by an authorized dealer only. Installation of this
product by anyone other than an authorized dealer voids the
warranty. All dealers are provided with a preprinted dealer certifi-
cate to verify authorization.
By carefully reading this Owner's Guide prior to using your
system, you will maximize the use of this system and its features.
You can print additional or replacement copies of this manual by
accessing our web site at www.directed.com.
5
© 2006 directed electronics
your warranty
Your warranty registration must be completely filled out and
returned within 10 days of purchase. Your product warranty
will not be validated if your warranty registration is not returned.
Make sure you receive the warranty registration from your dealer.
It is also necessary to keep your proof of purchase, which reflects
that the product was installed by an authorized dealer.
fcc/id notice
This device complies with Part 15 of FCC rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) This device must accept any
interference received, including interference that may cause
undesirable operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to
operate this device.
IIVVUU,, IInn vveehhiiccllee rreecceeiivveerr uunniitt
To satisfy FCC RF exposure compliance the device and its
antenna must maintain a separation distance of 20 cm or more
from a persons body, except for the hand and wrists, to satisfy
RF exposure compliance.
HHHHUU,, hhaanndd hheelldd uunniitt
To satisfy FCC RF exposure compliance requirements, this
device should be used in hand-held, hand operated configura-
tions only. The device and its antenna must maintain a separa-
6© 2006 directed electronics
tion distance of 20 cm or more from the persons body, except for
the hand and wrists, to satisfy RF exposure compliance. This
device is designed to be used in a persons hands and its operating
configurations do not support normal transmissions while it is
carried in pockets or holsters next to a persons’ body.
caution
This product is designed for fuel injected, automatic transmis-
sion vehicles only. Use of this product in a standard transmission
vehicle is dangerous and contrary the product's intended use.
7
© 2006 directed electronics
rreemmoottee ccoonnttrrooll ddiiaaggrraamm
note:The Program button is located on the back of
the remote.
8© 2006 directed electronics
ssttaannddaarrdd rreemmoottee ccoonnffiigguurraattiioonn
1. Auxiliary Channel Out
2. Receive Indicator
3. Signal Indicator
4. Transmit Indicator
5. Lock Status Indicator
6. Unlock Status Indicator
7. Arming Status Indicator
8. Disarming Status Indicator
9. Door Switch Input Indicator
10. Warn Away®Response Indicator
11. Siren Status Indicator
12. Battery Level Indicator
13. Trigger Response Indicator
14. Hood Switch Input Indicator
15. Ignition Switch Input Indicator
16. Sensor Response Indicator
17. Sensor 1 Indicator—Full Trigger and Warn Away®
18. Sensor 2 Indicator—Full Trigger and Warn Away®
19. Trunk Switch Input Indicator
20. Vibrate Mode Indicator
21. Remote Start Indicator
22. Disarm Button
23. Remote Start Button
24. Auxiliary Button
25. Arm Button
9
© 2006 directed electronics
ssyysstteemm mmaaiinntteennaannccee
This system needs no specific maintenance beyond remote
control battery replacement. The remote is powered by a 1.5V
AAA battery.
The Battery Level indicator has four level indicators that serve as
a visual indication of battery charge. When the battery reaches a
low charge level that requires replacement, the remote control
will generate a single notification chirp, and the Battery Level
indicator will flash continuously.
Battery Replacement
Gently pull the end of the battery door away from the top of the
remote control then slide the door up to expose the battery and
remove the expired battery. Place the new battery into the remote
control observing the correct polarity. When power is returned
the remote control will light all icons in the LCD and generate all
beeper tones once.
EMPTY
REPLACE
FULL
10 © 2006 directed electronics
ttrraannssmmiitttteerr ffuunnccttiioonnss
The receiver uses a computer-based Learn Routine to learn the
transmitter buttons. This makes it possible to assign any remote
transmitter button to any receiver function. The transmitter
initially comes programmed with Standard Configuration, but
may also be customized by an authorized dealer. The buttons in
all of the instructions in this manual correspond to a Standard
Configuration transmitter.
standard configuration
Button
The arming function is controlled by pressing this button for one
second. Pressing and holding this button for more than 3 seconds
will trigger the panic mode.
Button
The disarming function is controlled by pressing this button for
one second. Pressing this button during panic mode will turn off
the panic mode.
Button
Silent Mode™ and an optional auxiliary function are controlled
by this button. (Silent Mode works by pressing this button for
less than one second before arming or disarming. An optional
auxiliary function, such as trunk release, can be controlled by
pressing this button for 1.5 seconds.)
The auxiliary output controls __________________________.
11
© 2006 directed electronics
Button
The remote start feature is turned On/Off by pressing this button twice.
and Buttons
The remote start timer mode function of the system is controlled
by pressing these buttons simultaneously.
and Buttons
The Turbo/Short Run feature is controlled by these buttons (refer
to the Turbo/Short Run section for additional details).
and Buttons
An optional auxiliary convenience or expansion function that
you have added to your system can be activated by pressing these
buttons simultaneously.
The auxiliary output controls __________________________.
and Buttons
An optional auxiliary convenience or expansion function that
you have added to your system can be activated by pressing these
buttons simultaneously.
The auxiliary output controls __________________________.
standard icon configurations
Icon
The transmit icon will be displayed while the remote control is
transmitting a command to the vehicle.
12 © 2006 directed electronics
Icon
The receive icon will be displayed while the remote control is
receiving a page from the vehicle.
Icon
The signal icon will be displayed if a command is transmitted to
the vehicle but a command page is not received.
Icon
The armed status icon will be displayed when the system is locked
and armed.
Icon
The disarmed status icon will be displayed when the system is
unlocked and disarmed.
Icon
The disarm icon will flash while the system is disarming.
Icon
The arm icon will flash while the system is arming.
Icon
The door icon will be displayed to indicate that a door is open
when arming the system (Bypass Notification) or opened when
the system is armed (Tamper Alert).
Icon
The warn icon will be displayed if the Warn Away®response has
been triggered while the system is armed.
13
© 2006 directed electronics
Icon
The siren icon will be displayed as an indicator that the siren
is sounding.
Icon
The alarm icon will be displayed if the system has been violated,
and will continue to be displayed until the 60-second siren cycle
is complete.
Icon
The vibrate icon will be displayed when the Vibrate Mode is on.
Icon
The battery level icon is always displayed as an indicator of
Battery charge.
Icon
The start icon will be displayed while the vehicle is remote started.
Icon
The trunk icon will be displayed to indicate that the trunk is
open when arming the system (Bypass Notification) or opened
when the system is armed (Tamper Alert).
Icon
The Sensor 1 icon will be displayed if the Dual-Stage shock sensor
has been triggered as a full-triggered or Warn Away® sequence.
note: If Page Mode has been turned off, the start icon will
remain when performing key take over until a button on
the transmitter has been pressed.
14 © 2006 directed electronics
Icon
The Sensor 2 icon will be displayed if an additional Dual-Stage
sensor has been triggered as a full-triggered or Warn Away® sequence.
Icon
The hammer icon will flash when either Sensor 1 or 2 has been
triggered as either a Warn Away®response or triggered sequence.
Icon
The ignition icon will be displayed to indicate that the ignition is
on when arming the system (Bypass Notification) or turned on
when the system is armed (Tamper Alert).
Icon
The hood icon will be displayed to indicate that the hood is open
when arming the system or (Bypass Notification) opened when
the system is armed (Tamper Alert).
Number Icons
When either of the channel 2, 4 or 5 outputs is activated the
appropriate icon will be displayed for five seconds.
15
© 2006 directed electronics
rreemmoottee ooppeerraattiioonn aanndd pprrooggrraamm--
mmiinngg iinnssttrruuccttiioonnss
The remote start system operates at 434 MHz and incorporates
Directed’s proprietary XHF2 out-board Responder Technology remote
control. The high frequency combined with Binary Data communica-
tion achieves superior range with two-way communication.
system signal paging features
A page is the signal the control module sends to the remote control
as confirmation of receipt of a command or alarm system status.
When the remote control receives a page it will generate a page
notification to the user (notifications are audible beeps or remote
vibration) and the LCD Icons will display the current system status.
Command Page
When a command (arm/disarm, remote start, or auxiliary
channel) from the remote control is sent and received, the system
will send a command page back to confirm receipt.
note: When the system is in Valet mode, the remote con-
trol will show the lock (5) and unlock (6) icons, but will
not generate a command page.
16 © 2006 directed electronics
Alarm Page
If the alarm system is triggered while armed, an Alarm Page will
be sent to the remote control. After receipt of an Alarm Page, the
LCD icons will display the alarm system status information and
the remote control will generate Alarm Page alerts.
An Alarm Page alert is a single beep or vibration from the remote
control every 60 seconds to alert the user that the alarm system
was triggered and will continue until the alarm page is cleared.
Page Recognition Mode
The remote control will leave a zone icon illuminated when it has
received a triggered response and will wait for you to recognize
the violation. Press any button on the remote control, the LCD
information and Alarm Page alerts will be cleared.
note: The remote control buttons will not send a com-
mand to the system until the alarm page is cleared.
note: If the transmitter is paged with an Alarm Page and
the WarnAway®is triggered before the Alarm Page is
relieved the transmitter will report the WarnAway®only
until the system is disarmed.
17
© 2006 directed electronics
programmable remote control features
To enter programming mode
Press the Program button on the back of the remote or hold the
four remote control buttons on the front of the remote simultane-
ously until one long beep is heard. Programming Mode has now
been entered.
Page Notification
The remote control can be programmed to notify the user of a
page by audibly beeping or remote vibration.
Beep Mode
Beep Mode includes alarm arm/disarm diagnostic beeps and
distinctive two-tone remote start beeps.
Vibrate Mode
Vibrate Mode makes page notification silent but does not include
diagnostic information or distinctive remote start notification.
Illumination
Illumination for the LCD display can be programmed on or off.
When programmed on the LCD will illuminate every time the
remote control receives a page or transmits a command.
Programming illumination on will decrease the life expectancy of
the battery.
Beep/Vibrate Mode
Within five seconds of entering Programming Mode, press .
The remote control will beep once for on, twice for off. The
vibrate icon (13) will also turn on/off with each press.
18 © 2006 directed electronics
Illumination On/Off
Within five seconds of entering Programming Mode, press .
The remote will beep once for on, twice for off and the light will
turn on/off with each press.
Page Mode On/Off
After entering Programming Mode, press within five
seconds to toggle on and off. When the Page Mode is on, the
remote control will wake up periodically to check for messages
from the security module. It will also wake up when any button
is pushed. When Page Mode is off, the remote control “sleeps
until a button is pushed, extending the life of the battery.
To Exit Programming Mode
To exit Programming Mode, take no action for five seconds. The
remote control will generate two beeps to indicate programming
mode has been exited.
uussiinngg yyoouurr ssyysstteemm
warning! safety first
The following safety warnings must be observed at all times:
Due to the complexity of this system, installation of this product
must only be performed by an authorized Directed dealer.
When properly installed, this system can start the vehicle via
a command signal from the remote control transmitter.
Therefore, never operate the system in an enclosed area or
19
© 2006 directed electronics
partially enclosed area without ventilation (such as a garage).
When parking in an enclosed or partially enclosed area or
when having the vehicle serviced, the remote start system
must be disabled using the installed toggle switch. It is the
user's sole responsibility to properly handle and keep out of
reach from children all remote control transmitters to assure
that the system does not unintentionally remote start the
vehicle. TTHHEE UUSSEERR MMUUSSTT IINNSSTTAALLLL AA CCAARRBBOONN
MMOONNOOXXIIDDEE DDEETTEECCTTOORR IINN OORR AABBOOUUTT TTHHEE
LLIIVVIINNGG AARREEAA AADDJJAACCEENNTT TTOO TTHHEE VVEEHHIIC
CLLEE.. AALLLL
DDOOOORRSS LLEEAADDIINNGG FFRROOMM AADDJJAACCEENNTT LLIIVVIINNGG AARREEAASS
TTOO TTHHEE EENNCCLLOOSSEEDD OORR PPAARRTTIIAALLLLYY EENNCCLLOOSSEEDD
VVEEHHIICCLLEE SSTTOORRA
AGGEE AARREEAA MMUUSSTT AATT AALLLL TTIIMMEESS
RREEMMAAIINN CCLLOOSSEEDD..These precautions are the sole respon-
sibility of the user.
Use of this product in a manner contrary to its intended
mode of operation may result in property damage, personal
injury, or death. (1) Never remotely start the vehicle with the
vehicle in gear, and (2) Never remotely start the vehicle with
the keys in the ignition. The user must also have the neutral
safety feature of the vehicle periodically checked, wherein the
vehicle must not remotely start while the car is in gear. This
testing should be performed by an authorized Directed dealer
in accordance with the Safety Check outlined in the product
installation guide. If the vehicle starts in gear, cease remote
start operation immediately and consult with the authorized
Directed dealer to fix the problem.
20 © 2006 directed electronics
After the remote start module has been installed, contact
your authorized dealer to have him or her test the remote
start module by performing the Safety Check outlined in the
product installation guide. If the vehicle starts when
performing the Neutral Safety Shutdown Circuit test, the
remote start unit has not been properly installed. The remote
start module must be removed or the installer must properly
reinstall the remote start system so that the vehicle does not
start in gear. All installations must be performed by an autho-
rized Directed dealer. OOPPEERRAATTIIOONN OOFF TTHHEE RREEMMOOTTEE
SSTTAARRTT MMOODDUULLEE IIFF TTHHEE VVEEHHIICCLLEE SSTTAARRTTSS IINN GGEEAARR
IISS CCOONNTTRRAARRYY TTOO IITTSS IINNTTEENNDDEEDD MMOOD
DEE OOFF OOPPEERR--
AATTIIOONN.. OOPPEERRAATTIINNGG TTHHEE RREEMMOOTTEE SSTTAARRTT SSYYSSTTEEMM
UUNNDDEERR TTHHEESSEE CCOONNDDIITTIIOONNSS MMAAYY RREESSUULLTT IINN
PPRROOPPEERRTTYY DDA
AMMAAGGEE OORR PPEERRSSOONNAALL IINNJJUURRYY.. YYOOUU
MMUUSSTT IIMMMMEEDDIIAATTEELLYY CCEEAASSEE TTHHEE UUSSEE OOFF TTHHEE
UUNNIITT AANNDD SSEEEEKK TTHHEE AASSSSIISSTTAANNCCEE OOFF A
ANN AAUUTTHHOO--
RRIIZZEEDD DDIIRREECCTTEEDDDDEEAALLEERR TTOO RREEPPAAIIRR OORR
DDIISSCCOONNNNEECCTT TTHHEE IINNSSTTAALLLLEEDD RREEMMOOTTEE SSTTAARRTT
MMOODDUULLEE.. DDIIRREECCTTEEDD WWI
ILLLL NNOOTT BBEE HHEELLDD
RREESSPPOONNSSIIBBLLEE OORR PPAAYY FFOORR IINNSSTTAALLLLAATTIIOONN OORR
RREEIINNSSTTAALLLLAATTIIOONN CCOOSSTTSS..
21
© 2006 directed electronics
active arming
You can arm the system by pressing of your transmitter for
one second. When the system arms, you will hear a short siren
sound, or chirp, and see the parking lights flash once. If the power
door locks are controlled by the system, the doors will also lock.
While the system is armed, the status LED will flash approximately
once per second, indicating that the system is actively protecting
your vehicle. If you hear a second chirp after arming and note that
the status LED is flashing in groups, see the Diagnostics Section of
this guide. This extra chirp is called Bypass Notification.
passive arming
The system can be programmed to arm itself automatically (called
passive arming). If the system is programmed for passive arming, it
will automatically arm 30 seconds after the ignition is turned off
and the system detects that you have left the vehicle by opening and
closing a door. Whenever the system is in its 30-second passive
arming countdown, the status LED will flash twice as fast as it does
when the system is armed. At the 20-second point of the count-
down, the siren will chirp to indicate that the system is about to
arm. At the 30-second point, the parking lights will flash to indicate
that the system is armed.
22 © 2006 directed electronics
When armed your vehicle is protected as follows:
Light impacts trigger the Warn Away®signal. When trig-
gered, the siren chirps and the parking lights flash for a few
seconds.
Heavy impacts trip a Triggered Sequence. The sequence
consists of the siren sounding continuously and the parking
lights flashing for a pre-programmed period, which can range
in duration from 1 to 180 seconds.
If a door is opened, the system will immediately start
chirping the siren and flashing the parking lights. Three
seconds later, the siren output changes to a continuous blast.
This progressive response gives you time to disarm the system
with your transmitter if you inadvertently open the door
while the system is armed, while still providing instant re-
sponse (even if the door is immediately closed).
Turning on the ignition key will trip the same progressive re-
sponse as opening a door.
The optional starter kill prevents the vehicles starter
from cranking.
note: If any protected entry point (such as a door or a
switch-protected trunk or hood) is open, the system will
not passively arm (unless forced passive arming is pro-
grammed on. See Programming Options section.) Addi-
tionally, each time a sensor is triggered during the arming
countdown, the 30-second countdown starts over.
23
© 2006 directed electronics
multi-level security arming
Multi-Level Security Arming allows you to select which of the
system's inputs or sensors will be active and which will be
bypassed when the system is armed. (See Table of Zones section of
this guide.) Pressing (only in Standard Configuration) again
within five seconds of arming the system will activate the Multi-
Level Security feature. Each time is pressed again, a different
security level is selected. The different security levels are selected
as follows:
Press once: The siren chirps once. The system is armed.
Press a second time within five seconds: The siren chirps
twice followed by a long chirp. Zone 2 is now bypassed.
Press a third time within five seconds: The siren chirps
three times followed by a long chirp. Zone 4 is now bypassed.
Press a fourth time within five seconds: The siren chirps four
times followed by a long chirp. Zones 2 and 4 are now bypassed.
Press a fifth time within five seconds: The siren chirps
five times followed by a long chirp. All input zones, except
the ignition, are now bypassed.
note: Multi-Level Security Arming only applies to a sin-
gle arming cycle. Once the system is disarmed and then
re-armed, all the zones will be active again.
24 © 2006 directed electronics
arming while driving
Your security system can be armed while driving the vehicle!
Simply press on the transmitter for two seconds while the
vehicle is running. The siren will chirp once to indicate that the
security system is armed, and then once more to indicate that the
ignition is on. The system will not respond to any input except
the door triggers, and the starter kill relay (if installed) will not be
activated. Once you have arrived at your destination, the system
will disarm when the ignition is turned off. The siren will chirp
twice and the LED will then stop flashing. The system can also
be disarmed at any time by pressing ..
disarming
To disarm the security system, press . You will hear two
chirps, and the parking lights will flash twice. If the power locks
are controlled by the system, the doors will also unlock. The siren
chirping either four or five times when disarming indicates
Tamper Alert, which is described in the Diagnostics Section of
this guide.
high security disarm
This security system offers High Security Disarm. High Security
Disarm is a feature that makes it possible to silence and reset the
system while it is triggering, without disarming the system. If the
system is triggered and the siren has been sounding for longer
than six seconds, pressing on the remote transmitter will
stop the trigger and return the unit to the armed state. The
25
© 2006 directed electronics
system will not disarm, but rather reset. This prevents you from
disabling the system should you wish to disarm it without visu-
ally checking the vehicle. Pressing after resetting the system
will disarm the system; pressing this button during the first six
seconds of the triggered sequence will disarm the security system
immediately. The six second timer is provided for your conve-
nience, in case the system is accidentally triggered.
disarming without a transmitter
If your remote transmitter is lost or damaged, you can manually
disarm your vehicle security system. To disarm the system
without a transmitter, you must have the vehicle's ignition key
and know where the Valet button is located. Be sure to check
with your installer at the time of installation for both the location
and the preset response (1-5 presses) of the Valet button.
To disarm the security system,
turn the ignition to the ON posi-
tion. Press the Valet button the
preset number of times (one to
five times) within 15 seconds.
After five seconds, the system will
disarm. If the system does not
disarm, you may have waited too
long; turn the ignition off and on
and try again.
Location of Valet Button_________________________________
DRW-35
26 © 2006 directed electronics
Number of Presses_____________________________________
silent mode
To temporarily turn off the arm or disarm chirps, use Silent
Mode™. Simply press for less than one second before
arming or disarming, and the confirmation chirp(s) will be elim-
inated for that one operation only. If you want the arm/disarm
chirps turned off permanently, your dealer can do this for you.
panic mode
If you are threatened in or near your vehicle, you can attract
attention by triggering the system with your transmitter. Just
press for two seconds, and you will enter Panic Mode. The
siren will sound and the parking lights will flash for the
programmed siren duration. To stop Panic Mode at any time,
press on the remote transmitter again.
note: The Warn Away®response to lighter impacts is
bypassed if the system is armed using Silent Mode. This
ensures that no chirps will be emitted by the siren in an
area you want chirp-free. The system is still fully capable
of triggering. Only the Warn Away®response is bypassed.
important! The Valet button can be programmed to
respond to 1-5 presses for the disarm function. You must
check with the installer to verify the programming for
your individual unit.
27
© 2006 directed electronics
valet mode
You can prevent your security system from automatically arming
and triggering by using Valet®Mode. This is very useful when
washing the vehicle or having it serviced. In Valet®Mode, the
security system will not arm, even with the remote transmitter,
but all convenience functions (door locks, trunk release, etc.)
will continue to work normally.
To enter or exit Valet®Mode:
1. Turn the ignition on.
2. Turn the ignition off.
3. Press and release the Valet
button within 10 seconds.
The status LED will light solidly if you are entering Valet®
Mode, and it will go out if you are exiting Valet®Mode.
To enter or exit Valet Mode using the transmitter:
1. Open any vehicle door.
2. Press .
3. Press .
4. Press again.
The status LED will light solidly if you are entering Valet®
Mode, and it will go out if you are exiting Valet®Mode.
remote start
This feature allows you to remotely start and run your vehicle for
a programmable period of time. This makes it possible to warm
DRW-35
28 © 2006 directed electronics
up the engine, as well as adjust the interior temperature of the
vehicle with the climate control system. If interior heating or
cooling is desired, the climate controls must be preset, and the
fan blower must be set to the desired level prior to remote
starting the vehicle.
To remote start the vehicle:
1. Press on the transmitter twice within 3 seconds.
2. The parking lights will flash to confirm that the vehicle will
attempt to start.
3. In gasoline vehicles, the engine will start 4 seconds after the
parking lights flash. In diesel vehicles, the engine will start
when the WAIT-TO-START indicator on the vehicle's dash
goes out.
4. Once the vehicle has started, it will run for the pre-program-
med period of time (either 12, 24, or 60 minutes - see
Programming Options section of this guide) or until a shut-
down input is triggered.
iimmppoorrttaanntt!! It is unsafe to operate a vehicle’s motor in a
garage or other closed off area. Breathing the exhaust
from the vehicle is hazardous to your health. Never acti-
vate the remote start in an enclosed space.
iimmppoorrttaanntt!! (1) Never remote start your vehicle when the
keys are in the ignition, except when performing Valet®
Take-Over, and (2) Never start the vehicle if it is not in
either PARK or NEUTRAL.
29
© 2006 directed electronics
When you are ready to drive the vehicle:
1. Insert the ignition key and turn
it to the ON (not the START)
position.
2. Press the brake pedal.
While the vehicle is running during remote start operation, the
system will monitor the vehicle and will automatically shut
down the engine if the system receives any of the following shut-
down inputs:
The brake pedal is pressed.
The hood is opened.
The shutdown toggle switch is put into the OFF position.
The pre-programmed run time (12, 24, or 60 minutes)
has elapsed.
Transmitter button is pressed again to start the vehicle.
valet take-over
The Valet®Take-Over feature allows the vehicle to remain
running after the key has been removed from the ignition. This
feature is useful for occasions when you wish to exit and lock the
vehicle for short periods of time, but would like to leave the
motor running and the climate controls on.
note: If the brake pedal is pressed before the key is in the
ON position, the engine will shut down.
30 © 2006 directed electronics
To perform Valet
®
Take-Over:
1. Before turning off the engine, press and release on the
transmitter twice within 3 seconds. Then wait five seconds.
2. Turn the ignition key to the OFF position. (The engine will
stay running.)
3. The engine will run until the pre-programmed time elapses
or a shut-down input is received. (See the previous Remote
Start section for a complete list of shut-down inputs.)
short-run/turbo
Short run turbo mode keeps the engine running after arriving at
you destination for a programmable period of 1, 3, 5 or 10
minutes. This allows the systems timer to conveniently cool
down the turbo after you have left the vehicle.
To activate:
1. Park the vehicle and set parking brake.
2. Remove your foot from the brake pedal and leave the
engine running.
3. Press and release the and buttons at the same time.
4. The lights will flash to indicate the remote start has entered
short run turbo mode.
note: This feature will not work if the brake pedal is
being pressed.
31
© 2006 directed electronics
5. Turn off the key, the engine will keep running.
6. Exit and secure the vehicle.
7. The engine will turn off after the programmed run time.
timer mode
By pressing the remote and buttons the parking
lights will flash 4 times and then start the vehicle and run for the
set duration. The remote start can be shut off by the transmitter
by pressing the remote start button and remain in timer
mode, but if any other shut down zones or the ignition becomes
active the timer mode will cancel.
1. Press Timer mode buttons.
2. The vehicle will confirm with 4 parking light flashes.
3. A 1-second delay will start.
4. The system will start the car and will run for the specified
duration, unless shut down by the remote start button . If
shut down with the remote start button the system will
remain in timer mode.
5. The system will start every 3 hours until canceled by the
brake, hood, or neutral safety shut-down wires.
32 © 2006 directed electronics
To exit timer mode, turn the ignition switch on any time the
engine is running. The parking lights will flash 4 times, indicat-
ing timer mode has been exited.
ssaaffeettyy ffeeaattuurreess
This system has several important safety features to ensure
proper operation of the motor and prevent accidental damage to
the engine or its components.
starter anti-grind circuitry
Whenever the vehicle is remote started, advanced anti-grind
circuitry prevents the starter from engaging, even if the key is
turned to the start position. This prevents damage to the starter
motor if the key is turned to the start position during remote
start operation.
note: Anti-grind circuitry only works when the remote
start system is operating the motor and the Failsafe®
Starter Kill relay is installed.
important!!Timer Mode should be used only in
open areas. Never start and run the vehicle in an
enclosed space such as a garage or carport.
33
© 2006 directed electronics
disabling the remote start system
This feature allows your system's remote start unit to be
temporarily disabled to prevent the vehicle from being remote
started accidentally. This feature is useful if the vehicle is being
serviced or stored in an enclosed area. To disable the remote
start, move the shutdown toggle switch to the OFF position. The
switch can be installed in a location of your choice. Check with
your installer for recommended locations.
Location of Shutdown Switch____________________________
over and under rev protection
The system monitors the engine speed and will automatically
shut the engine off if the RPMs rise above or fall below the
programmed levels. This feature prevents damage to the motor
due to fuel delivery system failures or other problems which may
cause the engine to race.
shut down inputs
This security system uses several inputs to shut down the remote
start operation of the motor or prevent remote start if certain
inputs are active. The two most important are hood and brake
inputs. The hood input will prevent the motor from starting, as
well as shut it down, any time the hood is opened. The brake
note: The system uses a wire connected to the vehicle to
sense engine speed. This wire must be connected in order
for over and under rev protection to work.
34 © 2006 directed electronics
pedal will shut down the motor at any time during remote start
operation, as well as preventing the remote start from activating
while it is being pressed.
nuisance prevention circuitry
Your system has Directed’s Nuisance Prevention Circuitry
(NPC). It prevents annoying repetitive trigger sequences due to
faulty door pin switches or environmental conditions such as
thunder, jackhammers, airport noise, etc.
Example
If the alarm triggers three times within a 60-minute period and
each time the same sensor or switch triggers the alarm, NPC
will interpret those triggers as false alarms. After the third trigger,
NPCignores, or bypasses, that sensor or switch (along with any
other sensors or switches sharing the same zone) for 60 minutes.
If the bypassed sensor tries to trigger the security system while it
is being bypassed, the 60-minute bypass period will start over.
This ensures that a sensor that is continually being triggered will
remain bypassed.
The vehicle doors are protected by NPCdifferently. If your
security system is triggered by an open door for three full cycles,
the system will bypass the doors until the trigger ceases.
35
© 2006 directed electronics
ddiiaaggnnoossttiiccss
The microprocessor at the heart of your system is constantly
monitoring all of the switches and sensors connected to it. It is
designed to detect any faulty switches and sensors and prevents
them from disabling the entire system. The microprocessor will
also record and report any triggers that occurred during your
absence. Refer to the System Status Chirps and Table of Zones
sections of this guide for diagnostic information.
arming diagnostics
If the security system is armed at the same time that an input is
active (such as a door opening or sensor triggering), you will hear
one siren chirp to indicate arming and a second siren chirp to
indicate Bypass Notification. A Bypass Notification chirp means
that the security system ignores the input that was active when
the system was armed, until that input ceases. Three seconds
after that input ceases, the security system will resume normal
monitoring. For example, if your vehicle has an interior light exit
note: Arming and disarming the system does not reset
this function! The only ways to reset a bypassed zone are
for it to not trigger for 60 minutes, or to turn on the igni-
tion. If testing your system, it is important to remember
that the NPCprogramming can cause zones to be
bypassed and appear to stop working. If five chirps are
heard when disarming, NPChas been engaged. If you
wish to clear the NPCmemory, turn the ignition on.
36 © 2006 directed electronics
delay and you arm your security system before the interior light
turns off, you may hear a second Bypass Notification chirp. Once
the light turns off, however, the security system resumes normal
monitoring.
disarming diagnostics
Extra chirps that are heard when disarming the system are the
Tamper Alert. If four chirps are heard when disarming the
system, then the security system was triggered in your absence. If
five chirps are heard when disarming the system, a zone was trig-
gered so many times that the Nuisance Protection Circuitryhas
bypassed that zone. In either case, the status LED will indicate
which zone was involved (see Table of Zones section). The secu-
rity system will retain this information in its memory and chirp
four or five times each time it is disarmed, until the next time
that the ignition is turned on.
note: Bypass Notification does not occur when the sys-
tem is in Silent Mode or if the notification chirps have
been programmed off by the installer.
37
© 2006 directed electronics
system status chirps
The siren will chirp when arming/disarming the system. The
pattern of chirps will audibly report the systems status as
described below.
Action Number of Chirps Description
Arm 1 System armed
Arm 1 (3-second delay), 1 System armed with
Bypass Notification
Disarm 2 System disarmed
Disarm 4 System disarmed with
Tamper Alert
Disarm 5 System disarmed NPC
active
38 © 2006 directed electronics
table of zones
A zone is represented by the number of LED flashes used by the
system to identify a particular type of input. Standard input
assignments are listed in the following table, along with spaces to
write in any optional sensors or switches that have been installed.
ZONE
(Number of DEALER-INSTALLED
LED Flashes) DESCRIPTION OPTIONS
1Instant trigger - hood pinswitch
2Instant trigger - a heavier impact
detected by the shock sensor
3Door switch trigger
4Instant trigger - for optional
sensors
5Ignition trigger
interpreting zone diagnostics
Warn Away responses are not reported by arming or disarming
diagnostics. If you receive a Bypass notification when arming or
a Tamper Alert notification when disarming, look at the LED.
Active or triggered zones will be indicated by a pattern of blinks
by the LED.
39
© 2006 directed electronics
Example
If zone 3 was active or triggered, the LED will blink three times
with a two-second pause. Then it will blink three times again,
and repeat until the ignition is turned on.
ccooddee hhooppppiinngg
The receiver and transmitters use a mathematical formula called
an algorithm to change their code each time the transmitter is
used. This technology has been developed to increase the secu-
rity of the unit. The control unit knows what the next codes should
be. This helps to keep the transmitter “in sync” with the control
unit even if you use the remote control out of range of the
vehicle. However, if the remote has been pressed many times out
of range of the vehicle, or the battery has been removed, it may fall
out of sync with the control unit and fail to operate the system.
To re-sync the remote simply press several times within
range of the vehicle. The alarm will automatically re-sync and
respond to the transmitters normally.
note: Your system stores the last two triggered zones in
memory. If your system has been triggered but the LED
has been reset by turning on the ignition, your dealer can
still recall the last two zones that were triggered. Contact
your dealer for details.
40 © 2006 directed electronics
hhiigghh ffrreeqquueennccyy
Your system transmits and receives at 434 MHz. This provides a
cleaner spectrum with less interference and a more stable signal.
Enjoy a phenomenal increase in range, even in areas with high
radio interference.
oowwnneerr rreeccooggnniittiioonn
Owner Recognition is a revolutionary new feature available only
from Directed. Using a Directed Bitwriter, hand-held program-
ming tool, your dealer can program many of the system settings.
The programmer makes it possible to program different settings
for each transmitter that is used with the system. Then, whenev-
er a specific transmitter is used, the system will recall the settings
assigned to that transmitter. Owner Recognition lets up to four
users of the system have different settings that meet their specific
needs. It is almost like having four separate alarms in your
vehicle, one for each user.
note: Owner Recognition cannot be programmed with-
out a Bitwriter®and the necessary software. Check with
your dealer for more information.
41
© 2006 directed electronics
rraappiidd rreessuummee llooggiicc
This Directed system will store its current state to non-volatile
memory. If power is lost and then reconnected the system will
recall the stored state from memory. This means if the unit is in
Valet®Mode and the battery is disconnected for any reason, such
as servicing the car, when the battery is reconnected the unit will
still be in Valet®Mode. This applies to all states of the system
including arm, disarm, and Valet®Mode.
ppoowweerr ssaavveerr mmooddee
Your system will automatically enter Power Saver Mode while
armed or in Valet®Mode, after a period of time in which no
operation has been performed. This lowers the current draw on
the vehicle's battery. Power Saver Mode takes over under the
following conditions:
Power Saver when the system is armed: After the system has
been armed for 24 hours the LED will flash at half its
normal rate, decreasing the system's current draw.
Power Saver in Valet®Mode: When the system enters Valet®
Mode the LED illuminates steadily. If the vehicle is not used
(ignition is not turned on) for a one hour period while the
system is in Valet®Mode, the LED will shut off. If the
system remains in Valet®Mode, the LED will come back on
the next time the ignition is turned on and then back off.
42 © 2006 directed electronics
pprrooggrraammmmiinngg rreemmoottee ccoonnttrrooll ffeeaattuurreess
To enter programming mode
Press the Program button on the back of the remote or hold the
four remote control buttons on the front of the remote simultane-
ously until one long beep is heard. Programming Mode has now
been entered.
To exit programming mode
If no action is taken by the user within 5-seconds (button
pressed), programming mode will be exited.
Page notification (Beep or Vibrate)
Use to toggle selections between Beep mode or Vibrate
mode.
Illumination (On or Off)
Use to toggle selections between LCD backlight illumina-
tion On/Off.
Sensor icon selection (hood/trunk)
Use to toggle display selections between hood only (1 beep),
trunk only (2 beeps), or hood and trunk (3 beeps) on the LCD
display. The installer will have set the remote up to correctly
display the installation (hood pin only, trunk pin only, or hood
and trunk pin installed).
43
© 2006 directed electronics
Page mode (On/Off)
Press to toggle Page mode on and off. When Page Mode is
on, the remote control will wake up periodically to check for
messages from the security module. It will also wake up when
any button on the remote is pushed. When Page Mode is off, the
remote control “sleeps” until a button on the remote is pushed,
extending the life of the battery.
pprrooggrraammmmiinngg ooppttiioonnss
Programming options control your system's normal, operational
set-up. Most options do not require additional parts, but some
may require installation labor.
The following is a list of the programmable options, with the
factory settings in Bold.
AAccttiivveearming (transmitter only) or passive arming (auto-
matic arming 30 seconds after the last door has been closed).
Arming/disarming siren chirps oonnor off.
The ignition controlled door lock feature oonnor off: When
this feature is programmed on, the doors will lock three
seconds after the ignition is turned on, and unlock when the
ignition is turned off. If your installer is programming the
note: When page mode is Off, Warn Aways®and alarms
will not be displayed or notified on the remote until a
button on the remote has been pressed.
44 © 2006 directed electronics
security system with the Directed Bitwriter, ignition lock
and unlock are independent features that can be
programmed separately.
Passive door locking (with passive arming) or aaccttiivvee ddoooorr
lloocckkiinngg(only when arming with the transmitter). Passive
locking allows the vehicle's doors to lock when the security
system passively arms (after the 30-second countdown).
This feature only works if passive arming has been
programmed.
Panic mode eennaabblleedd/disabled when the ignition is turned on.
(Some states have laws against sirens sounding in moving cars.)
Forced passive arming oonnor off. If your security system is
programmed for passive arming and the forced passive
arming feature has been programmed on, the system will
passively arm after one hour, even if a protected entry has
been left open. Forced passive arming ensures that the
system will be armed if a door has accidentally been left ajar
when leaving the vehicle.
Full trigger response 3300or 60 seconds: This determines how
long the full triggered sequence lasts. Some states have laws
regulating how long a security system can sound before it is
considered a nuisance. If your installer is programming the
note: When the system passively arms after one hour, the
entry point that has been left open, and anything con-
nected to the same zone, is bypassed and cannot trigger
the system. However, the remaining inputs to the system
are fully operational.
45
© 2006 directed electronics
security system with the Directed Bitwriter, the full triggered
response can be programmed for any duration ranging from
1 to 180 seconds.
Automatic Engine Disable (AED) on or ooffff. The purpose of
this feature is to protect the vehicle from being stolen at all
times, regardless of whether or not the alarm is armed. If
AED is programmed on, the starter of the vehicle will be
disabled 30 seconds after the ignition is turned off. Once the
key is turned off, the LED will flash slowly (one-half its
normal armed rate) to indicate the AED arming cycle. Thirty
seconds later, the starter will be disabled. To start the car, it
will be necessary to disarm the system with the transmitter.
It is also possible to disarm the AED feature by turning the
ignition key to the RUN position and pressing the Valet®
button the programmed number of times. AED is also
disabled when the system is in Valet®mode.
Siren tones and chirp volume. The output of the Revenger
Soft Chirpsiren consists of six different tones in sequence.
Any of these tones can be eliminated by a dealer, resulting in a
unique, easily identifiable siren sound. The chirps can be either
full volume or 66 ddeecciibbeellss qquuiieetteerr than the full alarm blast.
The engine can be programmed to run for any duration
ranging from 1 to 60 minutes. 1122 mmiinnuutteessis the default.
After the programmed run time, the engine will shut down
note: This feature will only function if the FailSafe®
Starter Kill relay has been installed.
46 © 2006 directed electronics
and will not restart, unless in Timer Mode.
While the remote start system is running the engine, the
parking lights of the vehicle can ffllaasshh oonn aanndd ooffffor come on
and light steadily.
sseeccuurriittyy && ccoonnvveenniieennccee eexxppaannssiioonnss
Listed below are some of the many expansion options available.
Please consult your dealer for a complete explanation of all the
options available to you.
Audio Sensor:
Metal on glass, glass cracking, and breaking
glass produce distinctive acoustic signatures. The 506T audio
sensor uses a microphone to pick up sounds, then analyzes them
with proprietary acoustic software to determine if the glass has
been struck.
Backup Battery:
The 520T keeps the system armed, triggers
the alarm and keeps the starter interrupt active if main battery
is disconnected.
Hood Lock:
Prevents the vehicles hood from being opened
without a key, keeping thieves away from the systems siren, the
battery connections, and other components under the hood.
Field Disturbance Sensor:
An invisible dome of coverage is estab-
lished by installing the 508D “radar” sensor. Your system can react
to any intrusions into this field with the full triggered sequence.
47
© 2006 directed electronics
Power Locks:
This system offers lock outputs that can control
some manufacturers' power door lock systems. For other
systems, additional parts may be required.
Power Trunk Release:
The accessory output of the system can op-
erate a factory power release for the vehicles trunk or hatch.
Although the on-board relay can control most power trunk re-
leases, sometimes an optional relay is required. If the factory
release is not power-activated, Directed®'s 522T trunk release
solenoid can often be added.
Power Window Control:
Automatic power window control is pro-
vided with the 529T and 530T systems. These can operate
power windows, and can roll them up automatically when the
system is armed, roll them down, or both up and down.
Mobile Video:
This system is compatible with Directed Videos
MCB1000 Multi-Channel Controller, featuring on-screen secu-
rity system programming and zone trigger information.
48 © 2006 directed electronics
gglloossssaarryy ooff tteerrmmss
Control Unit:
The “brain” of your system. Usually hidden under-
neath the dash area of the vehicle. The control unit houses the
microprocessor which monitors your vehicle and controls all
system functions.
Fault-Proof Starter Interrupt:
An automatic switch controlled by
your system that prevents the vehicles starter from cranking
whenever the system is armed. The vehicle is never prevented
from cranking when the system is disarmed, in Valet Mode, or if
the starter interrupt switch itself fails. Your system has feature-
ready circuitry for the starter interrupt, however installation may
require additional labor.
Input:
A physical connection to the system. An input can be
provided by a sensor, pinswitch or by existing systems in the
vehicle, such as ignition or courtesy lights.
LED:
A red light mounted at a discretionary location inside the
vehicle. It is used to indicate the status of your system.
Shock Sensor:
This system has a dual zone shock sensor. This
sensor is mounted in the vehicle and designed to pick up impacts
to the vehicle or glass.
Transmitter:
A hand-held, remote control which operates the
various functions of your system.
49
© 2006 directed electronics
Quick Reference Guide
Arming
To arm, press . When the system arms, you will hear a short chirp, and
the parking lights will flash once.
Arming while driving
To arm the system while driving, press on your transmitter while the
vehicle is running. The system will chirp once and then once more to indi-
cate that the ignition is on.
Disarming
To disarm, press . You will hear two chirps, and the parking lights will
flash twice.
High security disarm
For high security disarm, press on your transmitter and the siren will stop
sounding. To completely disarm the security system, press again and the
system will chirp 4 or 5 times (reporting the trigger).
Disarming without a transmitter
Turn on the ignition. Press the Valet®switch within 15 seconds. The system
should now disarm. If it does not, you may have waited too long, so turn the
ignition off and on and try again.
Silent Mode
Pressing briefly before arming or disarming will eliminate the confirma-
tion chirp(s) for that one operation only.
Panic Mode
Press for 2 seconds, and you will enter Panic Mode. The siren will sound
and the parking lights will flash for 30 seconds. To stop Panic Mode at any
time, press on the transmitter again.
To remote start the vehicle
Press and simultaneously. The parking lights will turn on (if
connected) and the vehicle will start and run for the programmed period of
time.
To disable the remote start system
To disable the remote start, move the shutdown toggle switch to the OFF
position.
Location of Valet®switch_________________________________
Number of Valet®switch pulses for disarming_______________
Cut along dotted line and fold for a quick and easy reference to keep in your purse or wallet.
The company behind this system is Directed Electronics
Since its inception, Directed Electronics has had one purpose, to provide consumers with
the finest vehicle security and car stereo products and accessories available. The recipient of
nearly 100 patents and Innovations Awards in the field of advanced electronic
technology, Directed is ISO 9001 registered.
Quality Directed Electronics products are sold and serviced throughout North America
and around the world.
Call ((880000)) 227744--00220000for more information about our products and services.
Vista, CA 92081
www.directed.com
© 2006 Directed Electronics - All rights reserved
G5301V 03-06
Directed Electronics is committed to delivering world class quality products
and services that excite and delight our customers.
