MMooddeell 55990000

➤

OOwwnneerr’’ss GGuuiiddee

lliimmiitteedd lliiffeettiimmee ccoonnssuummeerr wwaarrrraannttyy

Directed Electronics ("Directed") promises to the original purchaser to repair or replace

with a comparable reconditioned model any Directed unit (hereafter the "unit"), exclud-

ing without limitation the siren, the remote transmitters, the associated sensors and acces-

sories, which proves to be defective in workmanship or material under reasonable use dur-

ing the lifetime of the vehicle provided the following conditions are met: the unit was pro-

fessionally installed and serviced by an authorized Directed dealer; the unit will be pro-

fessionally reinstalled in the vehicle in which it was originally installed by an authorized

Directed dealer; and the unit is returned to Directed, shipping prepaid with a legible copy

of the bill of sale or other dated proof of purchase bearing the following information: con-

sumer's name, telephone number and address; the authorized dealers name, telephone

number and address; complete product description, including accessories; the year, make

and model of the vehicle; vehicle license number and vehicle identification number. All

components other than the unit, including without limitation the siren, the remote trans-

mitters and the associated sensors and accessories, carry a one-year warranty from the date

of purchase of the same. This warranty is non-transferable and is automatically void if: the

original purchaser has not completed the warranty card and mailed it within ten (10) days

of the date of purchase to the address listed on the card; the unit's date code or serial num-

ber is defaced, missing or altered; the unit has been modified or used in a manner con-

trary to its intended purpose; the unit has been damaged by accident, unreasonable use,

neglect, improper service, installation or other causes not arising out of defects in materi-

als or construction. The warranty does not cover damage to the unit caused by installa-

tion or removal of the unit. Directed, in its sole discretion, will determine what consti-

tutes excessive damage and may refuse the return of any unit with excessive damage. TO

THE MAXIMUM EXTENT ALLOWED BY LAW, ALL WARRANTIES, INCLUD-

ING BUT NOT LIMITED TO EXPRESS WARRANTY, IMPLIED WARRANTY,

WARRANTY OF MERCHANTABILITY, FITNESS FOR PARTICULAR PURPOSE

AND WARRANTY OF NON-INFRINGEMENT OF INTELLECTUAL PROPERTY,

ARE EXPRESSLY EXCLUDED; AND DIRECTED NEITHER ASSUMES NOR

AUTHORIZES ANY PERSON OR ENTITY TO ASSUME FOR IT ANY DUTY,

OBLIGATION OR LIABILITY IN CONNECTION WITH ITS PRODUCTS.

DIRECTED DISCLAIMS AND HAS ABSOLUTELY NO LIABILITY FOR ANY

AND ALL ACTS OF THIRD PARTIES INCLUDING ITS AUTHORIZED DEAL-

ERS OR INSTALLERS. DIRECTED SECURITY SYSTEMS, INCLUDING THIS

UNIT, ARE DETERRENTS AGAINST POSSIBLE THEFT. DIRECTED IS NOT

OFFERING A GUARANTEE OR INSURANCE AGAINST VANDALISM, DAM-

AGE OR THEFT OF THE AUTOMOBILE, ITS PARTS OR CONTENTS; AND

HEREBY EXPRESSLY DISCLAIMS ANY LIABILITY WHATSOEVER, INCLUD-

ING WITHOUT LIMITATION, LIABILITY FOR THEFT, DAMAGE AND/OR

VANDALISM. THIS WARRANTY DOES NOT COVER LABOR COSTS FOR

MAINTENANCE, REMOVAL OR REINSTALLATION OF THE UNIT OR ANY

CONSEQUENTIAL DAMAGES OF ANY KIND. IN THE EVENT OF A CLAIM

OR A DISPUTE INVOLVING DIRECTED OR ITS SUBSIDIARY, THE PROPER

VENUE SHALL BE SAN DIEGO COUNTY IN THE STATE OF CALIFORNIA.

CALIFORNIA STATE LAWS AND APPLICABLE FEDERAL LAWS SHALL APPLY

AND GOVERN THE DISPUTE. THE MAXIMUM RECOVERY UNDER ANY

CLAIM AGAINST DIRECTED SHALL BE STRICTLY LIMITED TO THE

AUTHORIZED DIRECTED DEALER'S PURCHASE PRICE OF THE UNIT.

DIRECTED SHALL NOT BE RESPONSIBLE FOR ANY DAMAGES WHATSOEV-

ER, INCLUDING BUT NOT LIMITED TO, ANY CONSEQUENTIAL DAMAGES,

INCIDENTAL DAMAGES, DAMAGES FOR THE LOSS OF TIME, LOSS OF

EARNINGS, COMMERCIAL LOSS, LOSS OF ECONOMIC OPPORTUNITY

AND THE LIKE. NOTWITHSTANDING THE ABOVE, THE MANUFACTURER

DOES OFFER A LIMITED WARRANTY TO REPLACE OR REPAIR THE CON-

TROL MODULE AS DESCRIBED ABOVE. Some states do not allow limitations on

how long an implied warranty will last or the exclusion or limitation of incidental or con-

sequential damages. This warranty gives you specific legal rights and you may also have

other rights that vary from State to State.

This product may be covered by a Guaranteed Protection Plan ("GPP"). See your autho-

rized Directed dealer for details of the plan or call Directed Customer Service at 1-800-

876-0800. Directed security systems, including this unit, are deterrents against possible

theft. Directed is not offering a guarantee or insurance against vandalism, damage or theft

of the automobile, its parts or contents; and hereby expressly disclaims any liability what-

soever, including without limitation, liability for theft, damage and/or vandalism.

Directed does not and has not authorized any person or entity to create for it any other

obligation, promise, duty or obligation in connection with this security system.

Make sure you have all of the following information from your dealer:

A clear copy of the sales receipt, showing the following:

➤Date of purchase

➤Your full name and address

➤Authorized dealer's company name and address

➤Type of alarm installed

➤Year, make, model and color of the automobile

➤Automobile license number

➤Vehicle identification number

➤All security options installed on automobile

➤Installation receipts

lliimmiitteedd lliiffeettiimmee ccoonnssuummeerr wwaarrrraannttyy.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ii

ssttaannddaarrdd ttrraannssmmiitttteerr ccoonnffiigguurraattiioonn.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..

.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 33

wwhhaatt iiss iinncclluuddeedd.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..

.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 44

iimmppoorrttaanntt iinnffoorrmmaattiioonn.. .. .. .. .. .. .. .

. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 44

your warranty. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

fcc/id notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

caution . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

rreemmoottee ccoonnt

trrooll ddiiaaggrraamm.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 77

ssttaannddaarrdd rreemmoottee ccoonnffiigguurraattiioonn.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..

.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 88

ssyysstteemm mmaaiinntteennaannccee.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..

.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 99

ttrraannssmmiitttteerr ffuunnccttiioonnss.. .. .. .. .. .. .. .. .. .. .. .

. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 1100

standard configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

standard icon configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

rreemmoottee ooppeerraattiioon

n aanndd pprrooggrraammmmiinngg iinnssttrruuccttiioonnss.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 1155

system signal paging features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

programmable remote control features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

uussiinngg yyo

ouurr ssyysstteemm .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 1188

warning! safety first . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

active arming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

passive arming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

multi-level security arming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

arming while driving . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

disarming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

high security disarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

disarming without a transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

silent mode. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

panic mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

valet mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

remote start . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

valet take-over . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

short-run/turbo . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

timer mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

ssaaffeettyy ffeeaattuurreess.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..

.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 3322

starter anti-grind circuitry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

disabling the remote start system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

over and under rev protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

shut down inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33

nuisance prevention circuitry . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

ttaabbllee ooff ccoonntteennttss

ddiiaaggnnoossttiiccss.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 3355

arming diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

disarming diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

system status chirps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

table of zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

interpreting zone diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

ccooddee hhooppppiinngg.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..

.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 3399

hhiigghh ffrreeqquueennccyy.. .. .. .. .. .. .. .. .. .. .. .. .. .. .

. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 4400

oowwnneerr rreeccooggnniittiioonn.

. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 4400

rraappiidd rreessuummee llooggiicc.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..

.. .. .. .. .. .. .. .. .. .. .. .. .. .. 4411

ppoowweerr ssaavveerr mmooddee .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. ..

.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 4411

pprrooggrraammmmiinngg rreemmoottee ccoonnttrrooll ffeeaattuurreess.. .. .. .. ..

.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 4422

To enter programming mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

To exit programming mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Page notification (Beep or Vibrate). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Illumination (On or Off) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Sensor icon selection (hood/trunk). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Page mode (On/Off) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

pprrooggrraammmmiinngg ooppttiioonnss.. .. .. .. .. .

. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 4433

sseeccuurriittyy &

& ccoonnvveenniieennccee eexxppaannssiioonnss.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 4466

gglloossssaarryy ooff tteerrmmss.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .

. .. .. .. .. .. .. .. .. .. .. .. .. .. 4488

qquuiicckk rreeffeerreennccee gguuiiddee.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .

. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 4499

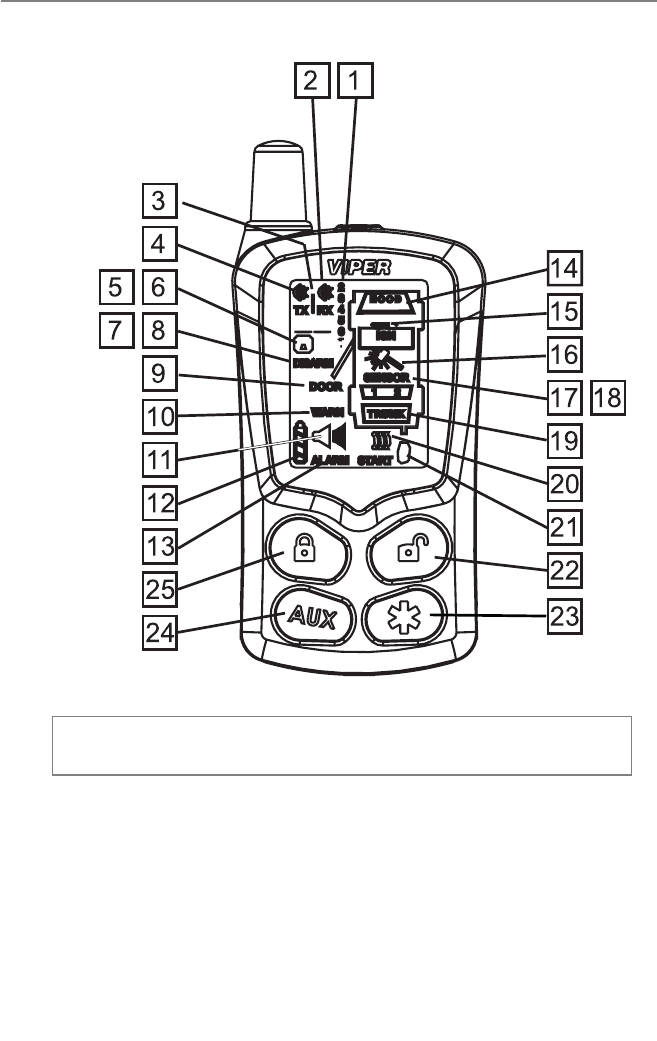

ssttaannddaarrdd ttrraannssmmiitttteerr ccoonnffiigguurraattiioonn

controls the AArrmmand PPaanniiccOn/Off function.

controls the DDiissaarrmmand PPaanniiccOff function.

controls SSiilleenntt MMooddee™™ and AAuuxxiilliiaarryy channel 22output.

controls the RReemmoottee SSttaarrttfunction.

and pressed together control the TTiimmeerr mode.

and pressed together control TTuurrbboo//SShhoorrtt RRuun

and pressed together control channel 44output.

and pressed together control channel 55output.

wwhhaatt iiss iinncclluuddeedd

➤A control module

➤An XHF2 receiver/antenna

➤One four-button transmitter

➤A Stinger™ DoubleGuard®two-stage shock sensor

➤A Revenger™ Soft Chirp™ six-tone programmable siren

➤A red status LED indicator light

➤A push-button Valet®switch

➤Your warranty registration

➤A shut-down toggle switch

iimmppoorrttaanntt iinnffoorrmmaattiioonn

Congratulations on the purchase of your combination remote

start alarm system. Due to the complexity of this system, it must

be installed by an authorized dealer only. Installation of this

product by anyone other than an authorized dealer voids the

warranty. All dealers are provided with a preprinted dealer certifi-

cate to verify authorization.

By carefully reading this Owner's Guide prior to using your

system, you will maximize the use of this system and its features.

You can print additional or replacement copies of this manual by

accessing our web site at www.directed.com.

your warranty

Your warranty registration must be completely filled out and

returned within 10 days of purchase. Your product warranty

will not be validated if your warranty registration is not returned.

Make sure you receive the warranty registration from your dealer.

It is also necessary to keep your proof of purchase, which reflects

that the product was installed by an authorized dealer.

fcc/id notice

This device complies with Part 15 of FCC rules. Operation is

subject to the following two conditions: (1) This device may not

cause harmful interference, and (2) This device must accept any

interference received, including interference that may cause

undesirable operation.

Changes or modifications not expressly approved by the party

responsible for compliance could void the user's authority to

operate this device.

IIVVUU,, IInn vveehhiiccllee rreecceeiivveerr uunniitt

To satisfy FCC RF exposure compliance the device and its

antenna must maintain a separation distance of 20 cm or more

from a person’s body, except for the hand and wrists, to satisfy

RF exposure compliance.

HHHHUU,, hhaanndd hheelldd uunniitt

To satisfy FCC RF exposure compliance requirements, this

device should be used in hand-held, hand operated configura-

tions only. The device and its antenna must maintain a separa-

➜

tion distance of 20 cm or more from the person’s body, except for

the hand and wrists, to satisfy RF exposure compliance. This

device is designed to be used in a person’s hands and its operating

configurations do not support normal transmissions while it is

carried in pockets or holsters next to a persons’ body.

caution

This product is designed for fuel injected, automatic transmis-

sion vehicles only. Use of this product in a standard transmission

vehicle is dangerous and contrary the product's intended use.

➜

rreemmoottee ccoonnttrrooll ddiiaaggrraamm

note:The Program button is located on the back of

the remote.

ssttaannddaarrdd rreemmoottee ccoonnffiigguurraattiioonn

1. Auxiliary Channel Out

2. Receive Indicator

3. Signal Indicator

4. Transmit Indicator

5. Lock Status Indicator

6. Unlock Status Indicator

7. Arming Status Indicator

8. Disarming Status Indicator

9. Door Switch Input Indicator

10. Warn Away®Response Indicator

11. Siren Status Indicator

12. Battery Level Indicator

13. Trigger Response Indicator

14. Hood Switch Input Indicator

15. Ignition Switch Input Indicator

16. Sensor Response Indicator

17. Sensor 1 Indicator—Full Trigger and Warn Away®

18. Sensor 2 Indicator—Full Trigger and Warn Away®

19. Trunk Switch Input Indicator

20. Vibrate Mode Indicator

21. Remote Start Indicator

22. Disarm Button

23. Remote Start Button

24. Auxiliary Button

25. Arm Button

ssyysstteemm mmaaiinntteennaannccee

This system needs no specific maintenance beyond remote

control battery replacement. The remote is powered by a 1.5V

AAA battery.

The Battery Level indicator has four level indicators that serve as

a visual indication of battery charge. When the battery reaches a

low charge level that requires replacement, the remote control

will generate a single notification chirp, and the Battery Level

indicator will flash continuously.

Battery Replacement

Gently pull the end of the battery door away from the top of the

remote control then slide the door up to expose the battery and

remove the expired battery. Place the new battery into the remote

control observing the correct polarity. When power is returned

the remote control will light all icons in the LCD and generate all

beeper tones once.

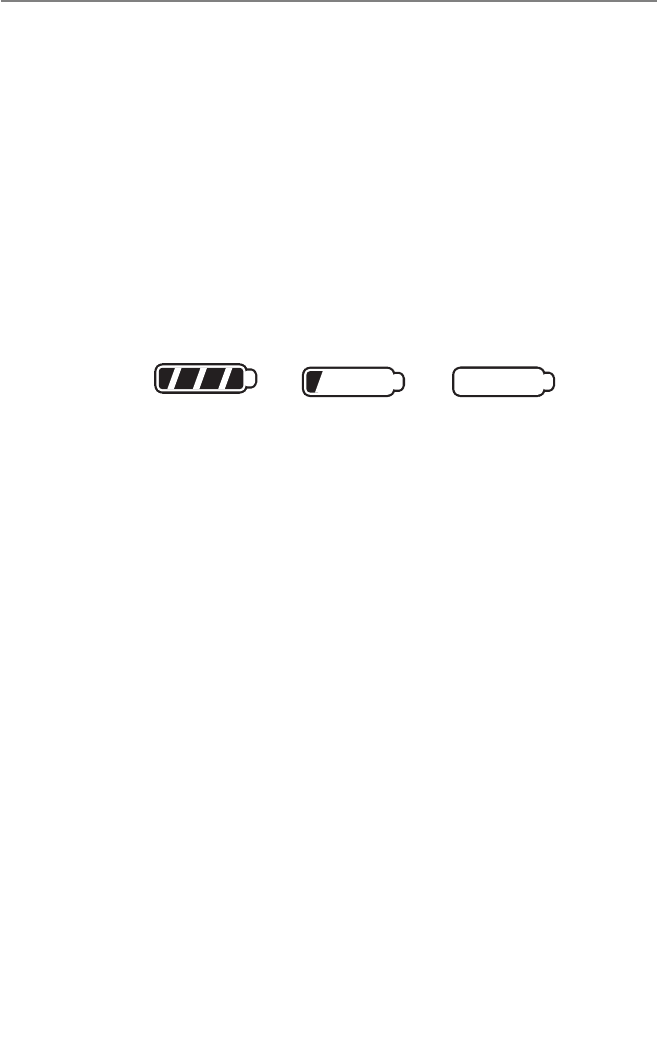

EMPTY

REPLACE

FULL

ttrraannssmmiitttteerr ffuunnccttiioonnss

The receiver uses a computer-based Learn Routine to learn the

transmitter buttons. This makes it possible to assign any remote

transmitter button to any receiver function. The transmitter

initially comes programmed with Standard Configuration, but

may also be customized by an authorized dealer. The buttons in

all of the instructions in this manual correspond to a Standard

Configuration transmitter.

standard configuration

Button

The arming function is controlled by pressing this button for one

second. Pressing and holding this button for more than 3 seconds

will trigger the panic mode.

Button

The disarming function is controlled by pressing this button for

one second. Pressing this button during panic mode will turn off

the panic mode.

Button

Silent Mode™ and an optional auxiliary function are controlled

by this button. (Silent Mode works by pressing this button for

less than one second before arming or disarming. An optional

auxiliary function, such as trunk release, can be controlled by

pressing this button for 1.5 seconds.)

The auxiliary output controls __________________________.

➜

Button

The remote start feature is turned On/Off by pressing this button twice.

and Buttons

The remote start timer mode function of the system is controlled

by pressing these buttons simultaneously.

and Buttons

The Turbo/Short Run feature is controlled by these buttons (refer

to the Turbo/Short Run section for additional details).

and Buttons

An optional auxiliary convenience or expansion function that

you have added to your system can be activated by pressing these

buttons simultaneously.

The auxiliary output controls __________________________.

and Buttons

An optional auxiliary convenience or expansion function that

you have added to your system can be activated by pressing these

buttons simultaneously.

The auxiliary output controls __________________________.

standard icon configurations

Icon

The transmit icon will be displayed while the remote control is

transmitting a command to the vehicle.

➜

Icon

The receive icon will be displayed while the remote control is

receiving a page from the vehicle.

Icon

The signal icon will be displayed if a command is transmitted to

the vehicle but a command page is not received.

Icon

The armed status icon will be displayed when the system is locked

and armed.

Icon

The disarmed status icon will be displayed when the system is

unlocked and disarmed.

Icon

The disarm icon will flash while the system is disarming.

Icon

The arm icon will flash while the system is arming.

Icon

The door icon will be displayed to indicate that a door is open

when arming the system (Bypass Notification) or opened when

the system is armed (Tamper Alert).

Icon

The warn icon will be displayed if the Warn Away®response has

been triggered while the system is armed.

Icon

The siren icon will be displayed as an indicator that the siren

is sounding.

Icon

The alarm icon will be displayed if the system has been violated,

and will continue to be displayed until the 60-second siren cycle

is complete.

Icon

The vibrate icon will be displayed when the Vibrate Mode is on.

Icon

The battery level icon is always displayed as an indicator of

Battery charge.

Icon

The start icon will be displayed while the vehicle is remote started.

Icon

The trunk icon will be displayed to indicate that the trunk is

open when arming the system (Bypass Notification) or opened

when the system is armed (Tamper Alert).

Icon

The Sensor 1 icon will be displayed if the Dual-Stage shock sensor

has been triggered as a full-triggered or Warn Away® sequence.

note: If Page Mode has been turned off, the start icon will

remain when performing key take over until a button on

the transmitter has been pressed.

Icon

The Sensor 2 icon will be displayed if an additional Dual-Stage

sensor has been triggered as a full-triggered or Warn Away® sequence.

Icon

The hammer icon will flash when either Sensor 1 or 2 has been

triggered as either a Warn Away®response or triggered sequence.

Icon

The ignition icon will be displayed to indicate that the ignition is

on when arming the system (Bypass Notification) or turned on

when the system is armed (Tamper Alert).

Icon

The hood icon will be displayed to indicate that the hood is open

when arming the system or (Bypass Notification) opened when

the system is armed (Tamper Alert).

Number Icons

When either of the channel 2, 4 or 5 outputs is activated the

appropriate icon will be displayed for five seconds.

rreemmoottee ooppeerraattiioonn aanndd pprrooggrraamm--

mmiinngg iinnssttrruuccttiioonnss

The remote start system operates at 434 MHz and incorporates

Directed’s proprietary XHF2 out-board Responder Technology remote

control. The high frequency combined with Binary Data communica-

tion achieves superior range with two-way communication.

system signal paging features

A page is the signal the control module sends to the remote control

as confirmation of receipt of a command or alarm system status.

When the remote control receives a page it will generate a page

notification to the user (notifications are audible beeps or remote

vibration) and the LCD Icons will display the current system status.

Command Page

When a command (arm/disarm, remote start, or auxiliary

channel) from the remote control is sent and received, the system

will send a command page back to confirm receipt.

note: When the system is in Valet mode, the remote con-

trol will show the lock (5) and unlock (6) icons, but will

not generate a command page.

➜

Alarm Page

If the alarm system is triggered while armed, an Alarm Page will

be sent to the remote control. After receipt of an Alarm Page, the

LCD icons will display the alarm system status information and

the remote control will generate Alarm Page alerts.

An Alarm Page alert is a single beep or vibration from the remote

control every 60 seconds to alert the user that the alarm system

was triggered and will continue until the alarm page is cleared.

Page Recognition Mode

The remote control will leave a zone icon illuminated when it has

received a triggered response and will wait for you to recognize

the violation. Press any button on the remote control, the LCD

information and Alarm Page alerts will be cleared.

note: The remote control buttons will not send a com-

mand to the system until the alarm page is cleared.

note: If the transmitter is paged with an Alarm Page and

the WarnAway®is triggered before the Alarm Page is

relieved the transmitter will report the WarnAway®only

until the system is disarmed.

programmable remote control features

To enter programming mode

Press the Program button on the back of the remote or hold the

four remote control buttons on the front of the remote simultane-

ously until one long beep is heard. Programming Mode has now

been entered.

Page Notification

The remote control can be programmed to notify the user of a

page by audibly beeping or remote vibration.

Beep Mode

Beep Mode includes alarm arm/disarm diagnostic beeps and

distinctive two-tone remote start beeps.

Vibrate Mode

Vibrate Mode makes page notification silent but does not include

diagnostic information or distinctive remote start notification.

Illumination

Illumination for the LCD display can be programmed on or off.

When programmed on the LCD will illuminate every time the

remote control receives a page or transmits a command.

Programming illumination on will decrease the life expectancy of

the battery.

Beep/Vibrate Mode

Within five seconds of entering Programming Mode, press .

The remote control will beep once for on, twice for off. The

vibrate icon (13) will also turn on/off with each press.

➜

Illumination On/Off

Within five seconds of entering Programming Mode, press .

The remote will beep once for on, twice for off and the light will

turn on/off with each press.

Page Mode On/Off

After entering Programming Mode, press within five

seconds to toggle on and off. When the Page Mode is on, the

remote control will wake up periodically to check for messages

from the security module. It will also wake up when any button

is pushed. When Page Mode is off, the remote control “sleeps”

until a button is pushed, extending the life of the battery.

To Exit Programming Mode

To exit Programming Mode, take no action for five seconds. The

remote control will generate two beeps to indicate programming

mode has been exited.

uussiinngg yyoouurr ssyysstteemm

warning! safety first

The following safety warnings must be observed at all times:

➤Due to the complexity of this system, installation of this product

must only be performed by an authorized Directed dealer.

➤When properly installed, this system can start the vehicle via

a command signal from the remote control transmitter.

Therefore, never operate the system in an enclosed area or

➜

partially enclosed area without ventilation (such as a garage).

When parking in an enclosed or partially enclosed area or

when having the vehicle serviced, the remote start system

must be disabled using the installed toggle switch. It is the

user's sole responsibility to properly handle and keep out of

reach from children all remote control transmitters to assure

that the system does not unintentionally remote start the

vehicle. TTHHEE UUSSEERR MMUUSSTT IINNSSTTAALLLL AA CCAARRBBOONN

MMOONNOOXXIIDDEE DDEETTEECCTTOORR IINN OORR AABBOOUUTT TTHHEE

LLIIVVIINNGG AARREEAA AADDJJAACCEENNTT TTOO TTHHEE VVEEHHIIC

CLLEE.. AALLLL

DDOOOORRSS LLEEAADDIINNGG FFRROOMM AADDJJAACCEENNTT LLIIVVIINNGG AARREEAASS

TTOO TTHHEE EENNCCLLOOSSEEDD OORR PPAARRTTIIAALLLLYY EENNCCLLOOSSEEDD

VVEEHHIICCLLEE SSTTOORRA

AGGEE AARREEAA MMUUSSTT AATT AALLLL TTIIMMEESS

RREEMMAAIINN CCLLOOSSEEDD..These precautions are the sole respon-

sibility of the user.

➤Use of this product in a manner contrary to its intended

mode of operation may result in property damage, personal

injury, or death. (1) Never remotely start the vehicle with the

vehicle in gear, and (2) Never remotely start the vehicle with

the keys in the ignition. The user must also have the neutral

safety feature of the vehicle periodically checked, wherein the

vehicle must not remotely start while the car is in gear. This

testing should be performed by an authorized Directed dealer

in accordance with the Safety Check outlined in the product

installation guide. If the vehicle starts in gear, cease remote

start operation immediately and consult with the authorized

Directed dealer to fix the problem.

➤After the remote start module has been installed, contact

your authorized dealer to have him or her test the remote

start module by performing the Safety Check outlined in the

product installation guide. If the vehicle starts when

performing the Neutral Safety Shutdown Circuit test, the

remote start unit has not been properly installed. The remote

start module must be removed or the installer must properly

reinstall the remote start system so that the vehicle does not

start in gear. All installations must be performed by an autho-

rized Directed dealer. OOPPEERRAATTIIOONN OOFF TTHHEE RREEMMOOTTEE

SSTTAARRTT MMOODDUULLEE IIFF TTHHEE VVEEHHIICCLLEE SSTTAARRTTSS IINN GGEEAARR

IISS CCOONNTTRRAARRYY TTOO IITTSS IINNTTEENNDDEEDD MMOOD

DEE OOFF OOPPEERR--

AATTIIOONN.. OOPPEERRAATTIINNGG TTHHEE RREEMMOOTTEE SSTTAARRTT SSYYSSTTEEMM

UUNNDDEERR TTHHEESSEE CCOONNDDIITTIIOONNSS MMAAYY RREESSUULLTT IINN

PPRROOPPEERRTTYY DDA

AMMAAGGEE OORR PPEERRSSOONNAALL IINNJJUURRYY.. YYOOUU

MMUUSSTT IIMMMMEEDDIIAATTEELLYY CCEEAASSEE TTHHEE UUSSEE OOFF TTHHEE

UUNNIITT AANNDD SSEEEEKK TTHHEE AASSSSIISSTTAANNCCEE OOFF A

ANN AAUUTTHHOO--

RRIIZZEEDD DDIIRREECCTTEEDDDDEEAALLEERR TTOO RREEPPAAIIRR OORR

DDIISSCCOONNNNEECCTT TTHHEE IINNSSTTAALLLLEEDD RREEMMOOTTEE SSTTAARRTT

MMOODDUULLEE.. DDIIRREECCTTEEDD WWI

ILLLL NNOOTT BBEE HHEELLDD

RREESSPPOONNSSIIBBLLEE OORR PPAAYY FFOORR IINNSSTTAALLLLAATTIIOONN OORR

RREEIINNSSTTAALLLLAATTIIOONN CCOOSSTTSS..

active arming

You can arm the system by pressing of your transmitter for

one second. When the system arms, you will hear a short siren

sound, or chirp, and see the parking lights flash once. If the power

door locks are controlled by the system, the doors will also lock.

While the system is armed, the status LED will flash approximately

once per second, indicating that the system is actively protecting

your vehicle. If you hear a second chirp after arming and note that

the status LED is flashing in groups, see the Diagnostics Section of

this guide. This extra chirp is called Bypass Notification.

passive arming

The system can be programmed to arm itself automatically (called

passive arming). If the system is programmed for passive arming, it

will automatically arm 30 seconds after the ignition is turned off

and the system detects that you have left the vehicle by opening and

closing a door. Whenever the system is in its 30-second passive

arming countdown, the status LED will flash twice as fast as it does

when the system is armed. At the 20-second point of the count-

down, the siren will chirp to indicate that the system is about to

arm. At the 30-second point, the parking lights will flash to indicate

that the system is armed.

➜

When armed your vehicle is protected as follows:

➤Light impacts trigger the Warn Away®signal. When trig-

gered, the siren chirps and the parking lights flash for a few

seconds.

➤Heavy impacts trip a Triggered Sequence. The sequence

consists of the siren sounding continuously and the parking

lights flashing for a pre-programmed period, which can range

in duration from 1 to 180 seconds.

➤If a door is opened, the system will immediately start

chirping the siren and flashing the parking lights. Three

seconds later, the siren output changes to a continuous blast.

This progressive response gives you time to disarm the system

with your transmitter if you inadvertently open the door

while the system is armed, while still providing instant re-

sponse (even if the door is immediately closed).

➤Turning on the ignition key will trip the same progressive re-

sponse as opening a door.

➤The optional starter kill prevents the vehicle’s starter

from cranking.

note: If any protected entry point (such as a door or a

switch-protected trunk or hood) is open, the system will

not passively arm (unless forced passive arming is pro-

grammed on. See Programming Options section.) Addi-

tionally, each time a sensor is triggered during the arming

countdown, the 30-second countdown starts over.

multi-level security arming

Multi-Level Security Arming allows you to select which of the

system's inputs or sensors will be active and which will be

bypassed when the system is armed. (See Table of Zones section of

this guide.) Pressing (only in Standard Configuration) again

within five seconds of arming the system will activate the Multi-

Level Security feature. Each time is pressed again, a different

security level is selected. The different security levels are selected

as follows:

➤Press once: The siren chirps once. The system is armed.

➤Press a second time within five seconds: The siren chirps

twice followed by a long chirp. Zone 2 is now bypassed.

➤Press a third time within five seconds: The siren chirps

three times followed by a long chirp. Zone 4 is now bypassed.

➤Press a fourth time within five seconds: The siren chirps four

times followed by a long chirp. Zones 2 and 4 are now bypassed.

➤Press a fifth time within five seconds: The siren chirps

five times followed by a long chirp. All input zones, except

the ignition, are now bypassed.

note: Multi-Level Security Arming only applies to a sin-

gle arming cycle. Once the system is disarmed and then

re-armed, all the zones will be active again.

➜

arming while driving

Your security system can be armed while driving the vehicle!

Simply press on the transmitter for two seconds while the

vehicle is running. The siren will chirp once to indicate that the

security system is armed, and then once more to indicate that the

ignition is on. The system will not respond to any input except

the door triggers, and the starter kill relay (if installed) will not be

activated. Once you have arrived at your destination, the system

will disarm when the ignition is turned off. The siren will chirp

twice and the LED will then stop flashing. The system can also

be disarmed at any time by pressing ..

disarming

To disarm the security system, press . You will hear two

chirps, and the parking lights will flash twice. If the power locks

are controlled by the system, the doors will also unlock. The siren

chirping either four or five times when disarming indicates

Tamper Alert, which is described in the Diagnostics Section of

this guide.

high security disarm

This security system offers High Security Disarm. High Security

Disarm is a feature that makes it possible to silence and reset the

system while it is triggering, without disarming the system. If the

system is triggered and the siren has been sounding for longer

than six seconds, pressing on the remote transmitter will

stop the trigger and return the unit to the armed state. The

➜

system will not disarm, but rather reset. This prevents you from

disabling the system should you wish to disarm it without visu-

ally checking the vehicle. Pressing after resetting the system

will disarm the system; pressing this button during the first six

seconds of the triggered sequence will disarm the security system

immediately. The six second timer is provided for your conve-

nience, in case the system is accidentally triggered.

disarming without a transmitter

If your remote transmitter is lost or damaged, you can manually

disarm your vehicle security system. To disarm the system

without a transmitter, you must have the vehicle's ignition key

and know where the Valet button is located. Be sure to check

with your installer at the time of installation for both the location

and the preset response (1-5 presses) of the Valet button.

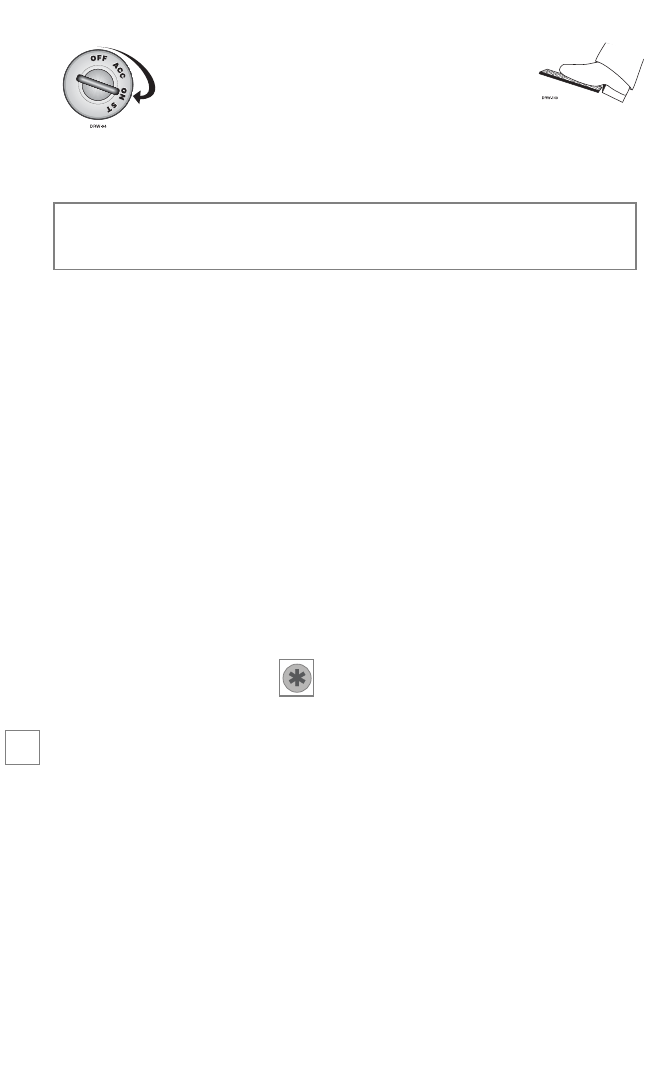

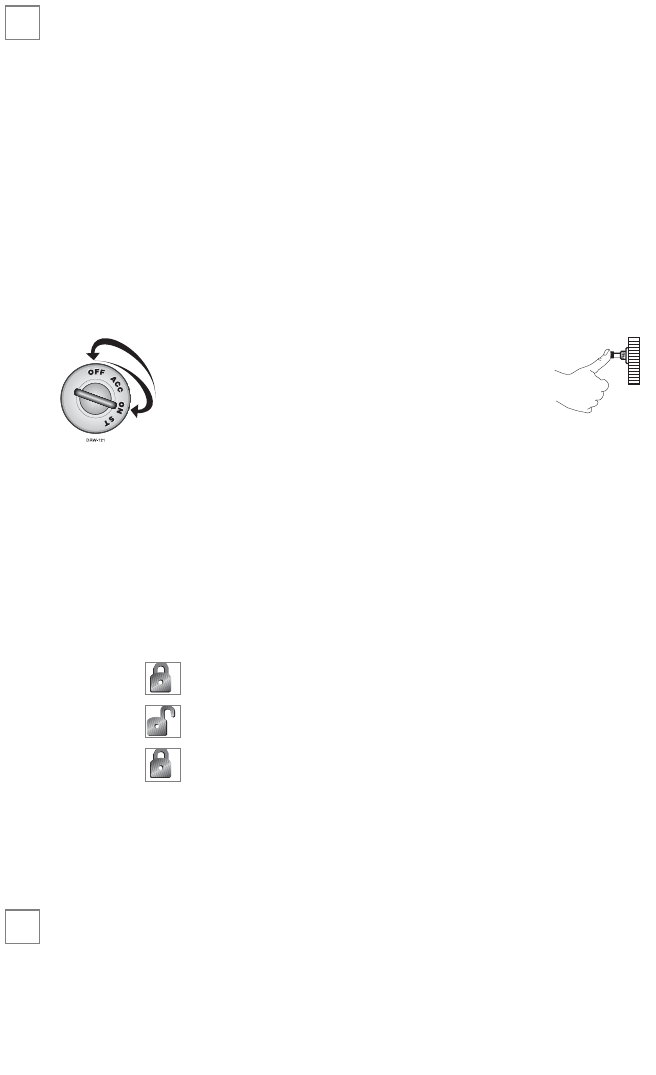

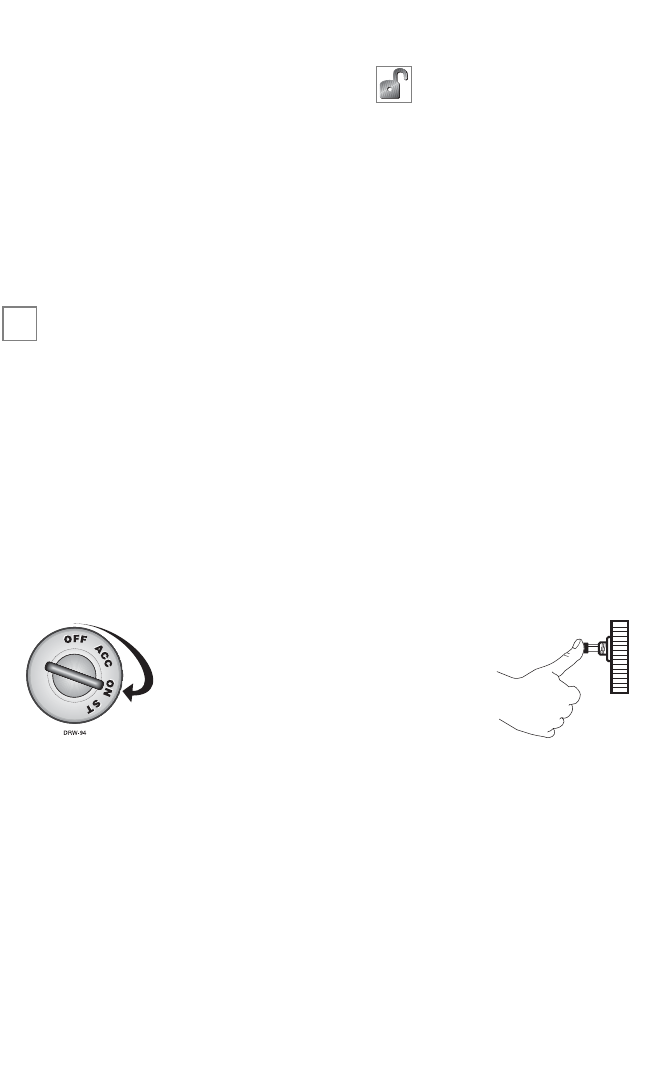

To disarm the security system,

turn the ignition to the ON posi-

tion. Press the Valet button the

preset number of times (one to

five times) within 15 seconds.

After five seconds, the system will

disarm. If the system does not

disarm, you may have waited too

long; turn the ignition off and on

and try again.

Location of Valet Button_________________________________

DRW-35

➜

Number of Presses_____________________________________

silent mode

To temporarily turn off the arm or disarm chirps, use Silent

Mode™. Simply press for less than one second before

arming or disarming, and the confirmation chirp(s) will be elim-

inated for that one operation only. If you want the arm/disarm

chirps turned off permanently, your dealer can do this for you.

panic mode

If you are threatened in or near your vehicle, you can attract

attention by triggering the system with your transmitter. Just

press for two seconds, and you will enter Panic Mode. The

siren will sound and the parking lights will flash for the

programmed siren duration. To stop Panic Mode at any time,

press on the remote transmitter again.

➜

note: The Warn Away®response to lighter impacts is

bypassed if the system is armed using Silent Mode. This

ensures that no chirps will be emitted by the siren in an

area you want chirp-free. The system is still fully capable

of triggering. Only the Warn Away®response is bypassed.

➜

important! The Valet button can be programmed to

respond to 1-5 presses for the disarm function. You must

check with the installer to verify the programming for

your individual unit.

valet mode

You can prevent your security system from automatically arming

and triggering by using Valet®Mode. This is very useful when

washing the vehicle or having it serviced. In Valet®Mode, the

security system will not arm, even with the remote transmitter,

but all convenience functions (door locks, trunk release, etc.)

will continue to work normally.

To enter or exit Valet®Mode:

1. Turn the ignition on.

2. Turn the ignition off.

3. Press and release the Valet

button within 10 seconds.

The status LED will light solidly if you are entering Valet®

Mode, and it will go out if you are exiting Valet®Mode.

To enter or exit Valet Mode using the transmitter:

1. Open any vehicle door.

2. Press .

3. Press .

4. Press again.

The status LED will light solidly if you are entering Valet®

Mode, and it will go out if you are exiting Valet®Mode.

remote start

This feature allows you to remotely start and run your vehicle for

a programmable period of time. This makes it possible to warm

➜

DRW-35

➜

up the engine, as well as adjust the interior temperature of the

vehicle with the climate control system. If interior heating or

cooling is desired, the climate controls must be preset, and the

fan blower must be set to the desired level prior to remote

starting the vehicle.

To remote start the vehicle:

1. Press on the transmitter twice within 3 seconds.

2. The parking lights will flash to confirm that the vehicle will

attempt to start.

3. In gasoline vehicles, the engine will start 4 seconds after the

parking lights flash. In diesel vehicles, the engine will start

when the WAIT-TO-START indicator on the vehicle's dash

goes out.

4. Once the vehicle has started, it will run for the pre-program-

med period of time (either 12, 24, or 60 minutes - see

Programming Options section of this guide) or until a shut-

down input is triggered.

iimmppoorrttaanntt!! It is unsafe to operate a vehicle’s motor in a

garage or other closed off area. Breathing the exhaust

from the vehicle is hazardous to your health. Never acti-

vate the remote start in an enclosed space.

iimmppoorrttaanntt!! (1) Never remote start your vehicle when the

keys are in the ignition, except when performing Valet®

Take-Over, and (2) Never start the vehicle if it is not in

either PARK or NEUTRAL.

When you are ready to drive the vehicle:

1. Insert the ignition key and turn

it to the ON (not the START)

position.

2. Press the brake pedal.

While the vehicle is running during remote start operation, the

system will monitor the vehicle and will automatically shut

down the engine if the system receives any of the following shut-

down inputs:

➤The brake pedal is pressed.

➤The hood is opened.

➤The shutdown toggle switch is put into the OFF position.

➤The pre-programmed run time (12, 24, or 60 minutes)

has elapsed.

➤Transmitter button is pressed again to start the vehicle.

valet take-over

The Valet®Take-Over feature allows the vehicle to remain

running after the key has been removed from the ignition. This

feature is useful for occasions when you wish to exit and lock the

vehicle for short periods of time, but would like to leave the

motor running and the climate controls on.

➜

note: If the brake pedal is pressed before the key is in the

ON position, the engine will shut down.

To perform Valet

Take-Over:

1. Before turning off the engine, press and release on the

transmitter twice within 3 seconds. Then wait five seconds.

2. Turn the ignition key to the OFF position. (The engine will

stay running.)

3. The engine will run until the pre-programmed time elapses

or a shut-down input is received. (See the previous Remote

Start section for a complete list of shut-down inputs.)

short-run/turbo

Short run turbo mode keeps the engine running after arriving at

you destination for a programmable period of 1, 3, 5 or 10

minutes. This allows the system’s timer to conveniently cool

down the turbo after you have left the vehicle.

To activate:

1. Park the vehicle and set parking brake.

2. Remove your foot from the brake pedal and leave the

engine running.

3. Press and release the and buttons at the same time.

4. The lights will flash to indicate the remote start has entered

short run turbo mode.

➜

note: This feature will not work if the brake pedal is

being pressed.

5. Turn off the key, the engine will keep running.

6. Exit and secure the vehicle.

7. The engine will turn off after the programmed run time.

timer mode

By pressing the remote and buttons the parking

lights will flash 4 times and then start the vehicle and run for the

set duration. The remote start can be shut off by the transmitter

by pressing the remote start button and remain in timer

mode, but if any other shut down zones or the ignition becomes

active the timer mode will cancel.

1. Press Timer mode buttons.

2. The vehicle will confirm with 4 parking light flashes.

3. A 1-second delay will start.

4. The system will start the car and will run for the specified

duration, unless shut down by the remote start button . If

shut down with the remote start button the system will

remain in timer mode.

5. The system will start every 3 hours until canceled by the

brake, hood, or neutral safety shut-down wires.

➜

To exit timer mode, turn the ignition switch on any time the

engine is running. The parking lights will flash 4 times, indicat-

ing timer mode has been exited.

ssaaffeettyy ffeeaattuurreess

This system has several important safety features to ensure

proper operation of the motor and prevent accidental damage to

the engine or its components.

starter anti-grind circuitry

Whenever the vehicle is remote started, advanced anti-grind

circuitry prevents the starter from engaging, even if the key is

turned to the start position. This prevents damage to the starter

motor if the key is turned to the start position during remote

start operation.

note: Anti-grind circuitry only works when the remote

start system is operating the motor and the Failsafe®

Starter Kill relay is installed.

➜

important!!Timer Mode should be used only in

open areas. Never start and run the vehicle in an

enclosed space such as a garage or carport.

disabling the remote start system

This feature allows your system's remote start unit to be

temporarily disabled to prevent the vehicle from being remote

started accidentally. This feature is useful if the vehicle is being

serviced or stored in an enclosed area. To disable the remote

start, move the shutdown toggle switch to the OFF position. The

switch can be installed in a location of your choice. Check with

your installer for recommended locations.

Location of Shutdown Switch____________________________

over and under rev protection

The system monitors the engine speed and will automatically

shut the engine off if the RPMs rise above or fall below the

programmed levels. This feature prevents damage to the motor

due to fuel delivery system failures or other problems which may

cause the engine to race.

shut down inputs

This security system uses several inputs to shut down the remote

start operation of the motor or prevent remote start if certain

inputs are active. The two most important are hood and brake

inputs. The hood input will prevent the motor from starting, as

well as shut it down, any time the hood is opened. The brake

➜

note: The system uses a wire connected to the vehicle to

sense engine speed. This wire must be connected in order

for over and under rev protection to work.

➜

pedal will shut down the motor at any time during remote start

operation, as well as preventing the remote start from activating

while it is being pressed.

nuisance prevention circuitry

Your system has Directed’s Nuisance Prevention Circuitry™

(NPC™). It prevents annoying repetitive trigger sequences due to

faulty door pin switches or environmental conditions such as

thunder, jackhammers, airport noise, etc.

Example

If the alarm triggers three times within a 60-minute period and

each time the same sensor or switch triggers the alarm, NPC™

will interpret those triggers as false alarms. After the third trigger,

NPC™ignores, or bypasses, that sensor or switch (along with any

other sensors or switches sharing the same zone) for 60 minutes.

If the bypassed sensor tries to trigger the security system while it

is being bypassed, the 60-minute bypass period will start over.

This ensures that a sensor that is continually being triggered will

remain bypassed.

The vehicle doors are protected by NPC™differently. If your

security system is triggered by an open door for three full cycles,

the system will bypass the doors until the trigger ceases.

➜

ddiiaaggnnoossttiiccss

The microprocessor at the heart of your system is constantly

monitoring all of the switches and sensors connected to it. It is

designed to detect any faulty switches and sensors and prevents

them from disabling the entire system. The microprocessor will

also record and report any triggers that occurred during your

absence. Refer to the System Status Chirps and Table of Zones

sections of this guide for diagnostic information.

arming diagnostics

If the security system is armed at the same time that an input is

active (such as a door opening or sensor triggering), you will hear

one siren chirp to indicate arming and a second siren chirp to

indicate Bypass Notification. A Bypass Notification chirp means

that the security system ignores the input that was active when

the system was armed, until that input ceases. Three seconds

after that input ceases, the security system will resume normal

monitoring. For example, if your vehicle has an interior light exit

➜

note: Arming and disarming the system does not reset

this function! The only ways to reset a bypassed zone are

for it to not trigger for 60 minutes, or to turn on the igni-

tion. If testing your system, it is important to remember

that the NPC™programming can cause zones to be

bypassed and appear to stop working. If five chirps are

heard when disarming, NPC™has been engaged. If you

wish to clear the NPC™memory, turn the ignition on.

delay and you arm your security system before the interior light

turns off, you may hear a second Bypass Notification chirp. Once

the light turns off, however, the security system resumes normal

monitoring.

disarming diagnostics

Extra chirps that are heard when disarming the system are the

Tamper Alert. If four chirps are heard when disarming the

system, then the security system was triggered in your absence. If

five chirps are heard when disarming the system, a zone was trig-

gered so many times that the Nuisance Protection Circuitry™has

bypassed that zone. In either case, the status LED will indicate

which zone was involved (see Table of Zones section). The secu-

rity system will retain this information in its memory and chirp

four or five times each time it is disarmed, until the next time

that the ignition is turned on.

➜

note: Bypass Notification does not occur when the sys-

tem is in Silent Mode or if the notification chirps have

been programmed off by the installer.

system status chirps

The siren will chirp when arming/disarming the system. The

pattern of chirps will audibly report the system’s status as

described below.

Action Number of Chirps Description

Arm 1 System armed

Arm 1 (3-second delay), 1 System armed with

Bypass Notification

Disarm 2 System disarmed

Disarm 4 System disarmed with

Tamper Alert

Disarm 5 System disarmed NPC

active

➜

table of zones

A zone is represented by the number of LED flashes used by the

system to identify a particular type of input. Standard input

assignments are listed in the following table, along with spaces to

write in any optional sensors or switches that have been installed.

ZONE

(Number of DEALER-INSTALLED

LED Flashes) DESCRIPTION OPTIONS

1Instant trigger - hood pinswitch

2Instant trigger - a heavier impact

detected by the shock sensor

3Door switch trigger

4Instant trigger - for optional

sensors

5Ignition trigger

interpreting zone diagnostics

Warn Away responses are not reported by arming or disarming

diagnostics. If you receive a Bypass notification when arming or

a Tamper Alert notification when disarming, look at the LED.

Active or triggered zones will be indicated by a pattern of blinks

by the LED.

➜

Example

If zone 3 was active or triggered, the LED will blink three times

with a two-second pause. Then it will blink three times again,

and repeat until the ignition is turned on.

ccooddee hhooppppiinngg

The receiver and transmitters use a mathematical formula called

an algorithm to change their code each time the transmitter is

used. This technology has been developed to increase the secu-

rity of the unit. The control unit knows what the next codes should

be. This helps to keep the transmitter “in sync” with the control

unit even if you use the remote control out of range of the

vehicle. However, if the remote has been pressed many times out

of range of the vehicle, or the battery has been removed, it may fall

out of sync with the control unit and fail to operate the system.

To re-sync the remote simply press several times within

range of the vehicle. The alarm will automatically re-sync and

respond to the transmitters normally.

note: Your system stores the last two triggered zones in

memory. If your system has been triggered but the LED

has been reset by turning on the ignition, your dealer can

still recall the last two zones that were triggered. Contact

your dealer for details.

hhiigghh ffrreeqquueennccyy

Your system transmits and receives at 434 MHz. This provides a

cleaner spectrum with less interference and a more stable signal.

Enjoy a phenomenal increase in range, even in areas with high

radio interference.

oowwnneerr rreeccooggnniittiioonn

Owner Recognition is a revolutionary new feature available only

from Directed. Using a Directed Bitwriter, hand-held program-

ming tool, your dealer can program many of the system settings.

The programmer makes it possible to program different settings

for each transmitter that is used with the system. Then, whenev-

er a specific transmitter is used, the system will recall the settings

assigned to that transmitter. Owner Recognition lets up to four

users of the system have different settings that meet their specific

needs. It is almost like having four separate alarms in your

vehicle, one for each user.

note: Owner Recognition cannot be programmed with-

out a Bitwriter®and the necessary software. Check with

your dealer for more information.

rraappiidd rreessuummee llooggiicc

This Directed system will store its current state to non-volatile

memory. If power is lost and then reconnected the system will

recall the stored state from memory. This means if the unit is in

Valet®Mode and the battery is disconnected for any reason, such

as servicing the car, when the battery is reconnected the unit will

still be in Valet®Mode. This applies to all states of the system

including arm, disarm, and Valet®Mode.

ppoowweerr ssaavveerr mmooddee

Your system will automatically enter Power Saver Mode while

armed or in Valet®Mode, after a period of time in which no

operation has been performed. This lowers the current draw on

the vehicle's battery. Power Saver Mode takes over under the

following conditions:

➤Power Saver when the system is armed: After the system has

been armed for 24 hours the LED will flash at half its

normal rate, decreasing the system's current draw.

➤Power Saver in Valet®Mode: When the system enters Valet®

Mode the LED illuminates steadily. If the vehicle is not used

(ignition is not turned on) for a one hour period while the

system is in Valet®Mode, the LED will shut off. If the

system remains in Valet®Mode, the LED will come back on

the next time the ignition is turned on and then back off.

pprrooggrraammmmiinngg rreemmoottee ccoonnttrrooll ffeeaattuurreess

To enter programming mode

Press the Program button on the back of the remote or hold the

four remote control buttons on the front of the remote simultane-

ously until one long beep is heard. Programming Mode has now

been entered.

To exit programming mode

If no action is taken by the user within 5-seconds (button

pressed), programming mode will be exited.

Page notification (Beep or Vibrate)

Use to toggle selections between Beep mode or Vibrate

mode.

Illumination (On or Off)

Use to toggle selections between LCD backlight illumina-

tion On/Off.

Sensor icon selection (hood/trunk)

Use to toggle display selections between hood only (1 beep),

trunk only (2 beeps), or hood and trunk (3 beeps) on the LCD

display. The installer will have set the remote up to correctly

display the installation (hood pin only, trunk pin only, or hood

and trunk pin installed).

➜

Page mode (On/Off)

Press to toggle Page mode on and off. When Page Mode is

on, the remote control will wake up periodically to check for

messages from the security module. It will also wake up when

any button on the remote is pushed. When Page Mode is off, the

remote control “sleeps” until a button on the remote is pushed,

extending the life of the battery.

pprrooggrraammmmiinngg ooppttiioonnss

Programming options control your system's normal, operational

set-up. Most options do not require additional parts, but some

may require installation labor.

The following is a list of the programmable options, with the

factory settings in Bold.

➤AAccttiivveearming (transmitter only) or passive arming (auto-

matic arming 30 seconds after the last door has been closed).

➤Arming/disarming siren chirps oonnor off.

➤The ignition controlled door lock feature oonnor off: When

this feature is programmed on, the doors will lock three

seconds after the ignition is turned on, and unlock when the

ignition is turned off. If your installer is programming the

note: When page mode is Off, Warn Aways®and alarms

will not be displayed or notified on the remote until a

button on the remote has been pressed.

➜

security system with the Directed Bitwriter, ignition lock

and unlock are independent features that can be

programmed separately.

➤Passive door locking (with passive arming) or aaccttiivvee ddoooorr

lloocckkiinngg(only when arming with the transmitter). Passive

locking allows the vehicle's doors to lock when the security

system passively arms (after the 30-second countdown).

This feature only works if passive arming has been

programmed.

➤Panic mode eennaabblleedd/disabled when the ignition is turned on.

(Some states have laws against sirens sounding in moving cars.)

➤Forced passive arming oonnor off. If your security system is

programmed for passive arming and the forced passive

arming feature has been programmed on, the system will

passively arm after one hour, even if a protected entry has

been left open. Forced passive arming ensures that the

system will be armed if a door has accidentally been left ajar

when leaving the vehicle.

➤Full trigger response 3300or 60 seconds: This determines how

long the full triggered sequence lasts. Some states have laws

regulating how long a security system can sound before it is

considered a nuisance. If your installer is programming the

note: When the system passively arms after one hour, the

entry point that has been left open, and anything con-

nected to the same zone, is bypassed and cannot trigger

the system. However, the remaining inputs to the system

are fully operational.

security system with the Directed Bitwriter, the full triggered

response can be programmed for any duration ranging from

1 to 180 seconds.

➤Automatic Engine Disable (AED) on or ooffff. The purpose of

this feature is to protect the vehicle from being stolen at all

times, regardless of whether or not the alarm is armed. If

AED is programmed on, the starter of the vehicle will be

disabled 30 seconds after the ignition is turned off. Once the

key is turned off, the LED will flash slowly (one-half its

normal armed rate) to indicate the AED arming cycle. Thirty

seconds later, the starter will be disabled. To start the car, it

will be necessary to disarm the system with the transmitter.

It is also possible to disarm the AED feature by turning the

ignition key to the RUN position and pressing the Valet®

button the programmed number of times. AED is also

disabled when the system is in Valet®mode.

➤Siren tones and chirp volume. The output of the Revenger™

Soft Chirp™siren consists of six different tones in sequence.

Any of these tones can be eliminated by a dealer, resulting in a

unique, easily identifiable siren sound. The chirps can be either

full volume or 66 ddeecciibbeellss qquuiieetteerr than the full alarm blast.

➤The engine can be programmed to run for any duration

ranging from 1 to 60 minutes. 1122 mmiinnuutteessis the default.

After the programmed run time, the engine will shut down

note: This feature will only function if the FailSafe®

Starter Kill relay has been installed.

and will not restart, unless in Timer Mode.

➤While the remote start system is running the engine, the

parking lights of the vehicle can ffllaasshh oonn aanndd ooffffor come on

and light steadily.

sseeccuurriittyy && ccoonnvveenniieennccee eexxppaannssiioonnss

Listed below are some of the many expansion options available.

Please consult your dealer for a complete explanation of all the

options available to you.

Audio Sensor:

Metal on glass, glass cracking, and breaking

glass produce distinctive acoustic signatures. The 506T audio

sensor uses a microphone to pick up sounds, then analyzes them

with proprietary acoustic software to determine if the glass has

been struck.

Backup Battery:

The 520T keeps the system armed, triggers

the alarm and keeps the starter interrupt active if main battery

is disconnected.

Hood Lock:

Prevents the vehicle’s hood from being opened

without a key, keeping thieves away from the system’s siren, the

battery connections, and other components under the hood.

Field Disturbance Sensor:

An invisible dome of coverage is estab-

lished by installing the 508D “radar” sensor. Your system can react

to any intrusions into this field with the full triggered sequence.

Power Locks:

This system offers lock outputs that can control

some manufacturers' power door lock systems. For other

systems, additional parts may be required.

Power Trunk Release:

The accessory output of the system can op-

erate a factory power release for the vehicle’s trunk or hatch.

Although the on-board relay can control most power trunk re-

leases, sometimes an optional relay is required. If the factory

release is not power-activated, Directed®'s 522T trunk release

solenoid can often be added.

Power Window Control:

Automatic power window control is pro-

vided with the 529T and 530T systems. These can operate

power windows, and can roll them up automatically when the

system is armed, roll them down, or both up and down.

Mobile Video:

This system is compatible with Directed Video’s

MCB1000 Multi-Channel Controller, featuring on-screen secu-

rity system programming and zone trigger information.

gglloossssaarryy ooff tteerrmmss

Control Unit:

The “brain” of your system. Usually hidden under-

neath the dash area of the vehicle. The control unit houses the

microprocessor which monitors your vehicle and controls all

system functions.

Fault-Proof Starter Interrupt:

An automatic switch controlled by

your system that prevents the vehicle’s starter from cranking

whenever the system is armed. The vehicle is never prevented

from cranking when the system is disarmed, in Valet Mode, or if

the starter interrupt switch itself fails. Your system has feature-

ready circuitry for the starter interrupt, however installation may

require additional labor.

Input:

A physical connection to the system. An input can be

provided by a sensor, pinswitch or by existing systems in the

vehicle, such as ignition or courtesy lights.

LED:

A red light mounted at a discretionary location inside the

vehicle. It is used to indicate the status of your system.

Shock Sensor:

This system has a dual zone shock sensor. This

sensor is mounted in the vehicle and designed to pick up impacts

to the vehicle or glass.

Transmitter:

A hand-held, remote control which operates the

various functions of your system.

Quick Reference Guide

Arming

■To arm, press . When the system arms, you will hear a short chirp, and

the parking lights will flash once.

Arming while driving

■To arm the system while driving, press on your transmitter while the

vehicle is running. The system will chirp once and then once more to indi-

cate that the ignition is on.

Disarming

■To disarm, press . You will hear two chirps, and the parking lights will

flash twice.

High security disarm

■For high security disarm, press on your transmitter and the siren will stop

sounding. To completely disarm the security system, press again and the

system will chirp 4 or 5 times (reporting the trigger).

Disarming without a transmitter

■Turn on the ignition. Press the Valet®switch within 15 seconds. The system

should now disarm. If it does not, you may have waited too long, so turn the

ignition off and on and try again.

Silent Mode

™

■Pressing briefly before arming or disarming will eliminate the confirma-

tion chirp(s) for that one operation only.

Panic Mode

■Press for 2 seconds, and you will enter Panic Mode. The siren will sound

and the parking lights will flash for 30 seconds. To stop Panic Mode at any

time, press on the transmitter again.

To remote start the vehicle

■Press and simultaneously. The parking lights will turn on (if

connected) and the vehicle will start and run for the programmed period of

time.

To disable the remote start system

■To disable the remote start, move the shutdown toggle switch to the OFF

position.

Location of Valet®switch_________________________________

Number of Valet®switch pulses for disarming_______________

Cut along dotted line and fold for a quick and easy reference to keep in your purse or wallet.

✂

The company behind this system is Directed Electronics

Since its inception, Directed Electronics has had one purpose, to provide consumers with

the finest vehicle security and car stereo products and accessories available. The recipient of

nearly 100 patents and Innovations Awards in the field of advanced electronic

technology, Directed is ISO 9001 registered.

Quality Directed Electronics products are sold and serviced throughout North America

and around the world.

Call ((880000)) 227744--00220000for more information about our products and services.

Vista, CA 92081

www.directed.com

G5301V 03-06

Directed Electronics is committed to delivering world class quality products

and services that excite and delight our customers.

Voxx Electronics DEI7701 Security/Remote Control Transmitter User Manual G5301V 03 06

DEI Headquarters, Inc. Security/Remote Control Transmitter G5301V 03 06
