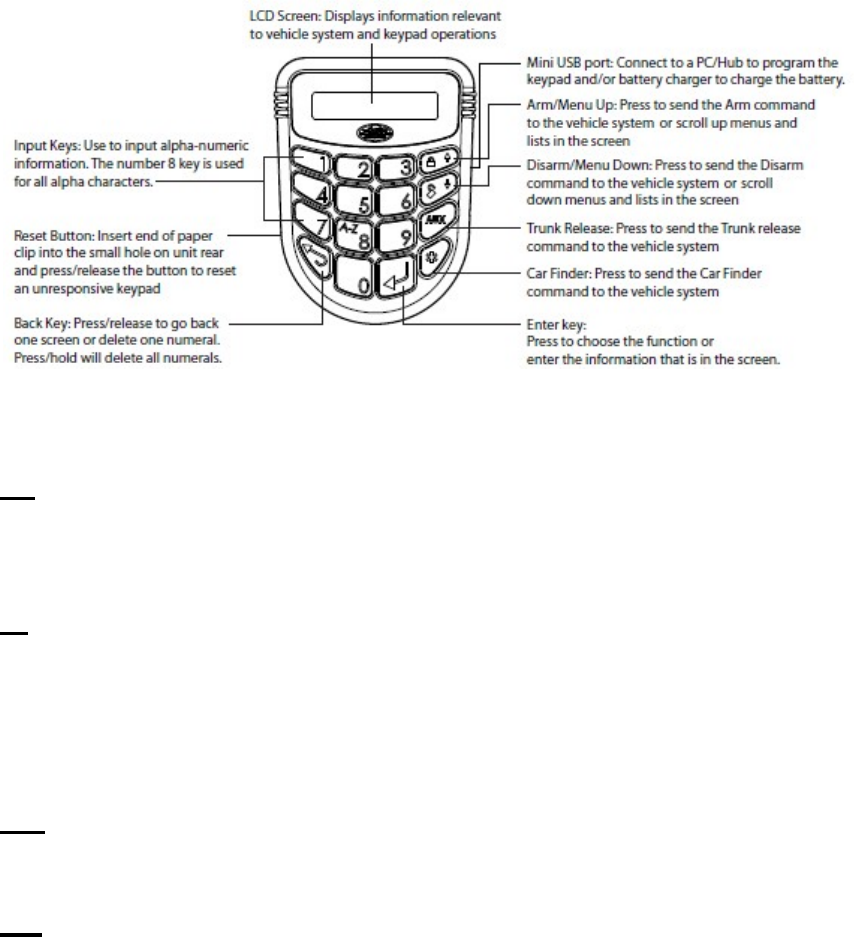

Lotloadkeypad(fullguide)



Modesandexplanationsforthelotloadkeypadandmainunit



Therearefourtypesofkeypads;dependingonthekeypadtypeisgoingtodeterminetheuserfunction

permissions.



SRK‐SalesRepKeypadfunctions:



•

CommandVehicle:Controlthesystemfunctions

•

FileTransfer:TransferthestoredinformationfromthekeypadtotheHUB



FIK‐FinanceManagerKeypad:



•

CommandVehicle:Controlthesystemfunctions

•

LearnKeypad:Programthekeypadtothesystem

•

FileTransfer:TransferthestoredinformationfromthekeypadtotheHUB

•

SetSystem:Setsthesystemtype;RFSecurity,RKESecurity,SensorAdd,NoSale,LotTransfer



DMK‐DealerMasterKeypad:



•

VerifyKeypads:VerifiesSRKandFIKkeypadsforusewhentheHUBisinactive(usedasbackup).



EMK‐ExpediterMasterKeypad:



•

CommandVehicle:Controlthesystemfunctions

•

LearnKeypad:Programthekeypadtothesystem

•

FileTransfer:TransferthestoredinformationfromthekeypadtotheHUB

•

SetSystem:Setsthesystemtype;RFSecurity,RKESecurity,SensorAdd,NoSale,LotTransfer

•

VerifyKeypads:VerifiesSRKandFIKkeypadsforusewhentheHUBisinactive(usedasbackup).

Themainunitcanbeplacedinmultiplemodes(fordifferentuses/purposes)bytheFIKandEMK

keypadsonly.Thefollowingisthedescriptionofeachmodeforoperation:



ConsumerMode:PlacestheunitinRFSecurity,RKESecurity,orSensorAddmodeforconsumer

usability.



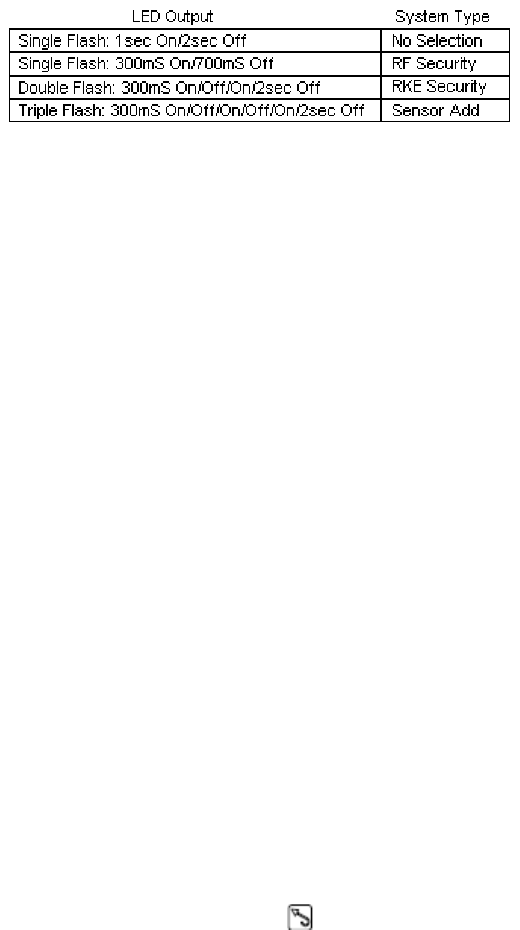

WhenthesystemisintheConsumerModeyoucanrecallwhatsystemtheunitissetupasbytheLED

flashes.Thefollowingroutinedescribeshowtorecallthesystemtype:



1. TurntheignitionOnfor1second,Offfor1second,Onfor1second,Offfor1secondthenback

OnagainandleavingOn.

2. TheLEDwillbegintoflashapatterntoconfirmthemodetheunitissetto.



DealerMode:Usedwhenthevehicleisonthelotandthesystemisactive.



LotTransferMode:PlacesaunitthatiscurrentlyinDealerModeintoamodifiedvaletmodeuntilthe

unitisreturnedtoDealerMode.



NoSaleMode:PlacesaunitthatiscurrentlyinDealerModeintoamodifiedvaletmodeuntiltheunitis

returnedtoDealerMode.



Initialkeypadsetup



ThekeypadmustberegisteredandconfiguredbythelocalLotManagementProgram

Administratorbeforeitwillbecomeoperational.

1.LogintotheLotManagementProgramwebsite

2.ClickonManageUserstab

3.ConnectthekeypadtotheHubusingthesuppliedUSBcable

4.Clickon‘FindKeypad’button

5.TheKeypadIDandpreviouslyprogrammedinformationisdisplayedonthescreen

6.Enterorchangetheuserinformationandpermissions

7.Clickthe‘ConfigureKeypad’button

8.TheKeypadisconfiguredandreadyforuseaftersuccessfulverification



SleepmodeandWake‐up



SleepMode:Toconservebatterylifethekeypadautomaticallyentersalowpower

consumptionSleepModeafteranextendedperiodofinactivity.

TheusersnameisalwaysdisplayedinSleepMode.Batterystatusisaddedtothe

displaywhenattentionisrequired.“USERNAME”toggleswith‘BATTERYLOW’,

‘CHARGING’or‘BATTERYFULL’toindicatebatterystatus.

Wake‐Up:Pressanykey(except)towakeupthekeypad.Onceawake,the

keypadmayneedtheUser’sPINandtoverifybeforeitwillbecomeoperational.

PINcode:IfaPINcodeisrequired“INPUTPIN”‐“PRESSENTER”isdisplayedonthescreen.

InputthePINusingtheinputkeysandthenpressthe key.

Note;PINcodenotrequiredfor1minuteafterenteringSleepmode,justpressany

key(except).



DEALERMODE



Isusedwhenthevehicleisonthelotandthesystemisactive.

Programming

KeypadRFlearning(fordealermode):



1.Openadoorandturntheignitionon

2.Press/releaseonceandthenpress/holdtheValetbutton

3.Thehorn/sirenwillsoundonce

•

Thebuttoncanbereleased(theunitwillexitprogrammingin30secondsifnoactionis

performed)

4.WakeupaverifiedEMKandInput,orconfirmandenter,theDealerID(DID)

5.Selectandenter‘LEARNKYPD’fromtheFunctionlist

6.Input,orconfirmandenter,theVehicleInventoryNumber(VIN)

7.SelecttheSystemTypeasinstalledandentertocompletelearning

8.Thehornwillemit1longchirpandtheKeypadwilldisplay‘Successful’to

confirmlearning.

9.Toexitturntheignitionoff,thehorn/sirenwillsoundtwicetoconfirm.



Notes:

•

LearningaKeypadsetsthesystemtoDealermodeanddeletesallpreviously

learnedIDs.

•

TheenteredDID&VINinformationissavedastheonlyallowedKeypadID

thatcanoperatethesystem.

•

TheenteredSystemTypeinformationwillbedisplayedontheKeypadeach

timethesystemisoperated.



•

Whenthesystemisindealermodethefeaturesetsforthesystemareasfollows:

 SecurityfeaturesOFF

 Passivearming/lockingON

 Arm/disarmsoundsOFF

 IgnitioncontrolledlocksOFF

 PanicmodeOFF

Oncethekeypadhasbeenprogrammedtothesystem,itisreadytobeused.

Tocontrolthesysteminthevehicle:

1.WakeupaverifiedKeypadandInput,orconfirmandenter,thePinNumberandDealerID(DID).

2.Selectandenterthe‘FUNCTIONLST’.

3.Chooseandenter‘CMNDVEHICLE’.

4.Input,orconfirmandenter,theVehicleInventoryNumber(VIN)

5.‘PRESSCMND’willdisplayonthescreen.

6.Pressthedesiredcommandbuttononthekeypadtocontrolthesystem.

7.Thekeypadwilldisplaythefunctionchosenandtheunitwillperformthefunction.



Dealermodeexit:

Thefollowingprocedureisusedtoexitthedealermode.

1.WakeupaverifiedEMKandinput,orconfirmandentertheDID

2.Selectandenter‘SETSYSTEM’fromthefunctionlist

3.Choosethesystemtypeinthemenu

4.Input,orconfirmandenter,theVIN

5.Keypaddisplays‘TRANSMITTING’then‘PROGRAMON’andthehorn/sirensoundsonceconfirming

entryintoprogrammingmode

6.Choosethetypeofsystem,pressenter

7.Keypaddisplays‘TRANSMITTING’then‘SUCCESSFUL’andthehorn/sirensoundstwicetoconfirm

programmingmodehasbeenexited.

NOTE:Ifthekeypaddisplays‘ERROR’,press‘Enter’again,if‘ERROR’occursagain,checkthesystemor

confirmthatthekeypadiswithinrangeofthevehicle.



LOTTRANSFERMODEandNOSALEMODE



Placestheunitinamodifiedvaletmode



NOTE:ThesystemmusthaveakeypadprogrammedandmustbeinDealerMode



LOTTRANSFERMODEentry/exit:



ThefollowingprocedureisusedtoentertheLotTransferMode:



1.WakeupaverifiedEMKandinput,orconfirmandentertheDID

2.Selectandenter‘SETSYSTEM’fromthefunctionlist

3.Input,orconfirmandenter,theVIN

4.Keypaddisplays‘TRANSMITTING’then‘PROGRAMON’andthehorn/sirensoundsonceconfirming

entryintoprogrammingmode

5.Choose‘DLVALETON’

6.Keypaddisplays‘TRANSMITTING’then‘DLVALETON’andthehorn/sirensoundstwicetoconfirm

programmingmodehasbeenexited.

NOTE:TheLEDcomesonsolidwhenenteringLotTransferMode.



ThefollowingprocedureisusedtoexittheLotTransferMode:

1.Openadoorandturntheignitionon

2.Press/releasetwiceandthenpress/holdtheValetbutton

3.Thehorn/sirenwillsoundtwice

•

Thebuttoncanbereleased(theunitwillexitprogrammingin30secondsifnoactionis

performed)

4.WakeupaverifiedEMKandinput,orconfirmandentertheDID

5.Selectandenter‘SETSYSTEM’fromthefunctionlist

6.Input,orconfirmandenter,theVIN

7.Keypaddisplays‘TRANSMITTING’then‘PROGRAMON’andthehorn/sirensoundsonceconfirming

entryintoprogrammingmode

8.Choose‘DLVALETOFF’

9.Keypaddisplays‘TRANSMITTING’then‘DLVALETOFF’andthehorn/sirenwillsoundtwicetoconfirm

programmingmodehasbeenexited.



NOSALEMODEentry/exitprocedures:



ThefollowingprocedureisusedtoentertheNoSaleMode:

1.WakeupaverifiedEMKandinput,orconfirmandentertheDID

2.Selectandenter‘SETSYSTEM’fromthefunctionlist

3.Input,orconfirmandenter,theVIN

4.Keypaddisplays‘TRANSMITTING’then‘PROGRAMON’andthehorn/sirensoundsonceconfirming

entryintoprogrammingmode

5.Choose‘NOSALEON’

6.Keypaddisplays‘TRANSMITTING’then‘NOSALEON’andthehorn/sirensoundstwicetoconfirm

programmingmodehasbeenexited.



ThefollowingprocedureisusedtoexittheNoSaleMode:

1.Openadoorandturntheignitionon

2.Press/releasetwiceandthenpress/holdtheValetbutton

3.Thehorn/sirenwillsoundtwice

•

Thebuttoncanbereleased(theunitwillexitprogrammingin30secondsifnoactionis

performed)

4.WakeupaverifiedEMKandinput,orconfirmandentertheDID

5.Selectandenter‘SETSYSTEM’fromthefunctionlist

6.Input,orconfirmandenter,theVIN

7.Keypaddisplays‘TRANSMITTING’then‘PROGRAMON’andthehorn/sirensoundsonceconfirming

entryintoprogrammingmode

8.Choose‘NOSALEOFF’

9.Keypaddisplays‘TRANSMITTING’then‘NOSALEOFF’andthehorn/sirenwillsoundtwicetoconfirm

programmingmodehasbeenexited.



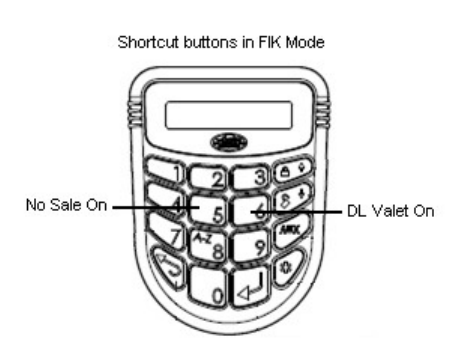

ThereareshortcutkeysonthekeypadthatcanmakeiteasiertoturnoneithertheLotTransferorNo

Salemodes.Entertheprocedureasdescribedaboveandpressthe#5buttontoturnonNoSaleorthe

#6buttontoturnonDLValetmode.



FCC/IDNotice



ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwoconditions:

(1)Thisdevicemaynotcauseharmfulinterference,and(2)Thisdevicemustacceptanyinterference

received,includinginterferencethatmaycauseundesiredoperation.



ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforClassBDigitalDevice,pursuant

toPart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainstharmful

interferenceinaresidentialinstallation. Thisequipmentgeneratesandcanradiateradiofrequency

energy and, if not installed and used in accordance with the instructions, may cause harmful

interferencetoradiocommunications. However,thereisnoguaranteethatinterferencewillnotoccur

inaparticularinstallation. Ifthisequipmentdoescauseharmfulinterferencetoradioortelevision

reception,whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotry

tocorrecttheinterferencebyoneormoreofthefollowingmeasures.



•

Reorientorrelocatethereceivingantenna

•

Increasetheseparationbetweentheequipmentandreceiver

•

Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris

connected

•

Consultthedealeroranexperiencedradio/TVtechnicianforhelp



Anychangesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecouldvoidtheuser’s

authoritytooperatetheequipment.



Canadastatements:



ThisdevicecomplieswithIndustryCanadalicense‐exemptRSSstandard(s).Operationissubjecttothe

followingtwoconditions:(1)thisdevicemaynotcauseinterference,and(2)thisdevicemustacceptany

interference,includinginterferencethatmaycauseundesiredoperationofthedevice.



Thisradiotransmitter6703A&7703AhasbeenapprovedbyIndustryCanadatooperatewiththe

antennatypeslistedbelowwiththemaximumpermissiblegainandrequiredantennaimpedancefor

eachantennatypeindicated.Antennatypesnotincludedinthislist,havingagaingreaterthanthe

maximumgainindicatedforthattype,arestrictlyprohibitedforusewiththisdevice.



LeprésentappareilestconformeauxCNRd'IndustrieCanadaapplicablesauxappareilsradioexempts

delicence.L'exploitationestautoriséeauxdeuxconditionssuivantes:(1)l'appareilnedoitpasproduire

debrouillage,et(2)l'utilisateurdel'appareildoitacceptertoutbrouillageradioélectriquesubi,mêmesi

lebrouillageestsusceptibled'encompromettrelefonctionnement.



Leprésentémetteurradio6703Aet7703AaétéapprouvéparIndustrieCanadapourfonctionneravec

lestypesd'antenneénumérésci‐dessousetayantungainadmissiblemaximaletl'impédancerequise

pourchaquetyped'antenne.Lestypesd'antennenoninclusdanscetteliste,oudontlegainest

supérieuraugainmaximalindiqué,sontstrictementinterditspourl'exploitationdel'émetteur.



WhenantennaisdetachableandRSS‐ICApplies



Thisradiotransmitter,6703A&7703A,hasbeenapprovedbyIndustryCanadatooperatewiththe

antennatypeslistedbelowwiththemaximumpermissiblegainandrequiredantennaimpedancefor

eachantennatypeindicated.Antennatypesnotincludedinthislist,havingagaingreaterthanthe

maximumgainindicatedforthattype,arestrictlyprohibitedforusewiththisdevice.



Leprésentémetteurradio,6703Aet7703A,aétéapprouvéparIndustrieCanadapourfonctionneravec

lestypesd'antenneénumérésci‐dessousetayantungainadmissiblemaximaletl'impédancerequise

pourchaquetyped'antenne.Lestypesd'antennenoninclusdanscetteliste,oudontlegainest

supérieuraugainmaximalindiqué,sontstrictementinterditspourl'exploitationdel'émetteur.



AntennaS161XX‐915R



Theantennausedforthetransmittermustbeinstalledtoprovideaseparationdistanceofatleast7.87

inches(20cm)fromallpersons,andmustnotbeco‐locatedoroperatinginconjunctionwithanyother

antennaortransmitter.



L'antennedel'émetteurdoitêtreinstalléàunedistanced'aumoins7,87pouces(20cm)detoutesles

personnes,etnedoitpasêtreplacéouutiliséenconjonctionavectouteautreantenneoutoutautre

émetteur



ThisClassBdigitalapparatuscomplieswithCanadianICES‐003.



CetappareilnumériquedelaclasseBestconformeàlanormeNMB‐003duCanada.

Voxx Electronics DEI7703 915MHz spread spectrum 25 channels User Manual keypad

DEI Headquarters, Inc. 915MHz spread spectrum 25 channels keypad

Contents

user manual keypad

Navigation menu

Namespaces

Views

Navigation
