User’s Guide
6703A Lot Management System Hub
Logo, Directed Electronics w-driven.eps
Logo, Directed with designed in USA.eps
Logo, Directed with Distributed By.eps
Directed Logo Usage
Getting Started
Connect the hub to the designated computer* using the
USB cable provided. The unit is powered via this cable
which is also used for data exchange. Position the hub at
the highest possible point in an area free of obstructions
or interference. Rotate the antenna to the upright position.
The hub is used to relay information between the 7703A
keypad and the computer. When the hub is connected to
power, it initializes by testing each display character in
sequence before providing status feedback. Due to the
display’s limited character capacity, system status is ab-
breviated. These abbreviations are as follows:
Display Description
UN hub is unplugged, verification is off
UN VO hub is unplugged, verification is on
PA PC is active, verification is off
PA VO PC is active, verification is on
NR PC is not responding, verification is off
NR VO PC is not responding, verification is on
*This designated computer uses proprietary pre-loaded
software which enables the hub to transfer data via this
system to a remote database.
FCC/ID Notice
This device complies with Part 15 of the FCC Rules. Op-
eration is subject to the following two conditions: (1) This
device may not cause harmful interference, and (2) This
device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with
the limits for Class B Digital Device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates and
can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harm-
ful interference to radio or television reception, which can
be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by
one or more of the following measures.
• Reorient or relocate the receiving antenna
• Increase the separation between the equipment and
receiver
• Connect the equipment into an outlet on a circuit dif-
ferent from that to which the receiver is connected

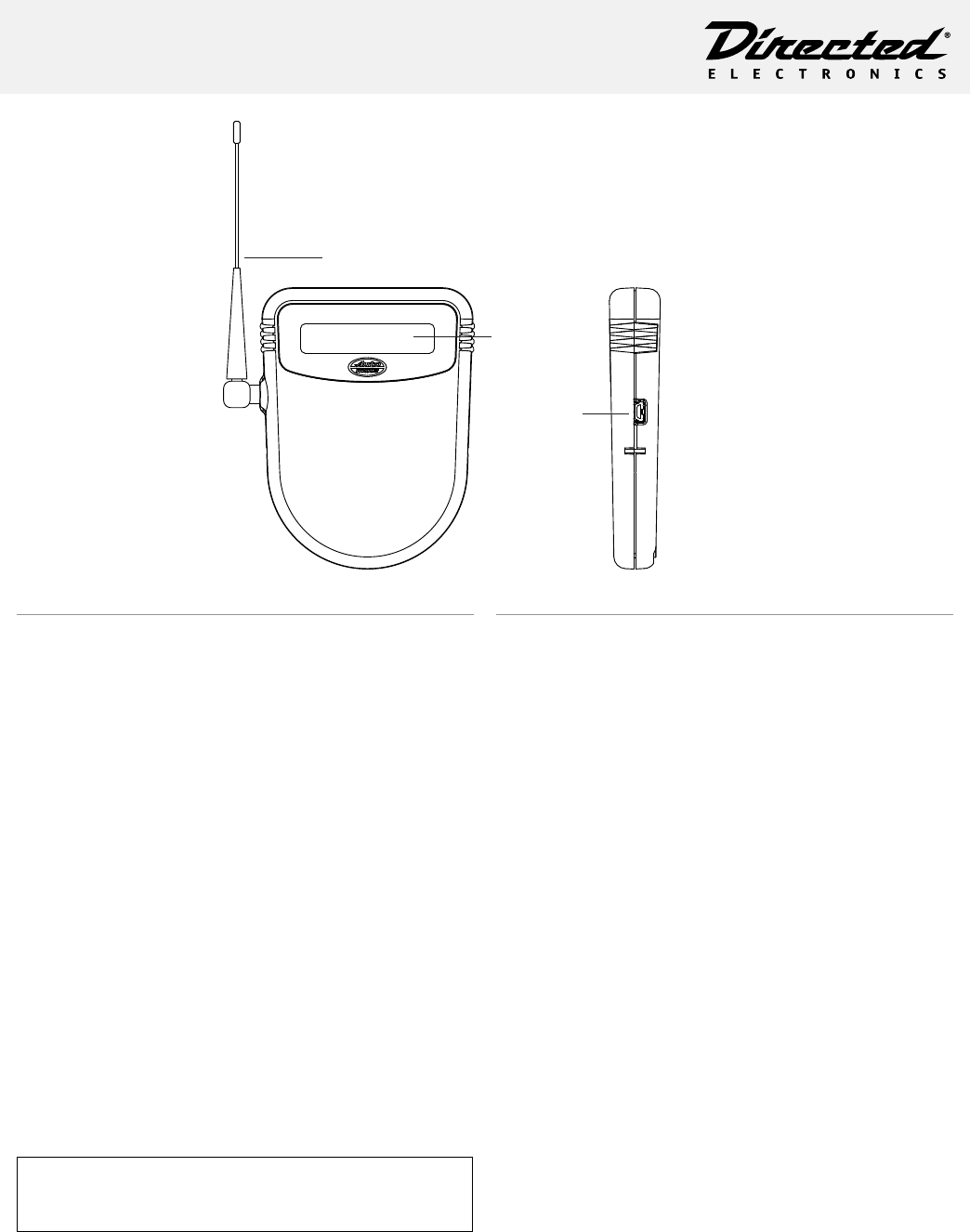

Antenna
Display
Mini-USB
port
2© 2011 Directed Electronics. All rights reserved.
• Consult the dealer or an experienced radio/TV tech-
nician for help
Any changes or modifications not expressly approved by
the party responsible for compliance could void the user’s
authority to operate the equipment.
Canada statements:
This device complies with Industry Canada licence-exempt
RSS standard(s). Operation is subject to the following two
conditions: (1) this device may not cause interference,
and (2) this device must accept any interference, includ-
ing interference that may cause undesired operation of
the device.
This radio transmitter 6703A & 7703A has been ap-
proved by Industry Canada to operate with the antenna
types listed below with the maximum permissible gain
and required antenna impedance for each antenna type
indicated. Antenna types not included in this list, having
a gain greater than the maximum gain indicated for that
type, are strictly prohibited for use with this device.
Le présent appareil est conforme aux CNR d’Industrie
Canada applicables aux appareils radio exempts de li-
cence. L’exploitation est autorisée aux deux conditions
suivantes : (1) l’appareil ne doit pas produire de brouil-
lage, et (2) l’utilisateur de l’appareil doit accepter tout
brouillage radioélectrique subi, même si le brouillage est
susceptible d’en compromettre le fonctionnement.
Le présent émetteur radio 6703A et 7703A a été approu-
vé par Industrie Canada pour fonctionner avec les types
d’antenne énumérés ci-dessous et ayant un gain admis-
sible maximal et l’impédance requise pour chaque type
d’antenne. Les types d’antenne non inclus dans cette liste,
ou dont le gain est supérieur au gain maximal indiqué,
sont strictement interdits pour l’exploitation de l’émetteur.
When antenna is detachable and RSS-IC Applies
This radio transmitter (identify the device by certification
number, or model number if Category II) has been ap-
proved by Industry Canada to operate with the antenna
types listed below with the maximum permissible gain
and required antenna impedance for each antenna type
indicated. Antenna types not included in this list, having
a gain greater than the maximum gain indicated for that
type, are strictly prohibited for use with this device.
Le présent émetteur radio (identifier le dispositif par son
numéro de certification ou son numéro de modèle s’il fait
partie du matériel de catégorie I) a été approuvé par In-
dustrie Canada pour fonctionner avec les types d’antenne
énumérés ci-dessous et ayant un gain admissible maximal
et l’impédance requise pour chaque type d’antenne. Les
types d’antenne non inclus dans cette liste, ou dont le
gain est supérieur au gain maximal indiqué, sont stricte-
ment interdits pour l’exploitation de l’émetteur.
Antenna S161XX-915R
The antenna used for the transmitter must be installed to
provide a separation distance of at least 7.87 inches (20
cm) from all persons, and must not be co-located or oper-
ating in conjunction with any other antenna or transmitter.
L’antenne de l’émetteur doit être installé à une distance
d’au moins 7,87 pouces (20 cm) de toutes les personnes,
et ne doit pas être placé ou utilisé en conjonction avec
toute autre antenne ou tout autre émetteur.
This Class B digital apparatus complies with Canadian
ICES-003.
Cet appareil numérique de la classe B est conforme à la
norme NMB-003 du Canada.
