Voxx Electronics DEIDT200 Telematics OBSII Device User Manual
DEI Headquarters, Inc. Telematics OBSII Device Users Manual
Users Manual
DT200 ®
BLUETOOTH® Telematics OBDII Device
DT200-BLUETOOTH Telematics OBDII Device
App User Guide – App version 2.0
Document Version 1.0
Compatibility: iOS and Android smartphones
November 2016
USER GUIDE
page 2
Contents
About this Guide ����������������������������������������������������������� 3
Typographic Conventions �������������������������������������������� 4
1. Technical Specifications ....................................... 5
1�1� Hardware Contents ��������������������������������������������� 5
1�2� Overview of the App and Product �������������������� 6
App Feature �����������������������������������������������������������7
2. Getting starded ..................................................... 8
2�1� How to download the App and get started?���� 9
2�2� Launching the Octo Vantage Mobile App...���������10
2�3� Logging into your Account.......................... ����������11
2�4� Connection Device Setting......�����������������������������12
3. Using Main Menu ..................................................15
3�1� Application Screens��������������������������������������������� 15
4. Warning ! Safety first������������������������������������������������ 17
TELEMATICS OBDII DEVICE
DT200
page 3
About is Guide
is document provides information
about the services and functions available
with the Octo Vantage Mobile App (referred
to simply as “the App” in the reminder
of this document) and how to access them�
TELEMATICS OBDII DEVICE
DT200
page 4
Typographic Conventions
is document uses the following
typographic conventions to help you locate
and identify information:
Italic text Identifies new terms, emphasis,
and book titles
Bold text Identifies button names and other
items that you can click or touch
in the graphical user interface
or press on a computer keyboard
Note: Notes provide extra information
about a topic that is good to know
but not essential to the process�
CAUTION: Cautions draw your attention
to actions that could compromise
the security of your system or
result in the loss of data.
TELEMATICS OBDII DEVICE
DT200
page 5
1. Technical Specifications
Specification Description
Supported
Operating
Systems
iOS version 8.0 and later
Supported
Devices
niOS and Android smartphones with BLE
capability (exception list maintained
separately).
Recommended
Configuration
Dual-core processor (such as ARM Cortex A9,
1 Ghz); 512 MB RAM
Connectivity Your mobile broadband connection or a
Wi-Fi connection and Bluetooth 4.0,
single mode low energy(BLE).
1.1. Hardware Contents
This box contains only DT200 Device.
DT200
Supported OBDII
Protocols
ISO 15765-4 (CAN), ISO 14230-4 (KWP2000), SAE
J1850PWM, SAEJ1850VPW, ISO9141-2.
Supported
Cars
nNorth-America 1996 and above, exception
list maintained separately
TELEMATICS OBDII DEVICE
page 6
1.2. Overview of the App and Product

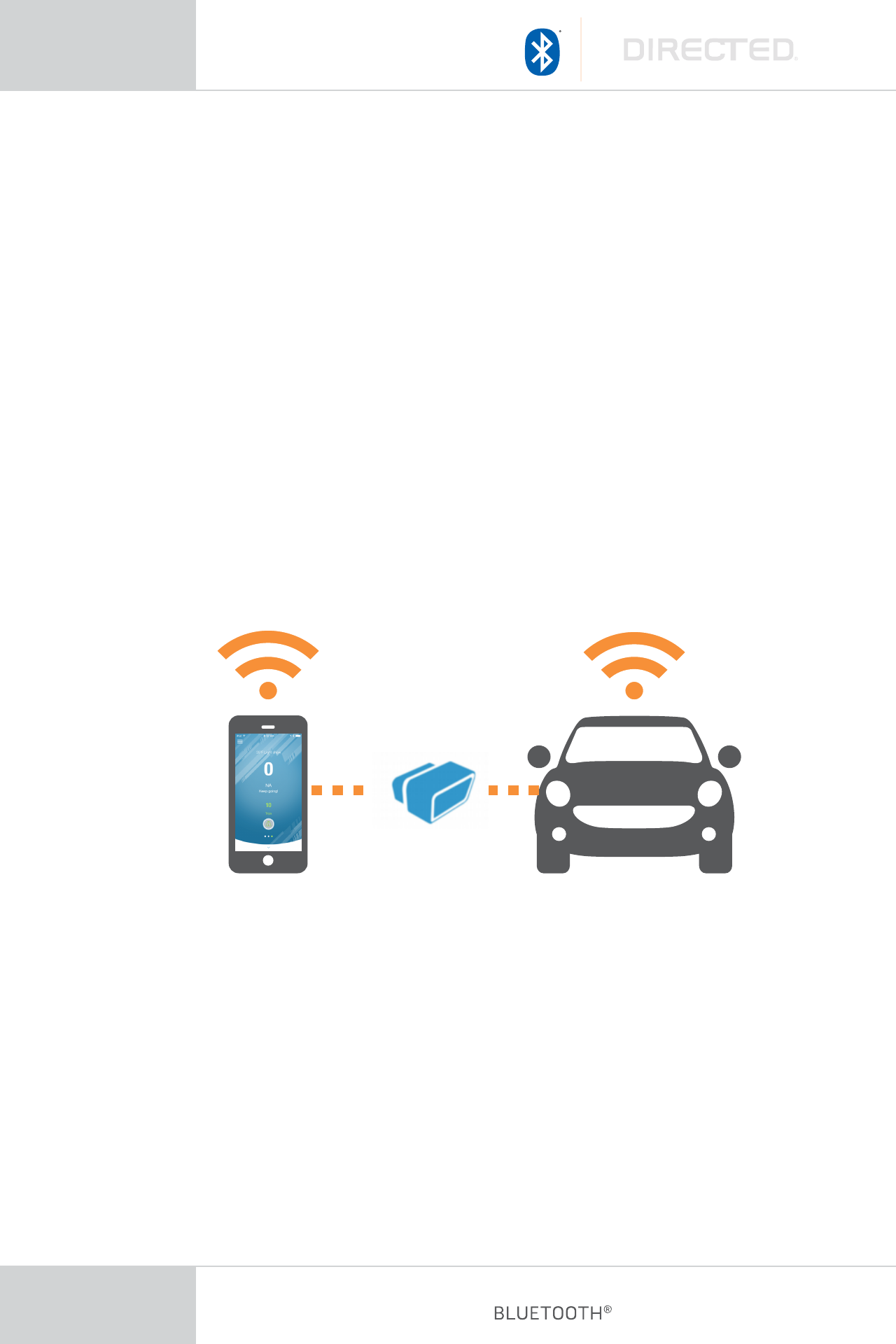

DT200 is a plug-in OBD2 BLUETOOTH® Telematics
device that provide and report Car driving quality, UBI
data, trip details, map representation, car maintenance
features and car convenience features, all from the
convenience of your smartphone or tablet�
Compatible with all vehicles North-America 1996 and above, exception list maintained separately� The Bluetooth®
word mark and logos are registered trademarks owned by Bluetooth SIG, Inc� and any use of such marks
by Directed is under license�
DT200
TELEMATICS OBDII DEVICE
page 7
App Features
•Car Maintenance Features;
•Driving Quality Reporting;
•UBI Data Passthrough;
•Alerting;
•Driving trips detail;
•Convenience features.
Bitwriter PRG1000 XKLoader2XKLoader3
XKL
2
XKL
3
Bitwriter PRG1000 XKLoader2XKLoader3
XKL
2
XKL
3
XKLoader3
®
XKLoader3
®
XKLoader3 is a plug-in OBD2
BLUETOOTH® programming
tool that lets you configure
devices, flash modules,
access Key2GO, take CAN
logs, view D2D messages,
and access Directed support
including Directwire, all from
the convenience of your
smartphone or tablet.
©2013 Directed, Vista CA 92081
All rights reserved.
MADE IN CANADA
©2013 Directed, Vista CA 92081
Tous droits réservés.
FAIT AU CANADA
XKLoader3 est un module
externe BLUETOOTH OBD2
qui vous permet de configurer
des appareils, télécharger
des logiciels sur les modules,
accéder à Key2GO, consulter les
entrées CAN, voir les messages
D2D, et avoir accès au soutien
de Directed qui inclut Directwire,
tout ça à partir de votre téléphone
intelligent ou de votre tablette.
BLUETOOTH®programming tool •Outil de programmation BLUETOOTH®
P/N: XKLOADER3 P/N: XKLOADER3
www.directechs.com
App Features
Flash or configure any next
generation platform from
your smartphone or tablet.
Caractéristiques de l’application
Télécharger des logiciels ou configurer
toute plateforme de prochaine
génération à partir de votre téléphone
intelligent ou de votre tablette.
Hardware Features
XKLoader3 replaces
Bitwriter, PRG1000
and XKLoader2.
Caractéristiques
de l’équipement
XKLoader3 remplace
le Bitwriter, PRG1000
et le XKLoader2.
Compatible with all next generation technology platforms, including DBALL, DBALL2 and DBALL2Pro,
and supports VIP4.5 or higher (requires Directech mobile app). e Bluetooth® word mark and logos are
registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Directed is under license.
Compatible avec toute plateforme utilisant la technologie de prochaine génération, qui inclut DBALL,
DBALL2 et DBALL2Pro, et qui supporte VIP4.5 ou plus (nécessite l’application mobile Directech). La marque
Bluetooth® et les logos sont des marques déposées appartenant à Bluetooth SIG, Inc. et toute utilisation de
ces marques par Directed est sous licence.
BLUETOOTH®programming tool
Outil de programmation BLUETOOTH®
Bitwriter PRG1000 XKLoader2XKLoader3
XKL
2
XKL
3
XKLoader3
®
XKLoader3
®
XKLoader3 is a plug-in OBD2
BLUETOOTH® programming
tool that lets you configure
devices, flash modules,
access Key2GO, take CAN
logs, view D2D messages,
and access Directed support
including Directwire, all from
the convenience of your
smartphone or tablet.
©2013 Directed, Vista CA 92081
All rights reserved.
MADE IN CANADA
©2013 Directed, Vista CA 92081
Tous droits réservés.
FAIT AU CANADA
XKLoader3 est un module
externe BLUETOOTH OBD2
qui vous permet de configurer
des appareils, télécharger
des logiciels sur les modules,
accéder à Key2GO, consulter les
entrées CAN, voir les messages
D2D, et avoir accès au soutien
de Directed qui inclut Directwire,
tout ça à partir de votre téléphone
intelligent ou de votre tablette.
BLUETOOTH®programming tool •Outil de programmation BLUETOOTH®
P/N: XKLOADER3 P/N: XKLOADER3
www.directechs.com
App Features
Flash or configure any next
generation platform from
your smartphone or tablet.
Caractéristiques de l’application
Télécharger des logiciels ou configurer
toute plateforme de prochaine
génération à partir de votre téléphone
intelligent ou de votre tablette.
Hardware Features
XKLoader3 replaces
Bitwriter, PRG1000
and XKLoader2.
Caractéristiques
de l’équipement
XKLoader3 remplace
le Bitwriter, PRG1000
et le XKLoader2.
Compatible with all next generation technology platforms, including DBALL, DBALL2 and DBALL2Pro,
and supports VIP4.5 or higher (requires Directech mobile app). e Bluetooth® word mark and logos are
registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Directed is under license.
Compatible avec toute plateforme utilisant la technologie de prochaine génération, qui inclut DBALL,
DBALL2 et DBALL2Pro, et qui supporte VIP4.5 ou plus (nécessite l’application mobile Directech). La marque
Bluetooth® et les logos sont des marques déposées appartenant à Bluetooth SIG, Inc. et toute utilisation de
ces marques par Directed est sous licence.
BLUETOOTH®programming tool
Outil de programmation BLUETOOTH®
DT200
TELEMATICS OBDII DEVICE
page 8
2. Getting starded
This chapter describes the basics you need to know
getting started with DT200 device and OCTO
Vantage Mobile App.
It explains how to get the Mobile App from the App
Store, accept the EULA (End User License
Agreement), launch the App, and log in to your
account and to the Backend portal.
Once you’re logged in, follow the steps in this
chapter to use the Main Menu and configure the
settings�
Unpack and connect your DT200 device
Unpack your DT200 box, insert the Device into OBD
socket from your car (to locate OBD port see car’s
user manual)� For using all features you will need
to connect specific cable for specific feature� We
will describe all steps later with application
features�
TELEMATICS OBDII DEVICE
DT200
page 9
2.1. How to download the App and get started?

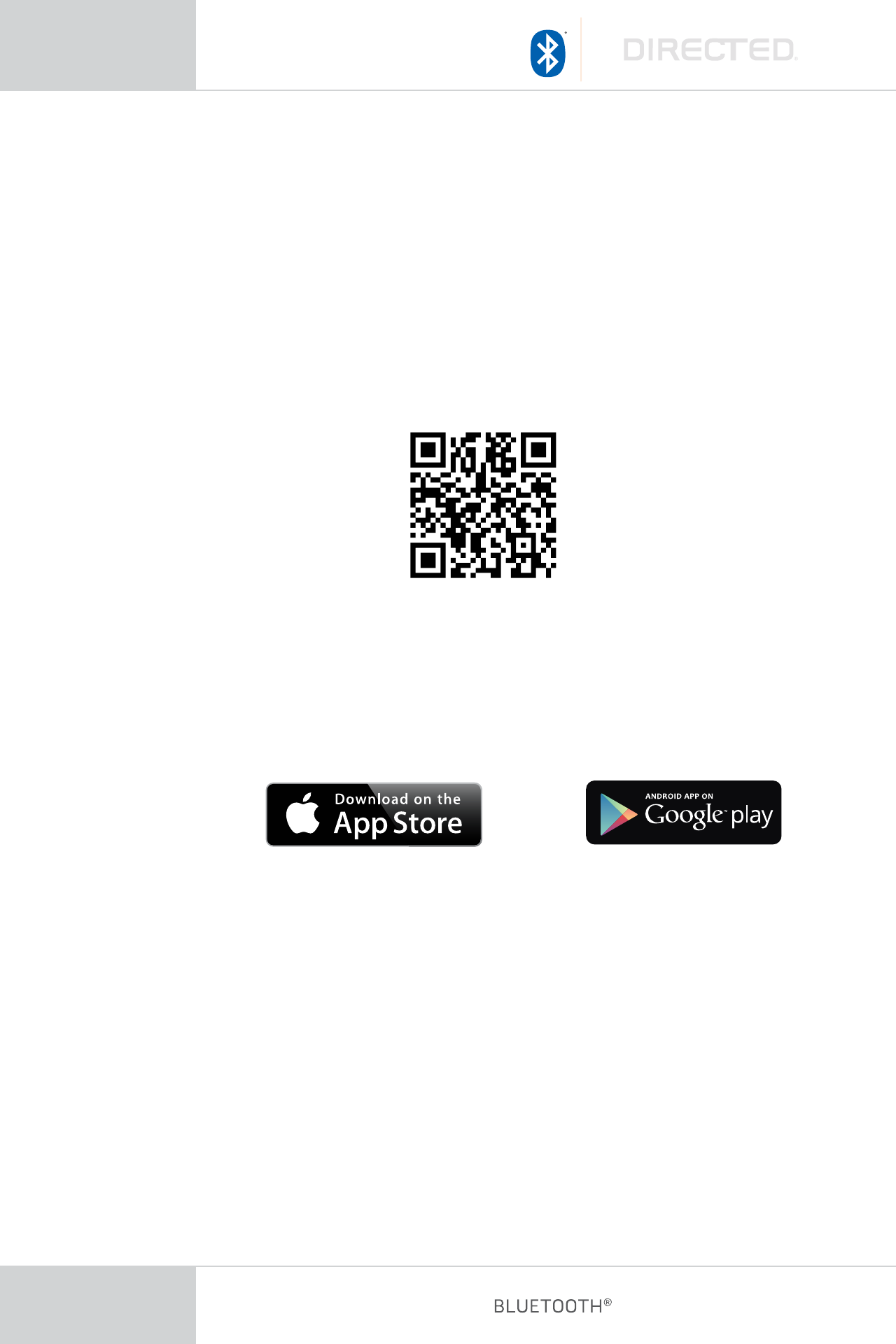

A� Simply scan the QR code and install
application
B� Go straight to the App Store on your
phone and search for Octo Vantage App�
To download the App is FREE!
C� Accepting the EULA
(End User License Agreement)
The first time you start the Octo Vantage
Mobile App, you’ll have to login your
Account and accept the Terms of Use in
order to use the App�
TELEMATICS OBDII DEVICE
DT200
page 10 TELEMATICS OBDII DEVICE
DT200

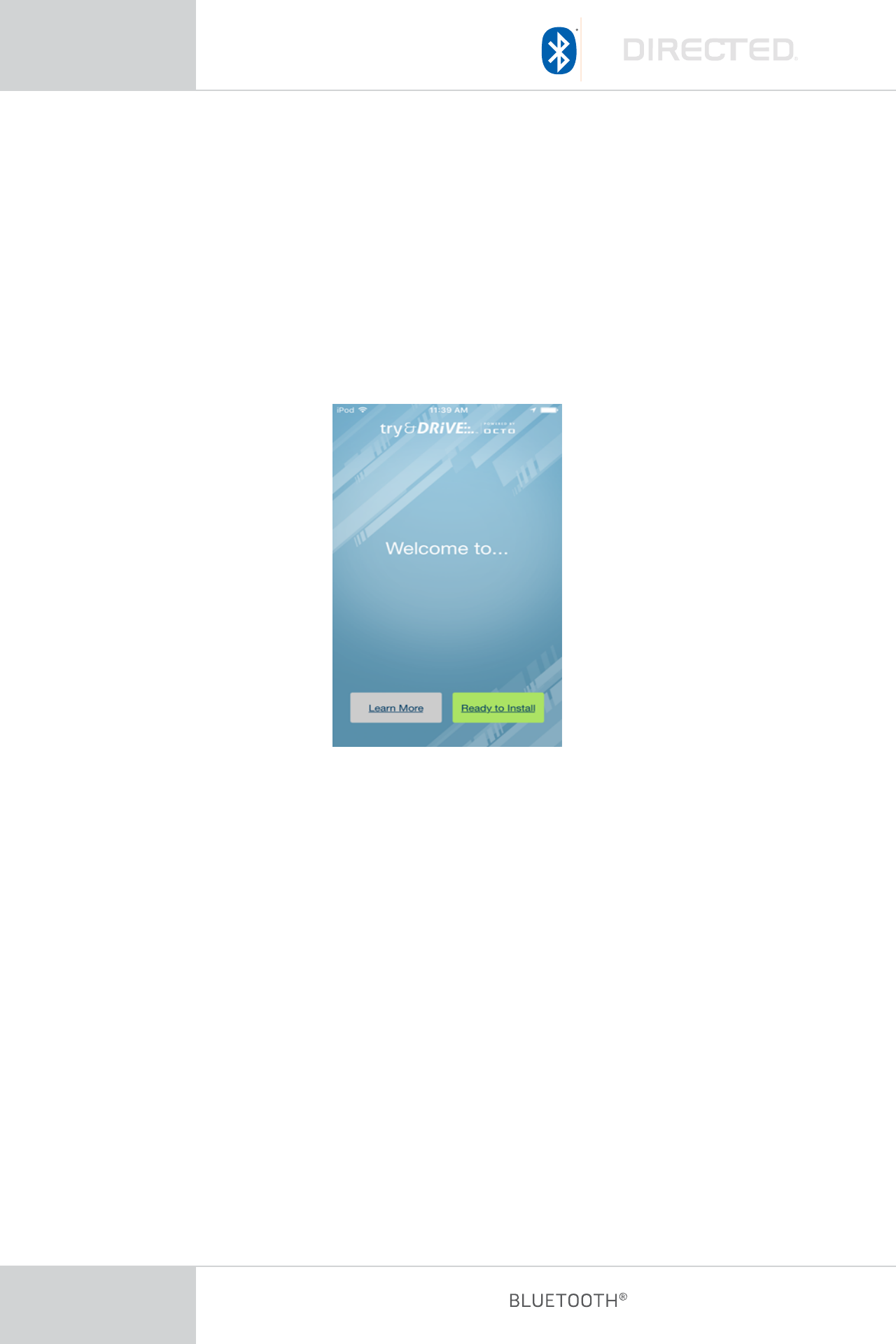

2.2. Launching the Octo Vantage Mobile App
Basic Workout – and navigating the workout screen
Now you are ready to enjoy the newest truly
revolutionary DT200 product�
page 11
DT200
TELEMATICS OBDII DEVICE
Claude
Claude
First connection of App will upgrade DT200
firmware if needed�

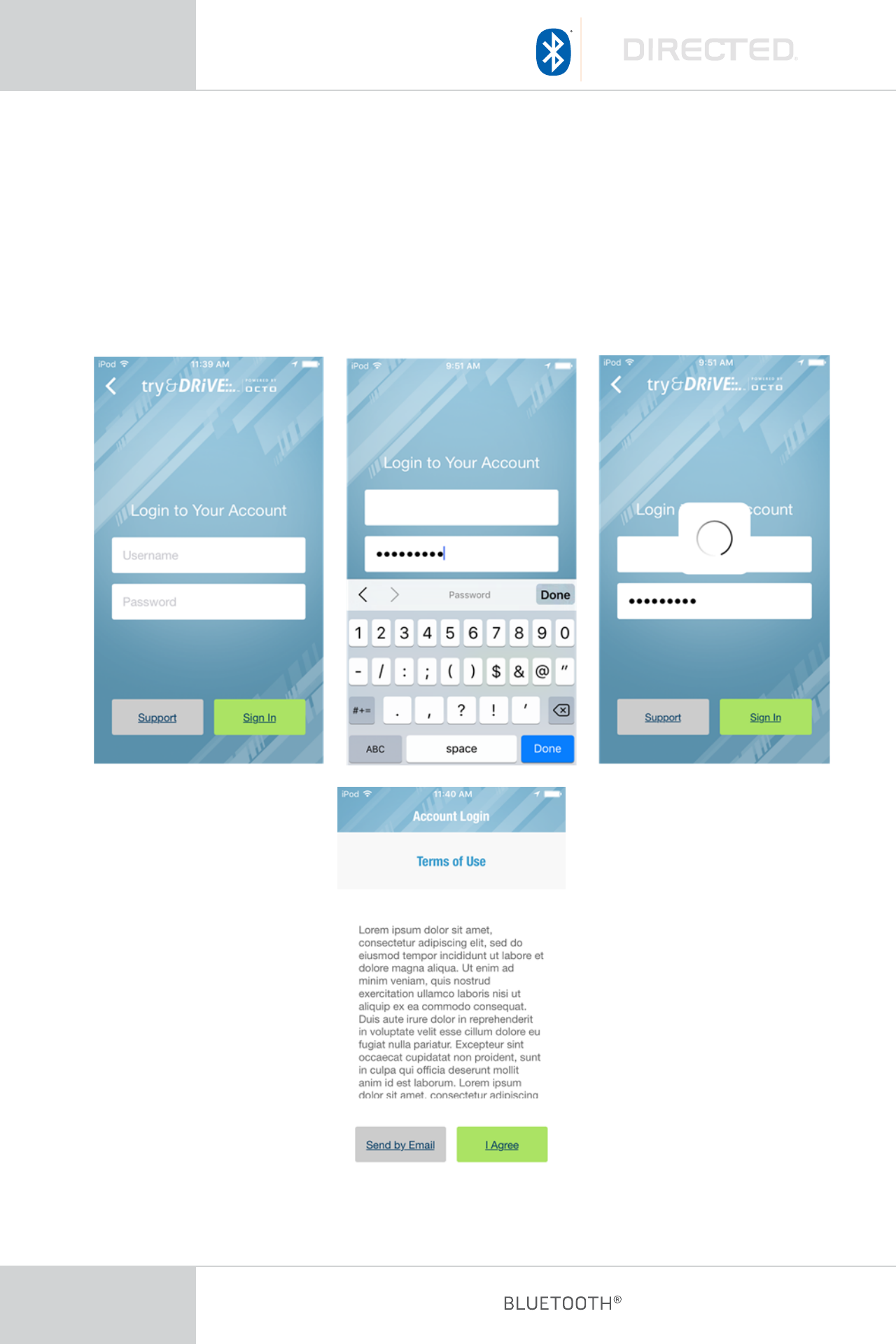

2.3 Logging into your Account
page 12 TELEMATICS OBDII DEVICE
DT200

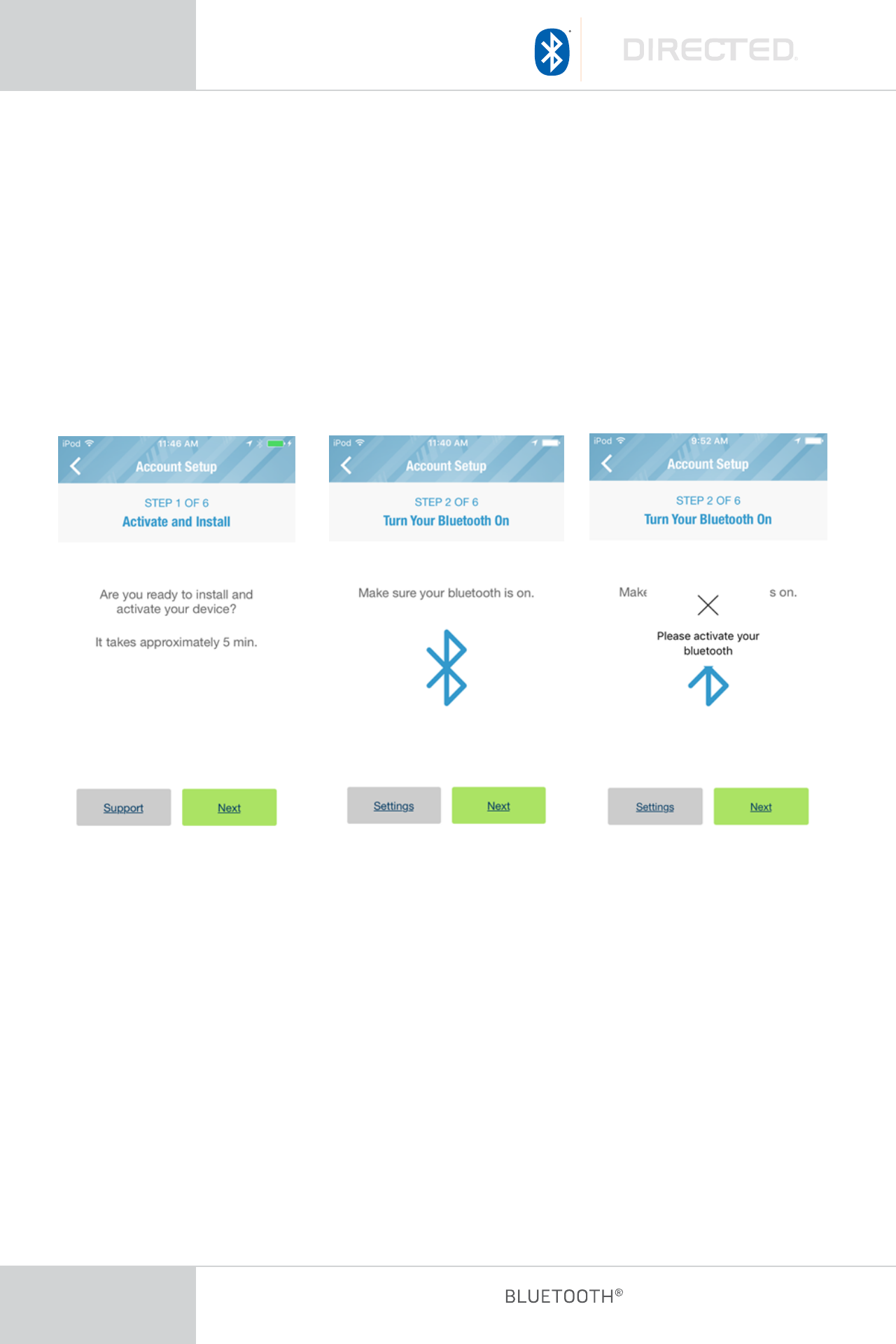

2.4. Connection Device Settings
Activate & Install
Go to the setting of your phone, turn on
Bluetooth and make pairing with DT200 device�
page 13
DT200
TELEMATICS OBDII DEVICE
page 14 TELEMATICS OBDII DEVICE
DT200
TELEMATICS OBDII DEVICE
DT200
3. Using Main Menu

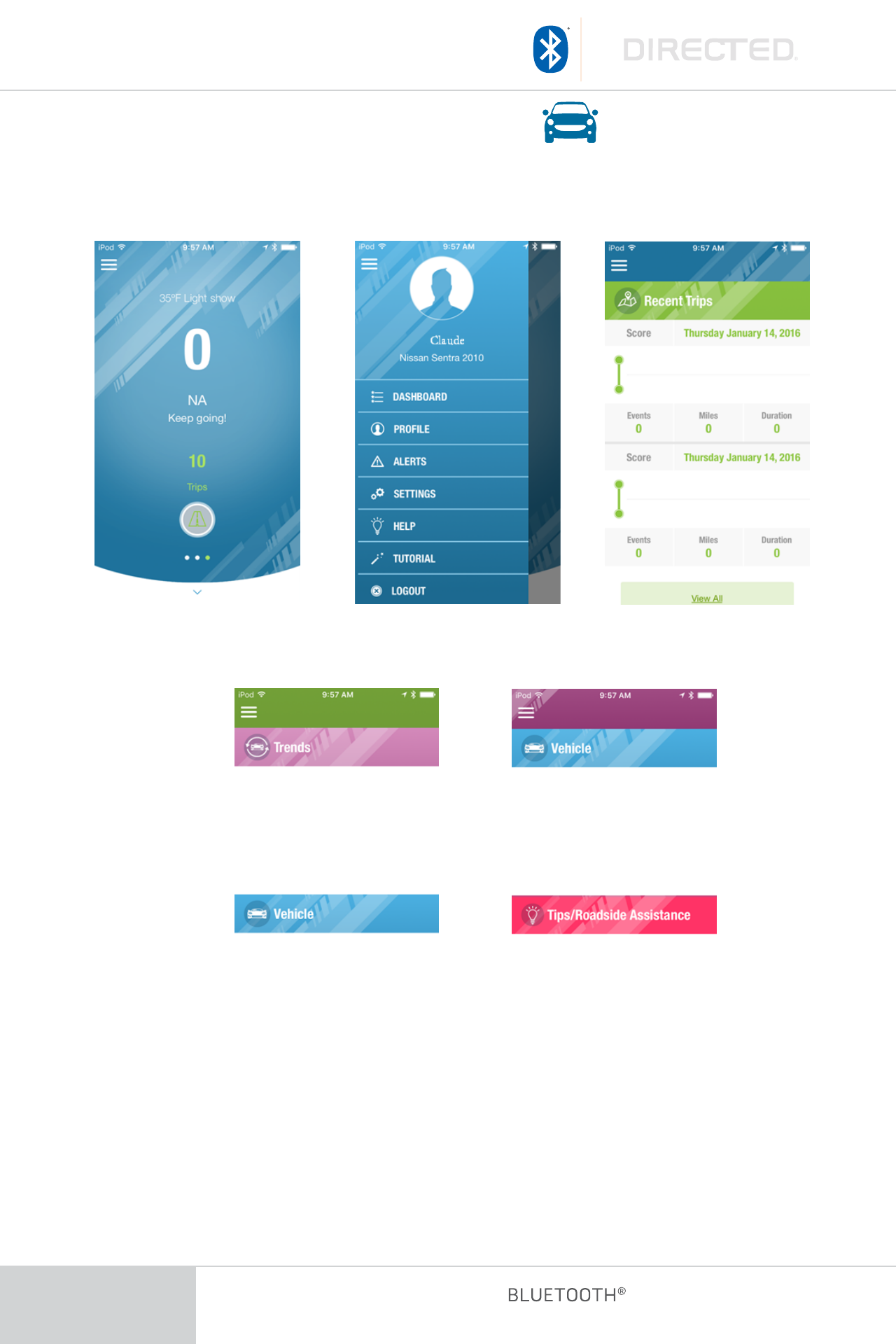

3.1 Application Screens
15
page
page 16 TELEMATICS OBDII DEVICE
DT200
TELEMATICS OBDII DEVICE
17
page
n is device complies with Part 15 of the FCC Rules� Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation�
n Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment�
n is equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules� ese limits are designed to provide
reasonable protection against harmful interference in a
residential installation� is equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications� However, there is no
guarantee that interference will not occur in a particular
installation�
n If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
n Reorient or relocate the receiving antenna�
Increase the separation between the equipment
and receiver�
n Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected�
n Consult the dealer or an experienced radio/TV
technician for help�
4.Warning! Safety first
TELEMATICS OBDII DEVICE
n
n
(1)
(2)
is device complies with Industry Canada license-exempt
RSS standard(s)� Operation is subject to the following
two conditions: (1) this device may not cause interference,
and (2) this device must accept any interference, including
interference that may cause undesired operation of
the device�
Le présent appareil est conforme aux CNR d’Industrie
Canada applicables aux appareils radio exempts de licence�
L’exploitation est autorisée aux deux conditions suivantes:
1) l’appareil ne doit pas produire de bro lage, et
2) l’utilisateur de l’appareil doit accepter tout bro lage
radioélectrique subi, même si le brouillage est
susceptible d’en compromettre le fonctionnement�
18
page
B digital apparatus complies with Canadian n is Class
ICES-003�
B est conforme n Cet appareil numérique de la classe
à la norme NMB-003 du Canada�
