TWO-WAY LCD AUTOMATIC/MANUAL

TRANSMISSION REMOTE STARTER

WITH FULL ALARM SYSTEM

INDUSTRY CANADA USER NOTICE:

Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must

accept any interference, including interference that may cause undesired operation of the device.

To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the

equivalent isotropically radiated power (EIRP) is not more than that required for successful communication.

NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to

this equipment. Such modifications could void the user's authority to operate the equipment.

AS-6870TW-FM

User Guide

WARNING !

It is the responsibility of the vehicle operator to ensure their vehicle

is parked in a safe and responsible manner.

1. a) Manual transmission: When leaving the vehicle, it is the user’s

responsibility to ensure that the gearshift lever is in the NEUTRAL

position and the parking brake is engaged in order to avoid accidents

upon remote starting.

b) Automatic transmission: When leaving the vehicle, it is the user’s

responsibility to ensure that the gearshift lever is in “Park” in order to

avoid accidents upon remote starting.

(Note: Make sure that the automatic vehicle cannot start in "Drive".)

2. It is the user's responsibility to ensure that the remote starter is disabled

or put into valet mode before servicing.

Batter

Low Volta

e Warnin

Once the battery is weak, the LCD remote will display a battery low voltage

icon and a “L-BAT” indication with 2 beeps to warn the user to charge it.

P. 2 User Guide

Table of Contents

GOVERNMENT REGULATIONS........................................................................................................................... 3

INTRODUCTION..................................................................................................................................................... 3

VEHICLE PRESETS............................................................................................................................................... 3

HEATER & HEATED SEATS ................................................................................................................................... 3

WINDSHIELD WIPERS, RADIO & HEADLIGHTS........................................................................................................ 3

USING THE TRANSMITTER.................................................................................................................................. 4

LCD REMOTE FUNCTIONS.................................................................................................................................... 4

LCD TRANSMITTER BASIC CONFIRMATIONS........................................................................................................... 5

BACKLIGHT .......................................................................................................................................................... 5

CHARGING THE BATTERY ..................................................................................................................................... 6

REMOTE’S ADVANCED FUNCTIONS AND MENU.............................................................................................6

HOW TO ACCESS ADVANCED REMOTE FUNCTIONS AND MENU .............................................................................. 6

REMOTE STARTING YOUR VEHICLE.................................................................................................................9

SETTING YOUR VEHICLE INTO READY MODE......................................................................................................... 9

REMOTE STARTING ............................................................................................................................................ 10

DRIVING OFF ..................................................................................................................................................... 10

ARMING AND DISARMING OF THE SYSTEM...................................................................................................10

INTRUSION ALERT VIA REMOTE......................................................................................................................11

REMOTE STARTER FEATURES........................................................................................................................11

REMOTE DOOR LOCKS....................................................................................................................................... 11

REMOTE TRUNK RELEASE.................................................................................................................................. 12

IDLE MODE ........................................................................................................................................................ 12

VALET MODES ................................................................................................................................................... 12

PANIC MODE...................................................................................................................................................... 14

QUICK LOCKOUTTM...........................................................................................................................................14

COLD WEATHER MODE ...................................................................................................................................... 14

EXTENDED RUN TIME......................................................................................................................................... 15

INTRUSION CODES VIA LED LIGHT ...................................................................................................................... 15

CAR FINDER™...................................................................................................................................................15

TEMPERATURE REQUEST (IF ACC-TEMP-101 INSTALLED) ..................................................................................16

TEMPORARY CHIRP DELETE ............................................................................................................................... 16

RELOCK.............................................................................................................................................................16

REMOTE FINDER................................................................................................................................................. 16

MISSING A START OR A STOP CONFIRMATION............................................................................................16

ADVANCED FEATURES: INSTALLATION-PROGRAMMABLE OPTIONS...................................................... 17

IGNITION-CONTROLLED DOOR LOCKS.................................................................................................................17

SECURE LOCK ................................................................................................................................................... 17

“HOME VALETTM” MODE ..................................................................................................................................... 17

SAFE START MODE ............................................................................................................................................ 17

ENGINE RUN TIME.............................................................................................................................................. 18

TURBO MODE .................................................................................................................................................... 18

SIREN CHIRPS.................................................................................................................................................... 18

ARMING ............................................................................................................................................................. 19

SHOCK SENSE & WARN AWAY SENSE................................................................................................................. 19

SIREN/HORN CHIRP TIMING................................................................................................................................19

PRIORITY DOOR: ................................................................................................................................................ 19

MULTI-CAR OPERATION......................................................................................................................................20

MULTI-LEVEL FEATURES (DEFAULT STATE) ................................................................................................20

TROUBLESHOOTING TRANSMITTING RANGE............................................................................................... 21

DIAGNOSTICS – PARKING LIGHT FLASH TABLE..........................................................................................22

User Guide P. 3

Governmentregulations

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)

This device may not cause harmful interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to

part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful

interference in a residential installation. This equipment generates and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions, may cause harmful interference to radio

communications. However, there is no guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television reception, which can be determined by

turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of

the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

• Consult the dealer or an experienced radio/TV technician for help.

This device complies with the Industry Canada Radio Standards Specification RSS 210. Its use is

authorized only on a no-interference, no-protection basis; in other words, this device must not be used if it is

determined that it causes harmful interferences to services authorized by IC. In addition, the user of this

device must accept any radio interface that may be received, even if this interference could affect the

operation of the device.

Warning! Changes or modifications not expressly approved by the party responsible for compliance could

void the user’s authority to operate this device.

Introduction

This is a state-of-the-art remote alarm/starter combo system. The system is packed with advanced features

such as priority access to the driver’s door (commodity features) and the safe start children safety feature.

With many advanced function, this product will satisfy any of your expectations from high-end commodity

and security systems, without neglecting any standard feature commonly offered by entry-level starters.

VehiclePresets

Heater&HeatedSeats

When leaving the vehicle it is recommended to preset the accessory controls in preparation for the next

remote start. Settings for the blower motor (fan) as well as heated seats (if equipped) should not be left on

HIGH. It is recommended to leave the settings on LOW or MEDIUM instead.

WindshieldWipers,Radio&Headlights

Certain vehicles energize the radio and / or windshield wipers and / or headlight circuits while running under

remote start. When leaving the vehicle you must ensure that the windshield wiper and headlight switches

P. 4 User Guide

are OFF. Leaving the headlight switch ON on certain types of vehicles could cause them to remain ON even

after remote starter shut down, resulting in a dead battery.

UsingtheTransmitter

Your remote starter is equipped with a 6-button, multi-channel, 2-way remote control. It can operate two

independent vehicles equipped with identical remote starters (see Multi-car operation section on page-

20).

LCDRemoteFunctions

The transmitter offers several command-confirmation and timer features. This section explains some of the

key functions available. The next section gives a summary of the button combinations used to access the

functions.

The functions of the transmitter are as follows:

Front view:

UNLOCK Button:

Unlocks all Doors and

disarms the Starter Kill

TRUNK Button:

Activates the Trunk

LOCK Button:

Locks all Doors and

arms the Starter Kill

START/STOP Button:

. Starts or Stops the engine (Normal functions)

. Starts the engine ONLY (if the Auxiliary Button is

programmed as STOP Button)

uxiliary

Button:

. Activates AUX 2, stops

the Engine, sets the

Temperature, activates

Panic Mode, activates

CWM (if programmed)

User Guide P. 5

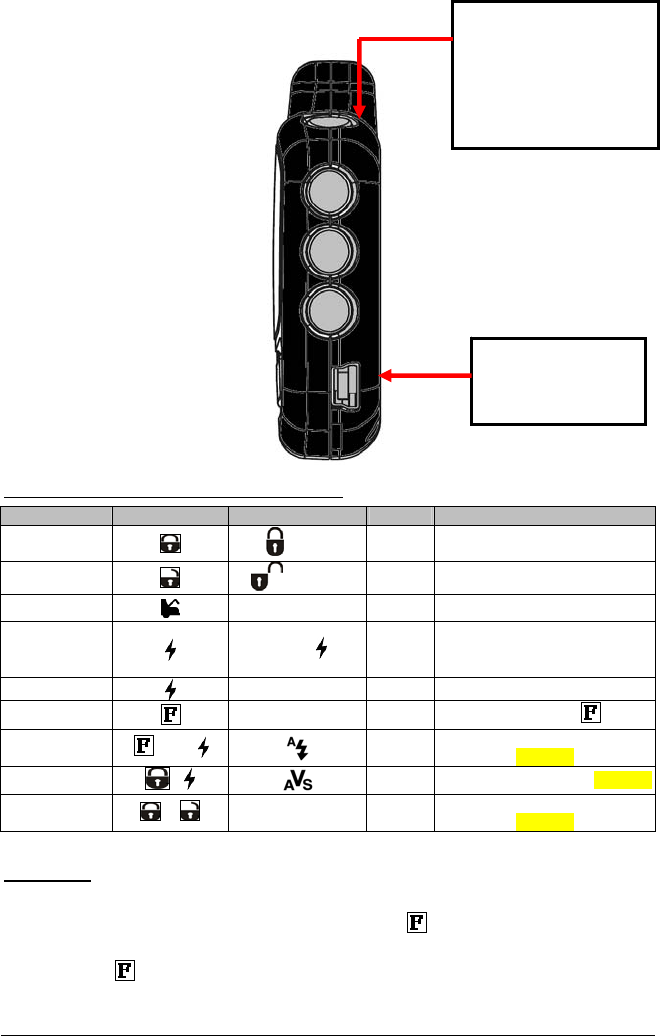

Side view:

LCDTransmitterbasicconfirmations

Function Button pressed Icon / text Sound Instructions /description

Lock / LOCK 1 beep Lock and arm the system

Unlock / UNLOCK 2 beeps Unlock and disarm the system

Trunk or aux 3 TRUNK 1 beep Trunk output

Start

0:15 + 3-beeps Start the engine

Stop None 2-beeps Stop the engine

Back light On for 2 seconds Press and release the quickly

Cold weather , then 1 beep See Cold Weather Mode section

(page-14)

Combo Valet + 1 beep See Vale mode section (page-12)

Panic or None 1 beep

See Panic Mode section

(page-14)

Backlight

Three different ways to use the backlight:

• Turning the backlight on for 3 seconds, press the for less than 1 second and

release.

• If the button is pressed and held for more than 5 seconds the backlight will stay ON

as long as the button is held.

Function Button:

. Turns ON the backlight

. Allows access to Multi-

level functions

. Enters Programming

mode

Charger port: the

battery charger plugs

into this port.

P. 6 User Guide

• To browse the MENU while the backlight is ON:

a) Press the for at least 1 second and release. The backlight should

turn ON.

b) Within 3seconds, press the button for 2 seconds to access the

various functions.

ChargingtheBattery

• Plug in the USB charger.

• The LCD displays “CHARGE” while the battery level bars within the battery icon flash.

• When charging is complete the LCD then displays “FULL”.

Remote’sadvancedfunctionsandMENU 

HowtoaccessadvancedremotefunctionsandMENU

User Transmitter

1. Press for 1 second and release

Remote beeps once and MENU

appears on screen.

Note: At that point if you press you can

enter the remote’s MENU.

Follow the steps listed below in

“Selecting and adjusting

advance MENU options”:

2. Press a 2nd time for 1 second and release Î Remote beeps once and L-01

appears on screen.

3. Press a 3rd time for 1 second and release Î Remote beeps once and L-02

appears on screen.

4. Press a 4th time for 1 second and release Î Remote beeps once and L-03

appears on screen.

Note: The order of LEVELS and MENU can be re-arranged in the menu option FBPRO.

Selecting and adjusting advanced menu options:

1. When in MENU, press button to enter the menu.

2. Press button to move up in the menu or button to move down in the

menu.

3. Press button to select the option you would like to adjust

4. Press button to increase the value or to activate or deactivate a function or

toggle through the selection.

5. Press button to decrease the value or to activate or deactivate a function or

toggle through the selection.

6. Press button to move to the next sub-option or go back to the main menu.

7. To SAVE modifications and EXIT remote’s MENU, do not touch any button for

approximately 5 to 10 seconds or press to immediately exit the MENU.

User Guide P. 7

Remote’s advanced functions and MENU table:

Display Description

PARK

(1)

Parking meter countdown

This version of the countdown feature is particularly useful for keeping track of

parking meter time: the user may quickly set up the countdown using the Parking

Menu. The transmitter will beep 6 times, 5min before the Parking countdown reaches

0 and beeps 6 times once the countdown expires.

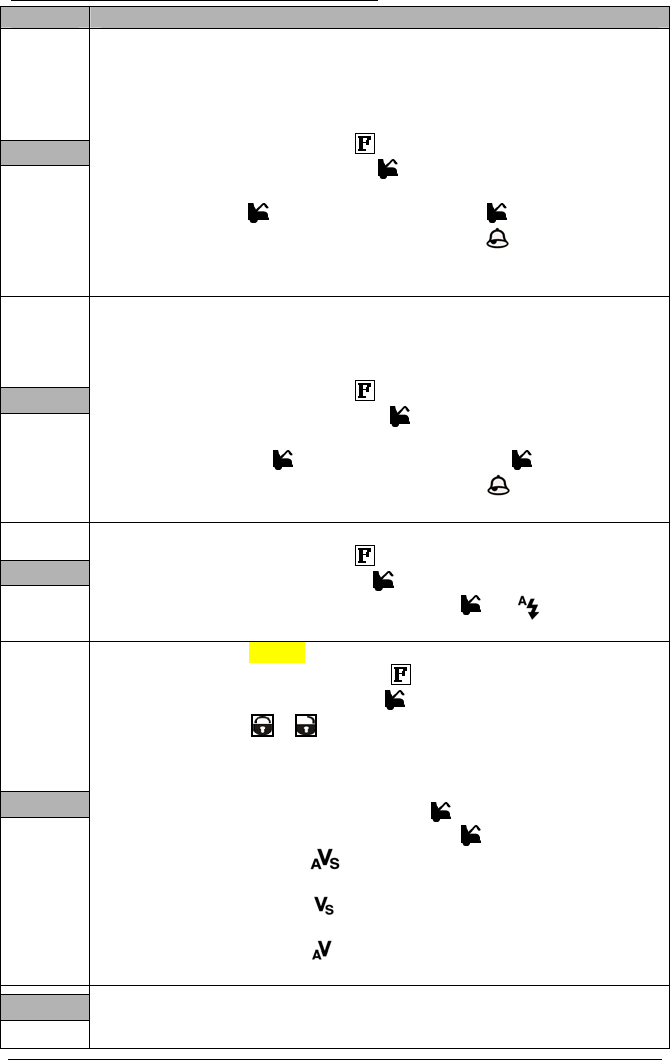

Through Advanced Options, first press to select MENU, then:

a. Choose PARK and press .

b. Set the time at which you want set the alarm. First set the hour, and

press . Then set the minutes and press .

c. Choose ON and wait. A flashing “P” and will appear on the

screen to confirm activation.

ALARM

(2)

Alarm Clock

The LCD remote control has a built-in alarm clock, which can be set up using the

Alarm Clock Menu. Once the programmed time is reached, the remote will beep 6

times every minute until a button is pressed.

Through Advanced Options, first press to select MENU, then:

a. Choose ALARM and press .

b. Set the time at which you want to set the alarm. First set the hour,

and press . Then set the minutes and press .

c. Choose ON and wait. A flashing “A” and will appear on

screen to confirm activation.

CWM

(3)

Cold weather mode function:

Through Advanced Options, first press to select MENU, then:

a. Choose CWM and press .

b. Choose ON/OFF, then press and hold until icon

appears/disappears.

VALET

(4)

Valet functions: (see page-12 for details)

1) Through Advanced Options, first press to select MENU, then:

a. Choose VALET and press .

b. Press or to select three kinds of Valet Modes:

i. CMVLT = Combo Valet (Starter and alarm are disabled)

ii. VLTST = Valet Start ( Only the starter is disabled)

iii. VLTAM = Valet (Only the alarm is disabled)

c. Once the selection is done, press

d. Choose ON/OFF, then press and hold until;

i. The icon appears/disappears to confirm Combo

Valet activation/deactivation.

ii. The icon appears/disappears to confirm Valet start

activation/deactivation.

iii. The icon appears/disappears to confirm Valet Alarm

activation/deactivation.

TSTAR

(5)

Time start function:

This feature is used to remote start the car at a pre-programmed time. Once the pre-

programmed time is reached, the remote will send a start command to the car

P. 8 User Guide

module.

Through Advanced Options, first press to select MENU, then:

a. Choose TSTART and press .

b. Set the time at which you want to remote start the vehicle. First set

the hour, and press . Then set the minutes and press .

c. Choose ON and wait. A flashing “T” and will appear on the

screen to confirm activation.

Note: The TSTART function can only be carried out once per remote start.

SECUR

(6)

Secure function:

This feature is used to lock the keypad of the transmitter to avoid accidental button

press. When the keypad is locked and a button is pressed, the LCD will display

“PRESF” for 1 second and goes back to the clock.

The transmitter keypad can also be locked as follows:

a. Press to select MENU.

b. Within 3 seconds, press .

c. The LCD will display “SECUR” to confirm locking of the keypad.

• Press for about 1sec, to unlock the transmitter’s keypad.

COLOR

(7)

Backlight color

The backlight can be set to 8 different colors.

Through Advanced Options, first press to select MENU, then:

a. Choose COLOR and press .

b. Choose the desired color by pressing or

CONFM

(8)

Confirmation Mode Menu:

• BZVIB Î BUZ: The remote will beep to confirm various commands.

VIB: The remote will vibrate to confirm various commands.

Note: The icon will appear on the screen to

confirm remote is set to vibration mode.

• BLITE Î ON: The LCD screen will flash

when the alarm is

triggered.

OFF: The LCD won’t flash if the alarm is triggered.

CLOCK

(9)

Clock:

The Clock menu is used to set the current time on your remote control.

Through Advanced Options, first press to select MENU, then:

a. Choose CLOCK and press .

b. Set the time at which you want to set the clock. First set the hour,

and press , then set the minutes and press .

TEMP

(10)

Temperature display

Can be set to read the temperature in Celsius (CTEMP) or Fahrenheit (FTEMP)

LANGU

(11)

Language display

Can be set to either English or French

SBPRO

(12)

Side button function:

The side button can be programmed as:

• Panic button;

• Stop button;

• Temperature request button;

• Aux 2 output button;

• or CWM.

User Guide P. 9

KEYLOC

(13)

Keypad lock

Note: In order for this feature to work, “Secure function” must be set to ON.

If there is no activity within the programmed time, the keypad will automatically lock

after 5 seconds, 10 seconds or 20 seconds.

• Press for about 1sec, to unlock the transmitter’s keypad.

ILLUM

(14)

LCD illumination:

When this function is enabled, the LCD will illuminate each time Lock, Unlock or

START is activated.

FBPRO

(15)

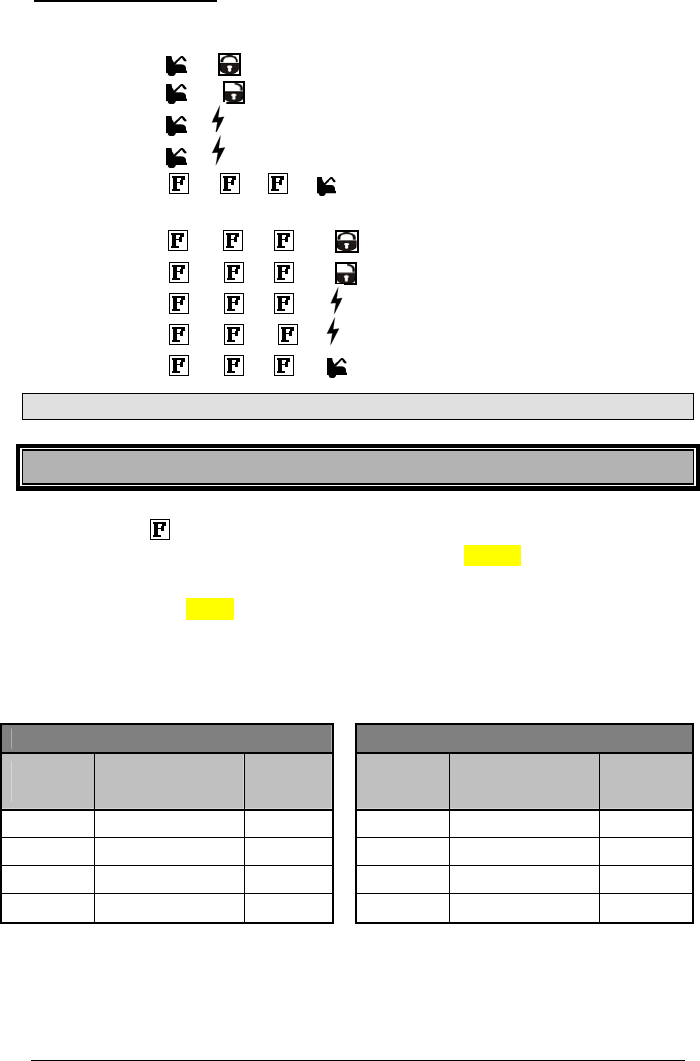

Button Function:

The order of LEVELS and MENU can be re-arranged using the Button Function

Menu.

F Button Function

Menu FBPRO Function Button Programming

Function Button

programming

M 1 2 3

1 2 3 M

2 3 1 M

2 1 3 M

3 1 2 M

MENU, level 1, level 2, level 3

Level 1, level 2, level 3, MENU

Level 2, level 3, level 1, MENU

Level 2, level 1, level 3, MENU

Level 3, level 1, level 2, MENU

RemoteStartingYourVehicle

SettingYourVehicleIntoReadyMode

If your vehicle has a manual transmission you must read the following indications. The unit must

first be set to Ready Mode in order to start the vehicle by remote. If the unit is not set to Ready

Mode, it cannot remote start the vehicle.

Please note that Ready Mode can be enabled by the remote or the handbrake, depending on the

option that was selected by your installer. Therefore, you must follow the appropriate procedure

between the two described below in order to set your vehicle into Ready Mode.

Once the system is set to Ready Mode, the vehicle can be remote started and stopped at any time.

The system will exit Ready Mode if a door, the hood or the trunk is opened, if the brake pedal is

pressed, if the parking brake is disengaged or if the ignition key is turned to the IGNITION ON

(RUN) position.

To set the system to Ready Mode:

If Ready Mode is enabled by remote If Ready Mode is enabled by handbrake

1. Ensure that all the doors, hood and trunk are closed. Make sure that the gear selector is in the

neutral position.

2. With the engine already running, apply the

parking brake once and release the brake

pedal.

2. With the engine already running, apply the

parking brake twice within 10sec.

Make sure to release the brake pedal.

The parking lights will flash 3 times quickly

and remain lit.

Skip to step 4.

3. Within 20 sec. of engaging the parking

brake, press and hold , or on

the transmitter.

The parking lights will flash 3 times quickly

and remain lit.

4. Remove the key: the engine will continue running.

P. 10 User Guide

5. Exit the vehicle and close all doors, hood and trunk.

6. Press for approx. 1 second either:

• to lock the doors and shut down the engine;

• to unlock the doors and shut down the engine;

• to shut down the engine without affecting the doors.

7. The icon will appear on your screen.

RemoteStarting

1. Press the button for approximately 1 second and release.

2. The remote will beep once and the LCD will display “START”.

3. The remote will confirm the remote starter’s activation by beeping 3 times.

If your vehicle has an automatic transmission and it does not start at the first attempt, the system

will shut down, wait a few seconds and try to start the engine again. There will be 3 start attempts

before the system gives up.

DrivingOff

With the vehicle running under remote start, press the button to disarm the security system

(this will also unlock the doors). Enter the vehicle and do the following:

1. Turn the ignition key to the IGNITION ON (RUN) position. (Do not turn the key to the CRANK position

while the engine is running. This would cause the starter motor to re-engage.)

2. Press the brake pedal to disengage the remote starter unit.

You are now ready to drive off.

ArminganddisarmingoftheSystem

The Alarm can be configured by the installer either to Passive Mode (so as to arm automatically)

or Active Mode (so as to require the user’s intervention for arming). By default, the Remote Car

Starter is configured to Passive Mode

Passive mode:

To arm the alarm, press the button on the transmitter, OR

1. In Passive Mode, the alarm will automatically arm 30sec once the last door is closed.

2. The LED on the antenna will flash quickly during the countdown preceding the activation

of the system.

3. Once the activation countdown expires, the siren will chirp once and the LED will flash

slowly to indicate that the alarm is now armed.

To disarm the alarm, press the button on the transmitter.

1. The LED on the antenna will flash quickly during the countdown preceding the activation

of the system.

2. The alarm will automatically rearm itself after 30sec if no door is left opened and the

ignition is not turned ON.

Active Mode:

To arm the alarm, press the button on the transmitter.

1. The siren will chirp once.

2. The LED on the antenna will flash slowly.

To disarm the Alarm, press the button on the transmitter.

User Guide P. 11

1. The siren will chirp twice.

2. The LED on the antenna will remain OFF.

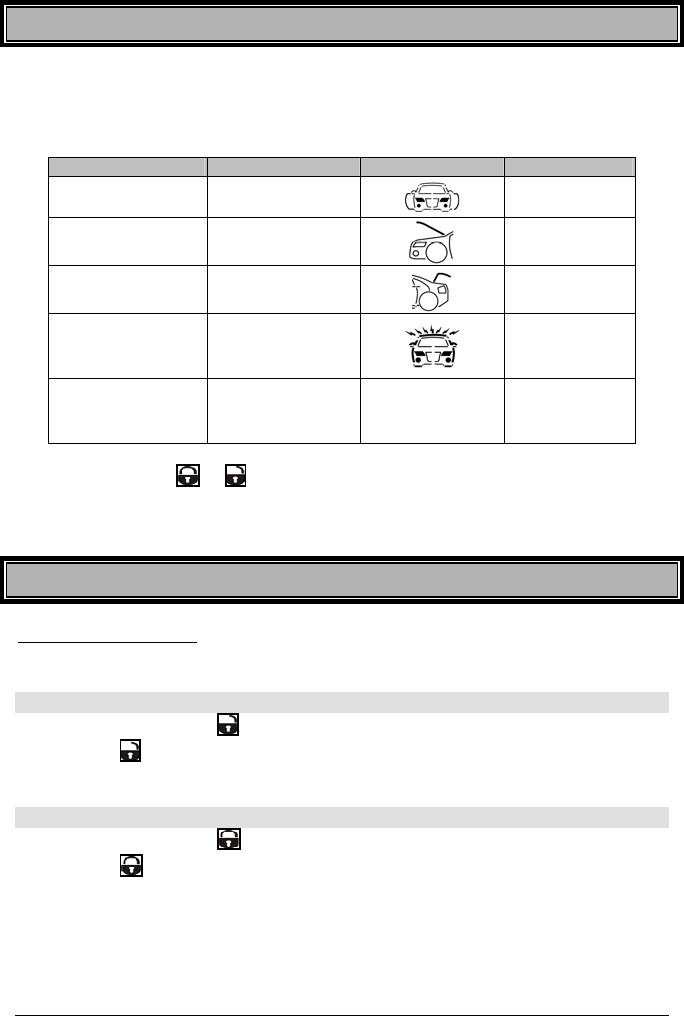

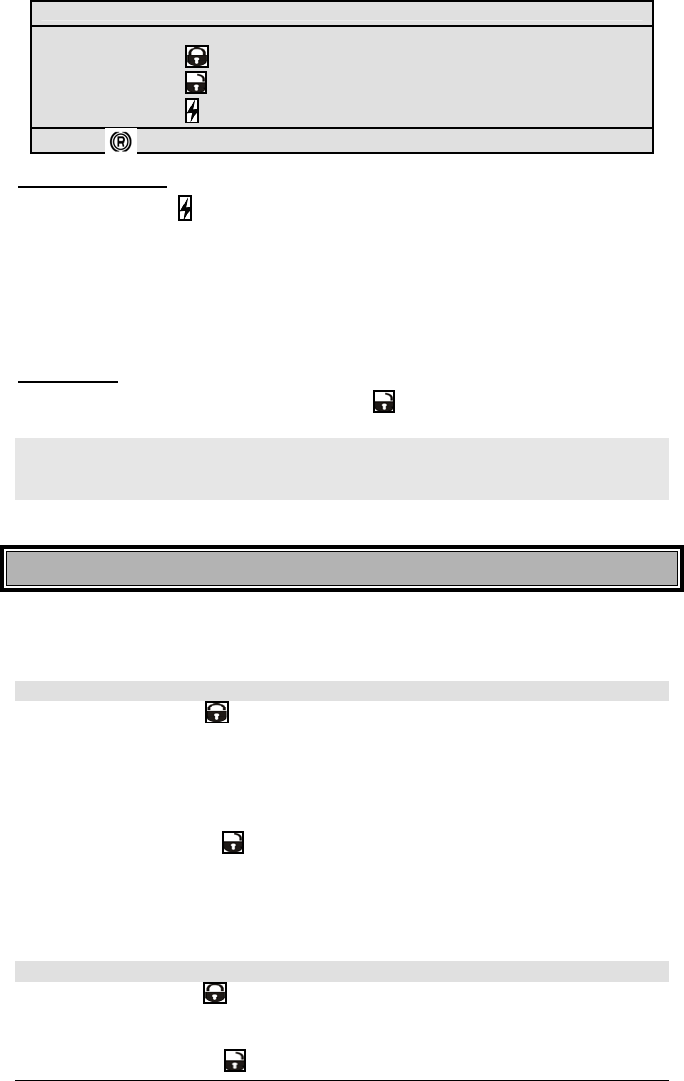

Intrusionalertviaremote

The remote will beep or vibrate for about 60 seconds when an intrusion from door, hood, trunk,

shock or ignition is detected. At the same time, the LCD remote will display “ALARM” and “DOOR /

HOOD / TRUNK / SHOCK / real time” (depending on the type of alarm) alternately. The icons of door,

hood, trunk and shock, as well as the red backlight, will be flashing (when the BLITE is set ON).

Alarm Type LCD Text Icon Sound or Vibration

DOOR ALARM + DOOR 60 seconds

HOOD ALARM + HOOD 60 seconds

TRUNK ALARM + TRUNK 60 seconds

SHOCK ALARM + SHOCK 60 seconds

IGNITION ALARM + real time NONE NONE

The user can press the or button to stop the alarm (unless TWO-STAGE Mode has been

programmed – one press then only mutes the siren; the user needs to press twice in order to

disarm the system).

RemoteStarterFeatures

RemoteDoorLocks

If your system was installed with the Remote Door Locks option, you will have the convenience of

remote keyless entry.

To UNLOCK your doors and DISARM the system:

1. Press and hold the button for approx. 1 sec

2. The icon will appear on the remote’s LCD screen

3. The siren will chirp twice to confirm that the doors have been unlocked, the Starter Kill

feature is disarmed (if it was installed) and that the Alarm is disabled.

To LOCK your doors and ARM the system:

1. Press and hold the button for approx. 1 sec.

2. The icon will appear on the remote’s LCD screen

3. The siren will chirp once to confirm that the doors have been locked, the Starter Kill

feature is enabled (if it was installed) and that the Alarm is armed.

P. 12 User Guide

RemoteTrunkRelease

If your system was installed with the Remote Trunk Release option, you can open your trunk by

pressing the button until the remote displays the text “TRUNK” on the screen. In addition, this

will also disarm the alarm.

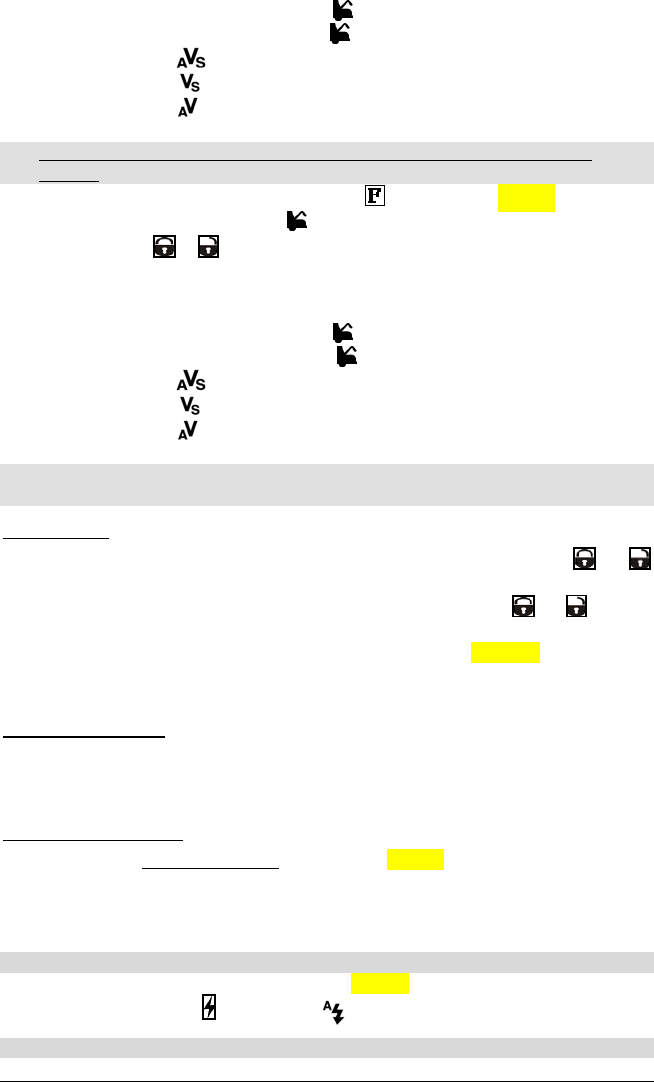

IdleMode

Convenience feature: Idle Mode allows you to keep the engine running and the doors

locked while you stop, for example, at a convenience store or for a short delivery. (remove

this part for IG)

This feature allows you to let the remote starter take over control of the vehicle (i.e. no Key in the

Ignition Switch) while the engine is running.

If your vehicle has an automatic transmission, proceed as follows to set the system to Idle Mode:

1. With the engine running, make sure to release the brake pedal and press the ,

or button on the transmitter until the parking lights come ON.

2. Remove the ignition key from the ignition switch.

The engine will continue running.

3. Exit the vehicle and close all doors, hood and trunk.

4. Press the button to lock the doors, to arm the starter kill and to arm the alarm.

If your vehicle has a manual transmission, Idle Mode can be activated through the same routine as

that used for Ready Mode (page-9); at the last step, the button is pressed instead of the other

buttons. This will lock the doors, arm the system and leave the engine running.

Note1: The engine will continue running until the user re-enters the vehicle or until the expiration of

the engine run time.

Note2: If the pre-programmed run-time expires or if the user shuts down the engine by remote

control, the vehicle will enter Ready Mode.

Caution!!! Do not leave children or pets unattended in a vehicle standing in Idle Mode.

ValetModes

When the vehicle is in Combo Valet and Valet Start, the remote starter is disabled. If the vehicle

needs to be serviced, or if you park it indoors, the Combo Valet and Valet Start will prevent the

engine from being remote-started accidentally.

There are 3 sorts of Valet Modes: Combo Valet, Valet Start and Valet Alarm.

• Combo Valet: Both remote starter and alarm are disabled.

• Valet Start: Only the starter function is disabled.

• Valet Alarm: Only the alarm functions are disabled.

1) ToputthesystemintoComboValet

a) To put the system into Combo Valet mode using the KEY:

i) Insert the ignition key into the ignition switch. Within 10 sec., turn the key 5 times

successively into the IGNITION/RUN and OFF positions.

ii) The parking lights will flash three times.

iii) Turn the ignition OFF.

iv) The LED on the antenna will come ON solid to indicate that the vehicle has

successfully entered Combo valet.

v) The icon will appear on your LCD remote.

User Guide P. 13

b) To put the system into Combo Valet mode using the TRANSMITTER:

i) Press the and buttons simultaneously until the icon will appear on your

LCD remote

ii) The LED on the antenna will come ON solid to indicate that the vehicle has

successfully entered Combo valet.

c) To put the system into Combo Valet mode using the PUSH BUTTON SWITCH :

i) Insert the ignition key into the ignition switch.

ii) Turn the key into the ON position

iii) Within 5 seconds, press the push button switch until the parking lights flash 3

times.

iv) Release the push button and turn the ignition to the OFF position.

v) The LED on the antenna will come ON solid to indicate that the vehicle has

successfully entered Combo valet.

vi) The icon will appear on your LCD remote.

2) ToputthesystemoutofComboValetMode

a) To put the system out of Combo Valet mode using the KEY :

i) Insert the ignition key into the ignition switch. Within 10 sec., turn the key 5 times

successively into the IGNITION/RUN and OFF positions.

ii) The parking lights will flash twice.

iii) Turn the ignition OFF.

iv) The LED on the antenna will flash quickly to indicate that the vehicle is now out of

Combo valet.

v) The icon will disappear on your LCD remote.

b) To put the system out of Combo Valet mode using the TRANSMITTER:

i) Press the and buttons simultaneously until the icon will disappear from

your LCD remote.

ii) The LED on the antenna will flash quickly to indicate that the vehicle is now out of

Combo valet.

3) ToputthesystemoutofComboValetmodeusingthepushbuttonswitch:

i) Insert the ignition key into the ignition switch.

ii) Turn the key into the ON position.

iii) Press the push button switch until the Parking lights flash twice.

iv) Release the push button and turn the ignition to the OFF position.

v) The LED on the antenna will flash quickly to indicate that the vehicle is now out of

Combo valet.

vi) The icon will disappear on your LCD remote.

4) ToputthesystemintoCombovalet,ValetStartorValetAlarmviaremote

i) Through Advanced Options, first press to select MENU (page-6)

ii) Choose VALET and press .

iii) Press or to toggle between three kinds of Valet Modes:

(1) CMVLT = Combo Valet (Starter and Alarm are disabled)

(2) VLTST = Valet Start ( Only the starter is disabled)

(3) VLTAM = Valet alarm (Only the alarm is disabled)

P. 14 User Guide

iv) Once the selection is done, press

v) Choose ON, then press and hold until;

(1) The icon appears to confirm Combo Valet activation.

(2) The icon appears to confirm Valet start activation.

(3) The icon appears To confirm Valet Alarm activation

5) ToputthesystemoutofCombovalet,ValetStartorValetAlarmvia

remote

i) Through Advanced Options, first press to select MENU (page-5)

ii) Choose VALET and press .

iii) Press or to toggle between three kinds of Valet Modes:

(1) CMVLT = Combo Valet (Starter and Alarm are disabled)

(2) VLTST = Valet Start ( Only the starter is disabled)

(3) VLTAM = Valet alarm (Only the alarm is disabled)

iv) Once the selection is done, press

v) Choose OFF, then press and hold until;

(1) The icon disappears to confirm Combo Valet deactivation.

(2) The icon disappears to confirm Valet start deactivation.

(3) The icon disappears To confirm Valet Alarm activation

The system will warn you if someone attempts to remote start the vehicle while in Combo Valet

and Valet Start. The parking lights will; turn ON then OFF; then flash twice.

PanicMode

In an emergency situation, you can activate panic mode by pressing and holding the OR

button until the siren starts to sound. If the vehicle is under a remote start, the engine will shutdown

automatically before setting off the Siren. You can stop the Siren by pressing OR

Furthermore, the panic mode can be stopped by activating Valet Mode (page- 12)

* Panic Mode will automatically shut down after 30sec.

QuickLockoutTM

(Also called Secure Panic.) For fast protection in emergency situations, the system will LOCK all

doors when you press the brake pedal while you hear the sound signal. (Quick Lockout is only

available when panic mode has been set off.)

ColdWeatherMode

If the vehicle has a Manual transmission, Ready mode (page-9) should be set before entering

Cold Weather. When cold weather mode is active, the engine starts every 2 hours and runs for 3

minutes (or for 8 or 20 minutes with diesel engines). Cold weather mode automatically ends after

24 hours. The vehicle must be set in ready mode (manual transmission) before the cold weather

mode can be activated.

To enter Cold Weather Mode:

1. Through advance function remote’s menu (page-6), select L-01.

2. Press and hold the button until the icon will appear on the display.

To exit Cold Weather Mode, do any one of the following actions:

• Open the hood.

User Guide P. 15

• Start the engine by remote.

• Turn the ignition key to the IGNITION ON (RUN) position.

• Through advance function remote’s menu (page-6), select L-01.

Press and hold the button until the icon will disappear on the display.

To verify whether the system is in cold weather mode:

The icon should appear on your remote display.

Press the brake pedal:

If the vehicle is in cold weather mode, the parking lights will remain ON while the brake pedal

is pressed. (Automatic transmission ONLY)

ExtendedRunTime

While the vehicle is running under a remote start, press and hold the button for more than

3 seconds until the remote beeps 3 times. This will reset the run time counter to zero and restart

the run time cycle from the beginning. The extended run time procedure can only be carried out

once per remote start.

To stop the vehicle, at any moment, simply press the button.

Example: If your remote car starter is programmed for a run time of 3 minutes and your vehicle

has been running for 2 minutes already, pressing the button will reset the counter

to zero and allow the engine to run for another cycle (in this case, 3 minutes).

IntrusionCodesviaLEDlight

The system monitors the following:

• Any vibrations sensed by the shock sensor such as someone breaking of the window,

windshield, etc.

• Doors

• Ignition

• Trunk

• Hood

Note: If an intrusion has occurred the siren will sound for a maximum of 1minute.

When an intrusion has occurred, pressing will make the siren chirps four times. The antenna’s

LED will provide an intrusion code corresponding to the type of the intrusion that occurred. The

LED intrusion codes are flashed in continuous loops.

2 x = Doors intrusion 5x = Panic

3 x = Shock Sense 6x = Ignition

4x = Hood 7x = Trunk

CarFinder™

When enabled, the Car Finder™ option will help you locate your vehicle by sounding a siren or the

horn. To initiate,

1. Through advance function remote’s menu (page-6), select L-01.

2. Press to sound the siren once without affecting the door.

P. 16 User Guide

TemperatureRequest(IfACCTemp101installed)

The user can request the temperature in the vehicle if a Temperature Sensor Module (ACC-Temp-

101) is installed:

• Through advance function remote’s menu (page-6), select L-01.

• Immediately press the button and hold it until the temperature is displayed on the

LCD screen.

TemporaryChirpDelete

To temporarily disable the chirp confirmations of the siren upon arming and disarming (e.g. in a

quiet neighbourhood):

• Press the button. The remote will beep once.

• Immediately, press the or button to arm or disarm system without any chirp.

Relock

If you unlock the doors with the remote transmitter, but do not open any door, hood, trunk or turn

ignition ON within 30 seconds, the system will automatically relock and arm.

Note: When the system is in active arming mode and the relock mode is enabled, the doors

will relock but the system will not rearm.

Remotefinder

This function will help you locate your remote. The unit will send a signal to the remote to trigger

the remote to beep informing you of its location. Follow this procedure to activate remote finder.

1. Locate the push button switch in the car. (refer to your installer for its location)

2. Press and hold the push button switch until the parking lights flash 5 times.

Press the or button to stop the beeping of the remote once it is found.

MissingaStartoraStopConfirmation

If you have not received a Start or the Stop confirmation after pressing the button, pressing the

button will refresh the display and will confirm if the vehicle was started or stopped.

If no Start Confirmation Was Received:

• Press the button:

¾ The remote’s icon will start flashing

¾ The icon and runtime time countdown will be displayed.

If no Stop Confirmation Was Received:

• Press the button:

¾ The will be displayed

¾ The remote’s icon and the runtime countdown will disappear.

User Guide P. 17

AdvancedFeatures:InstallationprogrammableOptions

The remote starter was designed with flexibility and OEM integration in mind. With its program-

mable options, this unit can single-handedly control nearly any electrical system in your vehicle.

Caution: The programming of your system should be left to a professional. Changing any one

of the settings may affect the operation of your remote starter.

IgnitionControlledDoorLocks

This is an added security feature. If your Remote Car Starter was installed with the Ignition-

Controlled Door Locks option, the doors will automatically lock as soon as the ignition key is turned

to the IGNITION ON (RUN) position while the brakes are pressed. The remote car starter will also

lock any door that was unlocked and opened (then closed) the next time the break pedal is

pressed. When the key is turned to the OFF position, the doors will automatically be unlocked.

SecureLock

(Disabled by default.) Before your vehicle can be remote-started, the factory security system must

first be disarmed. The Secure Lock feature may be required on certain vehicle models with factory

security systems that automatically unlock the doors when the security system is disarmed.

To keep your vehicle protected when the factory security system is disarmed for a remote start,

Secure Lock will relock your doors as soon as the vehicle is started. Once the engine is shut down

by remote or after its runtime has expired, Secure Lock will also rearm your factory security system

and relock the doors.

“HomeValetTM”Mode

If configured at installation, this feature will remotely set the vehicle to a no-remote-start mode: if

the vehicle is parked indoors there is no danger of it starting accidentally by remote control. If the

vehicle has a manual transmission, it should be set into ready mode before activating the Home

Valet™.

Note: Once the Home Valet Mode is activated, the vehicle will not start by remote, but the

alarm functions will remain active.

To take the system into home valet mode:

1. Press the or button.

2. Within 3 seconds, press the and buttons simultaneously

3. The transmitter will beep once and the icon will display.

To take the system out of home valet mode:

• Turn the ignition key to the IGNITION ON (RUN) position.

The system will warn you if someone attempts to start your vehicle while it stands in home valet

mode. The parking lights will:

Turn ON then OFF; then

Flash twice, pause; then

Flash twice again.

SafeStartMode

This feature will eliminate accidental remote starts, e.g. when children are playing with the

transmitter.

Safe start enabled: If this feature is enabled, the user must press the button twice within

3 seconds to remote-start the vehicle.

P. 18 User Guide

Swap start: If this feature is enabled;

1. Through advance function remote’s menu (page-6), select L-01.

2. Press to remote start the vehicle.

The Aux 2 output can be activated by pressing the button.

EngineRunTime

If you have a gas engine, your remote starter can be programmed to run the engine for 3, 15, or

25 minutes (15 minutes by default). If you have a diesel engine, the remote starter can be

programmed to run the engine for 8, 20, or 30 minutes (20 minutes default).

TurboMode

If Turbo Mode is configured at installation, it will allow a turbocharger to idle down after the user

leaves the vehicle: the unit will take over the vehicle and keep it running for 60 seconds (or until it

is shut down by remote control), then shut down the engine.

If your vehicle has an automatic transmission, proceed as follows to set the system to Turbo

Mode:

1. With the engine running, make sure to release the brake pedal and press the , or

button on the transmitter until the parking lights come ON.

2. Remove the ignition key from the ignition switch.

The engine will continue running.

3. Exit the vehicle and close all doors, hood and trunk.

4. Press the button; this will lock the doors, arm the system alarm and confirm that the

vehicle is in Turbo Mode.

5. The engine will shut down after 60 seconds.

If your vehicle has a manual transmission, follow all steps of the Ready Mode routine (page-9) to

activate Turbo Mode. At the last step,

• Press to lock the doors and have the engine shut down after 60 seconds;

The parking lights will flash 3 times and remain lit.

The alarm and starter kill will be armed.

• Press to unlock the doors and have the engine shut down after 60 seconds;

The parking lights will flash 3 times and remain lit.

• Press To shut down the engine without affecting the doors.

Note: The vehicle will enter Ready Mode once the engine run time expires.

SirenChirps

The siren will chirp to confirm the system‘s basic operations:

• By default, when the doors are being locked, the siren will give 1 chirp if all the doors,

the hood and the trunk are closed.

• If one of the doors, the hood or the trunk is open as the doors are being locked, the

siren will chirp 3 times.

• When the doors are being unlocked, the siren will give 2 chirps if no intrusion was

detected.

• If an intrusion was detected, the siren will 4 times if is pressed.

User Guide P. 19

The system can alternatively be set to: (must be configured by the installer)

• Warning Mode (no chirp during lock/unlock – unless one of the doors, the hood or the

trunk is open. In this case there will be 3 chirp when is pressed. – Or unless the

alarm was triggered, in which case there will be 4 chirps when is pressed.

• Open Zone Notification (the system will warn for doors opened up to 10 seconds after

arming).

• No Chirp (the vehicle will not chirp under any circumstance).

Arming

Arming of the system can be program by your installer into 4 different options. By default, your

system is programmed to “passive arming – 2 stage disarm”:

• Active arming: The system will only arm if button is pressed

• Passive arming (2 stage disarm): The system will automatically arm itself 30 seconds

after all doors, hood and trunk are closed.

Note: If an alarm is triggered, pressing the button will stop the siren while keeping

the doors locked and the system armed.

• Passive arming (1 stage disarm): The system will automatically arm itself 30 seconds

after all doors, hood and trunk are closed

Note: If an alarm is triggered, pressing the button will stop the siren and unlock the

doors.

• Active arming with disarm notification: This feature will notify the user when the

vehicle is left disarmed after Ignition is turned off, or when the Module is disarmed after

being previously armed, the opening or closing of a Door will cause the Horn or the

Siren to sound once after 10 sec. to warn the user that the vehicle was left

unprotected. Pressing or will cancel this timer.

ShockSense&WarnAwaysense

If somebody hits, jostles or otherwise moves your car, the shock sensor sends a signal to the brain

indicating the intensity of the motion. Depending on the severity of the shock, the system can react

to a full shock by triggering the alarm or it can also respond to a lighter shock (30 % of the strength

of a full shock) by giving a warn-away (without triggering an Alarm condition). However, when the

Engine is running after a remote start, the full shock is disabled but will still give a warning sound if

warn-away is enabled.

Note: Refer to your installer if you wish to disable the shock sensor permanently.

Siren/HornChirpTiming

The pulse duration can be configured by your installer (from 5 ms. to 200 ms.).

Prioritydoor:

If configured by your installer, this great feature allows you to unlock solely the driver’s door with a

single press of the button on the transmitter, and to unlock the other doors, if desired, by

pressing the button for a second time.

P. 20 User Guide

MulticarOperation

This option allows the owner of two vehicles, both equipped with the same remote starter model, to

control both systems independently with a single remote control. To control the second vehicle:

Press + simultaneously:..................................... LOCK

Press + simultaneously:..................................... UNLOCK

Press + simultaneously:..........................................................START

Press + simultaneously:............................................. STOP

Press ¾ ¾ ¾ :........................................... TRUNK

Press ¾ ¾ ¾ :................................. LOCK

Press ¾ ¾ ¾ :................................. UNLOCK

Press ¾ ¾ ¾ :......................................... START

Press ¾ ¾ ¾: ......................................... STOP

Press ¾ ¾ ¾ : ........................................ TRUNK

Note: Your remote control must be configured for second car operation by the installer.

MultiLevelFeatures(defaultstate)

The multi-level features allows you to access different features of your vehicle or of a second car

by pressing the button once, twice or three times. For convenience purpose, the order of

LEVELS and MENU can be re-arranged through FBPRO setting (page-6)

Features:

• MENU: see page-6 for complete lists of MENU available.

• Basic features: AUX-2, Cold Weather mode, Swap Start, Temperature request

• Multicar Operation: Allows the owner to control both vehicle equipped with the same

remote starter model.

To control the Multi level features, refer to the tables below:

FBPRO setting 1 *default FBPRO setting 2

FBPRO

setting Features Levels FBPRO

setting Features Levels

M MENU MENU 1 Basic features L01

1 Basic features L01 2 Multicar operation L02

2 Multi car operation L02 3 N/A L03

3 N/A L03 M MENU MENU

User Guide P. 21

FBPRO setting 3 FBPRO setting 4

FBPRO

setting Features Levels FBPRO

setting Features Levels

2 Multi car operation L01

3 N/A L01

3 N/A L02 1 Basic features L02

1 Basic features L03 2 Multicar operation L03

M MENU MENU M MENU MENU

FBPRO setting 5

FBPRO

setting Features Levels

2 Multi car operation L01

1 Basic features L02

3 N/A L03

M MENU MENU

Example: If the multi-level features is set to FBPRO setting 3, the basic features can be access

as follow:

x To activate AUX-2 feature, the user needs to browse the remote’s advance function (page-6)

and select L03. After selecting L03, immediately press lock to activate AUX-2 feature.

TroubleshootingTransmittingRange

Many factors may affect the operating range of the transmitter. Some of these are:

• The condition of the battery in the transmitter.

• The operating environment (for example: downtown radio-frequency noise, airports, cellular

phone towers…)

• Metal: any type of metal will affect operating range. This includes the vehicle itself.

• The shape of the vehicle can affect range as well (vans in general have less range).

• The shape of the roof and A-pillars brings about considerable radio-frequency deflection (in this

case the signal from the remote control). As a result, the direction in which the vehicle is facing

in relation to the remote control can affect the range. Straight on (standing in front of the vehicle)

generally gives you the greatest range; the second best performance is from the back. Using the

remote control from either side of the vehicle will usually give the lowest range.

• The range will be significantly lower in a crowded parking lot than in open space.

• Always hold the transmitter high, approximately at shoulder height.

The operating range will be somewhat lower on vehicles equipped with an aftermarket or factory alarm

P. 22 User Guide

Diagnostics–ParkingLightFlashTable

Parking lights flashes Description

• Doors locked.

• Trunk released.

• Start signal received from the remote.

• Runtime has expired

2 fast • Doors unlocked

• Valet mode is deactivated

2 slow • Shutdown by remote

4 fast • Shutdown by brake

• A remote start was attempted while the brake pedal is engaged.

3 slow • Runtime is extended.

3 fast • Valet mode activated.

10 fast • Shutdown by hood

• A remote start was attempted while the hood is open.

ON Î twice • Cold weather mode deactivated

ON Î 3 times • Cold weather mode activated.

Solid ON • Engine is running under remote start.

Flash for 30sec • Panic mode is triggered.

Flash for 60sec • Alarm is triggered.

ON Î twice Î twice • A remote start was attempted while the system is in home valet.

Voxx Electronics NAH6602 6 Buttons FSK LCD Remote User Manual

DEI Headquarters, Inc. 6 Buttons FSK LCD Remote

user manual

Navigation menu

Namespaces

Views

Navigation
