Contents

P51 Manual

User Guide

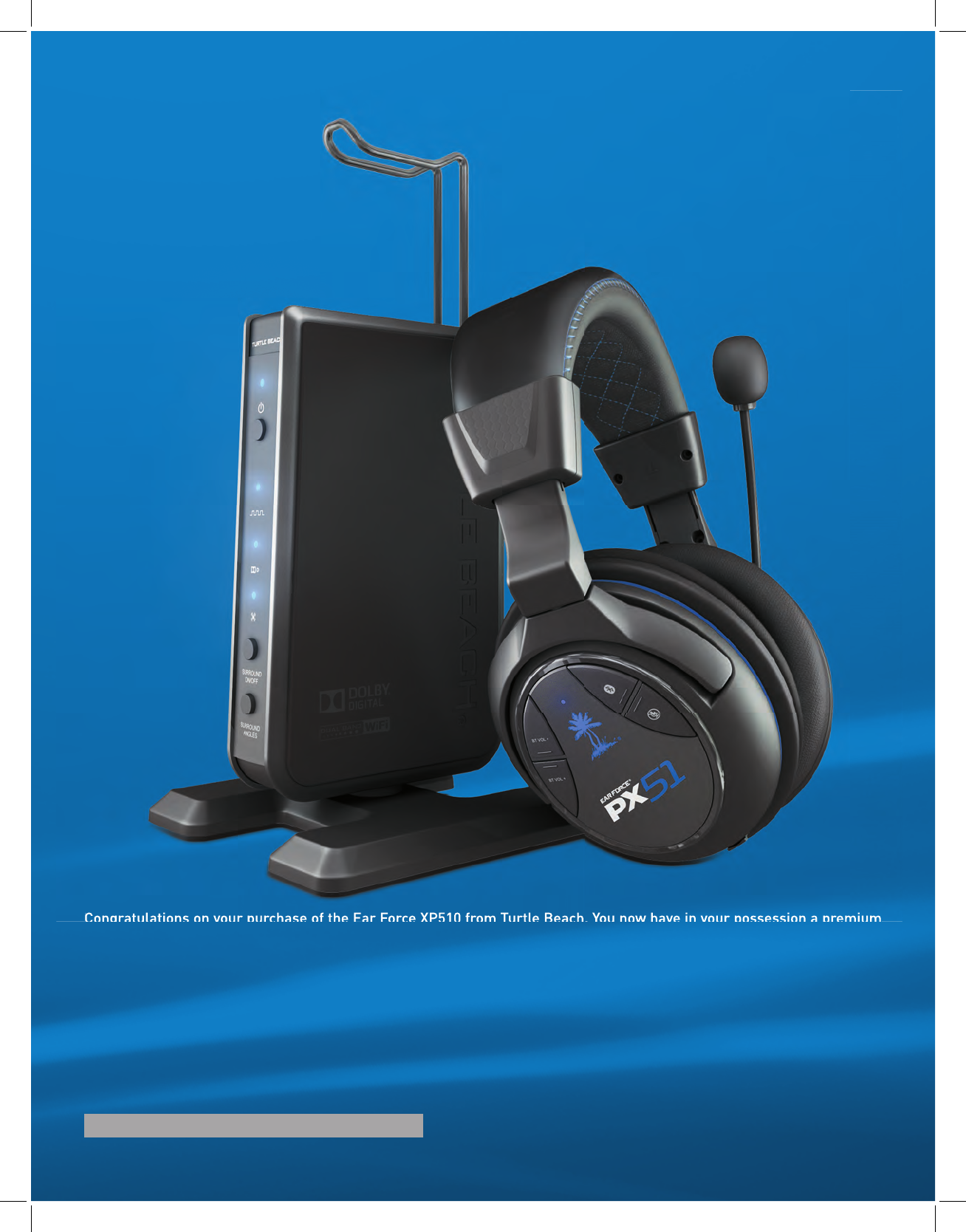

Congratulations on your purchase of the Ear Force XP510 from Turtle Beach. You now have in your possession a premium
product that will bring your gaming experience to a whole new level, heightening your senses, sharpening your refl exes and
enhancing your communications. Welcome to excellence!
DOWNLOAD GAME OPTIMIZED PRESETS
Customize your own presets using tools available on our website.
HTTP://WWW.TURTLEBEACH.COM/
Congratulations on your purchase of the Ear Force XP510 from Turtle Beach. You now have in your possession a premium
Table of Contents
Package Contents 4
Feature/Function Map (Location of controls/inputs) 5
Setting Up (Connections etc.) 7
Pairing Instructions 8
Using your PX51 Headset on Xbox 360® 9
Using your PX51 Headset on PS3™ 11
Bluetooth® Settings 13
Surround Sound Settings 14
Phone Settings 15
Recharging 16
Presets 17
Presets/Specications 18
Regulatory Compliance 19
Declaration of Conformity 21
European Community Declaration of Conformity 22
Warranty 23
4
Package Contents
PX51 Headset
Headset Charging
Cable
Presets Reference Quick Start Guide
RF Transmitter
Digital Optical Cable USB Power Cable
Turtle Beach Sticker USB Programming
Cable
FOR / POUR
XBOX 360
®
| PS3™
Presets Reference
Download new presets or customize your own with the Tango software from TurtleBeach.com
Quick Start Guide
For the full user guide, please go to http://www.turtlebeach.com/products/Tango
Package Contents | Contenu de la boîte
FOR / POUR
XBOX 360
®
| PS3™
T
U
R
T
L
E
B
E
A
C
H
.
C
O
M
Turtle Beach Sticker
Vignette Turtle Beach
Digital Optical Cable
Câble optique numérique
Headset Charging Cable
Câble casque Charge
USB Programming Cable
USB Câble de programmation
Tango Headset and RF Transmitter
Tango casque et l'émetteur RF
USB Power Cable
Câble d'alimentation USB
XBA Bluetooth® Adapter
XBA adaptateur Bluetooth
Presets Reference
référence Presets
FOR / POUR
XBOX 360
®
| PS3™
Presets Reference
Download new presets or customize your own with the Tango software from TurtleBeach.com
5
Feature/Function Map (Location of controls/inputs)
Headset
1. Main
2. Power/Pair
3. Game Presets
4. Chat/Mic. Presets
5. Programmable Control (Mic.
Monitor by default)
6. Xbox Talkback Cable Jack
7. Game Volume Control
8. Bluetooth Volume Control +
9. Bluetooth Volume Control -
10. Bluetooth Multi Function
Button(MFB)/Pair
11. Mic. Mute
12. Charge Status LED
13. USB Jack
1 5 6 72 3 4
Left Earcup
8 9 10 11 12 13
Right Earcup
6
Feature/Function Map (Location of controls/inputs)
RF Transmitter
1. Power/Pairing LED
2. Digital Input LED
3. Dolby LED
4. SURROUND ON/OFF Button
5. SURROUND ANGLES Button
6. DIGITAL IN/OUT Jacks
7. LINE IN (Left/Right) Jacks
8. LINE IN VOLUME Control
9. DC 5v Input
1
5
2
3
4
8
9
6
7
DIGITAL
IN
OUT
L
LINE IN
LINE IN
VOLUME
DC 5V
R
7
Optical Cable
Transmitter Cable
23
CONSOLE
DIGITAL OUT
CONSOLE
USB
DIGITAL
IN
OUT
L
LINE IN
LINE IN
VOLUME
DC 5V
R
1
* Original Xbox 360 models require Xbox 360 HDMI
Audio Adapter Cable (sold separately).
Setting Up (Connections etc.)
RF Transmitter Set Up
1. Connect optical cable (DIGITAL IN)* and transmitter
power cable (included) to game console.
2. Insert Microphone Boom.
3. Power headset ON.
- Press and hold Power button until LED turns solid.
- Listen for voice prompt.
8
Pairing Instructions
Headset and Transmitter
The headset and transmitter are pre-paired out of the box. The instructions below are only necessary if pre-pairing
appears to have been lost.*
1. Headset should be powered OFF.
2. Press and hold Pairing button on the transmitter for 5 seconds until the LED Flashes rapidly. Release.
3. Press and hold Power button on the headset until the LED ashes rapidly. Release.
4. Once your Turtle Beach PX51 headset has been successfully paired, the Headset LED will blink once per second and
the transmitter LED will light solid.
dual band wireless
WiFi
5GHz
* If pairing is unsuccessful on rst attempt, please try again. It may take as many as ve attempts to pair successfully.
9
Using your PX51 Headset on Xbox 360®
Xbox Conguration
1. Go to Xbox Settings
- Choose “System Settings”
- Choose “Console Settings”
- Choose “Audio”
- Choose “Accessory Settings”
- Choose “Audio Device Settings”
- Set “Digital Output” to “Dolby Digital 5.1
2. Go back to Xbox Settings
- Choose “Preferences”
- Choose “Voice”
- Under “Voice Output,” choose “Play Through Headset”
Select Back
Digital Output
Current Setting
Dolby Digital
Choose the digital output
type for your system.
This setting only applies
to optical digital and HDMI
audio outputs.
Digital Stereo
Dolby Digital 5.1
Dolby Digital 5.1 with WMA Pro
Voice Volume 10
Voice
Mute Kinect
Voice Output
Play Through Headset
Play Through Speakers
Play Through Both
Game Volume 10
10

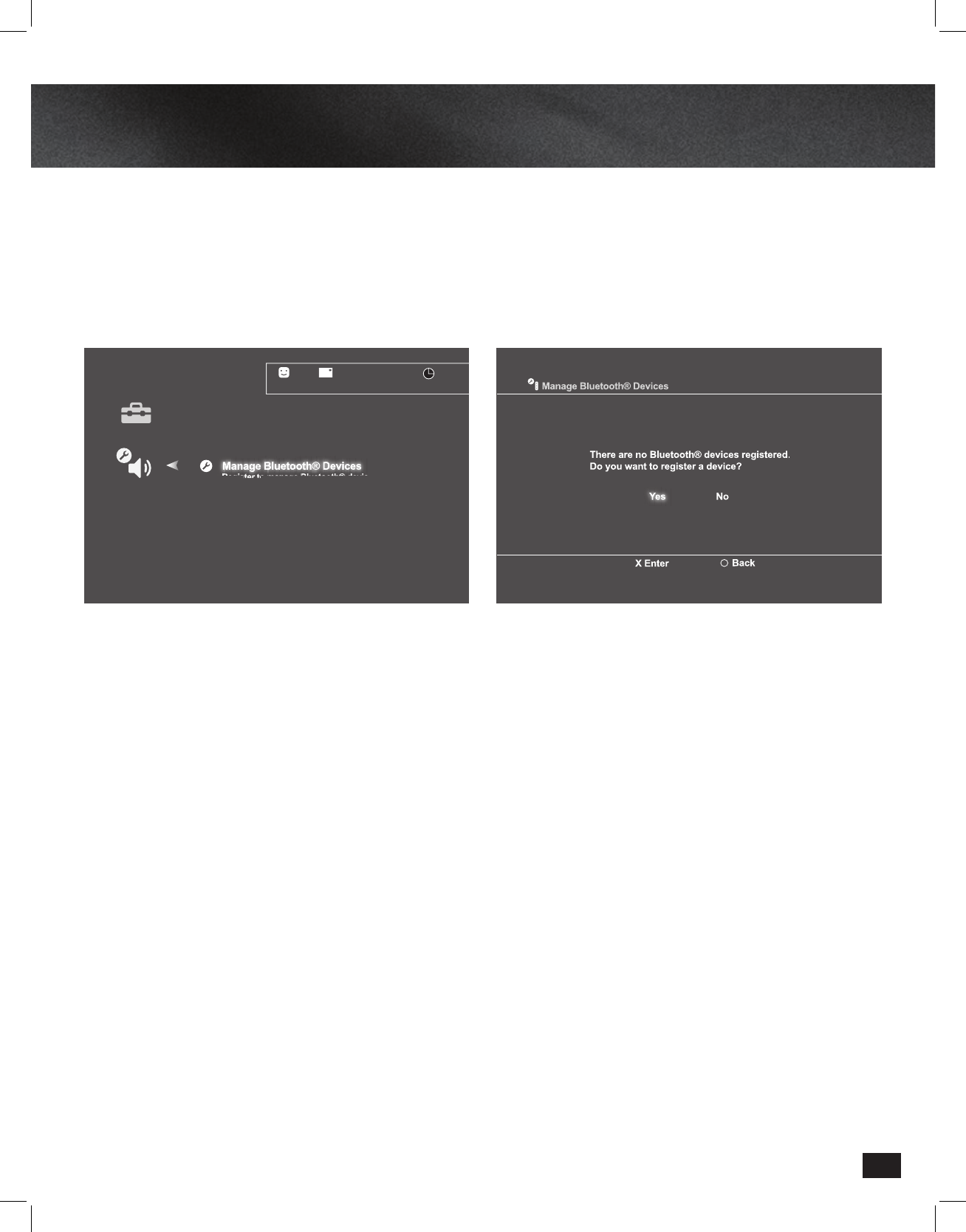

Using your PX51 Headset on PS3™
PS3 Bluetooth Conguration
1. Go to PS3 Settings
- Choose “Accessory Settings”
- Choose “Manage Bluetooth Devices”
2. Scan for Bluetooth Devices by selecting “Yes”
3. Power PX51 ON:
- Press and Hold Bluetooth Button until LED ashes
blue and red
- Select “Turtle Beach PX51”
- When prompted for a passcode, enter “0000.” LED will
ash blue once per second
- You are now paired with PS3 for chat
Your Turtle Beach PX51 headset is designed to work with PS3 game consoles. In order to get ideal functionality from
your headset, follow the directions below.
12/14 12:15 PM
0
Register to manage Bluetooth® devices such as
headsets, keyboards and mouse devices.
11
Using your PX51 Headset on PS3™
PS3 Output Settings
1. Go to Settings
- Choose “Sound Settings”
- Choose “Audio Output Settings”
- Choose “Optical Digital
- Choose “Dolby Digital 5.1 Ch.”
2. Go to Settings
- Choose “Sound Settings”
- Choose “Audio Multi-Output” and set to “On”
Audio Output Settings
Select the connector on the TV or AV amplifier (receiver).
Turn on the power of the connected device.
Cancel
Audio Output Settings
12/14 12:15 PM
0
On
Sets to output audio through multiple connectors
simultaneously. Audio output to connectors that are
not selected in [Audio Output Settings] is downscaled
to 2 Ch.
PS3 Microphone Settings
1. Go to PS3 Settings
- Choose “Accessory Settings”
- Choose “Input/Output Device”
- Choose “Turtle Beach PX51”
2. Adjust microphone volume level
- Adjust PSN chat volume using Bluetooth Volume
buttons on the right ear cup
Audio Device Settings
Microphone Level 3
Output Device Turtle Beach Tango
Turtle Beach Tango
Back Options
X Enter
OK
Right Earcup
12
Bluetooth® Settings
Pairing (Bluetooth) with a phone
Dual Bluetooth Pairing
1. Turn Headset ON.
2. Press and hold Bluetooth MFB Button until LED
ashes Blue and Red.
3. Set mobile phone to Bluetooth search mode.*
4. Choose “Turtle Beach PX51.”
5. When prompted for a passcode, enter “0000.”
Turtle Beach PX51 headphones can pair with two devices at once. This feature allows for on-line chat with other gamers
and the ability to instantly switch to phone calls. After your PX51 Headset is already paired with one device (Xbox or PS3),
follow the instructions below for dual Bluetooth pairing.
1. Turn off PX51 Bluetooth by holding BT MFB for 4 seconds.
2. Press and hold Bluetooth Button until LED  ashes Blue and Red.
3. Set device to Bluetooth search mode.*
4. Choose “Turtle Beach PX51.”
5. When prompted for a passcode, enter “0000.”
* If pairing is unsuccessful on rst attempt, please try again. It may take as many as  ve attempts to pair successfully.
Mobile Phone
via Bluetooth
Bluetooth MFB
13
Surround Sound Settings
Surround Sound Set Up
Turtle Beach PX51 headsets have a surround sound feature bringing
additional realism to your gaming experience.
1. Press SURROUND ON/OFF to turn ON the surround sound function.
2. Press the SURROUND ANGLES button on the transmitter to scroll
through six (6) different presets.
3. The LED will blink in sequence to indicate which preset was selected.
1
2
3
Front Angle; 30 degrees
Rear Angle; 105 degrees
C
RL
FL 30o
105o
C
FR
105o
RR
30o
1
60o
FR FL
60o
RR RL
120o120o
Front Angle; 60 degrees
Rear Angle; 120 degrees
4
RR RL
45o
120o
45o
120o
FR FL
Front Angle; 45 degrees
Rear Angle; 120 degrees
2
135o
RR
135o
RL
60o
FR FL
60o
Front Angle; 60 degrees
Rear Angle; 135 degrees
5
135o
RR
135o
RL
45o
45oFR FL
Front Angle; 45 degrees
Rear Angle; 135 degrees
3
150 150
RL
60o
FR FL
60o
RR
Front Angle; 60 degrees
Rear Angle; 150 degrees
6
14
Phone Settings
Making Calls
Receiving Calls
1. To make voice-dialed calls, press and hold the BT MFB button for three (3) seconds until you hear a tone. Release the
button and the voice recognition function on your phone will be activated. Speak the name of the person you wish to call.
To de-activate the voice dialing function, press and hold the BT MFB button again for three (3) seconds and release.
2. To make dialed calls, use the number keys on your phone to dial the number. When the call connects, it will
automatically be heard through the headset.
3. To redial, press the BT MFB button twice to hear two tones through the headset. The last number dialed will be dialed again.
4. To speak off-line while using the phone function, press the MUTE button. While the microphone is muted, a tone will
sound every 30 seconds. To de-activate the mute function, press the MUTE button again.
Note: If your phone does not have a redial feature, double clicking on the BT MFB button will initiate the voice dialing
function instead. If your phone has neither the redial nor voice dial functions, a double click on the BT MFB button will
have no effect.
When your PX51 headset is paired with your cell phone, you can make and receive calls. It can also be used with voice
dialing if your phone has a voice dialing function:
You will hear a musical chime when there is an incoming call. Follow the instructions below to answer a call.
1. When receiving calls, a phone ring will sound through the headset. Press the BT MFB button to answer the call.
2. To reject an incoming call, press and hold the BT MFB button for three (3) seconds until you hear a beep. The call
will go to voicemail.
3. You can also ignore the incoming call ring until it stops. This call will also go to voicemail.
15
Recharging
Headset Recharging
Turtle Beach PX51 headsets feature a rechargeable battery enabling continuous gaming for up to ten (10) hours.
When the headset battery charge is low, a tone will sound every ten (10) seconds. The headset can be charged without
interrupting game-play using the included Headset Charging Cable.
Charging cycle: 6 hours.
The headset will always remain powered on while charging. The LED on the headset will remain a solid RED until the
headset is fully charged, at which point the LED will turn off.
NOTE: The Headset Charging Cable is for charging purposes only. Use the USB Programming Cable for uploading presets.
Charging LED Headset Charging Port
Right Earcup
16
Presets
Navigating through Presets
1. Press the Main button to access Main presets.
2. Press Game to advance through Game Presets.
3. Press Chat button to advance through Chat Presets.
4. Listen for a voice prompt.
5. Stop scrolling after nding preferred preset.
Your PX51 headset features several built-in presets for enhanced gaming and voice effects. See the accompanying
brochure presets for more information.
Choose from the following Presets:
Chat Presets
Game Presets
Main: Chat Boost automatically increases the online chat levels during intense gaming sequences, so communication
from teammates isn’t drowned out.
1. Flat: Straight chat with no processing.
2. Chat Focus: Boosts mid-range frequencies for greater concentration on chat.
3. Chat Expander: Widens the virtual sound eld of chat.
4. Voice Amp: Amplies chat volume.
5. Hi-Pitch Morph: Morph your voice into a high-pitch tone.
6. Lo-Pitch Morph: Bring your voice to demonic depths.
7. Robot: Transform your voice into a metallic sound.
8. Max Chat: Combines presets in an enhanced chat package.
Main: Incorporates Dolby® surround sound processing for an immersive audio experience.
1. Flat: Hear stereo game sound without effects processing or Dolby Surround Sound.
2. Bass Boost: Hear and feel the rumble of deeper bass sound effects.
3. Treble Boost: Boost high frequencies for crisper sounds and greater clarity.
4. Bass Boost + Treble Boost: Rumbling lows and pristine highs come through clearly.
5. Stereo Expander: Stereo processing with a 3D effect that allows you to focus on subtle audio cues.
6. Action Enhancer: Amplify intense sounds from weapons and explosions.
7. Footstep Focus: Focus on the sound of enemy footsteps approaching.
8. Superhuman Hearing: Boosts low volume sounds.
17
Presets/Specications
Custom Presets
Specications

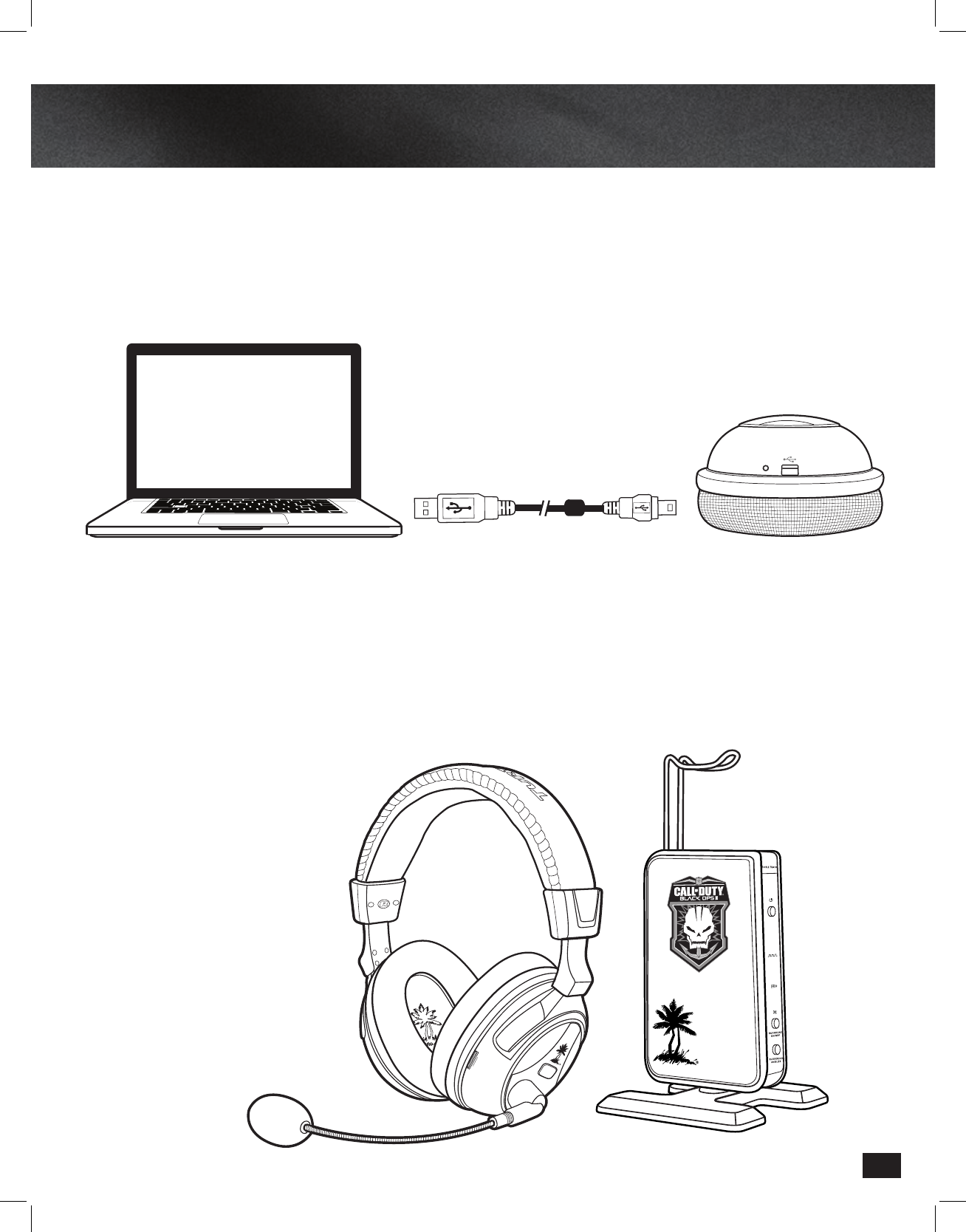

Plug your PX51 headset into your computer to load custom presets available on our website: www.TurtleBeach.com/presets.
Refer to the “Advance Editor Sound Guide” for detailed instructions.
- Audio Connection: Digital Optical
- Headset Power: Rechargeable Battery
- Transmitter Power: USB
- Headset Connection: 2.4/5 GHz
- Dual-Band Wi Wireless
18
Regulatory Compliance
Federal Communications Commission (FCC) Compliance Notices
This section includes the following FCC statements for the EAR FORCE PX51 RX & TX Models:
- FCC ID: XGB-TB2290 & XGB-TB2291
- Class B Interference Statement
- RF Radiation Exposure & Hazard Warning
- Non-Modication Statement
- Deployment Statement
Class B Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause
undesired operation.
RF Radiation Exposure & Hazard Statement
To ensure compliance with FCC RF exposure requirements, this device must be installed in a location such that the antenna of
the device will be greater than 20 cm (8 in.) from all persons. Using higher gain antennas and types of antennas not covered
under the FCC certication of this product is not allowed. Installers of the radio and end users of the product must adhere to the
installation instructions provided in this manual. This transmitter must not be co-located or operated in conjunction with any
other antenna or transmitter.
Non-Modication Statement
Use only the supplied internal antenna. Unauthorized antennas, modications, or attachments could damage the EAR
FORCE PX51 RX & TX Models and violate FCC regulations. Any changes or modications not expressly approved by the party
responsible for compliance could void the user’s authority to operate this equipment. Please contact Turtle Beach for a list of
approved 2.4 GHz and 5.0 GHz antennas.
Deployment Statement
This product is certied for indoor deployment only in the 5150 – 5250 MHz band. Do not install or use this product outdoors in
that frequency band in the United States.
19
Regulatory Compliance
Canadian ICES Statements
IC: 3879A- TB2290 & 3879A- TB2291
This device complies with ICES-003 and RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference, including interference that may cause undesired operation of the device.
Ce dispositif est conforme aux normes NMB003 et CNR-210 d’Industrie Canada.
1. L’utilisation de ce dispositif est autorisée seulement aux conditions suivantes :
2. il ne doit pas produire de brouillage et l’utilisateur du dispositif doit être prêt à accepter tout brouillage radioélectrique reçu,
même si ce brouillage est susceptible de compromettre le fonctionnement du dispositif.
To prevent radio interference to the licensed service (i.e. co-channel Mobile Satellite systems) this device is intended to be
operated indoors and away from windows to provide maximum shielding. Equipment (or its transmit antenna) that is installed
outdoors is subject to licensing and not supported by EAR FORCE PX51 RX & TX Models.
RF Radiation Exposure & Hazard Statement
To ensure compliance with RSS-102 RF exposure requirements, this device must be installed in a location such that the antenna
of the device will be greater than 20 cm (8 in.) away from all persons. Using higher gain antennas and types of antennas not
covered under the IC certication of this product is not allowed. Installers of the radio and end users of the product must adhere
to the installation instructions provided in this manual. This transmitter must not be co-located or operated in conjunction with
any other antenna or transmitter.
Exposition aux radiations RF & Mention de danger
Pour assurer la conformité avec les exigences RSS-102 d’exposition aux RF (Radio Fréquences), cet appareil doit être installé
dans un endroit ou l’antenne de l’appareil sera située à une distance de plus de 20 cm (8 po) de toutes personnes. L’utilisation
d’antennes à gain plus élevé et les types d’antennes qui ne sont pas couverts en vertu de la certication IC de ce produit
n’est pas autorisée. Les installateurs de la radio et les utilisateurs du produit nal doivent se conformer aux instructions
d’installation fournies dans ce manuel. Cet émetteur ne doit pas être co-implanté ou exploité en conjonction avec toute autre
antenne ou transmetteur.
Deployment Statement
This product is certied for indoor deployment only in the 5150 – 5250 MHz band. Do not install or use this product outdoors in
that frequency band in Canada.
Déclaration de déploiement
Ce produit est certié pour le déploiement à l’intérieur tout en rencontrant les limites de cette bande de fréquences: 5150 - 5250
MHz. Ne pas installer ou utiliser ce produit à l’extérieur au Canada, si cette bande de fréquences ne peut ne peut être rencontrée.
European Union and European Fair Trade Association Regulatory Compliance
This equipment may be operated in the countries that comprise the member countries of the European Union and the European
Fair Trade Association. These countries, listed below, are referred to as The European Community throughout this document:
AUSTRIA, BELGIUM, BULGARIA, CYPRUS, CZECH REPUBLIC, DENMARK, ESTONIA, FINLAND, FRANCE,, GERMANY, GREECE,
HUNGARY, IRELAND, ITALY, LATVIA, LITHUANIA, LUXEMBOURG, MALTA, NETHERLANDS, POLAND, PORTUGAL, ROMANIA,
SLOVAKIA, SLOVENIA, SPAIN, SWEDEN, UNITED KINGDOM, ICELAND, LICHTENSTEIN, NORWAY, SWITZERLAND.
The EAR FORCE PX51 RX & TX devices communicate with each other to provide wireless local area networking (WLAN)
capabilities. Additionally, the EAR FORCE PX51 RX device has a BT radio transceiver for communicating with users over the
internet connection provided in the host platform. The EAR FORCE PX51 TX Model includes one 802.11a and one 802.11b/g
radio with one 802.11a and one 802.11b/g omni-directional internal antennas, respectively. The EAR FORCE PX51 RX Model
includes one 802.11a, one 802.11b/g radio and one 2.4 GHz BT radio with one 802.11a, one 802.11b/g and one 2.4 GHz BT omni-
directional internal antennas, respectively.
20
Declaration of Conformity
Marking by this symbol:
indicates compliance with the Essential Requirements of the R&TTE Directive of the European Union (1999/5/EC). This
equipment meets the following conformance standards:
Safety: EN 60950-1: 2006 + A11 (GS License)
Also Licensed for Standards: IEC 60950-1:2005, (CB Scheme Report/Certicate), UL60950-1 (NRTL License), CSA22.2, 60950-1
(SCC License)
Additional licenses issued for specic countries available on request.
EMC: EN 55022: 2006, EN 55024: 1998 + A1:2001 + A2: 2003, EN 301 489-1 v1.8.1 (2008-04), EN 301 489-17 v2.1.1 (2009-05),
CISPR22: 2005, CISPR24
Including EN 61000-3-2, -3-3, -4-2, -4-3, -4-4, -4-5, -4-6 and -4-11
The products are licensed, as required, for additional country specic standards for the International Marketplace. Additional
issued licenses available upon request.
Radio: EN 300328 v.1.7.1 (2006-10) & EN 301 893 v.1.5.1 (2008-12)
Electromagnetic compatibility and Radio spectrum Matters (ERM); Wideband transmission systems; Data transmission
equipment operating in the 2,4 GHz ISM band and using wide band modulation techniques and Broadband Radio Access
Networks (BRAN); 5 GHz high performance RLAN. Certications are harmonized to the EN standards covering essential
requirements under article 3.2 of the R&TTE Directive. Compliance includes testing with antennas as specied in attached table.
SAR: EN 62311: 2008
Environmental: Low Voltage Directive 2006/95/EC,
RoHS 2002/95/EC
WEEE 2002/96/EC
21
European Community Declaration of Conformity
Bulgaria български С това, nortel обявява, че този модел на радио на Product A, е със съгласие с съществените
изисквания и други важни условия на директива 1999/5 на европейски съюз
Czech
Republic
Èesky Norteltímto prohlašuje, že tento Product A, je ve shodì se základními požadavky a dalšími
pøíslušnými ustanoveními smìrnice 1999/5/ES.
Denmark Dansk Undertegnede Nortelerklærer herved, at følgende udstyr Product A, overholder de
væsentlige krav og øvrige relevante krav i direktiv 1999/5/EF.
English English Hereby, Nortel declares that this Product A, is in compliance with the essential
requirements and other relevant provisions of Directive 1999/5/EC.
Estonia Eesti Käesolevaga kinnitab Nortelseadme Product A, vastavust direktiivi 1999/5/EÜ
põhinõuetele ja nimetatud direktiivist tulenevatele teistele asjakohastele sätetele.
Finland Suomi Nortelvakuuttaa täten että Product A, tyyppinen laite on direktiivin 1999/5/EY oleellisten
vaatimusten ja sitä koskevien direktiivin muiden ehtojen mukainen.
France Français Par la présente Norteldéclare que l’appareil Product A, est conforme aux exigencies
essentielles et aux autres dispositions pertinentes de la directive 1999/5/CE.
German Deutsch Hiermit erklärt Nortel., dass sich das Gerät Product A, in Übereinstimmung mit den
grundlegenden Anforderungen und den übrigen einschlägigen Bestimmungen der
Richtlinie 1999/5/EG bendet.
Greece Ελληνική ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ Nortel.ΗΛ.ΝΕΙ ΟΤΙ Product A, ΣΥΜΜΟΡΦ.ΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙ..ΕΙΣ
ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ .ΙΑΤΑΞΕΙΣ ΤΗΣ Ο.ΗΓΙΑΣ 1999/5/ΕΚ.
Hungary Magyar Alulírott, Nortelnyilatkozom, hogy a Product A, megfelel a vonatkozó alapvetõ
követelményeknek és az 1999/5/EC irányelv egyéb elõírásainak.
Italy Italiano Con la presente Norteldichiara che questo Product A, è conforme ai requisiti essenziali ed
alle alter disposizioni pertinenti stabilite dalla direttiva 1999/5/CE.
Latvia Latviski Ar šo Norteldeklarç, ka Product A, atbilst Direktîvas 1999/5/EK bûtiskajâm prasîbâm un
citiem ar to saistîtajiem noteikumiem.
Lithuania Lietuviø Šiuo Norteldeklaruoja, kad šis Product A, atitinka esminius reikalavimus ir kitas 1999/5/
EB Direktyvos nuostatas.
Malta Malti Hawnhekk, Nortel., jiddikjara li dan Product A, jikkonforma mal-tiijiet essenzjali u ma
provvedimenti orajn relevanti li hemm d-Dirrettiva 1999/5/EC.
Netherlands Netherlands Hierbij verklaart Norteldat het toestel Product A, in overeenstemming is met de
essentiële eisen en de andere relevante bepalingen van richtlijn 1999/5/EG
Poland Polski Niniejszym Nortelooewiadcza, ¿e Product A, jest zgodny z zasadniczymi wymogami oraz
pozosta³ymi stosownymi postanowieniami Dyrektywy 1999/5/EC.
Portugal Português Norteldeclara que este Product A, está conforme com os requisitos essenciais e outras
disposições da Directiva 1999/5/CE.
Romania Român Astfel, Nortel declarã acel acest WLAN Radio Model 2332, este în conformitate cu
cerinþele necesare ºi proviziile alte semnicative de Directive 1999 5 EC.
Slovakia Slovensky Norteltýmto vyhlasuje, že Product A spåòa základné požiadavky a všetky príslušné
ustanovenia Smernice 1999/5/ES.
Slovenia Slovensko Nortelizjavlja, da je ta Product A, v skladu z bistvenimi zahtevami in ostalimi relevantnimi
doloèili directive 1999/5/ES.
Spain Español Por medio de la presente, Nortel declara que el Producto A, cumple con los requisitos
esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
Sweden Svenska Härmed intygar Nortelatt denna Product A, står I överensstämmelse med de väsentliga
egenskapskrav och övriga relevanta bestämmelser som framgår av direktiv 1999/5/EG.
22
LIMITED ONE YEAR WARRANTY FOR TURTLE BEACH PRODUCTS:
Voyetra Turtle Beach, Inc. (“VTB”) warrants to the original end-user purchaser (“Purchaser”) that the retail Turtle Beach hardware product herein (“Product”) will be free of defects
in materials and workmanship for a period of one year from the date of purchase by the Purchaser (“Warranty Period”). Any Extended Warranty or Service Plans purchased through a
Retail store are not honored by VTB. The Warranty refers to the repair/replacement of a defective product during this period and not a refund.
This limited warranty is extended only to the original Purchaser of a new product, which was not sold “AS IS”. It is not transferable or assignable to any subsequent purchaser. This
limited warranty is applicable only in the country or territory where the Product was purchased from an authorized VTB retailer and does not apply to a Product that has been purchased
as used or refurbished or was included as part of a non-VTB product.
WARRANTY SERVICE:
In the USA and CANADA Warranty Service is provided by our Turtle Beach USA ofces and in all other Countries it is provided by our local International Distributors when available.
Refurbished/Recertied products are sold on an AS IS basis with a 90-day Warranty or less in accordance with each vendor’s policy.
VTB does not warrant uninterrupted or error-free operation of the Product and is under no obligation to support the Product for all computer operating systems or future versions of
such operating systems.
If a defect should occur during the Warranty Period, Purchaser must contact VTB to obtain a Return Merchandise Authorization (“RMA”) number on the basis of the dated purchase
receipt. Purchaser will be responsible for shipping costs incurred in returning the defective Product to an authorized VTB service center, or to the repair facility located at VTB’s
corporate headquarters. VTB will not be responsible for other products or accessories included with the defective Product sent to VTB. The RMA number must be clearly indicated on the
outside of the package. Packages without an RMA number will be refused by VTB or its representatives and returned to sender at the sender’s expense.
In the event of a defect, Purchaser’s sole and exclusive remedy, and VTB’s sole liability, is expressly limited to the correction of the defect by adjustment, repair, or replacement of the
Product at VTB’s sole option and expense. VTB owns all Products it has replaced and all parts removed from repaired Products. VTB uses new and reconditioned parts made by various
manufacturers in performing warranty repairs and building replacement products. If VTB repairs or replaces a product, the original Warranty Period is not extended, however, VTB
warrants that repaired or replacement parts will be free from defects in material and workmanship for a period of thirty (30) days from the date of repair or replacement, or for the
remainder of the Warranty Period, whichever is greater.
This warranty does not apply to any Product that has had its serial number altered, removed or defaced, or any Product damage caused by shipping, improper storage, accident,
problems with electrical power, abuse, misuse, neglect, ordinary wear, acts of God (e.g. ood), failure to follow directions, improper maintenance, use not in accordance with product
instructions, unauthorized modication or service of the Product or damage resulting from the use of the Product with hardware, software or other products not provided by or
specically recommended by VTB.
NOTES:
- Replacement Parts and accessories that are subject to “wear and tear” such as earpads, mic foam covers, talkback cables, etc. have a three (3) month Warranty.
- Replacement Parts for Discontinued Products are sold on an AS IS basis, they are not supported and come with a 30 day Warranty.
THIS LIMITED WARRANTY IS PURCHASER’S SOLE AND EXCLUSIVE REMEDY AND IS IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED. TO THE EXTENT PERMITTED BY
APPLICABLE LAW, VTB HEREBY DISCLAIMS THE APPLICABILITY OF ANY IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR USE FOR THE
PRODUCT. IF SUCH A DISCLAIMER IS PROHIBITED BY APPLICABLE LAW, THE IMPLIED WARRANTY IS LIMITED TO THE DURATION OF THE FOREGOING LIMITED WRITTEN WARRANTY.
IN NO EVENT SHALL VTB BE LIABLE FOR ANY INDIRECT, INCIDENTAL, SPECIAL, PUNITIVE OR CONSEQUENTIAL DAMAGES, OR DAMAGES, INCLUDING BUT NOT LIMITED TO ANY
LOST PROFITS, DATA, OR LOSS OF USE, ANY THIRD PARTY CLAIMS, AND ANY INJURY TO PROPERTY OR BODILY INJURY (INCLUDING DEATH) TO ANY PERSON, ARISING FROM OR
RELATING TO THE USE OF THIS PRODUCT OR ARISING FROM BREACH OF THE WARRANTY, BREACH OF CONTRACT, NEGLIGENCE, TORT, OR STRICT LIABILITY, EVEN IF VTB HAS
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
This warranty supersedes all prior agreements or understandings, oral or written, relating to the Product, and no representation, promise or condition not contained herein will modify
these terms. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion or limitation may not apply to you. This warranty gives
you specic legal rights. You may also have other rights, which vary from state to state. Any action or lawsuit for breach of warranty must be commenced within eighteen (18) months
following the purchase of the Product.
EXCLUSIONS FROM LIMITED WARRANTY:
This Limited Warranty shall not apply and VTB has no liability under this Limited Warranty if the Turtle Beach Product:
- is used for commercial purposes such as “LAN, Call Centers” (including rental or lease);
- is modied or tampered with;
- is damaged by Acts of God, power surge, misuse, abuse, negligence, accident, wear and tear, mishandling, misapplication, or other causes unrelated to defective materials or
workmanship;
- serial number is defaced, altered or removed;
- is not used in accordance with the documentation and use instructions; or
- is repaired, modied or altered by other than authorized repair centers.
- Product is no longer available because it was discarded.
FOR / POUR
XBOX 360® I PS3™
Copyright © 2013 Voyetra Turtle Beach, Inc. (VTB, Inc.) All rights reserved. Turtle Beach, the Turtle Beach Logo, Voyetra, Ear Force, and Engineered for Gaming are
either trademarks or registered trademarks of VTB, Inc. Xbox, Xbox 360, and Xbox LIVE are registered trademarks of Microsoft Corporation. Playstation is a registered
trademark and PS3 is a trademark of Sony Computer Entertainment, Inc. Mac is a registered trademark of Apple, Inc. Bluetooth is a registered trademark of SIG, Inc. All
Rights Reserved. Dolby and the double-D symbol are trademarks of Dolby Laboratories. All other trademarks are properties of their respective companies and are hereby
acknowledged. Actual product appearance may differ from package imagery. Assembled in China.
This product is compliant with the Consumer Product Safety
Improvement Act of 2008, Public Law 110-314 (CPSIA)
Watch Turtle Beach product training videos at:
youtube.com/TurtleBeachVideos TurtleBeach.com/support
product support and warranty information:

Navigation menu
