VSON TECHNOLOGY V850 Integrative Mini Presenter User Manual v850 User s Manual

Vson Technology Co.,Ltd. Integrative Mini Presenter v850 User s Manual

User Manual

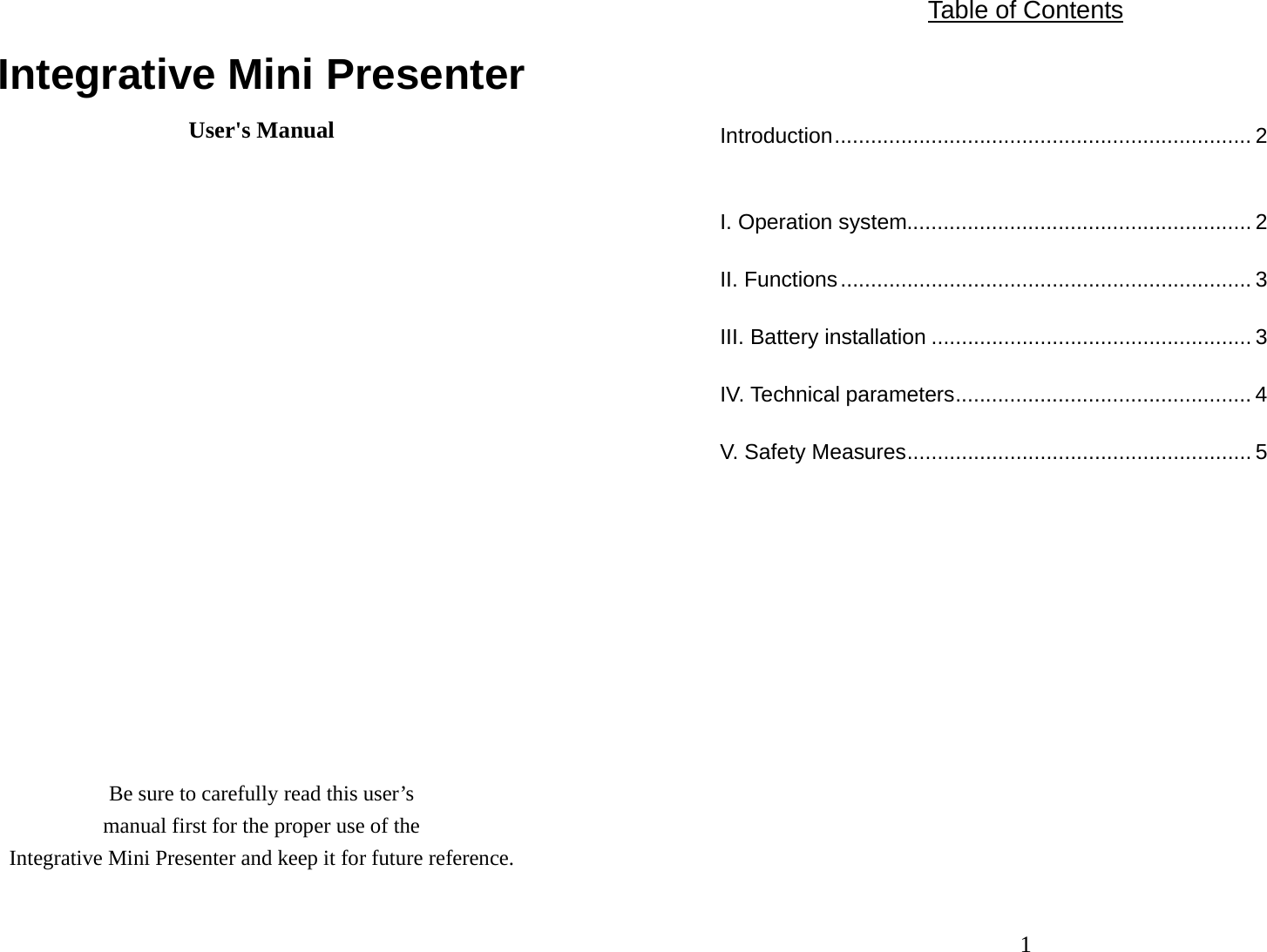

0 Integrative Mini Presenter User's Manual Be sure to carefully read this user’s manual first for the proper use of the Integrative Mini Presenter and keep it for future reference. 1Table of Contents Introduction..................................................................... 2 I. Operation system......................................................... 2 II. Functions.................................................................... 3 III. Battery installation ..................................................... 3 IV. Technical parameters................................................. 4 V. Safety Measures......................................................... 5

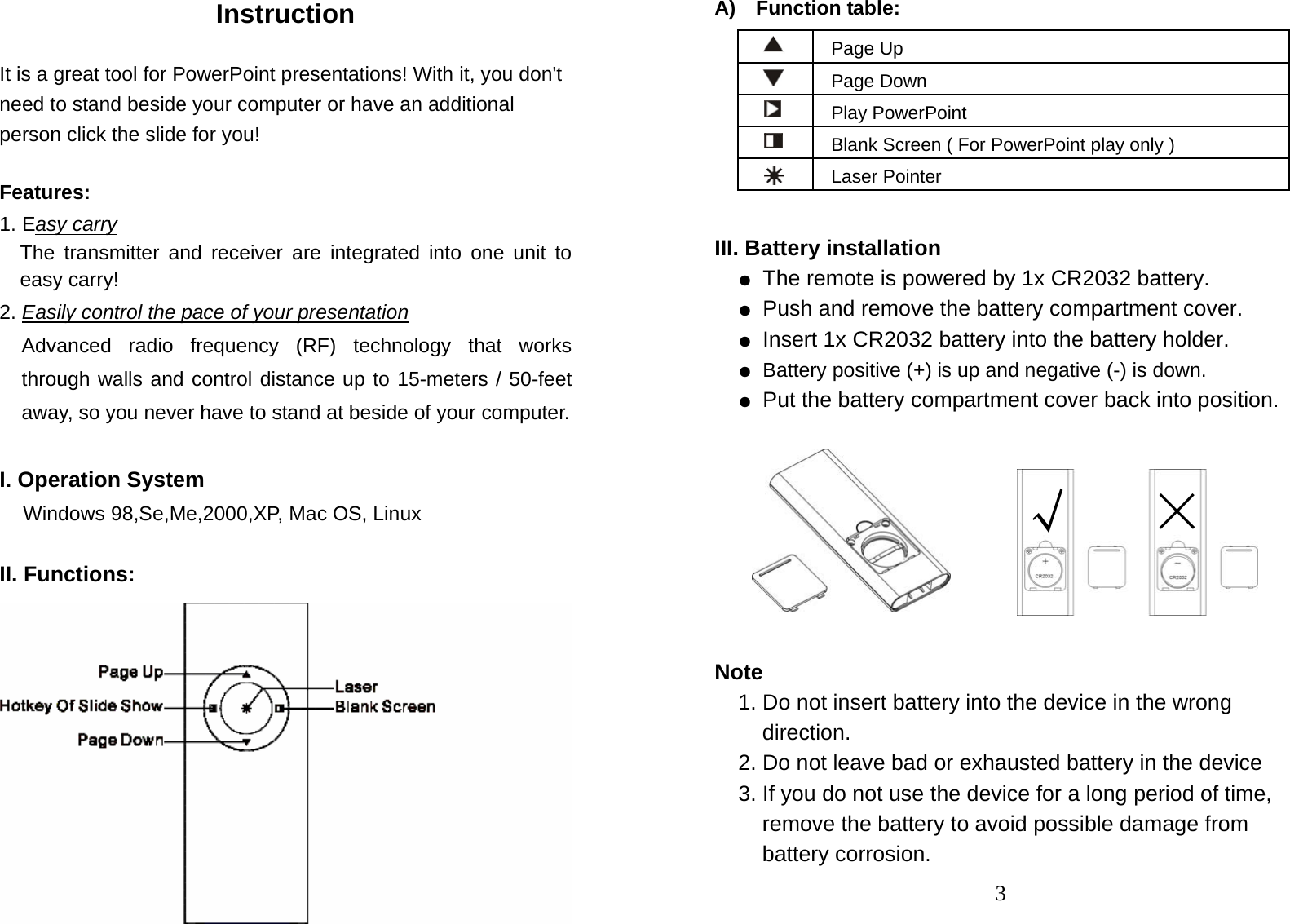

2 Instruction It is a great tool for PowerPoint presentations! With it, you don't need to stand beside your computer or have an additional person click the slide for you! Features: 1. Easy carry The transmitter and receiver are integrated into one unit to easy carry! 2. Easily control the pace of your presentation Advanced radio frequency (RF) technology that works through walls and control distance up to 15-meters / 50-feet away, so you never have to stand at beside of your computer. I. Operation System Windows 98,Se,Me,2000,XP, Mac OS, Linux II. Functions: 3A) Function table: Page Up Page Down Play PowerPoint Blank Screen ( For PowerPoint play only ) Laser Pointer III. Battery installation ● The remote is powered by 1x CR2032 battery. ● Push and remove the battery compartment cover. ● Insert 1x CR2032 battery into the battery holder. ● Battery positive (+) is up and negative (-) is down. ● Put the battery compartment cover back into position. Note 1. Do not insert battery into the device in the wrong direction. 2. Do not leave bad or exhausted battery in the device 3. If you do not use the device for a long period of time, remove the battery to avoid possible damage from battery corrosion. √×

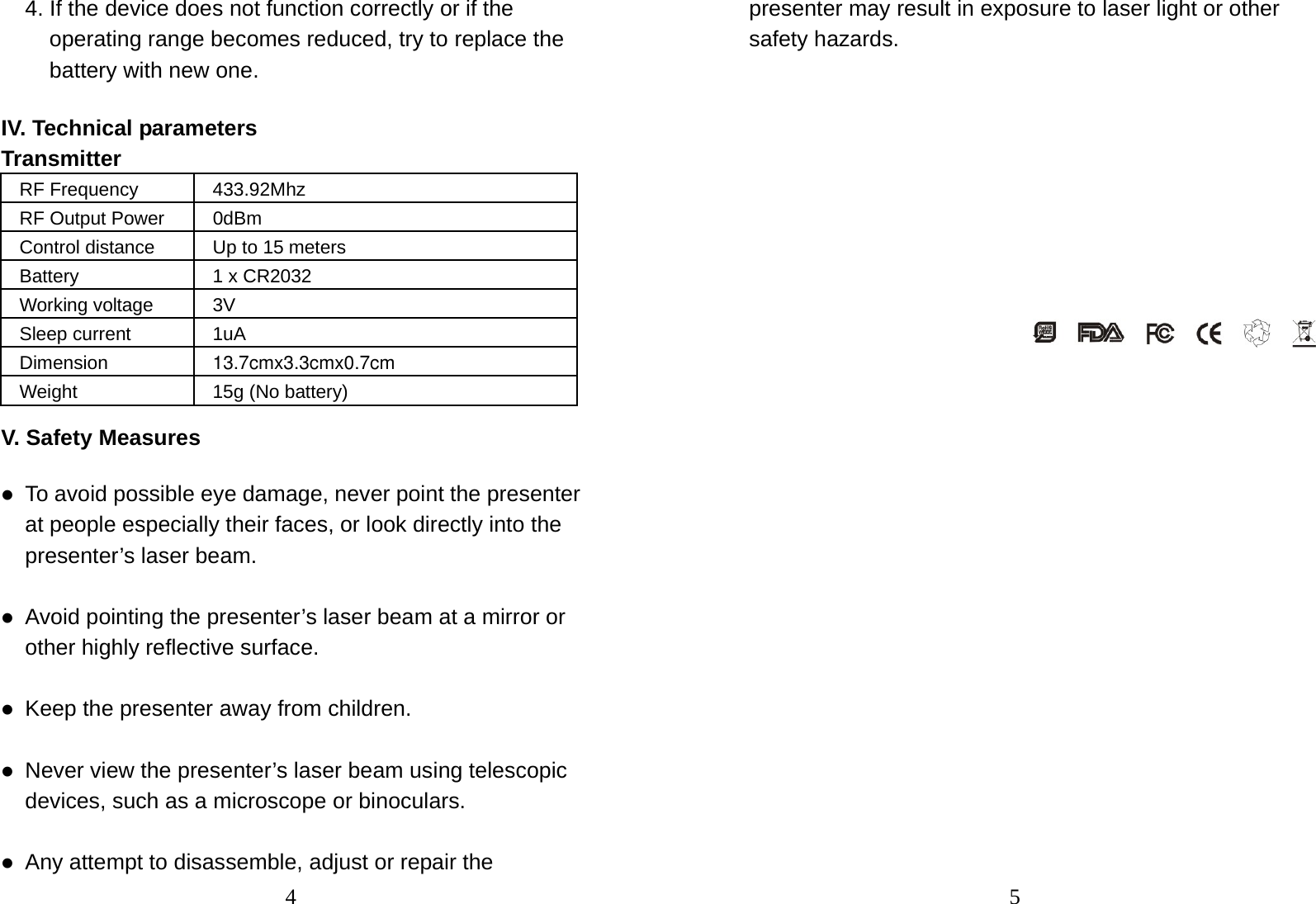

4 4. If the device does not function correctly or if the operating range becomes reduced, try to replace the battery with new one. IV. Technical parameters Transmitter RF Frequency 433.92Mhz RF Output Power 0dBm Control distance Up to 15 meters Battery 1 x CR2032 Working voltage 3V Sleep current 1uA Dimension 13.7cmx3.3cmx0.7cm Weight 15g (No battery) V. Safety Measures z To avoid possible eye damage, never point the presenter at people especially their faces, or look directly into the presenter’s laser beam. z Avoid pointing the presenter’s laser beam at a mirror or other highly reflective surface. z Keep the presenter away from children. z Never view the presenter’s laser beam using telescopic devices, such as a microscope or binoculars. z Any attempt to disassemble, adjust or repair the 5presenter may result in exposure to laser light or other safety hazards.

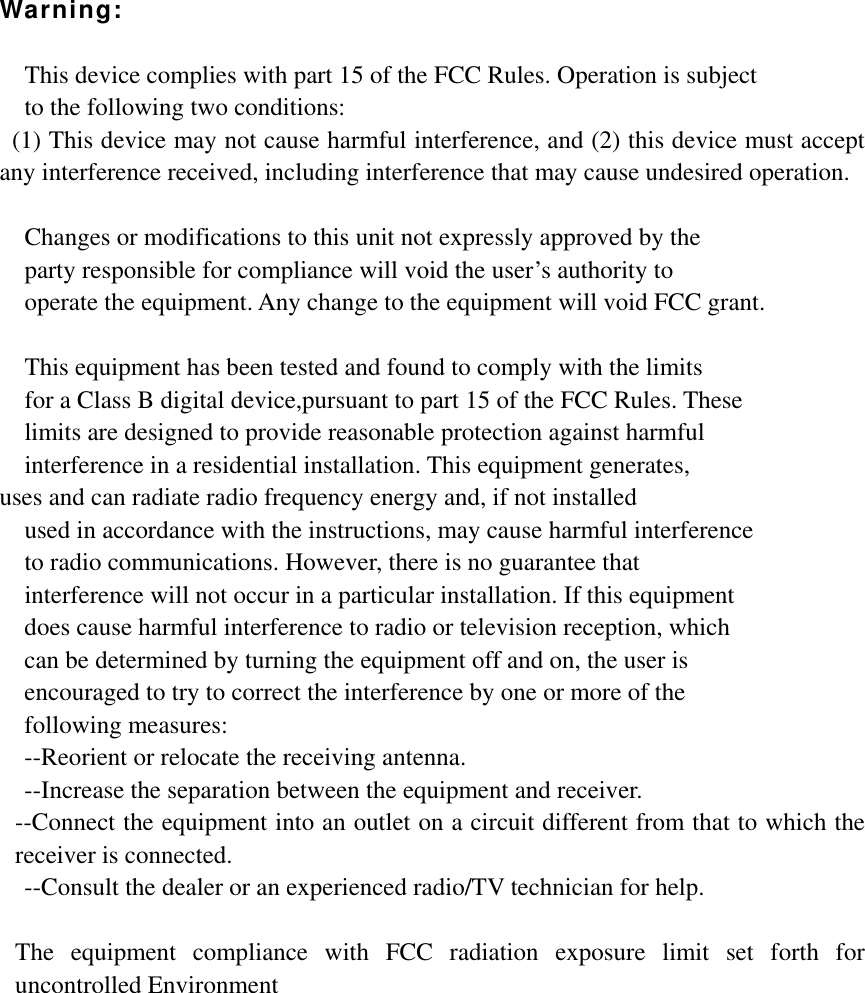

Warning: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications to this unit not expressly approved by the party responsible for compliance will void the user’s authority to operate the equipment. Any change to the equipment will void FCC grant. This equipment has been tested and found to comply with the limits for a Class B digital device,pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. The equipment compliance with FCC radiation exposure limit set forth for uncontrolled Environment
