Congratulations

on purchasing your new VTech product.

Before using this telephone, please read

the Important safety instructions

on page 50 of this manual.

This manual has all the feature operations and troubleshooting necessary

to install and operate your new VTech telephone. Please review this manual

thoroughly to ensure proper installation and operation of this innovative and

feature rich VTech product. For support, shopping, and everything new at

VTech, visit our website at www.vtechphones.com.

In Canada, please visit www.vtechcanada.com.

The ENERGY STAR® program (www.energystar.gov) recognizes and encourages

the use of products that save energy and help protect our environment. We are

proud to mark this product with the ENERGY STAR® label indicating it meets the

latest energy efficiency guidelines.

www.vtechphones.com

Table of contents

Getting started . . . . . . . . . . . . . . . . . 1

Parts checklist . . . . . . . . . . . . . . . . . . 1

Telephone base and charger installation . . . . . 2

Battery installation and charging . . . . . . . . . 3

Handset layout . . . . . . . . . . . . . . . . . . 4

Telephone base layout . . . . . . . . . . . . . . 5

Telephone settings . . . . . . . . . . . . . . . 6

Ringer volume - handset . . . . . . . . . . . . . 6

Ringer tone . . . . . . . . . . . . . . . . . . . . 7

Key tone . . . . . . . . . . . . . . . . . . . . . 8

Language . . . . . . . . . . . . . . . . . . . . . 8

Clear voice mail. . . . . . . . . . . . . . . . . . 9

Telephone operation . . . . . . . . . . . . . . 10

Make a call . . . . . . . . . . . . . . . . . . . . 10

Answer a call . . . . . . . . . . . . . . . . . . . 10

End a call . . . . . . . . . . . . . . . . . . . . . 10

Speakerphone . . . . . . . . . . . . . . . . . . 10

Volume . . . . . . . . . . . . . . . . . . . . . . 10

Mute . . . . . . . . . . . . . . . . . . . . . . . 11

Ringer mute. . . . . . . . . . . . . . . . . . . . 11

Call waiting . . . . . . . . . . . . . . . . . . . . 11

Chain dialing . . . . . . . . . . . . . . . . . . . 12

Find handset . . . . . . . . . . . . . . . . . . . 12

Intercom . . . . . . . . . . . . . . . . . . . . . 13

Conference call . . . . . . . . . . . . . . . . . . 14

Transfer an external call . . . . . . . . . . . . . 15

Switch between external and

intercom call . . . . . . . . . . . . . . . . . . 17

Answer an incoming call during an

intercom call. . . . . . . . . . . . . . . . . . 18

Directory . . . . . . . . . . . . . . . . . . . . . 19

Store a directory entry . . . . . . . . . . . . . . 20

Character chart . . . . . . . . . . . . . . . . . . 21

Search the directory . . . . . . . . . . . . . . . 22

Dial a directory entry . . . . . . . . . . . . . . . 22

Edit a directory entry . . . . . . . . . . . . . . . 23

Delete from the directory . . . . . . . . . . . . . 24

About caller ID . . . . . . . . . . . . . . . . . . 25

Call log . . . . . . . . . . . . . . . . . . . . . . 26

Missed calls indicator. . . . . . . . . . . . . . . 27

Review the call log . . . . . . . . . . . . . . . . 27

Make a call log entry ready to dial . . . . . . . . 28

Dial a call log entry . . . . . . . . . . . . . . . . 28

Save an entry to the directory . . . . . . . . . . 29

www.vtechphones.com iii

Table of contents

Delete from the call log . . . . . . . . . . . . . . 30

Call log display screen messages . . . . . . . . 31

Redial list . . . . . . . . . . . . . . . . . . . . . 32

Dial a redial entry . . . . . . . . . . . . . . . . . 32

Delete from redial. . . . . . . . . . . . . . . . . 32

Answering system . . . . . . . . . . . . . . . 33

Answering system and voicemail. . . . . . . . . 33

Message capacity . . . . . . . . . . . . . . . . 33

Activate the answering system . . . . . . . . . . 34

Set the clock . . . . . . . . . . . . . . . . . . . 34

Answering system set up . . . . . . . . . . . . . 35

Set number of rings. . . . . . . . . . . . . . . . 35

Set telephone base ringer . . . . . . . . . . . . 36

Set remote access code . . . . . . . . . . . . . 37

Set message alert tone . . . . . . . . . . . . . . 37

Outgoing announcement . . . . . . . . . . . . . 38

Record your own announcement . . . . . . . . . 38

Play your announcement . . . . . . . . . . . . 39

Delete your announcement . . . . . . . . . . . . 39

New message indication . . . . . . . . . . . . . 40

Message playback . . . . . . . . . . . . . . . . 40

Options during playback . . . . . . . . . . . . . 40

Delete all messages . . . . . . . . . . . . . . . 41

Record and play memos . . . . . . . . . . . . . 41

Record a memo. . . . . . . . . . . . . . . . . . 41

Memo playback . . . . . . . . . . . . . . . . . . 41

Call screening . . . . . . . . . . . . . . . . . . 42

Call intercept . . . . . . . . . . . . . . . . . . . 42

Message window displays . . . . . . . . . . . . 43

Remote access . . . . . . . . . . . . . . . . . . 44

Appendix. . . . . . . . . . . . . . . . . . . . . 45

Handset display screen messages . . . . . . . . 45

Handset and telephone base indicators . . . . . 47

Battery . . . . . . . . . . . . . . . . . . . . . . 49

Important safety instructions . . . . . . . . . . . 50

Troubleshooting. . . . . . . . . . . . . . . . . . 51

Operating range . . . . . . . . . . . . . . . . . 60

Maintenance . . . . . . . . . . . . . . . . . . . 60

About cordless telephones . . . . . . . . . . . . 61

The RBRC® seal . . . . . . . . . . . . . . . . . 61

Warranty . . . . . . . . . . . . . . . . . . . . . 62

FCC, ACTA and IC regulations . . . . . . . . . . 64

Technical specications . . . . . . . . . . . . . 66

Index . . . . . . . . . . . . . . . . . . . . . . . 67

www.vtechphones.com 1

Getting started Basic operation

To purchase

replacement

batteries or power

adapters, visit our

website at www.

vtechphones.

com or call

1 (800) 595-9511.

In Canada, go to

www.vtechcanada.

com or call 1 (800)

267-7377.

•

9. User’s manual

1. Quick start guide

2. Handsets

(2 for LS6125-2,

3 for LS6125-3/LS6126-3,

4 for LS6125-4,

5 for LS6125-5/LS6126-5)

Telephone base3. 4. Charger and

charger adapter

(1 for LS6125-2,

2 for LS6125-3/LS6126-3,

3 for LS6125-4,

4 for LS6125-5/LS6126-5)

8. Telephone base

power adapter

7. Telephone line cord

6. Batteries

(2 for LS6125-2,

3 for LS6125-3/LS6126-3,

4 for LS6125-4,

5 for LS6125-5/LS6126-5)

5. Battery

compartment

covers

(2 for LS6125-2,

3 for LS6125-3/LS6126-3,

4 for LS6125-4,

5 for LS6125-5/LS6126-5)

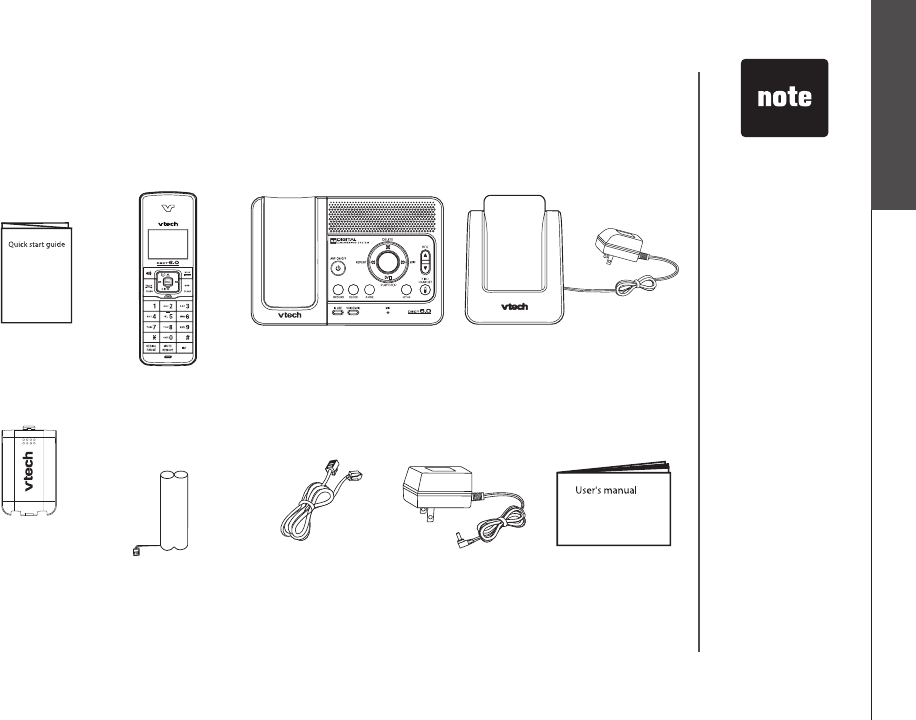

Parts checklist

Your telephone contains the following items. Save your sales receipt and original

packaging in the event warranty service is necessary.

Getting started

www.vtechphones.com

Getting started

Use only the

power adapters

supplied with this

product. To order

a replacement,

visit our website at

www.vtechphones.

com or call

1 (800) 595-9511.

In Canada, go to

www.vtechcanada.

com or call 1 (800)

267-7377.

The power adapters

are intended to be

correctly oriented

in a vertical or oor

mount position.

The prongs are not

designed to hold

the plug in place if

it is plugged into a

ceiling or an under-

the-table/cabinet

outlet.

The telephone base

is designed for desk

or tabletop use only.

•

Telephone base

Telephone line cord

Electrical outlet

not controlled by

a wall switch

Telephone base

power adapter

(large)

Telephone

wall jack

DSL lter (not included)

required if you have

DSL high-speed

Internet service

Charger

adapter

(small)

Telephone base and charger installation

Install the telephone base and charger as shown below. Make sure that the

electrical outlet is not controlled by a wall switch. If you subscribe to high-speed

Internet service (Digital Subscriber Line - DSL) through your telephone lines,

you must have a DSL lter between the telephone base and the telephone

wall jack. The lter will prevent noise and caller ID problems caused by DSL

interference. Please contact your DSL service provider for more information

about DSL lters.

www.vtechphones.com 3

Getting started Basic operation

Getting started

If the handset

will not be used

for a long time,

disconnect and

remove the battery

to prevent possible

leakage.

To purchase

replacement

batteries, visit our

website at www.

vtechphones.

com or call

1 (800) 595-9511.

In Canada, go to

www.vtechcanada.

com or call 1 (800)

267-7377.

•

Battery installation and charging

Install the battery as shown below. After installing the battery, you might be able

to make and receive short calls. For best performance, charge the handset for at

least 16 hours before use. When the battery power is low, the handset will beep,

LOW BATTERY will be displayed and will ash on the handset screen. Place

the handset in the telephone base or charger to charge the battery when not in

use. See the table on page 49 for battery operating times.

Insert the plug of the battery as indicated. Make sure it is plugged securely

and matches the color-coded label inside the battery compartment.

Place the battery with the label THIS SIDE UP facing up and the wires inside

the battery compartment.

Align the battery compartment cover at against the battery compartment,

then slide it upwards until it clicks into place.

Charge the handset by placing it in the telephone base or charger. The handset

charge light will be on when charging.

FLASH

CLEAR

SELECT

CID

VOL

1234Charge light

www.vtechphones.com

CID (Caller ID)

• Press to review the call log when the phone is

not in use.

While in the menu, press to scroll down.

Press to lower the listening volume during a call.

•

/FLASH

• Press to make or answer a call.

• During a call, press to answer a second call

when you hear a call waiting alert.

(Directory)

• Press to display the directory when the phone is

not in use.

While in the menu, press to scroll up.

Press to raise the listening volume during a call.

•

MENU/SELECT

• Press to display the menu.

• When in the menu, press to select an item,

or save an entry or setting.

OFF/CLEAR

• During a call, press to hang up.

• While the handset is ringing, press to

silence the ringer.

•

Press and hold when the phone is not in

use to erase the MISSED CALLS display.

• During programming, press to return to

previous menu without making changes.

REDIAL/PAUSE

• Press to review the redial list.

• While dialing or entering numbers into the directory,

press and hold to insert a dialing pause.

CHARGE light

• On when the handset is charging in the

telephone base or charger.

• Press repeatedly to display other dialing

options when reviewing the call log.

INT (intercom)

• Press to initiate an intercom conversation

or transfer a call.

(Speakerphone)

Press to activate the handset speakerphone.

Press again to resume normal handset use.

•

MUTE/REMOVE

•

While on a call, press to mute the

microphone.

• While reviewing the call log, press to delete

an individual entry, or press and hold to

delete the entire call log.

•

Press to delete digits when predialing

(entering the phone number before pressing

/FLASH).

Handset layout

Getting started

www.vtechphones.com 5

Getting started Basic operation

Getting started

Telephone base layout

/REPEAT

Press to repeat a message or

press twice to play previous

message (page 40).

•

Message window

Displays the number of messages plus other

answering system information. (page 43).

•

RECORD

Press to record a memo (page 41)

or an announcement (page 38).

•

CLOCK

Press to set the clock (page 34).• ANNC

Press to enter announcement

mode (pages 38-39).

•

SET UP

Press to enter the set up menu

(pages 35-37).

•

/SKIP

Press to skip to the next message

(page 40).

•

X/DELETE

Press to delete message currently playing (page 40).

When the phone is not in use, press twice to delete all

previously reviewed messages (page 41).

•

ANS ON/OFF

Press to turn the answering

system on or off (page 34).

•

/PLAY/STOP

Press to play messages (page 40).

Press to stop message playback.

•

FIND HANDSET

Press to page all handsets.•

IN USE light

Flashes when there is an incoming call or

another telephone on the same line is in use.

On when a handset is in use.

•

VOICEMAIL light

Flashes when you have new voicemail. Voicemail is

offered by your telelphone service provider.

•

VOL/ VOL

Press to adjust the volume during

playback (page 40).

•

www.vtechphones.com

Telephone settings

Ringer volume - handset

You can change the handset ringer volume to a comfortable

level. The ringer can also be turned off so the handset does

not ring when there are incoming calls.

To adjust the ringer volume:

Press MENU/SELECT to display the menu when the

handset is not in use.

Press or to select >RINGER VOLUME, then press

MENU/SELECT.

Press or to adjust the volume. A sample of each volume

level will be played when scrolling through the choices.

Press MENU/SELECT to save your selection. You will hear

a conrmation tone.

4. RINGER VOLUME

>RINGER VOLUME

RINGER TONE

The ringer will

be off if the

volume is set to

the lowest level,

and a ringer off

icon will be

displayed.

The telephone

base ringer

volume is a

separate setting.

See page 36 for

details.

•

www.vtechphones.com 7

Basic operation

Telephone settings

RINGER TONE

>RINGER TONE

KEY TONE

Ringer tone

This menu allows you to choose from different ringer tones.

To choose a ringer tone:

Press MENU/SELECT to display the menu when the

handset is not in use.

Press or to select >RINGER TONE, then press

MENU/SELECT.

Press or to select the desired ringer tone. A sample

of each ringer tone will be played when scrolling through

the choices.

Press MENU/SELECT to save your selection. You will hear

a conrmation tone.

If the ringer is

turned off while

scrolling through

the options in the

RINGER TONE

menu, the sample

of the ringer will

not be heard.

•

www.vtechphones.com

Telephone settings

>KEY TONE

LANGUAGE

Key tone

The handset beeps as you press keys. You may turn the key

tone feature on or off. To change the setting:

Press MENU/SELECT to display the menu when the

handset is not in use.

Press or to select >KEY TONE, then press

MENU/SELECT.

Press or to choose ON or OFF.

Press MENU/SELECT to save your selection. You will hear

a conrmation tone.

Language

You can select ENGLISH, FRANÇAIS or ESPAÑOL to be

used for the handset display. To change the setting:

Press MENU/SELECT to display the menu when the

handset is not in use.

Press or to select >LANGUAGE, then press

MENU/SELECT.

Press or to select the desired language.

Press MENU/SELECT to save your selection. You will hear

a conrmation tone.

KEY TONE

LANGUAGE

ENGLISH

>LANGUAGE

CLR VOICE MAIL

www.vtechphones.com 9

Basic operation

Telephone settings

>CLR VOICE MAIL

Directory

The directory can store up to 50 entries. Each entry may have

up to 30 digits and 15 characters.

The directory can be accessed when the handset is not

in use by pressing once or MENU/SELECT three

times.

The screen displays DIRECTORY EMPTY if there are no

records in the directory.

When the directory is full and you attempt to save an entry,

the screen will display LIST FULL.

If you attempt to save a number already stored in the

directory, the screen will display ALREADY SAVED.

Only one handset can review the directory at a time. If

a handset attempts to enter the directory while another

handset is already in the directory, NOT AVAILABLE AT

THIS TIME will be displayed.

If the telephone number in the directory exceeds 15 digits,

* will be displayed in front of the telephone number. Press *

to scroll towards the end of the telephone number or press #

to scroll towards the beginning of the telephone number.

•

DIRECTORY EMPTY

LIST FULL

ELIZABETH JONES

<* 180012345678

ELIZABETH JONES

123456789012 #>

ELIZABETH JONES

<* 800123456 #>

www.vtechphones.com

Telephone operation

>DIRECTORY

CALL LOG

>STORE

REVIEW

ENTER NUMBER

ENTER NAME

Store a directory entry

Press MENU/SELECT twice when the handset is not in

use.

Press or to select >STORE, then press MENU/SELECT.

The screen displays ENTER NUMBER.

Use the dialing keys to enter the number.

Press MUTE/REMOVE to backspace and erase a digit.

Press and hold MUTE/REMOVE to erase the entire entry.

Press to move the cursor to the left or to the right.

Press and hold REDIAL/PAUSE to insert a dialing pause.

Press MENU/SELECT to enter the name. The screen

displays ENTER NAME.

Use the dialing keys (see the Character chart on page 21)

to enter the name.

Press MUTE/REMOVE to backspace and erase a

character.

Press and hold MUTE/REMOVE to erase the entire entry.

Press to move the cursor to the left or to the right.

Press # to insert a space.

Press MENU/SELECT to save your entry. You will hear a

conrmation tone.

•

Saving or deleting

a number on

one handset will

automatically

update all other

system handsets.

•

www.vtechphones.com 21

Basic operation

Telephone operation

Character chart

Use the dial pad and the chart below to enter a name (up to 15 characters). Each press

of a particular key causes the characters to be displayed in the following order:

Press MUTE/REMOVE to backspace and erase when entering characters.

Press and hold MUTE/REMOVE to delete the entire entry.

•

Number key Characters by number of key presses

123456789

11 # ,, - . &

2A B C 2 a b c

3D E F 3 d e f

4G H I 4 g h i

5J K L 5 j k l

6M N O 6 m n o

7P Q R S 7 p q r s

8T U V 8 t u v

9W X Y Z 9 w x y z

* *? ! / ( ) @

#space

When entering

a name in the

directory, the

rst letter of

each word will

be capitalized

automatically.

•

www.vtechphones.com

Telephone operation

Search the directory

Entries are sorted alphabetically.

To search the directory:

Press once, or MENU/SELECT three times to enter

the directory.

Press or to scroll through the directory.

To start an alphabetical search:

Press once, or MENU/SELECT three times to enter the directory.

Use the dialing keys to enter the rst letter associated. For example, press 5

(JKL) once to nd Jenny, twice to nd Kristen, or three times to nd Linda. If

there is no name entry matching your search, the next closest matching entry

in alphabetical order will be displayed. If necessary, scroll or to nd the

desired entry.

Dial a directory entry

Press once, or MENU/SELECT three times to enter the directory.

Press or to scroll to the desired entry, or use the alphabetical search to

nd it.

Press /FLASH or to dial the entry.

>REVIEW

STORE

VTECH

800-595-9511

www.vtechphones.com 23

Basic operation

Telephone operation

EDIT NAME

VTECH_

Edit a directory entry

Press once, or MENU/SELECT three times to enter the directory.

Press or to scroll to the desired entry, or use the alphabetical search to

nd it.

Press MENU/SELECT to confirm your selection. The

screen displays EDIT NUMBER.

Use the dialing keys to edit the number.

Press MUTE/REMOVE to backspace and erase a digit.

Press and hold MUTE/REMOVE to erase the entire

entry.

Press to move the cursor to the left or to the right.

Press and hold REDIAL/PAUSE to insert a dialing pause.

Press MENU/SELECT to move on to the name. The screen

displays EDIT NAME.

Use the dialing keys (see the Character chart on page 21)

to edit the name.

Press MUTE/REMOVE to backspace and erase a character.

Press and hold MUTE/REMOVE to erase the entire entry.

Press to move the cursor to the left or to the right.

Press # to insert a space.

Press MENU/SELECT to save your edits. You will hear a conrmation tone.

•

EDIT NUMBER

595-9511_

www.vtechphones.com

Telephone operation

Delete from the directory

Press once, or MENU/SELECT three times to enter the directory.

Press or to scroll to the desired entry, or use the alphabetical search to

nd it.

Press MUTE/REMOVE to remove the displayed entry.

You will hear a conrmation tone.

www.vtechphones.com 25

Basic operation

Telephone operation

About caller ID

The caller ID with call waiting feature in this telephone lets you see the name and

telephone number of the caller before answering the call, even when already on a

call. These features require services provided by your local telephone company.

Contact your telephone company if:

you have both caller ID and call waiting, but as separate services (you may need

combined service);

you have only caller ID service, or only call waiting service; or

you do not subscribe to any caller ID or call waiting services but wish to

subscribe.

You can use this telephone with regular caller ID service, and you can use its

other features without subscribing to either caller ID or combined caller ID with

call waiting service. There may be fees for these services, and these services

may not be available in all areas.

The caller ID features will work only if both you and the caller are in areas offering

caller ID service, and if both telephone companies use compatible equipment.

•

www.vtechphones.com

Telephone operation

Due to regional

service

differences,

the caller ID

information

may not be

available for

every incoming

call. In addition,

the callers may

intentionally

block their names

and/or telephone

numbers.

•

CALL LOG EMPTY

Call log

If you subscribe to caller ID service, information about each

caller will be displayed after the rst or second ring.

The call log can store up to 50 entries.

You can review, redial, and copy an entry into the directory.

Entries are displayed in reverse chronological order, i.e.

from the most recent entry to the earliest entry.

When the call log is full, the earliest entry is deleted to make

room for new incoming call information.

XX MISSED CALL(S) and the NEW icon will be displayed

if there are new call log entries (including missed and

unreviewed calls). When all the missed calls in the call

log have been reviewed, the missed calls indicator will no

longer display.

CALL LOG EMPTY will be displayed if there are no records

in the call log.

Only one handset can review the call log at a time. If a handset

attempts to enter the call log while another handset is already

in it, NOT AVAILABLE AT THIS TIME will be displayed.

•

HANDSET X

XX MISSED CALLS

www.vtechphones.com 27

Basic operation

Telephone operation

Missed calls indicator

When there are unreviewed calls in the call log, the handset

screen will display XX MISSED CALL(S) and NEW.

When all the missed calls have been reviewed, the missed

calls indicator will no longer display.

If you do not want to review the missed calls one by one, press

and hold OFF/CLEAR to erase the missed calls indicator. All

the entries will be considered old and kept in the call log.

Review the call log

Press CID when the handset is not in use.

Press or to browse through the call log.

-OR-

Press MENU/SELECT when the handset is not in use.

Press or to select >CALL LOG.

Press MENU/SELECT.

Press or to browse through the call log.

The name (if available), telephone number, date and time

of all incoming calls are displayed on the screen.

There will be a double beep when the list reaches the

beginning or the end of the call log.

•

VTECH

595-9511

3:45

AM 1/02

>CALL LOG

RINGER VOLUME

VTECH

595-9511

NEW

3:45

AM 1/02

www.vtechphones.com

Telephone operation

800-595-9511

1-800-595-9511

595-9511

1-595-9511

Make a call log entry ready to dial

Although the call log entries received have 10 digits (the

area code plus the seven-digit number), in some areas, you

may need to dial only the seven digits, or a 1 plus the seven

digits, or a 1 plus the area code plus the seven digits. You

can change the number of digits that you dial from or store

in the call log.

While reviewing the call log, press # repeatedly to display

different dialing options for local and long distance numbers

before dialing or saving the telephone number in the directory.

See the example on the right.

You may also press 1 repeatedly to add or remove a 1 in

front of the telephone number before dialing or saving it in

the directory. See the examples on the right.

When the number displayed is in the correct format for dialing,

press /FLASH to call the number.

Dial a call log entry

When in the call log, press or to scroll to the desired

entry.

If the displayed number is not ready to dial, press # until it

is in the correct format.

Press /FLASH or to dial the entry.

595-9511

1-595-9511

800-595-9511

1-800-595-9511

www.vtechphones.com 29

Basic operation

Telephone operation

Saving or deleting

a number on

one handset will

automatically

update all other

handsets.

•

Save an entry to the directory

When in the call log, press or to scroll to the desired

entry.

Press MENU/SELECT.

You can edit the phone number, if necessary. Make sure

the number is in the correct dialing format for your area.

Press MENU/SELECT when done. Now, edit the name.

Press MENU/SELECT when done.

If the entry is already saved in the directory, the screen

will display ALREADY SAVED.

If there is no caller ID information, the screen will display

UNABLE TO SAVE.

Successful programming is indicated by SAVED on the

handset display along with a conrmation tone.

•

SAVED

UNABLE TO SAVE

ALREADY SAVED

www.vtechphones.com

Telephone operation

Delete from the call log

To delete one entry:

When in the call log, press or to scroll to the desired

entry.

Press MUTE/REMOVE to delete the selected entry. You

will hear a conrmation tone.

To delete all entries:

When in the call log, press or to scroll to the desired

entry.

Press and hold MUTE/REMOVE to delete the entire call log.

The screen displays DELETE ALL CALLS?

Press MENU/SELECT to confirm. You will hear a

conrmation tone.

- OR -

Press OFF/CLEAR to return to the previous menu if you

want to cancel the deletion.

4. DELETE ALL

CALLS?

www.vtechphones.com 31

Basic operation

Telephone operation

Displays: When:

PRIVATE NAME The caller is blocking the name information.

PRIVATE NUMBER The caller is blocking the telephone number

information.

PRIVATE CALLER The caller is blocking the name and number

information.

UNKNOWN NAME This caller’s name is unavailable.

UNKNOWN NUMBER

This caller’s number is unavailable.

UNKNOWN CALLER No call information is available about this caller.

Call log display screen messages

www.vtechphones.com

Telephone operation

Redial list

The telephone stores the ve most recently dialed numbers

on the redial list.

Once there are ve numbers stored on the redial list, the

oldest entry will be deleted to make room for the new

entry.

Entries are displayed in reverse chronological order, i.e.

from the newest entry to the oldest entry.

The redial list can be accessed by pressing REDIAL/PAUSE when the handset

is not in use.

Dial a redial entry

Press REDIAL/PAUSE, then press , or REDIAL/PAUSE repeatedly to

scroll to the desired number. You will hear an error tone when you reach the

beginning or end of the redial list.

Press /FLASH or to dial the number.

Delete from redial

Press REDIAL/PAUSE, then press , or REDIAL/PAUSE repeatedly to

scroll to the desired number.

Press MUTE/REMOVE to delete the selected entry. You will hear a conrmation

tone.

•

www.vtechphones.com 33

Basic operation

Answering system

Answering system and voicemail

Your telephone has both a digital answering system and voicemail indication.

Voicemail is offered by your telephone service provider (fees may apply). Your

telephone’s answering system and voicemail indication are independent features,

and each alerts you to new messages differently. For more information on the

voicemail indicators, see page 9. To listen to your voicemail, you typically dial

an access number provided by your telephone company, followed by a security

code or PIN. To listen to messages recorded on your digital answering system,

press /PLAY/STOP button on the telephone base.

If you subscribe to caller ID/call waiting service through your telephone service

provider, you can use your telephone answering system and voicemail together.

Set your answering system to answer calls at least two rings earlier than your

voicemail is set to answer. For example, set your voicemail to answer calls after

six rings and set your answering system to answer after four rings. Some voicemail

providers may program the delay before answering calls in seconds instead of

rings; in this case allow six seconds per ring when determining the appropriate

setting. By doing this, if you are on a call, or if the answering system is busy

recording a message and you receive another call, the second caller can leave

a voicemail message.

Message capacity

The answering system can record and store up to 99 messages. A message can

be up to four minutes in length. The total storage capacity for the announcement,

messages and memos is approximately 14 minutes. Messages will remain

available for replay until they are deleted.

www.vtechphones.com

Answering system

If you have caller

ID service, the

clock will be set

automatically with

incoming calls,

but you will need

to make sure the

year is correct.

See Set the clock

for instructions

on how to set the

year, time and day

manually.

Press and hold

/SKIP or

/REPEAT while

setting the minutes

or year to advance

or decrease by

increments of ten.

•

Activate the answering system

The answering system must be turned on to answer

and record messages. Press ANS ON/OFF to turn

the answering system on or off. If the answering

system is turned on, it will announce “Calls will be

answered,” and the ANS ON/OFF light will be on. If

the answering system is turned off, it will announce

“Calls will not be answered,” and the ANS ON/OFF

light will be off.

Set the clock

Prior to playing a message, the answering system announces when it was

received. Before using the answering system, set the year, time and day, so that

messages are dated correctly. If the clock is not set before new messages are

recorded, the system will announce “Time and day not set,” before each message

is played to remind you to set the clock.

Press CLOCK. The system announces the clock setting (e.g. year, time and

day), then announces: “To set the clock, press CLOCK.”

Press CLOCK. The system announces the current year.

Press /SKIP or /REPEAT until the system announces the correct year, then

press CLOCK. The system announces the current hour.

Press /SKIP or /REPEAT until the system announces the correct hour, then

press CLOCK. The system announces the current minute.

www.vtechphones.com 35

Basic operation

Answering system

Press /SKIP or /REPEAT until the system announces the correct minute,

then press CLOCK. The system announces the current day.

Press /SKIP or /REPEAT until the system announces the correct day, then

press CLOCK. After a conrmation tone, the system announces the new clock

setting and exits programming mode.

Answering system set up

The answering system uses voice prompts to guide you through feature set up.

Press /PLAY/STOP anytime to save and exit the SET UP menu.

Set number of rings

This feature allows you to select the number of rings before the answering

system answers. You can choose from two, four or six rings or toll saver. With

toll saver selected, the answering system answers after two rings if there have

new messages, and after four rings if there are no new messages.

To set the number of rings:

Press SET UP when the phone is not in use. The system announces the current

number of rings setting.

Press /SKIP or /REPEAT until the system announces the desired setting,

then press SET UP to save the setting and go to the next setting, or press

/PLAY/STOP to save and exit set up mode.

www.vtechphones.com

Answering system

Set number of rings (continued)

If you subscribe to caller ID/call waiting and voicemail service through your

telephone service provider, you can use your telephone answering system and

voicemail together. Set your answering system to answer calls at least two rings

earlier than your voicemail is set to answer. For example, set your voicemail

to answer calls after six rings and set your answering system to answer after

four rings. By doing this, if you are on a call, or if the answering system is busy

recording a message and you receive another call, the second caller can leave

a voicemail message.

Set telephone base ringer

This feature allows you to select the telephone base ringer volume level. You

can choose from HI (high), OF (off) or LO (low).

Press SET UP when the phone is not in use, until the system announces the

telephone base ringer setting.

Press /SKIP or /REPEAT until the system announces the desired telephone

base ringer volume level, then press SET UP to save the setting and go to the

next setting, or press /PLAY/STOP to save and exit set up mode.

www.vtechphones.com 37

Basic operation

Answering system

Set remote access code

A two-digit security code is required to access the answering system remotely

from any touch tone telephone. The preset code is 19. You can set the code

from 10 to 99.

To set the remote access code:

Press SET UP when the phone is not in use, until the system announces the

remote access code setting.

Press /SKIP or /REPEAT to change the remote access code by one, or

press and hold /SKIP or /REPEAT to change it by increments of ten. PressPress

SET UP to save the setting and go to the next setting, or press /PLAY/STOP

to save and exit set up mode.

Set message alert tone

This feature programs the system to beep every 10 seconds to alert you of new

messages. The tone will stop when all new messages have been reviewed.

To set the message alert tone:

Press SET UP when in idle mode until the system announces the message

alert tone setting.

Press /SKIP or /REPEAT to select on or off, then press SET UP to save

the setting and go to the next setting, or press /PLAY/STOP to save and

exit set up mode.

The answering

system must be

turned on for the

message alert

tone to function.

•

www.vtechphones.com

Answering system

Outgoing announcement

The outgoing announcement is the greeting callers hear when calls are answered

by the answering system.

The telephone is preset with a greeting that answers calls with “Hello, please

leave a message after the tone.” You can use this preset announcement, or

replace it with your own. While in the ANNC menu, press ANNC again to exit

at anytime.

Record your own announcement

Press ANNC when the phone is not in use, and the system will announce

“Announcement. Press PLAY or press RECORD.”

Press RECORD and the system announces, “Record after the tone. Press

STOP when you are done.”

After the tone, speak towards the microphone at the bottom front of the

telephone base from about nine inches away.

Press /PLAY/STOP when nished.

The answering system will automatically playback the newly recorded

announcement. Press /PLAY/STOP to stop the playback at anytime.

Press /PLAY/STOP again to replay the recorded announcement. Press

RECORD to record again (follow steps 2 through 4) if desired. Press ANNC

to exit programming mode.

Your

announcement

can be up to 90

seconds in length.

Announcements

shorter than two

seconds will not

be recorded.

•

www.vtechphones.com 39

Basic operation

Answering system

Play your announcement

Press ANNC when the phone is not in use and the system will announce

“Announcement. Press PLAY or press RECORD.”

Press /PLAY/STOP to play. You can press /PLAY/STOP again to stop

the playback.

Delete your announcement

Press ANNC when the phone is not in use, and the system will announce

“Announcement. Press PLAY or press RECORD.”

Press X/DELETE and the system will announce “Announcement deleted.”

When your

announcement

is deleted, calls

will be answered

with the preset

announcement.

•

www.vtechphones.com

Answering system

New message indication

The message display counter will ash when there are new answering system

messages.

If the new message alert tone is turned on, the telephone base will beep every

ten seconds when there are unreviewed messages.

Message playback

Press /PLAY/STOP to listen to messages.

Press /PLAY/STOP again to stop playback.

If you have new messages, you will hear only the new messages (oldest rst). If

there are no new messages, the system will play back all messages (oldest rst).

When playback begins, the total number of messages is announced, followed

by the day and time of the rst message to be played.

Options during playback

Press VOL / to adjust the speaker volume.to adjust the speaker volume.

Press /SKIP to skip to the next message.

Press /REPEAT to repeat the message currently playing. Press /REPEAT

twice to listen to the previous message.

Press X/DELETE to delete the current message. The system will advance to

the next message.

•

If the system

has less than

ve minutes of

recording time left,

the remaining time

will be announced.

If F is ashing

in the message

window, the

memory is full.

You will have

to delete some

messages before

new ones can be

recorded.

Only old

messages can be

deleted. Messages

can only be

deleted after they

are played.

•

www.vtechphones.com 41

Basic operation

Answering system

Delete all messages

Press X/DELETE when the phone is not in use. The system will announce “To

delete all old messages, press DELETE again.” Press X/DELETE again. All

previously heard messages will be erased.

Record and play memos

Memos are your own recorded messages used as reminders for yourself or others

using the same answering system. They are saved, played back and deleted in

the same way as incoming messages.

Record a memo

Press RECORD when the phone is not in use. The system announces, “Record

after the tone. Press STOP when you are done.”

After the tone, speak towards the microphone at the bottom front of the

telephone base from about nine inches away.

Press /PLAY/STOP when nished recording. The system will announce

“Recorded.”

Memo playback

Press /PLAY/STOP when the phone is not in use. See Options during playback

on page 40 for other options.

“Memory is full,”

will be announced

if you press

RECORD when

the memory is

full.

Each memo can

be up to four

minutes in length.

Memos shorter

than two seconds

will not be

recorded.

•

www.vtechphones.com

Answering system

Call screening

You can listen at the telephone base to a caller leaving a message. However, if

you want to silence the telephone base when messages are being recorded, set

the telephone base volume to its lowest level (1). Remember to raise the volume

in order to hear your messages during playback.

Call intercept

If you want to answer a call while a message is being recorded, press

/FLASH on the handset.

www.vtechphones.com 43

Basic operation

Answering system

Window displays: Descriptions:

0No messages.

1-99 Total number of old message(s) recorded.

0-99 (ashing) Total number of new and old message(s) recorded.

The telephone base may have lost and regained power.

The clock needs to be set.

1-99 & F (alternating) Memory is full with total number of messages recorded.

1-99 (counting) Elapsed time while recording memo or announcement (up to 90

seconds).

99 (ashing) Recording time exceeds 99 seconds.

1-99 (ashing) Current message number during new message playback.

1-99 Current message number during old message playback.

1-8Current volume level while adjusting.

10-99 Current remote access code while setting.

02, 04, 06, tS Current number of rings before answering while setting.

-- System is answering a call, or the time and date are being set, or being

accessed remotely.

-- (ashing) System is being programmed or initialized.

HI, LO or OF The telephone base ringer level while in set up mode.

Message window displays

If the memory is

full, the system

will answer

after 10 rings

and announce,

“Memory is full.

Enter the remote

access code.”

•

www.vtechphones.com

Answering system

If no key is pressed

after entering

remote access, new

messages will be

played automatically.

If there are no new

messages, all old

messages will be

played automatically.

Once the new

messages have

been played,

the system will

announce the help

menu options. If

no key is pressed

within 20 seconds,

the remote access

call is automatically

disconnected.

When the answering

system is turned

off, the telephone

will answer after 10

rings, and announce

“Please enter your

remote access

code.”

•

Remote access

A two-digit security code is required to access the system remotely from any

touch tone telephone. The preset code is 19; see page 37 to change it.

Dial your telephone number from any touch tone telephone.

When the system answers and begins playing your announcement, enter the

two-digit security code.

After hearing a double beep, enter one of the following remote commands.

Hang up or press 8 to end the call.

Command Function

1 Play all messages.

2 Play only new messages.

3 Delete the current message (during playback).

33 Delete all messages.

4 Repeat the current message (during playback).

5 Stop.

*5 Hear a list of remote commands.

6 Skip to the next message (during playback).

*7 Record a new announcement.

8 End the call.

0 Turn the answering system on or off.

www.vtechphones.com 45

Appendix

Handset display screen messages

ALREADY SAVED The telephone number you have entered is already stored

in the directory.

CALL LOG EMPTY There are no call log entries.

CALLING HANDSET X

(for LS6125-3/LS6126-3/LS6125-4/LS6125-5/LS6126-5)

CALLING OTHER HANDSET

(for LS6125-2)

Calling another handset.

CONNECTING...

The cordless handset is searching for the telephone base.

CHARGING A handset with low battery has been placed in the

telephone base or charger to recharge.

DIRECTORY EMPTY There are no directory entries.

ENDED You have just ended a call.

HANDSET X IS CALLING

(for LS6125-3/LS6126-3/LS6125-4/LS6125-5/LS6126-5)

OTHER HANDSET IS CALLING

(for LS6125-2)

Another system handset is calling.

INTERCOM The handset is on an intercom call.

INCOMING CALL There is an incoming call.

INTERCOM ENDED The handset has ended an intercom call.

LINE IN USE A handset or another telephone on the same line is in use.

LIST FULL The directory is full.

LOW BATTERY The battery needs to be recharged.

www.vtechphones.com

Handset display screen messages

MICROPHONE ON MUTE has been turned off and the person on the other end can

hear you.

MUTED The microphone is muted temporarily during a conversation.

NEW VOICE MAIL There are new voicemail message(s) from the local telephone

company.

NO LINE There is no telephone line connected.

NO SIGNAL, CALL ENDED Communication between handset and telephone base is lost

during a call.

NOT AVAILABLE

AT THIS TIME

One handset is already viewing the call log or directory and

another handset attempts to review it.

OUTSIDE CALL Connected to the external call during call transfer.

**PAGING** FIND HANDSET on the telephone base has been pressed.

PHONE The handset is in use.

PLACE IN CHARGER The battery is very low. The handset should be placed in the

telephone base or charger.

RINGER MUTE The ringer is muted temporarily during incoming call.

SAVED Your operation has been saved.

SPEAKER The handset speakerphone is in use.

UNABLE TO CALL

TRY AGAIN

You have attempted to make an intercom call, but the handset

you are calling is in the directory, in the call log, out of range or

on an external call.

www.vtechphones.com 47

Appendix

Handset display screen messages

UNABLE TO SAVE You are attempting to save caller ID entry with no name or

number.

WARNING

CHECK BATTERY!

The battery is not installed or not installed properly in the handset.

-OR -

The battery needs to be replaced.

-OR -

An incorrect battery has been installed. Use only the supplied

VTech battery or equivalent.

XX MISSED CALLS There are unreviewed calls in your call log.

Handset and telephone base indicators

Telephone base lights

Handset lights

IN USE Flashes when there is an incoming call or another telephone on the same

line is in use.

On when the handset is in use.

•

VOICEMAIL Flashes when you have new voicemail. Voicemail is offered by your telephone

service provider.

•

ANS ON/OFF On when the answering system is on.•

On when the handset speakerphone is in use.•

CHARGE On when the handset is in the telephone base or charger and is charging.•

www.vtechphones.com

Handset icons

MUTE Microphone is muted.•

Ringer off.•

NEW New call log entries.•

NEW VOICE MAIL New voicemail received from the local telephone company.•

SPEAKER In speakerphone mode.•

Battery indicator

Cycles (low, medium, and full) when the handset battery is charging.

Flashes when the battery is low and needs charging.

Displays solid when the battery is fully charged.

•

Handset and telephone base indicators

www.vtechphones.com 49

Appendix

Battery

It takes up to 16 hours for the battery to be fully charged. When it is fully charged, you can expect the following performance:

Operation Operating time

While in handset use (talking*) Eight hours

While in speakerphone mode (talking*) One and a half hours

While not in use (standby**) Four and a half days

*Operating times are approximate. Your results may vary.

**Handset is off the telephone base but not in use.

The battery needs charging when:

A new battery is installed in the handset.

The handset beeps.

LOW BATTERY is displayed and the battery indicator on the handset screen is ashing.

CAUTION:

To reduce the risk of re or injury, read and follow these instructions:

Use only the battery(ies) provided or equivalent. To order a replacement, visit our website at www.vtechphones.com or call 1 (800) 595-

9511. In Canada, go to www.vtechcanada.com or call 1 (800) 267-7377.

Do not dispose of the battery(ies) in a re. They may explode. Check with local waste management codes for special disposal

instructions.

Do not open or mutilate the battery(ies). Released electrolyte is corrosive and may cause burns or injury to the eyes or skin. The electrolyte

may be toxic if swallowed.

Exercise care in handling batteries in order not to create a short circuit with conductive materials such as rings, bracelets, and keys. The

battery and/or conductor may overheat and cause burns.

Charge the battery(ies) provided with or identied for use with this product only in accordance with the instructions and limitations specied

in this manual.

WARNING:

TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO WATER OR ANY TYPE OF MOISTURE.

•

www.vtechphones.com

Important safety instructions

When using your telephone equipment, basic safety precautions should always be followed to reduce the risk of re, electric shock and

injury, including the following:

Read and understand all instructions.

Follow all warnings and instructions marked on the product.

Unplug this product from the wall outlet before cleaning. Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.

Do not use this product near water (for example, near a bathtub, kitchen sink, or swimming pool).

Do not place this product on an unstable table, shelf, stand or other unstable surfaces.

Slots and openings in the back or bottom of the telephone base and handset are provided for ventilation. To protect them from overheating,

these openings must not be blocked by placing the product on a soft surface such as a bed, sofa or rug. This product should never be

placed near or over a radiator or heat register. This product should not be placed in any area where proper ventilation is not provided.

This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power

supply in your home, consult your dealer or local power company.

Do not allow anything to rest on the power cord. Do not install this product where the cord may be walked on.

Never push objects of any kind into this product through the slots in the telephone base or handset because they may touch dangerous

voltage points or create a short circuit. Never spill liquid of any kind on the product.

To reduce the risk of electric shock, do not disassemble this product, but take it to an authorized service facility. Opening or removing

parts of the telephone base or handset other than specied access doors may expose you to dangerous voltages or other risks. Incorrect

reassembling can cause electric shock when the product is subsequently used.

Do not overload wall outlets and extension cords.

Unplug this product from the wall outlet and refer servicing to an authorized service facility under the following conditions:

When the power supply cord or plug is damaged or frayed.

If liquid has been spilled onto the product.

If the product has been exposed to rain or water.

If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the

operation instructions. Improper adjustment of other controls may result in damage and often requires extensive work by an authorized

technician to restore the product to normal operation.

If the product has been dropped and the telephone base and/or handset has been damaged.

If the product exhibits a distinct change in performance.

Avoid using a telephone (other than cordless) during an electrical storm. There is a remote risk of electric shock from lightning.

Do not use the telephone to report a gas leak in the vicinity of the leak.

Only put the handset of your telephone next to your ear when it is in normal talk mode.

The power adapters are intended to be correctly oriented in a vertical or oor mount position. The prongs are not designed to hold the

plug in place if it is plugged into a ceiling or an under-the-table/cabinet outlet.

SAVE THESE INSTRUCTIONS

10.

11.

12.

13.

14.

15.

16.

www.vtechphones.com 51

Appendix

Troubleshooting

If you have difculty with your telephone, please try the suggestions below. For Customer Service, visit

our website at www.vtechphones.com, or call 1 (800) 595-9511; in Canada, call 1 (800) 267-7377.

Problem Suggestion

My telephone does not

work at all.

Make sure the battery is installed and charged correctly (page 3). For optimum daily

performance, return the handset to the telephone base or charger after use.

Make sure the power adapter is securely plugged into an outlet not controlled by a wall switch.

Make sure the telephone line cord is plugged rmly into the telephone base and the telephone

wall jack.

Unplug the electrical power to the telephone base. Wait for approximately 15 seconds,

then plug it back in. Allow up to one minute for the cordless handset and telephone base to

synchronize.

Charge the battery in the handset for up to 16 hours.

Remove and re-insert the battery. If that still does not work, it may be necessary to purchase

a new battery.

Disconnect the telephone base from the telephone wall jack and plug in a working telephone.

If the other telephone does not work, the problem is probably in the wiring or the local service.

Call the local telephone company.

•

LOW BATT E RY i s

displayed on screen.

Place the handset in the telephone base or charger for recharging.

Remove and re-install the battery and use it normally until fully discharged, then recharge the

handset on the telephone base or charger for up to 16 hours.

If the above measures do not correct the problem, the battery may need to be replaced.

•

www.vtechphones.com

Troubleshooting

Problem Suggestion

The battery does not

charge in the handset

or the handset battery

does not accept

charge.

Make sure the handset is placed in the telephone base or charger correctly. The CHARGE

light on the handset should be on.

Remove and reinstall the battery, then charge for up to 16 hours.

If the handset is in the charger or in the telephone base but the CHARGE light on the handset

is not on, refer to The CHARGE light is off in this section.

It may be necessary to purchase a new battery. Please refer to the Battery section (page 49)

of this user’s manual.

•

The CHARGE light is

off.

Clean the charging contacts on the handset(s) and telephone base each month using a pencil

eraser or a dry non-abrasive fabric.

Make sure the power adapter and telephone line cords are plugged in correctly and securely.

Unplug the power adapter. Wait for 15 seconds before plugging it back in. Allow up to one

minute for the handset and telephone base to reset.

•

There is no dial tone. First, try all the above suggestions.

Move the handset closer to the telephone base. It might be out of range.

The telephone line cord might be malfunctioning. Try installing a new telephone line cord.

Disconnect the telephone base from the telephone wall jack and connect a different telephone.

If there is no dial tone on this telephone either, the problem is in your wiring or local service.

Contact your local telephone company.

•

www.vtechphones.com 53

Appendix

Troubleshooting

Problem Suggestion

The telephone does not

ring when there is an

incoming call.

Make sure the handset ringer is on (page 6) and the telephone base ringer is on (page 36).

Make sure the telephone line cord and power adapter are plugged in properly (page 2).

The handset may be too far from the telephone base. Move it closer to the telephone base.

There may be too many extension phones on the telephone line to allow all of them to ring

simultaneously. Try unplugging some of them.

If the other telephones in your home are having the same problem, the problem is in the wiring

or local service. Contact the local telephone company (charges may apply).

Other electronic products can cause interference to your cordless telephone. Try installing your

telephone as far away as possible from the following electronic devices: wireless routers, radios,

radio towers, pager towers, cellular telephones, digital telephones, intercoms, room monitors,

televisions, VCRs, personal computers, kitchen appliances, and other cordless telephones.

Test a working telephone at the telephone wall jack. If another telephone has the same problem,

the problem is in the telephone wall jack. Contact your local telephone company (charges may

apply).

The telephone line cord might be malfunctioning. Try installing a new telephone line cord.

Re-install the battery and place the handset in the telephone base.

Wait for the handset to synchronize with the telephone base. Allow up to one minute for this

to take place.

•

www.vtechphones.com

Troubleshooting

Problem Suggestion

I cannot dial out. First, try all the above suggestions.

Make sure there is a dial tone before dialing. It is normal if the handset takes a second or two

to synchronize with the telephone before producing a dial tone. Wait an extra second before

dialing.

If the other telephones in your home are having the same problem, the problem is in the wiring

or local service. Contact your local telephone company (charges may apply).

Eliminate any background noise. Noise from a television, radio, or other appliances may cause

the telephone not to dial out properly. If you cannot eliminate the background noise, rst try

muting the cordless handset before dialing, or dialing from another room in your home with

less background noise.

•

My handset beeps

and is not performing

normally.

Make sure the power cord is securely plugged into the telephone base. Plug the telephone

base into a different working electrical outlet not controlled by a wall switch.

Move the handset closer to the telephone base. It may be out of range.

Reset the telephone base by unplugging the electrical power to the base. Wait for 15 seconds

and plug it back in again. Allow up to one minute for the cordless handset and the telephone

base to synchronize.

Other electronic products can cause interference to your cordless telephone. Try installing

your telephone as far away from these electronic devices as possible: wireless routers, radios,

radio towers, pager towers, cellular telephones, intercoms, room monitors, televisions, personal

computers, kitchen appliances and other cordless telephones.

•

The speakerphone

call quality is poor.

For better call quality, we recommend that the handset be placed on a table with the dialing

keys facing up when using the speakerphone.

•

www.vtechphones.com 55

Appendix

Troubleshooting

Problem Suggestion

There is interference

during a telepho ne

conversation.

My calls fade out when

I am using the cordless

handset.

The handset may be out of range. Move it closer to the telephone base.

Do you have DSL service? If yes, you need to have a DSL lter installed at every telephone

wall jack that has a telephone connected to it (page 2). Contact your DSL service provider for

lter information.

Appliances or other cordless telephones plugged into the same circuit as the telephone base

can cause interference. Try moving the appliance or telephone base to another outlet.

Other electronic products can cause interference to your cordless telephone. Try installing your

telephone as far away as possible from the following electronic devices: wireless routers, radios,

radio towers, pager towers, cellular telephones, digital telephones, intercoms, room monitors,

televisions, VCRs, personal computers, kitchen appliances, and other cordless telephones.

If your telephone is plugged in with a modem or a surge protector, plug the telephone (or

modem/surge protector) into a different location. If this doesn’t solve the problem, re-locate

your telephone or modem farther apart from each other, or use a different surge protector.

The location of your telephone base can impact the performance of your cordless phone. For

better reception, install the telephone base in a centralized location within your home or ofce,

away from walls or other obstructions. In many environments, elevating the telephone base

will improve overall performance.

Disconnect the telephone base from the telephone wall jack and plug in a corded telephone.

If calls are still not clear, the problem is probably in the wiring or local service. Contact your

local service company (charges may apply).

If the other telephones in your home are having the same problem, the problem is in the wiring

or local service. Contact the local telephone company (charges may apply).

•

www.vtechphones.com

Troubleshooting

Problem Suggestion

I hear other calls when

using the telephone.

Disconnect the telephone base from the telephone wall jack. Plug in a different telephone. If

you still hear other calls, the problem is probably in the wiring or local service. Call your local

telephone company.

•

I hear noise on the

cordless handset, and

none of the keys or

buttons works.

Make sure the telephone line cord is plugged in securely.•

My caller ID features are

not working properly.

Caller ID is a subscription service. You must subscribe to this service from your local telephone

company for this feature to work on your telephone.

The caller may not be calling from an area which supports caller ID.

Both you and the caller’s telephone companies must use equipment which are compatible

with the caller ID service.

The caller ID information will be displayed after the rst or second ring.

If you subscribe to DSL service, install a DSL lter to the telephone line between the telephone

base and the telephone line jack. Contact your DSL service provider for lter information.

•

The system does not

receive caller ID or

the system does not

display caller ID during

call waiting.

Make sure you subscribe to caller ID with call waiting features provided by the local telephone

company.

The caller may not be calling from an area which supports caller ID.

Both you and the caller’s telephone companies must use equipment which are compatible

with caller ID service.

If you subscribe to DSL service, install a DSL lter to the telephone line between the telephone

base and the telephone line jack. Contact your DSL service provider for lter information.

•

www.vtechphones.com 57

Appendix

Troubleshooting

Problem Suggestion

Caller ID entries do not

match the numbers I

need to dial.

Although the call log entries you receive have 10 digits, (the area code plus the seven-digit

number), in some areas, you may need to dial only the seven digits, or a 1 plus the seven digits,

or a 1 plus the area code plus the seven digits. You can change the number of digits that you

dial from or store in the call log.

While reviewing the call log, press # repeatedly to display these dialing options for local and

long distance numbers before dialing or saving the telephone number.

•

CONNECTING... is

shown in the handset

display window. Why

don’t I get a dial tone

when I try to use this

telephone?

The handset may be out of range. Move it closer to the telephone base.

Make sure the power cord is securely plugged into the telephone base. Use a working electrical

outlet that is not controlled by a wall switch.

Reset your telephone by unplugging the power adapter from the telephone base. Disconnect

the battery from the cordless handset. Wait for 15 seconds, then plug in the power adapter

and re-install the battery. Place the handset in the telephone base and allow up to one minute

for the handset and telephone base to synchronize.

Other electronic products may prevent your handset and telephone base from communicating

with each other. Try installing your telephone base as far away from these electronic devices as

possible: wireless routers, radios, radio towers, pager towers, cellular telephones, intercoms,

room monitors, televisions, personal computers, kitchen appliances and other cordless

telephones.

•

www.vtechphones.com

Troubleshooting

Problem Suggestion

The answering system

does not answer after

the number of rings

which I programmed it.

Make sure the answering system is on. When the answering system is on, the red light on the

ANS ON/OFF key should be lit.

If Toll Saver is activated, the number of rings changes to two when there are new messages

waiting (page 35).

If the memory is full or if the answering system is off, the system will answer after ten rings.

In some cases, the answering system will be affected by the ringing system used by the local

telephone company.

•

The outgoing

announcement is not

clear.

When recording the announcement, make sure you speak in a normal tone of voice about nine

inches from the telephone base.

Make sure there is no background noise (television, music, trafc, etc.) when recording.

•

The messages on the

system are very difcult

to hear.

Press VOL on the telephone base to increase the speaker volume.on the telephone base to increase the speaker volume.•

The answering system

does not record

messages.

Make sure the answering system is on.

If the answering machine memory is full, it will not record new messages until some old

messages are deleted.

•

The messages on the

answering system are

incomplete.

If a caller leaves a very long message, part of it may be lost when the system disconnects the

call after four minutes.

If the memory on the system becomes full during a message, the system stops recording and

disconnects the call.

If the caller’s voice is very soft, the system may stop recording and disconnect the call.

•

www.vtechphones.com 59

Appendix

Troubleshooting

Problem Suggestion

The answering system

does not respond to

remote commands.

Make sure your remote access code is correct (page 37).

Make sure you are calling from a touch-tone telephone. When dialing a number, there should

be tones. If there are clicks, then it is not a touch-tone telephone and cannot activate the

answering system.

The answering system may not detect the remote access code when your announcement is

playing. Wait until the announcement is over before entering the code.

There may be interference on the telephone line you are using. Press the dial pad keys rmly

when dialing.

•

Common cure for

electronic equipment.

If the telephone is not responding normally, try putting the cordless handset in the telephone

base or the charger. If it does not respond, try the following (in the order listed):

Disconnect the power to the telephone base.

Disconnect the battery on the cordless handset.

Wait a few minutes before connecting power to the telephone base.

Re-install the battery and place the cordless handset in the telephone base or charger.

Wait for the cordless handset to synchronize its connection with the telephone base. Allow up

to one minute for this to take place.

•

www.vtechphones.com

Operating range

This cordless telephone operates with the maximum power allowed by the Federal Communications Commission (FCC). Even so, this handset

and telephone base can communicate over only a certain distance - which can vary with the locations of the telephone base and handset, the

weather, and the layout of your home or ofce.

When the handset is out of range, the handset will display CONNECTING...

If there is a call while the handset is out of range, it might not ring; or if it does ring, the call might not connect well when you press /FLASH.

Move closer to the telephone base, then press /FLASH to answer the call.

If the handset moves out of range during a telephone conversation, there might be interference.

To improve reception, move closer to the telephone base.

Maintenance

Taking care of your telephone

Your cordless telephone contains sophisticated electronic parts, so it must be treated with care.

Avoid rough treatment

Place the handset down gently. Save the original packing materials to protect your telephone if you ever need to ship it.

Avoid water

Your telephone can be damaged if it gets wet. Do not use the handset outdoors in the rain, or handle it with wet hands. Do not install the

telephone base near a sink, bathtub or shower.

Electrical storms

Electrical storms can sometimes cause power surges harmful to electronic equipment. For your own safety, take caution when using electrical

appliances during storms.

Cleaning your telephone

Your telephone has a durable plastic casing that should retain its luster for many years. Clean it only with a soft cloth slightly dampened with

water or a mild soap. Do not use excess water or cleaning solvents of any kind.

Remember that electrical appliances can cause serious injury if used when you are wet or standing in the water. If the telephone base should

fall into the water, DO NOT RETRIEVE IT UNTIL YOU UNPLUG THE POWER CORD AND TELEPHONE LINE CORDS FROM THE WALL.

Then pull the unit out by the unplugged cords.

www.vtechphones.com 61

Appendix

About cordless telephones

Privacy: The same features that make a cordless telephone convenient create some limitations. Telephone calls are transmitted between

the telephone base and the cordless handset by radio waves, so there is a possibility that the cordless telephone conversations could be

intercepted by radio receiving equipment within range of the cordless handset. For this reason, you should not think of cordless telephone

conversations as being as private as those on corded telephones.

Electrical power: The telephone base of this cordless telephone must be connected to a working electrical outlet. The electrical outlet

should not be controlled by a wall switch. Calls cannot be made from the cordless handset if the telephone base is unplugged or switched

off, or if the electrical power is interrupted.

Potential TV interference: Some cordless telephones operate at frequencies that may cause interference to televisions and VCRs. To

minimize or prevent such interference, do not place the telephone base of the cordless telephone near or on top of a TV or VCR. If interference

is experienced, moving the cordless telephone farther away from the TV or VCR will often reduce or eliminate the interference.

Rechargeable batteries: This product contains either nickel-cadmium or nickel-metal hydride rechargeable batteries. Exercise care in

handling batteries in order not to create a short circuit with conducting material such as rings, bracelets, and keys. The battery or conductor

may overheat and cause harm. Observe proper polarity between the battery and the battery charger.

Nickel-metal hydride rechargeable batteries: Dispose of these batteries in a safe manner. Do not burn or puncture the battery. Like

other batteries of this type, if burned or punctured, they could release caustic material which could cause injury.

•

The RBRC® seal on the nickel-metal-hydride battery indicates that VTech Communications, Inc. is voluntarily participating

in an industry program to collect and recycle these batteries at the end of their useful lives, when taken out of service

within the United States and Canada.

The RBRC® program provides a convenient alternative to placing used nickel-metal-hydride batteries into the trash or

municipal waste, which may be illegal in your area.

VTech’s participation in RBRC® makes it easy for you to drop off the spent battery at local retailers participating in the

RBRC® program or at authorized VTech product service centers. Please call 1-800-8-BATTERYTM for information on

Ni-MH battery recycling and disposal bans/restrictions in your area. VTech’s involvement in this program is part of its

commitment to protecting our environment and conserving natural resources.

RBRC® is a registered trademark of Rechargeable Battery Recycling Corporation.

The RBRC® seal

www.vtechphones.com

Warranty

What does this limited warranty cover?

The manufacturer of this VTech Product warrants to the holder of a valid proof of purchase (“Consumer” or “you”) that the Product and all

accessories provided in the sales package (“Product”) are free from defects in material and workmanship, pursuant to the following terms

and conditions, when installed and used normally and in accordance with the Product operating instructions. This limited warranty extends

only to the Consumer for Products purchased and used in the United States of America and Canada.

What will VTech do if the Product is not free from defects in materials and workmanship during the limited warranty period

(“Materially Defective Product”)?

During the limited warranty period, VTech’s authorized service representative will repair or replace at VTech’s option, without charge, a

Materially Defective Product. If we repair the Product, we may use new or refurbished replacement parts. If we choose to replace the Product,

we may replace it with a new or refurbished Product of the same or similar design. We will retain defective parts, modules, or equipment.

Repair or replacement of the Product, at VTech’s option, is your exclusive remedy. VTech will return the repaired or replacement Products

to you in working condition. You should expect the repair or replacement to take approximately 30 days.

How long is the limited warranty period?

The limited warranty period for the Product extends for ONE (1) YEAR from the date of purchase. If VTech repairs or replaces a Materially

Defective Product under the terms of this limited warranty, this limited warranty also applies to repaired or replacement Product for a period

of either (a) 90 days from the date the repaired or replacement Product is shipped to you or (b) the time remaining on the original one-year

warranty; whichever is longer.

What is not covered by this limited warranty?

This limited warranty does not cover:

1. Product that has been subjected to misuse, accident, shipping or other physical damage, improper installation, abnormal operation or

handling, neglect, inundation, re, water or other liquid intrusion; or

2. Product that has been damaged due to repair, alteration or modication by anyone other than an authorized service representative of

VTech; or

3. Product to the extent that the problem experienced is caused by signal conditions, network reliability, or cable or antenna systems; or

4. Product to the extent that the problem is caused by use with non-VTech accessories; or

5. Product whose warranty/quality stickers, product serial number plates or electronic serial numbers have been removed, altered or rendered

illegible; or

6. Product purchased, used, serviced, or shipped for repair from outside the United States of America or Canada, or used for commercial or

institutional purposes (including but not limited to Products used for rental purposes); or

7. Product returned without a valid proof of purchase (see item 2 below); or

www.vtechphones.com 63

Appendix

8. Charges for installation or set up, adjustment of customer controls, and installation or repair of systems outside the unit.

How do you get warranty service?

To obtain warranty service in the United States of America, please call 1 (800) 595-9511. In Canada, please call 1 (800) 267-7377. NOTE:

Before calling for service, please review the user’s manual - a check of the Product’s controls and features may save you a service call.

Except as provided by the applicable law, you assume the risk of loss or damage during transit and transportation and are responsible for

delivery or handling charges incurred in the transport of the Product(s) to the service location. VTech will return repaired or replaced Product

under this limited warranty. Transportation, delivery or handling charges are prepaid. VTech assumes no risk for damage or loss of the

Product in transit. If the Product failure is not covered by this limited warranty, or proof of purchase does not meet the terms of this limited

warranty, VTech will notify you and will request that you authorize the cost of repair prior to any further repair activity. You must pay for the

cost of repair and return shipping costs for the repair of Products that are not covered by this limited warranty.

What must you return with the Product to get warranty service?

1. Return the entire original package and contents including the Product to the VTech service location along with a description of the

malfunction or difculty; and

2. Include a “valid proof of purchase” (sales receipt) identifying the Product purchased (Product model) and the date of purchase or

receipt; and

3. Provide your name, complete and correct mailing address, and telephone number.

Other Limitations

This warranty is the complete and exclusive agreement between you and VTech. It supersedes all other written or oral communications

related to this Product. VTech provides no other warranties for this Product. The warranty exclusively describes all of VTech’s responsibilities

regarding the Product. There are no other express warranties. No one is authorized to make modications to this limited warranty and you

should not rely on any such modication.

State/Provincial Law Rights: This warranty gives you specic legal rights, and you may also have other rights, which vary from state to state

or province to province.

Limitations: Implied warranties, including those of tness for a particular purpose and merchantability (an unwritten warranty that the Product

is t for ordinary use) are limited to one year from the date of purchase. Some states/provinces do not allow limitations on how long an implied

warranty lasts, so the above limitation may not apply to you. In no event shall VTech be liable for any indirect, special, incidental, consequential,

or similar damages (including, but not limited to lost prots or revenue, inability to use the Product or other associated equipment, the cost

of substitute equipment, and claims by third parties) resulting from the use of this Product. Some states/provinces do not allow the exclusion

or limitation of incidental or consequential damages, so the above limitation or exclusion may not apply to you.

Please retain your original sales receipt as proof of purchase.

Warranty

www.vtechphones.com

FCC, ACTA and IC regulations

FCC Part 15

This equipment has been tested and found to comply with the requirements for a Class B digital device under Part 15 of the Federal

Communications Commission (FCC) rules. These requirements are intended to provide reasonable protection against harmful interference in

a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance

with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur

in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

Changes or modications to this equipment not expressly approved by the party responsible for compliance could void the user’s authority to

operate the equipment.

This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful

interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Privacy

of communications may not be ensured when using this telephone.

To ensure safety of users, the FCC has established criteria for the amount of radio frequency energy that can be safely absorbed by a user or

bystander according to the intended usage of the product. This product has been tested and found to comply with the FCC criteria. The handset

may be safely held against the ear of the user. The telephone base shall be installed and used such that parts of the user’s body other than

the hands are maintained at a distance of approximately 20 cm (8 inches) or more. If you choose to use a clipping device, please make sure to

only use the supplied VTech belt clip.

This Class B digital apparatus complies with Canadian ICES-003.

FCC Part 68 and ACTA

This equipment complies with Part 68 of the FCC rules and with technical requirements adopted by the Administrative Council for Terminal

Attachments (ACTA). The label on the back or bottom of this equipment contains, among other things, a product identier in the format US:

AAAEQ##TXXXX. This identier must be provided to your local telephone company upon request.

The plug and jack used to connect this equipment to premises wiring and the telephone network must comply with applicable Part 68 rules

and technical requirements adopted by ACTA. A compliant telephone cord and modular plug is provided with this product. It is designed to be

connected to a compatible modular jack that is also compliant. An RJ11 jack should normally be used for connecting to a single line and an

•

www.vtechphones.com 65

Appendix

FCC, ACTA and IC regulations

RJ14 jack for two lines. See Installation Instructions in the user’s manual.

The Ringer Equivalence Number (REN) is used to determine how many devices you may connect to your telephone line and still have them

ring when you are called. The REN for this product is encoded as the 6th and 7th characters following the US: in the product identier (e.g., if

## is 03, the REN is 0.3). In most, but not all areas, the sum of all RENs should be ve (5.0) or less. For more information, please contact your

local telephone company.

This equipment may not be used with Party Lines. If you have specially wired alarm dialing equipment connected to your telephone line, ensure

the connection of this equipment does not disable your alarm equipment. If you have questions about what will disable alarm equipment, consult

your telephone company or a qualied installer.

If this equipment is malfunctioning, it must be unplugged from the modular jack until the problem has been corrected. Repairs to this telephone

equipment can only be made by the manufacturer or its authorized agents. For repair procedures, follow the instructions outlined under the

Limited Warranty.

If this equipment is causing harm to the telephone network, the telephone company may temporarily discontinue your telephone service.

The telephone company is required to notify you before interrupting service. If advance notice is not practical, you will be notied as soon as

possible. You will be given the opportunity to correct the problem and the telephone company is required to inform you of your right to le a

complaint with the FCC. Your telephone company may make changes in its facilities, equipment, operation, or procedures that could affect the

proper functioning of this product. The telephone company is required to notify you if such changes are planned.

If this product is equipped with a corded or cordless handset, it is hearing aid compatible.

If this product has memory dialing locations, you may choose to store emergency telephone numbers (e.g., police, re, medical) in these

locations. If you do store or test emergency numbers, please:

Remain on the line and briey explain the reason for the call before hanging up.

Perform such activities in off-peak hours, such as early morning or late evening.

Industry Canada

Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any

interference, including interference that may cause undesired operation.

The term ‘’IC: ‘’ before the certication/registration number only signies that the Industry Canada technical specications were met.

The Ringer Equivalence Number (REN) for this terminal equipment is 0.1. The REN is an indication of the maximum number of devices

allowed to be connected to a telephone interface. The termination on an interface may consist of any combination of devices subject only to the

requirement that the sum of the RENs of all the devices does not exceed ve.

This product meets the applicable Industry Canada technical specications.

www.vtechphones.com

Technical specications

Frequency control Crystal controlled PLL synthesizer

Transmit frequency Handset: 1921.536-1928.448 MHz

Telephone base: 1921.536-1928.448 MHz

Channels 5

Nominal effective range Maximum power allowed by FCC and IC. Actual operating range may vary according

to environmental conditions at the time of use.

Size Handset: 6.20in X 1.81in X 0.74in (157.5mm X 46.0mm X 18.9mm)

Telephone base: 6.87in X 4.47in X 4.06in (174.5mm X 113.5mm X 103.0mm)

Charger: 3.13in X 4.10in X 3.31in (79.5mm X 104.0mm X 84.0mm)

Weight Handset: 3.59oz (101.8g) (including battery)

Telephone base: 9.83oz (278.6g)

Charger: 2.38oz (67.50g)

Power requirements Handset: 2.4V DC 500mAh Ni-MH battery

Telephone base: 6V DC @ 400mA

Charger: 6V DC @200mA

Memory Handset directory: 50 memory locations; up to 30 digits and 15 characters

Handset call log: 50 memory locations; up to 24 digits and 15 characters

www.vtechphones.com 67

Appendix

Index

Activate the answering system 34

Answer a call 10

Answer an incoming call during an

intercom call 18

Answering system set up 35

Battery 3, 49

Call intercept 42

Call log 26, 27, 28

Call log display screen messages 31

Call screening 42

Call waiting 11

Caller ID 25

Chain dialing 12

Character chart 21

Charging 3

Clear voice mail 9

Conference call 14

Delete messages from

answering system 40, 41

Delete from redial 32

Delete from the directory 24

Delete from the call log 30

Delete your announcement 39

Dial a call log entry 28

Dial a directory entry 22

Dial a redial entry 32

Directory 19

DSL lter 2

Edit a directory entry 23

End a call 10

FCC, ACTA and IC regulations 64

Find handset 12

Handset indicators 47

Handset display screen

messages 45

Intercom 13

Key tone 8

Language 8

Maintenance 60

Make a call 10

Make a call log entry ready to dial 28

Memo playback 41

Message capacity 33

Message playback 40

Message window displays 43

Missed calls indicator 27

Mute 11

New message indication 40

www.vtechphones.com

Operating range 60

Options during playback 40

Outgoing announcement 38

Parts checklist 1

Play your announcement 39

RBRC® seal 61

Record and play memos 41

Record your own announcement 38

Redial list 32

Remote access 44

Review the call log 27

Ringer mute 11

Ringer tone 7

Ringer volume - handset 6

Save an entry to the directory 29

Search the directory 22

Set message alert tone 37

Set number of rings 35

Set remote access code 37

Set telephone base ringer 36

Set the clock 34

Speakerphone 10

Store a directory entry 20

Switch between external and

intercom call 17

Technical specications 66

Telephone base indicators 47

Te l e p h o n e b a s e a n d c h a r g e r

installation 2

Transfer an external call 15

Troubleshooting 51

Voice mail 9

Volume 6, 10

Warranty 62

Index

VTECH TELECOMMUNICATIONS LTD.

A member of THE VTECH GROUP OF COMPANIES.

Distributed in the U.S.A. by VTech Communications, Inc. Beaverton, Oregon

Distributed in Canada by VTech Technologies Canada, Ltd., Richmond, B.C.

Printed in China.

91-001598-040-100

User’s manual

www.vtechphones.com

Models:

LS6125-2/LS6125-3/

LS6126-3/LS6125-4/

LS6125-5/LS6126-5

Vtech Ls6125 2 Users Manual

LS6126-5 to the manual 48354c6a-8fa6-42cb-8ddb-936869a0aecc

Navigation menu

Versions of this User Manual:

Views

Navigation
