Welcome to the User’s Guide for the Vyyo Inc. V284+A
Modem.

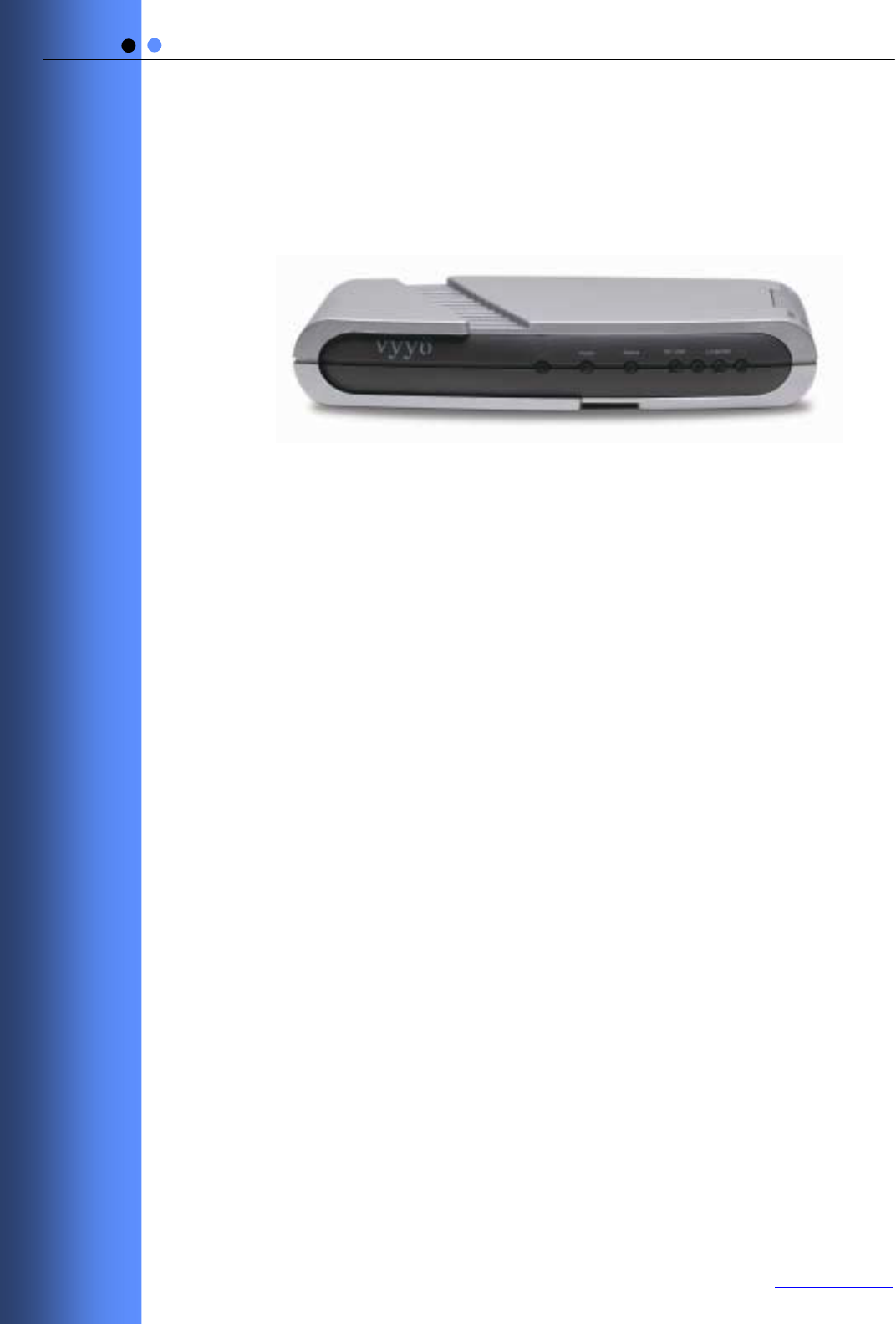

Figure 1-1: The Vyyo V284+A Wireless Modem Unit
1.1 Purpose of This User’s Guide
The purpose of this User’s Guide is to provide clear and
concise instructions for operating the Vyyo Inc. V284+A
modem.
1.2 Target Audience
This User’s Guide is intended for users of the V284+A
modem.
1.3 Vyyo
Vyyo Inc. provides fixed wireless broadband end-to-end
telephony and high-speed data connections to business and
residential subscribers. Vyyo Inc. technology uses point-to-
multipoint architecture to deliver circuit-switched telephony
and data over IP to commercial and private customers
throughout the world.
2
V
yy
ö V284+A WMU User’s
www.vyyo.com
2 M
ODEM
F
EATURES AND
C
OMPONENTS
The V284+A modem offers the following features:
• Point-to-multipoint broadband wireless Internet access
• Superior operations over a wide range of modulation formats
and IF bandwidths, including noisy channels
• Easy installation
• Robust RF performance
• Internal radio for UHF bands
2.1 Front Panel Indicators
Four Light Emitting Diode (L.E.D.) indicators are located at
the front of the modem.
The L.E.D.s provides information about the type and status of
modem operations, as described in Table 1.

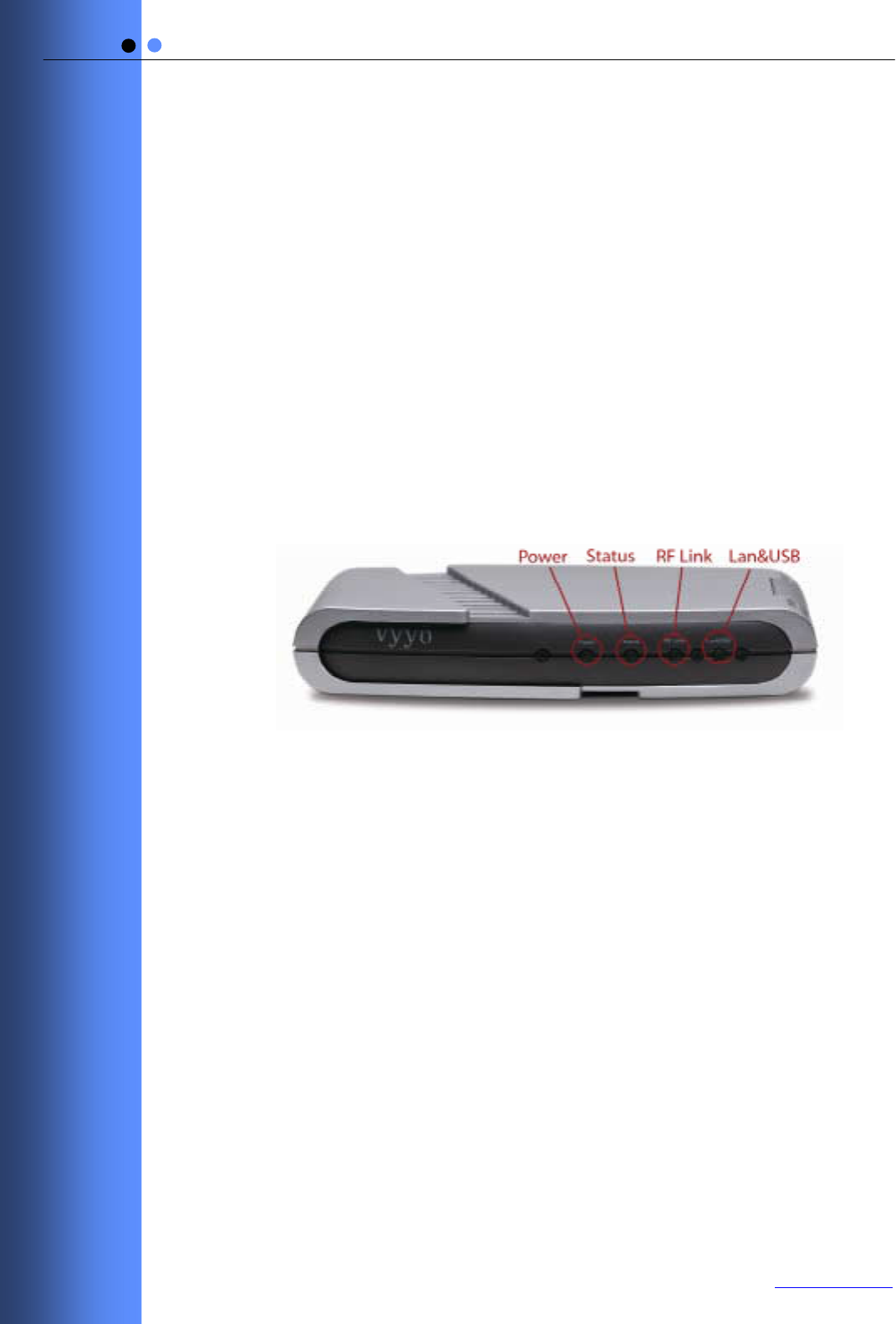

Figure 2-1: V284+A WMU Front Panel L.E.D. Indicators
3
V
yy
ö V284+A WMU User’s
www.vyyo.com
Table 2-1: L.E.D. Status and Functions
L.E.D. Indicator Function
POWER • On = Power On
• Off = Power Off
• Flashing = Fatal Error
STATUS • On = Modem is connected to the Internet
• Off = Modem is not connected to the Internet
RF LINK When Status L.E.D. is Off:
• RF On = The downstream link is operational
• RF Off = The modem has not yet begun
downstream acquisition, the
downstream link is idle, or there is a
problem with data reception
• RF Flashing = Downstream link is being acquired
When Status L.E.D. is On:
• RF Flashing = Data is transferring in either in the
Upstream or Downstream direction
LAN&
USB • On = The LAN link is operational
• Off = The LAN link is not operational
• Flashing = Data is transferring to or from the LAN
4
V
yy
ö V284+A WMU User’s
www.vyyo.com
2.2 Rear Panel Connectors
There are three connectors located on the rear panel of the
V284+A modem.

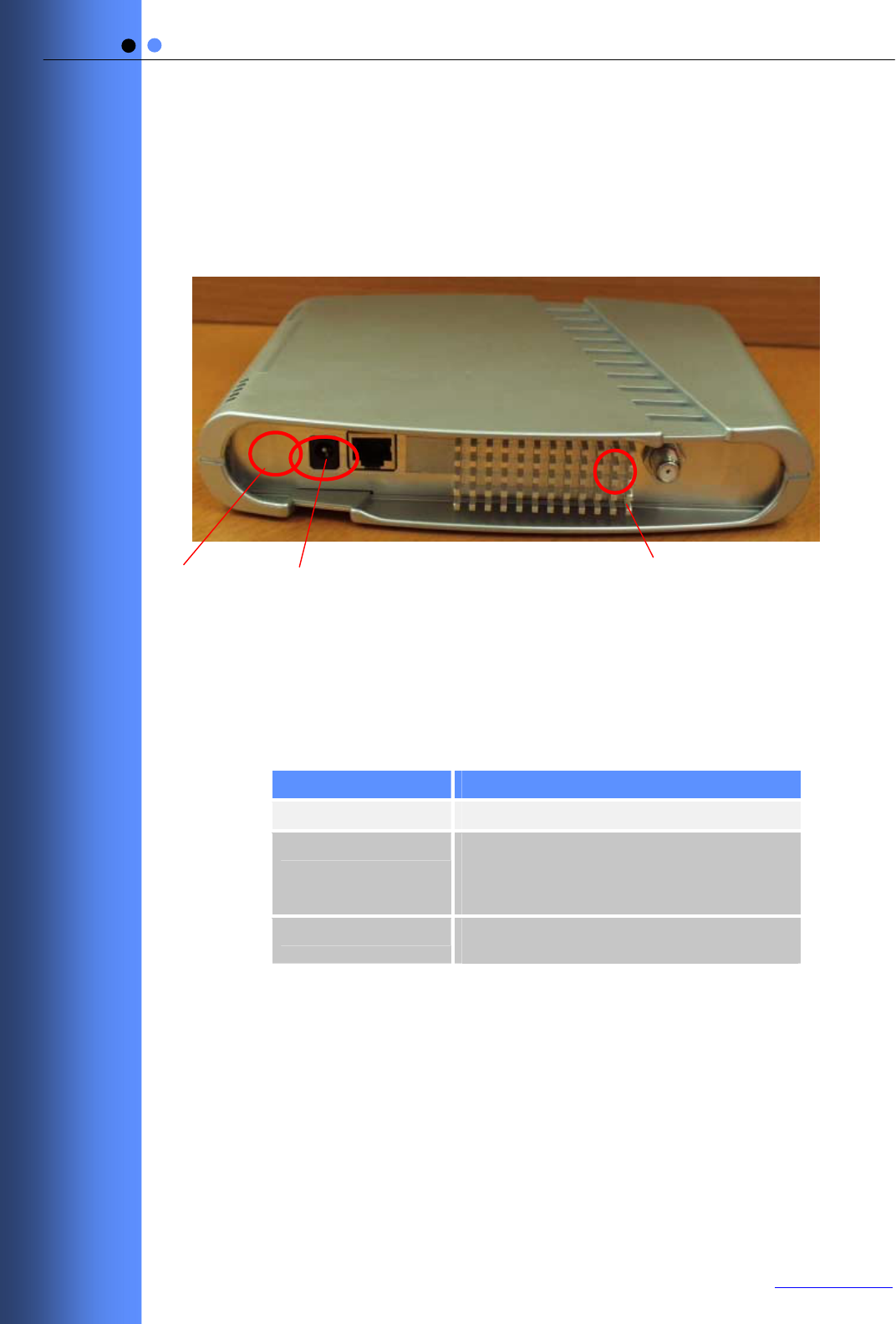

Figure 2-2: V284+A WMU Rear Panel Connectors
Connector or Button Function
POWER Connect the 12-volt external power source here.
LAN Connect an RJ-45 Ethernet cable to this port.
The other end of the cable can be connected to
the subscriber’s computer or an Ethernet hub or
switch.
Cable Connect this F-type connector to the UHF
antenna.
Table 2-2: V284+A Rear Panel Connectors
Power LAN RF Link
5
V
yy
ö V284+A WMU User’s
www.vyyo.com
3 U
SING THE
M
ODEM
Follow the steps below to use the modem properly.
To use the modem:
1 Check that the computer with which you are using the
V284+A modem contains a working Ethernet network card,
and has the following software installed and operational:
• Microsoft Windows 95 operating system or later
• Access to the Internet
• A standard Internet browser application
• The Telnet communications utility
2 Attach your computer to the modem’s LAN port with the
included RJ-45 Ethernet cable.
3 Connect the antenna cable to the CABLE connector on the
rear of the modem.
4 Plug the 9-Volt modem power supply jack into the POWER
socket on the rear of the modem, and plug the power
supply transformer unit into a standard electrical wall outlet.
Note: As with any household electrical device, avoid the risk of accidental
electrical shock. Make sure that your hands are completely dry and that there is
no moisture on the floor or other surfaces in the immediate area of the electrical
wall outlet.
After connecting the power adapter to the modem, verify that
the three green front panel LEDs light up for approximately 2
seconds before going out.
The orange POWER LED at the left of the front panel lights
up and remains lit, indicating that the modem is powered up.
WARNING: To comply with FCC RF exposure compliance requirements, the
modem should be located in a distance of at least 20 cm from all persons during
normal operation. The antennas used for this product, outdoor or indoor, must
be fixed mounted on permanent structures, providing a separation distance of at
least 20 cm from all persons during normal operation and must not be co-
located or operated in conjunction with any other antenna or transmitter.
6
V
yy
ö V284+A WMU User’s
www.vyyo.com
4 T
ECHNICAL
S
PECIFICATIONS
General
Dimensions 5.25 x 4.25 x 1.00 in. (13 x 11 x 2.5 cm)
Operating
Temperature 32 to 112° F (0 to 45° C)
Power 800 mA at 9V
Power Supply 110 - 220 VAC
LED Indicators (4) Power, Status, RF/Link, LAN/USB
Interface
Data Interface RJ45 – 10/100 baseT Ethernet full/half duplex
USB [Not currently supported]
IF Interface 75 ohm Type F Female Connector
IF
/RFCharacteristics
Downstream
Frequency Range 746 – 747 MHz Downstream Receive
Channel Bandwidth 330 KHz
Modulation Format QPSK, 16 QAM, & 64 QAM
Data Rates 583KHz– 1668 Kbps
Rx Sensitivity (dBm) BW
(KHz) 64 QAM 16 QAM QPSK
330 -87 -88 -88
IF
/RFCharacteristics
Upstream
Frequency Range 776 – 777 MHz
Channel Bandwidth 150 kHz
Modulation Format QPSK & 16QAM
Data Rates (Raw) 250 kbps – 1280 Kbps
RF Amplifier P1dB 32 dBm
Linear Output Power 27.6 dBm
7
V
yy
ö V284+A WMU User’s
www.vyyo.com
Service
Network Management Protocol: SNMP
MIB: RFC1213, RFC1493, RFC2233, RFC2669,
RFC2670, DOCSIS Privacy MIB
Provisioning: As per DOCSIS
Security Link Layer
Encryption: DES CBC, 40 and 56 Bits per user
Key
Distribution: Two-layer key distribution protocol, which
includes DES-ECB and RSA public key
encryption and HMAC-SHA1 authorization
Upstream QoS Committed
Information
Rate (CIR)
Supported
Peak
Information
Rate (PIR)
Supported
Downstream QoS Supports CIR and PIR
IP Protocols Network
Protocols: IP, ICMP, ARP, PPPoE, 802.1Q/p, IP
Multicast
VoIP: G711, G729, G723
Transport
Protocols: TCP, UDP, RTP
Application
Protocols: SNMP, TFTP, DHCP
# IP Data Services 64 CPE MAC
Addresses
Ordering Info
Part Number
220 VAC Power
Supply 3BR0013-A
110 VAC Power
Supply 3BR0012-A
8
V
yy
ö V284+A WMU User’s
www.vyyo.com
5 P
ROBLEM
T
ROUBLESHOOTING
If you encounter problems with your modem, try the following
steps.
1 Check for damage to the external modem casing during
shipping or installation. If you see visible damage, the
modem may need replacement.
2 Verify that the 9-Volt modem power supply jack is
connected to the modem POWER connector on the rear of
the modem, and that the modem power supply is
connected to a known-good AC power outlet.
3 Verify that the RF coaxial cable is connected properly to
the modem CABLE connector.
4 Verify that the modem LAN LED is illuminated and that the
LAN cable is connected to a working Ethernet network port
on the PC.
Following are further steps you can take to identify and
correct modem problems.
# Problem Description Possible Cause Potential
Resolutions
1 The LEDs do not light
up. • The DC plug
may not be
installed
correctly.
• The power
supply may not
be connected to
an active AC
power outlet.
• The power
supply may be
faulty.
1. Check the
connection of
the power
supply. Check
the wall outlet
with a working
lamp to see if
there is current.
2. Test the power
supply using
another
modem.
3. Replace the
power supply if
necessary.
9
V
yy
ö V284+A WMU User’s
www.vyyo.com
# Problem Description Possible Cause Potential
Resolutions
2 The LAN&USB LED
does not light up. • The connection
between the
modem and the
PC may be
faulty.
1. Check the
10/100BaseT
cable
connection.
2. Check the
network
configuration:
IP address,
Gateway,
DHCP, and
DNS.
3. Reset the
modem by
disconnecting
and
reconnecting
the power.
4. Replace the
NIC Ethernet
card.
5. Test the
connection
using another
modem or
network device.
3 The RF LINK LED is
blinking or off, and the
STATUS LED is off.
• There is no RF
signal. 1. Check coaxial
cables, power
inserter,
transformer,
antenna
direction and/or
splitter.
10
V
yy
ö V284+A WMU User’s
www.vyyo.com
6 W
ARRANTY
I
NFORMATION
The Vyyo Inc. Limited Warranty and related information can
be found in the terms and conditions and/or other contracts
under which this product was purchased.
11
V
yy
ö V284+A WMU User’s
www.vyyo.com
7 FCC
D
ECLARATION OF
C
ONFORMITY
The Responsible Party for this equipment is:
Company: VYYO Inc.
Address: 4015 Miranda Avenue, Palo Alto, CA. 94304
Country: USA
Telephone number: 001-650-3194037
Fax number: 001-650-3194066
VYYO Inc. hereby certifies and declares that the following equipment:
Brand Type Product description
VYYO V284+A UHF WIRELESS MODEM
Complies with Part 15 of the FCC Rules as an unintentional radiator. With respect
to its status as a Part 15 Class B digital device, operation of this equipment is
subject to the following two conditions: (1) this device may not cause harmful
interference, and (2) this device must accept any interference received, including
interference that may cause undesired operation.
Executed at:
VYYO Inc
4015 Miranda Avenue
Palo Alto, CA. 94304
USA
on September 20, 2005
VYYO Inc.
Dr. Mike Ritter
VP, Marketing
12
V
yy
ö V284+A WMU User’s
www.vyyo.com
8 C
ONTACTING
V
YYO
For further information about the V284+A WMU or other Vyyo
products, visit the Vyyo Website at:
www.vyyo.com .

Navigation menu
