User manual

Bluetoothspeaker

BT106

UserGuide

Accessories:

1. MicroUSBCable(forcharging)

2. 3.5mmAudiocable(AUX‐incable)

3. UserManual



BluetoothConnection:

Turnthespeakeronbylongpressthepowerswitchfor2‐3seconds.TheBlueLEDlightflashes

quickly,thenblueledflashquickly.ThespeakernowhasenteredtheBluetoothpairingmode.

1. Activateyourphone'sBluetooth

2. Gotoyourphone'sBluetoothsettings,scanfornewBluetoothdevices

3. Upondevicefound(BT106),clickthedevicenameandpairwithit

4. Ifyourphoneaskforpairingcode,pleaseenter”0000”andconfirm

5.Aftersuccessfulpairing,yourspeakerwillsoundaprompttoneandtheLED

lightsblue.

Note:Pairingtimeisvariedwithdifferentmobilephones.Itonlyneedtopairatthefirsttimeand

itwillautoconnectthedeviceswhichalreadypairedbefore(Speakeronlycanrememberthelast

8paringdevicesname)



AUX‐INfunction

ThespeakeralsofeaturesoneAUXaudioinport,simplyconnectthespeakerwithyour

non‐bluetoothmobilephone/MP3player/PC/laptopwiththe3.5'jackaudiocable.greenled

lightwillbeon,thenyoucanplaymusicviawiredconnection



Chargingandcomputerconnection:

ConnectthemicroUSBchargingcabletoacomputerorUSBcharger,redLedindication

forchargingstatus.

RedLEDgoesoffuponchargingfinished.(5‐6hoursforchargingtime.)

Lowpowerindication:SpeakerwillhaveGreenLEDlightandvoicehintremindyoutochargeif

batteryislow(batteryonlyleft10%).Userneedtochargethespeakertimely.



Specifications:



ThemeetBluetooth3.0ClassII,meetA2DPV1.2,AVRCPV1.4profilesagreement.

Transmissiondistance:upto10m(transmissiondistancemaydifferentaccordingto

environmentalfactorsandotherdevice'sfunctionalrange)

Maximumoutputpower:5W

Size：155*54*129mm

signaltonoiseratioS/N:≥80dB

FrequencyRange:160Hz‐20KHz

DistortionTHD:≤1%

speakerunit:outerdiameter52mm,innermagnet,4ohms,6W

Ratedvoltage:3.7VDC

Battery:built‐inlithiumbattery,3.7V/2000mA

Chargevoltage/Current:5V±0.25V.1A

Chargingtime:5‐6hours



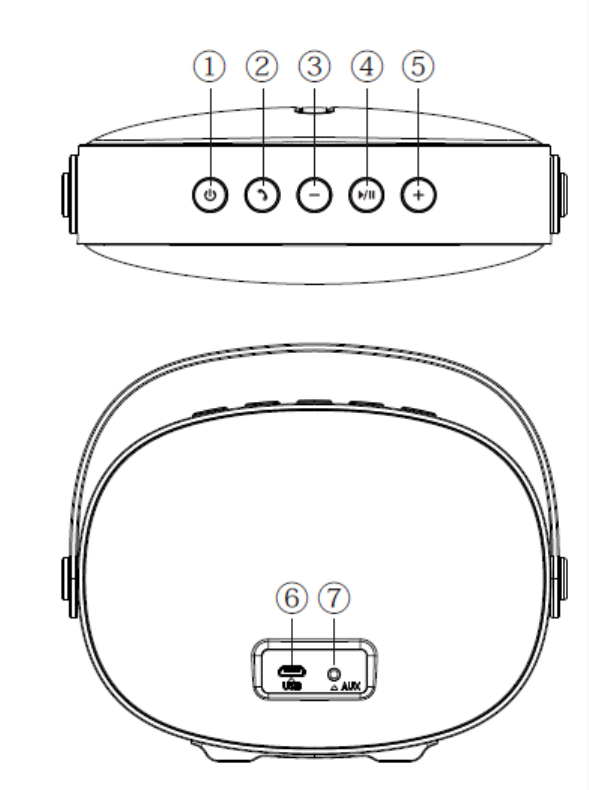

Handsfree,volume,skiptracksoperations:



1) Longpress2‐3secondsforPoweron/off

2) handsfree：Duringanincomingcall,shortpresstoanswerthephone,shortpress

againhandupphoneandbacktoplaymusic.presskeyfor2~3sectoredialthelastcall

phonenumber.

3) ShortpressforVolumeDown/longpressforPrevioussong

4) Play/pause:shortpressforplay/pause.

5) ShortpressforVolumeup/longpressforNextsong

6) MicroUSBforcharging

7) Aux‐injack

8) Disconnected:longpressthe“+”and“‐“togetherfor3‐4seconds

Note:

1.UnderBluetoothmodewhenthe3.5mmaudioplugisinsertedin,thespeakerwillswitchto

lineinstatusautomatically;

2.Pleaseswitchoffthespeakerifdon’tusetopreventpowerloss



LEDstatus:

1.Bluetoothstatus:bluelightflashingforpairing.Bluelightkeeponforconnectionstatus.

2.Lineinmode:greenlighton

3lowpowerindicate:greenLEDlightOn

4.Chargingstatus:redlighton

5.Chargingcompleted:redlightoff



Troubleshootings:



1.Mymobilephonecan'tfindanynewBluetoothdevice?

a)Makesurethebluetoothspeakerhasenteredpairingmode;

b)Ensurethespeakeriswithintheeffectiveworkingrange;



2.Bluetoothdevicescan'tpairup

a)Makesureyourmobilephoneallowsnewconnection,didnotreachthemaximumallowed

connectionnumber,pleasereftoyourmobile'susermanual

b)Makesurethepairingpasswordenteredis“0000’.IfyourareusingaBluetoothtransmitter

device,pleaseensuretherespondingpasswordofyourBluetoothtransmittersupports“0000”

code.



3.Myminispeakerdoesnotplaymusic/answercallwhenitconnectedtoaBluetoothmobile

phone?

a)MakesureyourBluetoothmobilephonesupportsA2DPandHSF(handsfree)profile;

b)EnsureyourBluetoothcellphoneiswithineffectiveworkingrange.



4.Whenpairedwithmycomputer,windowsaskfornewdriver?Canyousupply?

a)Wecan'tsupply.ThebluetoothA2DP/HSFdriversmayrequiredtoplaystereosoundvia

bluetoothconnection.ButthedriverisactuallyneededforthebluetoothmoduleonyourPC,

insteadofthespeaker.Differentbluetoothmodulemayrequiredifferentdrivers.Pleasecontact

yourPCorbluetoothmodule'smanufacturerfordriverupdate.



5.Whycan’tIremotelycontrolthepause,play,previoussongfunctionswiththespeakerwhen

playingmusic?

a)Whenyouareusing3.5mmAUXaudioinconnection,youcan’tpause,orskiptrackswiththe

buttonsonthespeaker;

b)ThisfeatureneedstheBluetoothdevicespairedwiththespeakertosupportAVRCP

(Audio/VideoRemoteControlProfile).PleasemakesureyourcellphoneorotherBluetooth

devicesupportsAVRCP.



SafetyNotices:

Readthefollowingrecommendationsbeforeusingthebluetoothspeaker.

a)Keepitdryanddon’ttakeittodampplacestoavoidtheproduct’sinternalcircuitbeing

affected.

b)Keeptheproductawayfromdirectsunlightorhotplaces.Hightemperatureswillshortenthe

lifeofelectronicdevices,destroythebatteryordistortcertainplasticparts.

c)Don’texposetheproducttoextremelycoldarea.Itmaydamagetheinternalcircuitboard.

d)Don’ttrytodisassembletheproductasitmaygetdamagedifyouarenotprofessional.e)

Don’tletitfalldownontothefloororotherhardsurfaces.Theinternalcircuitmightget

damaged.

f)Don’tuseintensivechemicalproductsordetergenttocleantheproduct.

g)Don’tscratchthesurfacewithsharptips.



FCCstatement

ThisdevicecomplieswithPart15oftheFCCrules.Operationissubjecttothefollowingtwo

conditions:1)thisdevicemaynotcauseharmfulinterference,and2)thisdevicemustacceptany

interferencereceived,includinginterferencethatmaycauseundesiredoperation.

Note:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigital

device,pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonable

protectionagainstharmfulinterferenceinaresidentialinstallation.

Thisequipmentgeneratesusesandcanradiateradiofrequencyenergyand,ifnotinstalledand

usedinaccordancewiththeinstructions,maycauseharmfulinterferencetoradio

communications.However,thereisnoguaranteethatinterferencewillnotoccurinparticular

installation.Ifthisequipmentdoescauseharmfulinterferencetoradioortelevisionreception,

whichcanbedeterminedbyturningtheequipmentoffandon,theuserisencouragedtotryto

correcttheinterferencebyoneormoreofthefollowingmeasures:

‐‐Reorientorrelocatethereceivingantenna.

‐‐Increasetheseparationbetweentheequipmentandreceiver.

‐‐Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris

connected.

‐‐Consultthedealeroranexperiencedradio/TVtechnicianforhelp.

Changesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecould

voidtheuser’sauthoritytooperatetheequipment.

FCCRadiationExposureStatement

ThisdevicecomplieswithFCCRFradiationexposurelimitssetforthforanuncontrolled

environment.Thistransmittermustnotbeco‐locatedoroperatinginconjunctionwithanyother

antennaortransmitter.
