WEIKING TECHNOLOGY BT19S BLUETOOTH SPEAKER User Manual
SHENZHEN WEIKING TECHNOLOGY CO.,LTD BLUETOOTH SPEAKER
User Manual
User Guide
Accessories:
1. Micro USB Cable ( for charging )
2. 3.5mm Audio cable ( AUX-in cable )
3. User Manual
Highlights :
BT19S is a compact Bluetooth speaker that can be wirelessly connected to Bluetooth
devices such as smartphones, tablets and computers to playback any music collection
stored on them. Thanks to its powerful battery, the system delivers full stereo sound,
separate from any mains supply, for up to 4-7 hours and is the perfect companion for the
park, whilst camping or on the beach. Process control, can get rid of complicated
connections and wiring distance constraints, the user can enjoy high quality music .
Bluetooth Connection:
Turn the speaker on by switching the power switch to 'ON' position. Followed by a tone,
the blue led light flashes quickly and the speaker's voice instructions has been activated
and it will tell you the speaker have been turned on and ready to use. The speaker now
has entered the Bluetooth pairing mode.
Connect to mobile phones/tablet PCs/computers:
1. Activate your phone's Bluetooth
2. Go to your phone's Bluetooth settings , scan for new Bluetooth devices
3. Upon device found (BT-19S), click the device name and pair with it
4. If your phone ask for pairing code , please enter ”0000” and confirm
5. The speaker will have voice instructions to remind that pairing is successful.(Pairing
time is around 1 minutes which is varied by the devices)
6. After successful pairing, your speaker will sound a prompt tone and the power LED
lights blue.
Note: Memory function: It only need to pair both Bluetooth device for initial use. It will
remember the previous devices name and searching for last device and pair
automatically.
Handsfree function:
Speaker will have the voice instruction for incoming call.Short Press to answer the
call and talk to speaker directly.Short press to end the call and back to play status.
Long press to reject the incoming call.Long press to dial back the last dialed
phone no if no phone conversation.
Low power indication: Speaker will have voice instruction if battery is low( battery voltage
is below 3.3V). User need to charge the speaker timely.
AUX audio-in connector:
The speaker also features 1x AUX audio in port, simply connect the speaker with your
non-bluetooth mobile phone/MP3 player/PC/laptop with the 3.5' jack audio cable, then you
can play music via wired connection
Charging and computer connection :
Connect the micro USB charging cable to a computer or USB charger, red Led
indication for charging status.
Red LED goes off upon charging finished. (2~3 hours for charging time.)
Specifications:
Speaker Interfaces:
Audio input connector: 3.5mm
AUX cable : support aux external audio input.
Charging interface: Micro USB
Dimensions And Basic Parameters:

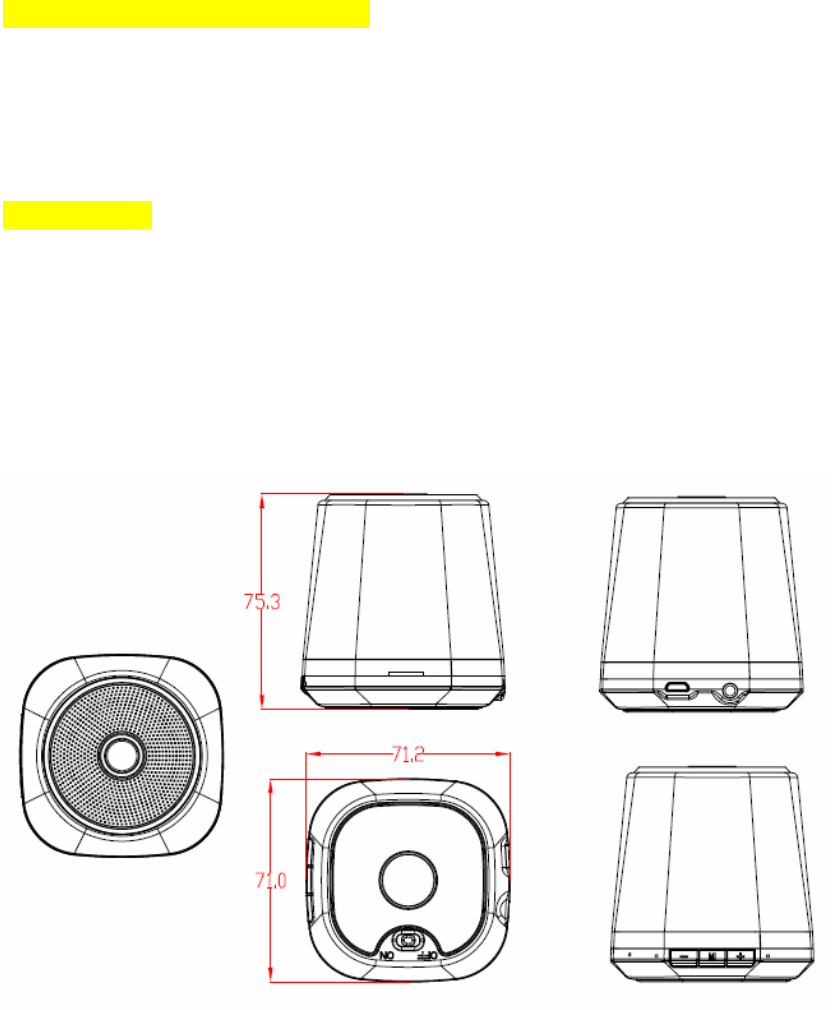

DIAMETER: 71.2 ± 0.5MM (MAX) * HEIGHT: 75.3 ± 0.5MM
Material: ABS plastic
Weight: 212g ± 5g
Electrical Specifications:
Compatibility:
Compliance with Bluetooth 2.1 Class II, support A2DP V1.2, AVRCP V1.4 profiles
agreement.
Transmission distance: up to 10 m (transmission distance may different according to
environmental factors and other device's functional range)
Support handsfree function.
Maximum output power: 3W
signal to noise ratio S / N: ≥ 80dB
Frequency Range: 180Hz-20KHz
Distortion THD: ≤ 1%
speaker unit: outer diameter 40mm, inner magnet, 4 ohms, 3W
Parameters of power:
Rated voltage: 3.7V DC
Battery: built-in lithium battery, 3.7V/500mA
Charge voltage: 5V ± 0.25V
Charging time: 2~3 hours
Handsfree , volume, operations(under Bluetooth connection) :
Function Operation
M Long press to disconnect the current Bluetooth
connection and searching for another new device and
pairing
For incoming call:
short press key to answer the phone,
short press again to end call and back to play music
long press to refuse the call
For music playing Short press for play and pause
Redial a call Long press key for 2~3 sec to redial the last call
phone number.
Powering ON Switch the power switch to ON position
Powering OFF Switch the power switch to OFF position
Volume + Long or short Press + key to increase volume
Volume - Long or short Press - key to decrease volume
Note :
1. Under Bluetooth mode when the 3.5mm audio plug is inserted in, the speaker will
switch to line in status automatically;
2. Please switch off the speaker if don’t use to save power
LED status:
1.Bluetooth status: blue light flashing
2. Line in mode: green light on
3. Charging status: red light on
4. Charging completed: red light off
Trouble shootings:
1. My mobile phone can't find any new Bluetooth device?
a) Make sure the bluetooth speaker has entered pairing mode;
b) Ensure the speaker is within the effective working range;
2.Bluetooth devices can't pair up
a) Make sure your mobile phone allows new connection, did not reach the maximum
allowed connection number, please ref to your mobile's user manual
b) Make sure the pairing password entered is “0000’. If your are using a Bluetooth
transmitter device, please ensure the responding password of your Bluetooth transmitter
supports “0000” code.
3. My mini speaker does not play music / answer call when it connected to a Bluetooth
mobile phone?
a) Make sure your Bluetooth mobile phone supports A2DP and HSF(handsfree) profile;
b) Ensure your Bluetooth cell phone is within effective working range.
4. When paired with my computer, windows ask for new driver? Can you supply?
a) We can't supply. The bluetooth A2DP/HSF drivers may required to play stereo sound
via bluetooth connection. But the driver is actually needed for the bluetooth module on
your PC, instead of the speaker. Different bluetooth module may require different drivers.
Please contact your PC or bluetooth module's manufacturer for driver update.
5. Why can’t I remotely control the pause, play, previous song and skip track functions
with the speaker when playing music?
a) When you are using 3.5mm AUX audio in connection, you can’t pause, change volume
or skip tracks with the buttons on the speaker;
b) This feature needs the Bluetooth devices paired with the speaker to support AVRCP
(Audio/Video Remote Control Profile). Please make sure your cell phone or other
Bluetooth device supports AVRCP.
Safety Notices:
Read the following recommendations before using the bluetooth speaker.
a) Keep it dry and don’t take it to damp places to avoid the product’s internal circuit being
affected.
b) Keep the product away from direct sunlight or hot places. High temperatures will
shorten the life of electronic devices, destroy the battery or distort certain plastic parts.
c) Don’t expose the product to extremely cold area. It may damage the internal circuit
board.
d) Don’t try to disassemble the product as it may get damaged if you are not professional.
e) Don’t let it fall down onto the floor or other hard surfaces. The internal circuit might get
damaged.
f) Don’t use intensive chemical products or detergent to clean the product.
g) Don’t scratch the surface with sharp tips.
