WEIKING TECHNOLOGY BT204 Bluetooth Speaker User Manual BT204S
SHENZHEN WEIKING TECHNOLOGY CO.,LTD Bluetooth Speaker BT204S
User Manual

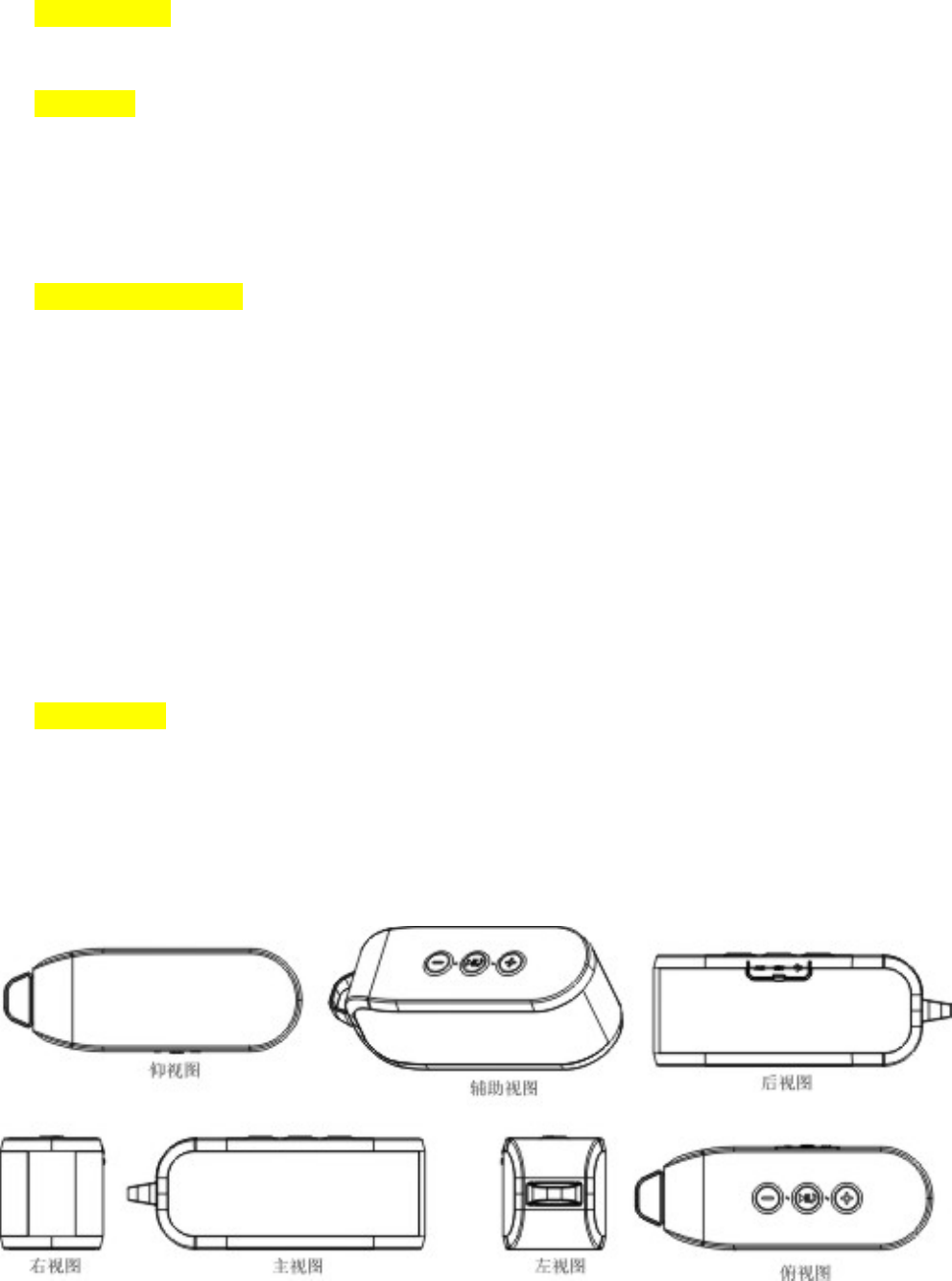

Bluetooth speaker (BT204)
Function :
It is 2 It is Bluetooth speaker that can be wirelessly connected to Bluetooth devices
such as smart phones, tablets and computers to playback any music collection stored on
them. Thanks to its powerful battery, the system delivers full stereo sound, separate from
any mains supply, for up to 4-7 hours and is the perfect companion for the park, whilst
camping or on the beach. Process control, can get rid of complicated connections and
wiring distance constraints, the user can enjoy high quality music. It shall be also defined
as a Bluetooth receiver with aux output connection. please take a few minutes to
familiarize yourself with the speaker function button.
Bluetooth speaker Function:
Bluetooth speaker: urn on the speaker and the Blue led will be flashing to enter into
pairing mode. Pairing time is around 3-10 seconds (varied by the audio device). A sound
will be out and blue led will be blinking with successful pairing and you could enjoy the
music wirelessly.
Waterproof: IPX 4 waterproof Speaker perfect for listening to your music around the
house, shower, beach, camping, hiking, rafting or backyard poolside fun.
Connect to mobile phones/tablet PCs/computers:
1. Activate your phone's Bluetooth
2. Go to your phone's Bluetooth settings , scan for new Bluetooth devices
3. Upon device found (BT-Speaker), click the device name and pair with it
4. If your phone ask for pairing code , please enter ”0000” and confirm
5. After successful pairing, your speaker will sound a prompt tone and the power LED
Lights blue slowly.
Note: Pairing time is varied with different mobile phones. It only need to pair at the first
time and it will auto connect the devices which already paired before( Speaker only can
remember the last 8 paried devices name)
Handsfree function:
Speaker will have the voice instruction for incoming call.Short Press to answer the
call and talk to speaker directly.Short press to end the call and back to play status.
Long press to reject the incoming call. Long press to dial back the last dialed
phone no if no phone conversation
External audio Function :
The speaker also features 1x AUX audio in port. Simply connecting the speaker with your
non-bluetooth mobile phone/MP3 player/PC/laptop with the 3.5' jack audio cable. A sound
will be out and the green led will be on,then you can play music via wired connection
Low power indication: The green led will flash if battery is lower than 10%. User need to
charge the speaker timely. Speaker will be off When battery left only 3%
Power saving:
It will be automatically power off if the Bluetooth is disconnected more than 10 minutes.
Charging :
Connect the micro USB charging cable to a computer, red Led indication for
charging status.
Red LED goes off upon charging finished. (5-6 hours for charging time.)
Computer connection
No Need to install the Bluetooth software if computer itself has the Bluetooth function;
Install the Bluetooth software first if computer don’t have Bluetooth;
1) Click the Bluetooth icon on the right corner of computer and select the “ Add the
equipment”
2) Turn on the speaker
3) Computer will search the Bluetooth devices automatically;
4) Upon device found (bt speaker), click the device name and pair with it
5) If you need to enter a password to the pairing process , please enter “0000”
6) After successful pairing, your speaker will sound a prompt tone and the power LED
Lights blue.
7) Please use the media center from computer itself, if need to adjust the next or previous
songs after connecting with Bluetooth speaker.
Specification:
Speaker Interface:
Audio input connector; 3.5mm aux cable to support external audio source
Charging interface: Micro USB Cable
Dimension: 171*63*70MM (L*W*H)
Weight: 490g
Accessory:
1. Micro USB cable ( for charging only )
2. 3.5mm Audio cable ( Aux input cable )
3. User Manual
Electrical Specifications:
Compatibility:
Bluetooth 3.0 ClassII support the A2DP V1.2, AVRCP V1.4profiles agreement.
Transmission distance:10 m (transmission distance is different due to different
environmental factors and audio device)
Maximum audio output power: 2W*2
channels: Two channels
signal to noise ratio S / N: ≥ 80dB
Audio Frequency Range: 180Hz-20KHz
Distortion THD: ≤ 1%
speaker unit: outer diameter 40mm, outer magnet, 4 ohms, 3W
Parameters of power:
Rated voltage: 3.7 V DC
Battery: built-in lithium battery, 3.7 V /1500mA
Charge voltage: 5V ± 0.25V / 1A
Charging time: 5.5 ± 0.5 hours
Working time: 4-7 hours at 70% volume
LED status:
1.Bluetooth status: when pairing, blue led fast flash. Blue LED blink after paired.
2. Line in : green light on
3. Charging status: red light on
4. Charging completed: red light off
5. Low power indiction: Red led flash.
Hands free, Volume songs adjustment Switch operation :
Function User Entry
Answer/End a call During Bluetooth status, short press
key to answer the incoming call, short press
again to end the call and back to play music
End incoming call Long press key for to reject the call
Redial a call Under Bluetooth status, Long press key
sec to dial back the previous call.
Powering on /Off Short Press on the back of housing to
power on or off
Play/ Pause Short press to pause; Short press
again to play under Bluetooth status.
Volume Short press + or - key to adjust volume.
Note: Both long and short press is to adjust
the volume under AUX mode
Next / Previous songs Long press + or - key to select songs
Disconnected press both + and - for 2-3 sec to disconnect
Bluetooth
Remarks: Under Bluetooth mode when the 3.5mm audio plug is inserted in, the speaker
will switch to line in status automatically;
Note: Please switch off the speaker if don’t use, to prevent power loss
Trouble shootings:
1. My mobile phone can't find any new Bluetooth device?
a) Make sure the bluetooth speaker has entered pairing mode;
b) Ensure the speaker is within the effective working range;
2.Bluetooth devices can't pair up
a) Make sure your mobile phone allows new connection, did not reach the maximum
allowed connection number, please ref to your mobile's user manual
b) Make sure the pairing password entered is “0000’. If your are using a Bluetooth
transmitter device, please ensure the responding password of your Bluetooth transmitter
supports “0000” code.
3. My mini speaker does not play music / answer call when it connected to a Bluetooth
mobile phone?
a) Make sure your Bluetooth mobile phone supports A2DP and HSF(handsfree) profile;
b) Ensure your Bluetooth cell phone is within effective working range.
4. When paired with my computer, windows ask for new driver? Can you supply?
a) We can't supply. The bluetooth A2DP/HSF drivers may required to play stereo sound
via bluetooth connection. But the driver is actually needed for the bluetooth module on
your PC, instead of the speaker. Different bluetooth module may require different drivers.
Please contact your PC or bluetooth module's manufacturer for driver update.
5. Why can’t I remotely control the pause, play, previous song and skip track functions
with the speaker when playing music?
a) When you are using 3.5mm AUX audio in connection, you can’t pause, change volume
or skip tracks with the buttons on the speaker;
b) This feature needs the Bluetooth devices paired with the speaker to support AVRCP
(Audio/Video Remote Control Profile). Please make sure your cell phone or other
Bluetooth device supports AVRCP.
Safety Notices:
Read the following recommendations before using the bluetooth speaker.
a) Keep it dry and don’t take it to damp places to avoid the product’s internal circuit being
affected.
b) Keep the product away from direct sunlight or hot places. High temperatures will
shorten the life of electronic devices, destroy the battery or distort certain plastic parts.
c) Don’t expose the product to extremely cold area. It may damage the internal circuit
board.
d) Don’t try to disassemble the product as it may get damaged if you are not professional.
e) Don’t let it fall down onto the floor or other hard surfaces. The internal circuit might get
damaged.
f) Don’t use intensive chemical products or detergent to clean the product.
g) Don’t scratch the surface with sharp tips.
Federal Communications Commission (FCC) Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
●Reorient or relocate the receiving antenna.
●Increase the separation between the equipment and receiver.
●Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
●Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifications made to this device not expressly approved by
SHENZHEN WEIKING TECHNOLOGY CO.,LTD may void the FCC authorization to operate
this device.
Note: The manufacturer is not responsible for any radio or tv interference caused by
unauthorized modifications to this equipment. Such modifications could void the user’s
authority to operate the equipment.
