WEIKING TECHNOLOGY BT209-E Bluetooth Speaker User Manual
SHENZHEN WEIKING TECHNOLOGY CO.,LTD Bluetooth Speaker
User Manual
BE209-E POWER BANK Bluetooth Speaker
User Manual
Accessories:
1. Micro USB Cable ( for charging )
2. 3.5mm Audio cable ( AUX-in cable )
3. User Manual
Highlights :
BT209 is a outdoor waterproof Bluetooth speaker with power bank that can be wirelessly
connected to Bluetooth devices such as smart phones, tablets and computers to playback
any music collection stored on them. Thanks to its powerful battery, the system delivers
full stereo sound, separated from any mains supply, for up to 6-8 hours and is the perfect
companion for you in the park, whilst camping or on the beach. Process control, can get
rid of complicated connections and wiring distance constraints, users can enjoy
high-quality music .
Bluetooth Connection:
Turn the speaker on by pressing the power for several seconds, then the blue led flashes
quickly. The speaker now has entered the Bluetooth pairing mode.
Connect to mobile phones/tablet PCs/computers:
1. Activate your phone's Bluetooth
2. Go to your phone's Bluetooth settings , scan for new Bluetooth devices
3. Upon device found (BT209), click the device name and pair with it
4. If your phone ask for pairing code , please enter ”0000” and confirm it.
5. After successful pairing, your speaker will sound a prompt tone and the LED
lights blue.
Note: Pairing time is varied with different mobile phones. It only need to pair at the first
time and it will auto connect the devices which already paired before( Speaker only can
remember the last 8 paired devices name)
Bluetooth Connection:
Speaker will have the voice instruction for incoming call.Short Press to answer the
call and talk to the speaker directly. Short press to end the call and back to play
status. Long press to reject the incoming call.Long press to dial back the last
dialed phone, but it will be invalid if there is no phone conversation.
AUX audio-in connector:
The speaker also features 1 AUX audio in port, simply connect the speaker with your
non-Bluetooth mobile phone/MP3 player/PC/laptop with the 3.5mm jack audio cable. The
green and blue indicator light will be on, then you can play music via wired connection
Low power indication: Speaker will have voice hint to remind you to charge if battery is
low( battery only left 10%). Users need to charge the speaker timely.
Charging and computer connection :
Connect the micro USB charging cable to a computer or USB charger, red Led
indication for charging status.
Red LED goes off upon charging finished. (5-6 hours for charging)
Specifications:
Speaker Interfaces:
Audio input connector: 3.5mm
AUX cable : support aux external audio input.
Charging interface: Micro USB
Dimensions And Basic Parameters:
LENGTH: 181mm * 58mm *73mm
MATERIAL: ABS
Weight: 430G±5G
Electrical Specifications:
·Bluetooth Compatibility: It conforms to Bluetooth 2.1 Class II and supports A2DP V1.2,
AVRCP V1.4 profiles agreement.
·Transmission distance: up to 10 m
·sound track: dual track
·Maximum Output: 3W×2
·signal to noise ratio S / N: ≥ 80dB
·Frequency Range: 160Hz-20KHz
·Distortion THD: ≤ 1%
·speaker unit: outer diameter 40mm, inner magnet, 4Ω, 5W
Parameters of power:
·Rated voltage: 3.7V DC
·Battery: built-in lithium battery, 3.7V/4000mA
·Charging Voltage/Current: 5V ±0.25V / 1A
·Outpot : 5V.1A
·Charging time: 6 ±0.5 hours

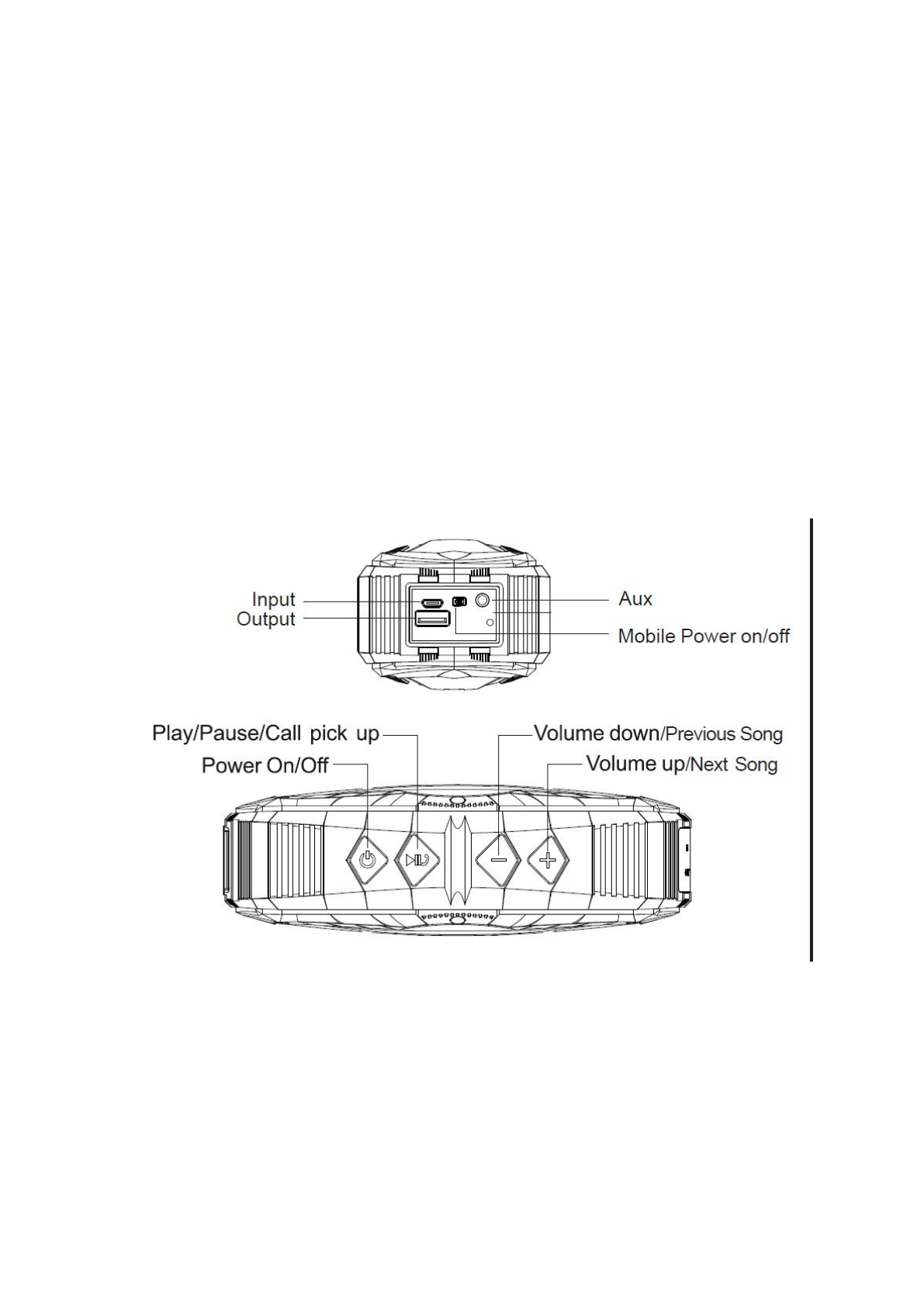

Function Operation
Answer a call
During an incoming call, short press key to
answer the phone, short press again hand up
phone and back to play music
End or refuse a call Short press key to end the call or long
press to refuse the call.
Power ON / OFF Long press to power on / off
Volume - or + Short Press Volume +/- to adjust
Next /previous sound Long press + /- to adjust
Power bank function
Press the button around the Aux in jack , charge
your mobile devices , it will have the LED for the
power indicate
Note :
1. Under Bluetooth mode when the 3.5mm audio plug is inserted in, the speaker will
switch to line in status automatically;
2. Please switch off the speaker if don’t use to prevent power loss
LED status:
1.Bluetooth status: blue light flashing for pairing. Blue light keep on for connection status.
2. Line in mode: green light on
3. Charging status: red light on
4. Charging completed: red light off
FCC Statement
ThisdevicecomplieswithPart15oftheFCCrules.Operationissubjecttothefollowingtwo
conditions:1)thisdevicemaynotcauseharmfulinterference,and2)thisdevicemustaccept
anyinterferencereceived,includinginterferencethatmaycauseundesiredoperation.
Note:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigital
device,pursuanttopart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonable
protectionagainstharmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates
usesandcanradiateradiofrequencyenergyand,ifnotinstalledandusedinaccordancewith
theinstructions,maycauseharmfulinterferencetoradiocommunications.However,thereisno
guaranteethatinterferencewillnotoccurinparticularinstallation.Ifthisequipmentdoescause
harmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturningthe
equipmentoffandon,theuserisencouragedtotrytocorrecttheinterferencebyoneormore
ofthefollowingmeasures:
‐‐Reorientorrelocatethereceivingantenna.
‐‐Increasetheseparationbetweentheequipmentandreceiver.
‐‐Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiveris
connected.
‐‐Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
Changesormodificationsnotexpresslyapprovedbythepartyresponsibleforcompliancecould
voidtheuser’sauthoritytooperatetheequipment.
This device is measured RF output power is less than the SAR exclusion threshold value
for human head and body. Therefore, SAR test is not necessary.
