1. Speaker Interface:
SHENZHEN WEIKING TECHNOLOGY CO.,LTD
BT48S User Manual
______________________________________________________________________________________________
版本: 1.0
页次: 2
1. Audio input connector: 3.5mm audio port: support external audio input.
Charging interface: DC5.5

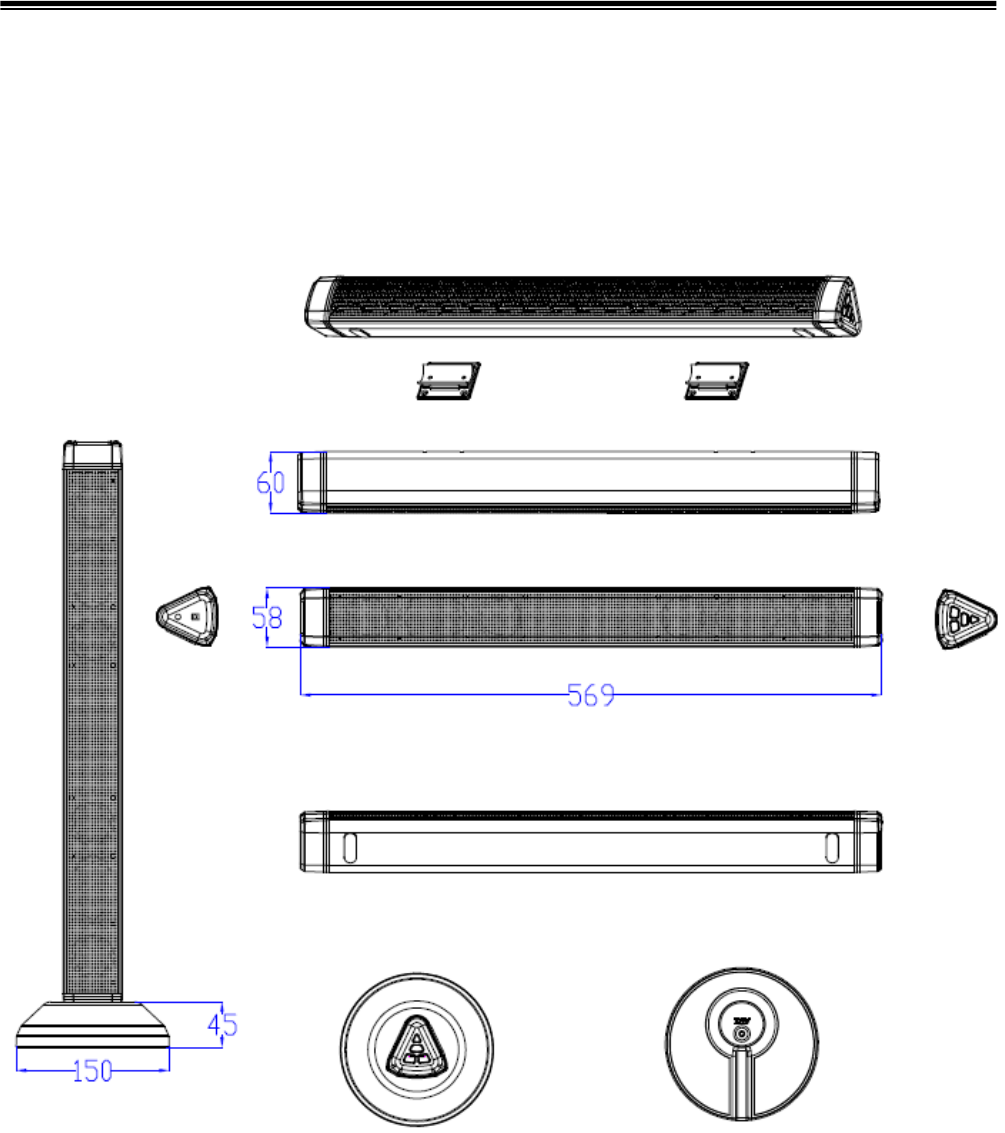

1. Dimension+ Basic Parameters:
Body: 569mm ±1mm * 60mm±1mm * 58mm±1mm
Basic： DIAMETER: 150mm±1mm * HIGH: 45MM±1mm
1.1 Material: Body: Aluminium + ABS plastic
Base: ABS plastic
1.2 Color: Black and silver
SHENZHEN WEIKING TECHNOLOGY CO.,LTD
BT48S User Manual
______________________________________________________________________________________________
版本: 1.0
页次: 3
1.3 Weight: Body: 935g ± 10g； base: 505g ± 10g 。:
2. Electrical Specifications:
3.1 Bluetooth Compatibility:
The meet Bluetooth4.0 Class II support the A2DP V1.2, AVRCP V1.4profiles
agreement.
3.2 Transmission distance: 10 m (transmission distance will be different due
to different environmental conditions and different smart phone Bluetooth
device)
3.3 channels: two channels
3.4 signal to noise ratio S / N: ≥ 80dB
3.5 Frequency Range: 180Hz-20 KHz
3.6 Distortion THD: ≤ 1%
3.7 speaker unit: diameter 45mm, inner magnet, 8 ohms, 5W
3.8 Parameters of power:
Rated voltage: DC 12V/3A
Power adaptor：Input AC100-240V_50/60Hz 0.8A
Power adaptor：Output DC12V/3A
4. Instructions:
Connect with the adaptor, the LED light flashes red under power on statue
4.1 Bluetooth function
4.1.1 long press for 3 sec to turn on the speaker，the red light is off
and the speaker will automatically turns to the Bluetooth mode；
When the blue LED flashes rapidly, it’s under searching mode
4.1.2 Active the Bluetooth on the device， it will enter the searching mode ,
Bluetooth device will find the “Sangha 48” , choose this device and connect it ( if
the device require the pass code , please enter ”0000”, normally the smart
phone no need enter pass code, some of cell phone require this ). If the paring
is successful, the blue led light flashes slowly, it takes 1 minute for pairing. It
SHENZHEN WEIKING TECHNOLOGY CO.,LTD
BT48S User Manual
______________________________________________________________________________________________
版本: 1.0
页次: 4
will remember the former pairing device, and no need to pair again in the next
time, the speaker will connect with the former device automatically (noted：
Bluetooth device should connect with the speaker in ten minutes, or the speaker
will turn off automatically)
4.1.3 When connect successfully, you can select songs.
4.2 External audio function:
Plug the 3.5mm audio cable into audio port under power on status, the speaker
will switch to external audio input mode, and the red LED turns on all the time ,
it can play the audio from the device directly.
4.3 Buttons function
4.3.1 ON/OFF switch, Long press to turn on/ off the speaker
4.3.2 play/pause/mode change，short press to play/pause, long press
to change the modes.
4.3.3 : select songs under Bluetooth mode, short press to select
songs:
: next songs，: previous songs
long press to adjust volume: volume up， volume down。
4.4 Note: Please switch off the speaker if don’t use, to prevent power loss
4.5 Introduction of Indicator Light：
4.5.1 Bluetooth mode: Under pairing mode, the blue LED flashes rapidly；
Under paired mode, the blue LED flashes slowly.
4.5.2 External audio input mode: the LED turns red；
4.5.3 Powering Off: the red LED flashes slowly。
5. Working conditions:
Temperature: 0º C ~ 40º C
Humidity: 0% ~ 85% RH
SHENZHEN WEIKING TECHNOLOGY CO.,LTD
BT48S User Manual
______________________________________________________________________________________________
版本: 1.0
页次: 5
6. Storage environment:
Temperature: -30º C ~ 60º C
Humidity: 0% ~ 90% RH
What’s included:
1 bluetooth speaker
1 AC adaptor
1 User manual
1 3.5mm jack to RCA plug
1 RCA plug with SCART plug
