WEIKING TECHNOLOGY WK615 NEW WIRELESS MOUSE User Manual 2 4G Wireless Mouse Instruction Book

SHENZHEN WEIKING TECHNOLOGY CO.,LTD NEW WIRELESS MOUSE 2 4G Wireless Mouse Instruction Book

User Manual

NEW WIRELESS MOUSE Instruction Book
1) Specifications
(1) Frequency Band2.4GHz ISM band
(2)Carrier Frequency2403~2479 MHz
(3)Number of Channel39 channels
(4) Rated Voltage: 3.0V / 2*AAA
(5)Rated Current: 20 mA
(6)RF Output Power (ERP or EIRP) 0dBm
(7)Modulation TypeGFSK
(8)Mode of operation half duplex
(9)Bit Rate of Transmission: 1Mbps
(10)Antenna TypeIntegral Antenna
(11)Antenna gain2.42 dBi
(12)Operating Temperature Range0~40 °C
(13)Hopping Type: 16 frequency, Active Hopping
(14)Air-protocol length: ____14~26Bytes____
(15)Bandwidth:____1MHz____ sensitivity: -85dBm
(16)RF output Power: ___1mW____
(17)Transceiver Distance: ____10m______
(18) Mouse MCU Oscillator : 4MHz
(19) Operation System: Windows98/2000/XP / Vista/Windows7 system
2.Operation Instruction
(1)Standby ModeIf the mouse does not moved or operated in 5 seconds, it will
turn into standby mode and the power consumption decreases by half.
(2)Sleep mode :If the standby mode lasts 5 minutes, the mouse will turn into
sleep mode and the power consumption decreases to 1/10. It will moved or any
of its 3 buttons is pressed.
(3)Power Off: If you will not use your mouse in a long time,you may turn your
power switch to off side to save the battery power.

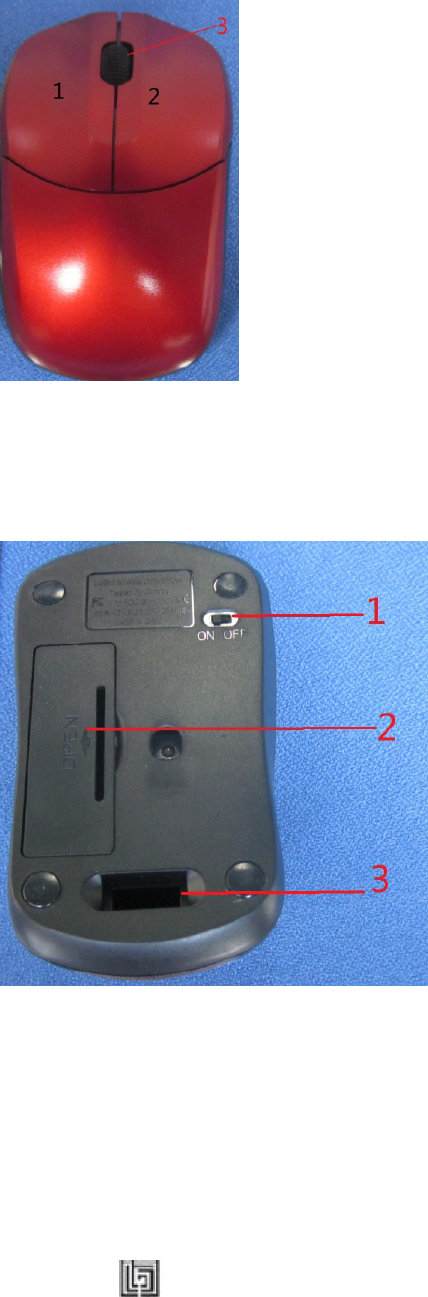

3.Pieces
Mouse Front View:
1. Left click
2. Right click
3. Scroll wheel
Mouse Back View:
1. On/off Switch
2. Battery cover
3. USB Receiver Storage
USB Donlge Info.:
Manufacturer: Jing Mold Electronics Technology (Shenzhen) Co., Ltd.
Product Name: USB Dongle
Model: JME-3272B
Brand Name:
FCC ID: FPW-JME3272B
4.Federal Communications Commission (FCC) Statement
This device complies with part 15 of the FCC Rules.Operation is subject to the
following two conditions; (1)This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
Warning:Changes or modifications made to this device not expressly approved by
SHENZHEN WEIKING TECHNOLOGY CO.,LTD may void the FCC authorization
to operate this device.
Note: The manufacturer is not responsible for any radio or tv interference caused by
unauthorized modifications to this equipment. Such modifications could void the
user’s authority to operate the equipment.
