WG security WGBTLFG Floor Guard BTL System User Manual

WG Security Products, Inc Floor Guard BTL System Users Manual

User Manual

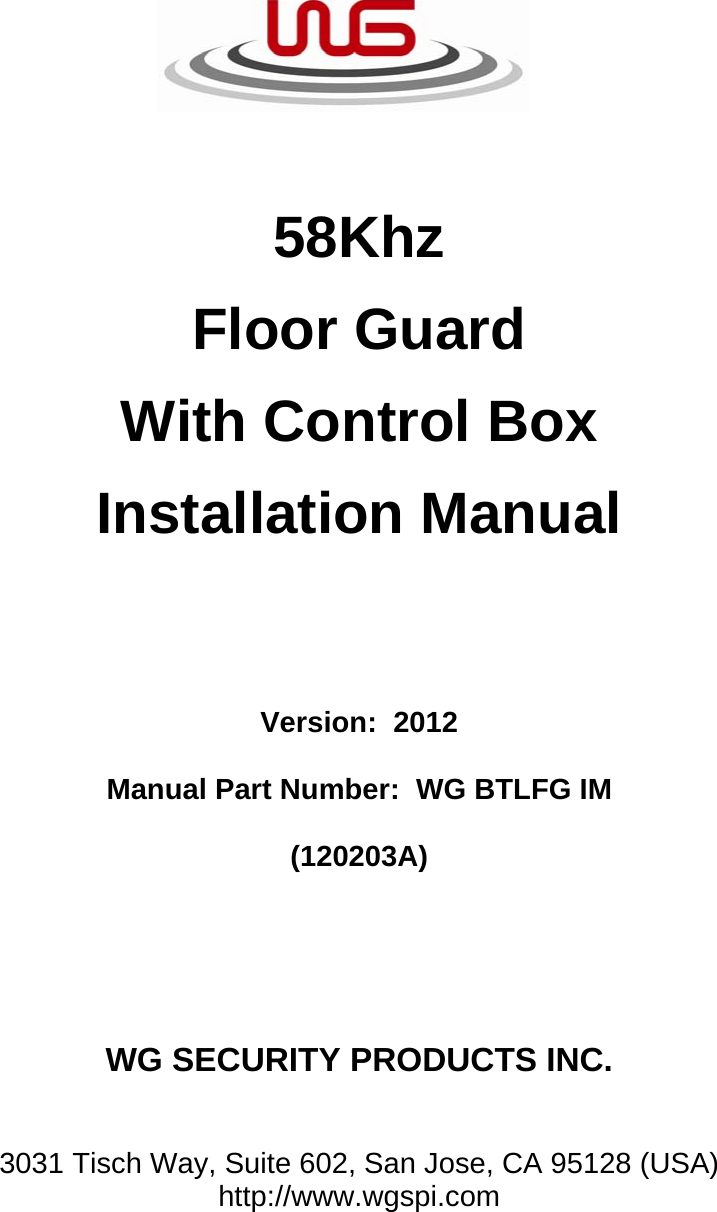

58Khz Floor Guard With Control Box Installation Manual Version: 2012 Manual Part Number: WG BTLFG IM (120203A) WG SECURITY PRODUCTS INC. 3031 Tisch Way, Suite 602, San Jose, CA 95128 (USA) http://www.wgspi.com

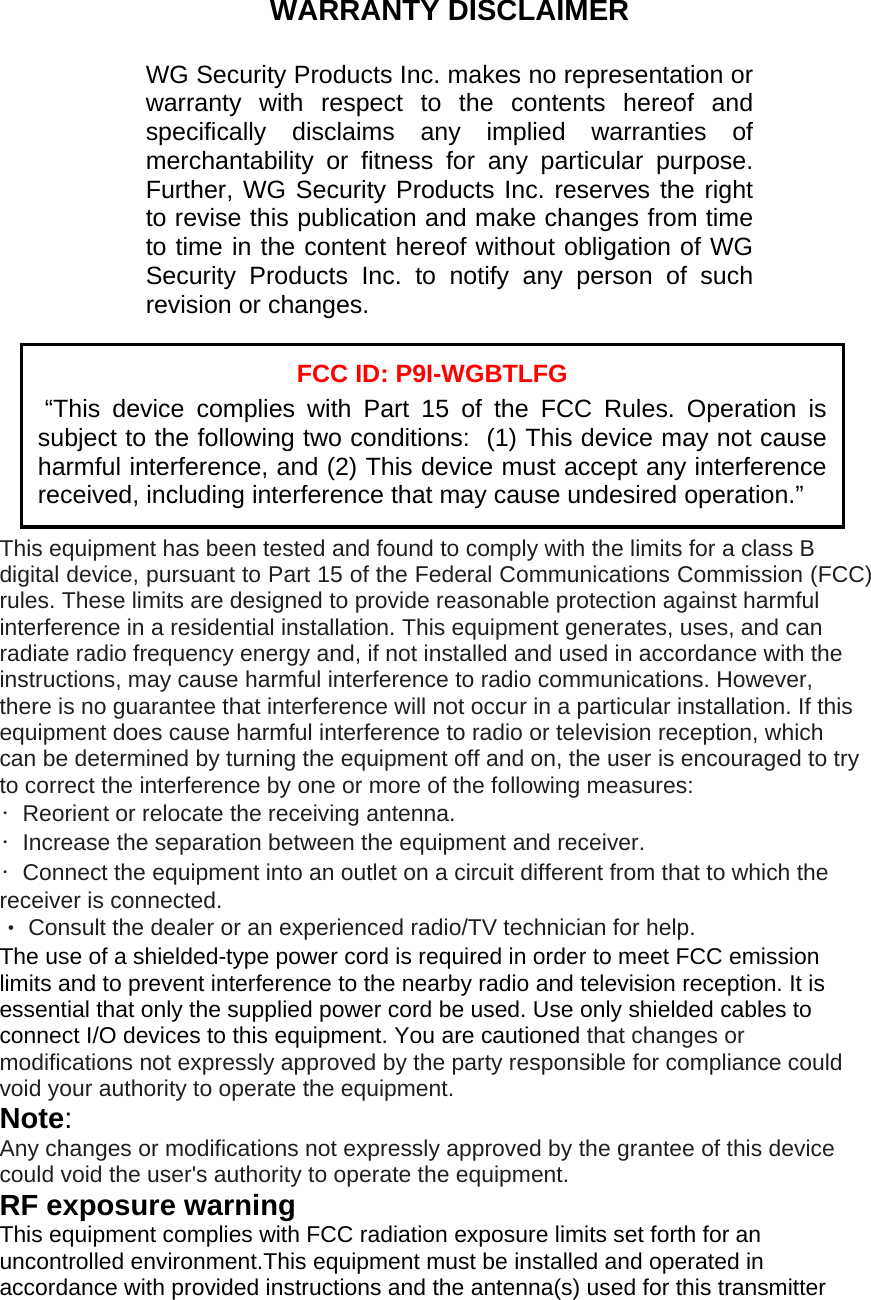

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‧ Reorient or relocate the receiving antenna. ‧ Increase the separation between the equipment and receiver. ‧ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‧ Consult the dealer or an experienced radio/TV technician for help. The use of a shielded-type power cord is required in order to meet FCC emission limits and to prevent interference to the nearby radio and television reception. It is essential that only the supplied power cord be used. Use only shielded cables to connect I/O devices to this equipment. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. Note: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. RF exposure warning This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter WARRANTY DISCLAIMER WG Security Products Inc. makes no representation or warranty with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. Further, WG Security Products Inc. reserves the right to revise this publication and make changes from time to time in the content hereof without obligation of WG Security Products Inc. to notify any person of such revision or changes. FCC ID: P9I-WGBTLFG “This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.”

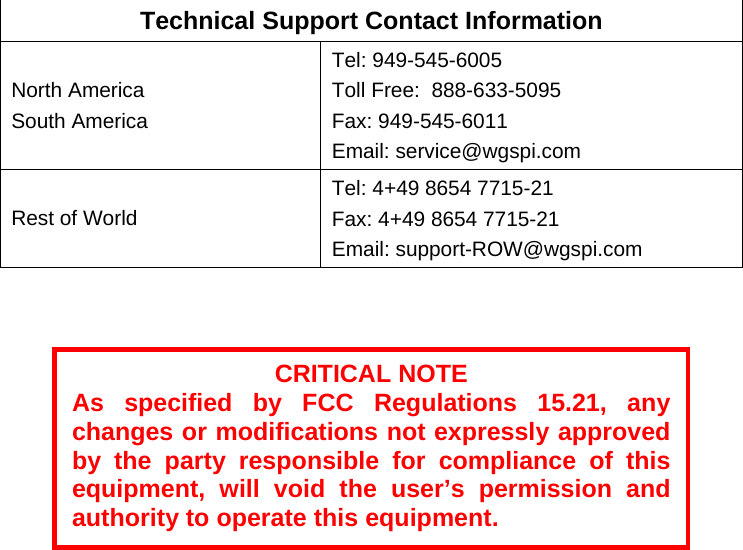

Technical Support Contact Information North America South America Tel: 949-545-6005 Toll Free: 888-633-5095 Fax: 949-545-6011 Email: service@wgspi.com Rest of World Tel: 4+49 8654 7715-21 Fax: 4+49 8654 7715-21 Email: support-ROW@wgspi.com CRITICAL NOTE As specified by FCC Regulations 15.21, any changes or modifications not expressly approved by the party responsible for compliance of this equipment, will void the user’s permission and authority to operate this equipment.

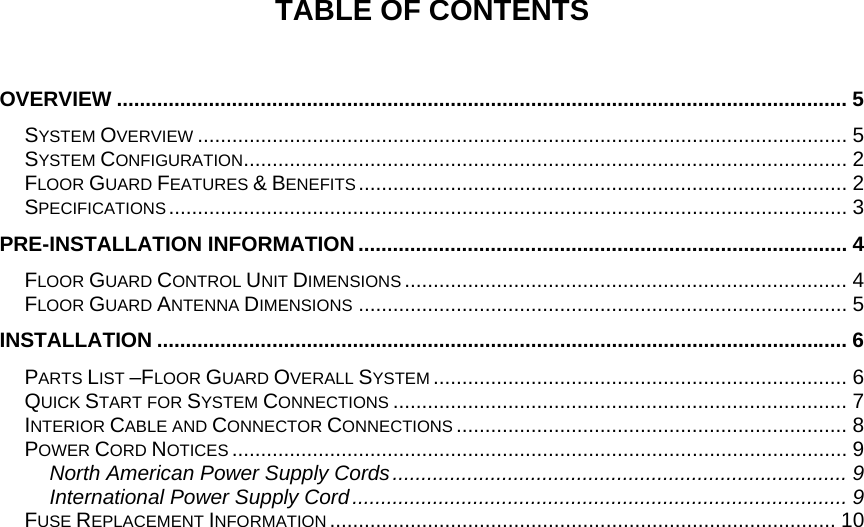

TABLE OF CONTENTS OVERVIEW ............................................................................................................................... 5SYSTEM OVERVIEW ................................................................................................................. 5SYSTEM CONFIGURATION......................................................................................................... 2FLOOR GUARD FEATURES & BENEFITS..................................................................................... 2SPECIFICATIONS...................................................................................................................... 3PRE-INSTALLATION INFORMATION..................................................................................... 4FLOOR GUARD CONTROL UNIT DIMENSIONS ............................................................................. 4FLOOR GUARD ANTENNA DIMENSIONS ..................................................................................... 5INSTALLATION ........................................................................................................................ 6PARTS LIST –FLOOR GUARD OVERALL SYSTEM ........................................................................ 6QUICK START FOR SYSTEM CONNECTIONS ............................................................................... 7INTERIOR CABLE AND CONNECTOR CONNECTIONS .................................................................... 8POWER CORD NOTICES ........................................................................................................... 9North American Power Supply Cords............................................................................... 9International Power Supply Cord...................................................................................... 9FUSE REPLACEMENT INFORMATION ........................................................................................ 10

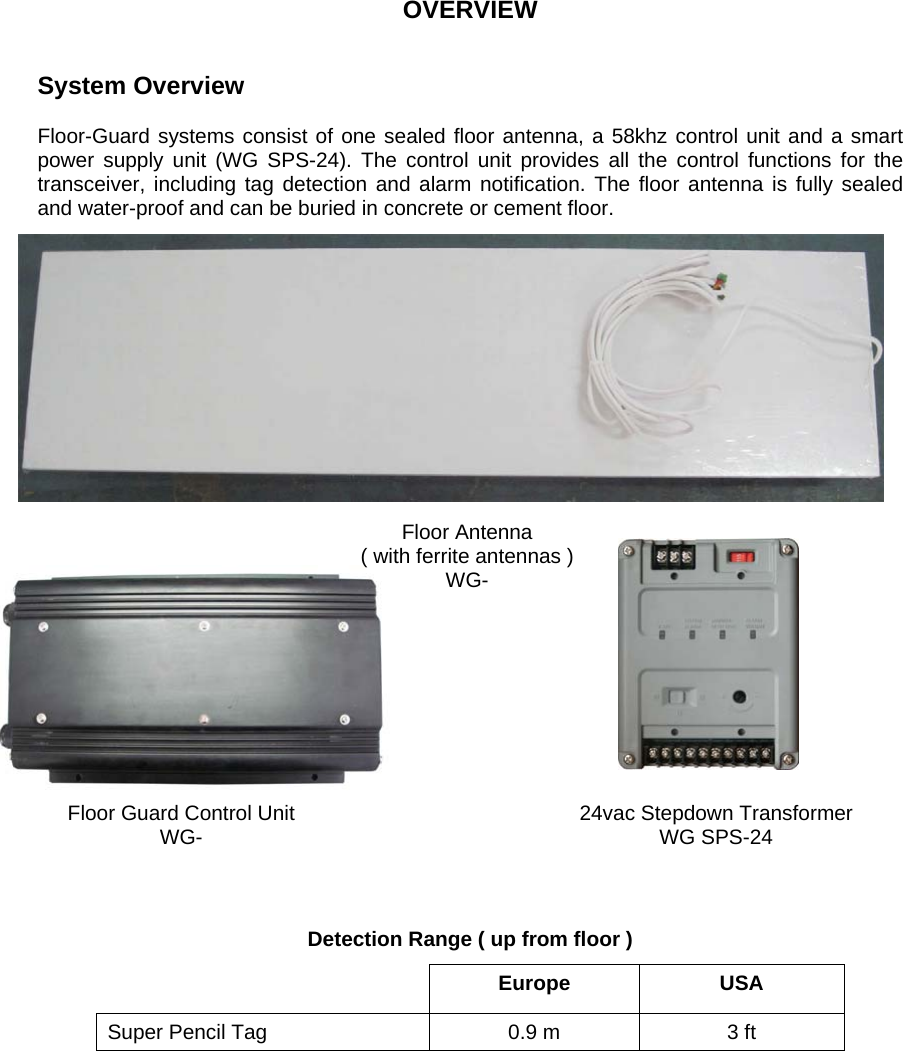

OVERVIEW System Overview Floor-Guard systems consist of one sealed floor antenna, a 58khz control unit and a smart power supply unit (WG SPS-24). The control unit provides all the control functions for the transceiver, including tag detection and alarm notification. The floor antenna is fully sealed and water-proof and can be buried in concrete or cement floor. Detection Range ( up from floor ) Europe USA Super Pencil Tag 0.9 m 3 ft Floor Guard Control Unit WG- 24vac Stepdown Transformer WG SPS-24 Floor Antenna ( with ferrite antennas ) WG-

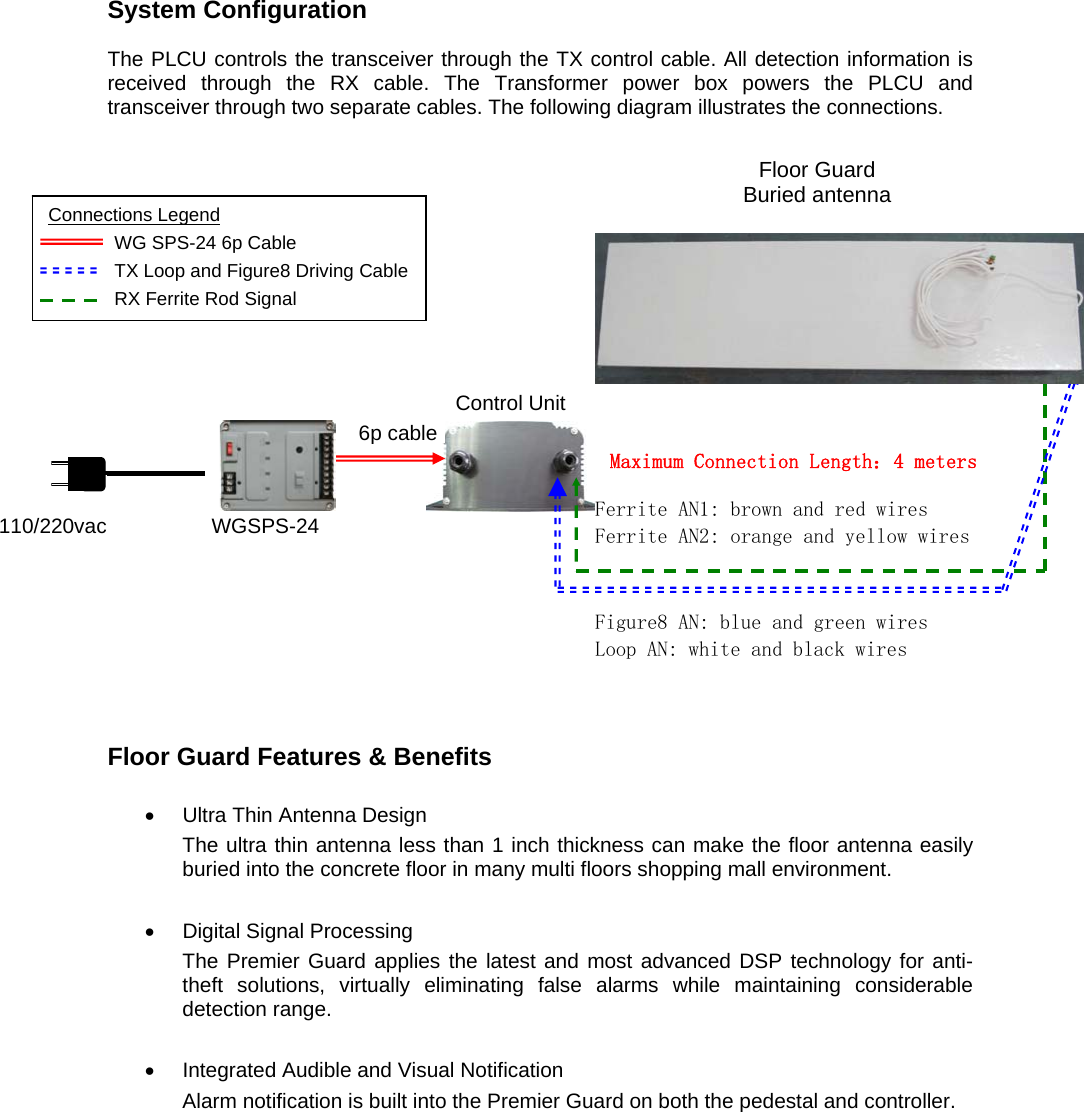

System Configuration The PLCU controls the transceiver through the TX control cable. All detection information is received through the RX cable. The Transformer power box powers the PLCU and transceiver through two separate cables. The following diagram illustrates the connections. Floor Guard Features & Benefits • Ultra Thin Antenna Design The ultra thin antenna less than 1 inch thickness can make the floor antenna easily buried into the concrete floor in many multi floors shopping mall environment. • Digital Signal Processing The Premier Guard applies the latest and most advanced DSP technology for anti-theft solutions, virtually eliminating false alarms while maintaining considerable detection range. • Integrated Audible and Visual Notification Alarm notification is built into the Premier Guard on both the pedestal and controller. Floor Guard Buried antenna 6p cableControl UnitFerrite AN1: brown and red wires Ferrite AN2: orange and yellow wiresConnections Legend WG SPS-24 6p Cable TX Loop and Figure8 Driving Cable RX Ferrite Rod Signal Figure8 AN: blue and green wires Loop AN: white and black wires WGSPS-24 110/220vac Maximum Connection Length：4 meters

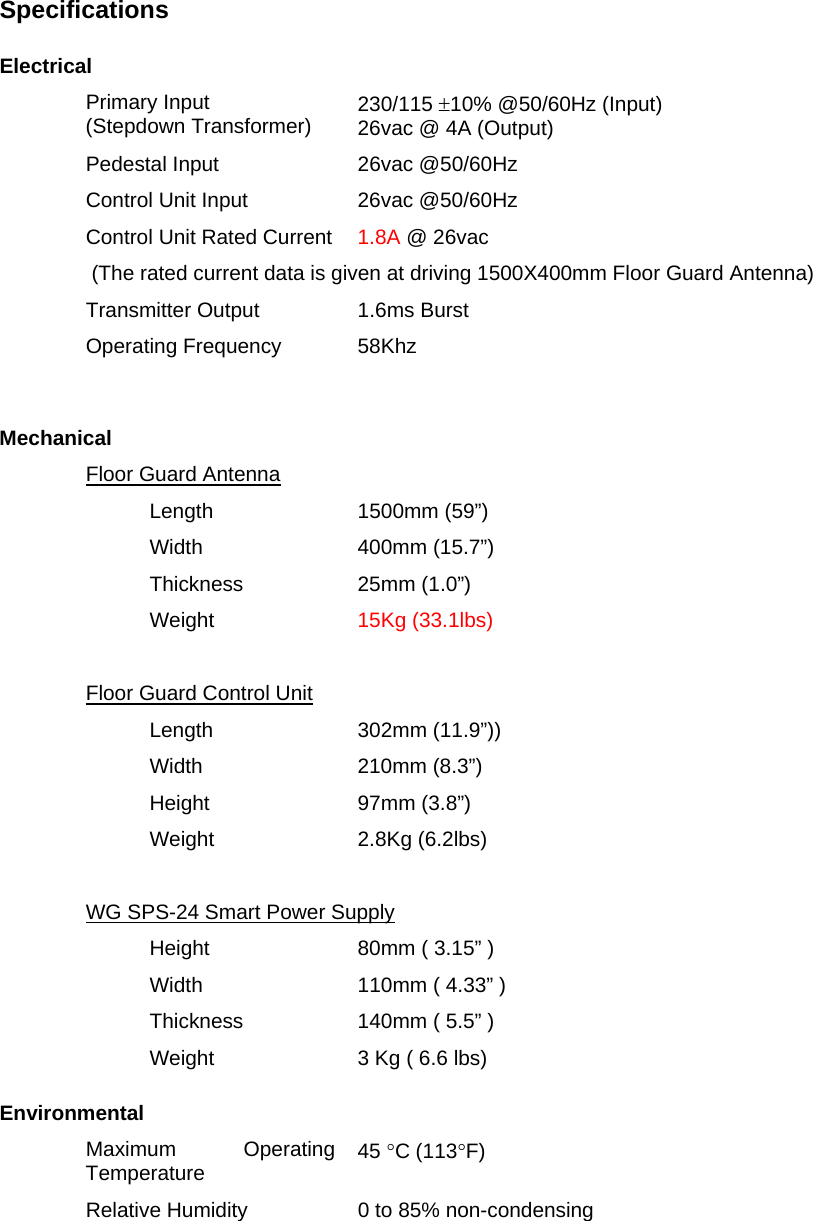

Specifications Electrical Primary Input (Stepdown Transformer) 230/115 ±10% @50/60Hz (Input) 26vac @ 4A (Output) Pedestal Input 26vac @50/60Hz Control Unit Input 26vac @50/60Hz Control Unit Rated Current 1.8A @ 26vac (The rated current data is given at driving 1500X400mm Floor Guard Antenna) Transmitter Output 1.6ms Burst Operating Frequency 58Khz Mechanical Floor Guard Antenna Length 1500mm (59”) Width 400mm (15.7”) Thickness 25mm (1.0”) Weight 15Kg (33.1lbs) Floor Guard Control Unit Length 302mm (11.9”)) Width 210mm (8.3”) Height 97mm (3.8”) Weight 2.8Kg (6.2lbs) WG SPS-24 Smart Power Supply Height 80mm ( 3.15” ) Width 110mm ( 4.33” ) Thickness 140mm ( 5.5” ) Weight 3 Kg ( 6.6 lbs) Environmental Maximum Operating Temperature 45 °C (113°F) Relative Humidity 0 to 85% non-condensing

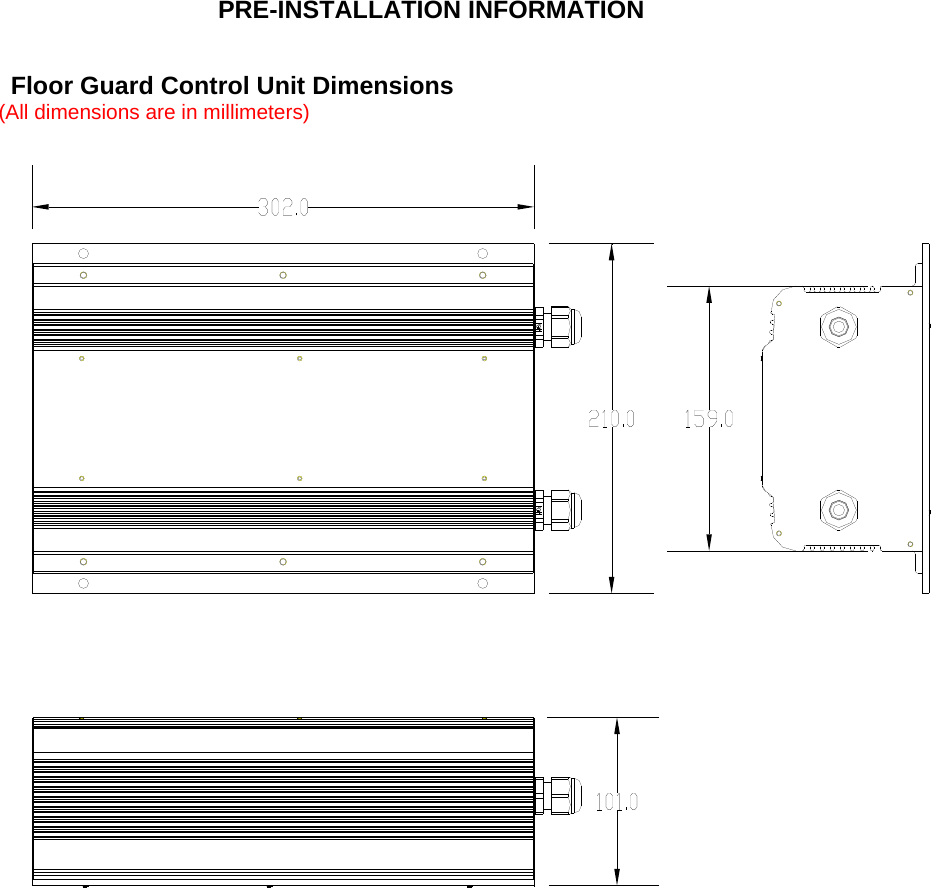

PRE-INSTALLATION INFORMATION Floor Guard Control Unit Dimensions (All dimensions are in millimeters)

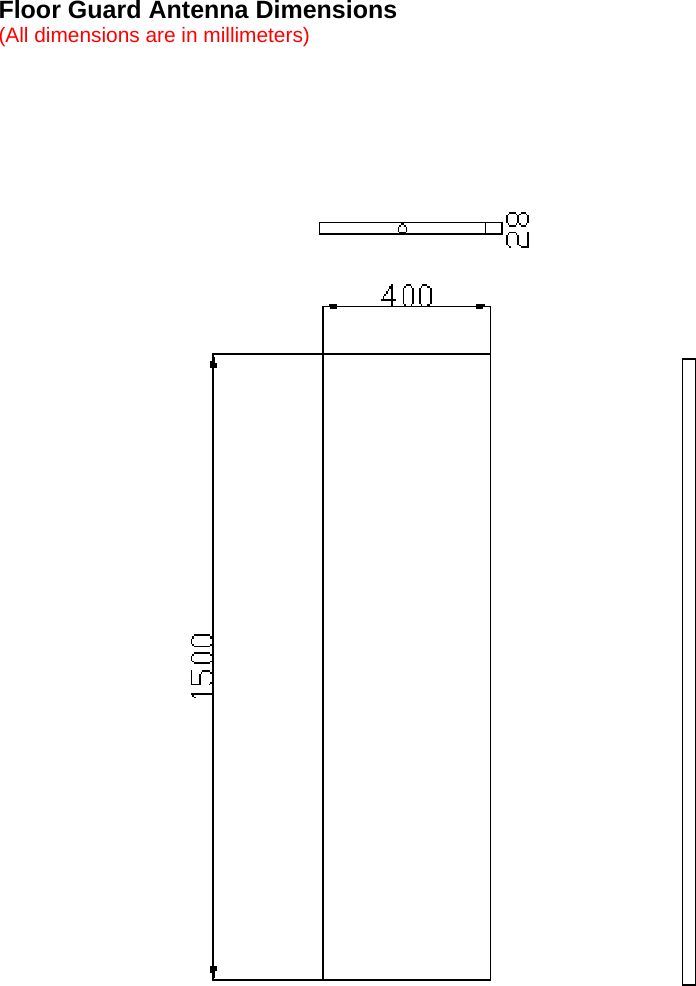

Floor Guard Antenna Dimensions (All dimensions are in millimeters)

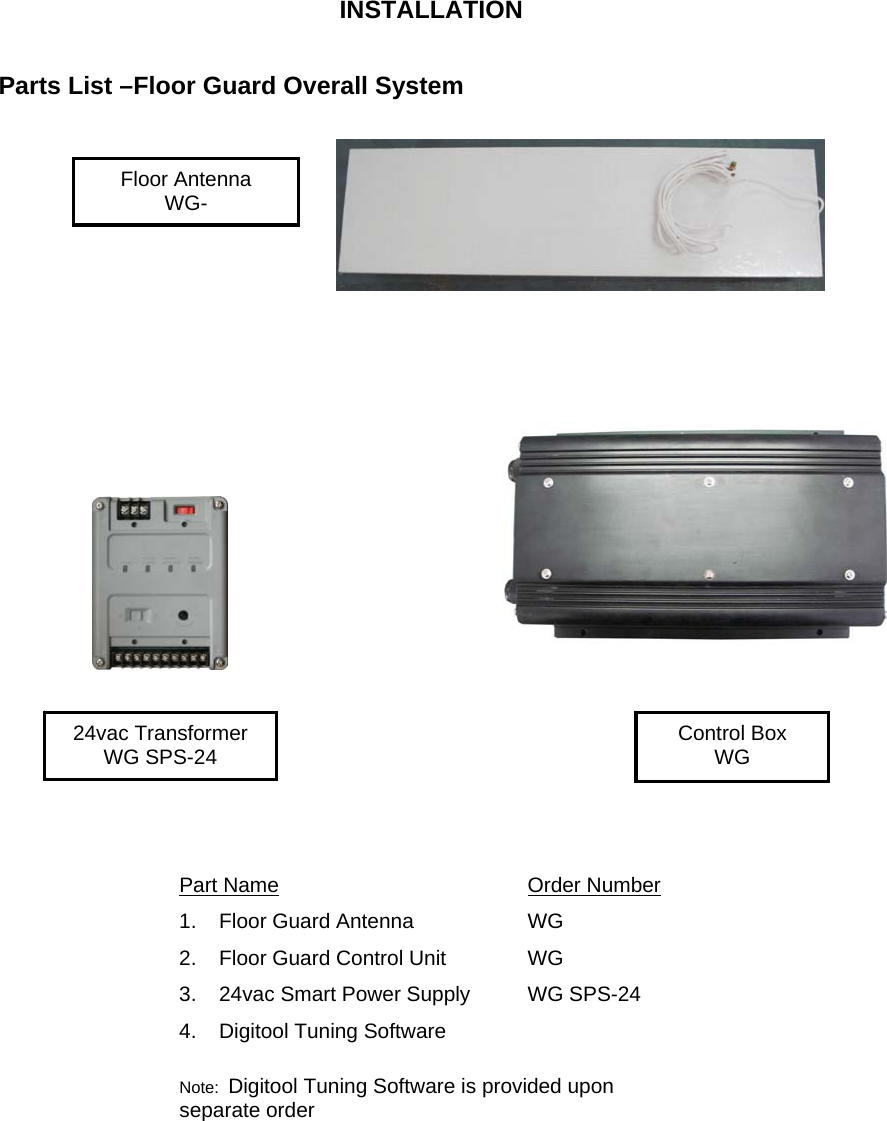

INSTALLATION Parts List –Floor Guard Overall System Part Name Order Number 1. Floor Guard Antenna WG 2. Floor Guard Control Unit WG 3. 24vac Smart Power Supply WG SPS-24 4. Digitool Tuning Software Note: Digitool Tuning Software is provided upon separate order Control Box WG 24vac Transformer WG SPS-24 Floor Antenna WG-

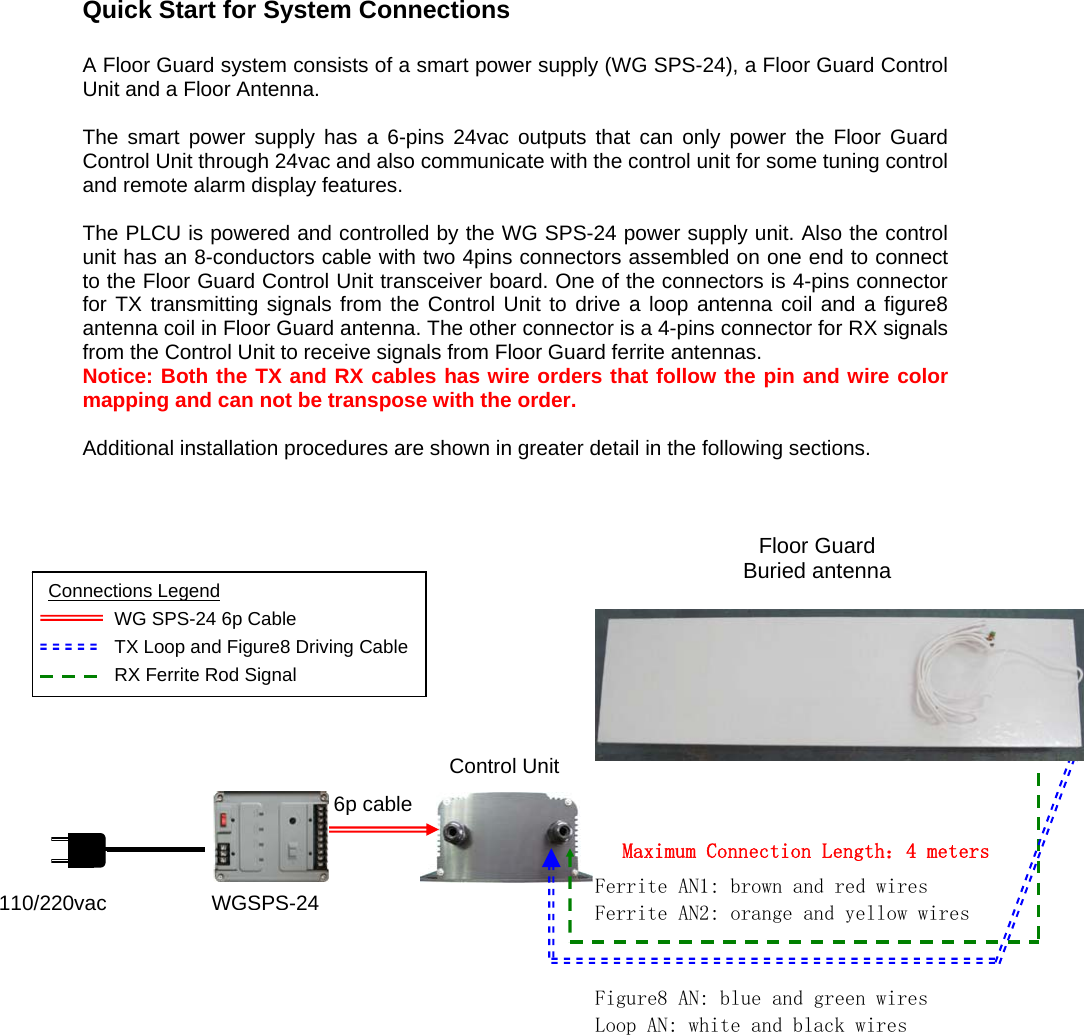

Quick Start for System Connections A Floor Guard system consists of a smart power supply (WG SPS-24), a Floor Guard Control Unit and a Floor Antenna. The smart power supply has a 6-pins 24vac outputs that can only power the Floor Guard Control Unit through 24vac and also communicate with the control unit for some tuning control and remote alarm display features. The PLCU is powered and controlled by the WG SPS-24 power supply unit. Also the control unit has an 8-conductors cable with two 4pins connectors assembled on one end to connect to the Floor Guard Control Unit transceiver board. One of the connectors is 4-pins connector for TX transmitting signals from the Control Unit to drive a loop antenna coil and a figure8 antenna coil in Floor Guard antenna. The other connector is a 4-pins connector for RX signals from the Control Unit to receive signals from Floor Guard ferrite antennas. Notice: Both the TX and RX cables has wire orders that follow the pin and wire color mapping and can not be transpose with the order. Additional installation procedures are shown in greater detail in the following sections. Floor Guard Buried antenna 6p cableControl UnitFerrite AN1: brown and red wires Ferrite AN2: orange and yellow wiresConnections Legend WG SPS-24 6p Cable TX Loop and Figure8 Driving CableRX Ferrite Rod Signal Figure8 AN: blue and green wires Loop AN: white and black wires WGSPS-24 110/220vac Maximum Connection Length：4 meters

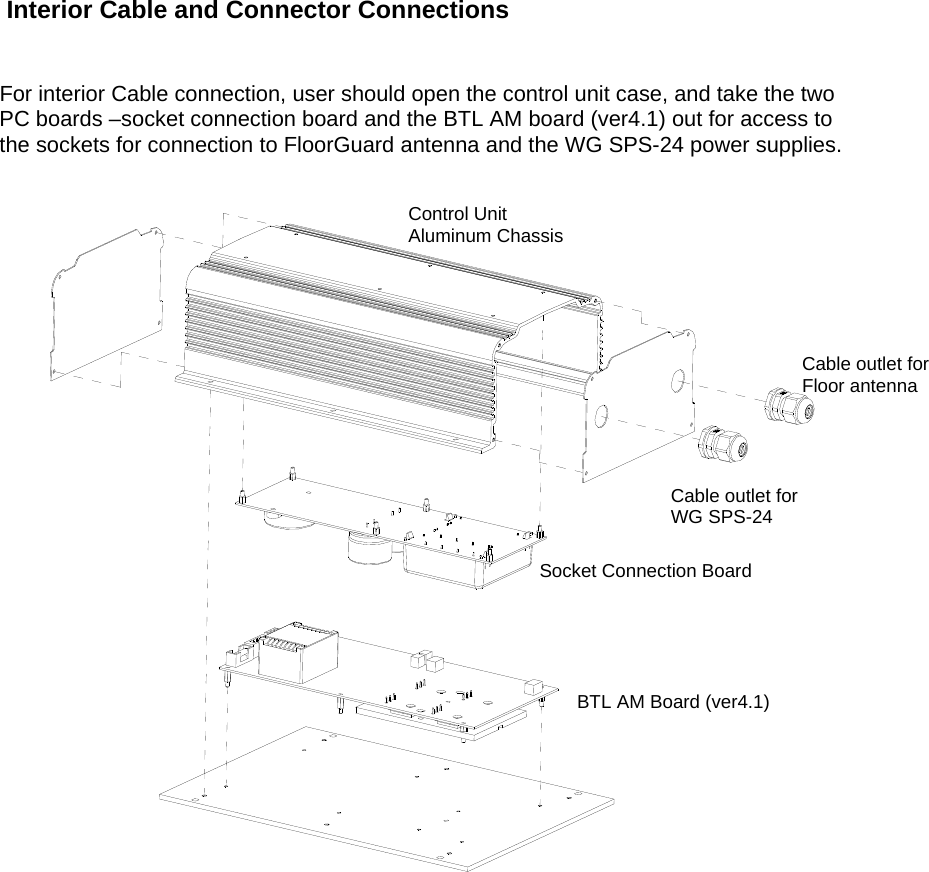

Interior Cable and Connector Connections For interior Cable connection, user should open the control unit case, and take the two PC boards –socket connection board and the BTL AM board (ver4.1) out for access to the sockets for connection to FloorGuard antenna and the WG SPS-24 power supplies. Cable outlet for WG SPS-24 Cable outlet for Floor antennaSocket Connection Board BTL AM Board (ver4.1) Control Unit Aluminum Chassis

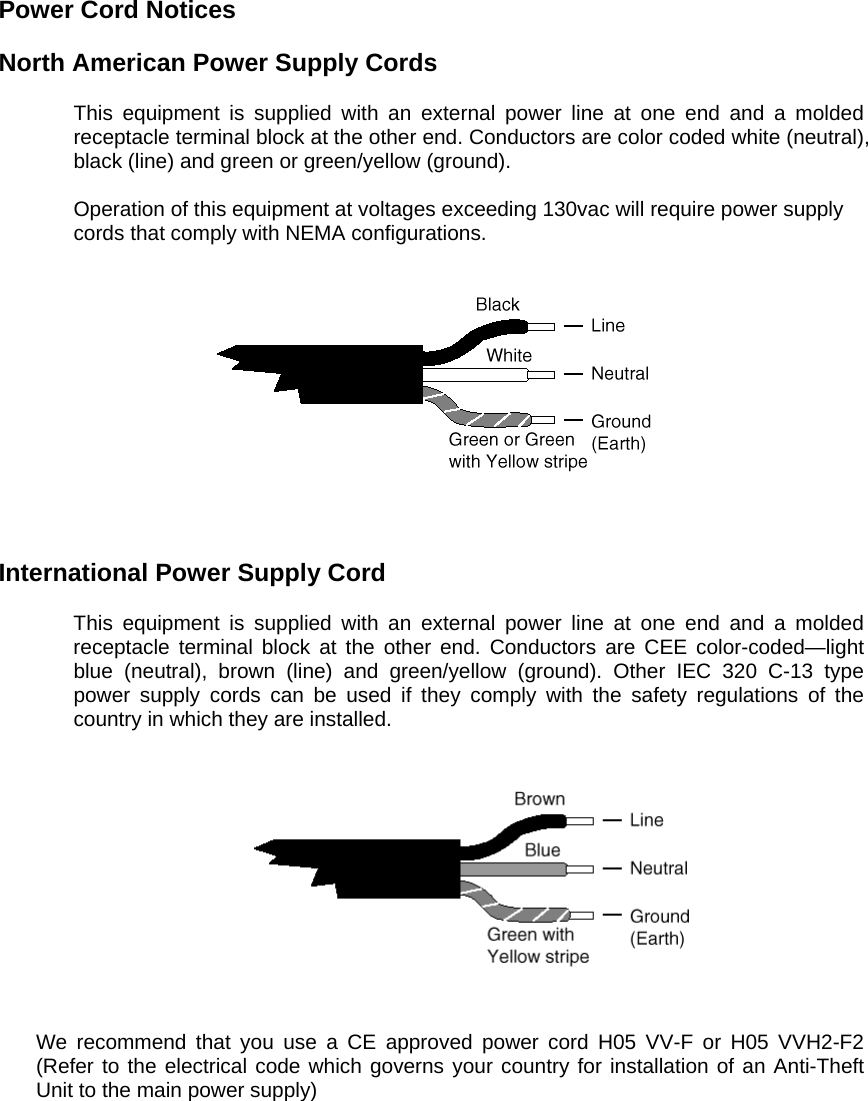

Power Cord Notices North American Power Supply Cords This equipment is supplied with an external power line at one end and a molded receptacle terminal block at the other end. Conductors are color coded white (neutral), black (line) and green or green/yellow (ground). Operation of this equipment at voltages exceeding 130vac will require power supply cords that comply with NEMA configurations. International Power Supply Cord This equipment is supplied with an external power line at one end and a molded receptacle terminal block at the other end. Conductors are CEE color-coded—light blue (neutral), brown (line) and green/yellow (ground). Other IEC 320 C-13 type power supply cords can be used if they comply with the safety regulations of the country in which they are installed. We recommend that you use a CE approved power cord H05 VV-F or H05 VVH2-F2 (Refer to the electrical code which governs your country for installation of an Anti-Theft Unit to the main power supply)

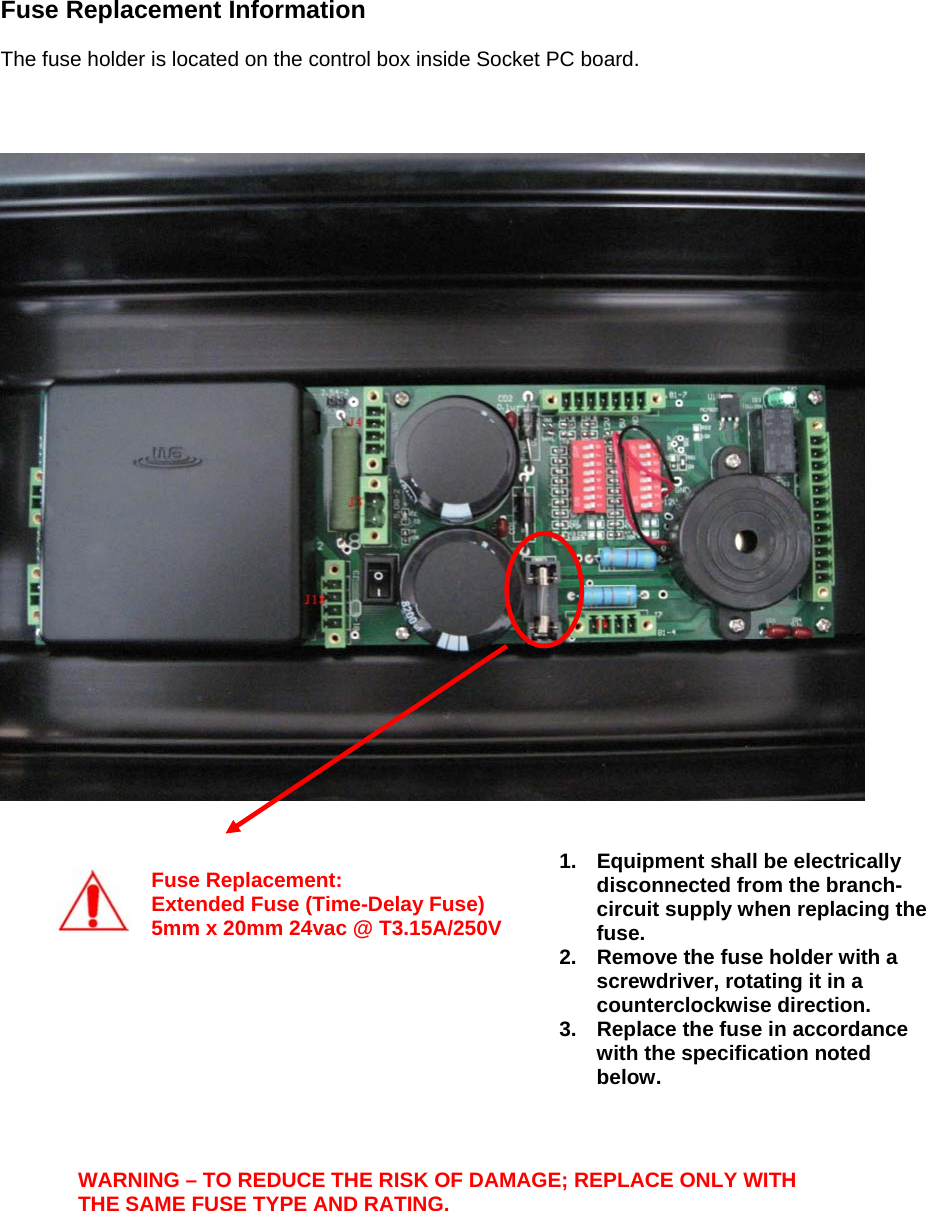

Fuse Replacement Information The fuse holder is located on the control box inside Socket PC board. WARNING – TO REDUCE THE RISK OF DAMAGE; REPLACE ONLY WITH THE SAME FUSE TYPE AND RATING. 1. Equipment shall be electrically disconnected from the branch-circuit supply when replacing the fuse. 2. Remove the fuse holder with a screwdriver, rotating it in a counterclockwise direction. 3. Replace the fuse in accordance with the specification noted below. Fuse Replacement: Extended Fuse (Time-Delay Fuse) 5mm x 20mm 24vac @ T3.15A/250V
