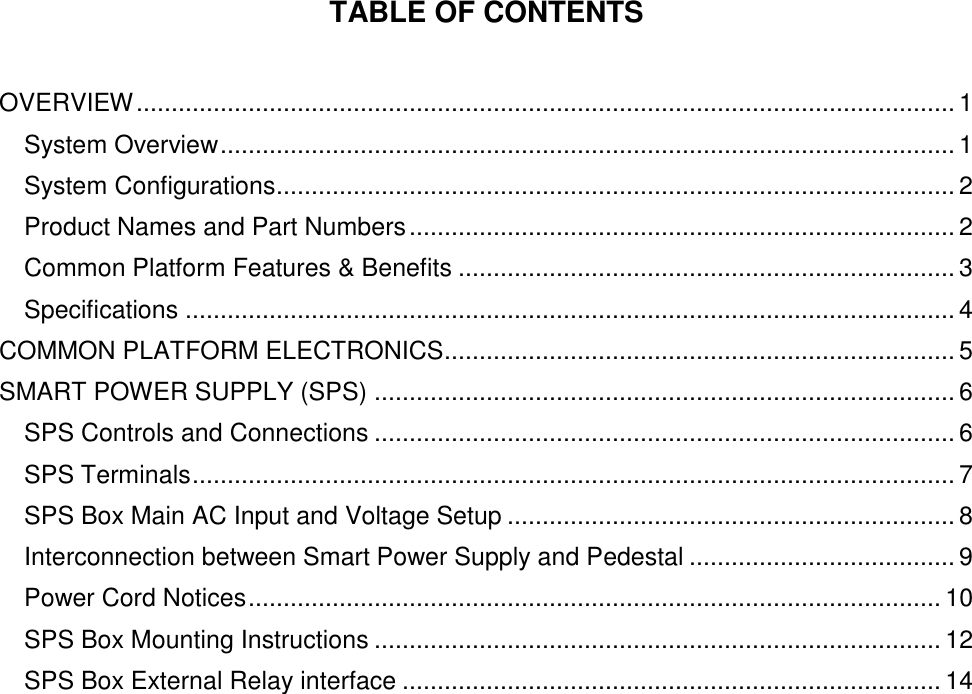

TABLE OF CONTENTS OVERVIEW ..................................................................................................................... 1 System Overview ......................................................................................................... 1 System Configurations ................................................................................................. 2 Product Names and Part Numbers .............................................................................. 2 Common Platform Features & Benefits ....................................................................... 3 Specifications .............................................................................................................. 4 COMMON PLATFORM ELECTRONICS ......................................................................... 5 SMART POWER SUPPLY (SPS) ................................................................................... 6 SPS Controls and Connections ................................................................................... 6 SPS Terminals ............................................................................................................. 7 SPS Box Main AC Input and Voltage Setup ................................................................ 8 Interconnection between Smart Power Supply and Pedestal ...................................... 9 Power Cord Notices ................................................................................................... 10 SPS Box Mounting Instructions ................................................................................. 12 SPS Box External Relay interface ............................................................................. 14
(THIS PAGE INTENTIONALLY LEFT BLANK)

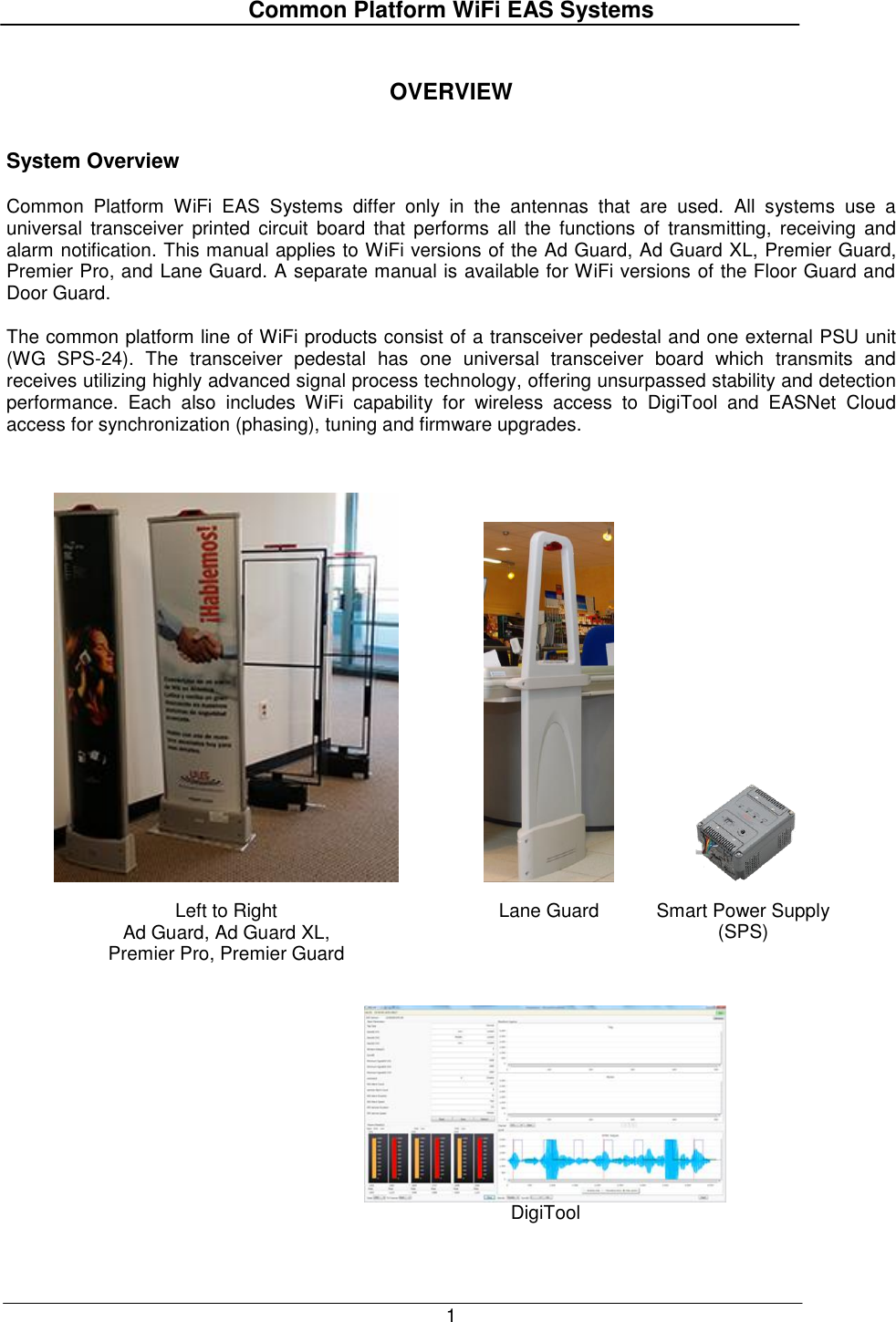

Common Platform WiFi EAS Systems 1 OVERVIEW System Overview Common Platform WiFi EAS Systems differ only in the antennas that are used. All systems use a universal transceiver printed circuit board that performs all the functions of transmitting, receiving and alarm notification. This manual applies to WiFi versions of the Ad Guard, Ad Guard XL, Premier Guard, Premier Pro, and Lane Guard. A separate manual is available for WiFi versions of the Floor Guard and Door Guard. The common platform line of WiFi products consist of a transceiver pedestal and one external PSU unit (WG SPS-24). The transceiver pedestal has one universal transceiver board which transmits and receives utilizing highly advanced signal process technology, offering unsurpassed stability and detection performance. Each also includes WiFi capability for wireless access to DigiTool and EASNet Cloud access for synchronization (phasing), tuning and firmware upgrades. Left to Right Ad Guard, Ad Guard XL, Premier Pro, Premier Guard Lane Guard Smart Power Supply (SPS) DigiTool

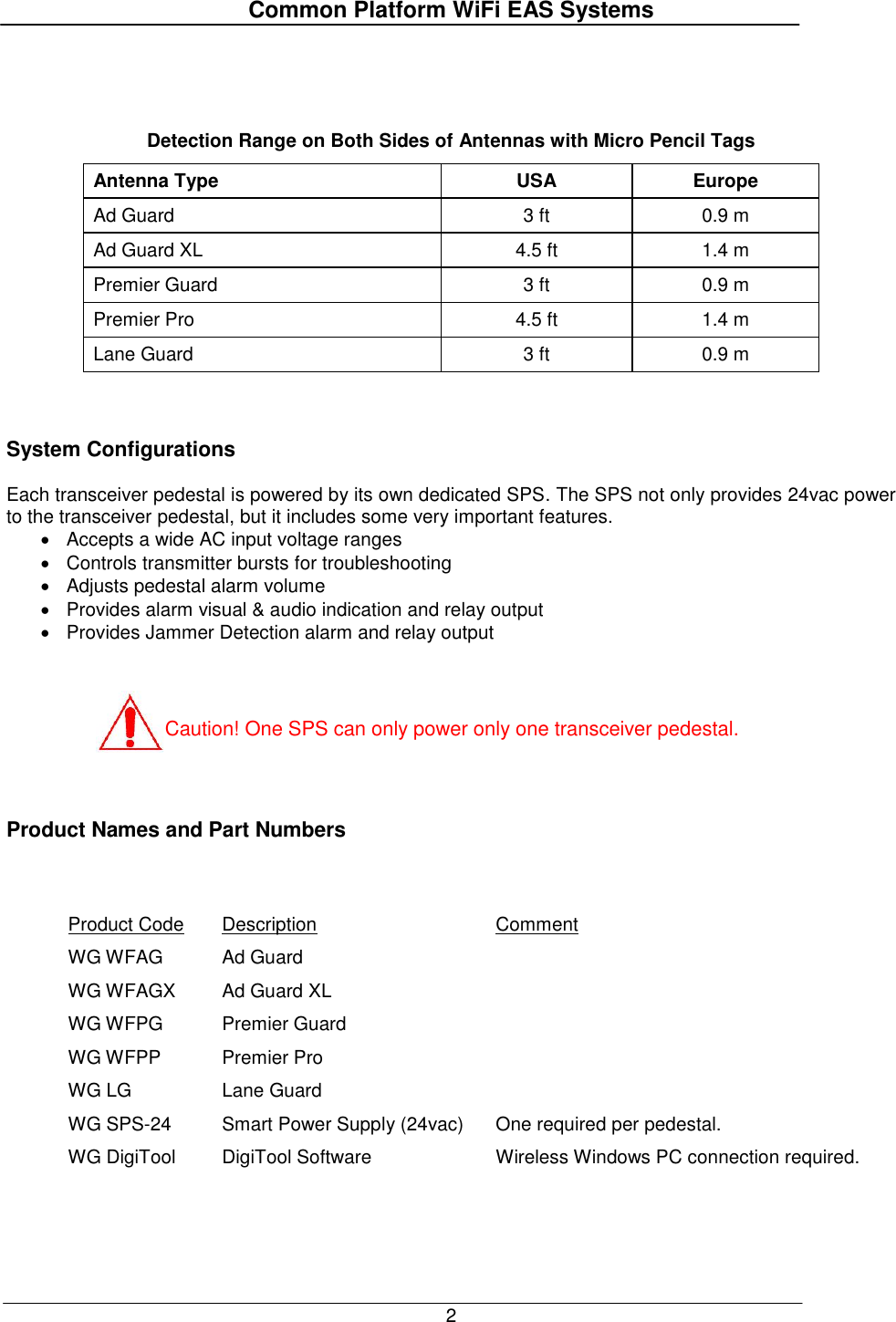

Common Platform WiFi EAS Systems 2 Detection Range on Both Sides of Antennas with Micro Pencil Tags Antenna Type USA Europe Ad Guard 3 ft 0.9 m Ad Guard XL 4.5 ft 1.4 m Premier Guard 3 ft 0.9 m Premier Pro 4.5 ft 1.4 m Lane Guard 3 ft 0.9 m System Configurations Each transceiver pedestal is powered by its own dedicated SPS. The SPS not only provides 24vac power to the transceiver pedestal, but it includes some very important features.  Accepts a wide AC input voltage ranges  Controls transmitter bursts for troubleshooting  Adjusts pedestal alarm volume  Provides alarm visual & audio indication and relay output  Provides Jammer Detection alarm and relay output Product Names and Part Numbers Product Code Description Comment WG WFAG Ad Guard WG WFAGX Ad Guard XL WG WFPG Premier Guard WG WFPP Premier Pro WG LG Lane Guard WG SPS-24 Smart Power Supply (24vac) One required per pedestal. WG DigiTool DigiTool Software Wireless Windows PC connection required. Caution! One SPS can only power only one transceiver pedestal.

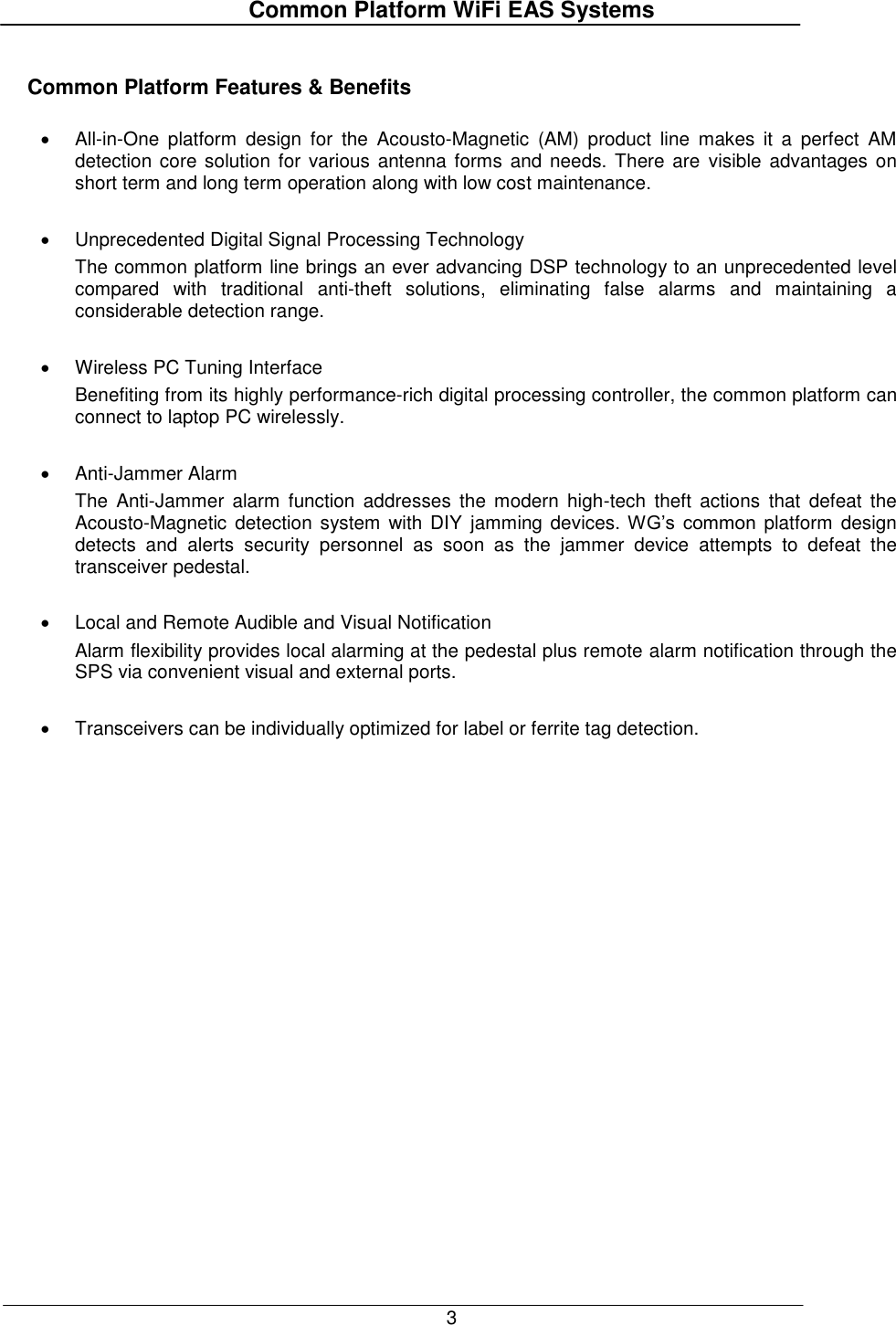

Common Platform WiFi EAS Systems 3 Common Platform Features & Benefits  All-in-One platform design for the Acousto-Magnetic (AM) product line makes it a perfect AM detection core solution for various antenna forms and needs. There are visible advantages on short term and long term operation along with low cost maintenance.  Unprecedented Digital Signal Processing Technology The common platform line brings an ever advancing DSP technology to an unprecedented level compared with traditional anti-theft solutions, eliminating false alarms and maintaining a considerable detection range.  Wireless PC Tuning Interface Benefiting from its highly performance-rich digital processing controller, the common platform can connect to laptop PC wirelessly.  Anti-Jammer Alarm The Anti-Jammer alarm function addresses the modern high-tech theft actions that defeat the Acousto-Magnetic detection system with DIY jamming devices. WG’s common platform design detects and alerts security personnel as soon as the jammer device attempts to defeat the transceiver pedestal.  Local and Remote Audible and Visual Notification Alarm flexibility provides local alarming at the pedestal plus remote alarm notification through the SPS via convenient visual and external ports.  Transceivers can be individually optimized for label or ferrite tag detection.

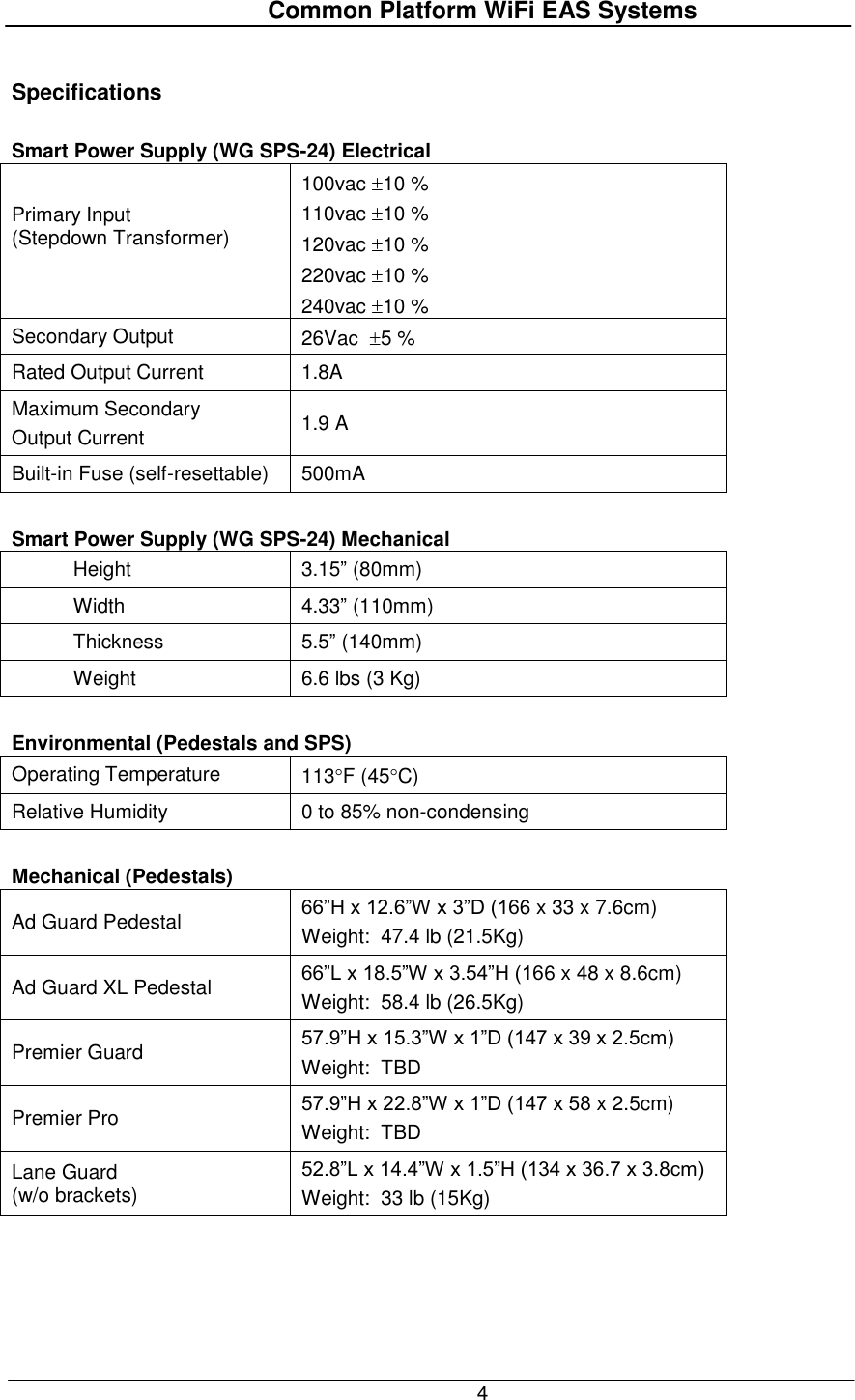

Common Platform WiFi EAS Systems 4 Specifications Smart Power Supply (WG SPS-24) Electrical Primary Input (Stepdown Transformer) 100vac 10 % 110vac 10 % 120vac 10 % 220vac 10 % 240vac 10 % Secondary Output 26Vac 5 % Rated Output Current 1.8A Maximum Secondary Output Current 1.9 A Built-in Fuse (self-resettable) 500mA Smart Power Supply (WG SPS-24) Mechanical Height 3.15” (80mm) Width 4.33” (110mm) Thickness 5.5” (140mm) Weight 6.6 lbs (3 Kg) Environmental (Pedestals and SPS) Operating Temperature 113F (45C) Relative Humidity 0 to 85% non-condensing Mechanical (Pedestals) Ad Guard Pedestal 66”H x 12.6”W x 3”D (166 x 33 x 7.6cm) Weight: 47.4 lb (21.5Kg) Ad Guard XL Pedestal 66”L x 18.5”W x 3.54”H (166 x 48 x 8.6cm) Weight: 58.4 lb (26.5Kg) Premier Guard 57.9”H x 15.3”W x 1”D (147 x 39 x 2.5cm) Weight: TBD Premier Pro 57.9”H x 22.8”W x 1”D (147 x 58 x 2.5cm) Weight: TBD Lane Guard (w/o brackets) 52.8”L x 14.4”W x 1.5”H (134 x 36.7 x 3.8cm) Weight: 33 lb (15Kg)

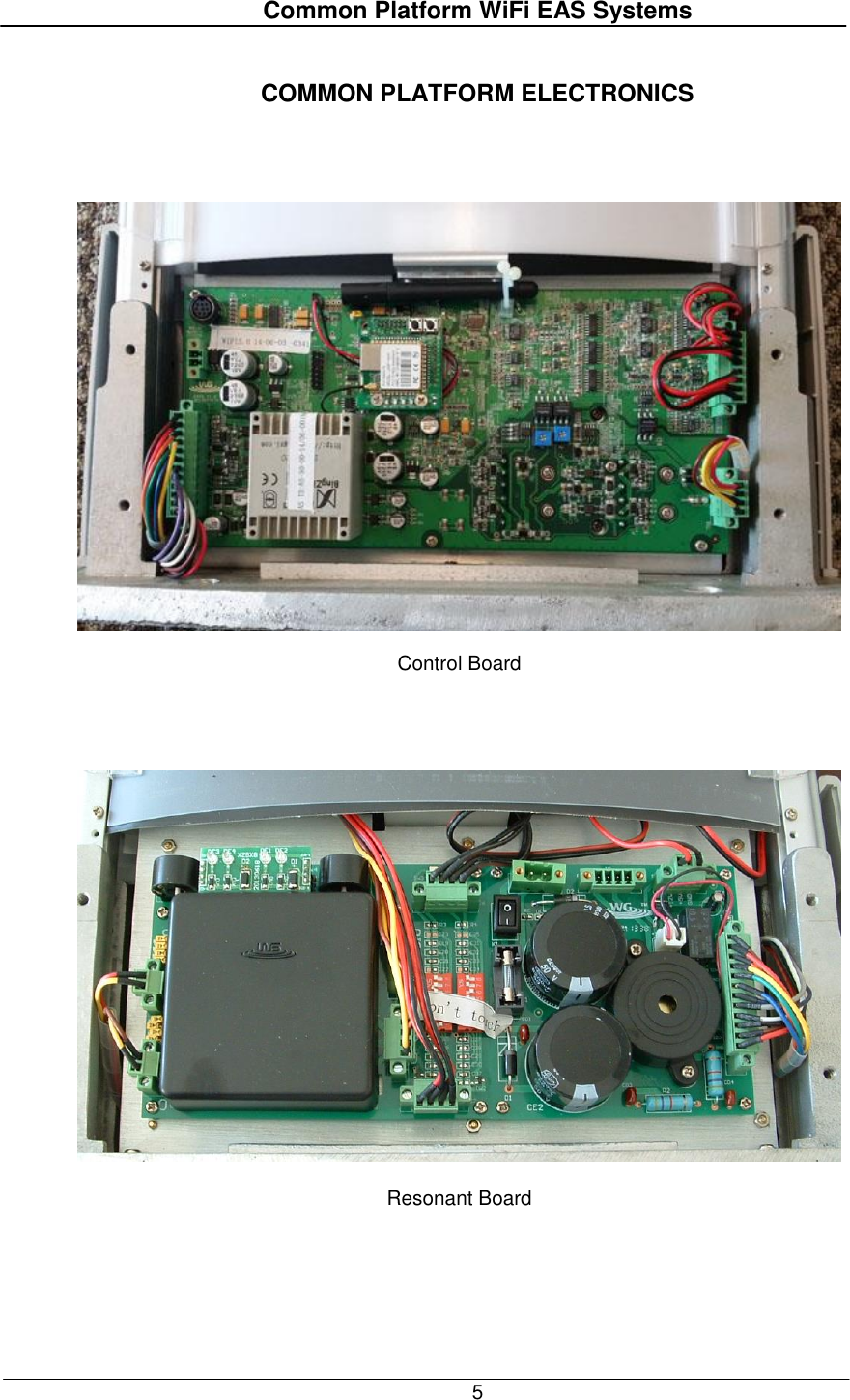

Common Platform WiFi EAS Systems 5 COMMON PLATFORM ELECTRONICS Control Board Resonant Board

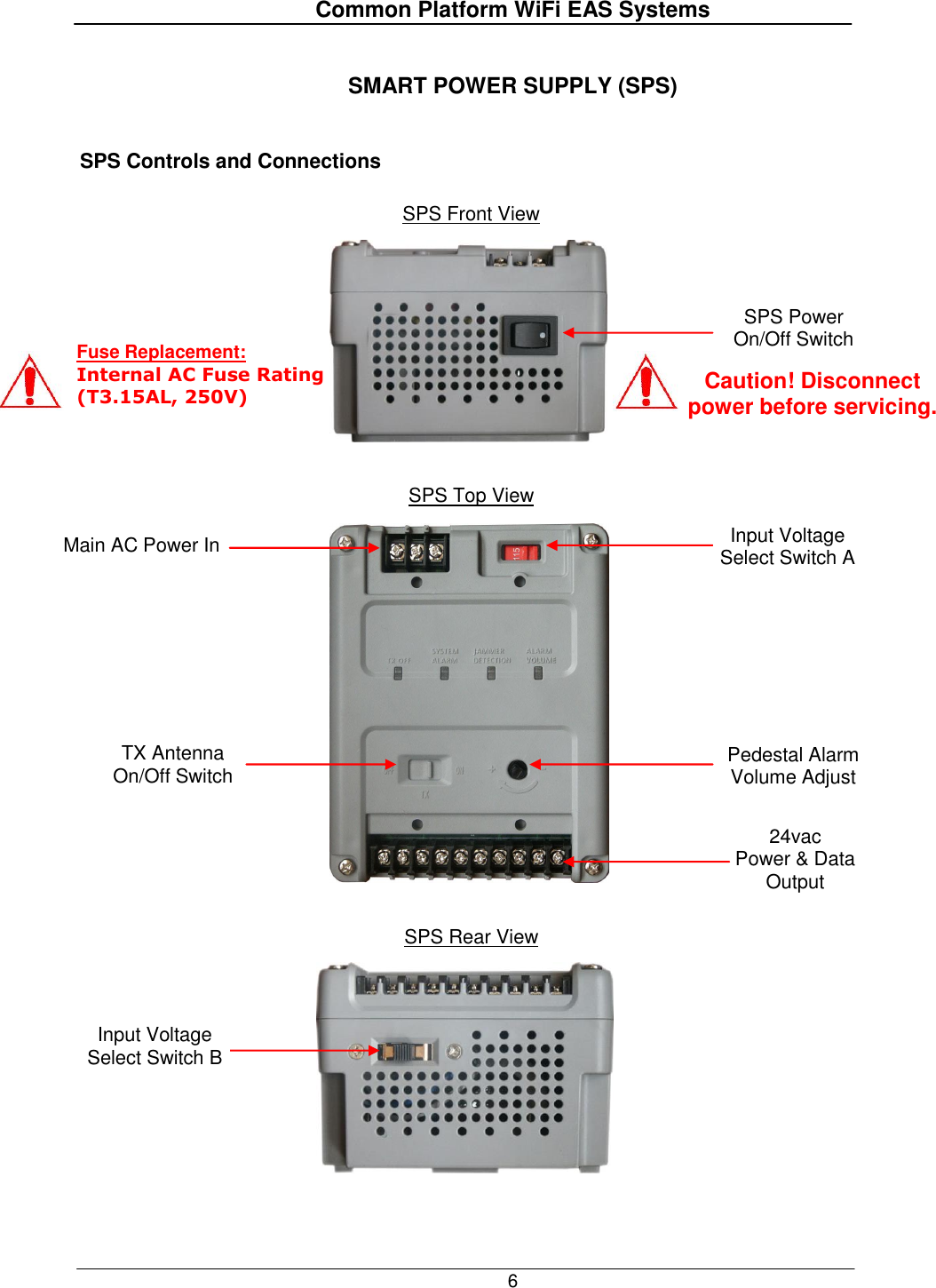

Common Platform WiFi EAS Systems 6 SMART POWER SUPPLY (SPS) SPS Controls and Connections SPS Power On/Off Switch Main AC Power In 24vac Power & Data Output Input Voltage Select Switch A Input Voltage Select Switch B SPS Front View SPS Top View SPS Rear View Pedestal Alarm Volume Adjust TX Antenna On/Off Switch Fuse Replacement: Internal AC Fuse Rating (T3.15AL, 250V) Caution! Disconnect power before servicing.

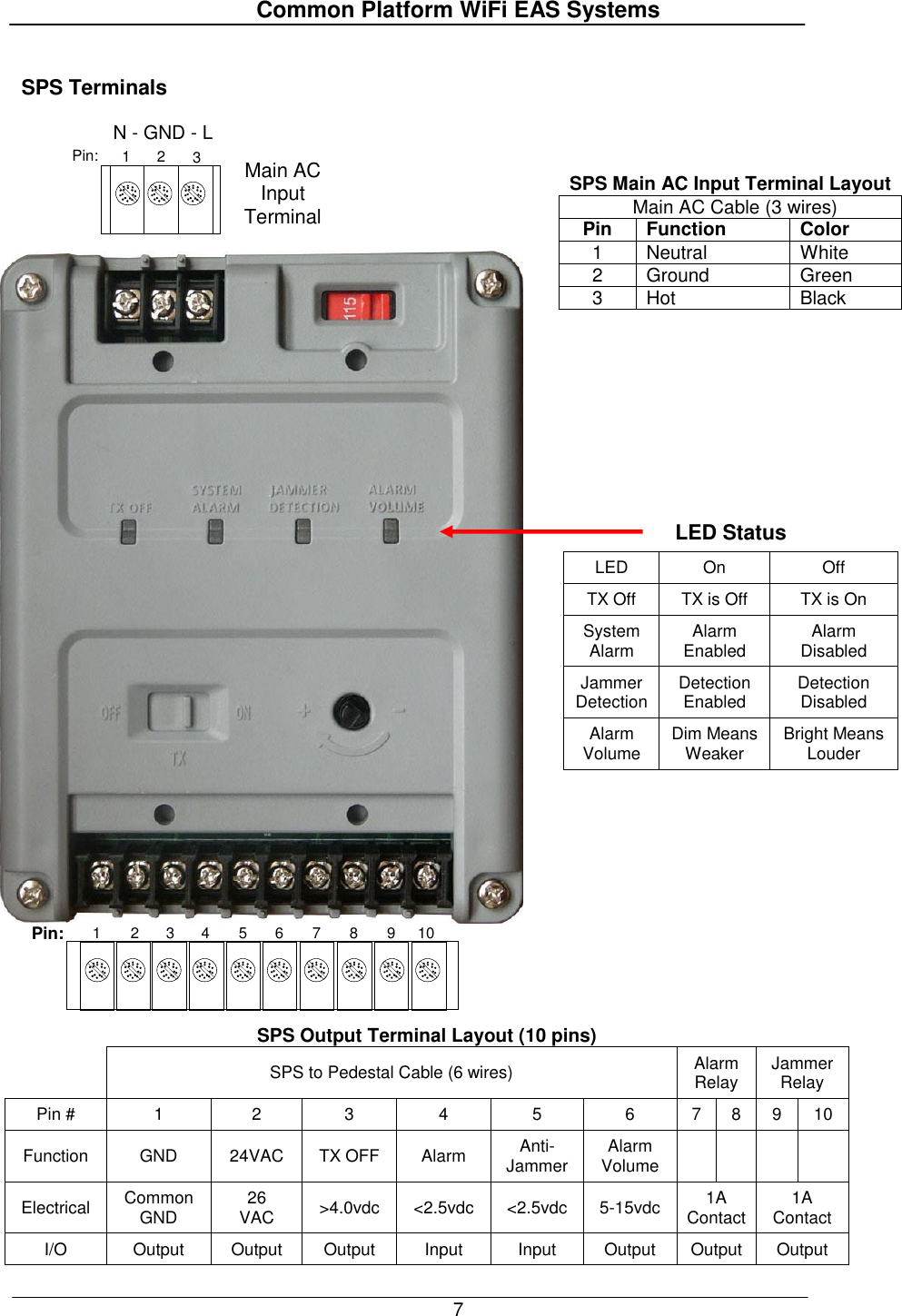

Common Platform WiFi EAS Systems 7 SPS Terminals SPS Output Terminal Layout (10 pins) SPS to Pedestal Cable (6 wires) Alarm Relay Jammer Relay Pin # 1 2 3 4 5 6 7 8 9 10 Function GND 24VAC TX OFF Alarm Anti- Jammer Alarm Volume Electrical Common GND 26 VAC >4.0vdc <2.5vdc <2.5vdc 5-15vdc 1A Contact 1A Contact I/O Output Output Output Input Input Output Output Output 1 2 3 N - GND - L Main AC Input Terminal LED Status LED On Off TX Off TX is Off TX is On System Alarm Alarm Enabled Alarm Disabled Jammer Detection Detection Enabled Detection Disabled Alarm Volume Dim Means Weaker Bright Means Louder Pin: SPS Main AC Input Terminal Layout Main AC Cable (3 wires) Pin Function Color 1 Neutral White 2 Ground Green 3 Hot Black 1 2 3 4 5 6 7 8 9 10 Pin:

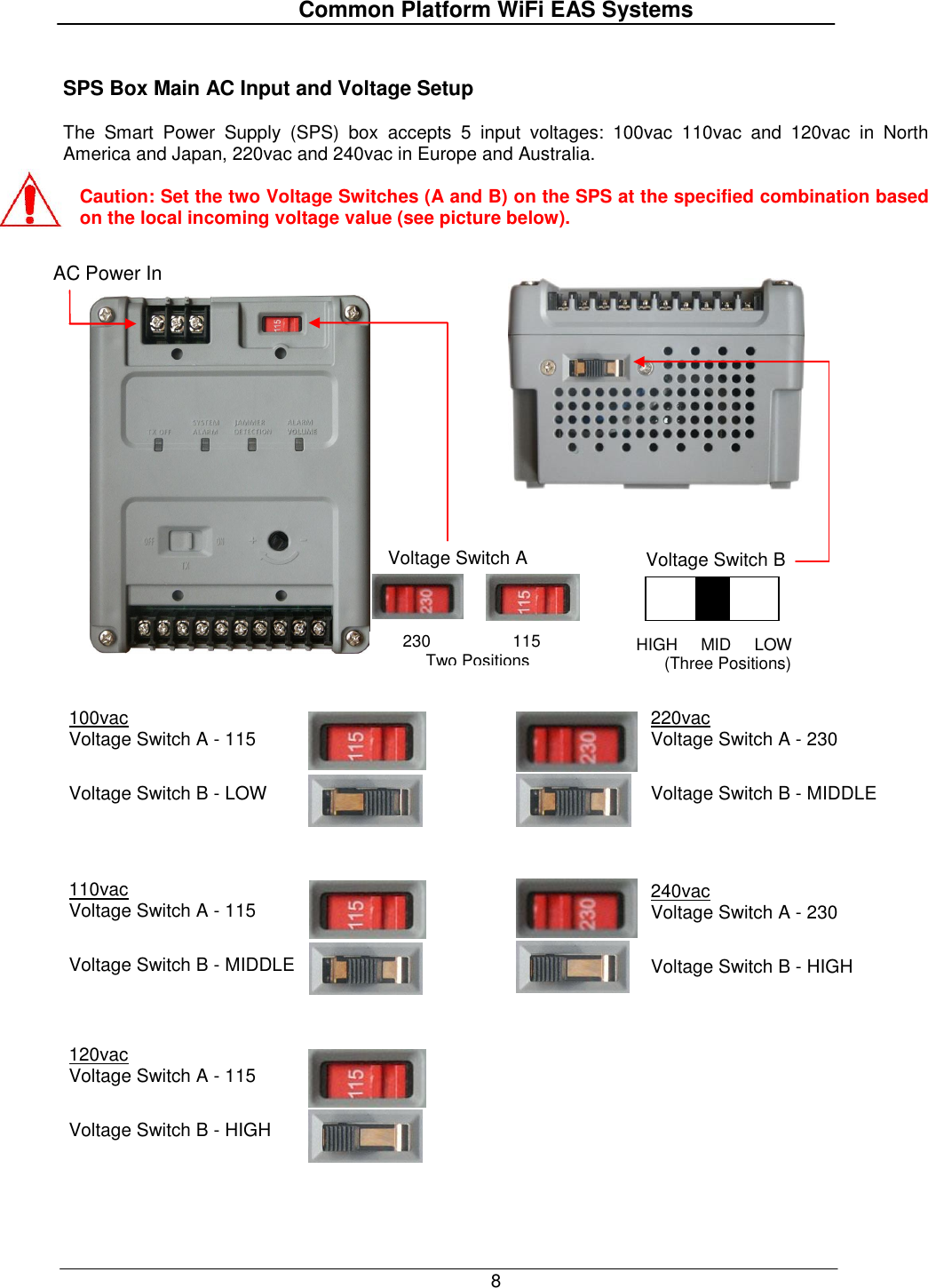

Common Platform WiFi EAS Systems 8 SPS Box Main AC Input and Voltage Setup The Smart Power Supply (SPS) box accepts 5 input voltages: 100vac 110vac and 120vac in North America and Japan, 220vac and 240vac in Europe and Australia. Caution: Set the two Voltage Switches (A and B) on the SPS at the specified combination based on the local incoming voltage value (see picture below). Voltage Switch B HIGH MID LOW (Three Positions) AC Power In Voltage Switch A 230 115 Two Positions 100vac Voltage Switch A - 115 Voltage Switch B - LOW 110vac Voltage Switch A - 115 Voltage Switch B - MIDDLE 120vac Voltage Switch A - 115 Voltage Switch B - HIGH 220vac Voltage Switch A - 230 Voltage Switch B - MIDDLE 240vac Voltage Switch A - 230 Voltage Switch B - HIGH

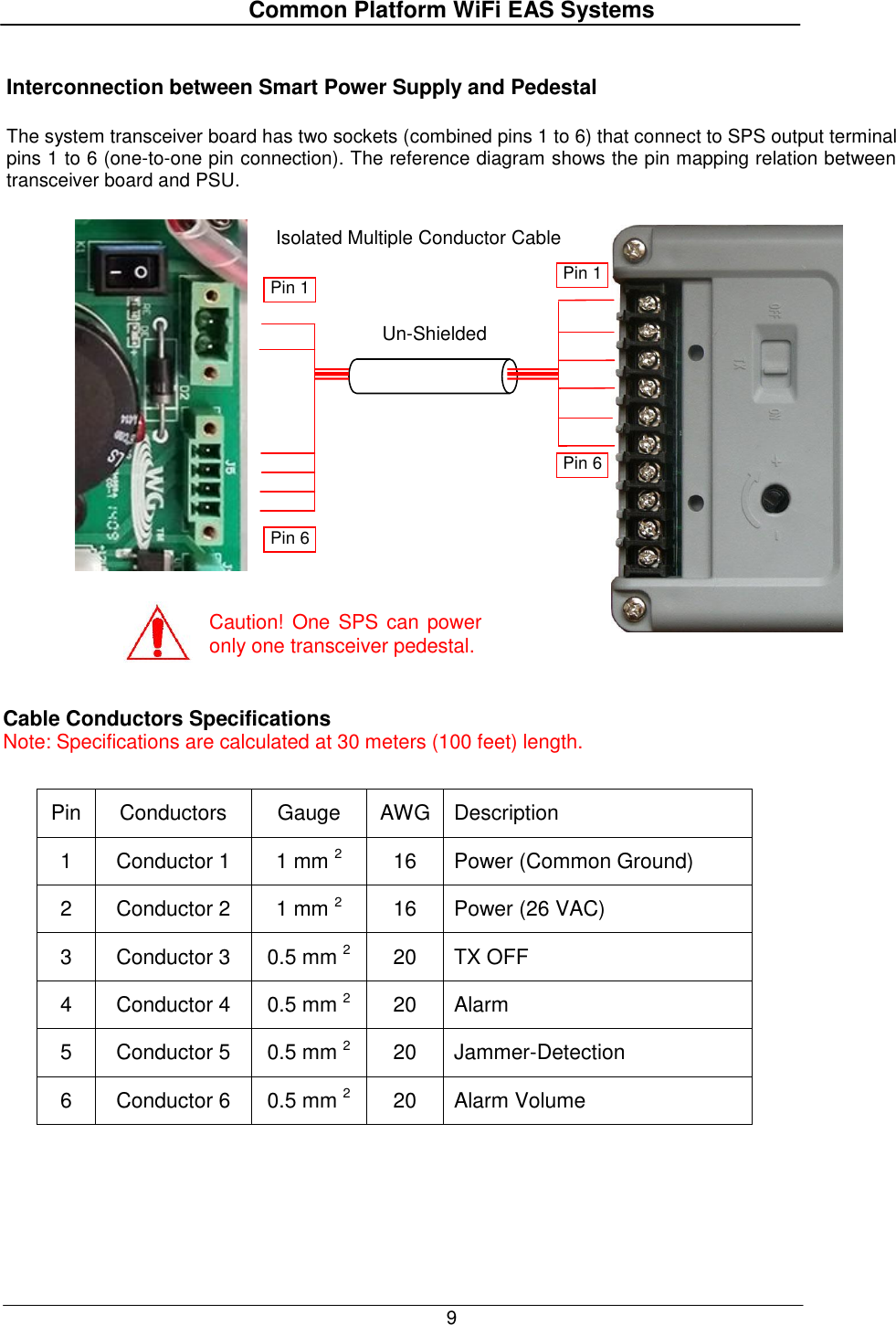

Common Platform WiFi EAS Systems 9 Interconnection between Smart Power Supply and Pedestal The system transceiver board has two sockets (combined pins 1 to 6) that connect to SPS output terminal pins 1 to 6 (one-to-one pin connection). The reference diagram shows the pin mapping relation between transceiver board and PSU. Pin 1 Pin 6 Pin 6 Pin 1 Un-Shielded Cable Conductors Specifications Note: Specifications are calculated at 30 meters (100 feet) length. Pin Conductors Gauge AWG Description 1 Conductor 1 1 mm 2 16 Power (Common Ground) 2 Conductor 2 1 mm 2 16 Power (26 VAC) 3 Conductor 3 0.5 mm 2 20 TX OFF 4 Conductor 4 0.5 mm 2 20 Alarm 5 Conductor 5 0.5 mm 2 20 Jammer-Detection 6 Conductor 6 0.5 mm 2 20 Alarm Volume Caution! One SPS can power only one transceiver pedestal. Isolated Multiple Conductor Cable

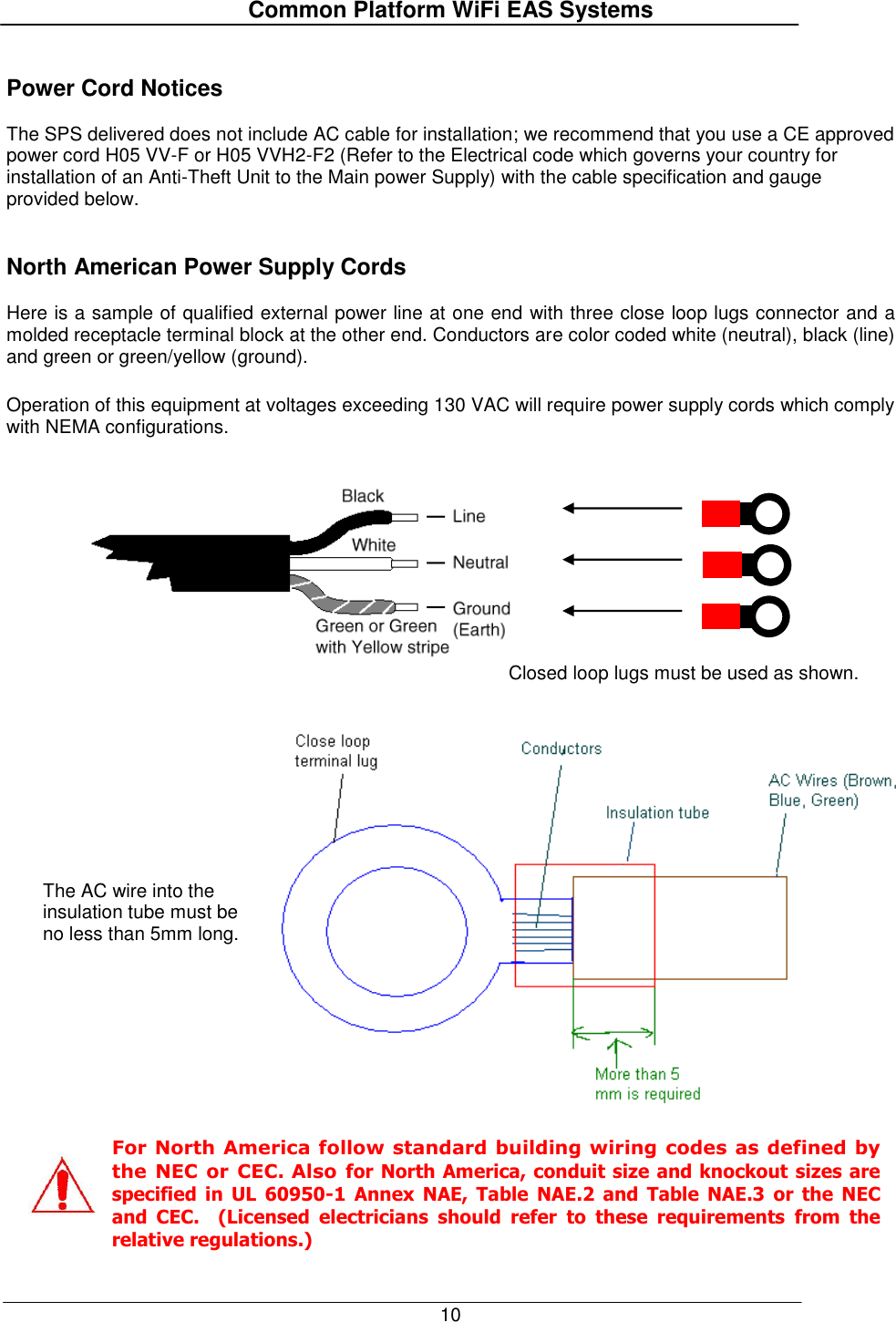

Common Platform WiFi EAS Systems 10 Power Cord Notices The SPS delivered does not include AC cable for installation; we recommend that you use a CE approved power cord H05 VV-F or H05 VVH2-F2 (Refer to the Electrical code which governs your country for installation of an Anti-Theft Unit to the Main power Supply) with the cable specification and gauge provided below. North American Power Supply Cords Here is a sample of qualified external power line at one end with three close loop lugs connector and a molded receptacle terminal block at the other end. Conductors are color coded white (neutral), black (line) and green or green/yellow (ground). Operation of this equipment at voltages exceeding 130 VAC will require power supply cords which comply with NEMA configurations. The AC wire into the insulation tube must be no less than 5mm long. For North America follow standard building wiring codes as defined by the NEC or CEC. Also for North America, conduit size and knockout sizes are specified in UL 60950-1 Annex NAE, Table NAE.2 and Table NAE.3 or the NEC and CEC. (Licensed electricians should refer to these requirements from the relative regulations.) Closed loop lugs must be used as shown.

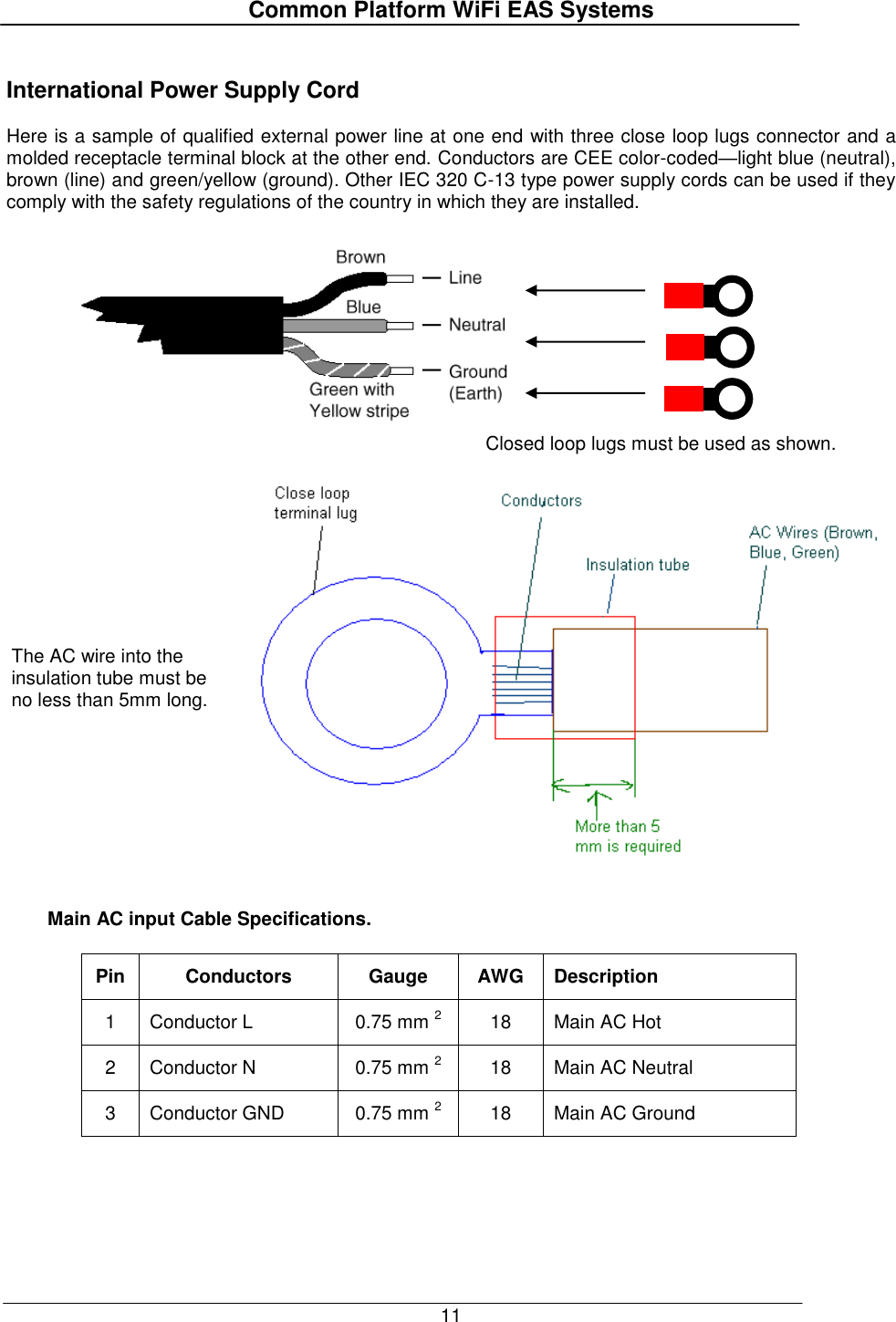

Common Platform WiFi EAS Systems 11 International Power Supply Cord Here is a sample of qualified external power line at one end with three close loop lugs connector and a molded receptacle terminal block at the other end. Conductors are CEE color-coded—light blue (neutral), brown (line) and green/yellow (ground). Other IEC 320 C-13 type power supply cords can be used if they comply with the safety regulations of the country in which they are installed. Main AC input Cable Specifications. Pin Conductors Gauge AWG Description 1 Conductor L 0.75 mm 2 18 Main AC Hot 2 Conductor N 0.75 mm 2 18 Main AC Neutral 3 Conductor GND 0.75 mm 2 18 Main AC Ground The AC wire into the insulation tube must be no less than 5mm long. Closed loop lugs must be used as shown.

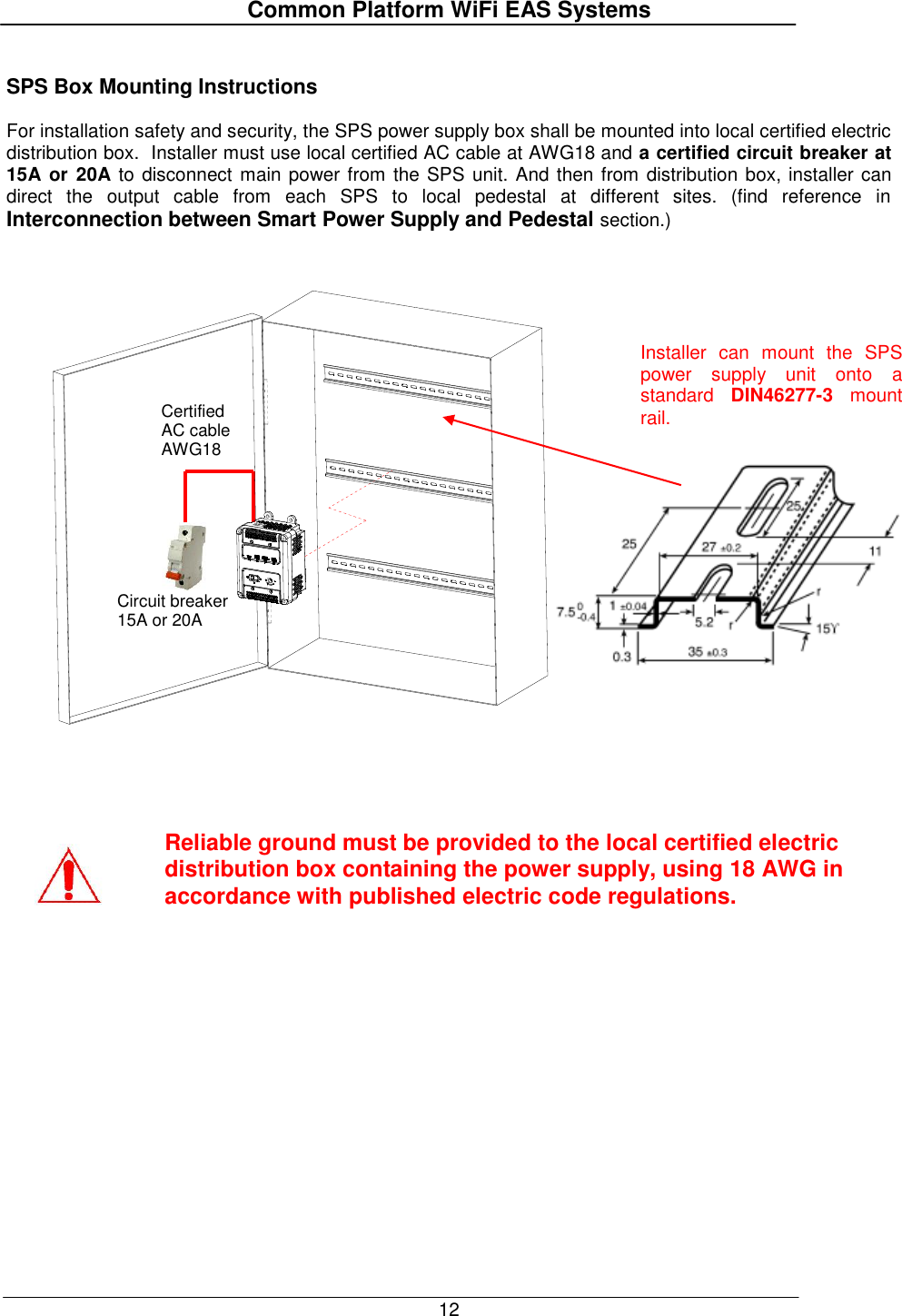

Common Platform WiFi EAS Systems 12 SPS Box Mounting Instructions For installation safety and security, the SPS power supply box shall be mounted into local certified electric distribution box. Installer must use local certified AC cable at AWG18 and a certified circuit breaker at 15A or 20A to disconnect main power from the SPS unit. And then from distribution box, installer can direct the output cable from each SPS to local pedestal at different sites. (find reference in Interconnection between Smart Power Supply and Pedestal section.) Reliable ground must be provided to the local certified electric distribution box containing the power supply, using 18 AWG in accordance with published electric code regulations. Installer can mount the SPS power supply unit onto a standard DIN46277-3 mount rail. Circuit breaker 15A or 20A Certified AC cable AWG18

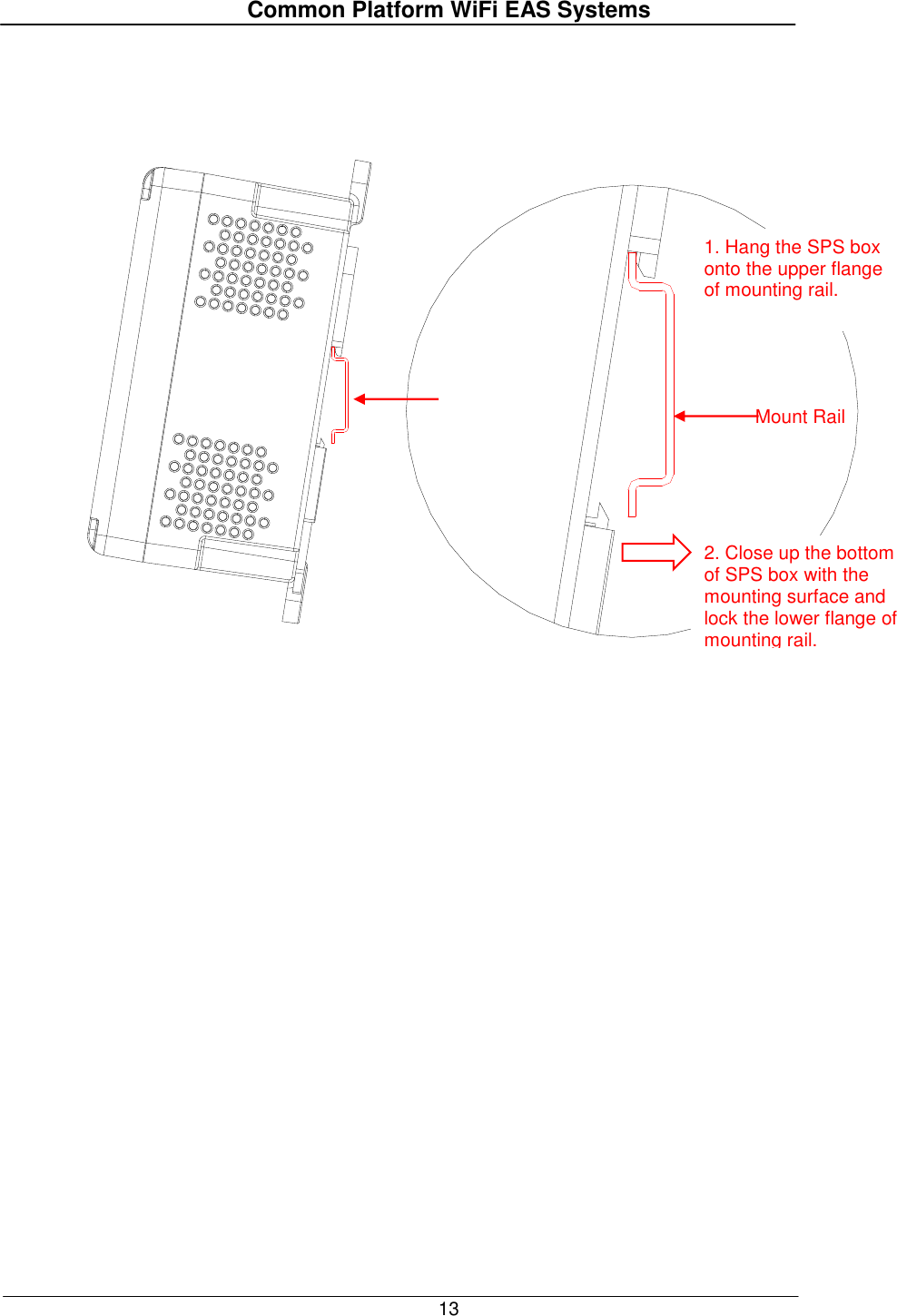

Common Platform WiFi EAS Systems 13 Mount Rail 1. Hang the SPS box onto the upper flange of mounting rail. 2. Close up the bottom of SPS box with the mounting surface and lock the lower flange of mounting rail.

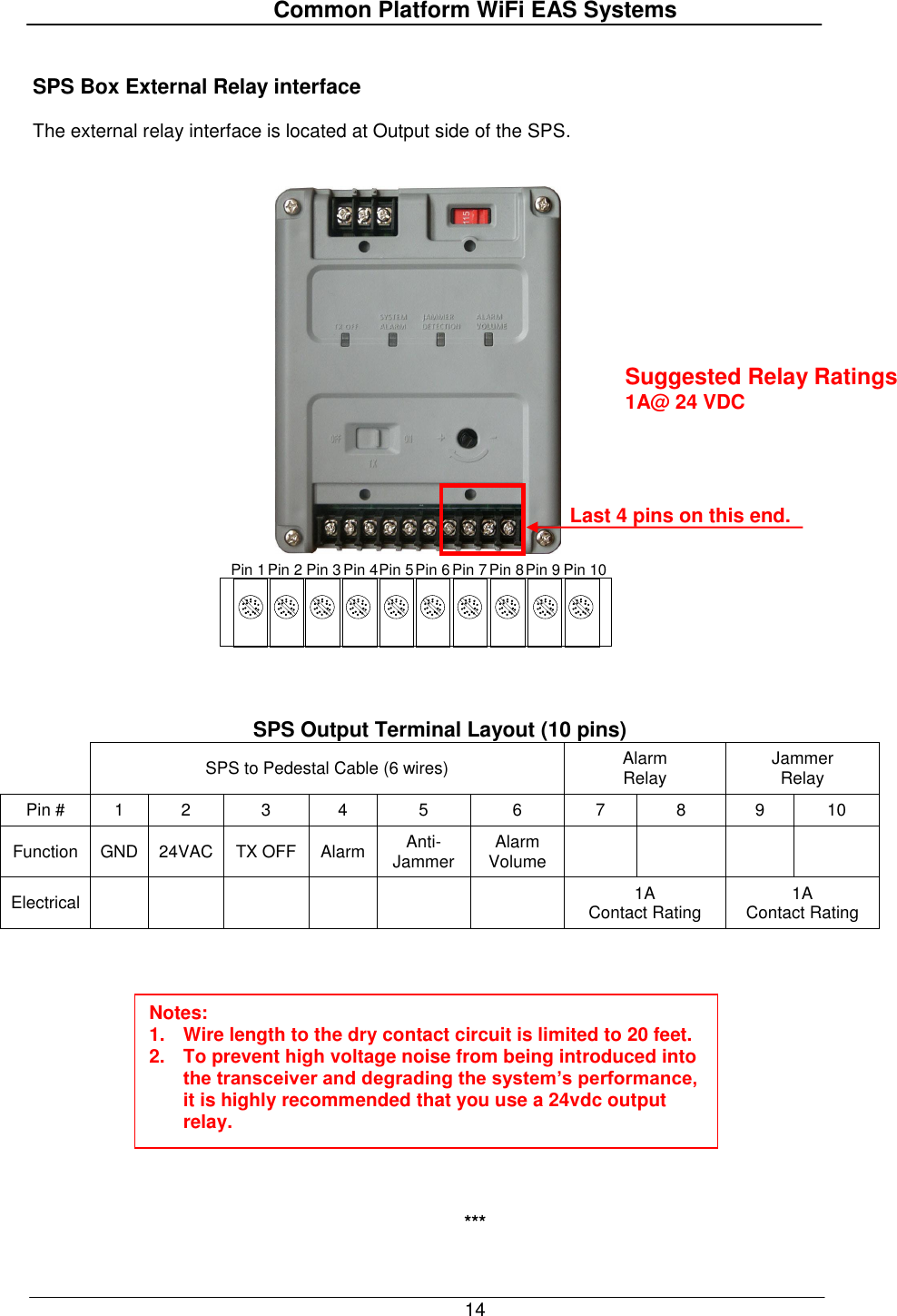

Common Platform WiFi EAS Systems 14 SPS Box External Relay interface The external relay interface is located at Output side of the SPS. *** Suggested Relay Ratings 1A@ 24 VDC Notes: 1. Wire length to the dry contact circuit is limited to 20 feet. 2. To prevent high voltage noise from being introduced into the transceiver and degrading the system’s performance, it is highly recommended that you use a 24vdc output relay. Last 4 pins on this end. Pin 1 Pin 2 Pin 3 Pin 4 Pin 5 Pin 6 Pin 7 Pin 8 Pin 9 Pin 10 SPS Output Terminal Layout (10 pins) SPS to Pedestal Cable (6 wires) Alarm Relay Jammer Relay Pin # 1 2 3 4 5 6 7 8 9 10 Function GND 24VAC TX OFF Alarm Anti- Jammer Alarm Volume Electrical 1A Contact Rating 1A Contact Rating
