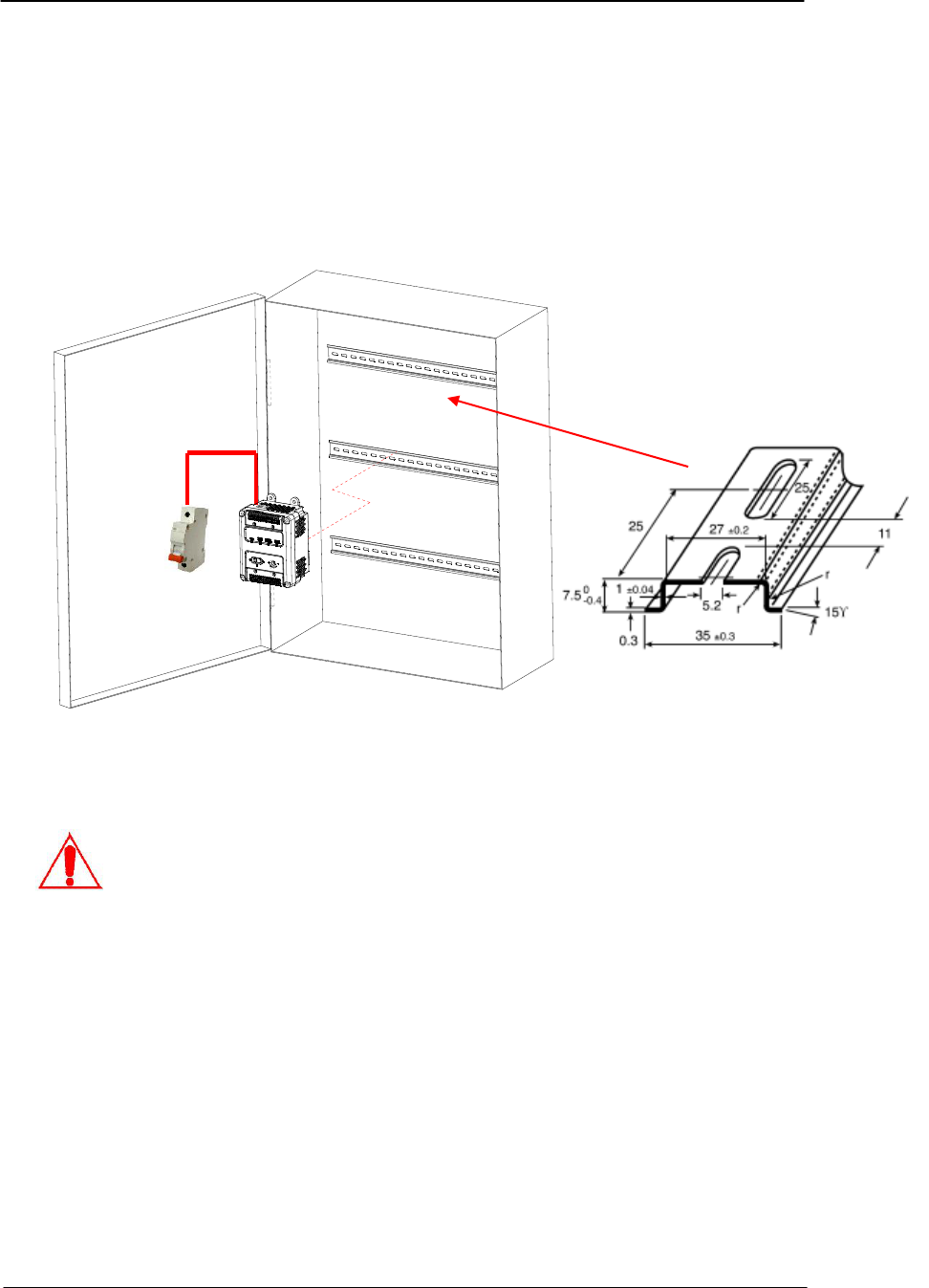

SPS Box Mounting Instructions ................................................................................. 12
SPS Box External Relay interface ............................................................................. 14
(THIS PAGE INTENTIONALLY LEFT BLANK)
Common Platform WiFi EAS Systems
1
OVERVIEW
System Overview
Common Platform WiFi EAS Systems differ only in the antennas that are used. All systems use a
universal transceiver printed circuit board that performs all the functions of transmitting, receiving and
alarm notification. This manual applies to WiFi versions of the Ad Guard, Ad Guard XL, Premier Guard,
Premier Pro, and Lane Guard. A separate manual is available for WiFi versions of the Floor Guard and
Door Guard.
The common platform line of WiFi products consist of a transceiver pedestal and one external PSU unit
(WG SPS-24). The transceiver pedestal has one universal transceiver board which transmits and
receives utilizing highly advanced signal process technology, offering unsurpassed stability and detection
performance. Each also includes WiFi capability for wireless access to DigiTool and EASNet Cloud
access for synchronization (phasing), tuning and firmware upgrades.

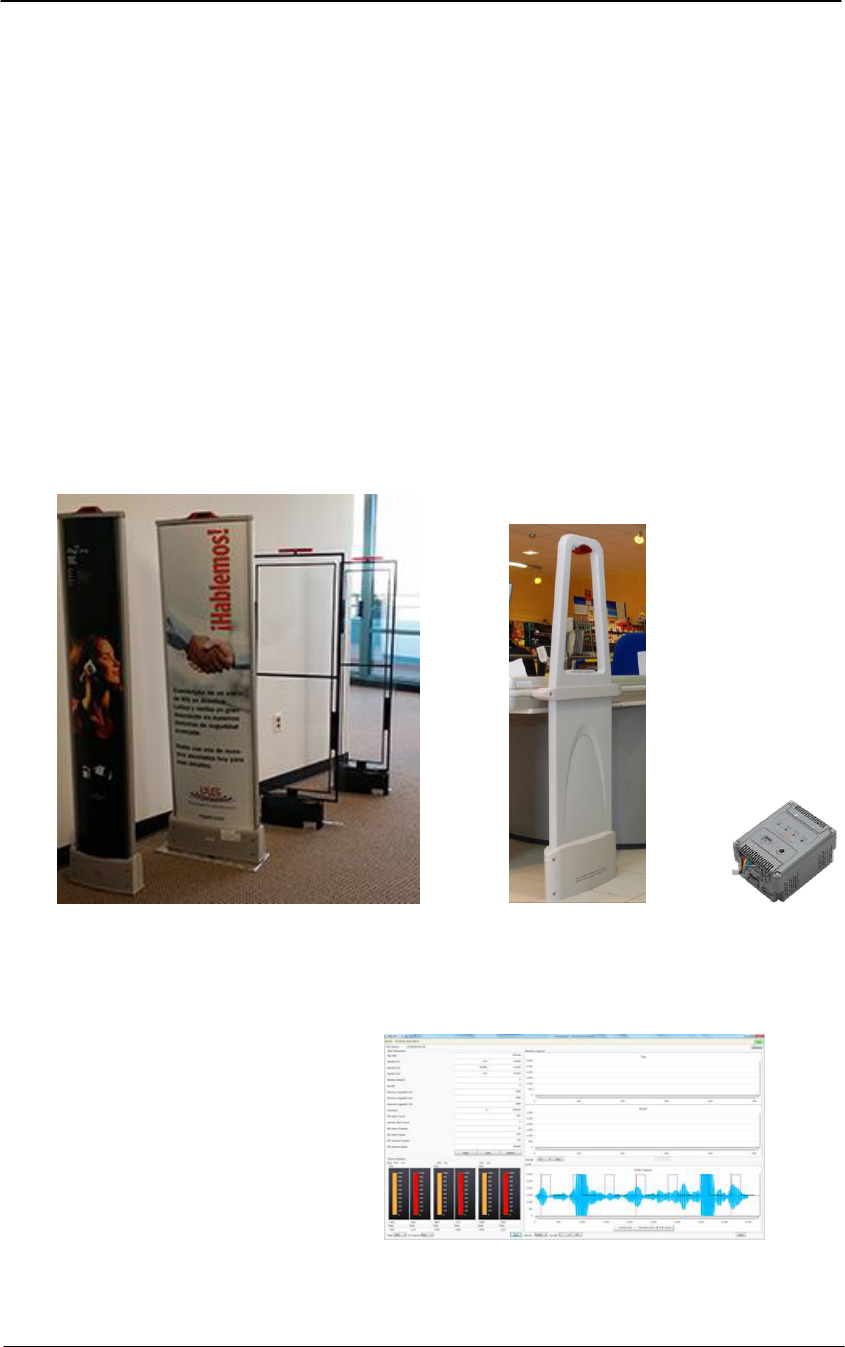

Left to Right
Ad Guard, Ad Guard XL,
Premier Pro, Premier Guard
Smart Power Supply
(SPS)
Common Platform WiFi EAS Systems
2
Detection Range on Both Sides of Antennas with Micro Pencil Tags
Antenna Type
USA
Europe
Ad Guard
3 ft
0.9 m
Ad Guard XL
4.5 ft
1.4 m
Premier Guard
3 ft
0.9 m
Premier Pro
4.5 ft
1.4 m
Lane Guard
3 ft
0.9 m
System Configurations
Each transceiver pedestal is powered by its own dedicated SPS. The SPS not only provides 24vac power
to the transceiver pedestal, but it includes some very important features.
Accepts a wide AC input voltage ranges
Controls transmitter bursts for troubleshooting
Adjusts pedestal alarm volume
Provides alarm visual & audio indication and relay output
Provides Jammer Detection alarm and relay output
Product Names and Part Numbers
Product Code
Description
Comment
WG WFAG
Ad Guard
WG WFAGX
Ad Guard XL
WG WFPG
Premier Guard
WG WFPP
Premier Pro
WG LG
Lane Guard
WG SPS-24
Smart Power Supply (24vac)
One required per pedestal.
WG DigiTool
DigiTool Software
Wireless Windows PC connection required.
Caution! One SPS can only power only one transceiver pedestal.
Common Platform WiFi EAS Systems
3
Common Platform Features & Benefits
All-in-One platform design for the Acousto-Magnetic (AM) product line makes it a perfect AM
detection core solution for various antenna forms and needs. There are visible advantages on
short term and long term operation along with low cost maintenance.
Unprecedented Digital Signal Processing Technology
The common platform line brings an ever advancing DSP technology to an unprecedented level
compared with traditional anti-theft solutions, eliminating false alarms and maintaining a
considerable detection range.
Wireless PC Tuning Interface
Benefiting from its highly performance-rich digital processing controller, the common platform can
connect to laptop PC wirelessly.
Anti-Jammer Alarm
The Anti-Jammer alarm function addresses the modern high-tech theft actions that defeat the
Acousto-Magnetic detection system with DIY jamming devices. WG’s common platform design
detects and alerts security personnel as soon as the jammer device attempts to defeat the
transceiver pedestal.
Local and Remote Audible and Visual Notification
Alarm flexibility provides local alarming at the pedestal plus remote alarm notification through the
SPS via convenient visual and external ports.
Transceivers can be individually optimized for label or ferrite tag detection.
Common Platform WiFi EAS Systems
4
Specifications
Smart Power Supply (WG SPS-24) Electrical
Primary Input
(Stepdown Transformer)
100vac 10 %
110vac 10 %
120vac 10 %
220vac 10 %
240vac 10 %
Secondary Output
26Vac 5 %
Rated Output Current
1.8A
Maximum Secondary
Output Current
1.9 A
Built-in Fuse (self-resettable)
500mA
Smart Power Supply (WG SPS-24) Mechanical
Height
3.15” (80mm)
Width
4.33” (110mm)
Thickness
5.5” (140mm)
Weight
6.6 lbs (3 Kg)
Environmental (Pedestals and SPS)
Operating Temperature
113F (45C)
Relative Humidity
0 to 85% non-condensing
Mechanical (Pedestals)
Ad Guard Pedestal
66”H x 12.6”W x 3”D (166 x 33 x 7.6cm)
Weight: 47.4 lb (21.5Kg)
Ad Guard XL Pedestal
66”L x 18.5”W x 3.54”H (166 x 48 x 8.6cm)
Weight: 58.4 lb (26.5Kg)
Premier Guard
57.9”H x 15.3”W x 1”D (147 x 39 x 2.5cm)
Weight: TBD
Premier Pro
57.9”H x 22.8”W x 1”D (147 x 58 x 2.5cm)
Weight: TBD
Lane Guard
(w/o brackets)
52.8”L x 14.4”W x 1.5”H (134 x 36.7 x 3.8cm)
Weight: 33 lb (15Kg)
Common Platform WiFi EAS Systems
5
COMMON PLATFORM ELECTRONICS
Common Platform WiFi EAS Systems
6
SMART POWER SUPPLY (SPS)

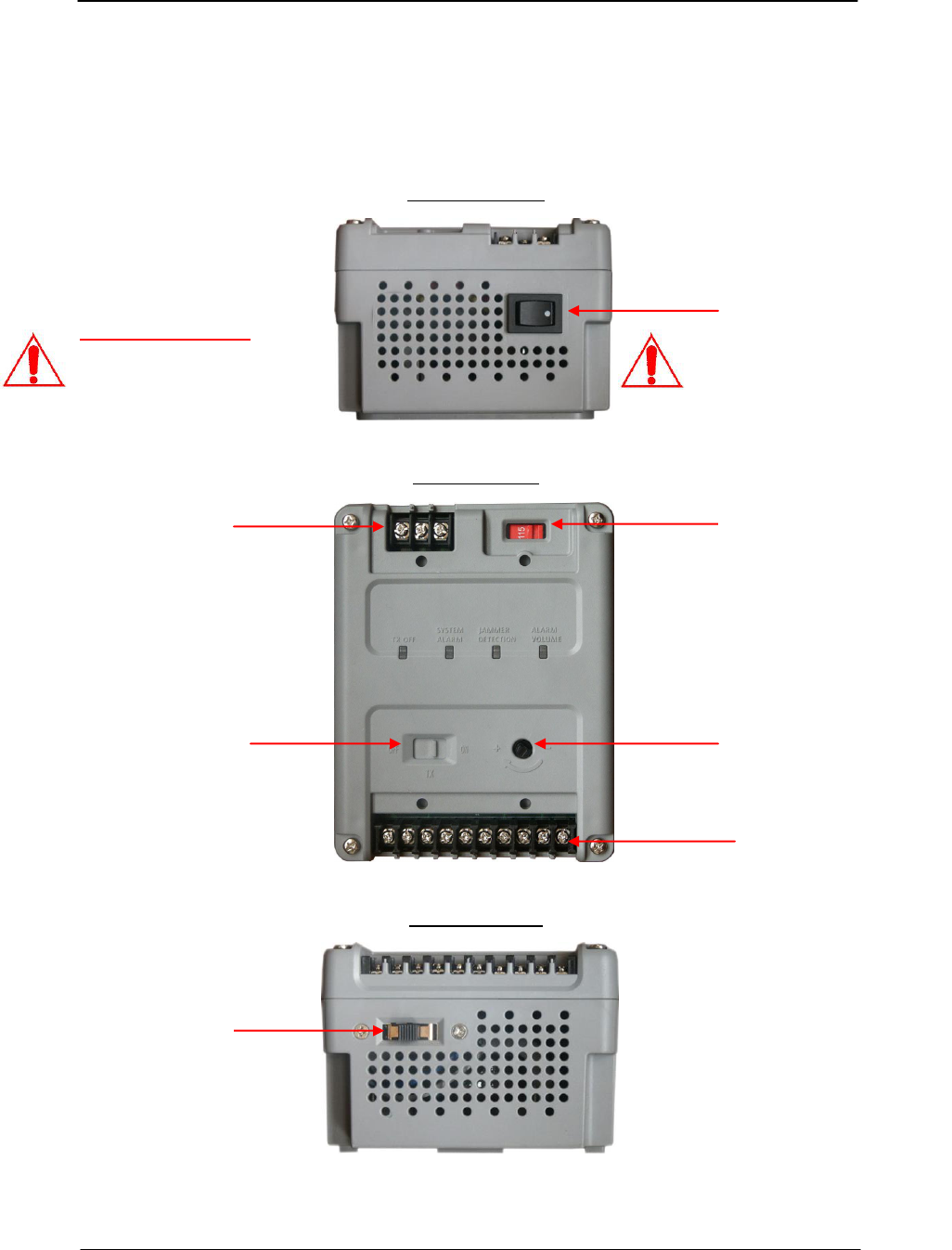

SPS Controls and Connections
SPS Power
On/Off Switch
Main AC Power In
24vac
Power & Data
Output
Input Voltage
Select Switch A
Input Voltage
Select Switch B
SPS Front View
SPS Top View
SPS Rear View
Pedestal Alarm
Volume Adjust
TX Antenna
On/Off Switch
Fuse Replacement:
Internal AC Fuse Rating
(T3.15AL, 250V)
Caution! Disconnect
power before servicing.
Common Platform WiFi EAS Systems
7

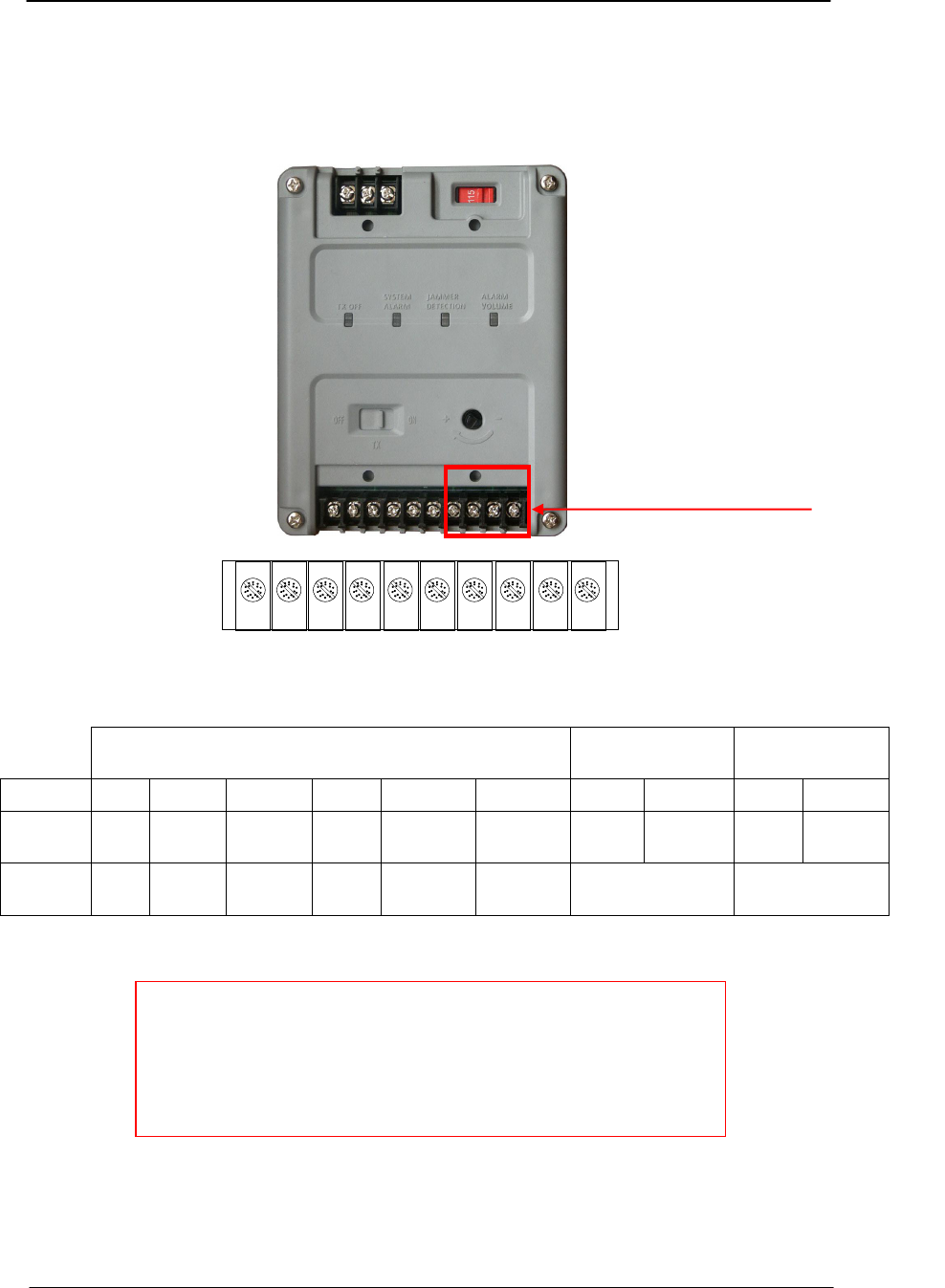

SPS Terminals
SPS Output Terminal Layout (10 pins)
SPS to Pedestal Cable (6 wires)
Alarm
Relay
Jammer
Relay
Pin #
1
2
3
4
5
6
7
8
9
10
Function
GND
24VAC
TX OFF
Alarm
Anti-
Jammer
Alarm
Volume
Electrical
Common
GND
26
VAC
>4.0vdc
<2.5vdc
<2.5vdc
5-15vdc
1A
Contact
1A
Contact
I/O
Output
Output
Output
Input
Input
Output
Output
Output
1
2
3
N - GND - L
Main AC
Input
Terminal

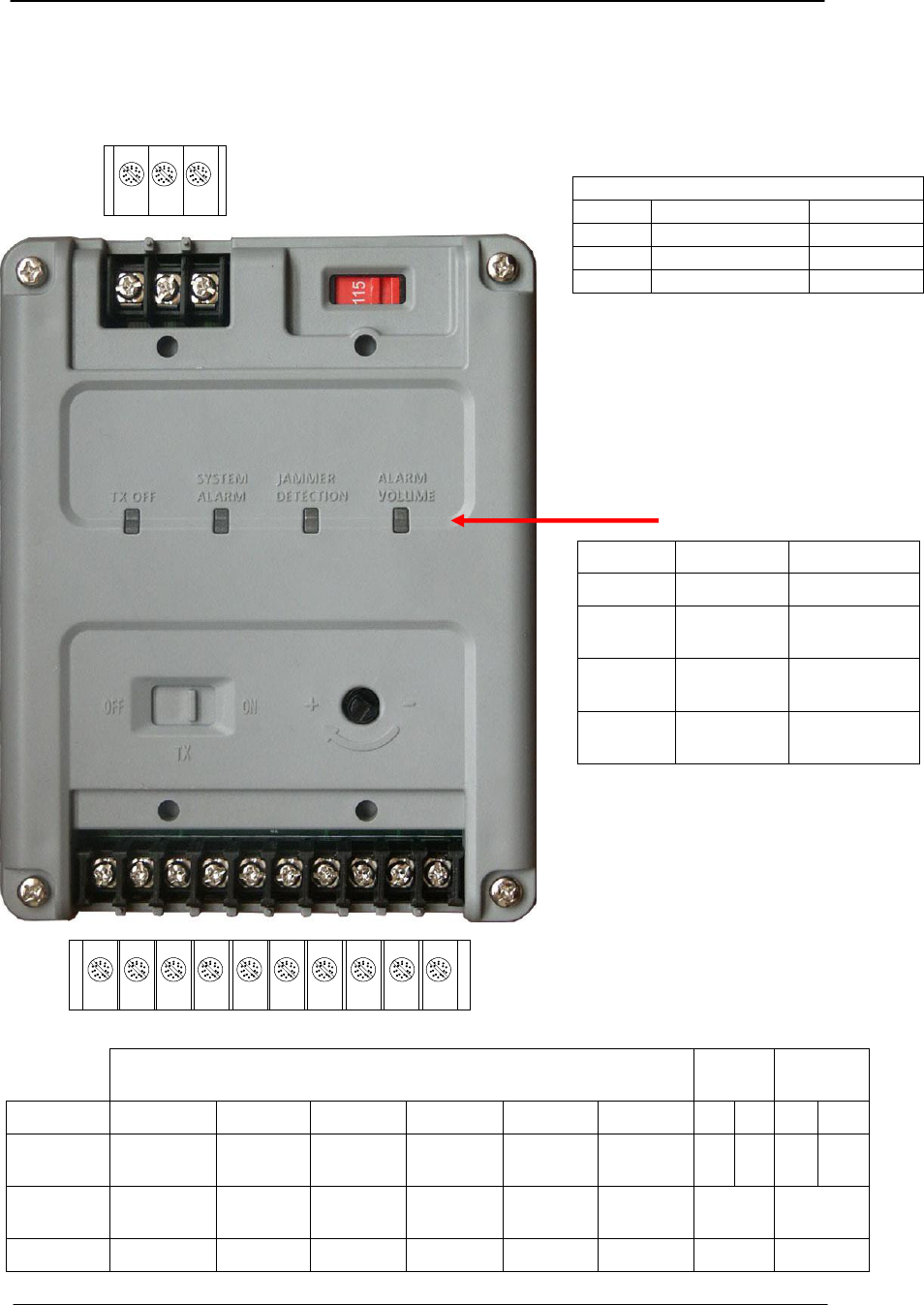

LED Status
LED
On
Off
TX Off
TX is Off
TX is On
System
Alarm
Alarm
Enabled
Alarm
Disabled
Jammer
Detection
Detection
Enabled
Detection
Disabled
Alarm
Volume
Dim Means
Weaker
Bright Means
Louder
Pin:
SPS Main AC Input Terminal Layout
Main AC Cable (3 wires)
Pin
Function
Color
1
Neutral
White
2
Ground
Green
3
Hot
Black
1
2
3
4
5
6
7
8
9
10
Pin:
Common Platform WiFi EAS Systems
8
SPS Box Main AC Input and Voltage Setup
The Smart Power Supply (SPS) box accepts 5 input voltages: 100vac 110vac and 120vac in North
America and Japan, 220vac and 240vac in Europe and Australia.

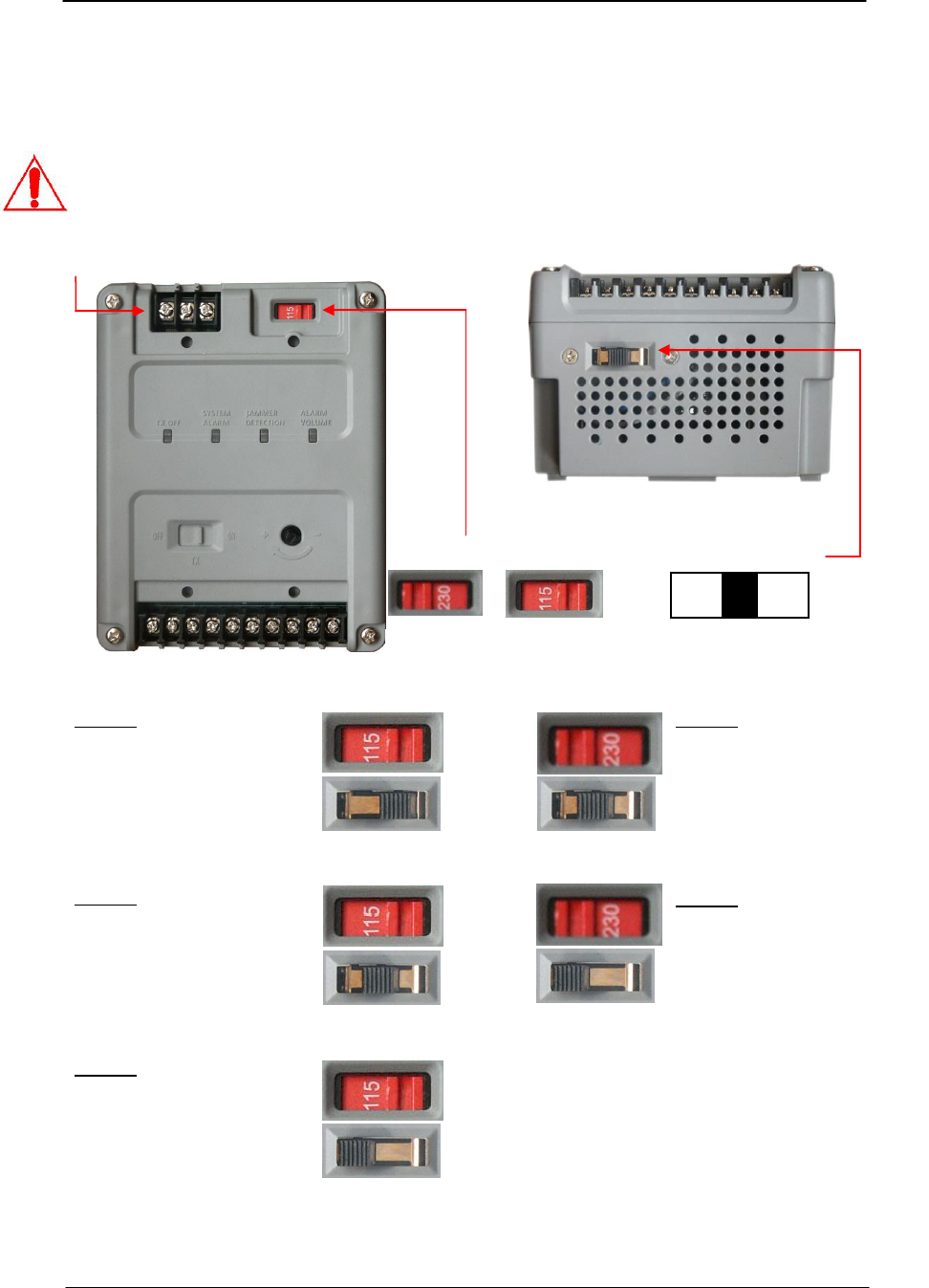

Caution: Set the two Voltage Switches (A and B) on the SPS at the specified combination based
on the local incoming voltage value (see picture below).
Voltage Switch B
HIGH MID LOW
(Three Positions)
AC Power In
Voltage Switch A
230 115
Two Positions
100vac
Voltage Switch A - 115
Voltage Switch B - LOW
110vac
Voltage Switch A - 115
Voltage Switch B - MIDDLE
120vac
Voltage Switch A - 115
Voltage Switch B - HIGH
220vac
Voltage Switch A - 230
Voltage Switch B - MIDDLE
240vac
Voltage Switch A - 230
Voltage Switch B - HIGH
Common Platform WiFi EAS Systems
9

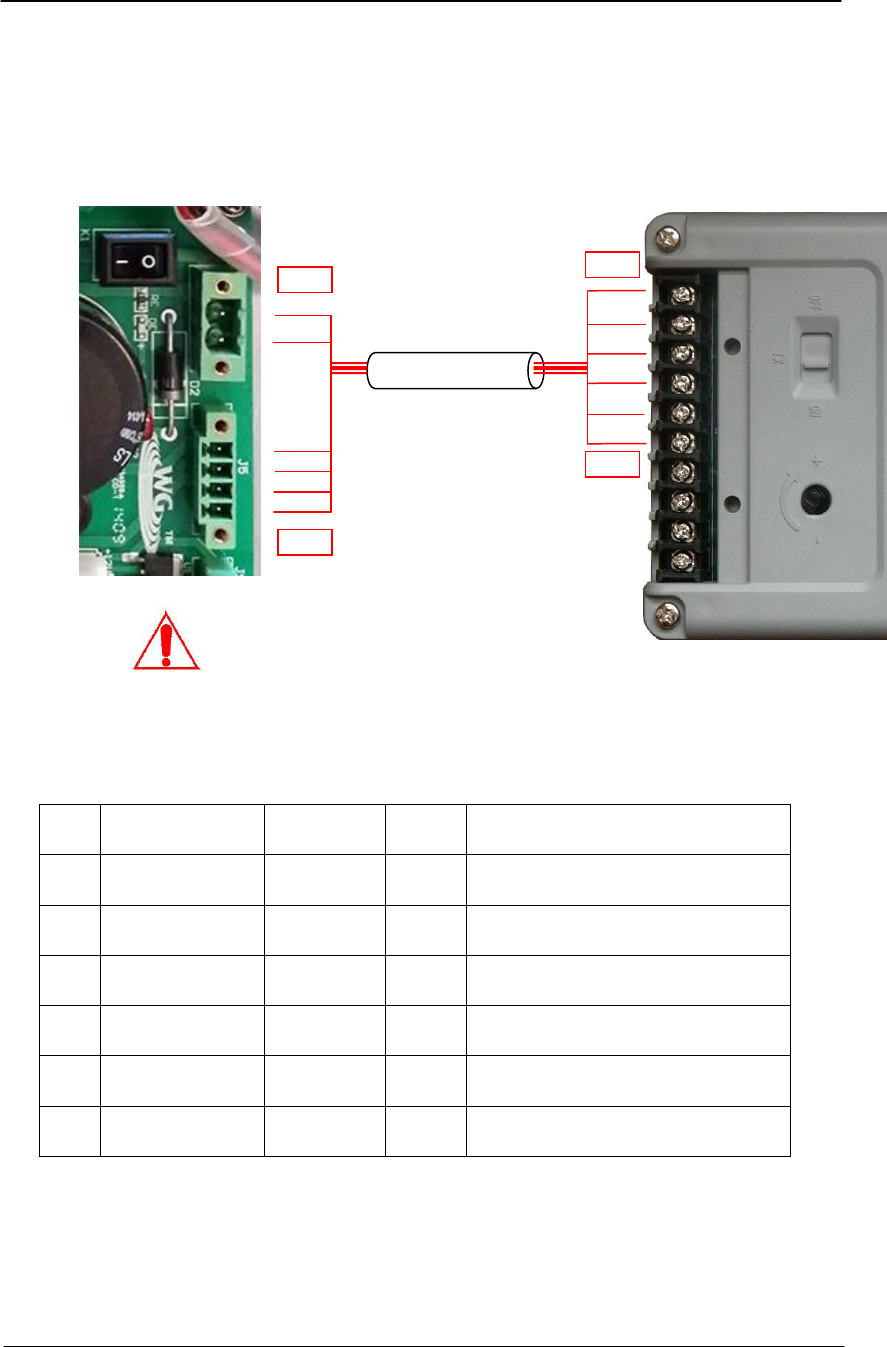

Interconnection between Smart Power Supply and Pedestal
The system transceiver board has two sockets (combined pins 1 to 6) that connect to SPS output terminal
pins 1 to 6 (one-to-one pin connection). The reference diagram shows the pin mapping relation between
transceiver board and PSU.
Pin 1
Pin 6
Pin 6
Pin 1
Un-Shielded
Cable Conductors Specifications
Note: Specifications are calculated at 30 meters (100 feet) length.
Pin
Conductors
Gauge
AWG
Description
1
Conductor 1
1 mm 2
16
Power (Common Ground)
2
Conductor 2
1 mm 2
16
Power (26 VAC)
3
Conductor 3
0.5 mm 2
20
TX OFF
4
Conductor 4
0.5 mm 2
20
Alarm
5
Conductor 5
0.5 mm 2
20
Jammer-Detection
6
Conductor 6
0.5 mm 2
20
Alarm Volume
Caution! One SPS can power
only one transceiver pedestal.
Isolated Multiple Conductor Cable
Common Platform WiFi EAS Systems
10
Power Cord Notices
The SPS delivered does not include AC cable for installation; we recommend that you use a CE approved
power cord H05 VV-F or H05 VVH2-F2 (Refer to the Electrical code which governs your country for
installation of an Anti-Theft Unit to the Main power Supply) with the cable specification and gauge
provided below.
North American Power Supply Cords

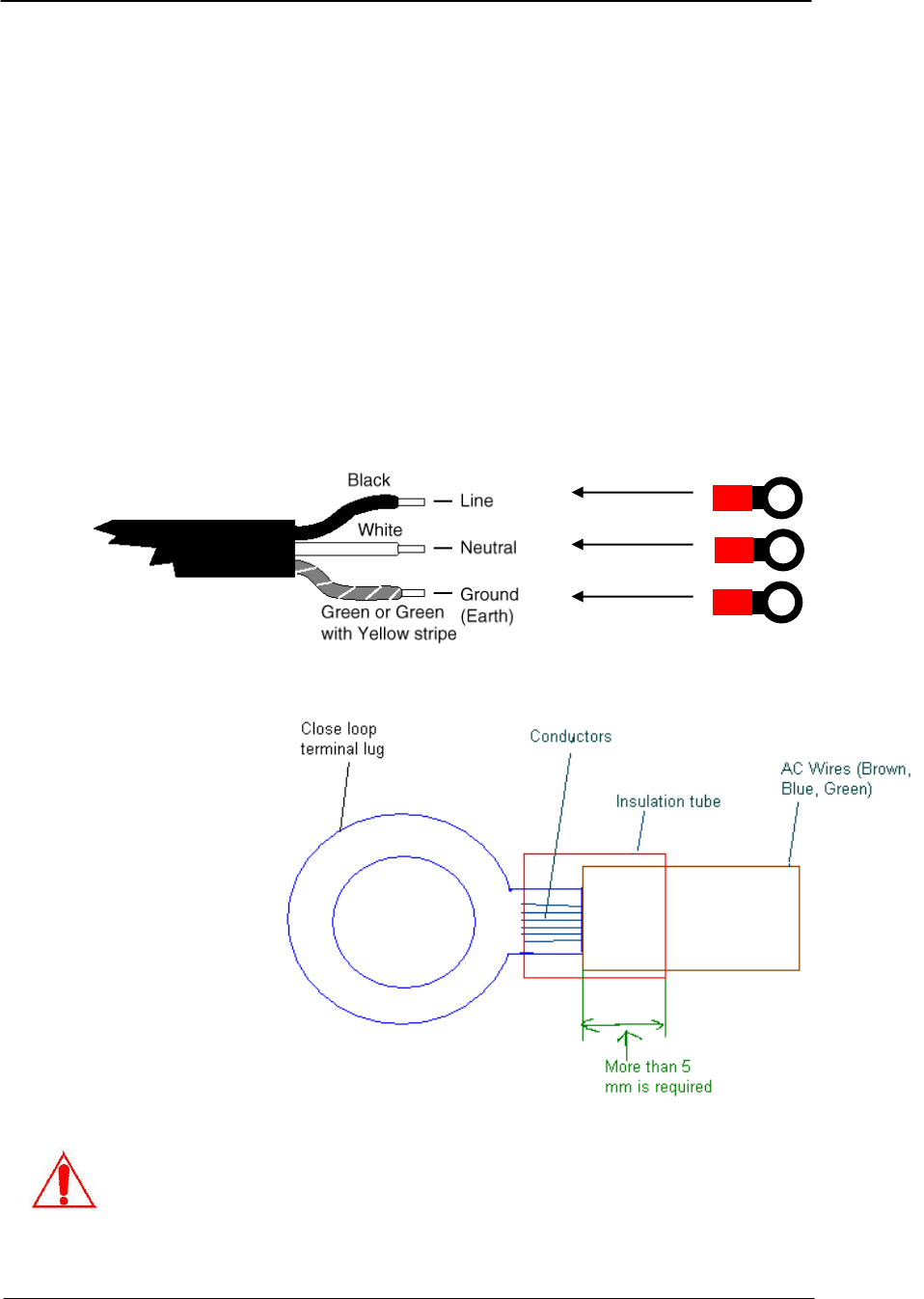

Here is a sample of qualified external power line at one end with three close loop lugs connector and a
molded receptacle terminal block at the other end. Conductors are color coded white (neutral), black (line)
and green or green/yellow (ground).
Operation of this equipment at voltages exceeding 130 VAC will require power supply cords which comply
with NEMA configurations.
The AC wire into the
insulation tube must be
no less than 5mm long.
For North America follow standard building wiring codes as defined by
the NEC or CEC. Also for North America, conduit size and knockout sizes are
specified in UL 60950-1 Annex NAE, Table NAE.2 and Table NAE.3 or the NEC
and CEC. (Licensed electricians should refer to these requirements from the
relative regulations.)
Closed loop lugs must be used as shown.
Common Platform WiFi EAS Systems
11
International Power Supply Cord
Here is a sample of qualified external power line at one end with three close loop lugs connector and a
molded receptacle terminal block at the other end. Conductors are CEE color-coded—light blue (neutral),
brown (line) and green/yellow (ground). Other IEC 320 C-13 type power supply cords can be used if they
comply with the safety regulations of the country in which they are installed.
Main AC input Cable Specifications.
Pin
Conductors
Gauge
AWG
Description
1
Conductor L
0.75 mm 2
18
Main AC Hot
2
Conductor N
0.75 mm 2
18
Main AC Neutral
3
Conductor GND
0.75 mm 2
18
Main AC Ground
The AC wire into the
insulation tube must be
no less than 5mm long.
Closed loop lugs must be used as shown.
Common Platform WiFi EAS Systems
12
SPS Box Mounting Instructions
For installation safety and security, the SPS power supply box shall be mounted into local certified electric
distribution box. Installer must use local certified AC cable at AWG18 and a certified circuit breaker at
15A or 20A to disconnect main power from the SPS unit. And then from distribution box, installer can
direct the output cable from each SPS to local pedestal at different sites. (find reference in
Interconnection between Smart Power Supply and Pedestal section.)
Reliable ground must be provided to the local certified electric
distribution box containing the power supply, using 18 AWG in
accordance with published electric code regulations.
Installer can mount the SPS
power supply unit onto a
standard DIN46277-3 mount
rail.
Circuit breaker
15A or 20A
Certified
AC cable
AWG18
Common Platform WiFi EAS Systems
13
Mount Rail
1. Hang the SPS box
onto the upper flange
of mounting rail.
2. Close up the bottom
of SPS box with the
mounting surface and
lock the lower flange of
mounting rail.
Common Platform WiFi EAS Systems
14
SPS Box External Relay interface
The external relay interface is located at Output side of the SPS.
***
Suggested Relay Ratings
1A@ 24 VDC
Notes:
1. Wire length to the dry contact circuit is limited to 20 feet.
2. To prevent high voltage noise from being introduced into
the transceiver and degrading the system’s performance,
it is highly recommended that you use a 24vdc output
relay.
Last 4 pins on this end.
Pin 1
Pin 2
Pin 3
Pin 4
Pin 5
Pin 6
Pin 7
Pin 8
Pin 9
Pin 10
SPS Output Terminal Layout (10 pins)
SPS to Pedestal Cable (6 wires)
Alarm
Relay
Jammer
Relay
Pin #
1
2
3
4
5
6
7
8
9
10
Function
GND
24VAC
TX OFF
Alarm
Anti-
Jammer
Alarm
Volume
Electrical
1A
Contact Rating
1A
Contact Rating

Navigation menu
