58Khz BTL Common Platform EAS Systems (EAS4.0 ver1.1 AM board) Installation Manual February 2012 Manual Part Number: (Ver. ) TM

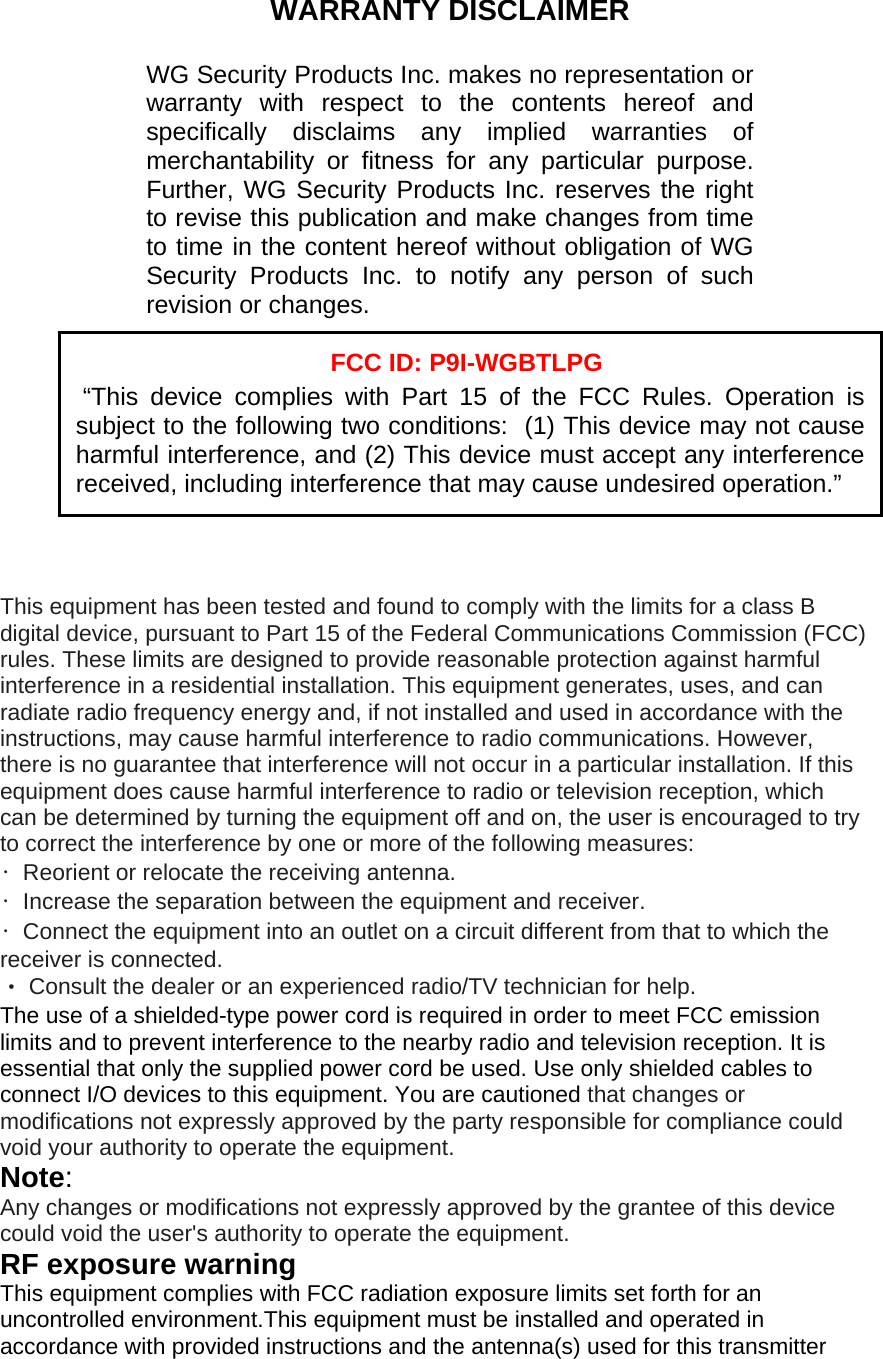

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to Part 15 of the Federal Communications Commission (FCC) rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‧ Reorient or relocate the receiving antenna. ‧ Increase the separation between the equipment and receiver. ‧ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‧ Consult the dealer or an experienced radio/TV technician for help. The use of a shielded-type power cord is required in order to meet FCC emission limits and to prevent interference to the nearby radio and television reception. It is essential that only the supplied power cord be used. Use only shielded cables to connect I/O devices to this equipment. You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment. Note: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment. RF exposure warning This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.This equipment must be installed and operated in accordance with provided instructions and the antenna(s) used for this transmitter FCC ID: P9I-WGBTLPG “This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.” WARRANTY DISCLAIMER WG Security Products Inc. makes no representation or warranty with respect to the contents hereof and specifically disclaims any implied warranties of merchantability or fitness for any particular purpose. Further, WG Security Products Inc. reserves the right to revise this publication and make changes from time to time in the content hereof without obligation of WG Security Products Inc. to notify any person of such revision or changes.

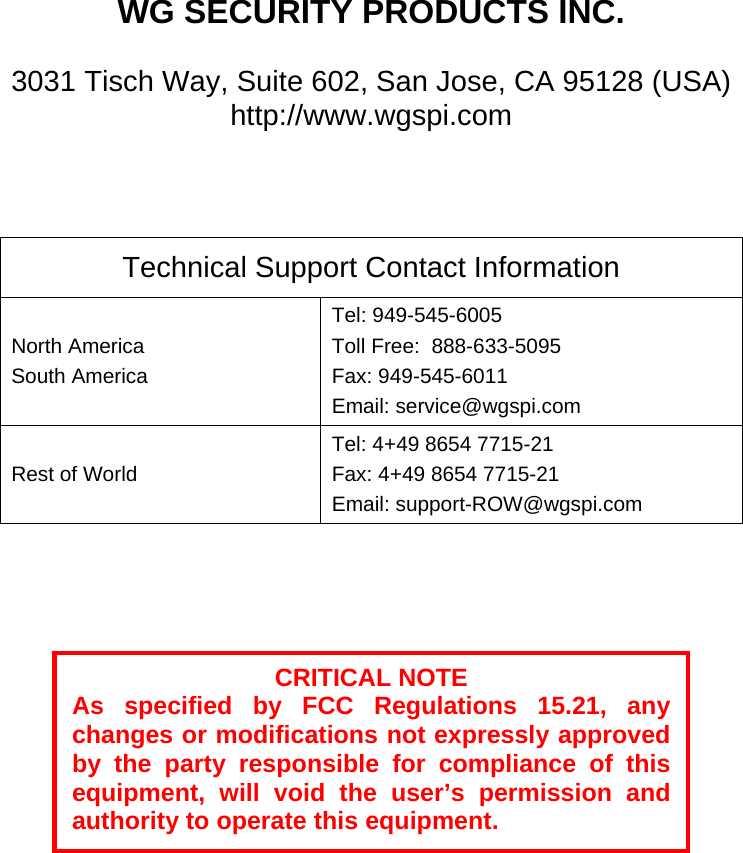

WG SECURITY PRODUCTS INC. 3031 Tisch Way, Suite 602, San Jose, CA 95128 (USA) http://www.wgspi.com Technical Support Contact Information North America South America Tel: 949-545-6005 Toll Free: 888-633-5095 Fax: 949-545-6011 Email: service@wgspi.com Rest of World Tel: 4+49 8654 7715-21 Fax: 4+49 8654 7715-21 Email: support-ROW@wgspi.com CRITICAL NOTE As specified by FCC Regulations 15.21, any changes or modifications not expressly approved by the party responsible for compliance of this equipment, will void the user’s permission and authority to operate this equipment.

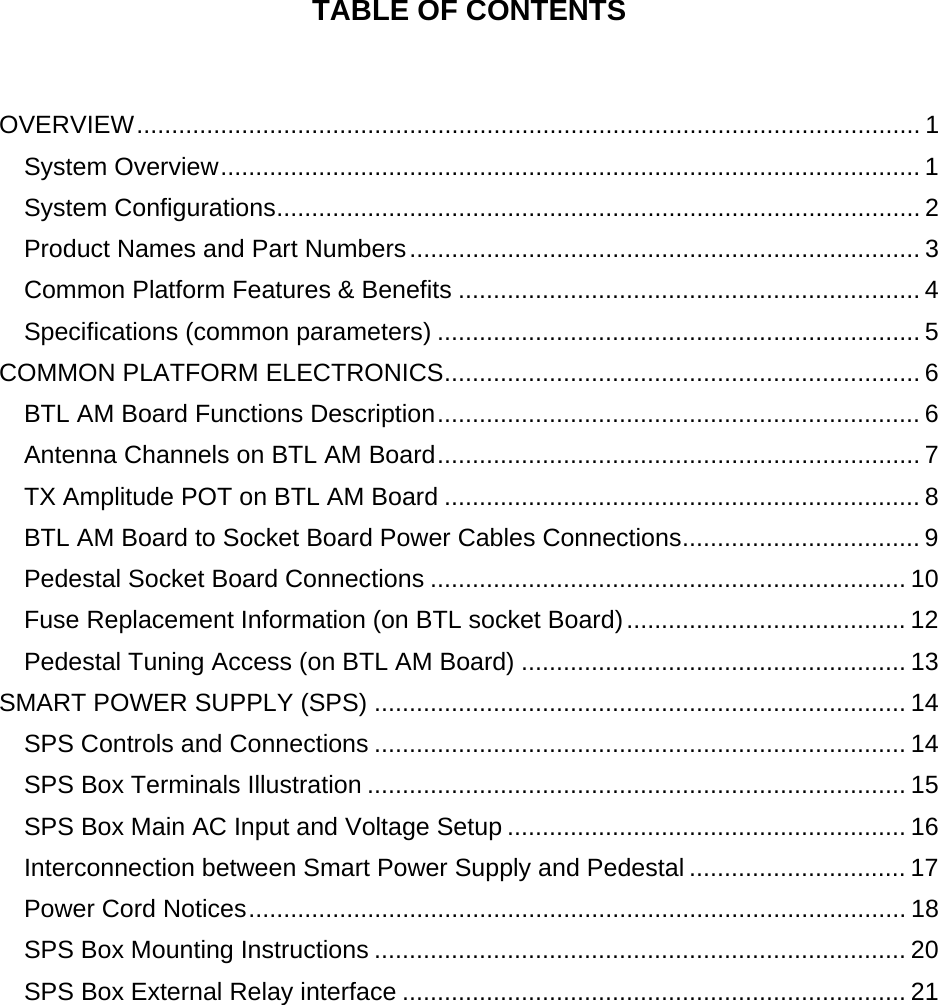

TABLE OF CONTENTS OVERVIEW................................................................................................................ 1 System Overview.................................................................................................... 1 System Configurations............................................................................................ 2 Product Names and Part Numbers......................................................................... 3 Common Platform Features & Benefits .................................................................. 4 Specifications (common parameters) ..................................................................... 5 COMMON PLATFORM ELECTRONICS.................................................................... 6 BTL AM Board Functions Description..................................................................... 6 Antenna Channels on BTL AM Board..................................................................... 7 TX Amplitude POT on BTL AM Board .................................................................... 8 BTL AM Board to Socket Board Power Cables Connections.................................. 9 Pedestal Socket Board Connections .................................................................... 10 Fuse Replacement Information (on BTL socket Board)........................................ 12 Pedestal Tuning Access (on BTL AM Board) ....................................................... 13 SMART POWER SUPPLY (SPS) ............................................................................ 14 SPS Controls and Connections ............................................................................ 14 SPS Box Terminals Illustration ............................................................................. 15 SPS Box Main AC Input and Voltage Setup ......................................................... 16 Interconnection between Smart Power Supply and Pedestal ............................... 17 Power Cord Notices.............................................................................................. 18 SPS Box Mounting Instructions ............................................................................ 20 SPS Box External Relay interface ........................................................................ 21

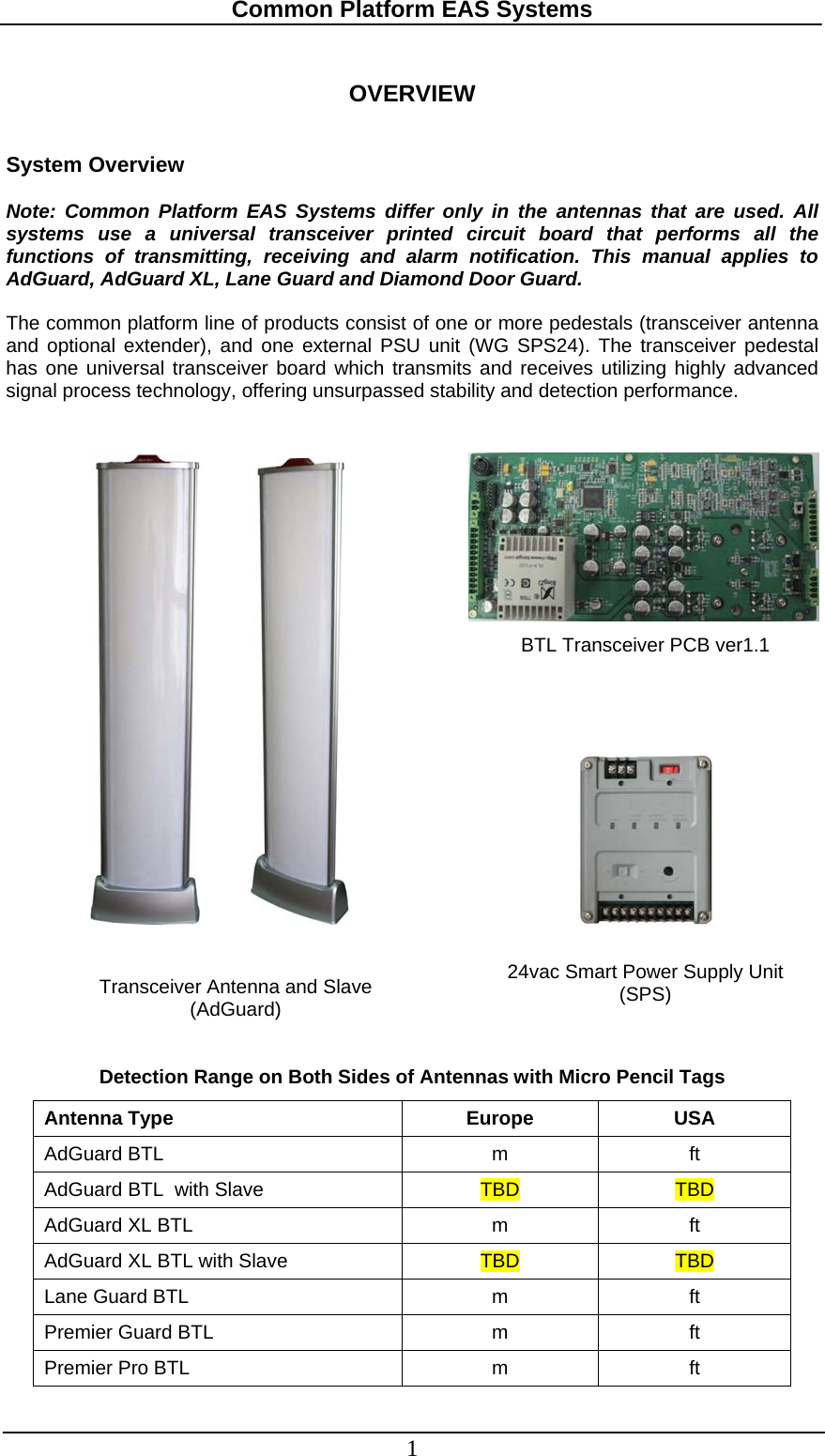

Common Platform EAS Systems 1 OVERVIEW System Overview Note: Common Platform EAS Systems differ only in the antennas that are used. All systems use a universal transceiver printed circuit board that performs all the functions of transmitting, receiving and alarm notification. This manual applies to AdGuard, AdGuard XL, Lane Guard and Diamond Door Guard. The common platform line of products consist of one or more pedestals (transceiver antenna and optional extender), and one external PSU unit (WG SPS24). The transceiver pedestal has one universal transceiver board which transmits and receives utilizing highly advanced signal process technology, offering unsurpassed stability and detection performance. Detection Range on Both Sides of Antennas with Micro Pencil Tags Antenna Type Europe USA AdGuard BTL m ft AdGuard BTL with Slave TBD TBD AdGuard XL BTL m ft AdGuard XL BTL with Slave TBD TBD Lane Guard BTL m ft Premier Guard BTL m ft Premier Pro BTL m ft 24vac Smart Power Supply Unit (SPS) Transceiver Antenna and Slave (AdGuard) BTL Transceiver PCB ver1.1

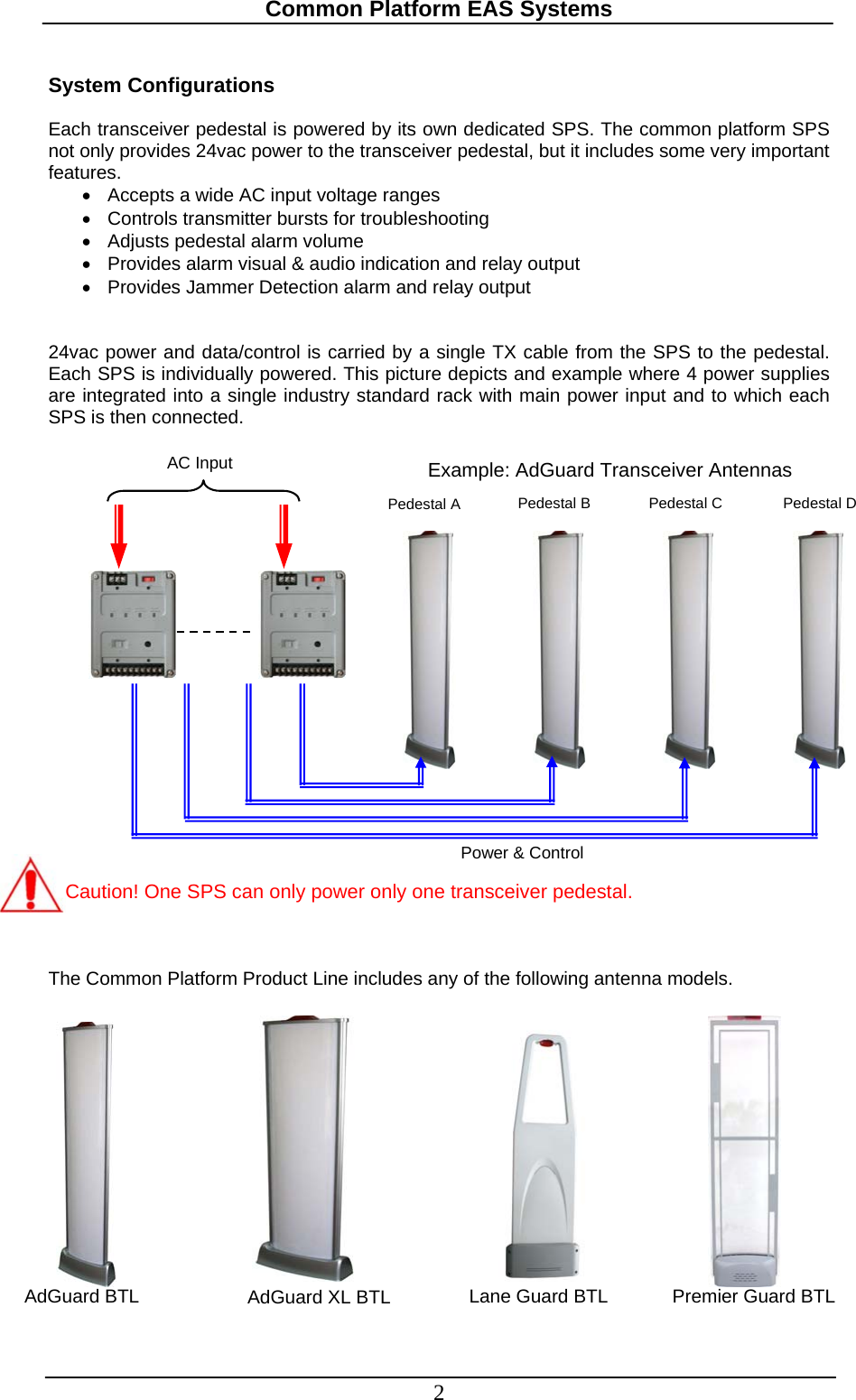

Common Platform EAS Systems 2 System Configurations Each transceiver pedestal is powered by its own dedicated SPS. The common platform SPS not only provides 24vac power to the transceiver pedestal, but it includes some very important features. • Accepts a wide AC input voltage ranges • Controls transmitter bursts for troubleshooting • Adjusts pedestal alarm volume • Provides alarm visual & audio indication and relay output • Provides Jammer Detection alarm and relay output 24vac power and data/control is carried by a single TX cable from the SPS to the pedestal. Each SPS is individually powered. This picture depicts and example where 4 power supplies are integrated into a single industry standard rack with main power input and to which each SPS is then connected. The Common Platform Product Line includes any of the following antenna models. Example: AdGuard Transceiver Antennas Pedestal A Pedestal B Pedestal C Pedestal D Power & ControlAdGuard BTL AdGuard XL BTL Premier Guard BTLLane Guard BTLCaution! One SPS can only power only one transceiver pedestal. AC Input

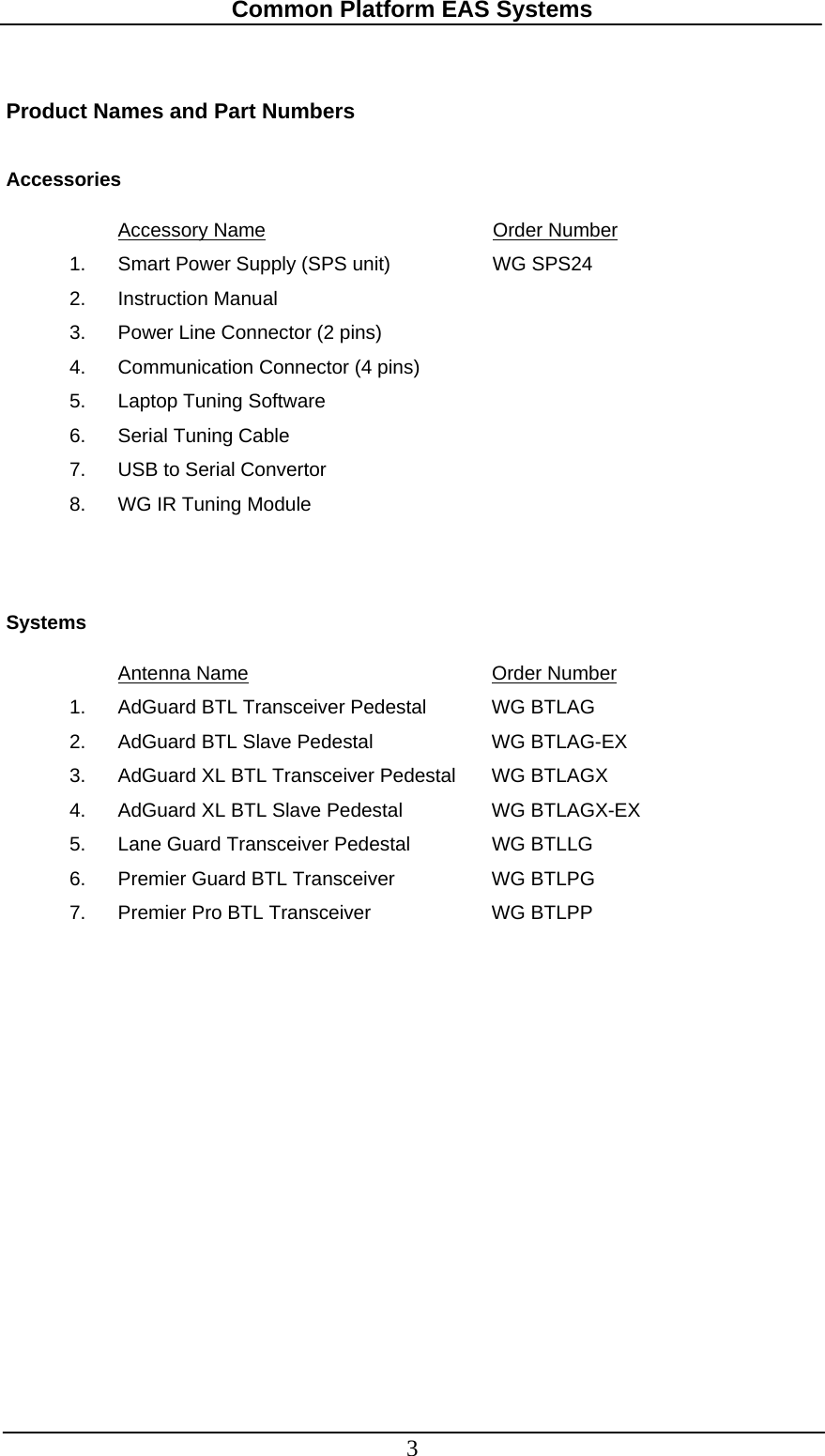

Common Platform EAS Systems 3 Product Names and Part Numbers Accessories Accessory Name Order Number 1. Smart Power Supply (SPS unit) WG SPS24 2. Instruction Manual 3. Power Line Connector (2 pins) 4. Communication Connector (4 pins) 5. Laptop Tuning Software 6. Serial Tuning Cable 7. USB to Serial Convertor 8. WG IR Tuning Module Systems Antenna Name Order Number 1. AdGuard BTL Transceiver Pedestal WG BTLAG 2. AdGuard BTL Slave Pedestal WG BTLAG-EX 3. AdGuard XL BTL Transceiver Pedestal WG BTLAGX 4. AdGuard XL BTL Slave Pedestal WG BTLAGX-EX 5. Lane Guard Transceiver Pedestal WG BTLLG 6. Premier Guard BTL Transceiver WG BTLPG 7. Premier Pro BTL Transceiver WG BTLPP

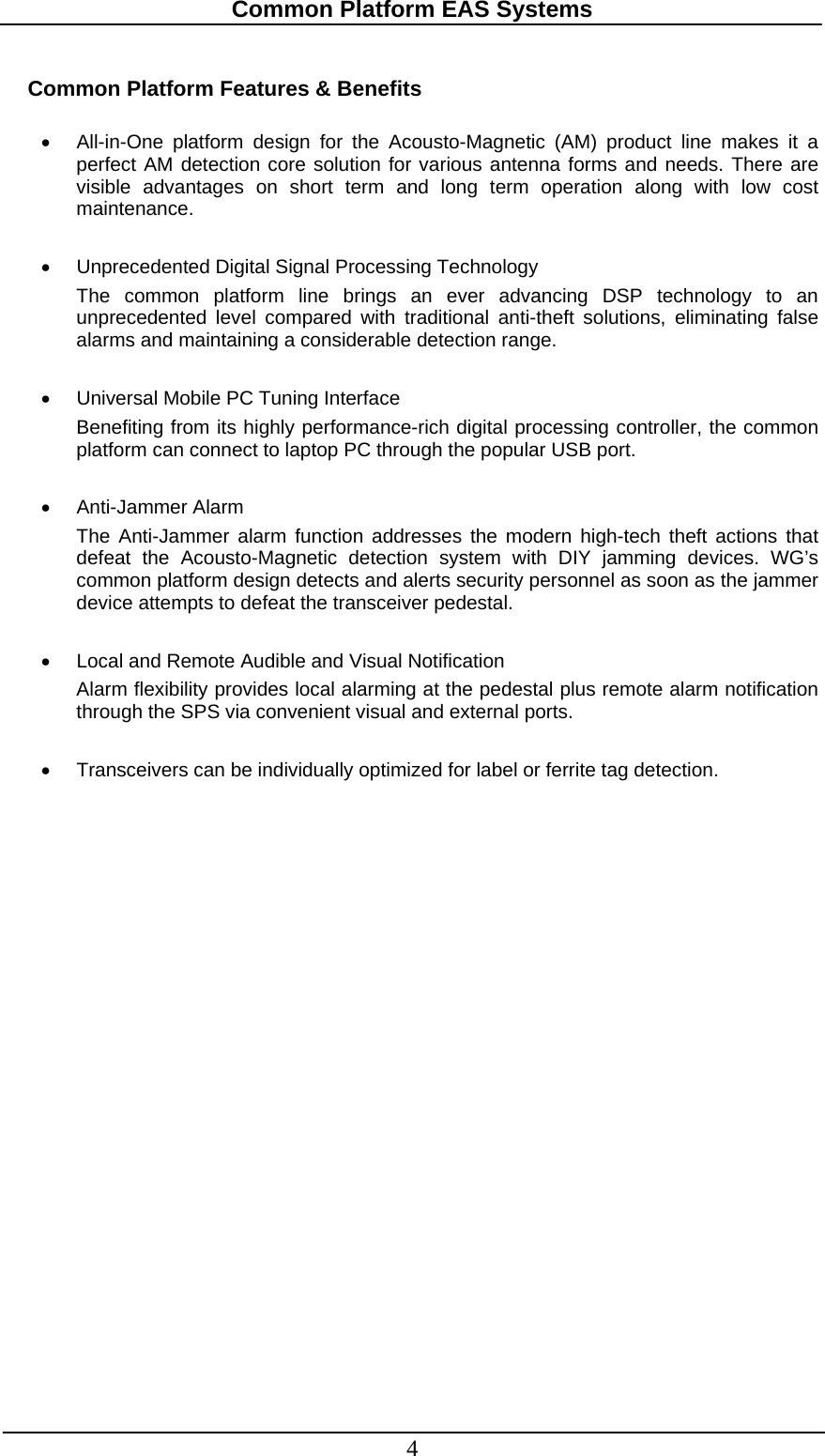

Common Platform EAS Systems 4 Common Platform Features & Benefits • All-in-One platform design for the Acousto-Magnetic (AM) product line makes it a perfect AM detection core solution for various antenna forms and needs. There are visible advantages on short term and long term operation along with low cost maintenance. • Unprecedented Digital Signal Processing Technology The common platform line brings an ever advancing DSP technology to an unprecedented level compared with traditional anti-theft solutions, eliminating false alarms and maintaining a considerable detection range. • Universal Mobile PC Tuning Interface Benefiting from its highly performance-rich digital processing controller, the common platform can connect to laptop PC through the popular USB port. • Anti-Jammer Alarm The Anti-Jammer alarm function addresses the modern high-tech theft actions that defeat the Acousto-Magnetic detection system with DIY jamming devices. WG’s common platform design detects and alerts security personnel as soon as the jammer device attempts to defeat the transceiver pedestal. • Local and Remote Audible and Visual Notification Alarm flexibility provides local alarming at the pedestal plus remote alarm notification through the SPS via convenient visual and external ports. • Transceivers can be individually optimized for label or ferrite tag detection.

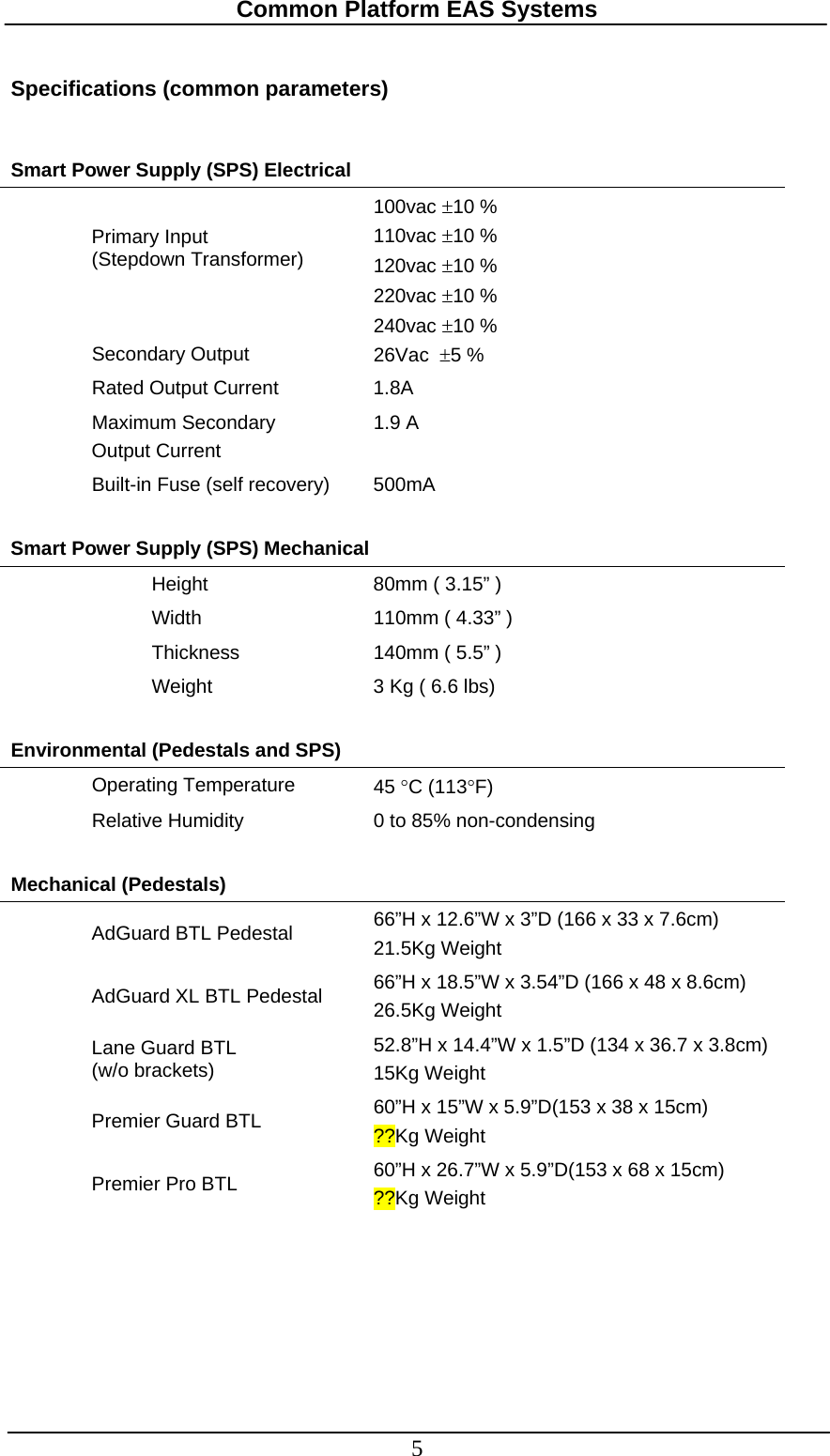

Common Platform EAS Systems 5 Specifications (common parameters) Smart Power Supply (SPS) Electrical Primary Input (Stepdown Transformer) 100vac ±10 % 110vac ±10 % 120vac ±10 % 220vac ±10 % 240vac ±10 % Secondary Output 26Vac ±5 % Rated Output Current 1.8A Maximum Secondary Output Current 1.9 A Built-in Fuse (self recovery) 500mA Smart Power Supply (SPS) Mechanical Height 80mm ( 3.15” ) Width 110mm ( 4.33” ) Thickness 140mm ( 5.5” ) Weight 3 Kg ( 6.6 lbs) Environmental (Pedestals and SPS) Operating Temperature 45 °C (113°F) Relative Humidity 0 to 85% non-condensing Mechanical (Pedestals) AdGuard BTL Pedestal 66”H x 12.6”W x 3”D (166 x 33 x 7.6cm) 21.5Kg Weight AdGuard XL BTL Pedestal 66”H x 18.5”W x 3.54”D (166 x 48 x 8.6cm) 26.5Kg Weight Lane Guard BTL (w/o brackets) 52.8”H x 14.4”W x 1.5”D (134 x 36.7 x 3.8cm) 15Kg Weight Premier Guard BTL 60”H x 15”W x 5.9”D(153 x 38 x 15cm) ??Kg Weight Premier Pro BTL 60”H x 26.7”W x 5.9”D(153 x 68 x 15cm) ??Kg Weight

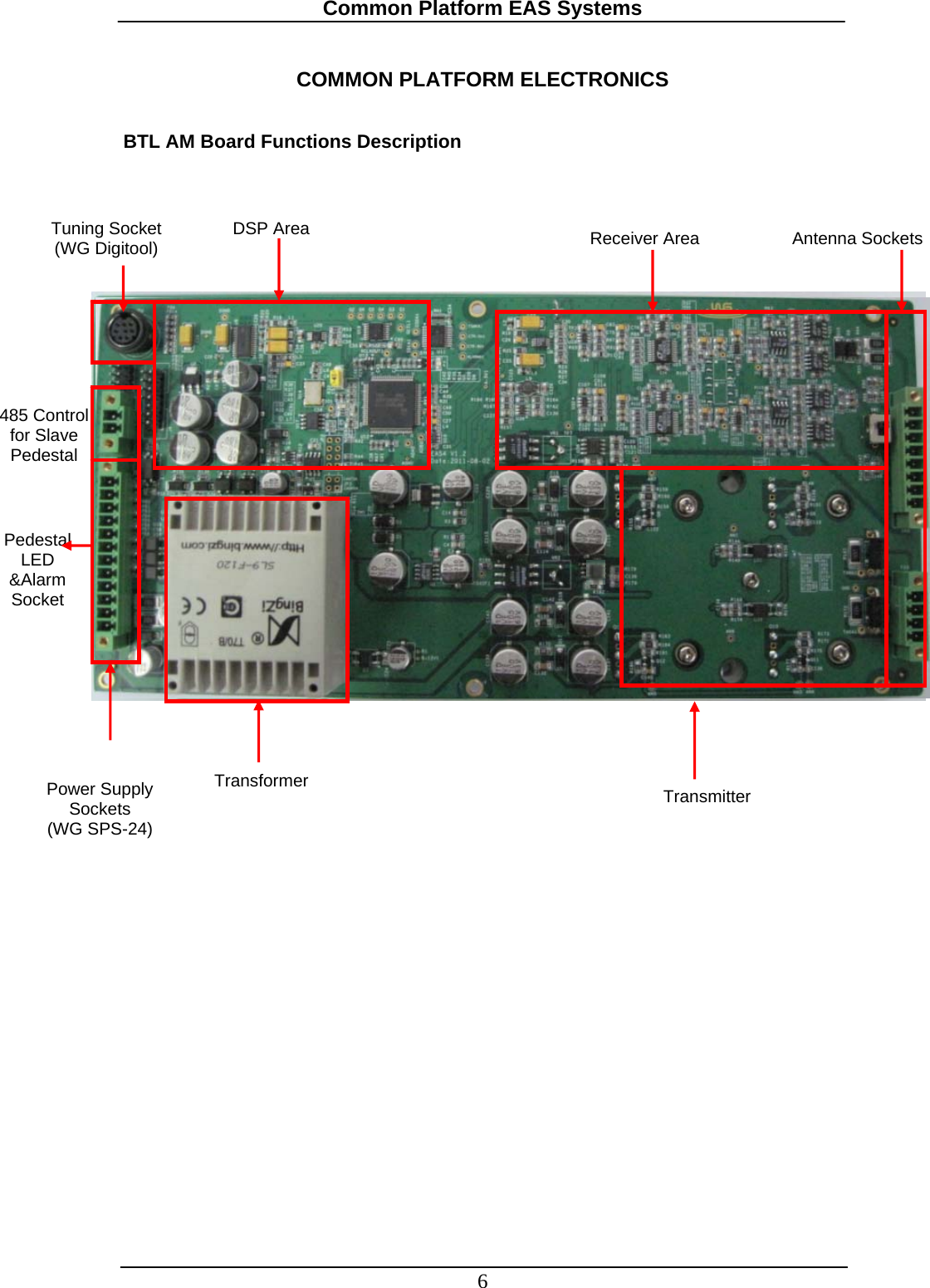

Common Platform EAS Systems 6 COMMON PLATFORM ELECTRONICS BTL AM Board Functions Description Antenna SocketsTransmitter Transformer Power Supply Sockets (WG SPS-24) DSP Area Receiver Area Tuning Socket (WG Digitool) Pedestal LED &Alarm Socket 485 Control for Slave Pedestal

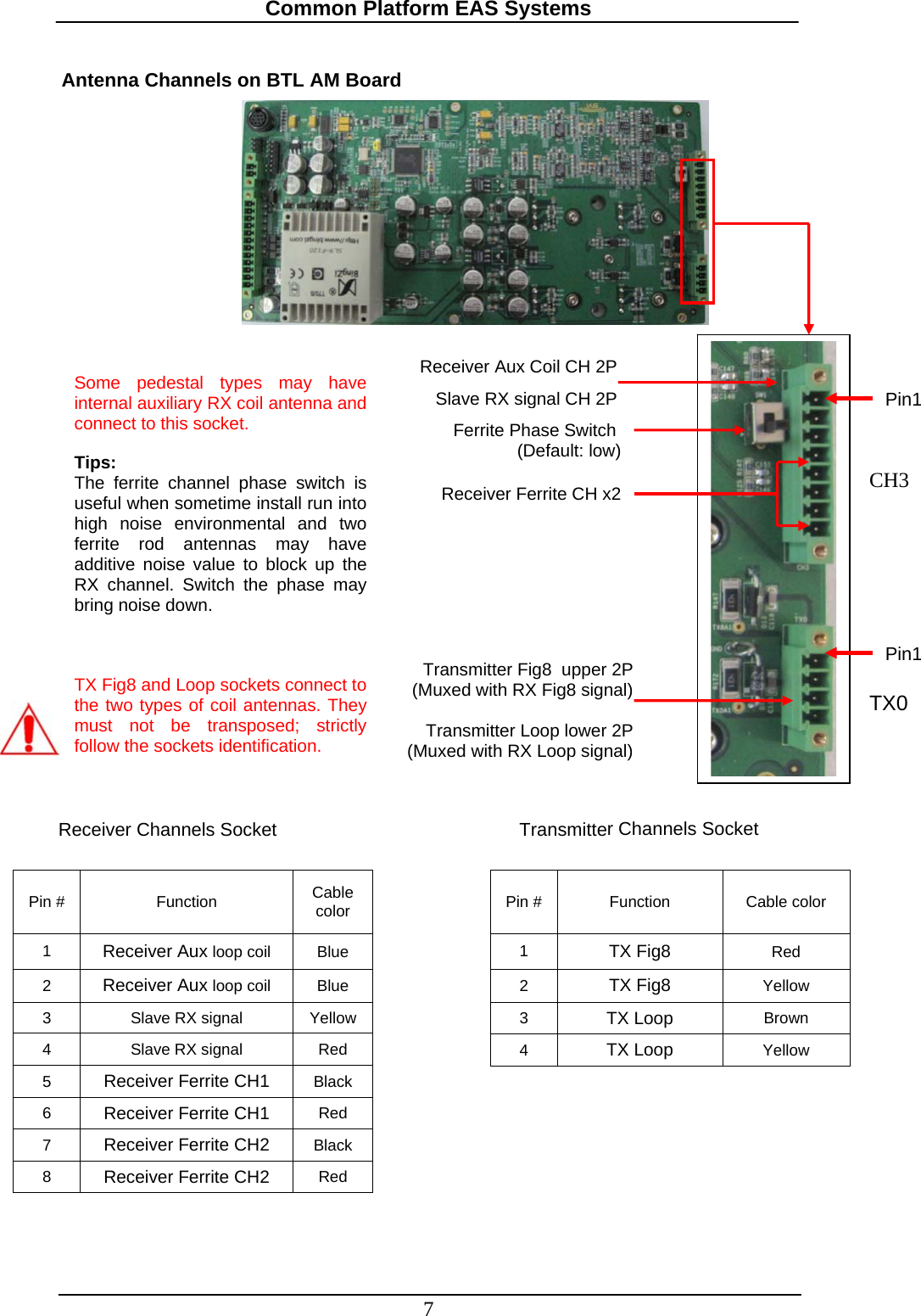

Common Platform EAS Systems 7 Antenna Channels on BTL AM Board TX Fig8 and Loop sockets connect to the two types of coil antennas. They must not be transposed; strictly follow the sockets identification. Some pedestal types may have internal auxiliary RX coil antenna and connect to this socket. Tips: The ferrite channel phase switch is useful when sometime install run into high noise environmental and two ferrite rod antennas may have additive noise value to block up the RX channel. Switch the phase may bring noise down. Receiver Ferrite CH x2 Receiver Aux Coil CH 2PTransmitter Fig8 upper 2P (Muxed with RX Fig8 signal)Transmitter Loop lower 2P (Muxed with RX Loop signal)Ferrite Phase Switch (Default: low)Pin # Function Cable color 1 Receiver Aux loop coil Blue 2 Receiver Aux loop coil Blue 3 Slave RX signal Yellow 4 Slave RX signal Red 5 Receiver Ferrite CH1 Black 6 Receiver Ferrite CH1 Red 7 Receiver Ferrite CH2 Black 8 Receiver Ferrite CH2 Red Pin1Receiver Channels Socket Pin1TransmitterChannels Socket Pin # Function Cable color 1 TX Fig8 Red 2 TX Fig8 Yellow 3 TX Loop Brown 4 TX Loop Yellow Slave RX signal CH 2PTX0 CH3

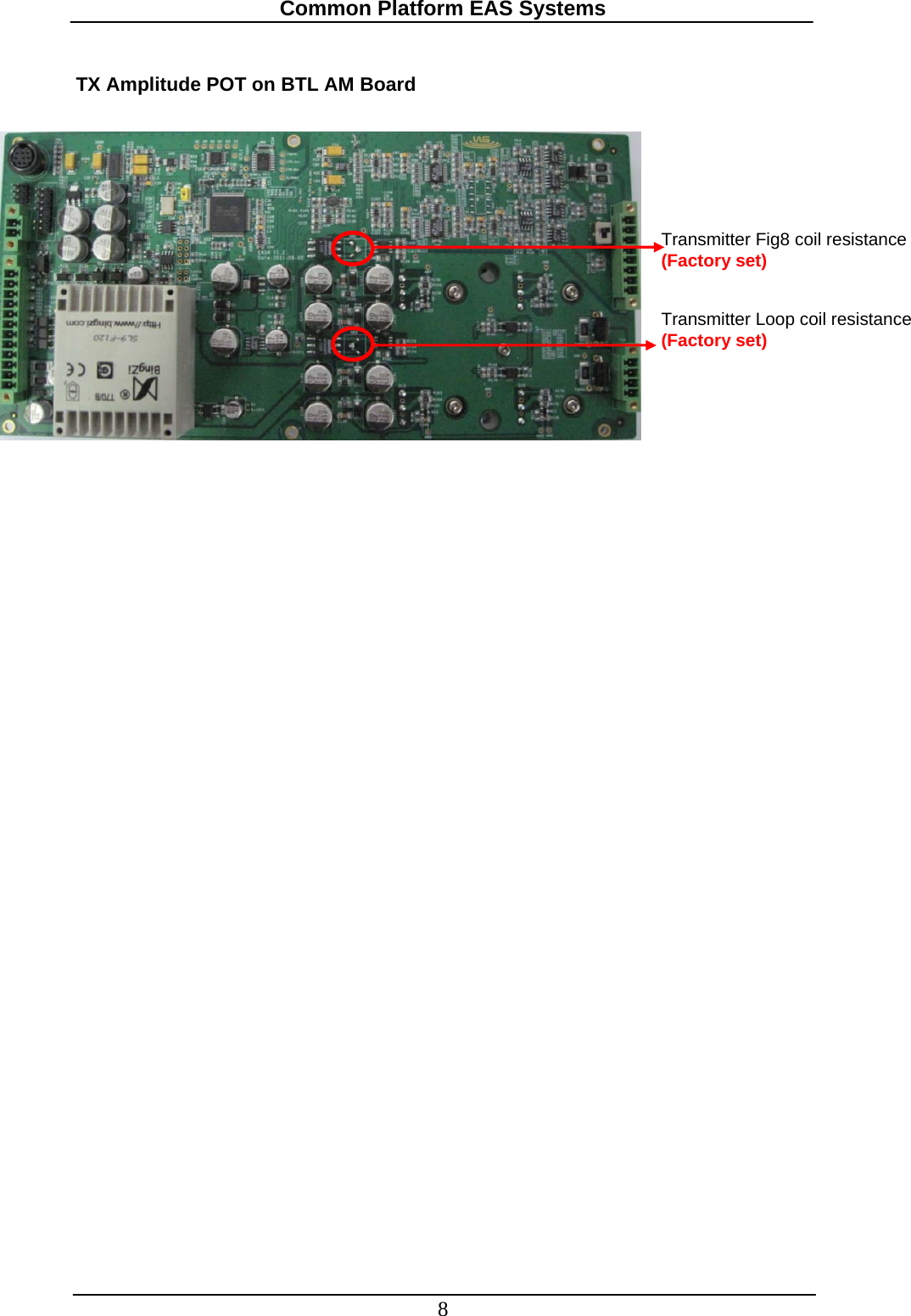

Common Platform EAS Systems 8 TX Amplitude POT on BTL AM Board Transmitter Fig8 coil resistance (Factory set) Transmitter Loop coil resistance (Factory set)

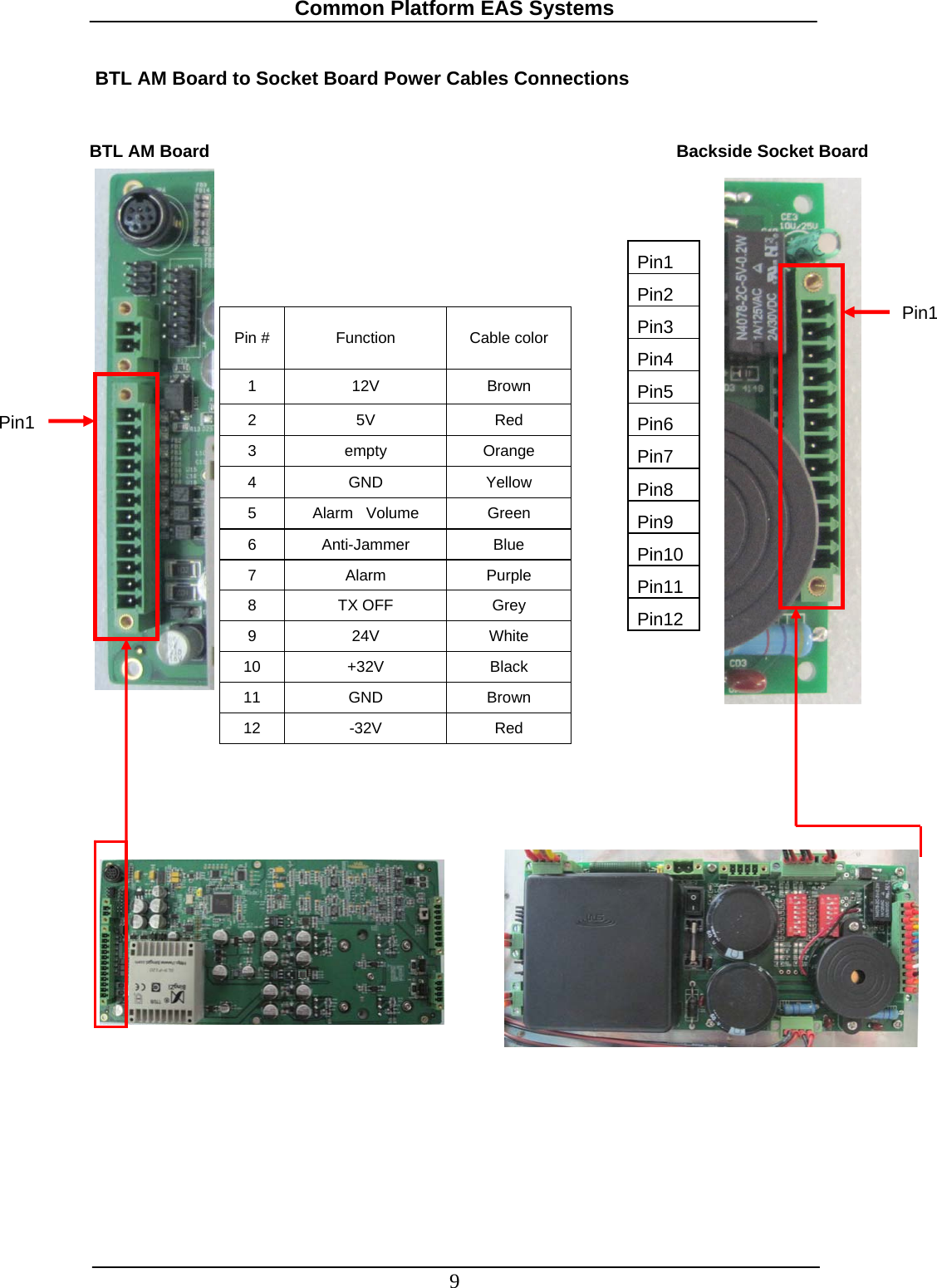

Common Platform EAS Systems 9 BTL AM Board to Socket Board Power Cables Connections Backside Socket Board Pin1 Pin2 Pin3 Pin4 Pin5 Pin6 Pin7 Pin8 Pin9 Pin10 Pin11 Pin12 BTL AM Board Pin # Function Cable color 1 12V Brown 2 5V Red 3 empty Orange 4 GND Yellow 5 Alarm Volume Green 6 Anti-Jammer Blue 7 Alarm Purple 8 TX OFF Grey 9 24V White 10 +32V Black 11 GND Brown 12 -32V Red Pin1Pin1

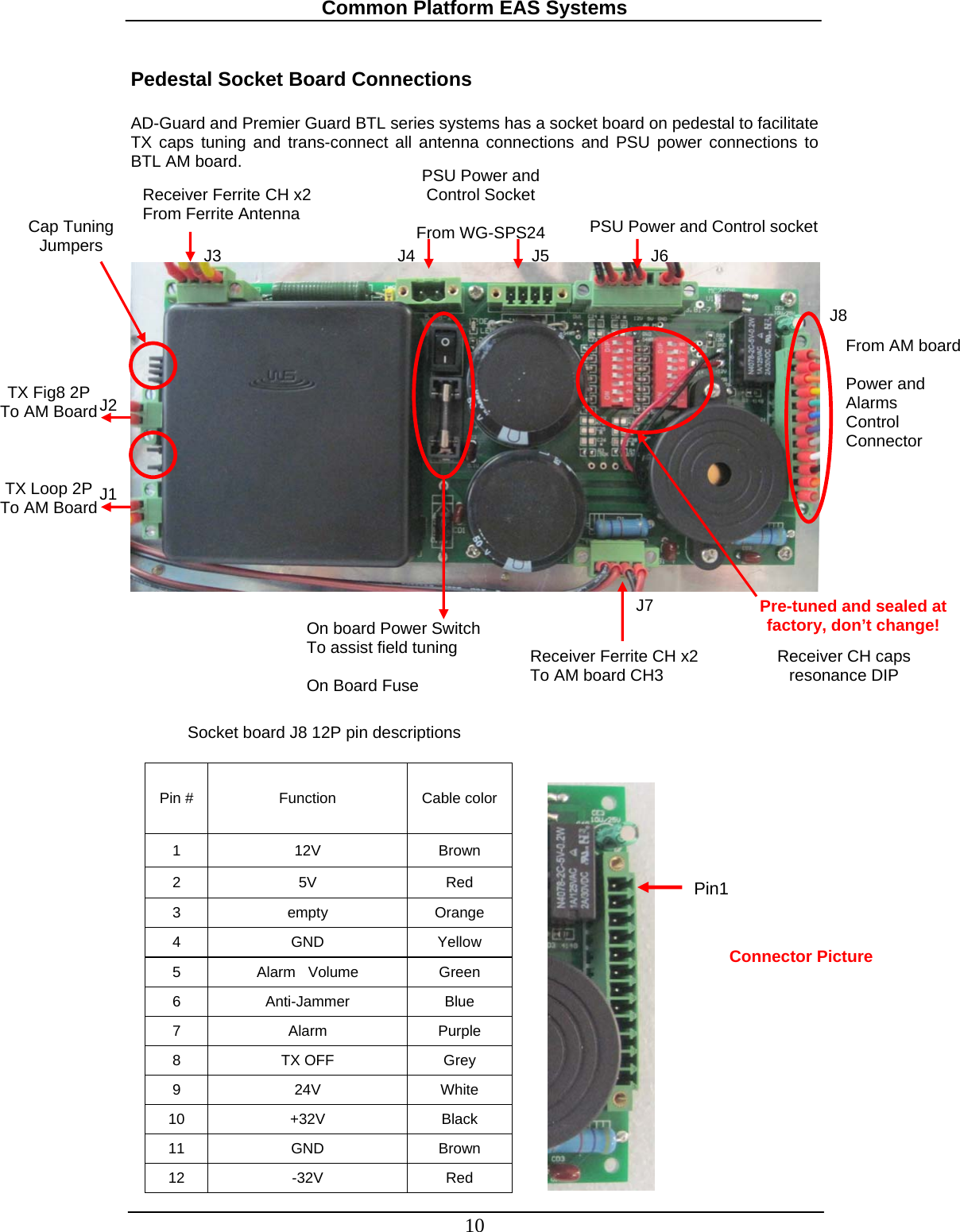

Common Platform EAS Systems 10 Pedestal Socket Board Connections AD-Guard and Premier Guard BTL series systems has a socket board on pedestal to facilitate TX caps tuning and trans-connect all antenna connections and PSU power connections to BTL AM board. Socket board J8 12P pin descriptions Pin # Function Cable color1 12V Brown 2 5V Red 3 empty Orange 4 GND Yellow 5 Alarm Volume Green 6 Anti-Jammer Blue 7 Alarm Purple 8 TX OFF Grey 9 24V White 10 +32V Black 11 GND Brown 12 -32V Red Pin1 Connector Picture TX Fig8 2P To AM Board TX Loop 2P To AM BoardFrom AM board Power and Alarms Control Connector Receiver Ferrite CH x2 From Ferrite Antenna Receiver Ferrite CH x2 To AM board CH3 J2 Cap Tuning Jumpers On board Power Switch To assist field tuning On Board Fuse PSU Power and Control socket Receiver CH caps resonance DIP Pre-tuned and sealed at factory, don’t change!PSU Power and Control Socket From WG-SPS24 J1 J3 J4 J5 J6 J8 J7

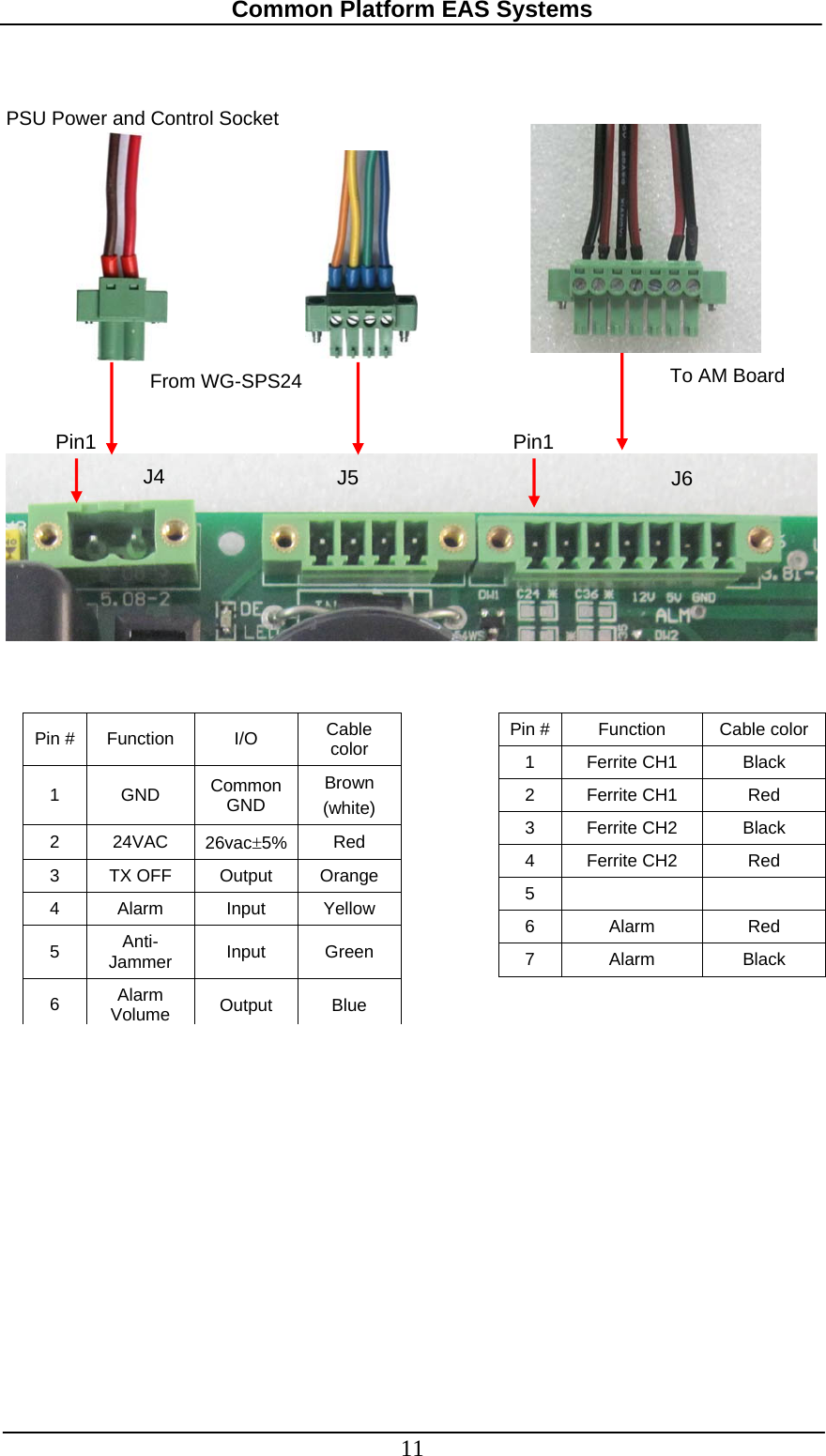

Common Platform EAS Systems 11 PSU Power and Control Socket From WG-SPS24 To AM Board Pin # Function Cable color1 Ferrite CH1 Black 2 Ferrite CH1 Red 3 Ferrite CH2 Black 4 Ferrite CH2 Red 5 6 Alarm Red 7 Alarm Black Pin1 J4 J5 J6 Pin # Function I/O Cable color 1 GND Common GND Brown (white) 2 24VAC 26vac±5% Red 3 TX OFF Output Orange 4 Alarm Input Yellow 5 Anti-Jammer Input Green 6 Alarm Volume Output Blue Pin1

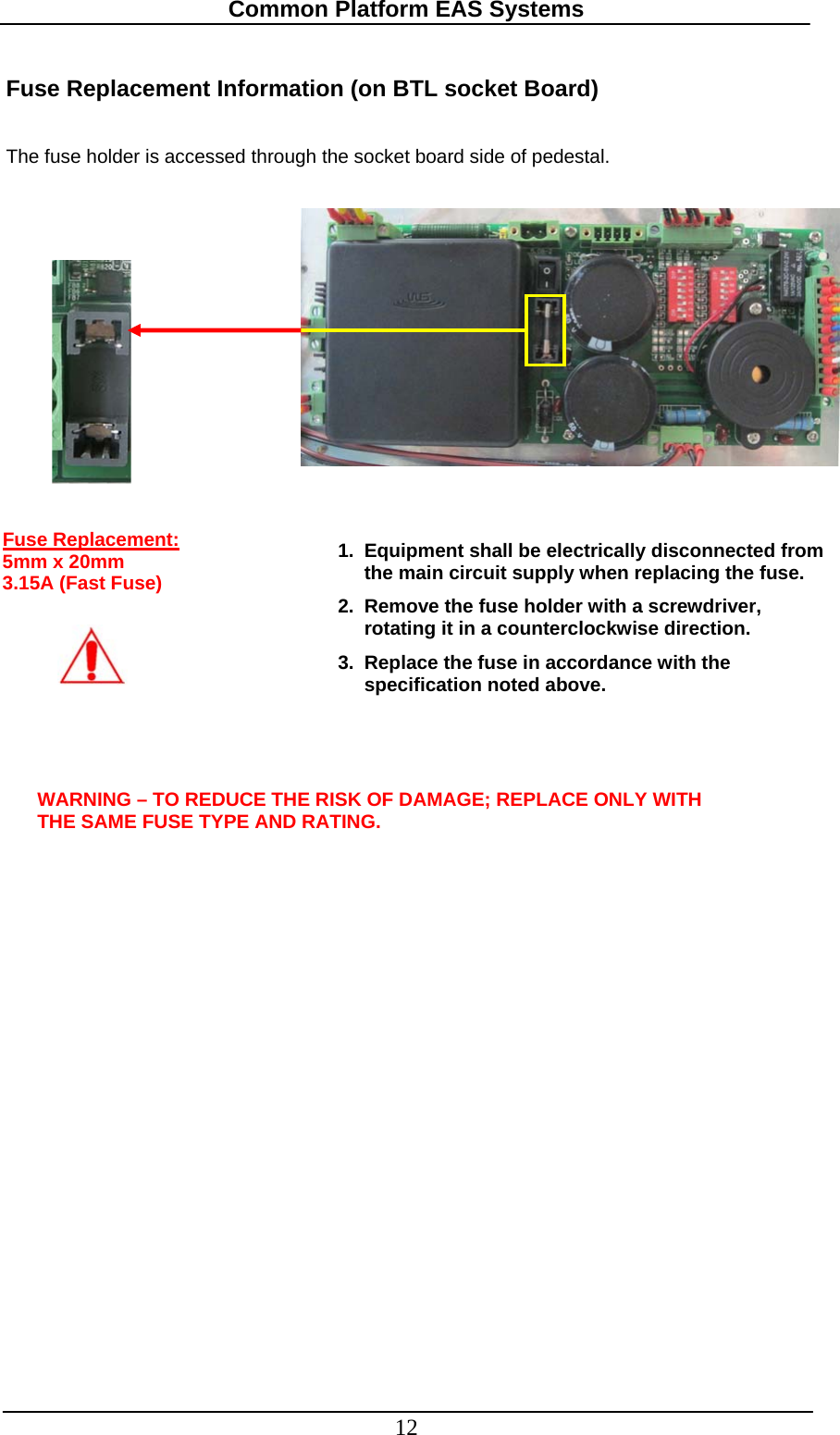

Common Platform EAS Systems 12 Fuse Replacement Information (on BTL socket Board) The fuse holder is accessed through the socket board side of pedestal. 1. Equipment shall be electrically disconnected from the main circuit supply when replacing the fuse. 2. Remove the fuse holder with a screwdriver, rotating it in a counterclockwise direction. 3. Replace the fuse in accordance with the specification noted above. WARNING – TO REDUCE THE RISK OF DAMAGE; REPLACE ONLY WITH THE SAME FUSE TYPE AND RATING. Fuse Replacement: 5mm x 20mm 3.15A (Fast Fuse)

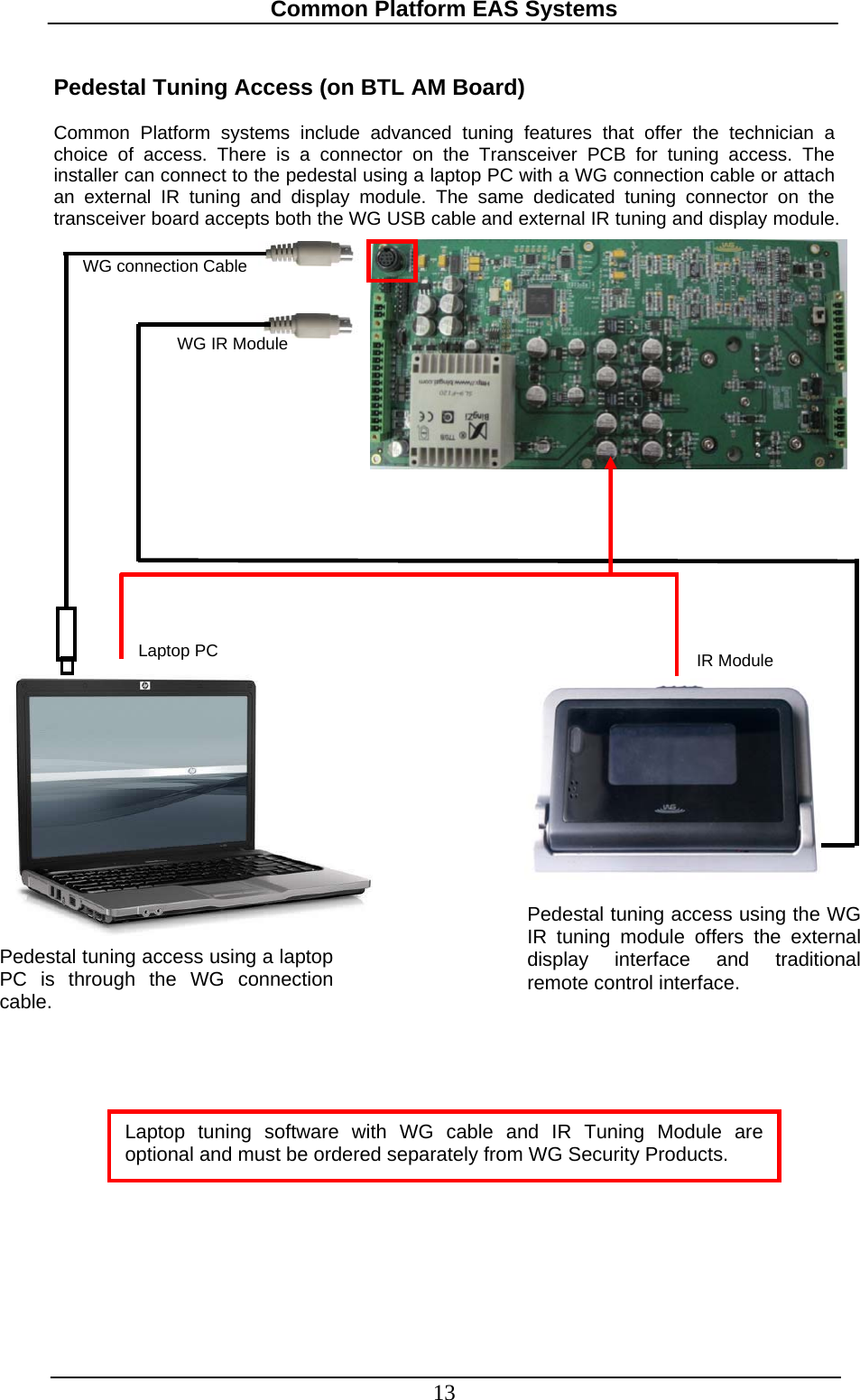

Common Platform EAS Systems 13 Pedestal Tuning Access (on BTL AM Board) Common Platform systems include advanced tuning features that offer the technician a choice of access. There is a connector on the Transceiver PCB for tuning access. The installer can connect to the pedestal using a laptop PC with a WG connection cable or attach an external IR tuning and display module. The same dedicated tuning connector on the transceiver board accepts both the WG USB cable and external IR tuning and display module. Pedestal tuning access using the WG IR tuning module offers the external display interface and traditional remote control interface. Pedestal tuning access using a laptop PC is through the WG connection cable. WG connection Cable Laptop tuning software with WG cable and IR Tuning Module are optional and must be ordered separately from WG Security Products. WG IR Module Laptop PC IR Module

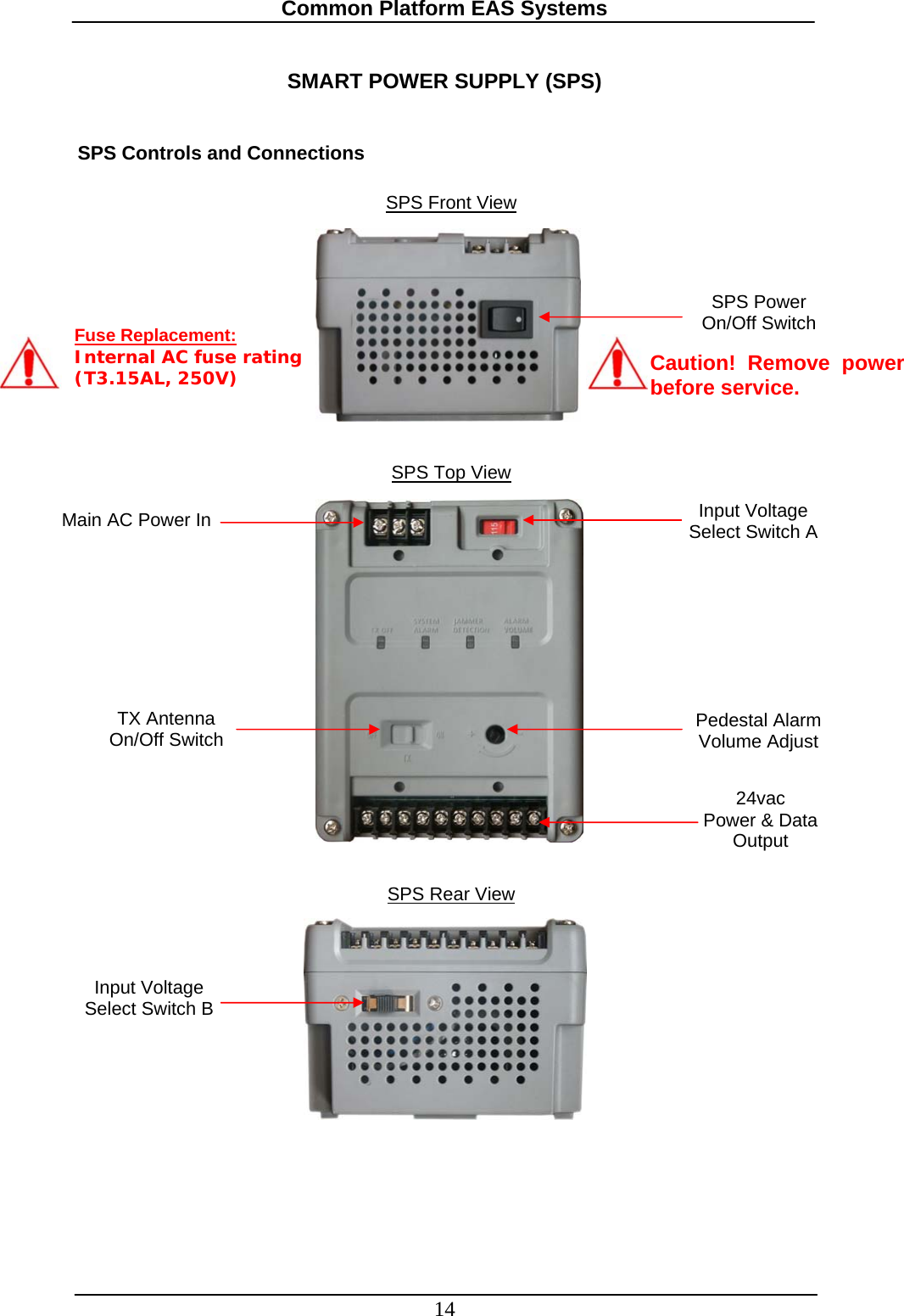

Common Platform EAS Systems 14 SMART POWER SUPPLY (SPS) SPS Controls and Connections Fuse Replacement: Internal AC fuse rating (T3.15AL, 250V) SPS Power On/Off SwitchMain AC Power In 24vac Power & Data Output Input Voltage Select Switch AInput Voltage Select Switch B SPS Front ViewSPS Top ViewSPS Rear ViewPedestal AlarmVolume Adjust TX Antenna On/Off Switch Caution! Remove power before service.

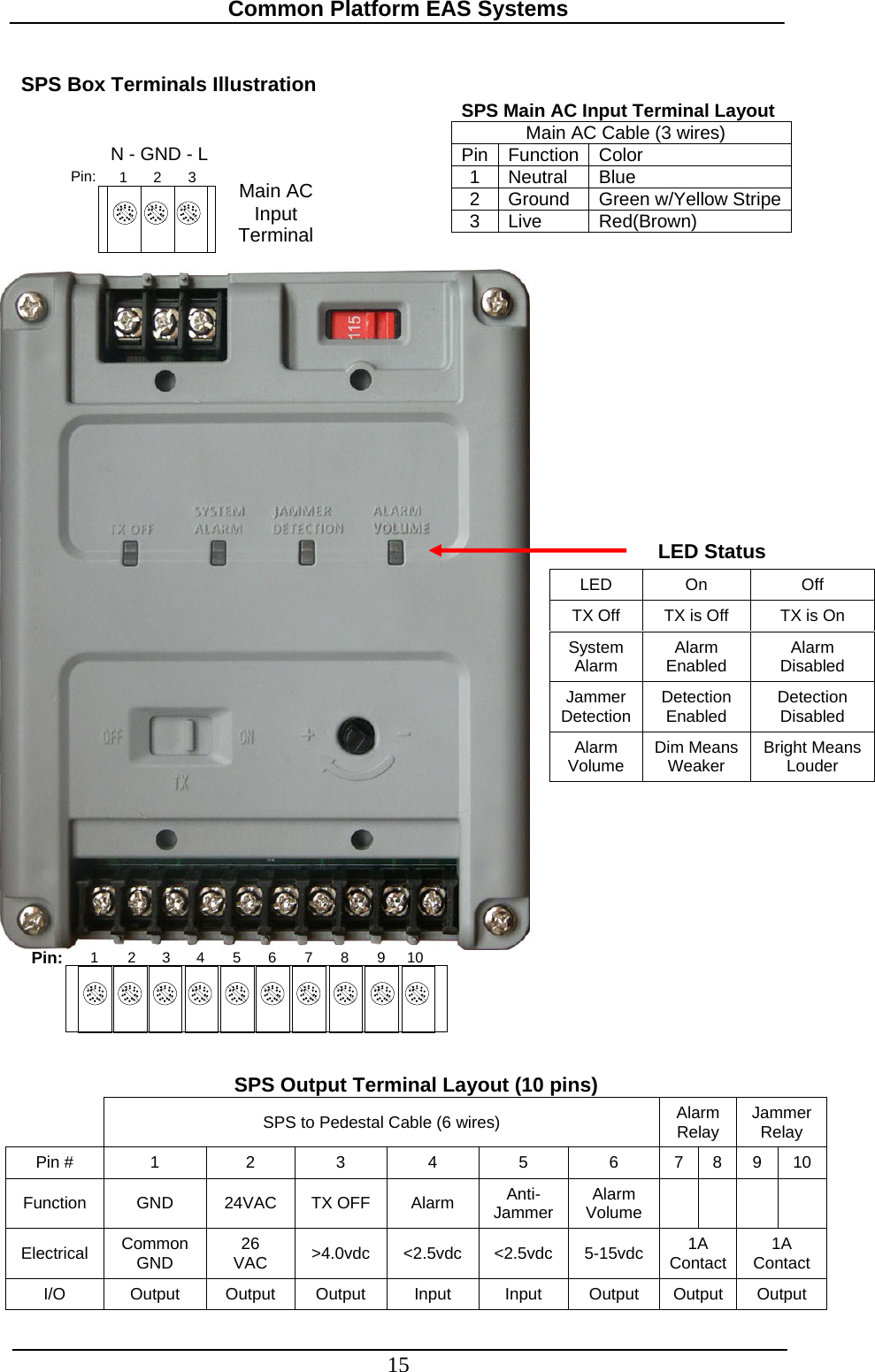

Common Platform EAS Systems 15 SPS Box Terminals Illustration SPS Output Terminal Layout (10 pins) SPS to Pedestal Cable (6 wires) Alarm Relay JammerRelay Pin # 1 2 3 4 5 6 7 8 9 10Function GND 24VAC TX OFF Alarm Anti- Jammer Alarm Volume Electrical Common GND 26 VAC >4.0vdc <2.5vdc <2.5vdc 5-15vdc 1A Contact 1A ContactI/O Output Output Output Input Input Output Output Output SPS Main AC Input Terminal Layout Main AC Cable (3 wires) Pin Function Color 1 Neutral Blue 2 Ground Green w/Yellow Stripe3 Live Red(Brown) 1 2 3 N - GND - L Main ACInput Terminal1 2 3 4 5 6 7 8 9 10LED Status LED On Off TX Off TX is Off TX is On System Alarm Alarm Enabled Alarm Disabled Jammer Detection Detection Enabled Detection Disabled Alarm Volume Dim Means Weaker Bright MeansLouder Pin:Pin:

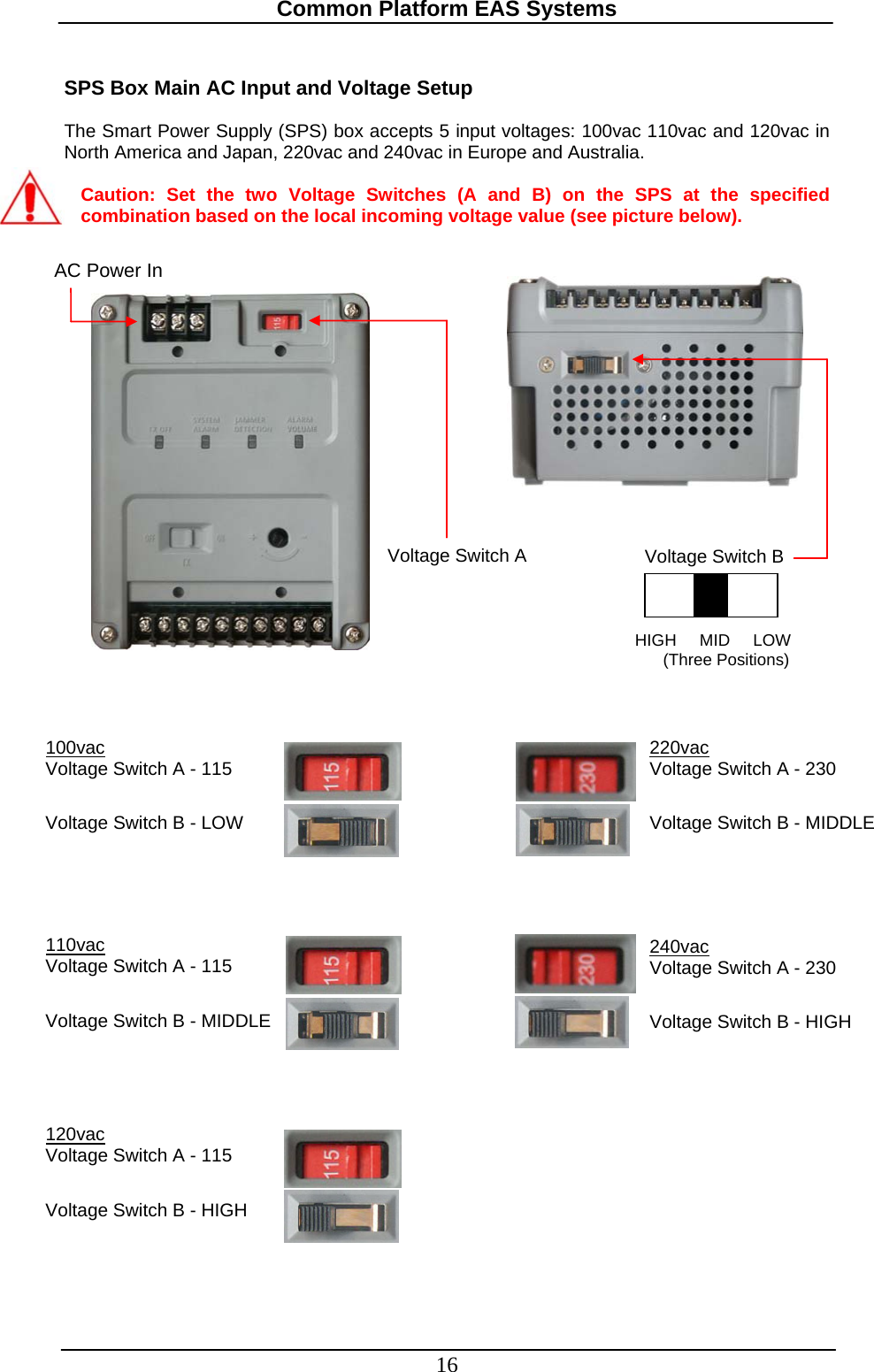

Common Platform EAS Systems 16 SPS Box Main AC Input and Voltage Setup The Smart Power Supply (SPS) box accepts 5 input voltages: 100vac 110vac and 120vac in North America and Japan, 220vac and 240vac in Europe and Australia. Caution: Set the two Voltage Switches (A and B) on the SPS at the specified combination based on the local incoming voltage value (see picture below). Voltage Switch B HIGH MID LOW (Three Positions) AC Power In 100vac Voltage Switch A - 115 Voltage Switch B - LOW 110vac Voltage Switch A - 115 Voltage Switch B - MIDDLE 120vac Voltage Switch A - 115 Voltage Switch B - HIGH 220vac Voltage Switch A - 230 Voltage Switch B - MIDDLE 240vac Voltage Switch A - 230 Voltage Switch B - HIGH Voltage Switch A

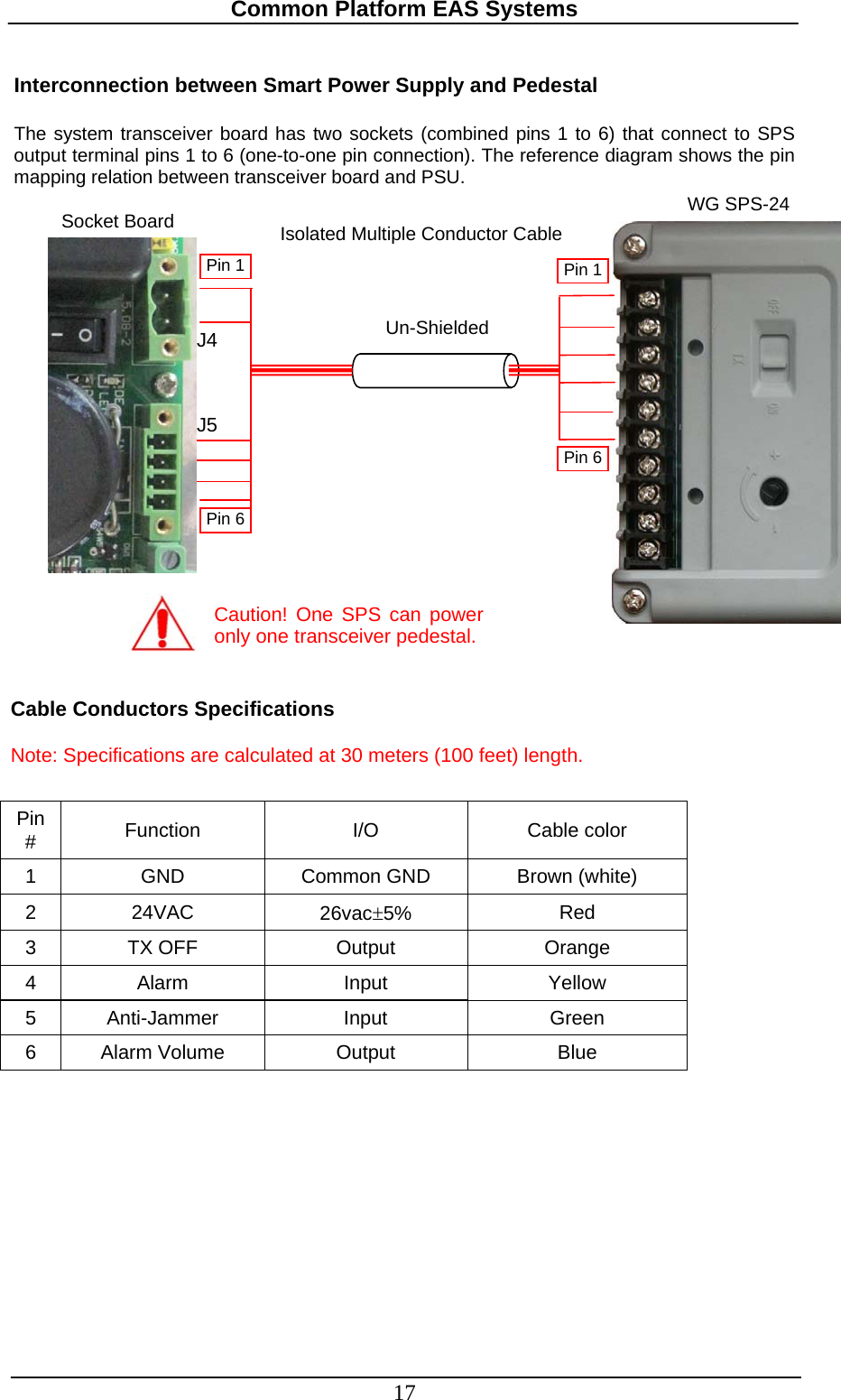

Common Platform EAS Systems 17 Interconnection between Smart Power Supply and Pedestal The system transceiver board has two sockets (combined pins 1 to 6) that connect to SPS output terminal pins 1 to 6 (one-to-one pin connection). The reference diagram shows the pin mapping relation between transceiver board and PSU. Pin 1Pin 6Pin 6 Pin 1 Isolated Multiple Conductor CableUn-ShieldedCable Conductors Specifications Note: Specifications are calculated at 30 meters (100 feet) length. Pin # Function I/O Cable color 1 GND Common GND Brown (white) 2 24VAC 26vac±5% Red 3 TX OFF Output Orange 4 Alarm Input Yellow 5 Anti-Jammer Input Green 6 Alarm Volume Output Blue Caution! One SPS can power only one transceiver pedestal.Socket Board WG SPS-24J4 J5

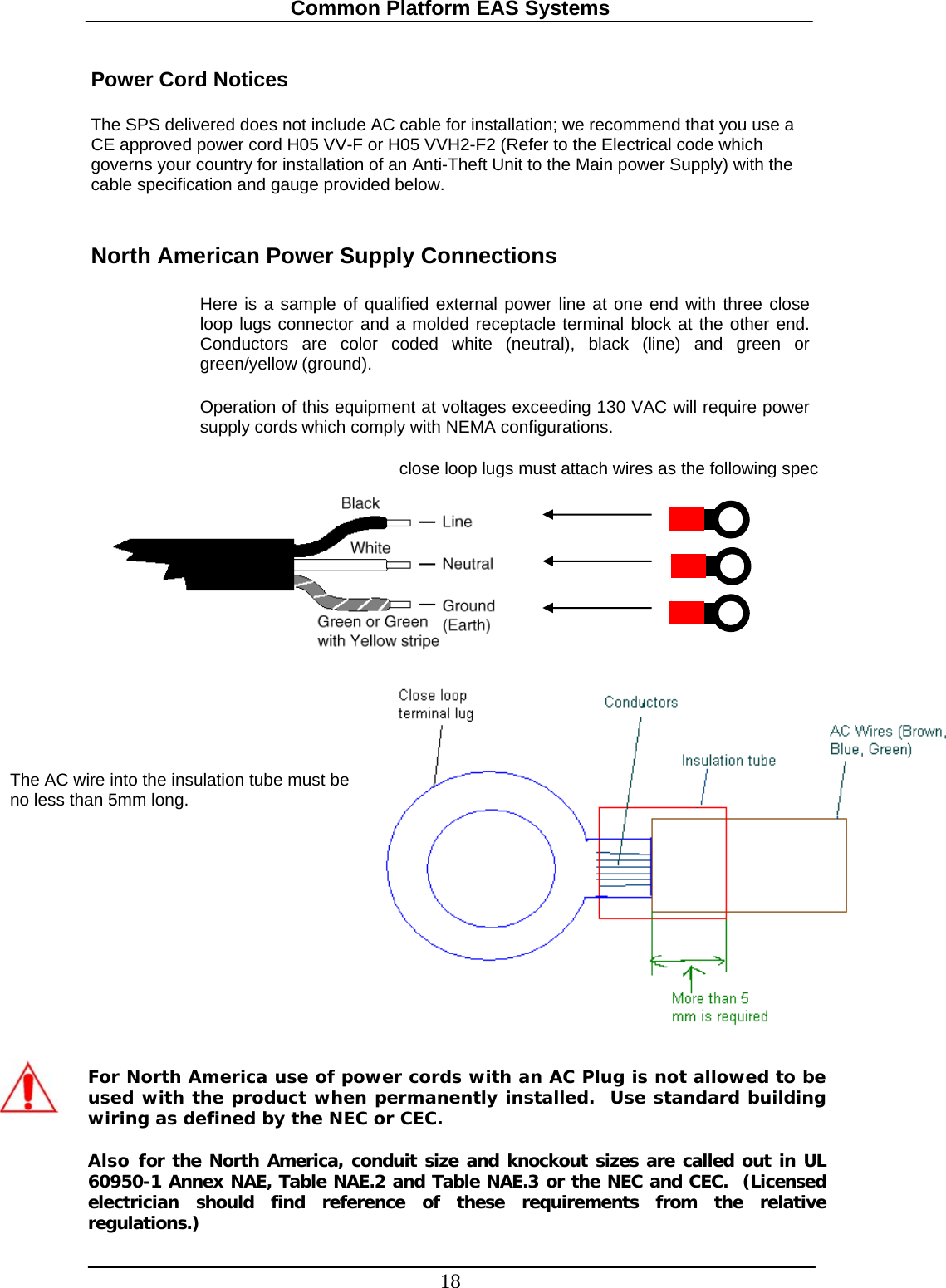

Common Platform EAS Systems 18 Power Cord Notices The SPS delivered does not include AC cable for installation; we recommend that you use a CE approved power cord H05 VV-F or H05 VVH2-F2 (Refer to the Electrical code which governs your country for installation of an Anti-Theft Unit to the Main power Supply) with the cable specification and gauge provided below. North American Power Supply Connections Here is a sample of qualified external power line at one end with three close loop lugs connector and a molded receptacle terminal block at the other end. Conductors are color coded white (neutral), black (line) and green or green/yellow (ground). Operation of this equipment at voltages exceeding 130 VAC will require power supply cords which comply with NEMA configurations. close loop lugs must attach wires as the following specThe AC wire into the insulation tube must be no less than 5mm long. For North America use of power cords with an AC Plug is not allowed to be used with the product when permanently installed. Use standard building wiring as defined by the NEC or CEC. Also for the North America, conduit size and knockout sizes are called out in UL 60950-1 Annex NAE, Table NAE.2 and Table NAE.3 or the NEC and CEC. (Licensed electrician should find reference of these requirements from the relative regulations.)

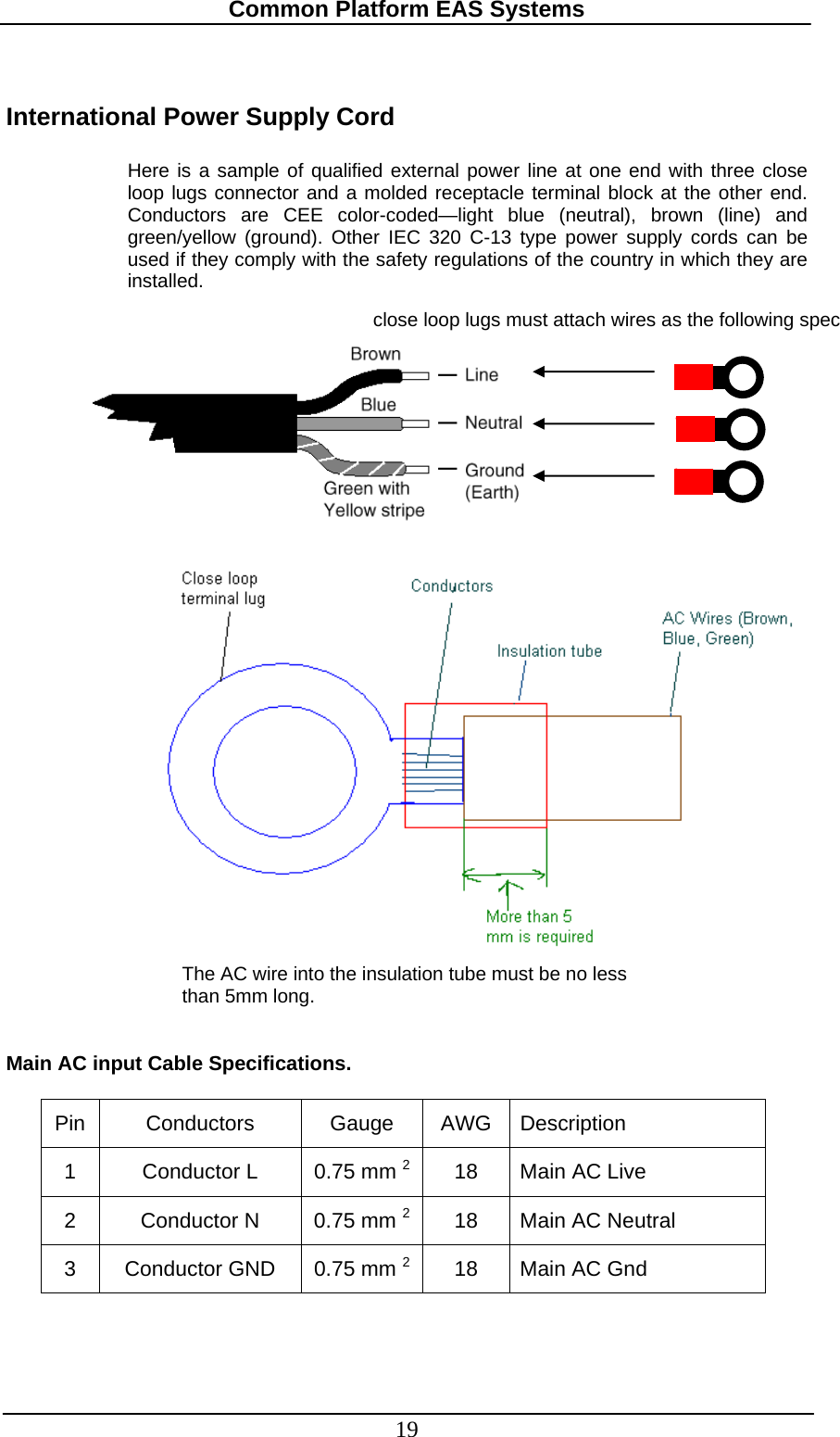

Common Platform EAS Systems 19 International Power Supply Cord Here is a sample of qualified external power line at one end with three close loop lugs connector and a molded receptacle terminal block at the other end. Conductors are CEE color-coded—light blue (neutral), brown (line) and green/yellow (ground). Other IEC 320 C-13 type power supply cords can be used if they comply with the safety regulations of the country in which they are installed. Main AC input Cable Specifications. Pin Conductors Gauge AWG Description 1 Conductor L 0.75 mm 218 Main AC Live 2 Conductor N 0.75 mm 218 Main AC Neutral 3 Conductor GND 0.75 mm 218 Main AC Gnd close loop lugs must attach wires as the following specThe AC wire into the insulation tube must be no less than 5mm long.

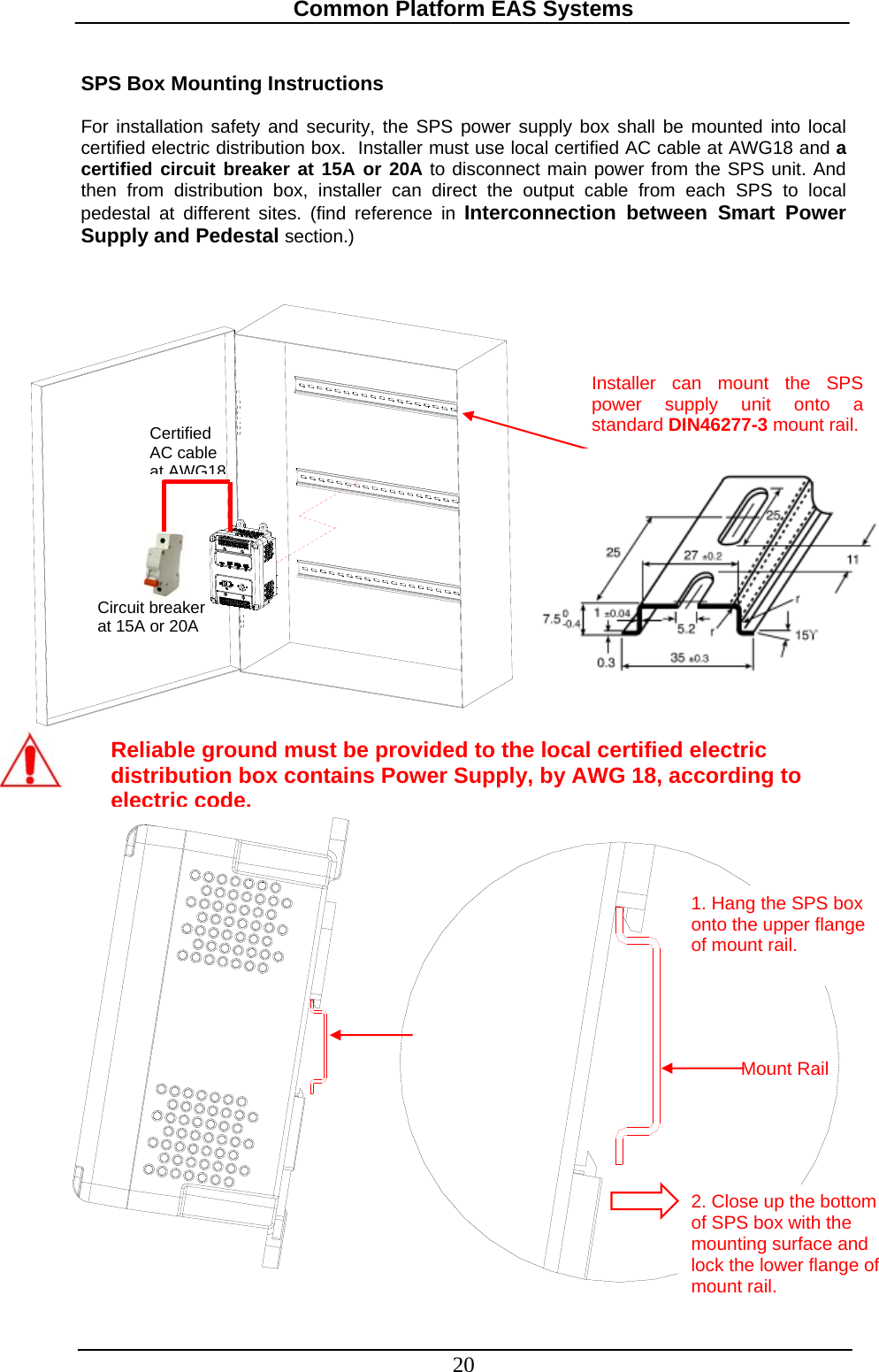

Common Platform EAS Systems 20 SPS Box Mounting Instructions For installation safety and security, the SPS power supply box shall be mounted into local certified electric distribution box. Installer must use local certified AC cable at AWG18 and a certified circuit breaker at 15A or 20A to disconnect main power from the SPS unit. And then from distribution box, installer can direct the output cable from each SPS to local pedestal at different sites. (find reference in Interconnection between Smart Power Supply and Pedestal section.) Installer can mount the SPS power supply unit onto a standard DIN46277-3 mount rail. Mount Rail1. Hang the SPS box onto the upper flange of mount rail. 2. Close up the bottom of SPS box with the mounting surface and lock the lower flange of mount rail. Circuit breaker at 15A or 20ACertified AC cable at AWG18Reliable ground must be provided to the local certified electric distribution box contains Power Supply, by AWG 18, according to electric code.

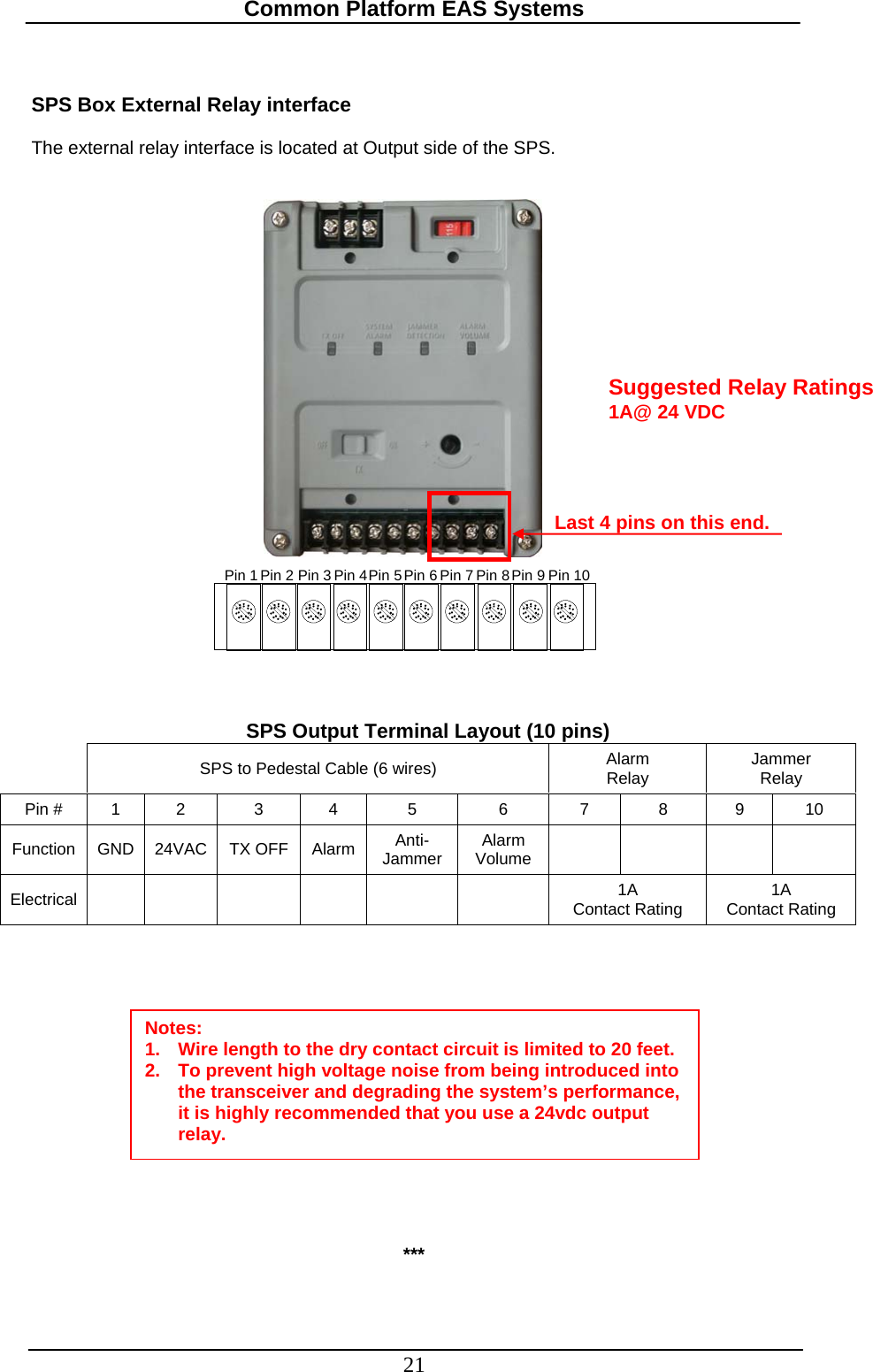

Common Platform EAS Systems 21 SPS Box External Relay interface The external relay interface is located at Output side of the SPS. *** Suggested Relay Ratings 1A@ 24 VDC Notes: 1. Wire length to the dry contact circuit is limited to 20 feet. 2. To prevent high voltage noise from being introduced into the transceiver and degrading the system’s performance, it is highly recommended that you use a 24vdc output relay. Last 4 pins on this end. Pin 1 Pin 2 Pin 3 Pin 4Pin 5Pin 6 Pin 7 Pin 8Pin 9 Pin 10SPS Output Terminal Layout (10 pins) SPS to Pedestal Cable (6 wires) Alarm Relay Jammer Relay Pin # 1 2 3 4 5 6 7 8 9 10 Function GND 24VAC TX OFF Alarm Anti- Jammer Alarm Volume Electrical 1A Contact Rating 1A Contact Rating
