User Manual

User Manual（For FCC Certification）

Product Serial Num： Product Name： LO5 File Serial Num： edition：

Compiled by JNan Lao Apr 6th,2012 Reviewed by Stephen Apr 6th, 2012

Page 1/ Total 4

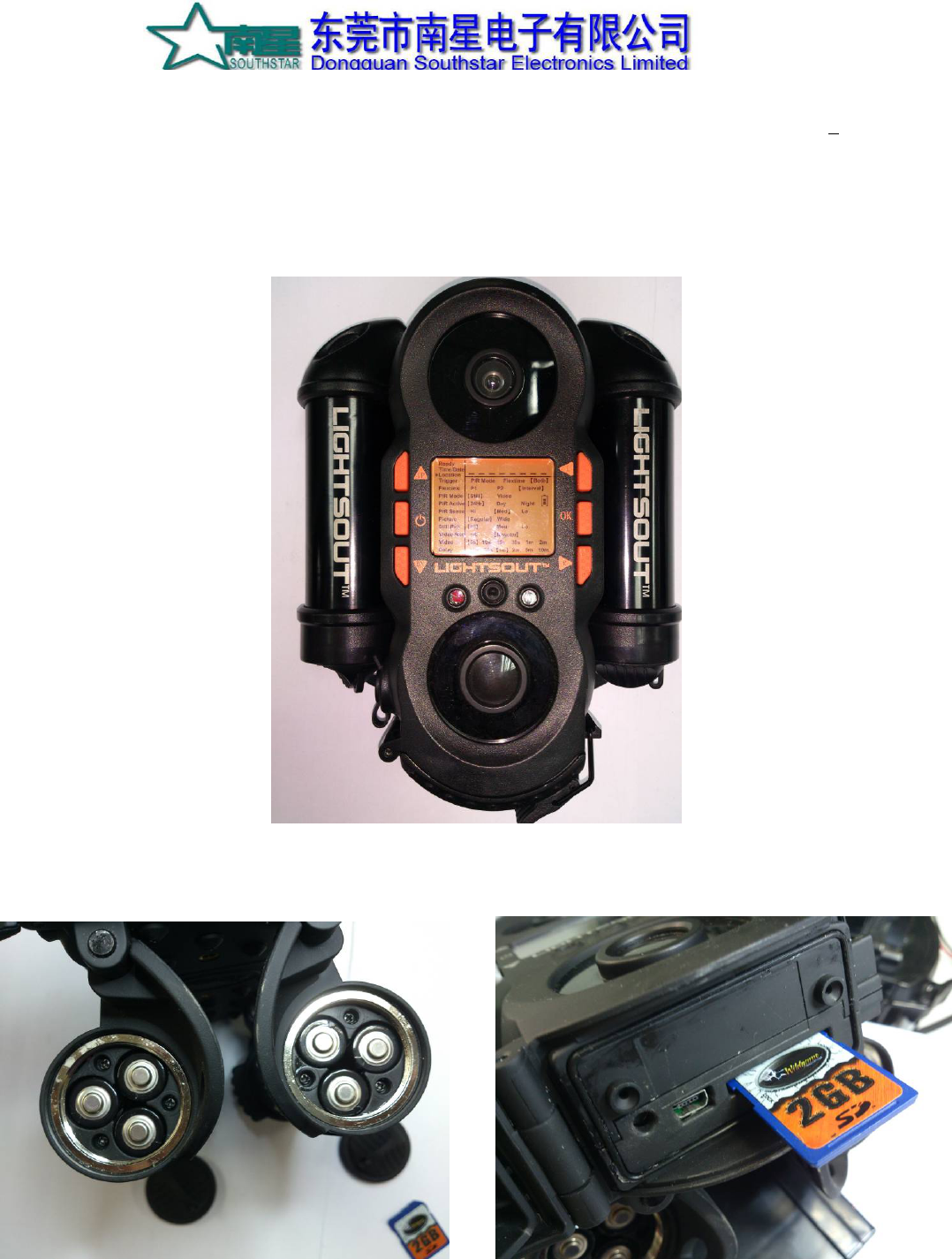

Summary

ThepicturebelowisLO5realproductphoto.Thereisabatterycompartmentinbothsides,inwhichyou

canputbatteriesafterscrewingupthecoveratthebottom.Allthebatteriesshouldbeputwithpositivepole

intheoutside.OpentheSDcardholder,youcanseearesetkey,aminiUSBandaSDcartslot.



LO5realproductphoto



 



BatterycompartmentfilledwithbatteriesSDcardslot

User Manual（For FCC Certification）

Product Serial Num： Product Name： LO5 File Serial Num： edition：

Compiled by JNan Lao Apr 6th,2012 Reviewed by Stephen Apr 6th, 2012

Page 2/ Total 4

UI mode



LongpressthePOWERbuttontobootup,andgototheinterfaceabove.PresstheUP/DOWNbuttonto

maketheoptionPIRMODEflashed,thenpressOKtothesettingmode.YoucanpressLEFT/RIGHTbuttonto

maketheoptionSTILL(takephotos)orVIDEO(takevideos)flashed.ThenpressOKtosavethesettingandgoto

nextsetting.

Youcansetotheroptionsinthesameway.



Introductions for setting the options

Thetablebelowshowstheoptionswhichcanbesetbyusers.Theoptionswith ■ arethedefaultsettings

afterresetthemachine.

Settings Options and default settings notes

Time ■ 12:00 AM 12-hour clock

Date ■ 01/01/2012 Month/day/year

The range of calendar is from 12:00 AM

01/01/2010 to 11:59 PM 12/31/2030

Location ■ _ _ _ _ _ _ _ _

( 8 blanks )

You can set from “A” to “Z”, “0” to “9” and a

blank” “.

After reset ,it will be 8 blanks. A blank is showed

as “_” on LCD, but nothing on the photos.

Trigger ■ PIR Mode

□ Flextime

□ Both

Choose the trigger pattern. It can be PIR

Flextime ,or both of them.

Flextime □ P1

□ P2

User Manual（For FCC Certification）

Product Serial Num： Product Name： LO5 File Serial Num： edition：

Compiled by JNan Lao Apr 6th,2012 Reviewed by Stephen Apr 6th, 2012

Page 3/ Total 4

□ Interval

PIR Mode ■ Still

□ Video

PIR Active ■ 24Hr

□ Day

□ Night

PIR Sense □ Hi

■ Med

□ Lo

PIR sensitivity.

Picture ■ Regular

□ Wide

The length-width ratio of the photos to be taken.

Regular is 4:3; Wide is 16:9.

Still Res ■ Hi

□ Med

□ Lo

The resolution ratio of the photos：

When set the Picture to be Regular:

Hi --- 5M (2592*1944)

Med --- 4M (2272*1704)

Low --- 2M (1600*1200)

When set the Picture to be Wide:

Hi --- 5M (2944*1656)

Med --- 4M (2560*1440)

Low --- 2M (1920*1080)

Video Res □ HD

■ Regular

HD represent 720P@30fps，Regular represent

640*480@30fps(both without sound)

Video ■ 5s

□ 10s

□ 15s

□ 30s

□ 1m

□ 2m

The length of the video。S means second, m

means minute.

Delay ■15s

□ 30s

□ 1m

□ 2m

□ 5m

□ 10m

Attention：

PIR and Flextime use the same Delays setting.

When use Flextime function, the shortest time

of this setting should be 1m.





still/video mode

Ifnokeypressedinacontinuous30secondsinUImode,theLCDofLO5willbeturnedoff,andthengo

totheidlemode.Triggertheinfraredsensor,thecamerawilltakephotosorvideosasyousetintheUImode.

Tip:PressingtheRESETbuttontoresetthecamera,itwilltakephotosaftergoingtothestandbymode.

YoucantakevideosifonlychangethePIRModetoVideo.

Attention:

User Manual（For FCC Certification）

Product Serial Num： Product Name： LO5 File Serial Num： edition：

Compiled by JNan Lao Apr 6th,2012 Reviewed by Stephen Apr 6th, 2012

Page 4/ Total 4

1. YoushouldplugintheSDcardbeforetakingphotosorvideos.

2. TheredLEDwillflashifyoutriggertheinfraredsensorinthefirst1.5minutesofthismode.After1.5

minute,thefunctionwillbeoff.



USB mode

Inthismode,youcanreadthefilesintheSDcard.

Thewaystogointothismode:

1. Whenthemachineisturnedoff,connectthecameratoPCwithUSBcable,andthenlongpress

thePOWERbuttontoturnonthecamera.

2. InUImode,connectthecameratoPCwithUSBcable.



FCC STATEMENT

ProductName:GameTrailCamera

TradeName:WildgameInnovations

Model#LO5



ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothefollowingtwocriteria:(1)This

devicemaynotcauseharmfulinterference,and(2)Thisdevicemustacceptanyinterferencereceived,

includinginterferencethatmaycauseundesiredoperation.



Warning:Changesormodificationstothisunitnotexpresslyapprovedbythepartyresponsiblefor

compliancecouldvoidtheuser’sauthoritytooperatetheequipment.



NOTE:ThisequipmenthasbeentestedandfoundtocomplywiththelimitsforaClassBdigitaldevice,

pursuanttoPart15oftheFCCRules.Theselimitsaredesignedtoprovidereasonableprotectionagainst

harmfulinterferenceinaresidentialinstallation.Thisequipmentgenerates,usesandcanradiateradio

frequencyenergyand,ifnotinstalledandusedinaccordancewiththeinstructions,maycauseharmful

interferencetoradiocommunications.



However,thereisnoguaranteethatinterferencewillnotoccurinaparticularinstallation.Ifthisequipment

doescauseharmfulinterferencetoradioortelevisionreception,whichcanbedeterminedbyturningthe

equipmento_andon,theuserisencouragedtotrytocorrecttheinterferencebyoneormoreofthe

followingmeasures:

‐Reorientorrelocatethereceivingantenna.

‐Increasetheseparationbetweentheequipmentandreceiver.

‐Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthereceiverisconnected.

‐Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
