WGI Innovations UR1UR2MODULE Remote control unit User Manual

WGI Innovations, Ltd. Remote control unit Users Manual

Users Manual

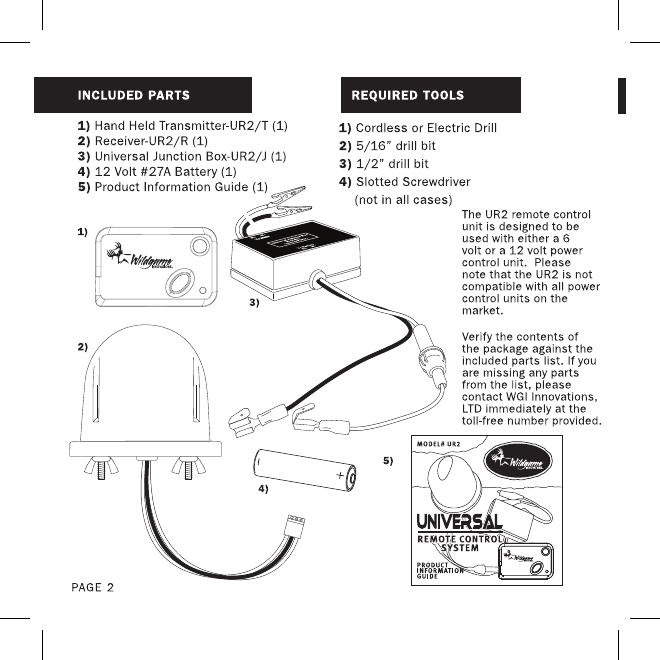

27A

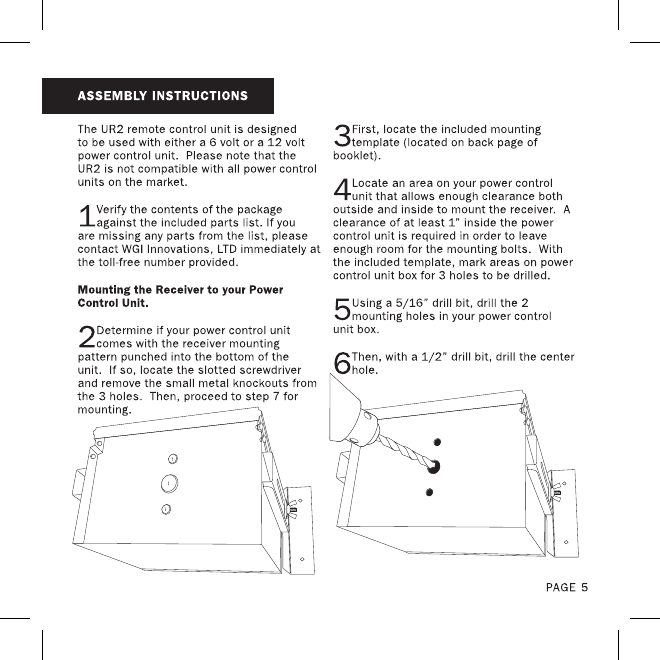

1 7/8” or 47.63mm
Base of unit is 3 1/4” or 82.55mm
5/16” Hole
5/16” Hole
1/2” Hole
15/16” or
23.81mm

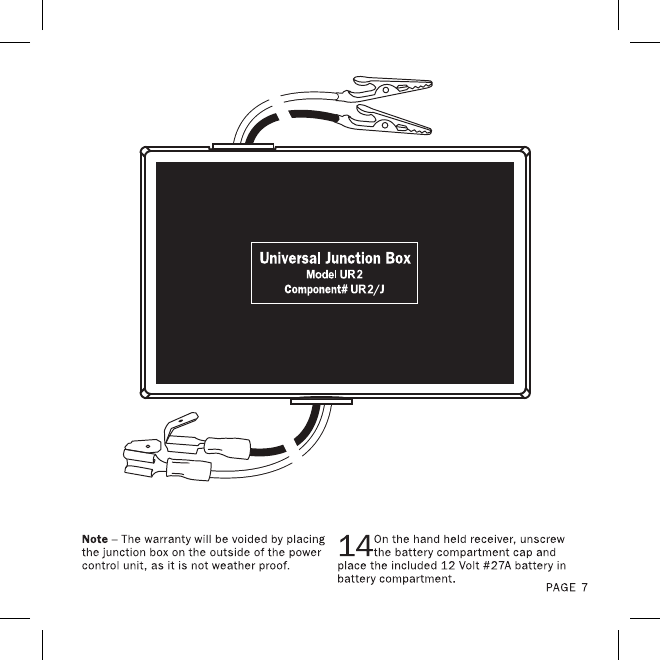

To Receiver
Remote GND B+
To Battery
B+ B–
M+ M–
To Motor
FCC STATEMENT
1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause
undesired operation.
2. Changes or modifications not expressly approved by the party responsible for compliance could
void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
  Reorient or relocate the receiving antenna.
  Increase the separation between the equipment and receiver.
  Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
  Consult the dealer or an experienced radio/TV technician for help.
