WHIRLPOOL Built In Oven, Electric With Microwave Manual L0523159
GMC275PDB2 GMC275PDB2 WHIRLPOOL ELECTRIC OVEN/MW COMBO - Manuals and Guides L0523159 View the owners manual for your WHIRLPOOL ELECTRIC OVEN/MW COMBO #GMC275PDB2. Home:Kitchen Appliance Parts:Whirlpool Parts:Whirlpool ELECTRIC OVEN/MW COMBO Manual
User Manual: WHIRLPOOL WHIRLPOOL Built In Oven, Electric with Microwave Manual WHIRLPOOL Built In Oven, Electric with Microwave Owner's Manual, WHIRLPOOL Built In Oven, Electric with Microwave installation guides
Open the PDF directly: View PDF
.
Page Count: 32
Use And Care
A Note to You .......................................... 2
Microwave Oven Safety ......................... 3

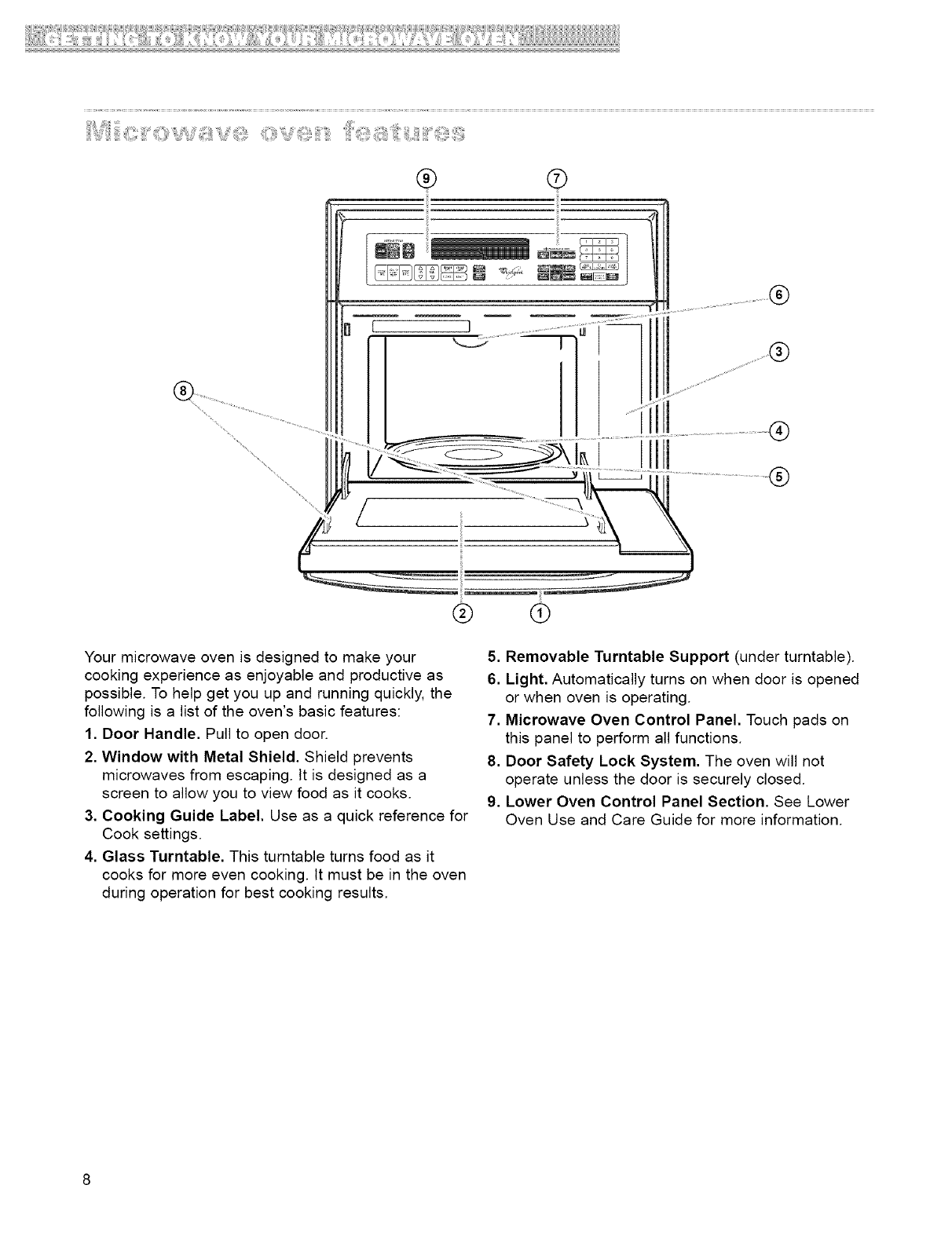

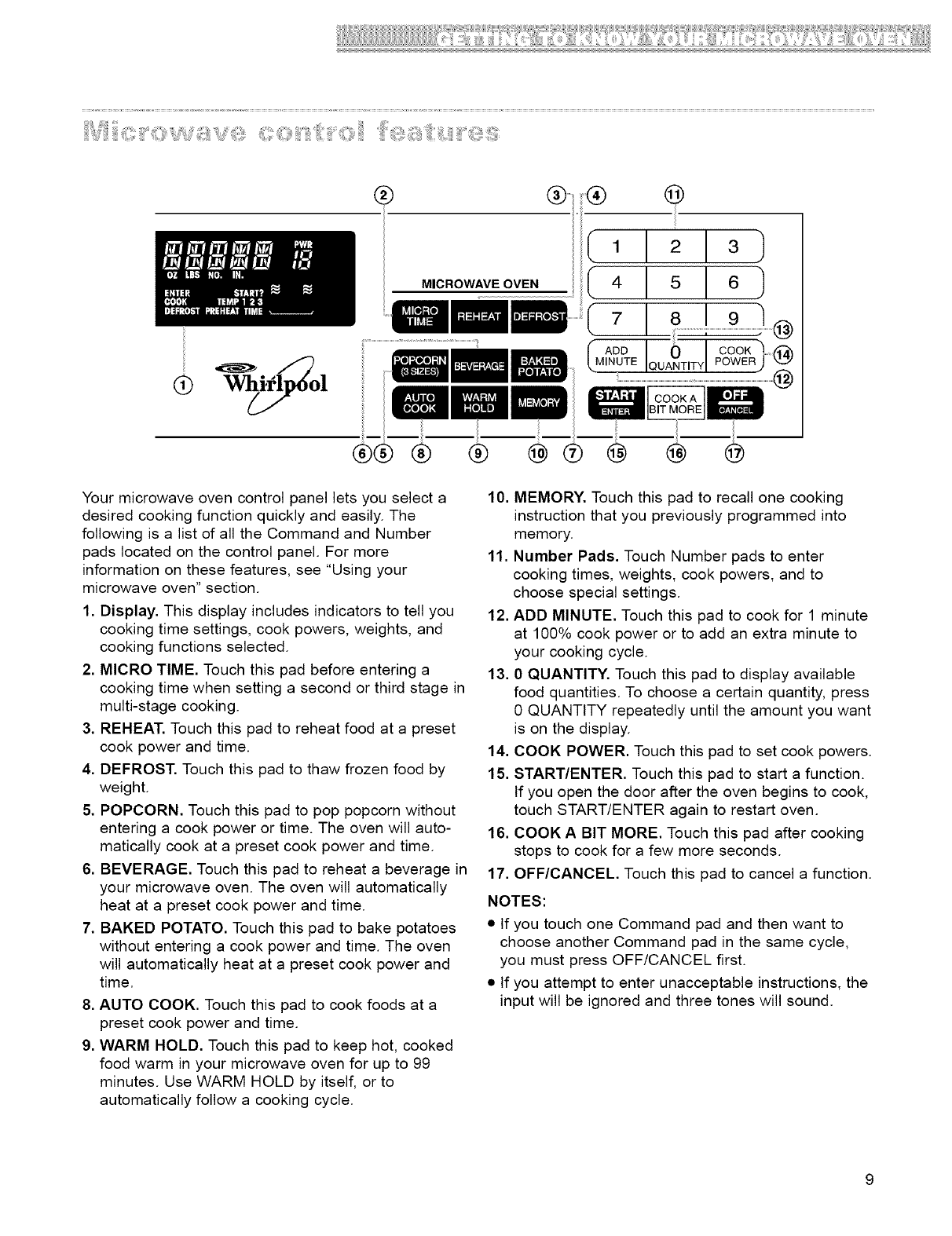

Getting to Know Your
Microwave Oven ..................................... 6

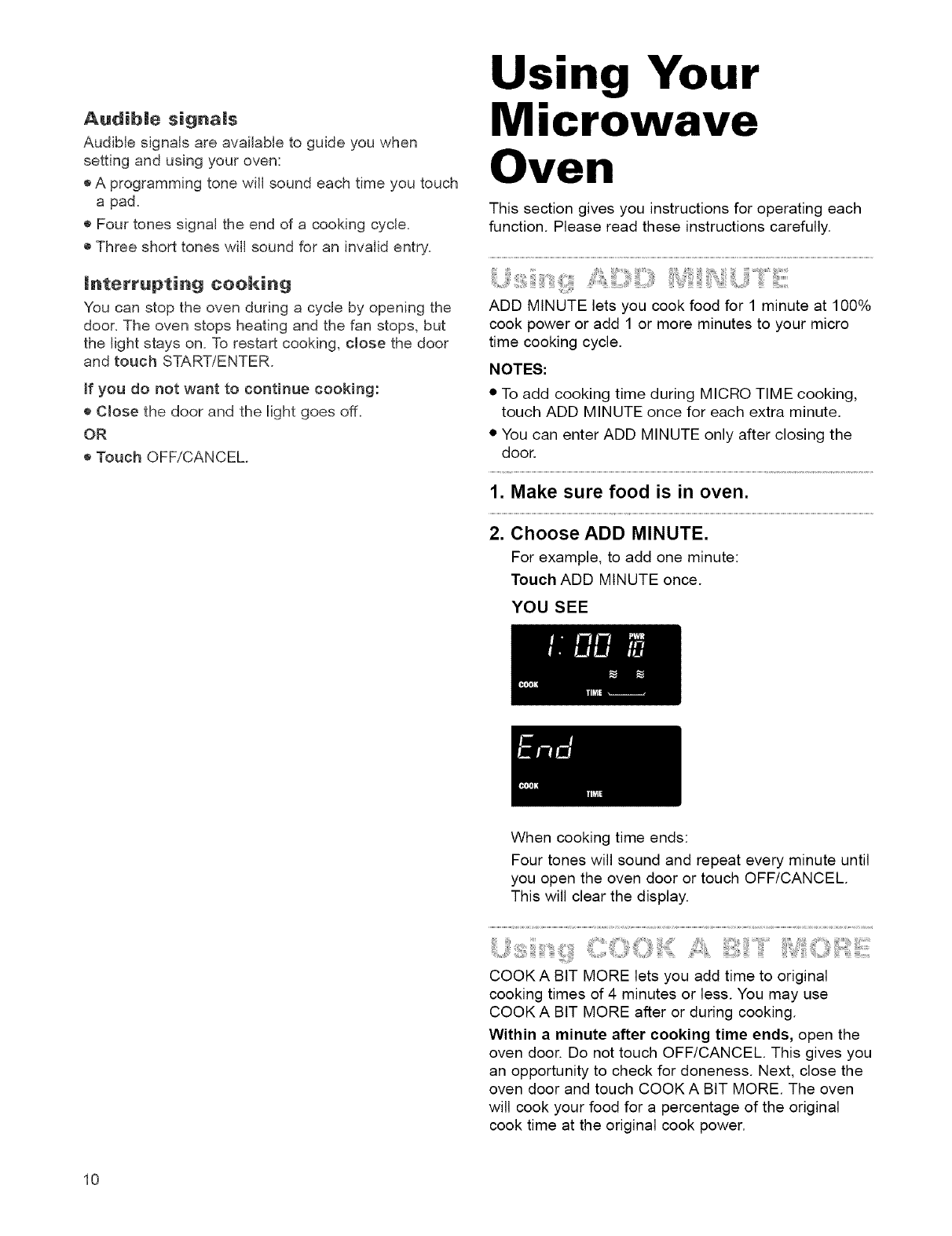

Using Your Microwave Oven ............... 10
Using ADD MINUTE ............................ 10
Using COOKA BIT MORE .................. 10

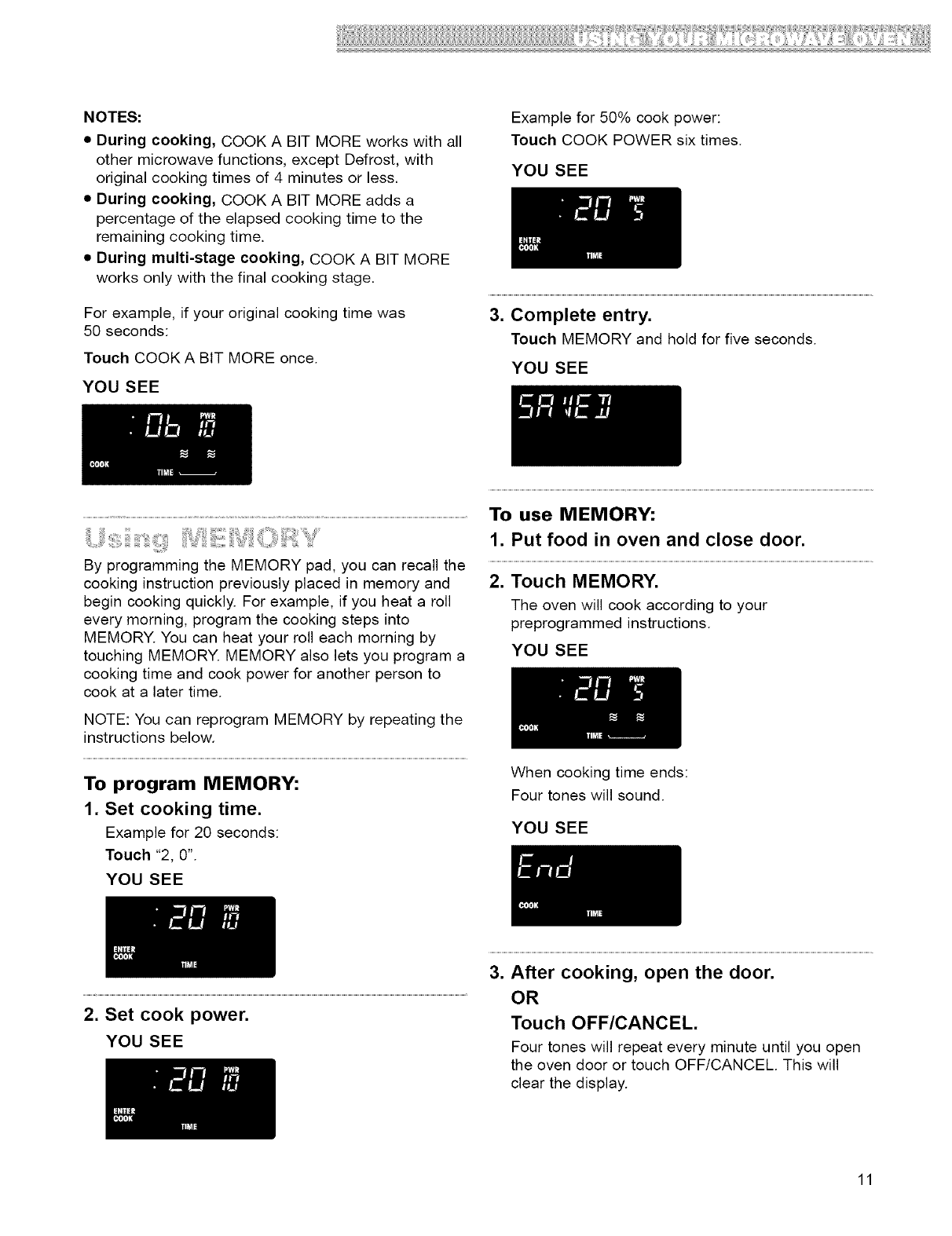

Using MEMORY ................................... 11

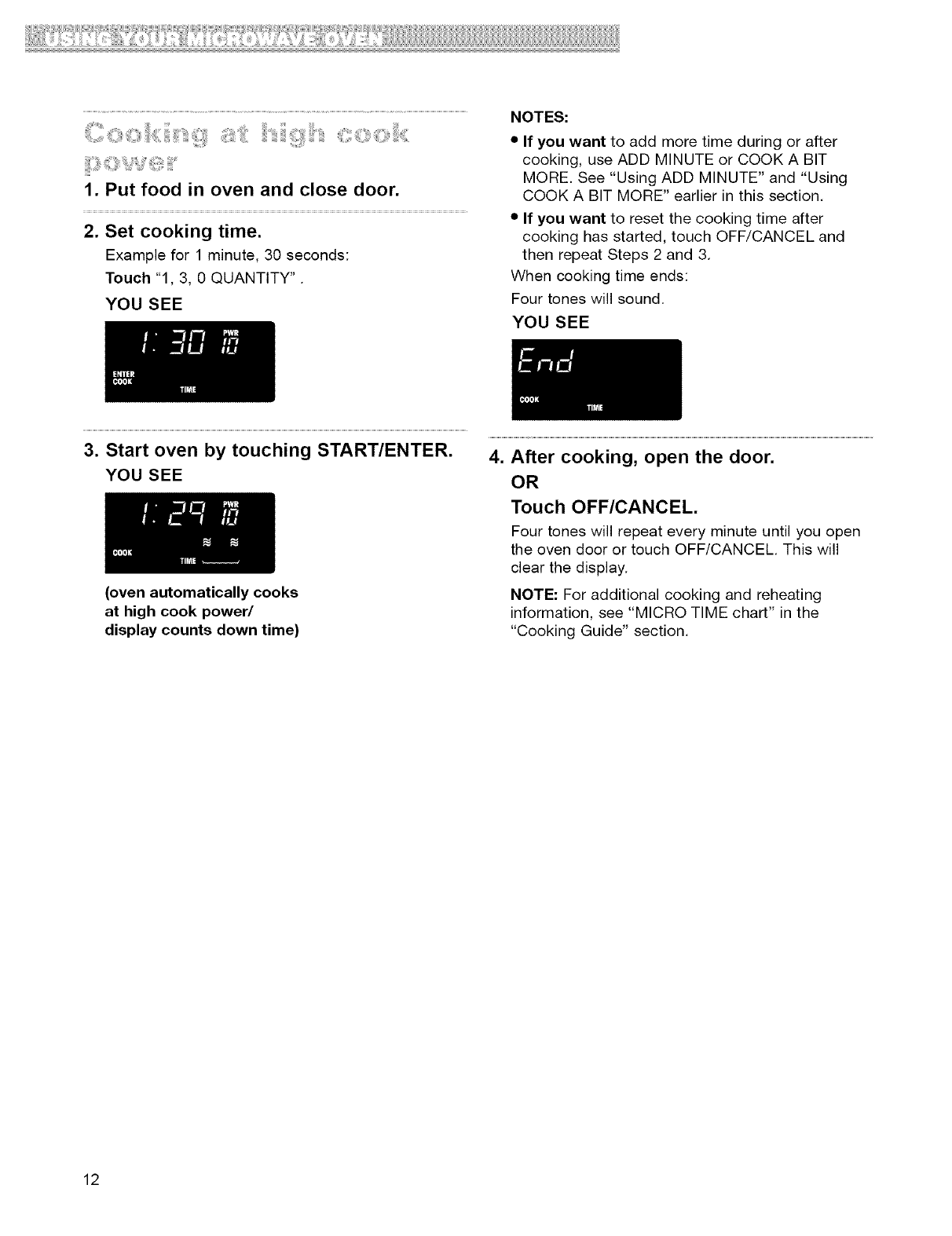

Cooking at high cook power ................ 12

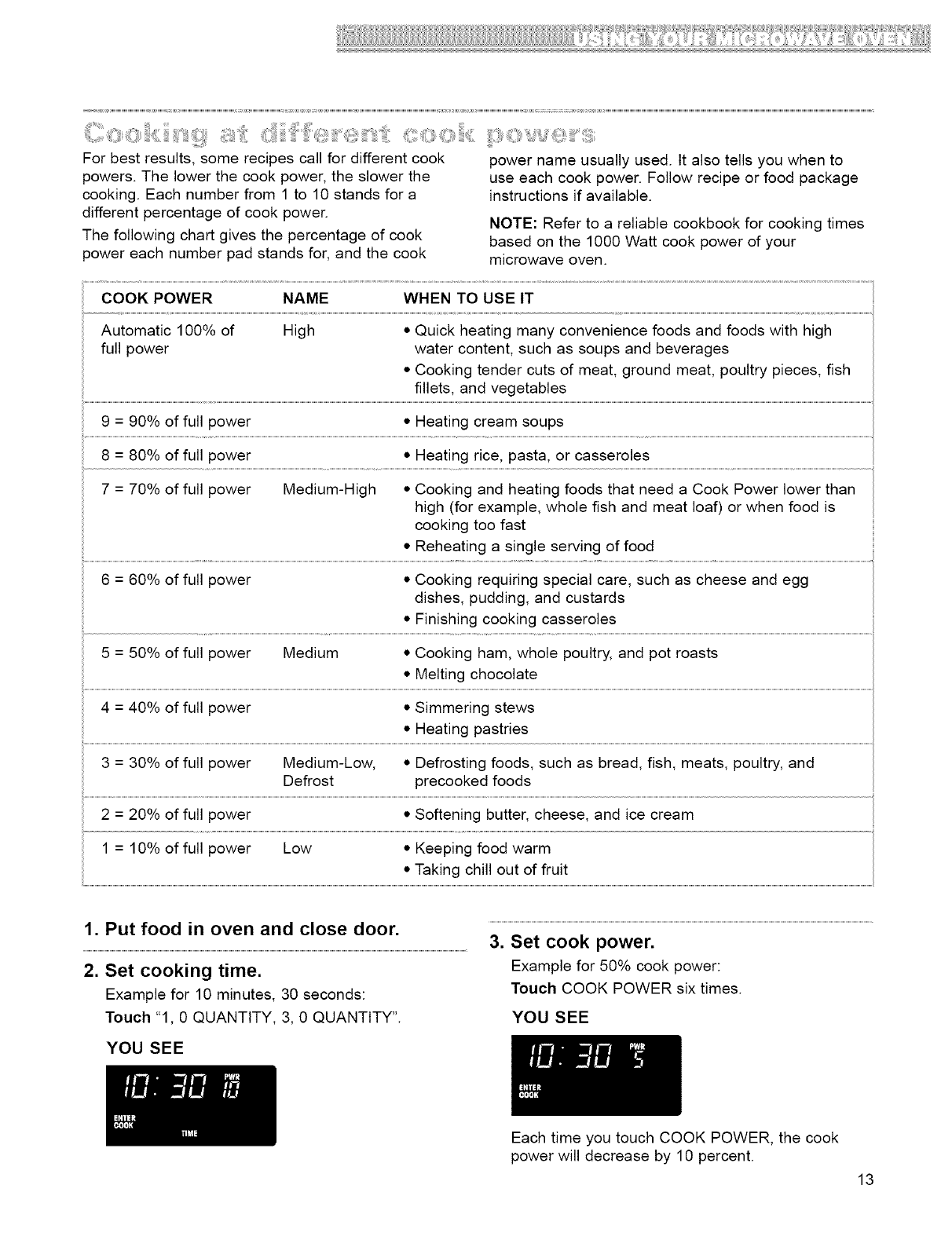

Cooking at different cook powers ........ 13

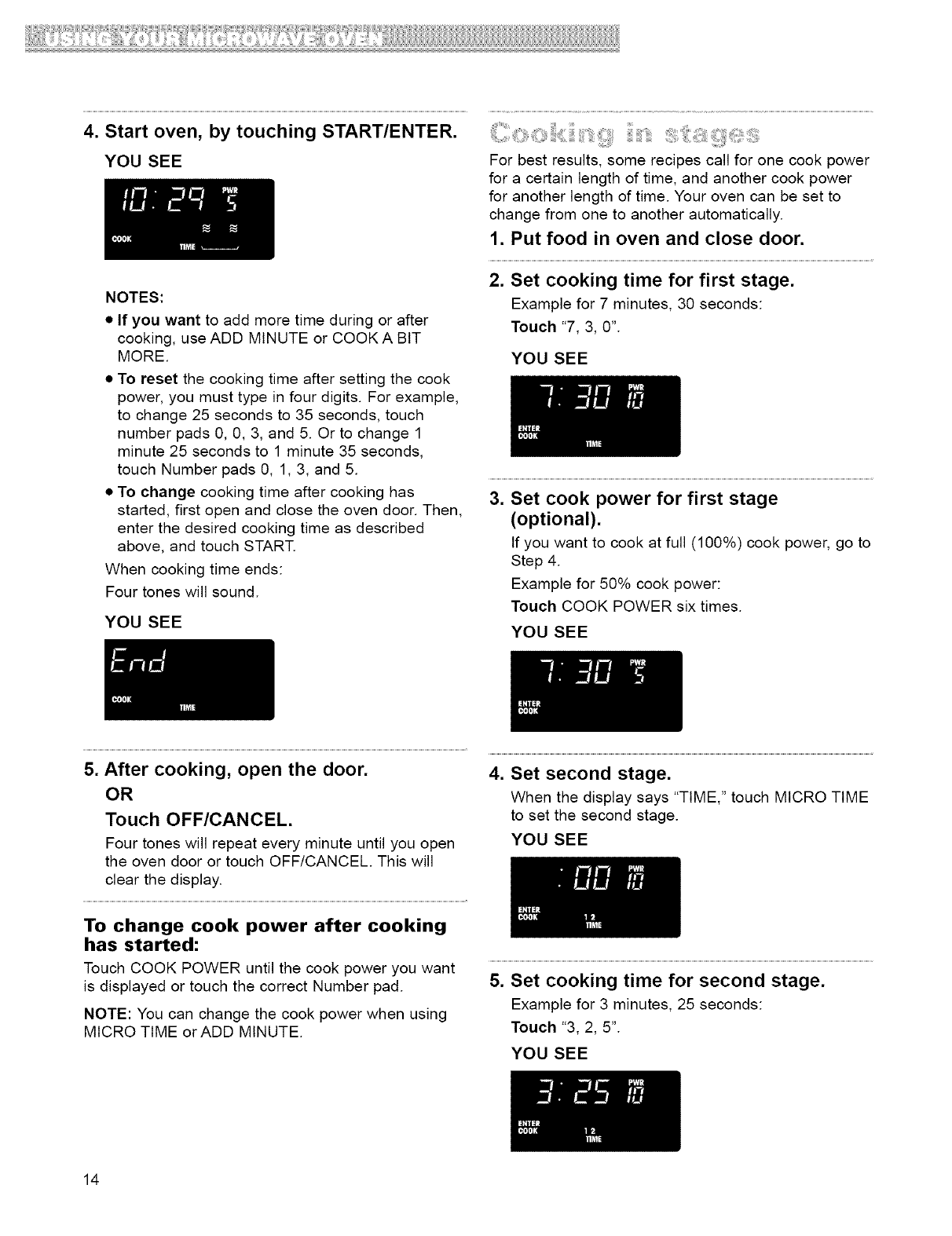

Cooking in stages ................................ 14

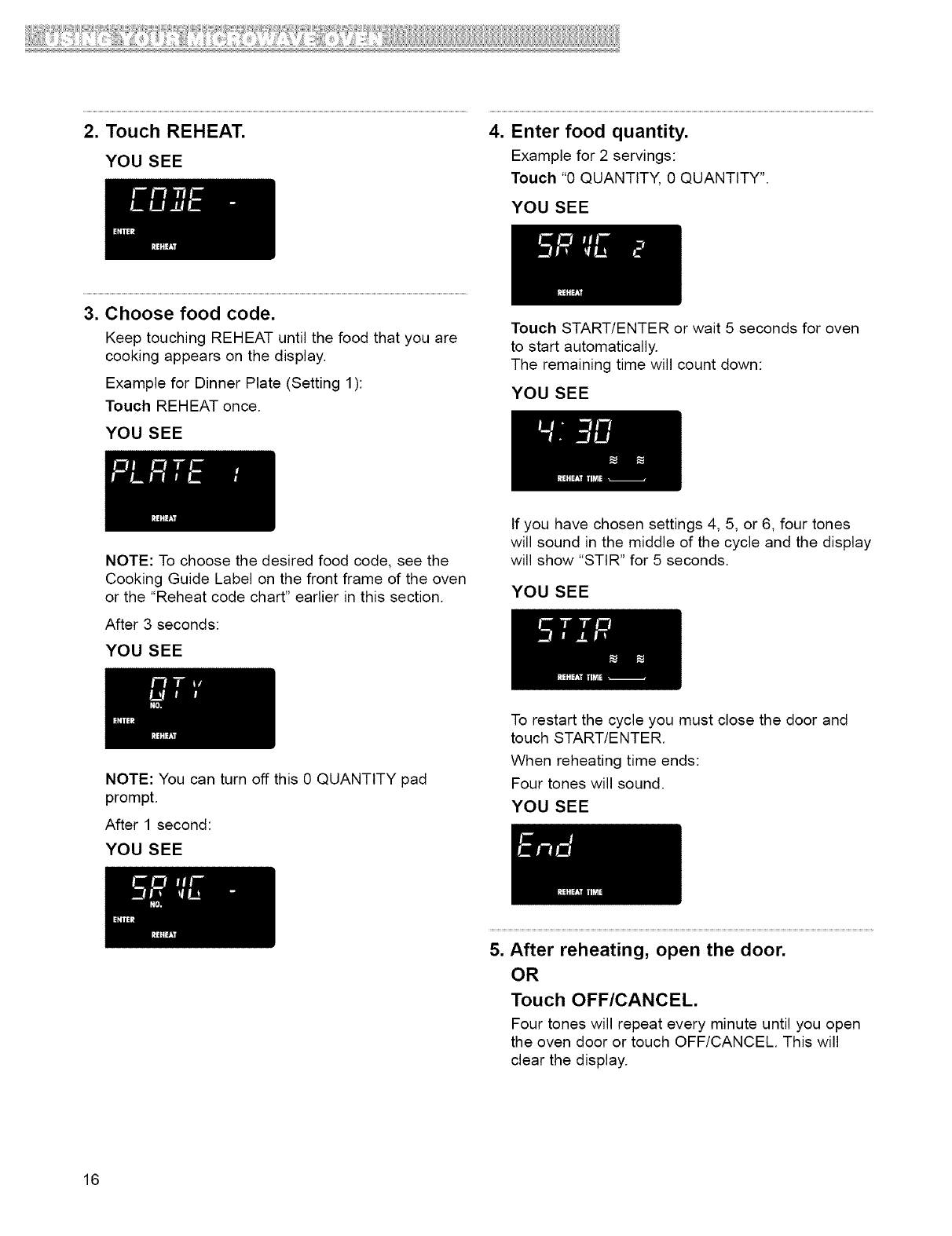

Reheating food .................................... 15

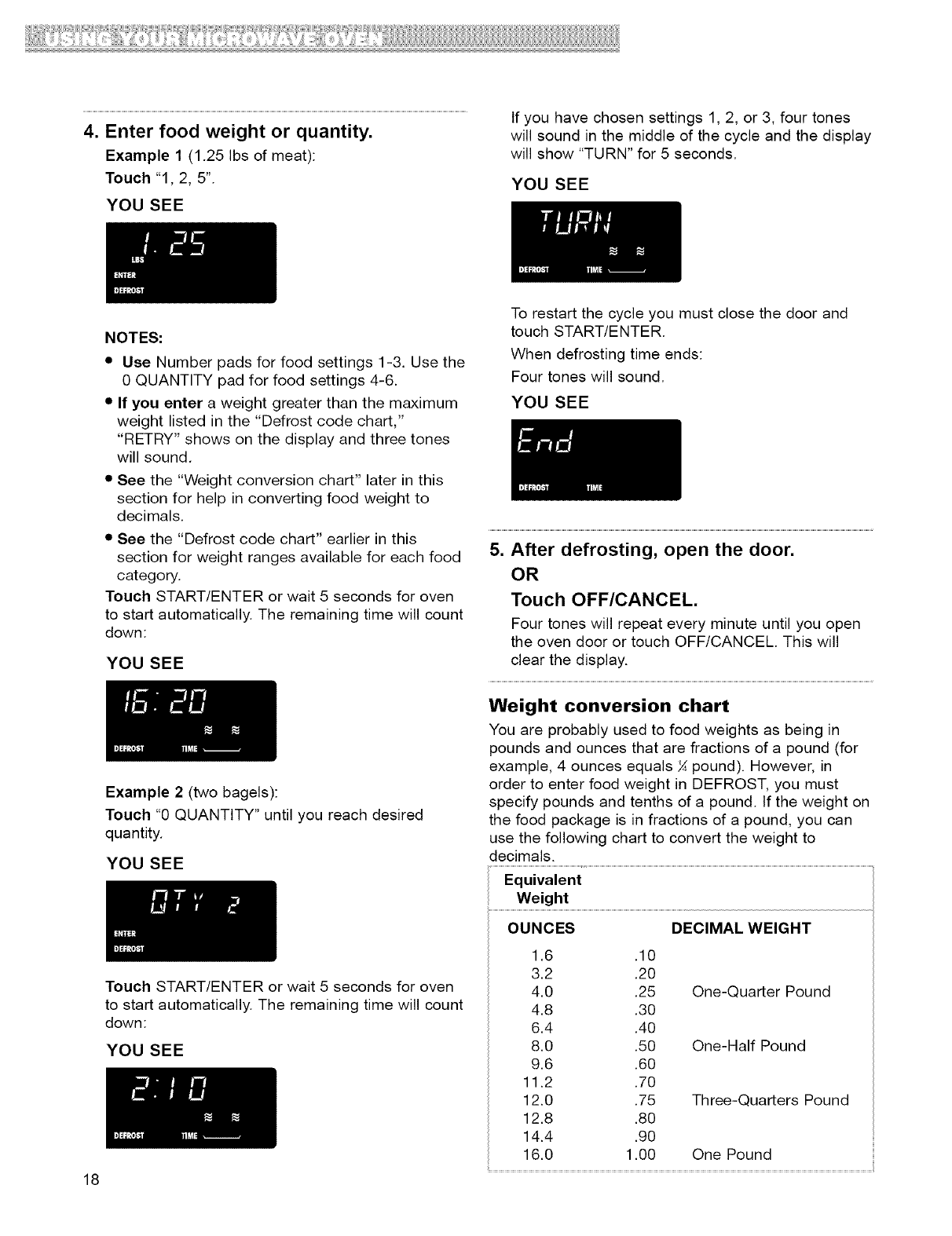

Defrosting ............................................ 17

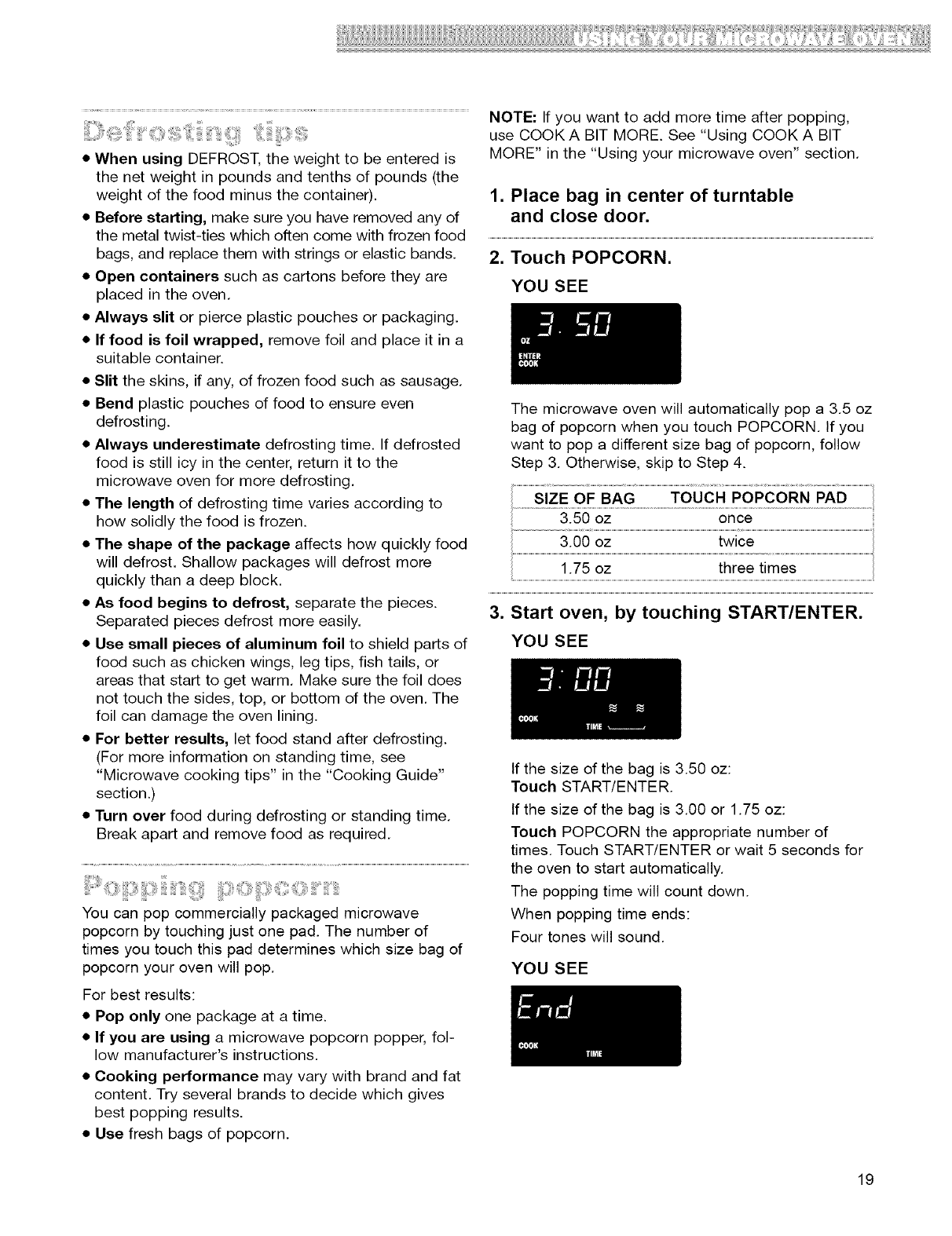

Defrosting tips ...................................... 19
Popping popcorn ................................. 19

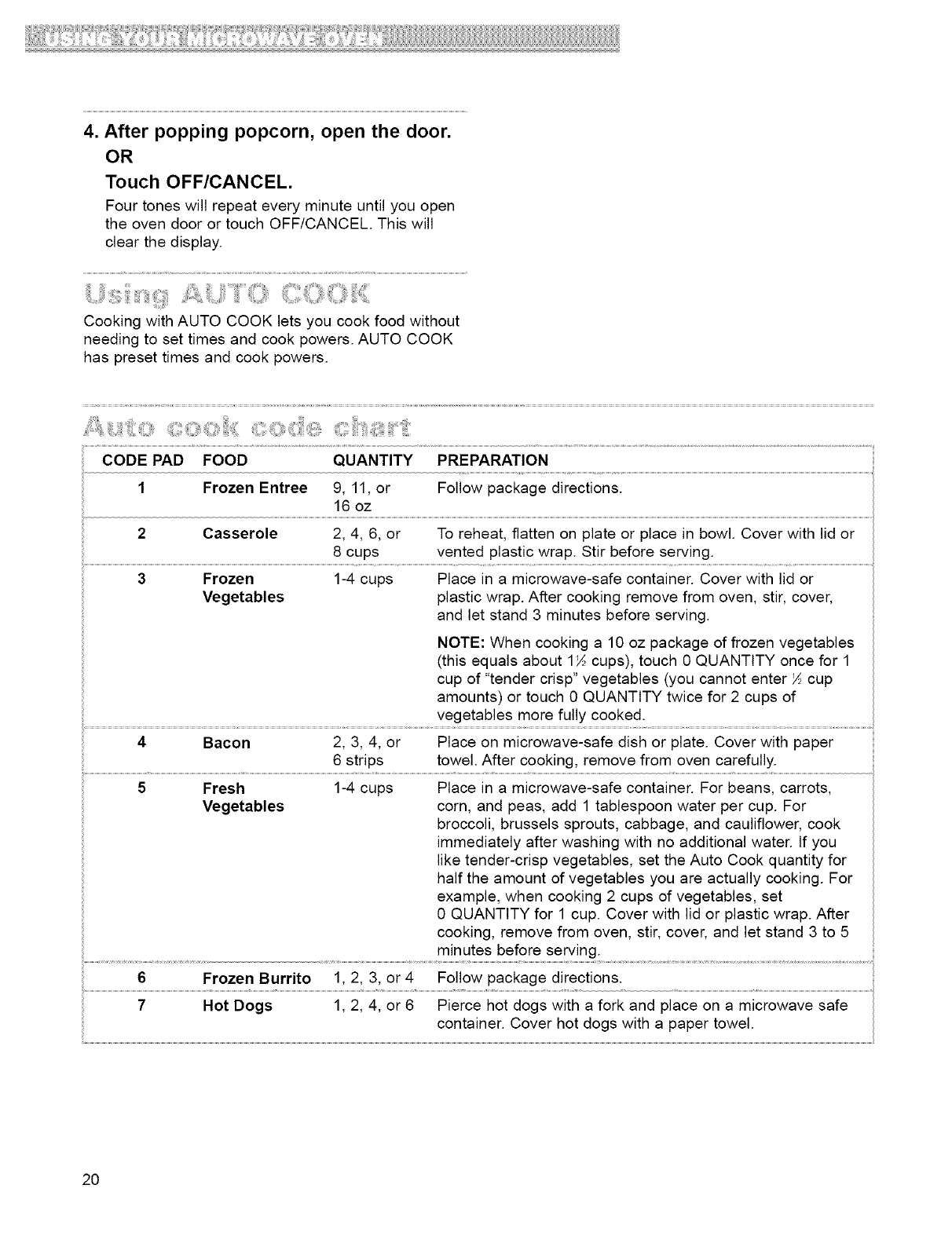

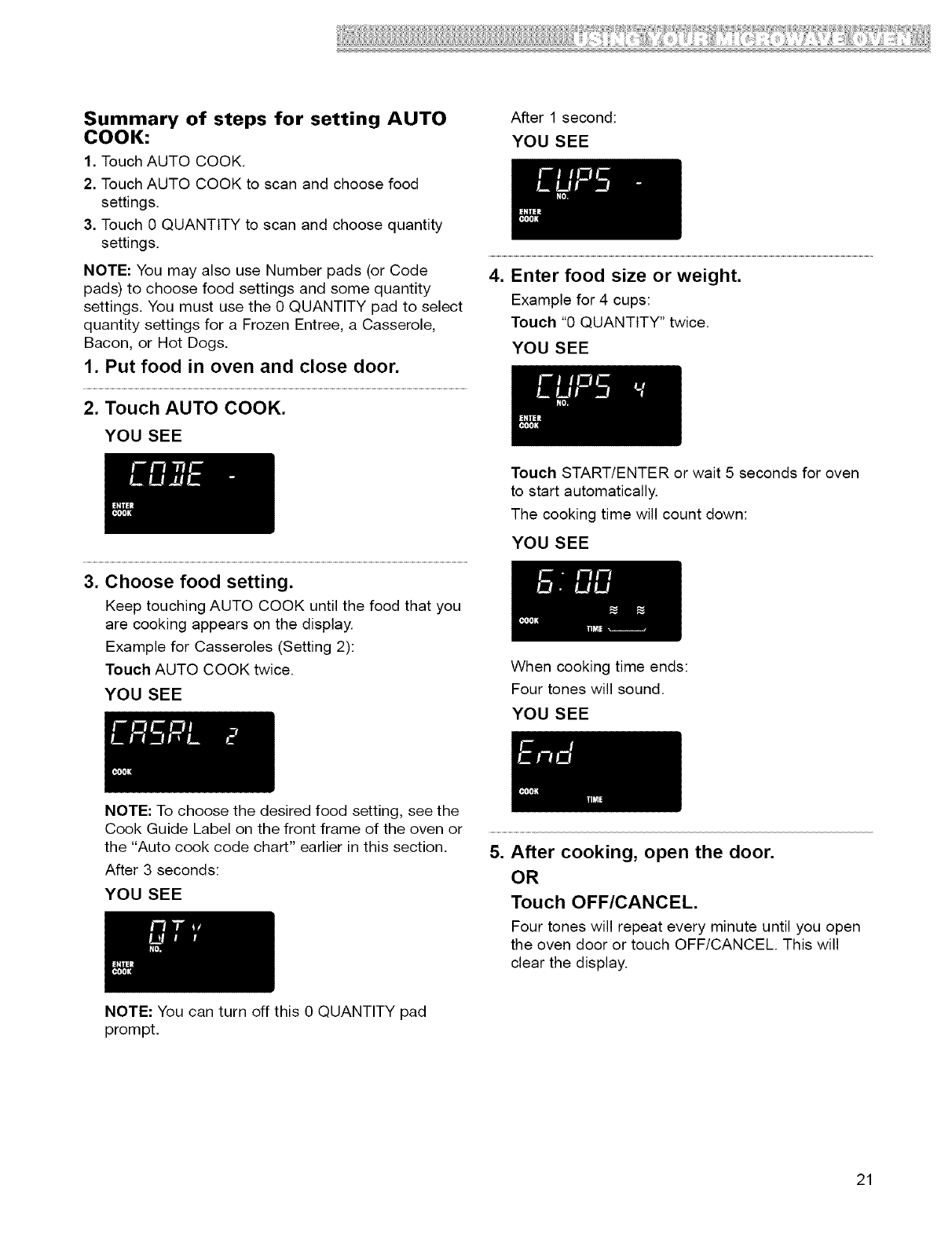

Using AUTO COOK ............................. 20
Auto cook code chart ........................... 20

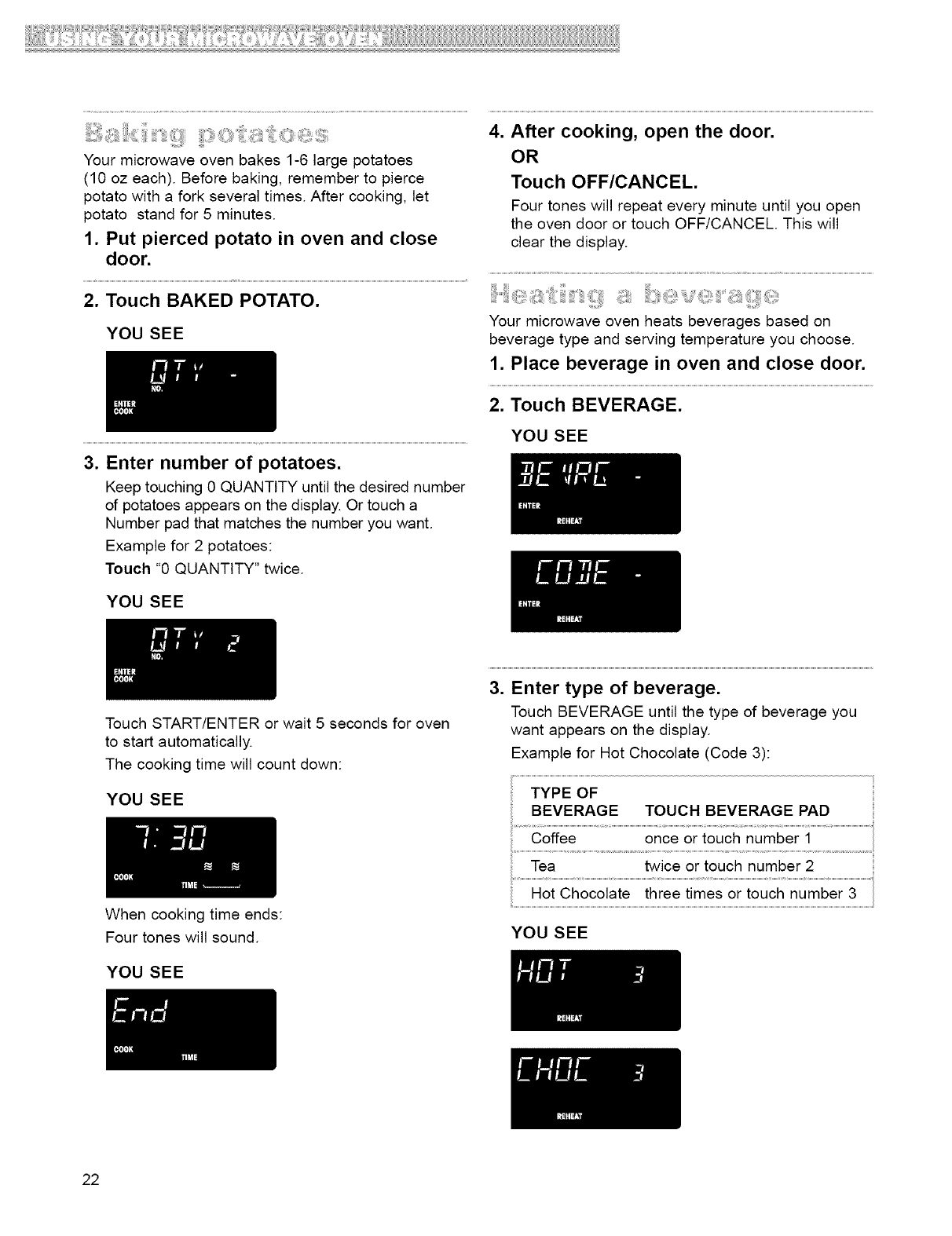

Baking potatoes ................................... 22
Heating a beverage ............................. 22
Using WARM HOLD ............................ 23

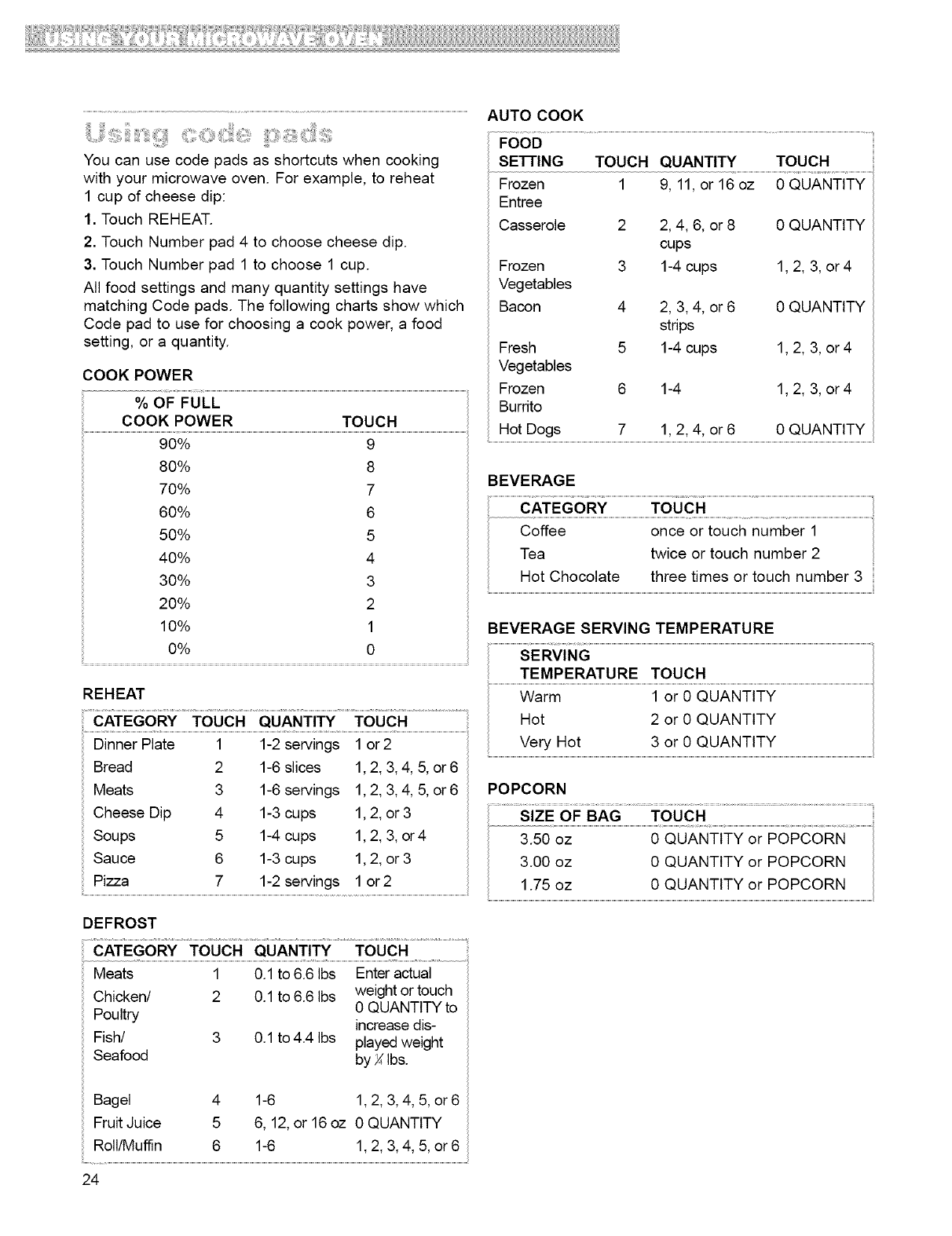

Using code pads .................................. 24

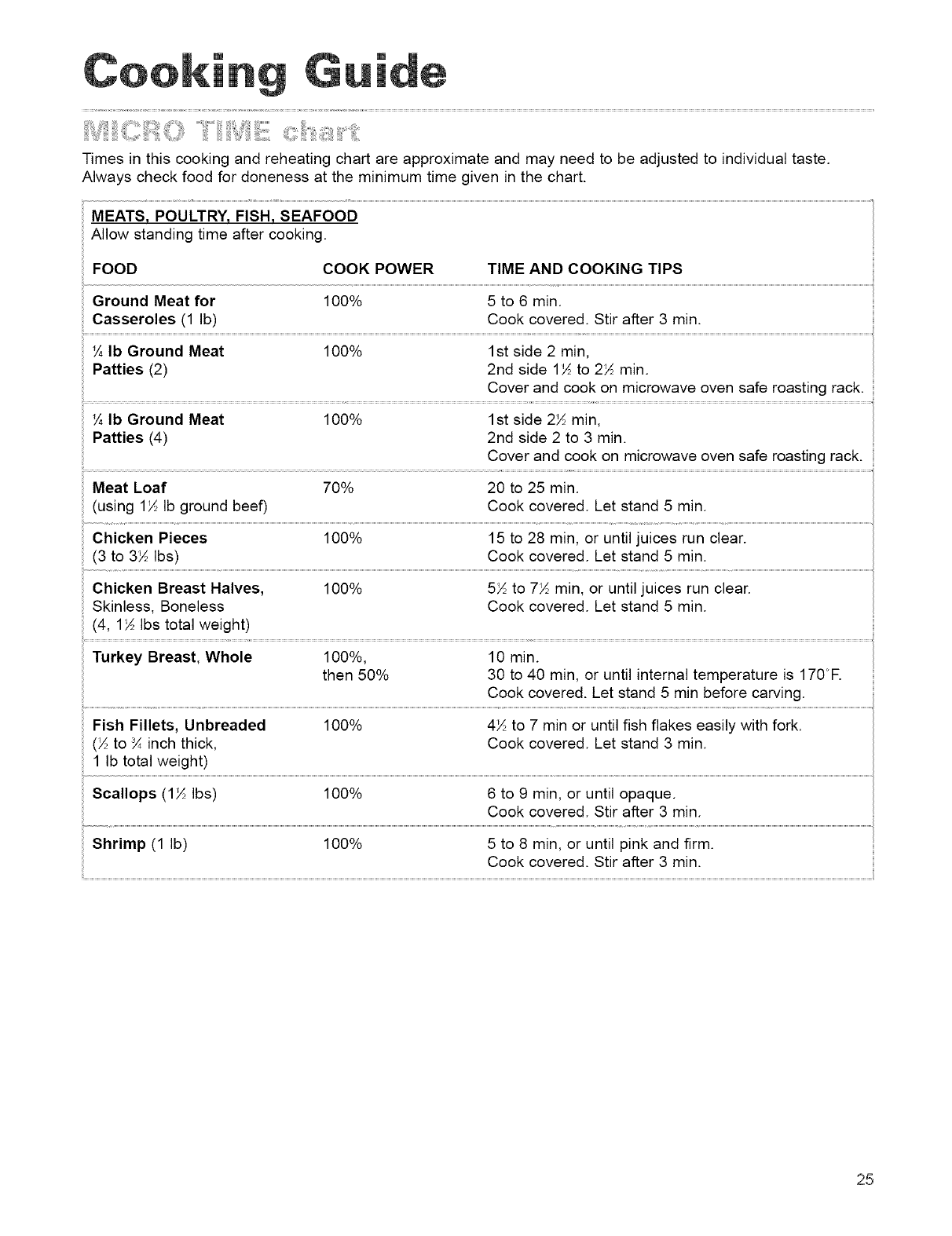

Cooking Guide ...................................... 25
MICRO TIME chart .............................. 25

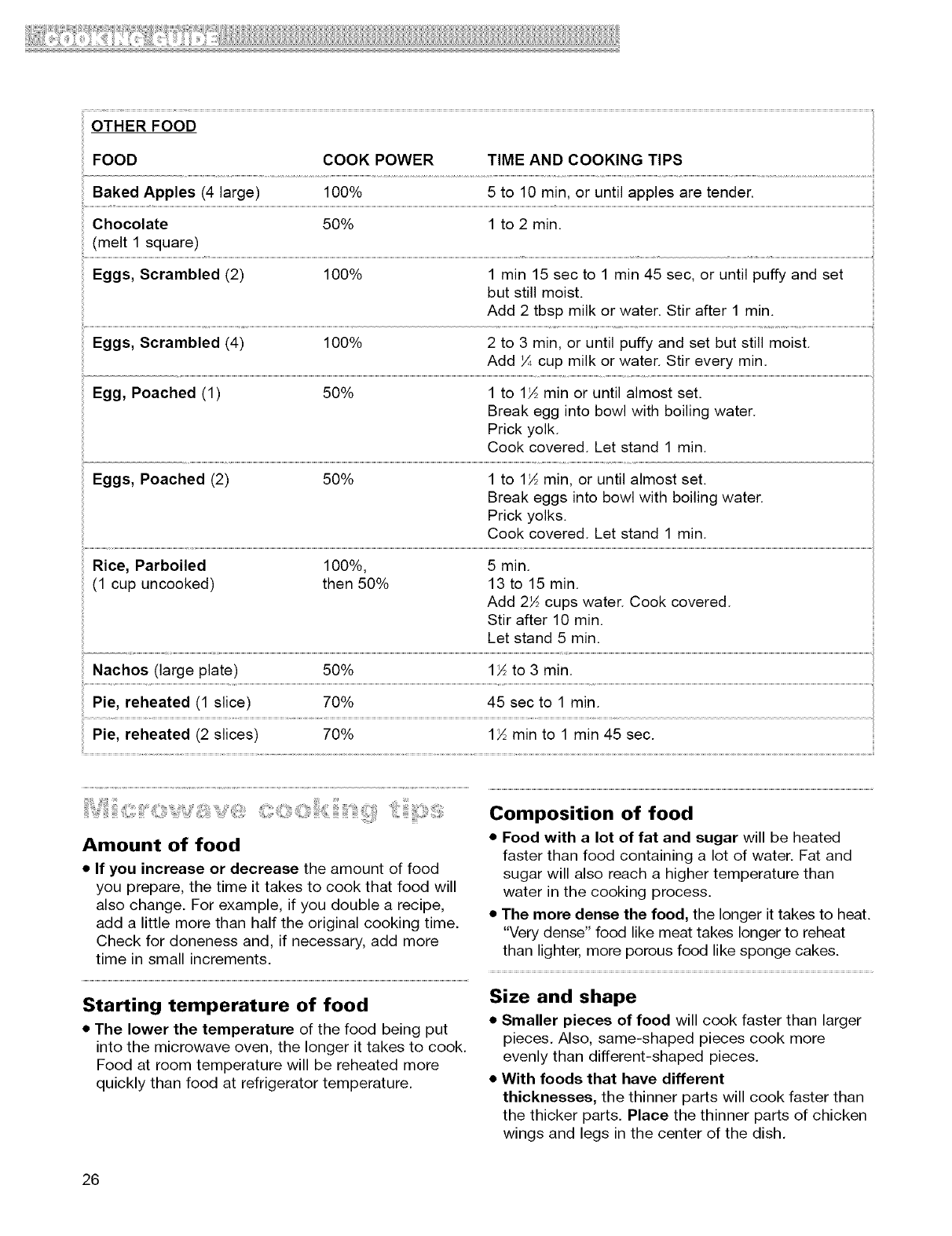

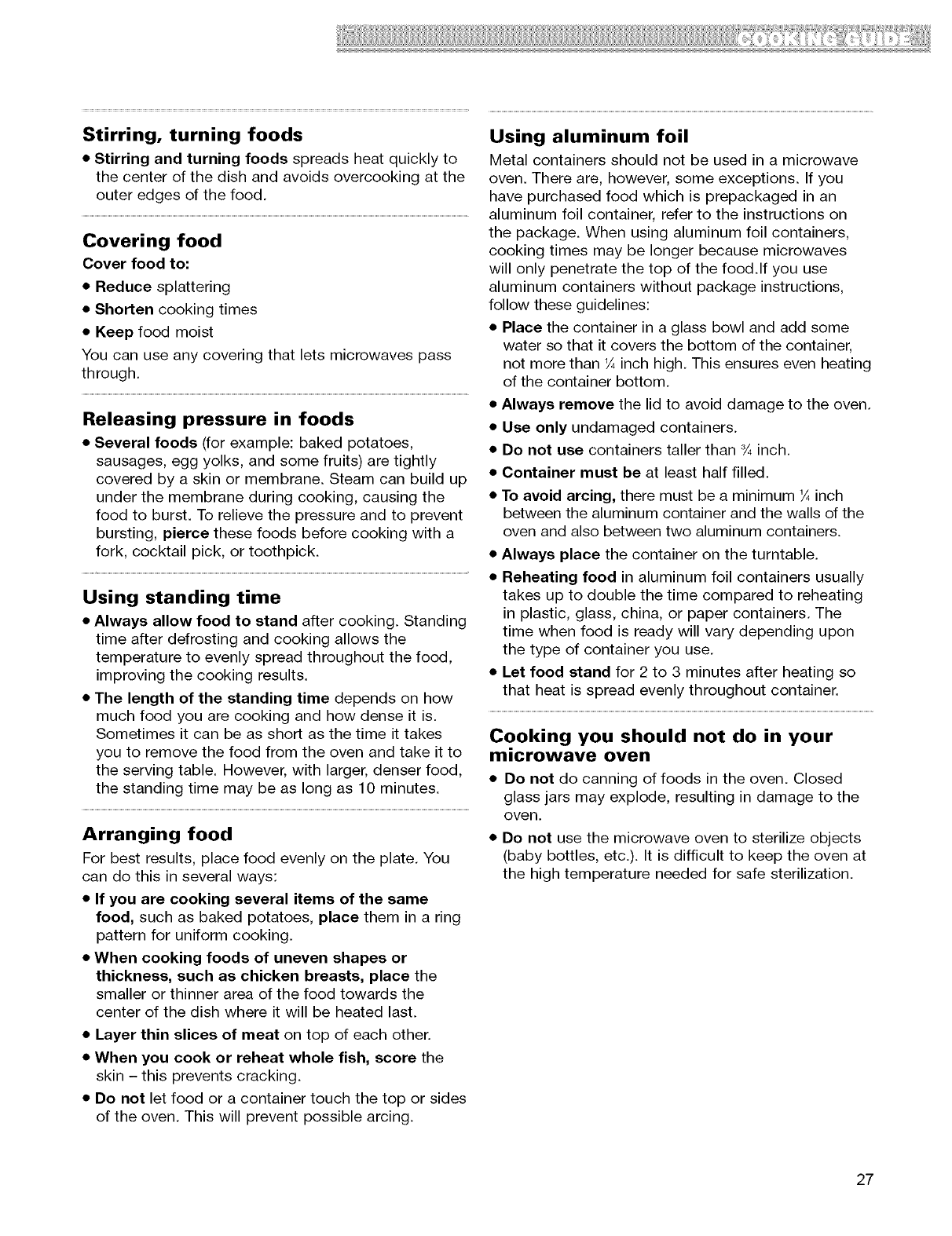

Microwave cooking tips ....................... 26

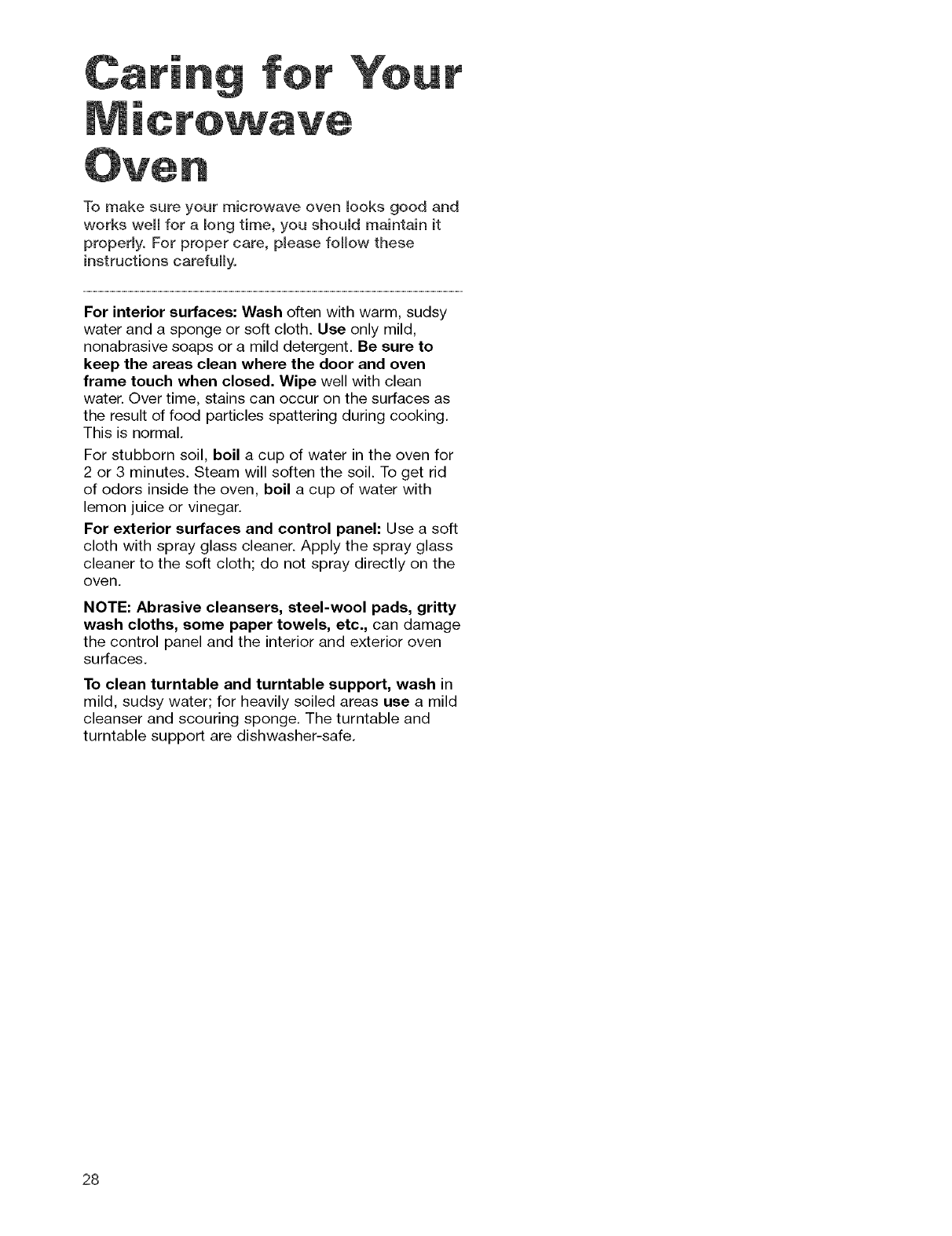

Caring for Your Microwave Oven ........ 28

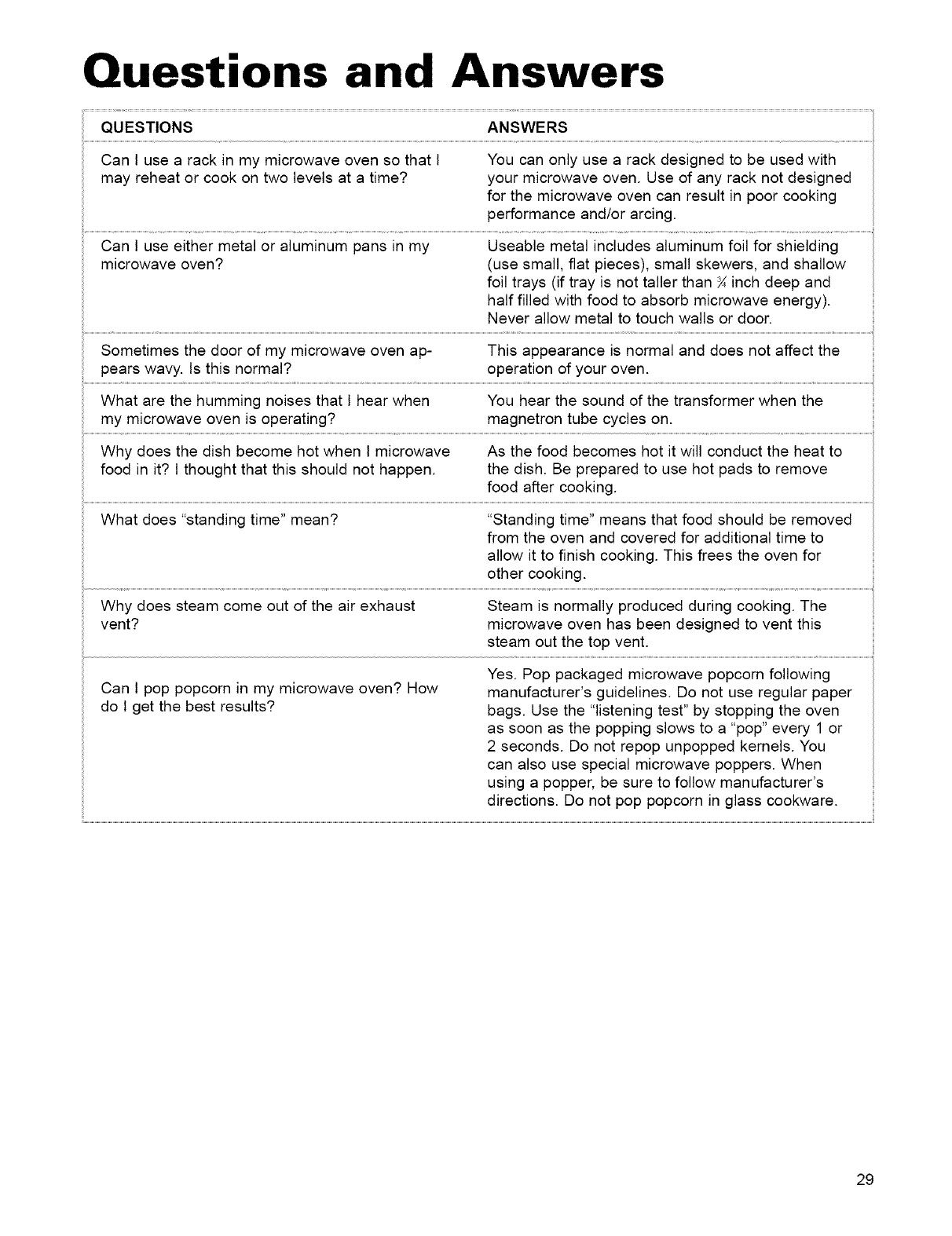

Questions and Answers ....................... 29

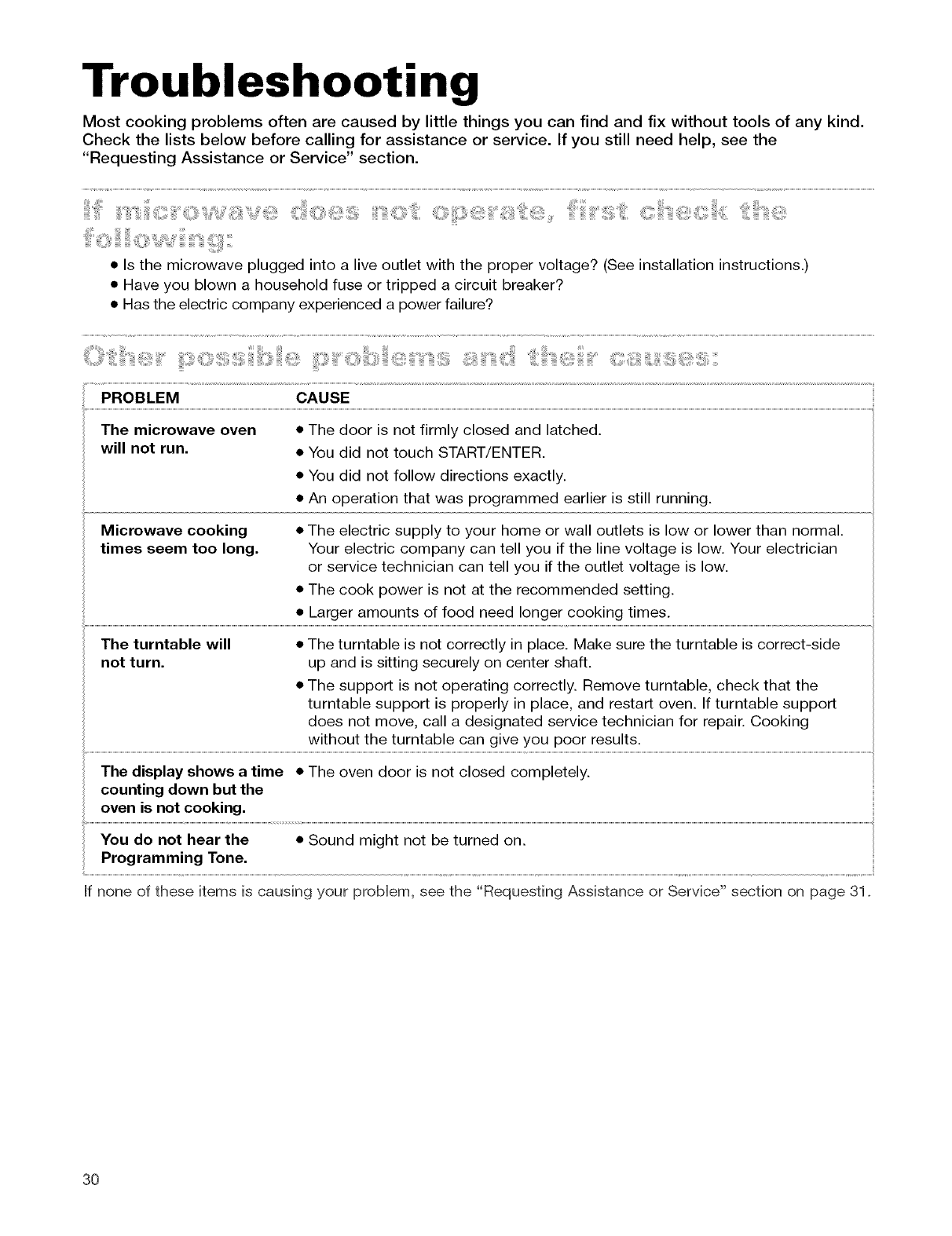

Troubleshooting .................................... 30

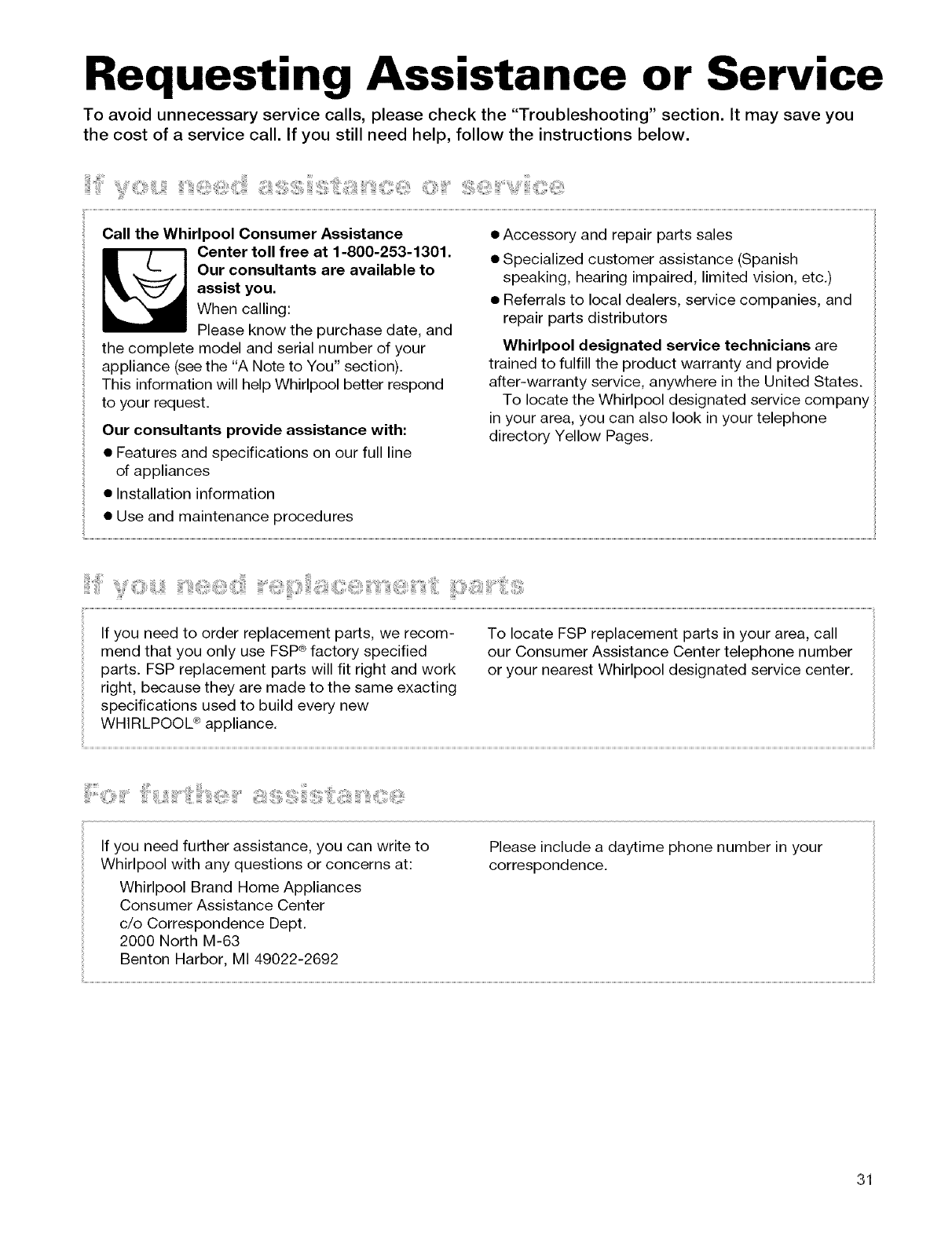

Requesting Assistance or Service ...... 31
Warranty ................................................ 32
Call our Consumer Assistance Center
with questions or comments.
NOTE: Use and care instructions for the lower
oven are provided in a separate manual. MODELS RMC275PD/RMC305PD
GMC275PD/GMC305PD
4452005A www.whirlpool.com

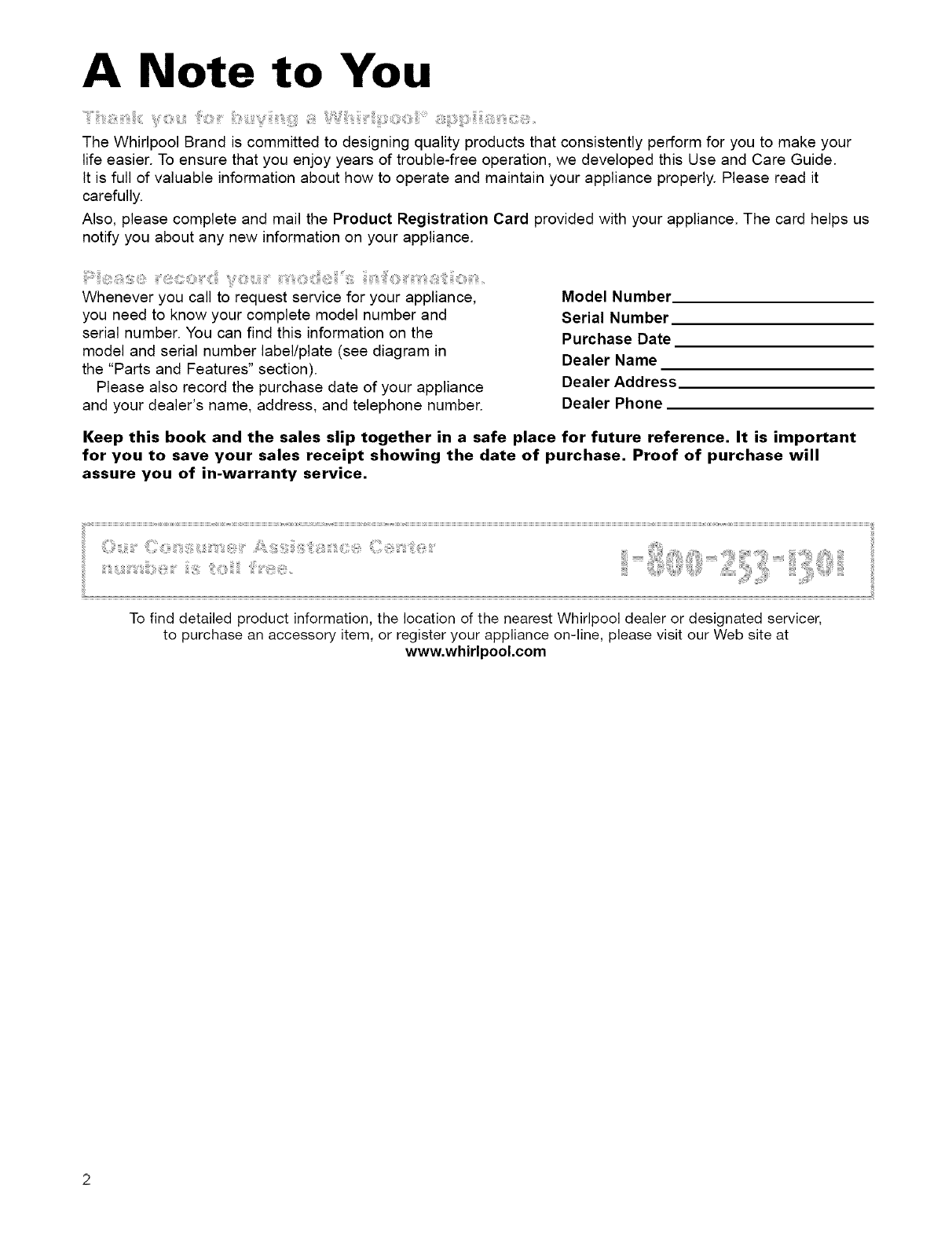

A Note to You
The Whirlpool Brand is committed to designing quality products that consistently perform for you to make your
life easier. To ensure that you enjoy years of trouble-free operation, we developed this Use and Care Guide.
It is full of valuable information about how to operate and maintain your appliance properly. Please read it
carefully.
Also, please complete and mail the Product Registration Card provided with your appliance. The card helps us
notify you about any new information on your appliance.
Whenever you call to request service for your appliance,
you need to know your complete model number and
serial number. You can find this information on the
model and serial number label/plate (see diagram in
the "Parts and Features" section).
Please also record the purchase date of your appliance
and your dealer's name, address, and telephone number.
Model Number.
Serial Number
Purchase Date
Dealer Name
Dealer Address
Dealer Phone
Keep this book and the sales slip together in a safe place for future reference. It is important
for you to save your sales receipt showing the date of purchase. Proof of purchase will
assure you of in-warranty service.
To find detailed product information, the location of the nearest Whirlpool dealer or designated servicer,
to purchase an accessory item, or register your appliance on-line, please visit our Web site at
www.whirlpool.com
m
icrowav@
Your safety and the safety of others is very important.
We have provided many important safety messages in this manual and on your appliance. Always read and
obey all safety messages.
This is the safety alert symbol.
This symbol alerts you to hazards that can kill or hurt you and others.
All safety messages will be preceded by the safety alert symbol and the word "DANGER" or
"WARNING." These words mean:
You will be killed or seriously injured if you don't
follow instructions.
You can be killed or seriously injured if you don't
follow instructions.
All safety messages will identify the hazard, tell you how to reduce the chance of injury, and tell you what can
happen if the instructions are not followed.
mMPORTANT SAFETY mNSTRUCTmONS
When using electrical appliances basic safety precautions should be followed, including the following:
WARNING: To reduce the risk of burns, electric
shock, fire, injury to persons or exposure to excessive
microwave energy:
®Read all instructions before using the microwave
oven.
®Read and follow the specific *'PRECAUTIONS TO
AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY "found in this section.
®The microwave oven must be grounded. Connect
only to properly grounded outlet. See "GROUNDING
iNSTRUCTIONS" found in this section.
®Install or locate the microwave oven only in
accordance with the provided installation
instructions.
®Some products such as whole eggs and sealed
containers = for example, closed glass jars = may
explode and should not be heated in the
microwave oven.
o Use the microwave oven only for its intended use
as described in this manual. Do not use corrosive
chemicals or vapors in the microwave oven. This
type of oven is specifically designed to heat, cook,
or dry food. It is not designed for industrialor
laboratory use.
SAVE THESE
oAs with any appliance, close supervision is
necessary when used by children.
®Do not operate the microwave oven if it has a
damaged cord or plug, if it is not working properly,
or if it has been damaged or dropped.
®The microwave oven should be serviced only by
qualified service personnel. Call an authorized
service company for examination, repair or
adjustment.
®Do not cover or block any openings on the
microwave oven.
®Do not store the microwave oven outdoors. Do not
use the microwave oven near water = for example,
near a kitchen sink, in a wet basement, or near a
swimming pool, and the like.
oDo not immerse cord or plug in water.
oKeep cord away from heated surfaces.
oDo not let cord hang over edge of table or counter.
®See door surface cleaning instructions in the
"Caring for Your Microwave Oven" section.
oDo not mount over a sink.
®Do not store anything directly on top of the
microwave oven when the microwave oven is in
operation.
mNSTRUCTmONS

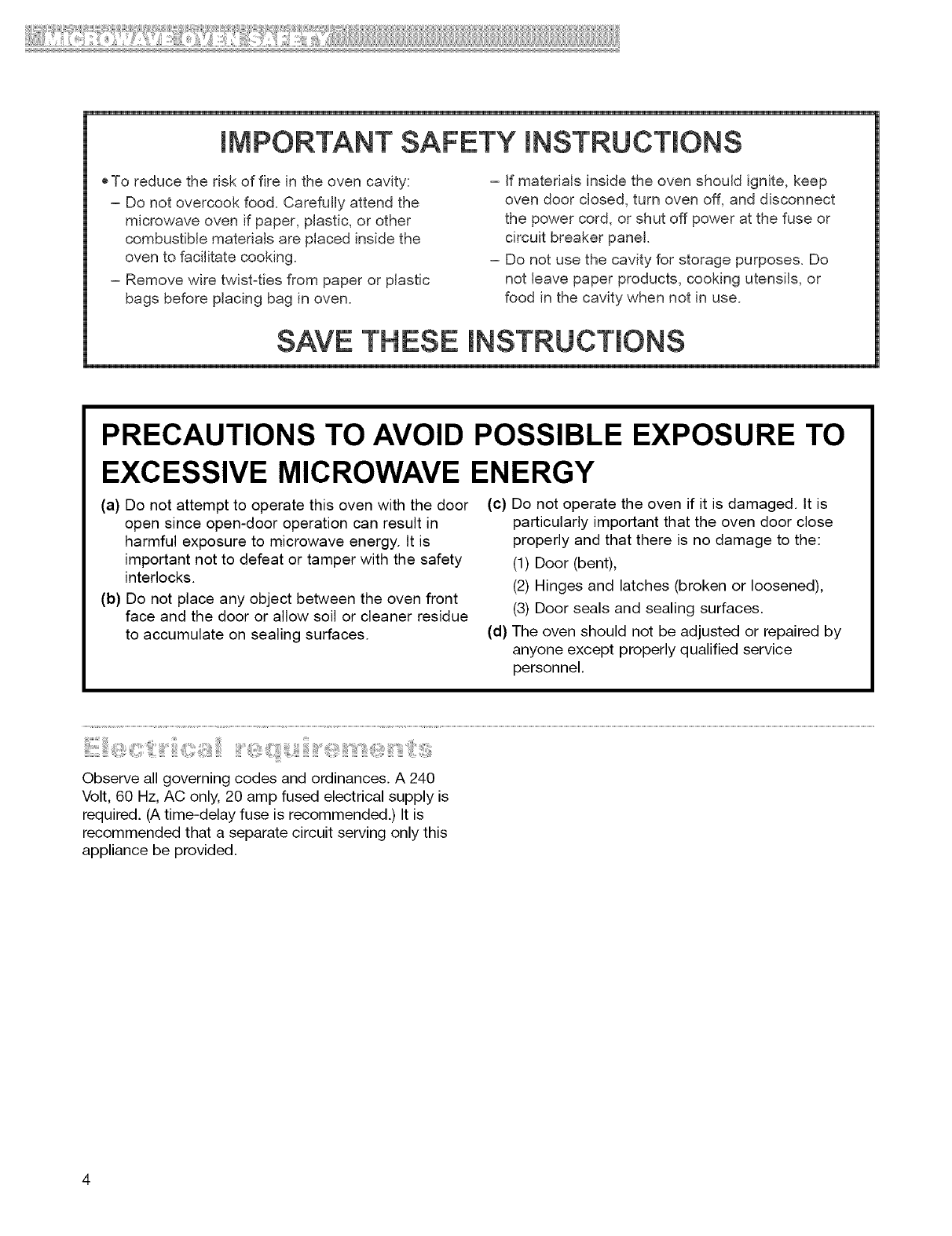

mMPORTANT SAFETY mNSTRUCTmONS
®To reduce the risk of fire in the oven cavity:
= Do not overcook food. Carefully attend the
microwave oven if paper, plastic, or other
combustible materials are placed inside the
oven to facilitate cooking.
= Remove wire twist=ties from paper or plastic
bags before placing bag in oven.
= if materials inside the oven should ignite, keep
oven door closed, turn oven off, and disconnect
the power cord, or shut off power at the fuse or
circuit breaker panel.
= Do not use the cavity for storage purposes. Do
not leave paper products, cooking utensils, or
food in the cavity when not in use.
SAVE THESE mNSTRUCTmONS
PRECAUTIONS TO AVOID POSSIBLE EXPOSURE TO
EXCESSIVE MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door
open since open-door operation can result in
harmful exposure to microwave energy. It is
important not to defeat or tamper with the safety
interlocks.
(b) Do not place any object between the oven front
face and the door or allow soil or cleaner residue
to accumulate on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is
particularly important that the oven door close
properly and that there is no damage to the:
(1) Door (bent),
(2) Hinges and latches (broken or loosened),
(3) Door seals and sealing surfaces.
(d) The oven should not be adjusted or repaired by
anyone except properly qualified service
personnel.
Observe all governing codes and ordinances. A 240
Volt, 60 Hz, AC only, 20 amp fused electrical supply is
required. (A time-delay fuse is recommended.) It is
recommended that a separate circuit serving only this
appliance be provided.

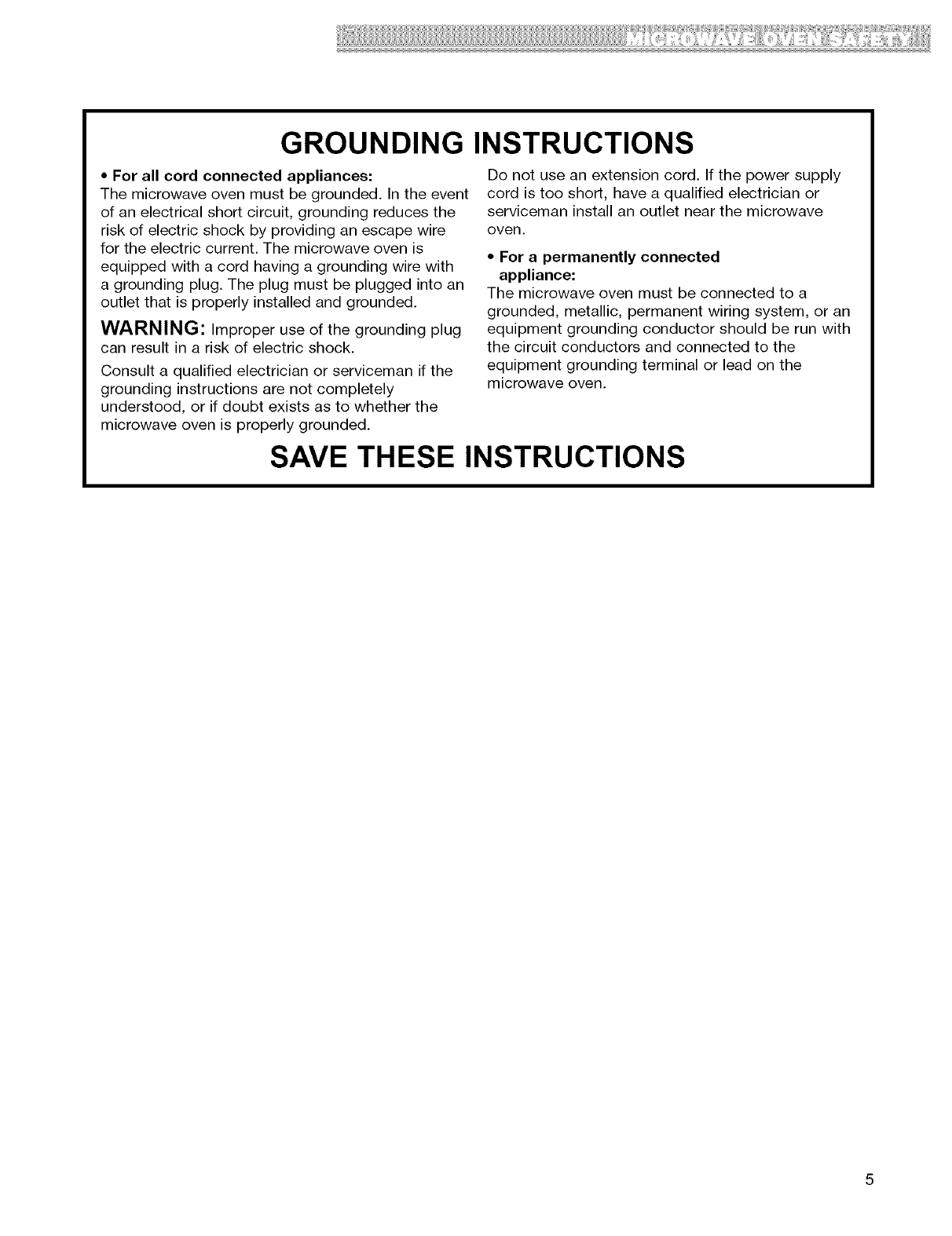

GROUNDING INSTRUCTIONS
•For all cord connected appliances:
The microwave oven must be grounded. In the event
of an electrical short circuit, grounding reduces the
risk of electric shock by providing an escape wire
for the electric current. The microwave oven is
equipped with a cord having a grounding wire with
a grounding plug. The plug must be plugged into an
outlet that is properly installed and grounded.
WARNING: Improper use of the grounding plug
can result in a risk of electric shock.
Consult a qualified electrician or serviceman if the
grounding instructions are not completely
understood, or if doubt exists as to whether the
microwave oven is properly grounded.
Do not use an extension cord. If the power supply
cord is too short, have a qualified electrician or
serviceman install an outlet near the microwave
oven.
•For a permanently connected
appliance:
The microwave oven must be connected to a
grounded, metallic, permanent wiring system, or an
equipment grounding conductor should be run with
the circuit conductors and connected to the
equipment grounding terminal or lead on the
microwave oven.
SAVE THESE INSTRUCTIONS
This section discusses the concepts behind microwave cooking. It also shows you the basics you need to
know to operate your microwave oven. Please read this information before you use your oven.
Microwave energy is not hot. It causes food to make
its own heat, and it's this heat that cooks the food.
Microwaves are like TV waves, radio waves, or light
waves. You cannot see them, but you can see what
they do.
A magnetron in the microwave oven produces
microwaves. The microwaves move into the oven
where they contact food as it turns on the turntable.
The glass turntable of your microwave oven lets
microwaves pass through. Then they bounce off a
metal floor, back through the glass turntable and are
absorbed by the food.
• Always cook food for the shortest cooking time
recommended. Check to see how the food is
cooking. If needed, touch ADD MINUTE while the
oven is operating or after the cooking cycle is over
(see the "Using ADD MINUTE" section).
• Stir, turn over, or rearrange the food being cooked
about halfway through the cooking time for all
recipes. This will help make sure the food is evenly
cooked.
•If you do not have a cover for adish, use wax
paper, or microwave-approved paper towels or
plastic wrap. Remember to turn back a corner of the
plastic wrap to vent steam during cooking.
Magnetron
i
U
Oven cavity
Metal floor Glass turntable
To test the oven put about 1 cup of cold water in a
glass container in the oven. Close the door. Make
sure it latches. Cook at 100% power for 2 minutes.
When the time is up, the water should be heated.
....... 'i iiiii i!!!iil;iiii!iiiii !!!!iiiiiiiiiii'!j,' ,iii.liiiii ii,ii'Ciiiiiiii ii ii i iiii ii iiiii,i i i iiiiiiiiiii;ii ii!:iilJ
Microwaves pass through most glass, paper, and
plastics without heating them so food absorbs the
energy. Microwaves bounce off metal containers so
food does not absorb the energy.
Test dinnerware or cookware before using. To test a
dish for safe use, put it into the oven with a cup of
water beside it. Cook at 100% cook power for one
minute. If the dish gets hot and water stays cool, do
not use it. Some dishes (melamine, some ceramic
dinnerware, etc.) absorb microwave energy, becoming
in metal containers not designed for microwave use
could damage the oven, as could containers with
hidden metal (twist-ties, foil lining, staples, metallic
glaze or trim).
• Moving the receiver away from the microwave oven.
• Plugging the microwave oven into a different outlet
so that the microwave oven and receiver are on
different branch circuits.
iiii:: ii, iiii i iil;iiliii iiii:i iiii:iiiiii iii!iii ;

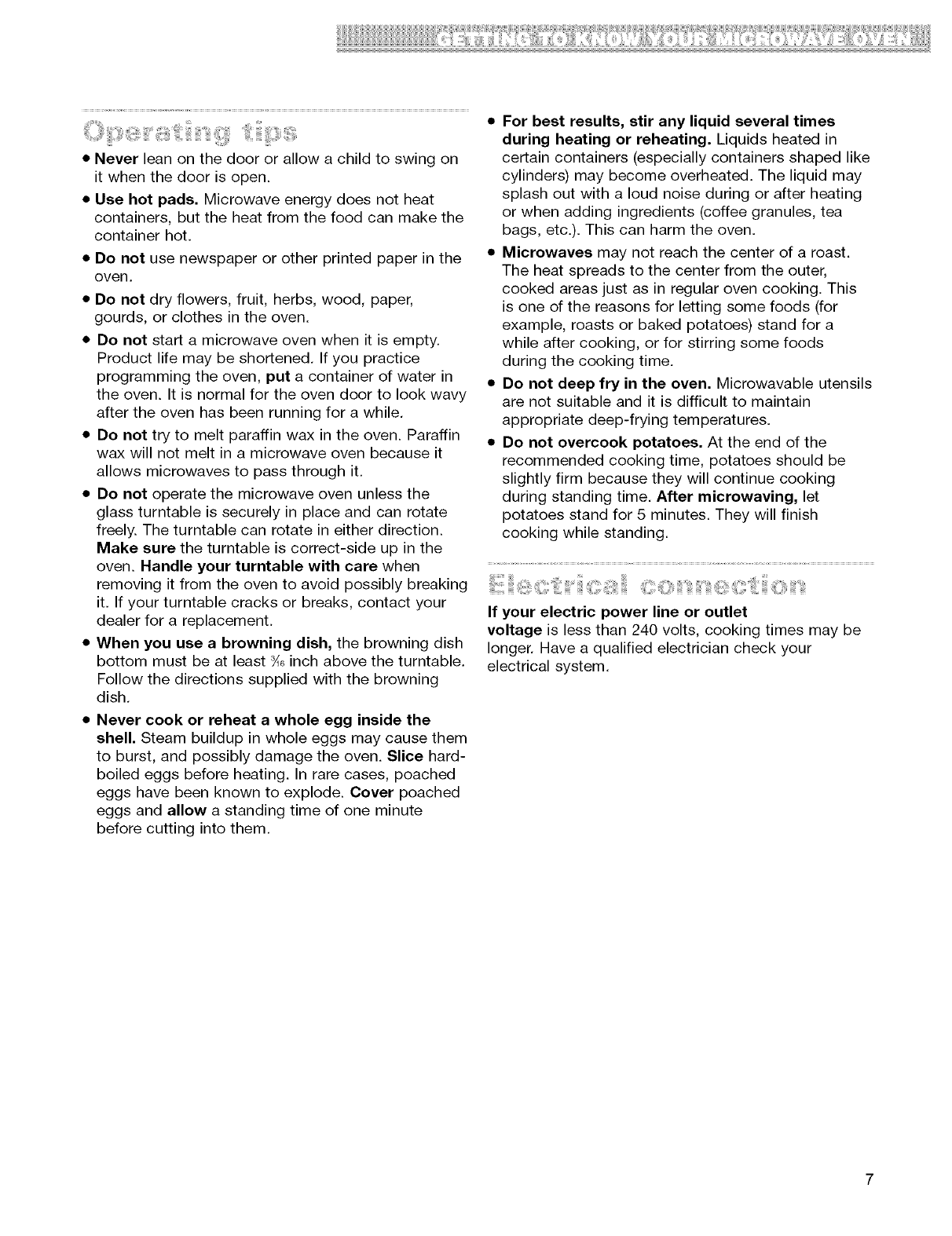

• Never lean on the door or allow a child to swing on
it when the door is open.
• Use hot pads. Microwave energy does not heat
containers, but the heat from the food can make the
container hot.
• Do not use newspaper or other printed paper in the
OVER.
• Do not dry flowers, fruit, herbs, wood, paper,
gourds, or clothes in the oven.
• Do not start a microwave oven when it is empty.
Product life may be shortened. If you practice
programming the oven, put a container of water in
the oven. It is normal for the oven door to look wavy
after the oven has been running for a while.
• Do not try to melt paraffin wax in the oven. Paraffin
wax will not melt in a microwave oven because it
allows microwaves to pass through it.
• Do not operate the microwave oven unless the
glass turntable is securely in place and can rotate
freely. The turntable can rotate in either direction.
Make sure the turntable is correct-side up in the
oven. Handle your turntable with care when
removing it from the oven to avoid possibly breaking
it. If your turntable cracks or breaks, contact your
dealer for a replacement.
•When you use a browning dish, the browning dish
bottom must be at least _0 inch above the turntable.
Follow the directions supplied with the browning
dish.
•Never cook or reheat a whole egg inside the
shell. Steam buildup in whole eggs may cause them
to burst, and possibly damage the oven. Slice hard-
boiled eggs before heating. In rare cases, poached
eggs have been known to explode. Cover poached
eggs and allow a standing time of one minute
before cutting into them.
•For best results, stir any liquid several times
during heating or reheating. Liquids heated in
certain containers (especially containers shaped like
cylinders) may become overheated. The liquid may
splash out with a loud noise during or after heating
or when adding ingredients (coffee granules, tea
bags, etc.). This can harm the oven.
•Microwaves may not reach the center of a roast.
The heat spreads to the center from the outer,
cooked areas just as in regular oven cooking. This
is one of the reasons for letting some foods (for
example, roasts or baked potatoes) stand for a
while after cooking, or for stirring some foods
during the cooking time.
• Do not deep fry in the oven. Microwavable utensils
are not suitable and it is difficult to maintain
appropriate deep-frying temperatures.
• Do not overcook potatoes. At the end of the
recommended cooking time, potatoes should be
slightly firm because they will continue cooking
during standing time. After microwaving, let
potatoes stand for 5 minutes. They will finish
cooking while standing.
If your electric power line or outlet
voltage is less than 240 volts, cooking times may be
longer. Have a qualified electrician check your
electrical system.
iii'!ij!iiiiiiiii,O_iii_'_O,"_!i_i_'_i__i_:i_iii_',_i_J_ziii:i!_i!_O' _i_J_ii:iii__ii_i_iiiiiiii!_':'_iii:iii_ii!i!:!i__::_i,_iii_iii:i_'__ii!:iii__i!!!iiii;
® ®
®
Your microwave oven is designed to make your
cooking experience as enjoyable and productive as
possible. To help get you up and running quickly, the
following is a list of the oven's basic features:
1. Door Handle. Pull to open door.
2. Window with Metal Shield. Shield prevents
microwaves from escaping. It is designed as a
screen to allow you to view food as it cooks.
3. Cooking Guide Label. Use as a quick reference for
Cook settings.
4. Glass Turntable. This turntable turns food as it
cooks for more even cooking. It must be in the oven
during operation for best cooking results.
5. Removable Turntable Support (under turntable).
6. Light. Automatically turns on when door is opened
or when oven is operating.
7. Microwave Oven Control Panel. Touch pads on
this panel to perform all functions.
8. Door Safety Lock System. The oven will not
operate unless the door is securely closed.
9. Lower Oven Control Panel Section. See Lower
Oven Use and Care Guide for more information.
MICROWAVE OVEN I 4 5 6 1
I 7 8 9 ") (_)
rAooI 0........................iCooK
@ @ @
Your microwave oven control panel lets you select a
desired cooking function quickly and easily. The
following is a list of all the Command and Number
pads located on the control panel. For more
information on these features, see "Using your
microwave oven" section.
1. Display. This display includes indicators to tell you
cooking time settings, cook powers, weights, and
cooking functions selected.
2. MICRO TIME. Touch this pad before entering a
cooking time when setting a second or third stage in
multi-stage cooking.
3. REHEAT. Touch this pad to reheat food at a preset
cook power and time.
4. DEFROST. Touch this pad to thaw frozen food by
weight.
5. POPCORN. Touch this pad to pop popcorn without
entering a cook power or time. The oven will auto-
matically cook at a preset cook power and time.
6. BEVERAGE. Touch this pad to reheat a beverage in
your microwave oven. The oven will automatically
heat at a preset cook power and time.
7. BAKED POTATO. Touch this pad to bake potatoes
without entering a cook power and time. The oven
will automatically heat at a preset cook power and
time.
8. AUTO COOK. Touch this pad to cook foods at a
preset cook power and time.
9. WARM HOLD. Touch this pad to keep hot, cooked
food warm in your microwave oven for up to 99
minutes. Use WARM HOLD by itself, or to
automatically follow a cooking cycle.
10. MEMORY. Touch this pad to recall one cooking
instruction that you previously programmed into
memory.
11. Number Pads. Touch Number pads to enter
cooking times, weights, cook powers, and to
choose special settings.
12. ADD MINUTE. Touch this pad to cook for 1 minute
at 100% cook power or to add an extra minute to
your cooking cycle.
13.0 QUANTITY. Touch this pad to display available
food quantities. To choose a certain quantity, press
0 QUANTITY repeatedly until the amount you want
is on the display.
14. COOK POWER. Touch this pad to set cook powers.
15. START/ENTER. Touch this pad to start a function.
If you open the door after the oven begins to cook,
touch START/ENTER again to restart oven.
16. COOK A BIT MORE. Touch this pad after cooking
stops to cook for a few more seconds.
17. OFF/CANCEL. Touch this pad to cancel a function.
NOTES:
• If you touch one Command pad and then want to
choose another Command pad in the same cycle,
you must press OFF/CANCEL first.
• If you attempt to enter unacceptable instructions, the
input will be ignored and three tones will sound.
Audible signals
Audible signals are available to guide you when
setting and using your oven:
®A programming tone will sound each time you touch
a pad.
®Four tones signal the end of a cooking cycle.
®Three short tones will sound for an invalid entry.
|nterrupting eeeking
You can stop the oven during a cycle by opening the
door. The oven stops heating and the fan stops, but
the light stays on. To restart cooking, close the door
and touch START/ENTER.
If you do not want to continue cooking:
®Cmose the door and the Hightgoes off.
OR
®Touch OFF/CANCEL
Using Your
m
Microwave
Oven
This section gives you instructions for operating each
function. Please read these instructions carefully.
ADD MINUTE lets you cook food for 1 minute at 100%
cook power or add 1 or more minutes to your micro
time cooking cycle.
NOTES:
•To add cooking time during MICRO TIME cooking,
touch ADD MINUTE once for each extra minute.
• You can enter ADD MINUTE only after closing the
door.
1. Make sure food is in oven.
2. Choose ADD MINUTE.
For example, to add one minute:
Touch ADD MINUTE once.
YOU SEE
When cooking time ends:
Four tones will sound and repeat every minute until
you open the oven door or touch OFF/CANCEL.
This will clear the display.
COOK A BIT MORE lets you add time to original
cooking times of 4 minutes or less. You may use
COOK A BIT MORE after or during cooking.
Within a minute after cooking time ends, open the
oven door. Do not touch OFF/CANCEL. This gives you
an opportunity to check for doneness. Next, close the
oven door and touch COOK A BIT MORE. The oven
will cook your food for a percentage of the original
cook time at the original cook power.
10
NOTES:
•During cooking, COOK A BIT MORE works with all
other microwave functions, except Defrost, with
original cooking times of 4 minutes or less.
• During cooking, COOK A BIT MORE adds a
percentage of the elapsed cooking time to the
remaining cooking time.
• During multi-stage cooking, COOK A BIT MORE
works only with the final cooking stage.
For example, if your original cooking time was
50 seconds:
Touch COOK A BIT MORE once.
YOU SEE
Example for 50% cook power:
Touch COOK POWER six times.
YOU SEE
3. Complete entry.
Touch MEMORY and hold for five seconds.
YOU SEE
iili ii iA iiiliii"I!I Ii'i
By programming the MEMORY pad, you can recall the
cooking instruction previously placed in memory and
begin cooking quickly. For example, if you heat a roll
every morning, program the cooking steps into
MEMORY. You can heat your roll each morning by
touching MEMORY. MEMORY also lets you program a
cooking time and cook power for another person to
cook at a later time.
NOTE: You can reprogram MEMORY by repeating the
instructions below.
To program MEMORY:
1. Set cooking time.
Example for 20 seconds:
Touch "2, 0".
YOU SEE
To use MEMORY:
1. Put food in oven and close door.
2. Touch MEMORY.
The oven will cook according to your
preprogrammed instructions.
YOU SEE
When cooking time ends:
Four tones will sound.
YOU SEE
2. Set cook power.
YOU SEE
3. After cooking, open the door.
OR
Touch OFF/CANCEL.
Four tones will repeat every minute until you open
the oven door or touch OFF/CANCEL This will
clear the display.
11
'!!ii!iif! !!!i
1. Put food in oven and close door.
2. Set cooking time.
Example for 1minute, 30 seconds:
Touch "1, 3, 0 QUANTITY".
YOU SEE
NOTES:
•If you want to add more time during or after
cooking, use ADD MINUTE or COOK A BIT
MORE. See "Using ADD MINUTE" and "Using
COOK A BIT MORE" earlier in this section.
• If you want to reset the cooking time after
cooking has started, touch OFF/CANCEL and
then repeat Steps 2 and 3.
When cooking time ends:
Four tones will sound.
YOU SEE
3. Start oven by touching START/ENTER.
YOU SEE
(oven automatically cooks
at high cook power/
display counts down time)
4. After cooking, open the door.
OR
Touch OFF/CANCEL.
Four tones will repeat every minute until you open
the oven door or touch OFF/CANCEL. This will
clear the display.
NOTE: For additional cooking and reheating
information, see "MICRO TIME chart" in the
"Cooking Guide" section.
12
Forbestresults,somerecipescallfordifferentcook
powers.Thelowerthecookpower,theslowerthe
cooking.Eachnumberfrom1to 10standsfora
differentpercentageof cookpower.
Thefollowingchartgivesthepercentageof cook
powereachnumberpadstandsfor,andthecook
powernameusuallyused.Italsotellsyouwhento
useeachcookpower.Followrecipeorfoodpackage
instructionsif available.
NOTE:Referto areliablecookbookforcookingtimes
basedonthe1000Wattcookpowerofyour
microwaveoven.
COOKPOWER NAME WHENTOUSEIT
Automatic100%of High • Quickheatingmanyconveniencefoodsandfoodswithhigh
fullpower watercontent,suchassoupsandbeverages
• Cookingtendercutsofmeat,groundmeat,poultrypieces,fish
fillets,andvegetables
• Heatingcreamsoups
8 = 80%offullpower • Heatingrice,pasta,orcasseroes ..............................................................................................................
7= 70%offullpower Medium-High • Cookingandheatingfoodsthatneeda CookPowerlowerthan
high(forexample,wholefishandmeatloaf)orwhenfoodis
cookingtoofast
• Reheatinga singleservingoffood
6 = 60%offullpower • Cookingrequiringspecialcare,suchascheeseandegg
dishes,pudding,andcustards
• Finishingcookingcasseroles
5= 50%offullpower Medium • Cookingham,wholepoultry,andpotroasts
• Meltingchocolate
4 =40%of fullpower • Simmeringstews
• Heatingpastries
3= 30%offullpower Medium-Low, • Defrostingfoods,suchasbread,fish,meats,poultry,and
Defrost precookedfoods
2 =20%of fullpower • Softeningbutter,cheese,andicecream
• Keepingfoodwarm
1. Put food in oven and close door.
2. Set cooking time.
Example for 10 minutes, 30 seconds:
Touch "1, 0 QUANTITY, 3, 0 QUANTITY".
YOU SEE
3. Set cook power.
Example for 50% cook power:
Touch COOK POWER six times.
YOU SEE
Each time you touch COOK POWER, the cook
power will decrease by 10 percent.
13
'!!ii!iif! !!!iilii!!!!i!!i !!!i
4. Start oven, by touching START/ENTER.
YOU SEE For best results, some recipes call for one cook power
for a certain length of time, and another cook power
for another length of time. Your oven can be set to
change from one to another automatically.
1. Put food in oven and close door.
NOTES:
• If you want to add more time during or after
cooking, use ADD MINUTE or COOK A BIT
MORE.
• To reset the cooking time after setting the cook
power, you must type in four digits. For example,
to change 25 seconds to 35 seconds, touch
number pads 0, 0, 3, and 5. Or to change 1
minute 25 seconds to 1 minute 35 seconds,
touch Number pads 0, 1, 3, and 5.
• To change cooking time after cooking has
started, first open and close the oven door. Then,
enter the desired cooking time as described
above, and touch START.
When cooking time ends:
Four tones will sound.
YOU SEE
2. Set cooking time for first stage.
Example for 7 minutes, 30 seconds:
Touch "7, 3, 0".
YOU SEE
3. Set cook power for first stage
(optional).
If you want to cook at full (100%) cook power, go to
Step 4.
Example for 50% cook power:
Touch COOK POWER six times.
YOU SEE
5. After cooking, open the door.
OR
Touch OFF/CANCEL.
Four tones will repeat every minute until you open
the oven door or touch OFF/CANCEL. This will
clear the display.
To change cook power after cooking
has started:
Touch COOK POWER until the cook power you want
is displayed or touch the correct Number pad.
NOTE: You can change the cook power when using
MICRO TIME orADD MINUTE.
4. Set second stage.
When the display says "TIME," touch MICRO TIME
to set the second stage.
YOU SEE
5. Set cooking time for second stage.
Example for 3 minutes, 25 seconds:
Touch "3, 2, 5".
YOU SEE
14
6. Set cook power for second stage
(optional).
If you want to cook at full (100%) cook power, go to
Step 7.
Example for 60% cook power:
Touch COOK POWER five times.
YOU SEE
7. Repeat Steps 4 through 6 above for
third stage (optional).
8. Start oven by touching START/ENTER.
One tone will sound between stages.
YOU SEE
(display counts down
cooking time in each stage,
starting with the first stage)
NOTES:
• During multi-stage cooking, you may use ADD
MINUTE to increase any stage's cooking time.
When the stage you want to change is active,
touch ADD MINUTE.
•During the last stage, you may also touch
COOKA BIT MORE to increase cooking time.
COOKA BIT MORE increases the last stage's
remaining cooking time by adding a percentage
of the last stage's expired cooking time.
• If the last stage is MICRO TIME, you may use
COOKA BIT MORE after cooking. Within a
minute after cooking, open the oven door to
check for aloneness. Then close the oven door
and touch COOK A BIT MORE. The food will
cook for a percentage of the last stage's cook
time using the last stage's cook power level.
• You may set up WARM HOLD to follow
multi-stage cooking, and you may use COOK A
BIT MORE with WARM HOLD. However,
WARM HOLD uses low cook power and lasts
up to 99 minutes.
When cooking time ends:
Four tones will sound.
YOU SEE
9. After cooking, open the door.
OR
Touch OFF/CANCEL.
Four tones will repeat every minute until you open
the oven door or touch OFF/CANCEL This will
clear the display.
Your microwave oven automatically reheats food. You
do not have to enter times or temperatures.
NOTE: If you want to manually reheat using a cook
time and cook power see "MICRO TIME chart" in the
"Cooking Guide" section.
Reheat code chart
Preset times are based on all foods, except bread
slices, being at refrigerator temperatures.
CODE PAD FOOD SETTING QUANTITY
1 Dinner Plate 1-2 servings
4
5
Cheese Dip 1-3 cups
Soups 1-4 cups
6Sauce 1-3 cups
7 Pizza 1-2 servings
Summary of steps when setting
REHEAT:
1. Touch REHEAT.
2. Touch REHEAT to scan and choose food settings.
3. Touch 0 QUANTITY to scan and choose quantity
settings.
NOTE: You may also use Number pads (or Code
pads) to choose food settings or quantity settings.
1. Put food in oven and close door.
15
!i!!iiii!!!i!!! i i+ill'!!ii!iif! ++i!!!!iilii!!!!i+!+!i+!!!i
2. Touch REHEAT. 4. Enter food quantity.
YOU SEE Example for 2 servings:
Touch "0 QUANTITY, 0 QUANTITY".
YOU SEE
3. Choose food code.
Keep touching REHEAT until the food that you are
cooking appears on the display.
Example for Dinner Plate (Setting 1):
Touch REHEAT once.
YOU SEE
Touch START/ENTER or wait 5 seconds for oven
to start automatically.
The remaining time will count down:
YOU SEE
NOTE: To choose the desired food code, see the
Cooking Guide Label on the front frame of the oven
or the "Reheat code chart" earlier in this section.
After 3 seconds:
YOU SEE
If you have chosen settings 4, 5, or 6, four tones
will sound in the middle of the cycle and the display
will show "STIR" for 5 seconds.
YOU SEE
NOTE: You can turn off this 0 QUANTITY pad
prompt.
After 1 second:
YOU SEE
To restart the cycle you must close the door and
touch START/ENTER.
When reheating time ends:
Four tones will sound.
YOU SEE
5. After reheating, open the door.
OR
Touch OFF/CANCEL.
Four tones will repeat every minute until you open
the oven door or touch OFF/CANCEL. This will
clear the display.
16
Yourmicrowaveovenusesa presetdefrosttimeand
poweraccordingto thefoodcodeandthefood
quantitythatyouchoose.
Standingtimeis requiredfor properdefrosting.This
maymakedefrostingtimesseemlongerthaninother
microwaveovens.
2. Touch DEFROST.
YOU SEE
Defrost code chart
CODE MINIMUM MAXIMUM
PAD FOOD WEtGHT/QTY WEIGHT/QTY
2 Chicken/ .10 Ib (1 oz) 6.60 Ibs
Poultry (6 Ibs, 8 oz)
3 Fish/ .10 Ib (1 oz) 4140 Ibs
Seafood (4 Ibs, 6 oz)
3. Choose food code.
Keep touching DEFROST until the food that you
are cooking appears on the display.
NOTE: To choose the desired food setting, see the
Cooking Guide Label on the front frame of the
oven, the "Defrost code chart" earlier in this
section, or scan through the settings by pressing
Defrost (once for each setting).
Example 1 (Meats - Setting 1):
Touch DEFROST once.
YOU SEE
NOTE: Bagel quantity settings 1 or 2 may appear to
have longer defrost times than necessary. However,
longer times use less cook power.
Summary of steps when setting
DEFROST:
1. Touch DEFROST.
2. Touch DEFROST to scan and choose food settings.
3. Enter weight or touch 0 QUANTITY to scan and
choose quantity settings.
NOTE: You may also use Number pads (or Code
pads) to choose food settings and most quantity
settings. You must use the 0 QUANTITY pad to select
a Fruit Juice quantity.
NOTES:
•DEFROST will only operate within the
weight/quantity ranges shown in the chart.
• To defrost items not listed in DEFROST, use 20%
cook power.
1. Put food in oven and close door.
After 3 seconds:
YOU SEE
Example 2 (Bagel -Setting 4):
Touch DEFROST four times.
YOU SEE
After 3 seconds:
YOU SEE
17
'!!ii!iif! !!!iilii!!!!i!!i !!!i
4. Enter food weight or quantity.
Example 1 (1.25 Ibs of meat/:
Touch "1,2, 5".
YOU SEE
If you have chosen settings 1, 2, or 3, four tones
will sound in the middle of the cycle and the display
will show "TURN" for 5 seconds.
YOU SEE
18
NOTES:
•Use Number pads for food settings 1-3. Use the
0 QUANTITY pad for food settings 4-6.
• If you enter a weight greater than the maximum
weight listed in the "Defrost code chart,"
"RETRY" shows on the display and three tones
will sound.
• See the "Weight conversion chart" later in this
section for help in converting food weight to
decimals.
•See the "Defrost code chart" earlier in this
section for weight ranges available for each food
category.
Touch START/ENTER or wait 5 seconds for oven
to start automatically. The remaining time will count
down:
YOU SEE
Example 2 (two bagels):
Touch "0 QUANTITY" until you reach desired
quantity.
YOU SEE
Touch START/ENTER or wait 5 seconds for oven
to start automatically. The remaining time will count
down:
YOU SEE
To restart the cycle you must close the door and
touch START/ENTER.
When defrosting time ends:
Four tones will sound.
YOU SEE
5. After defrosting, open the door.
OR
Touch OFF/CANCEL.
Four tones will repeat every minute until you open
the oven door or touch OFF/CANCEL. This will
clear the display.
Weight conversion chart
You are probably used to food weights as being in
pounds and ounces that are fractions of a pound (for
example, 4 ounces equals _ pound). However, in
order to enter food weight in DEFROST, you must
specify pounds and tenths of a pound, tf the weight on
the food package is in fractions of a pound, you can
use the following chart to convert the weight to
decimals.
Equivalent
..........................Weight .................................................................................................................................
OUNCES DECIMAL WEIGHT
1.6 .10
3.2 .20
4.0 .25
4.8 .30
6.4 .40
8.0 .50
9.6 .60
11.2 .70
12.0 .75
12.8 .80
14.4 .90
16.0 1.00
One-Quarter Pound
One-Half Pound
Three-Quarters Pound
One Pound
iiCiii , ;ili!! iiiii i iii: iiiii i;i!;:i:iii!iiiii!iii:i:ili J,
• When using DEFROST, the weight to be entered is
the net weight in pounds and tenths of pounds (the
weight of the food minus the container).
• Before starting, make sure you have removed any of
the metal twist-ties which often come with frozen food
bags, and replace them with strings or elastic bands.
• Open containers such as cartons before they are
placed in the oven.
• Always slit or pierce plastic pouches or packaging.
• If food is foil wrapped, remove foil and place it in a
suitable container.
• Slit the skins, if any, of frozen food such as sausage.
• Bend plastic pouches of food to ensure even
defrosting.
• Always underestimate defrosting time. If defrosted
food is still icy in the center, return it to the
microwave oven for more defrosting.
• The length of defrosting time varies according to
how solidly the food is frozen.
• The shape of the package affects how quickly food
will defrost. Shallow packages will defrost more
quickly than a deep block.
• As food begins to defrost, separate the pieces.
Separated pieces defrost more easily.
•Use small pieces of aluminum foil to shield parts of
food such as chicken wings, leg tips, fish tails, or
areas that start to get warm. Make sure the foil does
not touch the sides, top, or bottom of the oven. The
foil can damage the oven lining.
• For better results, let food stand after defrosting.
(For more information on standing time, see
"Microwave cooking tips" in the "Cooking Guide"
section.)
• Turn over food during defrosting or standing time.
Break apart and remove food as required.
You can pop commercially packaged microwave
popcorn by touching just one pad. The number of
times you touch this pad determines which size bag of
popcorn your oven will pop.
For best results:
• Pop only one package at a time.
• If you are using a microwave popcorn popper, fol-
low manufacturer's instructions.
• Cooking performance may vary with brand and fat
content. Try several brands to decide which gives
best popping results.
• Use fresh bags of popcorn.
NOTE: If you want to add more time after popping,
use COOK A BIT MORE. See "Using COOK A BIT
MORE" in the "Using your microwave oven" section.
1. Place bag in center of turntable
and close door.
2. Touch POPCORN.
YOU SEE
The microwave oven will automatically pop a 3.5 oz
bag of popcorn when you touch POPCORN. If you
want to pop a different size bag of popcorn, follow
Step 3. Otherwise, skip to Step 4.
1.75 oz three times
3. Start oven, by touching START/ENTER.
YOU SEE
If the size of the bag is 3.50 oz:
Touch START/ENTER.
If the size of the bag is 3.00 or 1.75 oz:
Touch POPCORN the appropriate number of
times. Touch START/ENTER or wait 5 seconds for
the oven to start automatically.
The popping time will count down.
When popping time ends:
Four tones will sound.
YOU SEE
19
'!!ii!iif! !!!iilii!!!!i!!i !!!i
4. After popping popcorn, open the door.
OR
Touch OFF/CANCEL.
Four tones will repeat every minute until you open
the oven door or touch OFF/CANCEL This will
clear the display.
Cooking with AUTO COOK lets you cook food without
needing to set times and cook powers. AUTO COOK
has preset times and cook powers.
CODE PAD FOOD QUANTITY PREPARATION
1 Frozen Entree 9, 11, or Follow package directions.
16 oz
2 Casserole 2, 4, 6, or To reheat, flatten on plate or place in bowl. Cover with lid or
8 cups vented plastic wrap. Stir before serving.
3 Frozen 1-4 cups Place in a microwave-safe container. Cover with lid or
Vegetables plastic wrap. After cooking remove from oven, stir, cover,
and let stand 3 minutes before serving.
NOTE: When cooking a 10 oz package of frozen vegetables
(this equals about 1_ cups), touch 0 QUANTITY once for 1
cup of "tender crisp" vegetables (you cannot enter _ cup
amounts) or touch 0 QUANTITY twice for 2 cups of
4 Bacon 2, 3, 4, or Place on microwave-safe dish or plate. Cover with paper
6 strips towel. After cooking, remove from oven carefully.
1-4 cups Place in a microwave-safe container. For beans, carrots,5 Fresh
Vegetables corn, and peas, add 1 tablespoon water per cup. For
broccoli, brussels sprouts, cabbage, and cauliflower, cook
immediately after washing with no additional water. If you
like tender-crisp vegetables, set the Auto Cook quantity for
half the amount of vegetables you are actually cooking. For
example, when cooking 2 cups of vegetables, set
0 QUANTITY for 1 cup. Cover with lid or plastic wrap. After
cooking, remove from oven, stir, cover, and let stand 3 to 5
minutes before serving.
2O
Summary of steps for setting AUTO
COOK:
1. Touch AUTO COOK.
2. Touch AUTO COOK to scan and choose food
settings.
3. Touch 0 QUANTITY to scan and choose quantity
settings.
NOTE: You may also use Number pads (or Code
pads) to choose food settings and some quantity
settings. You must use the 0 QUANTITY pad to select
quantity settings for a Frozen Entree, a Casserole,
Bacon, or Hot Dogs.
1. Put food in oven and close door.
2. Touch AUTO COOK.
YOU SEE
3. Choose food setting.
Keep touching AUTO COOK until the food that you
are cooking appears on the display.
Example for Casseroles (Setting 2):
Touch AUTO COOK twice.
YOU SEE
After 1 second:
YOU SEE
4. Enter food size or weight.
Example for 4 cups:
Touch "0 QUANTITY" twice.
YOU SEE
Touch START/ENTER or wait 5 seconds for oven
to start automatically.
The cooking time will count down:
YOU SEE
When cooking time ends:
Four tones will sound.
YOU SEE
NOTE: To choose the desired food setting, see the
Cook Guide Label on the front frame of the oven or
the "Auto cook code chart" earlier in this section.
After 3 seconds:
YOU SEE
NOTE: You can turn off this 0 QUANTITY pad
prompt.
5. After cooking, open the door.
OR
Touch OFF/CANCEL.
Four tones will repeat every minute until you open
the oven door or touch OFF/CANCEL. This will
clear the display.
21
'! !!!i
Your microwave oven bakes 1-6 large potatoes
(10 oz each). Before baking, remember to pierce
potato with a fork several times. After cooking, let
potato stand for 5 minutes.
1. Put pierced potato in oven and close
door.
2. Touch BAKED POTATO.
YOU SEE
3. Enter number of potatoes.
Keep touching 0 QUANTITY until the desired number
of potatoes appears on the display. Or touch a
Number pad that matches the number you want.
Example for 2 potatoes:
Touch "0 QUANTITY" twice.
Illlili
Illlll:td
YOU SEE
4. After cooking, open the door.
OR
Touch OFF/CANCEL.
Four tones will repeat every minute until you open
the oven door or touch OFF/CANCEL. This will
clear the display.
Your microwave oven heats beverages based on
beverage type and serving temperature you choose.
1. Place beverage in oven and close door.
2. Touch BEVERAGE.
YOU SEE
Touch START/ENTER or wait 5 seconds for oven
to start automatically.
The cooking time will count down:
YOU SEE
3. Enter type of beverage.
Touch BEVERAGE until the type of beverage you
want appears on the display.
Example for Hot Chocolate (Code 3):
ii
TYPE OF
When cooking time ends:
Four tones will sound.
I]
YOU SEE
Hot Chocolate three times or touch number 3
YOU SEE
iil_l|
22
YOU SEE
4. Enter serving temperature.
Keep touching Beverage until the temperature you
want shows on the display.
Example for Hot (Setting 2):
YOU SEE
Serving temperatures:
SERVING
TEMPERATURE TOUCH BEVERAGE PAD
Warm once
Hot twice
Very Hot three times
Touch START/ENTER or wait 5 seconds for oven
to start automatically.
The heating time will count down:
YOU SEE
5. After heating, open the door.
OR
Touch OFF/CANCEL.
Four tones will repeat every minute until you open
the oven door or touch OFF/CANCEL. This will
clear the display.
NOTE: Beverage may be very hot; remove from
oven with care.
ii ) =:===;;iiii;:iI /I !i ii ! ii
Food Poisoning Hazard
Do not let food sit in oven more than one hour
before or after cooking.
Doing so can result in food poisoning or
sickness.
You can keep hot, cooked food warm in your
microwave oven for up to 99 minutes. You can use
WARM HOLD by itself, or to automatically follow a
cooking cycle.
NOTES:
• Food cooked covered should remain covered
during WARM HOLD.
• Pastry items (pies, turnovers, etc.) should be
uncovered during WARM HOLD.
• Complete meals kept warm on a dinner plate
should be covered during WARM HOLD.
1. Put hot, cooked food in oven and close
the door.
2. Start oven by touching WARM HOLD.
YOU SEE
When heating time ends:
Four tones will sound.
YOU SEE
To make WARM HOLD automatically
follow another MICRO TIME cycle:
• Press WARM HOLD after the cycle has started.
OR
• Program WARM HOLD as the last stage in
multi-stage cooking. When the display says "TIME,"
touch WARM HOLD.
NOTE: When the last cooking cycle is over, you will
hear one tone. "WARM" will come on while the oven
continues to run.
23
!!11!i! !!!i
i i 11ii !!
You can use code pads as shortcuts when cooking
with your microwave oven. For example, to reheat
1 cup of cheese dip:
1. Touch REHEAT.
2. Touch Number pad 4 to choose cheese dip.
3. Touch Number pad 1 to choose 1 cup.
All food settings and many quantity settings have
matching Code pads. The following charts show which
Code pad to use for choosing a cook power, a food
setting, or a quantity.
COOK POWER
% OF FULL
COOK POWER TOUCH
90%
8O%
70%
60%
5O%
4O%
30%
20%
10%
O%
9
8
7
6
5
4
3
2
1
0
REHEAT
Dinner Plate 1 1-2 servings 1 or 2
Bread 2 1-6 slices 1,2, 3, 4, 5, or 6
Meats 3 1-6 servings 1,2, 3, 4, 5, or 6
Cheese Dip 4 1-3 cups 1,2, or 3
Soups 5 1-4 cups 1,2, 3, or4
Sauce 6 1-3 cups 1,2, or 3
Pizza 7 1-2 servings 1 or 2
FOOD
SETI'ING
Frozen
Entree
Casserole
Frozen
Vegetables
Bacon
Fresh
Vegetables
Frozen
Burrito
Hot Dogs
2 2, 4, 6, or 8 0 QUANTITY
cups
3 1-4 cups 1,2, 3, or 4
4 2, 3, 4, or 6 0 QUANTITY
strips
5 1-4 cups 1,2, 3, or 4
6 1-4 1,2, 3, or 4
7 1, 2, 4, or 6 0 QUANTITY
BEVERAGE
icoffee.............................................................................................................................................................i
iTea twice or touch number 2 i
Hot Chocolate three times or touch number 3
BEVERAGE SERVING TEMPERATURE
SERVING
.................................TEMPERATURE TOUCH ...............................................................................................................................................................................
Warm 1 or 0 QUANTITY
Hot 2 or 0 QUANTITY
Very Hot 3 or 0 QUANTITY
POPCORN
SIZE OF BAG --I--AH_I I
..........................................................................................................................................................................................................
3.50 oz 0 QUANTITY or POPCORN
3.00 oz 0 QUANTITY or POPCORN
1.75 oz 0 QUANTITY or POPCORN
DEFROST
CATEGORY TOUCH QUANT!_ ..........................T°UCH ...............................
Meats 1 0.1 to 6.6 Ibs Enter actual
Chicken/ 2 0.1 to 6.6 Ibs weight or touch
Poultry 0 QUANTITY to
increase dis-
Fish/ 3 0.1 to 4.4 Ibs played weight
Seafood by Z Ibs.
Bagel 4 1-6 1,2, 3, 4, 5, or 6
Fruit Juice 5 6, 12, or 16 oz 0 QUANTITY
Roll/Muffin 6 1-6 1,2, 3, 4, 5, or 6
24
mU
Times in this cooking and reheating chart are approximate and may need to be adjusted to individual taste.
Always check food for doneness at the minimum time given in the chart.
MEATS, POULTRY, FISH, SEAFOOD
Allow standing time after cooking.
FOOD COOK POWER TIME AND COOKING TIPS
Ground Meat for 100% 5 to 6 min.
Casseroles (1 Ib) Cook covered. Stir after 3 min.
1/,Ib Ground Meat 100% 1st side 2 min,
Patties (2) 2nd side 1_ to 2_ min.
Cover and cook on microwave oven safe roasting rack.
1/,Ib Ground Meat 100% 1st side 2_ min,
Patties (4) 2nd side 2 to 3 min.
Cover and cook on microwave oven safe roasting rack.
Meat Loaf 70% 20 to 25 min.
(using 1//2Ib ground beef) Cook covered. Let stand 5 min.
Chicken Pieces 100% 15 to 28 min, or until juices run clear.
(3 to 3_ Ibs) Cook covered. Let stand 5 min.
Chicken Breast Halves, 100% 5% to 7//2min, or until juices run clear.
Skinless, Boneless Cook covered. Let stand 5 min.
(4, 1_ Ibs total weight)
Turkey Breast, Whole 100%, 10 min.
then 50% 30 to 40 min, or until internal temperature is 170°F.
Cook covered. Let stand 5 min before carving.
Fish Fillets, Unbreaded 100% 4X to 7 min or until fish flakes easily with fork.
(X to X inch thick, Cook covered. Let stand 3 min.
1 Ib total weight)
Scallops (1X Ibs) 100% 6 to 9 min, or until opaque.
Cook covered. Stir after 3 min.
Shrimp (1 Ib) 100% 5 to 8 min, or until pink and firm.
Cook covered. Stir after 3 min.
25
OTHER FOOD
FOOD COOK POWER TIME AND COOKING TIPS
Baked Apples (4 large) 100% 5 to 10 min, or until apples are tender.
Chocolate 50% 1 to 2 min.
(melt 1 square)
Eggs, Scrambled (2) 100% 1 min 15 sec to 1 min 45 sec, or until puffy and set
but still moist.
Add 2 tbsp milk or water. Stir after 1 min.
Eggs, Scrambled (4) 100% 2 to 3 min, or until puffy and set but still moist.
Add _ cup milk or water. Stir every min.
Egg, Poached (1) 50% 1 to 1_ min or until almost set.
Break egg into bowl with boiling water.
Prick yolk.
Cook covered. Let stand 1 min.
Eggs, Poached (2) 50% 1 to 1_ min, or until almost set.
Break eggs into bowl with boiling water.
Prick yolks.
Cook covered. Let stand 1 min.
Rice, Parboiled 100%, 5 min.
(1 cup uncooked) then 50% 13 to 15 min.
Add 2_ cups water. Cook covered.
Stir after 10 min.
Let stand 5 min.
Nachos (large plate) 50% 1_ to 3 min.
Pie, reheated (1 slice) 70% 45 sec to 1 min.
Pie, reheated (2 slices) 70% 1_ min to 1 min 45 sec.
Amount of food
•If you increase or decrease the amount of food
you prepare, the time it takes to cook that food will
also change. For example, if you double a recipe,
add a little more than half the original cooking time.
Check for doneness and, if necessary, add more
time in small increments.
Starting temperature of food
•The lower the temperature of the food being put
into the microwave oven, the longer it takes to cook.
Food at room temperature will be reheated more
quickly than food at refrigerator temperature.
Composition of food
•Food with a lot of fat and sugar will be heated
faster than food containing a lot of water. Fat and
sugar will also reach a higher temperature than
water in the cooking process.
• The more dense the food, the longer it takes to heat.
"Very dense" food like meat takes longer to reheat
than lighter, more porous food like sponge cakes.
Size and shape
•Smaller pieces of food will cook faster than larger
pieces. Also, same-shaped pieces cook more
evenly than different-shaped pieces.
• With foods that have different
thicknesses, the thinner parts will cook faster than
the thicker parts. Place the thinner parts of chicken
wings and legs in the center of the dish.
26
Covering food
Cover food to:
•Reduce splattering
•Shorten cooking times
• Keep food moist
You can use any covering that lets microwaves pass
through.
Releasing pressure in foods
• Several foods (for example: baked potatoes,
sausages, egg yolks, and some fruits) are tightly
covered by a skin or membrane. Steam can build up
under the membrane during cooking, causing the
food to burst. To relieve the pressure and to prevent
bursting, pierce these foods before cooking with a
fork, cocktail pick, or toothpick.
Stirring, turning foods Using aluminum foil
• Stirring and turning foods spreads heat quickly to Metal containers should not be used in a microwave
the center of the dish and avoids overcooking at the oven. There are, however, some exceptions. If you
outer edges of the food. have purchased food which is prepackaged in an
...........................................................................................................................................................................................................................................................................................................................................................................................................................................aluminum foil container, refer to the instructions on
the package. When using aluminum foil containers,
cooking times may be longer because microwaves
will only penetrate the top of the food.If you use
aluminum containers without package instructions,
follow these guidelines:
• Place the container in a glass bowl and add some
water so that it covers the bottom of the container,
not more than ¼ inch high. This ensures even heating
of the container bottom.
• Always remove the lid to avoid damage to the oven.
• Use only undamaged containers.
•Do not use containers taller than %inch.
• Container must be at least half filled.
• To avoid arcing, there must be a minimum ¼ inch
between the aluminum container and the walls of the
oven and also between two aluminum containers.
• Always place the container on the turntable.
......................................................................................................................................................................................................................................................................................................................................................................................................................................• Reheating food in aluminum foil containers usually
Using standing time takes up to double the time compared to reheating
in plastic, glass, china, or paper containers. The
• Always allow food to stand after cooking. Standing
time after defrosting and cooking allows the
temperature to evenly spread throughout the food,
improving the cooking results.
• The length of the standing time depends on how
much food you are cooking and how dense it is.
Sometimes it can be as short as the time it takes
you to remove the food from the oven and take it to
the serving table. However, with larger, denser food,
the standing time may be as long as 10 minutes.
Arranging food
For best results, place food evenly on the plate. You
can do this in several ways:
•If you are cooking several items of the same
food, such as baked potatoes, place them in a ring
pattern for uniform cooking.
• When cooking foods of uneven shapes or
thickness, such as chicken breasts, place the
smaller or thinner area of the food towards the
center of the dish where it will be heated last.
• Layer thin slices of meat on top of each other.
• When you cook or reheat whole fish, score the
skin - this prevents cracking.
• Do not let food or a container touch the top or sides
of the oven. This will prevent possible arcing.
time when food is ready will vary depending upon
the type of container you use.
• Let food stand for 2 to 3 minutes after heating so
that heat is spread evenly throughout container.
Cooking you should not do in your
microwave oven
• Do not do canning of foods in the oven. Closed
glass jars may explode, resulting in damage to the
OVER.
• Do not use the microwave oven to sterilize objects
(baby bottles, etc.). It is difficult to keep the oven at
the high temperature needed for safe sterilization.
27
n
To make sure your microwave oven looks good and
works well for along time, you should maintain it
properly. For proper care, please follow these
instructions carefully.
For interior surfaces: Wash often with warm, sudsy
water and a sponge or soft cloth. Use only mild,
nonabrasive soaps or a mild detergent. Be sure to
keep the areas clean where the door and oven
frame touch when closed. Wipe well with clean
water. Over time, stains can occur on the surfaces as
the result of food particles spattering during cooking.
This is normal.
For stubborn soil, boil a cup of water in the oven for
2 or 3 minutes. Steam will soften the soil. To get rid
of odors inside the oven, boil a cup of water with
lemon juice or vinegar.
For exterior surfaces and control panel: Use a soft
cloth with spray glass cleaner. Apply the spray glass
cleaner to the soft cloth; do not spray directly on the
OVER.
NOTE: Abrasive cleansers, steel-wool pads, gritty
wash cloths, some paper towels, etc., can damage
the control panel and the interior and exterior oven
surfaces.
To clean turntable and turntable support, wash in
mild, sudsy water; for heavily soiled areas use a mild
cleanser and scouring sponge. The turntable and
turntable support are dishwasher-safe.
28
Questions and Answers
QUESTIONS ANSWERS
Can I use a rack in my microwave oven so that I You can only use a rack designed to be used with
may reheat or cook on two levels at a time? your microwave oven. Use of any rack not designed
for the microwave oven can result in poor cooking
performance and/or arcing.
Can i use eiiher meiai minum pans in my................................................................. mfoil ieiding.....................................
microwave oven? (use small, flat pieces), small skewers, and shallow
foil trays (if tray is not taller than _ inch deep and
half filled with food to absorb microwave energy).
Never allow metal to touch walls or door.
Sometimes the door of my microwave oven ap- This appearance is normal and does not affect the
pears wavy. Is this normal? operation of your oven.
What are the humming noises that 1hear when You hear the sound of the transformer when the
.................................................................................................................................................................magnet!°n tube cycles on I.....................................................................................
Why does the dish become hot when I microwave As the food becomes hot it will conduct the heat to
food in it? I thought that this should not happen, the dish. Be prepared to use hot pads to remove
food after cooking.
What does "standing time" mean? "Standing time" means that food should be removed
from the oven and covered for additional time to
allow it to finish cooking. This frees the oven for
other cooking.
Why does steam come out of the air exhaust Steam is normally produced during cooking. The
vent? microwave oven has been designed to vent this
Can 1pop popcorn in my microwave oven? How
do I get the best results?
steam out the top vent.
Yes. Pop packaged microwave popcorn following
manufacturer's guidelines. Do not use regular paper
bags. Use the "listening test" by stopping the oven
as soon as the popping slows to a "pop" every 1 or
2 seconds. Do not repop unpopped kernels. You
can also use special microwave poppers. When
using a popper, be sure to follow manufacturer's
directions. Do not pop popcorn in glass cookware.
29
Troubleshooting
Most cooking problems often are caused by little things you can find and fix without tools of any kind.
Check the lists below before calling for assistance or service. If you still need help, see the
"Requesting Assistance or Service" section.
• Is the microwave plugged into a live outlet with the proper voltage? (See installation instructions.)
• Have you blown a household fuse or tripped a circuit breaker?
• Has the electric company experienced a power failure?
PROBLEM CAUSE
The microwave oven • The door is not firmly closed and latched.
will not run. • You did not touch START/ENTER.
• You did not follow directions exactly.
• An operation that was programmed earlier is still running.
Microwave cooking • The electric supply to your home or wall outlets is low or lower than normal.
times seem too long. Your electric company can tell you if the line voltage is low. Your electrician
or service technician can tell you if the outlet voltage is low.
• The cook power is not at the recommended setting.
• Larger amounts of food need longer cooking times.
The turntable will • The turntable is not correctly in place. Make sure the turntable is correct-side
not turn. up and is sitting securely on center shaft.
• The support is not operating correctly. Remove turntable, check that the
turntable support is properly in place, and restart oven. If turntable support
does not move, call a designated service technician for repair. Cooking
without the turntable can give you poor results.
The display shows a time • The oven door is not closed completely.
counting down but the
oven is not cooking.
You do not hear the • Sound might not be turned on.
Programming Tone.
If none of these items is causing your problem, see the "Requesting Assistance or Service" section on page 31.
3O
Requesting Assistance or Service
To avoid unnecessary service calls, please check the "Troubleshooting" section. It may save you
the cost of a service call. If you still need help, follow the instructions below.
Call the Whirlpool Consumer Assistance
Center toll free at 1-800-253-1301.
Our consultants are available to
assist you.
When calling:
Please know the purchase date, and
the complete model and serial number of your
appliance (see the "A Note to You" section).
This information will help Whirlpool better respond
to your request.
Our consultants provide assistance with:
• Features and specifications on our full line
of appliances
• Installation information
• Use and maintenance procedures
• Accessory and repair parts sales
• Specialized customer assistance (Spanish
speaking, hearing impaired, limited vision, etc.)
• Referrals to local dealers, service companies, and
repair parts distributors
Whirlpool designated service technicians are
trained to fulfill the product warranty and provide
after-warranty service, anywhere in the United States.
To locate the Whirlpool designated service company
in your area, you can also look in your telephone
directory Yellow Pages.
If you need to order replacement parts, we recom-
mend that you only use FSP®factory specified
parts. FSP replacement parts will fit right and work
right, because they are made to the same exacting
specifications used to build every new
WHIRLPOOL ®appliance.
To locate FSP replacement parts in your area, call
our Consumer Assistance Center telephone number
or your nearest Whirlpool designated service center.
If you need further assistance, you can write to
Whirlpool with any questions or concerns at:
Whirlpool Brand Home Appliances
Consumer Assistance Center
c/o Correspondence Dept.
2000 North M-63
Benton Harbor, MI 49022-2692
Please include a daytime phone number in your
correspondence.
31
m
ui
®
n
arra
LENGTH OF WARRANTY WHIRLPOOL CORPORATION WiLL PAY FOR
FULL ONE-YEAR WARRANTY FSP" replacement parts and repair labor to correct defects in
FROM DATE OF PURCHASE materials or workmanship. Service must be provided by a Whirlpool
designated service company.
LiMiTED FOUR-YEAR WARRANTY FSP replacement magnetron tube on microwave oven if defective in
SECOND- THROUGH FIFTH-YEAR materials or workmanship.
FROM DATE OF PURCHASE
WHIRLPOOL CORPORATION WILL NOT PAY FOR
A. Service calls to:
1. Correct the installation of your oven.
2. instruct you how to use your oven.
3. Replace house fuses or correct house wiring.
4. Replace owner:accessible light bulbs.
B. Repairs when your oven is used in other than normal, single:family household use.
C. Pickup and delivery. Your oven is designed to be repaired in the home.
D. Damage to your oven caused by accident, misuse, fire, flood, acts of God, or use of products not
approved by Whirlpool Corporation.
E. Any labor costs during limited warranty.
F. Repairs to parts or systems resulting from unauthorized modifications made to the
appliance.
G.Replacement parts or repair labor costs for units operated outside the United States. 10/99
WHIRLPOOL CORPORATION SHALL NOT BE LIABLE FOR iNCiDENTAL OR CONSEQUENTIAL
DAMAGES. Some states do not allow the exclusion or limitation of incidental or consequential damages, so this
exclusion or limitation may not apply to you. This warranty gives you specific legal rights, and you may also have
other rights which vary from state to state.
Outside the 50 United States, this warranty does not apply. Contact your Iocat Whirlpool dealer if another
warranty applies.
If you need service, first see the "Troubleshooting" section of this book. After checking "Troubleshooting,"
additional help can be found by checking the "Requesting Assistance or Service" section or by calling the
Whirlpool Consumer Assistance Center telephone number, 1-800-253-1301, from anywhere in the U.S.A.
4452005A 12i99
_) 1999 Whirlpool Corporation All rights reserved (e) Registered Trademark of Whirlpool, USA Printed in USA
