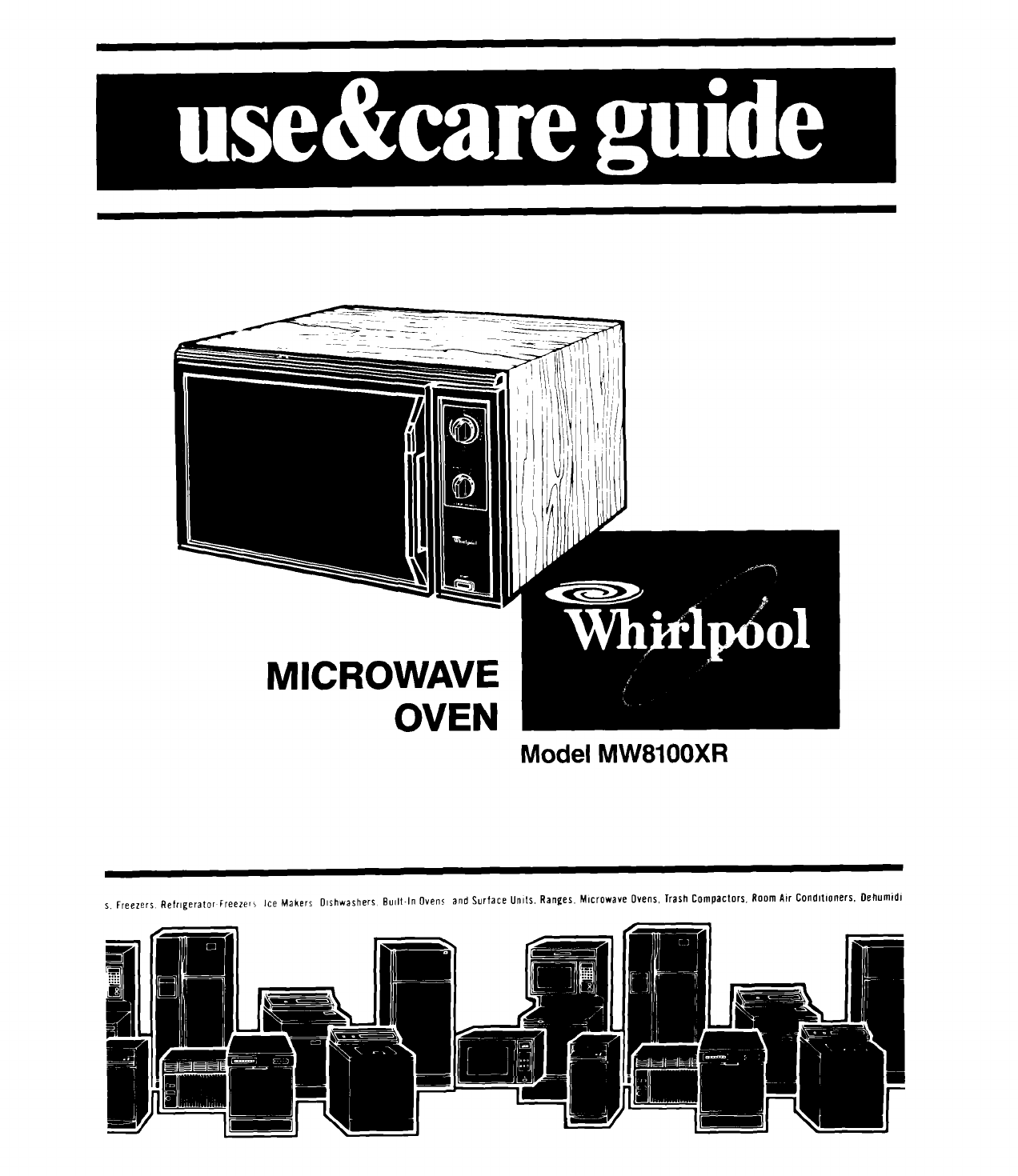

MICROWAVE

OVEN

Model MW8100XR

s, Freezers Refrtgerator Freezers Ice Makers Dtshwashers, Buflt-lnOvens and Surface Units, Ranges. Microwave Ovens, Trash Compactors, Room Air Conditioners, Dehumidi

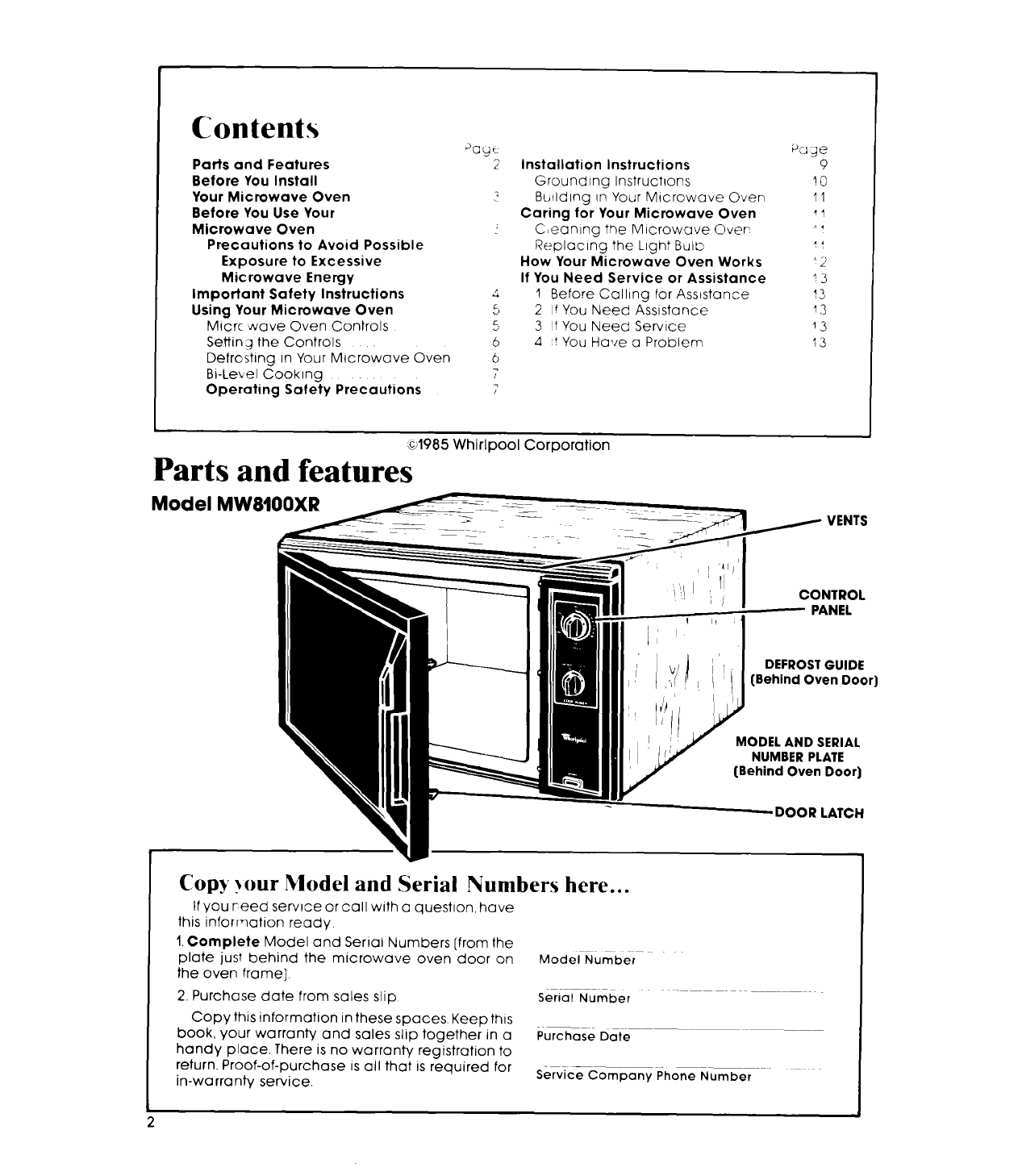

Contents Page

Parts and Features 2

Before You Install

Your Microwave Oven 2

Before You Use Your

Microwave Oven

Precautions to Avoid Possible

Exposure to Excessive

Microwave Energy

Important Safety Instructions

Using Your Microwave Oven 5

Micro wave Oven Controls 5

Setting the Controls .... 6

Defrosting in Your Microwave Oven 6

Bi-Le,,,el Cooking ......... 7

Operating Safety Precautions 7

PcJ_e

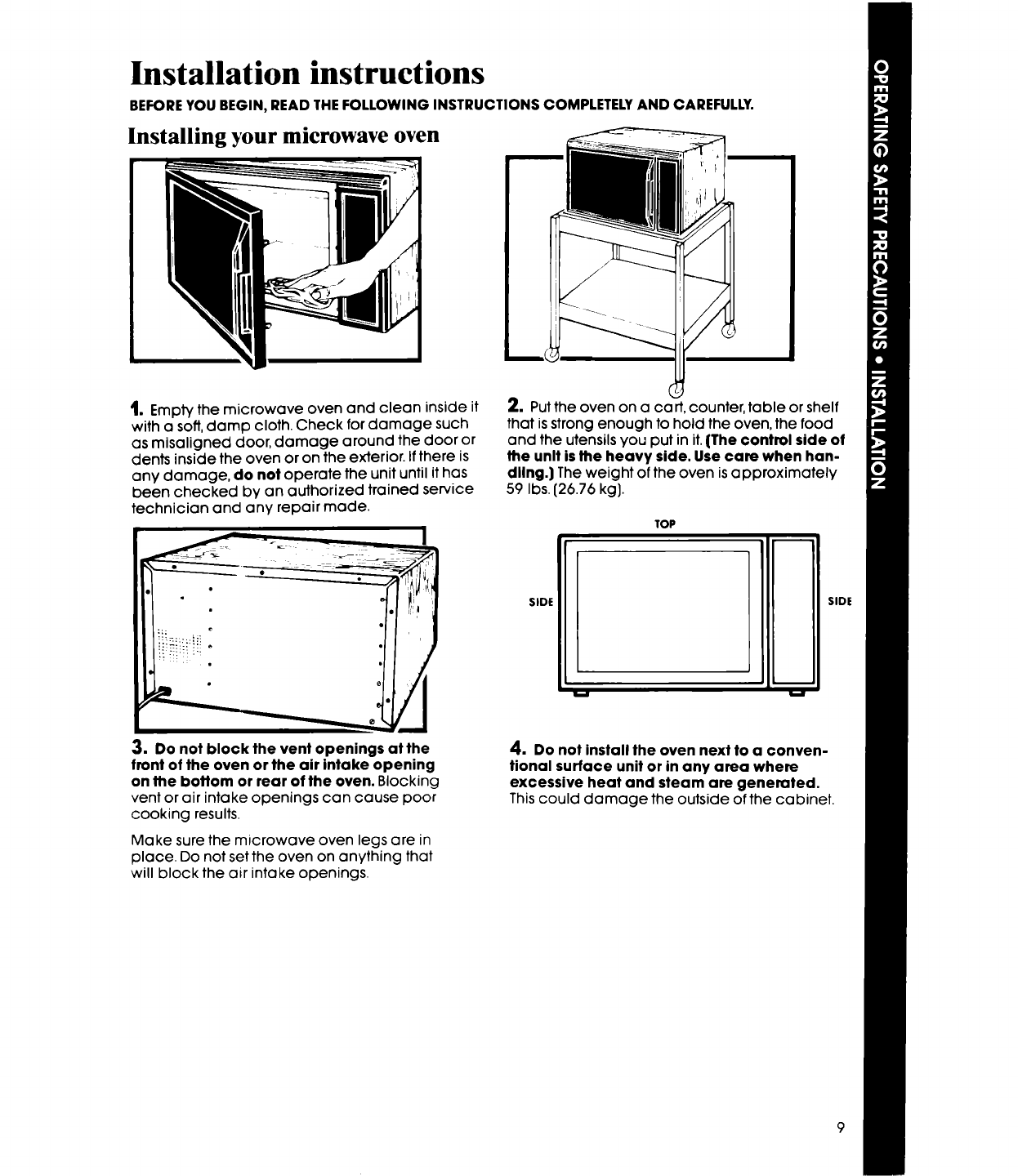

Installation Instructions 9

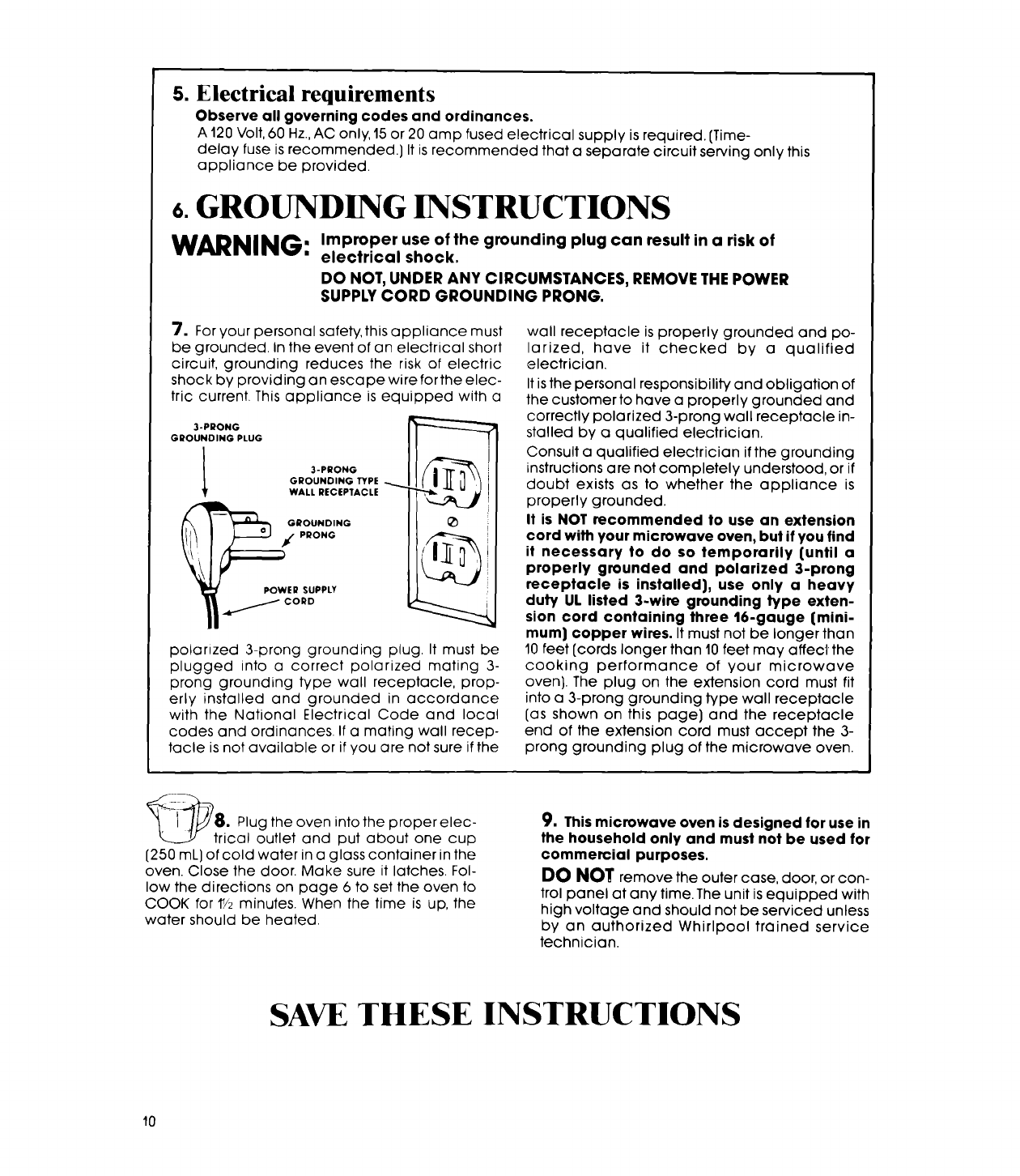

Grounding Instruchons ! 0

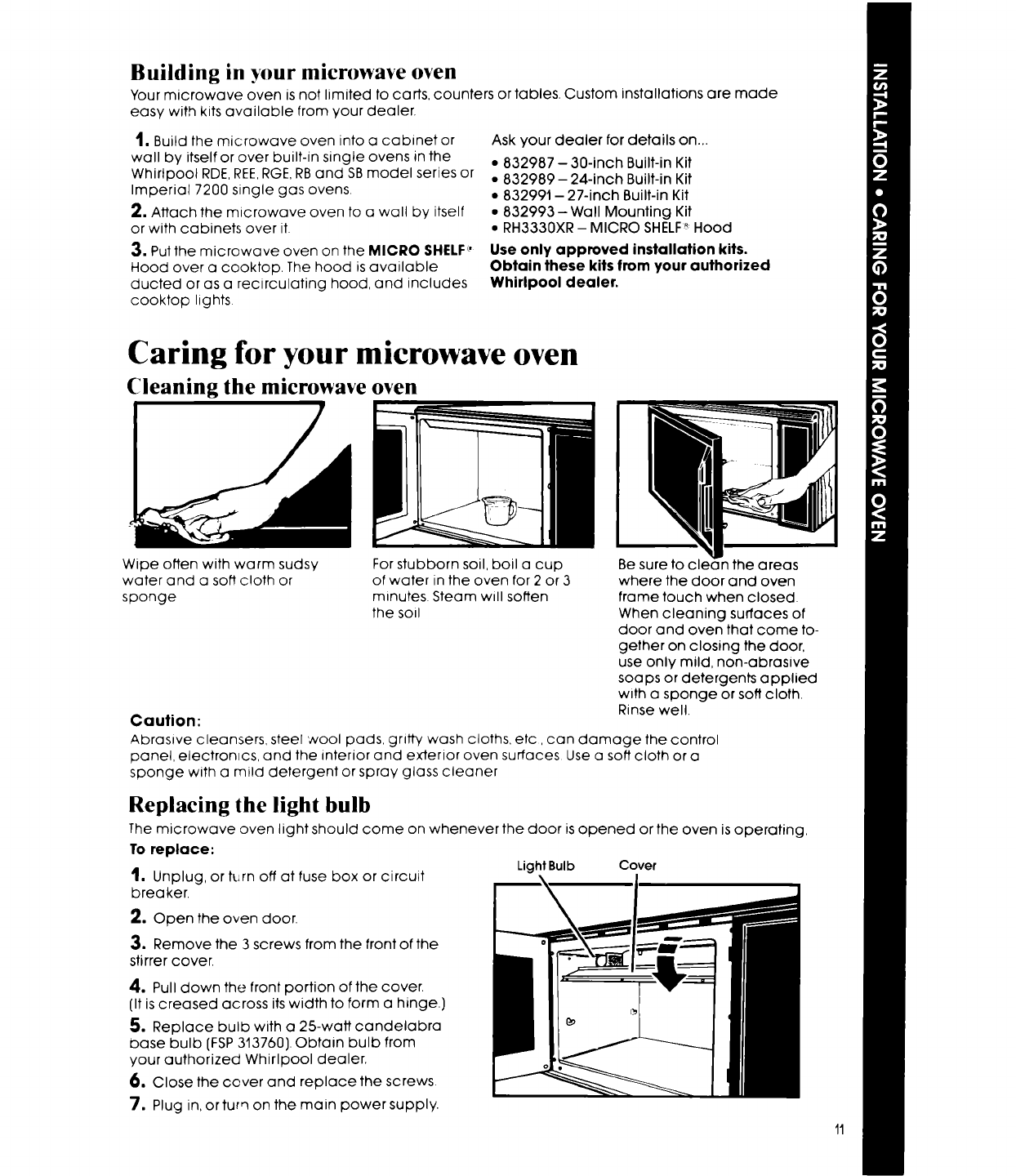

Building qn Your Microwave Oven 11

Caring for Your Microwave Oven _ !

C,eaning the Microwave Over" '

Replacing the Light Bulb _

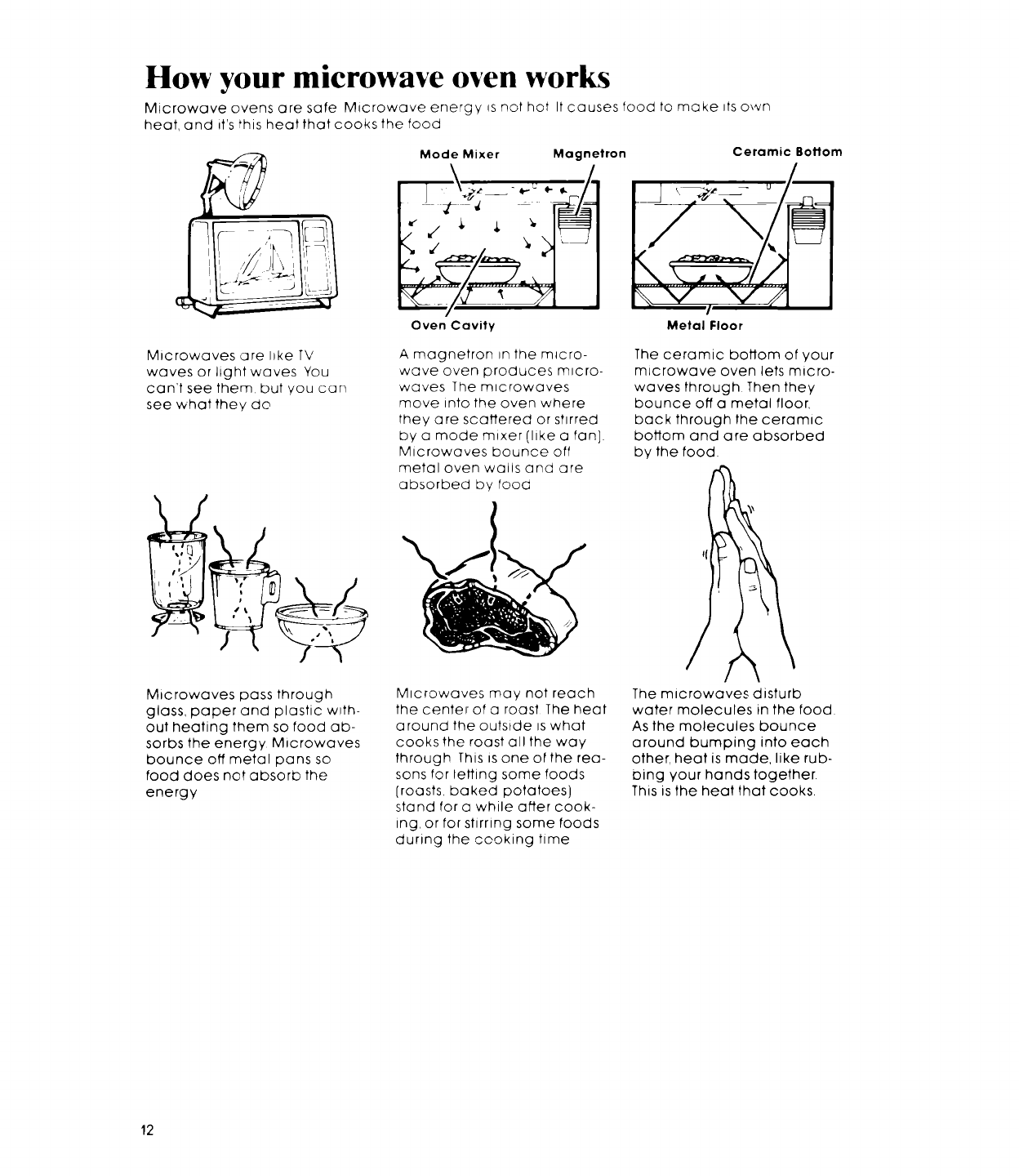

How Your Microwave Oven Works "2

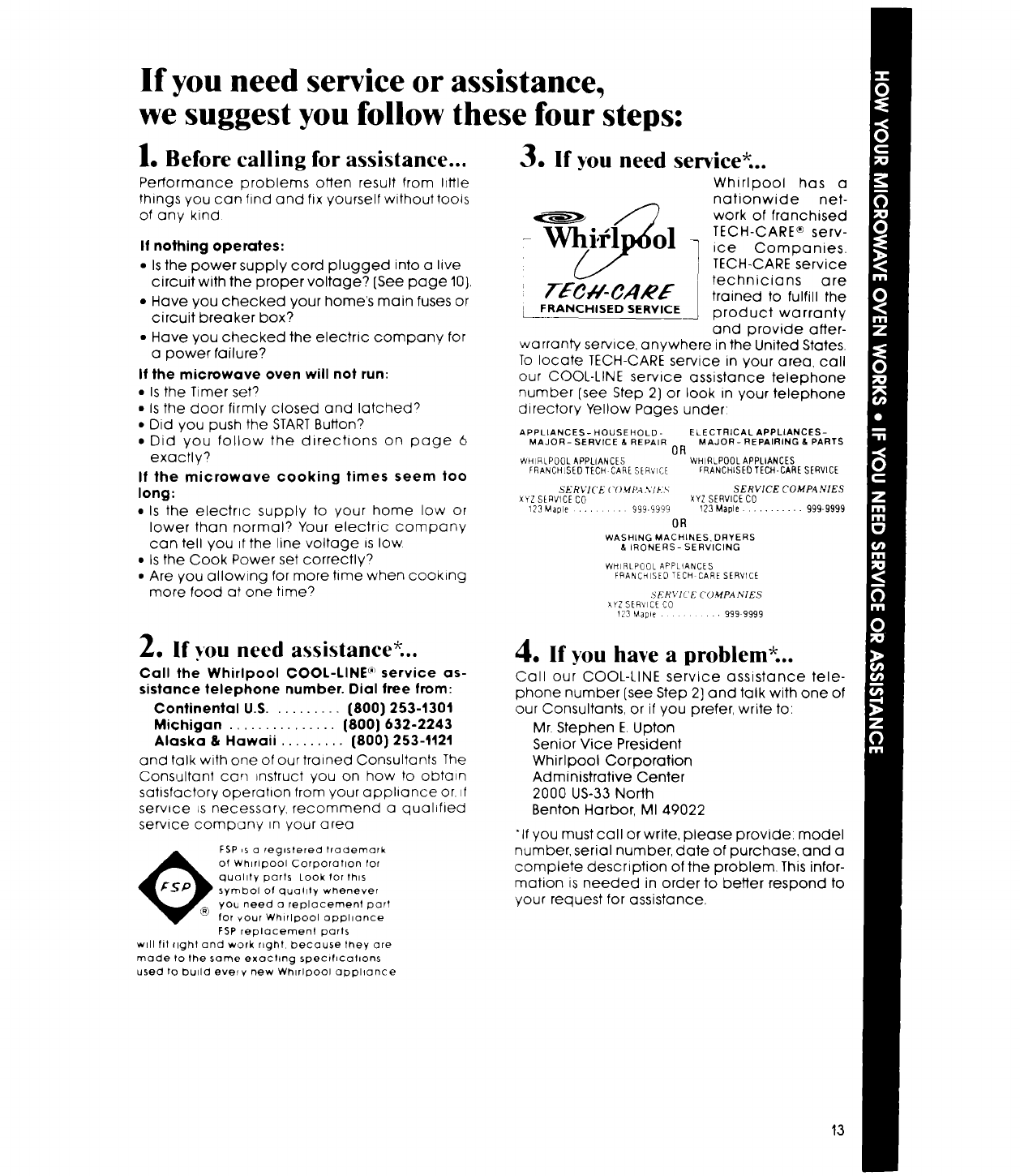

If You Need Service or Assistance ! 3

I Before Calling for Assbstance !3

2 If You Need Assistance _3

3 !f You Need Service 13

4 rt You Have aProblem 13

Parts and features

Model MW8100XR VENTS

CONTROL

PANEL

DEFROST GUIDE

[Behind Oven Door]

MODEL AND SERIAL

NUMBER PLATE

[Behind Oven Door]

-DOOR LATCH

Copy )our Model and Serial Numbers here...

If you need servpce or call with a question, have

this information ready.

1. Complete Model and Serial Numbers (from the

plate just behind the microwave oven door on

the oven frame),

2. Purchase date from sales slip

Copy this information in these spaces. Keep this

book, your warranty and sales slip together in a

handy place. There is no warranty registration to

return. Proof-of-purchase is all that is required for

in-warranty service,

Model Number

Serial Number

Purchase Date

Service Company Phone Number

Fill out and return the *'Microwave Registration Card" attached to the oven door. If the card is

m_ss,ng please-, send the model number of your m_crowave oven. with your name and address

Whmpoo Corporation

M_crowove Registration Department

Ac_m_nistr,utwe Center

2000 US 53 Nodh

Benton H urbor Michigan 49022

ThLs_nformat on _v_lLhelp as reach you _fthere _sever aneed to pass along tntormahon about your

mlcroc_ave or,-r/

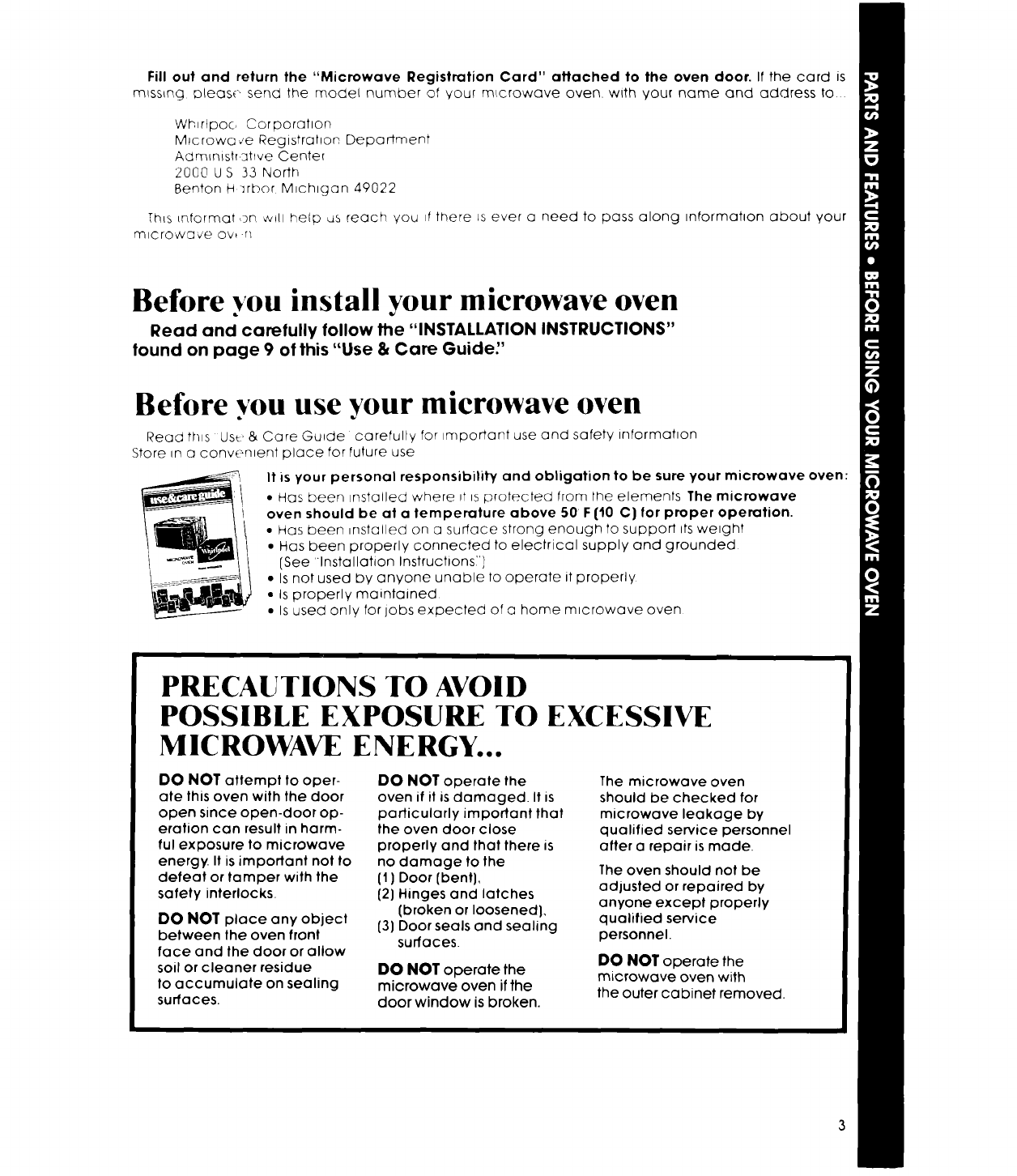

Before you install your microwave oven

Read and carefully follow the "INSTALLATION INSTRUCTIONS"

round on page 9 of this "Use & Care Guide:'

Before you use your microwave oven

Read th_s Us_:_& Care Guide carefully for _mportant use and safety informahon

Store _naconw'_n_ent place for future use

It is your personal responsibility and obligation to be sure your microwave oven:

•Has been _nstalled where _t _sprotected from the elements The microwave

oven should be at a temperature above 50 F {t0 C} for proper operation.

• Has been =nstalled on asurface strong enough to support its weight

• Has been properly connected to electrical supply and grounded

(See "Installation Instructions/}

• Is not used by anyone unable to operate it properly

• Is properly maintained

• Is used only for jobs expected of ahome microwave oven

PRECAUTIONS TO AVOID

POSSIBLE EXPOSURE TO EXCESSIVE

MICROWAVE ENERGY...

DO NOT attempt tooper-

ate thisoven withthe door

open sinceopen-door op-

erationcan resultinharm-

fulexposure to microwave

energy. Itisimportant not to

defeat or tamper withthe

safety interlocks.

DO NOT place any object

between the oven front

face and the door orallow

soilor cleaner residue

to accumulate on sealing

surfaces.

DO NOT operate the

oven ifitisdamaged. Itis

particularlyimportantthat

the oven door close

properlyand thatthereis

no damage to the

{1]Door (bent],

(2)Hinges and latches

[broken orloosened},

[3]Door sealsand sealing

surfaces.

DO NOT operate the

microwave oven ifthe

door window isbroken.

The microwave oven

should be checked for

microwave leakage by

qualified service personnel

after a repair is made.

The oven should not be

adjusted or repaired by

anyone except properly

qualified service

personnel.

DO NOT operate the

microwave oven with

the outer cabinet removed.

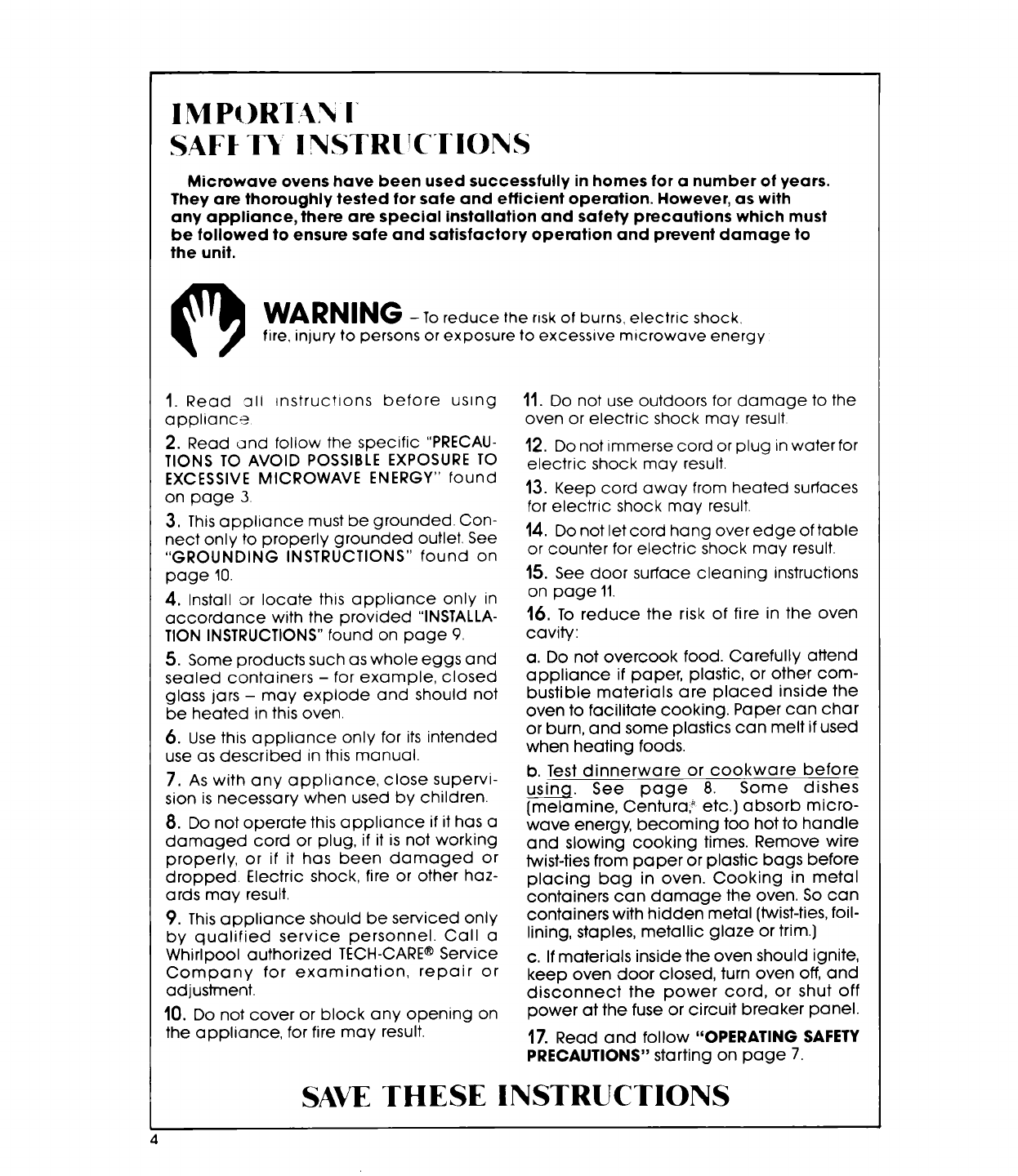

IMPt)RIAN I

SAF! 13 '=INSTR(!CIIONS

Microwave ovens have been used successfully in homes for a number of years.

They are thoroughly tested for safe and efficient operation. However, as with

any appliance, there are special installation and safety precautions which must

be followed to ensure safe and satisfactory operation and prevent damage to

the unit.

WARNING -Toreducether,skofburns,electricshock,

fire, injury to persons or exposure to excessive microwave energy:

1. Read all _nstructions before using

appliance

2. Read and follow the specific "PRECAU-

TIONS TO AVOID POSSIBLE EXPOSURE TO

EXCESSIVE MICROWAVE ENERGY" found

on page 3.

3. This appliance must be grounded. Con-

nect only to properly grounded outlet. See

"GROUNDING INSTRUCTIONS" found on

page 10.

4. Install or locate this appliance only in

accordance with the provided "INSTALLA-

TION INSTRUCTIONS" found on page 9

5. Some products such as whole eggs and

sealed containers - for example, closed

glass jars - may explode and should not

be heated in this oven

6. Use this appliance only for its intended

use as described in this manual.

7. As with any appliance, close supervi-

sion is necessary when used by children.

8. Do not operate this appliance if it has a

damaged cord or plug, if it is not working

properly, or if it has been damaged or

dropped. Electric shock, fire or other haz-

ards may result.

9. This appliance should be serviced only

by qualified service personnel. Call a

Whirlpool authorized TECH-CARE®Service

Company for examination, repair or

adjustment.

10. Do not cover or block any opening on

the appliance, for fire may result.

11. Do not use outdoors for damage to the

oven or electric shock may result

12. Do not immerse cord or plug in water for

electric shock may result.

13. Keep cord away from heated surfaces

for electric shock may result.

14. Do not let cord hang over edge of table

or counter for electric shock may result.

15. See door surface cleaning instructions

on page 11.

16. To reduce the risk of fire in the oven

cavity:

a. Do not overcook food. Carefully attend

appliance if paper, plastic, or other com-

bustible materials are placed inside the

oven to facilitate cooking. Paper can char

or burn, and some plastics can melt if used

when heating foods.

b. Test dinnerware or cookware before

usi__ng. See page 8. Some dishes

[melamine, Centura; _ etc.] absorb micro-

wave energy, becoming too hot to handle

and slowing cooking times. Remove wire

twist-ties from paper or plastic bags before

placing bag in oven. Cooking in metal

containers can damage the oven. So can

containers with hidden metal [twist-ties, foil-

lining, staples, metallic glaze or trim.]

c. If materials inside the oven should ignite,

keep oven door closed, turn oven off, and

disconnect the power cord, or shut off

power at the fuse or circuit breaker panel.

17. Read and follow "OPERATING SAFETY

PRECAUTIONS" starting on page 7.

SAVE [HESE INSTRUC11ONS

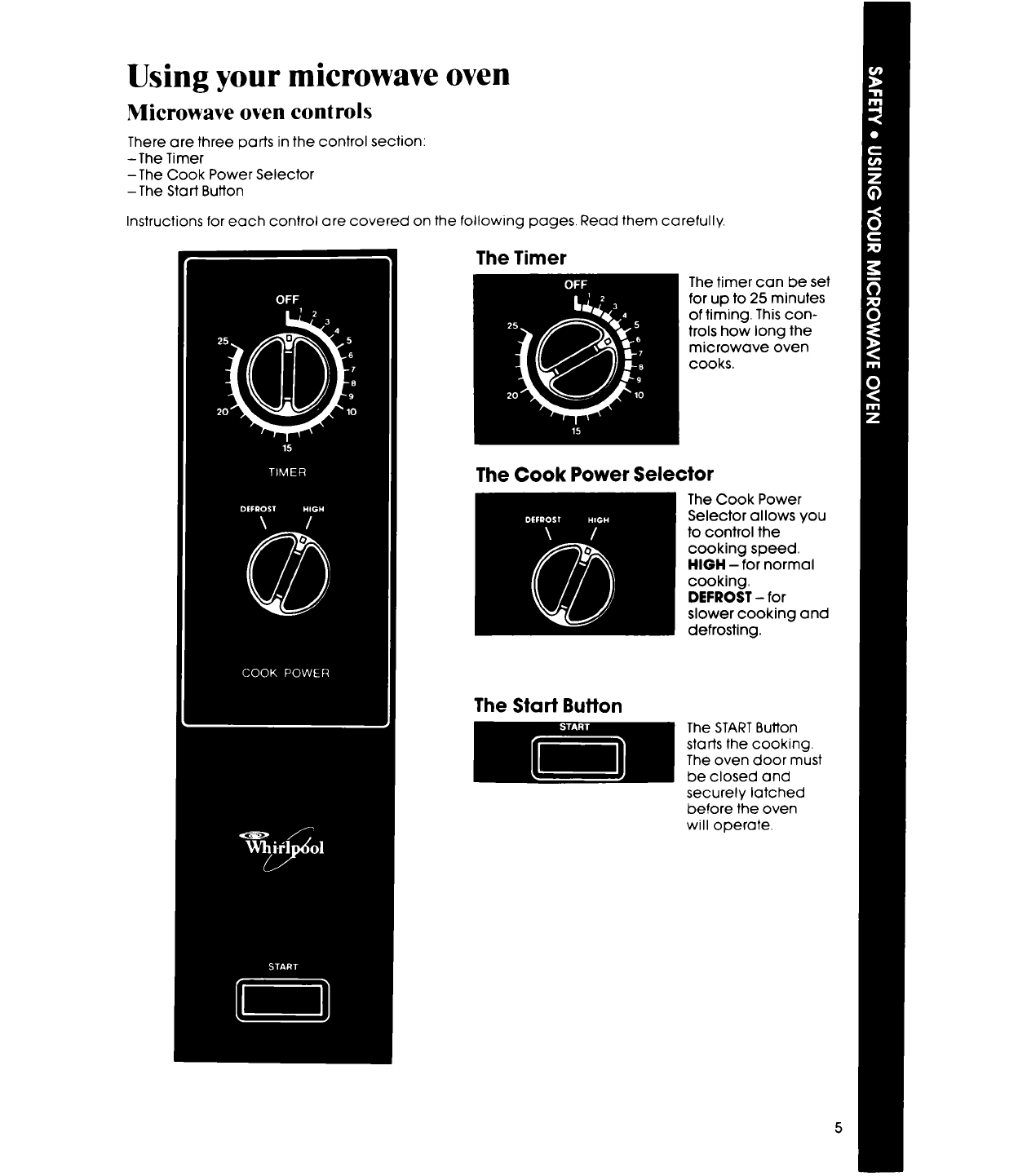

Using your microwave oven

Microwave oven controls

There are three parts in the control section:

-The Timer

- The Cook Power Selector

-The Start Button

Instructions for each control are covered on the following pages. Read them carefully.

The Timer

The timer can be set

for up to 25 minutes

of timing. This con-

trols how long the

microwave oven

cooks.

The Cook Power Selector

The Cook Power

Selector allows you

to control the

cooking speed.

HIGH - for normal

cooking.

DEFROST - for

slower cooking and

defrosting.

The Start Button

The STARTButton

starts the cooking.

The oven door must

be closed and

securely latched

before the oven

will operate.

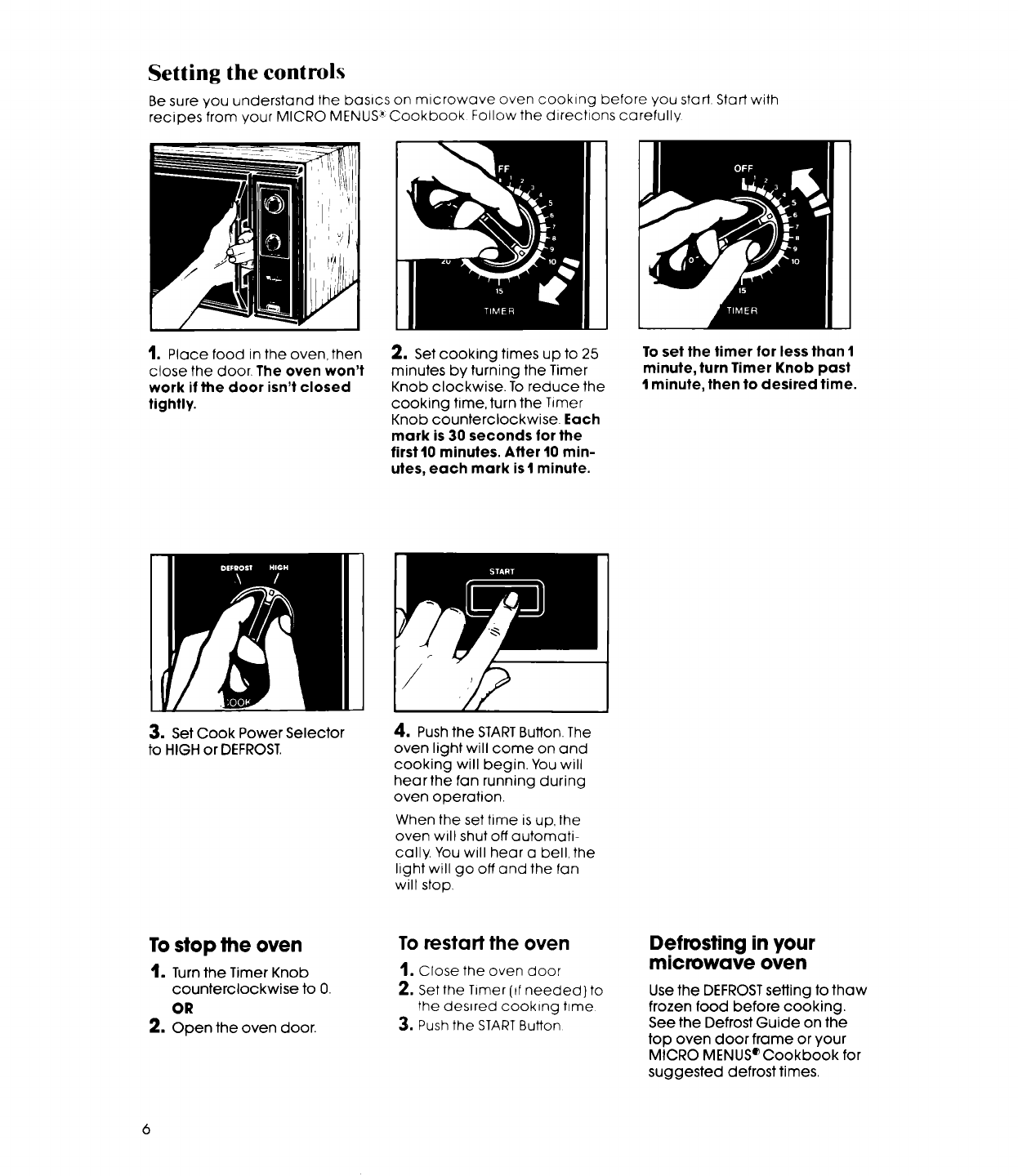

Setting the controls

Be sure you understand the basics on microwave oven cooking before you start. Start with

recipes from your MICRO MENUS:' Cookbook Follow the directions carefully

1. Place food in the oven, then

close the door. The oven won't

work if the door isn't closed

tightly,

3. Set Cook Power Selector

to HIGH or DEFROST.

2. Set cooking times up to 25

minutes by turning the Timer

Knob clockwise. To reduce the

cooking time, turn the Timer

Knob counterclockwise. Each

mark is 30 seconds for the

first 10 minutes. After 10 min-

utes, each mark is I minute.

To set the timer for less than 1

minute, turn Timer Knob past

I minute, then to desired time.

4. Push the STARTButton. The

oven light will come on and

cooking will begin. You will

hear the fan running during

oven operation.

When the set time is up, the

oven will shut off automati-

cally. You will hear a bell, the

light will go off and the fan

will stop,

Tostop the oven

1. Turn the Timer Knob

counterclockwise to O.

2. Open the oven door.

To restart the oven

t. Close the oven door

2, Set the Timer (ff needed} to

the desired cooking hme

3. Push the STARTButton

Defrosting in your

microwave oven

Use the DEFROSTsetting to thaw

frozen food before cooking.

See the Defrost Guide on the

top oven door frame or your

MICRO MENUS_ Cookbook for

suggested defrost times,

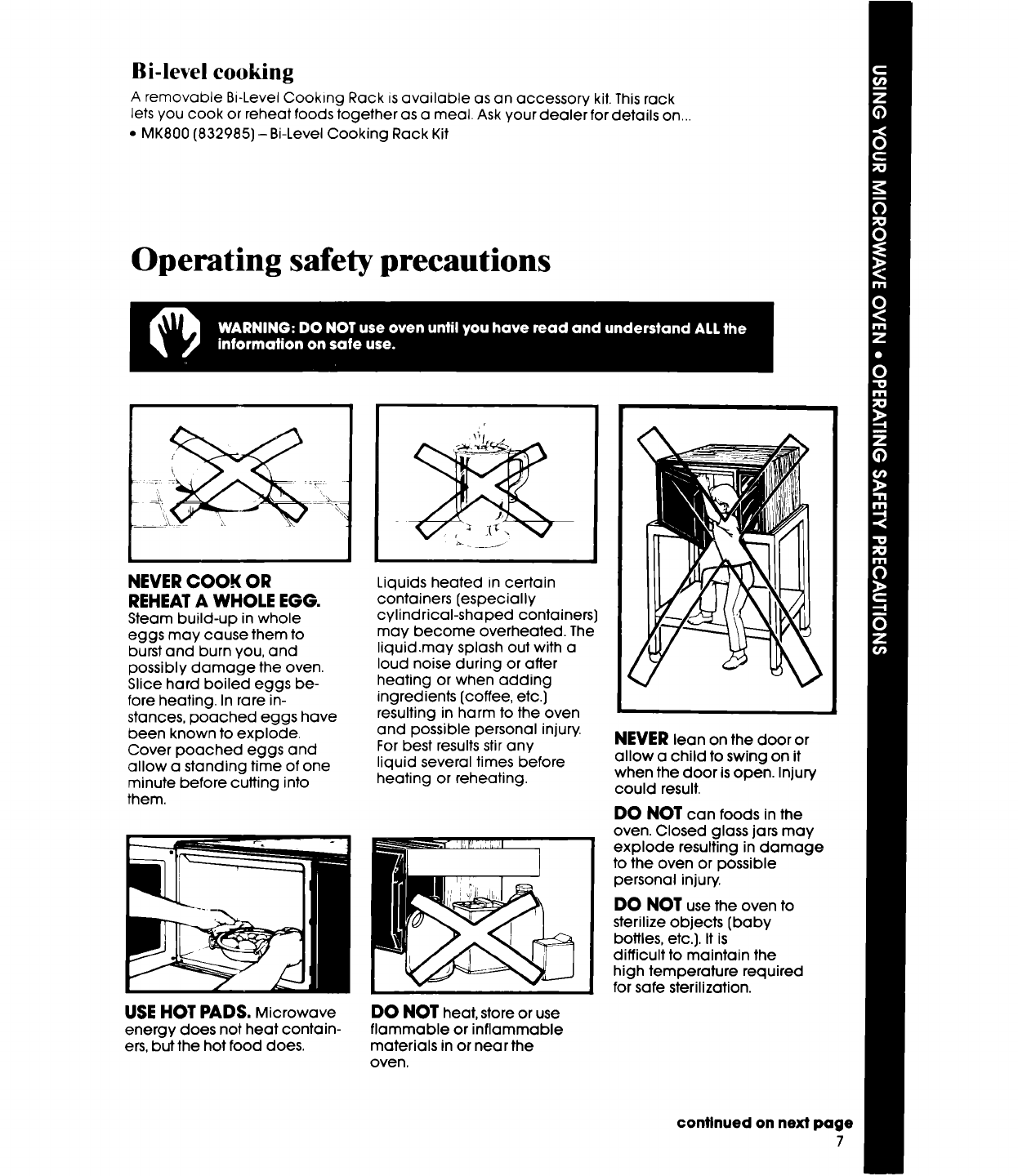

Bi-level cooking

A removable Bi-Level Cooking Rack is available as an accessory kit. This rack

lets you cook or reheat foods together as a meal. Ask your dealer for details on,..

• MKe00 (832985) - Bi-Level Cooking Rack Kit

Operating safety precautions

Zi k:_

NEVER COOK OR

REHEAT A WHOLE EGG.

Steam build-up in whole

eggs may cause them to

burst and burn you, and

possibly damage the oven.

Slice hard boiled eggs be-

fore heating. In rare in-

stances, poached eggs have

been known to explode.

Cover poached eggs and

allow a standing time of one

minute before cutting into

them.

USE HOT PADS. Microwave

energy does not heat contain-

ere, but the hot food does.

Liquids heated in certain

containers (especially

cylindrical-shaped containers)

may become overheated. The

liquid.may splash out with a

loud noise during or after

heating or when adding

ingredients (coffee, etc.)

resulting in harm to the oven

and possible personal injury.

For best results stir any

liquid several times before

heating or reheating.

DO NOT heat,storeoruse

flammable orinflammable

materials in or near the

oven.

NEVER lean on the door or

allow a childtoswing on it

when the door isopen. Injury

could result.

DO NOT can foods inthe

oven. Closed glassjarsmay

explode resultingindamage

tothe oven or possible

personal injury.

DO NOT use the oven to

sterilize objects (baby

bottles, etc.). It is

difficult to maintain the

high temperature required

for safe sterilization.

continued on next page

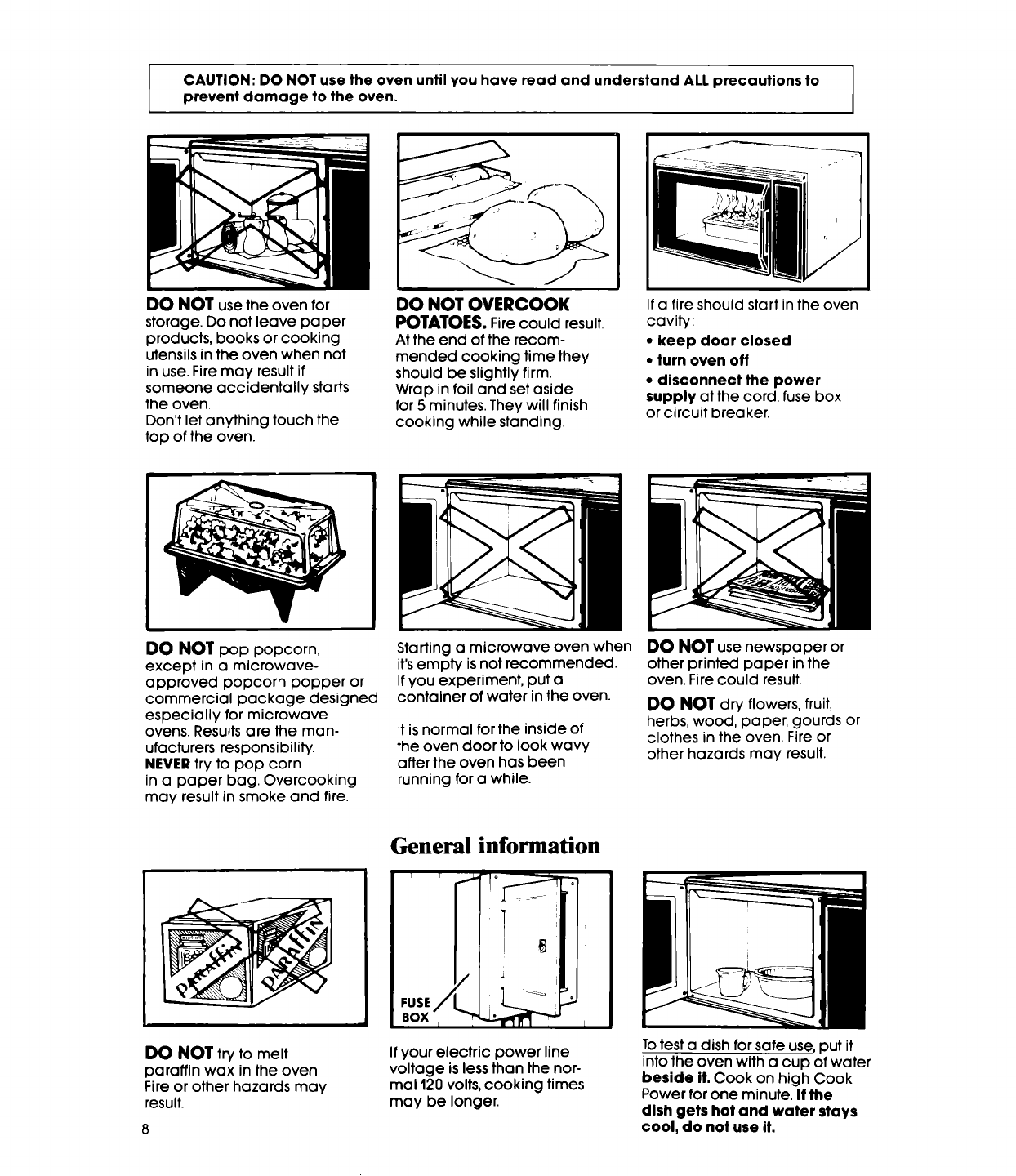

CAUTION: DO NOT use the oven until you have read and understand ALL precautions to

prevent damage to the oven.

DO NOT use the oven for

storage. Do not leave paper

products, books or cooking

utensils in the oven when not

in use. Fire may result if

someone accidentally starts

the oven.

Don't let anything touch the

top of the oven.

DO NOT OVERCOOK

POTATOES. Fire could result.

At the end of the recom-

mended cooking time they

should be slightly firm.

Wrap in foil and set aside

for 5 minutes. They will finish

cooking while standing.

If a fire should start in the oven

cavity:

•keep door closed

• turn oven off

•disconnect the power

supply at the cord, fuse box

or circuit breaker.

DO NOT pop popcorn,

except in a microwave-

approved popcorn popper or

commercial package designed

especially for microwave

ovens. Results are the man-

ufacturers responsibility.

NEVER try to pop corn

in a paper bag. Overcooking

may result in smoke and fire.

Starting a microwave oven when

it's empty is not recommended.

If you experiment, put a

container of water in the oven.

It is normal for the inside of

the oven door to look wavy

after the oven has been

running for a while.

DO NOT use newspaper or

other printed paper in the

oven. Fire could result.

DO NOT dry flowers,fruit,

herbs,wood, paper, gourds or

clothesinthe oven. Fireor

otherhazards may result.

General information

DO NOT try to melt

paraffin wax in the oven.

Fire or other hazards may

result.

If your electric power line

voltage is less than the nor-

mal 120 volts, cooking times

may be longer.

Totest a dish for safe use, put it

into the oven with a cup of water

beside it. Cook on high Cook

Power for one minute. If the

dish gets hot and water stays

cool, do not use it.

Installation instructions

BEFORE YOU BEGIN, READ THE FOLLOWING INSTRUCTIONS COMPLETELY AND CAREFULLY.

Installing your microwave oven

I. Empty the microwave oven and clean inside it

with a soft, damp cloth. Check for damage such

as misaligned door, damage around the door or

dents inside the oven or on the exterior. If there is

any damage, do not operate the unit until it has

been checked by an authorized trained service

technician and any repair made.

2. Put the oven on a cart, counter, table or shelf

that isstrong enough to hold the oven, the food

and the utensils you put in it. (The control slde ot

the unlt is the heavy side. Use care when han-

dling.) The weight of the oven is approximately

59 Ibs. (26.76 kg].

TOP

SIDE SIDE

3. Do not block the vent openings atthe

front of the oven or the air intake opening

on the bottom or rear of the oven. Blocking

vent or air intake openings can cause poor

cooking results.

Make sure the microwave oven legs are in

place. Do not set the oven on anything that

will block the air intake openings.

4. Do not install the oven next to a conven-

tional surface unit or in any area where

excessive heat and steam are generated.

This could damage the outside otthe cabinet.

5. Electrical requirements

Observe all governing codes and ordinances.

A120 Volt, 60 Hz.,AC only, 15or 20 amp fused electrical supply is required. [Time-

delay fuse is recommended.] It is recommended that a separate circuit serving only this

appliance be provided.

6.GROUNDING INSTRUCTIONS

WARNING:Improper use of the grounding plug can result in a risk of

electrical shock.

DO NOT, UNDER ANY CIRCUMSTANCES, REMOVE THE POWER

SUPPLY CORD GROUNDING PRONG.

7. For your personal safety, this appliance must

be grounded. In the event of an electrical short

circuit, grounding reduces the risk of electric

shock by providing an escape wire for the elec-

tric current. This appliance is equipped with a

3-PRONG

GROUNDING PLUG

3-PRONG

GROUNDING TYPE -.....

WALL RECEPTACLE

polarized 3-prong grounding plug. It must be

plugged into a correct polarized mating 3-

prong grounding type wall receptacle, prop-

erly installed and grounded in accordance

with the National Electrical Code and local

codes and ordinances. If a mating wall recep-

tacle is not available or if you are not sure if the

wall receptacle is properly grounded and po-

larized, have it checked by a qualified

electrician.

It isthe personal responsibility and obligation of

the customer to have a properly grounded and

correctly polarized 3-prong wall receptacle in-

stalled by a qualified electrician.

Consult a qualified electrician if the grounding

instructions are not completely understood, or if

doubt exists as to whether the appliance is

properly grounded.

It is NOT recommended to use an extension

cord with your microwave oven, but if you find

it necessary to do so temporarily (until a

properly grounded and polarized 3-prong

receptacle is installed), use only a heavy

duty UL listed 3-wire grounding type exten-

sion cord containing three 16-gauge (mini-

mum) copper wires. It must not be longer than

10 feet [cords longer than 10feet may affect the

cooking performance of your microwave

oven]. The plug on the extension cord must fit

into a 3-prong grounding type wall receptacle

[as shown on this page] and the receptacle

end of the extension cord must accept the 3-

prong grounding plug of the microwave oven.

o_ . ,

__8. Plug the oven-i into the proper elec-

_-__.Y trica! outlet and put about one cup

[250 mL] of cold water in a glass container in the

oven. Close the door. Make sure it latches. Fol-

low the directions on page 6 to set the oven to

COOK for "_/2minutes. When the time is up, the

water should be heated.

9. This microwave oven is designed for use in

the household only and must not be used for

commercial purposes.

DO NOT remove the outer case, door, or con-

trol panel at any time. The unit is equipped with

high voltage and should not be serviced unless

by an authorized Whirlpool trained service

technician.

SAVE THESE INSTRUCTIONS

Building in your microwave oven

Your microwave oven is not limited to carts, counters or tables. Custom installations are made

easy with kits available from your dealer.

t. Build the microwave oven into a cabinet or

wall by itself or over built-in single ovens in the

Whirlpool RDE.REE,RGE,RBand SB model series or

Imperial 7200 single gas ovens.

2. Attach the microwave oven to a wall by itself

or with cabinets over it.

3. Put the microwave oven on the MICRO SHELF_'

Hood over a cooktop. The hood is available

ducted or as a recirculating hood, and includes

cooktop lights

Ask your dealer for details on...

• 832987 - 30-inch Built-in Kit

• 832989 - 24-inch Built-in Kit

• 832991 - 27-inch Built-in Kit

• 832993 - Wall Mounting Kit

• RH3330XR - MICRO SHELF" Hood

Use only approved installation kits.

Obtain these kits from your authorized

Whirlpool dealer.

Caring for your microwave oven

Cleaning the microwave oven

Wipe often with warm sudsy

water and a soft cloth or

sponge

For stubborn soil, boil a cup

of water in the oven for 2 or 3

m_nutes. Steam will soften

the soil

Be sure to clean the areas

where the door and oven

frame touch when closed.

When cleaning surfaces of

door and oven that come to-

gether on closing the door,

use only mild, non-abrasive

soaps or detergents applied

with a sponge or soft cloth.

Rinse well.

Caution:

Abrasive cleansers, steel wool pads, gritty wash cloths, etc, can damage the control

panel, electronics, and the interior and exterior oven surfaces Use a soft cloth or a

sponge with a mild detergent or spray glass cleaner

Replacing the light bulb

The microwave oven light should come on whenever the door is opened or the oven is operating,

To replace:

LightBulb Cover

I. Unplug, or turn off at fuse box or circuit

breaker.

"_. Open the oven door.

3. Remove the 3 screws from the front of the

stirrer cover.

4. Pull down the front portion of the cover.

[It iscreased across its width to form a hinge.]

5. Replace bulb with a 25-watt candelabra

Case bulb [FSP313760]. Obtain bulb from

your authorized Whirlpool dealer.

6. Close the cover and replace the screws

7. Plug in, or turn on the main power supply.

How your microwave oven works

Microwave ovens are safe Microwave energy is NOt hot It causes food to make ffs own

heat, and it's this heat that cooks the food

Mode Mixer Magnetron

Oven Cavity

Ceramic Bottom

Y\Llel

% v

Metal Floor

Microwaves are like TV

waves or light waves You

can't see them but you can

see what they do

Microwaves pass through

glass, paper and plastic with-

out heating them so food ab-

sorbs the energy Microwaves

bounce off metal pans so

food does not absorb the

energy

A magnetron in the m_cro-

wave oven produces m_cro-

waves The m_crowaves

move into the oven where

they are scattered or stirred

by a mode mixer (like a fan).

Microwaves bounce off

The ceramic boMom of your

mJcrowave oven lets micro-

waves through Then they

bounce off a metal floor,

back through the ceramic

bottom and are absorbed

by the food.

metal oven wails and are

absorbed by food

Microwaves may not reach

the center of a roast The heat

around the outside _swhat

cooks the roast all the way

through This Jsone of the rea-

sons for letting some foods

[roasts, baked potatoes]

stand for a while after cook-

ing, or for stirring some foods

during the cooking time

The m_crowaves disturb

water molecules in the food.

As the molecules bounce

around bumping into each

other, heat is made, like rub-

bing your hands together.

This is the heat that cooks.

If you need service or assistance,

we suggest you follow these four steps:

1.Before calling for assistance...

Performance problems often result from little

things you can find and fix yourself without tools

of any kind

If nothing operates:

• Isthe power supply cord plugged into a live

circuit with the proper voltage? [See page 10),

• Have you checked your home's main fuses or

circuit breaker box?

• Have you checked the electric company for

a power failure?

If the microwave oven will not run:

• Is the Timer set "_

• Is the door firmly closed and latched')

• Did you push the STARTButton?

• Did you follow the directions on page 6

exactly?

If the microwave cooking times seem too

long:

• Is the electnc supply to your home low or

lower than normal "_ Your electric company

can tell you it the line voltage is low

• Is the Cook Power set correctly?

• Are you allowing for more time when cooking

more food at one time?

3. if you need service*...

Whirlpool has a

nationwide net-

_TECH-CARE ® serv-

ice Companies.

TECH-CARE service

technicians are

_-E_/'f-_,,4AL_" trained to fulfill the

FRANCHISED SERVICE product warranty

and provide after-

warranty service, anywhere in the United States.

To locate TECH-CARE service in your area, call

our COOL-LINE service assistance telephone

number [see Step 2) or look in your telephone

directory Yellow Pages under:

APPLIANCES- HOUSEHOLD -

MAJOR- SERVICE & REPAIR OR

WHIR LPOOL APPLIAN C ES

FRANCHISED TECH CARE S[RVICE

ELECTRICAL APPLIANCES-

MAJOR- REPAIRING & PARTS

WHIRLPOOL APPLIANCES

fRANCHISED TECH CARE SERVICE

SERVICE ['()_PA .=,,'/KS SERVICE COMPANIES

XYZ SERVICE CO XYZ SERVICE CO

123 Maple .......... 999-9999 123 Maple ........... 999-9999

WASHING MACHINES, DRYERS

& iRONERS- SERVICING

WHIRl POOL APPLIANCES

FRANCHISED TECH CARE SERVICE

SERVICE COMPANIES

XYZ SERVICE CO

123 Maple ........... 999 9999

2. If you need assistance*...

Call the Whirlpool COOL-LINE ®service as-

sistance telephone number. Dial free from:

Continental U.S.......... [800) 253-1301

Michigan ............... [800] 632-2243

Alaska & Hawaii ......... [800] 253-1121

and talk with one of our trained Consultants The

Consultant carl instruct you on how to obtain

satisfactory operation from your appliance or. _f

service _snecessary, recommend a qualified

service company in your area

FSP ,s a registered trademark

af Whirlpool Corporation for

quality parts Look for this

symbol of quahty whenever

you need a replacement part

for ,,,our WhirllDoOl appliance

FSP replacement paris

will fit right and work right, becausetney are

made to the sameexactmg specihcahons

used to budd ever',, new Whirlpool apphance

4. If you have a problem*...

Call our COOL-LINE service assistance tele-

phone number (see Step 2] and talk with one of

our Consultants, or if you prefer, write to:

Mr. Stephen E. Upton

Senior Vice President

Whirlpool Corporation

Administrative Center

2000 US-33 North

Benton Harbor, MI 49022

"If you must call or write, please provide: model

number, serial number, date of purchase, and a

complete description of the problem. This infor-

mation is needed in order to better respond to

your request for assistance,

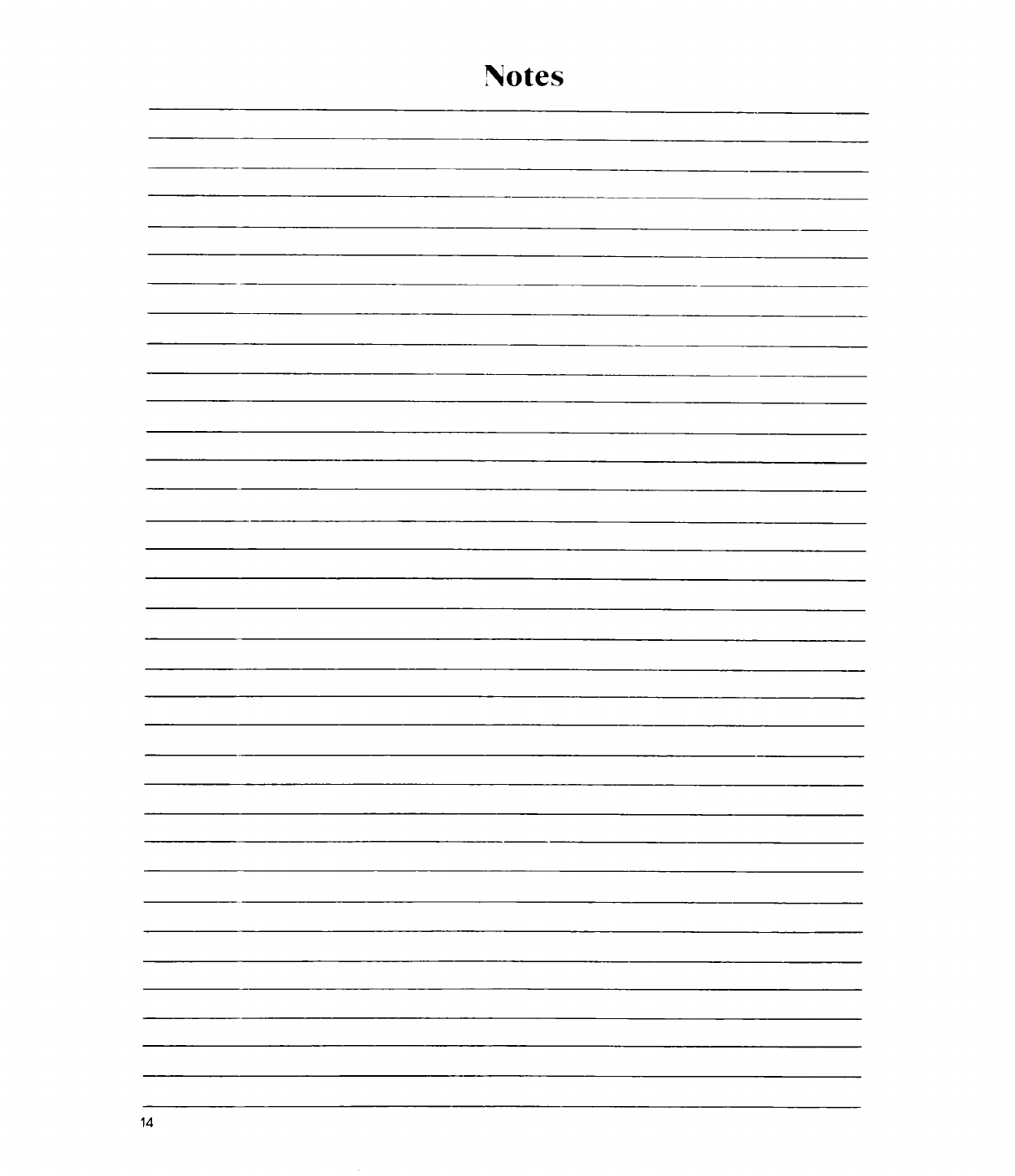

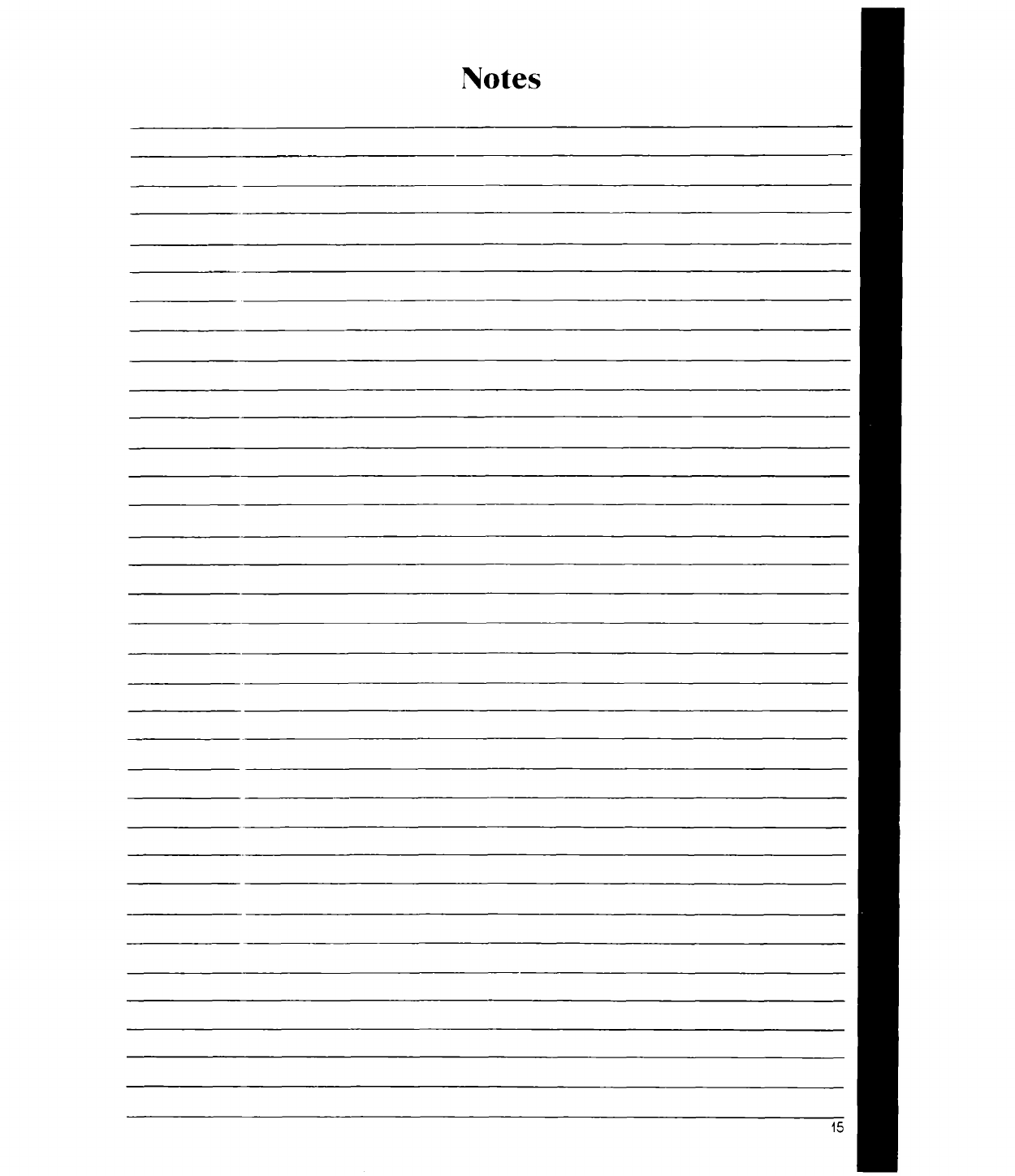

Notes

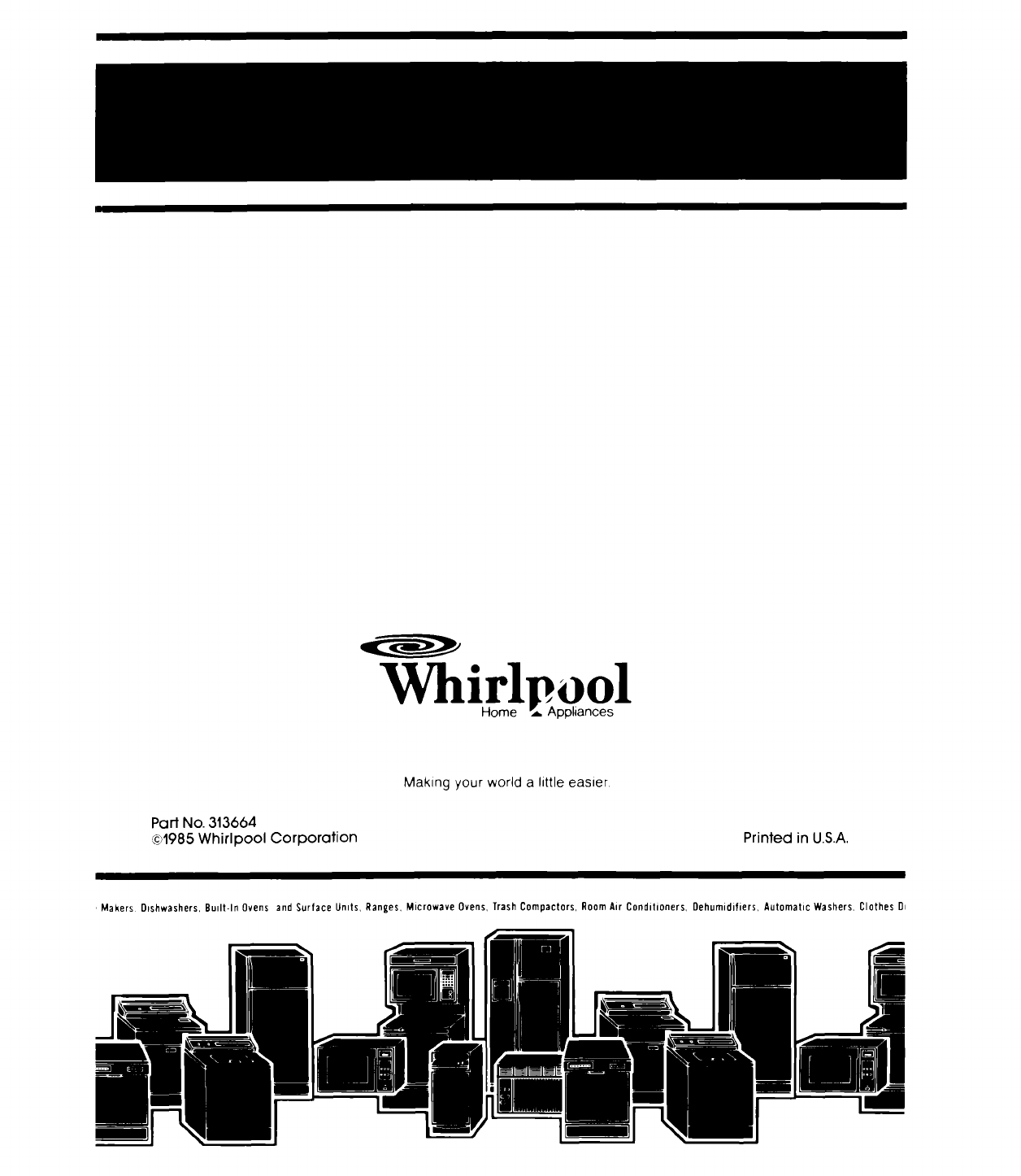

Whirlpool

Home A Appliances

Making your world a little easner

Part No. 313664

.,_b1985Whirlpool Corporation Printed in U.S.A.

Makers Opshwashers, Bullt-lnOvens and SurfaceUnnts, Ranges, Microwave Ovens,TrashCompactors, Room Air Conditioners, Dehumidifiers, Automatic Washers, Clothes DI

WHIRLPOOL Countertop Microwave Manual L0805112

Navigation menu

Versions of this User Manual:

Views

Navigation
