WINIA Electronics 7NF0018 DVD Recorder User Manual DVR065 GB
Dongbu Daewoo Electronics Corporation DVD Recorder DVR065 GB
Users Manual
DVD Recorder
DVD Recorder
DVR065
User Manual
DVR065(GB) 2006.1.16 1:55 PM ˘ ` A mac001 1200DPI 90LPI
i
Important Safeguards
Important Safeguards
CAUTION:
TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
The lightning flash with arrowhead symbol,
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
‘dangerous voltage‘ within the product’s
enclosure that may be of sufficient magnitude
to constitute a risk of electric shock.
The exclamation point within an equilateral triangle
is intended to alert the user to the presence of
important operating and servicing instructions in
the literature accompanying the appliance.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN
OR MOISTURE.
CAUTION
TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
ATTENTION
POUR ÉVITER LES CHOC ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE
DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.
WARNING:
Do not install this equipment in a confined space such as a bookcase or
similar unit.
NOTE TO CABLE/TV INSTALLER:
This reminder is provided to call the cable TV system installer’s attention to
Article 820-40 of the National Electric Code (U.S.A.). The code provides
guidelines for proper grounding and, in particular, specifies that the cable
ground shall be connected to the grounding system of the building, as close to the point of the cable entry as
practical.
CAUTION:
This DVD Recorder employs a Laser System. To ensure proper use of this product, please read this owner’s
manual carefully and retain for future reference. Should the DVD Recorder require maintenance, contact an
authorized service center. Use of controls, adjustments, or the performance of procedures other than those
specified herein may result in hazardous radiation exposure. To prevent direct exposure to laser beam, do not
try to open the enclosure. Visible laser radiation when open. DO NOT STARE INTO BEAM.
CAUTION:
The apparatus should not be exposed to water (dripping or splashing) and no objects filled with liquids, such as
vases, should be placed on the apparatus.
FCC WARNING:
This equipment may generate or use radio frequency energy. Changes or modifications to this equipment may
cause harmful interference unless the modifications are expressly approved in the instruction manual. The user
could lose the authority to operate this equipment if an unauthorized change or modification is made.
CLASS 1 LASER PRODUCT
KLASSE 1 LASER PRODUKT
LUOKAN 1 LASER LAITE
KLASS 1 LASER APPARAT
CLASSE 1 PRODUIT LASER
DVR065(GB) 2006.1.16 1:55 PM ˘ ` i mac001 1200DPI 90LPI
INTRODUCTION
ii
CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS IN THIS OWNER’S
MANUAL AND THOSE MARKED ON THE PRODUCT. RETAIN THIS MANUAL FOR FUTURE
REFERENCE.
This product has been designed and manufactured to assure personal safety. Improper use can result in
electric shock or fire hazard. The safeguards incorporated in this product will protect you if you observe the
following procedures for installation, use, and servicing.
This product does not contain any parts that can be repaired by the user.
DO NOT REMOVE THE CABINET COVER, OR YOU MAY BE EXPOSED TO DANGEROUS VOLTAGE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL ONLY.
IMPORTANT SAFETY INSTRUCTIONS
REGULATORY INFORMATION: FCC Part 15
This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference
when the product is operated in a residential installation. This product generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. If this product does cause harmful interference to radio or television reception, which can
be determined by turning the product off and on, the user is encouraged to try to correct the interference by one
or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the product and receiver.
- Connect the product into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC COMPLIANCE:
The responsible party for this product’s compliance is: GoVideo, 7835 East McClain Drive, Scottsdale, AZ
85260, USA.
SERIAL NUMBER:
The serial number is found on the back of the DVD Recorder. This number is for this unit only. You should record
requested information here and retain this guide as a permanent record of your purchase.
Model No. ___________________________________
Serial No. ___________________________________
1 Read these instructions.
All these safety and operating instructions
should be read before the product is operated.
2 Keep these instructions.
The safety, operating and use instructions should
be retained for future reference.
3 Heed all warnings.
All warnings on the product and in the operating
instructions should be adhered to.
4 Follow all instructions.
All operating and use instructions should be
followed.
Important Safeguards
DVR065(GB) 2006.1.16 1:55 PM ˘ ` ii mac001 1200DPI 90LPI
iii
5 Do not use this product near water.
For example: near a bath tub, wash bowl, kitchen
sink, laundry tub, in a wet basement; or near a
swimming pool; and other areas located near
water.
6 Clean only with dry cloth.
Unplug this product from the wall outlet before
cleaning. Do not use liquid cleaners.
7 Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
Slots and openings in the cabinet are provided
for ventilation and to ensure reliable operation of
the product and to protect it from overheating.
The openings should never be blocked by placing
the product on a bed, sofa, rug or other similar
surface. This product should not be placed in a
built-in installation such as a bookcase or rack
unless proper ventilation is provided or the
manufacturer’s instructions have been adhered
to.
8
Do not install near any heat sources such as
radiators, heat registers, stoves, or other
apparatuses (including amplifiers) that produce
heat.
9
Make sure that rating of your household
electricity supply matches that shown on the
back of your product.
10
Protect the power cord from being walked on or
pinched particularly at plugs, convenience
receptacles, and the point where they exit from
the product.
11
Only use attachments/accessories specified by
the manufacturer.
12
Use only with the cart, stand,
tripod, bracket, or table specified
by the manufacturer, or sold with
apparatus. When a cart is used,
use caution when moving the
cart/ product combination to avoid injury from
tip-over.
13
Unplug this product during lightning storms or
when unused for long periods of time.
14
Refer all servicing to qualified service personnel.
Servicing is required when the product has been
damaged in any way, such as: Power-supply cord
or plug is damaged; liquid has been spilled or
objects have fallen into the product; the product
has been exposed to rain or moisture, does not
operate normally, or has been dropped.
15
Do not connect the product to the power supply
if you have just moved it from a cold environment
to a warm room. This can lead to condensation
inside the product, which can damage it. Wait
for approximately 2 hrs for it to reach room
temperature.
16
Make sure the product is placed at least 4 inches
(10 cm) apart from other home appliances or
obstacles to ensure sufficient ventilation.
17
This product is designed to work continuously.
Switching if off does not disconnect if from the
power outlet. To disconnect if from the power
outlet you have to unplug it.
18
The disconnect device shall remain readily
operable.
Important Safeguards
DVR065(GB) 2006.1.16 1:55 PM ˘ ` iii mac001 1200DPI 90LPI
INTRODUCTION
1
Important Safeguards _________________________i
Table of Contents ______________________________1
Overview ______________________________________2
Identification of Controls_______________________6
INTRODUCTION
Connecting Antenna/Cable ____________________11
Connecting a TV _______________________________12
Connecting an Amplifier/Receiver _____________13
Connecting Optional Equipment ______________14
Connecting a Digital Camcorder ______________14
CONNECTIONS
Initial Installation ______________________________15
Initial Setup____________________________________17
Setup Menu Overview 17
INSTALLATION Settings 17
RECORDING OPTIONS Settings 20
LANGUAGE Settings 21
PREFERENCE / Video Settings 22
PREFERENCE / Audio Settings 23
PREFERENCE / Parental Controls 24
Various PREFERENCE Settings 26
System Information 27
Restore Defaults 27
On-Screen Display Overview __________________28
SETUP
DVD Playback _________________________________31
Other Disc Playback __________________________35
PLAYBACK
Basic Recording________________________________37
Recording from TV 37
One Touch Record (OTR) 38
Checking the Recording Time 38
To Pause the Recording 38
Timer Recording _______________________________39
Recording from an External Input _____________41
RECORDING
Title Menu _____________________________________46
DISC EDIT
Disc Initialize __________________________________43
Disc Operation in DVD±RW disc _______________43
Disc Operation in DVD±R, DVD-RW disc _______45
DISC OPERATION
Troubleshooting _______________________________49
Technical Specifications ________________________52
REFERENCE
Table of Contents
Table of Contents
DVR065(GB) 2006.1.16 1:55 PM ˘ ` 1 mac001 1200DPI 90LPI
2
Overview
Overview

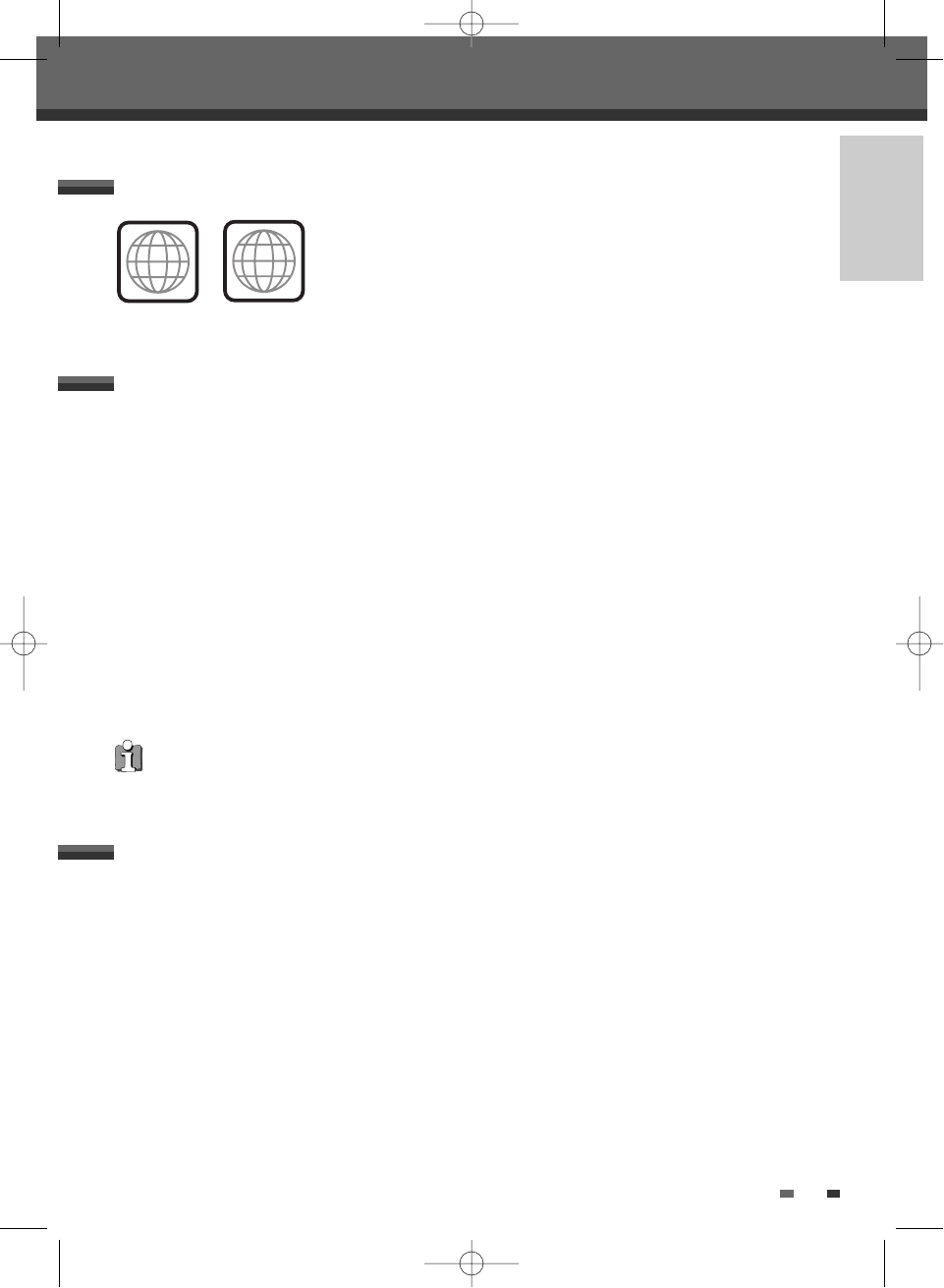

DVD, DVD+R, DVD+RW?
What is a DVD?
DVD (Digital Versatile Disc) is a storage medium that combines the convenience of the compact disc with the
latest digital video technology. DVD video uses modern MPEG2 data compression technology that enables an
entire feature film to be stored on a single five inch disc.
How good is the resolution of DVD compared with VHS?
The razor-sharp digital images have more than 500 lines of resolution at 720 pixels per line. This is more than
twice as high as VHS and even better than laser disc quality. DVD picture quality is easily comparable to the
digital masters produced in recording studios.
What is a DVD+RW?
DVD+ReWritable uses ‘phase change‘ media, the same technology on which rewritable CDs are based. A high-
performance laser is used to change the reflective properties of the recording layer; this process can be
repeated more than a thousand times.
What is a DVD+R?
Unlike a DVD+RW disc, a DVD+R (write-once DVD) can only be written to once. If it is not finalized after a
recording, further recordings can be added to it. Old recordings can be deleted but they can no longer be
overwritten. The deleted recordings (titles) are marked 'deleted title'.
Before a DVD+R can be played in a DVD player, it must be finalized in the DVD Recorder. Once this process is
complete, no further recordings can be added.
What can I do with my DVD Recorder?
Your DVD Recorder is a machine for recording and playing back digital video discs with ‘two-way‘ compatibility
with the universal DVD video standard. This means:
• existing DVD video discs can be played on the recorder.
• recordings made on your DVD Recorder can be played on other DVD video players and DVD-ROM drives.
Dual Media
Supporting Disc
±RW / ±R
Recording Format
±Disc + VR format
Finalize
-RW, -R, +R
After finalize other DVD playback
All disc can playback
Consumer
Does not need selection (recording format)
Remark :
A DVD Recorder that supports ‘dual media’ recording allows DVD+RW format recording (+VR) on either DVD-R,
DVD-RW, DVD+R or DVD+RW media. Any editing feature that is available with the +RW logical format is
available on any of the media types. This system allows the flexibility for the consumer to use any of the above
media formats for recording in the same system. Since the +VR format is DVD-Video compatible, the consumer
can take any disk recorded on this platform and should be capable of playing it back on the majority of DVD
players on the market.
DVR065(GB) 2006.1.16 1:55 PM ˘ ` 2 mac001 1200DPI 90LPI
INTRODUCTION
3
Disc-related Terms
Title (DVD only)
The main film, accompanying feature content, or music album. Each title is assigned a title reference number
enabling you to locate it easily.
Chapter (DVD only)
Sections of a movie or a musical piece that are smaller than titles. A title is composed of one or several
chapters. Each chapter is assigned a number to enable you to easily locate the chapter you want. Depending on
the disc, chapters may not be labeled.
Track (Audio CD only)
Sections of a movie or a musical piece on an audio CD. Each track is assigned a number, enabling you to easily
locate the track you want.
Which discs you can use
The following discs can be used in your DVD Recorder:
Playback and recording
DVD+RW (Digital Versatile Disc + ReWritable)
DVD-RW (DVD-Rerecordable)
DVD+R (Digital Versatile Disc + Write-Once)
DVD-R (DVD-Recordable)
Playback only
DVD Video (Digital Versatile Disc)
Audio CD (Compact Disc Digital Audio)
CD-R (CD recordable) Audio/ CD-RW (CD rewritable) Audio
Video Format : JPEG
Audio Format : CDDA / MP3
Not all recordable CDs may be played by your player.
Regional code
If the region number on your DVD disc does not correspond to the region
number of this player, the disc cannot be played.
1
ALL
Overview
DVR065(GB) 2006.1.16 1:55 PM ˘ ` 3 mac001 1200DPI 90LPI
4
Overview
Notes on Recording
• The recording times shown are not exact because the DVD Recorder uses variable bit-rate video
compression. This means that the exact recording time will depend on the material being recorded.
• When recording a TV broadcast, if the reception is poor or the picture contains interference, the recording
times may be shorter.
• Discs recorded at high speeds (equal to or greater than 2X) may not be recognized.
• If you record still pictures or audio only, the recording time may be longer.
• The displayed times for recording and time remaining may not always add up to the exact length of the
disc.
• The available recording time may decrease if you heavily edit a disc.
• When using a DVD+R disc, you can keep recording until the disc is full, or until you finalize the disc. Before
you start a recording session, check the amount of recording time left on the disc.
Recording TV Audio Channels
The DVD Recorder can record one or two channel audio. For TV broadcasts, this usually means mono or stereo,
but some programs are broadcast with a main and a SAP (Secondary Audio Program) audio channel. You can
record either the main audio or the SAP audio.
Restrictions on Video Recording
• You cannot record copy-protected video using this DVD Recorder. Copy-protected video includes DVD-Video
discs and some satellite broadcasts. If copy-protected material is encountered during a recording, recording
will pause or stop automatically and an error message will be displayed on-screen.
• Video that is ‘copy-once only’ can only be recorded using DVD+RW discs with CPRM.
Copyright Notice
• Audio and video recordings you make using the DVD Recorder are for your personal use only. You may not
sell, lend, or rent them to other people.
• This product incorporates copyright protection technology that is protected by method claims of certain
U.S.patents and other intellectual property rights owned by Macrovision Corporation and other rights
owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is
intended for home and other limited viewing uses only unless otherwise authorized by Macrovision
corporation. Reverse engineering or disassembly is prohibited.
Handling the Unit
When shipping the unit
The original shipping carton and packing materials come in handy. For maximum protection, re-pack the
unit as it was originally packaged at the factory.
When setting up the unit
The picture and sound of a nearby TV, VCR, or radio may be distorted during playback. In this case, position
the unit away from the TV, VCR, or radio, or turn off the unit after removing the disc.
To keep the surface clean
Do not use volatile liquids, such as insecticide spray, near the unit. Do not leave rubber or plastic products
in contact with the unit for a long period of time. They will leave marks on the surface.
Precautions
About DVD Recording
DVR065(GB) 2006.1.16 1:55 PM ˘ ` 4 mac001 1200DPI 90LPI
INTRODUCTION
5
Cleaning the Unit
To clean the cabinet
Use a soft, dry cloth. If the surfaces are extremely dirty, use a soft cloth lightly moistened with a mild
detergent solution. Do not use strong solvents such as alcohol, benzine, or thinner, as these might damage
the surface of the unit.
To obtain a clear picture
The DVD Recorder is a high-tech, precision device. If the optical pick-up lens and disc drive parts are dirty
or worn, the picture quality will be poor. Regular inspection and maintenance are recommended after every
1,000 hours of use. (This depends on the operating environment.) For details, please contact your nearest
dealer.
Remote Control Operation Range
Point the remote control at the remote sensor and press the buttons.
Distance: Within 23 ft (7 m) of the remote sensor.
Angle: Within 30° in each direction of the remote sensor.

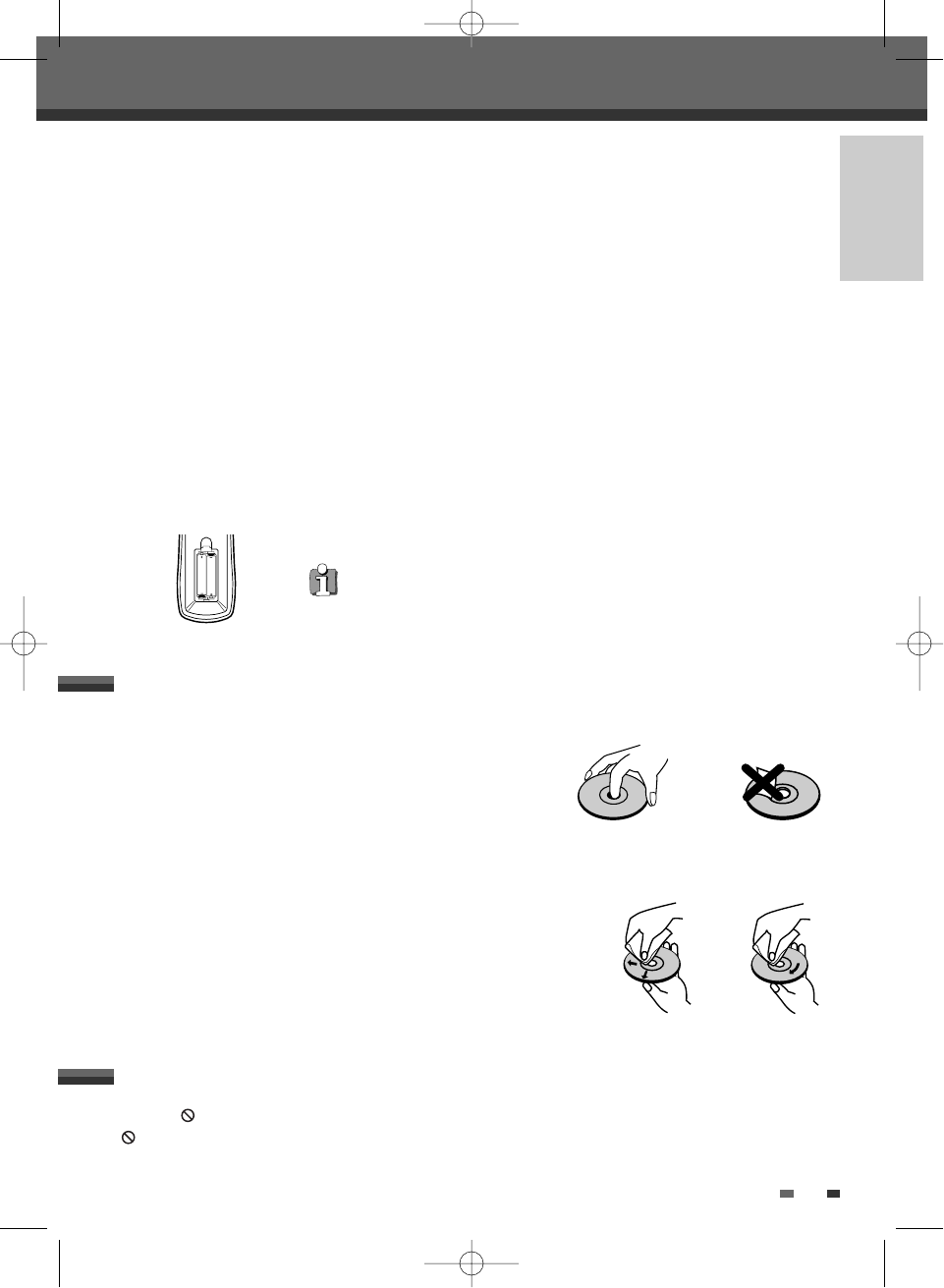

Remote Control Battery Installation
Detach the battery cover on the rear of the remote control, and insert two AAA
batteries. Make sure the polarities (+ and -) are aligned correctly.
AAA
AAA
Caution
Do not mix old and new batteries. Never mix different types of batteries (standard,
alkaline, etc.).
Handling Discs
Do not touch the playback side of the disc. Hold the disc by the edges
so that fingerprints will not get on the surface. Do not stick paper or
tape on the disc.
Storing Discs
After playing, store the disc in its case.
Do not expose the disc to direct sunlight or sources of heat, or leave it in a parked car exposed to direct
sunlight, as there may be a considerable temperature increase inside the car.
Cleaning Discs
Fingerprints and dust on the disc can cause poor picture quality and
sound distortion. Before playing, clean the disc with a clean cloth.
Wipe the disc from the center outward.
Do not use strong solvents such as alcohol, benzine, thinner,
commercially available cleaners, or anti-static spray intended for older
vinyl records.
Notes on Discs
About the Symbol
‘ ‘ may appear on the TV screen during operation. This icon means the function explained in this User's Guide
is not available on that specific disc.
About Symbols
NoYes
Overview
DVR065(GB) 2006.1.16 1:55 PM ˘ ` 5 mac001 1200DPI 90LPI
6

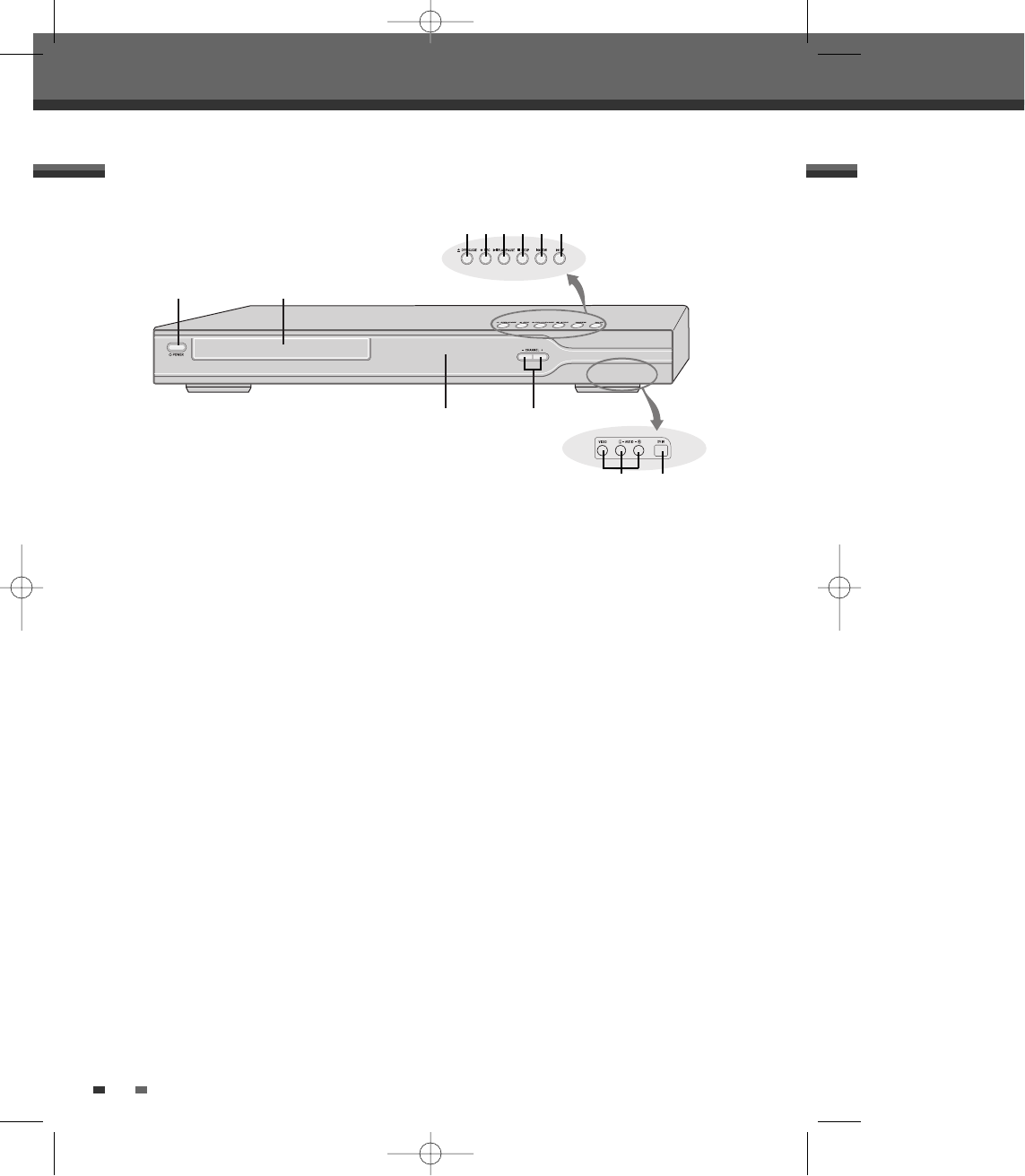

Front Panel
!
POWER (STANDBY/ON)
Turns the DVD Recorder on and off.
@
Disc Tray (DVD deck)
Insert a disc here.
#
Front Panel Display
Shows the current status of the DVD Recorder.
$
CH+/–
Scans up or down through memorized channels.
Also moves up and down in DVD navigation
menus.
%
OPEN/CLOSE
Opens or closes the disc tray.
^
REC
Starts recording. Press repeatedly to set the
recording time.
&
PLAY/PAUSE
Starts playback of a disc. Pauses playback or
recording temporarily.
*
STOP
Stops playback.
(
PREV
Skips to previous chapter.
)
NEXT
Skips to next chapter.
1
LINE1 (VIDEO, L-AUDIO-R)
Connects to the audio/video output of an external
source (VCR, Camcorder, etc.).
2
DV IN
Connects to the DV output of an external source
(VCR, Camcorder, etc.).
! @
# $
Identification of Controls
Identification of Controls
12
%^&*()
DVR065(GB) 2006.1.16 1:55 PM ˘ ` 6 mac001 1200DPI 90LPI
INTRODUCTION
7

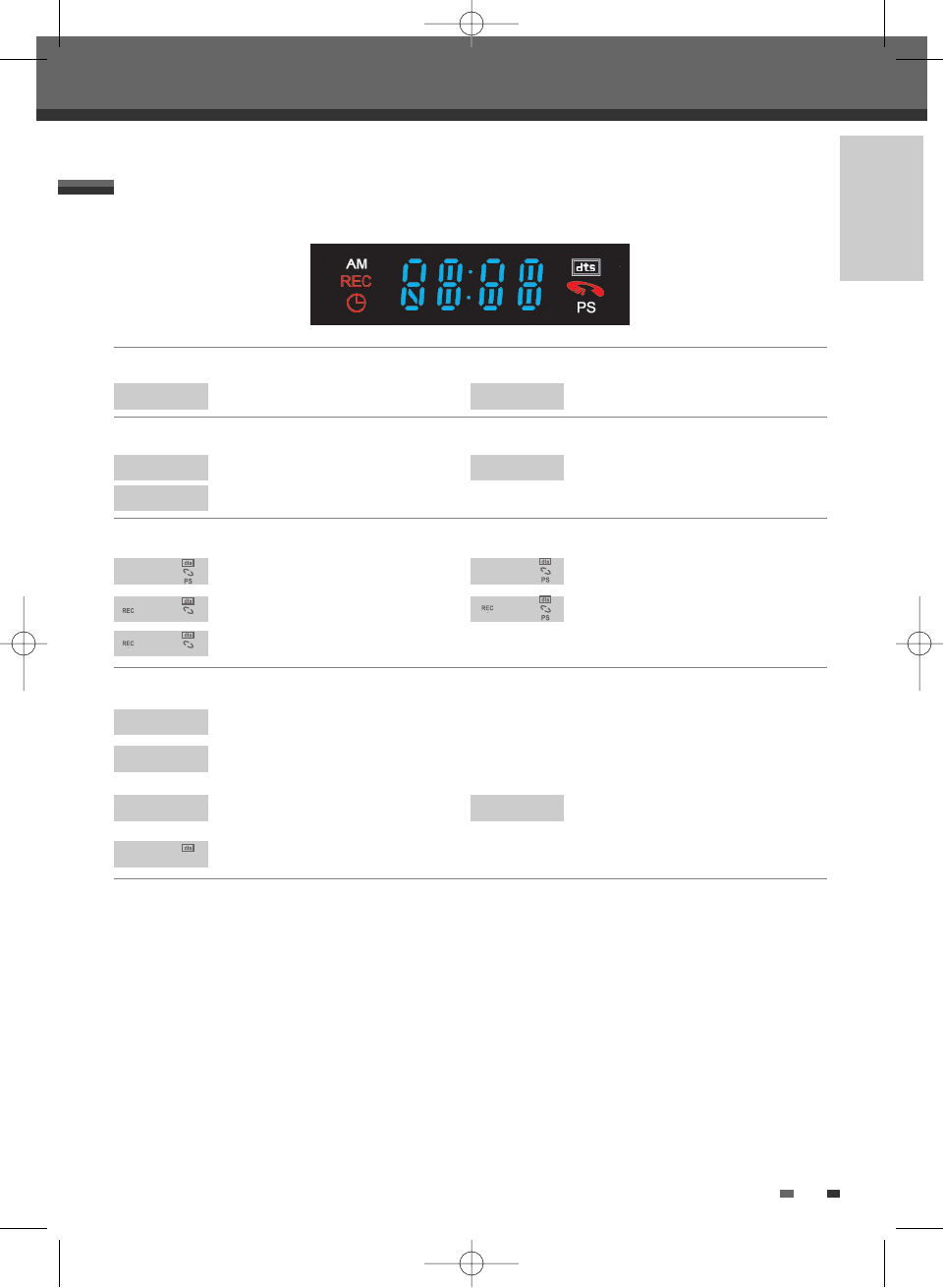

Front Panel Display
Channel
Identification of Controls
CH23
TV Channel
C123
CATV Channel
Input mode
AW-1
AV1 input
AW-2
AV2 input
DW
DV input
Recording on disc
11:15
Indicates a DVD Timer recording is set.
11:15
Indicates a DVD Timer Recording is in
standby mode.
11:15
Indicates the DVD is recording.
Indicates the dts title is playing.
RECP
Recording Pause mode
0:30
OTR Recording mode
Others
SAFE
Indicates when the DVD Recorder is locked.
TW
Indicates the DVD Recorder is in TV mode (set by [TV/DVD] button).
I-S
Indicates when the DVD Recorder+
VCR is outputting the video signal in
Interlaced Scan mode.
P-S
Indicates when the DVD Recorder+ VCR
is outputting the video signal in
Progressive Scan mode.
DVR065(GB) 2006.1.16 1:55 PM ˘ ` 7 mac001 1200DPI 90LPI
Starts recording. Press repeatedly to set the recording time. For more
details, Refer to One Touch Record (OTR) on page 39.
- Starts playback.
- Pauses playback or recording temporarily. Press again to exit Pause mode.
Stops playback or recording.
Selects Recording mode: - Approx 1 Hour (HQ mode), 2 Hours (SP mode), 4
Hours (EP mode), 8 Hours (SEP mode)
Repeats the current chapter, track, title or the entire disc.
Repeats playback between two points (A and B).
8
Identification of Controls

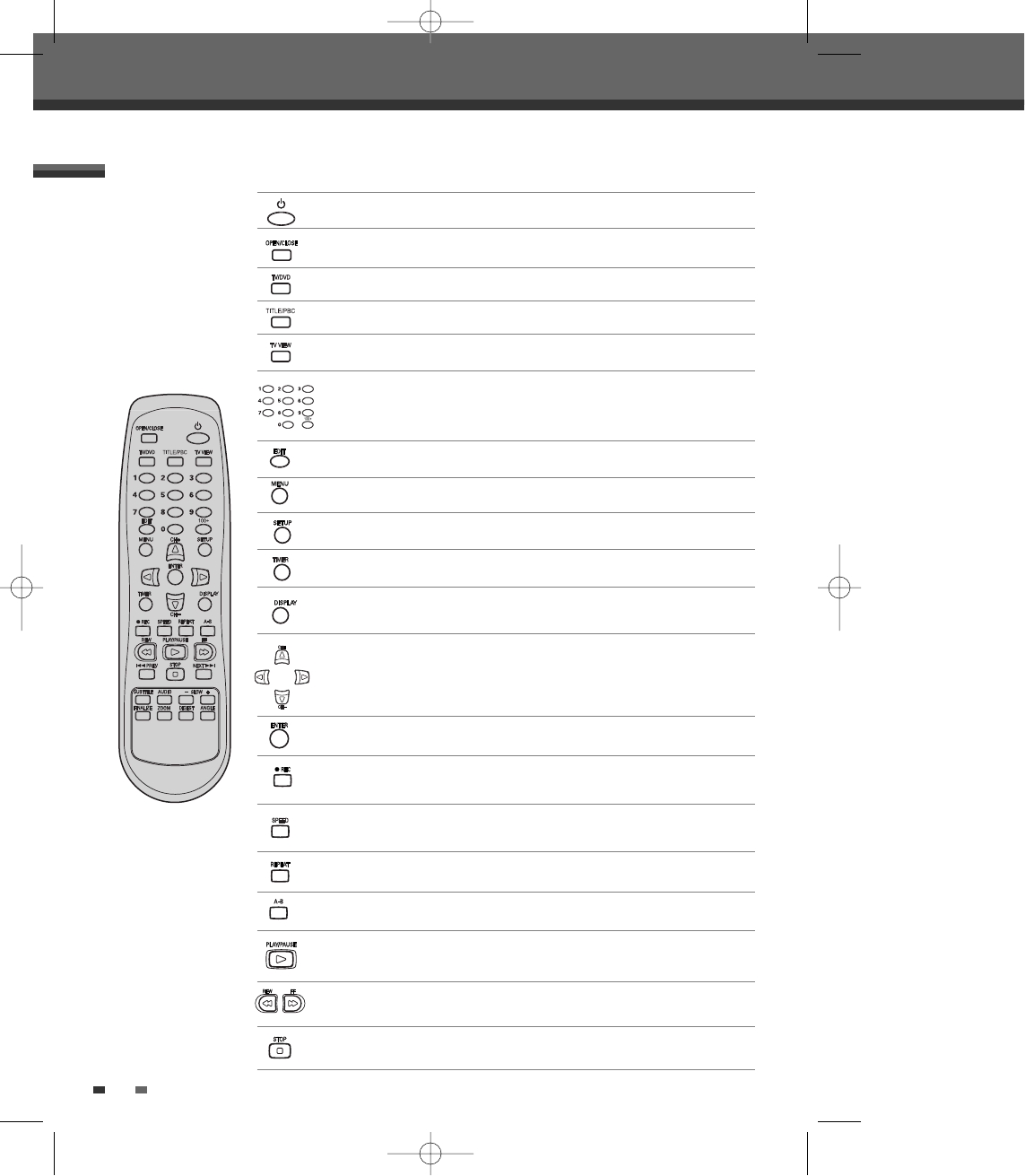

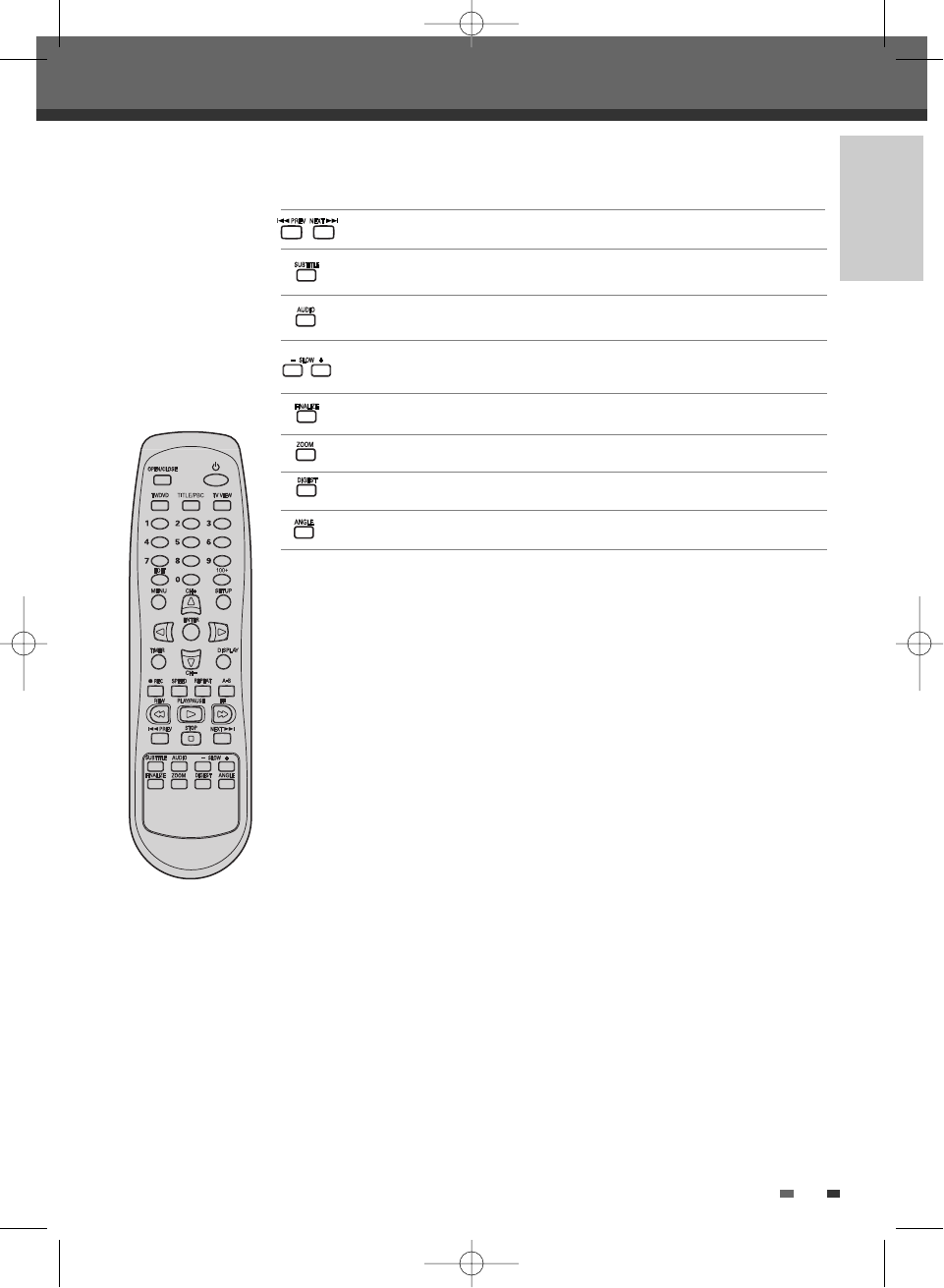

Remote Control
Turns the DVD Recorder on and off.
Opens and closes the disc tray in DVD mode.
Switches the DVD Recorder input to TV tuner, Line 1, Line 2, or DV.
Displays a disc’s Title menu, if available.
Switches between the DVD Recorder tuner and your TV tuner.
Displays or exits the Setup menu.
Displays information about the currently loaded disc or TV channel.
Displays the Timer Recording menu.
Confirms menu selections.
- œ √…† : Selects menu options.
- CH(+/–) : Selects channels.
Accesses DVD disc menus.
Displays the edit menu for DVD+RW/+R discs or sets a chapter marker.
- Selects numbered options in menus.
- Selects TV channels.
- Manually adjust tracking.
Searches backward/forward.
DVR065(GB) 2006.1.17 10:25 AM ˘ ` 8 mac001 1200DPI 90LPI
INTRODUCTION
9
Displays the digest menu for DVD+RW/+R discs.
Selects an audio language (DVD), audio channel (CD) or audio type (TV).
Selects a DVD camera angle, if available.
Selects a subtitle language, if available.
Displays the finalize menu for DVD+R discs.
Enlarges the DVD video image.
Increases or decreases the slow motion speed when playing a DVD.
Identification of Controls
Skips to the next or previous chapter/track.
DVR065(GB) 2006.1.16 1:55 PM ˘ ` 9 mac001 1200DPI 90LPI
10
!

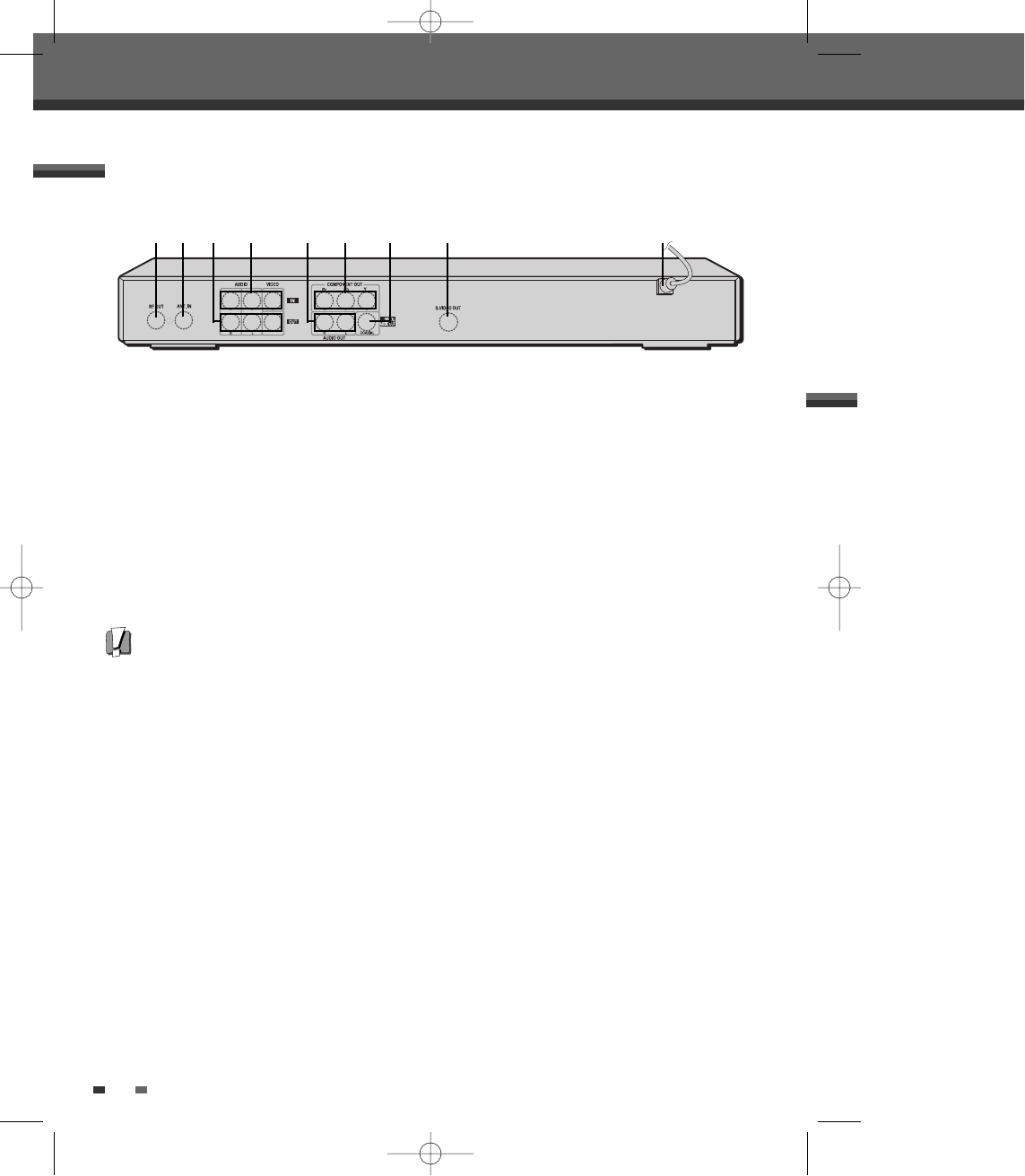

RF OUT (TO TV)
Connect to a TV with an RF coaxial input.
@
RF IN (FROM ANT.)
Connect to your antenna or cable TV outlet.
#

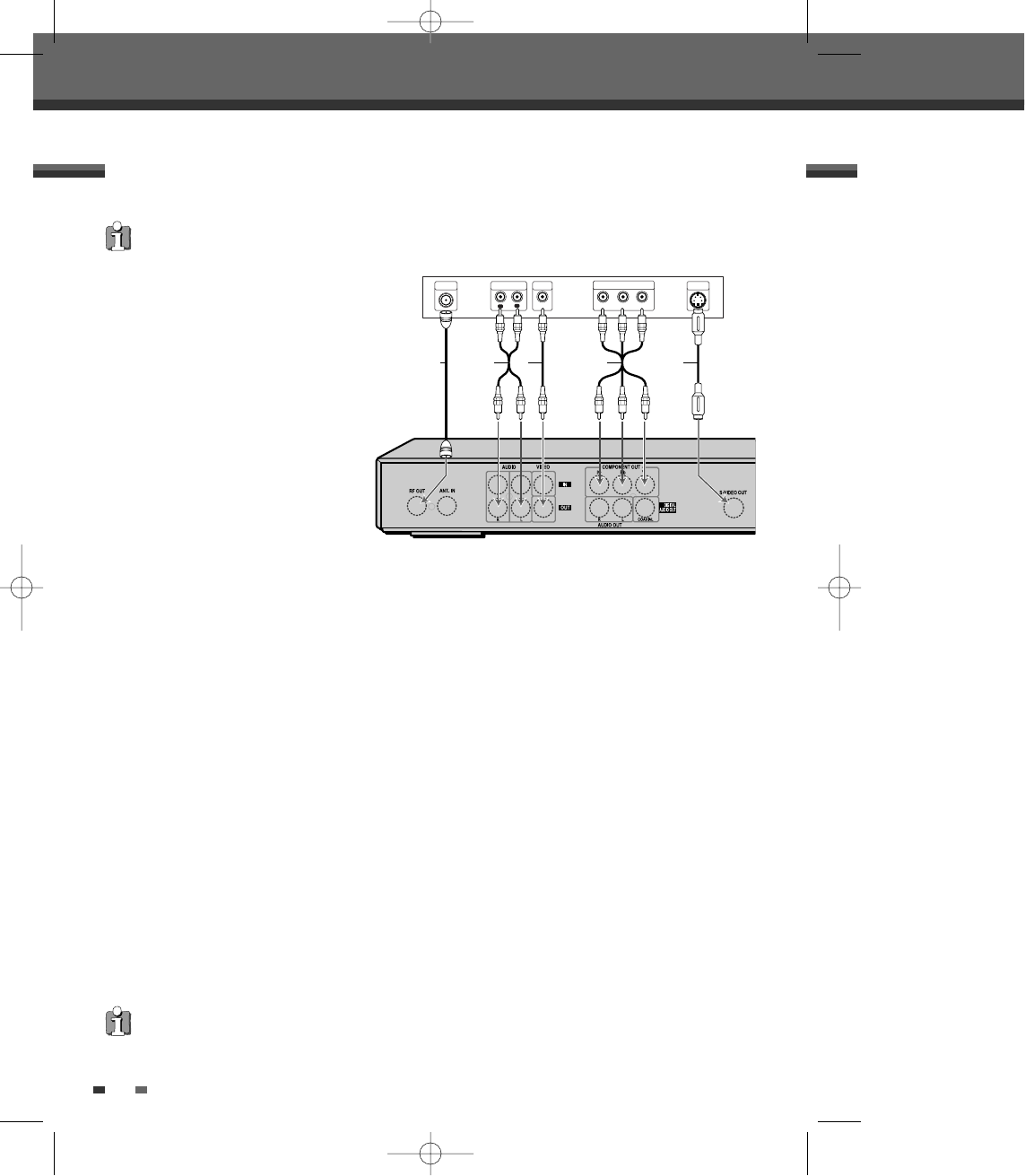

AV OUT (VIDEO, L-AUDIO-R)
Connect to a TV with video and audio inputs.
$
LINE2 (VIDEO, L-AUDIO-R)
Connect to the audio/video outputs of an external
source (VCR, Camcorder, etc.).
%
AUDIO OUT (L-AUDIO-R)
Connect to other equipment with audio inputs.
^
COMPONENT/PROGRESSIVE VIDEO OUT (Y Pb Pr)
Connect to a TV with Component Video (Y Pb Pr)
inputs.
&
COAXIAL (Digital Audio Out)
Connect to an amplifier with a coaxial digital
audio input.
*
S-VIDEO OUT
Connect to a TV with an S-Video Input.
(
AC Power Cord
Plug into a power outlet.
Rear panel
Identification of Controls
! @ * ($
Caution
Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause permanent damage to
the DVD Recorder.
# ^% &
DVR065(GB) 2006.1.16 1:55 PM ˘ ` 10 mac001 1200DPI 90LPI
INTRODUCTION
11

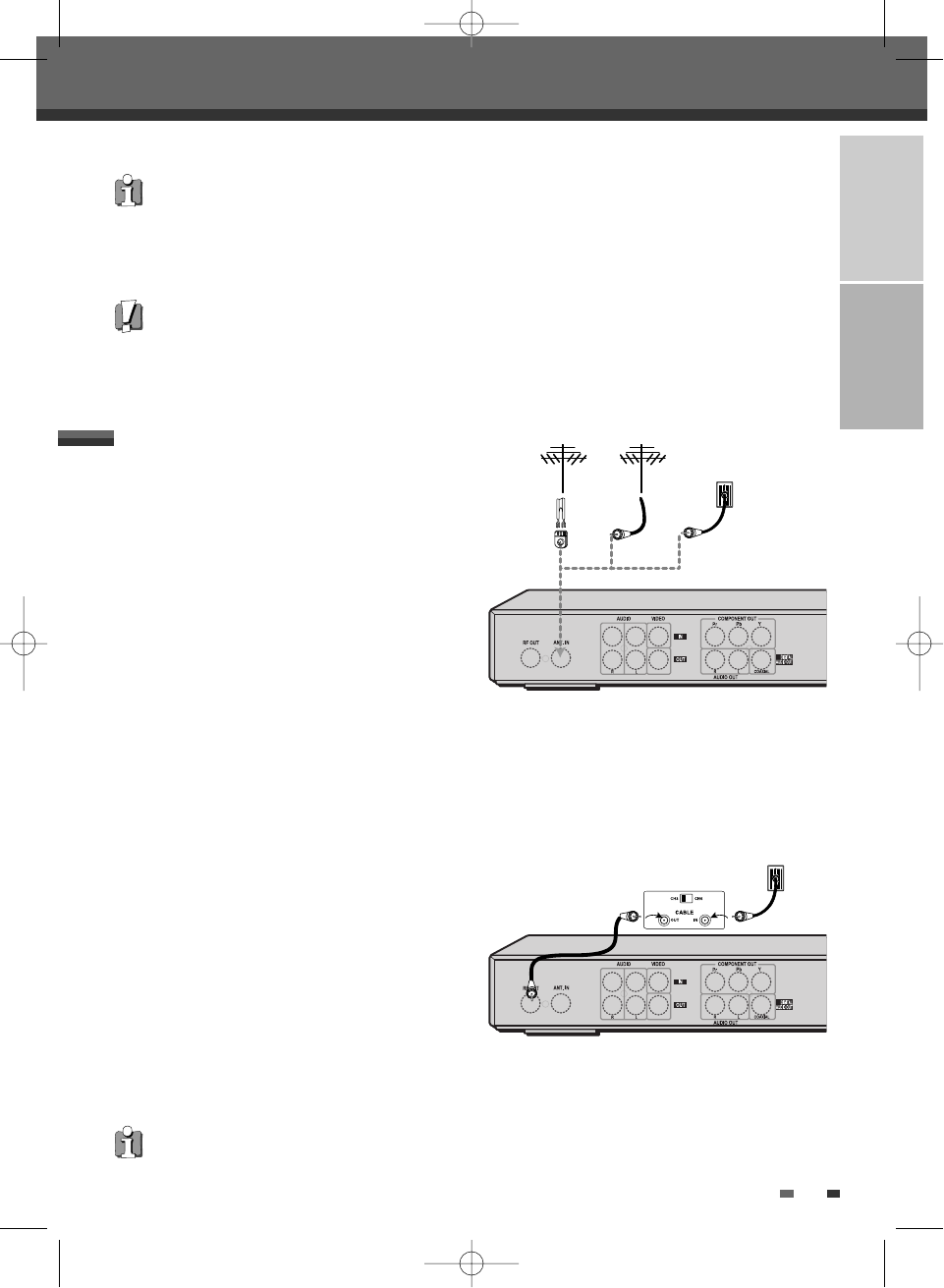

Connecting Antenna/Cable
CONNECTIONS
1
Disconnect the antenna/cable from the rear of
your TV.
2
Connect this cable to the jack marked ANT IN
(FROM ANT.) on the rear panel of the DVD
Recorder.
Cable Service Without Cable Box
If your cable wire is connected to your TV without a converter or descrambler box, unscrew the wire from your
TV and attach it to the ANT IN (FROM ANT.) jack on the rear panel of the DVD Recorder.
Use the supplied coaxial cable to connect between the DVD Recorder’s OUT (TO TV) jack and the antenna input
jack on your TV. With this connection, you can receive
all midband, superband, and hyperband channels (all
cable channels).
Cable Service With Cable Box
If a cable box is required in your cable system, follow
the instructions shown at right. This hookup permits
both TV and DVD Recorder operation.
To view or record a CATV channel:
1
Tune the TV to the correct video input channel.
2
Set the DVD Recorder to the output channel of the
cable box using the [CH …/†] or the [0-9] buttons on your DVD Recorder (e.g., CH3).
3
Select the channel you wish to view on the cable box.
• There are a variety of ways to connect the DVD Recorder to your TV and other equipment. Use only one of the
connections described below. Whichever TV connection you use will work with all input sources.
• Please refer to the manuals for your TV, VCR, stereo system, or other devices as necessary to make the best
connections.
• For better sound reproduction, connect the DVD Recorder’s AUDIO OUT jacks to the audio in jacks of your
amplifier, receiver, stereo, or audio/video equipment. See ‘Connecting an Amplifier/Receiver‘ on page 13.
If you are using a cable box to tune channels, it is not necessary to run Auto Channel Search as indicated on page 18.
Caution
• Make sure the DVD Recorder is connected directly to the TV, and the TV is set to the correct video input.
• Do not connect the DVD Recorder’s AUDIO OUT jack to the phono in jack (record deck) of your audio system.
• Do not connect the DVD Recorder via your VCR. The DVD image could be distorted by the copy protection system.
Connections
Connections
Antenna Antenna
Flat Wire
(300 ohm)
300/75 ohm
Adaptor
(Not supplied)
Cable TV
Wall Jack
OR OR
Rear of DVD Recorder
Rear of DVD Recorder
Cable TV
Wall Jack
Back Panel of
Typical Cable Box
DVR065(GB) 2006.1.16 1:55 PM ˘ ` 11 mac001 1200DPI 90LPI
12
Progressive Scan Connection
• If your television is a high-definition or ‘digital ready‘ television, you may take advantage of the DVD
Recorder’s Progressive Scan output for the highest video resolution possible.
• If your TV does not accept the Progressive Scan format, the picture will appear scrambled.
1
Connect the COMPONENT/PROGRESSIVE VIDEO OUT jacks on the DVD Recorder to the corresponding in
jacks on your TV using an optional Y Pb Pr cable (C).
2
Connect the Left and Right AUDIO OUT jacks from the DVD Recorder to the left/right audio in jacks on your
TV using the supplied audio cables (A).
Choose one of the following TV connections, depending on the capabilities of your equipment.
RF Coaxial Connection
Connect the RF OUT (TO TV) jack on the DVD
Recorder to the antenna in jack on your TV
using the supplied coaxial cable (R). If you
use this connection, tune your TV to the DVD
Recorder’s RF output channel (CH 3 or 4).
How to set the DVD Recorder’s RF output
channel
Press [SETUP] and select Installation ➝
Modulator Out to change the RF out channel.
For details refer to page 18.
Audio/Video Connection
1
Connect the VIDEO OUT jack on the DVD
Recorder to the video in jack on your TV
using the supplied video cable (V).
2
Connect the Left and Right AUDIO OUT jacks from the DVD Recorder to the left/right audio in jacks on your
TV using the supplied audio cables (A).
S-Video Connection
1
Connect the S-VIDEO OUT jack on the DVD Recorder to the S-Video in jack on your TV using an S-Video
cable (S).
2
Connect the Left and Right AUDIO OUT jacks from the DVD Recorder to the left/right audio in jacks on your
TV using the supplied audio cables (A).
Component Video Connection
1
Connect the COMPONENT/PROGRESSIVE VIDEO OUT jacks on the DVD Recorder to the corresponding input
jacks on your TV using a Y Pb Pr cable (C) if the Component Video jacks (Y, Pb, Pr) are available on your TV.
2
Connect the Left and Right AUDIO OUT jacks from the DVD Recorder to the left/right audio in jacks on your
TV using the supplied audio cables (A).
Connecting a TV
Connections
All video signals are available from all video outputs.
That means that whichever TV connection you use, it will
work with all input sources, including VHS out of the Component/Progressive Video Output.
• Be sure to set the DVD Recorder to Progressive Scan mode by pressing and holding [P.SCAN] for 3 seconds (or
changing the Scan Mode in the Setup Menu; see page 21).
• Progressive Scan does not work with the RF, Audio/Video or S-Video connections.
ANTENNA
INPUT
L
R
Y
Pb
Pr
COMPONENT/PROGRESSIVE VIDEO INPUT
AUDIO INPUT VIDEO
INPUT
S-VIDEO
INPUT
Rear of TV
RSA V C
Rear of DVD Recorder
DVR065(GB) 2006.1.16 1:55 PM ˘ ` 12 mac001 1200DPI 90LPI
CONNECTIONS
13

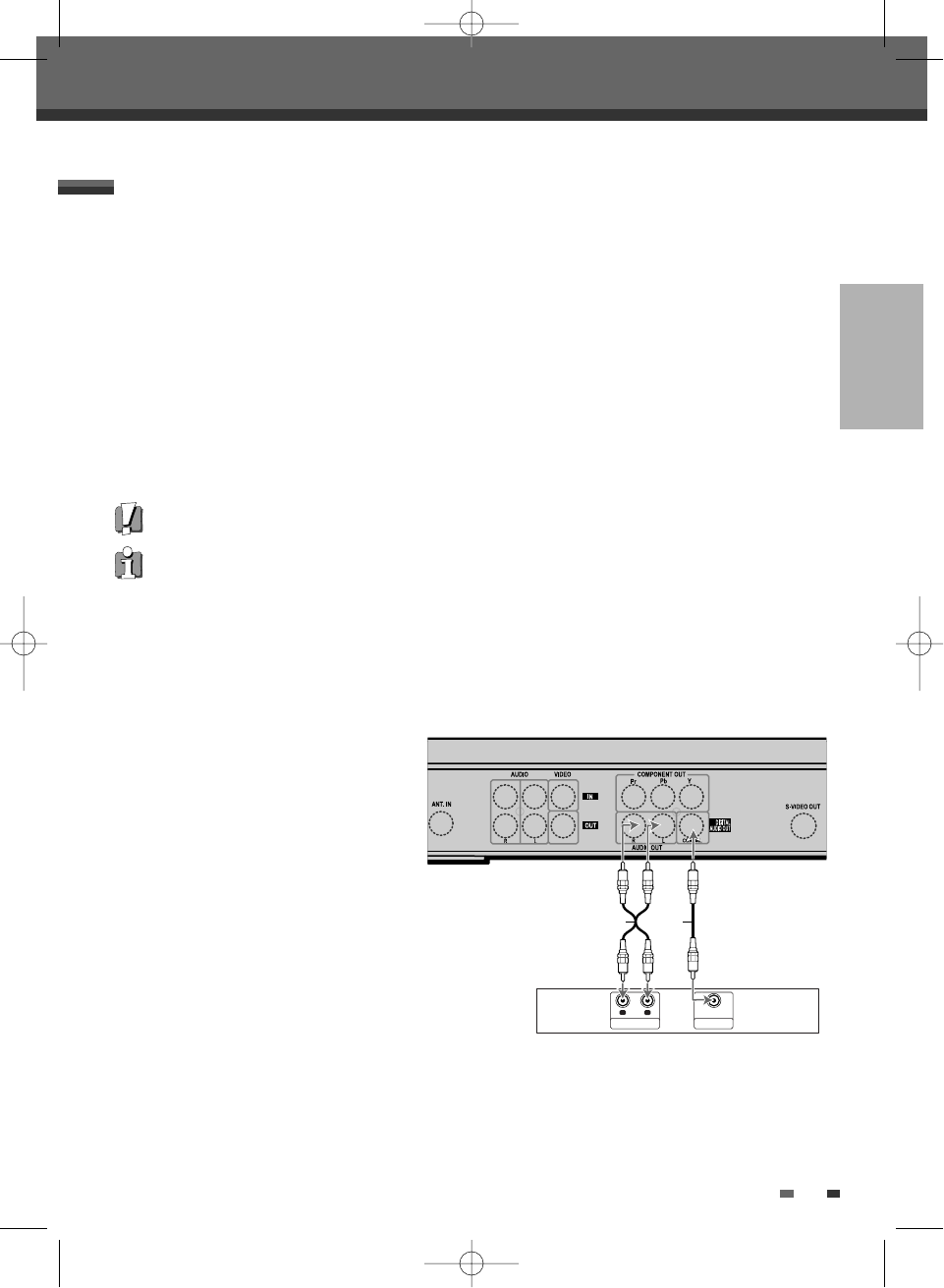

Connecting to an amplifier equipped with two channel analog stereo or Dolby Pro Logic ll/Pro Logic
Connect the Left and Right AUDIO OUT jacks on the DVD Recorder to the left and right audio in jacks on your
amplifier, receiver, or stereo system, using the supplied audio cables (A).
Connecting to an amplifier equipped with two channel digital stereo (PCM) or to an Audio/Video receiver equipped
with a multi-channel decoder (Dolby Digital™, MPEG 2, or DTS)
1
Connect the DVD Recorder’s DIGITAL AUDIO OUT jack (COAXIAL X) to the corresponding in jack on your
amplifier. Use an optional digital coaxial audio cable.
2
You will need to activate the DVD Recorder’s digital output; see ‘AUDIO Settings‘ on page 22.
Digital Multi-Channel Sound?
A digital multi-channel connection provides the best sound quality. For this you need a multi-channel
audio/video receiver that supports one or more of the audio formats supported by your DVD Recorder (MPEG 2,
Dolby Digital, and DTS). Check the receiver manual and the logos on the front of the receiver.
Connecting an Amplifier/Receiver
• Due to the DTS Licensing agreement, the digital output will be in DTS digital out when DTS audio stream is
selected.
• If the audio format of the digital output does not match the capabilities of your receiver, the receiver will produce
a strong, distorted sound or no sound at all.
• 5.1 channel digital surround sound via the digital connection can only be obtained if your receiver is equipped with
a digital multi-channel decoder.
• To see the audio format of the current DVD on the on-screen display, press [AUDIO].
The DVD Recorder does not perform internal (2- channel) decoding of DTS sound tracks. To enjoy DTS multi-channel
surround, you must connect the DVD Recorder to a DTS compatible receiver via one of the DVD Recorder’s digital audio
outputs.
Amplifier (Receiver)
R
L
AUDIO INPUT DIGITAL INPUT
COAXIAL
A X
Connections
Rear of DVD Recorder
DVR065(GB) 2006.1.16 1:55 PM ˘ ` 13 mac001 1200DPI 90LPI
14
Connections
To receive audio/video signals from other equipment,
connect the LINE1 or LINE2 jacks on the DVD Recorder
to the audio/video out jacks on your external
component, using optional audio/video cables.
Connecting Optional Equipment
Using the front panel DV IN jack, it is possible to connect a DV digital camcorder, video deck or DVD+R/RW
recorder and digitally transfer DV tapes or DVD+R/RW discs to DVD+R/RW.
Use a DV cable (not supplied) to connect the DV In/Out jack of your DV camcorder/video deck to the front panel
DV IN jack of the DVD Recorder.
Connecting a Digital Camcorder
This jack is for connection to DV equipment only. It is not
compatible with digital satellite tuners or D-VHS video
decks.
Rear of DVD Recorder Front of DVD Recorder
Front of DVD Recorder
DV IN
DV
IN/OUT
DVR065(GB) 2006.1.16 1:55 PM ˘ ` 14 mac001 1200DPI 90LPI
CONNECTIONS SETUP
15
After successfully connecting your DVD Recorder to your TV and other devices, this
chapter will show you how to complete the initial installation.
1
A ‘Initial Setup Wizard‘ is displayed on the screen. Make sure the RF cable
from your antenna or cable TV jack is connected.
2
Select the desired language for the on-screen menu using […/†]. Press
[ENTER] to confirm.
3
Select the desired disc menu language using […/†]. Press [ENTER] to
confirm.
4
Select the desired disc playback audio language using […/†]. Press [ENTER]
to confirm.
5
Select the desired disc playback subtitle language using […/†]. Press
[ENTER] to confirm.
6
Select the desired signal type using […/†]. Press [ENTER] to confirm.
Initial Installation
You must follow the initial installation process to set the time, date, channels,
and language preferences for the DVD Recorder.
Initial Installation
Initial Installation
Initial Setup Wizard 1/8
Before using your recorder
Please complete this setup
Next
Setup - Exit
OSD Language Setting 2/8
English
Spanish
French
Back
Enter - Confirm Setup - Exit Move …†
√
Disc Menu Language Setting
3/8
Default
English
Spanish
Back
Enter - Confirm Setup - Exit Move …†
√
†
Audio Language Setting
4/8
Default
English
Spanish
Back
Enter - Confirm Setup - Exit Move …†
√
†
Subtitle Language Setting
5/8
Off
English
Spanish
Back
Enter - Confirm Setup - Exit Move …†
√
†
TV/CATV
6/8
TV
CATV
Auto Detect
Back
Enter - Confirm Setup - Exit Move …†
√
DVR065(GB) 2006.1.16 1:55 PM ˘ ` 15 mac001 1200DPI 90LPI
16

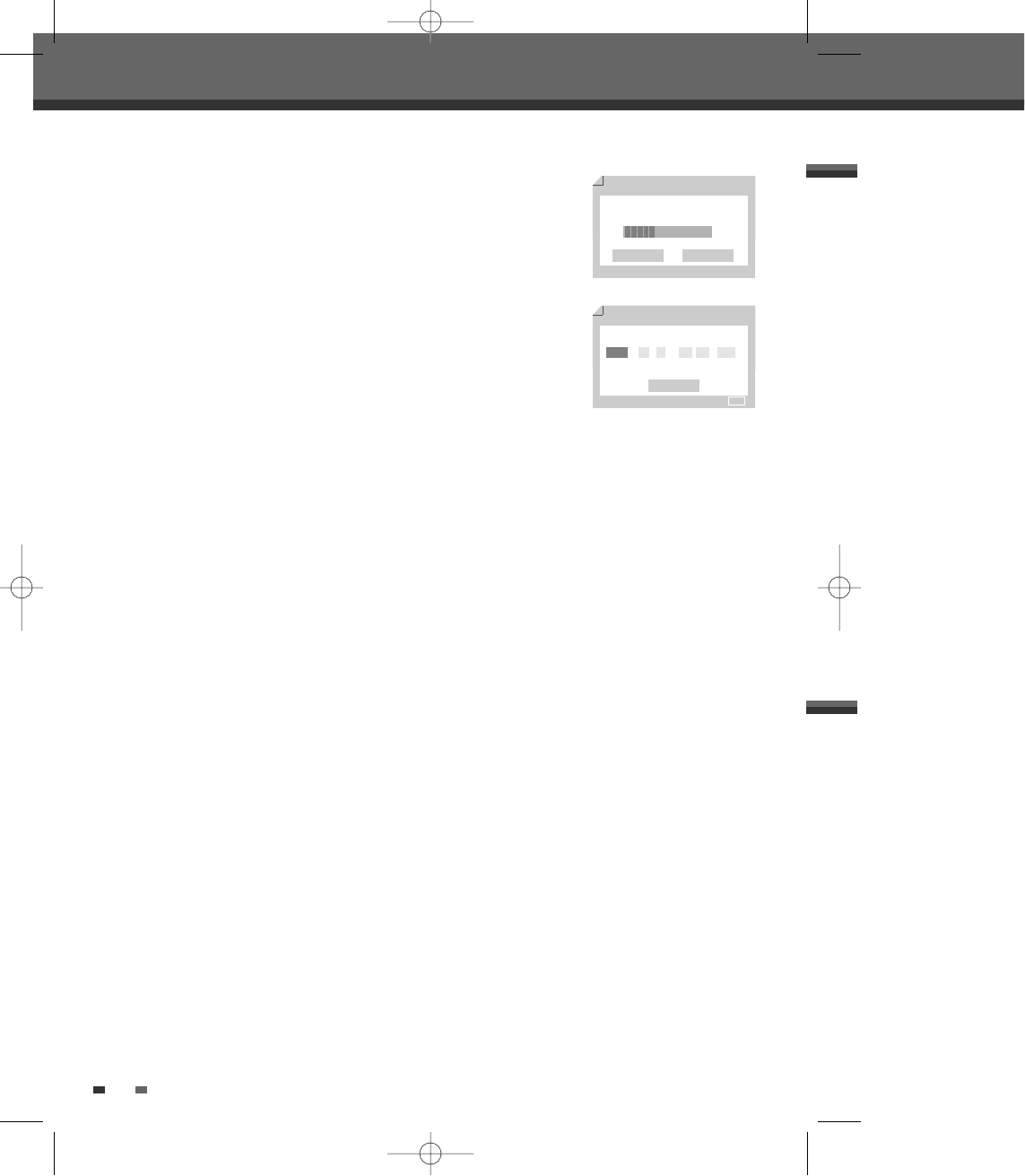

7
The DVD Recorder detects channels automatically and stores them in memory.
8
After finishing Auto Channel Search, set the clock.
9
Use [œ/√] to move left/right and use […/†] to change the settings.
10
After setting the clock, press [ENTER] to confirm. If you cancel the process
during Initial Installation, you should repeat this procedure.
Initial Installation
Auto Scan
7/8
TV
20/69
Back Cancel
Setup - Exit
Clock Setting
8/8
Back
Enter - Confirm Setup - Exit Move …†
…
2005 / 1 / 1 12 : 00 AM
†
DVR065(GB) 2006.1.16 1:55 PM ˘ ` 16 mac001 1200DPI 90LPI
Tuning Band
1
Press [SETUP]. The Setup menu appears.
While ‘Init Setup‘ is selected, press [ENTER] to go to the initial setup
page.
2
Use [œ/√] to select ‘Installation Page ‘.
3
While ‘Installation Page ‘ is selected, press [†] to select
‘TV/CATV‘.
4
Press [√] to move to the second level.
5
Use […/†] to select TV or CATV, then press [ENTER].
TV:
If you are using a standard antenna to receive channels.
CATV:
If you are using basic cable to receive channels.
SETUP
17

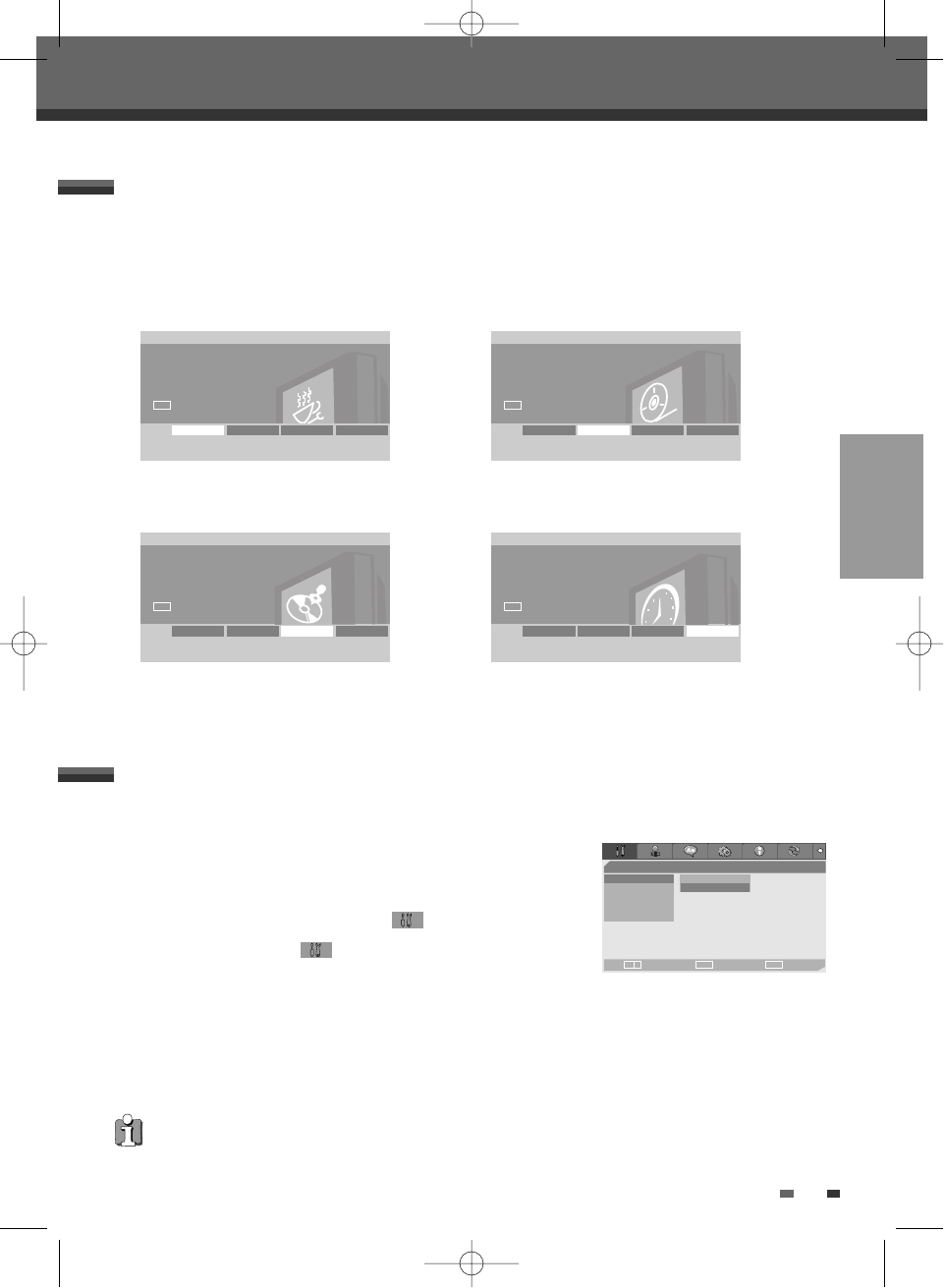

The DVD Recorder Setup menu includes four categories, including: Initial Setup, Disc Operation, Disc Edit and
Timer Recording. Press [SETUP], [œ/√] and [ENTER] on the remote control to view the first and second levels of
the Setup menu.
1. Initial Setup Screen 2. Disc Operation Screen
go to page 17~27. go to page 43~45.
3. Disc Edit Screen 4. Timer Recording Screen
go to page 46~48. go to page 39~40.
Setup Menu Overview
INSTALLATION Settings
If you are receiving channels from a cable box or satellite receiver connected to the LINE1 or LINE2 inputs, there is no
need to set Tuning Band or search for channels. Set the DVD Recorder to its LINE1 or LINE 2 input and select the
desired channel on your cable box or satellite receiver.
Initial Setup
Initial Setup
DVD Recorder
Init Setup ➞
Init Setup
œ √
Select
Init Setup Disc Oper Disc Edit Timer REC
DVD Recorder
Init Setup ➞
Disc Operation
œ √
Select
Init Setup Disc Oper Disc Edit Timer REC
DVD Recorder
Init Setup ➞
Disc Edit
œ √
Select
Init Setup Disc Oper Disc Edit Timer REC
DVD Recorder
Init Setup ➞
Timer REC
œ √
Select
Init Setup Disc Oper Disc Edit Timer REC
- - Installation Page - -
•TV/CATV TV
Auto Scan • CATV
CH Add/Del
Modulator Out
Clock Setting
Choose OK Exit
ENTER SETUP
œ √
…
†
DVR065(GB) 2006.1.16 1:55 PM ˘ ` 17 mac001 1200DPI 90LPI
Modulator Out
This feature allows you to set the RF Output channel to your TV (you only
need to set this if you are using the RF Out connection to your TV).
1
Follow steps 1-2 as shown under Tuning Band.
2
Use […/†] to select ‘Modulator Out‘.
3
Press [√] to move to the second level.
4
Use […/†] to set the Modulator Out channel to ‘
CH3
’ or ‘
CH4
’.
5
Press [ENTER] to confirm.
18
Initial Setup
Auto Channel Search
The DVD Recorder has a frequency synthesized tuner capable of receiving
up to 181 channels. These include VHF channels 2-13, UHF channels 14-69
and CATV channels 1-125.
Preparation:
Connect the DVD Recorder to the desired type of antenna or cable TV
system, as shown in ‘Connecting Antenna/Cable‘ on page 11.
1
Follow steps 1-2 as shown under Tuning Band.
2
While ‘Installation Page ‘ is selected, press […/†] to select ‘Auto Scan‘.
3
Press [ENTER] to begin the channel search.
The tuner will automatically search for all available channels in your area and place them in the tuner’s
memory.
After Auto Channel Search is complete, follow the instructions above to make sure that Tuning Band is set correctly
(TV or CATV).
Add/Remove Channels
This feature allows you to manually add or delete channels from your
channel list.
1
Follow steps 1-2 as shown under Tuning Band.
2
Use […/†] to select ‘CH Add/Del‘.
3
Press [ENTER]. The Channel Add/Delete menu appears.
4
Use [CH+/-] or [0-9] to select a channel then toggle the add/delete
selection by pressing [œ/√].
5
Press [SETUP] to exit the Channel Add/Delete menu.
- - Installation Page - -
TV/CATV
•Auto Scan
CH Add/Del
Modulator Out
Clock Setting
Choose OK Exit
ENTER SETUP
œ √
…
†
Cancel
Auto Scan CATV
113/125
Please wait...
- - Installation Page - -
TV/CATV
Auto Scan
•CH Add/Del
Modulator Out
Clock Setting
Choose OK Exit
ENTER SETUP
œ √
…
†
Delete
CH Add/Del
œ √
CH Select
OK
Confirm Exit
ENTER
CH + –
- - Installation Page - -
TV/CATV
Auto Scan
CH Add/Del
•Modulator Out • CH3
Clock Setting CH4
Choose OK Exit
ENTER SETUP
œ √
…
†
DVR065(GB) 2006.1.16 1:55 PM ˘ ` 18 mac001 1200DPI 90LPI

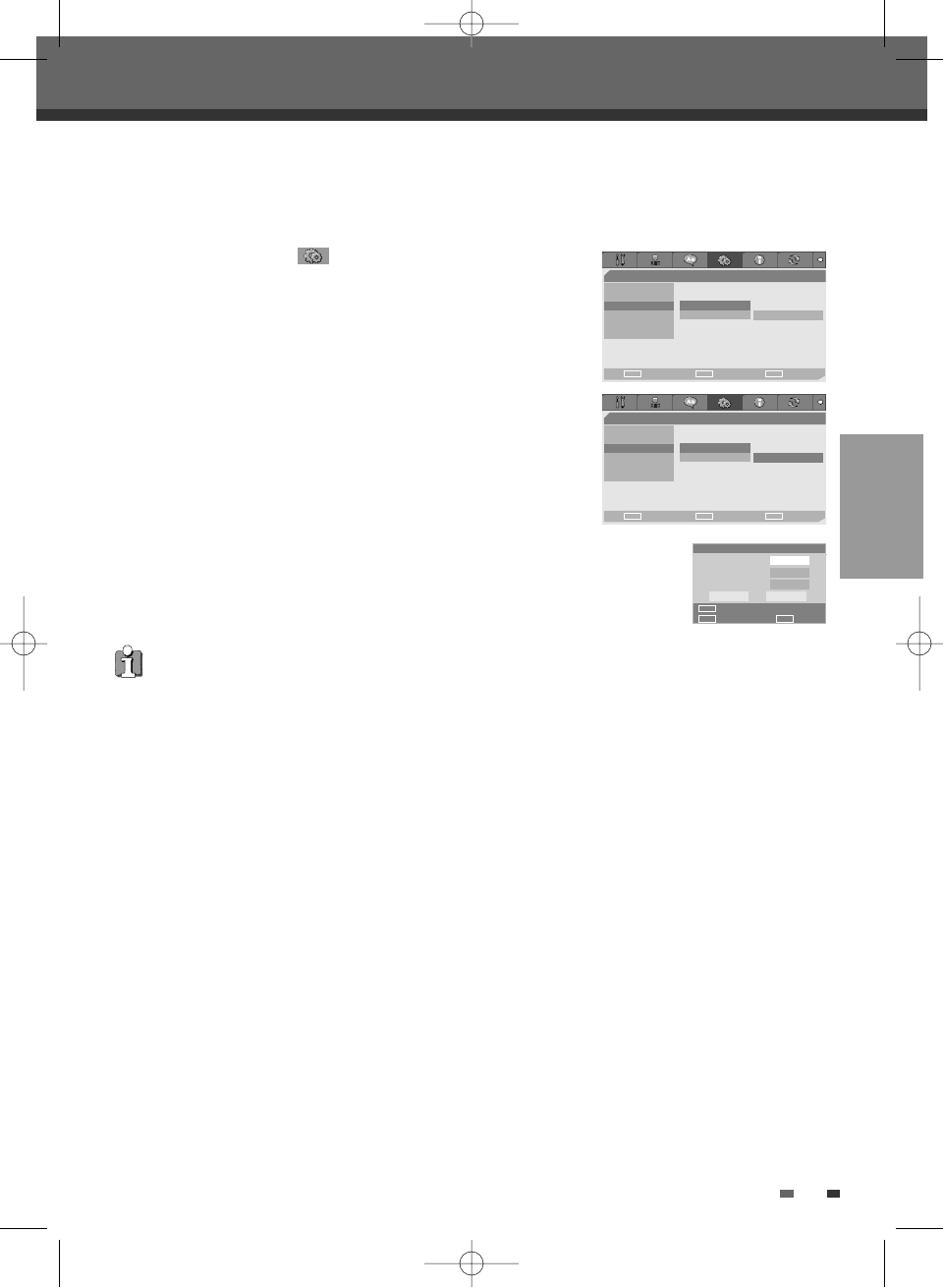

SETUP
19
Set Clock
1
Follow steps 1-2 as shown under Tuning Band.
2
Use […/†] to select ‘Set Clock‘.
3
Press [ENTER]. The Set Clock menu appears.
4
Enter the date and time.
œ/√(left/right): Moves the cursor to the previous or next column.
…/†(up/down): Changes the setting at the current cursor position.
5
Press [ENTER] to confirm your setting, then press [SETUP] to exit the Setup menu.
Initial Setup
- - Installation Page - -
TV/CATV
Auto Scan
CH Add/Del
Modulator Out
•Clock Setting
Choose OK Exit
ENTER SETUP
œ √
…
†
Clock Setting
…
2005 1 1 2 42 AM
†
DVR065(GB) 2006.1.16 1:55 PM ˘ ` 19 mac001 1200DPI 90LPI

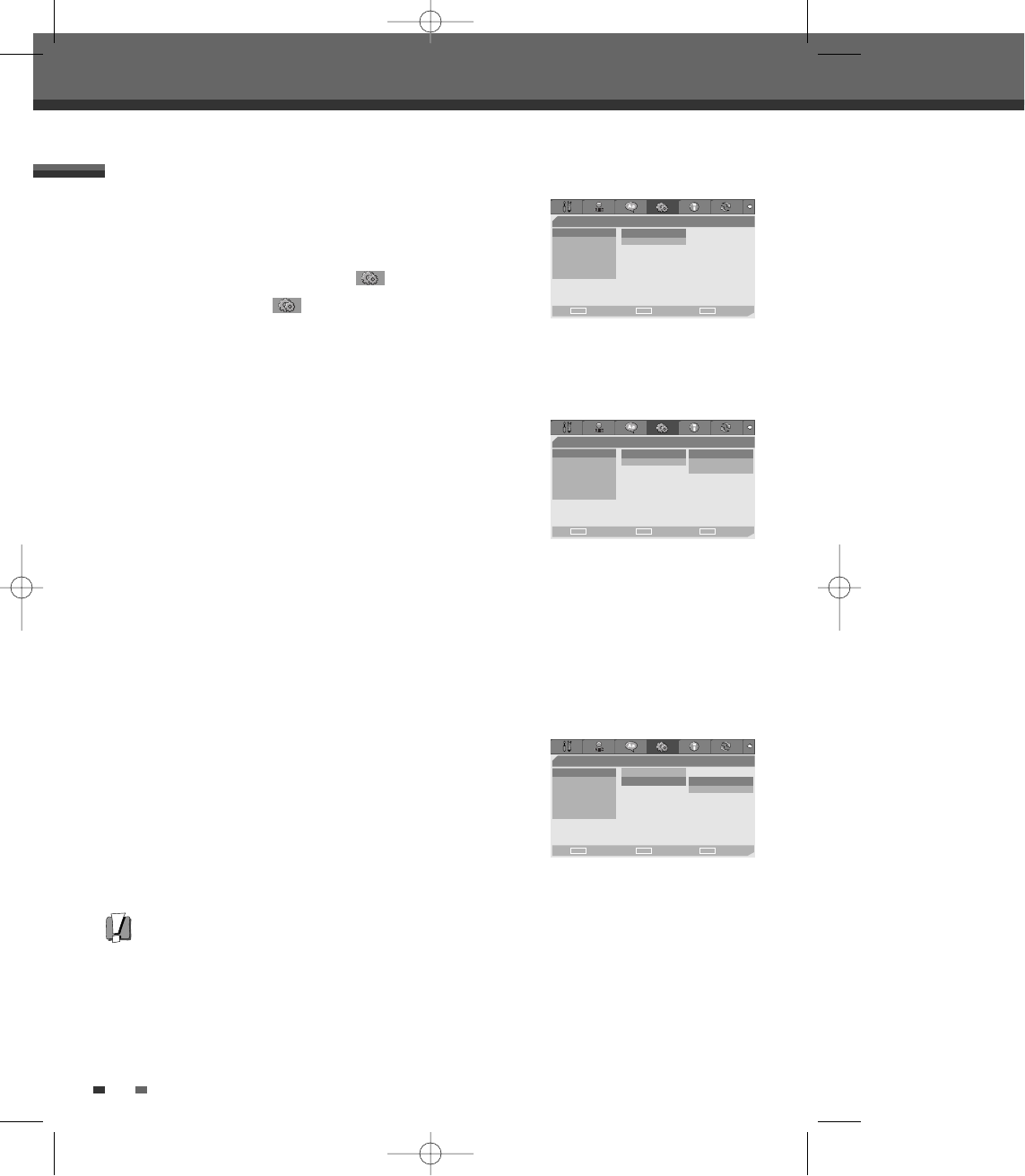

20
Initial Setup
Auto Chapter
During recording, chapter markers are added automatically at fixed
intervals.
You can set this interval to
5 Min
,
10 Min
or
15 Min
.
But when you set DVD Record quality “SEP”, Auto Chapter interval could be
set only ‘10 Min’ or ‘15 Min’.
To turn off automatic chapter marking, select ‘
Off
‘.
Follow the same procedure as the DVD Record Quality.
DVD Record Quality
You can set the default DVD recording quality to: HQ (High Quality - 1
hr/disc), SP (Standard Quality - 2 hrs/disc), EP (Extended Play - 4 hrs/disc) or
SEP (Very Low Quality - 8 hrs/disc).
1
Press [SETUP]. The Setup menu appears.
While ‘Init Setup‘ is selected, press [ENTER] to go to the initial setup
page.
2
Use [œ/√] to select ‘Record Options Page ‘.
3
While ‘Record Options Page ‘ is selected, press [†] to select ‘DVD Quality‘.
4
Press [√] to move to the second level.
5
Use […/†] to to select the desired Record Quality (
HQ
,
SP
,
EP
or
SEP
).
6
Press [ENTER] to confirm your selection, then press [SETUP] to exit the menu.
RECORDING OPTIONS Settings
- - Record Options Page - -
•DVD Quality • HQ
Chapter Mark SP
EP
SEP
Choose OK Exit
ENTER SETUP
œ √
…
†
- - Record Options Page - -
DVD Quality
•Chapter Mark Off
• 5Min
10Min
15Min
Choose OK Exit
ENTER SETUP
œ √
…
†
DVR065(GB) 2006.1.16 1:55 PM ˘ ` 20 mac001 1200DPI 90LPI

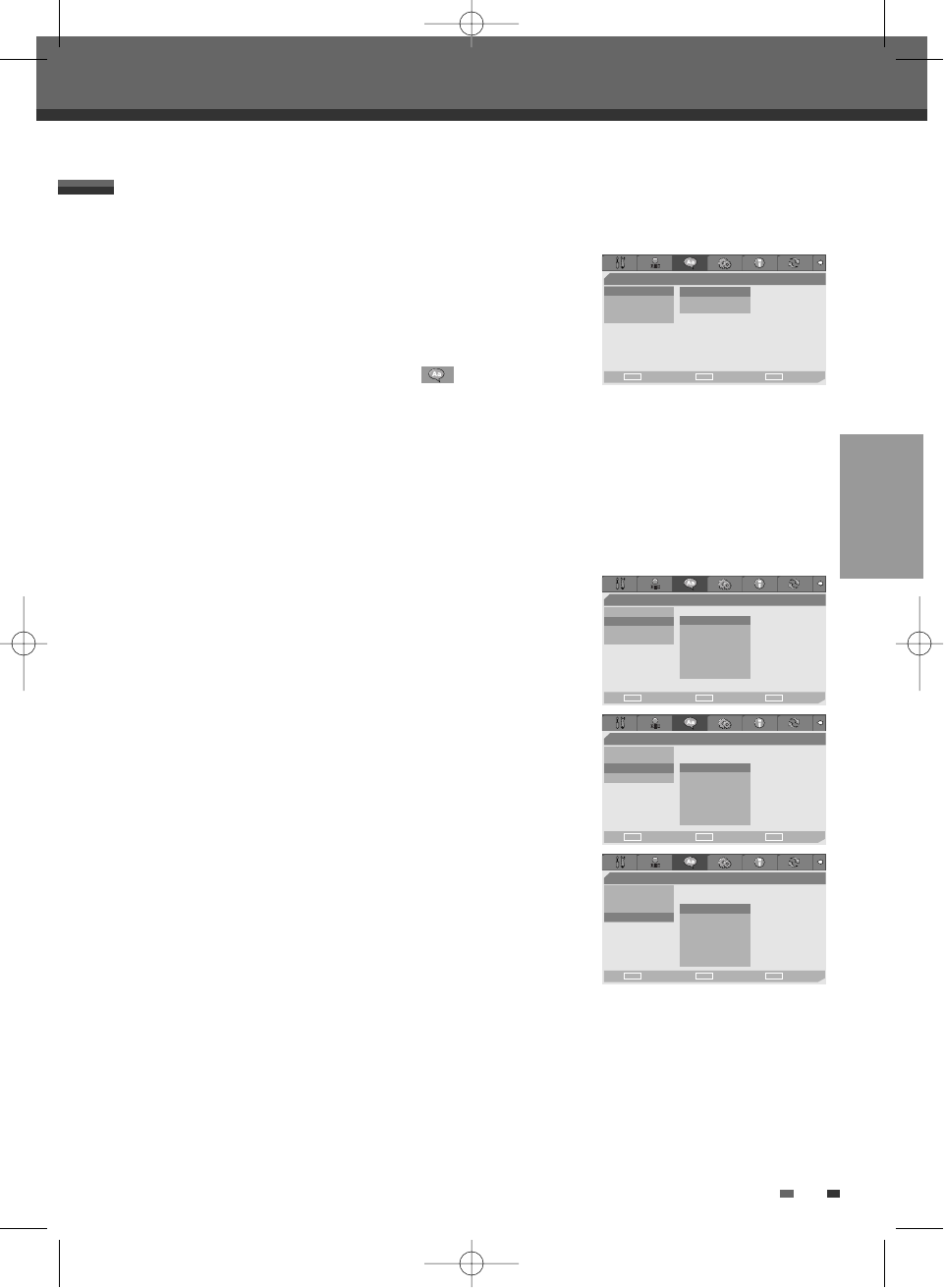

SETUP
21
OSD Language
Select a language for the DVD Recorder Setup menu and on-screen
displays.
1
Press [SETUP]. The Setup menu appears.
While ‘Init Setup‘ is selected, press [ENTER] to go to the initial setup
page.
2
Use [œ] and [√] to select ‘Languages Page ‘.
3
While ‘Language‘ is selected, press [†] to select ‘OSD Lang‘.
4
Press [√] to move to the second level.
5
Use […/†] to select the desired language.
6
Press [ENTER] to confirm your selection, then press [SETUP] to exit the menu.
Menu/Subtitle/Audio Language
Select your preferred language for Disc Menus, Subtitles, and Audio
soundtracks.
Default :
The disc’s default language is selected.
Follow the same procedure as the OSD Language.
LANGUAGE Settings
Initial Setup
- - Languages Page - -
•OSD Lang • English
Menu Lang Français
Subtitle Lang Espanol
Audio Lang
Choose OK Exit
ENTER SETUP
œ √
…
†
- - Languages Page - -
OSD Lang
•Menu Lang • Default
Subtitle Lang English
Audio Lang Spanish
French
Italian
Japanese
Chinese
Choose OK Exit
ENTER SETUP
œ √
…
†
- - Languages Page - -
OSD Lang
Menu Lang
•Subtitle Lang • Off
Audio Lang English
Spanish
French
Italian
Japanese
Chinese
Choose OK Exit
ENTER SETUP
œ √
…
†
- - Languages Page - -
OSD Lang
Menu Lang
Subtitle Lang • Default
•Audio Lang English
Spanish
French
Italian
Japanese
Chinese
Choose OK Exit
ENTER SETUP
œ √
…
†
DVR065(GB) 2006.1.16 1:55 PM ˘ ` 21 mac001 1200DPI 90LPI
22
Initial Setup
1
Press [SETUP]. The Setup menu appears.
While ‘Init Setup‘ is selected, press [ENTER] to go to the initial setup
page.
2
Use [œ/√] to select ‘Preference Page ‘.
3
While ‘Preference Page ‘ is selected, press [†] to select ‘Video‘.
4
Press [√]. The ‘Video‘ submenu is displayed.
TV Aspect Ratio
1
Use […/†] to select ‘TV Aspect‘ while the ‘Video‘ submenu is
displayed.
2
Press [√] to go to the second level.
3
Use […/†] to select the desired TV Aspect.
4
Press [ENTER] to confirm your selection.
5
Press [SETUP] to exit the menu.

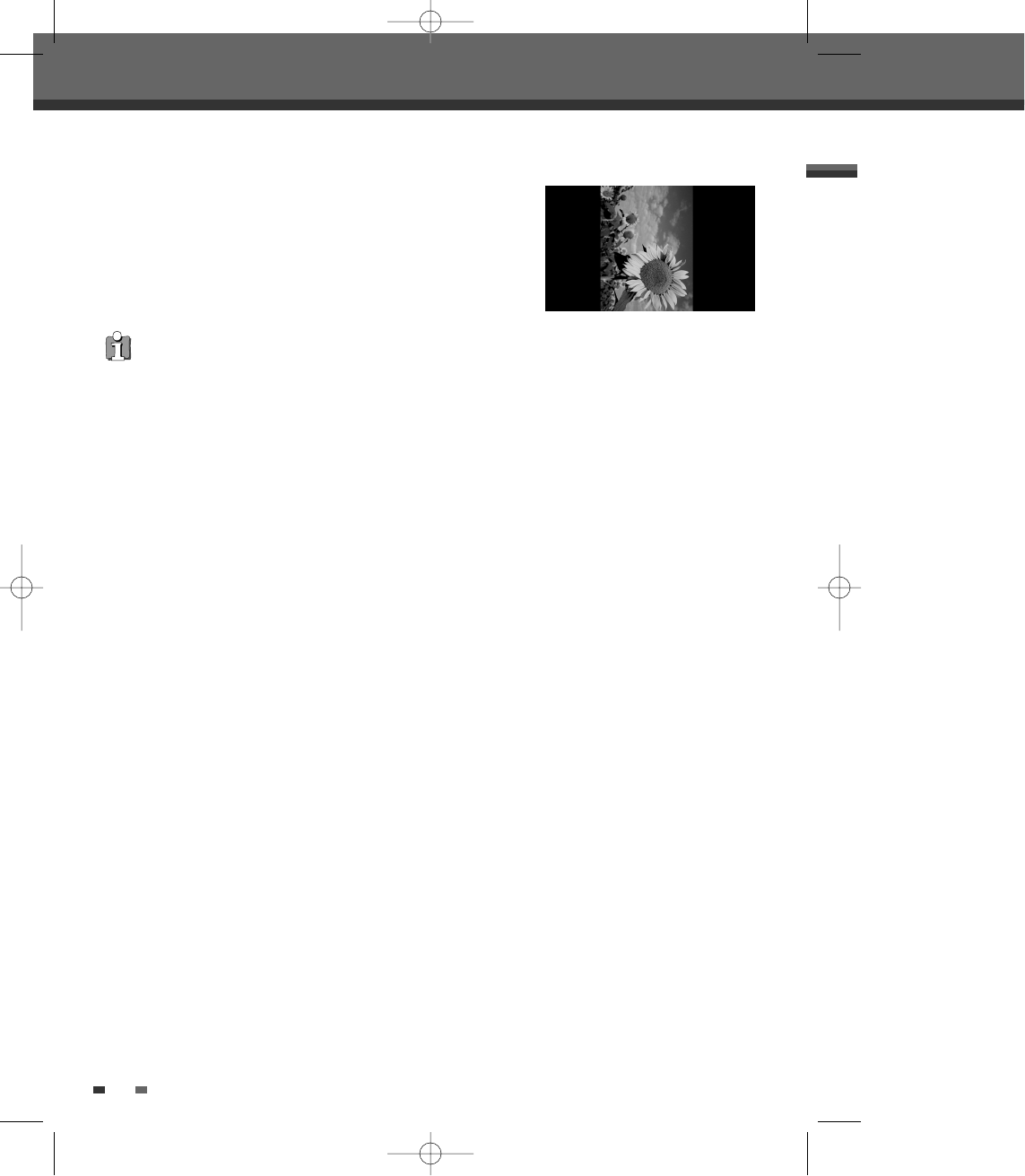

4:3 LB :
Select when a standard 4:3 TV is connected. Displays theatrical images with masking bars above and
below the picture.
4:3 PS :
Select when a standard 4:3 TV is connected. Displays pictures cropped to fill your TV screen. Both
sides of the picture are cut off.
16:9 :
Select when a 16:9 wide screen TV is connected.
Scan Mode
Progressive Scan Video provides the highest picture quality with reduced
flickering.
• If you are using the COMPONENT/PROGRESSIVE VIDEO OUT jacks, but
are connecting the DVD Recorder to a standard (analog) television, set
Scan Mode to
Interlace
.
• If you are using the COMPONENT/PROGRESSIVE VIDEO OUT jacks for
connection to a TV or monitor that is compatible with a Progressive
Scan signal, set Scan Mode to
Progressive
.
Follow the same procedure as TV Aspect Ratio to change the Scan Mode.
Caution
Once the Progressive Scan setting is entered, an image will only be visible on a Progressive Scan compatible TV or
monitor.
PREFERENCE / Video Settings
- - Preference Page - -
Video • TV Aspect 4:3 PS
Audio Scan Mode Interlace
Parental Ctrl
Auto Clock
AutoPlay
YourDVD
Choose OK Exit
ENTER SETUP
œ √
…
†
- - Preference Page - -
Video TV Aspect • 4:3 LB
Audio Scan Mode 4:3 PS
Parental Ctrl 16:9
Auto Clock
AutoPlay
YourDVD
Choose OK Exit
ENTER SETUP
œ √
…
†
- - Preference Page - -
Video TV Aspect
Audio Scan Mode • Interlace
Parental Ctrl Progressive
Auto Clock
AutoPlay
YourDVD
Choose OK Exit
ENTER SETUP
œ √
…
†
DVR065(GB) 2006.1.16 1:55 PM ˘ ` 22 mac001 1200DPI 90LPI

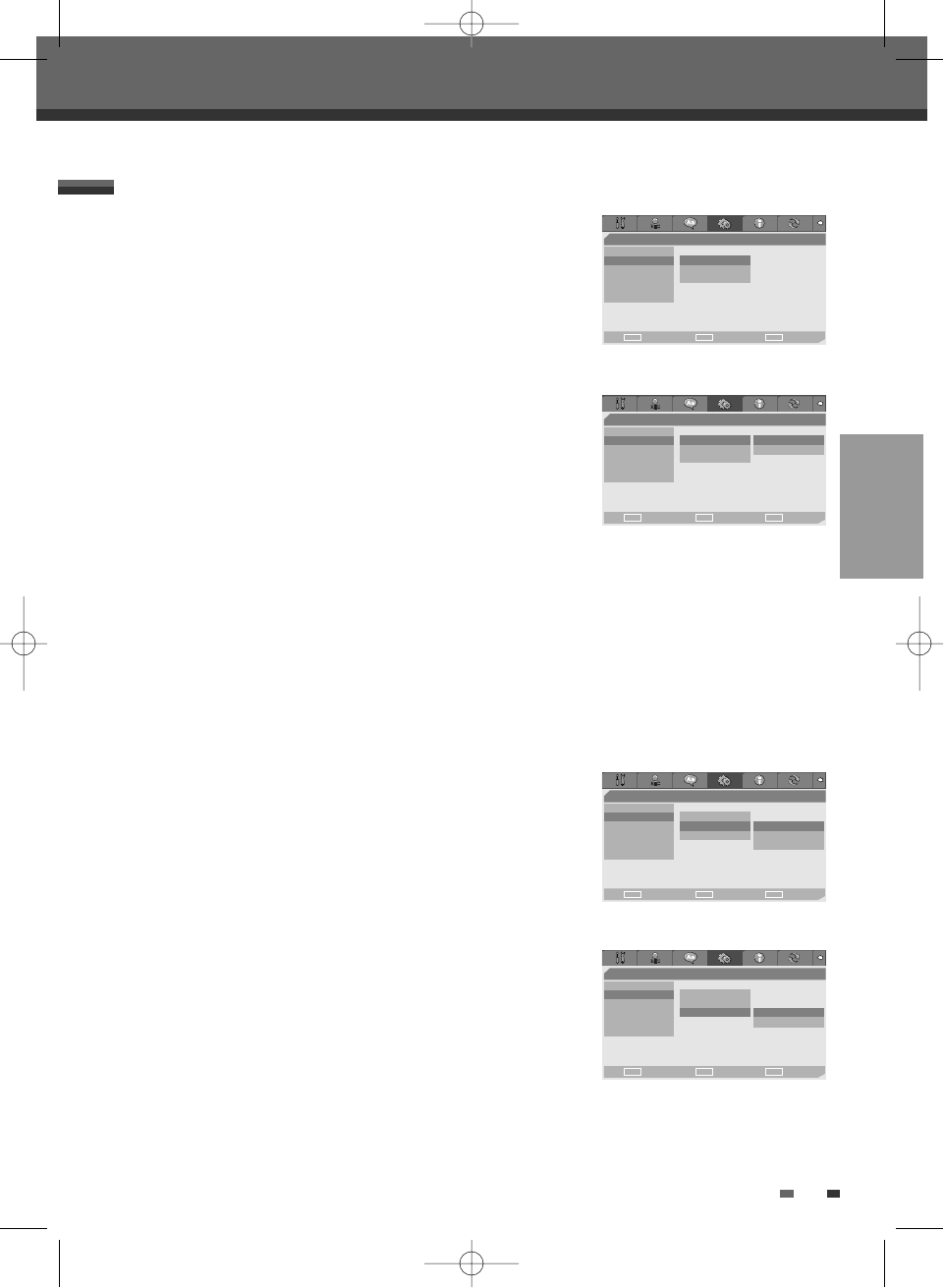

SETUP
23
Follow the same procedure as Video Settings to select Audio Settings.
Digital Output
1
Use […/†] to select ‘Digital Output‘ while the Audio submenu is
displayed.
2
Press [√] to go to the second level.
3
Use […/†] to select the desired digital output type.
4
Press [ENTER] to confirm your selection.
5
Press [SETUP] to exit the menu.
LPCM
Select when connected to a 2 channel digital stereo amplifier. The DVD Recorder's digital audio signal will be
output in the PCM 2ch format when you play a DVD recorded with a Dolby Digital (only for DVD) or MPEG
soundtrack. If the DVD is recorded with a DTS sound track then no sound will be heard.
Bitstream
Select when connected to a Dolby Digital or DTS decoder (or an amplifier or other equipment with a Dolby
Digital or DTS decoder).
Dynamic Range
While watching DVD movies, you may wish to compress the dynamic range
of the audio output (the difference between the loudest and quietest
passages). This allows you to listen to a movie at a lower volume without
losing clarity of sound.
Set ‘Dynamic‘ to
Low
or
High
for this effect.
Follow the same procedure as ‘Digital Output‘ to set the Dynamic Range.
Virtual Surround
You can enjoy a simulated 3D effect from two speakers by setting ‘V SURR
(Virtual Surround)’ to
On
.
Follow the same procedure as ‘Digital Output‘ to set the Virtual Surround
option.
PREFERENCE / Audio Settings
Initial Setup
- - Preference Page - -
Video
Audio • Digital Output Bitstream
Parental Ctrl Dynamic Off
Auto Clock V SURR Off
AutoPlay
YourDVD
Choose OK Exit
ENTER SETUP
œ √
…
†
- - Preference Page - -
Video
Audio Digital Output • Bitstream
Parental Ctrl Dynamic LPCM
Auto Clock V SURR
AutoPlay
YourDVD
Choose OK Exit
ENTER SETUP
œ √
…
†
- - Preference Page - -
Video
Audio Digital Output
Parental Ctrl Dynamic • Off
Auto Clock V SURR Low
AutoPlay High
YourDVD
Choose OK Exit
ENTER SETUP
œ √
…
†
- - Preference Page - -
Video
Audio Digital Output
Parental Ctrl Dynamic
Auto Clock V SURR • Off
AutoPlay On
YourDVD
Choose OK Exit
ENTER SETUP
œ √
…
†
DVR065(GB) 2006.1.16 1:55 PM ˘ ` 23 mac001 1200DPI 90LPI

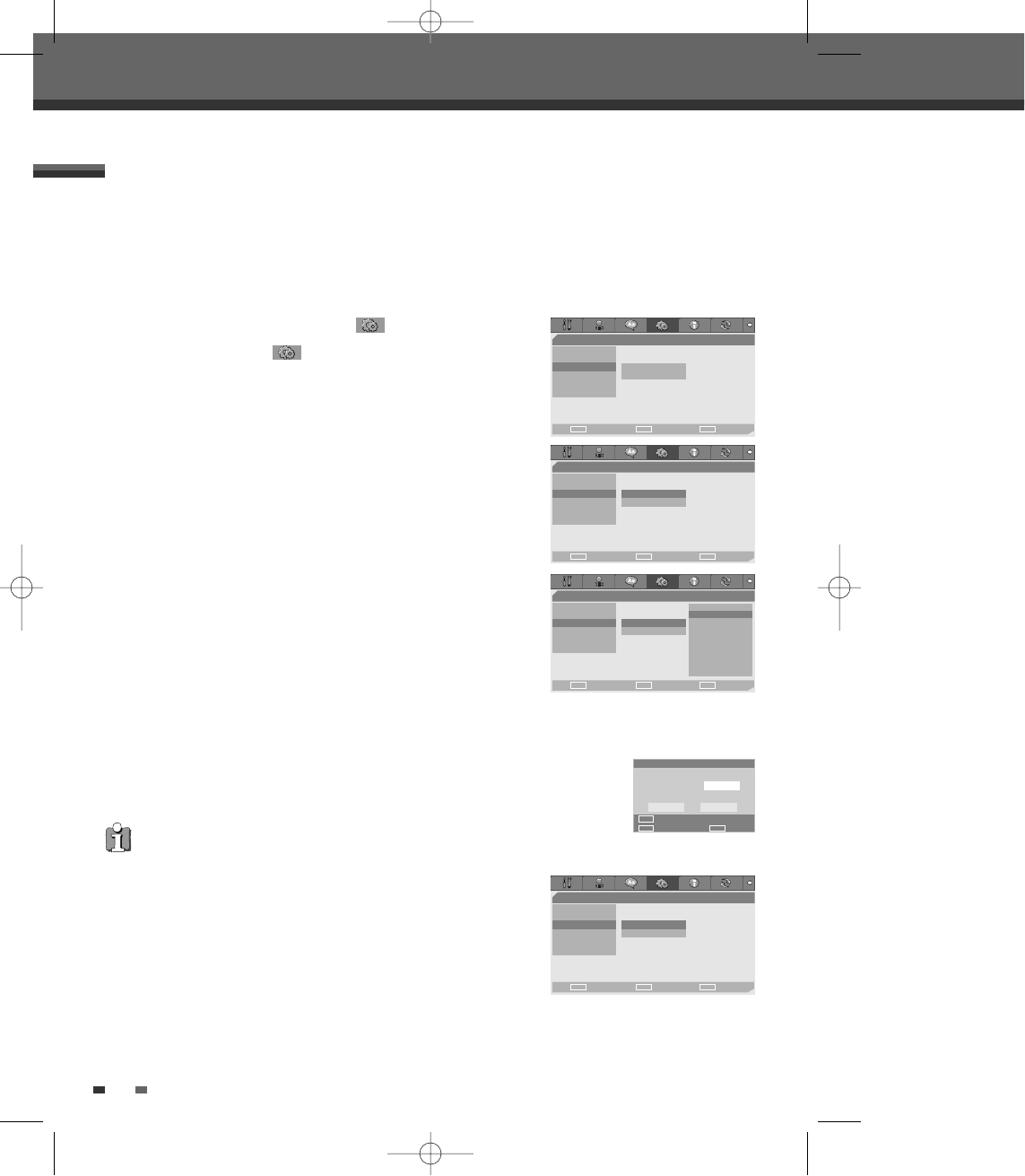

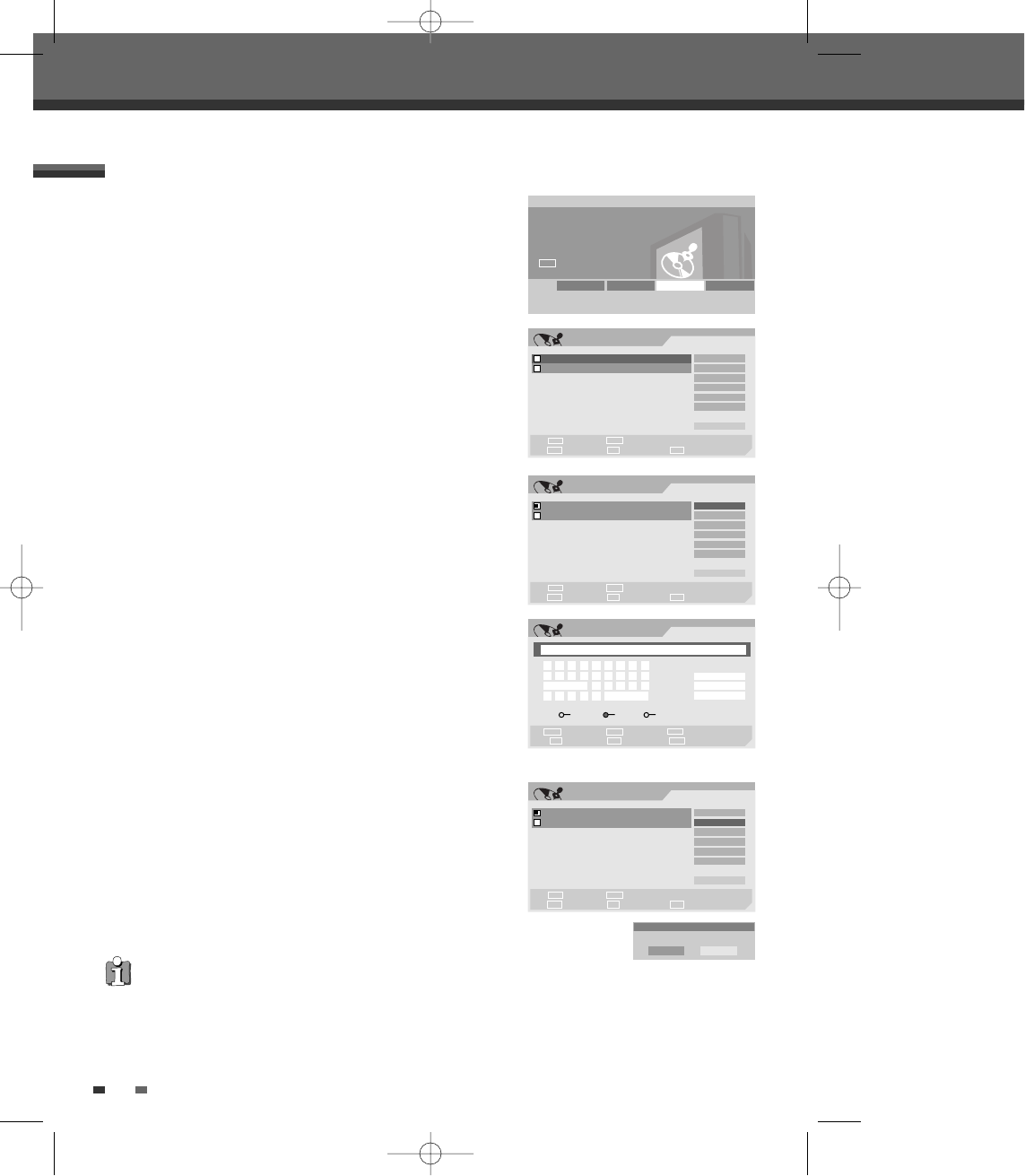

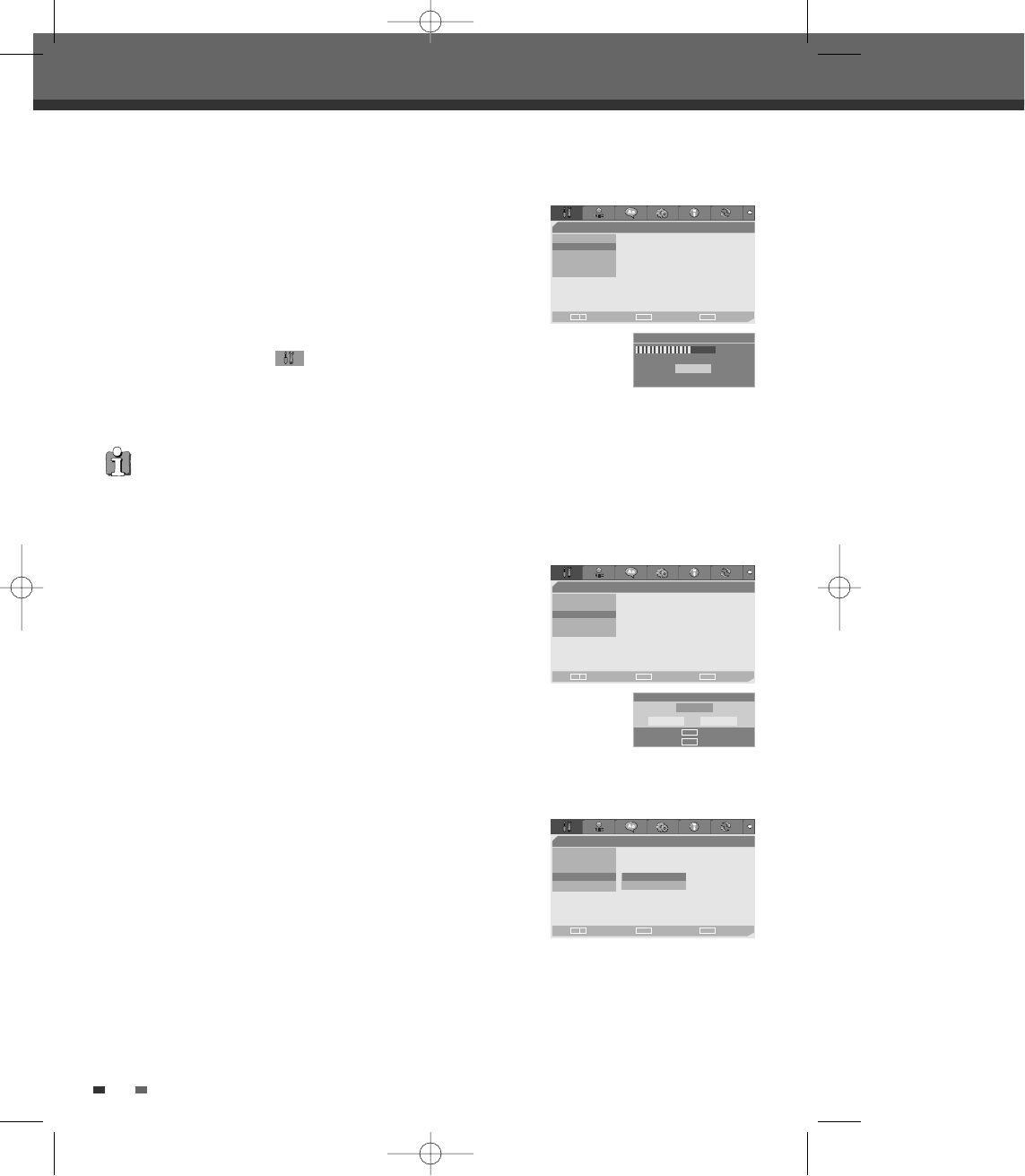

Set Parental Level
The Parental Controls feature allows you to prevent DVDs from being played based on their ratings or to have
certain discs played with alternative scenes. You can set the parental level from 1 to 8.
1
Press [SETUP]. The Setup menu appears.
While ‘Init Setup‘ is selected, press [ENTER] to go to the initial setup page.
2
Use [œ/√] to select ‘Preference Page ‘.
3
While ‘Preference Page ‘ is selected, press [†] to select ‘Parental
Ctrl‘.
4
Press [√] to select ‘Parental‘. Then press [√] again to change parental
level.
5
Use […/†] to select the desired parental level and press [ENTER] to
confirm.
Off :
If you select Unlock, the Lock feature is not active. All discs will
play in full.
Level 1 to 8 :
Some discs contain scenes not suitable for children. If you
set a rating for the DVD Recorder, all scenes with the same rating or
lower will be played. Higher rated scenes will not be played unless an
alternative scene is available on the disc. The alternative must have the same rating or a lower one. If no
suitable alternative is found, playback will stop. You must enter the 4-digit password or change the rating
level in order to play the disc.
6
The Password Input dialog will appear. Enter a 4-digit password using the [0-9]
buttons. If this is the first time you have entered a password, you will be prompted to
enter the password again to confirm it.
7
After setting the password, press [ENTER] while 'Set Parental Level' is
displayed.
8
Press [ENTER] to confirm your rating selection, then press [SETUP] to
exit the menu.
The initial password is ‘3308‘. You must enter this password before you can
change the Parental Level.
PREFERENCE / Parental Controls
24
Initial Setup
- - Preference Page - -
Video
Audio
•Parental Ctrl Parental 8 ADULT
Auto Clock Password
AutoPlay
YourDVD
Choose OK Exit
ENTER SETUP
œ √
…
†
- - Preference Page - -
Video 8 ADULT
Audio •7
Parental Ctrl Parental 6
Auto Clock Password 5
AutoPlay 4
YourDVD 3
2
1 KID SAFE
OFF
Choose OK Exit
ENTER SETUP
œ √
…
†
- - Preference Page - -
Video
Audio
Parental Ctrl • Parental 7
Auto Clock Password
AutoPlay
YourDVD
Choose OK Exit
ENTER SETUP
œ √
…
†
- - Preference Page - -
Video
Audio
Parental Ctrl • Parental 8 ADULT
Auto Clock Password
AutoPlay
YourDVD
Choose OK Exit
ENTER SETUP
œ √
…
†
Input Password
Password
Input digits
Select OK
OK Cancel
ENTER
0-9
œ √
…
†
DVR065(GB) 2006.1.16 1:55 PM ˘ ` 24 mac001 1200DPI 90LPI

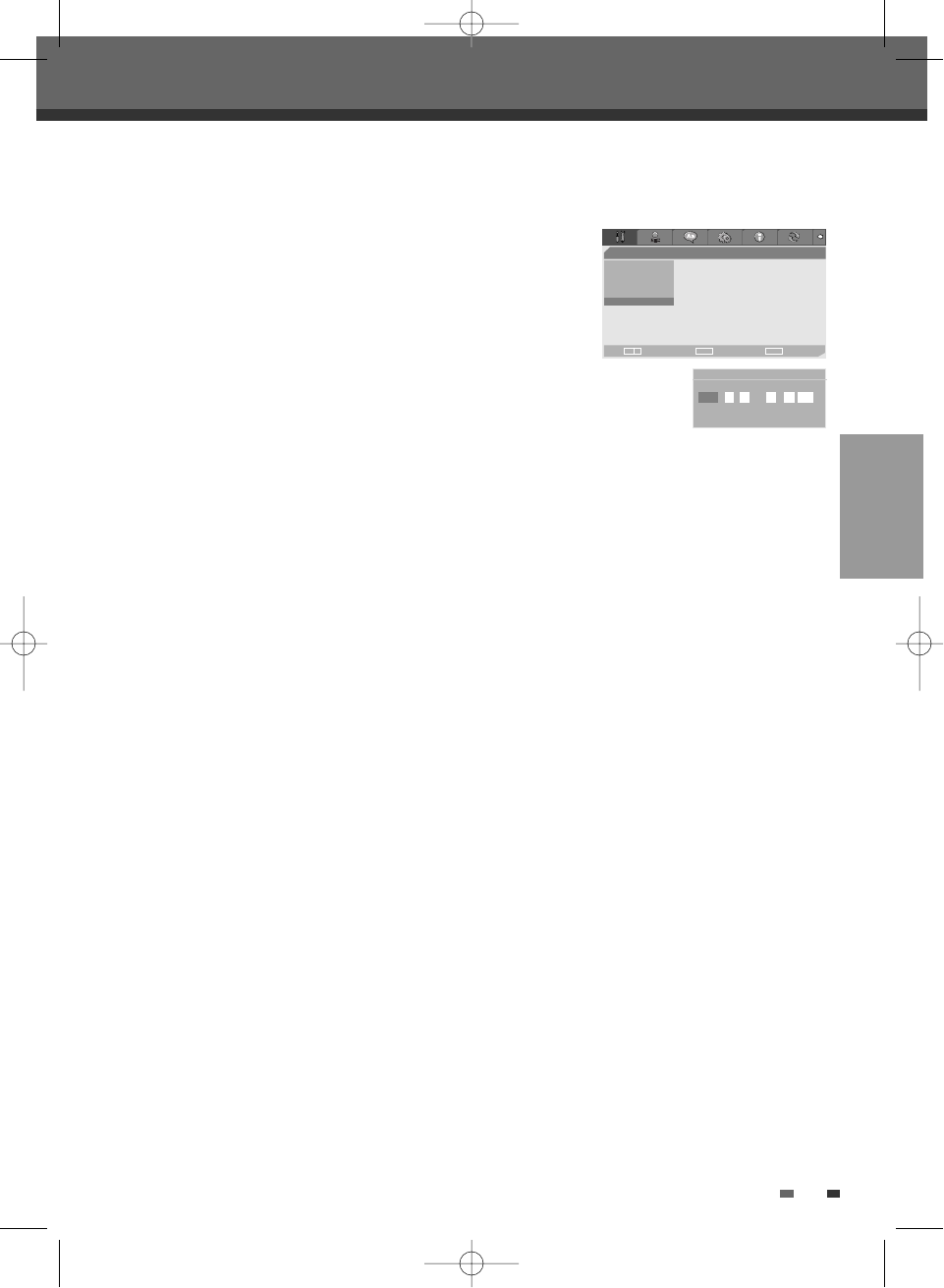

Change Password
1
While ‘Preference Page ‘ is selected, press [†] to select ‘Parental
Ctrl‘.
2
Select ‘Password‘ then press [√] to select ‘Change‘.
3
Press [ENTER]. The Input Password submenu appears. Enter your current 4-digit
password then press [ENTER].
4
Enter a new 4-digit password, then press [ENTER]. Re-enter the new password to
confirm, press [ENTER].
SETUP
25
•
Master Password :
If you forget your password, press 3,3,0,8 on the remote
control and then press [ENTER].
• Set the new password to something other than '0000'.
Initial Setup
Input Password
Old Password
New Password
Confirm PWD
Input digits
Select OK
OK Cancel
ENTER
0-9
œ √
…
†
- - Preference Page - -
Video
Audio
Parental Ctrl Parental
Auto Clock • Password Change
AutoPlay
YourDVD
Choose OK Exit
ENTER SETUP
œ √
…
†
- - Preference Page - -
Video
Audio
Parental Ctrl Parental
Auto Clock Password • Change
AutoPlay
YourDVD
Choose OK Exit
ENTER SETUP
œ √
…
†
DVR065(GB) 2006.1.16 1:55 PM ˘ ` 25 mac001 1200DPI 90LPI

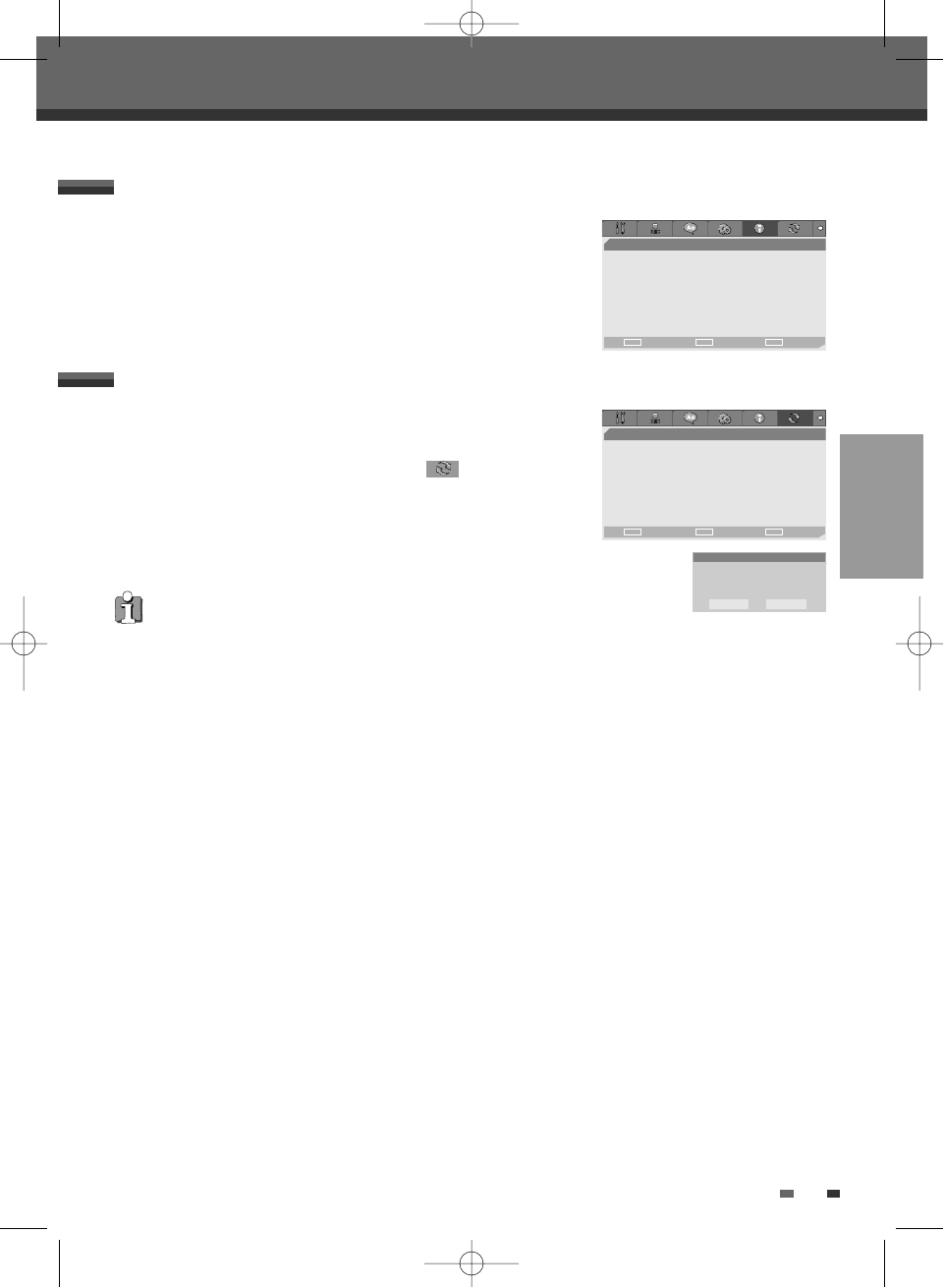

Auto Clock
Auto Clock enables the DVD Recorder to set the clock automatically
whenever it is in Standby mode (plugged in but powered off).
1
Use […/†] to select ‘Auto Clock‘.
2
Press [√] to go to the second level.
3
Use […/†] to set the Auto Clock Status to
On
or
Off
.
4
Press [ENTER] to confirm.
AutoPlay
Enables you to skip the ads and trailers and play your DVDs automatically
when they are inserted in the tray.
1
Use […/†] to select ‘AutoPlay‘.
2
Press [√] to go to the second level.
3
Use […/†] to set the AutoPlay Status to
On
or
Off
.
4
Press [ENTER] to confirm.
Various PREFERENCE Settings
26
Initial Setup
- - Preference Page - -
Video
Audio
Parental Ctrl
Auto Clock • Off
AutoPlay On
YourDVD
Choose OK Exit
ENTER SETUP
œ √
…
†
- - Preference Page - -
Video
Audio
Parental Ctrl
Auto Clock
AutoPlay • Off
YourDVD On
Choose OK Exit
ENTER SETUP
œ √
…
†
YourDVD
Whenever DVD title is inserted, your settings (audio, subtitle language and
sound mode) will be displayed with YourDVD turned “On”.
1
Use […/†] to select ‘YourDVD‘.
2
Press [√] to go to the second level.
3
Use […/†] to set the YourDVD Status to
On
or
Off
.
4
Press [ENTER] to confirm.
- - Preference Page - -
Video
Audio
Parental Ctrl
Auto Clock
AutoPlay
YourDVD •Off
On
Choose OK Exit
ENTER SETUP
œ √
…
†
Your DVD
Audio Language X
Subtitle Language V
Surround Mode X
OK
DVR065(GB) 2006.1.16 1:55 PM ˘ ` 26 mac001 1200DPI 90LPI

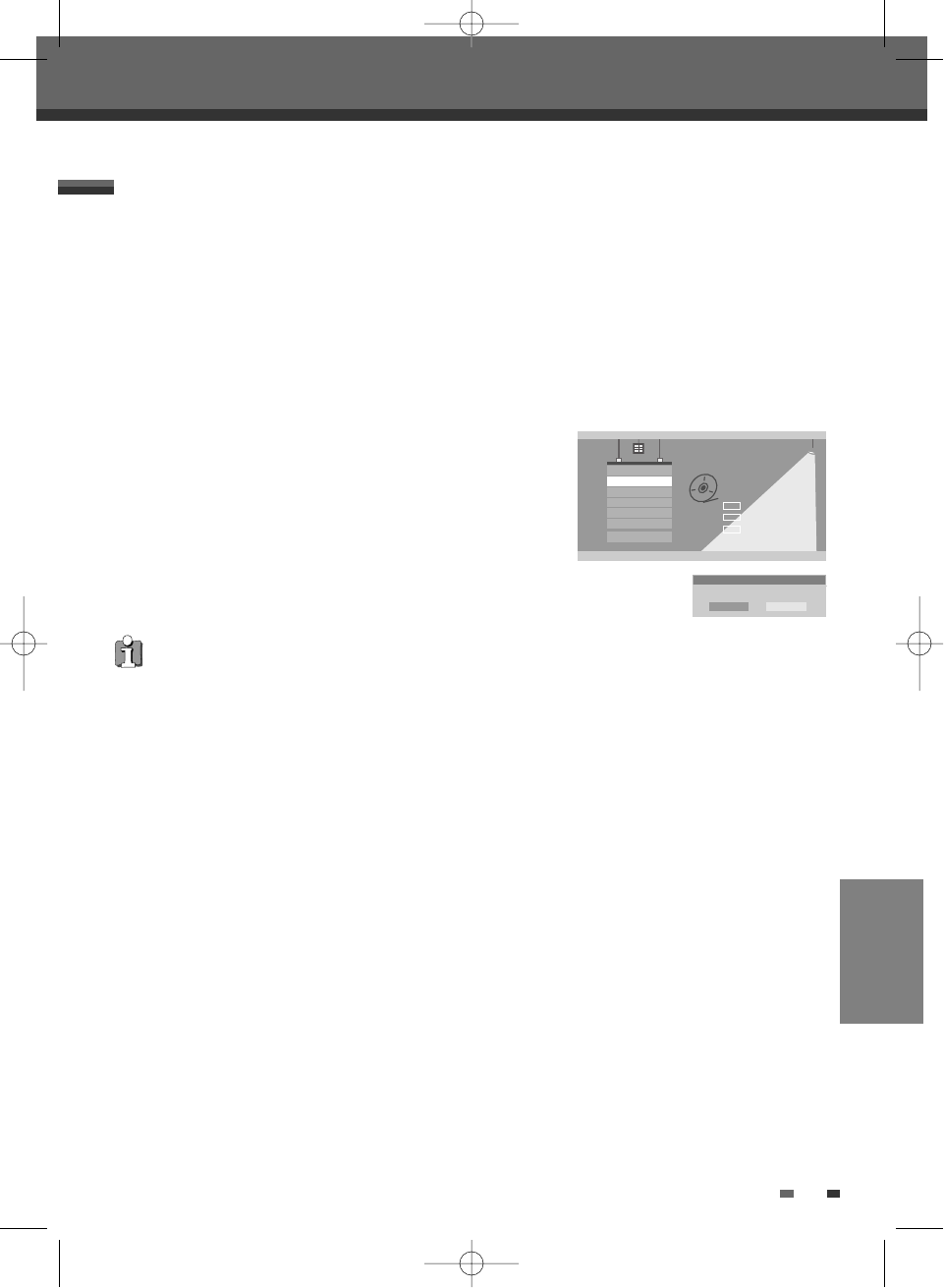

SETUP
27
• Some options cannot be reset, including Parental Controls, Password, and Country Code.
• After Restoring Defaults the unit reboots automatically and the Installation menu
appears. You must set the country, language, channel, and clock settings again.
If you wish, you can reset the DVD Recorder to its original factory settings.
1
Press [SETUP].
2
Use [œ/√] to select ‘Restore Defaults Page ‘.
3
Press [ENTER].
4
The Initialize menu will appear. Use the […†œ √] buttons to select
‘OK‘ and press [ENTER].
System Information
System Information helps service personnel identify key firmware
information about your DVD Recorder in case service is required.
Restore Defaults
Initial Setup
- - System Info Page - -
Version 0000BBBBTT
Main Build VER0049.04
Micom Software 1.0.1
Loader Version AA0600 A100
Choose OK Exit
ENTER SETUP
œ √
…
†
- - Restore Defaults Page - -
If you select this function all settings
will be removed and the product will be
set into initial (factory) mode.
Choose OK Exit
ENTER SETUP
œ √
…
†
Restore Defaults
Are you sure you want to restore
default settings?
OK Cancel
DVR065(GB) 2006.1.16 1:55 PM ˘ ` 27 mac001 1200DPI 90LPI

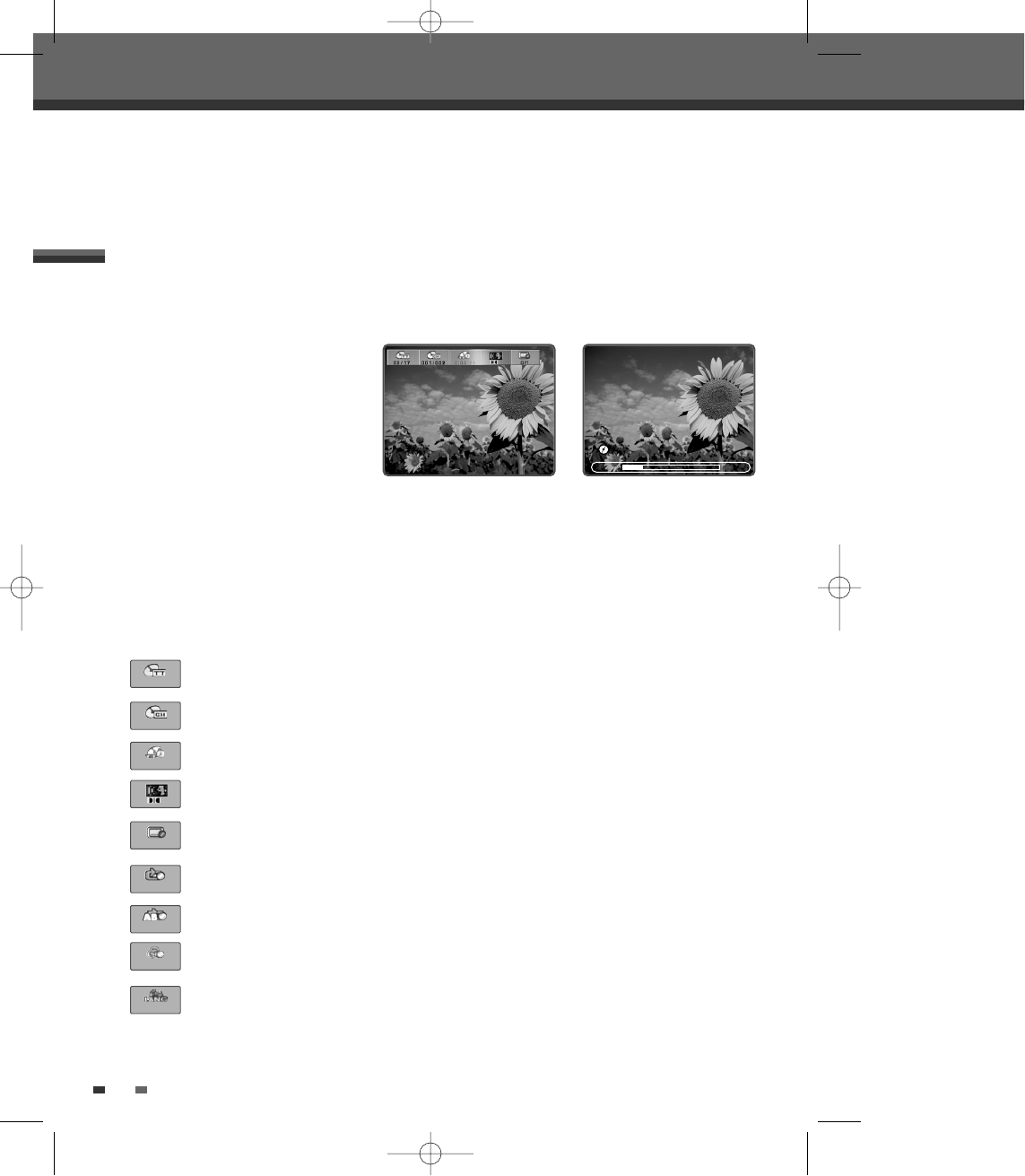

28
The On-Screen Display provides feedback on the status of the DVD Recorder and/or the currently loaded
disc. To access the On-Screen Display (or OSD), press the [DISPLAY] button.
1
During disc playback, press [DISPLAY] to show information about the current disc.
2
While the disc information is displayed, press [DISPLAY] again to show the disc status window.
Displaying DVD Information
On-Screen Display Overview
On-Screen Display Overview
00:00:25 01:04:02
DVD Video »STOP
√√
Title :
Shows the current title number and total number of titles, and skips to the desired title
number.
Chapter :
Shows the current chapter number and total number of chapters, and skips to the
desired chapter number.
Time Elapsed :
Shows the elapsed playing time, and skips to the desired time.
Audio :
Shows the current audio soundtrack language, encoding method, and channel number,
and changes the setting; AC3 5.1 CH English or AC3 2 CH English
Subtitle :
Shows the current subtitle language, and changes the setting; Off, English, French or
Spanish
Repeat :
Shows the current repeat mode, and changes the setting; Chapter, Title, All or Off
A-B Repeat :
Shows the current A-B repeat mode, and changes the setting; A-, A-B or Off
Random Repeat :
Shows the current random repeat mode, and changes the setting; On or Off
OSD Language :
Shows the current OSD language, and changes the setting; English, French or
Spanish
1
Press [DISPLAY] during playback. The on-screen display appears on the TV screen.
2
Use [œ√] to select the desired icon on the on-screen display. Press [ENTER] to display a submenu.
3
Use […†] to change the numbers. Press [ENTER] to confirm.
• Displaying icons on DVD disc
Changing menu options in display menu
02/17
001/002
0:00:26
Off
Off
Off
Off
1
DVR065(GB) 2006.1.16 1:55 PM ˘ ` 28 mac001 1200DPI 90LPI
PLAYBACK
29
On-Screen Display Overview
• Displaying icons on CDDA disc
Track :
Shows the current track number and total number of tracks, and skips to the desired
track number.
Time Elapsed :
Shows the elapsed playing time, and skips to the desired time.
Audio Effect :
Shows the current audio effect, and changes the setting; Stereo or Mix-Mono
Sound Effect :
Shows the current sound effect, and changes the setting; Off, Concert, Living
Room, Hall, Bathroom, Cave, Area or Church
Repeat :
Shows the current repeat mode, and changes the setting; Track, All or Off
A-B Repeat :
Shows the current A-B repeat mode, and changes the setting; A-, A-B or Off
Random Repeat :
Shows the current random repeat mode, and changes the setting; On or Off
OSD Language :
Shows the current OSD language, and changes the setting; English, French or
Spanish
01/16
0:00:41
Off
Off
Off
Off
1
DVR065(GB) 2006.1.16 1:55 PM ˘ ` 29 mac001 1200DPI 90LPI
30
On-Screen Display Overview
Some TV programs are broadcast with both a main and a Secondary Audio Program (SAP). You can change the
TV audio using the [AUDIO] button.
Press [AUDIO] repeatedly to change the TV audio, according to the Broadcast audio signal as shown below.
• STEREO+SAP Audio Signal :
Stereo ➝ Mono ➝ SAP ➝ Stereo
• STEREO Audio Signal :
Stereo ➝ Mono ➝ Stereo
• SAP Audio Signal :
Mono ➝ SAP ➝ Mono
• MONO Audio Signal :
Mono
The current audio channel is displayed on-screen.
• If SAP is selected, but there is no SAP channel being broadcast, you will still hear the main audio channel.
• If the sound is poor quality when set to Stereo, you can often improve it by changing to Mono.
• When an external input is selected, the audio channel can be switched only to Stereo.
Changing the TV Audio Channel
Changing TV Channels
If no disc is playing, you can change TV channels using the [0-9] or [CH +/-] buttons on the remote control or [CH
…/†] buttons on the front panel.
Antenna channels are numbered 2 through 69. Cable channels are numbered 1 through 125.
While watching TV, press [DISPLAY] to display/remove the on-screen display.
If no rewritable DVD disc is inserted, you would see a screen like the following:
If a DVD+R or DVD+RW disc is inserted, the disc information is displayed at the
first button press. If you press [DISPLAY] again then the TV information is
displayed.
Displaying TV Information
DVD-Video
CH-6 02:26 AM
■STOP
DVR065(GB) 2006.1.16 1:55 PM ˘ ` 30 mac001 1200DPI 90LPI
PLAYBACK
31
DVD Playback
DVD Playback
1
Press the [DVD] button to set the remote control to operate the DVD deck.
2
Turn the TV on and select the video input source connected to the DVD Recorder.
Audio system: Turn the audio system on and select the input source connected to the DVD
Recorder.
When a DVD+RW or unfinalized DVD+R (-R, -RW)is inserted, no title is played automatically but the current TV
channel displays on the screen.
1If you want to play a title on the DVD+R (+RW, -R, -RW), you must
press [MENU] or [PLAY] to display the disc menu of a thumbnail index
for each recorded title on the disc.
The index picture screen of the title will be displayed. Also title
information (name of recording, recorded day, time, recording
quality) will be displayed.
2Select a title to play using [œ √] then press [ENTER] or [PLAY].
Playing a DVD+R (+RW, -R, -RW)
If a Disc menu is displayed
• A Disc menu may be displayed when you load a DVD. Use the [
œ √…†
] buttons to select the title/chapter you
want to view, then press [ENTER] to start playback. Press [TITLE] or [MENU] to return to the Disc menu.
• If the Parental Level feature is set and the disc is below the current Parental Level setting, the 4-digit code must
be entered and/or the disc must be authorized; see ‘Set Parental Level‘ on page 24.
• The DVD Recorder will not play discs with Region codes different from the DVD Recorder. The Region code for
this DVD Recorder is 1 (one).
• Unless stated otherwise, all operations described below use the remote control. Some features may also be
available in the Setup menu.
• A disc which is recorded by computer at high speeds (greater than or equal to 2x) may not be recognized.
• A disc which is recorded with unauthorized movie material may not be played.
• A disc which is recorded by other recorder or not recorded correctly may not be recognized or played.
DVD Selected
Actions are now
for DVD
■Stop
1Press [EJECT] to open the disc tray.
2Load your disc in the tray with the playback side down (label side up).
3Press [EJECT] to close the tray.
4
READING appears on the front panel display, and playback starts automatically. If playback does not start,
press [PLAY (
√
)]. In some cases, the Disc menu might appear instead.
Playing a DVD
TITLE CH10
10:29AM 12/21/04
0:01:00SEP
●Press REC to overwrite title(s).
TITLE CH10
10:34AM 12/25/04
0:01:00HQ
EMPTY
1:50:54SP
Before You Begin
DVR065(GB) 2006.1.16 1:55 PM ˘ ` 31 mac001 1200DPI 90LPI
32
DVD Playback
Still Picture and Frame-by-Frame Playback
1
Press [PLAY/PAUSE] during playback. The DVD Recorder will go into Pause mode.
2
You can back up or advance the picture frame-by-frame by pressing [FF (√√ )] repeatedly during Pause
mode.
Fast Forward/Backward
1
Press [REW (œœ )] or [FF (√√ )] during playback. The DVD Recorder will go into Search mode.
2
Press [REW] or [FF] to select the desired speed: √√ X2, √√ X4, √√ X8, √√ X16, √√ X32,
√
(forward) or
œ
, œœ X2, œœ X4, œœ X8, œœ X16, œœ X32 (backward).
Slow Motion
Press [SLOW+] or [SLOW–] to enter Slow Motion mode. The default speed is 1/2. When you press [SLOW+] or
[SLOW–] repeatedly, the speed will be set to 1/4, 1/8, 1/16, and normal speed.
Zoom
The Zoom function allows you to magnify the video image and scroll around the enlarged image.
1
Press [ZOOM] during Play mode to activate the Zoom function.
Each press of the [ZOOM] button changes the Zoom level as follows: X1 (normal size) ➝X2 ➝X3 ➝ X4 ➝
X1/2 ➝ X1/3 ➝ X1/4 ➝X1 (normal size)
2
Use the
[œ √…†]
buttons to scroll around the zoomed picture.
3
To resume normal playback, press [ZOOM] repeatedly until the X1 (normal picture) appears.
• The Zoom function may not work on some DVDs.
The Camera Angle icon is displayed on the TV screen when alternate angles are available.
Changing the Audio Language
Press [AUDIO] and then press
[
AUDIO
]
repeatedly during playback to hear a different audio language or audio
track.
Subtitles
Press [SUBTITLE] and then press
[
SUBTITLE
]
repeatedly during playback to select among all available subtitle
languages.
Camera Angle
If a DVD contains scenes recorded at different camera angles, angle icon displays automatically. You can select
among these angles during playback.
Press [ANGLE] and then press
it
repeatedly during playback to select the desired angle.
The number of the current angle appears on the TV screen.
DVR065(GB) 2006.1.16 1:55 PM ˘ ` 32 mac001 1200DPI 90LPI
PLAYBACK
33
DVD Playback
A-B
You can repeat a scene between two points (A and B):
1
Press [PLAY/PAUSE] play to the start of the desired scene.
2
Press [A-B] to mark the start point.
3
Use [FF], [NEXT] to search the end point.
4
Press [A-B] to mark the end point.
5
The marked scenes are repeated continuously until you stop the repeat by pressing [A-B] button again.
Repeat
1
To repeat the currently playing chapter, press [REPEAT]. REPEAT CHAPTER appears on the TV screen.
2
To repeat the currently playing title, press [REPEAT] a second time. REPEAT TITLE appears on the TV
screen.
3
To repeat the whole disc, press [REPEAT] a third time. REPEAT DISC appears on the TV screen.
4
You can play in other modes (including Repeat, A-B, Shuffle, or Scan) by pressing [REPEAT] repeatedly.
You can repeat a scene that starts when ‘Repeat A-‘ displays on the screen. To mark the end point, press [A-B]. Press
[A-B] again to repeat the scene.
Selecting Titles
When a disc has more than one title, you can select among all available titles as follows:
1
Press [DISPLAY] and use […†] to select the Title icon. Press [ENTER] to display a submenu. Use […†] to
select the desired title number and press [ENTER] to confirm.
Selecting Chapters
When a title on a disc has more than one chapter, you can select among all available chapters as follows:
1
Press [PREV (§)] or [NEXT (∞)] briefly during playback to select the next or previous chapter.
2
To skip directly to any chapter during playback, press [DISPLAY]. Use […†] to select the Chapter icon, then
press [ENTER] to display a submenu. Use […†] to select the desired chapter number and press [ENTER] to
confirm.
DVR065(GB) 2006.1.16 1:55 PM ˘ ` 33 mac001 1200DPI 90LPI
34

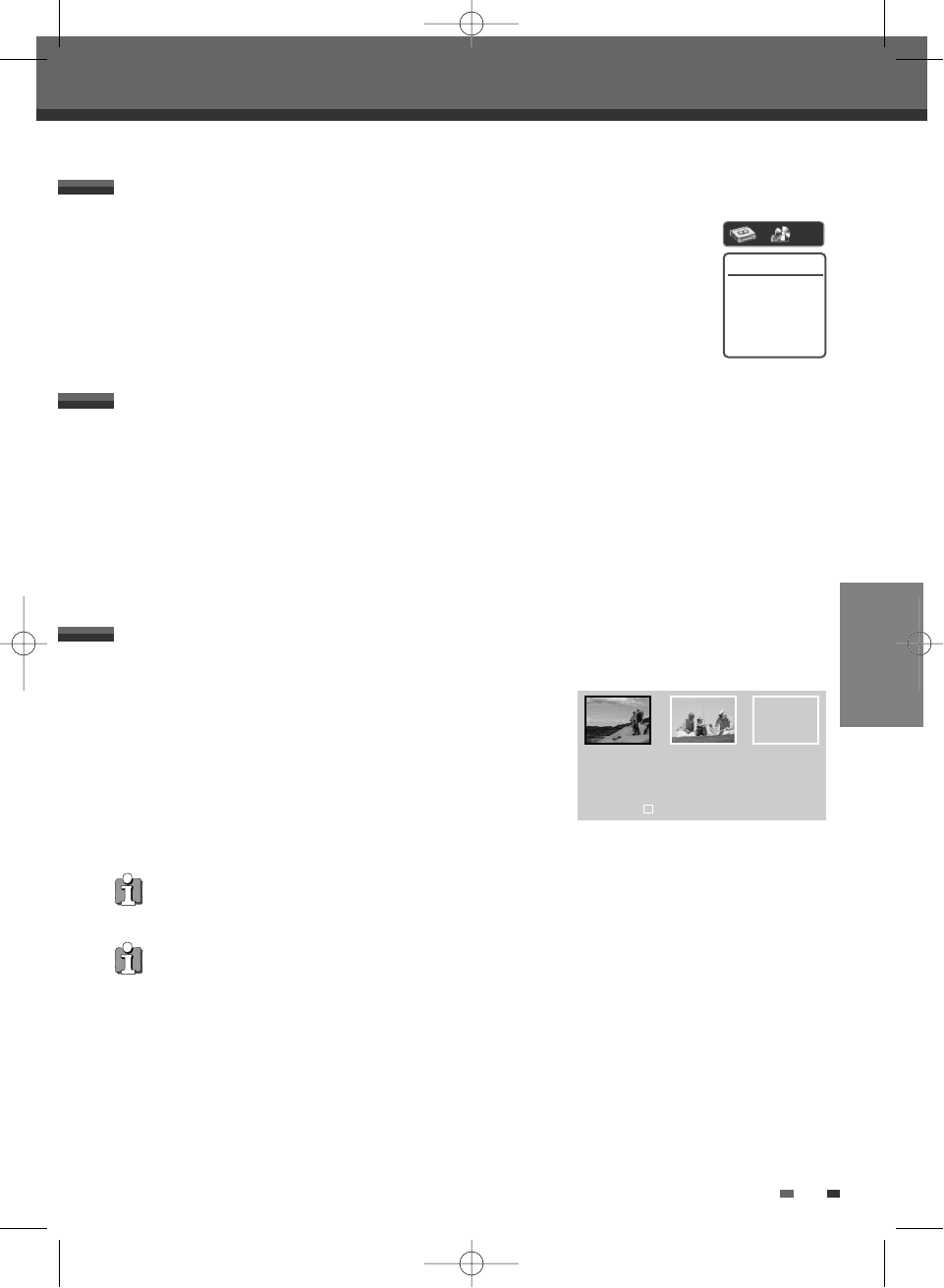

Disc Menus
Many DVDs contain Disc menus that allow you to access special features. To open a Disc menu, press [MENU].
Then use the [0-9] buttons to directly select the desired options, or use the […†] buttons to highlight your
desired selection and press [ENTER].
1
Press [MENU]. The Disc menu is displayed.
2
To exit the Disc menu, press [STOP] or [TV VIEW].
Title Menus
1
Press [TITLE]. If the current title has a menu, the Title menu will appear on the TV screen. Otherwise, the
Disc menu may appear.
2
The Title menu may contain camera angles, spoken languages and subtitle options, as well as the chapters
for the title.
Digest
For displaying the edit menu for DVD+RW / +R discs, for setting chapter markers.
1
Press [DIGEST]. The Digest menu is displayed.
2
To exit the Disc menu, press [STOP] or [TV VIEW].
DVD Playback
Digest
Title Digest
Chapter Digest
Title Interval
Chapter Interval
…† Select ■Exit
DVR065(GB) 2006.1.16 1:55 PM ˘ ` 34 mac001 1200DPI 90LPI
1
Insert the CD disc and close the tray. The Audio CD or MP3 CD menu
appears on the TV screen after a few moments to load the disc.
2
Use […†] to select a track or a file, then press [PLAY] or [ENTER].
During playback, the current track's elapsed playing time will appear on
the menu. Playback will stop at the end of the disc.
3
While playing an Audio CD, use [FF] or [REW] for 2X, 4X, 8X, 16X, 32X speed playback.
4
Use [PLAY/PAUSE] to pause playback while the disc is playing.
5
To stop playback at any time, press [STOP].
PLAYBACK
35
The DVD Recorder can play audio CDs and MP3 files on CD-ROM, CD-R or CD-RW discs.
Audio CD/MP3 PLAYBACK
• Press [REPEAT] to repeat a track (file) and press again to repeat the whole disc.

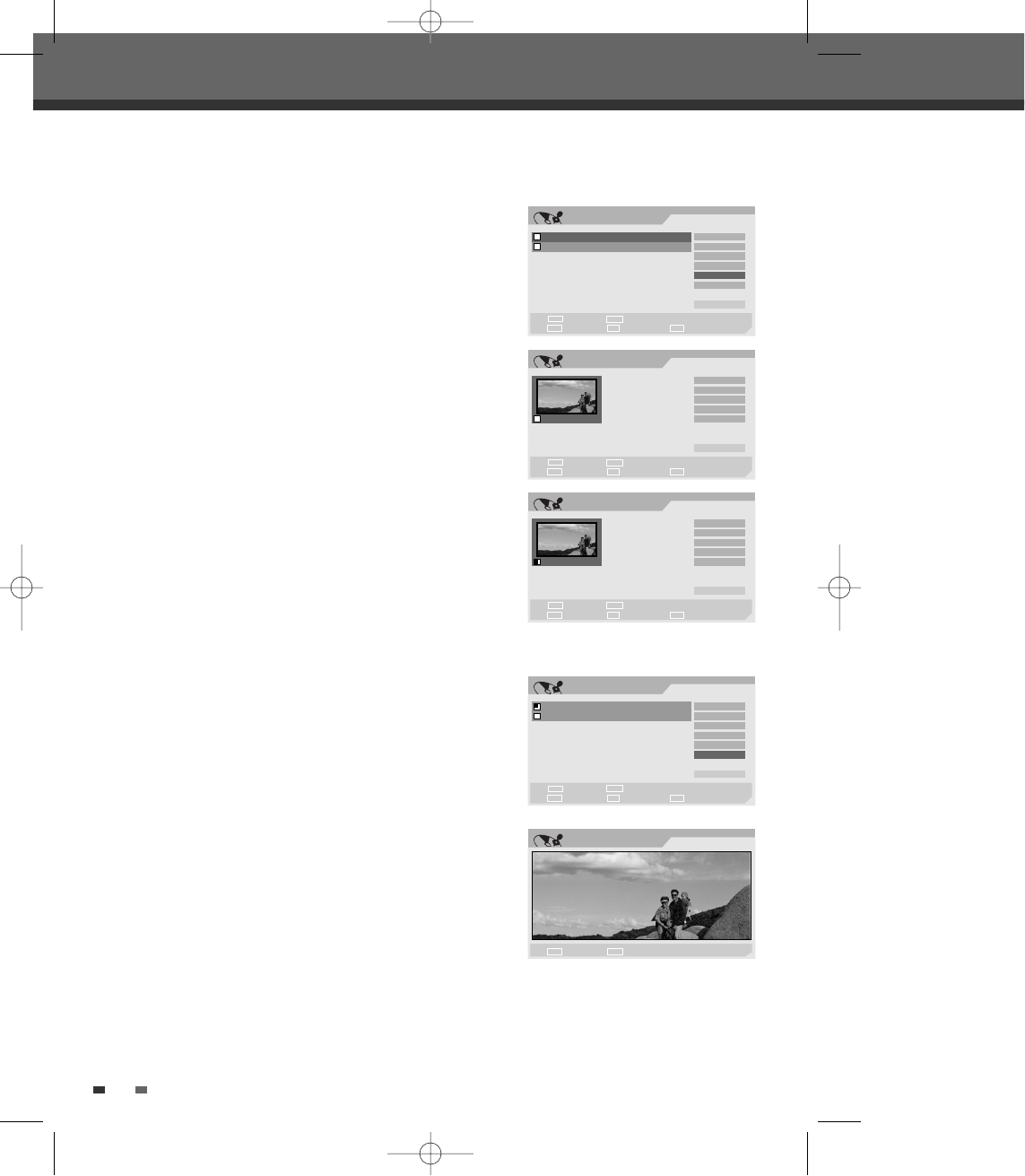

On the MP3 CD menu, you can display the folders on the disc.
Use [
…†œ √
] to select the folder icon on the MP3 CD menu then press
[ENTER] or [PLAY].
You can also display just the tracks in the folders.
Use [
…†œ √
] to select a folder then press [ENTER].
••• MP3 •••
1

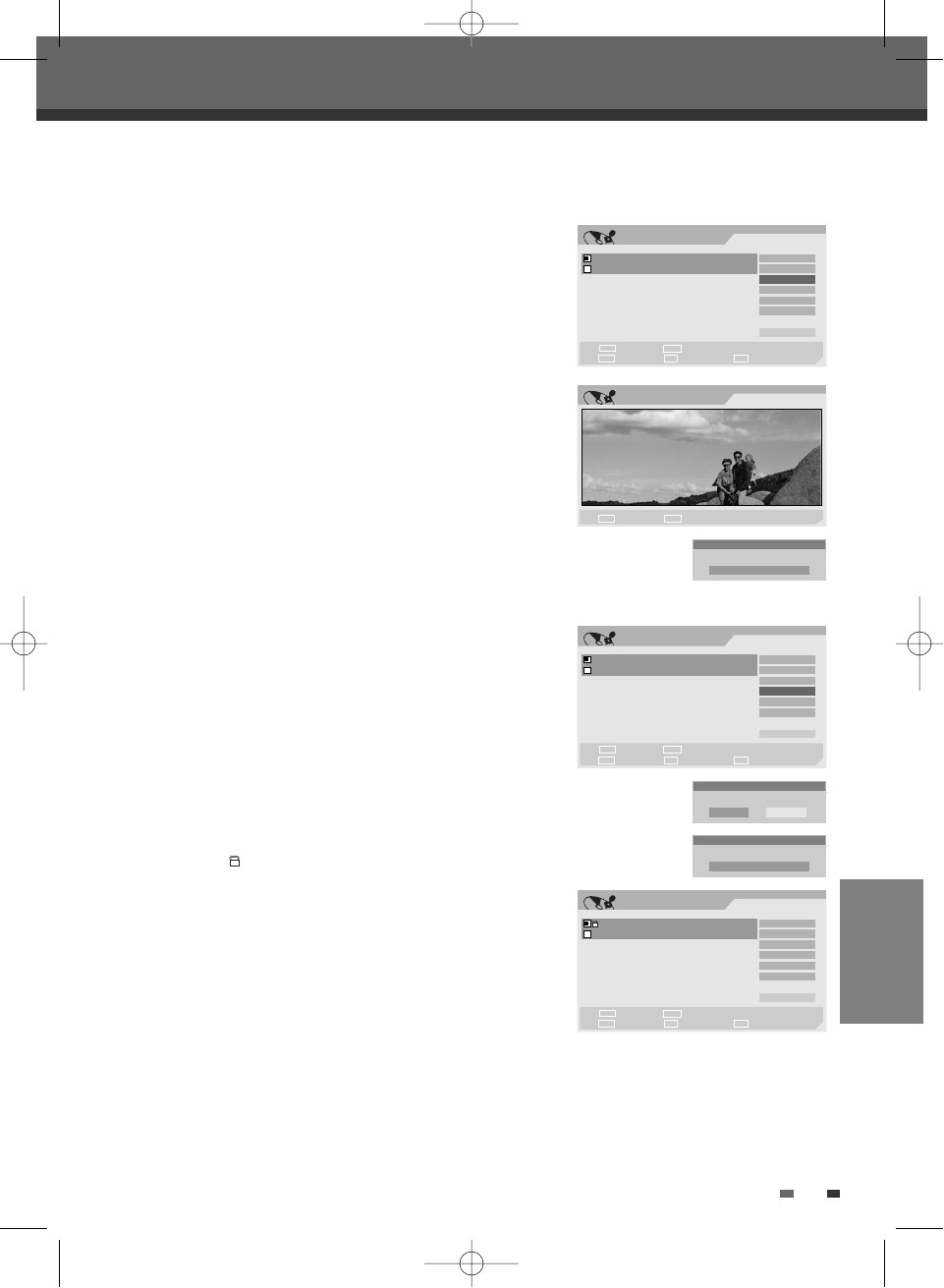

Insert your CD and close the tray. The JPEG CD folder tree appears.
2
If there are folders which contain JPEG files, select the desired folder
using [
…†œ √
] and press [ENTER].
3
Select the thumbnail you want to display using [
…†œ √
] and press
[ENTER].
4
The full size image will be displayed and a slide show starts
automatically with a time interval of 10 seconds.
The DVD Recorder can display JPEG files on CD-R/RW.
JPEG CD PLAYBACK
Other Disc Playback
Other Disc Playback
DVR065(GB) 2006.1.16 1:55 PM ˘ ` 35 mac001 1200DPI 90LPI
36
Other Disc Playback
5
Press [NEXT] or [PREV] to manually skip to the next or previous image.
6
Press [
√
] (or [
œ
]) to rotate the image (counter) clockwise.
7
Press [STOP] to exit the slideshow.
• When a CD contains both MP3 files and JPEG files, the default Play mode is JPEG image files.
• The DVD Recorder can playback up to 1000 files per disc.
• MP3 files encoded below 64kbps are not supported.
DVR065(GB) 2006.1.16 1:55 PM ˘ ` 36 mac001 1200DPI 90LPI
PLAYBACK RECORDING
37

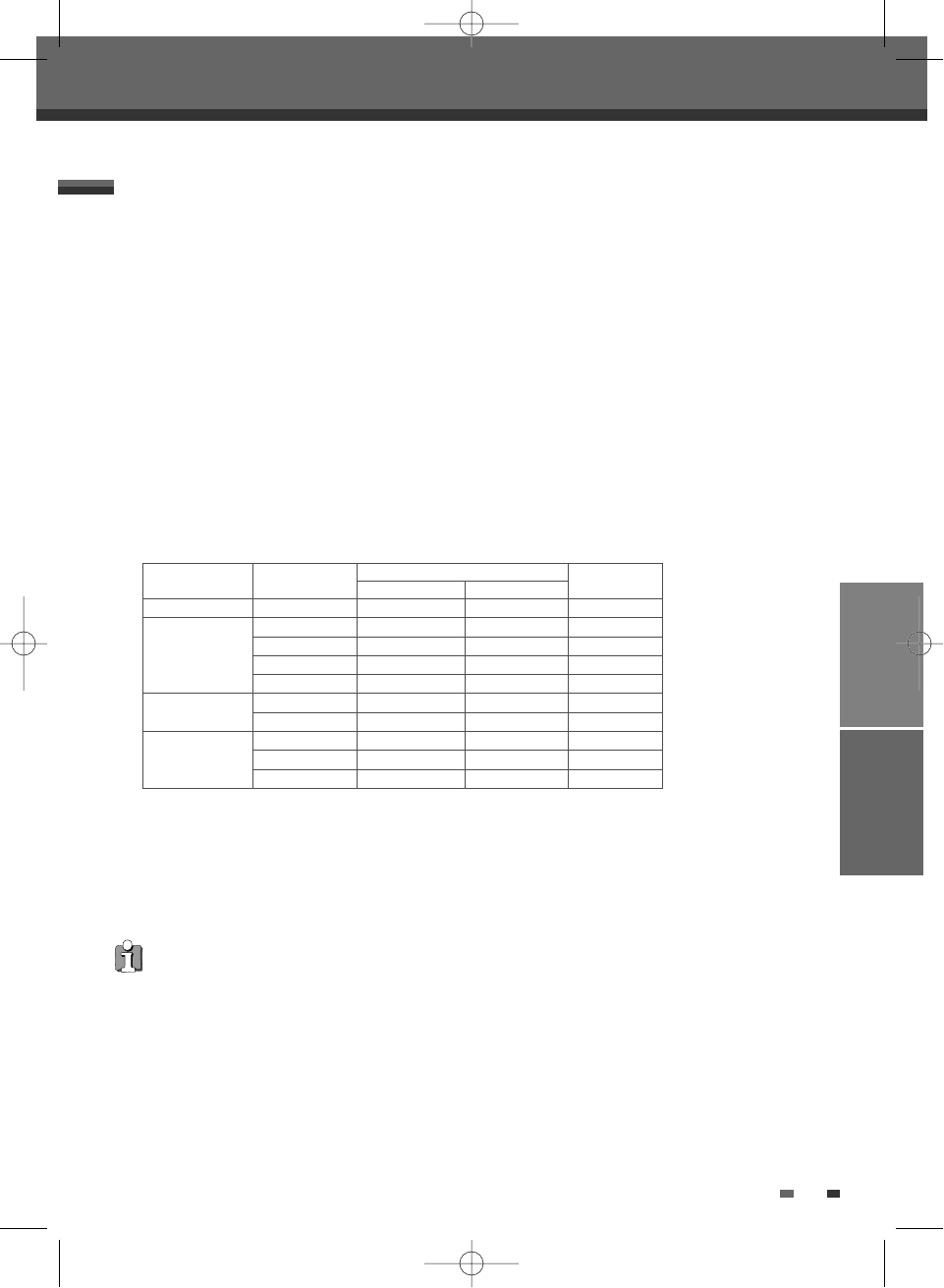

Follow the instructions below to record a TV program.
1Turn on the DVD Recorder and load a recordable disc .
Make sure your TV input is set to view the DVD Recorder.
2Set the desired Recording mode in DVD Record Quality menu by pressing [SETUP] button.
Approx 1 Hour (HQ mode), 2 Hours (SP mode), 4 Hours (EP mode), 8 Hours (SEP mode)
3If your DVD Recorder does not show a TV program, press [TV VIEW] on the remote control. Use [CH …/ †] to
select the TV channel you wish to record.
4Press [AUDIO] to select the audio channel to record (Stereo, SAP, or Mono).
The table below shows what audio channel will be recorded with different settings and different types of
broadcasts.
The last column (Monitor Audio) shows what you will hear during recording. For example, if the TV
broadcast is in Stereo, then setting the DVD Recorder to Stereo will record the broadcast in Stereo, and the
Monitor Audio will also be in Stereo.
• If you set the audio channel to SAP, but no SAP channel is broadcast, the main audio (Mono or Stereo) will
be recorded.
5Press [REC (●)] once.
Recording will start. The REC indicator lights on the front panel display.
Recording continues until you press [STOP] or the disc is full.
To record for a fixed length of time, see One Touch Record on the next page.
6Press [STOP (■)] to stop recording.
Recording from TV
Basic Recording
Basic Recording
• The maximum number of DVD titles per disc is 49. If the DVD Recorder is powered off during DVD recording, the
recording will not be saved.
• If a DVD+RW or unfinalized DVD+R (-R, -RW) disc is inserted in the tray, no title is played automatically after
loading is finished.
• If you are recording to a blank DVD+R (+RW, -R, -RW) disc, it may take up to 7 minutes for post processing after
recording.
Broadcast Audio Monitor
L Ch R Ch Audio
MONO MONO MONO MONO MONO
STEREO L R STEREO
Left L L Left
Right L R Right
MONO MONO MONO MONO
MONO MONO MONO MONO
SAP SAP SAP SAP
STEREO L R STEREO
STEREO+SAP SAP SAP SAP SAP
MONO MONO MONO MONO
TV Broadcast
STEREO
MONO+ SAP
Selected Audio
DVR065(GB) 2006.1.16 1:55 PM ˘ ` 37 mac001 1200DPI 90LPI
38
Total time and recorded time are displayed on the TV screen after pressing [DISPLAY]. Recorded time is
displayed on the OSD.
Checking the Recording Time
1
Press [PLAY/PAUSE] to pause the disc during recording.
2
When you want to continue recording, press [PLAY/PAUSE] or [REC (●)].
To Pause the Recording
Basic Recording
Note
• To quit One Touch Recording, press [STOP].
• The DVD Recorder will automatically power off when One Touch Recording ends.
One Touch Recording allows you add recording time in fixed increments at the touch of a button.
1Follow steps 1-4 under Recording from TV.
2Press [REC (●)] repeatedly to set the length of the recording.
Recording starts after the first press. Each subsequent press increases the recording time by 30 minutes
within the available space. The recording time is displayed on the front panel display.
One Touch Record (OTR)
DVR065(GB) 2006.1.16 1:55 PM ˘ ` 38 mac001 1200DPI 90LPI
RECORDING
39

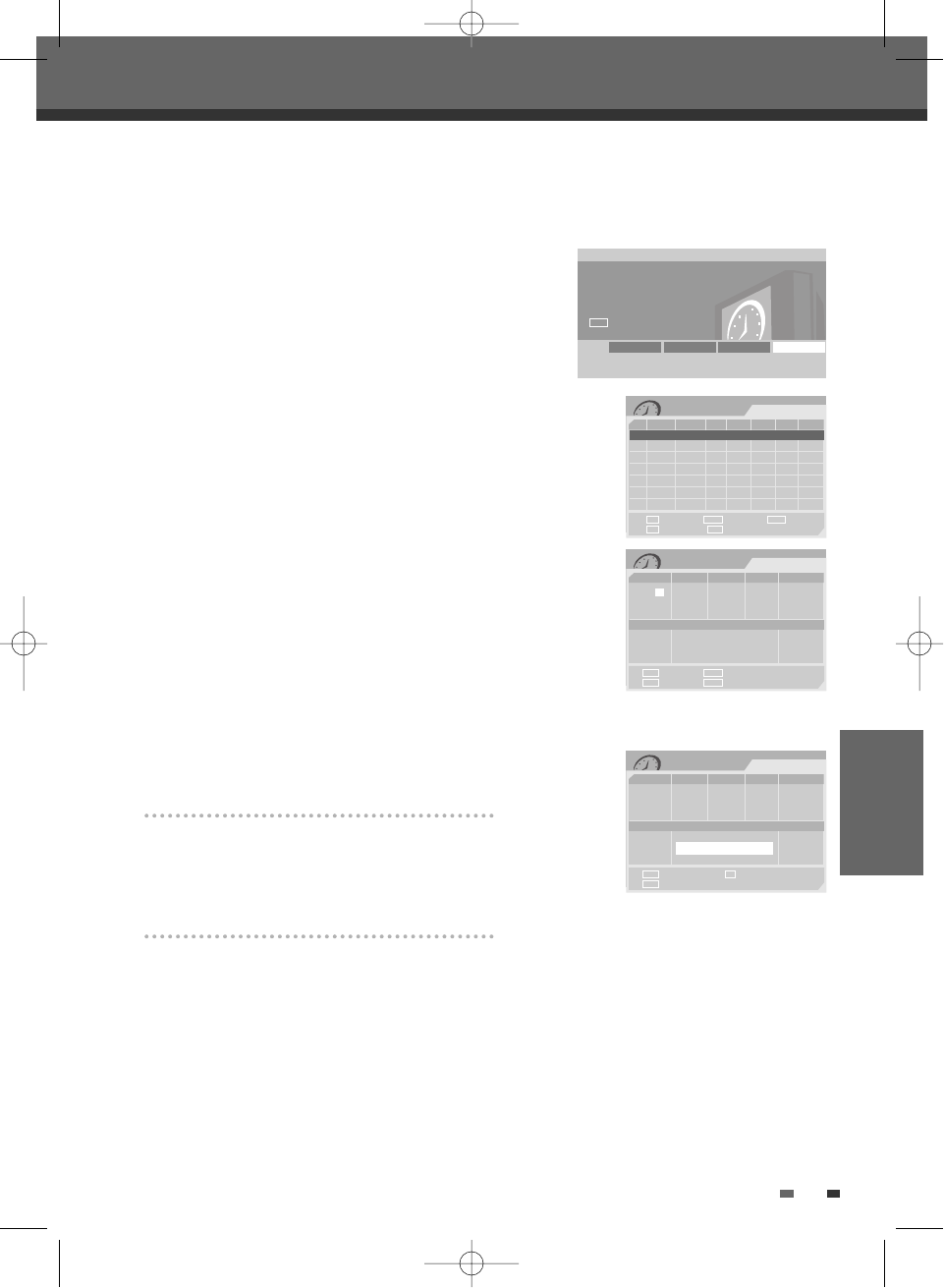

The Timer Recording function allows you to record up to 8 programs within a period of one month.
1Insert recordable media such as DVD±R ,DVD±RW.
2Press [TIMER].
or
Press [SETUP] and select ‘Timer REC’. Then press [ENTER].
The ‘Timer Recording’ menu appears.
Use […†] to move to a timer recording slot, and press [ENTER] to modify
it.
If you did not set the clock on the DVD Recorder, you must do so before
programming a timer recording.
3Enter the necessary information for your Timer Recording(s).
• Date – Choose a date up to 1 month in advance, or select a daily or weekly
program.
• Start – Set the recording start time.
• Stop – Set the recording end time.
• Input – Choose the desired channel, or one of the external inputs from
which to record.
• Repeat – Choose frequency of the recording. Once, Daily, Weekly, Weekday.
• Media - Choose desired media using […†].
• Title - Enter into title edit mode pressing [●].
• Mode – Choose a Record mode.
HQ, SP, EP or SEP
[
œ √
] – Moves the cursor left/right.
[
…†
] – Changes the setting at the current cursor position.
Press [SETUP] to exit the Timer Record menu.
Press [ENTER] after filling in all the program information.
Press [TIMER] to display the Timer Record List.
4Press [ENTER] to save the program.
The Timer Record List will appear.
5Press [SETUP] to exit the Timer Record List.
6Timer indicator will light or blinking. Power Off the DVD Recorder to start the Timer Recording.
Timer Recording 01/07 08:08:40 AM
Date Start Stop Input Media Repeat Mode Result
1/1 1:00AM 2:00AM CH2 DVD Once SP Overdus
New Input
Delete Edit Exit
Prev Page Next Page
§
■
∞
ENTER TIMER
Timer Recording 01/07 08:08:40 AM
Input Digits Confirm and Exit
Prev Page Exit timer rec
TIMER
0-9 ENTER
SETUP
Date Start Stop Input Repeat
1 / 7 7 : 0 PM 7 : 0 PM CH 2 Once
Wed
Media Title Mode
DVD TITLE CH2 SP
…
†
Timer Recording 01/07 08:08:40 AM
Confirm and Exit Edit
Exit timer rec
TIMER
ENTER ●
Date Start Stop Input Repeat
1 / 7 7 : 0 PM 7 : 0 PM CH 2 Once
Wed
Media Title Mode
DVD TITLE CH2 SP
DVD Recorder
Init Setup ➞
Timer REC
œ √
Select
Init Setup Disc Oper Disc Edit Timer REC
Timer Recording
Timer Recording
DVR065(GB) 2006.1.16 1:55 PM ˘ ` 39 mac001 1200DPI 90LPI
40
Timer Recording
Even if a Timer Recording is set, the DVD Recorder will not record if:
• No disc is loaded.
• A non-recordable disc is loaded.
• Disc is protected in the ‘Disc Operation’ menu; see page 47.
• There are already 49 titles recorded on the disc.
You cannot enter a Timer Recording if:
• A recording is already under way.
• The start time has already passed.
• Eight Timer Recordings have already been set.
If two or more Timer Recordings overlap:
• You should set only one Timer Recording.
• You can choose replace old Timer Recording or not.
• Only one Timer recording will work.
Confirmation is not possible when:
• Disc is protected in the ‘Disc Operation’ menu; see page 47.
• There are already 49 titles recorded on the disc.
If the disc is damaged, the recording may not complete successfully, even if the Check field shows ‘Rec. OK‘.
Timer Recording Troubleshooting
You can clear a Timer Recording any time before the recording actually starts.
• Use […†] to select the program you want to erase on the Timer Recorder List. Press [■STOP] to delete the
program.
Canceling a Timer Recording
After a Timer Recording has started, you can still cancel the program by pressing and holding [■STOP] for 3
seconds.
Stopping a Timer Recording in Progress
• The Timer indicator lights on the front panel display when the DVD Recorder is ready for the Timer Recording.
• The disc timer indicator is blinking if disc timer recordings are overlapped.
• The DVD Recorder will record the audio according to the current TV tuner setting (Stereo, Mono or SAP). Use the
[AUDIO] button to set the audio before switching the DVD Recorder to Standby mode.
• The DVD Recorder will automatically power off when the Timer Recording ends.
• There is a short delay when a timer recording finishes to confirm the recorded program. If two timer recordings
are set to record sequentially (one right after the other), the very beginning of the later program may not be
recorded.
Timer Recording
Recording time is overlapped with
existing entry.Replace it?
OK Cancel
DVR065(GB) 2006.1.16 1:55 PM ˘ ` 40 mac001 1200DPI 90LPI
RECORDING
41
You can record from an external component, such as a camcorder or VCR, connected to any of the DVD
Recorder’s external inputs.
1Make sure the component you want to record from is connected properly to the DVD Recorder; see pages 11
and 14.
2Use [ …†] to select the external input to record from.
• Tuner: Built-in tuner
• LINE1 : Audio/Video on front panel
• LINE2 : Audio/Video Input on back panel
• DV: DV input on front panel.
3Load a recordable disc.
4Set the desired Recording mode in DVD Record Quality menu by pressing [SETUP] button.
HQ (High Quality - 1 hr/disc), SP (Standard Play - 2 hrs/disc), EP (Extended Play - 4 hrs/disc), SEP (Very Low
Quality - 8 hrs/disc)
5Press [REC (●)] once.
Recording will start. The REC indicator lights on the front panel display.
Recording continues until you press [STOP] or the disc is full.
To record for a fixed length of time, see ‘One Touch Record‘ on page 39.
6Press [STOP (■)] to stop recording.
Recording from External Components
Note
If your source is copy-protected, you will not be able to record it using the DVD Recorder. See ‘Copyright Notice‘ on
page 4 for more details.
Recording from an External Input
Recording from an External Input
DVR065(GB) 2006.1.16 1:55 PM ˘ ` 41 mac001 1200DPI 90LPI
42
Recording from an External Input
Using DV, also known as i.LINK, you can connect a DV-equipped camcorder to the DVD Recorder using a single
DV cable for input and output of audio, video, data and control signals.
The i.LINK interface is also known as IEEE 1394-1995.
“i.LINK” and the “i.LINK” logo are trademarks.
• The DVD Recorder is only compatible with DV-format (DVC-SD) camcorders. Digital satellite tuners and
Digital VHS video recorders are not compatible.
• You cannot connect more than one DV camcorder at a time to the DVD Recorder.
• You cannot control the DVD Recorder from external equipment connected via the DV IN jack (including two
DVD Recorders).
• It may not always be possible to control the connected camcorder via the DV IN jack.
• Audio input to the DV IN jack should be 32 or 48kHz (not 44.1kHz).
• Picture disturbance on the recording may occur if the source component pauses playback or plays an
unrecorded section of tape, or if the power fails in the source component, or if the DV cable becomes
disconnected.
What is DV?
You can record from a digital camcorder connected to the DV IN jack on the front panel of the DVD Recorder.
You can use the DVD Recorder remote to control both the camcorder and the DVD Recorder. Before recording,
make sure the digital camcorder is properly connected to the front panel DV IN jack; see page 14.
1Make sure your digital camcorder is connected to the front panel DV IN jack; see page 14.
2Press [TV VIEW] repeatedly to select the DV input.
DV appears on the front panel display and the TV screen.
3Find the place on the camcorder tape from which you want to start recording.
For best results, pause playback at the point you want to start recording. Depending on your camcorder, you
can use the DVD Recorder remote to control the camcorder using the STOP, PLAY, and PAUSE functions.
4Press [REC] once to start recording.
Recording is automatically stopped if the DVD Recorder detects no signal. You can pause or stop the
recording by pressing [PLAY/PAUSE] or [STOP]. You cannot control the camcorder from the remote control
during recording.
Recording from a Digital Camcoder
The source signal must be DVC SD format.
Some camcorders cannot be controlled using the DVD Recorder remote.
If you connect a second DVD recorder using a DV cable, you cannot control the second recorder from this one.
You cannot control the DVD Recorder remotely from a component connected to the DV IN jack.
You cannot record date and time information from a DV cassette.
DVR065(GB) 2006.1.16 1:55 PM ˘ ` 42 mac001 1200DPI 90LPI
RECORDING
DISC OPERATION&EDIT
43
For recordable DVD media, such as DVD±R and DVD±RW discs, you can manage the disc using the Disc Menu.
The DVD±RW Disc Menu allows you to erase, lock, or unlock your disc. You can also make it compatible with
most other DVD players.
At first, go to Disc Operation mode.
1
Press [SETUP]. The Setup menu appears.
2
While ‘Disc Oper‘ is selected, press [ENTER] to go to the Disc
Operation page.
Erase the disc (DVD±RW)
3
Use […/†] to select the ‘Erase’ menu.
4
If you want to erase the whole disc, press [ENTER].
5
To confirm, select ‘OK‘. To cancel, select ‘Cancel‘.
If you select ‘OK‘ and press [ENTER], all the contents of the disc will
be lost.
Protect Disc (DVD±R, DVD±RW)
If you want to protect a disc from accidental recording, editing, or
erasing, you can lock the disc. Later, if you change your mind, you can
unprotect the disc.
3
Use […/†] to select ‘Protect’ menu.
4
If you want to protect the whole disc, press [ENTER].
5
To confirm, select ‘OK‘. To cancel, select ‘Cancel‘.
If you select ‘OK‘ and press [ENTER], all the contents of the disc will be protected.
Disc Operation in DVD±RW disc
Disc Operation
Disc Operation
DVD Recorder
Init Setup ➞
Disc Operation
œ √
Select
Init Setup Disc Oper Disc Edit Timer REC
Disc Operation
Select
OK
Exit
ENTER
DISC
…†
Erase
Finalize
Protect
Make Comp
Adapt
Disc Info
_Exit
Erase
Erase this disc?
OK Cancel
Disc Operation
Select
OK
Exit
ENTER
DISC
…†
Erase
Finalize
Protect
Make Comp
Adapt
Disc Info
_Exit
Protect
Protect this disc?
OK Cancel
• If you load a blank DVD±R (±RW) disc, it will be initialized (formatted to enable recording).
• Do not start recording until disc initialization is complete.
• If you load a DVD±RW that has already been used you can record a program immediately.
Disc Initialize
DVR065(GB) 2006.1.16 1:55 PM ˘ ` 43 mac001 1200DPI 90LPI

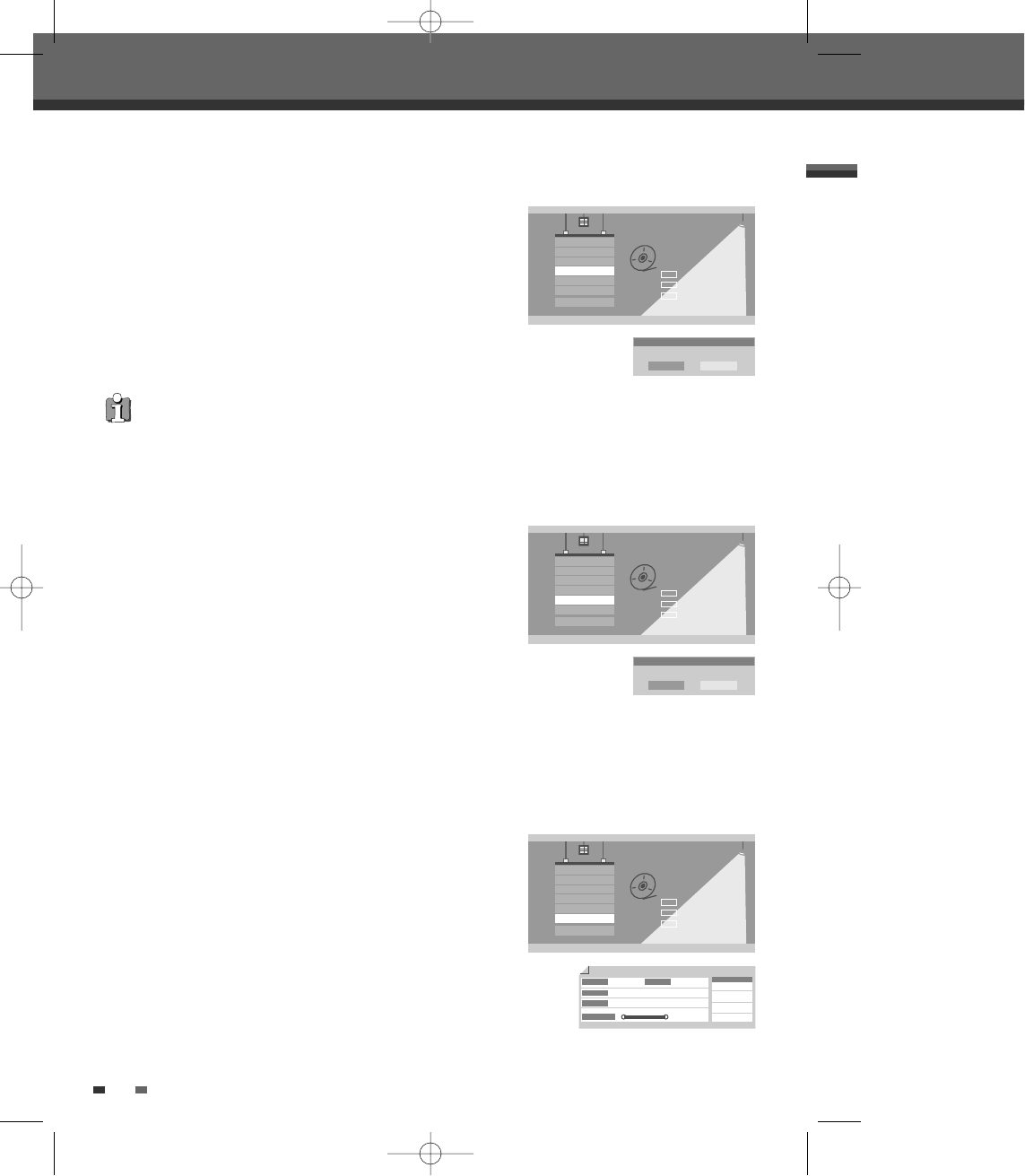

Make Compatible (DVD±RW)
'Make Compatible' for a DVD±RW will automatically create a menu
screen for navigating the disc. This menu screen is accessible by
pressing [MENU] or [TITLE].
3
Press […/†] to select ‘Make Compatible‘.
4
If you want to make the disc compatible, press [ENTER].
5
To confirm, select ‘OK‘. To cancel, select ‘Cancel‘.
If you select ‘OK‘ and press [ENTER], your disc will be make compatible.
44
Adapt
Disc menus created through DVD recorders by different manufacturers
each have their own distinct structure. The ‘ADAPT’ function allows you
to format a recorded disc’s menu to match that of the Daewoo DVDR.
This will increase compatibility and ease of use. After the ‘ADAPT’
function is completed, recorded title contents remain the same while
the Disc menu has been changed.
3
Use […/†] to select ‘Adapt’ menu.
4
If you want to adapt the whole disc, press [ENTER].
5
To confirm, select ‘OK‘. To cancel, select ‘Cancel‘.
If you select ‘OK‘ and press [ENTER], the disc will be adapted.
Disc Operation
Select
OK
Exit
ENTER
DISC
…†
Erase
Finalize
Protect
Make Comp
Adapt
Disc Info
_Exit
Adapt?
Adapt this disc?
OK Cancel
Information
3
Press […/†] to select ‘Disc Info’.
4
The Disc Info Menu shows you disc information, such as disc type,
number of recordings, total titles, free space, etc.
Disc Operation
Disc Operation
Select
OK
Exit
ENTER
DISC
…†
Erase
Finalize
Protect
Make Comp
Adapt
Disc Info
_Exit
Label Empty 3
DVD+RW
Recordable (NTSC)
154/4414MB
HQ : 60 (M)
SP : 116 (M)
EP : 233 (M)
SEP : 438 (M)
Title NO.
Media
Status
Close
Remainder
• ‘Make Compatible’ can take up to 3-4 minutes depending on the type of disc, how much is recorded on the disc,
and the number of titles on the disc.
• If you do not make your DVD±RW disc compatible, your edits will not be recognized by other DVD players.
Disc Operation
Select
OK
Exit
ENTER
DISC
…†
Erase
Finalize
Protect
Make Comp
Adapt
Disc Info
_Exit
Make Compatible
Make Compatible?
OK Cancel
DVR065(GB) 2006.1.16 1:55 PM ˘ ` 44 mac001 1200DPI 90LPI
DISC OPERATION&EDIT
45
Finalize (DVD±R, DVD-RW)
Finalizing a DVD±R, DVD-RW ‘locks’ its recordings in place so the disc
can be played on most standard DVD players or computers equipped
with DVD-ROM drives.
3
Use […/†] to select ‘Finalize’ menu.
4
If you want to finalize the whole disc, press [ENTER].
5
To confirm, select ‘OK‘. To cancel, select ‘Cancel‘.
If you select ‘OK‘ and press [ENTER], the disc will be finalized.
Disc Operation
Disc Operation
Select
OK
Exit
ENTER
DISC
…†
Erase
Finalize
Protect
Make Comp
Adapt
Disc Info
_Exit
Finalize
Finalize this disc?
OK Cancel
For recordable DVD media, such as DVD±R and DVD±RW discs, you can manage the disc using the Disc Menu.
The DVD±R, DVD-RW Disc Menu allows you to rename your disc or finalize it so it will be compatible with most
other DVD players.
At first, go to Disc Operation mode.
1
Press [SETUP]. The Setup menu appears.
2
While ‘Disc Oper‘ is selected, press [ENTER] to go to the Disc Operation page.
Disc Operation in DVD±R, DVD-RW disc
• Once you have finalized a DVD±R, DVD-RW disc, you cannot edit or record anything else on that disc.
• It may take over 7 minutes for finalizing the edited disk, you'd better wait till the set finish the finalizing operation.
• ‘Finalize’ can take up to 3-4 minutes depending on the type of disc, how much is recorded on the disc, and the
number of titles on the disc.
DVR065(GB) 2006.1.16 1:55 PM ˘ ` 45 mac001 1200DPI 90LPI
46
Disc Edit
Disc Edit
You can manage the titles on your DVD±R/±RW discs using the Title
menu.
At first, go to Disc Edit mode.
1
Press [SETUP]. The Setup menu appears.
2
While ‘Disc Edit‘ is selected, press [ENTER] to go to the Disc Edit
page.
Label a Title
To change the name of a title:
2
Select the title to be labelled using [ENTER].
3
Select ‘Label’ using [
… †
] .
4
Press [ENTER] to change the title name.
5
The Keyboard Menu will be displayed. Use [
œ √…†
] to select a
character or function and press [ENTER].
6
After the new title name is complete, select ‘OK’ and press
[ENTER].
Erase a Title
2
Select the title to beerased using [ENTER].
3
Then select ‘Erase‘ using [
… †
].
4
Press [ENTER] to erase the title.
5
Select 'Yes' and press [ENTER] to confirm.
6
The Erase Title progress bar will be displayed. This may takes
several seconds.
7
After erasing is complete, the erased title remains as an empty title.
Title Menu
You can erase titles on DVD±RW discs only.
DVD Recorder
Init Setup ➞
Disc Edit
œ √
Select
Init Setup Disc Oper Disc Edit Timer REC
Edit
TITLE CH 10 10:20 am 12/21/04 SEP
Select Exit
Confirm Prev Page Next Page
§
ENTER ∞
SETUP
Label
Erase
Divide
Protect
Chap Edit
Index Pic
_Exit
TITLE CH 10 10:34 am 12/21/04 HQ
œ √
…
†
Edit
TITLE CH 10 10:20 am 12/21/04 SEP
Select Exit
Confirm Prev Page Next Page
§
ENTER ∞
SETUP
Label
Erase
Divide
Protect
Chap Edit
Index Pic
_Exit
TITLE CH 10 10:34 am 12/21/04 HQ
œ √
…
†
Label Title
Input digits Backspace Select
Prev Page Next Page Delete
§■
∞
œœ
0-9
Clear
OK
Cancel
œ √
…
†
TITLE CH 10
a b c d e f g h i
j k l m n o p q r
Space s t u v w
x y z _ - Backspace
‘A’ ‘a’ Symbol
Edit
TITLE CH 10 10:20 am 12/21/04 SEP
Select Exit
Confirm Prev Page Next Page
§
ENTER ∞
SETUP
Label
Erase
Divide
Protect
Chap Edit
Index Pic
_Exit
TITLE CH 10 10:34 am 12/21/04 HQ
œ √
…
†
Erase
Erase the title(s)?
OK Cancel
DVR065(GB) 2006.1.16 1:55 PM ˘ ` 46 mac001 1200DPI 90LPI
DISC OPERATION&EDIT
47
Divide (DVD±RW)
This feature allows you to divide a title into two titles.
2
Select the title to be divided using [ENTER].
3
Select ‘Divide’ using [
… †
] .
4
Press [ENTER] to divide the title.
5
Select 'Yes' and press [ENTER] to confirm.
6
Press [ENTER] when the preferred picture is on your TV screen.
7
It may take a few minutes to divide the title.
Protect
If you want to protect a title from accidental recording, editing, or
erasing, you can lock the title. Later, if you change your mind, you can
unprotect the title.
2
Select the title to be protected using [ENTER].
3
Select ‘Protect’ using [
… †
] .
4
Press [ENTER] to protect the title.
5
Select 'Yes' and press [ENTER] to confirm.
6
The Protect Title progress bar will be displayed. This may takes several seconds.
Protect icon ‘ ’ will appear in front of Title name.
Disc Edit
Edit
Stop Confirm
ENTER
■
Edit
TITLE CH 10 10:20 am 12/21/04 SEP
Select Exit
Confirm Prev Page Next Page
§
ENTER ∞
SETUP
Label
Erase
Divide
Protect
Chap Edit
Index Pic
_Exit
TITLE CH 10 10:34 am 12/21/04 HQ
œ √
…
†
Edit
TITLE CH 10 10:20 am 12/21/04 SEP
Select Exit
Confirm Prev Page Next Page
§
ENTER ∞
SETUP
Label
Erase
Divide
Protect
Chap Edit
Index Pic
_Exit
TITLE CH 10 10:34 am 12/21/04 HQ
œ √
…
†
Edit
TITLE CH 10 10:20 am 12/21/04 SEP
Select Exit
Confirm Prev Page Next Page
§
ENTER ∞
SETUP
Label
Erase
Divide
Protect
Chap Edit
Index Pic
_Exit
TITLE CH 10 10:34 am 12/21/04 HQ
œ √
…
†
Protect
Protect the title(s)?
OK Cancel
Divide
Please wait....
Protect
Please wait....
DVR065(GB) 2006.1.16 1:55 PM ˘ ` 47 mac001 1200DPI 90LPI
48
Edit Chapters
2
Select the title to be edited using [ENTER].
3
Select ‘Chap Edit’ using [
… †
] .
4
Press [ENTER] to edit the chapters.
5
Select 'Yes' and press [ENTER] to confirm.
6
The Chapter Edit Menu will be displayed. Use [
œ √…†
] to select
one of the various chapter marker functions (Add, Delete, or Hide).
7
Press [ENTER] to confirm.
Add/Delete a Marker
You can add a chapter marker anywhere in a title during playback.
Once the chapter is marked, you can use the chapter search feature as
described above.
You can add/delete chapter markers or delete all chapter markers in a
title.
Hide Chapters
This feature allows you to hide or unhide a chapter. After hiding a
chapter, the chapter is not deleted but only hidden. If a chapter is
hidden then it shows ‘Unhide Chapter‘ and vice versa.
Change Index Picture
Each title displayed in the Playlist menu is represented by a thumbnail
picture taken from the start of that title or chapter. If you prefer, you
can select a different still picture from within the title.
2
Select the title to be edited using [ENTER].
3
Select ‘Index Pic’ using [
… †
] .
4
Press [ENTER] to change the index picture.
5
Press [ENTER] when the preferred picture is on your TV screen.
Disc Edit
Chap Edit
1
Select Exit
Confirm Prev Page Next Page
§
ENTER ∞
SETUP
Title
Play
Add Mark
Del Makr
Hide CH
_Exit
œ √
…
†
Edit
TITLE CH 10 10:20 am 12/21/04 SEP
Select Exit
Confirm Prev Page Next Page
§
ENTER ∞
SETUP
Label
Erase
Divide
Protect
Chap Edit
Index Pic
_Exit
TITLE CH 10 10:34 am 12/21/04 HQ
œ √
…
†
Chap Edit
1
Select Exit
Confirm Prev Page Next Page
§
ENTER ∞
SETUP
Title
Play
Add Mark
Del Mark
Hide CH
_Exit
œ √
…
†
Edit
Stop Confirm
ENTER
■
Edit
TITLE CH 10 10:20 am 12/21/04 SEP
Select Exit
Confirm Prev Page Next Page
§
ENTER ∞
SETUP
Label
Erase
Divide
Protect
Chap Edit
Index Pic
_Exit
TITLE CH 10 10:34 am 12/21/04 HQ
œ √
…
†
DVR065(GB) 2006.1.16 1:55 PM ˘ ` 48 mac001 1200DPI 90LPI
DISC OPERATION&EDIT
REFERENCE
49
Check the following guide for the possible cause of a problem before contacting customer support.
No power.
No picture.
No sound.
Playback picture is poor.
DVD Recorder does not
start playback.
Picture from external input
is distorted.
Some channels are skipped
over when using [CH…†].
Picture or sound of
broadcasting channel is
weak or missing.
Camcorder image not shown.
The power cord is disconnected.
The TV is not set to receive DVD
Recorder signal output.
The video cable is not connected
securely.
The TV power is turned off.
The equipment connected with the
audio cable is not set to receive
DVD Recorder signal output.
The audio cables are not connected
securely.
The power on the equipment
connected with the audio cable is
turned off.
The audio cables are damaged.
The disc is dirty.
No disc is inserted.
An unplayable disc is inserted.
The disc is placed upside down.
The disc is not placed within the
guide.
The disc is dirty.
The Parental Control level is set.
The video signal from the external
component is copy-protected.
The skipped channels were deleted
with the CH. Add/Del feature.
Antenna or cables are loose.
Wrong Tuning Band is selected in
the DVD Recorder Setup menu.
Camcorder is off.
Plug the power cord into the wall outlet
securely.
Select the appropriate video input on the
TV so the picture from the DVD Recorder
appears on the TV screen.
Connect the video cable securely.
Turn on the TV.
Select the correct input mode on the
audio receiver so you can listen to the
sound from the DVD Recorder.
Connect the audio cables securely.
Turn on the equipment connected with
the audio cable.
Replace with new ones.
Clean the disc.
Insert a disc. (Check that the disc
indicator on the front panel display is lit.)
Insert a playable disc. (Check the disc
type, color system, and regional code.)
Place the disc with the playback side
down.
Place the disc on the disc tray correctly
inside the guide.
Clean the disc.
Cancel the Parental Control function or
change the rating level.
You cannot connect via the DVD
Recorder. Connect the component
directly to your TV.
Use the CH. Add/Del feature to restore
channels. See ‘Add/Remove Channels‘ on
page 18.
Tighten connections or replace cable.
Try all ‘Tuning Band‘ options; see page
17 for details.
Turn camcorder on and operate properly.
Symptom Cause Solution
Troubleshooting
Troubleshooting
DVR065(GB) 2006.1.16 1:55 PM ˘ ` 49 mac001 1200DPI 90LPI
50
Troubleshooting
Camcorder image via A/V
input to DVD Recorder is
not shown on TV screen.
Can’t play disc recorded
on this DVD Recorder on
another DVD player.
Cannot record or did not
record successfully.
Timer Recording not
possible.
Stereo Audio Record and/or
Playback not present.
Remote control does not
work properly.
DVD Recorder’s source is not set to
LINE1/LINE2 composite.
The disc was not finalized (or not
made compatible if using a
DVD+RW).
Some players will not play even a
finalized disc.
Discs recorded with copy-once
material cannot be played on other
players.
The remaining blank space on the
disc is insufficient.
The source you are trying to record
is copy-protected.
When setting the recording
channel, the channel is tuned on
your TV’s tuner.
Clock in DVD Recorder is not set to
correct time.
Timer has been programmed
incorrectly.
TIMER indicator light does not
appear after programming timer.
TV is not Stereo-compatible.
Broadcast program is not in stereo
format.
DVD Recorder A/V Out jacks are not
connected to TV A/V In jacks.
DVD Recorder Audio/Video Out is
not selected for viewing at the TV.
DVD Recorder’s TV audio channel is
set to SAP or MONO.
The remote control is not pointed at
the remote sensor of the DVD
Recorder.
The remote control is too far from
the DVD Recorder.
There is an obstacle in the path of
the remote control and the DVD
Recorder.
Use [TV VIEW] to select AV input channel
(LINE1/LINE2 composite).
Finalize the disc; see page 47.
No solution.
No solution.
Use another disc.
You cannot record the source.
Select the channel on the DVD
Recorder’s built-in TV tuner.
Set clock to correct time. See ‘Set Clock‘
on page 19.
Reprogram Timer. See ‘Timer Recording‘
on page 42.
Reprogram Timer.
No solution.
No solution.
Make A/V connections. Stereo is
available only via A/V output from DVD
Recorder.
Select AUX or A/V source as TV input.
Set TV audio channel mode to Stereo.
See ‘Changing the TV Audio Channel‘ on
page 29.
Point the remote control at the remote
sensor of the DVD Recorder.
Operate the remote control within 23 ft
(7m).
Remove the obstacle.
Symptom Cause Solution
DVR065(GB) 2006.1.16 1:55 PM ˘ ` 50 mac001 1200DPI 90LPI
REFERENCE
51
When the DVD Recorder is moved from a cold place
to a warm place.
Under extremely humid conditions.
Keep the DVD Recorder plugged into an AC power
outlet with the power on. This will help prevent
condensation.
When condensation has occurred, wait a few hours
for the DVD Recorder to dry before using it.
Moisture Condensation
Troubleshooting
Moisture condensation can occur: In locations where moisture condensation may occur:
Symptom Cause Solution
All of the buttons don’t
work or DVD screen stop
suddenly.
The batteries in the remote control
are dead.
The remote control is locked.
The DVD Recorder is in the
abnormal status.
DVD Recorder has interrupted by
itself.
Replace the batteries.
Press and hold [POWER] button on font
over 5 seconds.
Press and hold [DVD/VCR] button for 5
seconds to reset the DVD Recorder.
Press [RESET] switch on the rear panel.
DVR065(GB) 2006.1.16 1:55 PM ˘ ` 51 mac001 1200DPI 90LPI
52
RCA cable ............................................... 1
RF Coaxial Cable ..................................... 1
Remote control ....................................... 1
Batteries ................................................. 2
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are registered
trademarks of Dolby Laboratories.
DTS and DTS Digital Out are registered trademarks of Digital Theater Systems, Inc.
Design and specifications are subject to change without notice.
General
Power requirements AC 100–240V~, 50/60 Hz
Power consumption Maximum 20W (Power-Off : 1.8W)
Dimensions (approx.) 16.5*2.0*12.6 inches (420*50*319 mm)(w*h*d)
Mass (approx.) Net : 7.21 lbs (3.27kg), Gross :9.19 lbs (4.17kg)
Operating temperature 41°F to 95°F (5°C to 35°C)
Operating humidity 5% to 90%
Signal system NTSC
Recording
Recording formats DVD Video Recording, DVD-VIDEO
Recordable discs DVD+R, DVD+RW, DVD-R, DVD-RW
Recordable time Approx 1 Hour (HQ mode), 2 Hours (SP mode), 4 Hours (EP mode),
8 Hours (SEP mode)
Video recording format
Sampling frequency : 27MHz, Compression format : MPEG 2
Audio recording format
Sampling frequency : 48kHz, Compression format : MPEG1 Layer2
DVD Specifications
Laser system Semiconductor laser, wavelength 650 nm
Frequency response DVD (PCM 48 kHz): 8 Hz to 22 kHz, CD: 8 Hz to 20 kHz
Signal-to-noise ratio More than 90 dB ❚Harmonic distortion Less than 0.06%
Dynamic range More than 90 dB
Inputs
ANTENNA IN Antenna or CATV input, 75 Ω
VIDEO IN 1.0 Vp-p 75 Ω, sync negative, RCA jack x 2
AUDIO IN -8.8 dBm more than 47 k, RCA jack (L, R) x 2
DV IN 4 pin (i.LINK/IEEE 1394 standard)
Outputs
VIDEO OUT 1 Vp-p 75 Ω, sync negative, RCA jack x 1
S-VIDEO OUT (Y) 1.0 V (p-p), 75 Ω, negative sync, Mini DIN 4-pin x 1, (C) 0.286 V (p-p) 75 Ω
COMPONENT VIDEO OUT (Y) 1.0 V (p-p), 75 Ω, negative sync, RCA jack x 1
(Progressive Scan) (Pb)/(Pr) 0.7 V (p-p), 75 Ω, RCA jack x 2
AUDIO OUT Digital audio : 0.5 V (p-p), 75 Ω, RCA jack x 1
Analog audio : 1.1 Vrms (1 kHz, -6 dB), 600 Ω, RCA jack (L, R) x 2
RF OUT Channel 3 or 4 (Switchable)
Accessories
Technical Specifications
Technical Specifications
DVR065(GB) 2006.1.16 1:55 PM ˘ ` 52 mac001 1200DPI 90LPI
DEAM (Daewoo Electronics America) warrants each new electronic product manufactured by it to be free from
defective material and workmanship and agrees to remedy any such defect or to furnish a new part (at the
Company’s option) in exchange for any part of any unit of its manufacture which under normal installation, use
and service disclosed such defect, provided the unit is delivered by the owner to us or to our authorized
distributor from whom purchased or authorized service station intact, for our examination with all transportation
charges prepaid to our factory. To establish and receive warranty service at our factory or authorized service
facilities, proof of purchase/dated sales invoice is required. Written authorization must be obtained before any
merchandise is returned to the factory.
This warranty does not extend to any of our electronic products which have been subjected to misuse, neglect,
accident, incorrect wiring not our own, improper installation, unauthorized modification, or used in violation of
instructions furnished by us, nor units which have been repaired or altered outside of our factory, nor to cases
where the serial number thereof has been removed, defaced or changed.
This warranty is in lieu of all warranties expressed or implied and no representative or person is authorized to
assume for us any other liability in connection with the sale of our electronic products.
Over-the-counter exchange of initially defective units
A unit is described as initially defective when the dealer opens the unit and finds that it is inoperative or a
customer opening a new unit finds that it is initially defective. This unit may be returned to the factory by the
dealer for exchange. Under no circumstances will a customer be permitted to return an initially defective unit
directly to the factory.
Model Parts Labor
DVR065 1 Year 3 months
This instrument is listed by Underwriter’s Laboratories, Inc. It is
designed and manufactured to meet rigid TUV safety standards against
X-radiation, fire, casualty and electrical hazards.
Daewoo Electronics America Inc.
120 Chubb Ave,
Lyndhurst, NJ 07071 USA
For more information about this or other
Daewoo products, call 1-800-DAEWOO8.
Warranty
TUV
DVR065(GB) 2006.1.16 1:55 PM ˘ ` 53 mac001 1200DPI 90LPI
