WINIA Electronics 7NF1HMO100N Microwave Oven User Manual
Dongbu Daewoo Electronics Corporation Microwave Oven Users Manual
Users Manual
4
When using electrical appliances, basic safety precautions should be followed, including the following:
WARNING-To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive
microwave energy:
1. Read all instructions before using the appliance.

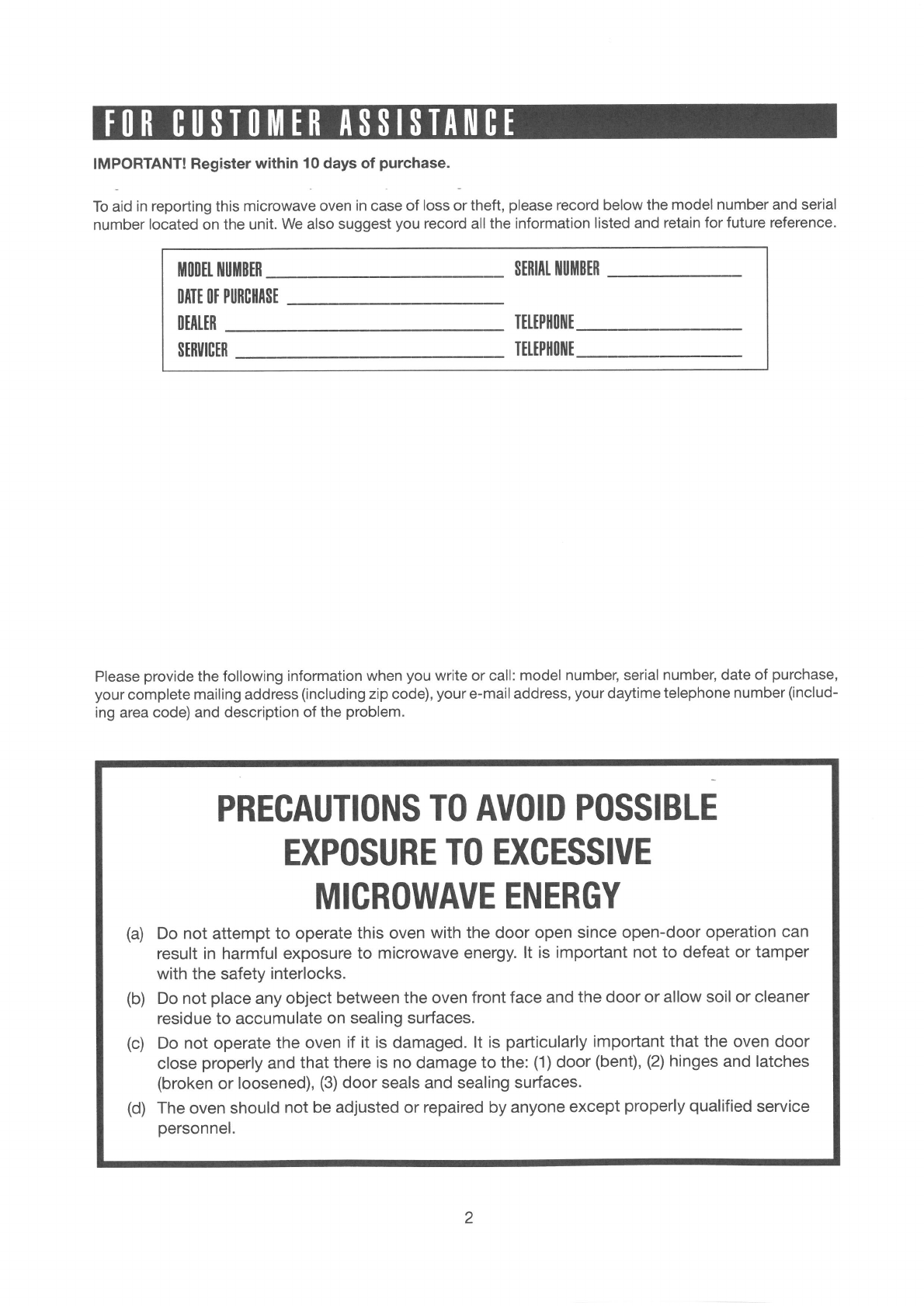

2. Read and follow the specific “PRECAUTIONS TO
AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY” found on page 2.
3. This appliance must be grounded. Connect only to
properly grounded outlet. See “GROUNDING
INSTRUCTIONS” found on page 5.
4. Install or locate this appliance only in accordance with
the provided installation instructions.
5. Some products such as whole eggs and sealed
containers - for example, closed glass jars are able to
explode and should not be heated in this oven.
6. Use this appliance only for its intended use as
described in this manual. Do not use corrosive
chemicals or vapors in this appliance. This type of
oven is specifically designed to heat, cook, or dry food.
It is not designed for industrial or laboratory use.
7. As with any appliance, close supervision is necessary
when used by children.
8. Do not operate this appliance if it has a damaged cord
or plug, if it is not working properly, or if it has been
damaged or dropped.
9. This appliance should be serviced only by qualified
service personnel.
Contact nearest authorized service facility for
examination, repair or adjustment.
10. Do not cover or block any openings on the appliance.
11. Do not store this appliance outdoors. Do not use this
product near water — for example, near a kitchen sink,
in a wet basement, near a swimming pool, or similar
locations.
12. Do not immerse cord or plug in water.
13. Keep cord away from heated surfaces.
14. Do not let cord hang over edge of table or counter.
15. When cleaning surfaces of door and oven that
comes together on closing the door, use only mild,
non-abrasive soaps or detergents applied with a
sponge or soft cloth.
16. To reduce the risk of fire in the oven cavity:
a) Do not overcook food. Carefully attend appliance
when paper, plastic, or other combustible materials
are placed inside the oven to facilitate cooking.
b) Remove wire twist-ties from paper or plastic bags
before placing bag in oven.
c) If materials inside the oven ignite, keep oven door
closed, turn oven off, and disconnect the power
cord, or shut off power at the fuse or circuit breaker
panel.
d) Do not use the cavity for storage purposes. Do not
leave paper products, cooking utensils, or food in
the cavity when not in use.
17. Liquids, such as water, coffee, or tea are able to be
overheated beyond the boiling point without appearing
to be boiling due to surface tension of the liquid. Visible
bubbling or boiling when the container is removed from
the microwave oven is not always present. THIS
COULD RESULT IN VERY HOT LIQUIDS SUDDENLY
BOILING OVER WHEN A SPOON OR OTHER
UTENSIL IS INSERTED INTO THE LIQUID.
To reduce the risk of injury to persons:
a) Do not overheat the liquid.
b) Stir the liquid both before and halfway through
heating it.
c) Do not use straight-sided containers with narrow
necks.
d) After heating, allow the container to stand in the
microwave oven for a short time before removing
the container.
e) Use extreme care when inserting a spoon or other
utensil into the container.
18. Do not use this microwave oven to heat corrosive
chemicals (for example, sulfides and chlorides). Vapors
from such corrosive chemicals may interact with the
contact and springs of the safety interlock switches
thereby rendering them inoperable.
19. Never heat oil or fat for deep frying as you cannot
control the temperature and doing so may lead to
overheating and fire.
20. Do not operate the oven without the glass tray in place.
Be sure it is properly sitting on the rotating base.
21. Use care when cleaning the vent hood filters.
Corrosive cleaning agents such as lye-based oven
cleaners may damage the filters.
22. Clean the ventilating hood frequently. Do not allow
grease to accumulate on the hood or the filters.
23. Suitable for use above both gas and electric cooking
equipment up to 30 inches wide.
24. Do not use this oven for commercial purposes It is
designed for household use only.
25. When flaming foods under the hood, turn the fan on.
Keep the area under the hood properly ventilated at all
times. Turn off cooking equipment if you see flames or
a fire occurs.
SAVE THESE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
5
WARNING:
This equipment generates and uses ISM frequency energy and if not installed and used properly, that is in
strict accordance with the manufacturer's instructions, may cause interference to radio and television
reception.
It has been type-tested and found to comply with limits for an ISM Equipment pursuant to part 18 of FCC
Rules, which are designed to provide reasonable protection against such interference in a residential
installation.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the followings.
• Reorient the receiving antenna of radio or television.
• Relocate the Microwave oven with respect to the receiver.
• Move the microwave oven away from the receiver.
• Plug the microwave oven into a different outlet so that microwave oven and receiver are on
different branch circuits.
THE MANUFACTURER is not responsible for any radio or TV interference caused by
UNAUTHORIZED MODIFICATION to this microwave oven. It is the responsibility of the user to correct
such interference.
This appliance must be grounded. In the event of an electrical short circuit, the grounding plug reduces the risk of
electric shock by providing an escape wire for electric current. This appliance is equipped with a cord having a
grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and
grounded.
WARNING:
Improper use of the grounding can result in a risk of electric shock.
Consult a qualified electrician or serviceman if the grounding instructions are not completely understood, or if
doubt exists as to whether the appliance is properly grounded, and if it is necessary to use an extension cord,
use only a 3-wire extension cord that has a 3-blade grounding plug, and a 3-slot receptacle that will accept the
plug on the appliance. The marked rating of the extension cord shall be equal to or greater than the electrical
rating of the appliance.
WARNING:
Do not cut or remove the third (ground) prong from the power cord under any circumstances.
FEDERAL COMMUNICATIONS COMMISSION
RADIO FREQUENCY INTERFERENCE STATEMENT
GROUNDING INSTRUCTIONS
6
1. Examine the oven after unpacking.
Unpack the oven, remove all packaging material and examine the oven for any damage such as dents on the
interior or exterior of the oven, broken door latches, cracks in the door, or a door that is not lined up correctly. If
there is any damage, do not operate the oven and notify your dealer immediately.
2. Checking the parts
Carefully unpack your microwave oven, and make sure you’ve received all the parts shown below. If your
microwave oven was damaged during shipping, or if you do not have all the parts, contact the SHARP Call Center.
INSTALLATION GUIDE
Image Part & Description Q’ty Image Part & Description Q’ty
Hardware Kit
(Screws) 1
Installation
Manual
Installation Manual 1
Metal Rack 1
Operation
Manual
Operation Manual 1
Damper
(Exhaust Adapter) 1 Guide Roller Ring 1
Mounting Plate 1 Grease Filters 2
Top Cabinet
Template
Top Cabinet Template 1 Grease Filter Holders 2
Wall Template
Rear Wall Template 1 Glass Turn Table 1
3. Location
• The installation of this appliance must be performed by a qualified technician or service company.
Failing to have a qualified technician install the oven may result in electric shock, fire, an explosion, problems
with the product, or injury.
• Do not install this appliance in a humid, oily, or dusty location, or in a location exposed to direct sunlight or water
(rain drops).
• Plug the power plug into the wall socket firmly. Do not use a damaged power plug, damaged power cord, or
loose wall socket.
• Do not mount over a sink.
• Do not stand on top of the microwave or place objects (such as laundry, oven covers, lighted candles, lighted
cigarettes, dishes, chemicals, metal objects, etc.) on the appliance.
This may result in electric shock, fire, problems with the product, or injury.
4. Power supply.
• Check your local power source.
This microwave oven requires a current of approximately 14.2 amperes, 120Volts, 60Hz and a grounded outlet.
a) A short power-supply cord is provided to reduce the risks of the user becoming entangled in or tripping over a
longer cord.
b) Longer cord sets or extension cords are available and may be used if care is exercised in their use.
c) If a long cord or extension cord is used:
- The marked electrical rating of the cord set or extension cord should be at least as great as the electrical
rating of the oven.
- The extension cord must be a grounding type 3-wire cord.
- The longer cord should be arranged so that it will not drape the table top or counter where it can be pulled on
by children or tripped over unintentionally.
7
• Check power cord and outlet
- Remove all foreign substances such as dust or water from the power plug terminals and contact points using
a dry cloth on a regular basis.
- Unplug the power plug and clean it with a dry cloth.
- Plug the power cord into a properly grounded 3 pronged outlet. Your oven should be the only appliance
connected to this circuit.
- Sharing a wall socket with other appliances, using a power strip, or extending the power cord may result in
electric shock or fire.
- Do not use an electric transformer. It may result in electric shock or fire.
- Ensure that the voltage, frequency and current provided match the product’s specifications.
5. Critical usage WARNINGS
If the microwave appliance is flooded, please contact your nearest service center. Failing to do so may result in
electric shock or fire.
Read and follow the specific “Precautions to Avoid Possible Exposure to Excessive Microwave Energy” found on
Page 2.
If the microwave generates a strange noise, a burning smell or smoke, unplug it immediately and contact your
nearest service center.
• In the event of a gas leak (propane gas, LP gas, etc.), ventilate the room immediately. Do not touch the
microwave, power cord, or plug.
• Do not use a ventilating fan.
• A spark may result in an explosion or fire.
Take care that the door or any of the other parts do not come into contact with your body while cooking or just
after cooking.
• In the event of a grease fire on the surface units below the oven, smother the flaming pan on the surface unit by
covering the pan completely with a lid, a cookie sheet or a flat tray.
Never leave surface units beneath your oven unattended at high heat settings. Boil overs cause smoking and
greasy spills that may ignite and spread if the vent fan is operating. To minimize automatic fan operation, use
adequate sized cookware. Use high heat on surface units only when necessary.
If materials inside the oven should ignite, keep the oven door closed, turn the oven off and disconnect the power
cord, or shut off power at the fuse or circuit breaker panel. If the door is opened, the fire may spread.
• Always observe Safety Precautions when using your oven. Never try to repair the oven on your own. There is
dangerous voltage inside. If the oven needs to be repaired, contact an authorized service center near you.
When use 3-pronged plug
3-prong Receptacle
Receptacle
Box cover
3-prong plug
When use grounding adaptor, make sure
the receptacle box is fully grounded.
Receptacle Box Cover
Receptacle
Grounding
Lead
Grounding
Adaptor
“THE CANADIAN ELECTRICAL CODE DOES NOT ALLOW THE USE OF THE GROUNDING ADAPTOR”
INSTALLATION GUIDE
8
29.9 15.9
16.3
SPECIFICATIONS
POWER SUPPLY 120V AC, 60Hz SINGLE PHASE WITH
GROUNDING
MICROWAVE
INPUT POWER 1600 W
ENERGY OUTPUT 1000 W
FREQUENCY 2,450MHz
OUTSIDE DIMENSIONS (W x H x D) 29.9 x 16.3 x 15.9 in
CAVITY DIMENSIONS (W x H x D) 19.8 x 10.0 x 14.9 in
CAVITY VOLUME 1.6 cu.ft
NET WEIGHT APPROX. 50.5 lbs
TIMER 99 min. 99 sec.
POWER SELECTIONS 10 Levels
* Specifications are subject to change without notice.
9
1 DOOR LATCHES
2 WINDOW with METAL SHIELD - Screen allows
cooking to be viewed while keeping microwaves
confined in oven.
3 MODEL NUMBER PLATE - Located on the front
wall of the microwave oven.
4 CHARCOAL FILTER (behind Vent Grille)
5 OVEN LIGHT
6 WAVEGUIDE COVER
Protects the microwave outlet from splashes of
cooking foods.
7 TOUCH CONTROL PANEL and DIGITAL
DISPLAY - For detailed information on each
feature, see Features Diagram section,
page 10, 11.
8 HOOD CONTROLS
Vent Fan - Press High, Low or Off.
Light - Press On or Off
9 DOOR BUTTON - To open the door push the door
open button.
0 COOKTOP LIGHT
q GREASE FILTERS
w HANDLE FILTERS - Use to insert Grease Filters.
e METAL RACK - Use for extra space when
cooking with more than one container at the same
time.
r TURNTABLE / GLASS TRAY - Composed of
glass tray and roller guide. The roller guide is
placed first in the bottom of the microwave and
supports the glass tray. Both parts must be in
place when using the microwave oven.
t VENTILATION MOTOR - Your microwave oven is
designed for adaptation to the following three
types of ventilation.
(Recirculation ventilation system, Vertical
ventilation system,Horizontal ventilation system)
See installation manual to Select the type of
ventilation required for your installation.
y Guide Roller Ring
1 2 3 4 5 6 7
15
12 11 10
9 8
13
14
16
FEATURES DIAGRAM
10
1
3
2
6
4 7
0
9w
u i
q
t
e
y
8
5
r
o p
a d
s
FEATURES DIAGRAM

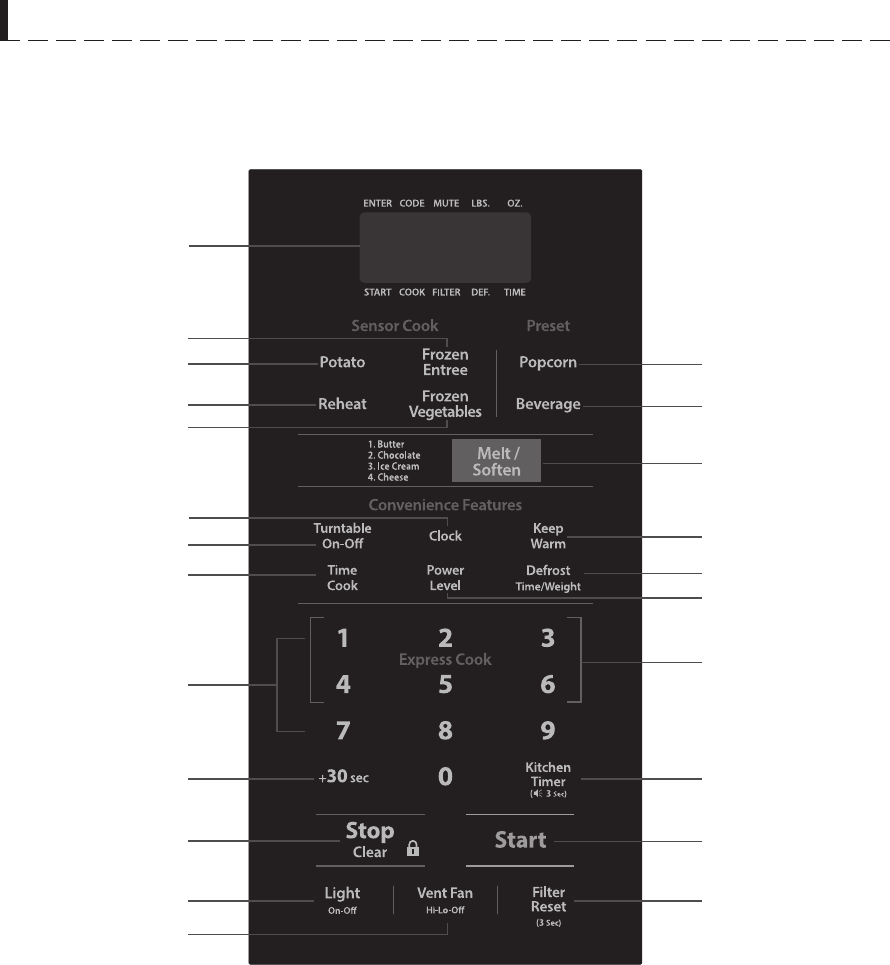

The Touch Control Panel allows you to set the oven controls with the press of a finger.
It’s designed to be easy to use and understand.
◆ Each time a pad is pressed, a BEEP will sound.
◆ When STOP/CLEAR Pad is pressed during oven operation, the oven
will stop, however, all programmed information is retained. To clear all
information, press the STOP/CLEAR Pad again.
11
1 DISPLAY - Displays time of day, time or
power level being used, cooking mode and
instructions.
2 FROZEN ENTREE - Press this pad to cook
Frozen Entree. The microwave oven sensor
will automatically adjust the cooking time to
the type and amount of food.
3 POTATO - Press this pad to cook Potato.
The microwave oven sensor will
automatically adjust the cooking time to the
type and amount of food.
4 REHEAT - Press this pad to reheat food.
The microwave oven sensor will
automatically adjust the cooking time to the
type and amount of food.
5 FROZEN VEGETABLES - Press this pad to
cook Frozen vegetables. The microwave
oven sensor will automatically adjust the
cooking time to the type and amount of
food.
6 POPCORN - Press this pad to cook
prepackaged microwave popcorn weight
3.5/3.0/1.75 ounces.
7 BEVERAGE - Press this pad to reheat a
beverage.
8 MELT/SOFTEN - Press this pad to melt or
soften Butter, Chocolate, Ice Cream and
Cheese.
9 CLOCK - Press this pad to enter time of
day.
0 TURNTABLE On-Off - Press this pad to
turn turntable on or off.
q TIME COOK - Press this pad to set the
Microwave cooking time.
◆ Power Level 10 (High) is automatic but
lower heat levels may be programmed.
w KEEP WARM - Press this pad and safely
keep food warm for up to 30 minutes.
e DEFROST - Press this pad to set defrosting
time or defrosting weight.
r POWER LEVEL - Press this pad if you want
to change from automatic Power Level 10
(High) for cooking.
t NUMBER PADS - Press these pads to
enter cooking time, defrosting time or
weight, time of day, power level.
y EXPRESS COOK - Press these pads to set
1-6 minutes preset cooking time at 100%
power level.
u +30 SEC - Press this pad for 30 seconds
instant "ON" cooking time or to add 30
seconds of cooking time as the timer is
counting down.
i KITCHEN TIMER - Press this pad to use as
a minute timer, delay cooking, hold setting
after cooking.
o STOP/CLEAR - When pressed once, it
pauses the oven operation. When pressed
twice, it resets the oven and erases all
settings (except time of day)
p START - After all selections are made,
press this pad to start the oven or timer.
a LIGHT - Press this pad to turn on or off the
cooktop light.
s VENT FAN - Press this pad to turn the fan
on high, low or off.
d FILTER RESET - Press and hold this pad
for 3 seconds to reset time after replacing
the filter.
Charcoal filters must be replaced every 6
months.
FEATURES DIAGRAM
Also press and hold this pad for 3
seconds to set power save mode. For
detailed information on this feature, see
Controls section, page 25.
Also press and hold this pad for 3
seconds to set sound on/off. For
detailed information on this feature, see
Controls section, page 25.
Also press and hold this pad for 3
seconds to set child safety lock function.
For detailed information on this feature,
see Controls section, page 25.
12
Plug power supply cord into a standard 3-pronged
15 Amps 120V AC 60Hz power outlet.
After placing the food in a suitable container, open
the oven door and put it on the glass tray.
The glass tray and roller guide must always be in
place during cooking.
Close the door. Make sure that it is firmly closed.
The oven light is on when the microwave oven is
operating.
The oven door can be opened at any time during
operation by pushing the door open button of
control panel. The oven will automatically stop.
Each time a pad is pressed, a BEEP will sound to
acknowledge the press.
The oven automatically cooks on full power unless
set to a lower power level.
The display will show “ : 0” when the oven CLOCK
is not set.
1
2
3
4
5
6
7
8
19
10
11
Make sure the oven is properly installed and
plugged into the electrical outlet.
TO SET POWER LEVEL
• The power-level is set by pressing the Power Level pad and number pad. If you wish to use a different power level,
press the POWER LEVEL pad before pressing START pad. Enter the power level desired by pressing the
appropriate number pad. The chart shows the display, the power level and the percentage of power.
OPERATION PROCEDURE
This section includes useful information about oven operation.
PRESS POWER PAD AND NUMBER POWER LEVEL (DISPLAY)
APPROXIMATE PERCENTAGE OF POWER
POWER LEVEL + 1 + 0 PL10 100%
POWER LEVEL + 9 PL-9 90%
POWER LEVEL + 8 PL-8 80%
POWER LEVEL + 7 PL-7 70%
POWER LEVEL + 6 PL-6 60%
POWER LEVEL + 5 PL-5 50%
POWER LEVEL + 4 PL-4 40%
POWER LEVEL + 3 PL-3 30%
POWER LEVEL + 2 PL-2 20%
POWER LEVEL + 1 PL-1 10%
POWER LEVEL + 0 PL-0 0%
NOTE : If “PL-0” is selected, the oven will work with the fan but no power. You can use this level to remove odors.
Time clock returns to the present time when the
cooking time ends.
When the STOP/CLEAR pad is pressed during the
oven operation, the oven stops cooking and all
information retained. To erase all information(except
the present time), press the STOP/CLEAR pad once
more. If the oven door is opened during the oven
operation, all information is retained.
If the START pad is pressed and the oven does not
operate, check the area between the door and door
seal for obstructions and make sure the door is
closed securely. The oven will not start cooking until
the door is completely closed or the program has
been reset.
13
SETTING THE CLOCK
When the oven is first plugged in, the display will show " : 0" and a tone will sound. If the AC power ever goes
off, the display show “ : 0” when the power comes back on.
KITCHEN TIMER MODE
Timer operates as a minute timer.
Timer operates without microwave energy.
1. Press the CLOCK pad.
This is a 12 hour clock system.
2. Press the CLOCK pad once more.
This is a 24 hour clock system.
3. Enter the correct time of day by
pressing the number pads in
sequence.
4. Press the CLOCK pad.
1. Press KITCHEN TIMER pad.
2. Press the amount of time you want
to count down.
3. Press START pad.
The display stops blinking, and the colon starts
blinking. If you selected 12 hour clock system,
this digital clock allows you to set from 1:00 to
12:59. If you selected 24 hour clock system, this
digital clock allows you to set from 0:00 to 23:59.
The ENTER, TIME indicators blink and "12H" is
displayed.
The ENTER, TIME indicators blink and “ : 0” is
displayed.
The display will show what you pressed.
NOTE : This oven has multiple clock
systems. If you want 12 hour clock
system, omit this step.
NOTE:
1. If you attempt to enter an incorrect time, the time will not be set and a error signal tone will sound. Press the
CLOCK pad and re-enter the time.
2. If you want to set power save mode, press and hold CLOCK pad for 3 seconds. For detailed information on
this feature, see Controls section, page 25.
NOTE: If you want to turn sound on or off, press and hold KITCHEN TIMER pad for 3 seconds. For detailed
information on this feature, see Controls section, page 25.
CONTROLS
HOW TO USE AS A MINUTE TIMER
The TIME indicator starts blinking and the display counts down the time remaining in KITCHEN TIMER mode.
When KITCHEN TIMER mode ends, you will hear 3 beeps.
14
KITCHEN TIMER MODE (CONTINUED)
1. Press KITCHEN TIMER pad.
2. Press the amount of time you want
to delay.
3. Press TIME COOK pad to program
the desired cooking time for food
to be cooked.
4. Press START pad.
1. Press TIME COOK pad to program
the desired cooking time for food
to be cooked.
2. Press KITCHEN TIMER pad.
3. Press the amount of time you want
the oven to hold.
4. Press START pad.
The ENTER, TIME indicators blink and “ : 0” is
displayed.
The display will show what you pressed.
The ENTER, TIME indicators blink and “ : 0” is
displayed.
The display will show what you pressed.
NOTE : Your oven can be programmed for 99 minutes 99 seconds. (99:99)
CONTROLS
HOW TO USE TO DELAY THE START OF COOKING
HOW TO USE TO SET A HOLDING TIME
When you press START pad, the TIME indicator starts blinking and the display counts down the time remaining in
KITCHEN TIMER mode. When KITCHEN TIMER mode ends, the oven will beep. The TIME indicator goes off and
COOK indicator starts blinking. The display counts down the time remaining in MICROWAVE mode. When
MICROWAVE cook ends, you will hear 3 beeps.
The COOK indicator starts blinking and the display counts down the time remaining in MICROWAVE mode. When
the MICROWAVE cook ends, the oven will beep. The COOK indicator goes off and TIME indicator starts blinking.
The display counts down the time remaining in KITCHEN TIMER mode. When the KITCHEN TIMER mode ends, you
will hear 3 beeps.
15
CONTROLS
WEIGHT DEFROSTING
WEIGHT DEFROST lets you easily defrost food by eliminating guesswork in determining defrosting time.
Follow the steps below for easy defrosting.
TIME DEFROSTING
When TIME DEFROST is selected, the automatic cycle divides the defrosting time into periods of alternating
defrost and stand times by cycling on and off.
1. Press DEFROST pad twice.
2. Press number pads for the desired
defrosting weight.
3. Press START pad.
1. Press DEFROST pad once.
2. Press number pads for the desired
defrosting time.
3. Press START pad.
The DEF. indicator lights and ENTER, LBS
indicators blink, "0.0" is displayed.
The display will show what you pressed.
The DEF indicator lights and ENTER, TIME
indicators blink, “ : 0” is displayed.
The display will show what you pressed.
The defrosting time is automatically determined by the weight selected.
When you press START pad, the DEF indicator starts blinking and the defrosting time counts down in the display
window. The oven beeps during the defrosting cycle to signal that the food needs to be turned or rearranged. When
the defrosting time ends, you will hear 3 beeps.
When you press START pad, the DEF indicator starts blinking to show the oven is in the TIME DEFROST mode. The
display counts down the time to show you how much defrosting time is left in the TIME DEFROST mode. The oven
beeps during the defrosting cycle to signal that the food needs to be turned or rearranged. When the defrosting time
ends, you will hear 3 beeps.
NOTE : Your oven can be programmed for
0.2 to 6.0 lbs.
NOTE : Your oven can be programmed for 99
minutes 99 seconds. (99:99)
16
CONTROLS
MELT/SOFTEN ITEM CHART
PRESS PAD DISPLAY SOFTEN ITEM WEIGHT
once S--1 Butter 1/2 cup
twice S--2 Chocolate 8 oz.
Three Times S--3 Ice Cream 1/2 gallon
Four Times S--4 Cheese 1 plate
MELT/SOFTEN
The melt/soften feature can be used to melt or soften butter, chocolate, ice cream and cheese.
See the chart for specific settings to use.
KEEP WARM
KEEP WARM feature maintains food at a warm temperature for 30 minutes.
1. Press MELT/SOFTEN pad once for
butter, twice for chocolate, three
times for ice cream, four times for
cheese.
2. Press START pad.
1. Press KEEP WARM pad.
2. Press START pad.
The display will show what you pressed.
When pressing KEEP WARM pad, the display
shows "30:00".
When the cooking time ends, you will hear 3 beeps.
17
CONTROLS
TIME COOK
1. Press TIME COOK pad.
2. Press number pads for the cooking
time.
3. Press POWER LEVEL pad.
4. Press number pads for power level
(0~10).
5. Press START pad.
The COOK indicator lights and ENTER, TIME
indicators blink., “ : 0” is displayed.
The display will show what you pressed.
The display will show PL10 for 100% power.
The display will show PL-0 ~ PL10.
If you skip 3 and 4 step, 100% power is
automatic.
When you press START pad, the COOK indicator starts blinking to show the oven is cooking.
The display counts down the time to show how much cooking time is left. When the cooking time ends, you will hear
3 beeps.
NOTE : Your oven can be programmed for 99
minutes 99 seconds. (99:99)
NOTE : Using lower power levels increases the cooking time which is recommended for foods such as cheese,
milk and slow cooking of meats.
18
CONTROLS
1. Press Defrost pad once.
2. Press number pads for the
defrosting time you want.
3. Press TIME COOK pad.
4. Press number pads for the cooking
time.
5. Press POWER LEVEL pad.
6. Press number pads for power level
(0~10)
7. Press START pad.
The DEF indicator lights and ENTER, TIME
indicators blink, “ : 0” is displayed.
The display will show what you pressed.
The COOK indicator lights and ENTER, TIME
indicators blink., “ : 0” is displayed.
The display will show what you pressed.
The display will show PL10 for 100% power.
The display will show PL-0 ~ PL10
If you skip 5 and 6 step, 100% power is
automatic.
When you press START pad, the DEF and COOK indicators come on to confirm the power levels selected. The DEF
indicator starts blinking to show you that the oven is in TIME DEFROST mode.
The display counts down the time remaining in TIME DEFROST mode. When the oven beeps, turn over, break apart
and/or redistribute the food. At the end of TIME DEFROST mode, the oven will beep and start MICROWAVE cook.
The DEF indicator goes off and the COOK indicator starts blinking. The display counts down the time remaining in
MICROWAVE mode. When MICROWAVE cook ends, you will hear 3 beeps.
NOTE : Your oven can be programmed for 99
minutes 99 seconds. (99:99)
COOKING IN TWO STAGES
This feature lets you program two sequential operations such as defrosting and cooking or cooking using two
different power levels. It automatically changes power settings and cooking time.
Defrosting + Cooking
19
Cooking + Cooking
CONTROLS
1. Press TIME COOK pad.
2. Press number pads for the cooking
time.
3. Press TIME COOK pad.
4. Press number pads for the cooking
time.
5. Press POWER LEVEL pad.
6. Press number pads for power level
(0~10)
7. Press START pad.
COOK indicator lights and ENTER, TIME
indicators blink. “ : 0” is displayed.
The display will show what you pressed.
The COOK indicator lights and ENTER, TIME
indicators blink., “ : 0” is displayed.
The display will show what you pressed.
The display will show PL10 for 100% power.
The display will show PL-0 ~ PL10
If you skip 5 and 6 step, 100% power is
automatic.
When you press START pad, the COOK indicator starts blinking to show the oven is in cook for stage 1.
At the end of stage 1, the oven will beep and start stage 2. The display counts down the time remaining in stage 2
mode. When stage 2 ends, you will hear 3 beeps.
NOTE : Your oven can be programmed for 99
minutes 99 seconds. (99:99)
COOKING IN TWO STAGES (CONTINUED)
20
CONTROLS
+30 SEC
+30 sec allows you to reheat for 30 seconds at 100% (full power) by simply pressing the +30 sec pad. By
repeatedly pressing the +30 sec pad, you can also extend reheating time to 99 minutes 99 seconds by 30
second increments.
EXPRESS COOK
Express Cook is a quick way to set cooking time from 1-6 minutes at 100% (full power).
1. Press the +30 sec pad.
1. Press one of the Express Cook
pads (from 1-6) for 1-6 minutes of
cooking at 100% (full power).
When you press the +30 sec pad, “:30” is
displayed and the oven starts reheating.
The display will show what you pressed.
After 1.5 seconds, the display is changed into
cooking time and the oven starts cooking.
NOTE :
+30 SEC cannot be used while the sensor is
detecting the vapor emitted from the food
during sensor cooking such as Potato,
Frozen Entree, Frozen Vegetables or Sensor
Reheat.
