WINIA Electronics 7NF22MO125N Microwave Oven User Manual

Dongbu Daewoo Electronics Corporation Microwave Oven

user manual

Customer Assistance/Asistencia al Cliente
1-844-553-6667 press 2/presione 2
Use & Care Guide
Manual de Uso y Cuidado
2.2 Pies.Cúbicos, 1250 Vatios
2.2 Cu. Ft., 1250 Watts
Models/Modelos:
111.72219810 - Black / Negro
111.72213810 - Stainless Steel / Acero Inoxidable
Sears Brands Management Corporation
Hoffman Estates, IL 60179 U.S.A.
www.kenmore.com
www.sears.com
Kenmore
®
®
For the most prompt assistance to order available replacement parts for this appliance, call
1-844-553-6667 and select option 2 "If you have purchased your Kenmore item at any
other store".
Customer Assistance
EN-1
PRECAUTIONS TO AVOID POSSIBLE
EXPOSURE TO EXCESSIVE MICROWAVE
ENERGY
Specifications
Model: 111.72219810 / 111.72213810
Rated Voltage: 120V~ 60Hz
Rated Input Power(Microwave): 1250W (Max 1950W)
Rated Output Power(Microwave): 1250W
Oven Capacity: 2.2 cu.ft. / 60 L
Turntable Diameter: Ø 16 inch / 406 mm
External Dimensions: 24.1X20.1X14.0 inch (612X510X355 mm)
Net Weight: Approx. 32Lbs (14.5kg)
(a) Do not attempt to operate this oven with the door open since this can result in harmful
exposure to microwave energy. It is important not to defeat or tamper with the safety
interlocks.
(b) Do not place any object between the oven front face and the door or allow soil or
cleaner residue to accumulate on sealing surfaces.
(c) Do not operate this oven if it is damaged. It is particularly important that the oven
door close properly and that there is no damage to the:
(1) DOOR (bent) or DOOR METAL SCREEN (cracks or breaks)
(2) HINGES AND LATCHES (broken or loosened)
(3) DOOR SEALS AND SEALING SURFACES
(d) The oven should not be adjusted or repaired by anyone except properly qualified
service personnel.
WARNING! The use of this appliance can expose you to chemicals known to
the state of California to cause cancer, birth defects, or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
EN-2
IMPORTANT SAFETY INSTRUCTIONS
WARNING
1. Read all instructions before using the
appliance.
2. Read and follow the specic: "PRECAU-
TIONS TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY"
found on page 1.
3. As with most cooking appliances, close
supervision is necessary to reduce the risk
of a re in the oven cavity.
4. To reduce the risk of re in the oven
cavity:
i) Do not overcook food. Carefully attend
the appliance when paper, plastic, or
other combustible materials are placed
inside the oven to facilitate cooking.
ii) Remove wire twist-ties and metal
handles from paper or plastic containers/
bags before placing them in the oven.
iii) If materials inside the oven ignite,
keep the oven door closed. Turn the
oven off, and unplug the appliance.
Disconnect the power cord, shut off
power at the fuse or circuit breaker panel.
iv) Do not use the oven cavity for storage
purposes. Do not leave paper products,
cooking utensils, or food in the cavity
when not in use.
v) Never operate an empty microwave
oven. Arcing or sparking in the oven
cavity may occur.
5. This oven must be grounded. Connect
only to properly grounded outlet. See
"GROUNDING INSTRUCTIONS" found on
page 3.
6. Install or locate this oven only in
accordance with the installation
instructions provided.
7. Some products such as whole eggs
and sealed containers-for example,
closed glass jars- are able to explode
and should not be heated in the oven.
8. Use this appliance only for its intended
uses as described in this manual. Do
not use corrosive chemicals or vapors
in this appliance. This oven is
specically designed to heat or cook
or dry food. It is not designed for
industrial or laboratory use.
9. As with any appliance, close
supervision is necessary when used
by children.
10. Do not operate this oven if it has a
damaged cord or plug, if it is not
working properly or if it has been
damaged or dropped.
11. This microwave should be serviced
only by qualifed service personnel.
12. Do not cover or block any openings on
the oven.
13. Do not store or use this appliance
outdoors.
14. Do not use this oven near water, for
example, near a kitchen sink, in a wet
basement, near a swimming pool, or
similar locations.
15. Do not immerse cord or plug in water.
16. Keep cord away from heated surfaces.
17. Do not let cord hang over edge of
table or counter.
18. When cleaning surfaces of door and
oven that come together on closing
the door, use only mild, nonabrasive
soaps or detergents applied with a
sponge or soft cloth.
19.
Do not consume foods immediately after
the oven nishes cooking. Heated foods,
especially pizza, may burn your mouth.
Allow foods to cool to a safe eating
temperature.
20. This appliance is for private household
use only.
To reduce the risk of burns, electric shock, re, injury to persons or
exposure to excessive microwave oven energy when using your
appliance, follow basic safety precautions, including the following:
EN-3
SAVE THESE INSTRUCTIONS
GROUNDING INSTRUCTIONS
DANGER
DANGER
21. Liquids, such as water, coffee, or tea are able to be overheated beyond the boiling point
without appearing to be boiling. Visible bubbling or boiling when the container is
removed from the microwave oven is not always present. THIS COULD RESULT IN
VERY HOT LIQUIDS SUDDENLY BOILING OVER WHEN THE CONTAINER IS
DISTURBED OR A SPOON OR OTHER UTENSIL IS INSERTED INTO THE LIQUID.
i) Do not overheat the liquid.
ii) Stir the liquid both before and halfway through heating it.
iii) Do not use straight-sided containers with narrow necks.
iv) After heating, allow the container to stand in the microwave oven for a short time
before removing the container.
v) Use extreme care when inserting a spoon or other utensil into the container.
Electric Shock Hazard
Touching some of the internal
components can cause serious
personal injury or death. Do not
disassemble this appliance.
Electric Shock Hazard
An improperly grounded appliance
can result in electric shock. Do
not plug into an outlet until
appliance is properly installed
and grounded.
Three-pronged
(grounding) plug
This appliance must be grounded. In the event of
an electrical short circuit, grounding reduces the risk
of electric shock by providing an escape wire for the
electric current. To protect against electrical shock,
this appliance is equipped with a cord having a 3-
prong grounding-type plug for insertion into a proper
grounding-type receptacle. DO NOT alter the plug
for use in a 2-prong receptacle. DO NOT use a
3-prong adapter to enable the microwave to be
plugged into a 2-prong receptacle. If the plug will
not t into a receptacle, have the proper receptacle
installed by a qualied electrician.
Consult a qualied electrician or serviceman if the
grounding instructions are not completely understood
or if doubt exists as to whether the appliance is
properly grounded. If it is necessary to use an
extension cord, use only a 3-wire extension cord that
h as a 3-pronged grounding plug, and a 3-slot
receptacle that will accept the plug on the appliance.
The marked rating of the extension cord shall be
equal to or greater than the electrical rating of the
appliance.
EN-4
CAUTION UTENSILS
Radio interference
Personal injury Hazard
Tightly-closed utensils
could explode. Closed
containers should be opened
and plastic pouches should be
pierced before cooking.
See the instructions on "Materials you can use in
microwave oven or to be avoided in microwave oven."
There may be certain non-metallic utensils that are not
safe to use for microwaving. If in doubt, you can test the
utensil in question following the procedure below.
Utensils Test:
1. Fill a microwave-safe container with 1 cup of cold
water (250ml) along with the utensil in question.
2. Cook on maximum power for 1 minute.
3. Carefully feel the utensil. If the empty utensil is
warm, do not use it for microwave cooking.
4. Do not exceed 1 minute cooking time.
1. Operation of the microwave oven may cause interference to your radio, TV or similar
equipment.
2. When there is interference, it may be reduced or eliminated by taking the following
measures:
i) Clean door and sealing surface of the oven.
ii) Reorient the receiving antenna of radio or television.
iii) Relocate the microwave oven with respect to the receiver.
iv) Move the microwave oven away from the receiver.
v) Plug the microwave oven into a different outlet so that microwave oven and
receiver are on different branch circuits.
1. A short power-supply cord is provided to reduce the risks resulting from becoming entangled in
or tripping over a longer cord.
2. Longer cord sets or extension cords are available and may be used if care is exercised in
their use.
3. If a long cord sets or extension cord is used:
i) The marked electrical rating of the cord set or extension marked electrical rating of
the cord set or extension cord should be at least as great as the electrical rating of the
appliance.
ii) The extension cord must be a grounding-type 3-wire cord.
iii) The longer cord should be arranged so that it will not drape over the countertop or
tabletop where it can be pulled on by children or tripped over unintentionally.
EN-5
SAFE AND UNSAFE MATERIALS
Materials you can use in microwave oven
Materials to be avoided in microwave oven
Utensils Remarks
Aluminum foil Shielding only. Small smooth pieces can be used to cover thin parts of
meat or poultry to prevent overcooking. Arcing can occur if foil is too
close to oven walls. The foil should be at least 1 inch (2.5cm) away from
oven walls.
Browning dish Follow manufacturer’s instructions. The bottom of browning dish must be
at least 3/16 inch (5 mm) above the turntable. Incorrect usage may cause
the turntable to break.
Dinnerware Microwave-safe only. Follow manufacturer's instructions. Do not use
cracked or chipped dishes.
Glass jars Always remove lid. Use only to heat food until just warm. Most glass jars
are not heat resistant and may break.
Glassware Heat-resistant oven glassware only. Make sure there is no metallic trim.
Do not use cracked or chipped dishes.
Oven cooking
bags
Follow manufacturer’s instructions. Do not close with metal tie. Make
slits to allow steam to escape.
Paper plates
and cups
Use for short–term cooking/warming only. Do not leave oven unattended
while cooking.
Paper towels Use to cover food for reheating and absorbing fat. Use with supervision
for a short-term cooking only.
Parchment
paper
Use as a cover to prevent splattering or a wrap for steaming.
Plastic Microwave-safe only. Follow the manufacturer’s instructions. Should be
labeled "Microwave Safe". Some plastic containers soften as the food
inside gets hot. "Boiling bags" and tightly closed plastic bags should be
slit, pierced or vented as directed by instructions on package.
Plastic wrap Microwave-safe only. Use to cover food during cooking to retain
moisture. Do not allow plastic wrap to touch food.
Thermometers Microwave-safe only ( meat and candy thermometers).
Wax paper Use as a cover to prevent splattering and retain moisture.
Utensils Remarks
Aluminum tray May cause arcing. Transfer food into microwave-safe dish.
Food carton with
metal handle
May cause arcing. Transfer food into microwave-safe dish.
Metal or metal-
trimmed utensils
Metal shields the food from microwave energy. Metal trim may cause
arcing.
Metal twist ties May cause arcing and could cause a re in the oven.
Paper May cause a re in the oven.
Plastic foam Plastic foam may melt or contaminate the liquid inside when exposed
to high temperature.
Wood Wood will dry out when used in the microwave oven and may split
or crack or begin to smoke.
EN-6
F
G
A
CB
ED
SETTING UP YOUR OVEN
Names of oven Parts and Accessories
Turntable Installation
Remove the oven and all materials from the carton and oven cavity.
Your oven comes with the following accessories:
Glass turntable 1
Turntable roller ring 1
Use & Care Guide 1
A) Control panel
B) Turntable shaft
C) Turntable roller ring
D) Glass turntable
E) Observation window
F) Oven Door
G) Safety interlock system
a. Never place the glass turntable upside down.
The glass turntable should never be restricted.
b. Both glass turntable and turntable roller ring must
always be used during cooking.
c. All food and containers of food are always to be
placed on the glass turntable for cooking.
d. The turntable and roller ring must always be properly
installed before operating. First place the roller ring
in the oor of the oven cavity. Then t the knobs of
the turntable hub into the notches of the turntable
shaft hub. When the turntable is securely in place the
turntable perimeter will be correctly positioned over
the roller ring wheels.
e. If glass turntable or roller ring cracks or breaks, contact
the following customer assistance number:
1-844-553-6667 press 2
Turntable hub (underside)
Glass
turntable
Turntable shaft
hub
Turntable roller ring
EN-7
Countertop Installation
Installation
Optional Accessories
Remove all packing material and accessories.
Examine the oven for any damage such as
dents or broken door. Do not install if oven is
damaged.
Cabinet: Remove any protective lm found
on the microwave oven cabinet surface.
Do not remove the off-white Mica cover
that is attached to the oven cavity to
protect the magnetron.
1. Select a level surface that provide
enough open space for the intake
and/or outlet vents.
Available at extra cost from your KENMORE supplier.
Choose the appropriate Installation Kit to convert this oven to a built-in wall oven.
For 27" installations:
Model kit
111.72219810 / 111.72213810 22703
For 30" installations:
Model kit
111.72219810 / 111.72213810 22003 / 22009
(3) Blocking the intake or outlet vent openings
can damage the oven.
(4) Place the oven as far away from
radios and TV as possible.
Operation of microwave oven may
cause interference to your radio or TV
reception.
2. Plug your oven into a standard household
outlet. Be sure the voltage and the
frequency is the same as the voltage
and the frequency on the rating label.
WARNING: Do not install oven over a
range cooktop or other heat-producing
appliance. If installed near or over a heat
source, the oven could be damaged and the
warranty would be void.
A minimum clearance of 3.0 inches
(7.5cm) is required between the oven and
any adjacent walls. One side must be open.
(1) Leave a minimum clearance of 12
inches (30cm) above the oven.
(2) Do not remove the legs from the
bottom of the oven.
12 inches (30cm)
OPEN
3.0 inches (7.5cm)
3.0 inches (7.5cm)
EN-8
OPERATION

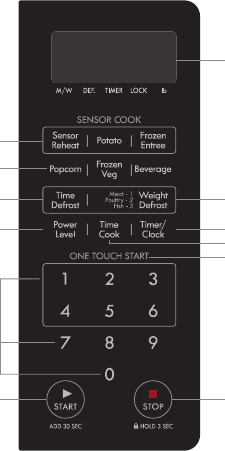

Control Panel and Features
(1) Sensor Cook ( Sensor Reheat, Potato, Frozen Entrée ) Sensor Cook items
automatically program correct cooking time and power based on sensor
assessment of the amount of steam emitted from food early in the cooking
cycle.
(2) One Touch Cook (Popcorn, Frozen Veg, Beverage)
The presets allow you to easily program cooking time based on food quantity.
(3) Time Defrost
(4) Power Level
(5) Number Pads
(6) START/ADD 30 SEC : Press to start cooking or defrosting after other input has
been set. Press before any prior input to immediately start cooking at full power
for 30 seconds. Press during operation to add 30 seconds to operation time.
(7) Weight Defrost
(8) Timer/Clock
(9) Time Cook
(10) One Touch Start Pads (1-6)
(11) STOP/HOLD 3 SEC : Before cooking starts, press to clear all previous settings.
During cooking, press once to stop oven; press twice to stop oven and clear all
settings.
Press pad for 3 seconds to lock or unlock display and control panel.
(12) Display Window
(7)
(12)
(11)
(2)
(3)
(8)
(10)
(9)
(4)
(5)
(6)
(1)
EN-9
OPERATION
CLOCK SETTING
When the microwave oven is plugged into an outlet, " : 0" will display.
(1) Press Timer/Clock once, "12H" will appear in the display.
(2) Press the number pads and enter the current clock time. For example, if the time is now 8:30,
press "8, 3, 0" in order. The numbers will ash in the display.
(3) Press Timer/Clock to nish clock setting, ":" will ash and the numbers will appear as a clock
time in the display.
Note: (1) If you make a number entry mistake while in the process of setting clock, press
to start over.
(2) This is a 12 hour clock. If the numbers entered are not within the range between 1:00
to 12:59, the setting will not be accepted until valid numbers are entered.
TIMER
(1) Press Timer/Clock twice, " : 0" and TIMER indicator "v" will appear in the display window.
(2) Press the number pads to enter the time amount. The maximum amount of time that can be
enter is 99 minutes 99 seconds.
(3) Press to conrm setting.
(4) When the time amount elapses, the control panel will beep 3 times.
Note: The Timer setting is different from the Clock setting; it is simply a timer.
TIME COOK
(1) Press Time Cook, " : 0" and M/W (Microwave) indicator "v" will appear in the display
window.
(2) Press number pads to enter the cooking time; the maximum cooking time is 99 minutes and
99 seconds.
(3) Press Power Level ; PL10 will display. This is the default power level of 100%. Press number
pads 0 through 9 to select a different power level if desired. See the Power Level table
below.
(4) Press to start cooking.
Example: To cook the food with 50% microwave power for 15 minutes.
a. Press the Time Cook, " : 0" and M/W (Microwave) indicator "v" will appear in the
display window.
b. Press "1, 5, 0, 0" in order for 15:00 to appear in the display.
c. Press Power Level, then press "5" to select 50% microwave power.
d. Press to start cooking.
Note: In the process of setting, if the pad is pressed, the display will return to standby
mode.
EN-10
WEIGHT DEFROST FUNCTION
(1) Press Weight Defrost, "dEF1" and DEF. indicator "v" will appear in the display window.
Press the same pad repeatedly, "dEF1", "dEF2", "dEF3" will display in order.
(2) Press number pads to enter the weight to be defrosted.
Input the weight range between 0.2 to 6.0 lbs.
The lb indicator "'v" will ash in the display window.
If the weight input is not between 0.2 to 6.0 lbs, the input will be invalid. The oven will not
operate until valid numbers are entered.
(3) Press to start defrosting and the cooking time remaining will be displayed.
Note: During the Defrost cycle, the oven will beep to remind you to turn over the food. Turn over
food, close door and press to resume defrost cycle.
STANDING TIME
Standing time means that after the timed cooking period ends, food should be allowed to stand
either inside or outside the oven to completely nish cooking. Outside oven standing time will
allow the oven to be available for other use.
POWER LEVEL
Ten power levels are available.
Power level 0 is also available if you want to program a timed in-oven standing time.
After entering Time Cook digits and prior to starting operation, press Power Level and "PL10"
will display. Adjust the power by pressing a number pad as indicated in the table below.
Level 10 9 8 7 6 5 4 3 2 1 0
Power 100% 90% 80% 70% 60% 50% 40% 30% 20% 10% 0%
Display PL10 PL-9 PL-8 PL-7 PL-6 PL-5 PL-4 PL-3 PL-2 PL- 1 PL-0
LED display dEF1 dEF2 dEF3
Food Meat Poultry Fish
ONE TOUCH START
(1) Instant cooking at 100% power level and 1 to 6 minutes cooking time can be started by
pressing number pads 1 to 6.
(2) Instant cooking at 100% power level and 30 seconds cooking time can be started by
pressing . Each repeated press will increase cooking time by 30 seconds.
The maximum cooking time is 99 minutes, 99 seconds.
Note: 1) Time can also be added in 30 second increments by pressing during Microwave
Cooking.
EN-11
TIME DEFROST FUNCTION
(1) Press Time Defrost, " : 0" and DEF. indicator "v" will appear in the display window.
(2) Press number pads to input defrosting time. The time range is between 00:01 and 99:99.
(3) Press to start defrosting. The remaining cooking time will be displayed.
Note: During the Defrost cycle, the oven will beep to remind you to turn over the food. Turn over
food, close door and press to resume defrost cycle.
POPCORN
(1) Press Popcorn repeatedly until the number you wish appears in the display, "3.2", "3.0" ,
"1.75" will appear in the display in order.
Press Once: Popcorn 3.2 oz
Press Twice: Popcorn 3.0 oz
Press 3 Times: Popcorn 1.75 oz
(2) Press to start cooking. Cook time for size chosen appears in the display. Oven beeps 3
times when cooking is nished.
FROZEN VEG
(1) Press Frozen Veg repeatedly until the number you wish appears in the display, "4", "8", "16"
oz will display in order.
(2) Press to start cooking. Cook time for number chosen appears in the display. Oven
beeps 3 times when cooking is nished.
BEVERAGE
(1) Press Beverage repeatedly until the number you wish appears in the display, "1", "2", "3"
cup will display in order.
(2) Press to start cooking. Cook time for number chosen appears in the display. Oven
beeps 3 times when cooking is nished.
ONE TOUCH COOK
Food Amount Comments
Popcorn
1.75oz.
3.0oz.
3.2oz.
Use only with prepackaged microwave popcorn weighing 1.75,
3.0,3.2 ounces.
Do not use this feature twice in succession on the same food
portion –it may result in severely overcooked or burnt food.
Frozen Veg.
4oz.
8oz.
16oz.
Follow package instructions for adding water. Cover with lid or
vented plastic wrap.
Do not use this feature twice in succession on the same food
portion –it may result in severely overcooked or burnt food.
Beverage
(200ml/1cup)
1cup
2cups
3cups
Do not cover.
Drinks heated with the Beverage feature may be very hot.
Remove the container with care.
Do not use this feature twice in succession on the same food
portion –it may result in severely overcooked or burnt food.
EN-12
SENSOR COOK ( Sensor Reheat, Potato, Frozen Entrée )
CAUTION: DO NOT consume foods immediately after the oven nishes cooking. Heated foods,
especially pizza, may burn your mouth. Allow foods to cool to a safe eating temperature.
(1) Place the food in the oven and close the door. Press the appropriate Sensor cook item pad,
and Press to start cooking.
(2) When the released steam is detected by the oven, the remaining cooking time will appear in
the display. Oven beeps 3 times when cooking is nished.
Note:
(1) For best sensor cooking results:
a. The room temperature cannot be over 95°F (35°C).
b. The weight of food must be more than 4 oz (110g).
c. The oven cavity, glass tray and utensils must be dry.
(2) During cooking:
a. The food can be covered, but the cover or lid must be vented with a hole to allow steam to
escape.
b. Do not open door or pressing at any time during sensor cooking, or will stop the
cooking process and return the oven to standby mode.
Example: Potato Sensor Pad
(1) Press Potato pad once, "SCPO" will appear in the display.
(2) Press to start cooking. "SEnS" will appear in the display.
Food Amount Comments
Sensor Reheat 4-36oz.
Cover with vented plastic wrap.
After removing food from the oven, stir, if possible, to
even out the temperature. Reheated foods may have
wide variations in temperature. Some areas may be
extremely hot.
If food is not hot enough after the countdown, use Time
Cook for additional reheating time.
Potato 8-16oz.
(1-2 potatoes) Pierce skin with fork. Place potatoes on the turntable.
Frozen Entrée 8-32oz.
Cover with vented plastic wrap.
After removing food from the oven, stir, if possible, to
even out the temperature. Reheated foods may have
wide variations in temperature. Some areas may be
extremely hot.
If food is not hot enough after the countdown, use Time
Cook for additional reheating time.
EN-13
MULTI-STAGE COOKING
At most 2 stages can be set for cooking.
Note: ONE TOUCH COOK, ONE TOUCH START and SENSOR COOK cannot be used in multi-
stage cooking.
Example: 80% Power Level for 5 minutes followed by 60% Power Level for 10 minutes;
a. Press Time Cook once, then press "5", "0" and "0" to set rst stage cook time.
b. Press Power Level once, then press "8" to choose 80% rst stage cooking power.
c. Press Time Cook again, then press "1", "0", "0" and "0" to set second stage cook time.
d. Press Power Level again, then press "6" to choose 60% second stage cooking power.
e. Press to immediately start multi-stage cooking.
LOCK FUNCTION
To lock the microwave so that it cannot be operated by children or other unintended users,
press pad for 3 seconds. You will hear a long beep and "Loc" and LOCK indicator "v" will
appear in the display window.
To Unlock, press for 3 seconds, You will hear a long beep and the LOCK indicator "v" will
disappear in the display window.
COOKING END REMINDER FUNCTION
The oven will beep 3 times to alert the user that cooking time has ended. "End" will display.
The time of day will display by opening the door or pressing pad.
EN-14
Maintenance
CLEANING
Wipe the oven inside and outside with a soft cloth and a mild detergent solution. Then rinse and
wipe dry. This should be done weekly or more often, if needed. Never use cleaning powders or
rough pads. Excessive oil splatters on the inside top will be difcult to remove if left for many
days. Wipe splatters with a wet paper towel, especially after cooking chicken or bacon.
REMOVABLE PARTS
The turntable and turntable roller ring are removable. They should be hand-washed in warm (not
hot) water with a mild detergent and a soft cloth. Once they are clean, rinse well and dry with a
soft cloth. Never use cleaning powders, steel wool, or rough pads.
The turntable may be cleaned in the sink. Be careful not to chip or scratch the edges as this may
cause the turntable to break during use.
The turntable roller rest should be cleaned regularly.
SPECIAL CARE
For best performance and safety, the inner door panel and the oven front frame should be free
of food or grease buildup. Wipe often with a mild detergent; then rinse and wipe dry.
Never use cleaning powders or rough pads.
After cleaning the control panel, touch STOP twice to clear any entries that might have been
entered accidentally while cleaning the panel.
EN-15
Troubleshooting
Check your problem by using the chart below and try the solutions for each problem . If the
microwave oven still does not work properly, contact the following number for customer
assistance: 1-844-553-6667 press 2.
TROUBLE POSSIBLE CAUSE POSSIBLE REMEDY
Oven will not start
a. Electrical cord for oven is
not plugged in.
b. Door is open.
c. Invalid operation settings.
a. Plug into the outlet.
b. Close the door and try
again.
c. Check instructions.
Arcing or sparking
a. Materials to be avoided in
microwave oven were used.
b. The oven is operated when
empty.
c. Spilled food remains in the
cavity.
a. Use microwave-safe
cookware only. See Safe
and Unsafe Materials.
b. Do not operate with oven
empty.
c. Clean cavity with wet towel.
Unevenly cooked
foods
a. Materials to be avoided in
microwave oven were used.
b. Food is not defrosted
completely.
c. Cooking time, power level
is not suitable.
d. Food is not turned or stirred.
a. Use microwave-safe
cookware only. See Safe
and Unsafe Materials.
b. Completely defrost food.
c. Use correct cooking time,
power level.
d. Turn or stir food.
Overcooked foods Cooking time, power level is not
suitable.
Use correct cooking time, power
level.
Undercooked foods
a. Materials to be avoided in
microwave oven were used.
b. Food is not defrosted
completely.
c. Oven vents are blocked or
restricted.
d. Cooking time, power level is
not suitable.
a. Use microwave-safe cookware
only. See Safe and Unsafe
Materials.
b. Completely defrost food.
c. Check to see that oven venti-
lation ports are not restricted.
d. Use correct cooking time,
power level.
Improper defrosting
a. Materials to be avoided in
microwave oven were used.
b. Cooking time, power level is
not suitable.
c. Food is not turned or stirred.
a. Use microwave-safe
cookware only. See Safe
and Unsafe Materials.
b. Use correct cooking time,
power level.
c. Turn or stir food.
EN-16
KENMORE LIMITED WARRANTY
FOR ONE YEAR from the date of sale this appliance is warranted against
defects in material or workmanship when it is correctly installed,
operated and maintained according to all supplied instructions.
WITH PROOF OF SALE a defective appliance will be replaced free of
charge. For warranty coverage details to obtain free replacement,
visit the web page: www.kenmore.com/warranty
This warranty does not cover the oven cavity light bulb, which is an
expendable part that can wear out from normal use within the
warranty period.
This warranty is void if this appliance is ever used for other than private
household purposes.
This warranty gives you specific legal rights, and you may also have
other rights which vary from state to state.
Sears Brands Management Corporation, Hoffman Estates, IL 60179
GARANTÍA LIMITADA DE KENMORE
DURANTE UN AÑO a partir de la fecha de venta, este
electrodoméstico, posee garantía contra defectos en los materiales
o en la mano de obra cuando se instale, opere y mantenga
correctamente de acuerdo con todas las instrucciones provistas.
CON EL COMPROBANTE DE VENTA, un electrodoméstico
defectuoso será reemplazado gratuitamente.
Para ver los detalles de cobertura de la garantía a fin de obtener
un reemplazo gratis, visite la página web:
www.kenmore.com/warranty
Esta garantía no cubre la bombilla dentro del horno, que es una
pieza consumible que se puede desgastar con el uso normal dentro
del periodo de garantía.
Esta garantía se anula si este electrodoméstico se usa para
cualquier propósito que no sea el uso doméstico privado.
Esta garantía le otorga derechos legales específicos, y es posible
que tenga también otros derechos, los cuales varían de un estado
a otro.
Sears Brands Management Corporation, Hoffman Estates, IL 60179
®

Navigation menu
