WINIA Electronics 7NF9FMO180N Commercial Microwave Oven User Manual KOM 9F0CTX 9F0CDA
Dongbu Daewoo Electronics Corporation Commercial Microwave Oven KOM 9F0CTX 9F0CDA
Users Manual
Before operating this oven, please read these instructions completely.
OPERATING
INSTRUCTIONS
MICROWAVE OVEN
KOM-9F0CTX / 9F0CDA
FOR COMMERCIAL USE
1
PRECAUTIONS TO AVOID POSSIBLE
EXPOSURETO EXCESSIVE MICROWAVE ENERGY
(a) Do not attempt to operate this oven with the door open since open-door operation can result in
harmful exposure to microwave energy. It is important not to defeat or tamper with the safety
interlocks.
(b) Do not place any objectbetween the oven front face and the door or allow soil or cleaner residue
to accumulate on sealing surfaces.
(c) Do not operate the oven if it is damaged. It is particularly important that the oven door close
properly and that there is no damage to the: (1) door (bent), (2) hinges and latches (broken or
loosened), (3) door seals and sealing surfaces.
(d) The oven should not be adjusted or repaired by anyone except properly qualified service
personnel.
PRECAUTIONS TO AVOID POSSIBLE EXPOSURETO EXCESSIVE MICROWAVE ENERGY......1
INSTALLATION ..................................................................................................................................2
FEDERAL COMMUNICATIONS COMMISSION RADIO FREQUENCY INTERFERENCE STATEMENT
..4
GROUNDING INSTRUCTIONS .........................................................................................................4
SPECIFICATIONS..............................................................................................................................5
IMPORTANT.......................................................................................................................................5
IMPORTANT SAFETY INSTRUCTIONS............................................................................................6

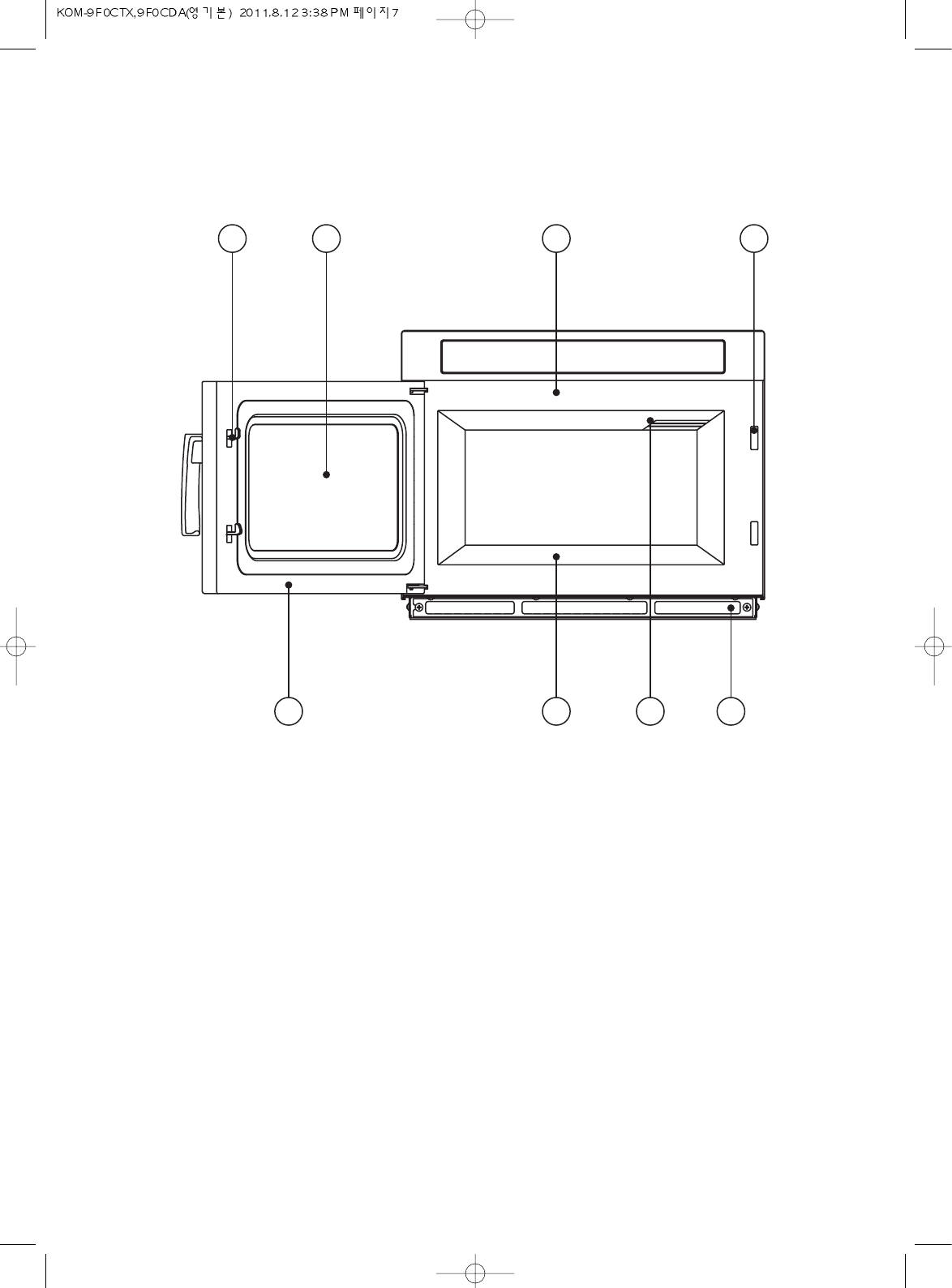

FEATURES DIAGRAM.......................................................................................................................7
FEATURES DIAGRAM (continued)...................................................................................................8
OPERATION PROCEDURE...............................................................................................................9

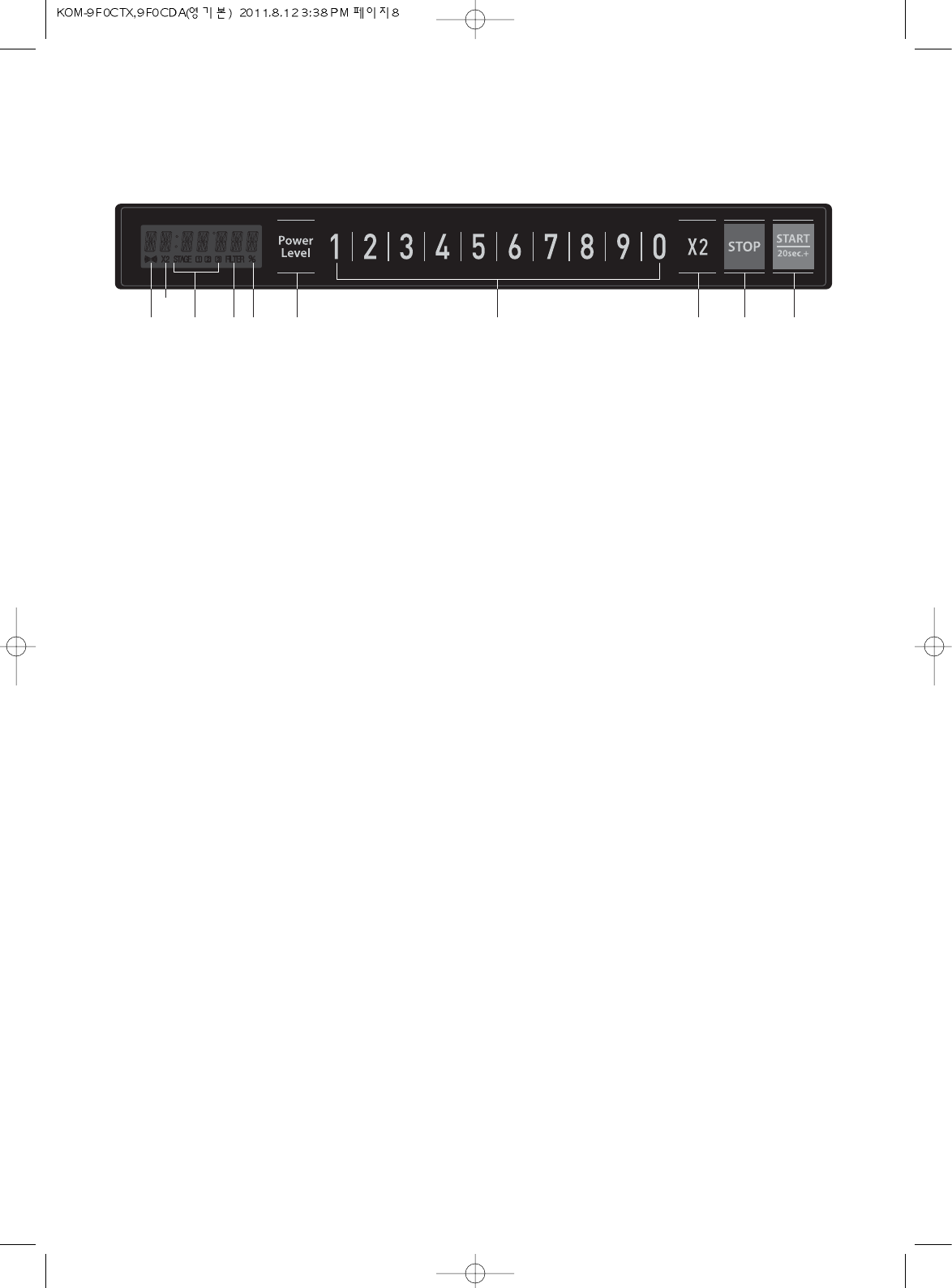

CONTROLS......................................................................................................................................10

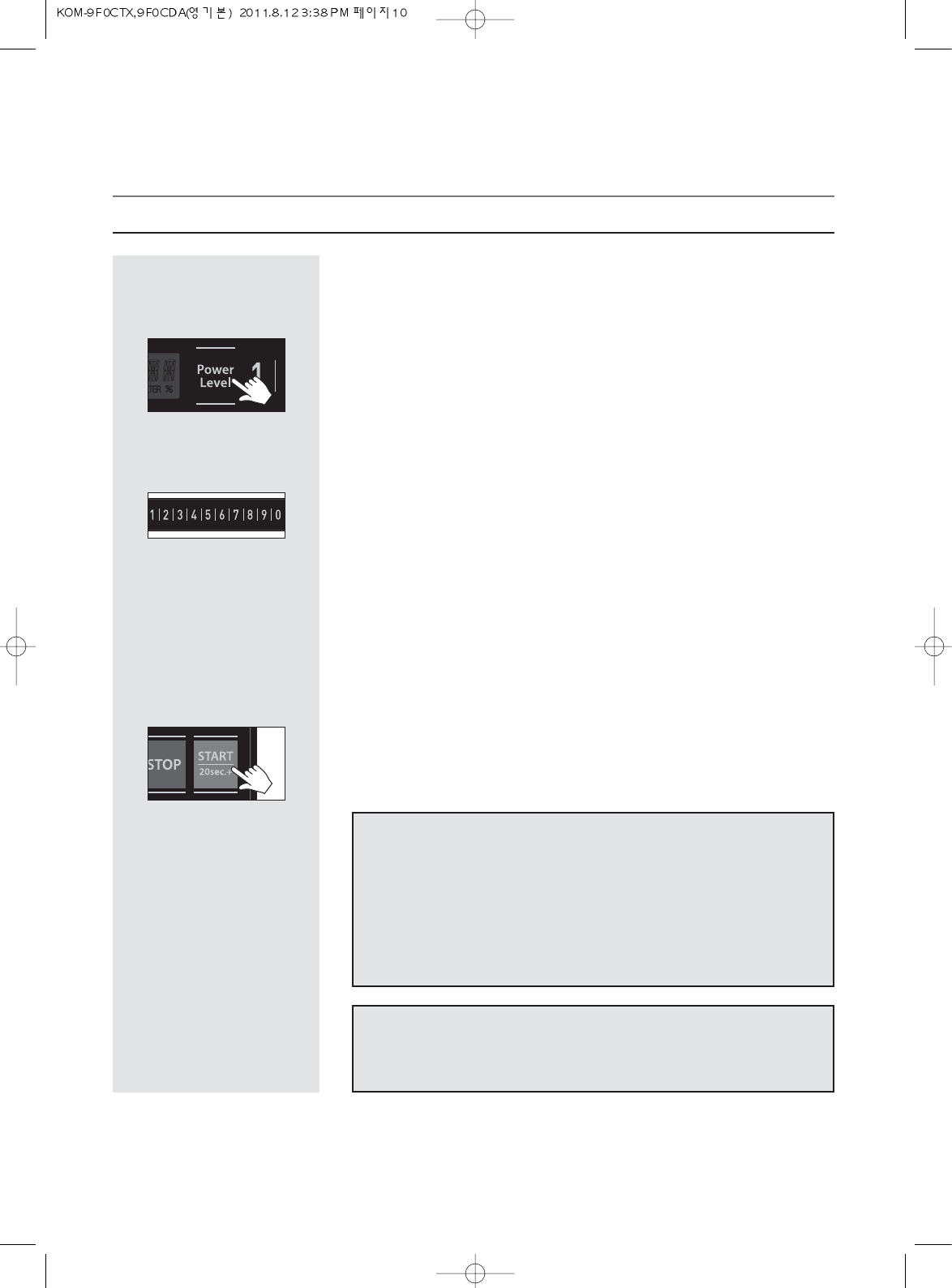

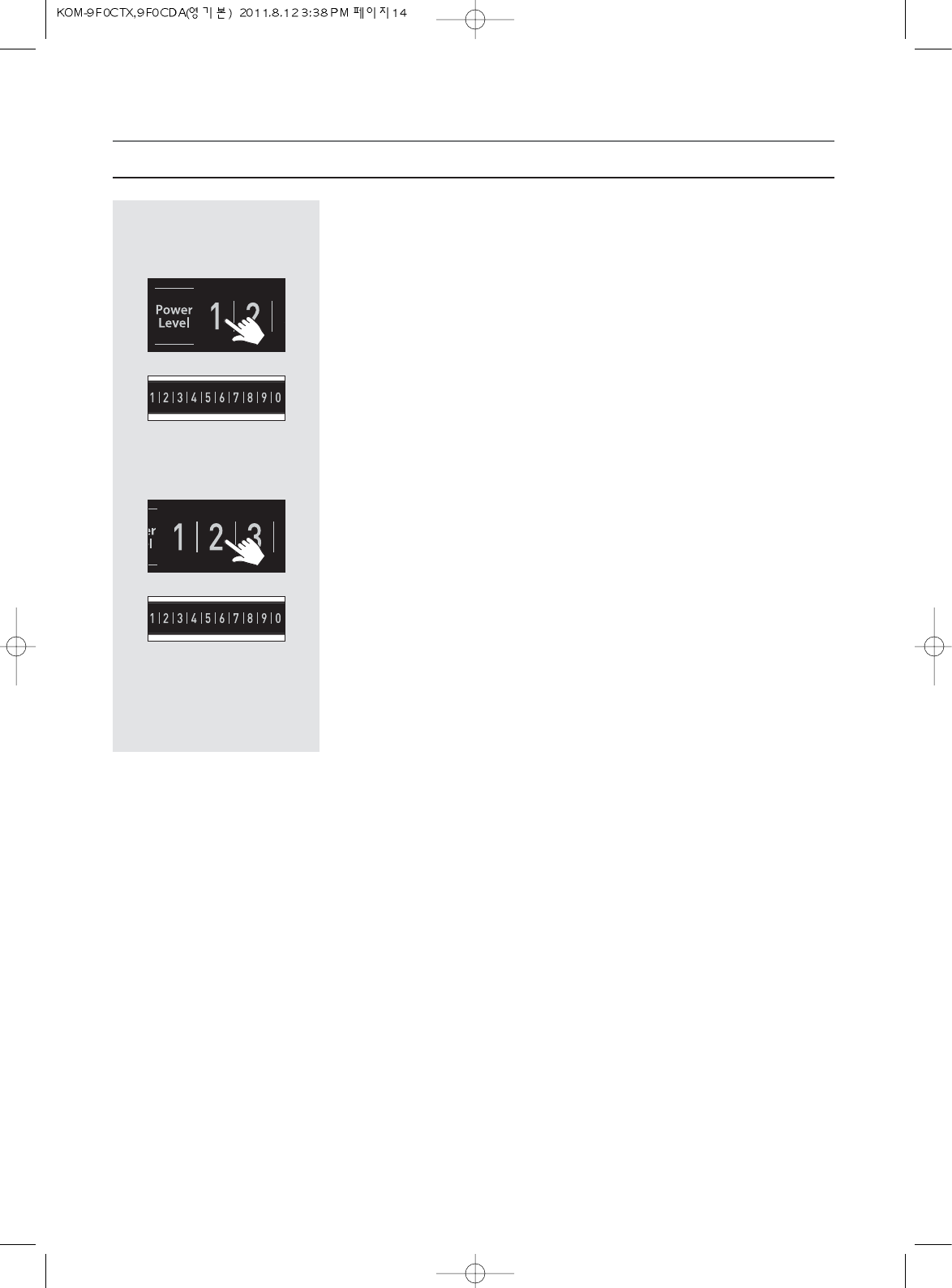

Manual Cooking...........................................................................................................................10

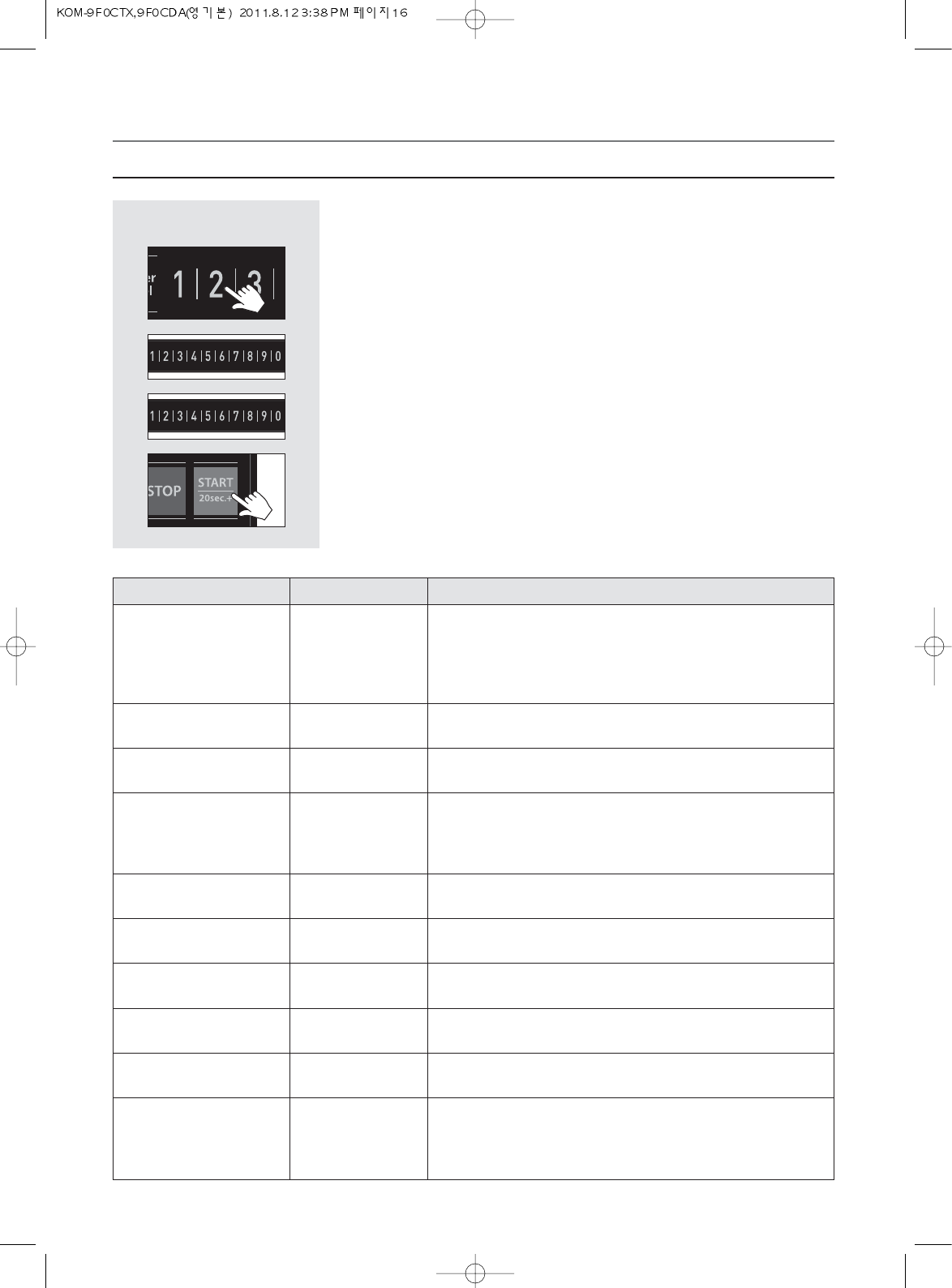

Preprogrammed Pads..................................................................................................................11

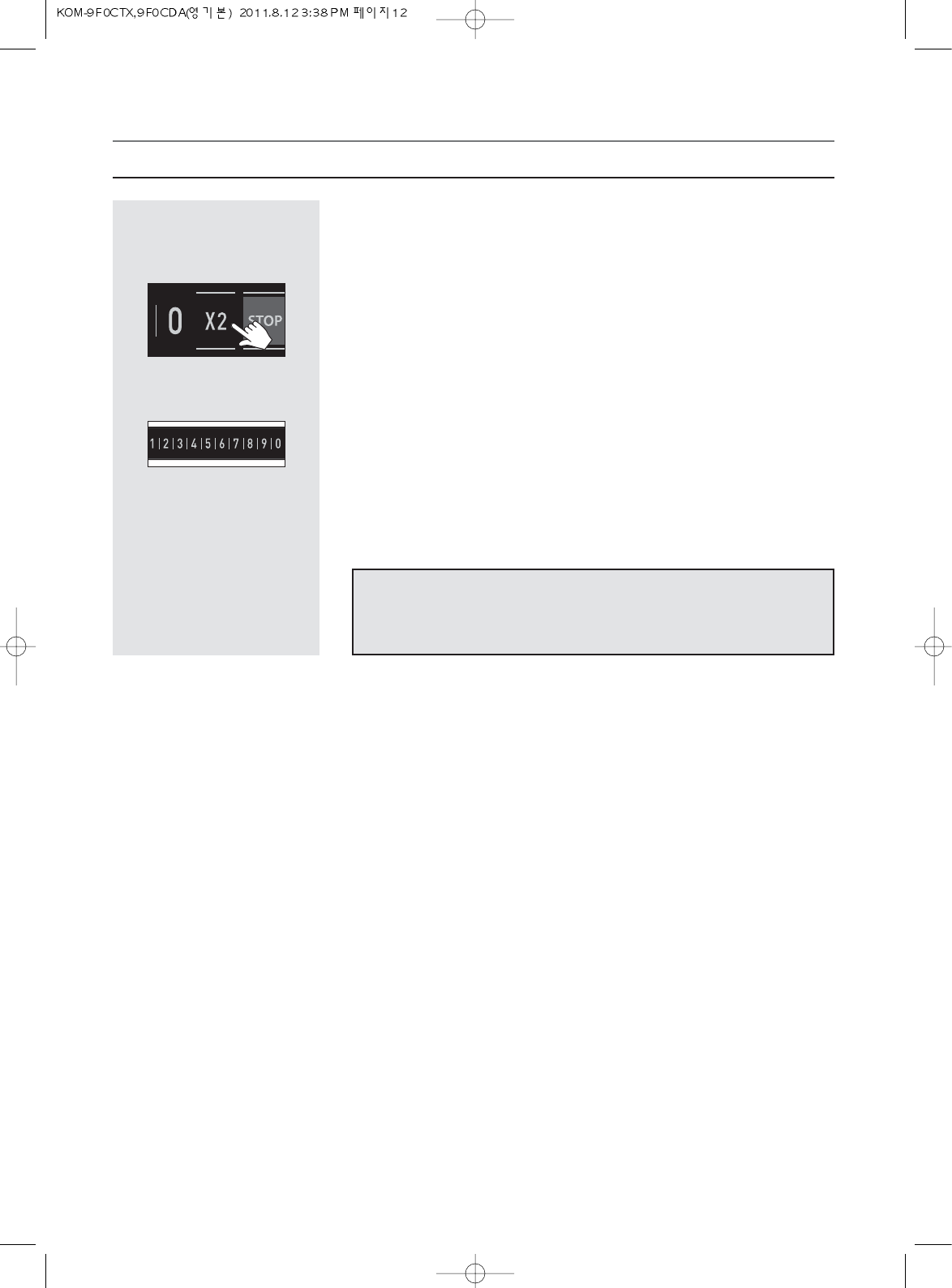

Double Quantity...........................................................................................................................12

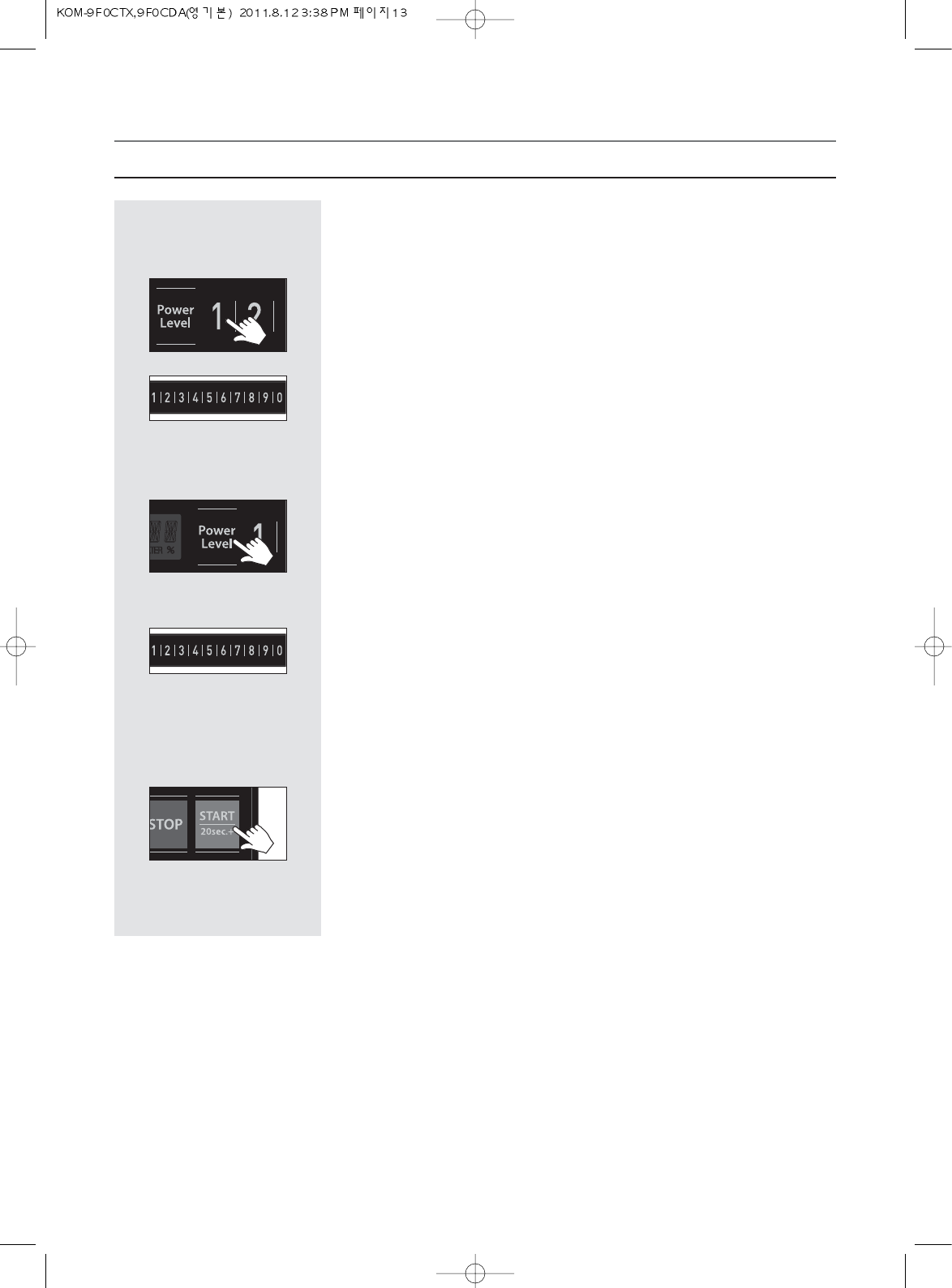

Programming Pads......................................................................................................................13
Programming Cook Factor...........................................................................................................14

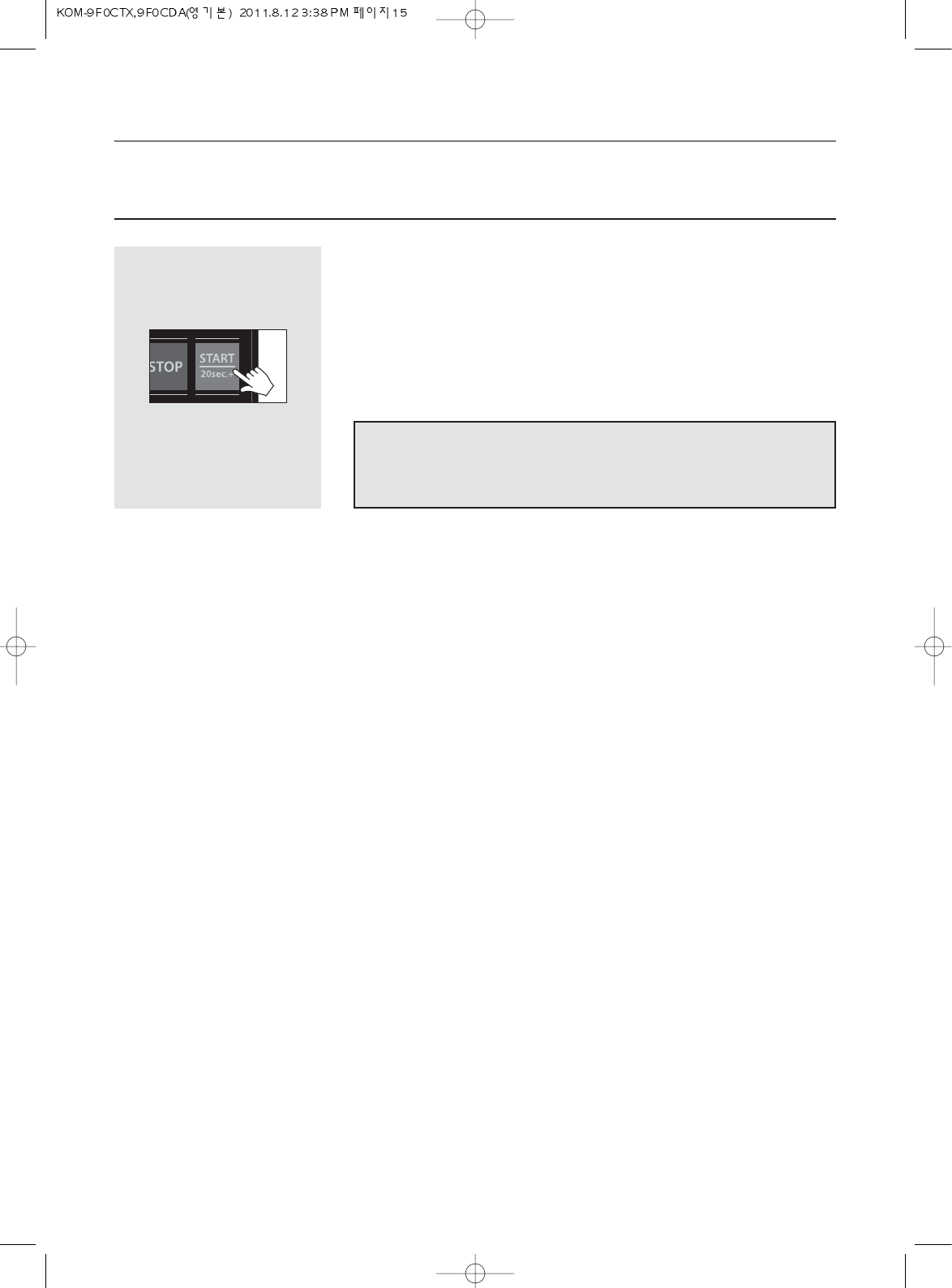

20 sec.+ pad................................................................................................................................15
Changing User Options ...............................................................................................................16
COOKING INSTRUCTIONS.............................................................................................................17

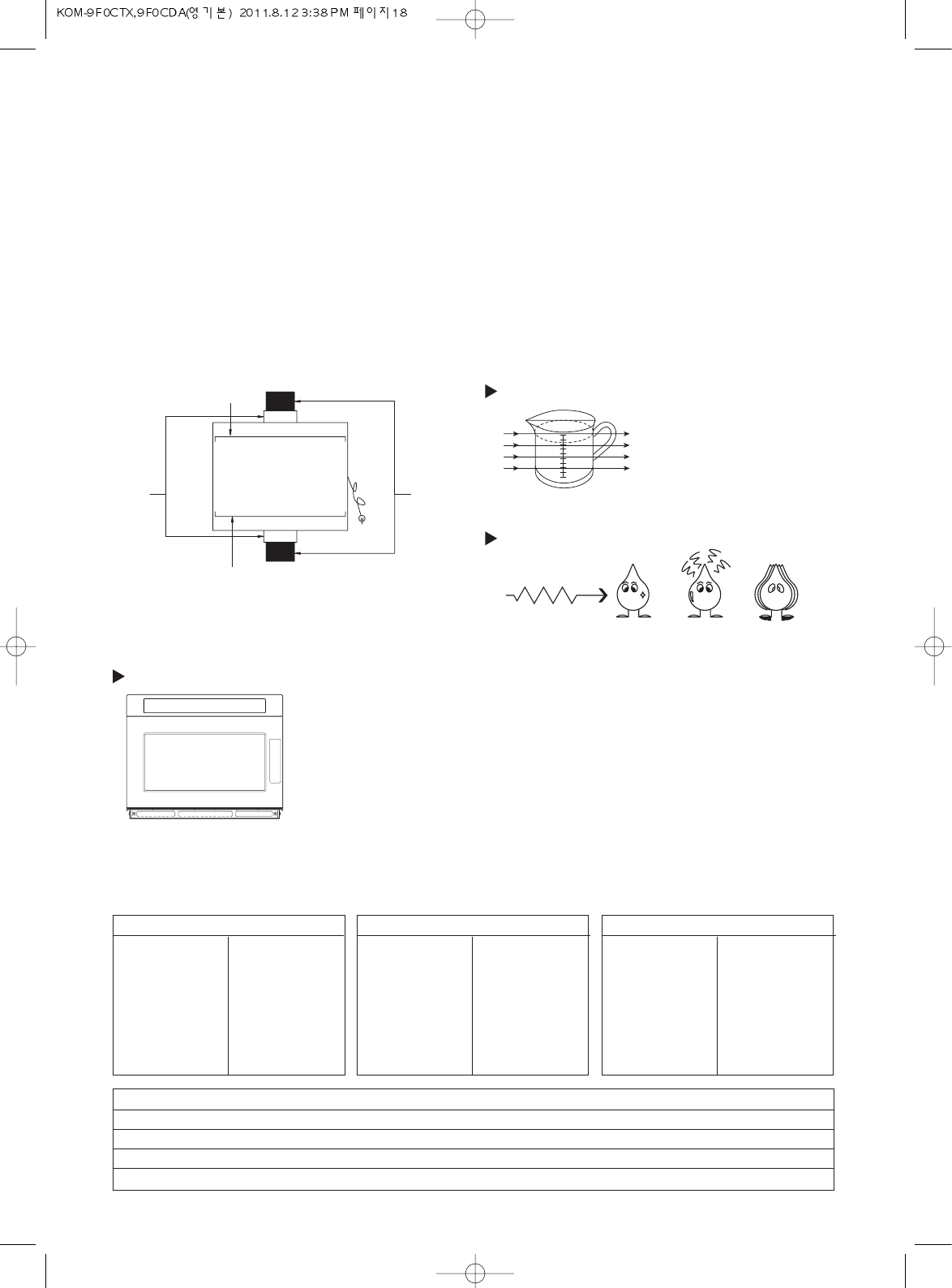

MICROWAVING PRINCIPLES.........................................................................................................18
HOW MICROWAVES COOK FOOD................................................................................................18
CONVERSION CHARTS..................................................................................................................18
COOKING TECHNIQUES ................................................................................................................19
DEFROSTING GUIDE......................................................................................................................20
DEFROST AND COOKING CHART.................................................................................................21
CARE OF YOUR MICROWAVE OVEN............................................................................................23
CARE AND CLEANING....................................................................................................................23

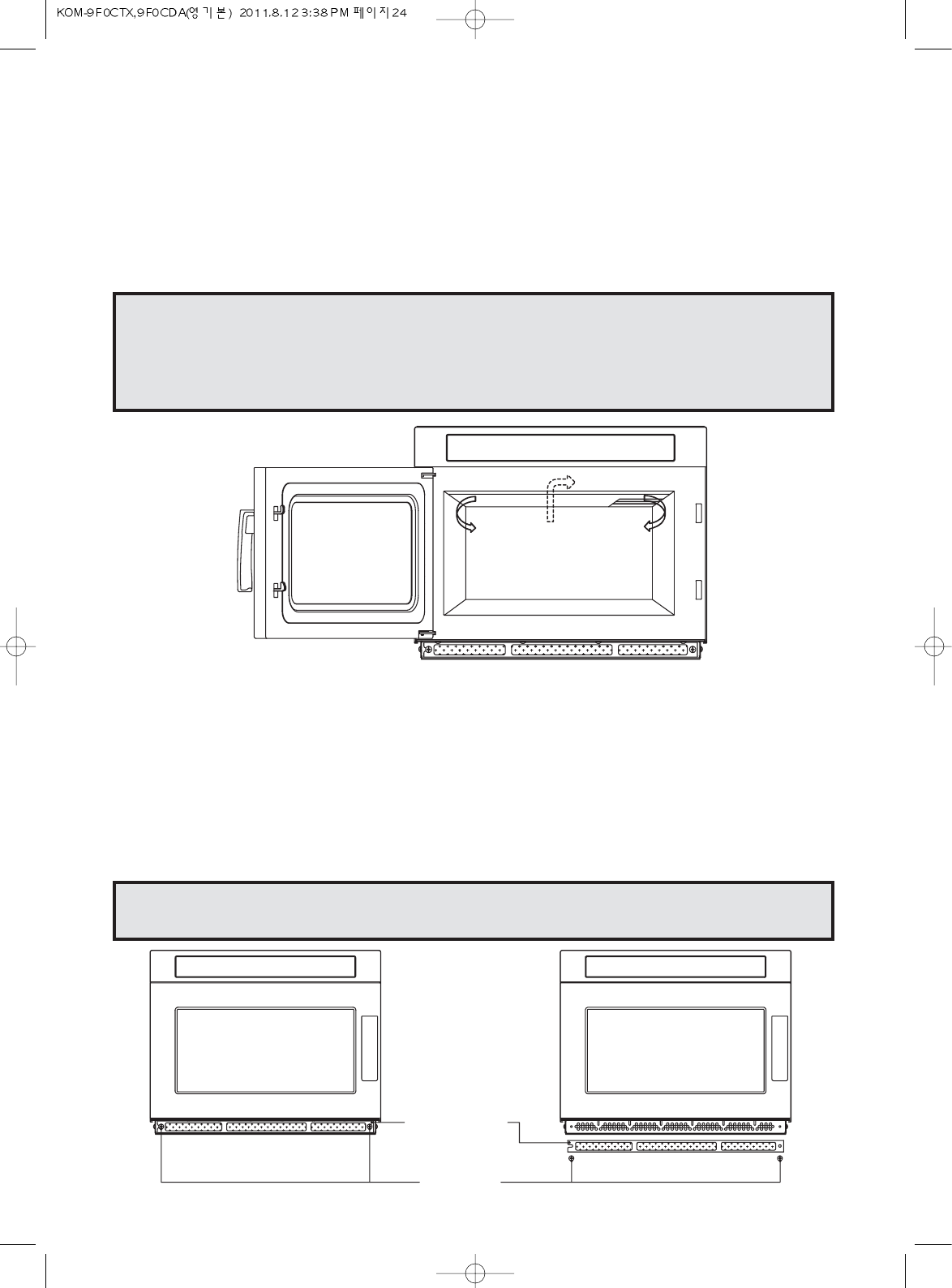

CLEANING THE CEILING COVER..................................................................................................24
CLEANING THE AIR FILTER...........................................................................................................24
USE YOUR MICROWAVE OVEN SAFELY .....................................................................................25
BEFORE YOU CALL FOR SERVICE...............................................................................................26
QUESTIONS AND ANSWERS.........................................................................................................26
QUESTIONS AND ANSWERS (continued).....................................................................................27
DISPOSAL OF USED ELECTRICAL & ELECTRONIC EQUIPMENT..............................................27
TABLE OF CONTENTS
2
1Steady, flat location
This oven should be set on a steady, flat surface. This oven is designed for counter top use only.
2Leave space behind and side
All air vents should be kept a clearance. If all vents are covered during operation, the oven may
overheat and, eventually, oven failure.
3Away from radio and TV sets
Poor television reception and radio interference may result if the oven is located close to a TV,
Radio antenna, feeder and so on. Position the oven as far from them as possible.
4Away from heating appliance and water taps
Keep the oven away from hot air, steam or splash when choosing a place to position it, or the
insulation might be adversely affected and breakdowns occur.
5Power supply
This microwave oven requires a power supply of approximately 20 Amperes, 208/230 Volts, 60 Hz
and a grounded outlet. A short power cord is provided to reduce the risk of the user becoming
entangled in or tripping over a longer cord. Longer cord sets or extension cords are available and
may be used if care is exercised in their use. If an extension cord is used, the marked electrical
rating of the cord should be at least as great as the electrical rating of the oven.
The Extension cord must be a grounding-type 3-wire cord. The longer cord should be arranged so
that it will not drape over the counter top or tabletop where it can be pulled on by children or tripped
over unintentionally.
6Examine the oven after unpacking for any damage such as:
A misaligned door, Broken door, A dent in cavity. If any of the above are visible, DO NOT INSTALL,
and notify dealer immediately.
7Do not operate the oven if it is colder than room temperature.
(This may occur during delivery in cold weather.) Allow the oven to become room temperature
before operating.
8The minimum height of free space necessary above the top surface of the oven is 150mm.
INSTALLATION
3

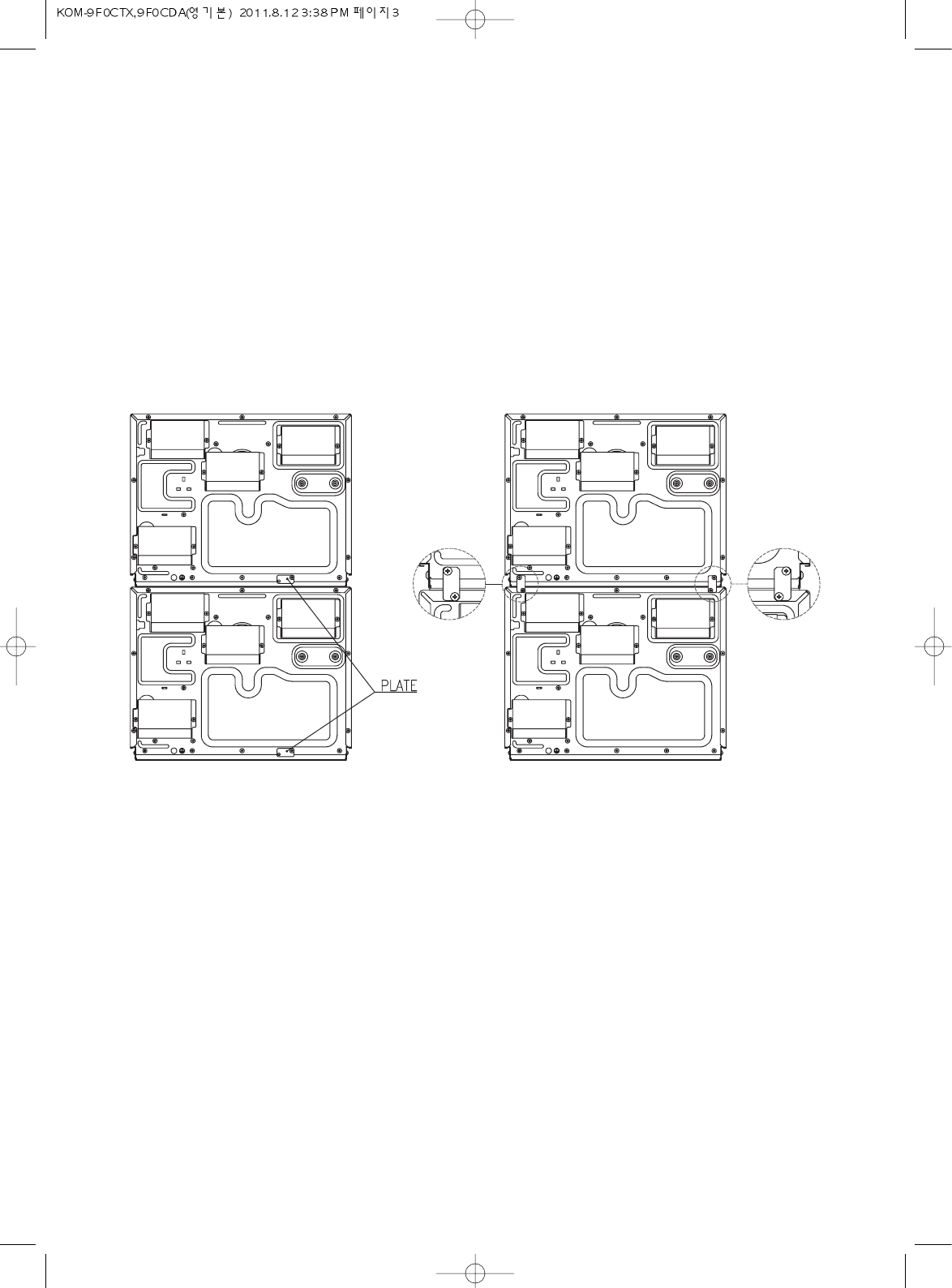

9. When you stack your micowave ovens.
1) Place one microwave oven on top of the other one, and remove the plate which are each secured
by a single screw to the bottom-right corner at the rear of both microwaves. Secure the above
hole of the two microwaves.
2) Remove the two screws which are securing at both end of the cabinet of the lower microwave
oven.
Remove the two screws which is securing the bottom corner of the upper micowave oven.
3) Use the upper and lower plate screw holes to secure the upper and lower microwave ovens with
the four screws.
4) Ensure the top oven is at a safe and workable height.
4
FEDERAL COMMUNICATIONS COMMISSION
RADIO FREQUENCY INTERFERENCE
STATEMENT
WARNING:
This equipment generates and uses ISM frequency energy and if not installed and used properly, that is in
strict accordance with the manufacturer's instructions, may cause interference to radio and television
reception.
It has been type-tested and found to comply with limits for an ISM Equipment pursuant to part 18 of FCC
Rules, which are designed to provide reasonable protection against such interference in a residential
installation.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more
of the followings.
• Reorient the receiving antenna of radio or television.
• Relocate the Microwave oven with respect to the receiver.
• Move the microwave oven away from the receiver.
• Plug the microwave oven into a different outlet so that microwave oven and receiver are on
different branch circuits.
THE MANUFACTURER is not responsible for any radio or TV interference caused by
UNAUTHORIZED MODIFICATION to this microwave oven. It is the responsibility of
the user to correct such interference.
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of an electrical short circuit, the grounding plug reduces the risk
of electric shock by providing an escape wire for electric current. This appliance is equipped with a cord having
a grounding wire with a grounding plug. The plug must be plugged into an outlet that is properly installed and
grounded.
WARNING:
Improper use of the grounding can result in a risk of electric shock.
Consult a qualified electrician or serviceman if the grounding instructions are not completely understood,
or if doubt exists as to whether the appliance is properly grounded.
• Do not use an extension cord, if the power supply cord is too short, have a qualified electrician or
serviceman install a three slot receptacle. This oven should be plugged into a seperate 60 hertz circuit
with the electrical rating. When a microwave oven is on a circuit with other equipment, an increase in
cooking times may be required and fuses can be blown.
WARNING:
Do not cut or remove the third (ground) prong from the power cord under any circumstances.
5

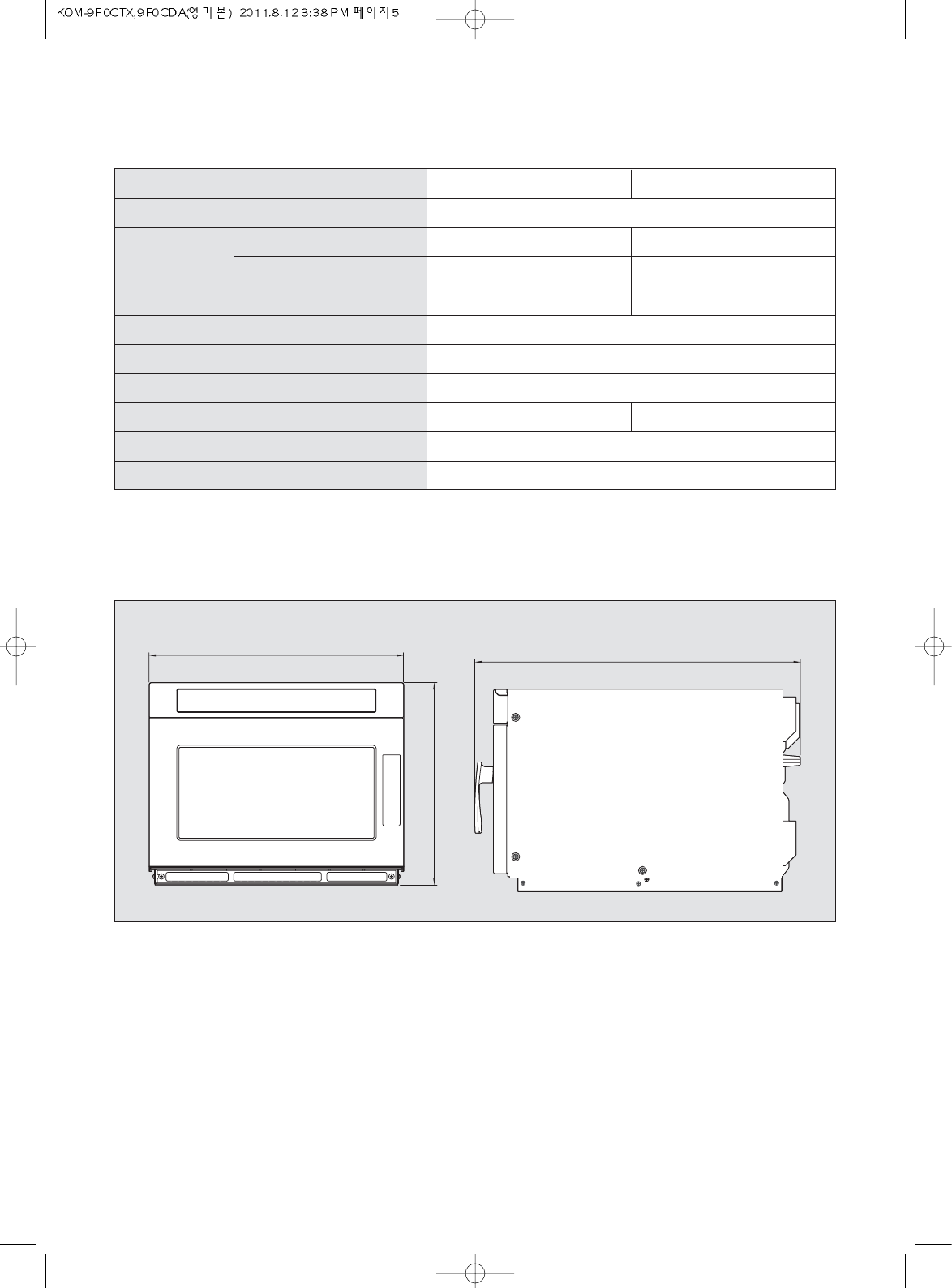

SPECIFICATIONS
MODEL
POWER SUPPLY
POWER CONSUMPTION
MICROWAVE OUTPUT POWER
FREQUENCY
OUTSIDE DIMENSIONS (W X H X D)
CAVITY DIMENSIONS (W X H X D)
CAVITY VOLUME
NET. WEIGHT
TIMER
POWER SELECTIONS
* Specifications are subject to change without notice.
465 595
370
KOM-9F0CTX KOM-9F0CDA
208/230V, 20A SINGLE PHASE WITH GROUNDING 60Hz, AC
3200W 2200W
1800W 1200W
2450Mhz 2450Mhz
465 X 370 X 595 mm ( 18.31 X 14.57 X 23.43 in.)
371 X 198.5 X 372 mm ( 14.61 X 7.81 X 14.66 in.)
0.9 cu.ft
APPROX. 34kg(74.96lbs) APPROX. 31kg(68.34lbs)
60 min.
5 LEVELS
6
IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances, basic safety precautions should be followed, including the following:
WARNING - To reduce the risk of burns, electric shock, fire, injury to persons or exposure to excessive
microwave energy:
11. Read all instructions before using the appliance.
12. Read and follow the specific “PRECAUTIONS TO
AVOID POSSIBLE EXPOSURE TO EXCESSIVE
MICROWAVE ENERGY” found on page 1.
13. This appliance must be grounded. Connect only to
properly grounded outlet. See “GROUNDING
INSTRUCTIONS” found on page 3.
14. Install or locate this appliance only in accor-dance
with the provided installation instructions.
15. Some products such as whole eggs and sealed
containers - for example, closed glass jars-are able to
explode and should not be heated in this oven.
16. Use this appliance only for its intended use as
described in this manual. Do not use corrosive
chemicals or vapors in this appliance. This type of
oven is specifically designed to heat, cook, or dry
food. It is not designed for industrial or laboratory use.
17. As with any appliance, close supervision is necessary
when used by children.
18. Do not operate this appliance if it has a damaged
cord or plug, if it is not working properly, or if it has
been damaged or dropped.
19. This appliance should be serviced only by qualified
service personnel.
Contact nearest authorized service facility for
examination, repair or adjustment.
10. Do not cover or block any openings on the
appliance.
11. Do not store this appliance outdoors. Do not use this
product near water — for example, near a kitchen
sink, in a wet basement, or near a swimming pool, or
similar locations.
12. Do not immerse cord or plug in water.
13. Keep cord away from heated surfaces.
14. Do not let cord hang over edge of table or counter.
15. Either:
a) When cleaning surfaces of door and oven that
comes together on closing the door, use only mild,
non-abrasive soaps or detergents applied with a
sponge or soft cloth , or
b) When separate cleaning instructions are provided,
See door surface cleaning instructions on.
16. To reduce the risk of fire in the oven cavity:
a) Do not overcook food. Carefully attend appliance
when paper, plastic, or other com-bustible
materials are placed inside the oven to facilitate
cooking.
b) Remove wire twist-ties from paper or plastic bags
before placing bag in oven.
c) If materials inside the oven ignite, keep oven door
closed, turn oven off, and disconnect the power
cord, or shut off power at the fuse or circuit breaker
panel.
d) Do not use the cavity for storage purposes. Do not
leave paper products, cooking utensils, or food in
the cavity when not in use.
17. Do not use this microwave oven to heat corrosive
chemicals (for example, sulfides and chlorides).
Vapours from such corrosive chemicals may interact
with the contact and springs of the safety interlock
switches thereby rendering them inoperable.
18. Keep the waveguide cover clean at all times.
Wipe the oven interior with a soft damp cloth after
each use. If you leave grease or fat anywhere in the
cavity it may overheat, smoke or even catch fire when
next using the oven.
19. Never heat oil or fat for deep frying as you cannot
control the temperature and doing so may lead to
overheating and fire.
20. Liquids, such as water, coffee, or tea are able to be
overheated beyond the boiling point without
appearing to be boiling due to surface tension of the
liquid. Visible bubbling or boiling when the container
is removed from the microwave oven is not always
present. THIS COULD RESULT IN VERY HOT
LIQUIDS SUDDENLY BOILING OVER WHEN A
SPOON OR OTHER UTENSIL IS INSERTED INTO
THE LIQUID. To reduce the risk of injury to persons:
1Do not overheat the liquid.
2Stir the liquid both before and halfway through
heating it
3Do not use straight-sided containers with narrow
necks.
4After heating, allow the container to stand in the
microwave oven for a short time before removing
the container.
5Use extreme care when inserting a spoon or other
utensil into the container.
SAVE THESE INSTRUCTIONS
7
FEATURES DIAGRAM
11Safety Interlock System.
22Door Viewing Screen - Allows viewing of
food. The screen is designed so that light
can pass through, but not the microwave.
33Door Hook - When door is closed, it will
automatically shut off. If the door is opened
while the oven is operating, magnetron will
immediately stop operating.
44Oven Cavity.
55Door Seal - Door seal maintains the
microwave energy within the oven cavity
and prevents microwave leakage.
66Plate Tray - Made of special heat resistant
material. Food in a proper receptacle is
placed on this plate for cooking.
77Ceiling Cover - This is located on top side
of the oven.
88Air Filter
123 4
6 875
8
11MICROWAVE indicator
It will turn on when the magnetron output
actually is on.
22Double Quantity indicator
It will turn on when DOUBLE QUANTITY
pad is pressed.
33STAGE indicator
It will blink the ongoing stage number of its
all cooking stages.
44CLEAN FILTER indicator
It will turn on during clean filter message
displaying.
55POWER LEVEL indicator
It will turn on when POWER LEVEL pad is
pressed except full power.
66POWER LEVEL pad
POWER LEVEL pad is used to set a
variable power level.
77Number pads
Number pads are used to set the manual
cooking time.
It is also used to start preprogrammed
cooking cycle.
88DOUBLE QUANTITY pad
X2 pad increases a preprogrammed
cooking time by a percentage of the original
cooking time.
The user specifies the percentage and it
can be changed for individual cooking
sequences.
This feature is very useful for cooking
multiple servings of foods.
99STOP pad
STOP pad stops a cooking sequence in
progress, clears out any remaining time,
and also ends programming or user option
cycle.
When STOP pad is used to end a
programming or option change, the
changes are discarded.
00START/ 20sec.+ pad
START pad is used to begin a manual
cooking cycle.
It is also used to save any changes to
programming sequences or user options.
START pad can be used as speedy
cooking pad.
In ready mode, 20sec.+ pad allows you to
reheat for 20 seconds at full power by
pressing it.
By repeatedly touching 20sec.+ pad, you
can also extend reheating time to 5 minutes
by 20 second increments.
FEATURES DIAGRAM (continued)
1
2
3 4 6 7 8 905
9
once HI 100%
twice 70% 70%
3 times 50% 50%
4 times 20% 20%
5 times 00% 0%
POWER LEVEL pad. Power Level (Display) Approximate Percentage of Power
The oven light is on when the microwave oven
is operating or the door is opened.
The oven door can be opened at any time
during operation by opening the door. The oven
will automatically stop working.
Each time a pad is touched, a BEEP will sound
to acknowledge the touch.
The oven automatically cooks at full power
unless set to a lower power level.
All segments of the display will turn on when
the oven of which door is closed is just plugged
in at first.
When the oven is just plugged in at first or the
display is turned off, key pads does not be
activated. After oven door is opened and closed
once, the oven is ready to work showing
"HELLO" in the display.
When STOP pad is touched during the oven
operation, the oven stops cooking and all
information retained.
To erase all information, touch STOP pad once
more. If the oven door is opened during the
oven operation, all information is retained.
If START pad is touched and the oven does not
operate, check the area between the door and
door seal for obstructions and make sure the
door is closed securely.
The oven will not start cooking until the door is
completely closed or the program has been
reset.
This section includes useful information about oven operation.
1. Plug power supply cord into a standard 230~240V AC 50Hz power outlet.
2. After placing the food in a suitable container, open the oven door and put it in the oven.
3. Shut the door. Make sure that it is firmly closed.
OPERATION PROCEDURE
1
2
3
4
5
6
7
8
Make sure the oven is properly installed and
plugged into the electrical outlet.
WATTAGE OUTPUT CHART
• A power level is selected by touching the POWER LEVEL pad. The chart shows the display, the power
level and the percentage of power.
10
Manual Cooking
To cook food manually using a specific entered cook time and power level.
CONTROLS
1. Open the door and put food in the oven. Close the door.
• "HELLO" will show in the display.
2. Press POWER LEVEL pad.
• If "HI" shows in the display, the power level is adjusted to full
power.
• The % indicator will light if a lower power level is adjusted.
• You can change a power level to adjust desired setting by pressing
POWER LEVEL pad repeatedly.
3. Press number pads for entering the cooking time.
• You can enter the maximum cooking time up to 60 minutes or 10
minutes.
• To change maximum cooking time option, see User Options
section in this manual.
4. If stage cooking is desired, repeat step 2 and 3.
• Display changes to cook time and power level for the next stage.
• Up to three different stages can be programmed.
5. Press START pad.
• The oven lamp will turn on and heating will start.
• The first STAGE indicator will start to blink and heating time will
count down.
NOTE
Repeat Feature : The user can repeat exactly the same MANUAL
COOKING by pressing only START pad, if you use the oven again
within keypad activating time. After a MANUAL COOKING is
ended, opening and closing the door will make the display show
the same cook time and power level setting of the previous
MANUAL COOKING. See User Options section in this manual.
NOTE
The cooling fan may automatically run for a while to cool the oven
down after working.
11
110 sec. 100%
220 sec. 100%
330 sec. 100%
445 sec. 100%
51 min. 100%
61 min. 30 sec. 100%
72 min. 100%
83 min. 100%
94 min. 100%
05 min. 100%
Preprogrammed Pads
To cook food using number pads preprogrammed with cooking sequences.
3. Oven begins to cook.
• The oven lamp will turn on and heating will start.
• The first STAGE indicator will start to blink and heating time will
count down.
1. Open the door and put food in the oven. Close the door.
• "HELLO" will show in the display.
2. Press a desired number pad.
• For single digit entry, press only one number pad.
• For multiple digit entry, press from one to three pads one by one.
• To change single or multiple digit entry option, see User Options
section in this manual.
■Factory Setting
Pad Cooking time Power Level
NOTE
You can enter the number of a programmed cook from 0 to 9 by
pressing only one number pad in single digit entry mode.
You can enter the number of a programmed cook from 0 to 199 by
pressing from one to three number pads one by one in multiple
digit entry mode.
NOTE
On-the-fly Feature : The user may start another preprogrammed
cook while the oven is cooking. While the oven is cooking in On-
the-fly Feature mode, pressing number pads will stop the current
cooking sequence and then start that preprogrammed cook. See
User Options section in this manual.
NOTE
The cooling fan may automatically run for a while to cool the oven
down after working.
12
Double Quantity
To increase cooking time when cooking more than one serving.
1. Open the door and put food in the oven. Close the door.
• "HELLO" will show in the display.
2. Press X2 pad.
• Amount of time added is a percentage of the original
preprogrammed cooking time.
• The percentage can be changed.
See Programming Cook Factor section in this manual.
3. Press desired preprogrammed pad.
4. Oven begins to cook.
• The oven lamp will turn on and heating will start.
• The first STAGE indicator will start to blink and heating time will
count down.
NOTE
The cooling fan may automatically run for a while to cool the oven
down after working.
13
Programming Pads
To change the amount of time or the power level for a preprogrammed pad.
1. Open the door.
• Display turns off.
2. Press and hold number 1 pad for a while.
• When the oven enters Programming mode, it will show
"PROGRAM" in the display.
3. Press number pads to be programmed.
• It will show a program number in the display.
• For single digit entry, press only one number pad.
• For multiple digit entry, press from one to three pads one by one.
4. Press POWER LEVEL pad to select a desired power level.
•
If "HI" shows in the display, the power level is adjusted to full power.
• The % indicator will light if a lower power level is adjusted.
• You can change a power level to adjust desired setting by pressing
POWER LEVEL pad repeatedly.
5. Enter desired cooking time by using number pads.
6. If stage cooking is desired, repeat step 4 and 5.
• Display changes to cook time and power level for the next stage.
• Up to three different stages can be programmed.
7. Press START pad to save the program changes.
• To discard changes, press STOP pad.
14
Programming Cook Factor
To change cook factor for a preset pad.
1. Open the door.
• Display turns off.
2. Press and hold number 1 pad for a while.
• When the oven enters Programming mode, it will show
"PROGRAM" in the display.
3. Press number pads to be programmed.
• It will show a program number in the display.
• For single digit entry, press only one number pad.
• For multiple digit entry, press from one to three pads one by one.
4. Press X2 pad to change a cooking factor.
• It will show the current cook factor.
• Factory setting for cook factor is 80%. (CF:80 in the display)
5. Enter desired cook factor by using number pads. (0~9)
• Number 1 pad for 10% of cook factor through number 0 pad for
100% of cook factor.
6. Press START pad to save the cook factor changes.
• To discard changes, press STOP pad.
15
20 sec.+ pad
This function allows you to reheat for 20 seconds at full power by simply touching the 20 sec.+ pad.
By repeatedly touching 20 sec.+ pad, you can also extend reheating time to 5 minutes by 20 second
increments.
1. Open the door and put food in the oven. Close the door.
• "HELLO" will show in the display.
2. Press 20 sec.+ pad.
• When you press 20 sec.+ pad, " :20" shows in the display.
• The oven will start immediately. It will add 20 seconds to the time
counting down each time the pad is pressed.
NOTE
The cooling fan may automatically run for a while to cool the oven
down after working.
16
Changing User Options
User Options can be changed to suit individual preferences.
1. Open the door.
• Display turns off.
2. Press and hold number 2 pad for a while.
• When the oven enters Option mode, it will show "OP:--" in the
display.
3. Press a number pad to be programmed. (0~9)
• It will show a option number in the display.
4. Press the number pad again to change the option.
Each time the number pad is pressed, option will change.
5. Press START pad to save changes.
• To change additional options, repeat steps 3 and 4.
1
Cook Ending Signal
2
Repeat Feature
3
Key Beep On/Off
4
Keypad Activating Time
5
On-the-fly Feature
6
Reset on Door open
7
Maximum Cooking Time
8
Manual Programming
9
Multiple Digit Entry
0
Clean Filter Message
Pads Display User Options (Factory Settings in Bold)
OP:10
OP:11
OP:12
OP:13
OP:14
OP:20
OP:21
OP:30
OP:31
OP:40
OP:41
OP:42
OP:43
OP:50
OP:51
OP:60
OP:61
OP:70
OP:71
OP:80
OP:81
OP:90
OP:91
OP:00
OP:01
OP:02
OP:03
3 long beeps for 3 seconds
1 short, 1 long beeps for 3 seconds
3 sceond beep
3 quick beeps for 3 seconds
5 quick beeps for 3 seconds
Repeat feature not allowed
Repeat feature allowed
Prevents beep when a pad is pressed.
Allows beep when a pad is pressed.
Keypad time entry window is 1 minute.
Keypad time entry window is 2 minutes.
Keypad time entry window is 3 minutes.
Keypad time entry window is 4 minutes.
On-the-fly disabled
On-the-fly enabled
Opening oven door does not reset oven back to ready.
Opening oven door resets the oven back to ready mode.
Allows 60 minute maximum cooking time.
Allows 10 minute maximum cooking time.
Manual cooking not allowed.
Manual cooking allowed.
Single digit entry allows 10 preprogrammed pads. (0~9)
Multiple digit entry allows 200 preprogrammed pads. (0~199)
Oven will not display clean filter message.
Oven will display clean filter message every 7 days.
Oven will display Clean Filter message every 30 days.
Oven will display Clean Filter message every 90 days.
17
COOKING INSTRUCTIONS
Utensil Guide
Only use utensils that are suitable for use in microwave ovens.
To cook food in the microwave oven, the microwaves must be able to penetrate the food, without
being reflected or absorbed by the dish used. Care must therefore be taken choosing the utensil. If the
utensil is marked microwave-safe, you do not need to worry. The following table lists various of utensil
and indicates whether and how they should be used in a microwave oven.
●: Recommended use
▲ : Limited Use
✕: Not Recommended
Aluminium foil
Crust plate
China and earthenware
Disposable polyester
cardboard dishes
Fast-food packaging
• Polystyrene cups containers
• Paper bags or newspaper
• Recycled paper or metal trims
Glassware
• Oven-to-table ware
• Fine glassware
• Glass jars
Metal
• Dishes
• Freezer bag twist ties
Paper
• Plates, cups, napkins and
Kitchen paper
• Recycled paper
Plastic
• Containers
• Cling film
• Freezer bags
Wax or grease-proof paper
Utensil Safe Comments
Can be used in small quantities to protect areas against
overcooking. Arcing can occur if the foil is too close to
the oven wall or if too much foil is used.
Do not preheat for more than 8minutes.
Porcelain, pottery, glazed earthenware and bone china
are usually suitable, unless deco-rated with a metal trim.
Some frozen foods are packaged in these dishes.
Can be used to warm food. Overheating may cause the
polystyrene to melt.
May catch fire.
May cause arcing.
Can be used, unless decorated with a metal trim.
Can be used to warm foods or liquids.
Delicate glass may break or crack if heated suddenly.
Must remove the lid. Suitable for warming only.
May cause arcing or fire.
For short cooking times and warming. Also to absorb
excess moisture.
May cause arcing.
Particularly if heat-resistant thermoplastic. Some other
plastics may warp or discolour at high temperatures. Do
not use Melamine plastic.
Can be used to retain moisture. Should not touch the
food.
Take care when removing the film as hot steam will
escape.
Only if boilable or oven-proof. Should not be airtight.
Prick with a fork, if necessary.
Can be used to retain moisture and prevent spattering.
▲
●
●
●
●
✕
✕
●
●
●
✕
✕
●
✕
●
●
▲
●
18
MICROWAVING PRINCIPLES
Microwave energy has been used in this country to cook and reheat food since early experiments with RADAR
in World War ll. Microwaves are present in the atmosphere all the time, both naturally and manmade sources.
Manmade sources include radar, radio, television, telecommunication links and car phones.
CONVERSION CHARTS
WEIGHT MEASURES
15 g 1/2oz.
25 g 1 oz.
50 g 2 oz.
100 g 4 oz.
175 g 6 oz.
225 g 8 oz.
450 g 1 lb.
HOW MICROWAVES COOK FOOD
Microwave oven is a Group 2 ISM equipment in which radiofrequency energy is intentionally generated and used
in the form of electromagnetic radiation for the treatment of material. This oven is a Class B equipment suitable
for use in domestic establishments and in establishments directly connected to a low voltage power supply
network which supplies buildings used for domestic purposes.
VOLUME MEASURES
30 ml 1 fl.oz.
100 ml 3 fl.oz.
150 ml 5 fl.oz. (1/4 pt)
300 ml 10 fl.oz. (1/2 pt)
600 ml 20 fl.oz. (1pt)
SPOON MEASURES
1.25 ml 1/4tsp
2.5 ml 1/2tsp
5 ml 1 tsp
15 ml 1 tbsp
FLUID MEASUREMENTS
1 Cup = 8 fl.oz. = 240 ml
1 Pint = 16 fl.oz. (UK 20 fl.oz.) = 480 ml (UK 560 ml)
1 Quart = 32 fl.oz. (UK 40 fl.oz.) = 960 ml (UK 1120 ml)
1 Gallon = 128 fl.oz. (UK 160 fl.oz.) = 3840 ml (UK 4500 ml)
Then they pass through
the cooking containers to
be absorbed by the water
molecules in the food, all
foods contain water to a
more or lesser extent.
The microwaves cause the water molecules to
vibrate which causes FRICTION, i.e. HEAT. This
heat then cooks the food. Microwaves are also
attracted to fat and sugar particles, and foods high
in these will cook more quickly. Microwaves can
only penetrate to a depth of 11/2- 2 inches(4-5cm)
and as heat spreads through the food by
conduction, just as in a traditional oven, the food
cooks from the outside inwards.
In a microwave oven, electricity is converted into
microwave by the MAGNETRON.
The microwaves
bounce off the metal
walls and the metal
door screen.
REFLECTION
TRANSMISSION
ABSORPTION
Microwave Water Molecule Absorption Vibration
CEILING COVER
Oven Cavity
Guide
Wave
TRAY
Magnetron
19
STANDING TIME
Dense foods e.g. meat, jacket potatoes and cakes,
require standing time(inside or outside of the oven)
after cooking, to allow heat to finish conducting to
cook the center completely. Wrap meat joints and
jacket potatoes in aluminium foil while standing.
Meat joints need approx. 10-15 minutes, jacket
potatoes 5 minutes. Other foods such as plated
meal, vegetables, fish etc require 2-5 minutes
standing. After defrosting food, standing time
should also be allowed. If food is not cooked after
standing time, return to the oven and cook for
additional time.
MOISTURE CONTENT
Many fresh foods e.g. vegetables and fruit, vary in
their moisture content throughout the season,
particularly jacket potatoes. For this reason cooking
times may have to be adjusted. Dry ingredients e.g.
rice, pasta, can dry out during storage so cooking
times may differ.
DENSITY
Porous airy foods heat more quickly than dense
heavy foods.
CLING FILM
Cling film helps keep the food moist and the
trapped steam assists in speeding up cooking
times. Pierce before cooking to allow excess steam
to escape. Always take care when removing cling
film from a dish as the build-up of steam will be
very hot.
SHAPE
Even shapes cook evenly. Food cooks better by
microwave when in a round container rather than
square.
SPACING
Foods cook more quickly and evenly if spaced
apart. NEVER pile foods on top of each other.
STARTING TEMPERATURE
The colder the food, the longer it takes to heat up.
Food from a fridge takes longer to reheat than food
at room temperature.
LIQUIDS
All liquids must be stirred before and during
heating. Water especially must be stirred before
and during heating, to avoid eruption. Do not heat
liquids that have previously been boiled. DO NOT
OVERHEAT.
TURNING & STIRRING
Some foods require stirring during cooking. Meat
and poultry should be turned after half the cooking
time.
ARRANGING
Individual foods e.g. chicken portions or chops,
should be placed on a dish so that the thicker parts
are towards the outside.
QUANTITY
Small quantities cook faster than large quantities,
also small meals will reheat more quickly than large
portions.
PIERCING
The skin or membrane on some foods will cause
steam to build up during cooking. These foods
must be pierced or a strip of skin should be peeled
off before cooking to allow the steam to escape.
Eggs, potatoes, apples, sausages etc, will all need
to be pierced before cooking. DO NOT ATTEMPT
TO BOIL EGGS IN THEIR SHELLS.
COVERING
Cover foods with microwave cling film or a lid.
Cover fish, vegetables, casseroles, soups. Do not
cover cakes, sauces, jacket potatoes or pastry
items.
COOKING TECHNIQUES
20
GENERAL INFORMATION
➪Put the food on a microwave rack (roasts, bone-in pieces) or in a microwave casserole (small pieces such
as cubes or strips) or weigh at home on a kitchen scale. Round number to the nearest tenth of a pound
and choose that number with each item pads.
➪The shape of food items, especially larger ones, will vary affect the way defrost. Always check the status
after the standing time. Fish, seafood and poultry should still be somewhat icy in the center the held under
cold running water to finish defrosting. If more time is needed, use DEFROST by time to add time in small
increments.
➪Halfway through the defrosting process, a series of beeps will indicate that it is time to change the position
of the item being defrosted. The includes turning over or rotating the item, separating defrosted pieces or
sections, or shielding.
➪Shielding means to use a 2-inch strip of aluminum foil to protect thinner or unevenly shaped part from
beginning to cook. Microwave energy will not penetrate the foil. Some rules apply to the use of foil:
Do not let the foil pieces touch each other or the sides of the microwave oven.
Be sure that all ends are touched under and lie flat to the food.
Remember to adjust foil when a item is turned over and cover with wax paper.
➪To prepare food for freezer storage(and later defrosting), wrap tightly in moisture proof packaging.
If using freezer plastic bags, be sure to let all the air out to prevent freezer bump on the food.
Package so that food is as evenly shaped as possible ease in defrosting.
DEFROSTING GUIDE
21
DEFROST AND COOKING CHART
The times given in the following charts are a guideline only.
Many factors e.g. starting temperature of the food can affect the final heating time required. The cooking
and defrosting times must be adjusted when necessary.
All times are tested using foods at starting temperatures as below ;
chilles foods -------- approx. +5°C
frozen foods -------- approx. -20°C
Aalways check for the correct core temperature with a temperature probe to comply with current
Government food Hygiene Regulations.
Minced Beef
Whole chicken
Bread Silced
Rice (cooked)
Apple Pie
Gateau
Sausages (uncooked)
- thick
- thin
Food Weight Instructions
1. Place on a plate or in flan dish.
2. Turn over 2-3 times during defrosting,
removing defrosted mince each time.
3. After defrosting, cover any frozen mince
remaining with aluminium foil for 15-20
minutes or until thoroughly defroested.
1. Place on large plate.
2. Turn over 2-3 times during defrosting.
NOTE: If necessary, small pieces of
aluminium foil can be used to shield small
areas of meat which may become warm
during defrosting.
3. After defrosting, wrap in foil and leave to
stand for 1-2 hours or until thoroughly
defrosted.
1. Arrange and separate slices on the dish.
2. Turn over, separate and re-arrange twice
during defrosting. Remove defrosted slices
each time.
3. After defrosting , cover with foil for 5-10
minutes or until thoroughly defrosted.
1. Place in a large bowl.
2. Break up during defrosting, removing
defrosted rice each time.
3. After defrosting, cover any frozen rice
remaining with foil and leave to stand for
10-15 minutes or until thoroughly defrosted.
1. Place on plate, uncovered.
1. Place on paper towel, uncovered.
1. Place on a large plate, in a single layer if
possible.
2. Turn over 2-3 times during defrosting and
separate if necessary.
3. After defrosting, cover with aluminium foil
and leave to stand for 15-20 minutes or
until thoroughly defrosted.
500 g
1.36 kg
800g
(13/4lb) loaf
450 g
1 portion
1 portion
450g(1lb)
450g(1lb)
20% /
5 min
20% /
25 min
20% /
4-5 mins
20% /
5-6 mins
20% /
1min 20sec
20% /
2 min
20% /
6-7 mins
20% /
4-5 mins
20% /
7 min
20% /
32 min
20% /
4-6 mins
20% /
6-8 mins
20% /
1min 50sec
20% /
2 min 30sec
20% /
9-10 mins
20% /
6-7 mins
Power Level /Approx. Time
1800W 1400W
22
Jacket Potatoes
Broccoli
- Fresh:
- Frozen:
- Fresh:
- Frozen:
Cauliflower
- Fresh:
- Frozen:
Peas
- Fresh:
- Frozen:
Hamburger
(chilled)
Cheeseburger
(Chilled)
Tomatoes
(room temp.)
Asparagus
(room temp.)
Apple Pie
Food Weight Instructions
1. Pierce each potato in several places.
2. Place on the edge of the plate.
3. Stand for 3-4 minutes before serving.
1. Place in a dish, add 30ml (2tbsp) water.
2. Cover with microwave cling film and pierce
in 4-5 places.
3. Stir halfway through cooking.
4. Stand for 1-2 minutes before serving.
As above
As above
1. Place in a dish, add 30ml (2tbsp) water.
2. Cover with microwave cling film and pierce
in 4-5 places.
3. Stir halfway through cooking.
4. Leave to stand for 1-2 minutes before
serving.
1. Place in a plate, uncovered.
As above
1. Place in a bowl, cover with cling film, stir
halfway through cooking.
As above
1. Place on plate, uncovered.
2 potatoes
(290g(10oz) /
1ea.)
225g(8oz)
225g(8oz)
225g(8oz)
225g(8oz)
225g(8oz)
225g(8oz)
225g(8oz)
225g(8oz)
125g (5oz)
175g(6oz)
400g (14oz)
350g (12oz)
1 portion
100% /
5-6 mins
100% /
2 mins
100% /
3 mins
100% /
2 mins
100% /
3 mins
100% /
2 mins
100% /
3 mins
100% /
1-2 mins
100% /
2-3 mins
100% /
40 sec
100% /
40 sec
100% /
2mins 30sec
100% /
1min 40sec
100% /
15 sec
100% /
7-8 mins
100% /
3 mins
100% /
4 mins
100% /
4 mins
100% /
4 mins
100% /
3-4 mins
100% /
4 mins
100% /
2-3 mins
100% /
3-4mins
100% /
50 sec
100% /
50 sec
100% /
3 mins
100% /
2min 10sec
100% /
20 sec
Power Level /Approx. Time
1800W 1400W
Carrots(sliced,baby,whole)
23
CARE OF YOUR MICROWAVE OVEN
Turn the oven off before cleaning.
Keep the inside of the oven clean. When food spatters or spilled liquids adhere to oven walls, wipe
with a damp cloth. Mild detergent may be used if the oven gets very dirty. The use of harsh
detergent or abrasives is not recommended.
The outside oven surface should be cleaned with soap and water, rinsed and dried with a soft
cloth. To prevent damage to the operating parts inside the oven, water should not be allowed to
seep into the ventilation openings.
If the Control Panel becomes wet, clean with a soft, dry cloth. Do not use harsh detergents or
abrasives on Control Panel.
If steam accumulates inside or around the outside of the oven door, wipe with a soft cloth. This
may occur when the microwave oven is operated under high humidity conditions and in no way
indicates malfunction of the unit.
Oven cavity floor should be cleaned regularly to avoid excessive noise. Simply wipe the bottom
surface of the oven with mild detergent water or window cleaner and dry.
Although your oven is provided with safety features, it is important to observe the following:
1. It is important not to defeat or tamper with safety interlocks.
2. Do not place any object between the oven front face and the door or allow residue to accumulate on
sealing surfaces. Wipe the sealing area frequently with a mild detergent, rinse and dry. Never use
abrasive powders or pads.
3. When opened, the door must not be subjected to strain, for example, a child hanging on an opened
door or any load could cause the oven to fall forward to cause injury and also damage to the door.
Do not operate the oven if it is damaged, until it has been repaired by a competent service
technician. It is particularly important that the oven closes properly and that there is no damage to
the:
i) Door(bent)
ii) Hinges and Hookes(broken or loosened)
iii) Door seals and sealing surfaces.
4. The oven should not be adjusted or repaired by anyone except a properly competent service
technician.
5. The oven should be cleaned regularly and any food deposits removed;
6. Failure to maintain the oven in a clean condition could lead to deterioration of the surface that could
adversely affect the life of the appliance and possibly result in a hazardous situation.
CARE AND CLEANING
1
2
3
4
5
6
NOTE: The appliance should not be cleaned with a water jet.
24
CLEANING THE CEILING COVER
1. Push left side of stopper in centre of ceiling cover and seperate it from cavity.
2. Hold side stoppers of ceiling cover with both hands and pull down. Then take off the Ceiling Cover
out of the oven cavity
3. Wash this Ceiling Cover in soapy water or Food Sanitizer Solution.
4. Be sure to replace the Ceiling Cover before using the oven.
Note Ceiling Cover must be placed securely when you use the oven.
When you remove the Ceiling Cover for the purpose of cleaning, be sure to be extreamely careful about the
exposed inside components on the top of the oven cavity.
If any of them are deformed, abnormal symptom can happen such as arcing or sparks during operation.
In case of such problem, contact the nearest servise centre.
STOPPER
CLEANING THE AIR FILTER
Clean the Air Filter regularly according to the following instructions.
1. Remove the bolt at both ends of Air Filter.
2. Take the Air Filter off carefully.
3. Wash the Air Filter in warm soapy water.
4. Be sure to replace the Air Filter before using the oven.
Note If the Air Filter becomes clogged with debris, this will cause problem on the oven.
If you want to change the air filter clean time, refer to "clean filter message" in page 16.
AIR FILTER
BOLT
25
USE YOUR MICROWAVE OVEN SAFELY
General Use
Do not attempt to defeat or tamper with safety
interlocks.
Do not place any object between the oven front
frame and the door or allow residue to build up on
sealing surfaces. Wipe with a mild detergent, rinse
and dry. Never use abrasive powders or pads.
Do not subject the oven door to strain or weight such
as a child hanging on an open door.
This could cause the oven to fall forward resulting in
injury to you and damage to the oven.
Do not operate the oven if door seals or sealing
surfaces are damaged; or if door is bent; or if hinges
are loose or broken.
Do not operate the oven empty. This will damage the
oven.
Do not attempt to dry clothes, newspapers or other
materials in the oven. They may catch on fire.
Do not use recycled paper products as they may
contain impurities which may cause sparks or fires.
Do not hit or strike the control panel with hard
objects. This can damage the oven.
Food
Never use your microwave oven for home canning.
The oven is not designed for proper home canning.
Improperly canned food may spoil and be dangerous
to consume.
Always use the minimum recipe cooking time. It is
better to undercook rather than overcook foods.
Undercooked foods can be returned to the oven for
more cooking. If food is overcooked, nothing can be
done.
Heat small quantities of food or foods with low
moisture carefully. These can quickly dry out, burn or
catch on fire.
Do not heat eggs in the shell. Pressure may build up
and eggs can explode.
Potatoes, apples, egg yolks and sausages are
examples of food with non-porous skins.
These must be pierced before cooking to prevent
bursting.
Do not attempt to deep fat fry in your microwave
oven.
Always allow a standing time of at least 20 seconds
after the oven has been switched off to allow the
temperature to even out, stir during heating, if
necessary, and ALWAYS stir after heating. To
prevent eruptive boiling and possible scalding, you
should put a spoon or glass stick into the beverages
and stir before, during and after heating.
Do not leave the oven unattended while popping
corn.
Do not pop corn in a paper bag unless it is the
commercially prepared Microwave Popcorn product.
The kernels can overheat and ignite a brown paper
bag.
Do not put packaged Microwave Popcorn bags
directly on the oven tray. Place the package on a
microwave safe glass or ceramic plate to avoid
overheating and cracking the oven tray.
Do not exceed the Microwave Popcorn
manufacturers suggested popping time.
Longer popping does not yield more popcorn but it
can result in scorch, burn of fire. Remember, the
Popcorn bag and tray can be too hot to handle.
Remove with caution and use pot holders.
ARCING
If you see arcing, touch the STOP pad and correct the problem.
Arcing is the microwave term for sparks in the oven.
Arcing is caused by:
• Metal or foil touching the side of the oven.
• Foil not molded to food (upturned edges act like
antennas).
• Metal, such as twist-ties, poultry pins, or gold
rimmed dishes, in the microwave.
• Recycled paper towels containing small metal
pieces being used in the microwave.
26
BEFORE YOU CALL FOR SERVICE
Refer to following checklist, you may prevent an unnecessary service call.
* The oven doesn't work;
1. Check that the power cord is securely plugged in.
2. Check that the door firmly closed.
3. Check that the cooking time is set.
4. Check for a blown circuit fuse or tripped main circuit breaker in your house.
* Sparking in the cavity;
1. Check that utensils are metal containers or dishes with metal trim.
2. Check that metal skewers touch the interior walls.
If there is still a problem, contact the service station.
A list of these stations is included in the oven.
QUESTIONS AND ANSWERS
* Q : I accidentally ran my microwave oven without any food in it. Is it damaged?
* A : Running the oven empty for a short time will not damage the oven.
However, it is not recommended.
* Q : Can I open the door when the oven is operating?
* A :
The door can be opened anytime during the cooking operation. Then microwave energy will be instantly
switched off and the time setting will maintain until the door is closed and START is touched.
* Q : Why do I have moisture in my microwave oven after cooking?
* A : The moisture on the side of your microwave oven is normal. It is caused by steam form cooking food
heating the cool oven surface.
* Q : Dose microwave energy pass through the viewing screen in the door?
* A : No. The metal screen bounces back the energy to the oven cavity. The holes are made to
allow light to pass through. They do not let microwave energy pass through.
* Q : Why do eggs sometimes pop?
* A : When baking or poaching eggs, the yolk may pop due to steam build-up inside the yolk membrane.
To prevent this, simply pierce the yolk with a toothpick before cooking. Never cook eggs without
piercing their shells.
DO NOT ATTEMPT TO SERVICE THE OVEN YOURSELF!
27
QUESTIONS AND ANSWERS (continued)
* Q : Why is standing time recommended after the cooking operation has been completed?
* A : Standing time is very important.
With microwave cooking, the heat is in the food, not in the oven. Many foods build up enough internal
heat to allow the cooking process to continue, even after the food is removed from the oven. Standing
time for joints of meat, large vegetables and cakes allows the inside to cook completely, without
overcooking the outside.
* Q : What does “standing time” mean?
* A : “Standing time” means that food should be removed from the oven and covered for additional time to
allow it to finish cooking. This frees the oven for other cooking.
* Q : Why does my oven not always cook as fast as the microwave cooking guide says?
* A : Check your cooking guide again, to make sure you’ve followed directions exactly ; and to see what
might cause variations in cooking time. Cooking guide times and heat settings are suggestions, to
help prevent over-cooking... the most common problem in getting used to a microwave oven.
Variations in the size, shape and weights and dimensions could require longer cooking time. Use your
own judgement along with the cooking guide suggestions to check whether the food has been
properly cooked just as you would do with a conventional cooker.
* Q : Will the microwave oven be damaged if it operates while empty?
* A : Yes. Never run it empty.
* Q :Can I pop popcorn in my microwave oven? How do I get the best results?
* A : Yes. Pop packaged microwave popcorn following manufactures guidelines.
Do not use regular paper bags. Use the “listening test” by stopping the oven as soon as the popping
slows to a “pop” every 1 or 2 seconds. Do not repop unpopped kernels. Do not pop popcorn in glass
cookware.
DISPOSAL OF USED ELECTRICAL &
ELECTRONIC EQUIPMENT
The meaning of the symbol on the product, its accessory or packaging indicates that
this product shall not be treated as household waste. Please, dispose of this
equipment at your applicable collection point for the recycling of electrical & electronic
equipments waste. In the European Union and Other European countries which there
are separate collection systems for used electrical and electronic product. By
ensuring the correct disposal of this product, you will help prevent potentially
hazardous to the environment and to human health, which could otherwise be caused
by unsuitable waste handling of this product. The recycling of materials will help
conserve natural resources. Please do not therefore dispose of your old electrical
and electronic equipment with your household waste. For more detailed information
about recycling of this product, please contact your local city office, your household
waste disposal service or the shop where you purchased the product.
