WINYTECHNOLOGY WTP-SX5 Vehicle Recorder User Manual Microsoft PowerPoint SX5 Manual engx

WINYTECHNOLOGY Co., Ltd. Vehicle Recorder Microsoft PowerPoint SX5 Manual engx

User Manual REV

Ver.6.0

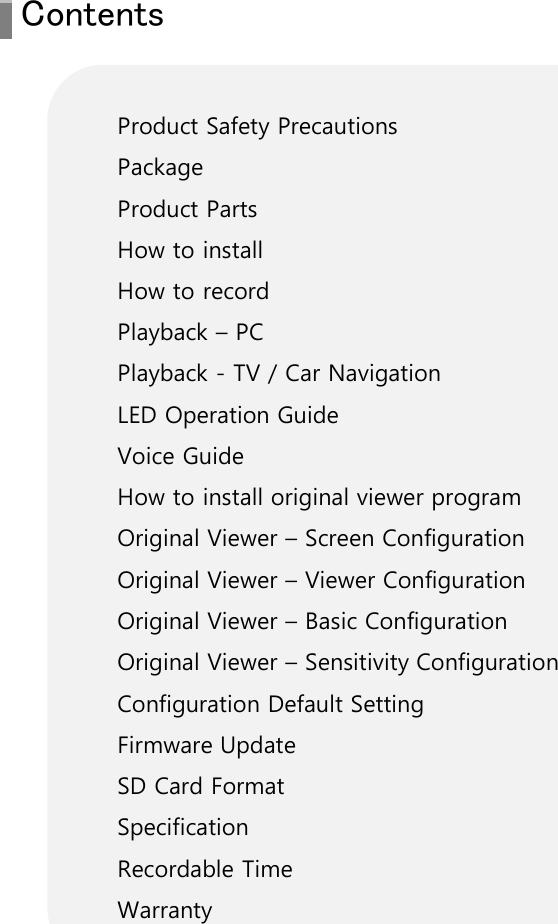

ContentsProduct Safety PrecautionsPackageProduct PartsHow to installHow to recordPlayback – PCPlayback - TV / Car NavigationLED Operation GuideVoice GuideHow to install original viewer programOriginal Viewer – Screen ConfigurationOriginal Viewer – Viewer ConfigurationOriginal Viewer – Basic ConfigurationOriginal Viewer – Sensitivity ConfigurationConfiguration Default Setting Firmware UpdateSD Card FormatSpecificationRecordable TimeWarranty

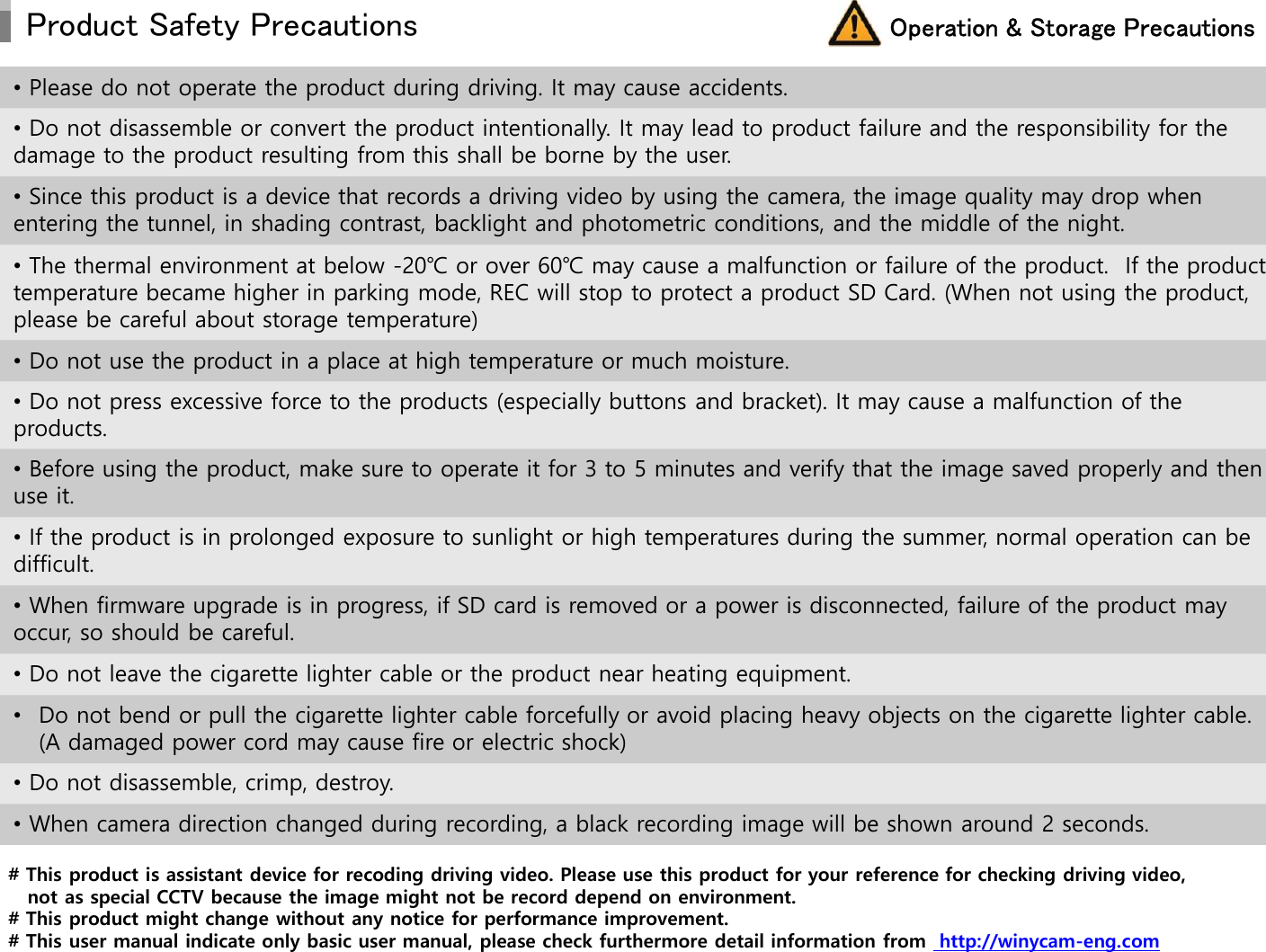

Product Safety Precautions•Please do not operate the product during driving. It may cause accidents.•Do not disassemble or convert the product intentionally. It may lead to product failure and the responsibility for thedamage to the product resulting from this shall be borne by the user.•Since this product is a device that records a driving video by using the camera, the image quality may drop whenentering the tunnel, in shading contrast, backlight and photometric conditions, and the middle of the night.•The thermal environment at below -20℃ or over 60℃ may cause a malfunction or failure of the product. If the producttemperature became higher in parking mode, REC will stop to protect a product SD Card. (When not using the product,please be careful about storage temperature)•Do not use the product in a place at high temperature or much moisture.•Do not press excessive force to the products (especially buttons and bracket). It may cause a malfunction of theproducts.•Before using the product, make sure to operate it for 3 to 5 minutes and verify that the image saved properly and thenuse it.•If the product is in prolonged exposure to sunlight or high temperatures during the summer, normal operation can bedifficult.•When firmware upgrade is in progress, if SD card is removed or a power is disconnected, failure of the product mayoccur, so should be careful.•Do not leave the cigarette lighter cable or the product near heating equipment.•Do not bend or pull the cigarette lighter cable forcefully or avoid placing heavy objects on the cigarette lighter cable.(A damaged power cord may cause fire or electric shock)•Do not disassemble, crimp, destroy.•When camera direction changed during recording, a black recording image will be shown around 2 seconds.Operation & Storage Precautions# This product is assistant device for recoding driving video. Please use this product for your reference for checking driving video, not as special CCTV because the image might not be record depend on environment.# This product might change without any notice for performance improvement. # This user manual indicate only basic user manual, please check furthermore detail information from http://winycam-eng.com

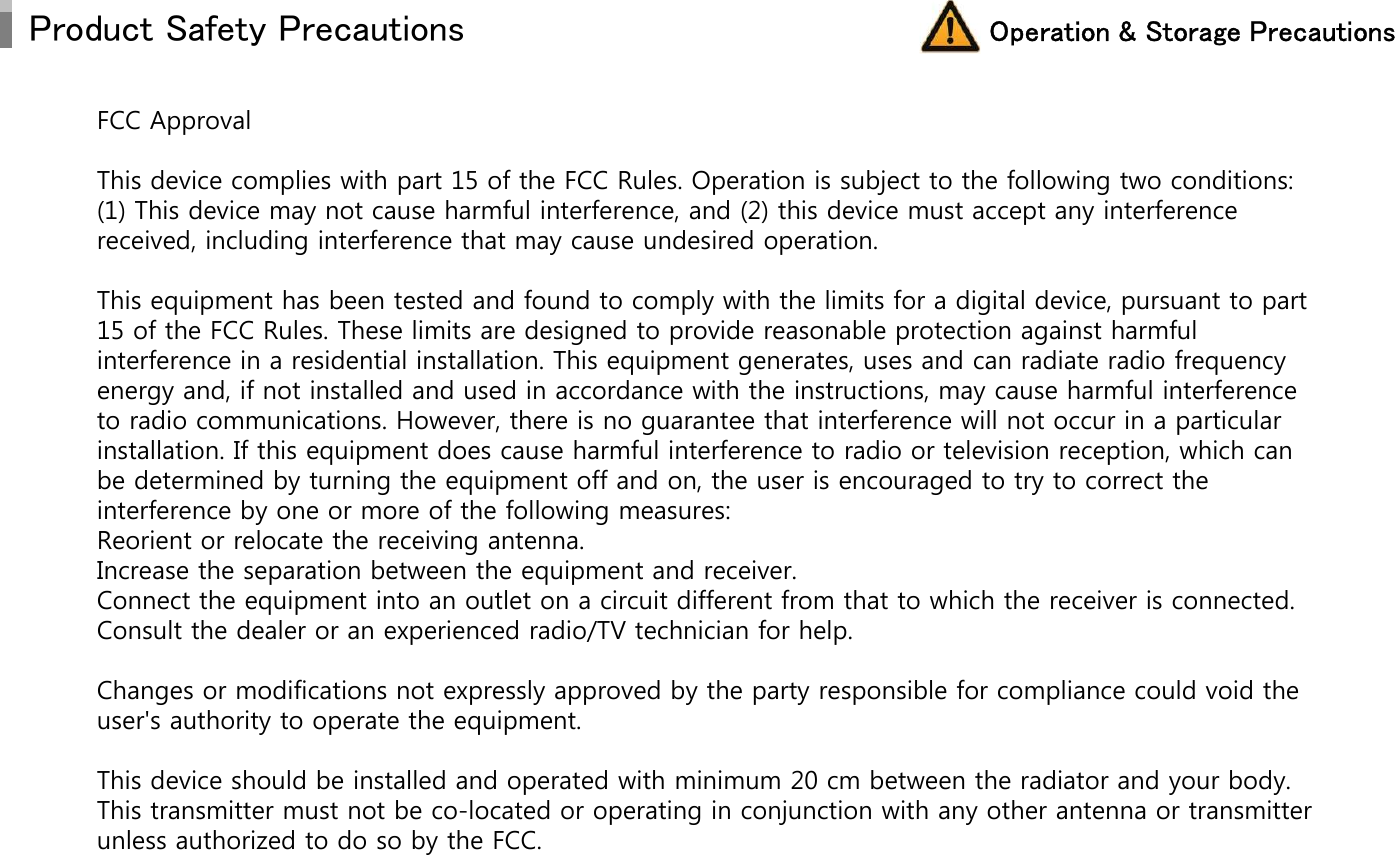

Operation & Storage PrecautionsProduct Safety PrecautionsFCC ApprovalThis device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.This equipment has been tested and found to comply with the limits for a digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help.Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.This device should be installed and operated with minimum 20 cm between the radiator and your body.This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter unless authorized to do so by the FCC.

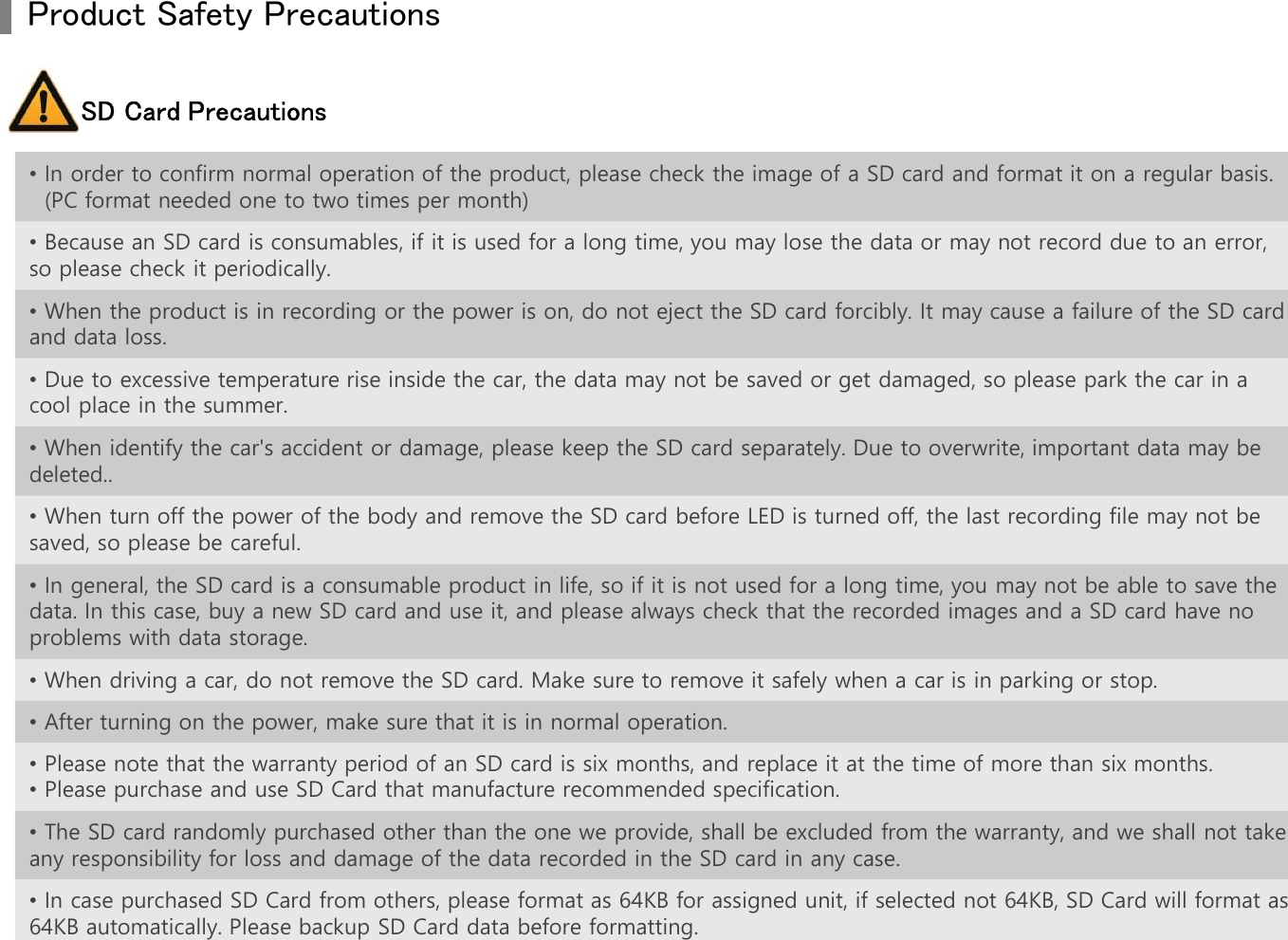

•In order to confirm normal operation of the product, please check the image of a SD card and format it on a regular basis.(PC format needed one to two times per month)•Because an SD card is consumables, if it is used for a long time, you may lose the data or may not record due to an error,so please check it periodically.•When the product is in recording or the power is on, do not eject the SD card forcibly. It may cause a failure of the SD cardand data loss.•Due to excessive temperature rise inside the car, the data may not be saved or get damaged, so please park the car in acool place in the summer.•When identify the car's accident or damage, please keep the SD card separately. Due to overwrite, important data may bedeleted..•When turn off the power of the body and remove the SD card before LED is turned off, the last recording file may not besaved, so please be careful.•In general, the SD card is a consumable product in life, so if it is not used for a long time, you may not be able to save thedata. In this case, buy a new SD card and use it, and please always check that the recorded images and a SD card have noproblems with data storage.•When driving a car, do not remove the SD card. Make sure to remove it safely when a car is in parking or stop.•After turning on the power, make sure that it is in normal operation.•Please note that the warranty period of an SD card is six months, and replace it at the time of more than six months.•Please purchase and use SD Card that manufacture recommended specification.•The SD card randomly purchased other than the one we provide, shall be excluded from the warranty, and we shall not takeany responsibility for loss and damage of the data recorded in the SD card in any case.•In case purchased SD Card from others, please format as 64KB for assigned unit, if selected not 64KB, SD Card will format as64KB automatically. Please backup SD Card data before formatting.SD Card PrecautionsProduct Safety Precautions

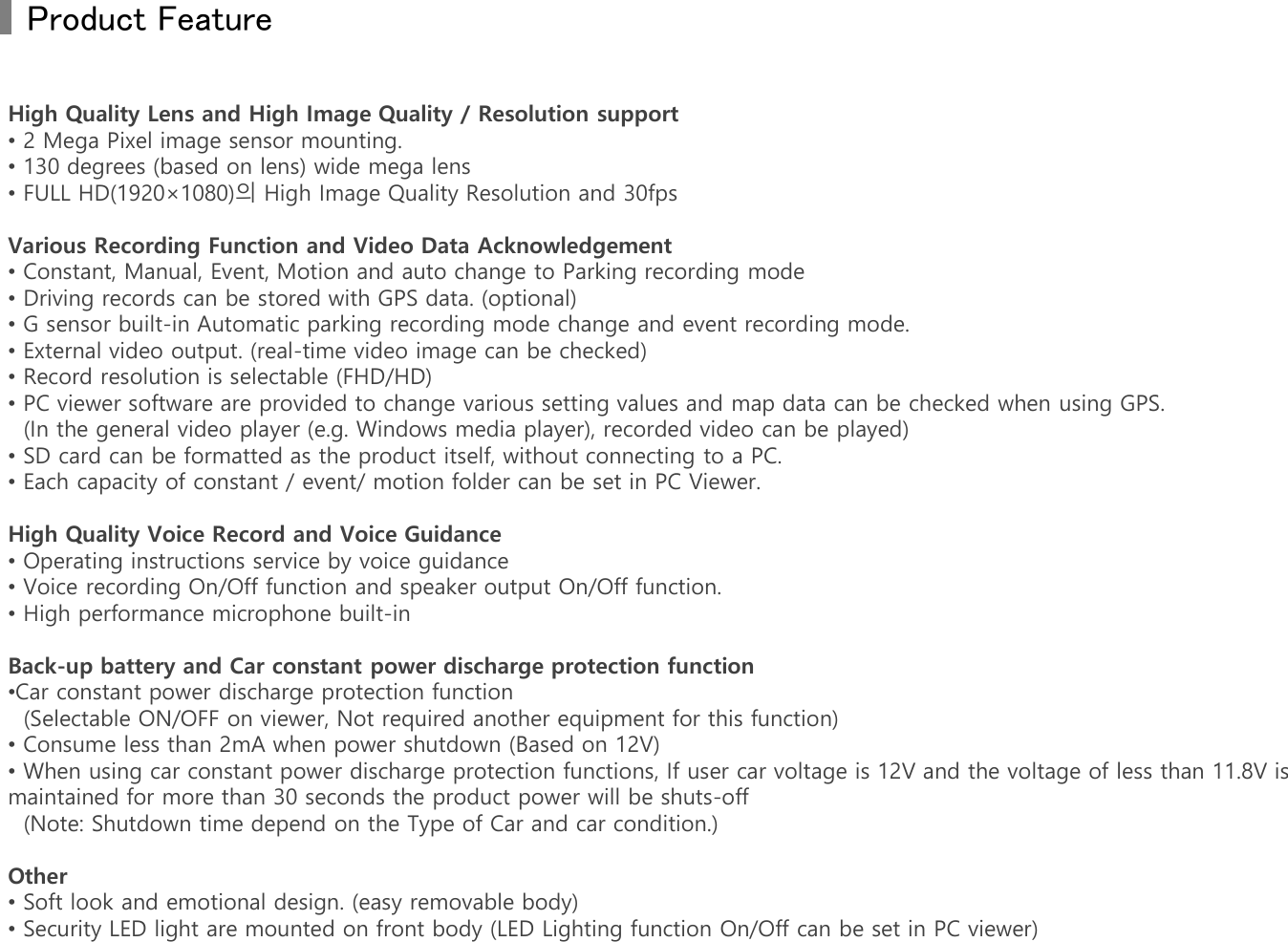

Product FeatureHigh Quality Lens and High Image Quality / Resolution support•2 Mega Pixel image sensor mounting.•130 degrees (based on lens) wide mega lens•FULL HD(1920×1080)의 High Image Quality Resolution and 30fpsVarious Recording Function and Video Data Acknowledgement•Constant, Manual, Event, Motion and auto change to Parking recording mode•Driving records can be stored with GPS data. (optional)•G sensor built-in Automatic parking recording mode change and event recording mode.•External video output. (real-time video image can be checked)•Record resolution is selectable (FHD/HD)•PC viewer software are provided to change various setting values and map data can be checked when using GPS.(In the general video player (e.g. Windows media player), recorded video can be played)•SD card can be formatted as the product itself, without connecting to a PC.•Each capacity of constant / event/ motion folder can be set in PC Viewer.High Quality Voice Record and Voice Guidance•Operating instructions service by voice guidance•Voice recording On/Off function and speaker output On/Off function.•High performance microphone built-inBack-up battery and Car constant power discharge protection function•Car constant power discharge protection function(Selectable ON/OFF on viewer, Not required another equipment for this function)•Consume less than 2mA when power shutdown (Based on 12V)•When using car constant power discharge protection functions, If user car voltage is 12V and the voltage of less than 11.8V ismaintained for more than 30 seconds the product power will be shuts-off(Note: Shutdown time depend on the Type of Car and car condition.)Other•Soft look and emotional design. (easy removable body)•Security LED light are mounted on front body (LED Lighting function On/Off can be set in PC viewer)

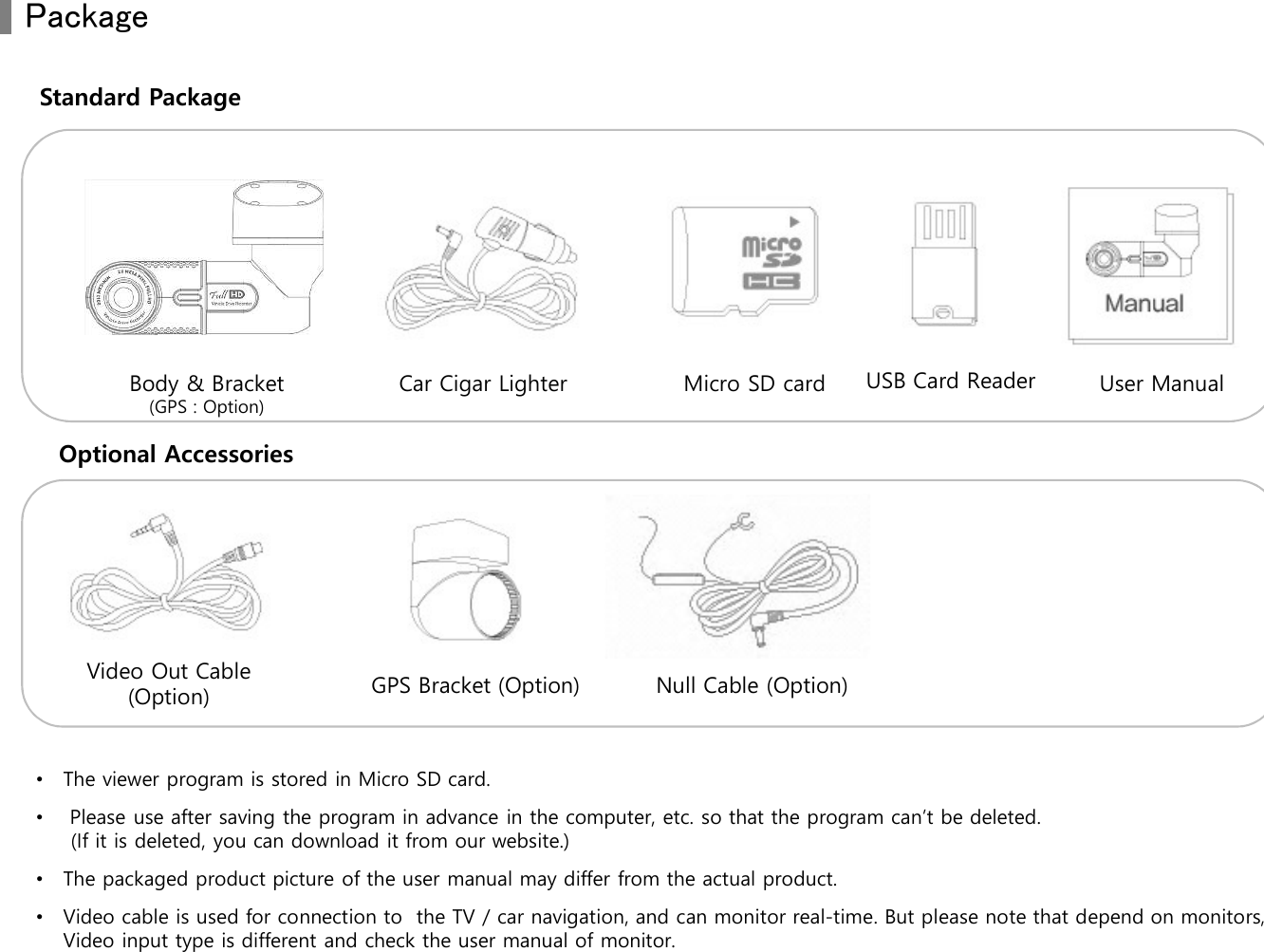

Body & Bracket(GPS : Option)Video Out Cable(Option)PackageStandard PackageOptional Accessories•The viewer program is stored in Micro SD card.•Please use after saving the program in advance in the computer, etc. so that the program can’t be deleted.(If it is deleted, you can download it from our website.)•The packaged product picture of the user manual may differ from the actual product.•Video cable is used for connection to the TV / car navigation, and can monitor real-time. But please note that depend on monitors, Video input type is different and check the user manual of monitor.Car Cigar Lighter Micro SD card USB Card Reader User ManualGPS Bracket (Option) Null Cable (Option)

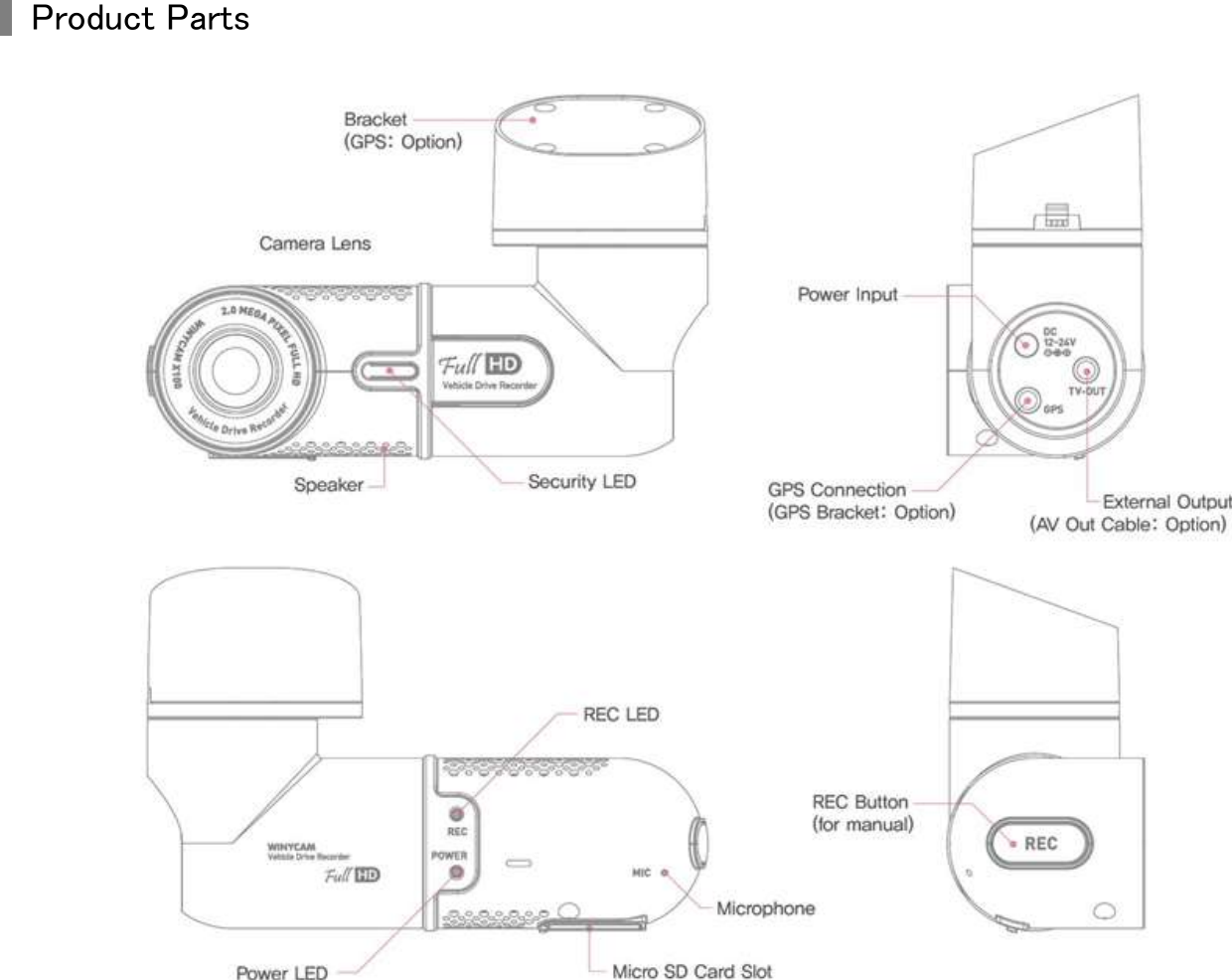

Product Parts

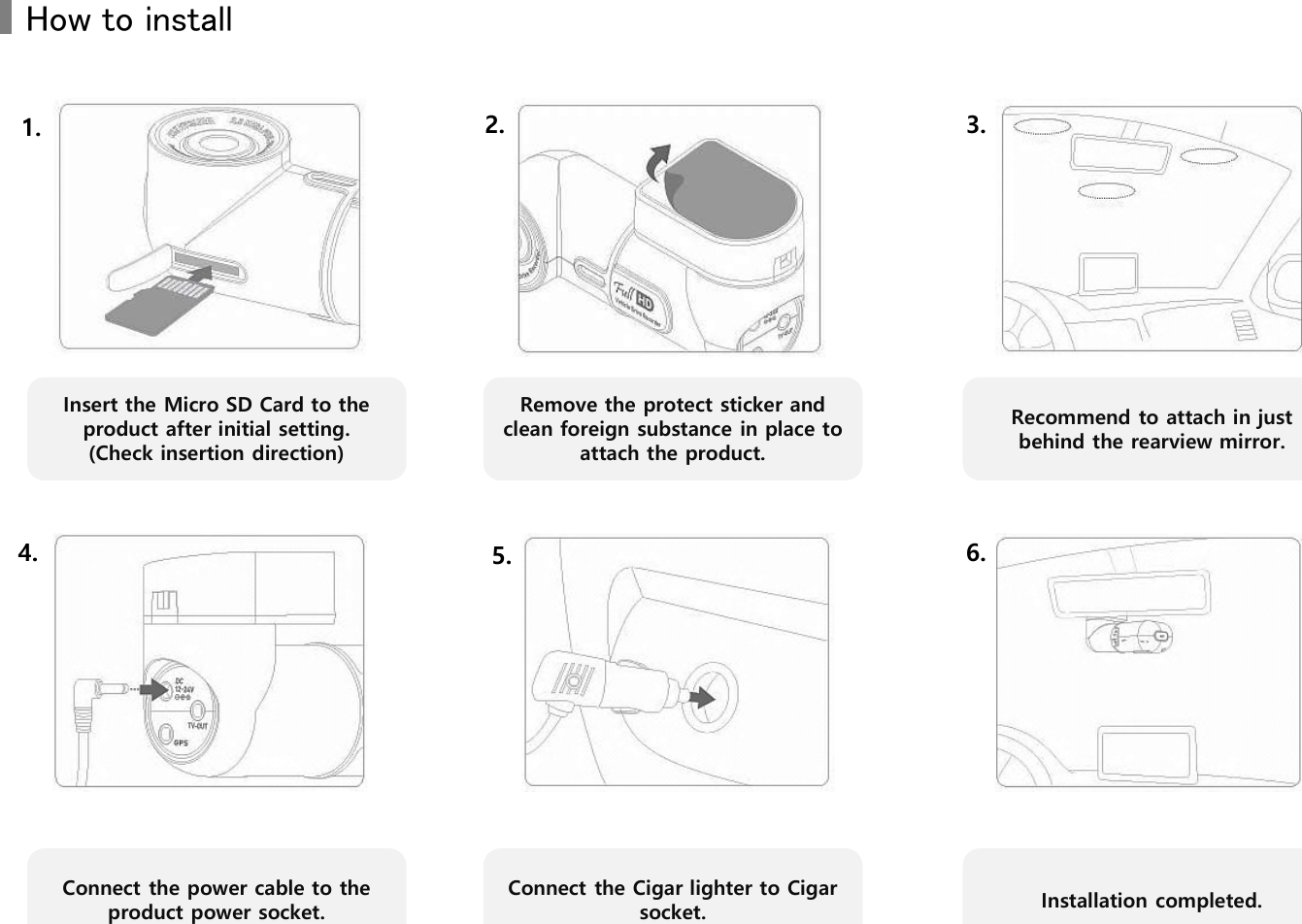

How to installRecommend to attach in just behind the rearview mirror.Recommend to attach in just behind the rearview mirror.Remove the protect sticker and clean foreign substance in place to attach the product.Remove the protect sticker and clean foreign substance in place to attach the product.Connect the power cable to the product power socket.Connect the power cable to the product power socket.Connect the Cigar lighter to Cigar socket.Connect the Cigar lighter to Cigar socket.Insert the Micro SD Card to the product after initial setting.(Check insertion direction)Insert the Micro SD Card to the product after initial setting.(Check insertion direction)1. 2. 3.4. 5. 6.Installation completed.Installation completed.

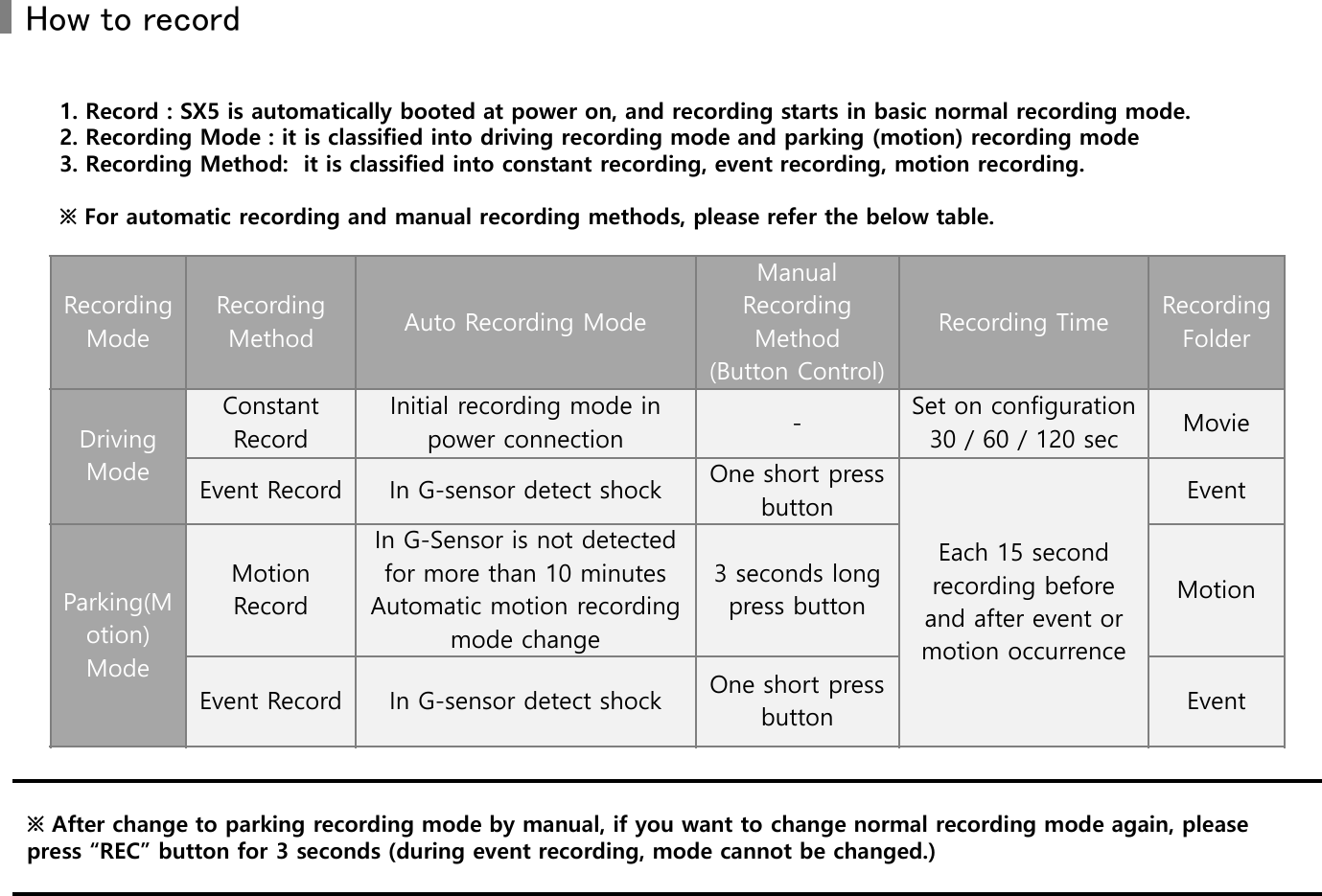

RecordingModeRecording Method Auto Recording ModeManual Recording Method(Button Control)Recording Time Recording FolderDrivingModeConstantRecordInitial recording mode in power connection -Set on configuration 30 / 60 / 120 sec MovieEvent Record In G-sensor detect shock One short press buttonEach 15 second recording before and after event or motion occurrenceEventParking(Motion)ModeMotionRecordIn G-Sensor is not detected for more than 10 minutes Automatic motion recording mode change3 seconds long press button MotionEvent Record In G-sensor detect shock One short press button EventHow to record1. Record : SX5 is automatically booted at power on, and recording starts in basic normal recording mode.2. Recording Mode : it is classified into driving recording mode and parking (motion) recording mode3. Recording Method: it is classified into constant recording, event recording, motion recording.※ For automatic recording and manual recording methods, please refer the below table.※ After change to parking recording mode by manual, if you want to change normal recording mode again, please press “REC” button for 3 seconds (during event recording, mode cannot be changed.)

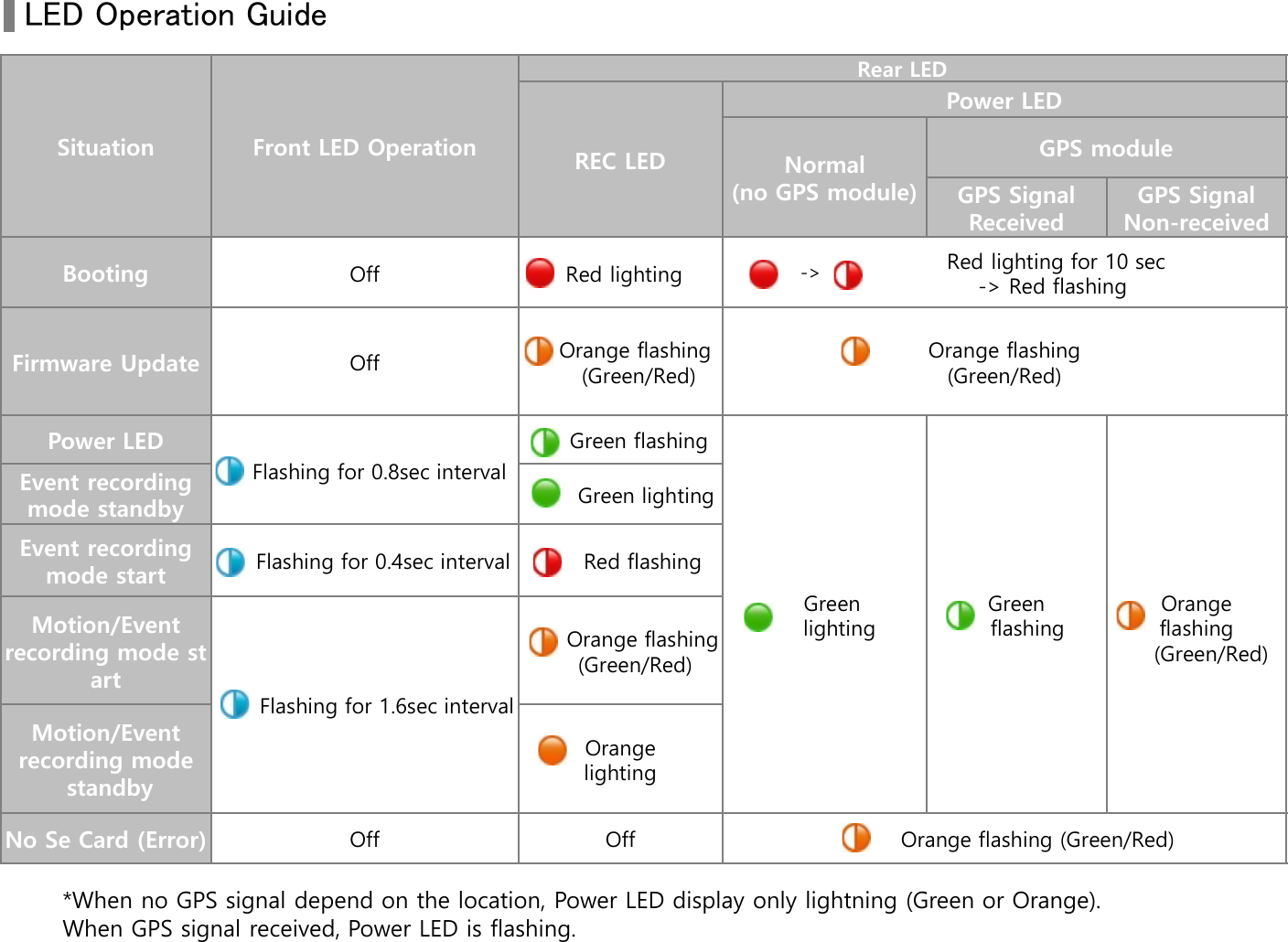

LED Operation Guide*When no GPS signal depend on the location, Power LED display only lightning (Green or Orange).When GPS signal received, Power LED is flashing.Situation Front LED OperationRear LEDREC LEDPower LEDNormal(no GPS module)GPS moduleGPS Signal ReceivedGPS Signal Non-receivedBooting Off Red lighting Red lighting for 10 sec -> Red flashingFirmware Update Off Orange flashing(Green/Red)Orange flashing(Green/Red)Power LEDFlashing for 0.8sec intervalGreen flashingGreen lightingGreen flashingOrange flashing(Green/Red)Event recording mode standby Green lightingEvent recording mode start Flashing for 0.4sec interval Red flashingMotion/Event recording mode startFlashing for 1.6sec intervalOrange flashing(Green/Red)Motion/Event recording modestandbyOrange lightingNo Se Card (Error) Off Off Orange flashing (Green/Red)->

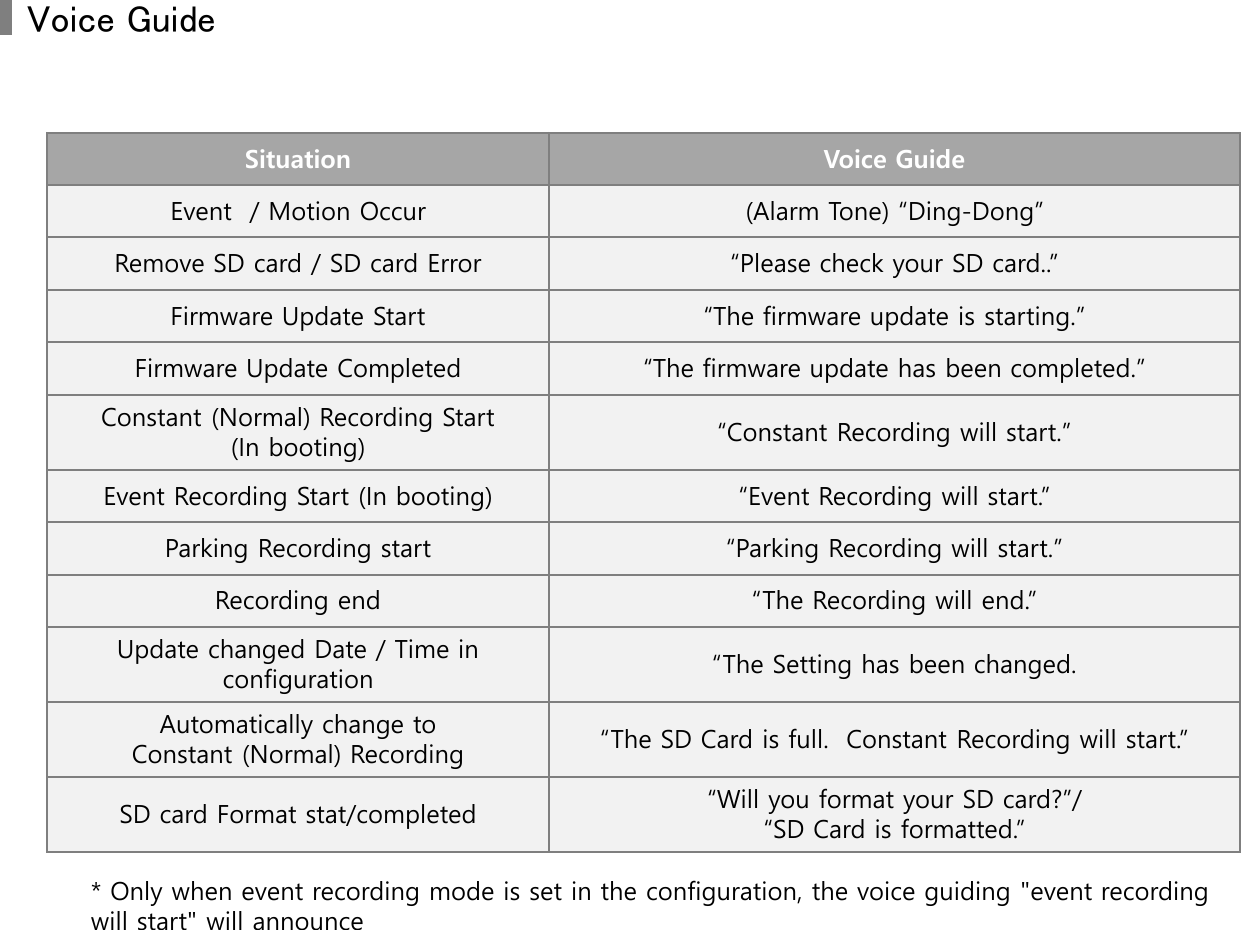

Situation Voice GuideEvent / Motion Occur (Alarm Tone) “Ding-Dong”Remove SD card / SD card Error “Please check your SD card..”Firmware Update Start “The firmware update is starting.”Firmware Update Completed “The firmware update has been completed.”Constant (Normal) Recording Start(In booting) “Constant Recording will start.”Event Recording Start (In booting) “Event Recording will start.”Parking Recording start “Parking Recording will start.”Recording end “The Recording will end.”Update changed Date / Time inconfiguration “The Setting has been changed.Automatically change to Constant (Normal) Recording “The SD Card is full. Constant Recording will start.”SD card Format stat/completed “Will you format your SD card?”/“SD Card is formatted.”Voice Guide* Only when event recording mode is set in the configuration, the voice guiding "event recording will start" will announce

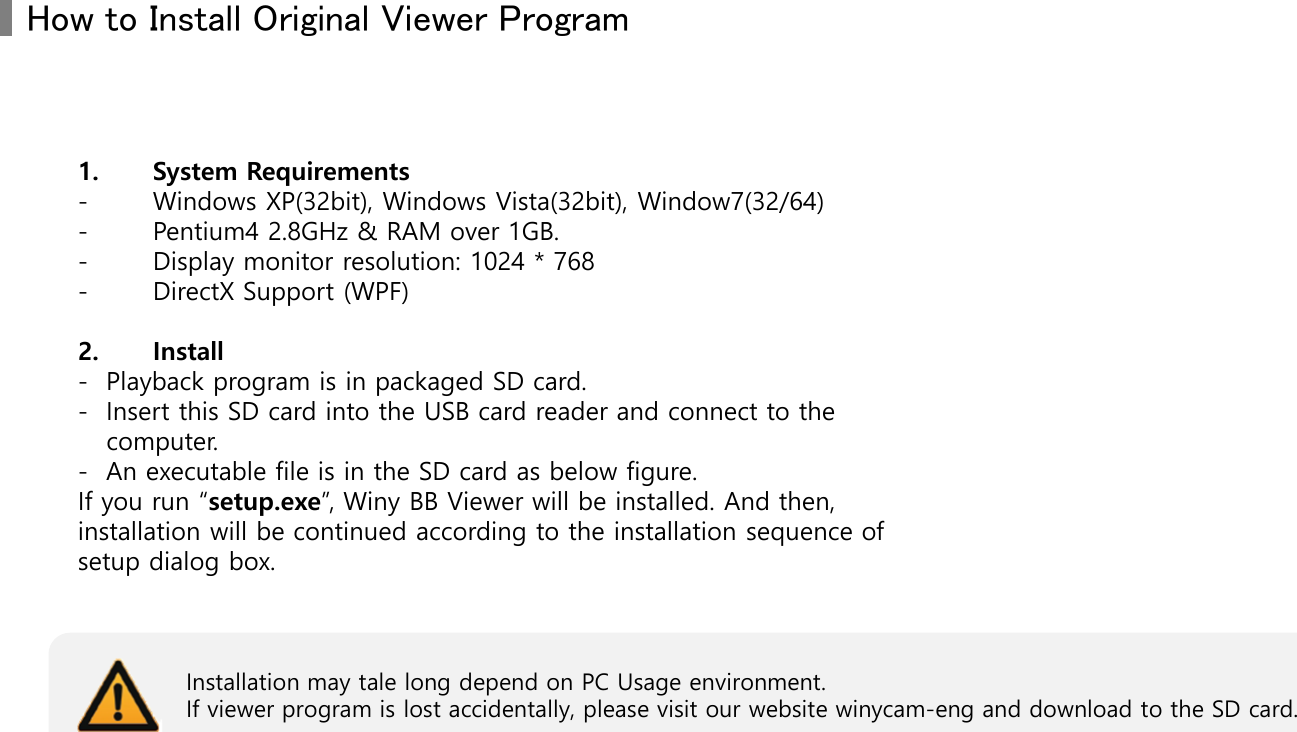

1. System Requirements - Windows XP(32bit), Windows Vista(32bit), Window7(32/64)- Pentium4 2.8GHz & RAM over 1GB.- Display monitor resolution: 1024 * 768- DirectX Support (WPF)2. Install- Playback program is in packaged SD card.- Insert this SD card into the USB card reader and connect to the computer.- An executable file is in the SD card as below figure.If you run “setup.exe”, Winy BB Viewer will be installed. And then, installation will be continued according to the installation sequence of setup dialog box.How to Install Original Viewer ProgramInstallation may tale long depend on PC Usage environment. If viewer program is lost accidentally, please visit our website winycam-eng and download to the SD card.
Original Viewer – Screen Configuration

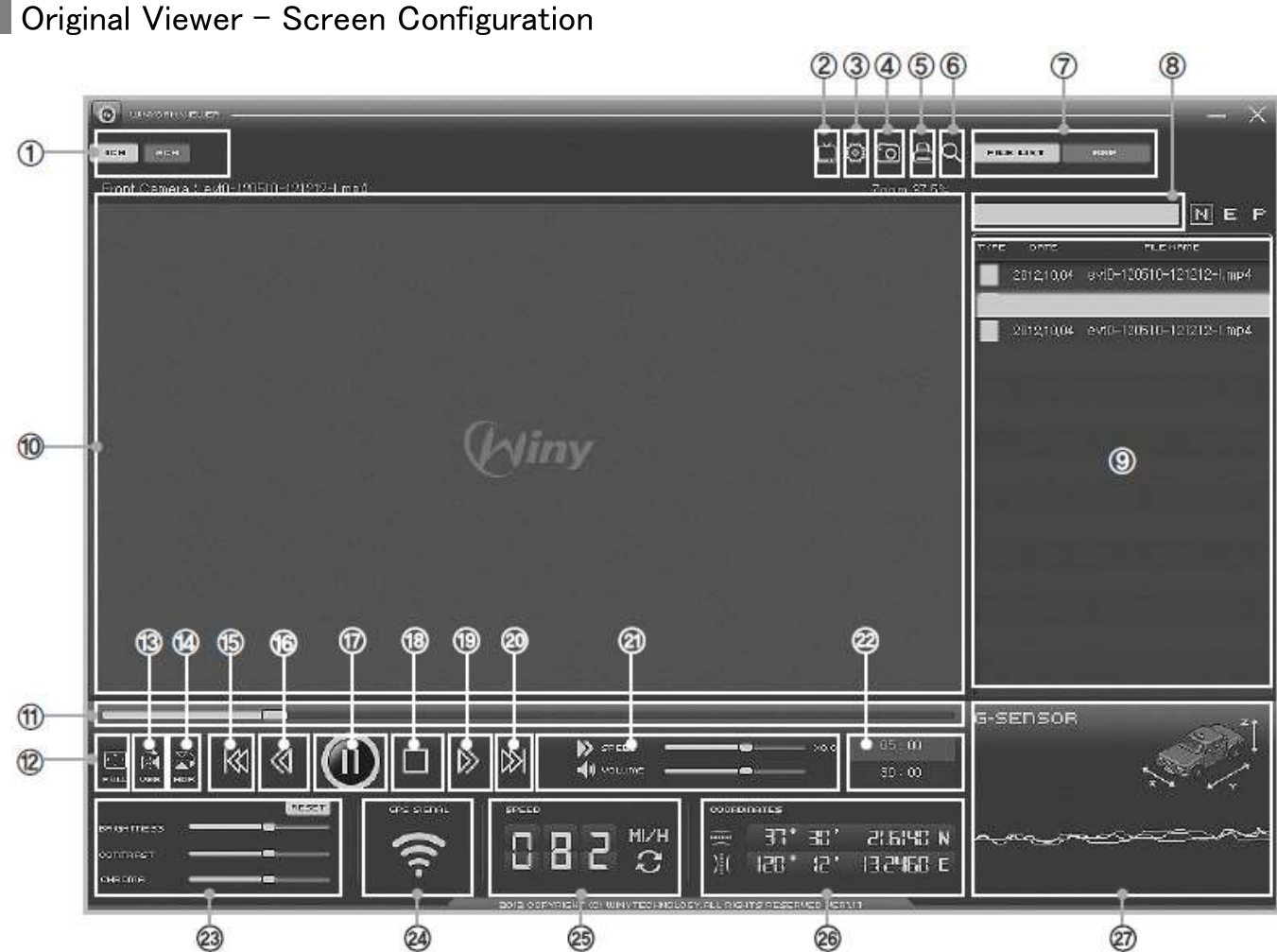

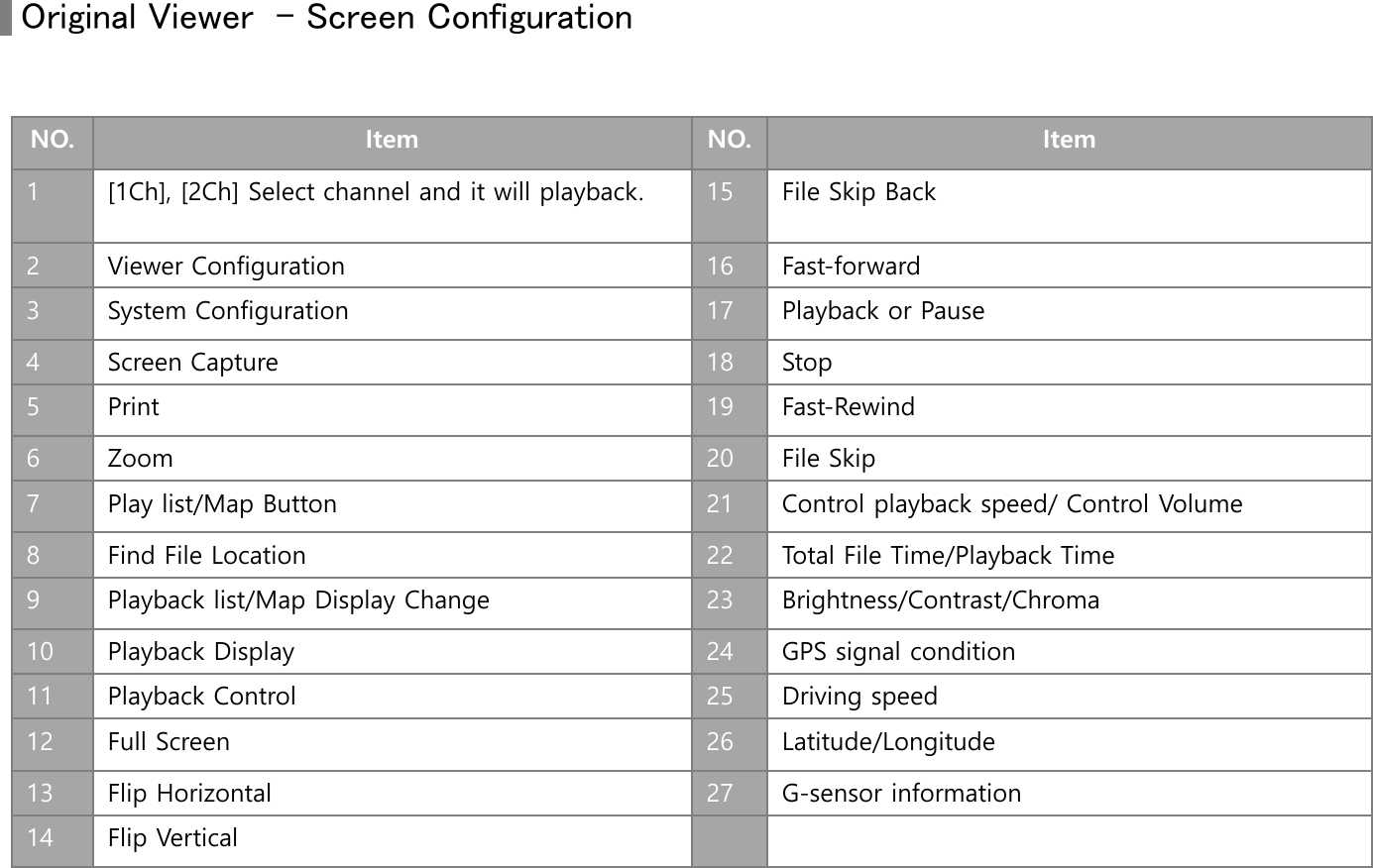

Original Viewer - Screen ConfigurationNO. Item NO. Item1[1Ch], [2Ch] Select channel and it will playback. 15 File Skip Back2Viewer Configuration 16 Fast-forward 3System Configuration 17 Playback or Pause4Screen Capture 18 Stop5Print 19 Fast-Rewind6Zoom 20 File Skip7Play list/Map Button 21 Control playback speed/ Control Volume8Find File Location 22 Total File Time/Playback Time9Playback list/Map Display Change 23 Brightness/Contrast/Chroma10 Playback Display 24 GPS signal condition11 Playback Control 25 Driving speed12 Full Screen 26 Latitude/Longitude13 Flip Horizontal 27 G-sensor information14 Flip Vertical
Screen Configuration

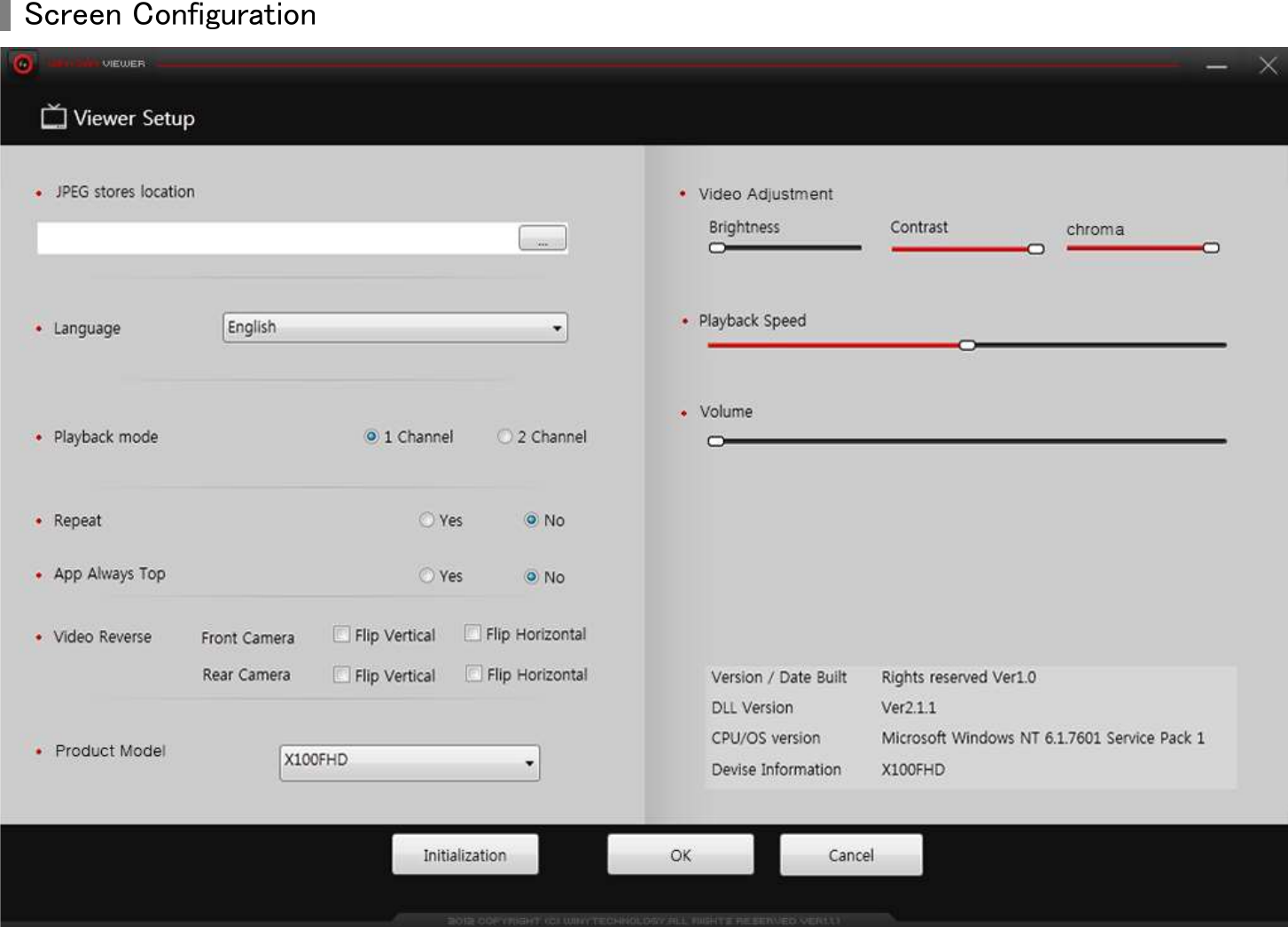

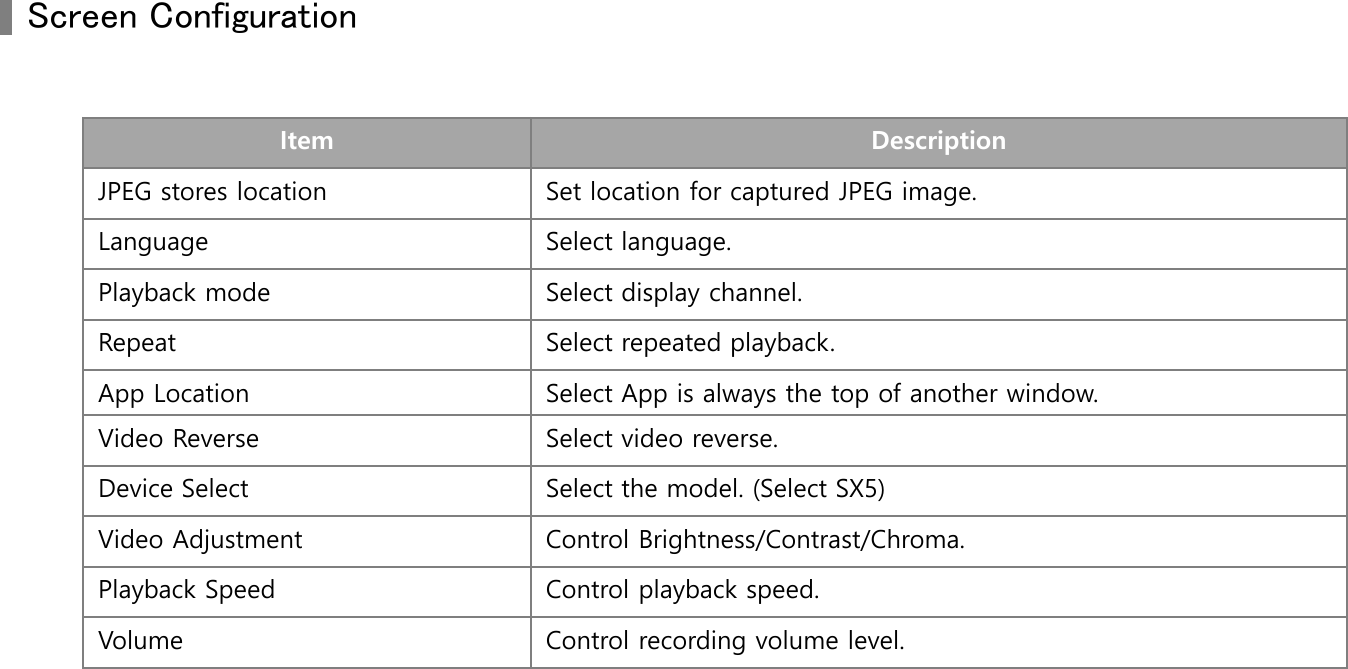

Item DescriptionJPEG stores location Set location for captured JPEG image.Language Select language.Playback mode Select display channel.Repeat Select repeated playback.App Location Select App is always the top of another window.Video Reverse Select video reverse.Device Select Select the model. (Select SX5)Video Adjustment Control Brightness/Contrast/Chroma.Playback Speed Control playback speed.Volume Control recording volume level.Screen Configuration

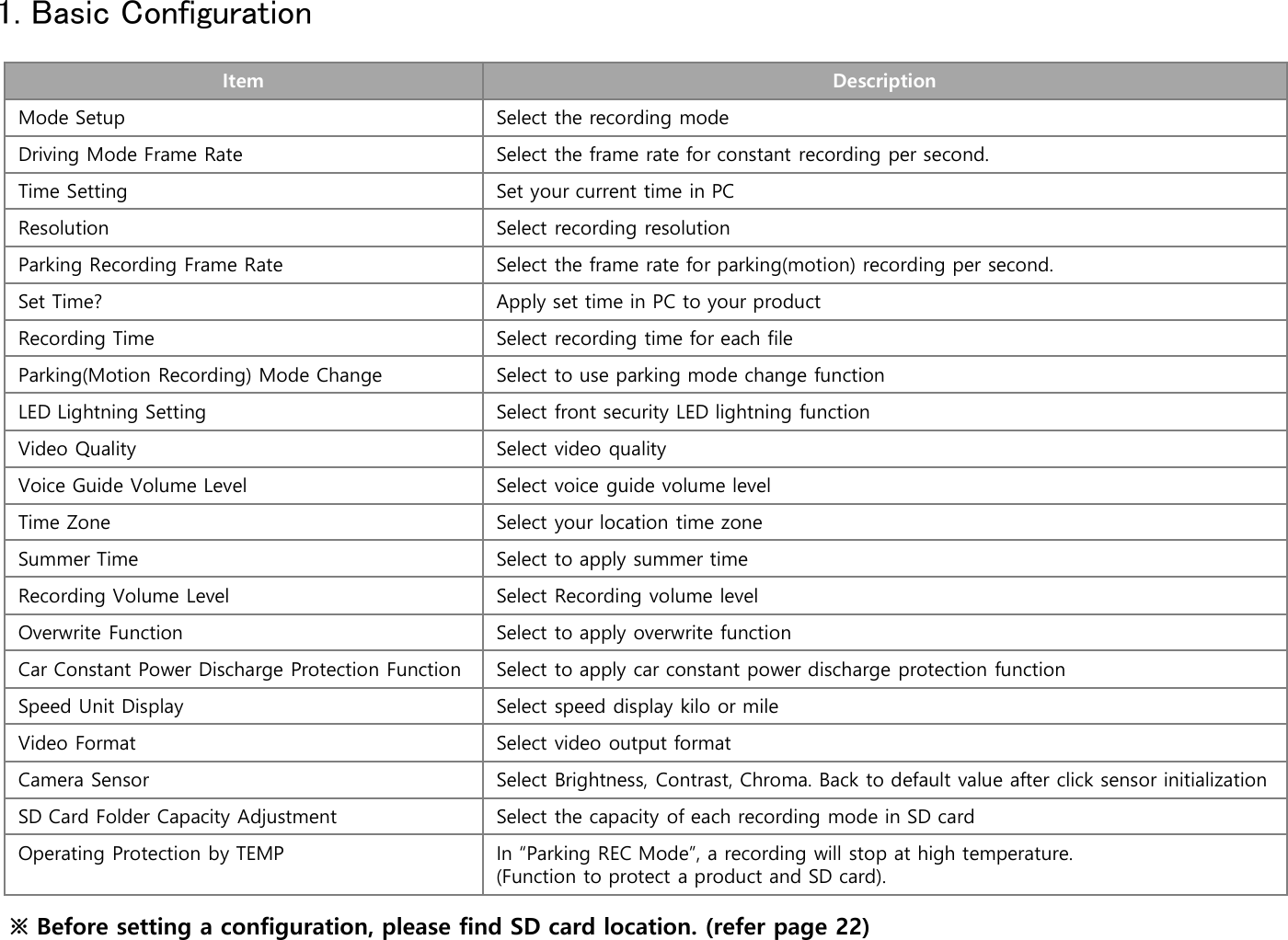

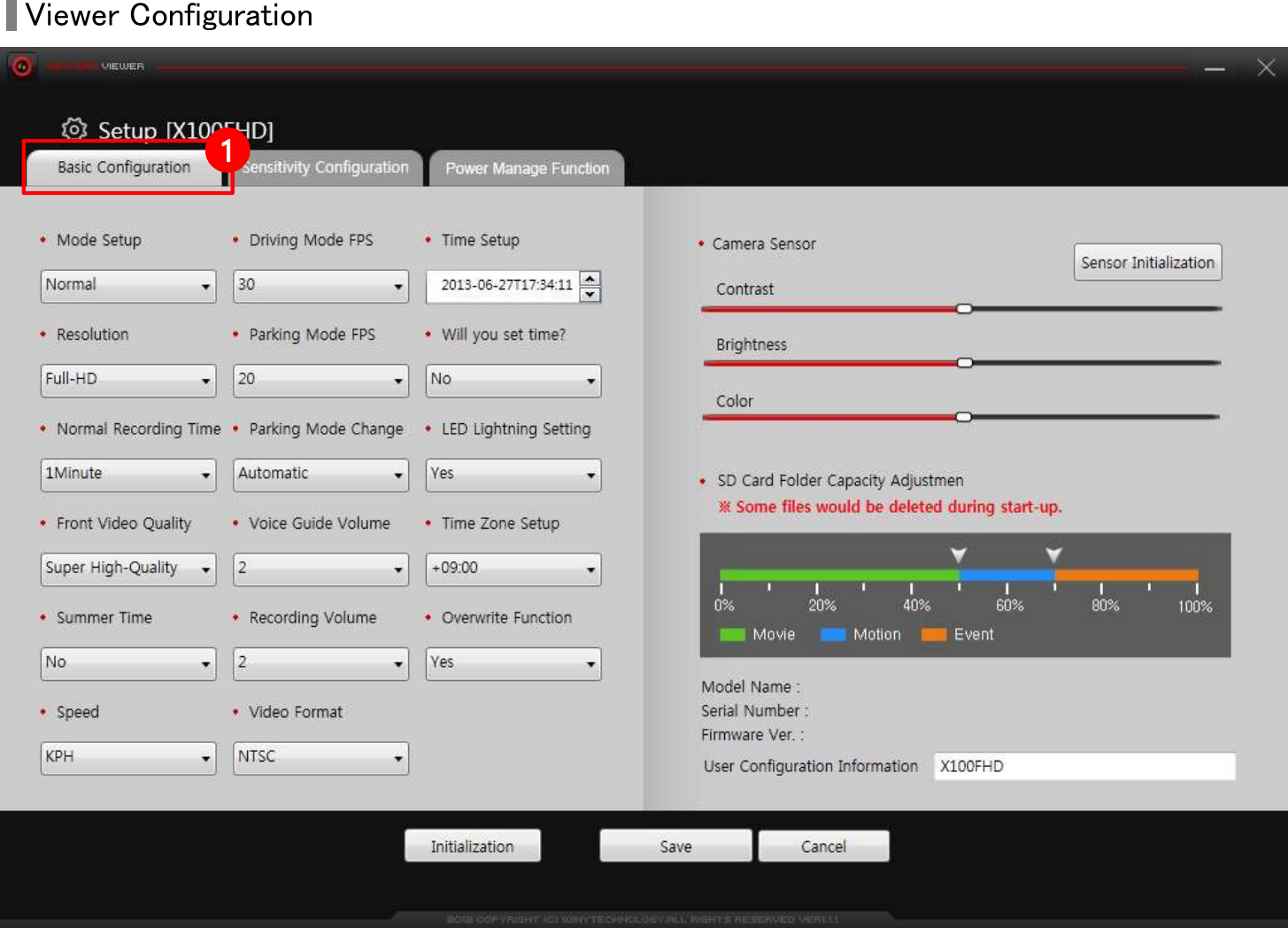

1. Basic ConfigurationItem DescriptionMode Setup Select the recording modeDriving Mode Frame Rate Select the frame rate for constant recording per second.Time Setting Set your current time in PCResolution Select recording resolutionParking Recording Frame Rate Select the frame rate for parking(motion) recording per second.Set Time? Apply set time in PC to your productRecording Time Select recording time for each fileParking(Motion Recording) Mode Change Select to use parking mode change functionLED Lightning Setting Select front security LED lightning functionVideo Quality Select video qualityVoice Guide Volume Level Select voice guide volume levelTime Zone Select your location time zoneSummer Time Select to apply summer timeRecording Volume Level Select Recording volume levelOverwrite Function Select to apply overwrite functionCar Constant Power Discharge Protection Function Select to apply car constant power discharge protection functionSpeed Unit Display Select speed display kilo or mileVideo Format Select video output formatCamera Sensor Select Brightness, Contrast, Chroma. Back to default value after click sensor initializationSD Card Folder Capacity Adjustment Select the capacity of each recording mode in SD cardOperating Protection by TEMP In “Parking REC Mode”, a recording will stop at high temperature. (Function to protect a product and SD card).※ Before setting a configuration, please find SD card location. (refer page 22)
Viewer Configuration

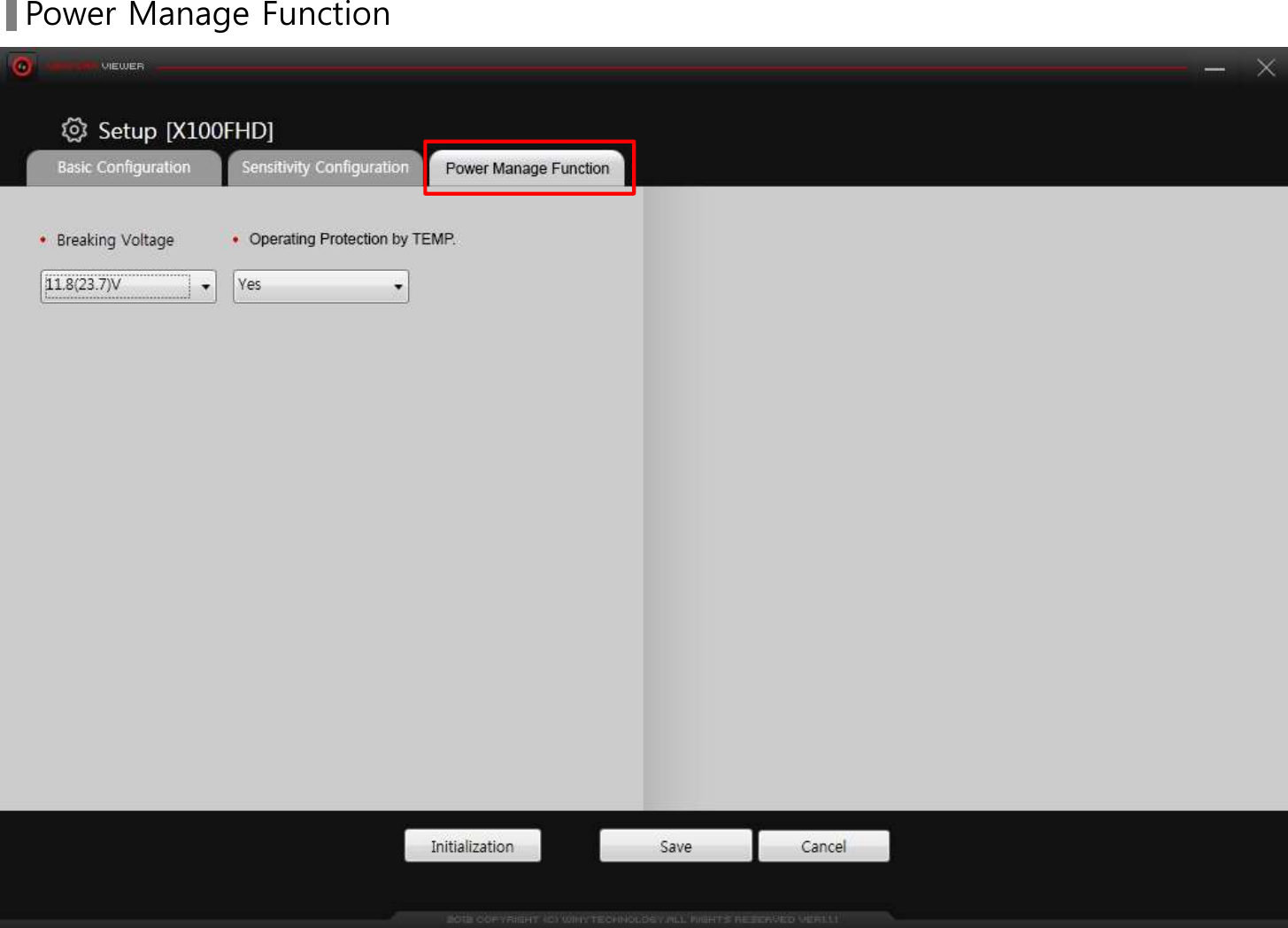

Power Manage Function

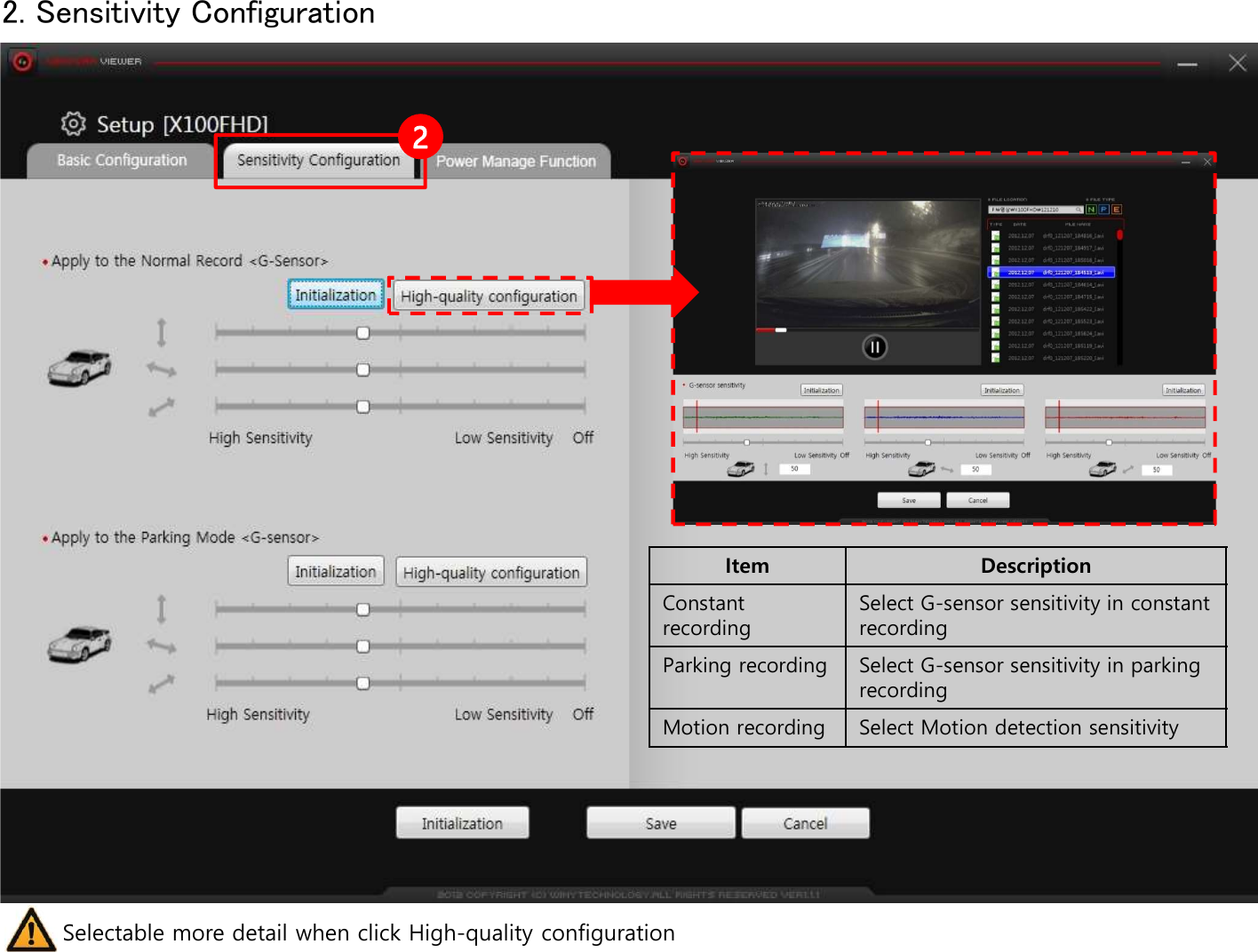

2. Sensitivity ConfigurationSelectable more detail when click High-quality configurationItem DescriptionConstant recording Select G-sensor sensitivity in constant recordingParking recording Select G-sensor sensitivity in parking recordingMotion recording Select Motion detection sensitivity

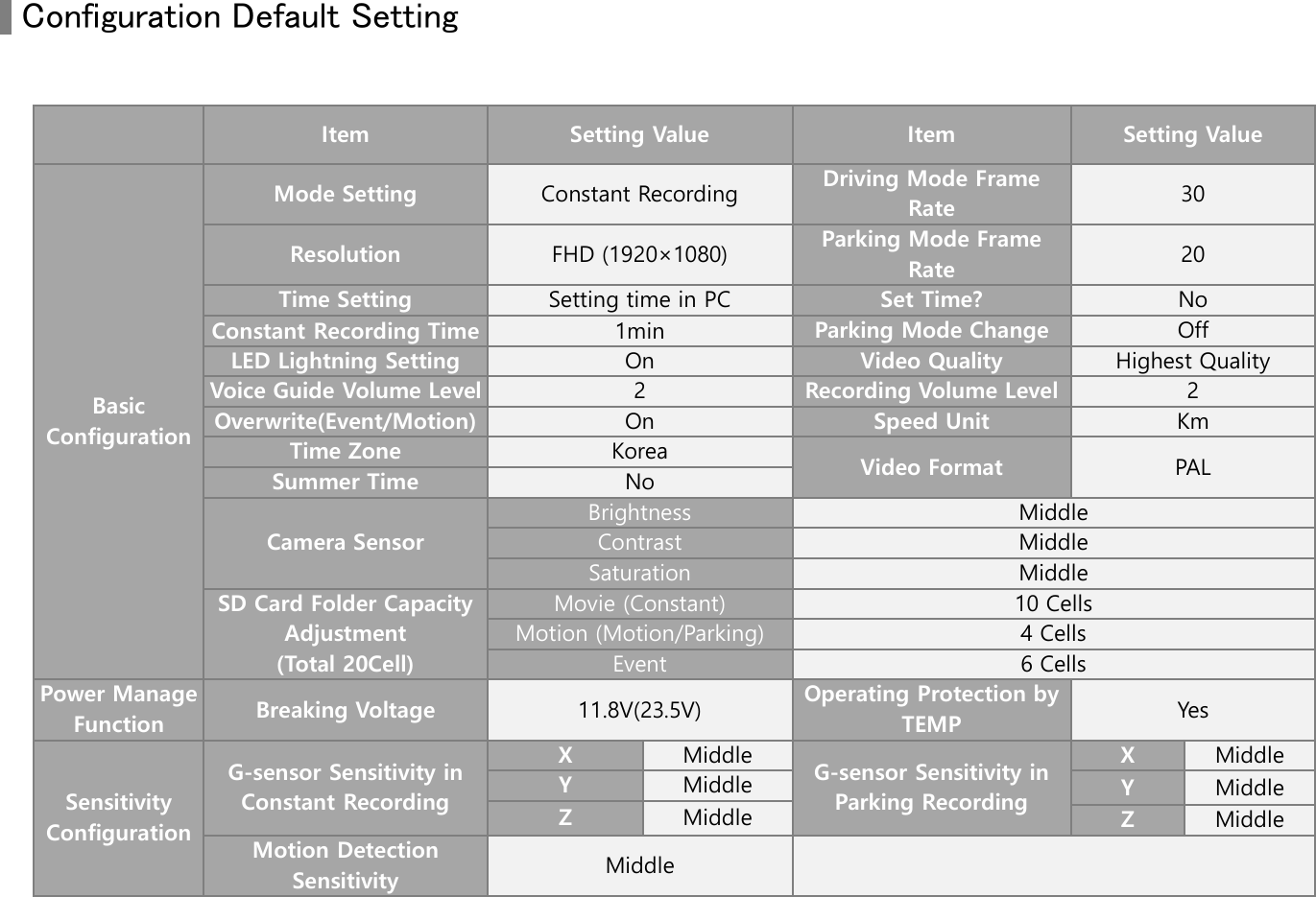

Configuration Default SettingItem Setting Value Item Setting ValueBasic ConfigurationMode Setting Constant Recording Driving Mode Frame Rate 30Resolution FHD (1920×1080) Parking Mode Frame Rate 20Time Setting Setting time in PC Set Time? NoConstant Recording Time 1min Parking Mode Change OffLED Lightning Setting On Video Quality Highest QualityVoice Guide Volume Level 2Recording Volume Level 2Overwrite(Event/Motion) On Speed Unit KmTime Zone Korea Video Format PALSummer Time NoCamera SensorBrightness MiddleContrast MiddleSaturation MiddleSD Card Folder Capacity Adjustment(Total 20Cell)Movie (Constant) 10 CellsMotion (Motion/Parking) 4 CellsEvent 6 CellsPower ManageFunction Breaking Voltage 11.8V(23.5V) Operating Protection by TEMP YesSensitivity ConfigurationG-sensor Sensitivity in Constant RecordingXMiddle G-sensor Sensitivity in Parking RecordingXMiddleYMiddle YMiddleZMiddle ZMiddleMotion Detection Sensitivity Middle

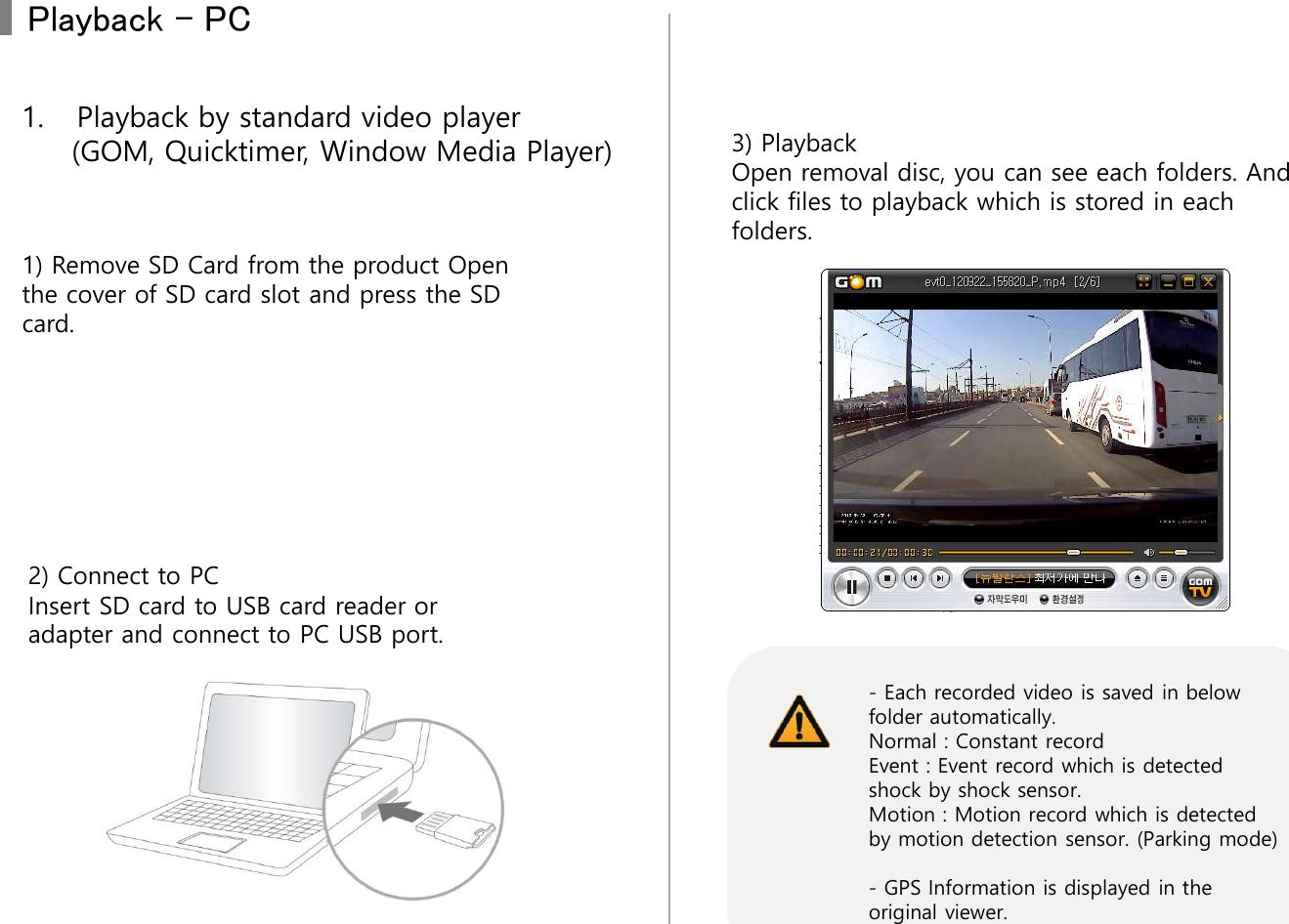

Playback – PC1. Playback by standard video player (GOM, Quicktimer, Window Media Player)1) Remove SD Card from the product Open the cover of SD card slot and press the SD card.2) Connect to PCInsert SD card to USB card reader or adapter and connect to PC USB port.3) PlaybackOpen removal disc, you can see each folders. And click files to playback which is stored in each folders.- Each recorded video is saved in below folder automatically.Normal : Constant recordEvent : Event record which is detected shock by shock sensor.Motion : Motion record which is detected by motion detection sensor. (Parking mode)- GPS Information is displayed in the original viewer.

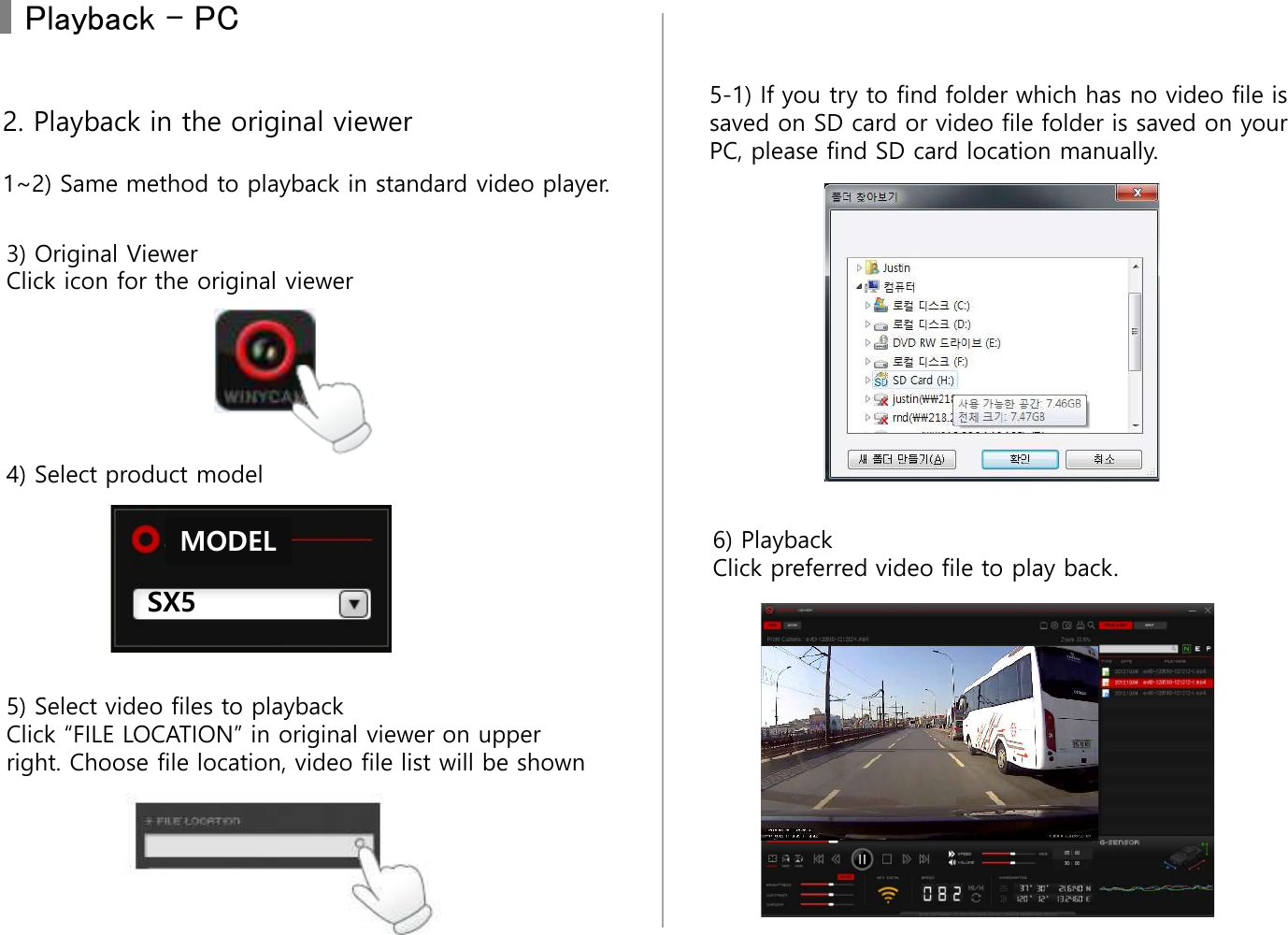

Playback – PC2. Playback in the original viewer1~2) Same method to playback in standard video player.3) Original ViewerClick icon for the original viewer4) Select product model5-1) If you try to find folder which has no video file is saved on SD card or video file folder is saved on your PC, please find SD card location manually.6) PlaybackClick preferred video file to play back.SX5MODEL5) Select video files to playbackClick “FILE LOCATION” in original viewer on upper right. Choose file location, video file list will be shown

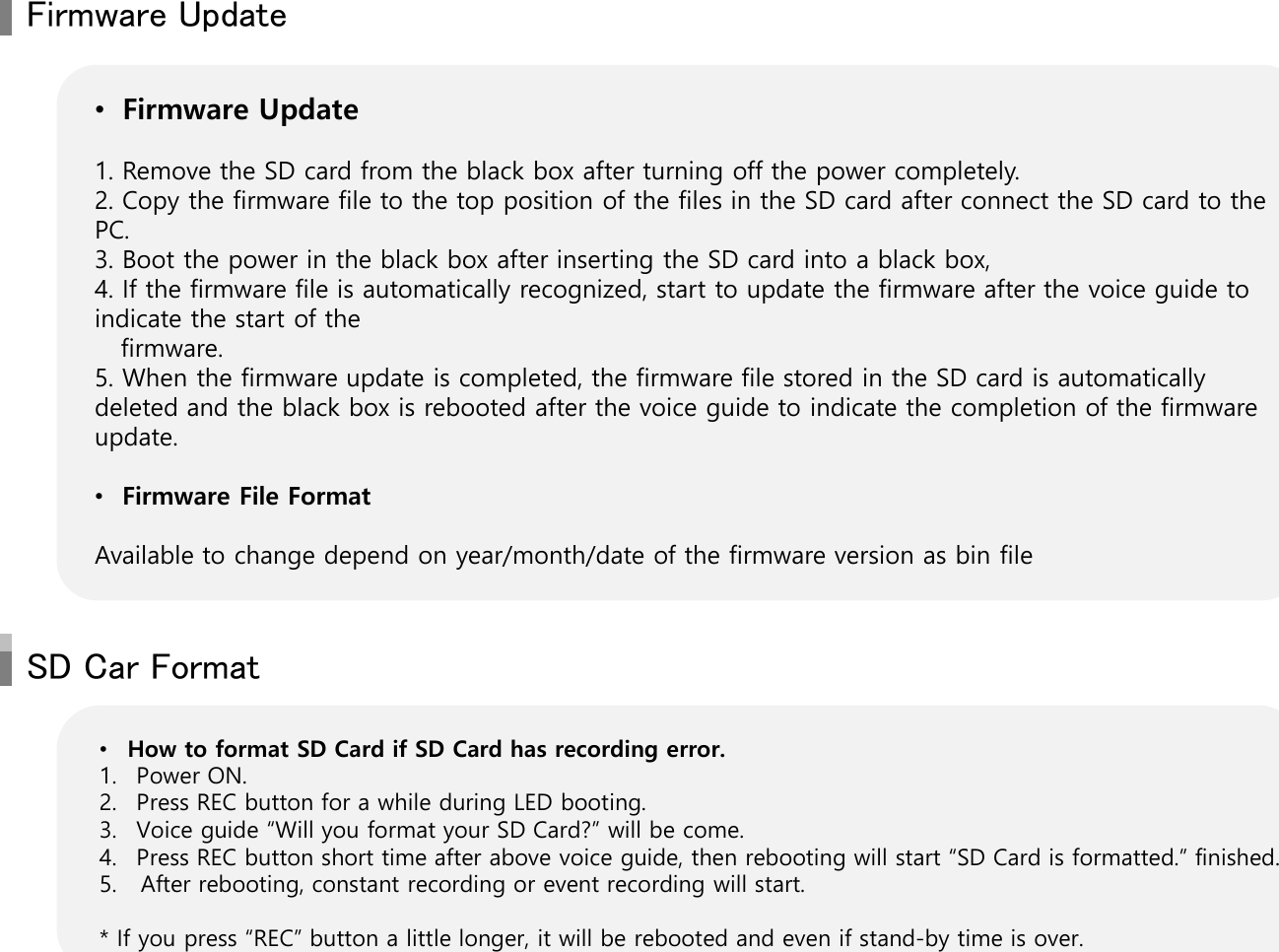

•Firmware Update1. Remove the SD card from the black box after turning off the power completely. 2. Copy the firmware file to the top position of the files in the SD card after connect the SD card to the PC.3. Boot the power in the black box after inserting the SD card into a black box, 4. If the firmware file is automatically recognized, start to update the firmware after the voice guide to indicate the start of the firmware.5. When the firmware update is completed, the firmware file stored in the SD card is automatically deleted and the black box is rebooted after the voice guide to indicate the completion of the firmware update.•Firmware File FormatAvailable to change depend on year/month/date of the firmware version as bin file•How to format SD Card if SD Card has recording error.1. Power ON.2. Press REC button for a while during LED booting.3. Voice guide “Will you format your SD Card?” will be come.4. Press REC button short time after above voice guide, then rebooting will start “SD Card is formatted.” finished.5. After rebooting, constant recording or event recording will start.* If you press “REC” button a little longer, it will be rebooted and even if stand-by time is over.Firmware UpdateSD Car Format

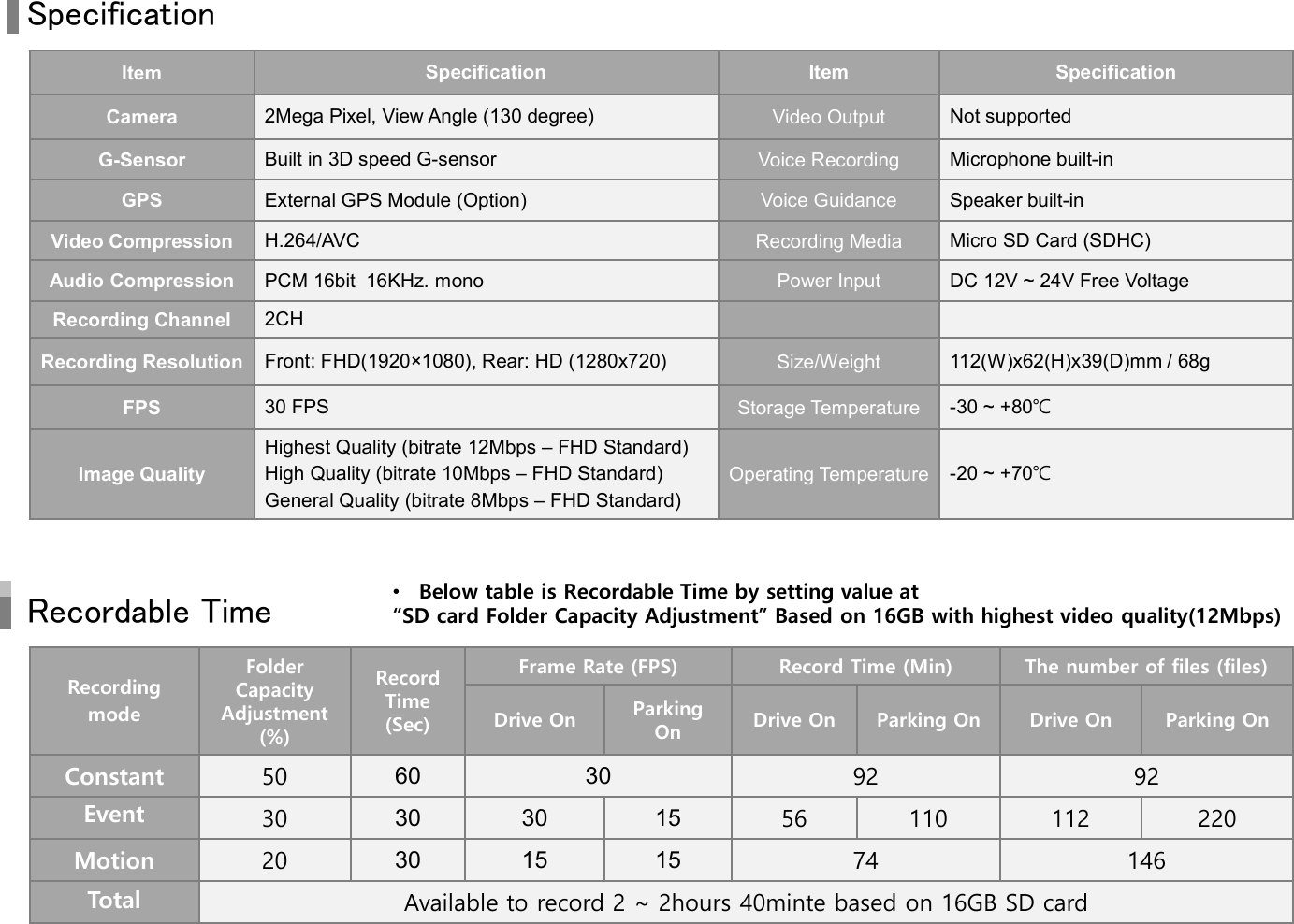

Item Specification Item SpecificationCamera 2Mega Pixel, View Angle (130 degree) Video Output Not supportedG-Sensor Built in 3D speed G-sensor Voice Recording Microphone built-inGPS External GPS Module (Option) Voice Guidance Speaker built-inVideo Compression H.264/AVC Recording Media Micro SD Card (SDHC)Audio Compression PCM 16bit 16KHz. mono Power Input DC 12V ~ 24V Free VoltageRecording Channel 2CHRecording Resolution Front: FHD(1920×1080), Rear: HD (1280x720) Size/Weight 112(W)x62(H)x39(D)mm / 68gFPS 30 FPS Storage Temperature -30 ~ +80℃Image QualityHighest Quality (bitrate 12Mbps – FHD Standard)High Quality (bitrate 10Mbps – FHD Standard)General Quality (bitrate 8Mbps – FHD Standard)Operating Temperature -20 ~ +70℃SpecificationRecording modeFolder Capacity Adjustment(%)Record Time(Sec)Frame Rate (FPS) Record Time (Min) The number of files (files)Drive On ParkingOn Drive On Parking On Drive On Parking OnConstant 50 60 30 92 92Event 30 30 30 15 56 110 112 220Motion 20 30 15 15 74 146Total Available to record 2 ~ 2hours 40minte based on 16GB SD card•Below table is Recordable Time by setting value at “SD card Folder Capacity Adjustment” Based on 16GB with highest video quality(12Mbps)Recordable Time

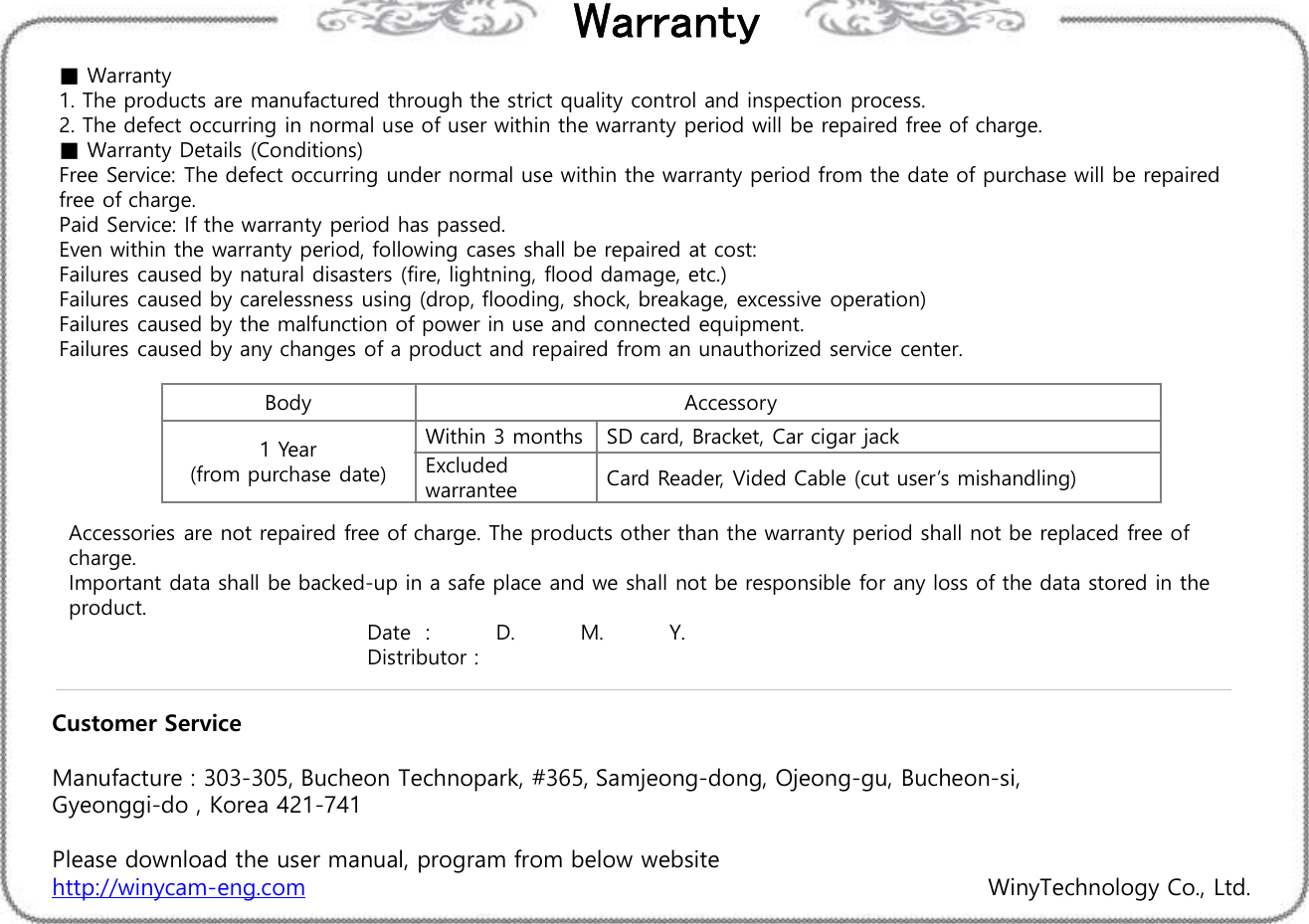

WarrantyBody Accessory1 Year(from purchase date)Within 3 months SD card, Bracket, Car cigar jackExcludedwarrantee Card Reader, Vided Cable (cut user’s mishandling)■ Warranty1. The products are manufactured through the strict quality control and inspection process.2. The defect occurring in normal use of user within the warranty period will be repaired free of charge.■ Warranty Details (Conditions)Free Service: The defect occurring under normal use within the warranty period from the date of purchase will be repaired free of charge.Paid Service: If the warranty period has passed.Even within the warranty period, following cases shall be repaired at cost:Failures caused by natural disasters (fire, lightning, flood damage, etc.)Failures caused by carelessness using (drop, flooding, shock, breakage, excessive operation)Failures caused by the malfunction of power in use and connected equipment.Failures caused by any changes of a product and repaired from an unauthorized service center.Accessories are not repaired free of charge. The products other than the warranty period shall not be replaced free of charge.Important data shall be backed-up in a safe place and we shall not be responsible for any loss of the data stored in the product.Date : D. M. Y.Distributor :Customer ServiceManufacture : 303-305, Bucheon Technopark, #365, Samjeong-dong, Ojeong-gu, Bucheon-si, Gyeonggi-do , Korea 421-741 Please download the user manual, program from below websitehttp://winycam-eng.com WinyTechnology Co., Ltd.
