WISOL SFM60R2 Sigfox/BLE/GPS module User Manual

WISOL CO., LTD Sigfox/BLE/GPS module Users Manual

Users Manual

Version 1.0
WISOL
page 1 of 8
Operation Description of SFM60R2(Rev1.0)
1. Introduction
The SFM60R2 is a quad mode module supporting Sigfox, BLE and GPS.
This Module able to transmit and receive messages using the SIGFOX network.
The typical applications can be used as a low power tracking device.
The application use GPS to determine location. It will then transmit the location information via SIGFOX. It also
will transmit other information like temperature, accelerometer, and so on.
2. Hardware Architecture:
2.1 Main Chipset Information
Item
Vendor
Part Number
SigFox
BLE
GPS(GLONASS)
ON semiconductor
NORDIC semiconductor
UBLOX
AX-SFUS-1-01
nRF52832
UBX-G8020

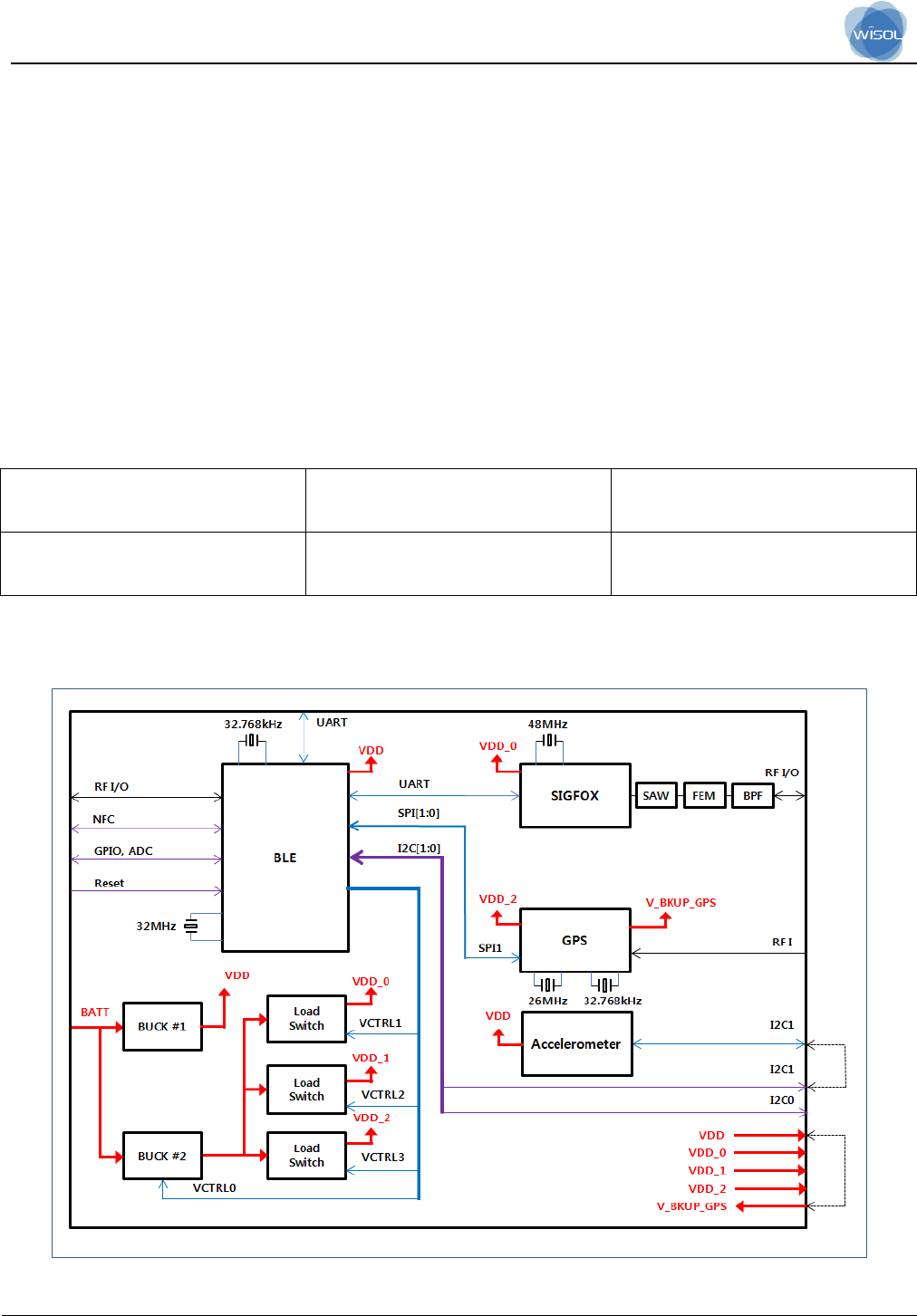

2.2 Circuit Block Diagram
The major internal and external block diagram of SFM60R2 is illustrated in Figure 1-1.
Figure 1-1 SFM60R2 block diagram and System Interface
Version 1.0
WISOL
page 2 of 8
3. Operational Description
-SIGFOX
SIGFOX able to transmit and receive messages using the SIGFOX network.
This module address the RC2(North America).
-BLE
Bluetooth 4.2 optimized for low-power applications.
The RADIO contains a 2.4 GHz radio receiver and a 2.4 GHz radio transmitter that is compatible with
Nordic's proprietary 1 Mbps and 2 Mbps radio modes in addition to 1 Mbps Bluetooth® low energy mode.
-GPS (GLONASS)
The application use GPS(GLONASS) to determine location. It will then transmit the location information via
SIGFOX. It also will transmit other information like temperature, accelerometer, and so on.
-NFC
Type 2 near field communication (NFC-A) tag with wakeup-on-field and touchto-pair capabilities
3.1 Features
- SIGFOX
> Sigfox up-link and down-link functionality controlled by AT commands
> Temperature sensor
> Ultra-low power consumption
> High performance narrow-band Sigfox
- BLE
> Based on Nordic Semiconductor nRF52832 Bluetooth Smart Soc
(ARM Cortex –M4F, 512KB flash, and 64KB RAM embedded)
> Ultra-low power multiprotocol support
> BLE Wireless application
> Bluetooth specification Version 4.2 (LE single mode) compliant
> External interface: 32 GPIO pins for NFC(tag), SPI, TWI, UART, Crystal (32.768 KHz) and ADC
Version 1.0
WISOL
page 3 of 8
-GPS (GLONASS)
> down to 1 s acquisition time
> up to 18 Hz navigation update rate in single GNSS mode
> Supports GPS and GLONASS as well as SBAS and QZSS
> Supports u-blox’s AssistNow Online / AssistNow Offline A-GNSS services and is OMA SUPL 1.0 compliant
> Supports u-blox’s AssistNow Autonomous (no connectivity required)
> Supports crystal oscillator and TCXO
> Supports a built-in DC/DC converter and an intelligent, user configurable power management
> Supports data logging, odometer, geo-fencing, spoofing detection, and message integrity protection.
-NFC
> Wake-on-field low power field detection (SENSE) mode
> Frame assemble and disassemble for the NFC-A frames specified by the NFC Forum
> Programmable frame timing controller
> Integrated automatic collision resolution, CRC and parity functions
3.2 Time base of the RF frequency
-SIGFOX
For Sigfox RF frequency, a TCXO(48MHz) is a clock reference.
-BLE
Using external 32.768 kHz crystal for RTC.
The 64 MHz crystal oscillator (HFXO) is controlled by a 32 MHz external crystal.
-GPS(GLONASS)
The RTC is driven internally by a 32.768 Hz oscillator, which makes use of an external RTC crystal.
For GPS(GLONASS) RF frequency, a TCXO(26MHz) is a clock reference.
3.3 Transmission
-SIGFOX
The Tx path produces a DBPSK-modulated signal. modulate RF signal generated by the synthesizer. The
modulated RF signal is fed to the integrated RX/TX switch and antenna interface and then out of the AX-SFUS-
1-01.
-BLE
The RADIO contains a 2.4 GHz radio receiver and a 2.4 GHz radio transmitter that is compatible with
Nordic's proprietary 1 Mbps and 2 Mbps radio modes in addition to 1 Mbps Bluetooth® low energy mode.
Version 1.0
WISOL
page 4 of 8
3.4 Receiver
-SIGFOX
The Rx path is able to receive 905.2MHz signal and the noise amplifier is built in the inside of the chip, it
amplifies the received signal by the low noise amplifier according to the receiving intensity, and the amplified
signal is converted into the digital signal through the ADC, Packets will be interpreted.
-BLE
The RADIO contains a 2.4 GHz radio receiver and a 2.4 GHz radio transmitter that is compatible with
Nordic's proprietary 1 Mbps and 2 Mbps radio modes in addition to 1 Mbps Bluetooth® low energy mode.
-GPS(GLONASS)
u-blox 8 GNSS chips are single GNSS receivers which can receive and track either GPS or GLONASS signals.
By default the u-blox 8 receivers are configured for GPS, including SBAS and QZSS reception. If power
consumption is a key factor, then QZSS and SBAS should be disabled.
-NFC
The NFCT peripheral (referred to as the 'NFC peripheral' from now on) supports communication signal
interface type A and 106 kbps bit rate from the NFC Forum.
3.5 Product Details
-SIGFOX
> Data Modulation
TX : DBPSK
RX : 2GFSK
> Frequency :
Sigfox zone
Downlink(RX)
RC2(North America)
905.2MHz
-BLE
> Data Modulation : GFSK
> Frequency : 2402-2480MHz
-GPS(GLONASS)
> Data Modulation : BPSK
> Frequency :
GPS : 1575.42MHz
GLONASS : Around 1602MHz
Version 1.0
WISOL
page 5 of 8
-NFC
> NFC-A listen mode operation
13.56 MHz input frequency
Bit rate 106 kbps
3.6 Output Power tolerance
- SIGFOX Output power : 22 +/- 1.5dBm
- BLE Output power : 4+/- 2.0dB

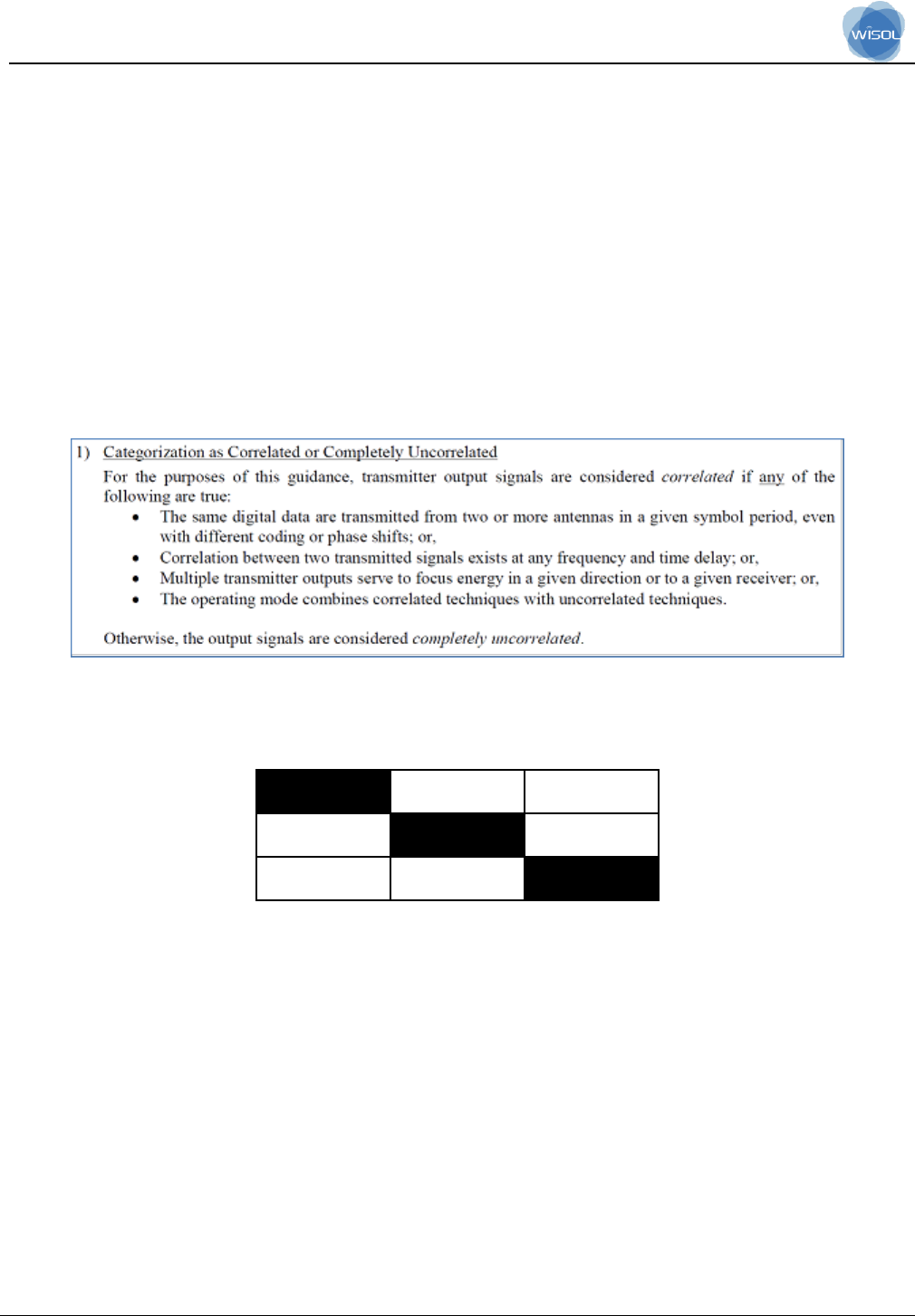

3.7 SFM60R2 Category of signal
3.8 Simultaneous transmission
B LE
SIGFOX
B LE
O
SIGFOX
O
4. Installation Guide
- Contents
- Installation Figure
Version 1.0
WISOL
page 6 of 8
<Warning Statements>
FCC Part 15.19 / RSS-GEN Sec.8.4 Statements:
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that may cause undesired
operation.
Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de
licence. L’exploitation est autorisée aux deux conditions suivantes :
(1) l’appareil ne doit pas produire de brouillage, et
(2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est
susceptible d’en compromettre le fonctionnement.
FCC Part 15.21 statement
Any changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate this equipment.
RF Exposure Statement
The antenna(s) must be installed such that a minimum separation distance of at least 20 cm is maintained
between the radiator (antenna) and all persons at all times. This device must not be co-located or operating in
conjunction with any other antenna or transmitter.
l'exposition aux RF L’antenne (ou les antennes) doit être installée de façon à maintenir à tout instant une
distance minimum de au moins 20 cm entre la source de radiation (l’antenne) et toute personne physique.
End Product Labeling
The module is labeled with its own FCC ID. If the FCC ID is not visible when the module is
installed inside another device, then the outside of the device into which the module is
installed must also display a label referring to the enclosed module. In that case, the final
end product must be labeled in a visible area with the following:
“Contains FCC ID: 2ABA2SFM60R2
" Contains IC: 11534A-SFM60R2
É tiquetage du produit final Le module BT111 est étiqueté avec sa propre identification FCC et son propre
numéro de certification IC. Si l’identification FCC et le numéro de certification IC ne sont pas visibles lorsque le
module est installé à l’intérieur d’un autre dispositif, la partie externe du dispositif dans lequel le module est
installé devra également présenter une étiquette faisant référence au module inclus. Dans ce cas, le produit
final devra être étiqueté sur une zone visible avec les informations suivantes :
« Contient module émetteur identification FCC ID : 2ABA2SFM60R2
« Contient module émetteur IC : 11534A-SFM60R2
Version 1.0
WISOL
page 7 of 8
OEM Responsibilities to comply with FCC Regulations
The module has been certified for integration into products only by OEM integrators under
the following condition:
- The antenna(s) must be installed such that a minimum separation distance of at least 20
cm is maintained between the radiator (antenna) and all persons at all times.
- The transmitter module must not be co-located or operating in conjunction with any other
antenna or transmitter except in accordance with FCC multi-transmitter product procedures.
As long as the two condition above is met, further transmitter testing may not be required.
However, the OEM integrator is still responsible for testing their end-product for any
additional compliance requirements required with this module installed (for example, digital
device emissions, PC peripheral requirements, etc.).
IMPORTANT NOTE: In the event that these conditions can ’ t be met (for certain
configurations or co-location with another transmitter), then the FCC authorization is no
longer considered valid and the FCC ID can’t be used on the final product. In these
circumstances, the OEM integrator will be responsible for re-evaluating the end product
(including the transmitter) and obtaining a separate FCC authorization.
Manual Information To the End User
The OEM integrator has to be aware not to provide information to the end user regarding
how to install or remove this RF module or change RF related parameters in the user manual of the end product.
RSS-GEN, Sec. 8.3
This radio transmitter (IC: 11534A-SFM60R2, Model: SFM60R2) has been approved by Innovation, Science
and Economic Development Canada to operate with the antenna types listed below with the maximum
permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included
in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use
with this device.
- List of approved antennas
1) For Sigfox antenna, INNO-EL9SWS-149 or similar part manufactured by Inno-Link. Co., Ltd. (Highest
permitted antenna gain: 2.01 dBi)
3) For BT LE antenna, INNO-EL9SWS-151 or similar part manufactured by Inno-Link. Co., Ltd.
(Highest permitted antenna gain: 4.44 dBi)
Le présent émetteur radio (IC: 11534A-SFM60R2, Model: SFM60R2) a été approuvé par Industrie Canada pour
fonctionner avec les types d’antenne énumérés ci-dessous et ayant un gain admissible maximal et l’impédance
requise pour chaque type d’antenne. Les types d’antenne non inclus dans cette liste, ou dont le gain est
supérieur au gain maximal indiqué, sont strictement interdits pour l’exploitation de l’émetteur.
Version 1.0
WISOL
page 8 of 8
- Liste des antennes approuvées
1) Pour l'antenne Sigfox, INNO-EL9SWS-149 ou une pièce similaire fabriquée par Inno-Link. Co., Ltd. (Plus
haut gain d'antenne autorisé: 2,01 dBi)
2) Pour l'antenne BT LE, INNO-EL9SWS-151 ou une pièce similaire fabriquée par Inno-Link. Co., Ltd. (Plus
haut gain d'antenne autorisé: 4.44 dBi)
Antenna Installation Requirement
The host manufacturer must meet the antenna requirements stated in operational description and must not give
to access to antenna connector to user when you install this module into devices to be compliance with FCC
section 15.203.
