PORTI SB50 User Manual HTML Version

Users Manual

http://www.woosim.com

All specifications are subjected to change without notice

MODEL PORTI-SB50

(Mobile Printer)

WOOSIM SYSTEMS Inc.

#501, Daerung Technotown 3th,

448, Gasan-Dong, GeumChun-Ku,

Seoul, Korea

Tel : +82-2-2107-3700

Fax : +82-2-2107-3707

URL: http://www.woosim.com

FCC Compliance Statements

Note: This equipment has been tested and found to comply with the limits for a Class B digital

device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable

protection against harmful interference in a residential installation. This equipment generates,

uses and can radiate radio frequency energy and, if not installed and used in accordance with the

instructions, may cause harmful interference to radio communications. However, there is no

guarantee that interference will not occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or more of the

following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to

which the receiver is connected.

• Consult the dealer or an experienced radio / TV technician for help.

Warning : Your are cautioned that any change or modifications to the equipment not expressly

approved by the party responsible for compliance could void your authority to operate such

equipment.

http://www.woosim.com

PORTI-SB50 mobile printer operator’s manual.

The information contained in this manual is the property of Woosim System Inc. and may not be

reproduced in whole or in part without the prior written permission of Woosim System Inc.

Trademark

a registered trademark of Woosim System Inc.

All other trademark are the properties of their respective companies.

Caution

Some semiconductor devices are easily damaged by static electricity. You should turn the

printer ˈOFFˉ, before you connect or removed the cable on the rear side, in order to guard the

printer against the static electricity.

If the printer is damaged by the static electricity, you should turn the printer ˈOFFˉ.

Notice

The contents of this manual are subject to change without notice.

http://www.woosim.com



Introduction

The PORTI-SB50 is suitable designed for use with a growing variety of mobile devices.

RS232, IrDA(physical layer) and HPIR interfaces make the PORTI-SB50 the perfect comrade

for applications such as point of transaction warehousing, distribution, point of sales,

hospitality, gaming and healthcare.

The general features of PORTI-SB50 printer are as follows:

X Pocket size (78mm x 131.5mm x 55mm).

X Light weight(200g) for true mobility.

X Very silent printing thru direct thermal printing method.

XHigh speed (50mm/sec, MAX)

X High resolution (203dpi, 8dot/mm)

X RS-232C, IrDA, HPIR interface

X Easier paper roll loading by CLAMSHELL design.

X Easier maintenance with self-diagnostic.

X Microsoft Windows 98/ME/XP/2000 compatible.

XSupport bit-image(logo) download.

XFlow control : Software (XON/XOFF)

Hardware flow control not supported in printer.ଖ

http://www.woosim.com



Operating Precaution

Please follow the precautions below to enjoy and maintain the full performance of

the printer.

Using the Printer

ƔBe careful not to drop or bump the printer on a hard surface.

ƔDo not install the printer in direct sunlight or such areas.

Suitable environment for the use of the printer is as follows :

Operating temperature :ଝ-10°C to 40°C

Relative humidity : 10% to ଝ90% (No condensation)

ƔDo not install the printer near devices that generate strong

electromagnetic fields such as a copy machine.

ƔDo not open the platen cover during printing .

ƔDo not remove or reinstall the communication cable during printing

or transmission.

ƔDo not touch the connectors of the communication cable and

to close up the Infrared transmitter /receiver during printing.

ƔSwitch the POWER OFF when not in use.

ƔDo not use alcohol or other solvent.

Ɣ The AC adapter, the battery charger and the battery pack may

become warm when in use. This is normal and is not a malfunction.

ƔWhen the battery pack is used at low temperature, the length of time

the printer can be used may be shortened.

http://www.woosim.com

XThermal Paper Handling

ƔStore the thermal paper in a cool, dry and dark place.

ƔDo not rub the paper with hard object.

ƔDo not leave the paper with hard object.

ƔDo not allow plastic film, erasers, or adhesive tape to touch the paper

for long periods.

ƔDo not stack the thermal paper with diazo copies immediately

after copying or wet-type copies.

ƔDo not use chemical glue.

Ɣ Always use the clean thermal paper.

http://www.woosim.com 6

CONTENTS

1. Outline ..............................................................................................................................7G

1.1. Model classifications ...............................................................................................7G

1.2. Specifications ..........................................................................................................8G

2. Setting up the printer ......................................................................................................9G

2.1. Printer & Accessories..............................................................................................9G

2.2. Printer Features.....................................................................................................10G

2.2.1. Part name.................................................................................................................10G

2.2.2. Dimension ................................................................................................................10G

2.3. Replacing paper roll ..............................................................................................11G

2.4. Power supply.........................................................................................................12G

2.4.1. Internal power supply ...............................................................................................12G

2.4.2. Installing the Battery.................................................................................................12G

2.4.3. Recharging the battery.............................................................................................13G

3. Interface..........................................................................................................................14G

3.1. RS-232C................................................................................................................14G

3.2. Infrared data communication.................................................................................15G

4. Using the printer............................................................................................................16G

4.1. Control panel .........................................................................................................16G

4.2. Self test..................................................................................................................17G

4.3. Troubleshooting.....................................................................................................18G

5. Consumable parts .........................................................................................................20G

5.1. Recommended paper............................................................................................20G

5.2. Printing position.....................................................................................................20G

http://www.woosim.com 7

PORTI-SB50 ( ) ( )

㩷

Model Name

Interface

None : RS-232C

IrDA / HPIR

Power

None : Dry Cell

(AA size, 4EA)

http://www.woosim.com 8

Item Specification

Print method Direct thermal line printing

Characters per line 48cpl (MAX)

Character size Eng. : 8×24dots , 9×24dots, 12×24dots, 16×24dots

Resolution 203dpi, 8dots/mm

Print width 2-inch (48mm, 384dots)

Print speed 50mm / sec (MAX)

Dimension 78 × 131.5 × 55 mm

Weight 200g (Except Dry cell)

Interface RS-232C

IrDA (Physical Layer) / HPIR

Paper roll Thermal roll paper (57mm wide, 50ø)

Barcodes Code128, Code39, I2/5, UPC, EAN, CODABAR

Receive buffer size 10K bytes

Battery Type Dry cell(AA size, 4EA)

(It is recommended that a high capacity of rechargeable battery be used.)

Battery Charger Output (9VDC/800mA)

Temperature -10°C ~ 40°C (operating)

-10°C ~ 70°C (storage)

Environment

Conditions Humidity 30% - 80% (operating)

10% - 90% (storage)

Mechanical 37,000,000 lines

MCBF (Mean Cycle

Between failure) Head Approximately 50 Km

http://www.woosim.com 9

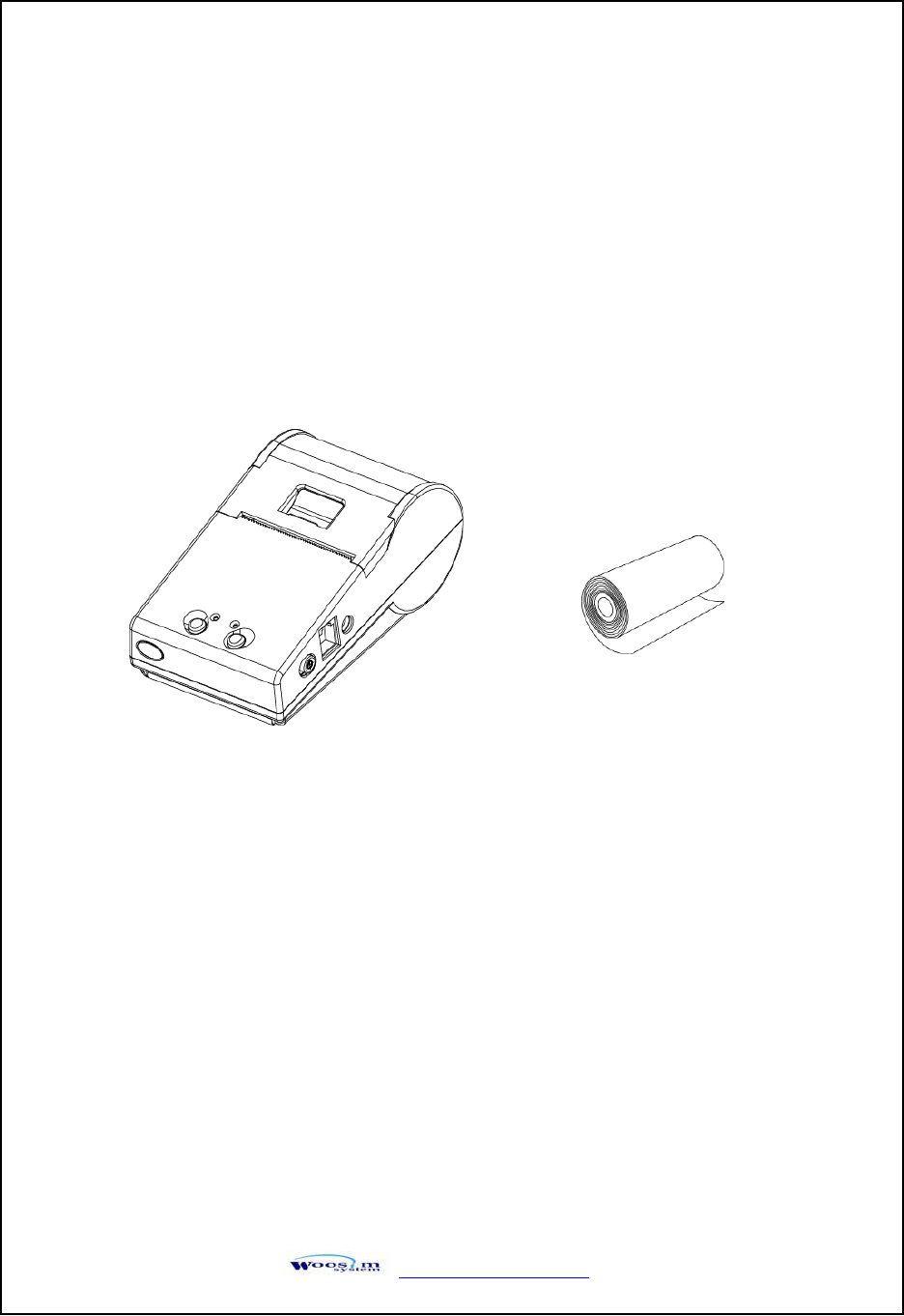

When unpacking your printer box make sure it contains the printer and all accessories.

If any accessories are missing or damage, please contact your dealer for assistance.

PORTI-SB50

ROLL PAPER

http://www.woosim.com 10

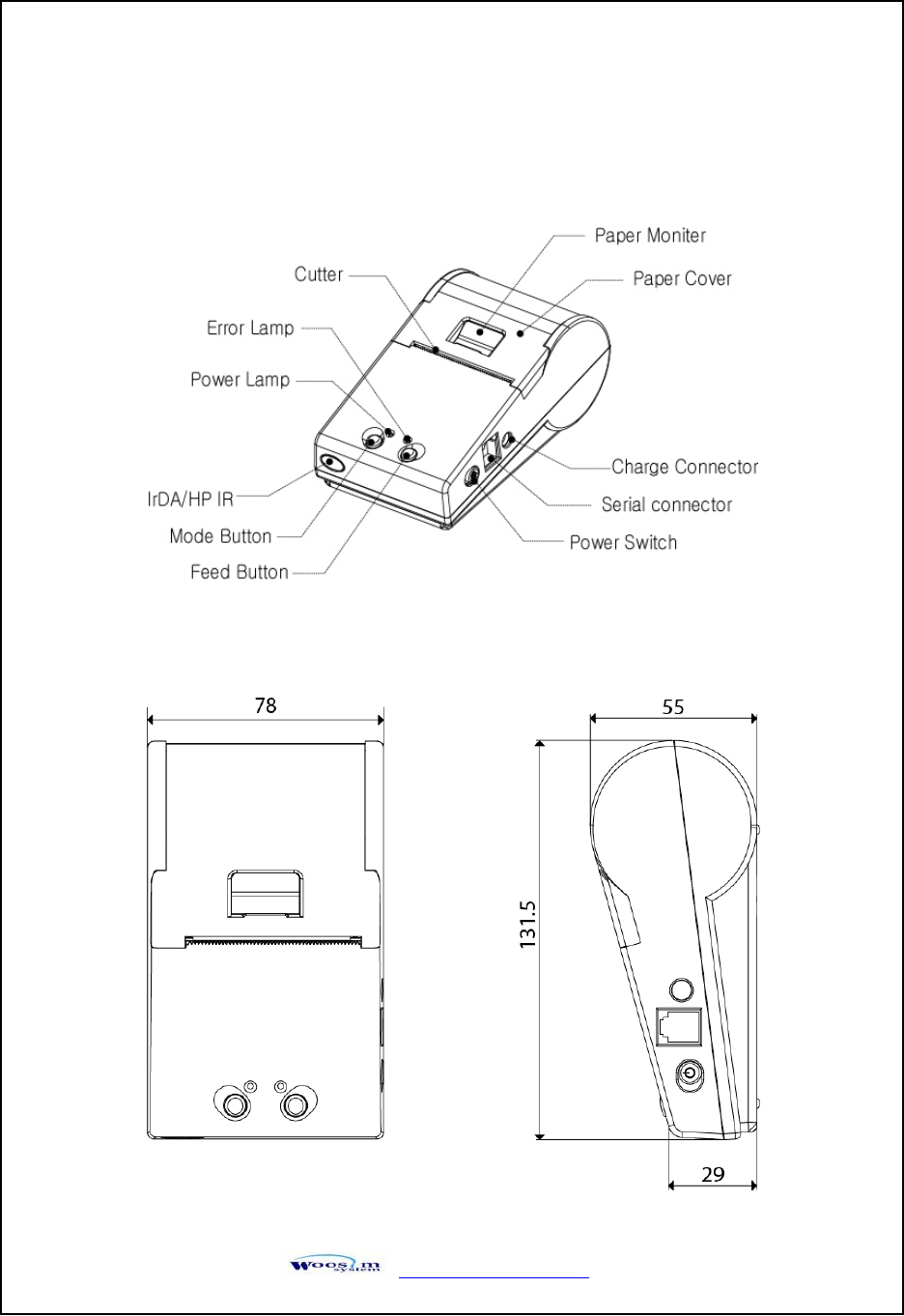

http://www.woosim.com 11

1. Make sure that the printer is not receiving data; otherwise, data may be lost.

2. Open the paper cover using finger on both side of printer, and remove the remaining paper.

3. Insert a new paper roll as shown.

4. Tear the excess paper off using the edge of paper door as a tear bar.

Note : Be sure to use paper rolls that meet the specifications.

Do not use paper rolls that have the paper glued to the

core because the printer cannot detect the paper end

correctly.

http://www.woosim.com 12

̲ The following specification is requested for Power supply.

Power supply : 4 X 1.2V Ni-MH 1600mAh, AA cells (Battery Charging : 9VDC/800mA)

̲ Use only power supplies stipulated specifically for your PORTI-SB50 printer.

Using a different power supply may cause damage to the printer.

ྙInstalling the battery

- Install the dry cells by referring to the polarity diagram in the battery

compartment.

- Close the battery cover in the direction of the arrow.

ྚGReverse the order to remove the dry cells.

NOTE : ̻ Before installing or removing the dry cells, ensure the printer

is OFF.

̻If the printer is not used for long period of time,

remove the dry cell from the printer.

http://www.woosim.com 13

Before recharging the battery, install the battery in the printer.

Insert the charger to the charge connector of the printer, as shown.

NOTE : ƔWhile charging the printer, turn off the printer power.

ƔDo not remove the battery during charging.

ƔThe battery is consumable parts and when purchasing, compared to

the use hour is gradually decreases. (Warranty 6 month)

ƔIf the printer is not used for a long time, unplug the power cord

from the printer and outlet.

ƔThe recharging time depends on the voltage level and ambient

temperature of the dry cell.

http://www.woosim.com 14

S-

-2

The RJ-12 socket is provided for applications requiring RS-232C interface with

connections as detailed below:

Pin No. Signal I/O Definition

1GND N/A Signal Ground

2TxD OTransmitted data to host

3RxD IReceived data from host

4N/C N/A No connection

5N/C N/A No connection

6N/C N/A No connection

NOTE : ƔWhen data receiving, when it removes the communication

cable, it loses a data.

http://www.woosim.com 15

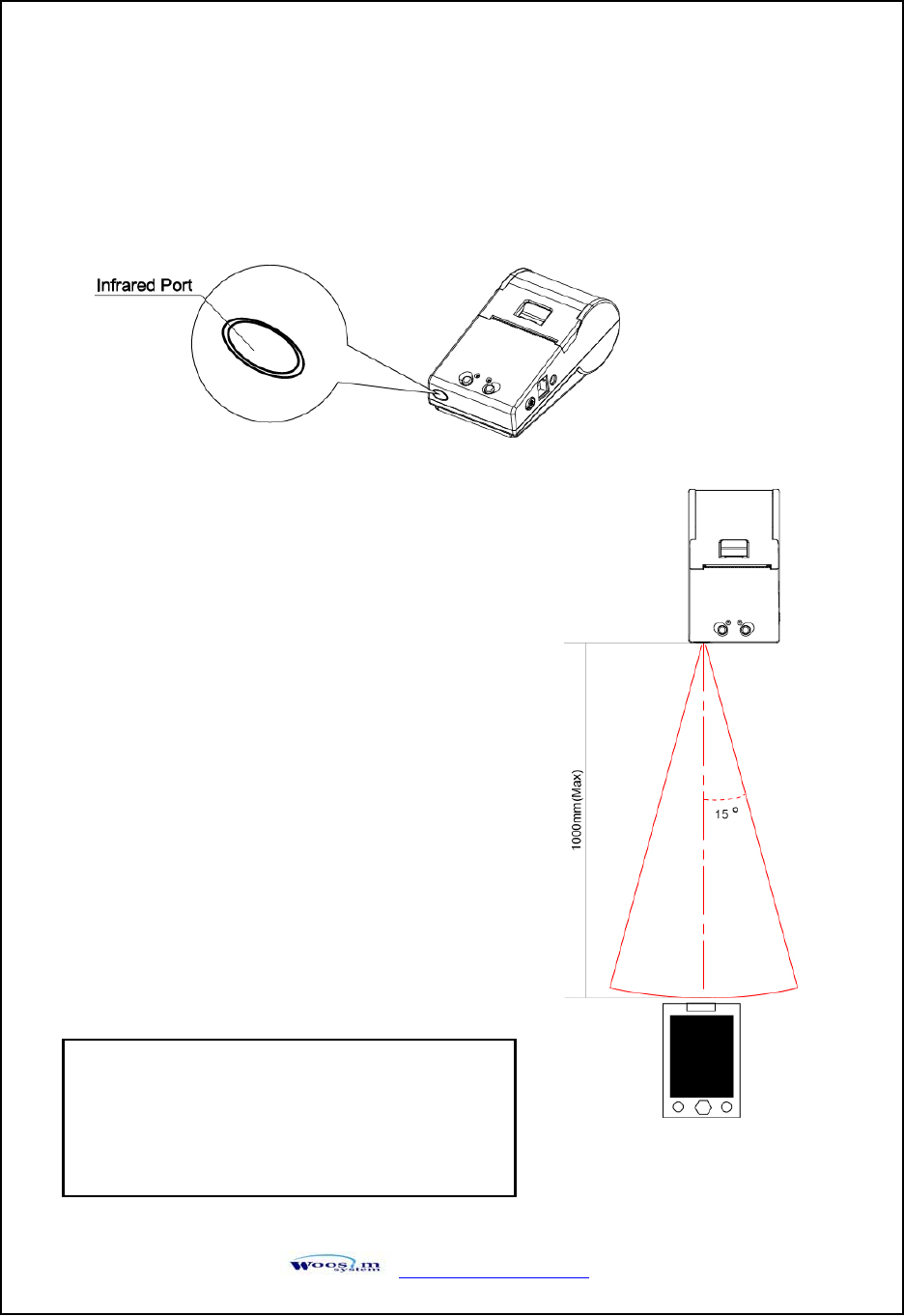

The PORTI-SB50 has a serial interface for bi-directional data exchange. The infrared port is the

left side of the front part.

1. To use the PORTI-SB50’s infrared port by

a Computer or a Personal Digital Assistant

(PDA) with IR port is required.

2. Position a PDA conforming to the specifications

in point not more than 50 centimeter away from

the printer’s infrared port. Make sure the two ports

are in front of each other with an angle of not more

than 15° on the four sides.

NOTE : ƔWhen infrared ray communication

doing, directness it does not see the

IrDA window roll up.

Eye damage there is a danger.

http://www.woosim.com 16

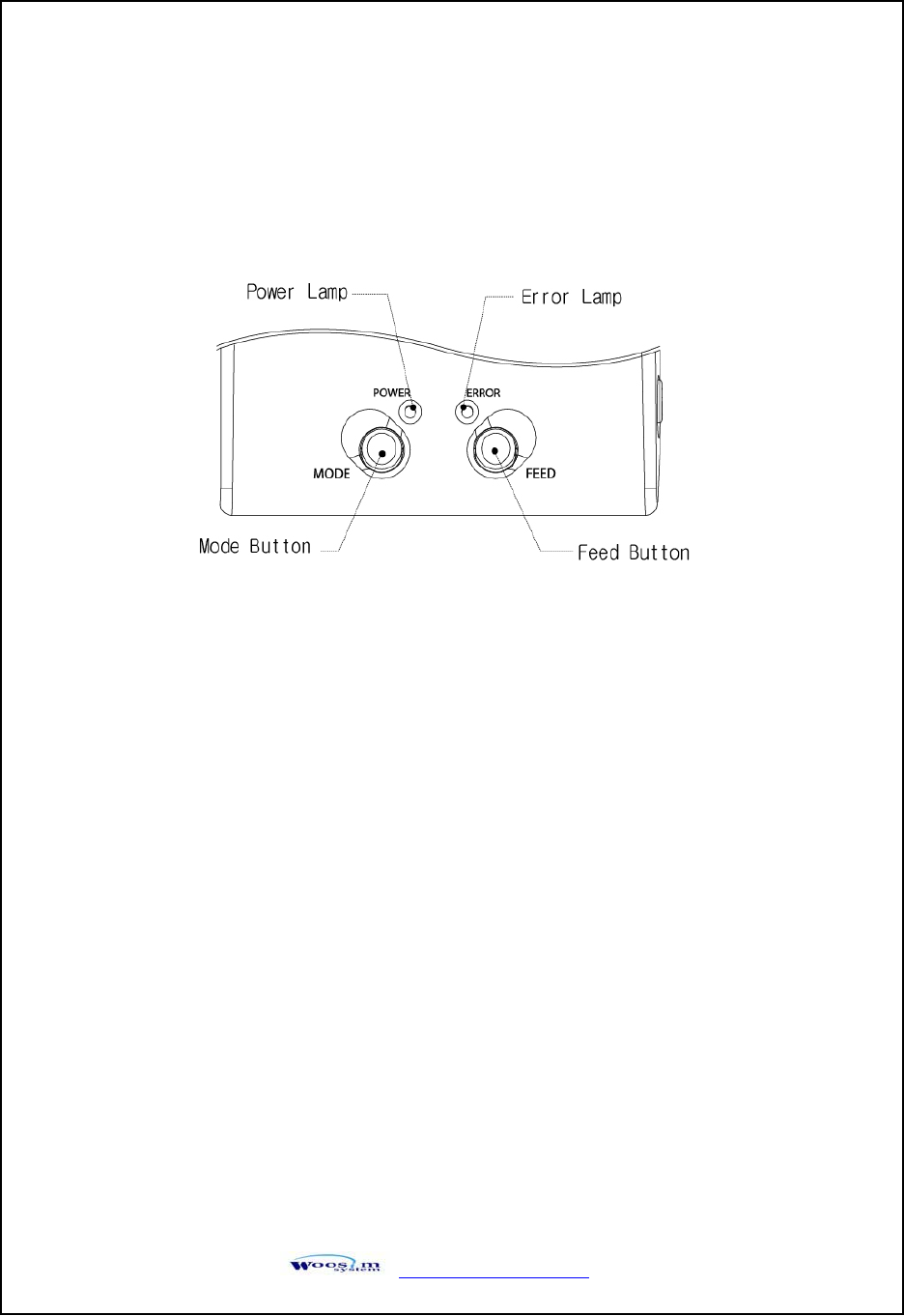

Button

- FEED :

When the printer is on, paper can be feed manually by pressing and holding the

FEED button for more than one second.

- MODE :

MODE Button is for use to change communication mode.

Do not operate the mode button without instructions.

XPanel lamp

- Power : Printer is ON and ready to receive data.

(Green) The status indicator will flash continuously to show the batteries are nearly

exhausted and in need of re-charging.

- Error : Indicates a fault condition or a printer error.

(Red) (i.e : no paper, paper cover opened. etc.)

http://www.woosim.com 17

The self test procedure will check most of the printer functions. For self test, turn on

the power while holding down the FEED Button. The Self-Test checks the following :

1) Make sure paper roll has been installed properly.

2) The Self-Test prints the current printer status, which provides the control

ROM version and the communication method setting.

3) After printing the current printer status, Self-Test will print a pattern using

the built-in character set.

4) The Self-Test automatically ends.

The printer is ready to receive data as soon as it completed the self test.

http://www.woosim.com 18

Check the following points before you make a request for repair.

XThe power does not turn on.

ഘCharger or dry cell(AA size, 4EA) being used?

ഘAC cable and Charger or dry cell is connected.

ഘCharger is connected to the printer correctly?

ഘDry cell is fully recharged?

XThe printer does not print.

ഘInterface cable is connected correctly?

ഘInterface cable that meets the Communication Connector

specification list on page 15 of the Operator’s Manual being used?

ഘIrDA transmission status is good? (To close up between Infrared

Transmitter / Receiver and the host computer?)

ഘTransmission conditions of the host computer is correct?

(IrDA port is activated and set-up correctly?)

ഘPaper is not inserted?

ഘPaper orientation(top/bottom) is correct?

http://www.woosim.com 19

X Error Lamp of the power Lamp is blinks.

ഘPaper end or cover opened?

ഘBattery is almost exhausted? (Recharge the battery by using the AC adapter.)

XThe Dry cell is not installed.

ഘDry cells correctly oriented?

ഘCorrect dry cells being used?

XThe battery runs out soon even if recharged.

ഘBattery been recharged correctly?

ഘIf the battery is recharged correctly, but does not take a long time, it is almost dead.

Replace if with a new one.

http://www.woosim.com 20

Type : Thermal Paper

Paper width : 57mm

Paper thickness : 70±5༁

Outer diameter : Ø50 or less

Recording side : Outside of roll

Cautions

1. Do not paste the paper to the core. And the roll paper which has

near end mark printing on its near end is recommended.

2. Chemicals or oil may change the color of paper, or printed

characters may fade.

3. Change of paper color starts from approx. 70 ఁ.

Pay attention to heat, humidity and sun light.

4. Color of paper may be changed by being scratched by nail or hard metal, etc.

WOOSIM SYSTEMS PORTI-SB50 Thermal Printer User Manual Operator Manual SB50

Woosim System Inc. Thermal Printer Operator Manual SB50

Users Manual

Navigation menu

Namespaces

Views

Navigation
