Users Manual

Installation Guide & Hardware Manual

⇎⼂ ಪ⠞ᖆ Ჹ 㘂ᖆ➒♞ ⇎ᬯ⇆

ᅝ㺱ᣛफঞ⹀储᠟ݞ

ᅝ㺙ᣛफϢ⹀ӊ᠟ݠ

DTK-2400

1URTG[AVKVNGEQNQTKPFF 

Notice for this product

Install the driver software for correct pen and this product.

The following Help and Support information provides information about this product.

Help and Support information Description

User's Manual PDF

document

The User's Manual is downloaded to your computer when the driver software is installed.

Refer to the User's Manual to learn the useful information such as changing cables, using a

VESA mount, troubleshooting and so on.

Important product information PDF

document

The Important product information is included in the installation CD. It contains precautions,

product speciﬁcations, and other important information.

Quick Start Guide

(This document)

Printed

document

The Quick Start Guide provides a general overview of this product, including information such

as how to use the product, and how to connect it to a PC.

•

1URTG[AVKVNGEQNQTKPFF 

Welcome message

Dear Customer,

Thank you for buying this product pen display.

Many customers tell us that this product is critical to helping them be both more productive and more creative. For them, this product has

become an essential part of their workﬂow. We appreciate the trust you place in us and our responsibility to provide you with the best creative

tools possible.

To bring this latest product to market we have spent many hours talking to customers and incorporating your feedback. For example we have

increased the size, resolution and color gamut over the earlier product models.

We also noticed that many of you work many hours a day, often struggling to meet a deadline while juggling numerous projects. Some of you

experience aches and pains as a result. Consequently we have designed the ergonomics of this product for unparalleled ﬂexibility on how it

can be positioned on your desk. It has been one of our major goals that the product you are about to use will be comfortable and easy to use.

There are many other enhancements and improvements in this latest product. We encourage you to read this Quick Start Guide and at least

scan the manual which will help you get the most out of your purchase.

We wish you the best of success in your creative endeavors.

Sincerely

This product Development Team

1URTG[AVKVNGEQNQTKPFF 

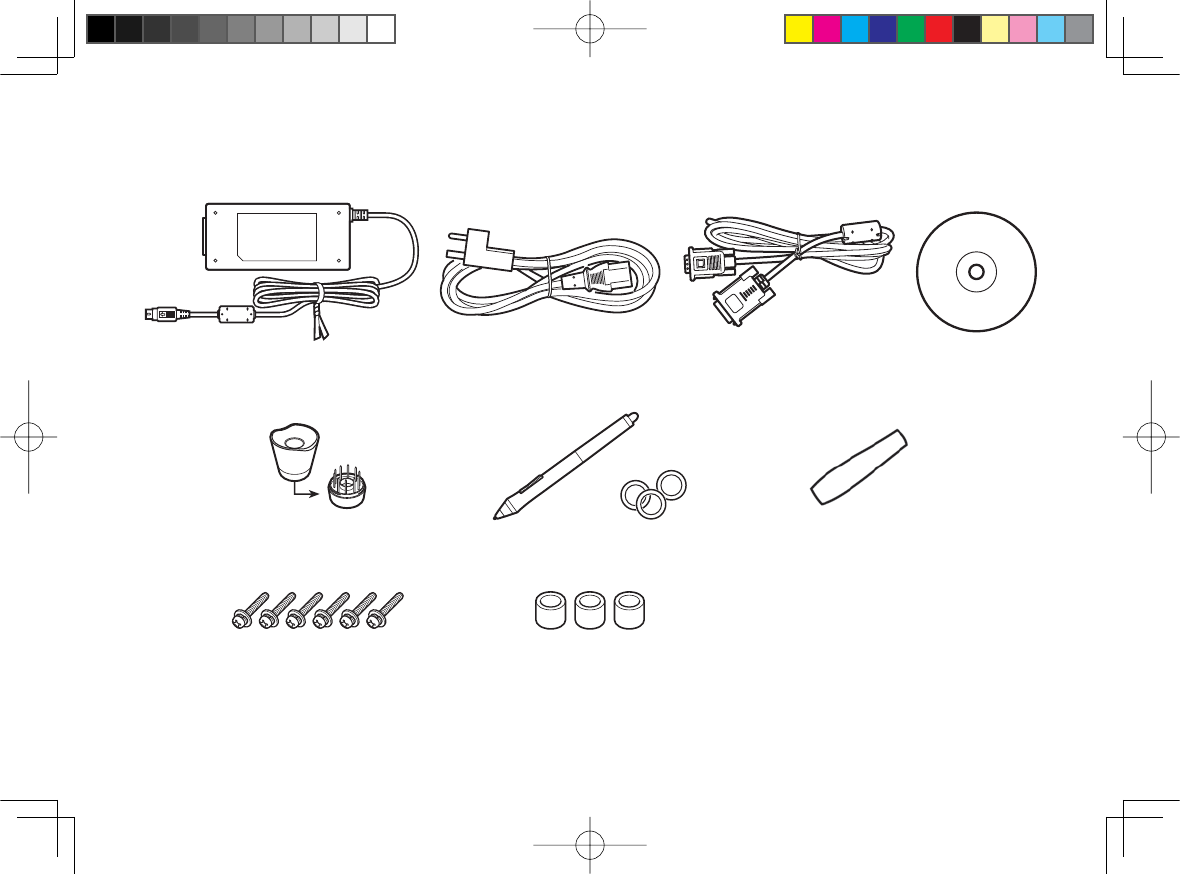

Supplied accessories

Accessories not supplied with all models. Check the contents listed on the product packaging.

See the User's Manual to replace pen nib and personalize your pen.

See the User's Manual for information on attaching the VESA Mount.

1URTG[AVKVNGEQNQTKPFF 

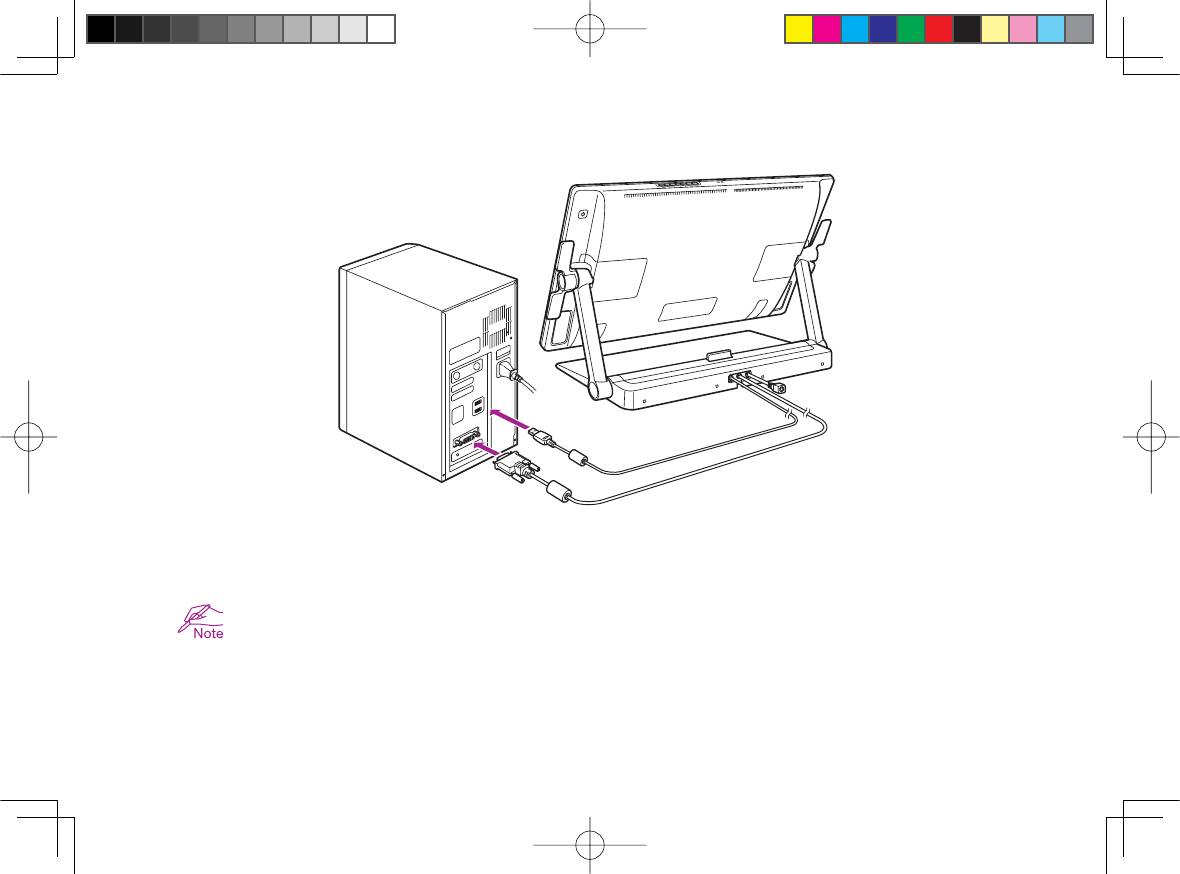

Connecting this product

1Turn off your computer.

2Connect the DVI-D cable or DisplayPort cable to the corresponding connector on your computer. Note that the DisplayPort cable is

shipped inside the stand. See the following page for instructions.

Connections can also be made with the included DVI-I to VGA cable. See the User's Manual for more information.

1URTG[AVKVNGEQNQTKPFF 

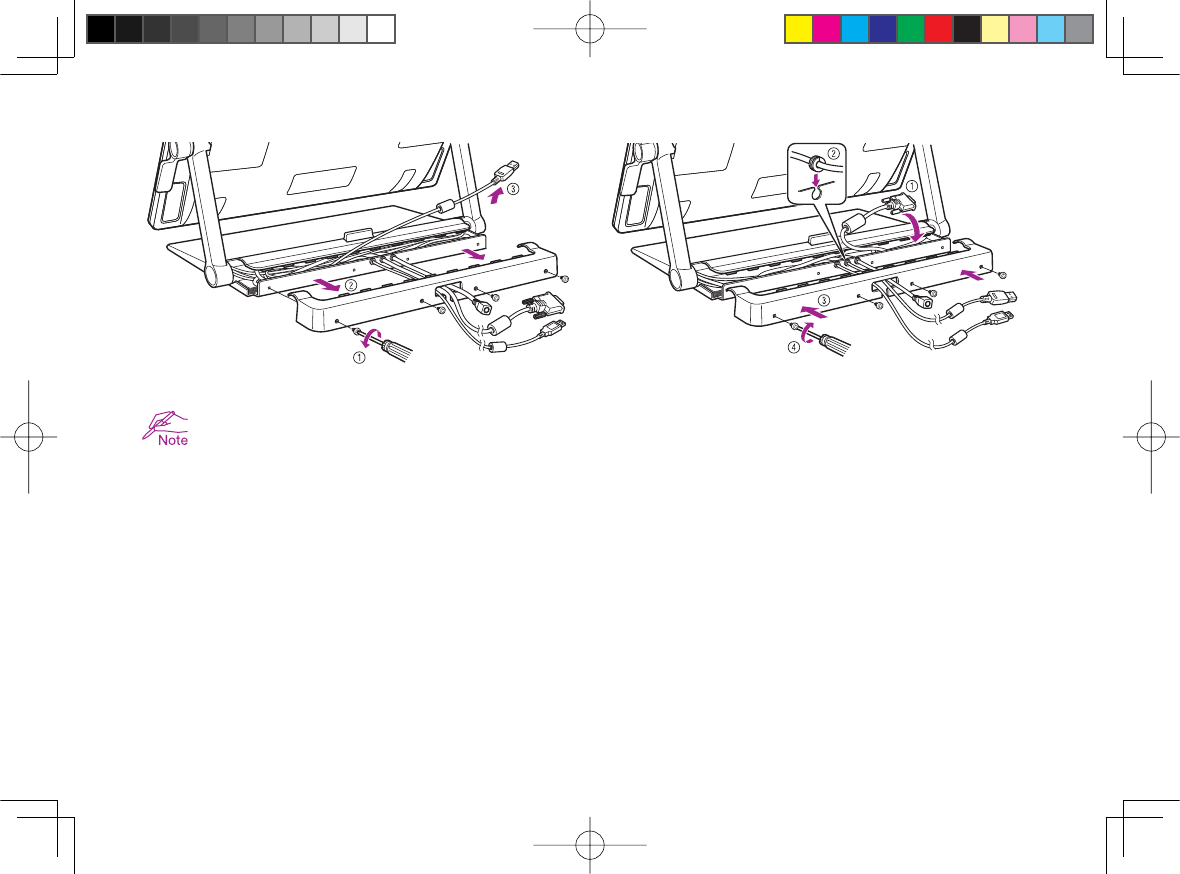

When using the DisplayPort cable, remove from the stand as shown.

3Plug the USB connector into an available USB port on your computer or a USB hub attached to your computer.

1URTG[AVKVNGEQNQTKPFF 

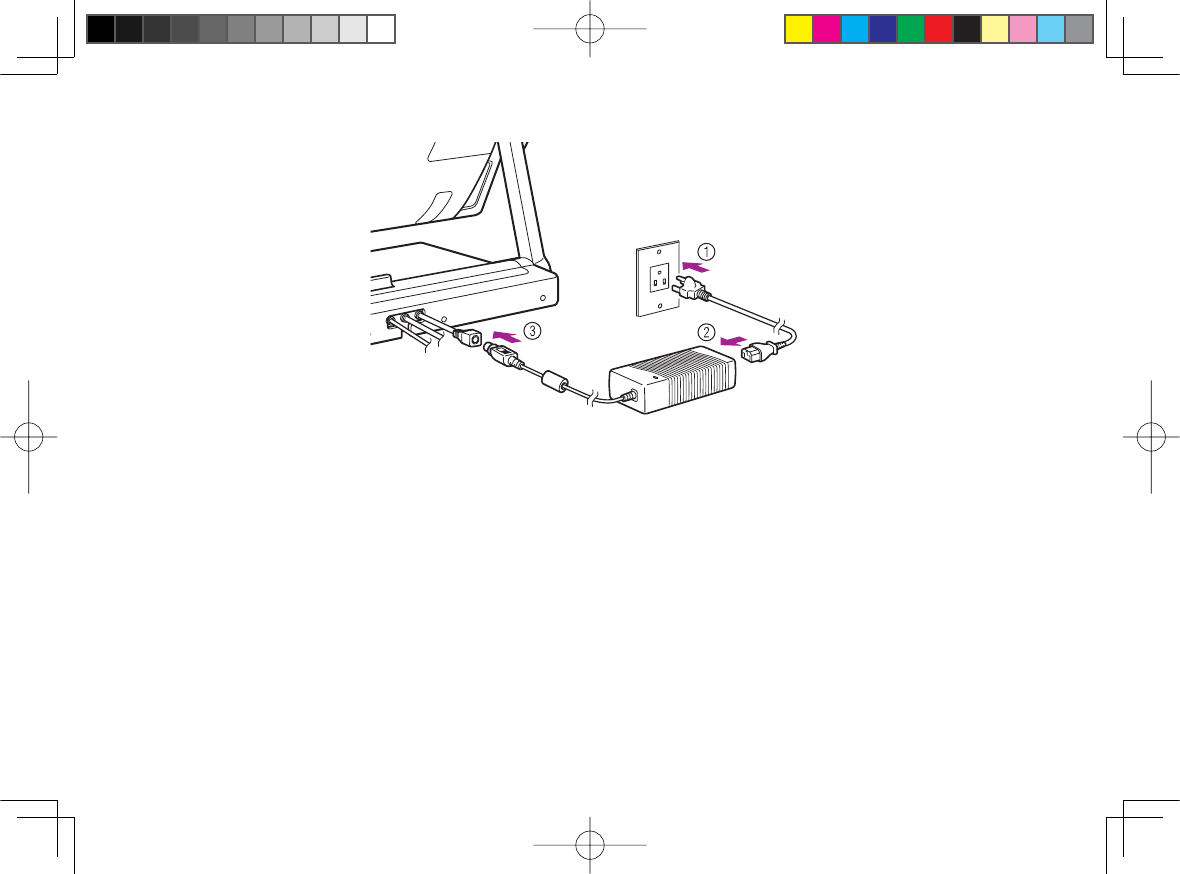

4Plug the power cable into the power adapter and then into an AC outlet.

1URTG[AVKVNGEQNQTKPFF 

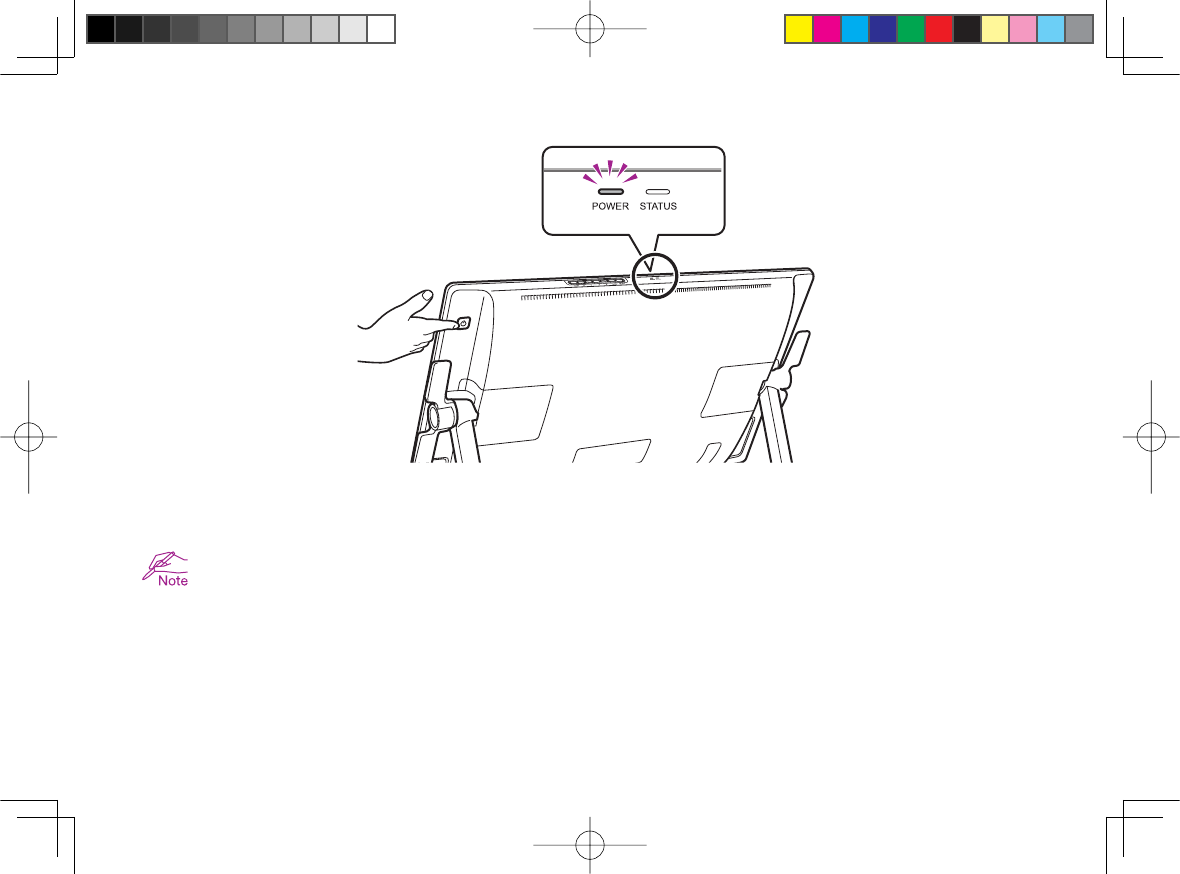

5Turn on this product. The power LED will change from orange to blue.

6Turn on your computer.

If a DVI-I to VGA cable is connected, conﬁgure the color resolution and size settings while looking at the display.

Then, open the menu screen, and select [Screen Setting] > [Auto Adjust].

For information on how to open the menu screen, see the User's Manual.

1URTG[AVKVNGEQNQTKPFF 

Installing the tablet driver

Save your work and close all open applications.

1Insert this product installation CD. If the software installer menu is not automatically displayed, double-click on the Install icon located

on the CD.

2In the displayed dialog, click Install Tablet and follow the prompts.

The User's Manual is downloaded to your computer when the driver software is installed.

Click the Important Product Information menu in the dialog to view the Important Product Information guide for this product.

It includes product safety precautions, speciﬁcations, and other important information.

1URTG[AVKVNGEQNQTKPFF 

Calibrating this product

For optimum performance, you must calibrate this product to align the screen cursor with the position of the pen on the display screen. This is

required to compensate for the viewing angle, and to adjust for parallax. Set this product in its working position, then follow the procedure below.

1Open the pen tablet's control panel.

See page 18.

2Click the [Position Adjustment] tab.

3Click [Calibrate...].

1URTG[AVKVNGEQNQTKPFF 

4In the order of (1) > (2) > (3) > (4) from the top-left, click the center of the cross marks on the screen with the pen.

The position adjustment is completed when the cross marks disappear.

When using Windows, click [OK] (or [Save]) and close the control panel after saving the adjustment contents.

•

1URTG[AVKVNGEQNQTKPFF 

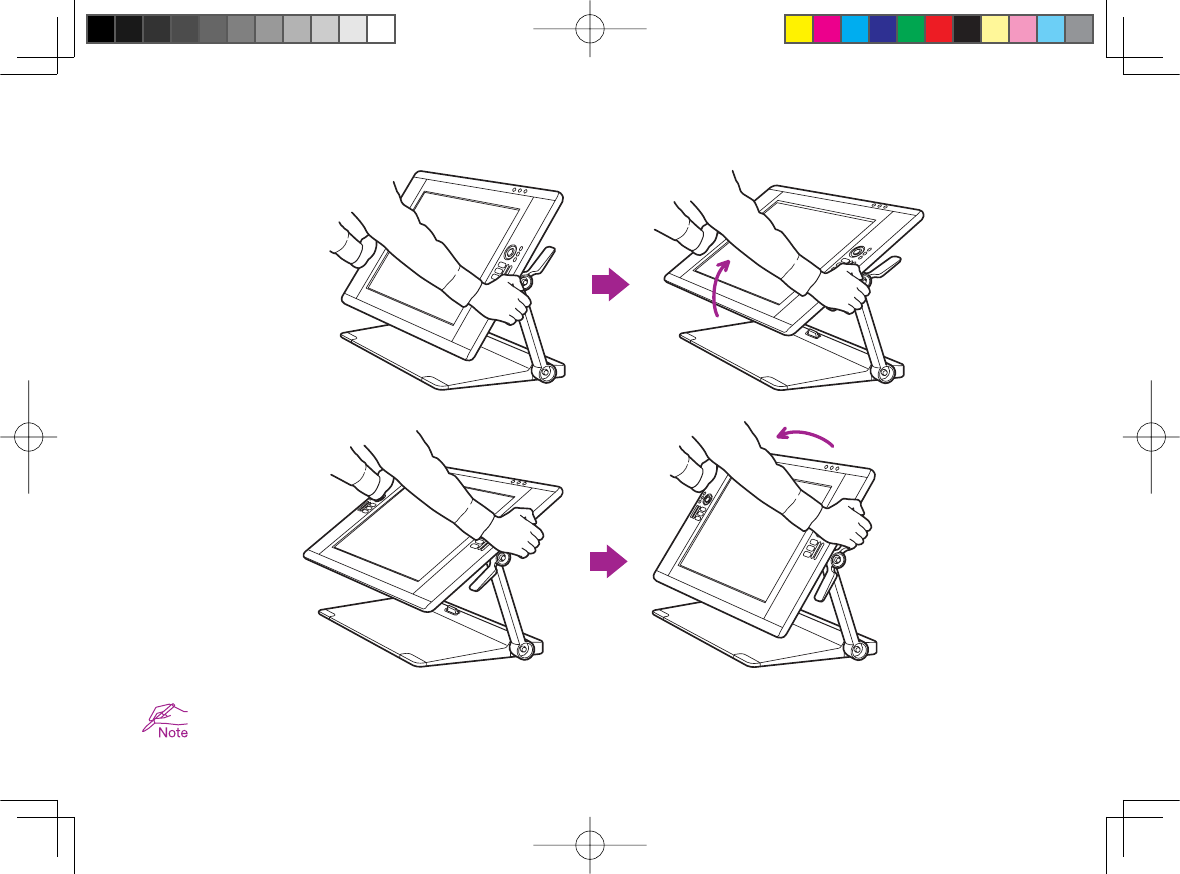

Changing the angle of this product

Use the lever to tilt the display forward.

Use the lever to tilt the display backwards.

The angle of the display can be changed with either the upper or lower lever.

1URTG[AVKVNGEQNQTKPFF 

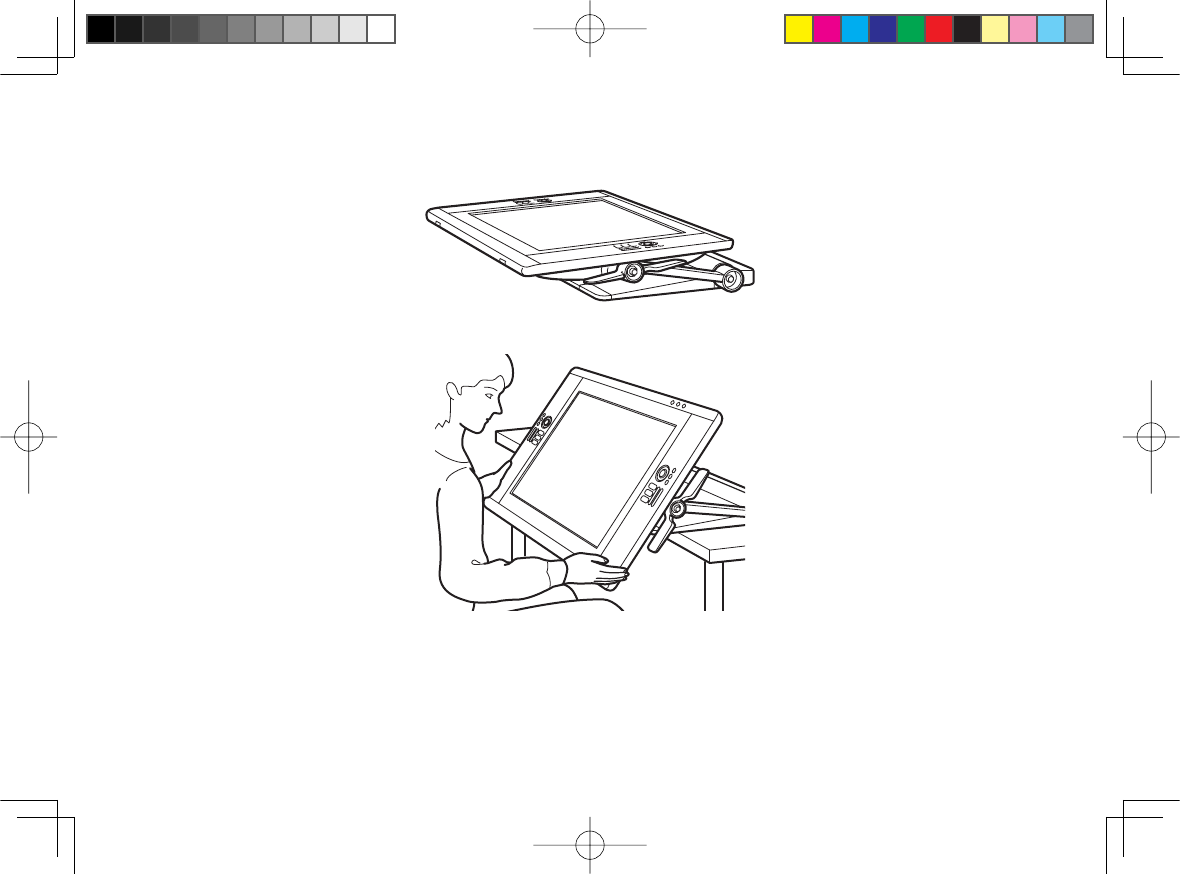

Adjusting this product to a comfortable position

This product can be used nearly ﬂat on your work surface.

This product can be lowered off the edge of a desk or table and used above your lap for intensive creative work. See page 14

for details.

1URTG[AVKVNGEQNQTKPFF 

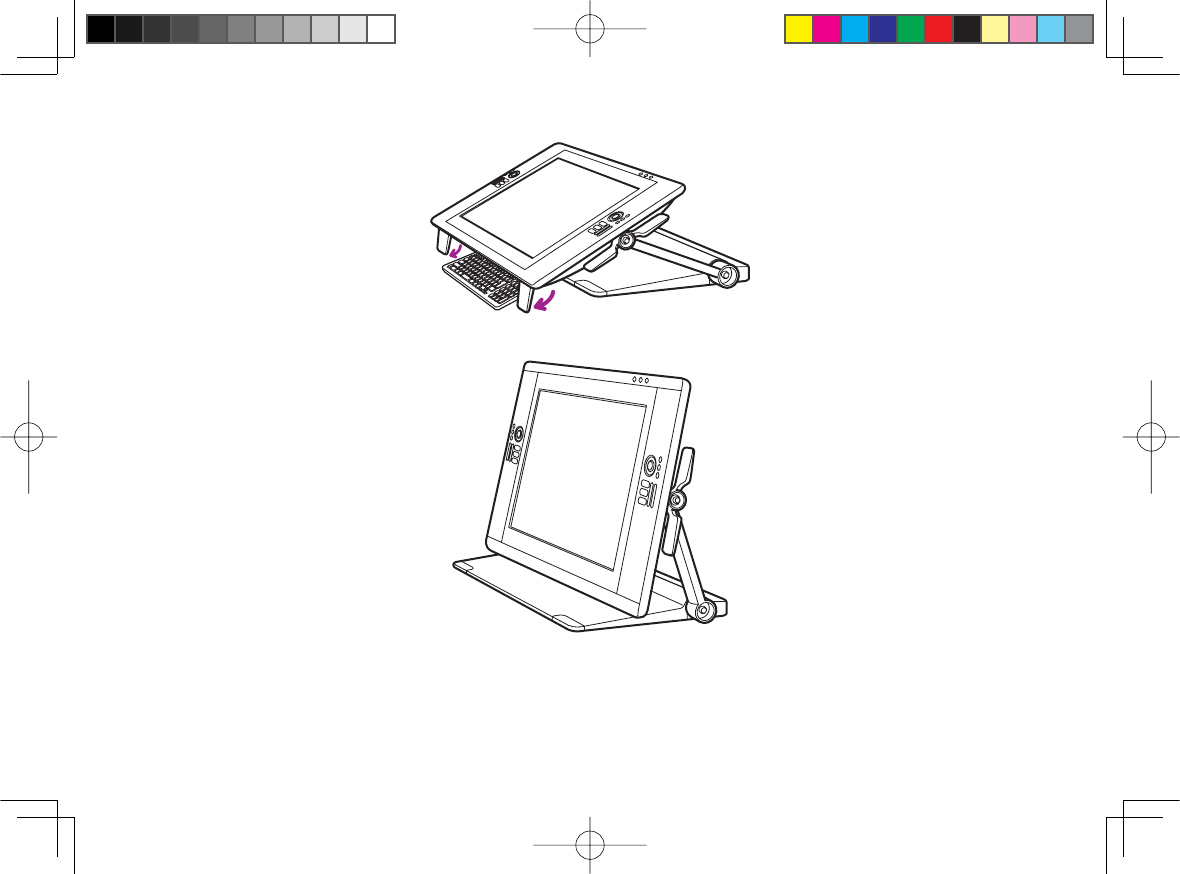

Flip down feet on bottom edge to allow keyboard placement beneath.

This product can be used vertically upright as a display.

1URTG[AVKVNGEQNQTKPFF 

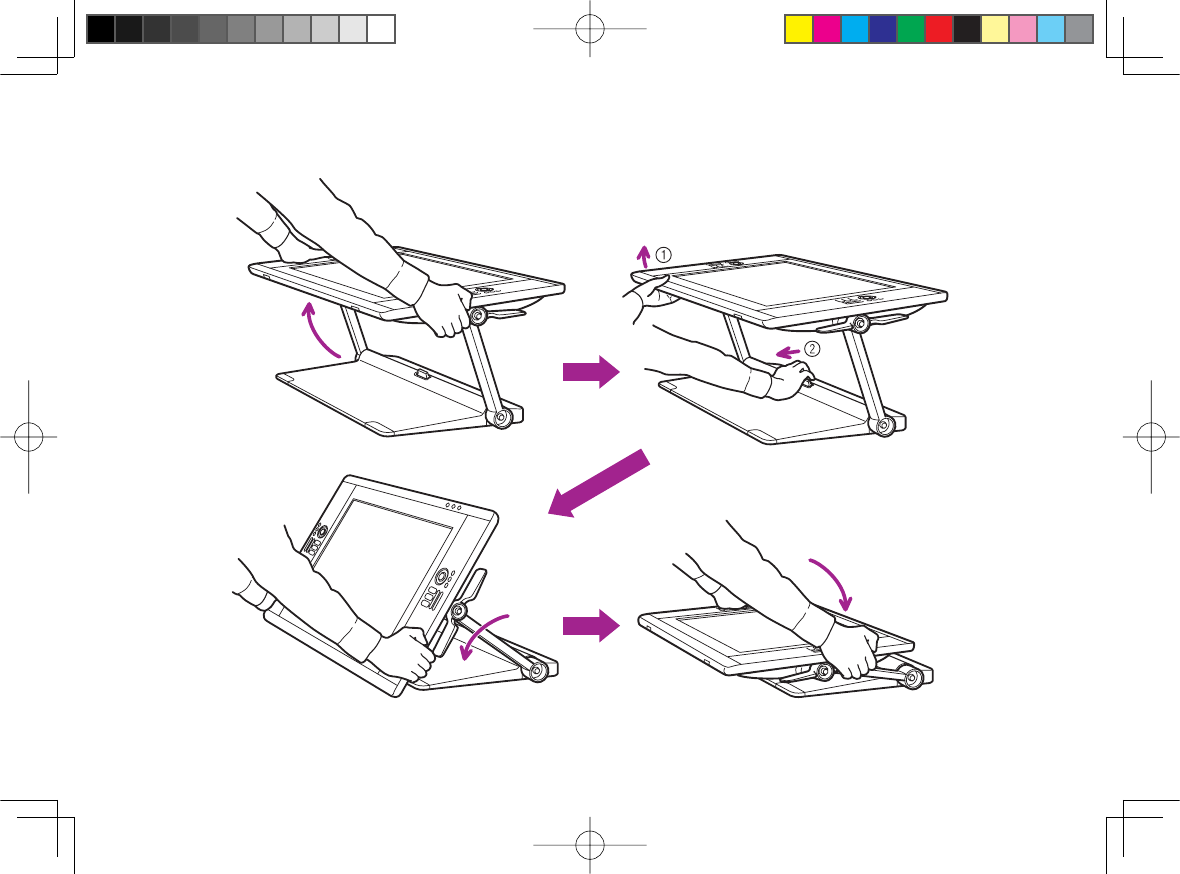

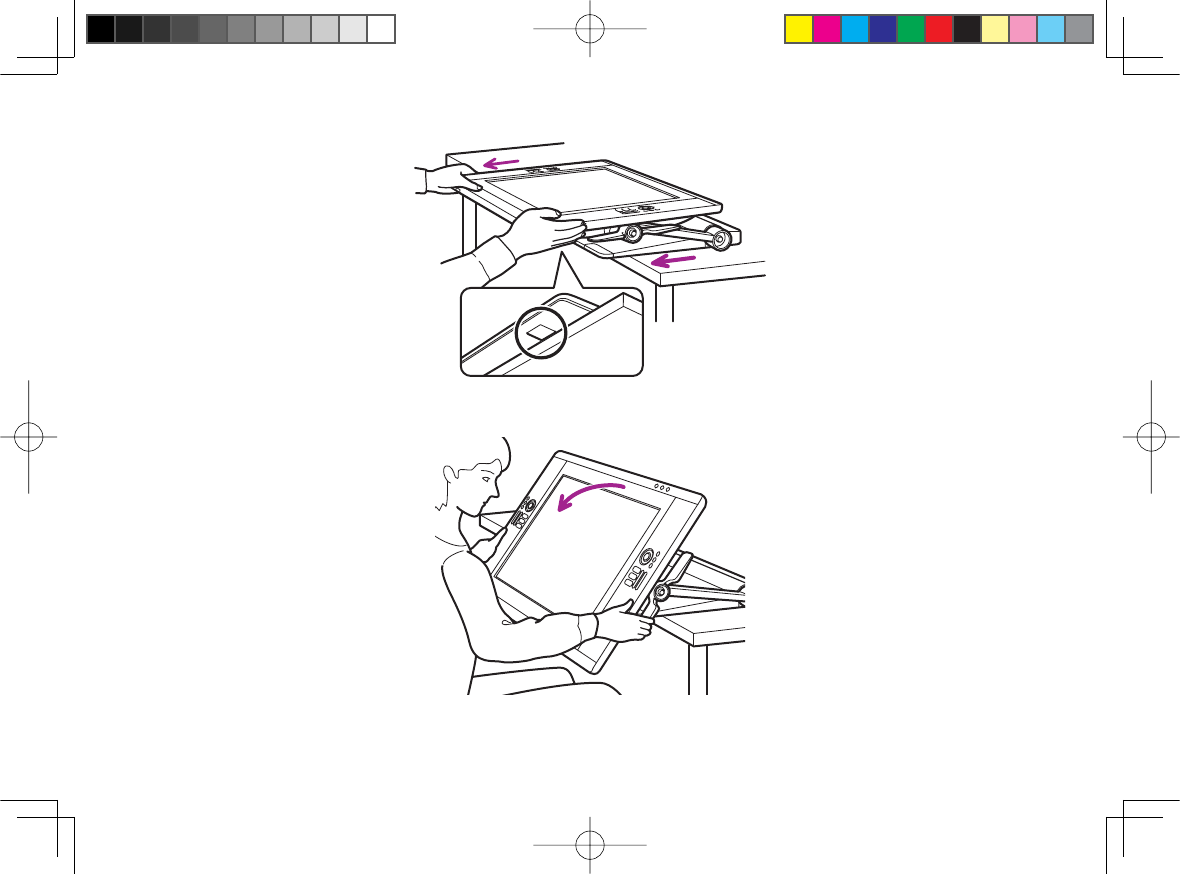

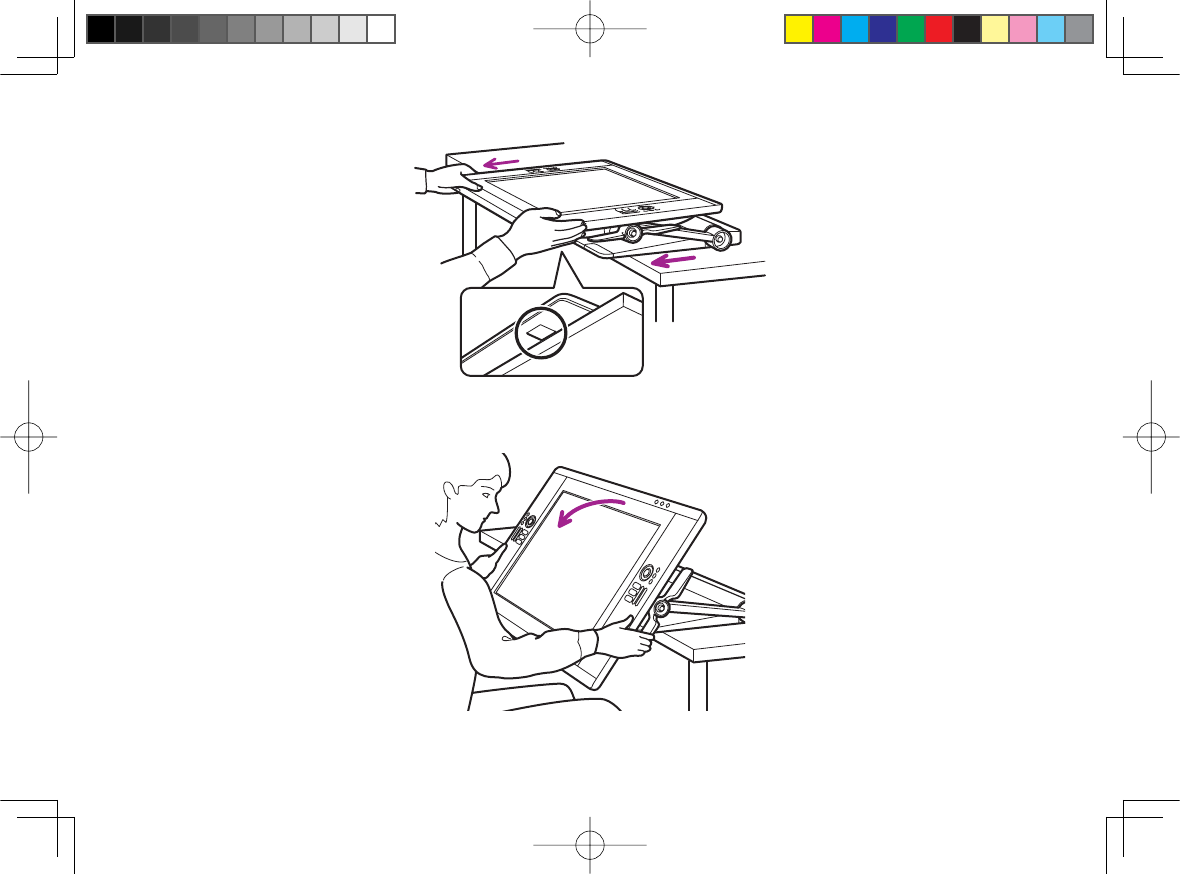

Setting up this product to be positioned above your lap

1Put the display into a ﬂat position.

1URTG[AVKVNGEQNQTKPFF 

2Pull the display toward you until it just clears the desktop or until you feel it lock into place. (There are rubber pads on

the base that grip the surface of the desk and prevent the display from moving beyond a safe position.)

3Use the incline levers to adjust the angle as required.

1URTG[AVKVNGEQNQTKPFF 

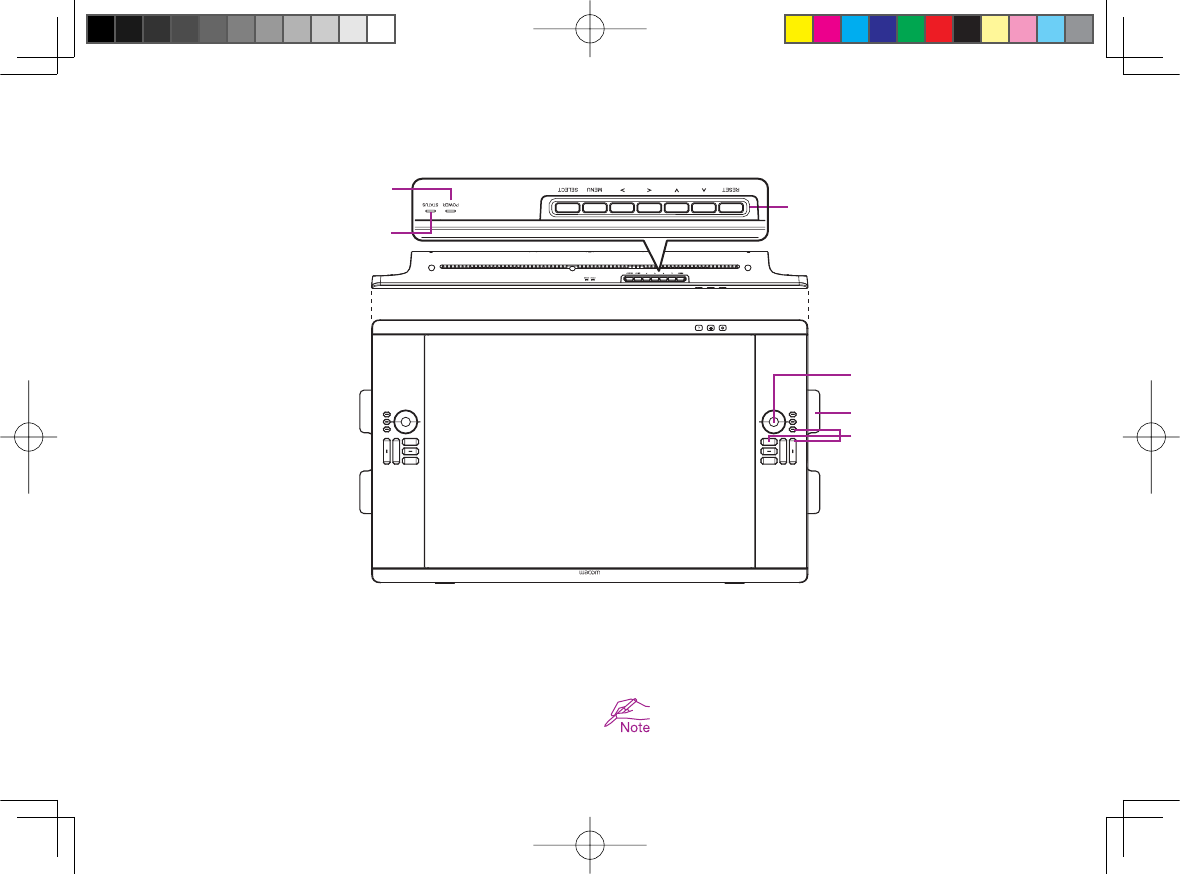

Getting to know this product

1. Incline lever

2. Touch Ring

By default, the Touch Ring enables you to zoom in most graphics ap-

plications and to scroll in other applications. Press the mode button

to switch between three customizable states.

3. ExpressKeys

These keys simulate modiﬁer keys, keystrokes, and other frequently

used functions.

4. OSD buttons

These buttons enable you to adjust a variety of display settings.

5. Power LED

6. Status LED

See the User's Manual for details on these and other features.

1URTG[AVKVNGEQNQTKPFF 

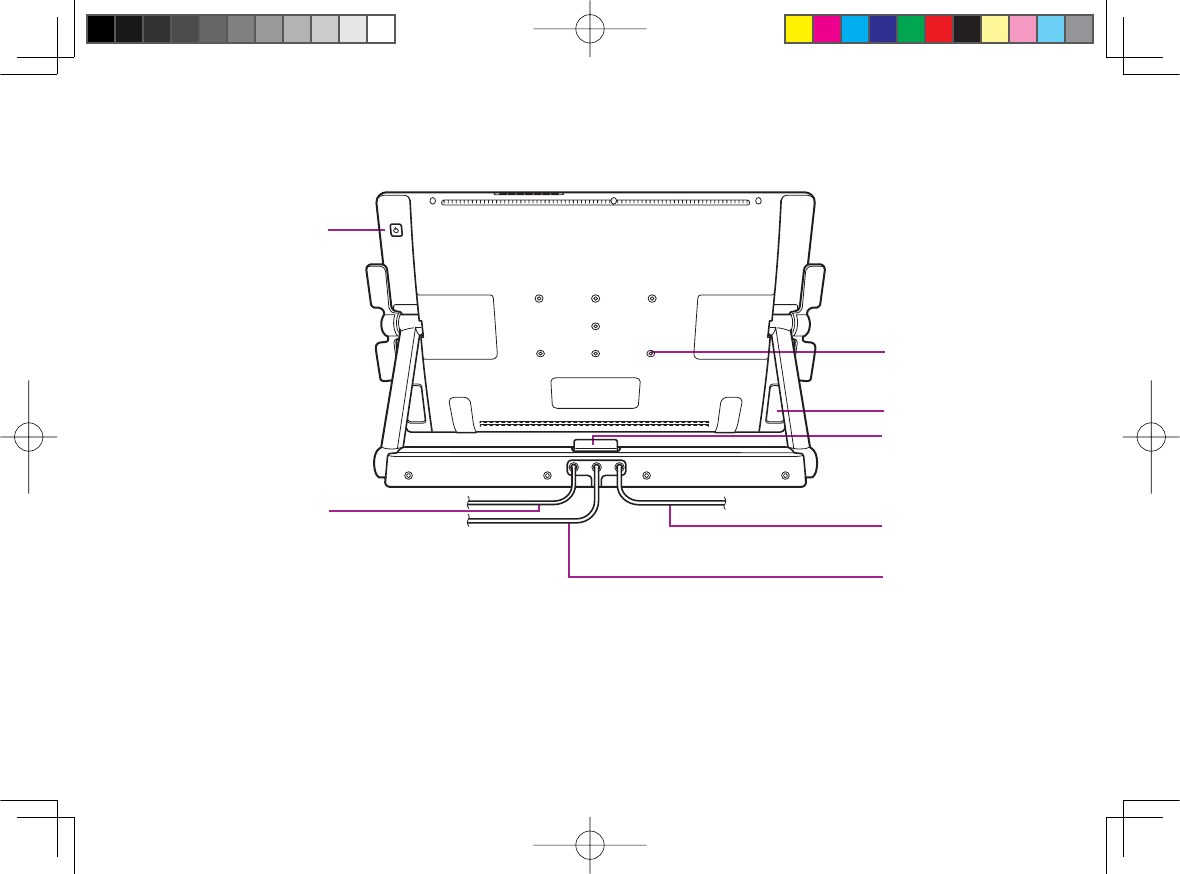

7. Support legs

8. Power switch

9. VESA mount hole

10. Power cable

11. DVI cable

12. USB cable

13. Stand lock release lever

1URTG[AVKVNGEQNQTKPFF 

Product Speciﬁcations

GENERAL SPECIFICATIONS

Model/Brand DTK-2400 (Code Name: Osprey) Pen only model

Dimensions (W x H x D) 769.3 x 463.74 x 64 mm (excluding the Stand)

Weight Main Body: 10.0 kg, Tablet Stand: 14.0 kg (TBC)

Operating temperature & humidity 5 to 35 degrees C, Humidity: 20 % to 80 % RH (non-condensing)

Storage temperature & humidity

-10 to 60 degree C, Humidity: 20 % to 90 % RH (non-condensing)

(Maximum storage humidity is 38 % at a temperature of 60 degree C, and maximum strage temperature is

42 degree C at a humidity of 90 %.)

Certiﬁcation and Compliance VCCI Class B, FCC Part 15 Subpart B(class B) and C, CE, KCC, BSMI, C-tick

CB, CCC, GOST-R, China RoHS, Korean RoHS, EU RoHS

Compatibility Windows7 / Vista / Vista x64 / XP / XP x64

Mac OS X 10.4 or greater

Stand Stand style can be changed ﬂexibly.

Interface Cables DisplayPort, DVI-D, DVI-A, USB

Cover plate AG etched glass (Tempered glass)

Input voltage 24 VDC

Power Management VESA DPMS

Power Consumption (with AC adaptor)

80 W (MAX) (TBC)

2 W or less in sleep mode (USB non-connected)

1 W or less in OFF mode

USB HUB Up stream: 1 Down stream: 2 (internal; 1, external; 1)

Load current is Maximum 0.5 A per port.

1URTG[AVKVNGEQNQTKPFF 

DISPLAY

Display Panel a-Si Active Matrix TFT LCD (A-IPS)

Screen Size 24.1 inch (518.4 x 324.0 mm)

Aspect ratio 16:10

Number of pixels 1920 x 1200

Input Video Connector DisplayPort, DVI-I (29 pin)

Input Video Signal

DisplayPort Complies with Standard V1.1a, applicable to HDCP

DVI 1.0 compliance

Analog RGB

Output Video Connector no video output

Output Video Signal

Supported Resolution 1920 x 1200, 1600 x 1200, 1280 x 1024, 1024 x 768, 800 x 600, 640 x 480 pixels

White Luminace Uniformity 75 % (min.)

Pixel Pitch 0.270 (H) x 0.270 (V) mm

Viewing Angles @ CR>10 (horizontal/ver-

tical) 178(89/89) / 178(89/89) (typ.)

Display Colors 1,073,741,824 colors (Depends on display card used.)

Contrast Ratio 700:1 (typ.) (TBC)

Luminance 180 cd/m2 (typ.) (TBC)

Response Time (Tr + Tf) 13 ms (typ.)

OSD Manual Control

Brightness, Contrast, Pitch, Phase, Vertical position, Transparency, Auto Adjust,

Horizontal position, Language, Back Light, Menu Position, Reset, Scaling,

Color temperature (9300K/6500K/5000K/User/Direct)

Plug and Play DDC 2B, DDC/CI

LCD quality

Each LCD panel is produced under very stringent quality standards. Production techniques cannot guar-

antee an absolutely perfect TFT display. Wacom does not allow any pixel to be always white or always

black. A small number of pixels are allowed to show a wrong color for some parts of the color spectrum.

This does not mean the display is defective.

1URTG[AVKVNGEQNQTKPFF 

PEN TABLET

Reading Technology Electro-magnetic resonance technology

Active Area 518.4 x 324.0 mm

Resolution 0.005 mm/point (5080 lpi)

Accuracy ± 0.5 mm (center), the edge area 1 (20 mm wide from edge of display area) to be ± 2.0 mm, the edge area

2 (3 mm wide from edge of dsplay area) to be ± 4.0 mm

Reading Height 5 mm or more (Center)

Accuracy Assurance Height 0 mm from cover plate

Maximum Report Rate 133 points/sec

Maximum Pen Tilt Range 40 degrees from vertical (Except for the corners)

Pen Tilt levels ± 60 levels

Pressure levels 2048 levels

Communication Interface USB

Stylus Pen KP-501E-01

POWER ADAPTER

Input voltage 100 to 240 VAC, 50/60 Hz

Output voltage 24 VDC, 5.0 A (max)

Grip Pen KP-501E-01

Pen tip travel Max 1.0 mm

Pressure levels 2048 levels

Eraser tip travel Max 2.0 mm

Physical size(L x D) 156.5 x 14.9 mm (6.17 x 0.59 in)

Weight 17 g (0.63 oz), approximately

1URTG[AVKVNGEQNQTKPFF 

Customizing this product

Open the Wacom Tablet control panel:

Windows – Click [Start]>> [ (All) Programs]>>[XXXX]>>[XXXX Properties].

Mac – Open [System Preferences] >> select [XXXX].

See the User's Manual to learn how to customize the ExpressKeys and Radial Menu to enhance your productivity.

Registering your this product

Support options

Check the Technical Notes or the Troubleshooting section in the User's Manual.

Visit our web site at www.wacom.com/product support

Call the Wacom Customer Care Center. Available in English from 7:30 am to 5:00 pm

Monday - Thursday, and 8:30 am to 5:00 pm Friday (Paciﬁc Time) at 360-896-9833.

1URTG[AVKVNGEQNQTKPFF 

⊒ ⼗㴍Ⲃ ᝝㷼 ၻヱ ⚻㸎

⳪↑Ả 㰄ႛ ⊒ ⼗㴍Ⲃ ᝝㷼 ᥴᱧ⹜∑ ➸㶚㬅⶿ⱥẦ ❃㘛㷸⥄⤲Ⳣ .

᜽⸬ ᠺⶏἄ ↋ ヱⶣ ⼐⊎Ⲃ✻ᛣ ⊒ ⼗㴍Ⲃ ᝝㷼⼐⊎Ầ ⼗႑㸊ᜟ᜽ .

ᠺⶏἄ↋ヱⶣ⼐⊎ ❃῏

⚻⵵❃῏✻ PDF ₚ✻ ⚻⵵❃῏✻ᛣ ᥴᱧ⹜∑ ➸㶚㬅⶿ⱥẦ ❃㘛㸀 ᧲ 㛉㵺㥎Ⲃ ᜽ⶃᵤᥴᢩᜟ᜽ .

㛖⹜⏐ ≒ၑ ,VESAỼⶃ㬅 ⚻⵵ ,ₚ⼗㸘၃ ᦊ⸼ ⷼ⵵㷼⼐⊎ᛣ ⚻⵵❃῏✻Ầ ㎴⽷㷸⥄⤲Ⳣ .

〪ⵟ ⼗㴍⼐⊎ PDF ₚ✻ 〪ⵟ ⼗㴍⼐⊎ᛣ ❃㘛 CD Ⲃ 㱠㸈ᢗⱥ ⹱⸜Ᾱ ⯩⻾〔⸼ ⚻㸎 ,⼗㴍⚻ⰻ↋ᇵ㣎〪ⵟ⼐⊎Ầ

㱠㸈㸊ᜟ᜽ .

␦Ả ⤲⹻ ཾ⹜ᥴ

(⊒ₚ✻)⹠⟸ᢛ ₚ✻ ␦Ả ⤲⹻ ཾ⹜ᥴⲂ✻ᛣ ⼗㴍 ⚻⵵ ↧∣ ,PCⲂ Ⲧ၃㷸ᛣ ↧∣ ᦊ⸼ ⼐⊎Ầ 㱠㸈㷸Ⲣ ⊒ ⼗㴍

Ⲃ ᝝㷼 ⹤↕ ྞⵟẦ ⼗႑㸊ᜟ᜽ .

•

1URTG[AVKVNGEQNQTKPFF 

⤲⹻ ᾙ⤲ヱ

㘟Ⰵ㷸ᛣ ၻྟ Ⲣ᳧⌯ኰ ,

⊒ ⼗㴍㰄 ᦴ⣲㶢ᴄ⹜Ầ ᄘ⹮㸘〔❸✻ ྎ⚻㸊ᜟ᜽ .

ἂ⸠ ၻྟ᥼⹜ ⊒ ⼗㴍 ើ⌯Ⲃ ⛱⚿❑ႛ ㎺⸼❑⸤ Όᣗ ᜽ ᑒⱥ⳪Ủ ⡕ ⹱ⱺ᜽ၻ ἄ⮗㸘〔➍⤄ᜟ᜽ .⊒ ⼗㴍⸠ ⹜᥼ ၻྟ⸼ ⶟㡰㶢ᵤ⵿Ⲃ 㷢⡕⻻

⹠ ⌫⌯⸜ᵤ ⹺Ở⺌⯺⤄ᜟ᜽ .ⅺ⸬⸤ 〔⤶ ៚ ᝝㸘 ሐ⸠ ྎ⚻Ầ ᥴỞᾹ 㓾ၻ⸼ ㎺⸼⻻⹠ ᠺᄘẦ ⼗႑㷸ᠺᵥ 㓾✿⸼ ᖥᴥ⸤ ᜽㷸ူ⤄ᜟ᜽ .

⊒ 㓾⤶ ⼗㴍⸤ 㕆⤲㷸ᇵ ⷟㸘 ၻྟႛ ᝝㼕Ầ ᒨᙂၻ ⡕ᴴᢛ ⸼ဿ⸤ 㧡㸊㷸ᛣ ៚ ἂ⸠ ⤲ྂ⸤ ᥼ⲷ⤄ᜟ᜽ .ⳂẦ ᥼ⱥ ⹜⻾⼗㴍 Ό២Ⲃ ␈㸘㡰ᇵ ,

㸘⛑ᠺ ↋ ⛜ ႑ྂ⸤ ᛧᴹ⤄ᜟ᜽ .

᝝⌫⌯⸼ ၻྟ⹜ 㷸ḁⲂ Ἔ⵿ ἂ⸠ ⤲ྂ ᡐ⯩ ⹻ⱷ㷸ၻ ྂ㻶 ⡕ἂ⸠ 㶚ᵤ⼘㬅Ầ ヵ㸮㷸᾽✻ Ỽྎ ⤲ྂⲂ ἓ㔾ᇵ ⷟㸘 ၻᄜ⌯㩨㷸ᛣ ဆ Ὼြ㸭⤄

ᜟ᜽ .၃ႛ⻻⸜ᵤ ⳦ ⹜ ⫪⤲ၻ ⯥㭣⳦ ၑ㺈⸤ 㷸⤶ ⌯᥼ᠺ ၛ⤺ ဒ⹮ᜟ᜽ .᧒ᱧ✻ ⯥〔 ⷼⲦ㷸ရ ㏅⛑ ⷟Ⲃ ᗁၻ ⚻⵵㸀 ⡕ ⹱ᠺᵥ ⊒ ⼗㴍⸤ ⹠

㑁႑㷹⻻⸜ᵤ ❃ၛ㸭⤄ᜟ᜽ .㰤⯩㷸ၻ ⚻⵵㷸ᇵ ⢵ⶃ ⼗㴍⸤ ἀᥴᛣ ဒ⹜ 〔ᢛ Ὼ㳝〪㷸ᒨ⹮ᜟ᜽ .

⊒ 㓾⤶ ⼗㴍Ⲃ✻ᛣ ᜽Ả ἂ⸠ ᇵᛵᠺ ྞ✿ ↋ 㹎⛑ᢗⱺ⤄ᜟ᜽ .⹜ ␦Ả ⤲⹻ ཾ⹜ᥴẦ ⹥ၻ ❃῏✻Ầ ဎ⛜㷸᾽ ᄘ⹮㷸⤶ ⼗㴍⸤ 㓾᝝㷼ᠺᵤ 㼝⵵

㸀 ⡕ ⹱⸤ ဒ⹮ᜟ᜽ .

㎺⸼⻻⹠ ᖥᴥ⸜ᵤ 㓾ၻ⸼ ❑႑⸤ ࿾ᣗ⤲ᇵ ↑ᱹᜟ᜽ .

ྎ⚻㸊ᜟ᜽ .

⼗㴍 ྞ↙㭕

1URTG[AVKVNGEQNQTKPFF 

⌫➹㴍

⹤⌫ Ό២Ⲃ✻ἀ ⼗႑ᢗᛣ ⌫➹㴍⹮ᜟ᜽ .⼗㴍㱠⺐Ⲃ ᒨⲪᢛ ᓈ⵵₞⸤ 㼖⹠㷸⥄⤲Ⳣ .

㰄 ᜟ⏈Ầ ჸ㑁㷸ၻ 㰄⸤ ྞ⹠ ❃⼐㷸ᴤ᾽ ⚻⵵❃῏✻Ầ ㎴⽷㷸⥄⤲Ⳣ .

VESA Ỽⶃ㬅 ⌫㎥Ⲃ ᝝㷼 ⹺❘㷼 ᓈ⵵⸠ ⚻⵵❃῏✻Ầ ㎴⽷㷸⥄⤲Ⳣ .

1URTG[AVKVNGEQNQTKPFF 

⊒ ⼗㴍 Ⲧ၃㷸ᇵ

1㛉㵺㥎Ầ ᑜᜟ᜽ .

2DVI-D 㛖⹜⏐⹜ᒨ DisplayPort 㛖⹜⏐⸤ 㛉㵺㥎⸼ 㸘ᝓ 㚹ᕆ㥎Ⲃ Ⲧ၃㸊ᜟ᜽ . DisplayPort 㛖⹜⏐⸠ ⣲㣲ᥴ ᓈⲂ ᥼ⱥ ⹱ᛣ ⛑㣮ᵤ ⼗႑

ᢩᜟ᜽ .ヱ㘫⸠ ᜽⸬ 㰀⹜ヱẦ ㎴⽷㷸⥄⤲Ⳣ .

ᇵ⊒ ⼗႑ᢛ DVI-I ᝝VGA 㛖⹜⏐ᵤ Ⲧ၃㸀 ⡕ᠺ ⹱⤄ᜟ᜽ .⹺❘㷼 ᓈ⵵⸠ ⚻⵵❃῏✻Ầ ㎴⽷㷸⥄⤲Ⳣ .

1URTG[AVKVNGEQNQTKPFF 

DisplayPort 㛖⹜⏐⸤ ⚻⵵㷸ᛣ ၑ⵿ ᆵỮႛ ྘⹜ ⣲㣲ᥴⲂ✻ ⌯Ở㸊ᜟ᜽ .

3USB 㚹ᕆ㥎Ầ 㛉㵺㥎⸼ ⚻⵵ ཾᛵ㷼 USB 㱠㬅Ⲃ ጧ࿾ᒨ 㛉㵺㥎Ⲃ ⌫㎥ᢛ USB 㹸⏈Ⲃ ጧ⤄ᜟ᜽ .

1URTG[AVKVNGEQNQTKPFF 

4⻾ⶣ 㛖⹜⏐⸤ ⻾ⶣ ⱥᝯ㥎ⴂ AC 㜺❜㬅Ⲃ ㎤ᵄᵤ ጧ⤄ᜟ᜽ .

1URTG[AVKVNGEQNQTKPFF 

5⊒ ⼗㴍⸤ 㜈ᜟ᜽ .⻾ⶣ LED ཾ 〔㼫⛜Ⲃ✻ 㭣ᱫ⛜⸜ᵤ ↑ᐟᜟ᜽ .

6㛉㵺㥎Ầ 㜈ᜟ᜽ .

DVI-I ᝝VGA 㛖⹜⏐⸤ Ⲧ၃㷼 ၑ⵿ ᦴ⣲㶢ᴄ⹜Ầ ⊎᾽✻ ⛜ 㸘⛑ᠺⴂ 㡰ᇵ ❃⼐⸤ ᄘ❑㸊ᜟ᜽ .

ᆵᳫ ᜽⸬ ᾙᚿ 㼕᾽⸤ Ⲫၻ [Screen Setting( 㼕᾽ ❃⼐ )] > [Auto Adjust( ⹺ᡐ ⽷⼐ )] Ầ ✿㣯㸊ᜟ᜽ .

ᾙᚿ 㼕᾽⸤ Ⲣᛣ ↧∣⸠ ⚻⵵❃῏✻Ầ ㎴⽷㷸⥄⤲Ⳣ .

1URTG[AVKVNGEQNQTKPFF 

㣎⏐ᴘ ᥴᱧ⹜∑ ❃㘛㷸ᇵ

⹻ⱷ ᓈ⵵⸤ ⻺⺐㷸ၻ Ⲫᴤ ⹱ᛣ Ⰵ㶢Ở㛖⹜❼⸤ Όᣗ ᝄ⤄ᜟ᜽ .

1⊒ ⼗㴍⸼ ❃㘛 CD Ầ ᕄ⤄ᜟ᜽ .➸㶚㬅⶿ⱥ ❃㘛 ႟Ở⹺ ᾙᚿཾ ⹺ᡐ⸜ᵤ 㳝⤲ᢗヱ ⯫⸜᾽ CD ⸼Install( ❃㘛 )⯥⹜㜺⸤ ួ⏐㡸ở㸊ᜟ᜽ .

2㳝⤲ᢛ ᝝㼕 ⛑⹺Ⲃ✻ Install Tablet( 㣎⏐ᴘ ❃㘛 )⸤ 㡸ở㷸ၻ 㶚ᵴ㶚㬅Ầ ᧒Ằᜟ᜽ .

⚻⵵❃῏✻ᛣ ᥴᱧ⹜∑ ➸㶚㬅⶿ⱥẦ ❃㘛㸀 ᧲ 㛉㵺㥎Ⲃ ᜽ⶃᵤᥴᢩᜟ᜽ .

᝝㼕 ⛑⹺Ⲃ✻ Important Product Information( 〪ⵟ ⼗㴍⼐⊎ )ᾙᚿẦ 㡸ở㷸Ⲣ ⊒ ⼗㴍Ⲃ ᝝㷼〪ⵟ ⼗㴍⼐⊎ ཾ⹜ᥴẦ ⊠ᜟ᜽ .

⹜ ཾ⹜ᥴᛣ ⼗㴍 ⯩⻾〔⸼ ⚻㸎 ,⚻ⰻ ↋ ᇵ㣎〪ⵟ ⼐⊎Ầ 㱠㸈㸊ᜟ᜽ .

1URTG[AVKVNGEQNQTKPFF 

⊒ ⼗㴍 ⊎⼐㷸ᇵ

㓾⻻⸼ ❑ᛵ⸤ ⷟㸘✻ᛣ ⊒ ⼗㴍⸤ ⊎⼐㷸Ⲣ 㼕᾽ 㚹✻Ầ ᦴ⣲㶢ᴄ⹜ 㼕᾽⸼ 㰄 ⷟㘛Ⲃ ἓ㔾ⱥⰥ 㸊ᜟ᜽ .⹜ ⹻ⱷ⸠ ⊎ᇵ ཿᠺẦ ⊎⼐㷸ၻ ⤲㎤Ầ ⽷

⼐㷸ᛣ ៚ 㷢ⵟ㸊ᜟ᜽ .⊒ ⼗㴍⸤ ⹻ⱷ ⷟㘛Ⲃ ᗁၻ ⯥ᲇ⸼ ⼂㎤Ầ ᧒ẞ⥄⤲Ⳣ .

1㰄㣎⏐ᴘ⸼ ⼗ⱥ㭧⸤ Ⲵᜟ᜽ .

18 㰀⹜ヱẦ ㎴⽷㷸⥄⤲Ⳣ .

2[Position Adjustment( ⷟㘛⽷⼐ )] 㤀⸤ 㡸ở㸊ᜟ᜽ .

3[Calibrate...( ⊎⼐ ...)] Ầ 㡸ở㸊ᜟ᜽ .

1URTG[AVKVNGEQNQTKPFF 

4ⵃ㈍ ⛑ᝁ⌫㥎 (1) > (2) > (3) > (4) ⸼ ⡙✻Ⲃ ᧒ᱧ 㼕᾽⸼ ⥄⹺ 㳝⤲ 〪⯻⌫Ầ 㰄⸜ᵤ 㡸ở㸊ᜟ᜽ .

⥄⹺ 㳝⤲ཾ ⚻ᱧヱ᾽ ⷟㘛⽷⼐⹜ ⴆᷡᢛ ဒ⹮ᜟ᜽ .

Windows Ầ ⚻⵵㷸ᛣ ၑ⵿ ⽷⼐ ᓈ⵵⸤ ⻺⺐㷼㾒 [㼖⹠ ]( ᫏ᛣ [⻺⺐ ]) ⸤ 㡸ở㷸ၻ ⼗ⱥ㭧⸤ ᝄ⤄ᜟ᜽ .

•

1URTG[AVKVNGEQNQTKPFF 

⊒ ⼗㴍⸼ ཿᠺ ≒ၑ㷸ᇵ

ᴄ∑Ầ ⚻⵵㷸Ⲣ ᦴ⣲㶢ᴄ⹜Ầ Ⰰ㈍⸜ᵤ ᇵⶇ⹮ᜟ᜽ .

ᴄ∑Ầ ⚻⵵㷸Ⲣ ᦴ⣲㶢ᴄ⹜Ầ ᤷ㈍⸜ᵤ ᇵⶇ⹮ᜟ᜽ .

⛑ᝁ ᫏ᛣ 㷸ᝁ ᴄ∑ᵤ ᦴ⣲㶢ᴄ⹜ ཿᠺẦ ≒ၑ㸀 ⡕ ⹱⤄ᜟ᜽ .

1URTG[AVKVNGEQNQTKPFF 

⊒ ⼗㴍⸤ 㰤⯩㷼 ⷟㘛ᵤ ⽷⼐㷸ᇵ

⊒ ⼗㴍⸤ ⹻ⱷ᾽Ⲃ ࿾⸼ 㰶㰶㷸ရ ᙔ㺵 ⚻⵵㸀 ⡕ ⹱⤄ᜟ᜽ .

⊒ ⼗㴍⸤ ㏅⛑⹜ᒨ 㥫⹜⏐ Ό✻Ở ⯥ᲇᵤ ᓈỢ ᜽⸬ ₖẹ ⷟Ⲃ ⳪ᴤ ᗁၻ ᗀ⸠ ㎺⸼❑⹜ ⵟᄘᢗᛣ ⹻ⱷ⸤ ⡕㸮㸀 ⡕ ⹱⤄ᜟ᜽ .

⹺❘㷼 ᓈ⵵⸠ 14 㰀⹜ヱẦ ㎴⽷㷸⥄⤲Ⳣ .

1URTG[AVKVNGEQNQTKPFF 

㷸ᝁ Ό✻Ở⸼ ᜽ỞẦ ⼌⸜᾽ 㢰⊎ᥴ ⷟㘛Ầ ᒿ㕆 ⡕ ⹱⤄ᜟ᜽ .

⊒ ⼗㴍⸤ ⡕ヲ⸜ᵤ ❘⶟ ᦴ⣲㶢ᴄ⹜ᵤ ⚻⵵㸀 ⡕ ⹱⤄ᜟ᜽ .

1URTG[AVKVNGEQNQTKPFF 

⊒ ⼗㴍⸤ ₖẹ ⷟Ⲃ ⳪ᴤᗁᇵ

1ᦴ⣲㶢ᴄ⹜Ầ 㰶㰶㷼 ⷟㘛Ⲃ ᗁ⤄ᜟ᜽ .

1URTG[AVKVNGEQNQTKPFF 

2㏅⛑⸤ ∥ⱥᒨ࿾ᒨ ⺊ၐ᜽ၻ ᛟᒒ ᧲ሓヱ ᦴ⣲㶢ᴄ⹜Ầ Ⰰ㈍⸜ᵤ ⺌⯥ᝓሇᜟ᜽ .(㏅⛑ 㳝᾽ႛ Ỽ㎬ᢗⱥ ᦴ⣲㶢ᴄ⹜ཾ

⯩⻾㷼 ⷟㘛Ầ ∥ⱥᒨヱ ⯫ᠺᵥ ↧ヱ㷸ᛣ ၻₖ 㮃ᥴཾ ↍⌫⌯Ⲃ ᝅᴤ ⹱⤄ᜟ᜽ .)

3ᇵⶇᇵ ⽷⼐ ᴄ∑Ầ ⚻⵵㷸Ⲣ 㷢ⵟⲂ ᧒ᱧ ཿᠺẦ ⽷⼐㸊ᜟ᜽ .

1URTG[AVKVNGEQNQTKPFF 

⊒ ⼗㴍Ⲃ ᝝㸘 ⯭⯥⊎ᇵ

1. ᇵⶇᇵ ⽷⼐ ᴄ∑

2. 㥎㘛 Ỵ

ᇵ⊒⻻⸜ᵤ 㥎㘛 Ỵ⸤ ⚻⵵㷸᾽ ᝝⌫⌯⸼ ᆵᲇ㷛 Ⰵ㶢Ở㛖⹜❼⸤ 㼖᝝

㷸ၻ ᜽Ả Ⰵ㶢Ở㛖⹜❼⸤ ⣲㡰ᵬ㸀 ⡕ ⹱⤄ᜟ᜽ .Όᥴ ∑㬉⸤ ᙂẞ᾽

⚻⵵⹺ཾ ⼐⸼㸀 ⡕ ⹱ᛣ ❘ ཾヱ ⛑㣮 ྂⲂ ⻾㼙ᢩᜟ᜽ .

3. ⹝⣲㶚ᴄ⣲ 㢰

⹜᳧㷼㢰ᛣ ⡕⼐⹺ 㢰 ,㢰 ⹮ᴥ ↋ ᇵ㣎 ⹺〔 ⚻⵵㷸ᛣ ᇵᛵ⸤ ⤲ℛᴄ

⹜❼㸊ᜟ᜽ .

4. OSD ∑㬉

⹜᳧㷼 ∑㬉⸤ ⚻⵵㷸᾽ ᜽ⰻ㷼 ᦴ⣲㶢ᴄ⹜ ❃⼐⸤ ⽷⼐㸀 ⡕ ⹱⤄ᜟ

᜽.

5. ⻾ⶣ LED

6. ⛑㣮 LED

⹜᳧㷼 ᇵᛵႛ ᜽Ả ᇵᛵⲂ ᝝㷼 ⹺❘㷼 ᓈ⵵⸠ ⚻⵵❃῏✻Ầ ㎴

⽷㷸⥄⤲Ⳣ .

1URTG[AVKVNGEQNQTKPFF 

7. ↘㘫 ᜽Ở

8. ⻾ⶣ ⣲⷟㘛

9. VESA Ỽⶃ㬅 ᄘᾒ

10. ⻾ⶣ 㛖⹜⏐

11. DVI 㛖⹜⏐

12. USB 㛖⹜⏐

13. ⣲㣲ᥴ ⺊ᇅ 㸘⼗ ᴄ∑

1URTG[AVKVNGEQNQTKPFF 

⼗㴍 ⚻ⰻ

⹤↕ ⚻ⰻ

Ό២ /⏈᲋ᥴ DTK-2400 ( 㜶ᥴ῏ : Osprey) 㰄⻾⵵Ό២

㡰ᇵ (ᔨ␈ xᗀ⹜ xሐ⹜ ) 769.3 x 463.74 x 64 mm ( ⣲㣲ᥴ ⼗ⴿ )

〪Ჽ ⊒㑁 : 10.0 kg, 㣎⏐ᴘ ⣲㣲ᥴ : 14.0 kg (TBC)

⹻ᡐ ⳦ᠺ ↋ ⤄ᠺ 5°~35

°C, ⤄ᠺ :20~80%RH(␈⸲㔿 )

⊎႟ ⳦ᠺ ↋ ⤄ᠺ -10°~60

°C, ⤄ᠺ :20~90%RH(␈⸲㔿 )

(⳦ᠺ 60°CⲂ✻ 㓾᝝ ⊎႟ ཾᛵ ⤄ᠺ 38 %, ⤄ᠺ 90 % Ⲃ✻ 㒡᝝ ⊎႟ ཾᛵ ⳦ᠺ 42°C)

⹠デ↋㹸ཾ VCCI Class B, FCC Part15 Subpart B(class B) ↋C, CE, KCC, BSMI, C-tick

CB, CCC, GOST-R, China RoHS, Korean RoHS, EU RoHS

㻵㼙❑ Windows7 / Vista / Vista x64 / XP / XP x64

Mac OS X 10.4 ⹜⛑

⣲㣲ᥴ ⣲㣲ᥴ ⣲㣎⹤⸠ ⷼⲦ㷸ရ ≒ၑ㸀 ⡕ ⹱⤄ᜟ᜽ .

⹠㥎㰀⹜⣲ 㛖⹜⏐ DisplayPort, DVI-I, DVI-A, USB

㚹∑ 㶢ᴄ⹜㬅 AG Ⲃ㘱 ᆽᲇ⣲ (㥻㯣Ỵ 㡸ᲇ⣲ )

⹮ᴥ ⻾⯷ 24 VDC

⻾ⶣ ႟Ở VESA DPMS

AC ⱥᝯ㥎⹠ ၑ⵿⸼ ➸␈ ⻾ᴥ

80W(㓾᝝ ) (TBC)

⼂⻾ ΌᥴⲂ✻ 2W⹜㷸 (USB Ⲧ၃ ⯩㸈 )

Ⳣ㶚 ΌᥴⲂ✻ 1W⹜㷸

USB 㹸⏈ ⱷ⣲㬅Ữ :1 ᜽ⶃ⣲㬅Ữ :2(ᓈ⌫ ;1, ⴿ⌫ ;1)

ᵤᥴ ⻾Ṿ :㓾᝝ 0.5A/㱠㬅

1URTG[AVKVNGEQNQTKPFF 

ᦴ⣲㶢ᴄ⹜

ᦴ⣲㶢ᴄ⹜ 㭧ᕍ ␈⼐ヹ ⤺Ở㜺 (a-Si) TFT Ⰶ㭅⏈ Ἔ㬅ở⣲ LCD (A-IPS)

㼕᾽ 㡰ᇵ 24.1 ⹠㘛 (518.4 x 324.0 mm)

㼕᾽␈⸄ 16:10

㼕➸ ⡕ 1920 x 1200

⹮ᴥ ␈ᦴⳢ 㚹ᕆ㥎 DisplayPort, DVI-I (29 㷞)

⹮ᴥ ␈ᦴⳢ ⤶㻵

DisplayPort, 㳝〘 V1.1a 〘⡕ , HDCP Ⲃ㸘ᝓ

DVI 1.0 ᆕြ

⯥ᒰᵤᆵ RGB

㕆ᴥ ␈ᦴⳢ 㚹ᕆ㥎 ␈ᦴⳢ 㕆ᴥ ⱸ⸬

㕆ᴥ ␈ᦴⳢ ⤶㻵

ヱⶣ 㸘⛑ᠺ 1920 x 1200, 1600 x 1200, 1280 x 1024, 1024 x 768, 800 x 600, 640 x 480 㼕➸

↲⛜ 㿲ᠺ ᆙ⹤❑ 75%(㓾➸ )

㼕➸ 㷚㘛 0.270 (H) x 0.270 (V) mm

⊎ᇵ ཿᠺ @ CR>10 ( ⡕㰶 /⡕ヲ ) 178 (89/89) / 178 (89/89) ( ⊎㧡 )

ᦴ⣲㶢ᴄ⹜ ⛜⛑ 1,073,741,824 ⛜⛑ (⚻⵵㷸ᛣ ᦴ⣲㶢ᴄ⹜ 㘹ᥴⲂ ᧒ᱧ ᜽Ắ )

῏⯵ ␈⸄ 700:1(⊎㧡 ) (TBC)

㿲ᠺ 180 cd/m2(⊎㧡 ) (TBC)

⸲ᝏ ⤲ྂ (Tr+Tf) 13ms(⊎㧡 )

OSD ⡕ᡐ ⼗ⱥ

↚ᇵ ,᝝␈ ,㷚㘛 ,⷟⛑ ,⡕ヲ ⷟㘛 ,㩨῏ᠺ ,⹺ᡐ ⽷⼐ ,

⡕㰶 ⷟㘛 ,Ⱪⱥ ,↲ᱧ⹜㬅 ,ᾙᚿ ⷟㘛 ,㒡ᇵ㼕 ,㼕᾽␈⸄ ,

⛜⳦ᠺ(9300K / 6500K / 5000K / ⚻⵵⹺ ❃⼐ /᜽⹜ᴅ㬅 )

㶢᳧ᆵ Ⰹ 㶢ᴄ⹜ DDC 2B, DDC/CI

LCD 㴍ヹ

ཿLCD 㭧ᕍ⸠ Ἔ⵿ Ⱶြ㷼㴍ヹ ᇵ〘Ⲃ ᧒ᱧ ⛱⚿ᢩᜟ᜽ .ᆵ᳧ᒨ 㺹⺚⸼ ⛱⚿ ᇵ⡝ᵤᛣ ⴆ⻾ ₖ၃⼊⸼ TFT

ᦴ⣲㶢ᴄ⹜Ầ ⊎⺐㸀 ⡕ᛣ ⱸ⤄ᜟ᜽ .ⴂ㝆⸠ 㼕➸ཾ 㸎⛑ 䁓⛜⹜࿾ᒨ 㸎⛑ ဎ⼐⛜⸜ᵤ ⷼヱᢗရ 㷸ヱ ⯫⤄

ᜟ᜽ .㛁᳧ ⣲㰁㬅᳷⸼ ⹤⌫⌯Ⲃ ᆶ➸⡕⸼ 㼕➸ཾ ⺂‍ᢛ ⛜⛑⸜ᵤ 㳝⤲ᢟ ⡕ ⹱⤄ᜟ᜽ .⹜ဒ⸠ ᦴ⣲㶢ᴄ⹜

⸼ ၃㸈⸠ ⯥ᜱᜟ᜽ .

1URTG[AVKVNGEQNQTKPFF 

㰄㣎⏐ᴘ

ྎヱ ᇵ⡝ ⻾⹺ᇵ㭣 ႑῏ ྎヱ ᇵ⡝

⹻ⱷⲸⲣ 518.4 x 324.0 mm

㸘⛑ᠺ 0.005 mm / 㱠⹠㬅 (5080 lpi)

⼐ⅻᠺ 叁0.5 mm ( 〪⯻ ), Ⲗヱ Ⲹⲣ 1(ᦴ⣲㶢ᴄ⹜ Ⲹⲣ⸼ Ⲗヱᵤ⌫㥎 20 mm 㱡)叁2.0 mm, Ⲗヱ Ⲹⲣ 2(ᦴ⣲㶢

ᴄ⹜ Ⲹⲣ⸼ Ⲗヱᵤ⌫㥎 3mm㱡)叁4.0 mm

ྎヱ ᗀ⹜ 5mm⹜⛑ (〪⯻ )

⼐ⅻᠺ ⊎デ ᗀ⹜ 㚹∑ 㶢ᴄ⹜㬅Ⲃ✻ 0mm

㓾᝝ ⻾⟎⸄ 133 㱠⹠㬅 /㒡

㓾᝝ 㰄 ᇵⶇᇵ ∡⷟ ⡕ヲ⸜ᵤ 40 ᠺ(㜶ᔨ ⼗ⴿ )

㰄 ᇵⶇᇵ ᴄ∶ 叁 60 ᴄ∶

⯷ᴥ ᴄ∶ 2048 ᴄ∶

㧡⤶ ⹠㥎㰀⹜⣲ USB

⣲㣎⹤᳧⣲ 㰄 KP-501E-01

⻾ⶣ ⱥᝯ㥎

⹮ᴥ ⻾⯷ 100 ~ 240 VAC, 50/60 Hz

㕆ᴥ ⻾⯷ 24 VDC, 5.0 A ( 㓾᝝ )

ᆵỰ㰄KP-501E-01

㰄㒢 ࿾Ở 㓾᝝ 1.0 mm

⯷ᴥ ᴄ∶ 2048 ᴄ∶

ヱ⵿ྞ㒢 ࿾Ở 㓾᝝ 2.0 mm

㡰ᇵ (ᇽ⹜ *ሐ⹜ ) 156.5 x 14.9 mm

〪Ჽ Ⱖ 17 g

1URTG[AVKVNGEQNQTKPFF 

⊒ ⼗㴍 ⚻⵵⹺ ⼐⸼㷸ᇵ

ⴂ㝆㣎⏐ᴘ ⼗ⱥ㭧⸤ Ⲵᜟ᜽ .

Windows – [ ⤲⹻ ]>>[(Ό᥸ )㶚ᵤᆵᲗ ]>>[XXXX]>>[XXXX ᦊᵥ⼐⊎ ]Ầ 㡸ở㸊ᜟ᜽ .

Mac–[⤲⣲㥻㼙ၑ❃⼐ ] >> [XXXX] Ầ ✿㣯㸊ᜟ᜽ .

⛱⚿❑ 㹎⛑⸤ ⷟㸘 ⹝⣲㶚ᴄ⣲ 㢰ⴂ ᴄᦴⱭ ᾙᚿẦ ⚻⵵⹺ ⼐⸼㷸ᛣ ↧∣⸠ ⚻⵵❃῏✻Ầ ㎴⽷㷸⥄⤲Ⳣ .

⊒ ⼗㴍 ᦊᵥ㷸ᇵ

ヱⶣ ⳴❼

⚻⵵❃῏✻⸼ ᇵ⡝ ᖥ㬅 ᫏ᛣ ₚ⼗㸘၃ ⌫⌯⸤ 㼖⹠㷸⥄⤲Ⳣ .

⹺⚻ ⷑ ⚻⹜㬅 (www.wacom.com/product support) Ầ ↧ₚ㷸⥄⤲Ⳣ .

ⴂ㝆 ၻྟ ヱⶣ ❜㥎ᵤ ₚ⸼㷸⥄⤲Ⳣ .⶧ⵟ⹤ -Ὼⵟ⹤⸼ ၑ⵿ Ⳣ⻾ 7:30 ⌫㥎 Ⳣ㾒 5:00 ሓヱ ,ᇅⵟ⹤⸼ ၑ⵿ Ⳣ⻾ 8:30 ⌫㥎 Ⳣ

㾒5:00( 㣮㰶ⰻ ⤲ྂ ᇵ〘 )ሓヱ 360-896-9833 ⸜ᵤ Ⲹⱥ ヱⶣ ✻␈⣲Ầ ↘⸤ ⡕ ⹱⤄ᜟ᜽ .

1URTG[AVKVNGEQNQTKPFF 

䮰ᮐᴀ⫶કⱘ⊼ᛣџ䷙

Փ⫼ℷᐌⱘᭌԡㄚ੠ᴀ⫶કПࠡˈܜᅝ㺱候ࢩ⿟ᓣ䒳储Ǆ

ϟ߫䁾ᯢ㟛ᬃᧈ䊛㿞ᦤկ䮰ᮐᴀ⫶કⱘ䊛㿞Ǆ

䁾ᯢ㟛ᬃᧈ䊛㿞䁾ᯢ

Փ⫼᠟ݞ PDF ᭛ӊ ᅝ㺱њ候ࢩ⿟ᓣ䒳储ᕠˈՓ⫼᠟ݞ᳗ϟ䓝ࠄ䳏㜺Ǆ

䂟গ䮅Փ⫼᠟ݞ՚ⶁ㾷᳈᦯㑰㎮ǃՓ⫼ VESA ᅝ㺱ᑻǃᬙ䱰ᥦ䰸ㄝᆺ⫼䊛㿞Ǆ

䞡㽕⫶ક䊛㿞 PDF ᭛ӊ ᅝ㺱 CD ܻ৿䞡㽕⫶ક䊛㿞Ǆ݊Ёࣙᣀ⊼ᛣџ䷙ǃ⫶ક㽣Ḑঞ݊Ҫ䞡㽕䊛㿞Ǆ

ᖿ䗳ܹ䭔ᣛफ

˄ᴀ᭛ӊ˅ ߫ॄ᭛ӊ ᖿ䗳ܹ䭔ᣛफᦤկᴀ⫶કⱘϔ㠀ὖ䗄ˈࣙᣀབԩՓ⫼⫶કǃབԩ䗷᥹㟇 PC ⱘ䊛㿞Ǆ

•

1URTG[AVKVNGEQNQTKPFF 

ℵ䖢㿞ᙃ

㽾ᛯⱘᅶ᠊ˈ

ᛳ䃱ᙼ䋐䊋ᴀ⫶કǄ

䀅໮ᅶ᠊䁡⚎ᴀ⫶કᇡᦤ催Ꮉ԰ᬜ⥛ঞ⥆প᳈໮ࡉᛣ㟇䮰䞡㽕Ǆ ಴ℸᏆ៤⚎݊Ꮉ԰⌕⿟Ёϡৃ៪㔎ⱘϔ䚼ߚǄ 䴲ᐌᛳ䃱ᙼᇡ៥ץⱘֵӏˈ៥ץᇛ

チⲵܼ࡯⚎ᙼᦤկ᳔ՇࡉᛣᎹ݋Ǆ

ᴀ⫶કܹᏖПࠡˈ៥ץ᳒㟛໮ԡᅶ᠊䴶䂛ˈϺᇛ݊ᓎ䅄㋡ܹᮄ⠜⫶કЁˈࣙᣀ↨㟞ℒ⫶ક᳈໻ⱘሎᇌǃ㾷ᵤᑺঞ㡆ඳǄ

៥ץг⊼ᛣࠄ䀅໮Փ⫼㗙䭋ᰖ䭧Փ⫼ᴀ⫶કˈҹឝᇡ৘ןᇜḜⱘ䰤ᳳˈ಴ℸ仑ফ㙽䝌㚠⮯П㢺Ǆ ᴀ⫶ક᥵⫼Ҏ储Ꮉᅌ䀁㿜ˈ㛑ҹ৘。ϡৠⱘ㾦ᑺ

੠ԡ㕂ᫎᬒ೼Ḡ䴶ϞǄ བԩՓ⫶ક⫼䍋՚᳈㟦䘽ǃ᳈䓩ᵒˈгᰃ៥ץⷨⱐᮄ⫶કⱘЏ㽕Ⳃ῭ПϔǄ

ᴀℒᮄ⫶ક঺᳝໮䷙๲ᔋ੠ᬍ㡃ࡳ㛑Ǆ 䭟ྟՓ⫼Пࠡˈ䂟䮅䅔ᖿ䗳ܹ䭔ᣛफˈܙߚⶁ㾷ᴀ⫶કⱘࡳ㛑Ǆ

៥ץ㟇䁴ᭀ⼱ᙼⱘὁࢭ៤ࡳ䷚߽Ǆ

䃱䃱

⎆᱊ᭌԡᵓ䭟ⱐᇣ㌘

1URTG[AVKVNGEQNQTKPFF 

䱼䰘䜡ӊ

Ϻ䴲᠔᳝ൟ㰳ഛ䰘ᐊ䜡ӊǄ 䂟Ḍᇡ⫶કࣙ㺱Ϟⱘ⏙ஂǄ

䂟গ䮅Փ⫼᠟ݞ՚᳈᦯ㄚᇪ੠ןҎ࣪ᭌԡㄚǄ

བ䳔䮰ᮐᅝ㺱 VESA ᅝ㺱ᑻⱘ䊛㿞ˈ䂟গ䮅Փ⫼᠟ݞǄ

1URTG[AVKVNGEQNQTKPFF 

䗷᥹⎆᱊ᭌԡᵓ

1䮰䭝䳏㜺䳏⑤Ǆ

2ᇛDVI-D 㑰㎮៪ DisplayPort 㑰㎮䗷᥹㟇䳏㜺Ϟᇡឝⱘ䗷᥹丁Ǆ 䂟⊼ᛣ˖DisplayPort 㑰㎮䱼䰘೼㝇ᑻܻǄ བ䳔䁾ᯢˈ䂟গ䮅ϟ߫䷕䴶Ǆ

Ѻৃ⫼䱼䰘ⱘ DVI-I 䔝VGA 㑰㎮䘆㸠䗷᥹Ǆ བ䳔䁇㌄䊛㿞ˈ䂟গ䮅Փ⫼᠟ݞǄ

1URTG[AVKVNGEQNQTKPFF 

㢹Փ⫼ DisplayPort 㑰㎮ˈ䂟ձ೪᠔⼎ˈᇛ݊ᕲ㝇ᑻপϟǄ

3ᇛUSB 䗷᥹丁ᦦܹ䳏㜺៪䗷᥹㟇䳏㜺ⱘ USB 䲚㎮఼Ϟⱘৃ⫼ USB පǄ

1URTG[AVKVNGEQNQTKPFF 

4ᇛ䳏⑤㎮ᦦܹ䳏⑤䅞ວ఼ˈݡᦦܹ AC 䳏⑤ᦦᑻǄ

1URTG[AVKVNGEQNQTKPFF 

5䭟ଳ⎆᱊ᭌԡᵓǄ 䳏⑤ᣛ⼎➜ᕲ‭㡆䅞⚎㮡㡆Ǆ

6䭟ଳ䳏㜺䳏⑤Ǆ

བᵰ䗷᥹њ DVI-I 䔝VGA 㑰㎮ˈ䂟ᣝ✻乃⼎఼ⱘ乃⼎䂓ᭈ㡆ᔽ㾷ᵤᑺঞሎᇌ䀁ᅮǄ

✊ᕠˈ䭟ଳ䙌ஂ㵶ᐩˈ䙌᪛ [㵶ᐩ䀁ᅮ ]>[㞾ࢩ䂓ᭈ ]Ǆ

བ䳔䮰ᮐ䭟ଳ䙌ஂ㵶ᐩⱘ䊛㿞ˈ䂟গ䮅Փ⫼᠟ݞǄ

1URTG[AVKVNGEQNQTKPFF 

ᅝ㺱ᭌԡᵓ候ࢩ⿟ᓣ

䂟܆ᄬᙼⱘᎹ԰Ϻ䮰䭝᠔᳝䭟ଳⱘឝ⫼⿟ᓣǄ

1ᦦܹᴀ⫶કⱘᅝ㺱 CDǄ 㢹᳾㞾ࢩ乃⼎䒳储ᅝ㺱⿟ᓣ䙌ஂˈ䂟ᣝܽϟ CD Ϟⱘ [ᅝ㺱 ]೪⼎Ǆ

2೼乃⼎ⱘᇡ䁅ᮍพЁˈᣝϔϟ [ᅝ㺱ᭌԡᵓ ]ˈ✊ᕠḍ᪮ᦤ⼎᪡԰Ǆ

ᅝ㺱њ候ࢩ⿟ᓣ䒳储ᕠˈՓ⫼᠟ݞ᳗ϟ䓝ࠄ䳏㜺Ǆ

ᣝϔϟᇡ䁅ᮍพЁⱘ [䞡㽕⫶ક䊛㿞 ]ҹ⁶㽪ᴀ⫶કⱘ䞡㽕⫶ક䊛㿞Ǆ

݊Ёࣙᣀ⫶કᅝܼ⊼ᛣџ䷙ǃ㽣Ḑঞ݊Ҫ䞡㽕䊛㿞Ǆ

1URTG[AVKVNGEQNQTKPFF 

᷵ℷ⎆᱊ᭌԡᵓ

⚎⥆ᕫ᳔Շᬜ㛑ˈᙼᖙ䷜᷵ℷ⎆᱊ᭌԡᵓˈ䅧㵶ᐩ␌῭㟛乃⼎఼㵶ᐩϞⱘᭌԡㄚԡ㕂ᇡ唞Ǆ 㢹㽕䂓ᭈ㽪Ꮒˈህᖙ䷜䘆㸠ℸࢩ԰Ǆ 䂟ᇛ⎆᱊ᭌԡᵓᬒ

೼Ꮉ԰ԡ㕂ˈ✊ᕠձ✻ҹϟ⿟ᑣ䘆㸠Ǆ

1䭟ଳᭌԡᵓ᥻ࠊৄǄ

䂟গ䮅㄀ 18 ䷕Ǆ

2ᣝϔϟ [ԡ㕂䂓ᭈ ]῭㈸Ǆ

3ᣝϔϟ [᷵ℷ ...]Ǆ

1URTG[AVKVNGEQNQTKPFF 

4ᕲᎺϞ㾦ᣝ✻ (1) > (2) > (3) > (4) ⱘ䷚ᑣˈ⫼ᭌԡㄚᣝϔϟ㵶ᐩϞकᄫ῭㿬ⱘЁᖗǄ

कᄫ῭㿬⍜༅ᕠˈԡ㕂䂓ᭈᅠ៤Ǆ

Փ⫼ Windows ㋏㍅ᰖˈᣝϔϟ [⺎ᅮ ]˄៪ [܆ᄬ ]˅ˈ೼܆ᄬ䂓ᭈܻᆍᕠ䮰䭝᥻ࠊৄǄ

•

1URTG[AVKVNGEQNQTKPFF 

䂓ᭈ⎆᱊ᭌԡᵓڒ᭰⿟ᑺ

⫼䂓ᭈṓՓᭌԡᵓࠡڒǄ

⫼䂓ᭈṓՓᭌԡᵓᕠڒǄ

ৃ⫼Ϟ /ϟ䂓ᭈṓ䂓ᭈᭌԡᵓⱘ㾦ᑺǄ

1URTG[AVKVNGEQNQTKPFF 

ᇛ⎆᱊ᭌԡᵓ䂓ᭈࠄ䘽⭊ԡ㕂

⎆᱊ᭌԡᵓৃ䂓ᭈࠄ㟛Ꮉ԰䴶ᑒТᑇ㸠ⱘ㾦ᑺǄ

⎆᱊ᭌԡᵓৃ䂓ᭈࠄԢᮐḠ䴶䙞㎷ⱘԡ㕂ˈҹ֓ᬒ೼㝱䚼Ϟ䘆㸠ࡉ԰Ǆ བ䳔㌄㆔䊛㿞ˈ䂟গ䮅㄀ 14 ䷕Ǆ

1URTG[AVKVNGEQNQTKPFF 

ᇛᑩ㎷ⱘᬃ㝇৥ϟᡬᑇˈҹ֓ᇛ䥉Ⲹᬒ೼ϟᮍǄ

⎆᱊ᭌԡᵓৃ⭊԰乃⼎఼˄ൖⳈᫎᬒ˅՚Փ⫼Ǆ

1URTG[AVKVNGEQNQTKPFF 

ᇛ⎆᱊ᭌԡᵓ㕂ᮐ㝱䚼Ϟ

1ᇛᭌԡᵓ㕂ᮐ∈ᑇԡ㕂Ǆ

1URTG[AVKVNGEQNQTKPFF 

2ᇛᭌԡᵓ৥ࠡᢝߎḠ䴶៪Ⳉࠄᭌԡᵓ䥪ᅮࠄԡǄ˄ᭌԡᵓᑩᑻ᳝‵㝴๞⠛ˈկḠ䴶೎㨫ҹ䰆⒥ࢩǄ˅

3ᖙ㽕ᰖ⫼ڒ᭰ṓ䂓ᭈ㾦ᑺǄ

1URTG[AVKVNGEQNQTKPFF 

ⶁ㾷⎆᱊ᭌԡᵓ

1. ڒ᭰ṓ

2. 㿌᥻⪄

ḍ᪮䷤䀁ˈ㿌᥻⪄೼໻໮ᭌ೪ᔶឝ⫼⿟ᓣЁ⫼ᮐ㐂ᬒ⬿䴶ˈ㗠೼݊Ҫឝ

⫼⿟ᓣЁ⫼ᮐ᥆ࢩ⬿䴶Ǆ ᣝϟ῵ᓣᣝ䟩ˈ೼ϝ。ৃ㞾㿖⢔ᜟП䭧ߛ᦯Ǆ

3. ᖿ䗳䥉

⫼ᮐ῵ᫀ㎼䔃఼ᣝ䥉ǃ䥉Ⲹঞ݊Ҫᐌ⫼ࡳ㛑Ǆ

4. OSD ᣝ䟩

⫼ᮐ䂓ᭈ৘。乃⼎఼䀁ᅮǄ

5. 䳏⑤ᣛ⼎➜

6. ⢔ᜟᣛ⼎➜

བ䳔䮰ᮐ䗭ѯঞ݊Ҫࡳ㛑ⱘ㌄㆔䊛㿞ˈ䂟গ䮅Փ⫼᠟ݞǄ

1URTG[AVKVNGEQNQTKPFF 

7. ᬃᩤ㝇

8. 䳏⑤䭟䮰

9. VESA ᅝ㺱ᑻᄨ

10. 䳏⑤㎮

11. DVI 㑰㎮

12. USB 㑰㎮

13. 㝇ᑻ䥪ᅮ䞟ᬒṓ

1URTG[AVKVNGEQNQTKPFF 

⫶ક㽣Ḑ

ϔ㠀㽣Ḑ

ൟ㰳 /ક⠠ DTK-2400˄ҷ⺐ৡ々˖Osprey˅ڙ䰤ᭌԡㄚ″ൟ

ሎᇌ˄ᇀ x䭋x催˅ 769.3 x 463.74 x 64 ݀䞤˄ϡ৿㝇ᑻ˅

䞡䞣 ″䑿˖10.0 kgˈᭌԡᵓ㝇ᑻ˖14.0 kg˄᳾ᅠ៤˅

᪡԰⑿ᑺঞ▩ᑺ ⑿ᑺ˖5̚35 °Cˈ▩ᑺ˖20%̚80%RH˄᳾ޱ㌤˅

ᄬᬒ⑿ᑺঞ▩ᑺ ⑿ᑺ˖-10 ̚60 °Cˈ▩ᑺ˖20%̚90%RH˄᳾ޱ㌤˅

˄᳔໻ᄬᬒ▩ᑺ೼⑿ᑺ 60 °Cᰖ⚎ 38 %ˈ᳔໻ᄬᬒ⑿ᑺ೼▩ᑺ 90%ᰖ⚎ 42 °C˅

䄝᳌㟛㽣㆘ VCCI Class B, FCC Part15 Subpart B(class B) and C, CE, KCC, BSMI, C-tick

CB, CCC, GOST-R, China RoHS, Korean RoHS, EU RoHS

Ⳍᆍᗻ Windows7 / Vista / Vista x64 / XP / XP x64

Mac OS X 10.4 ៪ҹϞ⠜ᴀ

㝇ᑻ 㝇ᑻῷᓣৃҹ䴜⌏䂓ᭈǄ

ҟ䴶㑰㎮ DisplayPort, DVI-D, DVI-A, USB

㪟ᵓ AG 㴩ࠏ⦏⩗˄ෙ೎⦏⩗˅

䔌ܹ䳏ວ 24 VDC

䳏⑤ㅵ⧚ VESA DPMS

䳏⑤⍜㗫˄Փ⫼ AC 䅞ວ఼˅

80 W˄᳔໻˅˄᳾ᅠ៤˅

2W៪ҹϟ˄ⴵ⳴῵ᓣ˅˄᳾䗷᥹ USB˅

1W៪ҹϟ˄䮰″῵ᓣ˅

USB 䲚㎮఼ Ϟ␌˖1ϟ␌˖2˄ܻ䚼˗1ˈ໪䚼˗1˅

↣ප䉴䓝䳏⌕᳔໻ 0.5AǄ

1URTG[AVKVNGEQNQTKPFF 

乃⼎఼

乃⼎఼䴶ᵓ a-Si Џࢩᓣⶽ䰷 TFT LCD (A-IPS)

㵶ᐩሎᇌ 24.1 㣅য়˄518.4 x 324.0 ݀䞤˅

䭋ᇀ↨ 16:10

ڣ㋴ 1920 x 1200

䔌ܹ㽪㿞᥹丁 DisplayPortǃDVI-I˄29 䞱˅

䔌ܹ㽪㿞㿞㰳

DisplayPort ヺড় V1.1a ῭⑪ˈ䘽⫼ᮐ HDCP

DVI 1.0 㽣㆘

串↨ RGB

䔌ߎ㽪㿞᥹丁 ⛵㽪㿞䔌ߎ

䔌ߎ㽪㿞㿞㰳

ᬃᧈⱘ㾷ᵤᑺ 1920 x 1200ǃ1600 x 1200ǃ1280 x 1024ǃ1024 x 768ǃ800x600ǃ640 x 480 ڣ㋴

ⱑ⬿䴶ഛ࣏ᑺ 75 %˄᳔ᇣ˅

ڣ㋴咲䭧䎱 0.270˄∈ᑇ˅x 0.270˄ൖⳈ˅݀䞤

⁶㽪㾦ᑺ @ CR>10˄∈ᑇ /ൖⳈ˅ 178(89/89) / 178(89/89)˄῭⑪˅

乃⼎㡆ᔽ 1,073,741,824 㡆˄㽪᠔⫼ⱘ乃⼎व㗠ᅮǄ˅

ᇡ↨ 700:1˄῭⑪˅˄᳾ᅠ៤˅

҂ᑺ 180 cd/m2˄῭⑪˅˄᳾ᅠ៤˅

ಲឝᰖ䭧˄Tr+Tf˅13 ↿⾦˄῭⑪˅

OSD ᠟ࢩ᥻ࠊ

҂ᑺǃᇡ↨ǃ咲䭧䎱ǃ咲ⳌԡǃൖⳈԡ㕂ǃ䗣ᯢᑺǃ㞾ࢩ䂓ᭈǃ

∈ᑇԡ㕂ǃ䁲㿔ǃ㚠ܝǃ䙌ஂԡ㕂ǃ䞡㕂ǃ乃⼎῵ᓣǃ

㡆⑿˄9300K/6500K/5000K/ Փ⫼㗙㞾㿖 /ॳ㡆⑿˅

䱼ᦦे⫼ DDC 2B, DDC/CI

LCD ક䊾 ↣⠛ LCD 䴶ᵓഛҹ䴲ᐌಈḐⱘક䊾῭⑪⫳⫶㻑䗴ǄԚ⫳⫶ᡔ㸧⛵⊩ֱ䄝 TFT 乃⼎఼㌩ᇡᅠ㕢⛵⨩Ǆ Wacom

ϡܕ䀅䴶ᵓϞߎ⧒҂咲៪ᱫ咲Ǆ೼㡆ᔽ丏䄰ⱘᶤѯ䚼ߚܕ䀅ᇥ䀅ڣ㋴乃⼎䤃䁸Ǆ䗭Ϻϡҷ㸼乃⼎఼ᬙ䱰Ǆ

1URTG[AVKVNGEQNQTKPFF 

ᭌԡᵓ

䅔পᡔ㸧䳏⺕݅ᤃᡔ㸧

Ꮉ԰औ 518.4 x 324.0 ݀䞤

㾷ᵤᑺ 0.005 ݀䞤 /咲˄5080 lpi˅

㊒⺎ᑺ f0.5 ݀䞤˄Ё༂˅ǃ䙞㎷औ 1˄ᕲ乃⼎औ䙞㎷ㅫ䍋 20 ݀䞤˅f 2.0 ݀䞤ˈ䙞㎷औ 2˄ᕲ乃⼎औ䙞㎷ㅫ䍋 3݀䞤˅

f4.0 ݀䞤

䅔প催ᑺ 5݀䞤៪ҹϞ˄Ё༂˅

㊒⺎ᛳឝ催ᑺ 䎱㪟ᵓ 0݀䞤

᳔໻䅔প䗳⥛ 133 咲/⾦

ᭌԡㄚ᳔໻ڒ᭰㆘ೡ 䎱ൖⳈ㎮ 40 ᑺ˄㾦㨑䰸໪˅

ᭌԡㄚڒ᭰㋮ᭌ f 60 ㋮

ວ࡯ᛳឝ㋮ᭌ 2048 ㋮

䗮㿞ҟ䴶 USB

㿌᥻ㄚ KP-501E-01

䳏⑤䅞ວ఼

䔌ܹ䳏ວ 100 ̚240 VACǃ50/60Hz

䔌ߎ䳏ວ 24 VDCǃ5.0 A˄᳔໻˅

ວᛳㄚ KP-501E-01

ㄚᇪ䘟㸠䒠䎵 ᳔໻ 1.0 ݀䞤

ວ࡯ᛳឝ㋮ᭌ 2048 ㋮

‵Ⲃ᪺ッ䘟㸠䒠䎵 ᳔໻ 2.0 ݀䞤

໪ᔶሎᇌ˄䭋 xⳈᕥ˅ 156.5 x 14.9 ݀䞤

䞡䞣 17 ܟˈ䖥Ԑؐ

1URTG[AVKVNGEQNQTKPFF 

㞾㿖⎆᱊ᭌԡᵓ

䭟ଳ Wacom ᭌԡᵓ᥻ࠊৄ˖

Windows – ᣝϔϟ [䭟ྟ ]>> [ ⿟ᓣ䲚˄᠔᳝⿟ᓣ˅]>>[XXXX]>>[XXXX ቀᗻ ]Ǆ

Mac – ᠧ䭟 [㋏㍅أད ]>>䙌প [XXXX]Ǆ

䂟গ䮅Փ⫼᠟ݞ՚ᅌ㖦བԩ㞾㿖ᖿ䗳䥉ঞ䔏ᇘᓣ䙌ஂˈҹ๲ᔋ⫶કᗻ㛑Ǆ

䀏ݞ⎆᱊ᭌԡᵓ

ᬃᧈ䙌䷙

䂟ḌᇡՓ⫼᠟ݞܻⱘᡔ㸧㽕咲៪ᬙ䱰ᥦ䰸Ǆ

䂟䗴㿾˖www.wacom.com/product support

䂟㟈䳏 Wacom ᅶ᠊᳡ࢭЁᖗ˖↣䘅ϔ㟇䘅ಯϞज 7:30 㟇ϟज 5:00ˈ

↣䘅ѨϞज 8:30 㟇ϟज 5:00˄໾ᑇ⋟ᰖ䭧˅ˈ䳏䁅 360-896-9833Ǆ˄᳡ࢭ䁲㿔˖㣅䁲˅

1URTG[AVKVNGEQNQTKPFF 

ѻકՓ⫼⊼ᛣџ乍

䇋Ўℷ⹂ⱘヨ੠ᴀѻકᅝ㺙偅ࡼ⿟ᑣ䕃ӊǄ

ҹϟᐂࡽ੠ᬃᣕֵᙃᦤկ᳝݇ᴀѻકⱘⳌֵ݇ᙃǄ

ᐂࡽ੠ᬃᣕֵᙃ ᦣ䗄

⫼᠋᠟ݠ PDF ᭛ḷ ⫼᠋᠟ݠӮ೼ᅝ㺙偅ࡼ⿟ᑣ䕃ӊᯊϟ䕑ࠄᙼⱘ⬉㛥Ǆ

䇋খ㗗⫼᠋᠟ݠҹњ㾷᳝⫼ⱘֵᙃ˄བ᳈ᤶ⬉㓚ǃՓ⫼ VESA ᑩᑻǃ⭥䲒㾷ㄨㄝㄝ˅Ǆ

䞡㽕ⱘѻકֵᙃ PDF ᭛ḷ 䞡㽕ⱘѻકֵᙃࣙ৿Ѣᅝ㺙ܝⲬЁǄ݊Џ㽕ࣙᣀ⊼ᛣџ乍ǃѻક㾘Ḑҹঞ݊Ҫ䞡㽕ֵᙃǄ

ᖿ䗳ܹ䮼ᣛफ

˄ᴀ᭛ḷ˅ ॄࠊⱘ᭛ḷ ᖿ䗳ܹ䮼ᣛफᦤկᴀѻકⱘϔ㠀ὖ䗄ˈࣙᣀ՟བབԩՓ⫼ѻકҹঞབԩᇚ݊䖲᥹ࠄ⬉㛥ⱘֵᙃǄ

•

1URTG[AVKVNGEQNQTKPFF 

⃶䖢ֵᙃ

ᇞᭀⱘ⫼᠋ˈ

ᛳ䇶ᙼ䌁фᴀℒ⎆᱊᭄ԡᵓǄ

ḍ᥂ӫ໮⫼᠋ⱘড作ˈᴀѻક᮴䆎೼݊᮹ᐌᎹ԰䖬ᰃ߯ᛣ⫳⌏Ё䛑থ᣹њⳌᔧ䞡㽕ⱘ԰⫼ǄᇍѢҪӀᴹ䇈ˈᴀѻકᏆ㒣៤Ў݊Ꮉ԰⫳⌏ⱘ䞡㽕㒘៤

䚼ߚǄ៥Ӏᇍᙼⱘֵӏ⏅㸼ᛳ▔ˈᑊᇚࡾ࡯Ўᙼᦤկ᳔Շⱘ߯԰Ꮉ݋Ǆ

೼ᇚᴀℒ᳔ᮄѻકᡩᬒᏖഎПࠡˈ៥Ӏ䖯㸠њ໻䞣ⱘᏖഎ䇗ⷨᎹ԰ᑊ䅸ⳳ໘⧚њড作ᛣ㾕Ǆ՟བˈ៥Ӏ೼Пࠡѻકൟোⱘ෎⸔Ϟ๲໻њѻકሎᇌǃ

ߚ䕼⥛ҹঞ㡆ඳǄ

៥Ӏ䖬⊼ᛣࠄˈ᳝ᕜ໻ϔ䚼ߚ⫼᠋ᐌᐌӮ೼ϔ໽Ё㢅䌍໻䞣ᯊ䯈੠㊒࡯䕫䕀Ѣ໮Ͼ乍ⳂП䯈࡯∖ᅠ៤䰤ᳳⱘӏࡵǄ݊Ёህ᳝ϔ䚼ߚ⫼᠋Ӯ಴ℸ㗠ᛳ

ࠄ䑿ԧϡ䗖Ǆ಴ℸˈ៥Ӏᇍᴀℒѻક䖯㸠њᎹ԰ᅮԡⱘҎԧᎹ⿟ᄺ䆒䅵ˈ䅽⫼᠋㛑໳᳈Ў♉⌏ഄՓ⫼ᴀѻકǄ៥ӀⱘᅫᮼПϔህᰃ㽕Ў⫼᠋ᦤկ㟦

䗖ᯧ⫼ⱘѻકǄ

೼ᴀℒ᳔ᮄѻકЁˈ䖬ࣙ৿њ䆌໮݊Ҫ๲ᔎ੠ᬍ䖯ݙᆍǄ៥Ӏᓎ䆂ᙼ䯙䇏˄៪㗙ᖿ䗳⌣㾜˅ᴀᖿ䗳ܹ䮼ᣛफˈҹ֓ܙߚ߽⫼ᴀѻકⱘ৘乍ࡳ㛑Ǆ

៥Ӏ⼱ᜓᙼⱘ৘乍߯԰џϮ೚⒵៤ࡳǄ

䇼Ϟ

ѻકⷨথಶ䯳

1URTG[AVKVNGEQNQTKPFF 

䱣䰘䜡ӊ

ᑊ䴲᠔᳝ൟো䛑䰘ᏺ䜡ӊǄ䇋Ẕᶹѻકࣙ㺙Ϟⱘ᠔߫ݙᆍǄ

䇋খ㗗⫼᠋᠟ݠ᳈ᤶヨᇪ੠ᇍヨ䖯㸠Ͼᗻ࣪䆒㕂Ǆ

᳝݇ᅝ㺙 VESA ᑩᑻⱘֵᙃˈ䇋খ㗗⫼᠋᠟ݠǄ

1URTG[AVKVNGEQNQTKPFF 

䖲᥹ѻક

1݇䯁⬉㛥Ǆ

2ᇚDVI-D ⬉㓚៪ DisplayPort ⬉㓚䖲᥹ࠄ⬉㛥Ϟⱘᇍᑨ᥹ষǄ䇋⊼ᛣˈDisplayPort ⬉㓚ߎॖᯊ䱣䰘೼෎ᑻݙǄ᳝݇䇈ᯢ䇋খ㗗ϟϔ义Ǆ

гৃҹՓ⫼䰘ᏺⱘ DVI-I 䕀VGA ⬉㓚䖯㸠䖲᥹Ǆ᳝݇᳈໮ֵᙃˈ䇋খ㗗⫼᠋᠟ݠǄ

1URTG[AVKVNGEQNQTKPFF 

Փ⫼ DisplayPort ⬉㓚ᯊˈ䇋བ೒᠔⼎ᇚ݊Ң෎ᑻݙপߎǄ

3ᇚUSB ᥹༈ᦦܹࠄ⬉㛥៪䖲᥹㟇⬉㛥ⱘ USB 䲚㒓఼Ϟৃ⫼ⱘ USB ッষǄ

1URTG[AVKVNGEQNQTKPFF 

4ᇚ⬉⑤㒓ᦦܹࠄ⬉⑤䗖䜡఼Ёˈ✊ৢᇚ݊ᦦܹࠄ AC ᦦᑻЁǄ

1URTG[AVKVNGEQNQTKPFF 

5ᠧᓔᴀѻકǄ⬉⑤ᣛ⼎♃ᇚҢ‭㡆বЎ㪱㡆Ǆ

6ᠧᓔ⬉㛥Ǆ

བᵰ䖲᥹њ DVI-I 䕀VGA ⬉㓚ˈ㾖ⳟᰒ⼎఼ᯊ䇋䜡㕂买㡆ߚ䕼⥛੠ሎᇌ䆒㕂Ǆ

✊ৢˈᠧᓔ㦰ऩሣᐩˈᑊ䗝ᢽ˷ሣᐩ䆒㕂˹>˷㞾ࡼ䇗㡖˹Ǆ

᳝݇བԩᠧᓔ㦰ऩሣᐩⱘֵᙃˈ䇋খ㗗⫼᠋᠟ݠǄ

1URTG[AVKVNGEQNQTKPFF 

ᅝ㺙᭄ԡᵓ偅ࡼ⿟ᑣ

ֱᄬᎹ԰ᑊ݇䯁᠔᳝ᠧᓔⱘᑨ⫼⿟ᑣǄ

1ᦦܹѻકᅝ㺙ܝⲬǄབᵰ≵᳝㞾ࡼᰒ⼎䕃ӊᅝ㺙⿟ᑣ㦰ऩˈ䇋ঠߏܝⲬϞⱘĀᅝ㺙ā೒ᷛǄ

2೼ᰒ⼎ⱘᇍ䆱ḚЁˈ⚍ߏĀᅝ㺙᭄ԡᵓāˈ✊ৢᣝ✻ᦤ⼎䖯㸠ᅝ㺙Ǆ

⫼᠋᠟ݠӮ೼ᅝ㺙偅ࡼ⿟ᑣ䕃ӊᯊϟ䕑ࠄᙼⱘ⬉㛥Ǆ

⚍ߏᇍ䆱ḚЁⱘĀ䞡㽕ⱘѻકֵᙃā㦰ऩˈҹᶹⳟᴀѻકⱘ䞡㽕ⱘѻકֵᙃᣛफǄ

݊Џ㽕ࣙᣀѻકᅝܼ⊼ᛣџ乍ǃ㾘Ḑҹঞ݊Ҫ䞡㽕ֵᙃǄ

1URTG[AVKVNGEQNQTKPFF 

᷵ℷѻક

Ў㦋ᕫѻકⱘ᳔Շᗻ㛑ˈᙼᖙ乏ᇍᴀѻક䖯㸠᷵ℷˈՓሣᐩܝᷛϢᰒ⼎ሣᐩϞヨⱘԡ㕂ᇍޚǄ㸹ٓ㾖ⳟ㾦ᑺঞ䇗㡖㡆Ꮒ䳔㽕ℸ乍᷵ℷǄ䇋ᇚ⎆᱊᭄ԡ

ᵓ㕂Ѣ԰Ϯԡ㕂ˈ✊ৢ䙉ᕾҹϟݙᆍ᪡԰Ǆ

1ᠧᓔ᭄ԡᵓⱘ᥻ࠊ䴶ᵓǄ

খ㗗㄀ 18 义Ǆ

2⚍ߏ˷ԡ㕂䇗ᭈ˹䗝乍वǄ

3⚍ߏ˷᷵ℷ ...˹Ǆ

1URTG[AVKVNGEQNQTKPFF 

4ҢᎺϞ㾦ᓔྟˈᣝ✻ (1) > (2) > (3) > (4) ⱘ乎ᑣ⫼ヨ⚍ߏሣᐩϞकᄫᷛ䆄ⱘЁᖗǄ

कᄫᷛ䆄⍜༅ᯊ㸼⼎ԡ㕂䇗ᭈᅠ៤Ǆ

Փ⫼ Windows ᯊˈ೼ֱᄬ䇗ᭈݙᆍৢ⚍ߏ˷⹂ᅮ˹˄៪˷ֱᄬ˹˅ˈ✊ৢ݇䯁᥻ࠊ䴶ᵓǄ

•

1URTG[AVKVNGEQNQTKPFF 

᳈ᬍѻકⱘ㾦ᑺ

Փ⫼䇗ᭈᴚ৥ࠡؒ᭰ᰒ⼎ሣǄ

Փ⫼䇗ᭈᴚ৥ৢؒ᭰ᰒ⼎ሣǄ

ৃҹՓ⫼Ϟ䚼៪ϟ䚼䇗ᭈᴚ᳈ᬍᰒ⼎ሣⱘ㾦ᑺǄ

1URTG[AVKVNGEQNQTKPFF 

ᇚѻક䇗ᭈࠄ㟦䗖ⱘԡ㕂

޴Тৃҹᇚᴀѻકᑇᬒ೼Ḡ䴶ϞՓ⫼Ǆ

䖯㸠໻䞣ᆚ䲚ⱘ߯԰Ꮉ԰ᯊˈৃҹᇚᴀѻકҢḠ䴶Ϟপϟᑊᬒࠄ㝓ϞՓ⫼Ǆ᳝݇䆺㒚ֵᙃˈ䇋খ㗗㄀ 14 义Ǆ

1URTG[AVKVNGEQNQTKPFF 

৥ϟ㗏䕀ᑩ䖍Ϟⱘᬃ㛮ህৃҹ೼᭄ԡᵓⱘϟᮍᬒ㕂䬂ⲬǄ

ৃҹᇚᴀѻક⫼԰ൖⳈⳈゟⱘᰒ⼎఼Ǆ

1URTG[AVKVNGEQNQTKPFF 

䆒㕂ѻકҹ֓೼㝓ϞՓ⫼

1ᇚᰒ⼎ሣ㕂Ѣ∈ᑇԡ㕂Ǆ

1URTG[AVKVNGEQNQTKPFF 

2ᇚᰒ⼎ሣᳱ㞾䑿ᮍ৥ᢝࡼˈⳈ㟇݊䍞䖛Ḡ䴶៪㗙ᙼᛳ㾝݊䫕ᅮࠄԡЎℶǄ˄ѻકᑩᑻϞᏺ᳝‵㛊ൿ⫼Ѣᡧ⠶Ḡ䴶ᑊ䰆ℶᰒ

⼎ሣ⒥ߎᅝܼԡ㕂Ǆ˅

3Փ⫼ؒ᭰ᑺ䇗ᭈᴚ䇗㡖᠔䳔ⱘ㾦ᑺǄ

1URTG[AVKVNGEQNQTKPFF 

ѻકὖ䗄

1. ؒ᭰ᑺ䇗ᭈᴚ

2. 㾺᥻⦃

咬䅸ᚙމϟˈ㾺᥻⦃ৃҹ䅽ᙼᬒ໻໻䚼ߚⱘ೒ᔶᑨ⫼⿟ᑣˈᑊ೼݊Ҫᑨ

⫼⿟ᑣЁ䖯㸠⒮ࡼǄᣝ῵ᓣᣝ䪂ৃҹ೼ϝ⾡ৃ㞾ᅮНⱘ⢊ᗕ䯈ߛᤶǄ

3. ExpressKeys

䖭ѯᣝ䬂ৃҹ῵ᢳׂᬍ䬂ǃᣝ䬂᪡԰੠݊Ҫᐌ⫼ࡳ㛑Ǆ

4. OSD ᣝ䪂

Փ⫼䖭ѯᣝ䪂ৃҹ䇗ᭈ৘⾡ᰒ⼎䆒㕂Ǆ

5. ⬉⑤ᣛ⼎♃

6. ⢊ᗕᣛ⼎♃

᳝݇䖭ѯҹঞ݊Ҫࡳ㛑ⱘ䆺㒚ֵᙃˈ䇋খ㗗⫼᠋᠟ݠǄ

1URTG[AVKVNGEQNQTKPFF 

7. ᬃᩥ㝓

8. ⬉⑤ᓔ݇

9. VESA ᑩᑻᅝ㺙ᄨ

10. ⬉⑤㒓

11. DVI ⬉㓚

12. USB ⬉㓚

13. ෎ᑻ䫕ᅮ䞞ᬒᴚ

1URTG[AVKVNGEQNQTKPFF 

ѻક㾘Ḑ

ϔ㠀㾘Ḑ

ൟো /ક⠠ DTK-2400˄ҷো˖Osprey˅ヨ᪡԰ൟো

⠽⧚ሎᇌ˄ᆑ x⏅x催˅ 769.3 x 463.74 x 64 mm˄ϡࣙᣀ෎ᑻ˅

䞡䞣 Џᴎ˖10.0 गܟˈ᭄ԡᵓ෎ᑻ˖14.0 गܟ˄ᕙᅮ˅

Ꮉ԰⏽ᑺঞ⑓ᑺ 5̚35 °Cˈ⑓ᑺ˖20 ̚80%Ⳍᇍ⑓ᑺ˄᮴㒧䴆˅

ᄬᬒ⏽ᑺঞ⑓ᑺ -10 ̚60 °Cˈ⑓ᑺ˖20 ̚90%Ⳍᇍ⑓ᑺ˄᮴㒧䴆˅

˄⏽ᑺЎ 60 °Cᯊ᳔催ᄬᬒ⑓ᑺЎ 38 %ˈ⑓ᑺЎ 90%ᯊ᳔催ᄬᬒ⏽ᑺЎ 42 °CǄ˅

䆕к੠ヺড়ᗻ VCCI Class B, FCC Part15 Subpart B(class B) and C, CE, KCC, BSMI, C-tick

CB, CCC, GOST-R, China RoHS, Korean RoHS, EU RoHS

ݐᆍᗻ Windows7 / Vista / Vista x64 / XP / XP x64

Mac OS X 10.4 ៪᳈催⠜ᴀ

෎ᑻ ৃҹ♉⌏ᬍব෎ᑻᓣḋǄ

᥹ষ⬉㓚 DisplayPortǃDVI-DǃDVI-AǃUSB

Ⲫᵓ AG 㱔ࠏ⦏⩗˄䩶࣪⦏⩗˅

䕧ܹ⬉य़ 24 ӣǃⳈ⌕

⬉⑤ㅵ⧚ VESA DPMS

ࡳ㗫˄Փ⫼ AC 䗖䜡఼ᯊ˅

80 W˄᳔催˅˄ᕙᅮ˅

ӥ⳴῵ᓣЎ 2W៪᳈Ԣ˄᳾䖲᥹ USB˅

݇ᴎ῵ᓣЎ 1W៪᳈Ԣ

USB 䲚㒓఼ Ϟ㸠˖1ϟ㸠˖2˄ݙ䚼˗ 1, ໪䚼˗ 1˅

↣Ͼッষⱘ䋳䕑⬉⌕᳔໻Ў 0.5AǄ

1URTG[AVKVNGEQNQTKPFF 

ᰒ⼎ሣ

ᰒ⼎ሣ a-Si TFT ᳝⑤ⶽ䰉 LCD (A-IPS)

ሣᐩሎᇌ 24.1 㣅ᇌ (518.4 x 324.0 mm)

ᆑ催↨ 16:10

ڣ㋴᭄ 1920 x 1200

䕧ܹ㾚乥᥹ষ DisplayPortǃDVI-I (29 pin)

䕧ܹ㾚乥ֵো

DisplayPort ヺড় V1.1a ᷛޚˈ䗖⫼Ѣ HDCP

ヺড় DVI 1.0 ᷛޚ

῵ᢳ RGB

䕧ߎ㾚乥᥹ষ ᮴㾚乥䕧ߎ

䕧ߎ㾚乥ֵো

ᬃᣕⱘߚ䕼⥛ 1920 x 1200ǃ1600 x 1200ǃ1280 x 1024ǃ1024 x 768ǃ800x600ǃ640 x 480 ڣ㋴

ⱑ҂ᑺഛࣔᑺ 75 %˄᳔ᇣ˅

ڣ㋴⚍䎱 0.270˄∈ᑇ˅x 0.270˄ൖⳈ˅mm

㾚㾦 @ CR>10˄∈ᑇ /ൖⳈ˅ 178(89/89) / 178(89/89)˄݌ൟؐ˅

ᰒ⼎买㡆 1,073,741,824 㡆˄݋ԧপއѢՓ⫼ⱘᰒवǄ˅

ᇍ↨ᑺ 700:1˄݌ൟؐ˅˄ᕙᅮ˅

✻ᑺ 180 cd/m2

˄݌ൟؐ˅˄ᕙᅮ˅

ડᑨᯊ䯈˄Tr+Tf˅13 ms˄݌ൟؐ˅

OSD ᠟ࡼ᥻ࠊ

҂ᑺˈᇍ↨ᑺˈ⚍䎱ˈⳌԡˈൖⳈԡ㕂ˈ䗣ᯢᑺˈ㞾ࡼ䇗ᭈˈ

∈ᑇԡ㕂ˈ䇁㿔ˈ㚠ܝˈ㦰ऩԡ㕂ˈ䞡㕂ˈᰒ⼎῵ᓣˈ

㡆⏽˄9300K/6500K/5000K / Փ⫼㗙㞾ᅮ /ॳ㡆⏽˅

ेᦦे⫼ DDC 2B, DDC/CI

LCD 䋼䞣

↣ഫ⎆᱊᭄ԡᵓ LCD 䴶ᵓഛձ✻䴲ᐌϹḐⱘ䋼䞣ᷛޚ䖯㸠ࠊ䗴Ǆࠊ䗴ᡔᴃ᮴⊩ֱ䆕㒱ᇍᅠ㕢ⱘ TFT ᰒ⼎ሣǄ

Wacom ϡܕ䆌ӏԩڣ㋴ϔⳈਜ⦄ⱑ㡆៪咥㡆Ǆ Ԛৃܕ䆌ᇥ᭄ڣ㋴ᰒ⼎㡆䈅Ёᶤѯ䚼ߚⱘ买㡆ᯊߎ⦄䫭䇃Ǆ

䖭ᑊϡ㸼⼎ᰒ⼎ሣ᳝㔎䱋Ǆ

1URTG[AVKVNGEQNQTKPFF 

᭄ԡᵓ

䇏পᡔᴃ ⬉⺕ડᑨᡔᴃ

⌏ࡼऎඳ 518.4 x 324.0 mm

ߚ䕼⥛ 0.005 mm/ ⚍(5080 lpi)

㊒ᑺ f0.5 mm˄Ё༂˅ˈ䖍㓬ऎඳ 1˄㞾ᰒ⼎ऎඳ䖍㓬 20 mm ⱘᆑᑺ˅Ў f 2.0 mmˈ䖍㓬ऎඳ 2˄㞾ᰒ⼎ऎඳ

䖍㓬 3mmⱘᆑᑺ˅Ў f 4.0 mm

䇏প催ᑺ 5mm៪ҹϞ˄Ё༂˅

㊒⹂ᛳᑨ催ᑺ 㞾Ⲫᵓ䍋 0mm

᳔催᡹ਞ䗳⥛ 133 ⚍/⾦

᳔໻ヨؒ᭰㣗ೈ أ⾏ൖⳈᮍ৥ 40 ᑺ˄䖍㾦䰸໪˅

ヨؒ᭰㑻߿ f 60 㑻

य़࡯㑻߿ 2048 㑻

䗮䆃᥹ষ USB

᠟ݭヨ KP-501E-01

⬉⑤䗖䜡఼

䕧ܹ⬉य़ 100 ̚240 ӣǃѸ⌕ˈ50/60 Hz

䕧ߎ⬉य़ 24 ӣǃⳈ⌕ˈ5.0 A˄᳔໻˅

य़࡯ᛳᑨヨ KP-501E-01

ヨᇪ䖤㸠䔼䗍 ᳔໻ 1.0 mm

य़࡯㑻߿ 2048 㑻

‵Ⲃ᪺༈䖤㸠䔼䗍 ᳔໻ 2.0 mm

⠽⧚ሎᇌ˄䭓 x㉫˅ 156.5 h14.9 mm

䞡䞣 17 g˄䖥Ԑؐ˅

1URTG[AVKVNGEQNQTKPFF 

㞾ᅮНѻક

ᠧᓔ Wacom ᭄ԡᵓ᥻ࠊ䴶ᵓ˖

Windows – ⚍ߏ˷ᓔྟ˹>>˷˄᠔᳝˅⿟ᑣ˹>>˷XXXX˹>>˷XXXX ሲᗻ˹Ǆ

Mac – ᠧᓔ˷㋏㒳乘㕂˹>> 䗝ᢽ˷XXXX˹Ǆ

བ䳔њ㾷བԩ㞾ᅮН ExpressKeys ੠ᕘ৥㦰ऩҹᦤछᬜ⥛ˈ䇋খ㗗⫼᠋᠟ݠǄ

⊼ݠѻક

ᬃᣕ䗝乍

䇋ᶹⳟ⫼᠋᠟ݠЁⱘᡔᴃ⊼䞞៪⭥䲒㾷ㄨ䚼ߚǄ

䆓䯂៥Ӏⱘ㔥キ www.wacom.com/product support

㟈⬉ Wacom ᅶ᠋᳡ࡵЁᖗǄৃҹ೼᯳ᳳϔ -᯳ᳳಯⱘϞज 7:30 ࠄϟज 5:00ˈ

੠᯳ᳳѨⱘϞज 8:30 ࠄϟज 5:00˄໾ᑇ⋟ᯊ䯈˅ᢼᠧ 360-896-9833 㟈⬉៥Ӏⱘᅶ᠋᳡ࡵЁᖗ˄᳡ࡵ䇁㿔˖㣅䇁˅Ǆ

1URTG[AVKVNGEQNQTKPFF 

Installation Guide & Hardware Manual

⇎⼂ ಪ⠞ᖆ Ჹ 㘂ᖆ➒♞ ⇎ᬯ⇆

ᅝ㺱ᣛफঞ⹀储᠟ݞ

ᅝ㺙ᣛफϢ⹀ӊ᠟ݠ

DTK-2400

1URTG[AVKVNGEQNQTKPFF 

Important Product Information

Contents

Contents 1

Precautions

Product Specifications

Disposal and Recycling Information

Regulatory Statement

License and Warranties

Contents

Contents 2

Cintiq® 24HD (DTK-2400)

Important Product Information

Version 1.0 F2411

use.

Wacom reserves the right to revise this publication without obligation to provide notification of

such changes.

Wacom does its best to provide current and accurate information in this manual. However,

Wacom reserves the right to change any specifications and product configurations at its

discretion, without prior notice and without obligation to include such changes in this manual.

The above year indicates when this manual was prepared. However, the date of release to the

users of the "manual" is simultaneous with the introduction into the market of the applicable

Wacom product.

Wacom and Cintiq are registered trademarks of Wacom Co., Ltd.

Contents

Contents 3

CONTENTS

Precautions 4

Precautions on use and handling 4

Physical location 4

Environment 4

Usage 5

Handling 6

Product Specifications 10

General specifications 10

Display 11

Pen tablet 12

Power adapter 12

Grip Pen KP-501E-01 12

Disposal and Recycling Information 13

EU RoHS 13

Turkey RoHS 13

EU disposal information (WEEE) 13

LAMP(S) 13

Regulatory Statement 14

FCC notice 14

Industry Canada (Canada only) 14

CE declaration 15

License and Warranties 16

Tablet driver software end user license

agreement 16

Tablet driver software end user license

agreement 21

Limited warranty

(U.S.A and Canada) 26

Limited warranty

(Central America, South America and

the Caribbean) 28

Limited warranty

(Europe, Africa and Middle East) 30

Contents

Contents 4

PRECAUTIONS

PRECAUTIONS ON USE AND HANDLING

To ensure the safe operation of your Cintiq 24HD, be sure to follow all instructions, cautions,

and warnings found within this manual. Failure to do so could cause damage to Cintiq 24HD,

damage to your computer or loss of data. Failure to do so could also void your warranty, in

which case Wacom shall have no responsibility to repair or replace the product.

PHYSICAL LOCATION

WARNING

The Cintiq 24HD interactive pen display was designed and tested for use in normal office

environments, but may also be used in climate controlled environments that fall within the

environmental conditions listed below. This product has not been tested for use in specialized

medical or military applications and operating environments.

In addition, this interactive pen display is neither waterproofed nor explosion resistant.

It serves and can be used solely as a passive display and input device.

In all applications for which it was not designed, no information on the products performance,

durability or potential issues can be supplied as it has not undergone testing for these uses.

The use of this interactive pen display in applications and environments other than a normal

office environment is at the user's own risk.

ENVIRONMENT

CAUTION

Temperature and humidity

• Operating temperature and humidity: 5° to 35°C, 20 to 80 % RH

• Storage temperature and humidity: -10° to 60°C, 20 to 90 % RH

Do not use or store Cintiq where:

• Temperature changes are severe or exceed specifications (e.g. outdoors or inside a

vehicle).

• The pen display, the Grip Pen, and the Cintiq stand are exposed to direct sunlight or

heat from an appliance, or are exposed to water or any other kind of liquid.

Do not use Cintiq in a dusty environment; this may damage the unit.

Contents

Contents 5

USAGE

WARNING

Only use a power adapter specified for use with your Cintiq. If a different type of power

adapter is used, Cintiq will not work properly or may be damaged. Using a different type of

power adapter also has the potential to result in fire. Use of a different power adapter will

void your warranty.

Regularly remove dust build-up from the power plug. The addition of moisture, etc., to

accumulated dust may create a fire hazard.

Do not damage, forcibly bend, or bundle the power cord. Do not place heavy objects on

the cord or expose it to excessive heat. Ignoring this warning may result in fire, electrical

shock, or product failure.

Do not connect or disconnect the power adapter with wet hands. Ignoring this warning

may result lin electrical shock or product malfunction.

Do not insert foreign material into the USB port, video connector ports, or any other

opening of this product. If a metal object or foreign material is inserted into a port or other

opening of this product it may cause product malfunction, fire, or electrical shock.

CAUTION

Use a grounded power source when applying power to Cintiq.

Do not connect or disconnect the video or power cables while Cintiq or your computer are

turned on; this may damage the display or computer video card. In this case, Wacom shall

have no responsibility to repair or replace the product.

This product is for use with a DisplayPort, DVI, or VGA video card. Using an inappropriate

video card may damage Cintiq.

Do not block the rear panel ventilation holes; this may overheat and damage the unit.

When not using Cintiq for long periods of time, unplug the power adapter from the AC outlet.

Contents

Contents 6

HANDLING

WARNING

High Voltage. Do not open or disassemble the Cintiq interactive pen display. There is a risk

of electrical shock when the casing is open. This will also void your warranty and Wacom

shall have no responsibility to repair or replace the product.

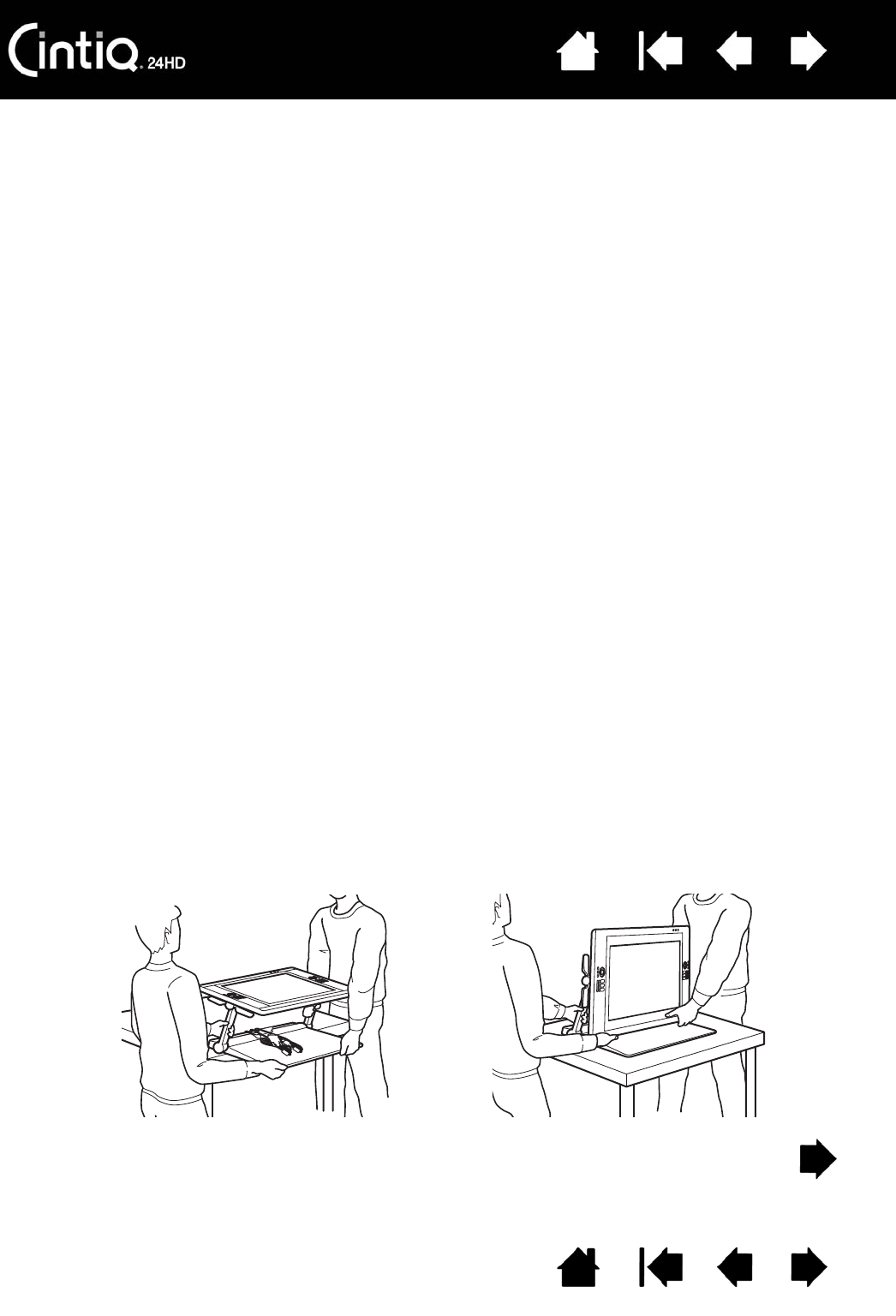

Request assistance from another person or persons when lifting or moving this product. Physical

damage or personal injury may result from a single person attempting to carry this product.

Move this product in the following manner:

- Before moving Cintiq, adjust the pen display height and incline so the display stand

support arms are locked upright, with Cintiq positioned horizontally. Place all cables on

top of the stand base and ensure they do not hang free. Tripping over loose cables can

cause physical damage or personal injury.

- Request assistance from another person or persons. Each person should securely

grasp the lower part of a display support arm near the display stand base. With the

other hand, grasp the base of the stand at the front corner. Using care, lift and carefully

move this product while supporting the base of the stand.

Important: The assembly is heavy. Do not attempt to lift Cintiq by yourself. Each person should

use both hands to securely grasp the product. Grasp the stand base at the corner areas to avoid

any sharp edging. DO NOT lift the display unit itself, otherwise damage might occur to the LCD if

it flexes during movement. Also, the display unit does not have sufficient strength to support the

load of the stand hanging freely from it. Work together, and lift carefully.

- Locate Cintiq on a desktop or other working surface that is flat, clean, and free of any

moisture or oily film. Taking care not to pinch your fingers, do this by first placing the

rear half portion of the stand onto the table surface. Then slide the stand fully into place

so that it will not tip or fall.

- When in place, use the incline levers to rotate the display back to a vertical position.

Contents

Contents 7

Always support the display with one hand before releasing from the locked position.

Do not hold the support arms when releasing the lock.

The display comes down when the lock is released. As the display moves downward,

ensure that your fingers are not caught between the support arms and base of the

display or stand.

Ensure that cabling or other objects do not get entangled in the moving parts of the

stand.

Do not place this product on any wet surface or table. The rubber pads on the base of

this product may slip, allowing the product to fall from the surface.

When moving this product, ensure all cables are fully disconnected from the power

outlet, computer, and other areas. Appropriately bundle the cables to ensure they do

not hang free and create a hazard. Tripping over loose cables can cause physical

damage or personal injury.

This product weighs approximately 30 kg (66 lbs). Ensure that any table or platform on

which this product is installed can withstand the weight of the product. The table or

platform should have sufficient width and depth, and be robust enough not to easily

topple over.

Do not place this product on any unsteady surface or table. Do not place on slanted

areas, unstable areas, or areas where vibration is present.

Physical damage or personal injury may result if this product falls from an unsuitable

surface.

Place this product completely and securely on a level, stable surface. Do not allow any

portion of the display stand base to protrude from the installation surface. Otherwise,

Cintiq may fall and cause physical damage or personal injury.

Use care when adjusting the working position. Use a smooth, horizontal motion when

pulling Cintiq toward you. Do not lift the stand from the desktop. You can move the

stand base to align with the edge of your desktop. DO NOT let the stand base protrude

over the desktop.

If you pull too far, and as as the front of the stand moves over the edge of your desktop,

the friction of the base pads will increase and "lock" the stand in place. Do not pull

beyond this point or past the base pads. Push the display stand back onto the working

surface until the front edge of the stand base aligns with the edge of the installation

surface.

Contents

Contents 8

Improper movement or pulling beyond the tipping point will prevent the friction lock

from engaging, and could cause personal injury or damage to the pen display it it were

to fall.

Do not sit on or hang from the table or other surface where this product is placed. The

product may fall and cause physical damage or personal injury. Take extra care where

children are present.

When using Cintiq in a position where the display overhangs your desktop, do not push

or lean against the bottom edge of the display. This could cause the stand to disengage

and possibly result in personal injury or damage to the pen display if it were to fall.

When you are done working, always move Cintiq fully back onto the desktop. See the

user's manual for more information.

The Cintiq interactive pen display has been specifically designed for use when mounted on

the Cintiq display stand. However, some specialized applications (such as the use of a

VESA mounting fixture) may require removal of the pen display from the stand. If it

becomes necessary to remove the pen display from the stand, see the appropriate

instructions in the Cintiq user's manual.

If the LCD screen has been damaged, DO NOT touch any liquid that may be leaking from it;

this liquid is an irritant. In case of contact with skin, eyes, or mouth, rinse immediately with

running water for at least 15 minutes or more. If contact is made with the eyes or mouth,

also consult a physician.

The pen display has a backlight which contains mercury (Hg). Be sure to dispose of

properly, and to manage any disposal of this unit in accordance with your local ordinances

and laws.

Choking hazard. Prevent children from swallowing the pen tip or side switch. The pen tip

or side switch may accidentally be pulled out if children are biting on them. Prevent children

from playing with any packing materials or wrapping, as a choking or suffocation hazard

may exist.

Refrain from using Cintiq during thunder or electrical storms. Disconnect Cintiq also from

the AC power source during such weather. Using Cintiq during thunder or electrical storms

may cause product malfunction, fire, or electrical shock.

Contents

Contents 9

CAUTION

Do not disassemble the Grip Pen. This may cause the device to malfunction. In this case,

Wacom shall have no responsibility to repair or replace the product.

Do not strike hard objects with the pen, such as repeatedly tapping the pen against a desk

surface. Doing so may cause damage to the pen.

Do not apply excessive pressure or stress to the pen tip, eraser, or side switch. This may

cause may cause premature failure or malfunction.

Only use a replacement pen tip (nib) specified for your product by Wacom.

Do not scratch the display screen. Avoid placing sharp objects on the display screen

surface.

Avoid intensive shock or vibration to Cintiq, the Cintiq stand, or the Grip Pen. Hitting or

dropping Cintiq may damage the display screen or other components.

Do not put heavy objects on the pen display or push against it with a strong force; this may

damage the display screen or break the Cintiq stand locking mechanism.

Do not place heavy articles on the pen display cabling, repeatedly bend the cables sharply,

or apply heavy stress to the cable connectors; this may damage the unit or cabling.

Do not store the pen display on a surface that would excessively bend or crimp the cable.

If your pen display has a coated surface, a worn pen nib that is sharp or angular may cause

damage. Replace the pen tip if necessary.

Do not use any organic solvent (e.g. alcohol) or even mild detergent to clean the display

screen. Use of these cleaners can damage the display screen. Damage of this kind is not

covered by the manufacturer's warranty.

• Before cleaning, always disconnect your product from the AC power source.

• To clean the display screen, use an anti-static cloth or a slightly damp cloth. When

cleaning, apply only a light amount of pressure to the display screen and do not make

the surface wet.

• To clean the Cintiq casing, Cintiq stand, or Grip Pen, use a slightly dampened (with

water), soft cloth.

Always disconnect Cintiq from the AC power source if the unit appears to be

malfunctioning, or has been damaged by a fall or in some other manner.

Contents

Contents 10

PRODUCT SPECIFICATIONS

GENERAL SPECIFICATIONS

Dimensions (W x H x D) 769.3 x 463.74 x 64 mm (30.3 x 18.2 x 2.5 in)

excluding the Stand

Weight 28.6 kg (Main body: 13.7 kg, Display Stand base:

14.9 kg)

Input voltage 24 V DC

Power consumption (with AC adapter) 71 W max.

2 W or less in sleep modes (USB non-connected)

1 W or less in OFF mode (USB non-connected)

Power management VESA DPMS

Compatibility Windows 7, Vista, XP (32 and 64 bit)

Mac OSX 10.5.8 or later

Cables DisplayPort, DVI-D, DVI-A, USB

USB HUB Integrated, USBv2.0 powered HUB with one

external port, 500mA

Cover plate AG etched glass (tempered glass)

Operating temperature and humidity 5° to 35° C, humidity: 20 % to 80 %

(non-condensing)

Storage temperature and humidity -10° to 60° C, humidity: 20 % to 90 %

(non-condensing)

(maximum storage humidity is 38 % at a

temperature of 60 degrees C, and maximum

storage temperature is 42 degrees C at a humidity

of 90 %)

Contents

Contents 11

DISPLAY

Display panel a-Si active matrix TFT LCD (h-IPS)

Screen size 24.1 inch, 518 x 324 mm (20.4 x 12.8 in)

Aspect ratio 16:10

Number of pixels 1920 x 1200

Input Video Connector DisplayPort, DVI-I (29-pin)

Input video signal DisplayPort complies with Standard V1.1a,

applicable to HDCP

DVI 1.0 compliance

Analog RGB

Supported resolution 1920 x 1200, 1600 x 1200, 1280 x 1024,

1024 x 768, 800 x 600, 640 x 480 pixels

White luminance uniformity 75% (min.)

Pixel pitch 0.270 (H) x 0.270 (V) mm (0.011 x 0.011 in)

Viewing angles at contrast ratio 10:1 178° (89° / 89°) / 178° (89° / 89°) (typ.)

> 10(horizontal/vertical)

Display colors 1,073,741,824 colors

Contrast ratio 550:1 (typ.)

Response time (Tr+Tf) 13 ms (typ.)

Luminance 190 cd/m2 (typ.)

OSD manual control Brightness, contrast, pitch, phase, vertical position,

horizontal position, transparency, auto adjust,

language, back light, menu position, reset, scaling,

color temperature (9300K/6500K/5000K/ User/

Direct)

Plug and Play DDC 2B, DDC/CI

LCD quality Each LCD panel is produced under very stringent

quality standards.

Production techniques cannot guarantee an

absolutely perfect TFT display. Wacom does not

allow any subpixel to be always white or always

black. A small number of subpixels are allowed to

show a wrong color for some parts of the color

spectrum. This does not mean the display is

defective.

Contents

Contents 12

PEN TABLET

Reading technology Electro-magnetic resonance technology

Active area 518.4 x 324.0 mm

Resolution 0.005 lpmm (5080 lpi)

Accuracy Center: +/- 0.5 mm

Edge area 1

(20 mm from edge of display area): +/- 2.0 mm

Edge area 2

(3 mm from edge of display area): +/- 4.0 mm

Maximum pen tilt range 40 degrees from vertical (except for corners)

Pen tilt levels ± 60 levels

Reading height 5 mm (0.2 in) or more, center

Maximum report rate 133 points/sec.

Pressure levels 2048 levels

Communication interface USB

POWER ADAPTER

Input voltage 100 to 240 V AC, 50/60 Hz

Output voltage 24 V DC, 5.0 A (max.)

GRIP PEN KP-501E-01

Pressure levels 2048 levels

Pen tip travel 1.0 mm (0.04 in), max.

Eraser tip travel 2.0 mm (0.08 in), max.

Physical dimensions (L x D) 156.5 x 14.9 mm (6.17 x 0.59 in)

Weight 17 g (0.60 oz), approximate

Contents

Contents 13

DISPOSAL AND RECYCLING INFORMATION

EU ROHS

Wacom products comply with the European Union RoHS Directive 2002/95/EC (RoHS

Directive).

TURKEY ROHS

Türkiye Cumhuriyeti: EEE Yönetmeligine Uygundur

EU DISPOSAL INFORMATION (WEEE)

Reuse, recycling, and recovery. You are urged to recycle this product when replacing

it with a newer product or when it has outlived its useful life by bringing it to an

appropriate collection point for recyclable materials in your community or region. By

doing this, you can help improve the environment of your community as well as

minimize the potential negative effects created should any hazardous substance

that may possibly be present within waste material reach the environment during the disposal

process.

Within the European Union, users are required not to dispose of Waste Electrical and Electronic

Equipment (WEEE) as unsorted municipal waste, according to the Directive 2002/96/EC of the

European Parliament and of the Council of 27 January 2003, or the corresponding local laws of

the Member States. Products for which this is applicable will be marked with the WEEE symbol

shown at the beginning of this note unless this is not feasible because of the size or the

function of the product. Wacom products are subject to the Directive 2002/96/EC and therefore

you should always collect them separately and bring them to the appropriate collection point in

your community or region.

LAMP(S) INSIDE THIS PRODUCT CONTAIN MERCURY AND

MUST BE RECYCLED OR DISPOSED OF ACCORDING TO

LOCAL, STATE OR FEDERAL LAWS.

The DTK-2400 pen display has a backlight which contains mercury (HG)

Be sure to dispose of properly, and to manage any disposal of this unit in accordance with your

local ordinances and laws.

HG -

Contents

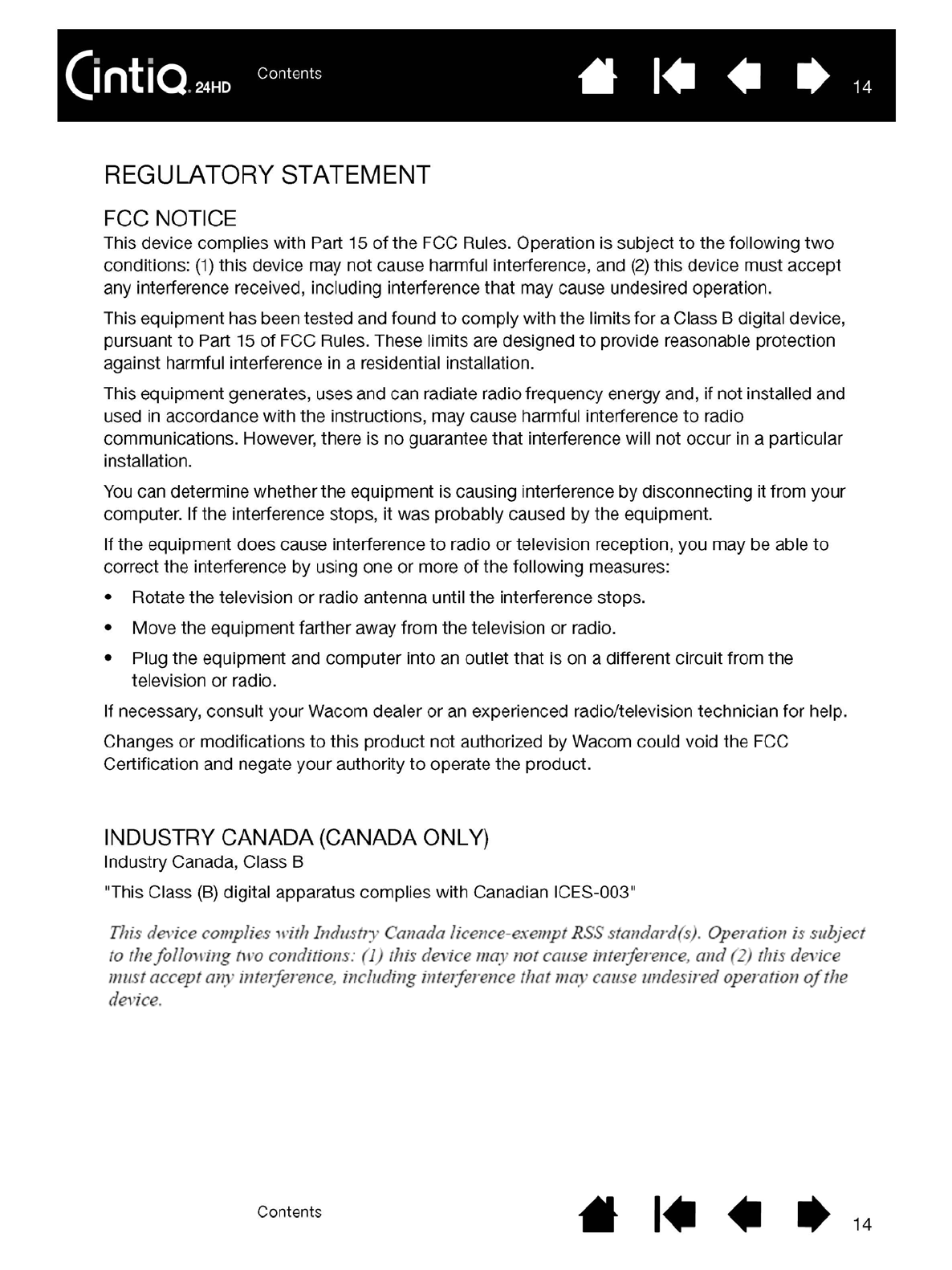

Contents 15

CE DECLARATION

The pen tablet or the interactive pen display (model DTK-2400) has been tested and found to

comply with the following harmonized European Norms:

EMC Directive

• EN 55022:2006+A1:2007, Class B

• EN 61000-3-2:2006+A1:2009+A2:2009

• EN 61000-3-3:2008

• EN 55024:1998+A1:2001+A2:2003

IEC 61000-4-2:2008, IEC 61000-4-3:2008

IEC 61000-4-4:2004+Corr.1:2006+Corr.2:2007

IEC 61000-4-5:2005

IEC 61000-4-6:2008

IEC 61000-4-8:2009

IEC 61000-4-11:2004

ErP Directive

• IEC 62301 ed.1:2005

Based on the results of these tests, Wacom declares that the above mentioned devices

conform to EMC Directive 2004/108/EC and to ErP Directive 2009/125/EC. The device must be

installed and operated always in strict accordance with the instructions given in this handbook.

Any changes or modifications to this product that were not specifically authorized by Wacom

will invalidate this declaration.

Contents

Contents 16

LICENSE AND WARRANTIES

TABLET DRIVER SOFTWARE END USER LICENSE AGREEMENT

(WORLDWIDE EXCEPT FOR EUROPE, AFRICA AND MIDDLE EAST)

This End User License Agreement (this "Agreement") is between you (both the individual

installing the Software and any single legal entity on behalf of which such individual is acting)

("You" or "Your") and Wacom Co. Ltd, 2-510-1 Toyonodai, Kazo-shi, Saitama 349-1148, Japan

("Wacom").

IT IS IMPORTANT THAT YOU READ CAREFULLY AND UNDERSTAND THIS AGREEMENT. BY

CLICKING THE “I ACCEPT” BUTTON OR USING OR INSTALLING THE SOFTWARE, YOU

AGREE TO BE BOUND BY THIS AGREEMENT. IF YOU DO NOT AGREE WITH ALL THE

TERMS OF THIS AGREEMENT AND DO NOT AGREE TO BE BOUND BY THIS AGREEMENT,

PLEASE CLICK THE “I DO NOT ACCEPT” BUTTON. IF YOU DO NOT ACCEPT THIS

AGREEMENT, YOU WILL NOT HAVE THE RIGHT TO USE OR ACCESS THE SOFTWARE.

1. DEFINITIONS

1.1 "Documentation" means the user guides and manuals for installation and use of the

Software.

1.2 "Product" means the Wacom Tablet hardware, with which the Software has been provided

to You.

1.3 "Software" means the Tablet Driver software and Documentation provided to You with the

Product, and any updates to either of the foregoing provided by Wacom to You under this

Agreement.

2. SOFTWARE LICENSE

2.1 Limited License.

Subject to the terms and conditions of this Agreement, Wacom hereby grants to You a

limited, non-exclusive license to: (a) use and install a single copy of the Software, in

machine readable form only, on a single computer or other similar device, solely in

conjunction with the Product; (b) use the Documentation provided with the Software in

support of Your authorized use of the Software; and (c) to make a single back-up copy of

the Software, to be used solely for back-up purposes, provided that all trademark,

in the original version of the Software are reproduced on such back-up copy.

Contents

Contents 17

2.2 Restrictions.

You will not copy or use the Software (including the Documentation) except as expressly

permitted by this Agreement. You will not modify, translate, distribute, create derivative

works based on, pledge, relicense, sublicense, loan, rent or lease the Software or use the

Software for third-party training, commercial time-sharing or service bureau use. You will

not, and will not permit any third party to, reverse engineer, disassemble or decompile the

Software, or attempt to determine any source code, algorithms, methods, or techniques

used or embodied in the Software, except to the extent expressly permitted by applicable

law. You will not use the Software as a stand¬alone software or in conjunction with third

party products, but may be used only in conjunction with the Product. You will not remove

or alter any trademark, copyright or other proprietary and restricted rights notices, legends

and symbols appearing in or on the Software.

2.3 No Assignment; One Time Transfer.

You will not transfer, assign or delegate any of Your rights or obligations under this

Agreement, by operation of law or otherwise, without the prior written consent of Wacom,

which shall not be unreasonably withheld. However, You may make a one-time permanent

transfer of all of Your rights under this Agreement to another party in conjunction with Your

transfer of the Product if all of the following conditions have been met: (a) the transfer

includes all components and parts of the Product, all printed materials, any other warranties

applicable to the Product, and all of Your rights and obligations under this Agreement, (b)

You do not retain any copies of the Software on any media or computer, and (c) the party

receiving the Software reads, understands and agrees to accept the terms of this

Agreement. Any transfer, assignment or delegation of any of Your rights or obligations

under this Agreement in violation of this paragraph is void and of no effect.

2.4 Ownership.

Wacom and its licensors will retain all right, title and interest in and to the Software,

including all patent, copyright, trademark, trade secret and any other intellectual property or

industrial rights in and to the Software, and any improvements, updates and derivative

works thereof. Wacom reserves all rights and interests in and to the Software. You do not

acquire any other rights, express or implied, in the Software other than those rights

expressly granted under this Agreement.

2.5 No Support.

Wacom has no obligation to provide technical support, maintenance, upgrades,

modifications or new releases under this Agreement.

Contents

Contents 18

3. WARRANTIES AND REMEDIES

3.1 Limited Warranties.

Wacom warrants that the Software, when used in accordance with the Documentation and

the terms and conditions of this Agreement, will materially perform in accordance with the

Documentation for a period of ninety (90) days from the date the Software is first installed or

activated by You ("Warranty Period"). In the event that the Software does not comply with

the foregoing warranty during such Warranty Period, then Wacom shall make commercially

reasonable efforts to correct such non-compliance by repairing or replacing the Software at

no additional charge to You. The Software is not fault tolerant and is not designed,

permitted or intended for uses related to high risk activities. No Oral or written information

or advice provided by Wacom, its agents or any distributors or retailers of the Product will

create any warranty or in any way increase the scope of the warranties expressly provided

by Wacom under this Agreement. This paragraph states the entire liability and obligation of

Wacom, and Your sole and exclusive remedy in the event that the Software does not

comply with the foregoing warranty. Wacom does not warrant that: (a) the Software will

meet Your requirements, (b) the Software will be compatible with or operate on the

computer or other device on which You install it, or (c) defects in the Software will be

corrected, or that the operation of the Software will be uninterrupted or error-free. This

Agreement contains no warranties from Wacom for the Products, which are subject to

Wacom's standard hardware warranty (if any) applicable thereto. Wacom will have no

warranty obligations under this paragraph if such non-compliance is caused by

unauthorized use of the Software, abuse, misuse, alteration, neglect or accidental damage

of the Software or any repair or modification of the Software not performed by Wacom.

Replacement or repair of Software does not extend its warranty period beyond the original

Warranty Period.

3.2 Disclaimers.

Other than for the express warranties contained in this Agreement, WACOM MAKES NO,

AND HEREBY DISCLAIMS ALL, OTHER REPRESENTATIONS AND WARRANTIES OF ANY

KIND WITH RESPECT TO THE SOFTWARE. TO THE FULLEST EXTENT PERMISSIBLE

UNDER APPLICABLE LAW, WACOM EXPRESSLY DISCLAIMS ALL WARRANTIES OF ANY

KIND, EXPRESS OR IMPLIED, WITH RESPECT TO THE SOFTWARE, INCLUDING

WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE,

SATISFACTORY QUALITY, ACCURACY, TITLE AND NON-INFRINGEMENT OF THIRD

PARTIES' RIGHTS , AND ANY WARRANTIES THAT MAY ARISE OUT OF COURSE OF

PERFORMANCE, COURSE OF DEALING OR USAGE OF TRADE. IF YOU ARE A

CONSUMER (A USER OF THE SOFTWARE FOR PERSONAL PURPOSES AND NOT FOR

BUSINESS, TRADE OR PROFESSIONAL PUPROSES, THE FOREGOING LIMITATIONS

MAY NOT APPLY TO YOU BASAED ON THE APPLICABEL LAWS OF THE JURISDICTION

IN WHICH YOU RESIDE.

Contents

Contents 19

4. TERMINATION

This Agreement is effective until terminated. Additionally, Your rights and licenses under this

Agreement will automatically terminate and cease to be effective, without any notice or action

by Wacom, in the event that You fail to comply with any terms of this Agreement. Upon

termination of this Agreement, You will cease all use of the Software and permanently delete

and make unrecoverable the Software (including Your back-up copy and all Documentation)

from Your computer or similar device on which it was installed. Upon any termination of this

Agreement, Sections 1, 2.2, 2.4, 3.2, 4 and 5 will survive.

5. GENERAL TERMS

5.1 Law.

This Agreement and all matters arising out of or relating to this Agreement will be governed

by the internal laws of Japan without giving effect to any choice of law rule. This Agreement

will not be governed by the United Nations Convention on Contracts for the International

Sales of Goods, the application of which is expressly excluded. In the event of any

controversy, claim or dispute between the parties arising out of or relating to this

Agreement, such controversy, claim or dispute may be tried solely in the Tokyo District

Court, located in Japan, and Wacom and You each hereby irrevocably consent to the

jurisdiction and venue of such court.

5.2 Limitation of Liability.

In no event will either party be liable for any and all indirect, incidental, special,

consequential or punitive damages, or damages for loss of profits, revenue, business,

savings, data, use or cost of substitute procurement, incurred by either party or any third

party, whether in an action in contract or tort, even if the other party has been advised of the

possibility of such damages or if such damages are foreseeable. The parties acknowledge

that the limitations of liability in this Section 5.2 and in the other provisions of this

Agreement and the allocation of risk herein are an essential element of the bargain between

the parties, without which Wacom would not have entered into this Agreement. Wacom's

pricing of the Products reflects this allocation of risk and the limitation of liability specified

herein. Wacom's liability under this Agreement or in any way related to the Software shall

not exceed the amounts actually paid by you for the Product. You are required to keep the

invoice or any other documents which prove the amount you actually paid for the Product.

Notwithstanding the above, nothing in this Agreement limits Wacom's liability to You to the

extent arising out of any willful or grossly negligent misconduct on the part of Wacom.

5.3 Severability.

If any provision of this Agreement is held to be illegal, invalid or otherwise unenforceable,

such provision will be severed and deleted from this Agreement, while the remainder of this

Agreement will continue in full force and effect.

Contents

Contents 20

5.4 Compliance with Laws.

You will comply fully with all applicable laws and regulations, including export laws and local

laws of the country or region in which You reside or use the Software. Without limiting the

generality of the foregoing, You will not, and You will require Your representatives not to,

export, direct or transfer the Software, or any direct product thereof, to any destination,

person or entity restricted or prohibited by the applicable law.

5.5 Entire Agreement; General.

This Agreement constitutes the entire agreement between the parties and supersedes all

prior or contemporaneous agreements or representations, written or oral, concerning the

subject matter of this Agreement. This does not, and shall not be construed to, create any

partnership, joint venture, employer-employee, agency or franchisor-franchisee relationship

between You and Wacom. Any heading, caption or section title contained herein is inserted

only as a matter of convenience, and in no way defines or explains any section or provision

hereof. The waiver by either party of any default or breach of this Agreement may only be

made in writing and will not constitute a waiver of any other or subsequent default or

breach.

Contents

Contents 21

TABLET DRIVER SOFTWARE END USER LICENSE AGREEMENT

(EUROPE, MIDDLE EAST AND AFRICA)

This End User License Agreement (this "Agreement") is between you (both the individual

installing the Software and any single legal entity on behalf of which such individual is acting)

("You" or "Your") and Wacom Co. Ltd, 2-510-1 Toyonodai, Kazo-shi, Saitama 349-1148, Japan

("Wacom").

IT IS IMPORTANT THAT YOU READ CAREFULLY AND UNDERSTAND THIS AGREEMENT. BY

CLICKING THE “I ACCEPT” BUTTON OR USING OR INSTALLING THE SOFTWARE, YOU

AGREE TO BE BOUND BY THIS AGREEMENT. IF YOU DO NOT AGREE WITH ALL THE

TERMS OF THIS AGREEMENT AND DO NOT AGREE TO BE BOUND BY THIS AGREEMENT,

PLEASE CLICK THE “I DO NOT ACCEPT” BUTTON. IF YOU DO NOT ACCEPT THIS

AGREEMENT, YOU WILL NOT HAVE THE RIGHT TO USE OR ACCESS THE SOFTWARE.

1. DEFINITIONS

1.1 "Documentation" means the user guides and manuals for installation and use of the

Software.

1.2 "Product" means the Wacom Tablet hardware, with which the Software has been provided

to You.

1.3 "Software" means the Tablet Driver software and Documentation provided to You with the

Product, and any updates to either of the foregoing provided by Wacom to You under this

Agreement.

2. SOFTWARE LICENSE

2.1 Limited License.

Subject to the terms and conditions of this Agreement, Wacom hereby grants to You a

limited, non-exclusive license to: (a) use and install a single copy of the Software, in

machine readable form only, on a single computer or other similar device, solely in

conjunction with the Product; (b) use the Documentation provided with the Software in

support of Your authorized use of the Software; and (c) to make a single back-up copy of

the Software, to be used solely for back-up purposes, provided that all trademark,

in the original version of the Software are reproduced on such back¬up copy.

Contents

Contents 22

2.2 Restrictions.

You will not copy or use the Software (including the Documentation) except as expressly

permitted by this Agreement, or for disaster recovery, program error verification, and

back¬up purposes. You will not modify, translate, distribute, create derivative works based

on, pledge, relicense, sublicense, loan, rent or lease the Software or use the Software for

third-party training, commercial time-sharing or service bureau use. You will not, and will

not permit any third party to, reverse engineer, disassemble or decompile the Software, or

attempt to determine any source code, algorithms, methods, or techniques used or

embodied in the Software, except as and to the extent expressly permitted by applicable

law despite this restriction. You will not use the Software as a stand-alone software or in

conjunction with third party products, but may be used only in conjunction with the Product.

You will not remove or alter any trademark, copyright or other proprietary and restricted

rights notices, legends and symbols appearing in or on the Software.

2.3 No Assignment; One Time Transfer.

You will not transfer, assign or delegate any of Your rights or obligations under this

Agreement, by operation of law or otherwise, without the prior written consent of Wacom,

which shall not be unreasonably withheld. However, You may make a one-time permanent

transfer of all of Your rights under this Agreement to another party in connection with Your

transfer of the Product if all of the following conditions have been met: (a) the transfer

includes all components and parts of the Product, all printed materials, any other warranties

applicable to the Product, and all of Your rights and obligations under this Agreement, (b)

You do not retain any copies of the Software on any media or computer, and (c) the party

receiving the Software reads, understands and agrees to accept the terms of this

Agreement. Any transfer, assignment or delegation of any of Your rights or obligations

under this Agreement in violation of this paragraph is void and of no effect.

2.4 Ownership.

Wacom and its licensors will retain all right, title and interest in and to the Software,

including all patent, copyright, trademark, trade secret and any other intellectual property or

industrial rights in and to the Software, and any improvements, updates and derivative

works thereof. Wacom reserves all rights and interests in and to the Software. You do not

acquire any other rights, express or implied, in the Software other than those rights

expressly granted under this Agreement.

2.5 No Support.

Wacom has no obligation to provide technical support, maintenance, upgrades,

modifications or new releases under this Agreement.

Contents

Contents 23

3. WARRANTIES AND REMEDIES

3.1 Limited Warranties.

Wacom warrants that the Software, when used in accordance with the Documentation and

the terms and conditions of this Agreement, will materially perform in accordance with the

Documentation for a period of two (2) years from the date the Software is first installed or

activated by You ("Warranty Period") In the event that the Software does not comply with

the foregoing warranty during such Warranty Period, then Wacom shall correct such non-

compliance by repairing or replacing the Software at no additional charge to You. If

repairing or replacing the Software is impossible or disproportionate, or cannot be

completed within reasonable time or inconvenience, You shall be entitled to either require

appropriate reduction of any fees paid or have the Agreement rescinded. The Software is

not fault tolerant and is not designed, permitted or intended for uses related to high risk

activities. No Oral or written information or advice provided by Wacom, its agents or any

distributors or retailers of the Product will create any warranty or in any way increase the

scope of the warranties expressly provided by Wacom under this Agreement. This

paragraph states the entire liability and obligation of Wacom, and Your sole and exclusive

remedy in the event that the Software does not comply with the foregoing warranty. Wacom

does not warrant that: (a) the Software will meet Your requirements, (b) the Software will be

compatible with or operate on the computer or other device on which You install it, or (c)

defects in the Software will be corrected, or that the operation of the Software will be

uninterrupted or error-free. This Agreement contains no warranties from Wacom for the

hardware components of the Products, which are subject to Wacom's standard hardware

warranty (if any) applicable thereto. Wacom will have no warranty obligations under

paragraph if such non-compliance is caused by unauthorized use of the Software, abuse,

misuse, alteration, neglect or accidental damage of the Software or any repair or

modification of the Software not performed by Wacom. Replacement or repair of Software

does not extend its warranty period beyond the original Warranty Period.

3.2 Disclaimers.

Other than for the express warranties contained in this Agreement, WACOM MAKES NO,

AND HEREBY DISCLAIMS ALL, OTHER REPRESENTATIONS AND WARRANTIES OF ANY

KIND WITH RESPECT TO THE SOFTWARE. TO THE FULLEST EXTENT PERMISSIBLE

UNDER APPLICABLE LAW, WACOM EXPRESSLY DISCLAIMS ALL WARRANTIES OF ANY

KIND, EXPRESS OR IMPLIED, WITH RESPECT TO THE SOFTWARE, INCLUDING

WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE,

SATISFACTORY QUALITY, ACCURACY, TITLE AND NON-INFRINGEMENT, AND ANY

WARRANTIES THAT MAY ARISE OUT OF COURSE OF PERFORMANCE, COURSE OF

DEALING OR USAGE OF TRADE. IF YOU ARE A CONSUMER (A USER OF THE

SOFTWARE FOR PERSONAL PURPOSES AND NOT FOR BUSINESS, TRADE OR

PROFESSIONAL PUPROSES, THE FOREGOING LIMITATIONS MAY NOT APPLY TO YOU

BASAED ON THE APPLICABEL LAWS OF THE JURISDICTION IN WHICH YOU RESIDE.

Contents

Contents 24

4. TERMINATION

This Agreement is effective until terminated. Additionally, Your rights and licenses under this

Agreement will automatically terminate and cease to be effective, without any notice or action

by Wacom, in the event that You fail to comply with any terms of this Agreement. Upon

termination of this Agreement, You will cease all use of the Software and permanently delete

and make unrecoverable the Software (including Your back-up copy and all Documentation)

from Your computer or similar device on which it was installed. Upon any termination of this

Agreement, Sections 1, 2.2, 2.4, 3.2, 4 and 5 will survive.

5. GENERAL TERMS

5.1 Law.

This Agreement and all matters arising out of or relating to this Agreement will be governed

by the internal laws of Japan without giving effect to any choice of law rule. This Agreement

will not be governed by the United Nations Convention on Contracts for the International

Sales of Goods, the application of which is expressly excluded. In the event of any

controversy, claim or dispute between the parties arising out of or relating to this

Agreement, such controversy, claim or dispute may be tried solely in the Tokyo District

Court, located in Japan, and Wacom and You each hereby irrevocably consent to the

jurisdiction and venue of such courts.

5.2 Limitation of Liability.

In no event will either party be liable for any indirect, incidental, special, consequential or

punitive damages, or damages for loss of profits, revenue, business, savings, data, use or

cost of substitute procurement, incurred by either party or any third party, whether in an

action in contract or tort, even if the other party has been advised of the possibility of such

damages or if such damages are foreseeable. In no event will Wacom's liability for

damages hereunder exceed the amounts actually paid by You for the Product. The parties

acknowledge that the limitations of liability in this Section 5.2 and in the other provisions of

this Agreement and the allocation of risk herein are an essential element of the bargain

between the parties, without which Wacom would not have entered into this Agreement.

Wacom's pricing of the Products reflects this allocation of risk and the limitation of liability

specified herein. Notwithstanding the above, nothing in this Agreement limits Wacom's

liability to You in the event of: (i) death or personal injury to the extent resulting directly from

Wacom's negligence or that of its employees or agents; or (ii) any fraudulent act or omission

of Wacom or that of its employees or agents; or (iii) to the extent arising out of any willful or

grossly negligent misconduct on the part of Wacom.

Contents

Contents 25

5.3 Severability.

If any provision of this Agreement is held to be illegal, invalid or otherwise unenforceable,

such provision will be enforced to the extent possible consistent with the stated intention of

the parties, or, if incapable of such enforcement, will be deemed to be severed and deleted

from this Agreement, while the remainder of this Agreement will continue in full force and

effect.
