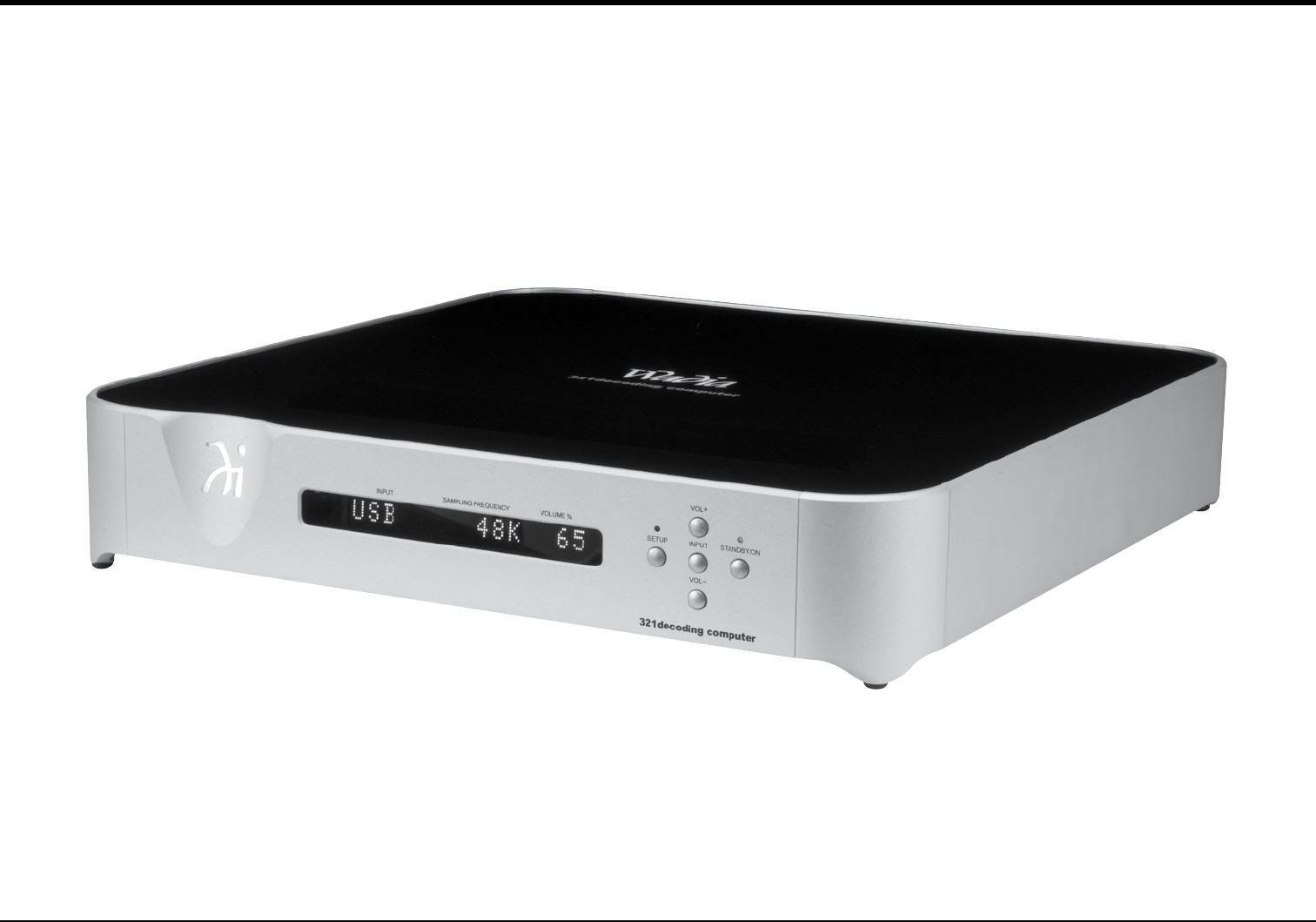

321decoding computer

Owner’s Manual

The lightning ash with arrowhead, within an equilateral

triangle, is intended to alert the user to the presence of

uninsulated “dangerous voltage” within the product’s en-

closure that may be of sufcient magnitude to constitute

a risk of electric shock to persons.

The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important

operating and maintenance (servicing) instructions in the

literature accompanying the appliance.

WARNING - TO REDUCE RISK

OF FIRE OR ELECTRICAL

SHOCK, DO NOT EXPOSE

THIS EQUIPMENT TO RAIN OR

MOISTURE.

NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO

QUALIFIED PERSONNEL.

To prevent the risk of electric

shock, do not remove cover or

back. No user-serviceable parts

inside.

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with a dry cloth.

7. Do not block any ventilation openings. Install in

accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radia-

tors, heat registers, stoves, or other apparatus

(including ampliers) that produce heat.

9. Do not defeat the safety purpose of the polarized

or grounding-type plug. A polarized plug has two

blades with one wider than the other. A ground-

ing type plug has two blades and a third ground-

ing prong. The wide blade or the third prong are

provided for your safety. If the provided plug does

not t into your outlet, consult an electrician for

replacement of the obsolete outlet.

10. Protect the power cord from being walked on or

pinched particularly at plugs, convenience re-

ceptacles, and the point where they exit from the

apparatus.

11. Only use attachments/accessories specied by the

manufacturer.

12. Use only with the cart, stand, tripod, bracket, or

table specied by the manufacturer,

or sold with the apparatus. When a

cart is used, use caution when mov-

ing the cart/apparatus combination

to avoid injury from tip-over.

13. Unplug this apparatus during light-

ning storms or when unused for long periods of

time.

14. Refer all servicing to qualied service personnel.

Servicing is required when the apparatus has been

damaged in any way, such as power-supply cord

or plug is damaged, liquid has been spilled or

objects have fallen into the apparatus, the appara-

tus has been exposed to rain or moisture, does not

operate normally, or has been dropped.

15. Do not expose this equipment to dripping or

splashing and ensure that no objects lled with liq-

uids, such as vases, are placed on the equipment.

16. To completely disconnect this equipment from the

a.c. mains, disconnect the power supply cord plug

from the a.c. receptacle.

17. The mains plug of the power supply cord shall

remain readily operable.

18. Do not expose batteries to excessive heat such as

sunshine, re or the like.

19. Connect mains power supply cord only to a mains

socket outlet with a protective earthing connec-

tion.

IMPORTANT SAFETY

INSTRUCTIONS!

PLEASE READ THEM BEFORE

OPERATING THIS EQUIPMENT.

WARNING

DO NOT INGEST BATTERY, CHEMICAL BURN HAZARD

This product contains a coin/button cell battery. If the

coin/button cell battery is swallowed, it can cause se-

vere internal burns in just 2 hours and can lead to death.

Keep new and used batteries away from children. If the

battery compartment does not close securely, stop us-

ing the product and keep it away from children. If you

think batteries might have been swallowed or placed

inside of the body, seek immediate medical attention.

3. Reinstall the Battery Cover.

4. Store the battery in a cool dry place for future use

or dispose of the battery in accordance

with the local regulations for lithium bat-

tery disposal. Batteries should never be

thrown away or incinerated.

The Wadia 321 Remote Control uses a long life Lith-

ium Coin Cell type battery. The 321 may be supplied

with a battery depending on the country where the 321

is purchased. When purchasing a battery for use in the

321 refer to the following list:

Approved Lithium Batteries

Brand IEC No. ANSI/NEDA No.

Energizer CR203215004LC1

Panasonic CR2032(PA/1B)15004LC1

1CR Lithium Coin Cells contain Perchlorate Material - special handling

may apply. For additional information go to www.dtsc.ca.gov/hazaedous

waste/perchlorate/index.cfm

Access to the recessed battery compartment is located

on the Rear of the Remote Control.

Refer to figure 1.

Perform the following steps to install

the battery:

1. Press the tab towards the bottom

edge of the Remote Control and

lift up on the Battery Cover and

temporarily place it aside. Refer to

figures 2 and 3.

The life of the Lithium Battery used in the Wadia

Remote Control is dependent on the actual amount of

use. It is advisable to remove the battery from the Re-

mote Control when it is not to be used for an extended

period of time. This will help to extend battery life

and avoid possible damage to the Remote Control.

Perform the following steps to remove the battery

from the Remote Control:

1. Press the tab and lift up on the Battery Cover

and temporarily place it aside. Refer to figures 2

and 3.

2. Refering to figure 6,

press on the bottom edge

of the battery to release

the battery from the

molded battery socket.

Then remove the bat-

tery from inside of the

Remote Control.

2. Remove the CR2032 Battery from its packaging.

3. Orient the battery so the + symbol (engraved into

one side of the battery) is facing up.

4. Refering to figures 4 and 5, insert the battery into

the socket. Make sure the battery is touching both

contact points and is seated in the socket.

5. Reinstall the Battery Cover.

6. The Remote Control is now ready for operation.

Battery Installation and Replacement

Battery Installation

Battery Removal

CAUTION:

Danger of explosion if the battery is in-

correctly installed. Only install one of the

approved Lithium Batteries listed below.

Figure 1

Battery

Compartment

Figure 2

TAB

Figure 3

LIFT

Figure 5

CR2032

Figure 4

Contact

Points

Battery

WARNING

DO NOT INGEST BATTERY, CHEMICAL BURN HAZARD

This product contains a coin/button cell battery. If the

coin/button cell battery is swallowed, it can cause se-

vere internal burns in just 2 hours and can lead to death.

Keep new and used batteries away from children. If the

battery compartment does not close securely, stop us-

ing the product and keep it away from children. If you

think batteries might have been swallowed or placed

inside of the body, seek immediate medical attention.

Figure 6

All of us at Wadia Digital would like to say thank you,

and congratulations for deciding to own this Wadia

321decoding computer. We sincerely believe this

Wadia product will bring you many years of musical

enjoyment and satisfaction.

Please take a short time to read the information in this

manual. We want you to be as familiar as possible

with all the features and functions of your new Wadia

Product.

Table of ContentsThank You Please Take A Moment

Technical Assistance

If at any time you have questions about your Wadia

product, contact your Wadia Dealer who is familiar

with your Wadia equipment and any other brands that

may be part of your system. If you or your Dealer

wish additional help concerning a suspected problem,

you can receive technical assistance for all Wadia

products at:

Wadia Digital, LLC.

2 Chambers Street

Binghamton, New York 13903

Phone: 607-723-3539

Fax: 607-724-0549

Customer Service

If it is determined that your Wadia product is in need

of repair, you can return it to your Dealer. You can

also return it to the Wadia Service Department. For

assistance on factory repair return procedure, contact

the Wadia Service Department at:

Wadia Digital, LLC.

2 Chambers Street

Binghamton, New York 13903

Phone: 607-723-3539

Fax: 607-724-0549

The serial number, purchase date and Wadia Dealer

name are important to you for possible insurance

claim or future service. The spaces below have been

provided for you to record that information:

Serial Number: _______________________________

Purchase Date: _______________________________

Dealer Name: ________________________________

Safety Instructions ..................................................... 2

Battery Installation and Replacement ........................ 3

Thank You and Please Take a Moment ...................... 4

Technical Assistance and Customer Service ............. 4

Table of Contents ....................................................... 4

General Information .................................................. 5

Connector and Cable Information ............................. 5

Introduction ................................................................ 6

Performance Features ................................................ 6

Dimensions ................................................................ 7

Installation ................................................................. 8

Connections:

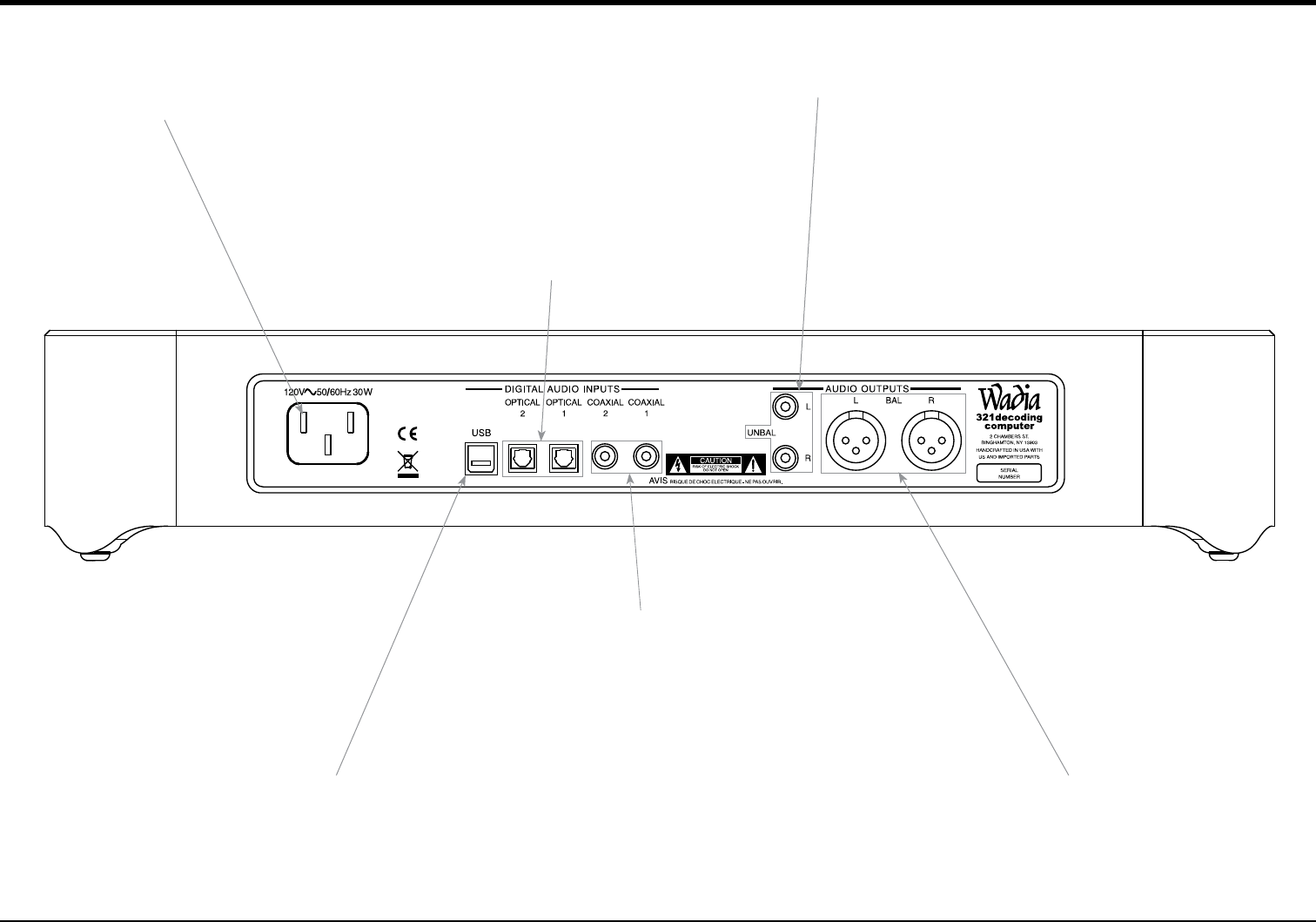

Rear Panel Connections .............................................. 9

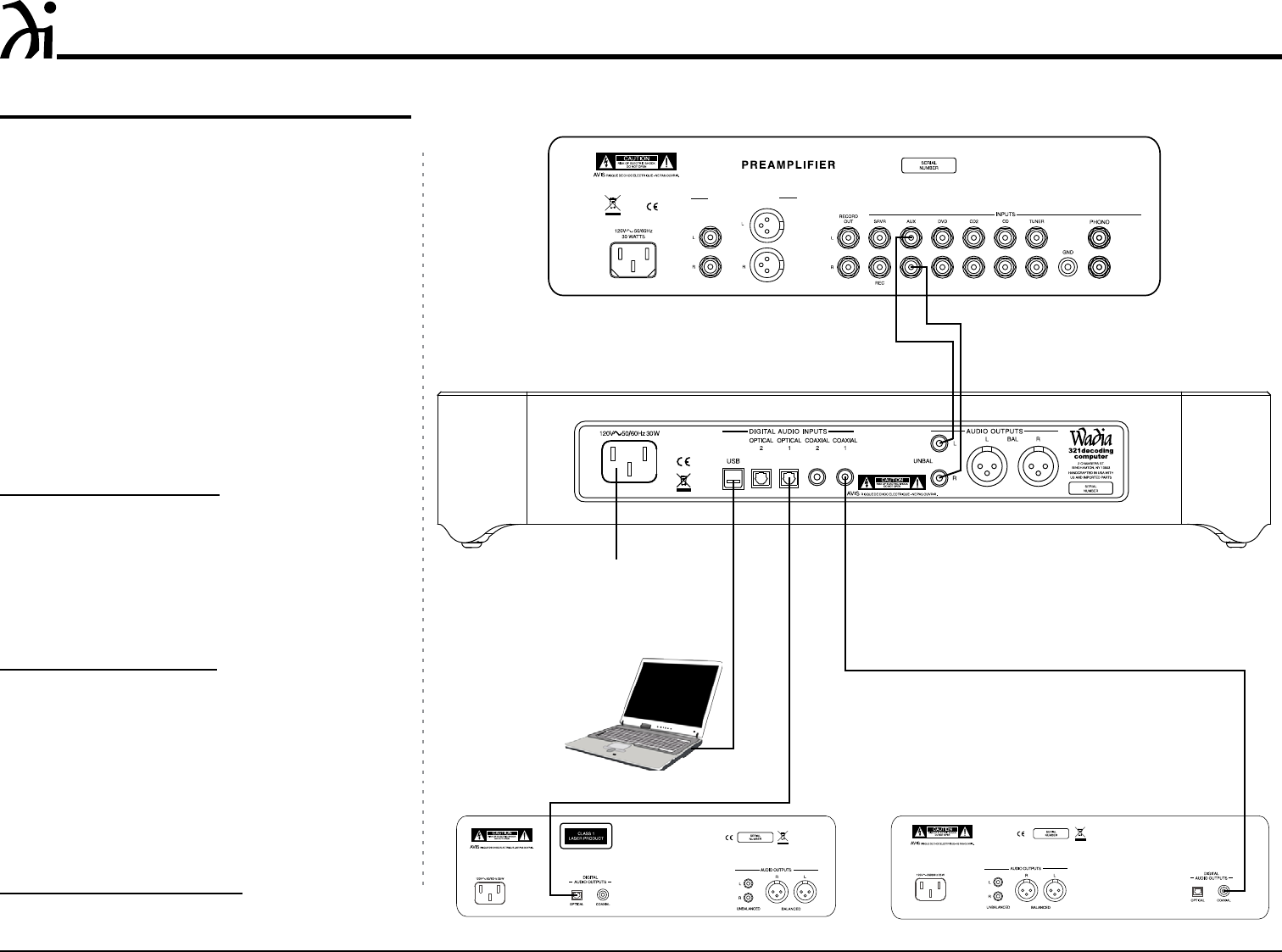

Connecting to a Preamplifier .................................... 10

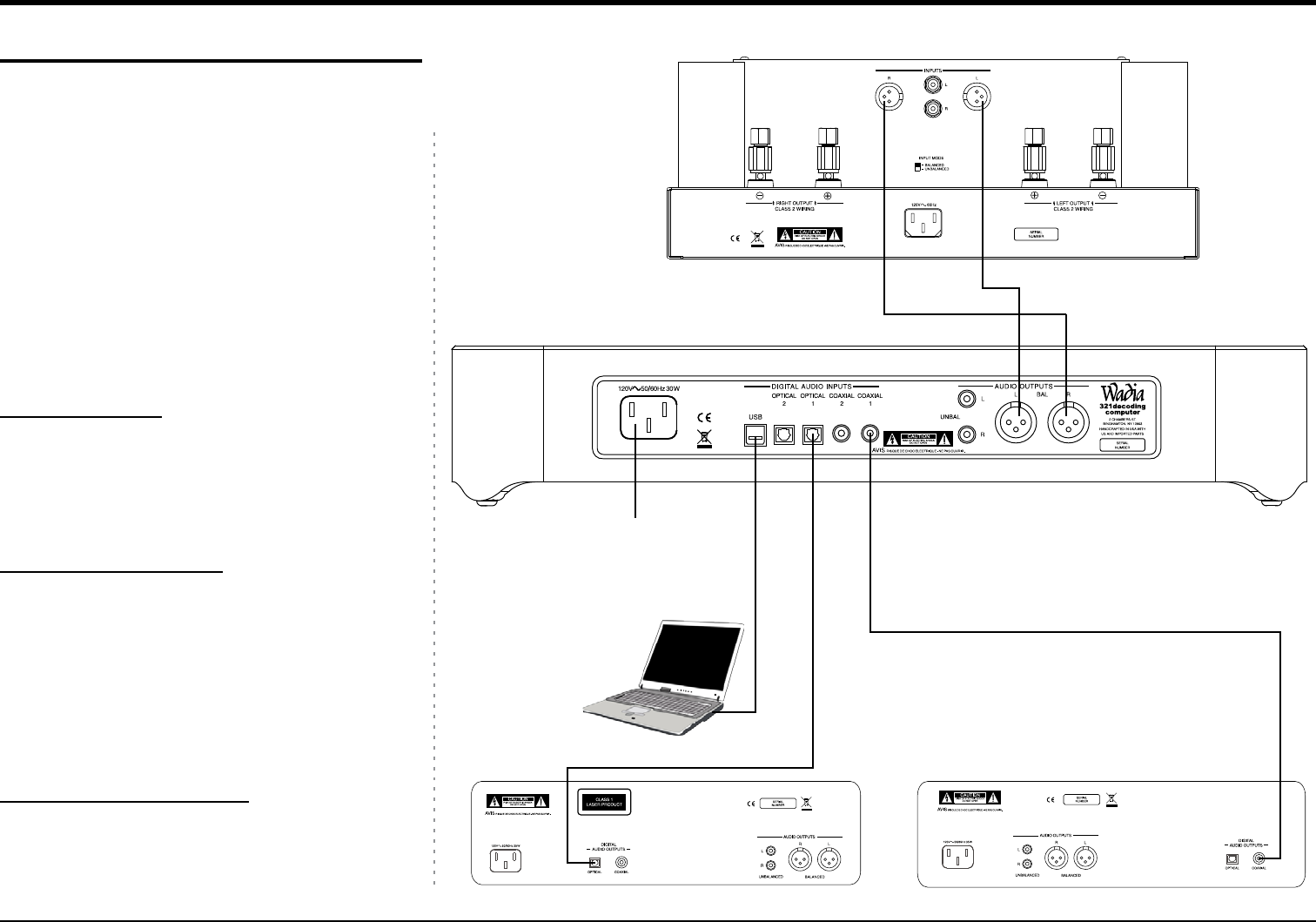

Connecting to a Power Amplifier ..............................11

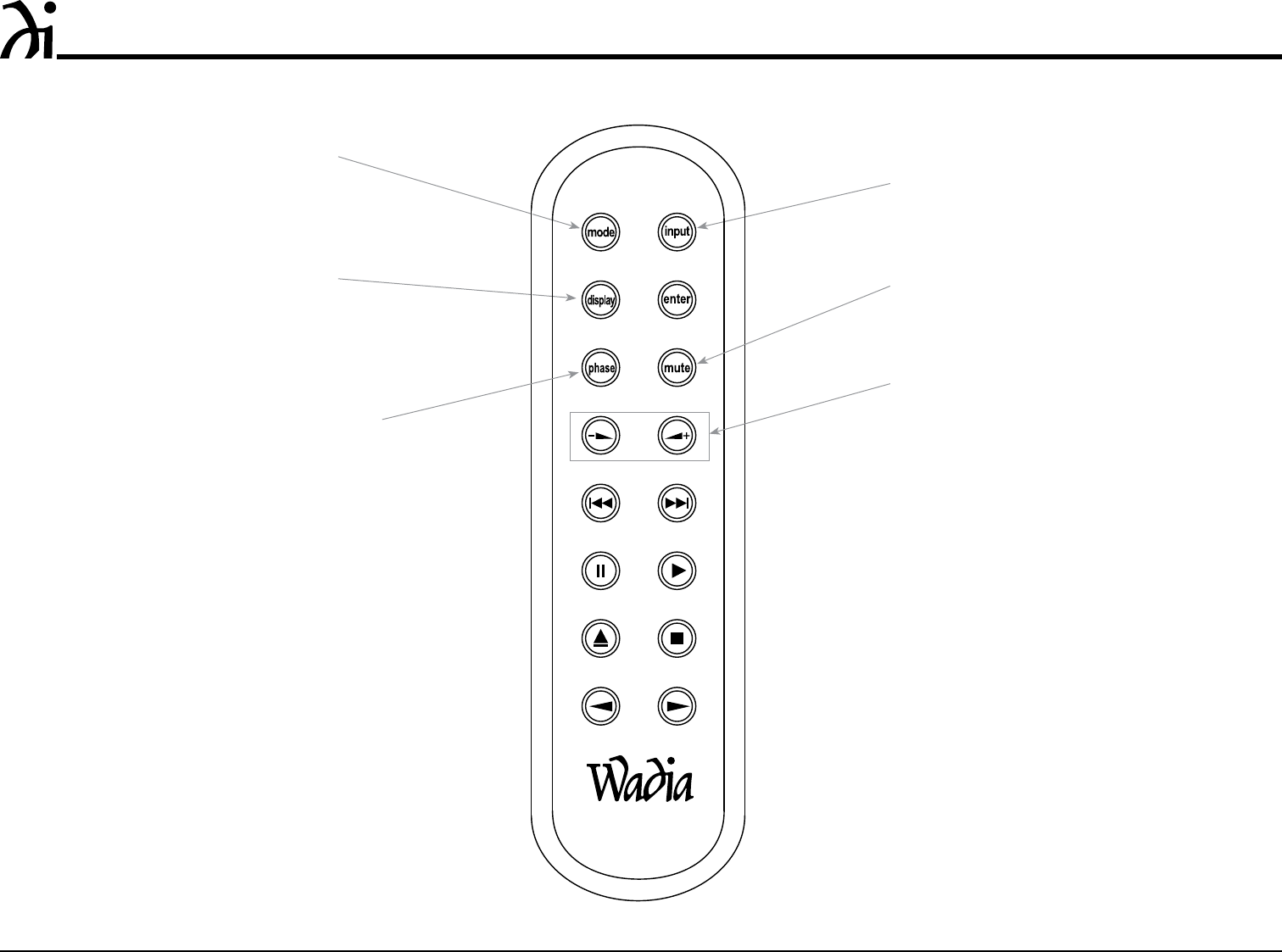

Remote Control:

Remote Control Push-buttons ................................... 12

Front Panel:

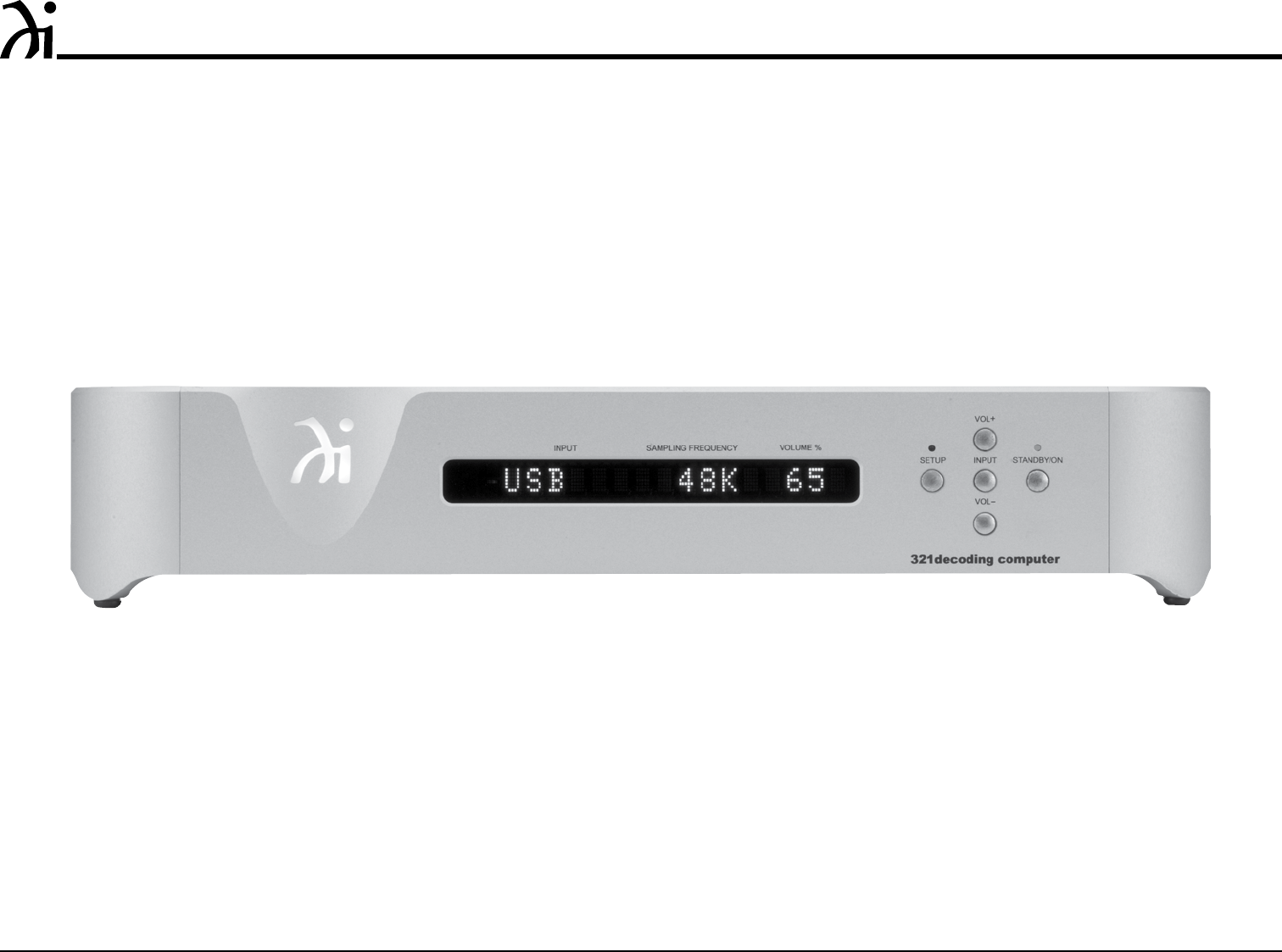

Front Panel Displays, Push-buttons .......................... 13

Setup:

How to Operate Setup Mode .................................... 14

Operation:

How to Operate the 321 ....................................... 15-18

Additional Information:

Photos ................................................................... 19-21

Specifications ............................................................ 22

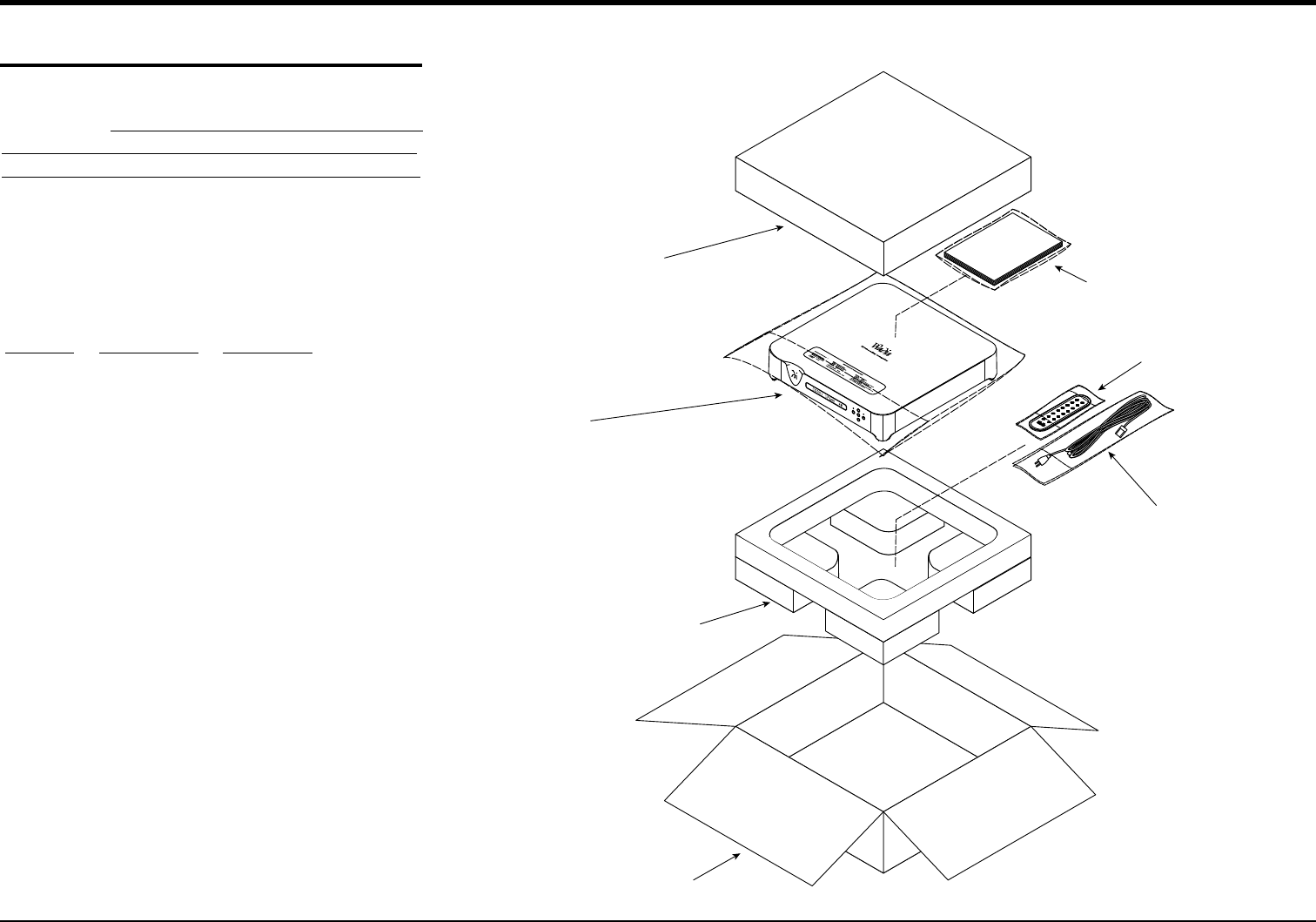

Packing Instruction ................................................... 23

Wadia Digital, founded in 1988, is one of the

original companies dedicated to high performance

digital audio reproduction. Wadia is based on the

philosophy of applying advanced technology to

improve the performance of digital audio compo-

nents.

Wadia has consistently raised the standard for

performance of Digital Audio playback. Some of

the technological innovations pioneered by Wadia

include:

• DigiMaster™ patented algorithm (lter opti-

mized for reproducing music)

• ClockLink™ proprietary jitter reduction tech-

nology

• SwiftCurrent™ current to voltage conversion

technology

• First outboard Digital-to-Analog converter

• First to apply glass ber-optics to home audio

Our designs are born of a delicate balance of

technology shaped by a passion for music. Wadia

continues to re-dene the limits of digital music

playback.

About Wadia ....

and negative terminal connections on any given

channel.

6. When discarding the unit, comply with local rules

or regulations. Batteries should never be

thrown away or incinerated but disposed

of in accordance with the local regulations

concerning battery disposal.

7. For additional information on the 321 and

other Wadia Products please visit the Wadia Web

Site at www.wadia.com.

1. For additional connection information, refer to the

owner’s manual(s) for any component(s) connected

to the 321decoding computer.

2. The Main AC Power going to the 321 and any other

Wadia Component(s) should not be applied until

all the system components are connected together.

Failure to do so could result in malfunctioning

of some or all of the system’s normal operations.

When the 321 and other Wadia Components are in

their Standby Power Off Mode, the Microproces-

sor’s Circuitry inside each component is active.

3. The Unbalanced Outputs and Balanced Outputs can

be used simultaneously.

4. The 321’s internal Digital to Analog Converter

Circuitry is designed to decode 2-channel PCM

(Pulse Code Modulation) Digital Signal present at

the Coaxial, Optical and USB Digital Inputs. Other

Digital Audio Signal Format Types will cause the

Audio Outputs of the 321 to be muted.

5. The term “Absolute Phase” relative to reproduction

of sound by Loudspeakers (or headphone) refers to

the phase of the reproduced signal relative to the

original signal, retaining the original polarity. This

applies regardless of the number of audio channels.

A positive pressure on the microphone is repro-

duced as a positive pressure by the Loudspeaker.

This would be referred to as “In Phase” reproduc-

tion and is normal. When positive pressure on the

microphone is reproduced as a negative pressure by

the Loudspeaker, this would be referred to as “Out

of Phase” reproduction and is not normal. The vast

majority of recordings are made with all channels

in “Absolute Phase”.

The term “Absolute Phase” is not the same as

“Phase Reversal” where there is a polarity reversal

between the Amplifier and Loudspeaker positive

General Information and Connector Information

Connector and Cable Information

XLR Connectors

Below is the Pin configuration for the XLR Balanced

Output Connectors on the 321. Refer to the diagram

for connections:

PIN 1: Shield/Ground

PIN 2: + Output

PIN 3: - Output

PIN 1 PIN 2

PIN 3

General Information

Introduction

Performance Features

Introduction and Performance Features

The Wadia 321 Decoding Computer is one of the

finest Digital to Analog Processors ever created with

connections for digital sources including USB. The

321 Outputs have the ability to drive multiple compo-

nents. The 321 reproduction is sonically transparent

and absolutely accurate. The Wadia Sound is “The

Sound of the Music Itself.”

• Dual Function

Use the Wadia 321 as the Digital Preamplifer together

with Digital Source Components and Power Ampli-

fier1 to form a complete Audio System. Connect the

Wadia 321 to an exisiting Analog Audio System to

provide the latest in Digital-to-Analog Conversion

from digital audio sources.

• Electronic Input Switching

Electronic Input Switching on all Inputs provides reli-

able, noiseless, distortion free switching.

• Digital Audio Inputs

The 321 has Coaxial, Optical and USB Digital Inputs

to Decode PCM Signals from an external source. The

Coaxial and Optical Inputs process Digital Signals

up to 192kHz with 24Bit resolution. The USB Input

process Digital Signals up to 192kHz with 32Bit reso-

lution.

• Quad Balanced Digital to Analog Converter

The 8 channel 32-bit, 192kHz Digital to Analog

Converter is used in a Stereo Quad Balanced Mode,

assuring the music is reproduced with a wide dynamic

range and extremely low distortion, for both Disc and

external sources.

• Balanced Outputs

The Balanced Outputs allow the connection of long

cable lengths without a loss in sound quality.

• Precision Tracking Volume Control

Volume levels are controlled by a Digitally Controlled

Attenuator System.

• Alphanumeric Fluorescent Display

The Front Panel Information Display indicates the

Source Selection, Sampling Frequency, Volume Level,

Output Phase and Setup Mode Selections. The display

intensity is adjustable.

• Remote Control

The Remote Control provides control of the 321 oper-

ating functions.

• Special Power Supply

Fully regulated Power Supplies and a special R-Core

Power Transformer ensure stable noise free operation

even though the power line varies.

• Gold Plated Connectors

The Input and Output Connectors Contacts are gold

plated for superior corrosion resistance and high elec-

trical conductivity.

1Note: The Wadia 321 is designed to be compatible with

the majority of Audio Power Ampliers. However,

do to a wide range of Power Amplier Designs it is

important the input sensitivity of the amplier be at

least 2 Volts. This will assure the playback of most

music recordings are reproduced with adequate

dynamic range.

• LED Front Panel Indicators

Long life Light Emitting Diodes (LEDs) are used to

indicate when the Setup Mode is active and when the

321 is in the Standby Mode.

• Die Cast Aluminium Chasiss

The ensures the durablility and functional design of

the 321 will be retained for many years.

Dimensions

The following dimensions can assist in determin-

ing the best location for your 321. There is additional

information on the next page pertaining to installing

the 321 into cabinets.

Side View of the 321

Front View of the 321

17-7/8"

45.4cm

2-7/8"

7.3cm

3-3/8"

8.6cm

17-7/8"

45.4cm

16-7/16"

41.8cm

Rear View of the 321

17-7/8"

45.4cm

16-7/16"

41.8cm

Installation

The 321 is designed to be placed upright on a table

or shelf, standing on its feet. The required ventilation

requirements are shown.

Always provide adequate ventilation for your 321.

Cool operation ensures the longest possible operating

life for any electronic instrument. Do not install the

321 directly above a heat generating device, such as a

Power Amplifier. Allow at least 2 inches (5.1cm) above

the top, 5/8 inches (1.6cm) below the bottom and 1

inch (2.5cm) on each side of the 321, so that airflow is

not obstructed. Allow 20 inches (50.8cm) of depth for

airflow and cable connections.

321 Side View

20"

50.8cm

321 Front View

5.1cm

2.5cm

5.1cm

Rear Panel Connections

Connect the Wadia 321 power cord to a

live AC outlet. Refer to information on

the back panel of your 321 to determine

the correct voltage for your unit

DIGITAL AUDIO INPUTS COAXIAL

INPUTS 2 and 1 for components with a

Digital Audio Coaxial Output

DIGITAL AUDIO INPUTS OPTICAL

INPUTS 2 and 1 for components with

a Digital Audio Optical Output

USB DIGITAL AUDIO INPUT

with control signal for connection

to a computer

UNBALANCED AUDIO OUTPUTS analog

audio output signals to a Preamplifier or A/V

Control Center

BALANCED AUDIO OUTPUTS analog

audio output signals to a Preamplifier or

A/V Control Center

Connecting to a Preamplifier

There are two different ways the 321 may be operated

in an audio system. The first way is as a Digital to

Analog Converter with Input Switching. The Audio

Output of the 321 is connected to an Analog Input on

the Preamplifier (Integrated Amplifier or Receiver).

Follow the instructions and diagram on this page.

The second way is as the Main Audio Preamplifier

connected directly to a Power Amplifier, follow in-

structions on the next page.

On this page is an example of a typical audio

system. Your system may vary from this, however the

actual components would be connected in a similar

manner. For additional information refer to “Connec-

tor and Cable Information” on page 5.

Note: 1. The Output Connection Balanced or Unbal-

anced may be used simultaneously.

Analog Audio Connections:

1. Connect audio cables from the 321 UNBALanced

AUDIO OUTPUTS R & L (Right and Left) con-

nectors to the unbalanced Aux Input Connectors

on the Preamplifier (A/V Control Center, Integrat-

ed Amplifier or Receiver).

Note: 1. The Balanced Outputs may be used instead of

the Unbalanced Outputs.

Digital Audio Connections:

2. Connect a Digital Optical Cable from the 321

DIGITAL AUDIO INPUTS OPTICAL 1 connector

to the CD Player Digital Optical Output connector.

3. Connect a Digital Coaxial Cable from the 321

DIGITAL AUDIO INPUTS COAXIAL 1 connec-

tor to the Server Digital Coaxial Output connector.

4. Connect a USB cable with (type A to type B) con-

nectors from the 321 DIGITAL AUDIO INPUT

USB connector to the Computer USB connector.

AC Power Cords Connections:

5. Connect the 321 AC Power Cord to a live AC

outlet.

AUDIO OUTPUT

CD PLAYER SERVER

Connect to

AC Outlet

Computer

Connecting to a Power Amplifer

The 321 may also be used as the Main Audio Pream-

plifier connected directly to a Power Amplifier. Folow

the connection instructions below and diagram on this

page.

This is an example of a typical audio system. Your

system may vary from this, however the actual com-

ponents would be connected in a similar manner. For

additional information refer to “Connector and Cable

Information” on page 5.

Notes: 1. The Output Connection Balanced or Unbal-

anced may be used simultaneously.

2. For additional information on Power Ampli-

fier requirements when the Wadia 321 is con-

nected directly to a Power Amplifier, refer to

page 6, 1Note.

Audio Connections:

1. Connect balanced audio cables from the 321 AU-

DIO OUTPUTS (Right and Left) connectors to the

balanced Input connectors on the Power Amplifier.

Note: If two Power Amplifiers are used, connect the

unbalanced AUDIO OUTPUTS (L&R) to the

unbalanced Inputs on the second Amplifier.

Digital Audio Connections:

2. Connect a Digital Optical Cable from the 321

DIGITAL AUDIO INPUTS OPTICAL 1 connector

to the CD Player Digital Optical Output connector.

3. Connect a Digital Coaxial Cable from the 321

DIGITAL AUDIO INPUTS COAXIAL 1 connec-

tor to the Server Digital Coaxial Output connector.

4. Connect a USB cable with (type A to type B) con-

nectors from the 321 DIGITAL AUDIO INPUT

USB connector to the Computer USB connector.

AC Power Cords Connections:

5. Connect the 321 AC Power Cord to a live AC

outlet.

Connecting to a Power Amplifier

POWER AMPLIFIER

CD PLAYER SERVER

Connect to

AC Outlet

Computer

Remote Control Push-Buttons

Note: Push-buttons whose function is not identified above are for use with other Wadia Products.

Press the (+) or (-) to adjust the

Volume Level Up or Down

Steps thru the Digital Inputs

(1 - 5) for source selection

Press MODE to switch

power On or Off to the 321

Mutes the audio

Press DISPLAY to adjust

brightness of the 321 Front

Panel Display

Press PHASE to change the phase

of the Outputs Connections

STANDBY/ON Push-button

with indicator, switches the

321 ON or OFF (Standby)

INPUT Control allows the

selection of digital sources

(1 - 5) for decoding

Front Panel DISPLAY indicates the Source, Sam-

pling Frequency, Volume Level Percentage, Phase,

Operational Functions and Setup Mode Settings

Front Panel Displays, Controls, Push-buttons and Jack

SETUP Push-button with

indicator, activates the

Setup Mode for changing

operational settings

Increases the Volume Level

Decreases the Volume Level

Your Wadia 321 has been factory configured allow-

ing for immediate enjoyment of superb audio. If you

wish to make changes to the factory default settings, a

Setup Feature is provided to customize the operation

by using the Front Panel Information Display. Refer to

the 321 Front Panel Illustration on the previous page

while performing the following steps.

Note: If the 321 is currently On, proceed to step 2.

1. Press the STANDBY/ON Push-button on the Front

Panel or press the MODE (Power) Push-button on

the Remote Control to switch On the 321. The 321

will go through a brief startup intialization with

the Front Panel Display indicating the last used

Input Source and volume setting. Refer to figure 1.

2. Press the SETUP Push-button repeatedly until the

Front Panel Information Display indicates “Firm-

ware V1.00” or higher. Refer to figure 2.

3. Press the SETUP Push-button to exit from the

Setup Mode. The LED above the SETUP Push-

button will extinguish and the Front Panel Display

will revert back to its display of Input, Sampling

Frequency and Volume %. Refer to figure 1.

The 321 functionality is controlled by internal soft-

ware know as “Firmware”. The current Version of

the Firmware can be identified by utilizing the Setup

Mode.

1. Repeatedly press the SETUP Push-button until

“FIRMWARE V_ _.__” is indicated on the

Front Panel Display. Refer to figure 2.

3. Press the SETUP Push-button until the LED above

the SETUP Push-button is extinguished.

How to Operate the Setup Mode

The Default Settings Chart that follows indicates the

Function Name, Default Setting and the Page Number

for additional information.

Default Settings

Firmware Version

Default Settings

Function Name Setting Page No.

AUTO POWER OFF ENABLED 14

F I R M WA R E V_ _.__ 14

Setup

FIRMWARE V1.00

Figure 2

The 321 incorporates an Auto Power Off Feature,

which can automatically place the Digital Preamplifier

into the Power Saving Standby/Off Mode. This occurs

approximately 30 minutes after there has been an

absence of a Digital Audio Signal on the currently se-

lected 321 Input. If it is desirable to change the default

Auto Off Setting of Enabled to Disabled, perform the

following steps:

1. Press the SETUP Push-button.

2. The Front Panel Display will momentarily indicate

“Auto Power Off”. Refer to figure 3.

3. The display will then indicate the current setting,

either Disabled or Enabled. Refer to figures 4

and 5.

Auto Power Off

AUTO POWER OFF

Figure 3

DISABLED

Figure 5

ENABLED

Figure 4

Figure 1

COAX1 192K 75

VOLUME %

INPUT SAMPLING FREQUENCY

FIRMWARE V1.00

Figure 2

4. Press the INPUT Push-button to change the cur-

rent setting.

5. Press the SETUP Push-button repeatedly until

the LED above the SETUP Push-button is extin-

guished, the Front Panel Display indicates the cur-

rently selected Input Source. Refer to figure 1.

brightness preference, High (default setting) or Low Il-

lumination. To change the Brigthness Setting, repeat-

edly press the DISPLAY Push-button on the Remote

Control for the desired Brightness. Refer to figure 56.

Output Phase

Normally, the “Absolute Phase” of recorded music is

“In Phase”. Occasionally the music may be “Out of

Phase” and the 321 can correct this out of phase condi-

tion by pressing the PHASE Push-button on the Re-

mote Control. On the Front Panel Display an “i” will

appear to the right of the Volume

Percentage. Refer to figure 54.

Note: For additional information on

“Absolute Phase” and “Phase

Reversal”, refer to note 5 on

page 5.

USB Input Operation and Driver

Installation

The 321 USB Input provides the

capability to playback music from a

computer when the 321 Rear Panel

USB Connector is connected to a

computer USB Connector. Refer to

figure 55.

Note: The USB Input is for direct connection to a com-

puter only. To playback music from a USB Drive,

connect the USB Drive to another USB Port on

Volume Level

To change the Volume Level of the Wadia 321, press

the Front Panel VOLume + Push-button to increase the

Volume or the VOLume - Push-button to decrease the

Volume. The Volume Level may also be changed by

using the Remote Control (Volume Up) Push-

button or the (Volume Down) Push-button for

the desired listening level. Refer to figures 53 and 56.

Note: A Volume Setting of 88% on the Wadia 321 will

provide optimum performance when it is con-

nected to a Preamplifier (Integrated Amplifier or

Receiver).

Mute

Press the Remote Control MUTE Push-button to mute

the Audio Outputs. Refer to figure 56. When the Wa-

dia 321 is muted, the Front Panel Display will display

a series of dashes where the Volume % is normally

displayed. Refer to figure 52. Pressing the MUTE

Push-button a second time to un-mute the 321.

Display Brightness

The Front Panel Display Brightness may be changed

from the default setting. The 321 will remember the

Power On and Off

The Red LED above the STANDBY/ON Push-button

lights to indicate the 321 is in Standby mode. To

switch ON the 321, press the STANDBY/ON Push-

button on the Front Panel or the MODE (Power On)

Push-button on the Remote Control. The 321 will go

through a brief startup initialization with the Front

Panel Display indicating the last used Input Source

and Volume Level Setting. Refer to figures 50, 53, and

56. To switch OFF the 321 press the STANDBY/ON

Push-button on the Front Panel or the MODE (Power

Off) Push-button on the Remote Control.

Source Selection

Press the INPUT Push-button on the Front Panel

or the INPUT Push-button on the Remote Control

to select the desired source. Refer to figures 53 and

56. When the selected Input Source stops sending a

Digital Audio signal to the Wadia 321, the Front Panel

Display will display a series of dashes where the

Sampling Frequency is normally displayed. Refer to

figure 51.

How to Operate the 321

Figure 53

Figure 56

Figure 50

COAX1 192K 75

VOLUME %

INPUT SAMPLING FREQUENCY

Figure 54

COAX1 192K 75

VOLUME %

INPUT SAMPLING FREQUENCY

USB 192K 75

VOLUME %

INPUT SAMPLING FREQUENCY

Figure 55

Figure 51

COAX1 ----- 75

VOLUME %

INPUT SAMPLING FREQUENCY

COAX1 192K ---

VOLUME %

INPUT SAMPLING FREQUENCY

Figure 52

How to Operate the 321

4. When the Windows Security window appears

click on the “Install” button. Refer to figures 5

thr u 7.

USB Connection

Connect the USB Cable

with Type A to Type B

connectors between the PC

Computer and the Wadia

Product with the USB-Dig-

ital Audio Input. An Icon

will appear On-Screen indicating Windows has found

new hardware. Refer to figure 8.

Referring to figure

9, check the Always

trust software from

“CEntrance, Inc.”

box and then the Install

button. Upon comple-

tion of installing the

driver, figure 10 will

appear.

4. An USB Cable with Type A to

Type B Connectors.

Installing the Software

It is important to first install the downloaded software

on your computer before connecting the Wadia Prod-

uct to the computer. The USB Driver is included in the

downloaded software package.

Note: Before installing this software, please check to see

if the Wadia Product(s) with the USB-Digital Audio

Input has the latest firmware version, if not update

the firmware first.

1. Unzip the downloaded Wadia Windows USB

Driver Software Package.

2. Run “Wadia_USB_driver_._.exe”. Refer to figures

1 and 2.

3. Referring to figure 3,

read and then check the “I accept the terms of the

License Agrement” box and then the Next > button.

If desired, choose a Start Menu Folder. Refer to

figure 4.

the computer and select the USB Drive with the

Media Playback Program.

The 321 USB Input is compatible with PC Comput-

ers using Microsoft® Windows® Vista (SP2), Win-

dows 7 (SP1) and Windows 8 (SP1). It is also com-

patible with Apple® Macintosh® Computers using

OS-10.9 Mavericks or later.

When using a PC Computer with Windows, a spe-

cial Wadia USB Audio Software Driver needs to be

installed on the PC Computer. The driver needs to be

installed before connecting the 321 USB Input to the

USB Port on the computer.

Note: If an Apple Macintosh computer is used with the

321, no additional driver is required.

The Wadia USB Audio Windows Driver is avail-

able for download from the Wadia Web Site:

http://www.Wadia.com/en-us/products/321

Under “Products” select “Wadia 321” then scroll

down to the bottom of the Wadia 321 to the “DOWN-

LOAD AREA”. Select the “WADIA 321 PC DRIVER

SETUP” and download the PC Windows Driver.

Follow the instructions below to install the Wadia 321

Driver:

Purpose: To Install the Wadia USB Audio Windows

Driver for use with Wadia Products with

an USB-Digital Audio Input.

Requirements: 1. A functioning Wadia Product with

an USB-Digital Audio Input.

2. A PC Computer with a genuine

Intel Main Processor and a

functioning USB Port.

3. Windows Vista (SP2), Windows 7

(SP1 or greater) or Windows

8.1 Operating System.

Figure 6

Figure 1 Figure 2

Figure 3 Figure 4

Figure 5

Figure 9

Figure 7

Figure 8

Figure 10

Windows Sound Settings

For proper operation of the McIntosh Product via the

Computer USB Connection, it is required to make

changes to Windows Sound Settings:

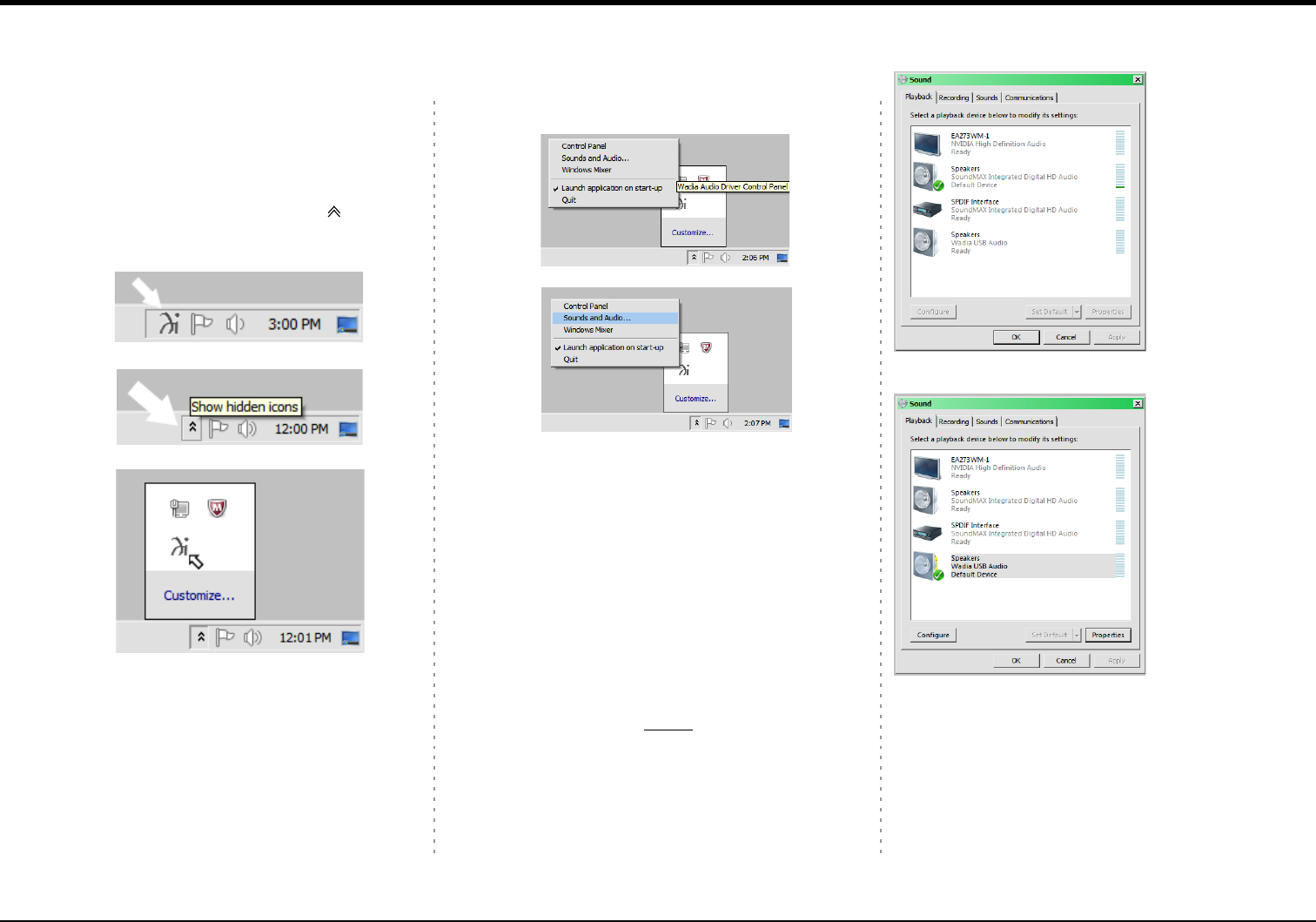

1. Click on the “WADIA ICON” (located in the

Windows notification area on the right side of

the taskbar) or click on the Wiondows “Show

hidden icons”, then select the “WADIA ICON”.

Refer to figures 11, 12 and 13.

Note: Some version(s) of Windows might not show

the Wadia Icon. Click on the “Start” but-

ton, select “Control Panel”, then “Sound”.

Proceed to step 3.

How to Operate the 321, con’t

2. Right mouse button click to bring up the menu

and then select the “Sound and Audio....”. Refer

to figures 14 and 15.

3. Select the “Speakers Wadia USB Audio”

and then click on the SET DEFAULT button.

Refer to figures 16 and 17.

Notes: 1. When the Wadia USB Audio Product is not

connected to your computer, the previous

default Audio Device will be selected.

2. If other Wadia Products with USB Audio

Connections are also connected to the

computer, an additional “Wadia USB

Audio” playback device will appear in the

listing. Make sure to select the “Wadia

USB Audio Device” from available play-

back devices listed when using this Wadia

Product for USB Audio.

Fig u re 11

Figure 12

Figure 13

Figure 14

Figure 15

Figure 17

Figure 16

Wadia USB Audio Driver Operation

Control Panel Settings

The 321 USB Control Panel allows changes to be

made from the default settings. These include Latency,

Sample Rate and Audio Stream Input Output (ASIO)

Control. Refer to figure 18.

Note: It is not necessary for the Wadia USB Control

Panel to be running, unless it is desired to make

changes to the default settings.

L AT E N C Y:

The default Latency Setting is chosen for contempo-

rary computers and their performance capabilities.

When the Wadia USB Audio Driver is installed on

a legacy computer with slower processing speed, it

may occasionally produce clicks/pops in the music. To

resolve this if it occurs, increase the Latency Setting

(increase buffer size).

SAMPLE RATE:

The Sample Rate pull down Window indicates the

Sample Rate choices of the connected Wadia USB

Digital Audio Product. It also communicates the se-

lected choice of Sampling Rate to the active Windows

Playback Program.

Note: In general, when the original music is recorded

at a higher Sampling Rate, the result is usually

more detail in the music. However, this higher

rate results in consuming larger amounts of stor-

age space. The Sample Rate usually should be set

to match the Sample Rate of the music recording

being played back.

ASIO HOSTS CAN CHANGE:

There are two choices. When the box is not checked

(default setting), the Sample Rate is determined by the

Sample Rate Setting in the Wadia USB Control Panel.

It would be an appropriate choice when using a play-

back program like Windows Media Player.

If a third party program for music playback is

ASIO compliant then check the box. These programs

allow changing the Sample Rate Setting directly “on

the fly” according to the format of the music being

played back. An example of just one of the available

programs is “JRiver Media Center”.

ABOU T:

Displays the Driver Version and Control Panel Ver-

sion of the current Wadia USB Audio Driver. Refer to

figure 19.

Figure 18

Figure 19

How to Operate the 321, con’t

Photos

Photos, con’t

Specifications

Frequency Response

+/-0.5dB from 4Hz to 20,000Hz

+0.5/-3dB from 4Hz to 68,000Hz (Source dependent)

Total Harmonic Distortion

0.002%

Variable Output level

0 - 4.0Vrms Unbalanced

0- 8.0Vrms Balanced

Signal To Noise Ratio (A-Weighted)

110dB

Dynamic Range

100dB

Output Impedance

600 ohms Unbalanced and Balanced

Audio Specifications Digital Audio Specifications General Specifications

Power Requirements

Field AC Voltage conversion of the 321 is not pos-

sible. The 321 is factory configured for one of the

following AC Voltages:

100 Volts, 50/60Hz at 30 watts

110 Volts, 50/60Hz at 30 watts

120 Volts, 50/60Hz at 30 watts

220 Volts, 50/60Hz at 30 watts

230 Volts, 50/60Hz at 30 watts

240 Volts, 50/60Hz at 30 watts

Standby Power, less than 0.25 watts

Note: Refer to the rear panel of the 321 for the correct

voltage.

Overall Dimensions

Width is 17-7/8 inches (45.4cm)

Height is 3-3/8 inches (8.6cm) including feet

Depth is 20 inches (50.8cm) including the Front Panel,

and Cables

Weight

25 pounds (11.4 kg) net, 29.5 pounds (13.4 kg) in ship-

ping carton

Shipping Carton Dimensions

Width is 22-1/2 inches (57.2cm)

Height is 8-1/8 inches (20.6cm)

Depth is 22-1/2 inches (57.2cm)

Digital Input Format

SPDIF (PCM1)

Digital Input Sample Rate

Coaxial and Optical: Up to 192KHz, 24-Bit

USB: Up to 192KHz, 32-Bit

Digital Inputs

Coaxial 1 and 2: 0.5V p-p/75 ohms

Optical 1 and 2: - 15dbm to -21dbm (TOS Link)

USB: USB Type B Connector

1 PCM (Pulse Code Modulation) Digital Signal type used for

CD Discs, etc.

Packing Instructions

In the event it is necessary to repack the equipment for

shipment, the equipment must be packed exactly as

shown below. It is very important to ensure the proper

equipment location between the bottom and top foam

pads. Failure to do this will result in shipping damage.

Use the original shipping carton and interior parts

only if they are all in good serviceable condition. If

a shipping carton or any of the interior part(s) are

needed, please call or write Customer Service Depart-

ment of Wadia. Refer to page 4. Please see the Part

List for the correct part numbers.

Quantity Part Number Description

1 034555 Shipping carton only

1 034556 Top foam pad

1 034554 Bottom foam pad

TOP FOAM PAD

BOTTOM FOAM PAD

SHIPPING CARTON

AC POWER CORD

UNIT

OWNER’S

MANUAL

REMOTE

CONTROL

The continuous improvement of its products is

the policy of Wadia Digital who reserve the right

to improve design without notice. Printed in the

U.S.A.

Wadia Digital, LLC

2 Chambers Street

Binghamton, NY 13903

www.wadia.com

Wadia Digital Part No. 04146801

Wadia 321 Users Manual
